Revisão do SEi12 mini PC Beelink: Superando o desempenho da Intel NUC 11

Intel 12th gen mini PC por $US460.

O SEi12 Core i5-1235U oferece um desempenho mais rápido do processador do que o Intel NUC11 Core i7-1165G7 enquanto custa centenas de dólares a menos. Para a maioria das configurações HTPC, o novo Beelink terá toda a potência e recursos necessários para 4K streaming e, em seguida, alguns.

Allen Ngo, 👁 Allen Ngo (traduzido por DeepL / Ninh Duy), Published 12/10/2022 🇺🇸 🇸🇪 ...

Mini PC Alder Lake

Esquerda: Beelink SEi12, Direita: Intel NUC11TNK

A Beelink envia uma vasta gama de mini PCs projetados para o orçamento para os mercados de médio porte. Embora ainda não existam modelos com GPUs dedicados, muitos deles são enviados com Windows 11, RAM e armazenamento já pré-instalados para serem suficientes para centros de mídia, caixas de streaming ou tarefas típicas de navegação ou escritório do dia-a-dia

O último mini PC da Beelink é o SEi12 que vem com o Core i5-1235U da 12ª geração, enquanto a maioria das outras alternativas baratas normalmente vêm com CPUs mais antigas ou mais lentas, a fim de manter os custos baixos. Nossa unidade de revisão pode ser encontrada online por apenas US$ 460

Os concorrentes do SEi12 incluem a maioria dos outros mini PCs alimentados por CPUs da série U, como muitas CPUs Modelos Intel NUCo BMAX B5 Proou o Ace Magician AMR5

Mais revisões Beelink:

Beelink SEi12 Core i5-1235U

Processador

Intel Core i5-1235U 10 x 0.9 - 4.4 GHz, 47 W PL2 / Short Burst, 27 W PL1 / Sustained, Alder Lake-U

Placa gráfica

Intel Iris Xe Graphics G7 80EUs, Análises do: 1200 MHz, Memoría: 1600 MHz, DDR4, 31.0.101.3802

Memória

16 GB

, Crucial DDR4-3200, 22-22-22-52, Dual-Channel

placa mãe

Intel Alder Lake-P PCH

Disco rígido

Kingston NV1 SNVS/500GCN, 500 GB

Placa de Som

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Conexões

2 USB 2.0, 3 USB 3.0, 2 HDMI, 1 DisplayPort, Conexões Audio: 3.5 mm headset

Funcionamento em rede

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 42 x 126 x 113

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

12 Meses Garantia

peso

465 g, Suprimento de energia: 546 g

Preço

460 USD

Links

Beelink página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height	Resolution
v ^(old)	12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
v ^(old)	04/2022	Beelink SEi8 i3-8109U, Iris Plus Graphics 655	346 g	41 mm	x
v ^(old)	04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
v ^(old)	02/2021	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs	647 g	56 mm	x
v ^(old)	11/2022	BMAX B5 Pro G7H8 i5-8260U, UHD Graphics 620	369 g	43.2 mm	x
v ^(old)		Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH	1.3 kg	39 mm	x

Caso

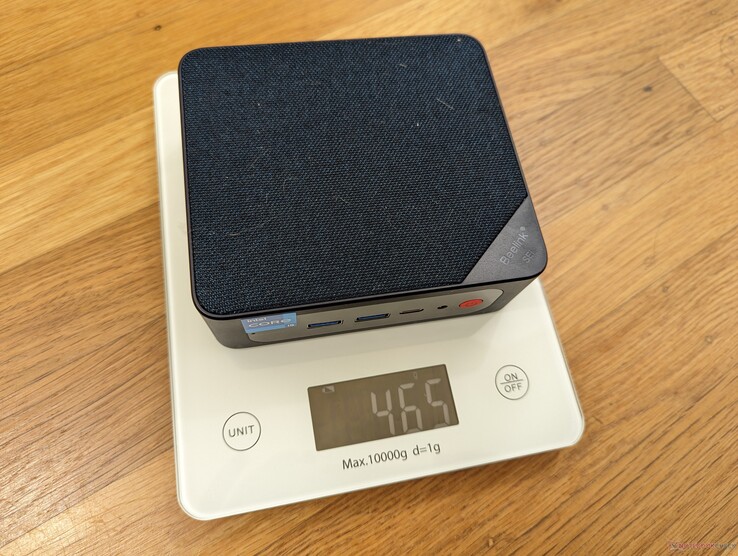

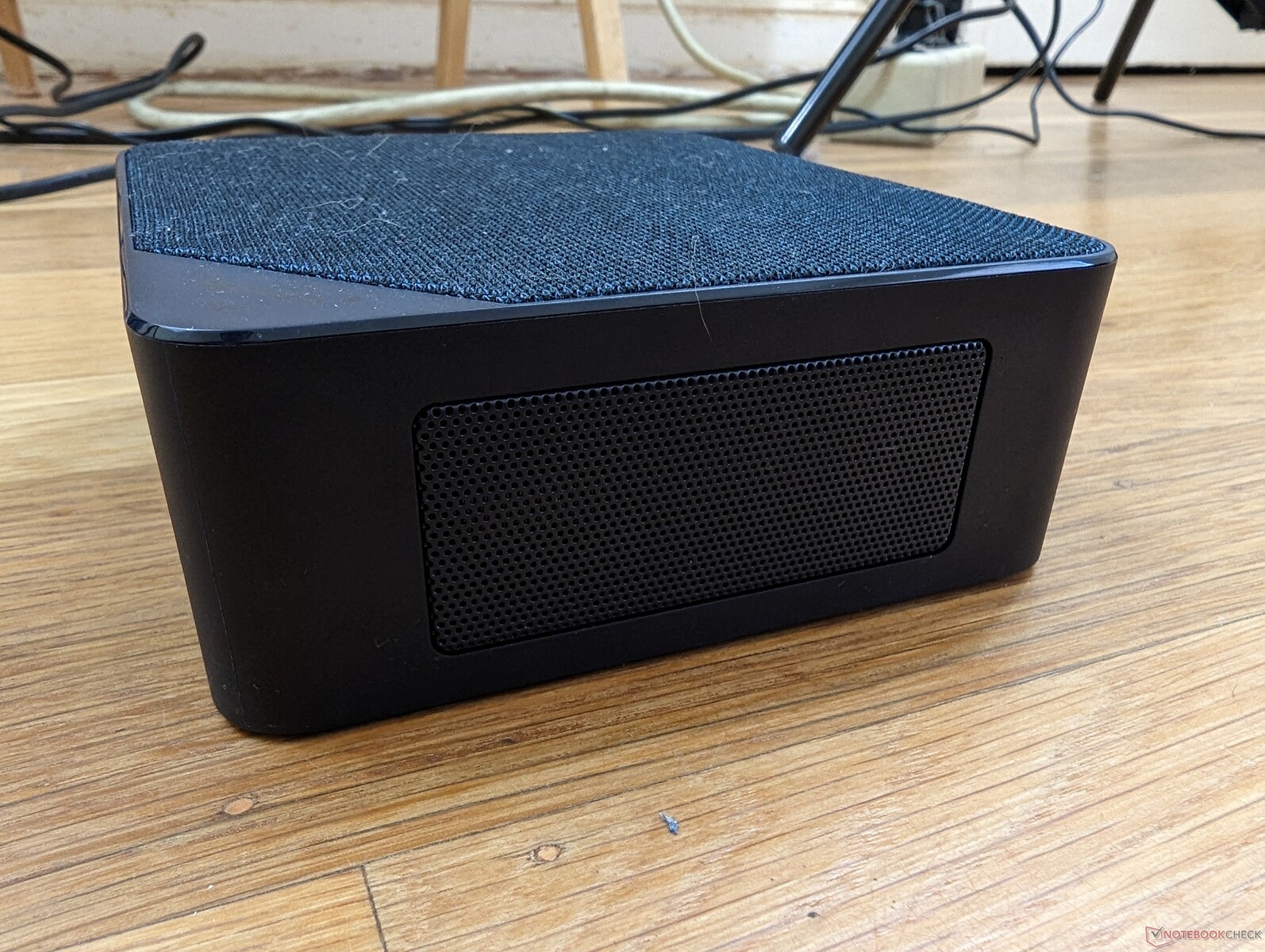

O chassi é apenas ligeiramente mais grosso e pesado que o mais antigo SEi 11mas com outros materiais metálicos e características físicas semelhantes. O aspecto visual mais notável do SEi12 é seu novo material de velo ou tecido na superfície superior, enquanto os desenhos mais antigos do Beelink eram simplesmente de plástico liso ou uma malha plástica perfurada. O pano é liso ao toque para uma sensação de luxo, mas a limpeza pode ser difícil, pois o cabelo e o pó grudam mais prontamente sobre ele.

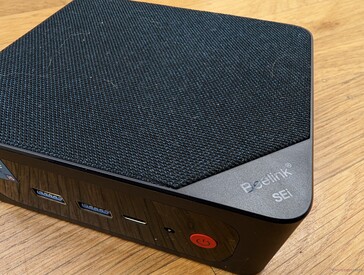

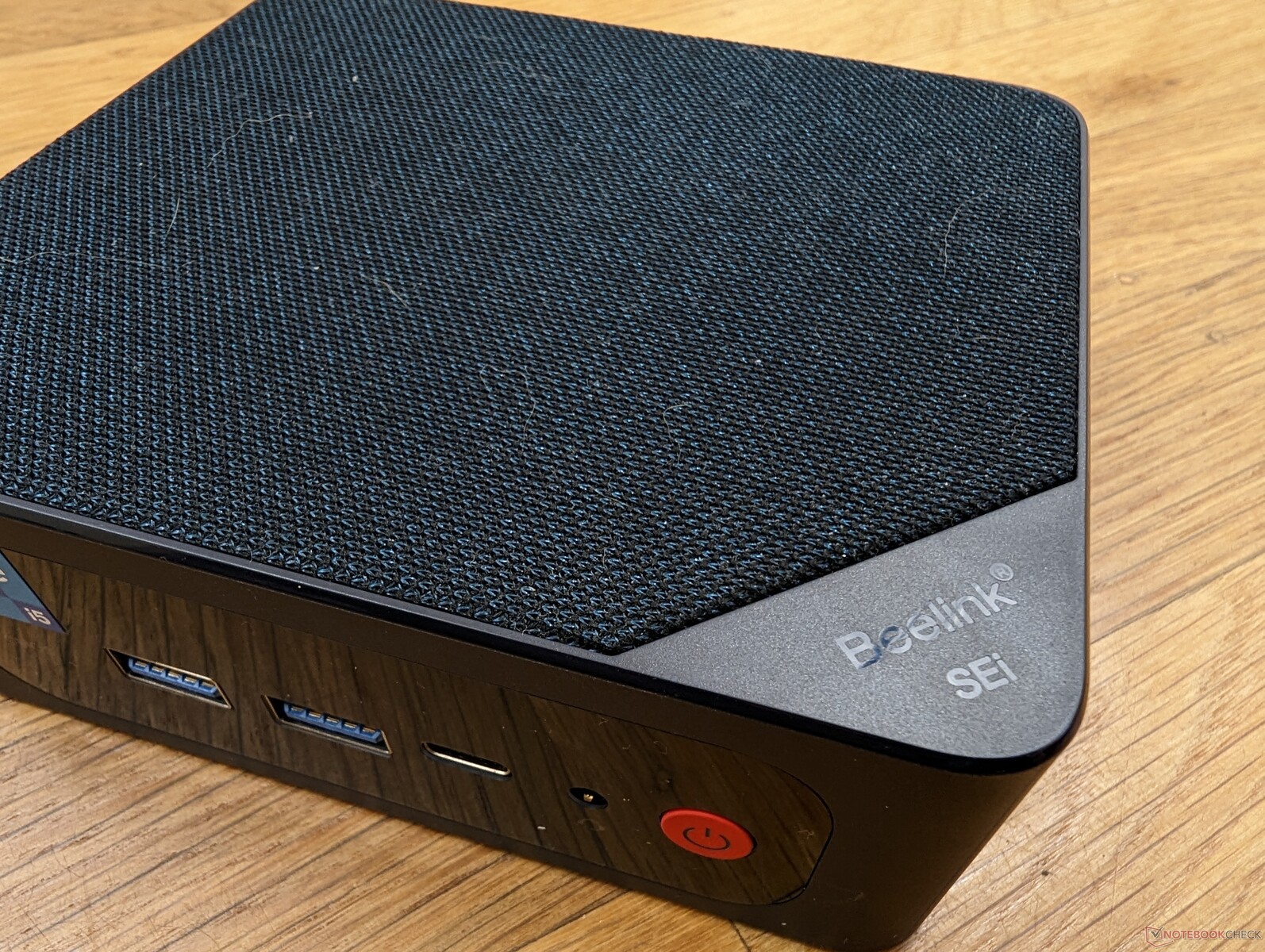

Novo tecido resistente à água na parte superior

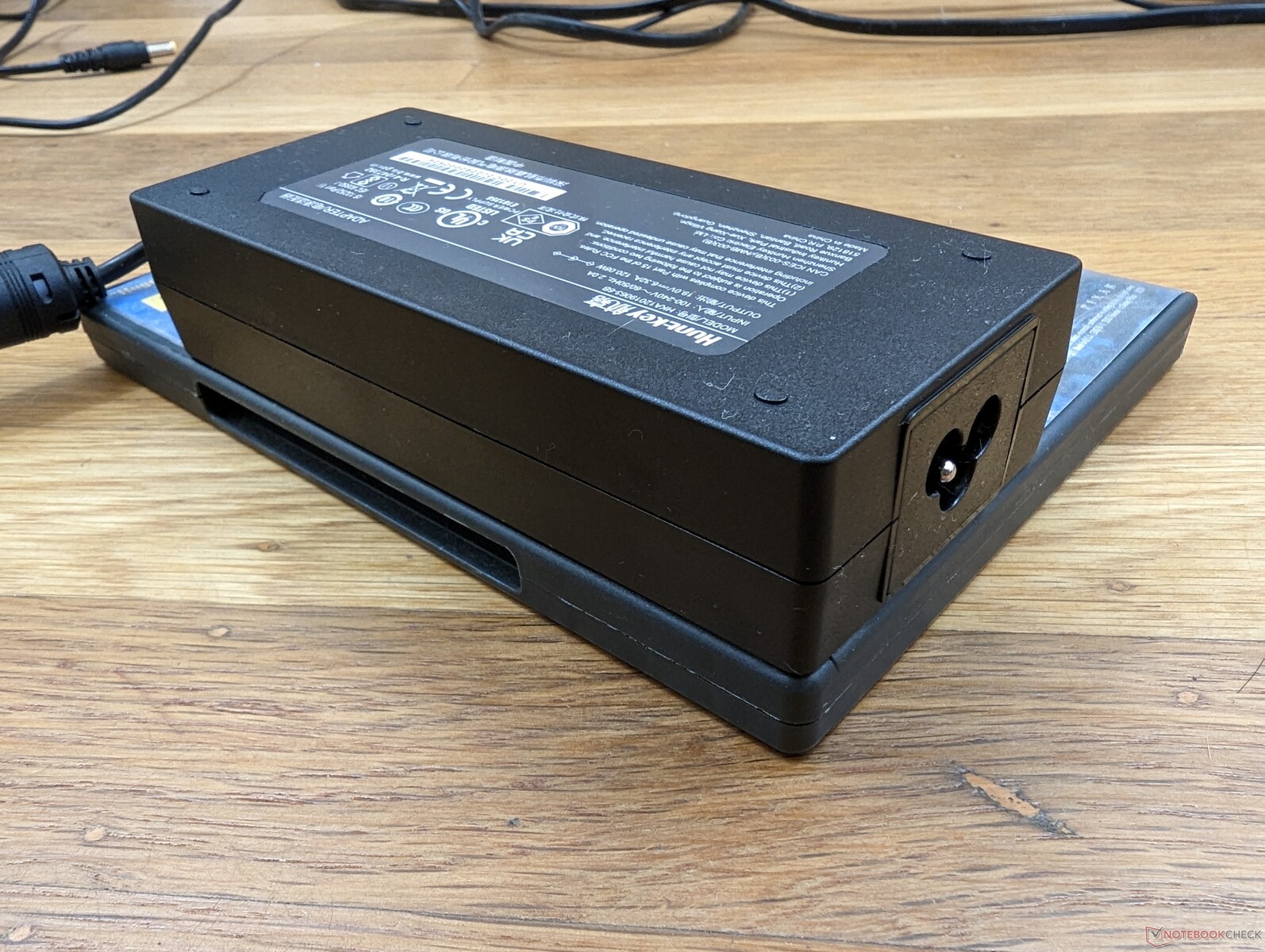

tijolo de 120 W de potência é relativamente grande a 14,5 x 6,4 x 3 cm

O painel inferior possui furos para a montagem removível VESA com base de borracha colada e parafusos Philips

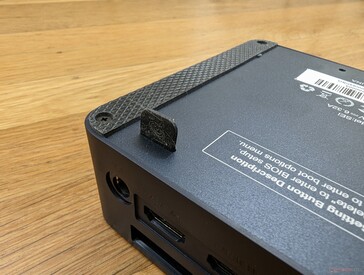

Aba de borracha no fundo para facilitar muito a remoção do painel plano

Comparação de tamanho

Intel Hades Canyon NUC8i7HVK Intel NUC11PAQi7 BMAX B5 Pro G7H8 Beelink SEi12 Core i5-1235U Beelink SEi11 Pro Beelink SER4 DIN A4 ❌

Conectividade - Sem relâmpago

As opções de porta são excelentes com cinco portas USB e duas portas HDMI à escolha. No entanto, não podemos emitir nenhum vídeo da porta USB-C, o que significa que o DisplayPort-over-USB pode não ser suportado. O sistema também não pode ser alimentado por USB-C.

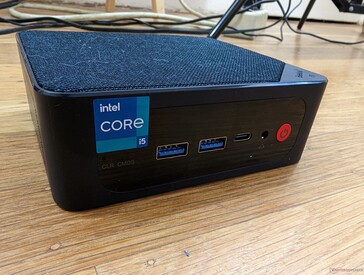

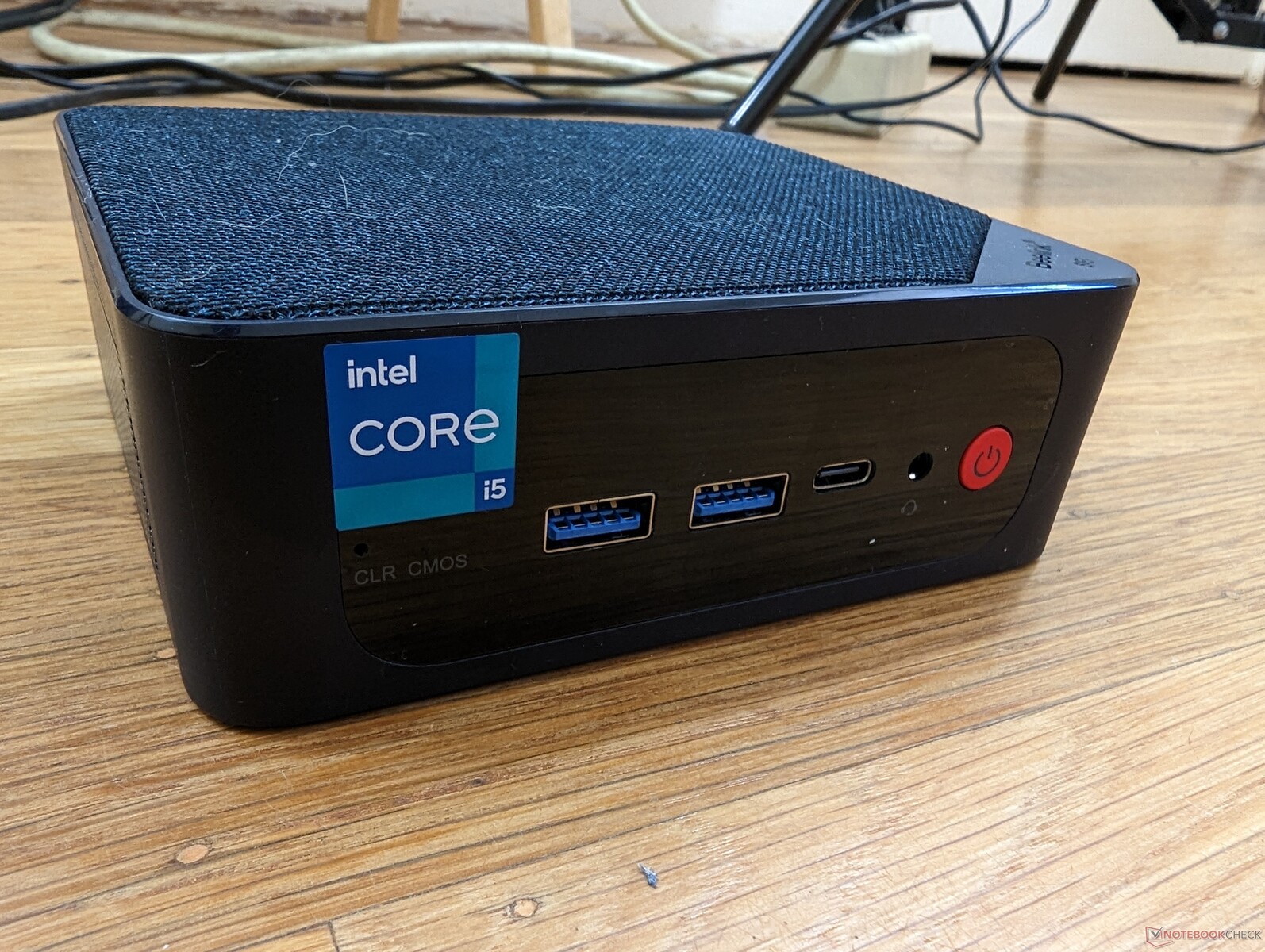

Frente: Botão Clear CMOS, 2x USB-A 3.0, USB-C, fone de ouvido 3.5 mm, botão de alimentação

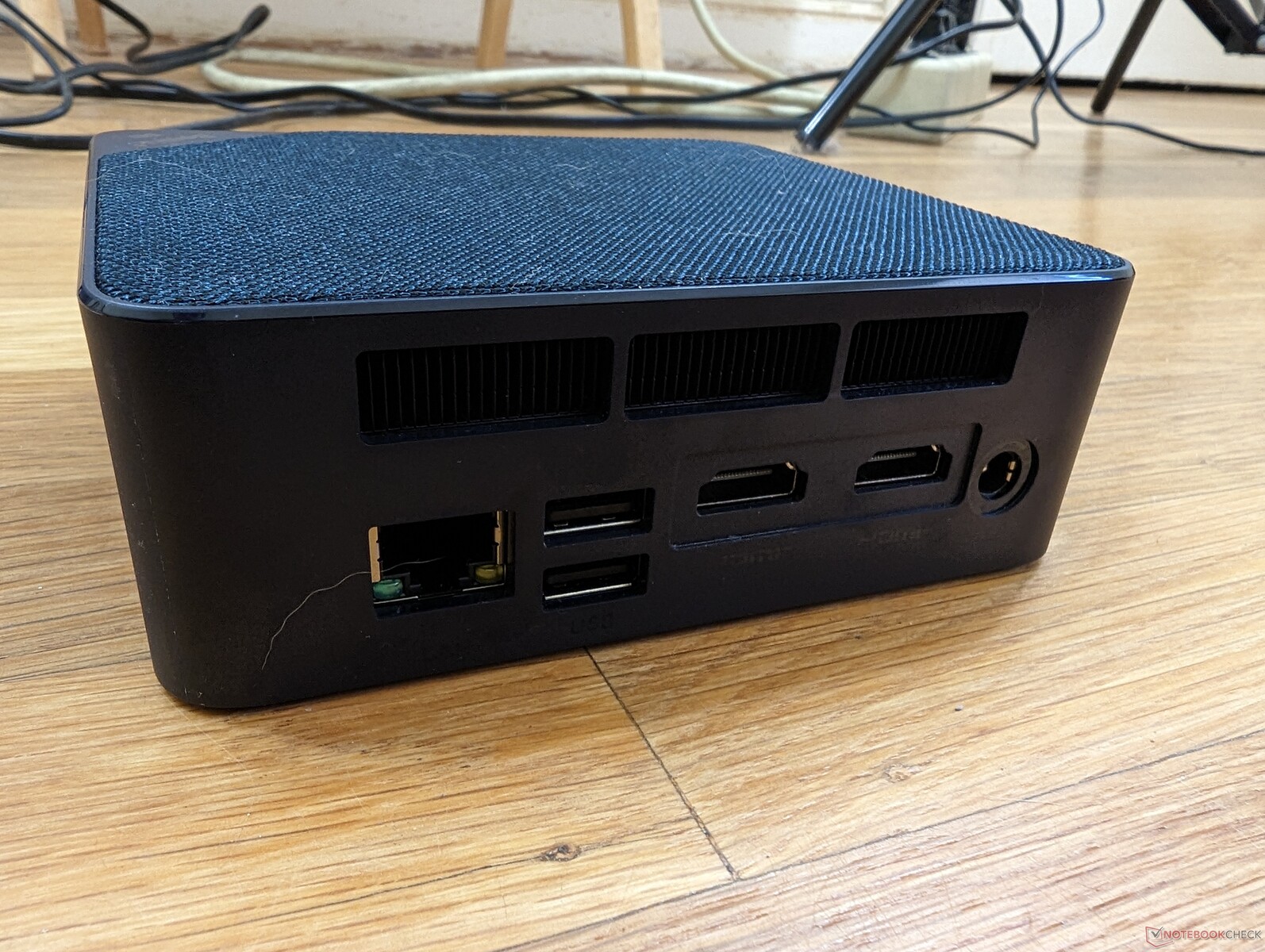

Atrás: Gigabit RJ-45, 2x USB-A 2.0, 2x HDMI 2.0, adaptador AC

Comunicação

Um Intel AX201 vem como padrão para conectividade Wi-Fi 6 e Bluetooth 5.2. Não há opções de Wi-Fi 6E que possam manter os custos baixos, mas os usuários podem instalar seu próprio módulo Wi-Fi 6E, se desejarem. As taxas de transferência são, no entanto, rápidas e estáveis.

Networking
iperf3 transmit AX12
Beelink SER4 MediaTek RZ608	821 (758^min - 891^max) MBit/s
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	546 (369^min - 618^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s
Beelink SEi8 Intel Dual Band Wireless-AC 3165	200 (156^min - 261^max) MBit/s
iperf3 receive AX12
Beelink SER4 MediaTek RZ608	880 (842^min - 900^max) MBit/s
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	862 (809^min - 916^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s
Beelink SEi8 Intel Dual Band Wireless-AC 3165	338 (320^min - 344^max) MBit/s
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s
BMAX B5 Pro G7H8 Realtek RTL8852BE	708 (679^min - 737^max) MBit/s -49%
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s
BMAX B5 Pro G7H8 Realtek RTL8852BE	634 (593^min - 680^max) MBit/s -57%

Beelink SEi12 Core i5-1235U; iperf3 transmit AXE11000; iperf 3.1.3: Ø1491 (1413-1572)

Beelink SEi12 Core i5-1235U; iperf3 receive AXE11000; iperf 3.1.3: Ø1384 (1200-1495)

Manutenção

A manutenção requer um pouco mais de trabalho do que a maioria dos outros mini PCs. A remoção da placa inferior expõe um dos ventiladores que deve então ser removido para revelar os módulos RAM, M.2 SSD e M.2 WLAN, como mostram as imagens abaixo. Felizmente, basta uma chave de fenda comum da Philips para quaisquer atualizações.

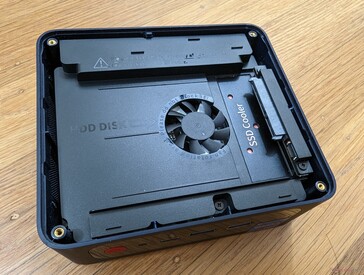

A remoção da placa inferior expõe o ventilador e esvazia o slot SATA III de 2,5 polegadas

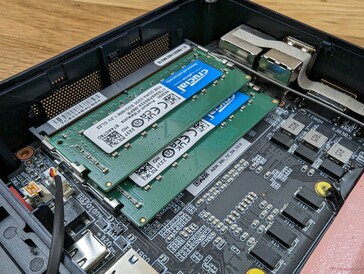

Os internos são acessíveis uma vez que o ventilador é removido

Acessórios e Garantia

A caixa de varejo inclui dois cabos HDMI, suporte VESA com parafusos, manual do usuário e o adaptador AC. Aplica-se uma garantia limitada de fabricante de um ano em comparação com três anos se comprar um NUC da Intel.

Desempenho

Condições de teste

Definimos nossa unidade para o modo Performance antes de executar quaisquer benchmarks de performance abaixo. O fabricante não inclui aplicações pré-instaladas ou software do tipo "centro de controle" com qualquer um de seus mini PCs.

Processador

O desempenho da CPU é excelente com resultados que são significativamente mais rápidos do que oGateway Ultra Slim 14.1 ou VAIO FE 14.1 cada um com o mesmo 12º gênero Núcleo i5-1235U CPU. A sustentabilidade do Turbo Boost certamente poderia ser melhor, no entanto, já que a pontuação do CineBench R15 xT diminuiria em cerca de 14% ao longo do tempo, como mostra o gráfico abaixo. O alto potencial de Turbo Boost não é esperado de qualquer forma, uma vez que se trata de uma CPU Core da série U

O desempenho geral multi-tarefa é cerca de 15% mais rápido do que o do 11º gênero Núcleo i7-1165G7 no preço NUC11.

Cinebench R15 Multi Loop

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink SER4 AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Intel NUC11PAQi7 Intel Core i7-1165G7: Ø969 (962.77-985.76)

BMAX B5 Pro G7H8 Intel Core i5-8260U: Ø566 (557.08-626.69)

Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G: Ø857 (853.53-862.44)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points +4%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	3131 Points +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points
Average Intel Core i5-1235U (1783 - 3537, n=8)	2709 Points -13%
Intel NUC11PAQi7 Intel Core i7-1165G7	2657 Points -15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points -35%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points -36%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points -52%
Beelink SEi8 Intel Core i3-8109U	772 Points -75%

Cinebench R20 / CPU (Single Core)
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	669 Points +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points
Average Intel Core i5-1235U (566 - 651, n=8)	613 Points -1%
Intel NUC11PAQi7 Intel Core i7-1165G7	582 Points -6%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points -10%
Beelink SER4 AMD Ryzen 7 4800U	488 Points -21%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points -35%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points -35%
Beelink SEi8 Intel Core i3-8109U	351 Points -43%

Cinebench R23 / Multi Core
Beelink SER4 AMD Ryzen 7 4800U	8376 (8310.1^min - 8376.05^max) Points +3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points +3%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8332 (8041.69^min - 8332.08^max) Points +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points
Intel NUC11PAQi7 Intel Core i7-1165G7	6862 Points -16%
Average Intel Core i5-1235U (2485 - 9208, n=8)	6365 Points -22%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points -36%
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points -63%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points -75%

Cinebench R23 / Single Core
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1756 Points +9%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points
Average Intel Core i5-1235U (1444 - 1698, n=8)	1587 Points -1%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points -10%
Beelink SER4 AMD Ryzen 7 4800U	1240 Points -23%
Beelink SEi8 Intel Core i3-8109U	906 Points -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points -61%

Cinebench R15 / CPU Multi 64Bit
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1400 (1342.78^min - 1400.12^max) Points -1%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points -6%
Average Intel Core i5-1235U (785 - 1587, n=8)	1125 Points -20%
Intel NUC11PAQi7 Intel Core i7-1165G7	986 (962.77^min - 985.76^max) Points -30%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -39%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points -56%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -77%

Cinebench R15 / CPU Single 64Bit
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	250 Points +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	230 Points 0%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points -7%
Average Intel Core i5-1235U (151.5 - 242, n=8)	213 Points -8%
Beelink SER4 AMD Ryzen 7 4800U	187 Points -19%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points -23%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points -32%
Beelink SEi8 Intel Core i3-8109U	124.3 Points -46%

Blender / v2.79 BMW27 CPU
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * -241%
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * -86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * -51%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * -38%
Average Intel Core i5-1235U (366 - 662, n=8)	491 Seconds * -26%
Intel NUC11PAQi7 Intel Core i7-1165G7	468 Seconds * -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds *
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	381 Seconds * +2%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * +3%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +13%

7-Zip 18.03 / 7z b 4
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +13%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	37325 MIPS +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS
Average Intel Core i5-1235U (20166 - 38643, n=8)	30566 MIPS -14%
Intel NUC11PAQi7 Intel Core i7-1165G7	27203 MIPS -24%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS -34%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS -47%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -73%

7-Zip 18.03 / 7z b 4 -mmt1
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	5464 MIPS +5%
Intel NUC11PAQi7 Intel Core i7-1165G7	5405 MIPS +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS +3%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS
Average Intel Core i5-1235U (4371 - 5233, n=8)	5000 MIPS -4%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS -11%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS -21%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS -22%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS -28%

Geekbench 5.5 / Multi-Core
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points +12%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8105 Points +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points
Average Intel Core i5-1235U (5528 - 8571, n=10)	6774 Points -13%
Beelink SER4 AMD Ryzen 7 4800U	6375 Points -18%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points -26%
Intel NUC11PAQi7 Intel Core i7-1165G7	4975 Points -36%
Beelink SEi8 Intel Core i3-8109U	1880 Points -76%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points -77%

Geekbench 5.5 / Single-Core
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1712 Points +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	1559 Points -5%
Average Intel Core i5-1235U (1426 - 1643, n=10)	1553 Points -5%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points -8%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points -27%
Beelink SEi8 Intel Core i3-8109U	888 Points -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points -61%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +10%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	9.92 fps +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps
Intel NUC11PAQi7 Intel Core i7-1165G7	8.47 fps -10%
Average Intel Core i5-1235U (4.99 - 9.43, n=8)	7.83 fps -17%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps -25%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps -31%
Beelink SEi8 Intel Core i3-8109U	2.85 fps -70%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps -81%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * -122%
Beelink SEi8 Intel Core i3-8109U	79 s * -62%
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * -29%
Average Intel Core i5-1235U (42.4 - 65.5, n=8)	50.3 s * -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * -0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s *
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	44.5 s * +9%
Intel NUC11PAQi7 Intel Core i7-1165G7	42.2 s * +13%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * -146%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * -68%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * -17%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * -13%
Intel NUC11PAQi7 Intel Core i7-1165G7	0.553 sec * -8%
Average Intel Core i5-1235U (0.4986 - 0.603, n=8)	0.527 sec * -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec *
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	0.4807 sec * +6%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1409 Points

Cinebench R15 OpenGL 64Bit

95.4 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

231 Points

Cinebench R20 CPU (Multi Core)

3111 Points

Cinebench R20 CPU (Single Core)

620 Points

Cinebench R23 Single Core

1610 Points

Cinebench R23 Multi Core

8128 Points

Ajuda

... comparado com

Performance Rating
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	91.8 pt
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	78 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	73.2 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	72.1 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	69.5 pt
Average Intel Core i5-1235U	60 pt
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	43.2 pt
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	24.5 pt

AIDA64 / FP32 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +48%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	7373 KRay/s +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	7026 KRay/s +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	6915 KRay/s +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s
Average Intel Core i5-1235U (3078 - 7457, n=8)	5618 KRay/s -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	4686 KRay/s -31%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	2663 KRay/s -61%

AIDA64 / FPU Julia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points +64%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	37403 Points +9%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	37275 Points +8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	29426 Points -15%
Average Intel Core i5-1235U (15838 - 37760, n=8)	29359 Points -15%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	23561 Points -32%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	12985 Points -62%

AIDA64 / CPU SHA3
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	2079 MB/s +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	1983 MB/s +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	1911 MB/s +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -2%
Average Intel Core i5-1235U (978 - 2072, n=8)	1604 MB/s -15%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	1029 MB/s -45%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	629 MB/s -67%

AIDA64 / CPU Queen
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +31%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65340 Points +9%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	64914 Points +9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points
Average Intel Core i5-1235U (45680 - 62404, n=8)	57047 Points -5%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	52480 Points -12%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	43788 Points -27%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	23893 Points -60%

AIDA64 / FPU SinJulia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +154%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	4779 Points +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	4580 Points -1%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	4499 Points -3%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	4189 Points -10%
Average Intel Core i5-1235U (3099 - 4644, n=8)	3958 Points -15%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	2152 Points -54%

AIDA64 / FPU Mandel
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points +75%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	18624 Points +14%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	17999 Points +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	17959 Points +10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points
Average Intel Core i5-1235U (8046 - 18819, n=8)	14550 Points -11%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	11729 Points -28%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	6615 Points -60%

AIDA64 / CPU AES
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	67682 MB/s +1%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	67458 MB/s 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -19%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	38221 MB/s -43%
Average Intel Core i5-1235U (23386 - 67140, n=8)	35602 MB/s -47%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	16756 MB/s -75%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	8170 MB/s -88%

AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	577 MB/s -9%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	558 MB/s -12%
Average Intel Core i5-1235U (329 - 633, n=8)	500 MB/s -21%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	341 MB/s -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	299 MB/s -53%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	147.2 MB/s -77%

AIDA64 / FP64 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +57%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	3966 KRay/s +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	3926 KRay/s +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	3766 KRay/s +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s
Average Intel Core i5-1235U (1670 - 3928, n=8)	3034 KRay/s -14%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	2556 KRay/s -28%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	1440 KRay/s -59%

AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	44210 MPixel/s +50%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	42305 MPixel/s +43%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	38731 MPixel/s +31%
Average Intel Core i5-1235U (15933 - 41909, n=8)	31677 MPixel/s +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s -18%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	19258 MPixel/s -35%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	14060 MPixel/s -52%

Desempenho do sistema

Os resultados da PCMark são significativamente mais altos do que os anterioresBeelink SEi8 que utiliza uma 8ª geração i3-8109U e um SSD Intel 660p mais lento.

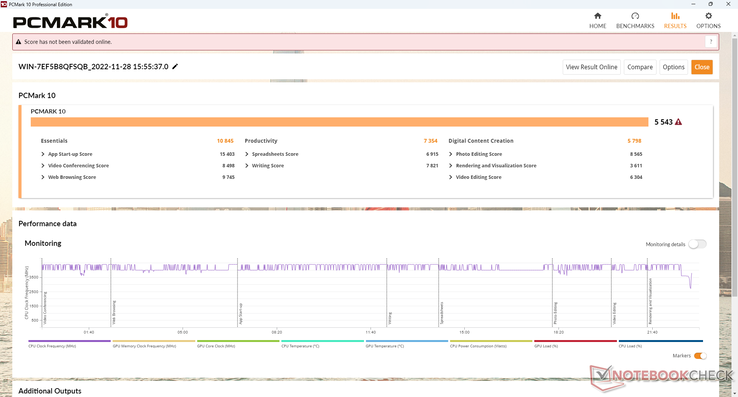

PCMark 10 / Score
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points -4%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5257 Points -5%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5158 Points -7%
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (4528 - 5543, n=8)	5007 Points -10%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	3921 Points -29%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	3645 Points -34%

PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	10258 Points -5%
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (9143 - 11273, n=8)	9930 Points -8%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	9188 Points -15%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points -16%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	8177 Points -25%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	7861 Points -28%

PCMark 10 / Productivity
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	7916 Points +8%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points +8%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	7136 Points -3%
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (6440 - 7354, n=8)	6708 Points -9%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	6197 Points -16%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	6093 Points -17%

PCMark 10 / Digital Content Creation
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points -3%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5422 Points -6%
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (4220 - 5839, n=8)	5129 Points -12%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5087 Points -12%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	3229 Points -44%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	2746 Points -53%

CrossMark / Overall
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (983 - 1644, n=8)	1383 Points -16%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	819 Points -50%

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (1026 - 1676, n=8)	1378 Points -18%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	856 Points -49%

CrossMark / Creativity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (1032 - 1618, n=8)	1445 Points -7%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	761 Points -51%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points
Average Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (746 - 1867, n=8)	1241 Points -34%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	891 Points -52%

PCMark 10 Score		5543 pontos
Ajuda

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average Intel Core i5-1235U (24653 - 61921, n=8)	49493 MB/s +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s -14%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	33609 MB/s -22%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	28779 MB/s -33%

AIDA64 / Memory Read
Average Intel Core i5-1235U (24441 - 66108, n=8)	51759 MB/s +11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	30792 MB/s -34%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	30757 MB/s -34%

AIDA64 / Memory Write
Average Intel Core i5-1235U (25156 - 75808, n=8)	52813 MB/s +14%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s -6%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	34164 MB/s -26%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	17678 MB/s -62%

AIDA64 / Memory Latency
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -3%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	94.4 ns * -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns *
Average Intel Core i5-1235U (76.3 - 119, n=8)	82.8 ns * +10%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	56 ns * +39%

* ... smaller is better

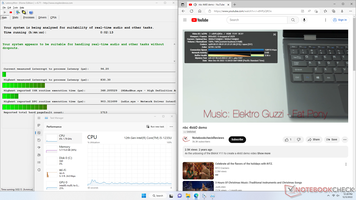

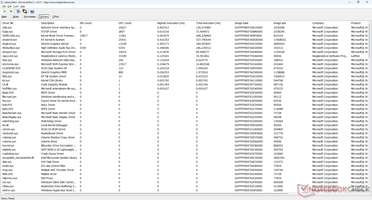

Latência do DPC

LatencyMon não revela nenhum problema de DPC ao abrir várias abas do navegador em nossa página inicial. a reprodução de vídeo de 4K a 60 FPS é suave e sem queda de quadros.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs *
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	568 μs * +32%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	401.8 μs * +52%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	336 μs * +60%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * +80%

* ... smaller is better

Dispositivos de armazenamento

O sistema suporta SSDs PCIe4 x4 NVMe e inclui até mesmo um dissipador de calor para manter a temperatura sob controle. No entanto, a unidade é fornecida com um Kingston NV1 PCIe3 x4 NVMe SSD em vez disso como uma medida de economia de custos. Ao executar o DiskSpd em um loop, podemos observar taxas de transferência caindo de uma alta de 3600 MB/s para uma baixa de 1700 MB/s, o que pode sugerir um dissipador de calor com baixo desempenho.

Slot primário M.2 2280 PCIe4 x4 NVMe + baía secundária SATA III de 2,5 polegadas na parte superior. O módulo WLAN removível fica embaixo do SSD M.2

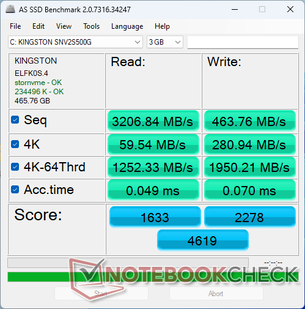

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

Sequential Read: 3206.84MB/s

Sequential Write: 463.76MB/s

4K Read: 59.54MB/s

4K Write: 280.94MB/s

4K-64 Read: 1252.33MB/s

4K-64 Write: 1950.21MB/s

Access Time Read: 0.049ms

Access Time Write: 0.07ms

Copy ISO: 0.99MB/s

Copy Program: 344.18MB/s

Copy Game: 411.4MB/s

Score Read: 1633Points

Score Write: 2278Points

Score Total: 4619Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	81.5 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	70.8 pt
Intel Hades Canyon NUC8i7HVK ^-8! Intel Optane 120 GB SSDPEK1W120GA	51.2 pt
BMAX B5 Pro G7H8	42 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	40.5 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	34.3 pt

DiskSpd
seq read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3630 (3511.15^min - 3630.17^max) MB/s +45%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s
BMAX B5 Pro G7H8	2167 (1366.5^min - 2167.27^max) MB/s -14%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s -35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -45%
seq write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3504 (3409.87^min - 3503.8^max) MB/s +23%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s -42%
BMAX B5 Pro G7H8	1401 (545.01^min - 1401.03^max) MB/s -51%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -66%
seq q8 t1 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6794 (6533.05^min - 6794.19^max) MB/s +87%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s
BMAX B5 Pro G7H8	2448 (2357.41^min - 2447.51^max) MB/s -33%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s -35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -57%
seq q8 t1 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	4867 (4865.94^min - 4867.49^max) MB/s +71%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s
BMAX B5 Pro G7H8	1922 (587.5^min - 1922.04^max) MB/s -32%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s -50%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -66%
4k q1 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s -21%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	55.8 (55.66^min - 55.82^max) MB/s -30%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s -36%
BMAX B5 Pro G7H8	49.1 (48.65^min - 49.06^max) MB/s -38%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s -49%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s -56%
BMAX B5 Pro G7H8	130.2 (125.24^min - 130.18^max) MB/s -67%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	83.2 (82.75^min - 83.2^max) MB/s -79%
4k q32 t16 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3117 (3085.18^min - 3117.44^max) MB/s +61%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s
BMAX B5 Pro G7H8	1181 (609.06^min - 1181.44^max) MB/s -39%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s -62%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -82%
4k q32 t16 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2636 (2619.44^min - 2635.84^max) MB/s +19%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s
BMAX B5 Pro G7H8	914 (454.55^min - 913.99^max) MB/s -59%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s -63%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s -67%

AS SSD
Score Total
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6725 Points +46%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	3023 Points -35%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points -41%
BMAX B5 Pro G7H8	2389 Points -48%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -60%
Score Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2660 Points +63%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1524 Points -7%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points -40%
BMAX B5 Pro G7H8	827 Points -49%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -67%
Score Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2676 Points +17%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points -44%
BMAX B5 Pro G7H8	1147 Points -50%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -55%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	714 Points -69%
Seq Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3257 MB/s +2%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s
BMAX B5 Pro G7H8	2258.54 MB/s -30%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s -30%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -48%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1379 MB/s -57%
Seq Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3937 MB/s +749%
BMAX B5 Pro G7H8	1845.2 MB/s +298%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s +280%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s +87%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	553 MB/s +19%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s
4K Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	127.9 MB/s +115%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s -5%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	51.3 MB/s -14%
BMAX B5 Pro G7H8	44.84 MB/s -25%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s -26%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s -31%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s -42%
BMAX B5 Pro G7H8	130.67 MB/s -53%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	103.5 MB/s -63%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	75.7 MB/s -73%
4K-64 Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2283 MB/s +82%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1258 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s -44%
BMAX B5 Pro G7H8	555.92 MB/s -56%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -74%
4K-64 Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2206 MB/s +13%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s -53%
BMAX B5 Pro G7H8	831.78 MB/s -57%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s -60%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	556 MB/s -71%
Access Time Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -73%
BMAX B5 Pro G7H8	0.058 ms * -18%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.056 ms * -14%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * -8%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.025 ms * +49%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * -389%
BMAX B5 Pro G7H8	0.156 ms * -123%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.154 ms * -120%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -96%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.033 ms * +53%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SEi12 Core i5-1235U: Ø3411 (1756.47-3635.06)

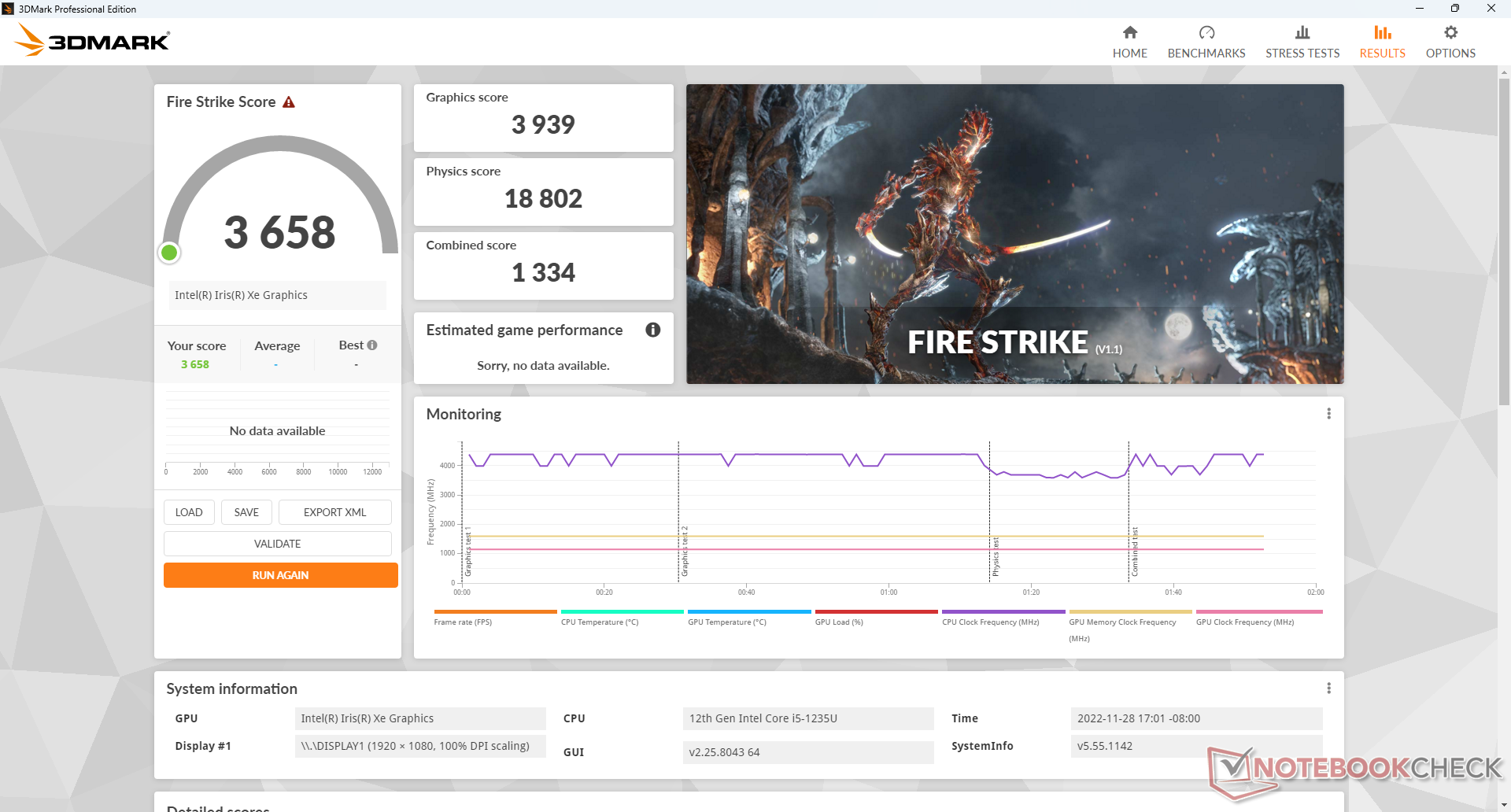

Desempenho da GPU

O desempenho gráfico é onde esperamos que seja relativo a outros PCs com os mesmos integrados Iris Xe G7 80 EUs GPU. Observe que outros PCs com o Iris Xe G7 96 EU podem ser mais rápidos em até 25% a 40% se configurados com RAM de canal duplo ao invés de RAM de canal simples.

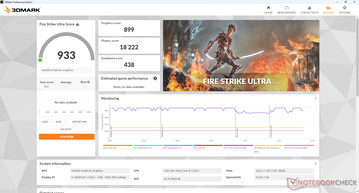

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	10248 Points +160%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points +24%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points 0%
Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111)	3794 Points -4%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points -5%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	1715 Points -56%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1288 Points -67%
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	2908 Points +154%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points +42%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +8%
Average Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=108)	1172 Points +2%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points +2%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	569 Points -50%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	422 Points -63%
2560x1440 Time Spy Score
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	3096 Points +136%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1854 Points +41%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1412 Points +8%
Average Intel Iris Xe Graphics G7 80EUs (630 - 1731, n=108)	1317 Points 0%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1316 Points 0%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	636 Points -51%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	484 Points -63%

3DMark 11 - 1280x720 Performance GPU
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	14302 Points +183%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points +35%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +19%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points +19%
Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109)	5179 Points +2%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	2801 Points -45%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1744 Points -65%

3DMark 11 Performance		5598 pontos
3DMark Cloud Gate Standard Score		18879 pontos
3DMark Fire Strike Score		3658 pontos
3DMark Time Spy Score		1311 pontos
Ajuda

... comparado com

Blender - v3.3 Classroom CPU
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1402 Seconds * -98%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1099 Seconds * -55%
Average Intel Iris Xe Graphics G7 80EUs (463 - 3047, n=50)	932 Seconds * -32%
HP Spectre x360 13.5 14t-ef000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	726 Seconds * -3%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds *
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	697 Seconds * +1%

* ... smaller is better

Performance Rating - Percent
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	100 pt
Beelink SEi11 Pro ^-1! Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.9 pt
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.8 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	43.5 pt
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	39.5 pt
BMAX B5 Pro G7H8 ^-5! Intel Core i5-8260U, Intel UHD Graphics 620	5.9 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +181%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +17%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps +13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -16%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +432%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps +81%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -23%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps +51%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps +10%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -6%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +223%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +37%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps +27%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -3%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +124%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +21%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -87%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +54%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps +26%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -2%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165.5 (148^min) fps +113%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	94.8 (40^min) fps +22%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	70.3 (63^min) fps -10%
Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101)	65.4 fps -16%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.2 (51^min) fps -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	23.8 (20^min) fps -69%
1366x768 Medium Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	105.1 (100^min) fps +116%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +19%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	50.1 (54^min) fps +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.2 (41^min) fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	43.7 (40^min) fps -10%
Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103)	41.9 fps -14%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	13.5 (10^min) fps -72%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	59.7 (56^min) fps +130%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	33.5 (15.9^min, 16.8^P0.1, 18.7^P1) fps +29%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.7 (29^min) fps +26%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32 (14^min, 15.4^P0.1, 17.2^P1) fps +23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.6 (21^min) fps -13%
Average Intel Iris Xe Graphics G7 80EUs (9.3 - 33.5, n=101)	21.6 fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.7 (18^min) fps -20%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	7.3 (2^min) fps -72%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +181%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.8 (14^min) fps +21%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps
Average Intel Iris Xe Graphics G7 80EUs (6.26 - 28, n=91)	11.2 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -16%

GTA V
1024x768 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (1.676^min, 100^P1) fps +40%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	113.9 (22.5^min, 66.7^P1) fps -3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	110 (19.4^min, 71.4^P1) fps -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps -10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps -13%
Average Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=81)	83.1 fps -29%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	67.6 (16.5^min, 47.6^P1) fps -42%
1920x1080 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (4.25^min, 111^P1) fps +146%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	91.4 (16^min, 58.8^P1) fps +36%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	88.4 (8.61^min, 58.8^P1) fps +32%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	80.4 (22.6^min, 52.6^P1) fps +20%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	71.5 (8.83^min, 52.6^P1) fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (21.5 - 98.1, n=66)	61.9 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.7 (12.8^min, 27.8^P1) fps -39%
1366x768 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	158 (4.71^min, 100^P1) fps +60%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	100.9 (23.5^min, 62.5^P1) fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (13.8^min, 62.5^P1) fps 0%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps -4%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps -11%
Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84)	70.6 fps -28%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	52.5 (13.6^min, 37^P1) fps -47%
1920x1080 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	157 (3.27^min, 100^P1) fps +143%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	80.8 (23.8^min, 47.6^P1) fps +25%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 (15.8^min, 50^P1) fps +21%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (6.79^min, 50^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	71.3 (22.8^min, 45.5^P1) fps +10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (18.8 - 97.2, n=66)	55.9 fps -14%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35.3 (13.8^min, 23.8^P1) fps -45%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.2 (1.964^min, 62.5^P1) fps +372%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 (5.48^min, 21.7^P1) fps +72%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29.4 (12.5^min, 20.8^P1) fps +71%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	24.3 (8.65^min, 18.2^P1) fps +41%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	24 (8.72^min, 18.2^P1) fps +40%
Average Intel Iris Xe Graphics G7 80EUs (7.81 - 32, n=83)	18.3 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.6 (5.49^min, 8.93^P1) fps -27%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +432%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps +81%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	10.3 (4.39^min, 6.58^P1) fps +39%
Average Intel Iris Xe Graphics G7 80EUs (3.07 - 11.6, n=70)	7.86 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -23%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.8 fps +129%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.5 fps +33%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	43.6 fps +22%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	43.4 fps +22%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.3 fps +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps
Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104)	31.6 fps -11%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.3 fps -15%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	16.6 fps -54%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.61 fps -84%
1920x1080 Standard Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	41.2 fps +113%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +30%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.9 fps +29%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	23.8 fps +23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.2 fps -1%
Average Intel Iris Xe Graphics G7 80EUs (4.47 - 25.1, n=97)	17.4 fps -10%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.6 fps -19%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	8.8 fps -54%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +85%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.1 fps +34%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	16.6 fps +23%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps
Average Intel Iris Xe Graphics G7 80EUs (4.01 - 22, n=88)	13 fps -4%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -6%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	6.08 fps -55%

Strange Brigade
1280x720 lowest AF:1
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	210 (146^min, 184^P1) fps +219%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +36%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	89 (19.4^min, 28.4^P1) fps +35%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps +33%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.3 (43.8^min, 72.3^P1) fps +25%
Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81)	67.4 fps +2%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.2 (14^min, 22.8^P1) fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps
1920x1080 medium AA:medium AF:4
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	85.3 (73.4^min, 74.4^P1) fps +222%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.8 (14.1^min, 22.7^P1) fps +54%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +45%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +44%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.3 (24^min, 29.6^P1) fps +26%
Average Intel Iris Xe Graphics G7 80EUs (6 - 48.8, n=83)	28.1 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	23.8 (5.4^min, 6.17^P1) fps -10%
1920x1080 high AA:high AF:8
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	68 (51.7^min, 52.9^P1) fps +218%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.4 (8.5^min, 17.9^P1) fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 11.4^P1) fps +42%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.7 (7.4^min, 10.7^P1) fps +39%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.1 (20.4^min, 22.5^P1) fps +31%
Average Intel Iris Xe Graphics G7 80EUs (11.4 - 32.3, n=80)	22.8 fps +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.1 (5^min, 5.19^P1) fps -6%
1920x1080 ultra AA:ultra AF:16
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +223%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	26.1 (7^min, 9.02^P1) fps +49%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.5 (5^min, 6.62^P1) fps +40%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +37%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps +35%
Average Intel Iris Xe Graphics G7 80EUs (13.6 - 26.2, n=56)	19.8 fps +13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -3%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	127 (103.6^min) fps +35%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	117.8 (92.7^min) fps +26%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	115.1 (96.2^min) fps +23%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	109 (85^min) fps +16%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (88.1^min) fps +10%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	94.4 (75.6^min) fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps
Average Intel Iris Xe Graphics G7 80EUs (14.8 - 140.3, n=109)	91.3 fps -3%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	78.8 (48.8^min) fps -16%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	42.4 (30.8^min) fps -55%
1366x768 med (1/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	119 (95.8^min) fps +34%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	105.8 (88^min) fps +19%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	92.2 (73.2^min) fps +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	85.7 (67^min) fps -3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.3 (67.5^min) fps -6%
Average Intel Iris Xe Graphics G7 80EUs (10.9 - 119.5, n=109)	67.8 fps -24%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	61.8 (46.8^min) fps -30%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	34.6 (29.8^min) fps -61%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	8.6 (6.3^min) fps -90%
1920x1080 high (2/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	108 (87.1^min) fps +137%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	68.4 (57.5^min) fps +50%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	68.1 (61.5^min) fps +50%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	67.4 (60.9^min) fps +48%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.1 (44.7^min) fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps
Average Intel Iris Xe Graphics G7 80EUs (10.4 - 70.9, n=109)	42.8 fps -6%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.7 (26.8^min) fps -17%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	25.3 (19.3^min) fps -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (4.2^min) fps -88%
1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +124%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	62.4 (55.5^min) fps +48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps +47%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	59.8 (52.4^min) fps +42%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +21%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps
Average Intel Iris Xe Graphics G7 80EUs (7.8 - 66.1, n=110)	39.4 fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -17%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.7 (18.8^min) fps -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -87%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39 (25^min) fps +191%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	22.6 (14.7^min) fps +69%
Average Intel Iris Xe Graphics G7 80EUs (9.1 - 17.8, n=7)	14.2 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.4 (8.9^min) fps
1920x1080 Medium Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	30 (21^min) fps +163%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	18.6 (12.1^min) fps +63%
Average Intel Iris Xe Graphics G7 80EUs (11.4 - 14.7, n=5)	12.7 fps +11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	11.4 (8^min) fps
1920x1080 High Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (16^min) fps +156%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.2 (9.8^min) fps +58%
Average Intel Iris Xe Graphics G7 80EUs (9 - 11.3, n=4)	10.1 fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	9 (6.7^min) fps
1920x1080 Ultra Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (15^min) fps +211%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	11.2 (7.7^min) fps +51%
Average Intel Iris Xe Graphics G7 80EUs (7.4 - 9.71, n=4)	8.53 fps +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.4 (5.3^min) fps

X-Plane 11.11
1280x720 low (fps_test=1)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	61.8 fps +28%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	44.5 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.3 fps -13%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 fps -15%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.4 fps -17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.9 fps -22%
Average Intel Iris Xe Graphics G7 80EUs (9.12 - 74.4, n=109)	36.4 fps -25%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.4 fps -54%
1920x1080 med (fps_test=2)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	52.8 fps +61%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	41.1 fps +25%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	35.8 fps +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	34.9 fps +6%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 fps 0%
Average Intel Iris Xe Graphics G7 80EUs (6.45 - 40.5, n=110)	28.6 fps -13%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	15 fps -54%
1920x1080 high (fps_test=3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +54%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	36.2 fps +23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32.9 fps +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps +3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -2%
Average Intel Iris Xe Graphics G7 80EUs (5.55 - 36.3, n=108)	25.8 fps -13%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	12.3 fps -58%

Witcher 3 FPS Chart

Beelink SEi12 Core i5-1235U: Ø75.7 (64-80)

	baixo	média	alto	ultra
GTA V (2015)	117.5	98.7	17.2	7.41
The Witcher 3 (2015)	77.7	48.7	26	12.2
Dota 2 Reborn (2015)	93.8	88.7	45.5	42.2
Final Fantasy XV Benchmark (2018)	35.7	19.3	13.5
X-Plane 11.11 (2018)	48.4	32.8	29.5
Strange Brigade (2018)	65.9	26.5	21.4	17.5
Cyberpunk 2077 1.6 (2022)	13.4	11.4	9	7.4

Emissões

Ruído do sistema

Como outros mini PCs da Beelink, o ruído do ventilador está sempre presente no SEi12 a quase 28 dB(A) contra um fundo silencioso de 23 dB(A). Felizmente, o sistema nunca se torna barulhento, mesmo quando são introduzidas cargas mais altas. A execução do Witcher 3 ou 3DMark 06 resultaria em níveis de ruído de ventiladores comparáveis aos do Intel NUC 11PAQ quando sujeitas a condições similares. O ruído do ventilador pode ocasionalmente atingir 39 dB(A), embora apenas por curtos períodos antes de cair de volta para a faixa baixa de 30 dB(A). Os mini PCs mais potentes como a série SER Beelink são ainda mais altos.

Perfil de ruído do ventilador (Branco: Fundo, Vermelho: Sistema ocioso, Azul: 3DMark 06, Laranja: Witcher 3, Verde: Prime95 stress)

Barulho

Ocioso		27.8 / 27.8 / 27.8 dB
Carga		32 / 39.2 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 23.3 dB(A)

	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise		-4%	-14%	-4%	10%	-14%
off / environment *	23.3	24.5 -5%	23.4 -0%	25.6 -10%	23 1%	28.7 -23%
Idle Minimum *	27.8	26.5 5%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Idle Average *	27.8	26.5 5%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Idle Maximum *	27.8	31.1 -12%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Load Average *	32	37.7 -18%	38.6 -21%	33.6 -5%	28.6 11%	36 -13%
Witcher 3 ultra *	34.1		39.2 -15%	33.6 1%	30.1 12%	42 -23%
Load Maximum *	39.2	37.5 4%	40.8 -4%	54.5 -39%	34 13%	49.4 -26%

* ... smaller is better

Temperatura

O ar frio entra pelos lados e pela malha superior enquanto o ar quente sai pela parte traseira, como mostram os mapas de temperatura abaixo. O ponto quente na parte traseira pode ser tão quente quanto 47 C quando em aplicações exigentes. A colocação de qualquer item no topo da unidade não é recomendada ou então o fluxo de ar será reduzido.

O adaptador AC pode chegar a 30 C quando a carga é muito alta por longos períodos.

Teste de estresse

Quando estressada com Prime95, a CPU aumentará para 3,6 GHz com um consumo de energia do processador de 47 W. Quando a temperatura central atingir 76 C apenas alguns segundos depois, porém, as taxas do relógio e o consumo de energia cairão para 2,1 GHz e 27 W, respectivamente, a fim de manter uma temperatura central mais fria de 67 C.

Taxas de relógio da GPU e temperatura quando em funcionamento Witcher 3 estabilizariam em 1150 MHz e 68 C, respectivamente, em comparação com 1300 MHz e 57 C na mais cara Intel NUC11PAQi7.

	Relógio CPU (GHz)	Relógio GPU (MHz)	Temperatura média da CPU (°C)
System Idle	--	--	32
Prime95 Stress	2.1	1150	67
Prime95 + FurMark Stress	1.9	1150	75
Witcher 3 Stress	~2.6	1150	68

Gestão de energia

Consumo de energia

O consumo de energia é relativamente alto, o que pode ajudar a explicar o adaptador AC maior do que o esperado. O consumo de energia na área de trabalho é de cerca de 17 W em comparação com menos da metade que em outros mini PCs da série U, como o SER4 ou Intel NUC11. Quando se corre com cargas exigentes como os jogos, o consumo médio seria de cerca de 50 W em comparação com pouco menos de 40 W na NUC11.

Somos capazes de medir um tiragem máxima temporária de até 119 W a partir do adaptador AC de 120 W ao executar simultaneamente Prime95 e FurMark

Consumo de energia

desligado	0.88 / 1 Watt
Ocioso	15.8 / 16.8 / 17 Watt
Carga	54.4 / 119.1 Watt


Key: min: , med: , max: Metrahit Energy

	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink SEi8 i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,	Beelink SER4 R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,	BMAX B5 Pro G7H8 i5-8260U, UHD Graphics 620, , , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption		49%	59%	49%	49%	-38%
Idle Minimum *	15.8	7.5 53%	4.1 74%	5.6 65%	6 62%	15.5 2%
Idle Average *	16.8	7.6 55%	4.1 76%	5.6 67%	6.2 63%	16.2 4%
Idle Maximum *	17	9.2 46%	4.6 73%	6 65%	6.3 63%	16.5 3%
Load Average *	54.4	41.1 24%	35.6 35%	31.4 42%	42.8 21%	83.4 -53%
Witcher 3 ultra *	50.7		35.6 30%	39 23%	35 31%	121.7 -140%
Load Maximum *	119.1	41.4 65%	39.9 66%	80.5 32%	55.8 53%	173.5 -46%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø53.1 (41.1-54.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59 (57.8-59.6)

Power Consumption external Monitor

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø63.2 (57.9-102.6)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø58.6 (57.2-59.1)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø69.5 (56-93.5)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø52.4 (49.2-53.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (39.3-47.7)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.2 (31.6-53.6)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.7 (49.7-63.2)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø53.1 (41.1-54.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø16.6 (15.8-19.1)

Pro

+ suporta até 2x SSDs e 2x SODIMM

+ bom desempenho da CPU

+ facilidade de manutenção

+ acessível

Contra

- sem DisplayPort-over-USB-C ou Thunderbolt

- maior consumo de energia do que o esperado

- sem opções Core i7

- tijolo volumoso de energia

Veredicto - Preço baixo sem cortar os cantos ao desempenho

Em revisão: Beelink SEi12. Unidade de teste fornecida pela Beelink

O SEi12 oferece níveis de desempenho comparáveis e muitas vezes melhores a um NUC11 da Intel NUC11 acionado pelo Core U, enquanto que o varejo oferece muito menos. O NUC11PAH com CPU Core i5-1135G7, 16 GB de RAM e 256 GB de SSD, por exemplo, atualmente varejista por US$550, enquanto nosso SEi 12 com o dobro do armazenamento varejista por apenas US$400. O modelo não depende de soluções Celeron ou Atom terrivelmente lentas para alcançar preços atraentes e este continua sendo um ponto chave de venda para muitos mini PCs da Beelink.

A falta do suporte de Thunderbolt é decepcionante, mas isto provavelmente terá impacto apenas nos entusiastas que desejam conectar monitores de alta resolução daisy em cadeia ou eGPUs. Pelo que vale, a Intel está começando a lutar com a última série NUC12, oferecendo agora CPUs Core P ainda mais rápidas. Se você estiver satisfeito com o desempenho de um Ultrabook moderno, então o Core i5-1235U no SEi12 ainda será mais do que suficiente e certamente muito mais rápido do que a maioria dos mini PCs na mesma faixa de preço.

Preço e Disponibilidade

O Beelink SEi12 está atualmente à venda por $400 USD na Amazônia abaixo de seu preço inicial de $480. Alternativamente, os usuários podem comprar diretamente do fabricante por $460.
