Beelink GTR6 Ryzen 9 6900HX revisão mini PC: Mais rápido que a maioria dos NUCs da Intel

Flexão da Radeon 680M.

O GTR6 varejista por $540 USD como kit de barebones ou $750 se configurado com RAM, armazenamento e Windows 11 Pro. O desempenho que ele traz para a tabela é significativo quando comparado a um NUC da Intel a um preço equivalente.

Allen Ngo, 👁 Allen Ngo (traduzido por DeepL / Ninh Duy), Published 11/22/2022 🇺🇸 🇸🇪 ...

Parte superior: Beelink GTR6, Parte inferior: Intel NUC11PHKi7C

Ao contrário das séries menores Beelink SEi ou SER alimentadas por processadores da série U, a série GTR consiste em modelos alimentados por processadores mais rápidos da série H. O GTR6 sucede diretamente o antigo GTR5 com uma CPU atualizada (Zen 3 Ryzen 9 5900HX para Zen 3+ Ryzen 9 6900HX) e um leve redesenho do chassi. Nossos benchmarks abaixo mostrarão que é um dos mini PCs mais rápidos da extensa linha de produtos Beelink.

Nossa unidade em revisão é um GTR6 totalmente configurado com 32 GB de RAM e 512 GB de NVMe SSD por aproximadamente US$ 750. Todas as opções vêm com o mesmo CPU Ryzen 9 6900HX e GPU Radeon 680M integrado. O GTR6 compete diretamente com os Intel NUCs alimentados por gráficos integrados.

Mais análises do Beelink:

Beelink GTR6

Processador

AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 45 W PL2 / Short Burst, 38 W PL1 / Sustained, Rembrandt-H (Zen 3+)

Placa gráfica

AMD Radeon 680M, Memoría: 2400 MHz, DDR5, 31.0.12029.7019

Memória

32 GB

, Kingston DDR5-4800, 40-39-39-77, Dual-Channel, 2x SODIMM

placa mãe

AMD Promontory/Bixby FCH

Disco rígido

Kingston KC3000 512G SKC3000S512G, 512 GB

Placa de Som

AMD Zen - Audio Processor - HD Audio Controller

Conexões

6 USB 2.0, 4 USB 3.0, 4 HDMI, 1 DisplayPort, Conexões Audio: 3.5 mm headset, 1 Leitor de Impressões Digitais

Funcionamento em rede

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 43 x 168 x 120

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

12 Meses Garantia

peso

815 g, Suprimento de energia: 545 g

Preço

750 USD

Links

Beelink página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height	Resolution
v ^(old)	11/2022	Beelink GTR6 R9 6900HX, Radeon 680M	815 g	43 mm	x
v ^(old)	09/2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 g	40 mm	x
v ^(old)	01/2022	Beelink GTR5 R9 5900HX, Vega 8	686 g	39 mm	x
v ^(old)	04/2021	Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile	1.4 kg	42 mm	x
v ^(old)	04/2021	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm	x
v ^(old)	03/2021	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655	430 g	50 mm	x

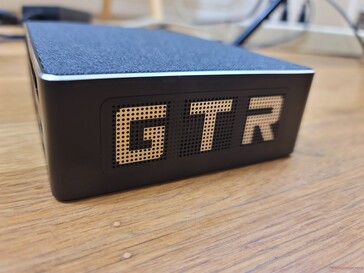

Estojo - Nova tampa de malha macia

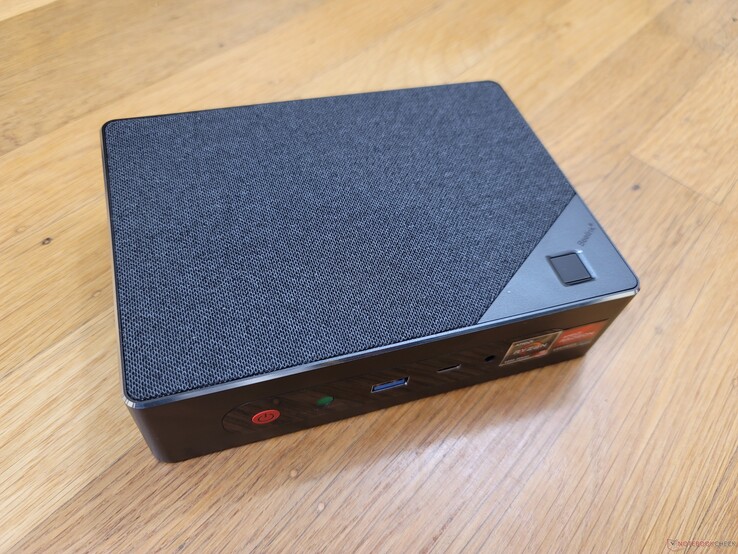

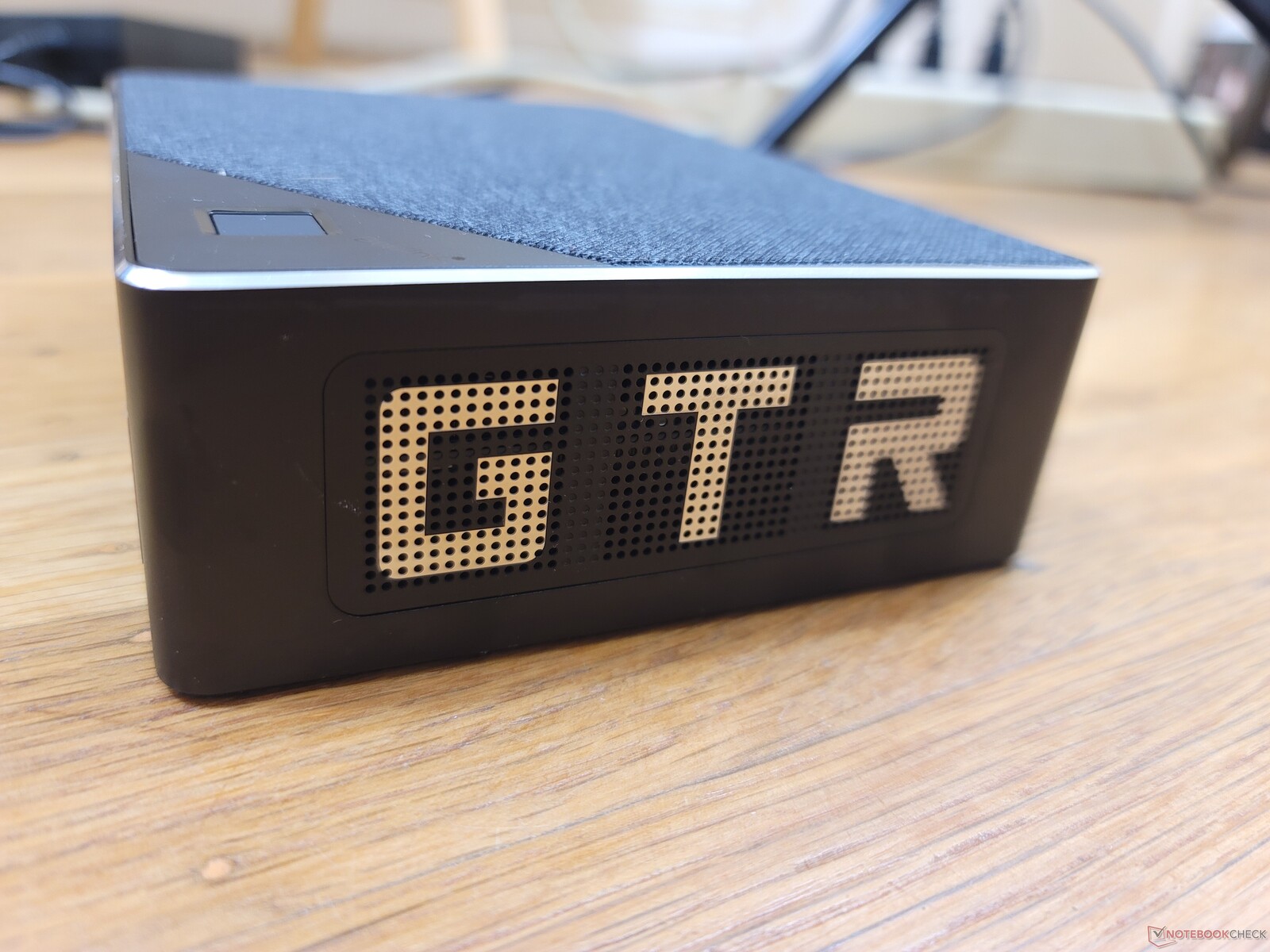

O estojo parece forte com seus lados metálicos e malha macia respirável no topo para o fluxo de ar. Este último, em particular, é o primeiro para a Beelink, uma vez que os mini PCs anteriores da empresa teriam tampas de plástico ou de metal. A malha removível acrescenta um elemento de qualidade ou de luxo ao design geral.

O GTR6 é mais grosso e mais pesado que o GTR5 e a maioria dos modelos Intel NUC. O tamanho maior é em parte devido ao processador AMD HX mais exigente quando comparado com a série Intel Core U.

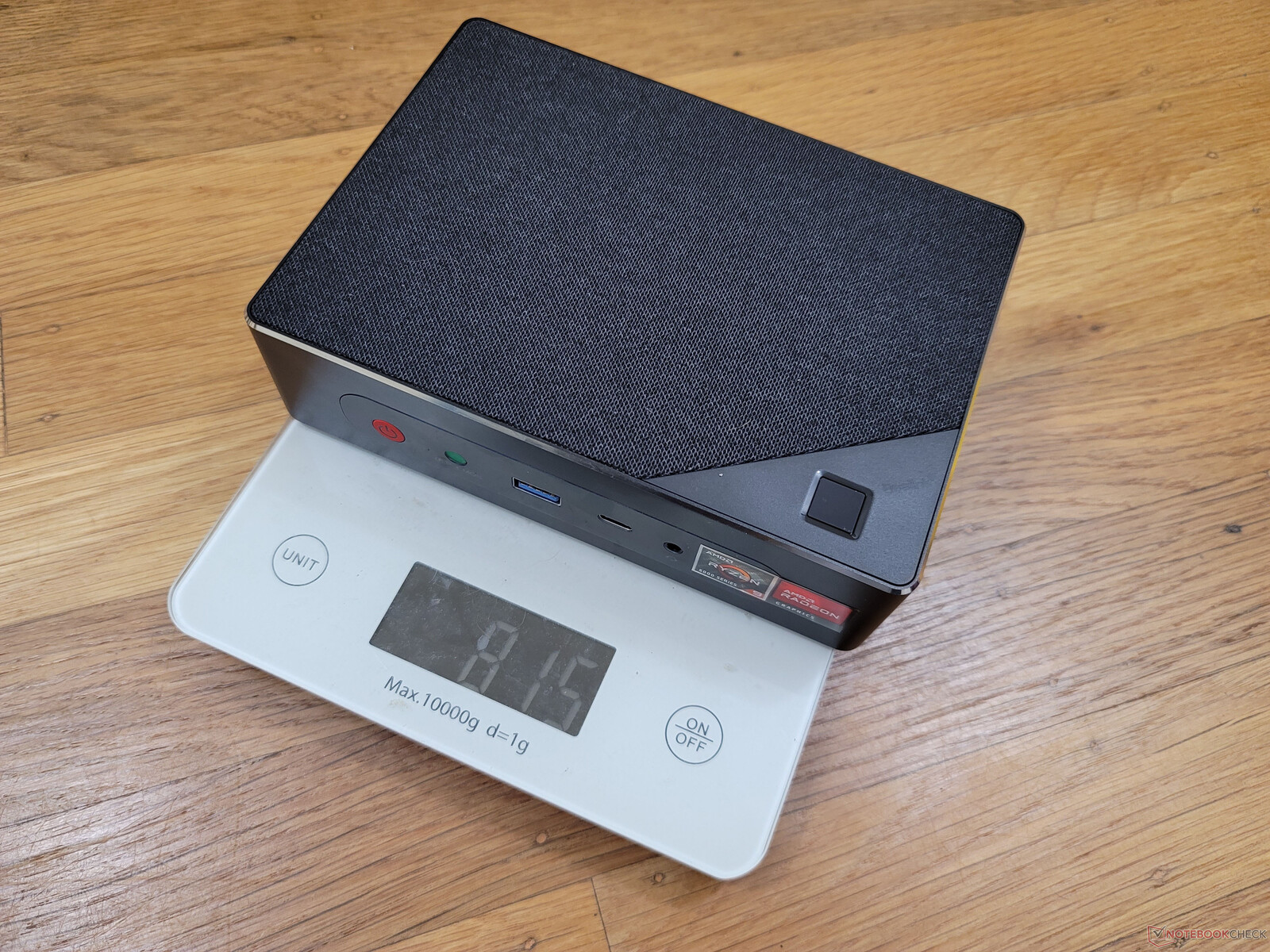

Relativamente pesado para um mini PC a 815 g

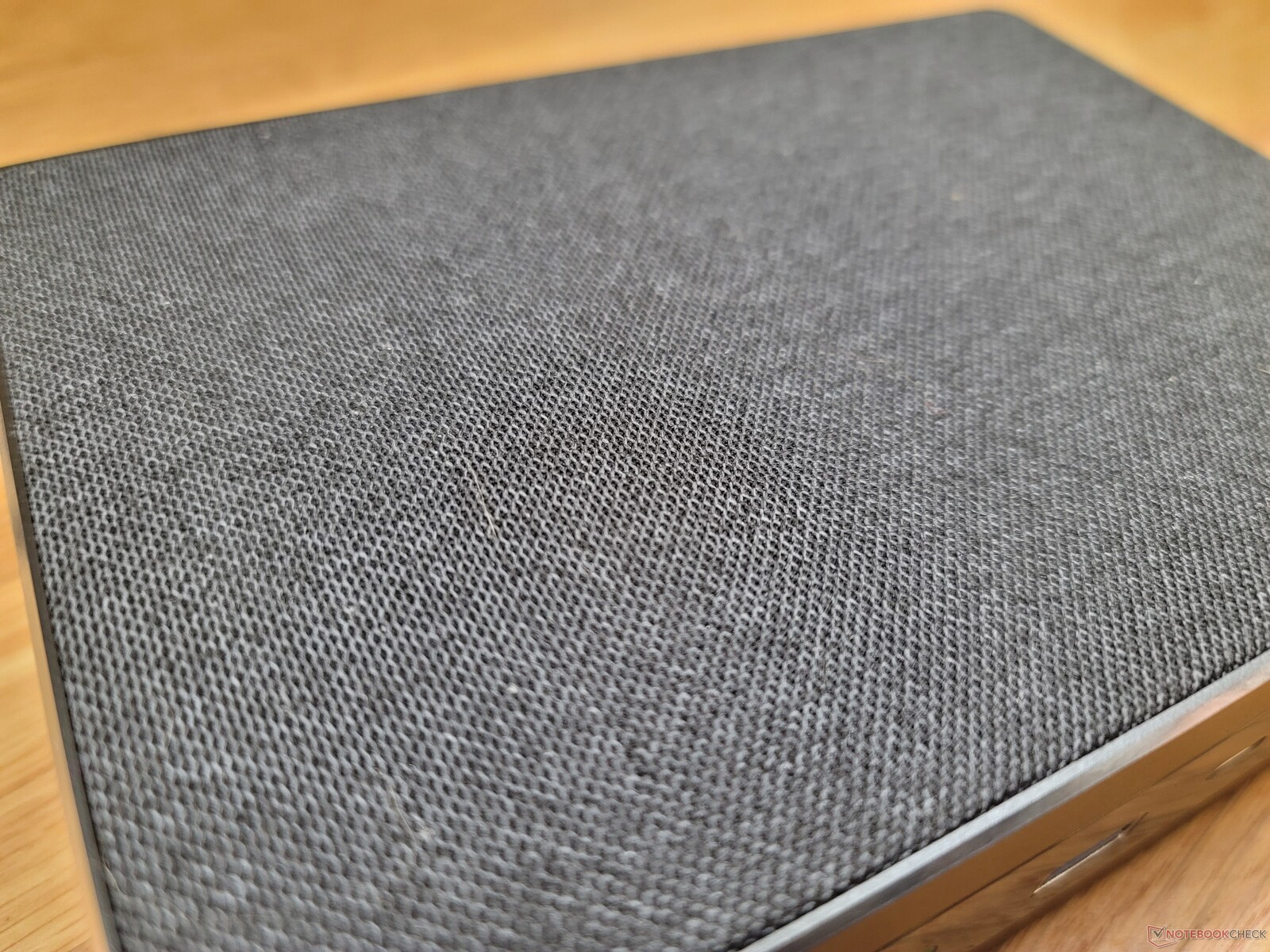

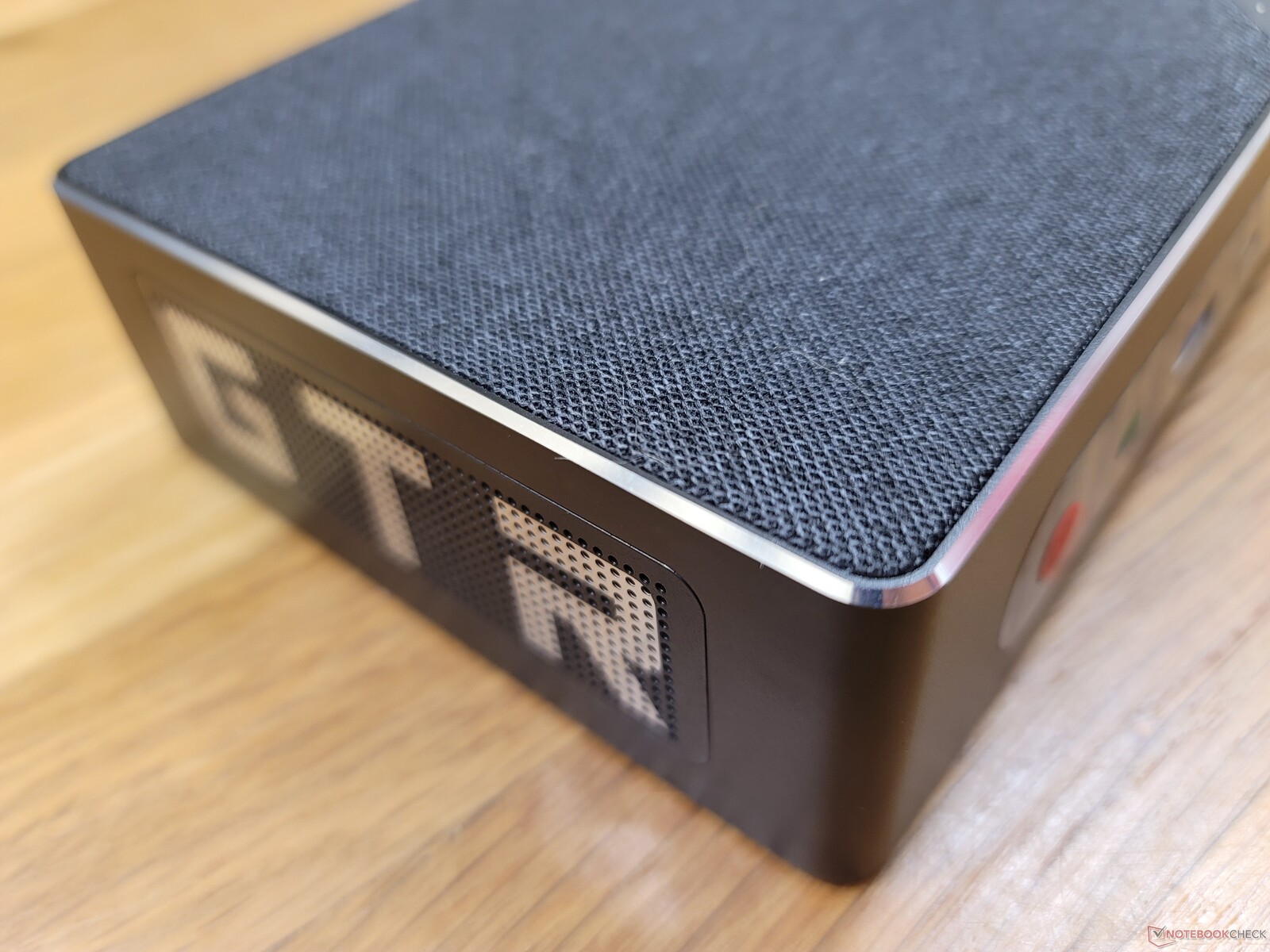

A superfície superior é uma malha de toque suave semelhante ao que você vê em muitos alto-falantes de prateleira

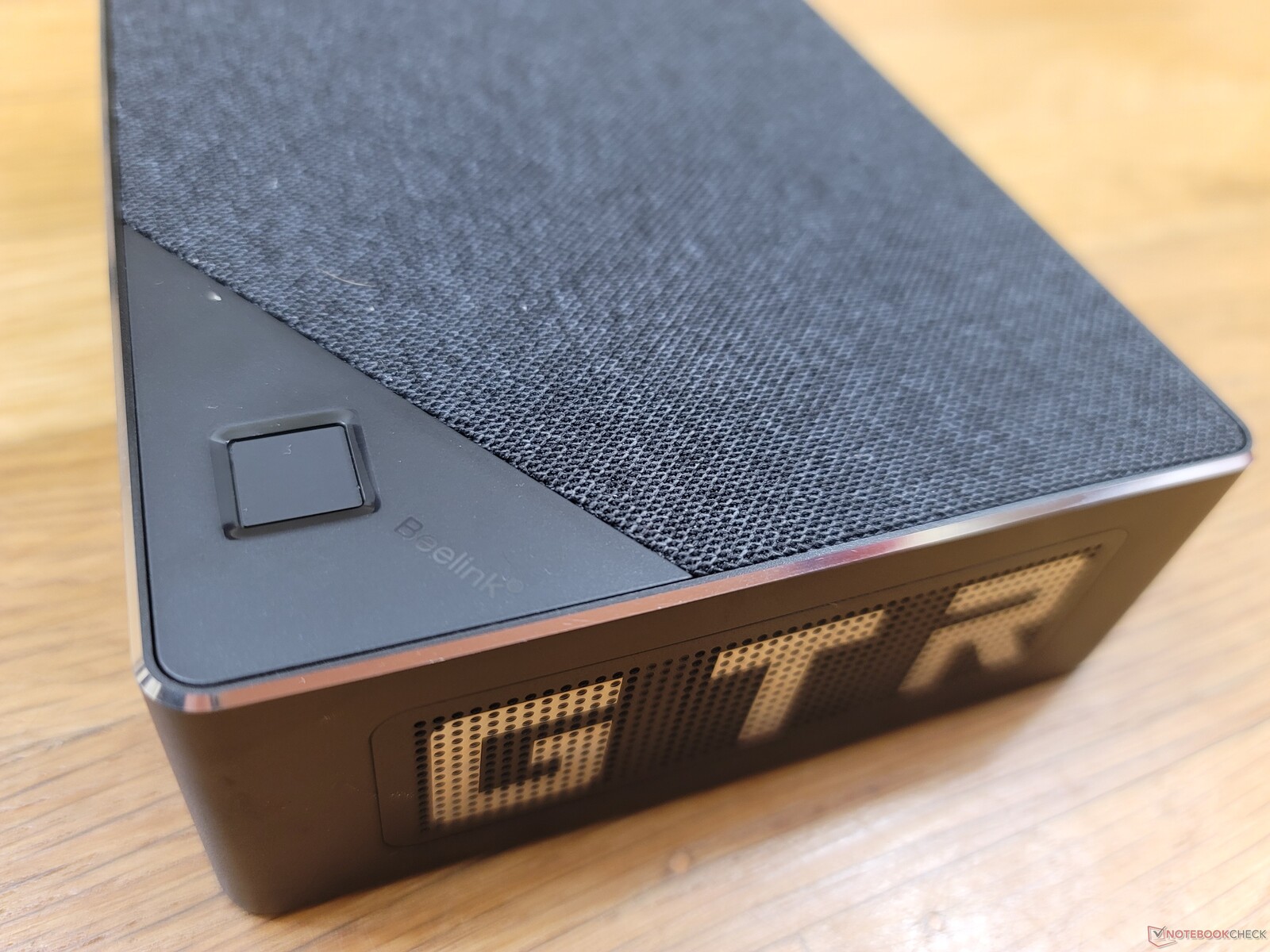

Botão de alimentação por impressão digital Combo, além de um botão de alimentação regular na frente

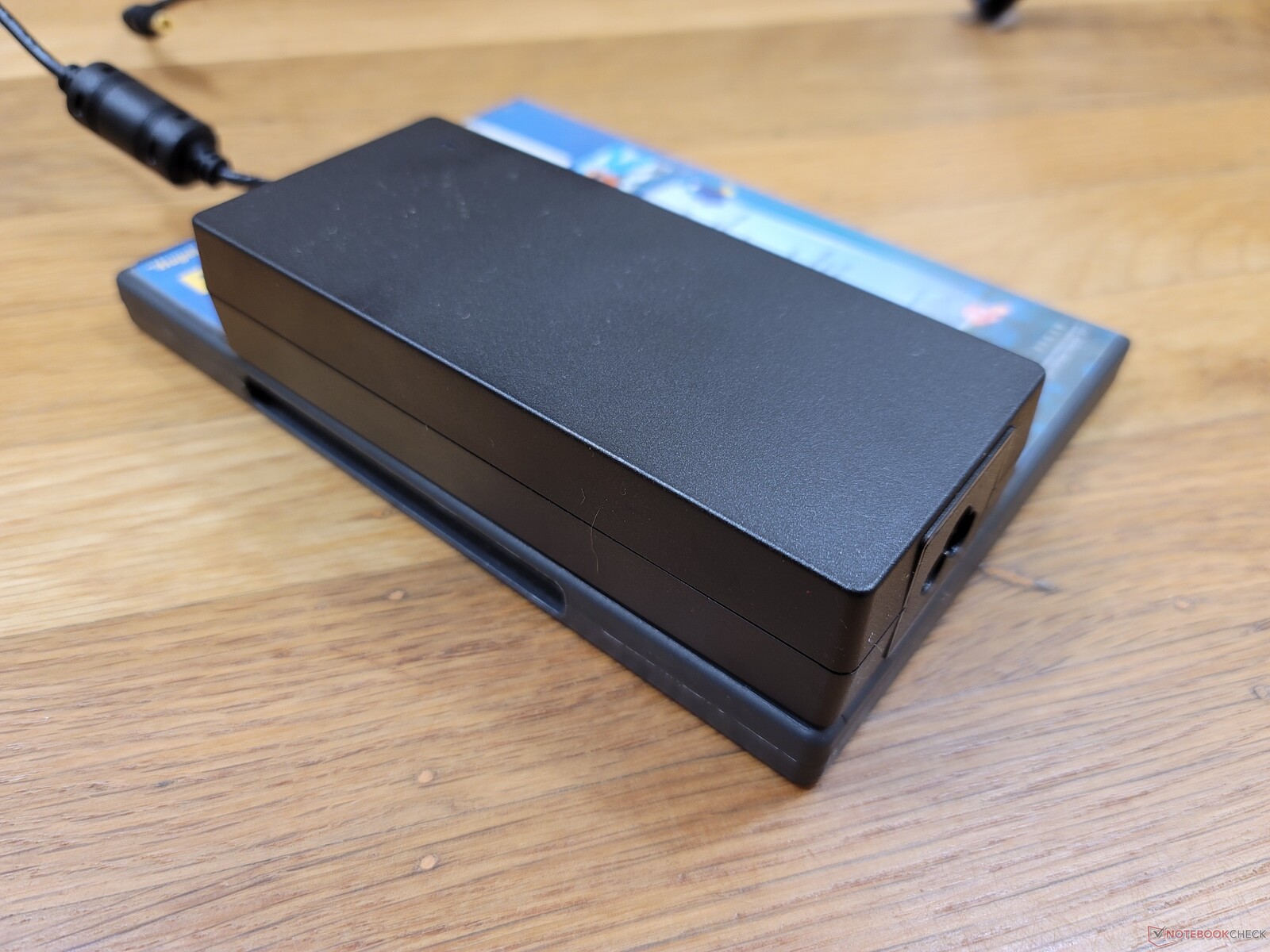

Tijolo de médio porte de 120 W de potência

Comparação de tamanho

Conectividade - Sem relâmpago

As opções de porta são excelentes com quatro portas HDMI 2.1 individuais suportando até 8K monitores a 60 Hz. Há apenas uma porta USB-C, no entanto, e a porta LAN é apenas 1 Gbps, enquanto muitos modelos NUC agora suportam 10 Gbps

O Thunderbolt não é suportado por causa da CPU AMD.

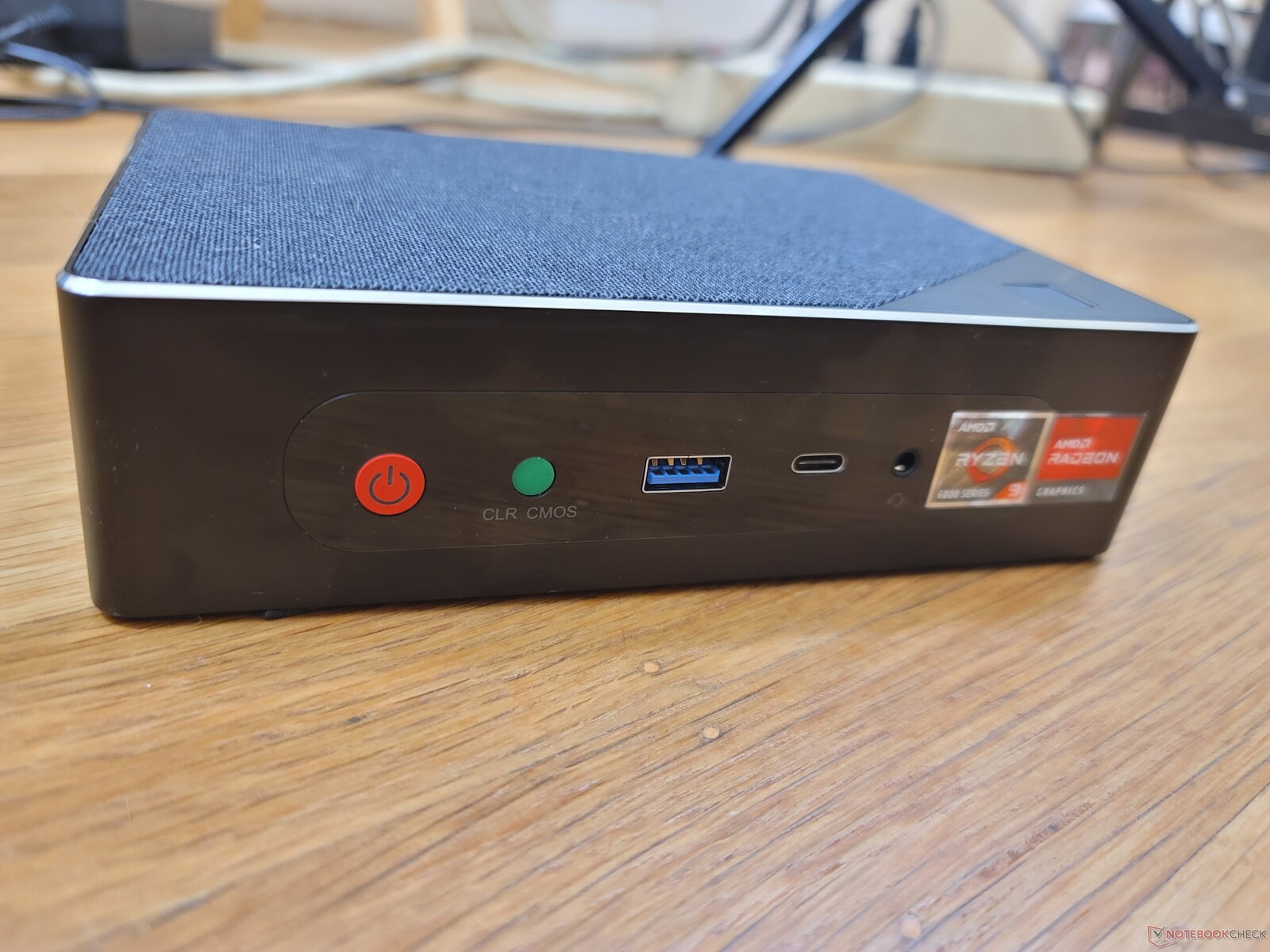

Frente: Botão de alimentação, botão de reset CMOS, USB-A 3.0, USB-C c/ DisplayPort, fone de ouvido de 3,5 mm

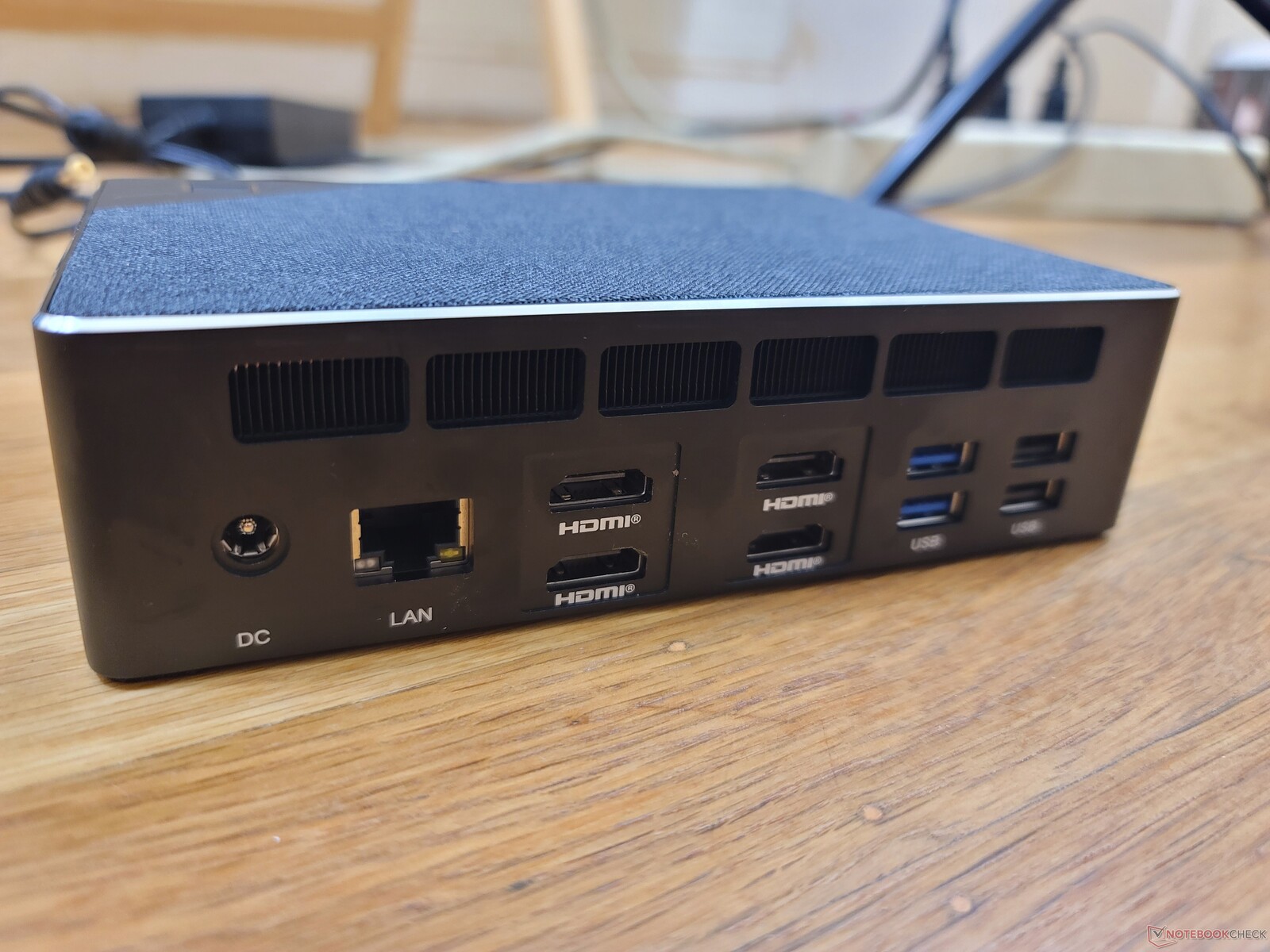

Esquerda: adaptador AC, Gigabit RJ-45, 4x HDMI 2.1, 2x USB-A 3.0, 2x USB-A 2.0

Comunicação - Padrão Wi-Fi 6E

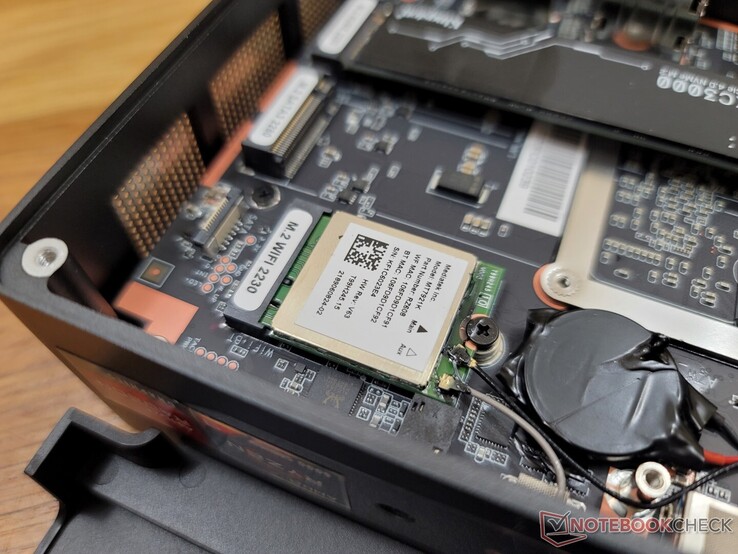

Um MediaTek RZ608 vem como padrão para conectividade Wi-Fi 6E e Bluetooth 5.2. As taxas de transferência são estáveis embora mais lentas do que a maioria das soluções Intel AX201/210

O RZ608 em nossa unidade de teste foi lento para detectar nossa rede AXE11000 de 6 GHz mesmo após a atualização para os últimos drivers no momento da redação. Você pode ter que esperar vários minutos antes que o sistema possa detectar e se conectar à sua rede de 6 GHz.

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	1129 (1014^min - 1229^max) MBit/s
Beelink GTR5 MediaTek RZ608	657 (321^min - 735^max) MBit/s
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	385 (299^min - 426^max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	870 (452^min - 924^max) MBit/s
Beelink GTR5 MediaTek RZ608	837 (806^min - 876^max) MBit/s
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	625 (346^min - 678^max) MBit/s
iperf3 receive AXE11000 6GHz
Beelink GTR6 MediaTek RZ608	886 (867^min - 900^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s -16%
iperf3 receive AXE11000
Beelink GTR6 MediaTek RZ608	860 (440^min - 882^max) MBit/s
iperf3 transmit AXE11000
Beelink GTR6 MediaTek RZ608	909 (429^min - 966^max) MBit/s
iperf3 transmit AXE11000 6GHz
Beelink GTR6 MediaTek RZ608	948 (476^min - 1030^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s -24%

Beelink GTR6; iperf3 transmit AXE11000; iperf 3.1.3: Ø895 (429-966)

Beelink GTR6; iperf3 receive AXE11000; iperf 3.1.3: Ø845 (440-882)

Manutenção

O painel inferior é fixado por apenas quatro parafusos Philips para facilitar a manutenção. No entanto, uma outra placa fica por baixo, o que requer a remoção de outros quatro parafusos, como mostram as figuras abaixo.

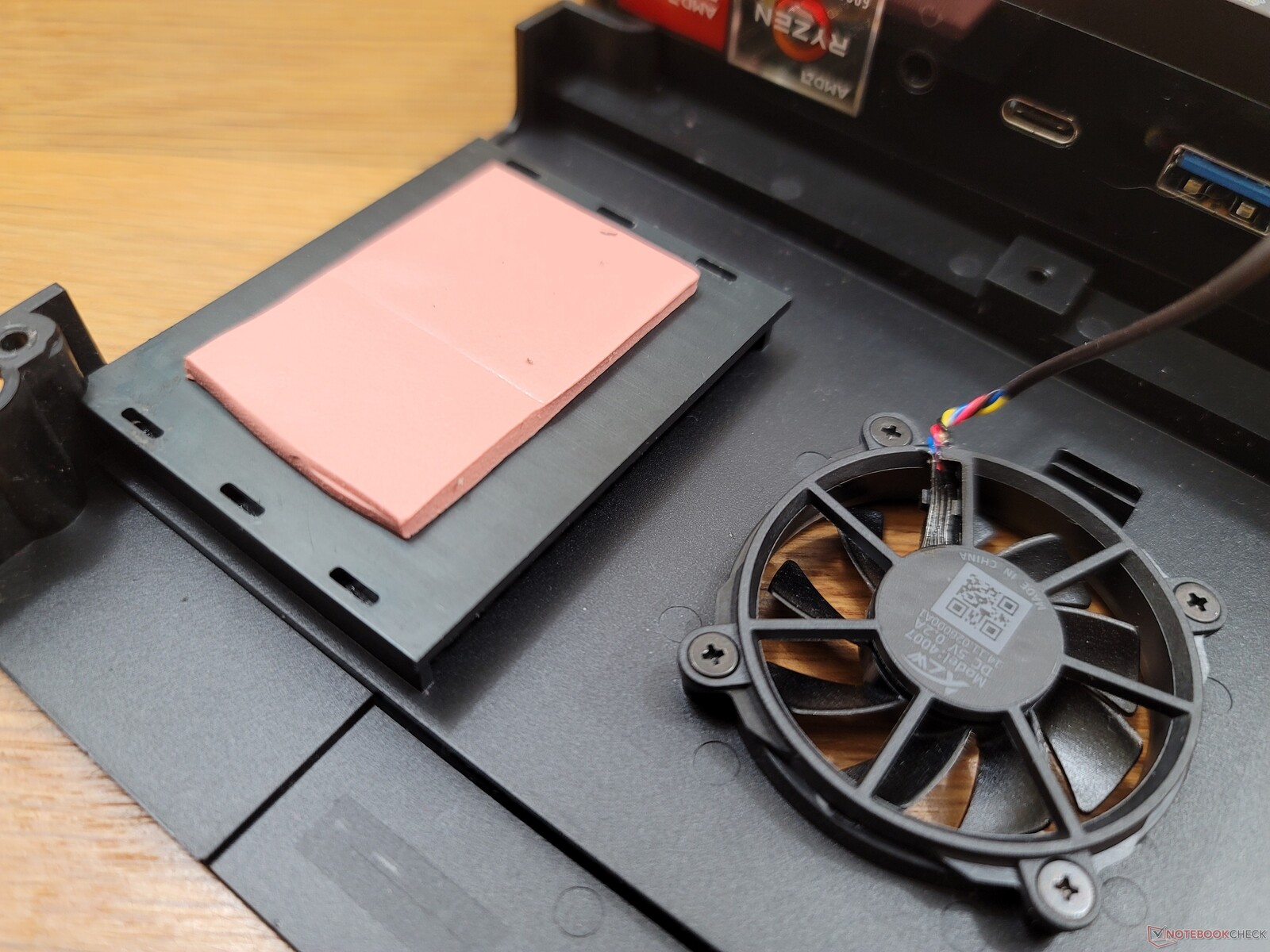

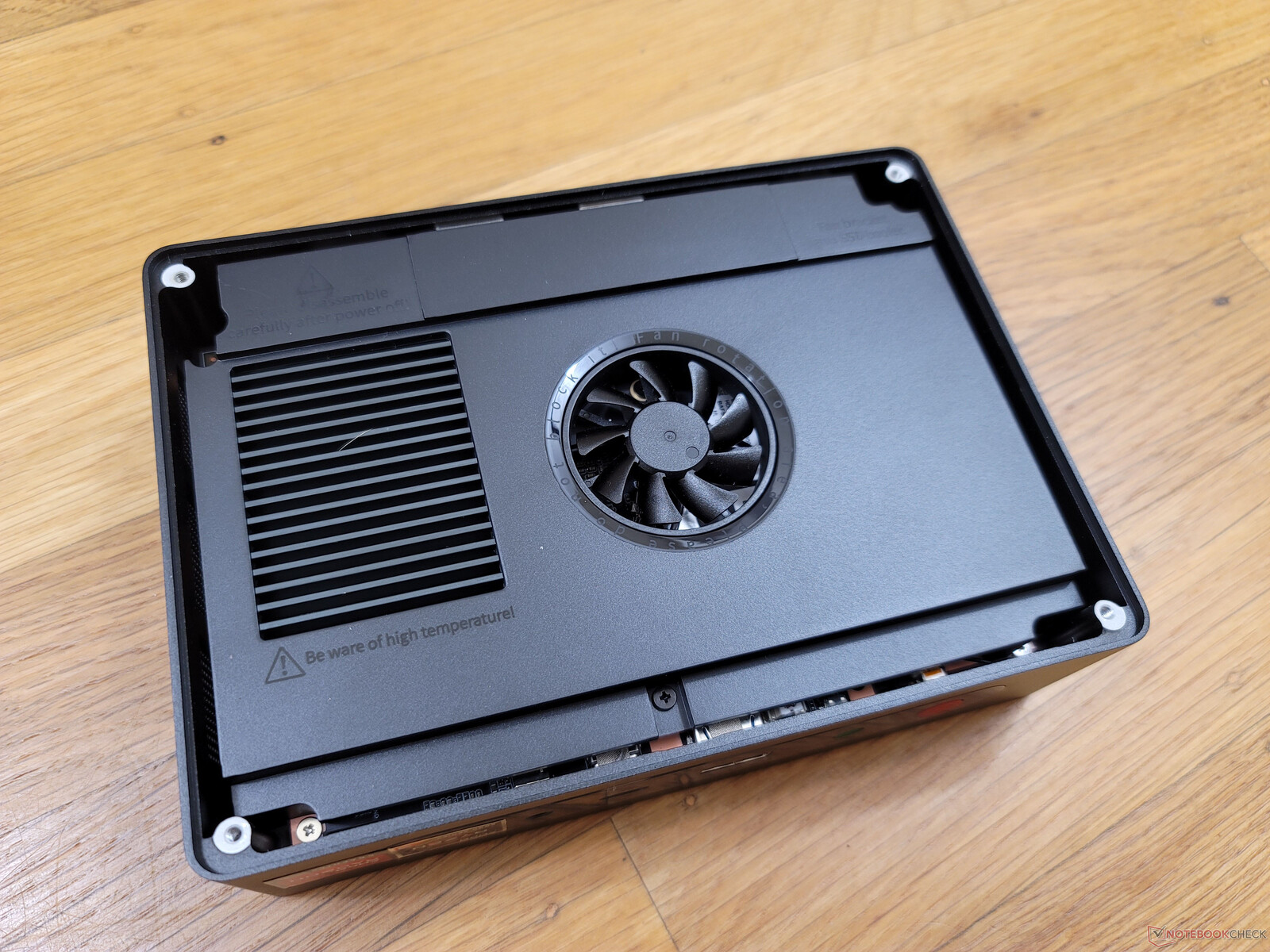

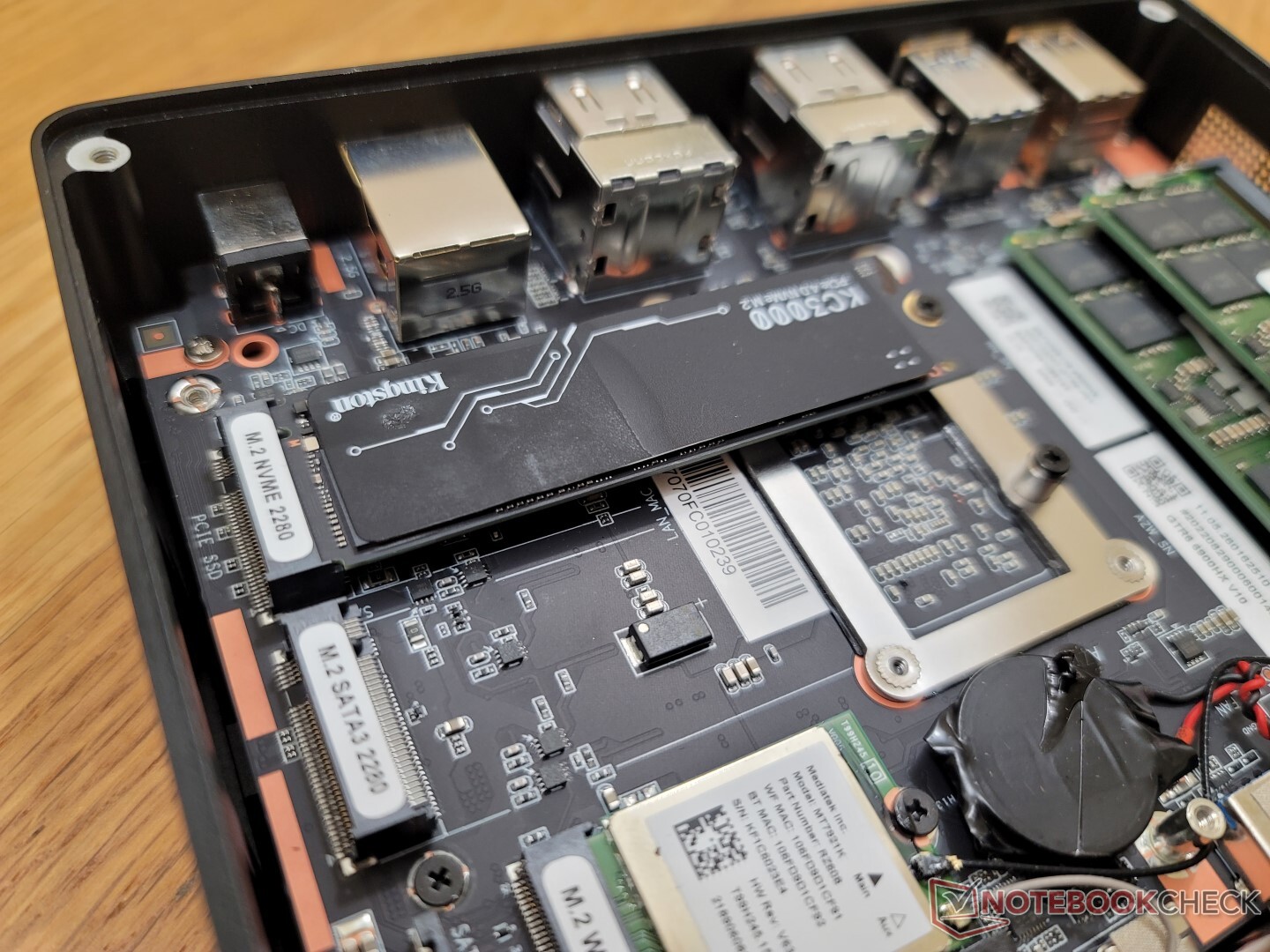

a remoção do painel inferior expõe o ventilador do sistema e o dissipador de calor SSD

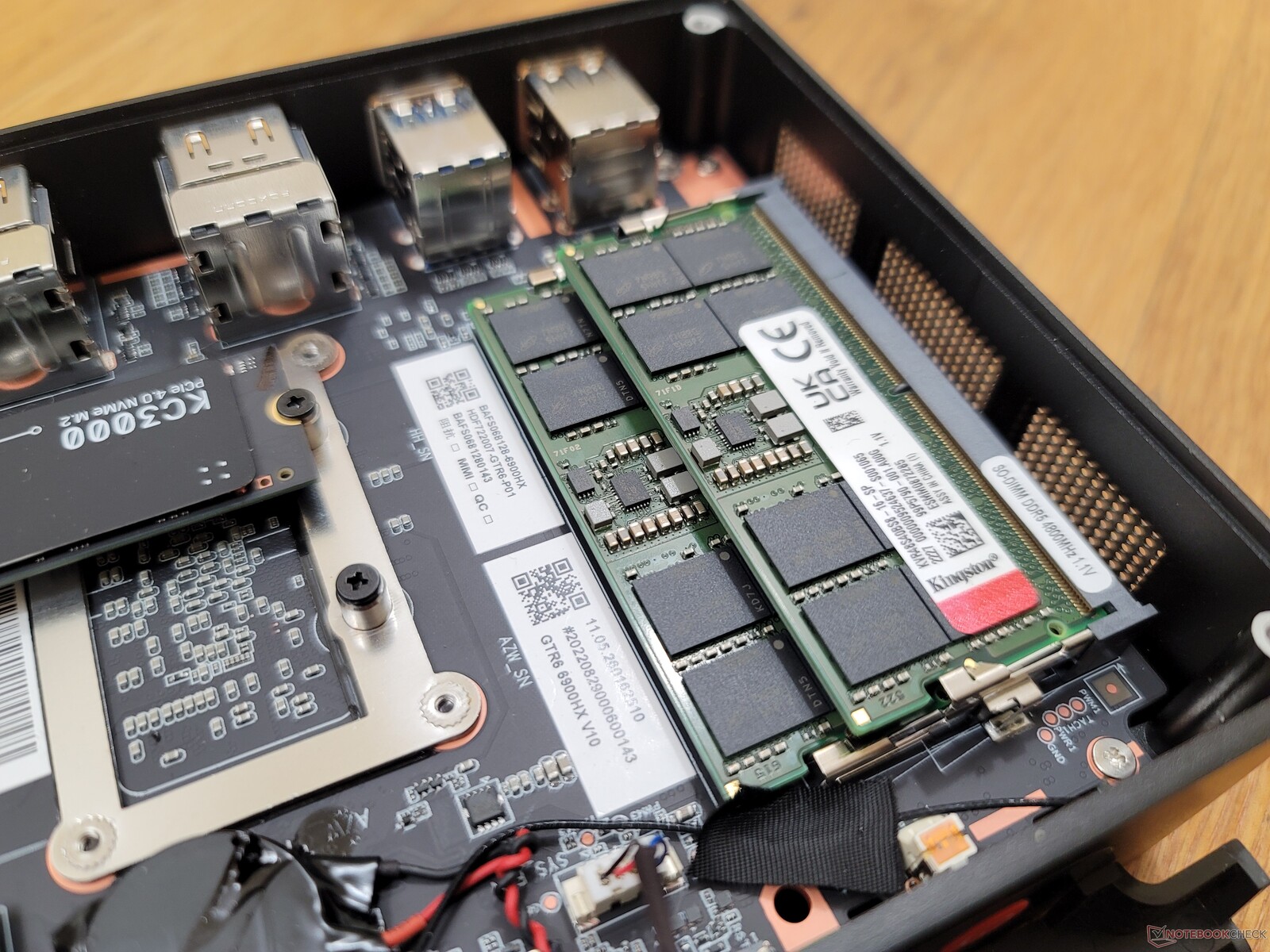

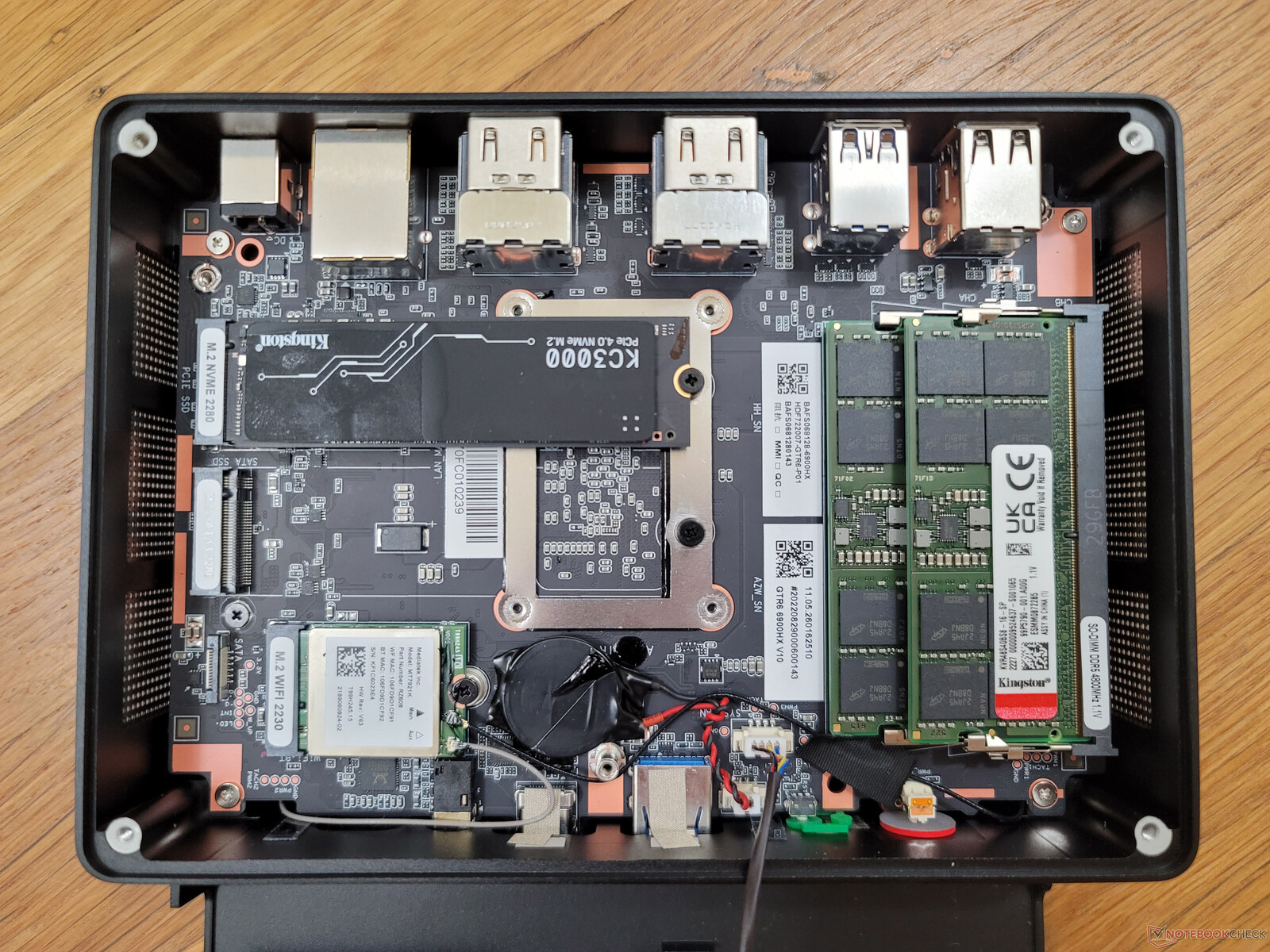

A remoção do ventilador e do dissipador de calor SSD expõe os 2x slots DDR5 SODIMM, 2x slots de armazenamento M.2 2280, bateria BIOS, e módulo removível M.2 WLAN

Acessórios e Garantia

A caixa de varejo inclui dois cabos HDMI, um suporte VESA removível com parafusos extras, manual do usuário e duas tampas de malha macia adicionais para a parte superior da unidade. Uma dessas tampas é vermelha para complementar o hardware baseado em AMD e a cor do acabamento.

Desempenho - Atualização Zen 3+

Condições de teste

Configuramos nossa unidade para o modo Performance via Windows antes de executar quaisquer benchmarks abaixo. O Beelink não inclui nenhuma aplicação pré-instalada para uma experiência limpa com o Windows 11 Pro. No entanto, ainda recomendamos a instalação do software AMD Radeon para configurações adicionais, como mostrado pelas capturas de tela abaixo.

Processador

O desempenho da CPU é, infelizmente, apenas um pequeno passo acima do Ryzen 9 5900HX na melhor das hipóteses. Os benchmarks mostram um desempenho multifios idêntico ao do Ryzen 9 5900HX no Beelink GTR5 e um desempenho ligeiramente mais rápido de uma única rosca em até 10%. A média de desempenho multi-tarefa é aproximadamente 15% mais lenta do que em laptops com o mesmo CPU Ryzen 9 6900HX tais como na Lenovo Legion S7 16. Mesmo assim, o GTR6 ainda é um dos mini PCs mais rápidos para o tamanho, apesar dos leves contratempos de desempenho.

Cinebench R15 Multi Loop

Beelink GTR6 AMD Ryzen 9 6900HX: Ø1922 (1894.3-1968.5)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink GTR5 AMD Ryzen 9 5900HX: Ø1938 (1889.11-1963.48)

Intel NUC11PHKi7C Intel Core i7-1165G7: Ø914 (901.51-1011.79)

Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)

GMK NucBox 2 Intel Core i5-8259U: Ø612 (608.07-614.94)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
MSI GE67 HX 12UGS Intel Core i7-12800HX	8564 Points +85%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	5762 Points +25%
Average AMD Ryzen 9 6900HX (3742 - 5813, n=19)	5162 Points +12%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points
Beelink GTR5 AMD Ryzen 9 5900HX	4596 Points 0%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	3993 Points -14%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	3365 Points -27%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points -52%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points -57%
Intel NUC11PHKi7C Intel Core i7-1165G7	1660 Points -64%
GMK NucBox 2 Intel Core i5-8259U	1432 Points -69%

Cinebench R20 / CPU (Single Core)
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	701 Points +11%
MSI GE67 HX 12UGS Intel Core i7-12800HX	676 Points +7%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points
Average AMD Ryzen 9 6900HX (595 - 631, n=19)	610 Points -3%
Intel NUC11PHKi7C Intel Core i7-1165G7	583 Points -8%
Beelink GTR5 AMD Ryzen 9 5900HX	579 Points -8%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points -11%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points -20%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	483 Points -23%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	479 Points -24%
GMK NucBox 2 Intel Core i5-8259U	382 Points -39%

Cinebench R23 / Multi Core
MSI GE67 HX 12UGS Intel Core i7-12800HX	22456 (19998.9^min - 22456.2^max) Points +89%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	14917 Points +26%
Average AMD Ryzen 9 6900HX (9709 - 15100, n=19)	13307 Points +12%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points
Beelink GTR5 AMD Ryzen 9 5900HX	11599 (11445.9^min - 11598.6^max) Points -2%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	10947 Points -8%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	8858 Points -25%
Intel NUC11PHKi7C Intel Core i7-1165G7	6093 (5825.6^min - 6093.08^max) Points -49%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points -52%
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points -57%
GMK NucBox 2 Intel Core i5-8259U	3728 (3687.99^min - 3727.55^max) Points -69%

Cinebench R23 / Single Core
MSI GE67 HX 12UGS Intel Core i7-12800HX	1812 Points +13%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	1678 Points +4%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points
Average AMD Ryzen 9 6900HX (1516 - 1616, n=19)	1565 Points -3%
Intel NUC11PHKi7C Intel Core i7-1165G7	1533 Points -5%
Beelink GTR5 AMD Ryzen 9 5900HX	1497 Points -7%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points -9%
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points -15%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	1252 Points -22%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	1228 Points -24%
GMK NucBox 2 Intel Core i5-8259U	973 Points -39%

Cinebench R15 / CPU Multi 64Bit
MSI GE67 HX 12UGS Intel Core i7-12800HX	3383 (3163.31^min - 3383.24^max) Points +72%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	2166 (1948.94^min - 2166.26^max) Points +10%
Average AMD Ryzen 9 6900HX (1588 - 2411, n=19)	2163 Points +10%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points
Beelink GTR5 AMD Ryzen 9 5900HX	1963 (1889.11^min - 1963.48^max) Points 0%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	1755 (1601.67^min - 1755.16^max) Points -11%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	1683 Points -15%
Intel NUC11PHKi7C Intel Core i7-1165G7	1012 (901.51^min - 1011.79^max) Points -49%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points -56%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points -60%
GMK NucBox 2 Intel Core i5-8259U	615 (608.07^min - 614.94^max) Points -69%

Cinebench R15 / CPU Single 64Bit
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	263 Points +1%
MSI GE67 HX 12UGS Intel Core i7-12800HX	260 Points 0%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points
Average AMD Ryzen 9 6900HX (241 - 261, n=19)	250 Points -4%
Beelink GTR5 AMD Ryzen 9 5900HX	240 Points -8%
Intel NUC11PHKi7C Intel Core i7-1165G7	229 Points -12%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points -18%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	204 Points -22%
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points -23%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	198 Points -24%
GMK NucBox 2 Intel Core i5-8259U	151 Points -42%

Blender / v2.79 BMW27 CPU
GMK NucBox 2 Intel Core i5-8259U	755 Seconds * -194%
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * -133%
Intel NUC11PHKi7C Intel Core i7-1165G7	543 Seconds * -111%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds * -111%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	324 Seconds * -26%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	280 Seconds * -9%
Beelink GTR5 AMD Ryzen 9 5900HX	262 Seconds * -2%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	262 Seconds * -2%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds *
Average AMD Ryzen 9 6900HX (212 - 357, n=21)	239 Seconds * +7%
MSI GE67 HX 12UGS Intel Core i7-12800HX	153.1 Seconds * +40%

7-Zip 18.03 / 7z b 4
MSI GE67 HX 12UGS Intel Core i7-12800HX	76947 MIPS +34%
Average AMD Ryzen 9 6900HX (49526 - 65336, n=20)	60091 MIPS +5%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS
Beelink GTR5 AMD Ryzen 9 5900HX	56761 MIPS -1%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	50517 MIPS -12%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	48534 MIPS -15%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	46136 MIPS -19%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS -57%
Intel NUC11PHKi7C Intel Core i7-1165G7	24684 MIPS -57%
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS -59%
GMK NucBox 2 Intel Core i5-8259U	18802 MIPS -67%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	5833 MIPS -3%
Average AMD Ryzen 9 6900HX (5090 - 6070, n=20)	5799 MIPS -3%
Beelink GTR5 AMD Ryzen 9 5900HX	5791 MIPS -4%
MSI GE67 HX 12UGS Intel Core i7-12800HX	5624 MIPS -6%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	5410 MIPS -10%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	5313 MIPS -12%
Intel NUC11PHKi7C Intel Core i7-1165G7	5260 MIPS -12%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS -15%
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS -21%
GMK NucBox 2 Intel Core i5-8259U	3951 MIPS -34%

Geekbench 5.5 / Multi-Core
MSI GE67 HX 12UGS Intel Core i7-12800HX	14213 Points +52%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	10976 Points +17%
Average AMD Ryzen 9 6900HX (8313 - 10490, n=21)	9642 Points +3%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	8176 Points -13%
Beelink GTR5 AMD Ryzen 9 5900HX	8147 Points -13%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	7850 Points -16%
Intel NUC11PHKi7C Intel Core i7-1165G7	5209 Points -44%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points -47%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points -51%
GMK NucBox 2 Intel Core i5-8259U	3359 Points -64%

Geekbench 5.5 / Single-Core
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	1778 Points +8%
MSI GE67 HX 12UGS Intel Core i7-12800HX	1759 Points +6%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points
Average AMD Ryzen 9 6900HX (1523 - 1652, n=21)	1589 Points -4%
Beelink GTR5 AMD Ryzen 9 5900HX	1560 Points -6%
Intel NUC11PHKi7C Intel Core i7-1165G7	1544 Points -7%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points -8%
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points -15%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	1315 Points -20%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	1299 Points -21%
GMK NucBox 2 Intel Core i5-8259U	984 Points -40%

HWBOT x265 Benchmark v2.2 / 4k Preset
MSI GE67 HX 12UGS Intel Core i7-12800HX	24.9 fps +62%
Average AMD Ryzen 9 6900HX (12.6 - 18.7, n=20)	16.7 fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps
Beelink GTR5 AMD Ryzen 9 5900HX	14.8 fps -4%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	13.8 fps -10%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	13.2 fps -14%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	11.9 fps -23%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps -53%
Intel NUC11PHKi7C Intel Core i7-1165G7	7.14 fps -54%
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps -57%
GMK NucBox 2 Intel Core i5-8259U	5.37 fps -65%

LibreOffice / 20 Documents To PDF
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	89 s * -93%
GMK NucBox 2 Intel Core i5-8259U	63.6 s * -38%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	55.9 s * -22%
Average AMD Ryzen 9 6900HX (44.8 - 81.7, n=20)	53.1 s * -15%
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * -12%
Beelink GTR5 AMD Ryzen 9 5900HX	49.7 s * -8%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s * -7%
Intel NUC11PHKi7C Intel Core i7-1165G7	48 s * -4%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s *
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	42.8 s * +7%
MSI GE67 HX 12UGS Intel Core i7-12800HX	42 s * +9%

R Benchmark 2.5 / Overall mean
GMK NucBox 2 Intel Core i5-8259U	0.786 sec * -70%
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * -34%
Alienware m15 R4 RTX 3080 Intel Core i9-10980HK	0.592 sec * -28%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	0.581 sec * -26%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec * -26%
Intel NUC11PHKi7C Intel Core i7-1165G7	0.561 sec * -21%
Average AMD Ryzen 9 6900HX (0.4627 - 0.4974, n=20)	0.483 sec * -4%
Beelink GTR5 AMD Ryzen 9 5900HX	0.48 sec * -4%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec *
MSI GE67 HX 12UGS Intel Core i7-12800HX	0.459 sec * +1%
SCHENKER Vision 14 2022 RTX 3050 Ti Intel Core i7-12700H	0.4587 sec * +1%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1969 Points

Cinebench R15 OpenGL 64Bit

167.8 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

260 Points

Cinebench R20 CPU (Multi Core)

4619 Points

Cinebench R20 CPU (Single Core)

631 Points

Cinebench R23 Single Core

1608 Points

Cinebench R23 Multi Core

11862 Points

Ajuda

... comparado com

Performance Rating
Average AMD Ryzen 9 6900HX	99.1 pt
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	93.4 pt
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	91.2 pt
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	51.1 pt
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	49 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	44.3 pt
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	30.7 pt

AIDA64 / FP32 Ray-Trace
Average AMD Ryzen 9 6900HX (10950 - 17963, n=20)	15327 KRay/s +12%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	13987 KRay/s +3%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	13630 KRay/s
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	7216 KRay/s -47%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s -48%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -51%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	4840 KRay/s -64%

AIDA64 / FPU Julia
Average AMD Ryzen 9 6900HX (71414 - 110797, n=20)	96546 Points +12%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	88153 Points +2%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	86563 Points
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	30533 Points -65%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points -65%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -68%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	24481 Points -72%

AIDA64 / CPU SHA3
Average AMD Ryzen 9 6900HX (2471 - 3804, n=20)	3301 MB/s +9%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	3033 MB/s
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	3026 MB/s 0%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	2059 MB/s -32%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s -34%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -39%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	1234 MB/s -59%

AIDA64 / CPU Queen
Average AMD Ryzen 9 6900HX (84185 - 107544, n=20)	100656 Points +7%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	97835 Points +4%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	94363 Points
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	50477 Points -47%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points -49%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points -51%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	41340 Points -56%

AIDA64 / FPU SinJulia
Average AMD Ryzen 9 6900HX (10970 - 13205, n=20)	12630 Points +3%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	12402 Points +1%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	12291 Points
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	4793 Points -61%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points -61%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -64%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	4241 Points -65%

AIDA64 / FPU Mandel
Average AMD Ryzen 9 6900HX (39164 - 61370, n=20)	52842 Points +11%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	48563 Points +2%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	47561 Points
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	18656 Points -61%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points -62%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -64%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	12377 Points -74%

AIDA64 / CPU AES
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	122402 MB/s
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	119784 MB/s -2%
Average AMD Ryzen 9 6900HX (54613 - 142360, n=20)	115891 MB/s -5%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	73326 MB/s -40%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s -44%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -45%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	16202 MB/s -87%

AIDA64 / CPU ZLib
Average AMD Ryzen 9 6900HX (578 - 911, n=20)	803 MB/s +6%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	769 MB/s +2%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	757 MB/s
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	397 MB/s -48%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s -51%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s -51%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	285 MB/s -62%

AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 9 6900HX (5798 - 9540, n=20)	8175 KRay/s +13%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	7395 KRay/s +3%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	7214 KRay/s
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	3838 KRay/s -47%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s -47%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -50%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	2671 KRay/s -63%

AIDA64 / CPU PhotoWorxx
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	30600 MPixel/s
Average AMD Ryzen 9 6900HX (26873 - 30604, n=20)	29389 MPixel/s -4%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	27471 MPixel/s -10%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s -15%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	20277 MPixel/s -34%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -45%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	10092 MPixel/s -67%

Desempenho do sistema

Os resultados do PCMark 10 são consistentemente mais altos do que os do ano passado GTR5 especialmente no sub-teste de Criação de Conteúdo Digital, onde o desempenho gráfico é mais importante.

PCMark 10 / Score
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	7109 Points
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (6251 - 7109, n=7)	6737 Points -5%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	6504 Points -9%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5931 Points -17%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points -28%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -37%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	4132 Points -42%

PCMark 10 / Essentials
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	11323 Points
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	10772 Points -5%
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (10029 - 11323, n=7)	10558 Points -7%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points -9%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	9233 Points -18%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -21%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	8351 Points -26%

PCMark 10 / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	10210 Points
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	9875 Points -3%
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (9550 - 10210, n=7)	9768 Points -4%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	8818 Points -14%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points -32%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	6348 Points -38%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -39%

PCMark 10 / Digital Content Creation
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	8432 Points
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (6920 - 8703, n=7)	8054 Points -4%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	7020 Points -17%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	6957 Points -17%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points -40%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points -47%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	3613 Points -57%

CrossMark / Overall
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1691 Points
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (1476 - 1731, n=7)	1585 Points -6%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1501 Points -11%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points -21%

CrossMark / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1701 Points
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (1451 - 1738, n=7)	1577 Points -7%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1495 Points -12%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points -17%

CrossMark / Creativity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1698 Points
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (1632 - 1745, n=7)	1683 Points -1%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1589 Points -6%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points -26%

CrossMark / Responsiveness
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1639 Points
Average AMD Ryzen 9 6900HX, AMD Radeon 680M (1060 - 1671, n=7)	1353 Points -17%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points -18%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1281 Points -22%

PCMark 10 Score		7109 pontos
Ajuda

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	50935 MB/s
Average AMD Ryzen 9 6900HX (47938 - 53345, n=20)	50405 MB/s -1%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	48099 MB/s -6%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42079 MB/s -17%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s -19%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	35353 MB/s -31%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -55%

AIDA64 / Memory Read
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	51869 MB/s
Average AMD Ryzen 9 6900HX (43892 - 53321, n=20)	51062 MB/s -2%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	47281 MB/s -9%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s -10%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	41238 MB/s -20%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	38017 MB/s -27%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -52%

AIDA64 / Memory Write
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	55316 MB/s
Average AMD Ryzen 9 6900HX (51085 - 57202, n=20)	55188 MB/s 0%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	51980 MB/s -6%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s -15%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42270 MB/s -24%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	39237 MB/s -29%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -58%

AIDA64 / Memory Latency
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	92 ns * -11%
Average AMD Ryzen 9 6900HX (80.7 - 120.6, n=20)	88.7 ns * -7%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * -5%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	82.9 ns *
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns * +2%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	80 ns * +3%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	55.6 ns * +33%

* ... smaller is better

Latência do DPC

Há pequenos problemas de DPC ao abrir várias abas do navegador em nossa página inicial. a reprodução do vídeo de 4K a 60 FPS é excelente, com apenas 2 quadros descartados durante nosso vídeo de teste de minutos. A utilização do processador é muito baixa em relação aos PCs alimentados por CPUs mais lentas da série U.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	1132 μs * -122%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	786 μs * -54%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * -3%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	509.9 μs *
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * +67%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	116 μs * +77%

* ... smaller is better

Dispositivos de armazenamento - SSD Cooling Incluído

Nossa unidade é embarcada com uma capacidade de 512 GB Kingston KC3000 PCIe4 x4 NVMe SSD oferecendo taxas sequenciais de leitura e escrita de até 7000 MB/s e 4000 MB/s, respectivamente. A unidade não apresenta problemas que sustentam taxas máximas de transferência por longos períodos, uma vez que um dissipador de calor SSD dedicado e uma almofada térmica vêm pré-instalados.

O sistema pode suportar um M.2 2280 PCIe4 x4 NVMe SSD e um mais lento M.2 2280 SATA III SSD

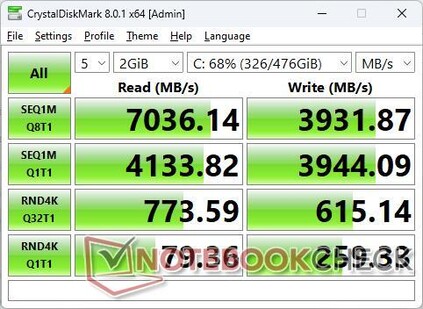

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston KC3000 512G SKC3000S512G

CDM 5/6 Read Seq Q32T1: 7088 MB/s

CDM 5/6 Write Seq Q32T1: 3943 MB/s

CDM 5/6 Read 4K Q32T1: 777.4 MB/s

CDM 5/6 Write 4K Q32T1: 611.8 MB/s

CDM 5 Read Seq: 4174 MB/s

CDM 5 Write Seq: 3944 MB/s

CDM 5/6 Read 4K: 78.79 MB/s

CDM 5/6 Write 4K: 260.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	96.9 pt
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	49.1 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	43 pt
Beelink GTR5 Kingston NV1 SNVS/500GCN	43 pt
GMK NucBox 2 Netac S930E8/256GPN	31.1 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	13.8 pt

DiskSpd
seq read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	4168 (3579.63^min - 4168.09^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2068 (2046.82^min - 2067.79^max) MB/s -50%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1986 (1983.26^min - 1986.21^max) MB/s -52%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s -61%
GMK NucBox 2 Netac S930E8/256GPN	1566 (1557.38^min - 1565.96^max) MB/s -62%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -88%
seq write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3783.49^min - 3937.52^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1887 (1880.31^min - 1887.23^max) MB/s -52%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1766 (564^min - 1766.22^max) MB/s -55%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s -58%
GMK NucBox 2 Netac S930E8/256GPN	1213 (454.38^min - 1213.29^max) MB/s -69%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -88%
seq q8 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	7061 (6122.84^min - 7060.97^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3415 (3195.01^min - 3414.88^max) MB/s -52%
Beelink GTR5 Kingston NV1 SNVS/500GCN	2511 (2320.5^min - 2511.12^max) MB/s -64%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s -66%
GMK NucBox 2 Netac S930E8/256GPN	2121 (1959.37^min - 2121.01^max) MB/s -70%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -92%
seq q8 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3914.12^min - 3937.52^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3400 (3383.13^min - 3399.9^max) MB/s -14%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1797 (679.16^min - 1796.66^max) MB/s -54%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s -64%
GMK NucBox 2 Netac S930E8/256GPN	1248 (414.41^min - 1248.45^max) MB/s -68%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -87%
4k q1 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	80.4 (79.66^min - 80.38^max) MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	51.1 (45.32^min - 51.14^max) MB/s -36%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s -37%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	41.8 (41.45^min - 41.8^max) MB/s -48%
GMK NucBox 2 Netac S930E8/256GPN	29.4 (21.8^min - 29.38^max) MB/s -63%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -73%
4k q1 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	284 (282.24^min - 284.12^max) MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	203 (155.48^min - 203.38^max) MB/s -29%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s -39%
GMK NucBox 2 Netac S930E8/256GPN	156 (133.05^min - 156.14^max) MB/s -45%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	60.6 (60.37^min - 60.61^max) MB/s -79%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -84%
4k q32 t16 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1942 (1940.94^min - 1941.94^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1146 (1123.37^min - 1146.36^max) MB/s -41%
Beelink GTR5 Kingston NV1 SNVS/500GCN	747 (741.87^min - 747.14^max) MB/s -62%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s -62%
GMK NucBox 2 Netac S930E8/256GPN	331 (329.92^min - 330.85^max) MB/s -83%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -85%
4k q32 t16 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3741 (3667.09^min - 3740.76^max) MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	801 (384.08^min - 801.12^max) MB/s -79%
GMK NucBox 2 Netac S930E8/256GPN	739 (122.91^min - 738.54^max) MB/s -80%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s -80%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	502 (468.48^min - 501.52^max) MB/s -87%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -91%

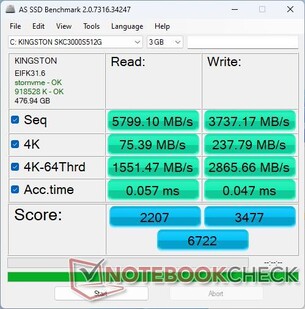

AS SSD
Score Total
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	6722 Points
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	4036 Points -40%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points -59%
Beelink GTR5 Kingston NV1 SNVS/500GCN	2544 Points -62%
GMK NucBox 2 Netac S930E8/256GPN	1497 Points -78%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -88%
Score Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2207 Points
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1439 Points -35%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points -56%
Beelink GTR5 Kingston NV1 SNVS/500GCN	966 Points -56%
GMK NucBox 2 Netac S930E8/256GPN	615 Points -72%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -86%
Score Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3477 Points
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1923 Points -45%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points -63%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1103 Points -68%
GMK NucBox 2 Netac S930E8/256GPN	598 Points -83%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -89%
Seq Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	5799.1 MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2562 MB/s -56%
Beelink GTR5 Kingston NV1 SNVS/500GCN	2289 MB/s -61%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s -61%
GMK NucBox 2 Netac S930E8/256GPN	2069 MB/s -64%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -91%
Seq Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3737.17 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s -53%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1703 MB/s -54%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1265 MB/s -66%
GMK NucBox 2 Netac S930E8/256GPN	1203 MB/s -68%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -87%
4K Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	75.39 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s -41%
Beelink GTR5 Kingston NV1 SNVS/500GCN	43.84 MB/s -42%
GMK NucBox 2 Netac S930E8/256GPN	41.66 MB/s -45%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	39.24 MB/s -48%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -73%
4K Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	237.79 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s -19%
Beelink GTR5 Kingston NV1 SNVS/500GCN	137.3 MB/s -42%
GMK NucBox 2 Netac S930E8/256GPN	136.9 MB/s -42%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	63.5 MB/s -73%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -82%
4K-64 Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1551.47 MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1143 MB/s -26%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s -54%
Beelink GTR5 Kingston NV1 SNVS/500GCN	693 MB/s -55%
GMK NucBox 2 Netac S930E8/256GPN	366.3 MB/s -76%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -85%
4K-64 Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2865.66 MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1733 MB/s -40%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s -68%
Beelink GTR5 Kingston NV1 SNVS/500GCN	795 MB/s -72%
GMK NucBox 2 Netac S930E8/256GPN	340.5 MB/s -88%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s -90%
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -118%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.075 ms * -32%
GMK NucBox 2 Netac S930E8/256GPN	0.064 ms * -12%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.057 ms *
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.054 ms * +5%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * +7%
Access Time Write
GMK NucBox 2 Netac S930E8/256GPN	0.347 ms * -638%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * -628%
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.332 ms * -606%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -472%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.193 ms * -311%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.047 ms *

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink GTR6: Ø7038 (6150.11-7064.75)

GPU Performance - Gráficos integrados mais rápidos

O Radeon 680M continua a impressionar com resultados que são cerca de 60% mais rápidos do que os resultados de saída Radeon RX Vega 8 na última geração Ryzen 9 5900HX. Isto coloca a nova GPU AMD integrada bem à frente de qualquer solução da Intel Iris Xe 96 EU em 50 por cento ou mais. GPUs dedicadas de baixo custo como a GeForce GTX 1060 ou GTX 1650 ainda são muito mais rápidos, mas os 680M são impressionantes, no entanto, para uma GPU integrada. A maioria dos títulos são jogáveis em configurações de baixa a baixa média resolução a 1080p, incluindo até mesmo o Cyberpunk 2077.

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	17077 Points +145%
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB NVIDIA GeForce GTX 1060 (Desktop), Intel Xeon E5-2680 v4	12648 Points +82%
KFA2 GeForce GTX 1650 EX One Click Plus NVIDIA GeForce GTX 1650 (Desktop), AMD Ryzen 9 3900X	9718 Points +40%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points
Average AMD Radeon 680M (3791 - 7653, n=35)	6673 Points -4%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points -35%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4493 Points -35%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -55%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	1914 Points -73%
2560x1440 Time Spy Graphics
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6599 Points +171%
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB NVIDIA GeForce GTX 1060 (Desktop), Intel Xeon E5-2680 v4	4158 Points +71%
KFA2 GeForce GTX 1650 EX One Click Plus NVIDIA GeForce GTX 1650 (Desktop), AMD Ryzen 9 3900X	3512 Points +44%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points
Average AMD Radeon 680M (1359 - 2607, n=35)	2219 Points -9%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points -41%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1441 Points -41%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -58%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	594 Points -76%
2560x1440 Time Spy Score
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6380 Points +133%
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB NVIDIA GeForce GTX 1060 (Desktop), Intel Xeon E5-2680 v4	4495 Points +64%
KFA2 GeForce GTX 1650 EX One Click Plus NVIDIA GeForce GTX 1650 (Desktop), AMD Ryzen 9 3900X	3927 Points +44%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points
Average AMD Radeon 680M (1546 - 2914, n=35)	2485 Points -9%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1647 Points -40%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1612 Points -41%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1161 Points -58%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	676 Points -75%

3DMark 11 - 1280x720 Performance GPU
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	23992 Points +127%
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB NVIDIA GeForce GTX 1060 (Desktop), Intel Xeon E5-2680 v4	17174 Points +63%
KFA2 GeForce GTX 1650 EX One Click Plus NVIDIA GeForce GTX 1650 (Desktop), AMD Ryzen 9 3900X	13531 Points +28%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points
Average AMD Radeon 680M (6858 - 11668, n=34)	10018 Points -5%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7102 Points -33%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points -38%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -51%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	2947 Points -72%

3DMark 11 Performance		10640 pontos
3DMark Cloud Gate Standard Score		32988 pontos

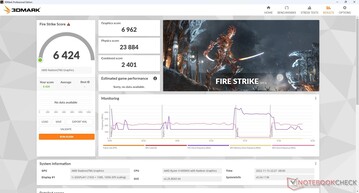

3DMark Fire Strike Score		6424 pontos
3DMark Time Spy Score		2735 pontos
Ajuda

... comparado com

Blender
v3.3 Classroom HIP/AMD
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds *
Average AMD Radeon 680M (270 - 555, n=31)	346 Seconds * +3%
v3.3 Classroom CPU
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	995 Seconds * -128%
Average AMD Radeon 680M (389 - 609, n=31)	478 Seconds * -10%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds *

* ... smaller is better

Performance Rating - Percent
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	100 pt
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 pt
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34.9 pt
Beelink SEi11 Pro ^-1! Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	32.1 pt
Intel NUC11TNKi5 ^-3! Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	28.4 pt
GMK NucBox 2 ^-3! Intel Core i5-8259U, Intel Iris Plus Graphics 655	18.8 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	61.4 (59^min) fps +127%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.1 (15^min) fps -37%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps -49%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.6 (19.2^min, 47.6^P1) fps +194%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.1 (3.94^min, 10.6^P1) fps -36%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	67.5 fps +176%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.7 fps -36%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps -39%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	10.5 fps -57%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	6.04 fps -75%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	109 (68.2^min, 83.9^P1) fps +162%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.5 (21.3^min, 22.3^P1) fps -34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps -47%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	112 (98.7^min) fps +57%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.9 (53.3^min) fps -16%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps -34%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.4 (18.2^min) fps -56%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	27.7 (25.5^min) fps -61%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.8 fps +67%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.5 fps -3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps -11%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.1 fps -30%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	15.9 fps -62%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	130 fps +90%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps
Average AMD Radeon 680M (34.4 - 74.7, n=33)	59.2 fps -14%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.8 fps -35%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.6 fps -44%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26.8 fps -61%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.3 fps -75%
1920x1080 Standard Quality
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	89.2 fps +156%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps
Average AMD Radeon 680M (18.3 - 36.9, n=34)	30.7 fps -12%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.3 fps -36%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	20.3 fps -42%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.7 fps -61%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	9.07 fps -74%
1920x1080 High Quality
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	67.5 fps +176%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps
Average AMD Radeon 680M (12.9 - 26.2, n=34)	22 fps -10%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.7 fps -36%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps -39%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	10.5 fps -57%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	6.04 fps -75%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	220.7 (196^min) fps +59%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps
Average AMD Radeon 680M (67.4 - 150, n=30)	114.8 fps -18%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.7 (45^min) fps -36%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	86.9 (77^min) fps -38%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps -57%
1366x768 Medium Graphics & Postprocessing
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	152.2 (142^min) fps +81%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps
Average AMD Radeon 680M (44.5 - 85.3, n=23)	70 fps -17%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	55.2 (52^min) fps -34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.7 (44^min) fps -36%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	101.5 (96^min) fps +121%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps
Average AMD Radeon 680M (22.3 - 48, n=32)	37.4 fps -19%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.8 (25^min) fps -40%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (25^min) fps -42%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	61.4 (59^min) fps +127%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps
Average AMD Radeon 680M (14.3 - 27.1, n=32)	23 fps -15%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.1 (15^min) fps -37%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps -49%

GTA V
1024x768 Lowest Settings possible
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	168 (5.58^min, 111^P1) fps +10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	140 (14^min, 90.9^P1) fps -8%
Average AMD Radeon 680M (67.7 - 155.4, n=30)	133.8 fps -12%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	94.2 (16.5^min, 58.8^P1) fps -38%
1920x1080 Lowest Settings possible
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	156 (4.99^min, 111^P1) fps +39%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps
Average AMD Radeon 680M (56.9 - 115.8, n=22)	102.6 fps -8%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	81.8 (10.6^min, 58.8^P1) fps -27%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.9 (13.2^min, 45.5^P1) fps -41%
1366x768 Normal/Off AF:4x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	158 (4.65^min, 90.9^P1) fps +14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124 (14.4^min, 83.3^P1) fps -10%
Average AMD Radeon 680M (60.7 - 143.9, n=27)	119.3 fps -14%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	77.6 (21.9^min, 50^P1) fps -44%
1920x1080 Normal/Off AF:4x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	147 (4.13^min, 90.9^P1) fps +34%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps
Average AMD Radeon 680M (54.9 - 117.3, n=22)	101.9 fps -7%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.6 (9.51^min, 58.8^P1) fps -23%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	57.3 (22.2^min, 38.5^P1) fps -48%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	119 (39.3^min, 76.9^P1) fps +130%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps
Average AMD Radeon 680M (25.9 - 99.1, n=30)	49.1 fps -5%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.4 (6.39^min, 24.4^P1) fps -36%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 (11.5^min, 15.9^P1) fps -55%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.6 (19.2^min, 47.6^P1) fps +194%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps
Average AMD Radeon 680M (11.3 - 24.8, n=30)	21.4 fps -10%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.1 (3.94^min, 10.6^P1) fps -36%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	139 (124.5^min) fps -2%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	135 (115.7^min) fps -5%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	119.6 (108.4^min) fps -16%
Average AMD Radeon 680M (34.4 - 143.3, n=35)	114.1 fps -20%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	98 (79.8^min) fps -31%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	73.8 (47.9^min) fps -48%
1366x768 med (1/3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	123 (107.7^min) fps +9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	107 (88.2^min) fps -5%
Average AMD Radeon 680M (33.3 - 121.4, n=35)	95 fps -16%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	78.6 (66.2^min) fps -30%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	66 (54.7^min) fps -41%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56 (40.8^min) fps -50%
1920x1080 high (2/3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	116 (100.9^min) fps +43%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps
Average AMD Radeon 680M (33.2 - 89.1, n=35)	71.3 fps -12%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	63.8 (56.8^min) fps -21%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.4 (41.9^min) fps -38%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	34.2 (20^min) fps -58%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	31.9 (29.3^min) fps -61%
1920x1080 ultra (3/3) best looking
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	112 (98.7^min) fps +57%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps
Average AMD Radeon 680M (33.2 - 84.9, n=35)	62.7 fps -12%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.9 (53.3^min) fps -16%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps -34%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.4 (18.2^min) fps -56%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	27.7 (25.5^min) fps -61%

Cyberpunk 2077 1.6
1280x720 Low Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	72.2 (23.3^min) fps
Average AMD Radeon 680M (46.1 - 77.6, n=14)	63.7 fps -12%
1920x1080 Low Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps
Average AMD Radeon 680M (26 - 50.6, n=15)	38 fps -12%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	18.6 (8.1^min) fps -57%
1920x1080 Medium Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps
Average AMD Radeon 680M (20.1 - 41.8, n=15)	29 fps -12%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.6 (7.8^min) fps -53%
1920x1080 High Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps
Average AMD Radeon 680M (16.3 - 33.6, n=15)	21.4 fps -4%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	11.7 (6.1^min) fps -48%
1920x1080 Ultra Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps
Average AMD Radeon 680M (14 - 23.8, n=15)	17.5 fps 0%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.8 (4.9^min) fps -44%

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	94.8 fps +46%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	58.2 fps -10%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	58.2 fps -10%
Average AMD Radeon 680M (26.8 - 66.7, n=35)	55.1 fps -15%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	37.1 fps -43%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	25.3 fps -61%
1920x1080 med (fps_test=2)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	81.3 fps +55%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.7 fps -13%
Average AMD Radeon 680M (21.1 - 53.1, n=35)	43.6 fps -17%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	41.2 fps -22%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	27.3 fps -48%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	18 fps -66%
1920x1080 high (fps_test=3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.8 fps +67%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.5 fps -3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps -11%
Average AMD Radeon 680M (16.6 - 43.1, n=35)	35.7 fps -15%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.1 fps -30%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	15.9 fps -62%

Strange Brigade
1280x720 lowest AF:1
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	287 (77^min, 220^P1) fps +102%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps
Average AMD Radeon 680M (72.9 - 167.5, n=33)	131.6 fps -8%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.1 (72.8^min, 85.4^P1) fps -30%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.3 (18.8^min, 25.6^P1) fps -44%
1920x1080 medium AA:medium AF:4
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	148 (64.5^min, 124^P1) fps +158%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps
Average AMD Radeon 680M (30 - 63, n=33)	53.7 fps -6%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.8 (31.8^min, 33.6^P1) fps -34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	33.9 (10.3^min, 19.8^P1) fps -41%
1920x1080 high AA:high AF:8
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	124 (75.3^min, 98^P1) fps +156%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps
Average AMD Radeon 680M (25.3 - 53.1, n=33)	44.4 fps -8%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.9 (23.5^min, 25.5^P1) fps -34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.7 (10^min, 15.1^P1) fps -43%
1920x1080 ultra AA:ultra AF:16
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	109 (68.2^min, 83.9^P1) fps +162%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps
Average AMD Radeon 680M (22 - 44.2, n=33)	38.1 fps -8%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.5 (21.3^min, 22.3^P1) fps -34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps -47%

Witcher 3 FPS Chart

Beelink GTR6: Ø41 (35-45)

	baixo	média	alto	ultra
GTA V (2015)	152.6	138	51.8	23.7
The Witcher 3 (2015)	139.2	84	46	27.1
Dota 2 Reborn (2015)	141.9	112.7	80.9	71.4
Final Fantasy XV Benchmark (2018)	68.5	34.9	24.5
X-Plane 11.11 (2018)	64.8	52.6	41.8
Strange Brigade (2018)	142.4	57.4	48.5	41.6
Cyberpunk 2077 1.6 (2022)	43	33	22.3	17.5

Emissões

Ruído do sistema

O sistema utiliza um pequeno ventilador de ~40 mm. Um maior teria sido ideal

O ruído dos ventiladores talvez precise da maior atenção do fabricante. O GTR6 está pulsando constantemente entre 23 dB(A) a 36 dB(A) mesmo quando não há atividade na tela. As mudanças no ruído dos ventiladores são perceptíveis e distraem se simplesmente navegar na web ou em fluxo de vídeo. A maioria dos outros mini PCs têm controles de ventilador e comportamento de RPM superiores ao do GTR6

O ruído do ventilador estabilizaria na faixa baixa de 40 dB(A) quando o jogo é pelo menos comparável a muitos Ultrabooks e ao antigo GTR5 sob condições de teste similares. É uma pena que os pulsos dos ventiladores pulsem com tanta freqüência durante cargas baixas a baixas-médias.

Perfil de ruído do ventilador (Branco: Fundo, Vermelho: Sistema ocioso, Azul: 3DMark 06, Laranja: Witcher 3, Verde: Prime95 stress)

Barulho

Ocioso		23.6 / 23.8 / 36.2 dB
Carga		39.7 / 43 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 23.2 dB(A)

	Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
Noise		10%	-14%	2%	-14%	5%
off / environment *	23.2	22.8 2%	23.1 -0%	24.5 -6%	24.8 -7%	25.6 -10%
Idle Minimum *	23.6	24.7 -5%	34.2 -45%	25.3 -7%	35.6 -51%	25.7 -9%
Idle Average *	23.8	24.7 -4%	34.2 -44%	25.3 -6%	35.6 -50%	25.7 -8%
Idle Maximum *	36.2	25.3 30%	34.2 6%	25.3 30%	35.6 2%	25.7 29%
Load Average *	39.7	33.2 16%	44.6 -12%	36.4 8%	36.2 9%	35.3 11%
Witcher 3 ultra *	41	34.5 16%	41.4 -1%	39.7 3%	38 7%
Load Maximum *	43	37.8 12%	45.1 -5%	47.9 -11%	47.6 -11%	35.1 18%

* ... smaller is better

Temperatura

O adaptador AC chega a 35 C quando a carga é exigente

A temperatura da superfície não é um problema, pois nunca é desconfortavelmente quente. Entretanto, tenha em mente que o ar frio entra pelo topo e, portanto, não é recomendado colocar livros ou itens em cima da unidade. Certifique-se de deixar amplo espaço atrás da unidade também onde sai o calor residual.

Teste de estresse

Quando estressada com Prime95, a CPU aumentaria para 3,4 GHz e 45 W por apenas alguns segundos antes de se estabilizar em 3,1 GHz, 38 W e 66 C. Há definitivamente espaço para o overclocking do usuário final, já que o fabricante aparentemente definiu um teto de temperatura conservador quando nas configurações padrão.

A taxa de relógio GPU e a temperatura se estabilizariam em 1977 MHz e uma temperatura razoavelmente fria de 56 C, respectivamente, quando em funcionamento Witcher 3 para representar cargas típicas de jogos.

	Relógio CPU (GHz)	Relógio GPU (MHz)	Temperatura média da CPU (°C)
System Idle	--	--	28
Prime95 Stress	3.2	--	66
Prime95 + FurMark Stress	2.7	1042	60
Witcher 3 Estresse	~0.8	1977	56

Gestão de energia

Consumo de energia

O consumo total é quase idêntico ao que registramos no GTR5 apesar do aumento de 60 por cento no desempenho gráfico. Em outras palavras, o GTR6 é capaz de fornecer um desempenho gráfico significativamente mais rápido do que seu predecessor sob o mesmo envelope de potência para um desempenho muito maior por watt. O consumo de energia ainda é muito maior do que a maioria dos laptops e mini PCs alimentados por CPUs Intel Core U e os Iris Xe 96 EU, entretanto, o que explica o maior tamanho físico do GTR6 em relação a muitos NUCs Intel.

Somos capazes de registrar um consumo máximo temporário de 81 W do adaptador AC de médio porte (~14,4 x 6,3 x 3 cm) de 120 W quando a CPU está em 100% de utilização.

Witcher 3 1080p Ultra consumo de energia

O consumo saltaria para 78 W com duração de apenas 10 segundos ao iniciar Prime95 antes de cair e se estabilizar em 71 W

Prime95+FurMark stress iniciado na marca dos 10s

Consumo de energia

desligado	0.86 / 1.5 Watt
Ocioso	7.6 / 9.9 / 10.6 Watt
Carga	64 / 80.4 Watt


Key: min: , med: , max: Metrahit Energy

	Beelink GTR6 R9 6900HX, Radeon 680M, Kingston KC3000 512G SKC3000S512G, , x,	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink GTR5 R9 5900HX, Vega 8, Kingston NV1 SNVS/500GCN, , x,	Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,
Power Consumption		6%	8%	-73%	-3%	29%
Idle Minimum *	7.6	9.8 -29%	6.2 18%	5.8 24%	11.5 -51%	6.1 20%
Idle Average *	9.9	10.3 -4%	8.9 10%	5.9 40%	12.4 -25%	6.8 31%
Idle Maximum *	10.6	10.5 1%	9 15%	20.7 -95%	12.9 -22%	7.3 31%
Load Average *	64	54.2 15%	66.8 -4%	130.8 -104%	40.7 36%	46.3 28%
Witcher 3 ultra *	69	53.1 23%	62.6 9%	154.4 -124%	43.9 36%
Load Maximum *	80.4	59 27%	81.6 -1%	225.2 -180%	73.5 9%	50.7 37%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink GTR6 R9 6900HX, Radeon 680M; Witcher 3 ultra: Ø69 (65.6-72.5)

Beelink GTR5 R9 5900HX, Vega 8; Witcher 3 ultra: Ø62.6 (55.8-65.3)

Beelink GTR6 R9 6900HX, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø71.7 (68.7-80.4)

Beelink GTR5 R9 5900HX, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø77.5 (74.5-81.6)

Power Consumption external Monitor

Beelink GTR6 R9 6900HX, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø70.3 (60.8-77.9)

Beelink GTR5 R9 5900HX, Vega 8; Prime95 V2810 Stress (external Monitor): Ø77.7 (75.5-83.8)

Beelink GTR6 R9 6900HX, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø68.2 (64.3-74)

Beelink GTR5 R9 5900HX, Vega 8; Cinebench R15 Multi (external Monitor): Ø73.5 (60.5-79.3)

Beelink GTR6 R9 6900HX, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø70.7 (68-76.7)

Beelink GTR5 R9 5900HX, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.6 (59.4-64.1)

Beelink GTR6 R9 6900HX, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø69 (65.6-72.5)

Beelink GTR5 R9 5900HX, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.6 (55.8-65.3)

Beelink GTR6 R9 6900HX, Radeon 680M; Idle 1min (external Monitor): Ø9.04 (8.31-13.1)

Pro

+ desempenho muito rápido da CPU e da GPU integrada

+ 2x M.2 2280 SSDs + 2x slots SODIMM DDR5

+ excelente desempenho PCIe4 x4 NVMe SSD

+ 4x portas HDMI 2.1

Contra

- sem suporte de Thunderbolt

- sem porta de eclusa Kensington

- pulsos dos ventiladores freqüentemente

- apenas uma porta USB-C

Veredicto - Tudo sobre essa GPU

Em revisão: Beelink GTR6. Unidade de teste fornecida pela Beelink

A principal vantagem de escolher o GTR6 Beelink em vez do GTR5 é por seus gráficos integrados significativamente melhorados. Caso contrário, o Zen 3+ Ryzen 9 6900HX oferece um desempenho de processador marginalmente mais rápido do que o Zen 3 Ryzen 9 5900HX. Se você planeja, em sua maioria, transmitir conteúdo para seu mini PC com o ocasional multitarefa moderado, então o GTR5 tem potência mais do que suficiente para seus propósitos. Se você planeja executar jogos localmente ou outras tarefas com GPU intensivo, então o GTR6 pode valer o investimento.

O preço é outro fator importante a ser considerado. Por $750 USD, o GTR6 vem completo com RAM, SSD, Windows 11 Pro licenciado e uma CPU e GPU integrada mais rápidas do que a maioria das opções da Intel NUC, incluindo até mesmo os modelos mais recentes 12º gen NUC Pro. A Beelink oferece até mesmo um SKU sem RAM ou armazenamento por apenas US$540.

A GPU AMD Radeon 680M é o destaque da GTR6 Beelink. O desempenho por dólar é alto em relação aos NUCs concorrentes da Intel na mesma faixa de preço de $750.

O ruído do ventilador é talvez nossa maior reclamação sobre o GTR6, pois ele pulsa aparentemente sem motivo quando o sistema está ocioso ou rodando cargas não solicitadas. Caso contrário, o desempenho por dólar e o conjunto de características do GTR6 são ambos muito competitivos.

Preço e Disponibilidade

O Beelink GTR6 agora é enviado em nossa configuração exata em Amazon por $999 USD ou apenas $749 USD se comprado diretamente do fabricante https://www.bee-link.com/catalog/product/buy?id=382.

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5243 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 459232 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Beelink GTR6 Ryzen 9 6900HX revisão mini PC: Mais rápido que a maioria dos NUCs da Intel

Allen Ngo, 2022-11-22 (Update: 2022-11-22)

Possíveis concorrentes em comparação

Estojo - Nova tampa de malha macia

Comparação de tamanho

Conectividade - Sem relâmpago

Comunicação - Padrão Wi-Fi 6E

Manutenção

Acessórios e Garantia

Desempenho - Atualização Zen 3+

Condições de teste

Processador

Cinebench R15 Multi Loop

Desempenho do sistema

Latência do DPC

Dispositivos de armazenamento - SSD Cooling Incluído

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performance - Gráficos integrados mais rápidos

Witcher 3 FPS Chart

Emissões

Ruído do sistema

Temperatura

Teste de estresse

Gestão de energia

Consumo de energia

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pro

Contra

Veredicto - Tudo sobre essa GPU

Preço e Disponibilidade

More articles related to this device

Price comparison
