Ace Magician AMR5 em revisão: Mini PC elegante com um Ryzen 5 5600U e iluminação RGB discreta

União Minipcé uma empresa chinesa especializada em Mini PCs, assim como em sistemas "all-in-one". No momento, a Minipc Union oferece vários produtos, entre outros. Estes incluem o Kamrui, Ouvislite, Nipogi, Snunmu e Ace Magician, que também inclui o AMR5 que examinaremos nesta análise

O Ace Magician AMR5 é um Mini PC muito compacto que é baseado em um AMD Ryzen 5 5600U. O mesmo modelo também estava disponível com umAMD Ryzen 5 4500U no passado. O AMD Radeon RX Vega 7, que encontramos frequentemente em vários laptops, é o único responsável pelos cálculos em 3D. O mesmo vale para o Ryzen 5 5600U. Ele encontrou seu caminho para este PC compacto devido a suas baixas emissões. Há 16 GB de RAM e um SSD de 512 GB como dispositivo de armazenamento em massa. Além disso, o Windows 11 Pro é pré-instalado e ativado

O Ace Magician AMR5 pode ser adquirido por 590 euros (~$599) na versão que revisamos. Por outro lado, o modelo baseado no AMD Ryzen 5 4500U está disponível por 560 Euros (~$569).

Rating	Date	Model	Weight	Height	Resolution
v ^(old)	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm	x
v ^(old)	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm	x
v ^(old)	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm	x
v ^(old)	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm	x
v ^(old)	04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
v ^(old)	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm	x

A Minipc Union Ace Magician AMR5 em detalhes

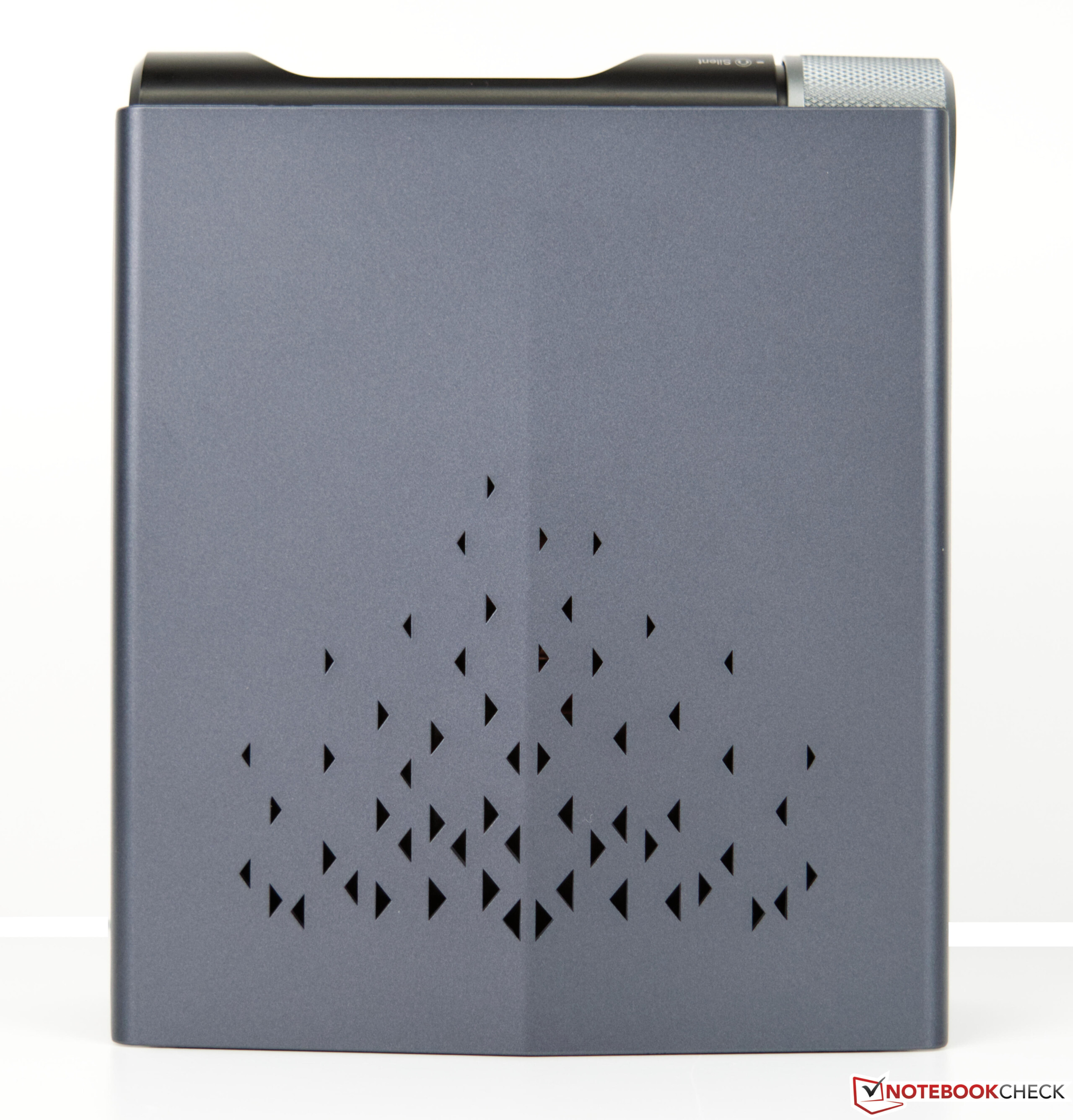

Caso

Se você imaginar um Mini PC, você provavelmente sempre pensará em uma caixa quadrada compacta. Aqui, o Ace Magician AMR5 adota uma abordagem completamente diferente que é orientada para um PC torre em termos de aparência. Como uma versão reduzida, o PC compacto tem apenas 16 centímetros de altura. Quanto aos materiais, há apenas plástico, mas o design é aprimorado pelo uso de acentos de duas cores. O lado direito da caixa, quando visto de frente, é segurado magneticamente e pode ser removido com bastante facilidade. A RAM e o SSD estão escondidos atrás dele, e podem ser expandidos se necessário. Não há nada a reclamar em termos de robustez, apesar de o alumínio não ter sido utilizado. Com um peso de 581 gramas, o pequeno computador é muito leve, o que o faz caber em qualquer mesa. Além disso, o sistema pode ser melhorado visualmente com alguns efeitos RGB

Conectividade

O Ace Magician AMR5 oferece um grande número de interfaces externas. Estas estão distribuídas pela frente e por trás. Os usuários desfrutarão de um total de cinco portas USB, uma das quais é uma porta Type-C que também suporta a saída de vídeo. Isto significa que o PC pequeno pode ser usado com três monitores ao mesmo tempo. Entretanto, um leitor de cartões SD não está incluído

Portos externos no Ace Magician AMR5 (fonte: Minipc Union)

Comunicação

A Minipc Union usa um módulo MediaTek RZ608 WLAN em seu Ace Magician AMR5. Já estamos familiarizados com ele, já que o mesmo modelo também foi usado no Minisforum EliteMini B550. Entretanto, as taxas de transferência determinadas com o Ace Magician AMR5 parecem muito mais promissoras. Nossa amostra de revisão forneceu taxas de transferência rápidas e estáveis em nosso ambiente de teste. Utilizamos nosso Asus ROG Rapture GT-AXE11000 para este teste. A porta RJ45 oferece outra alternativa para comunicação em rede sem fio. Não é possível obter mais de 1 Gb/s aqui, porém

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (684 - 1771, n=52, last 2 years)	1385 MBit/s +53%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -9%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -52%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (394 - 1800, n=52, last 2 years)	1337 MBit/s +38%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s -10%
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s -15%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -41%

Minipc Union Ace Magician AMR5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø951 (486-993)

Minipc Union Ace Magician AMR5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø888 (450-913)

Manutenção

É bastante difícil realizar qualquer trabalho de manutenção quando se trata de acessar o ventilador da CPU. Entretanto, os usuários que desejam expandir ou substituir a RAM ou SSD podem acessar facilmente estes componentes. A tampa lateral pode ser removida sem afrouxar nenhum parafuso, e também é equipada com um fechamento magnético. Gostaríamos de ter visto esta opção também do outro lado, a fim de chegar mais rapidamente à unidade de resfriamento ativo do SoC. Isto provavelmente foi omitido porque não há opções de atualização desse lado. Portanto, se você quiser acessar mais componentes, você terá que continuar desmontando o dispositivo do lado que já está aberto

Desempenho

OAMD Ryzen 5 5600U O SoC fornece uma base sólida para aplicações multi-tarefas. Com os 16 GB de RAM DDR4 integrados, você está bem equipado para a maioria das aplicações, sem trabalhar constantemente no limite. Por outro lado, o SSD de 512 GB pode ser criticado um pouco mais, já que a Minipc Union considera o Ace Magician AMR5 como um PC de jogos compacto. Mas como os jogos ocupam cada vez mais espaço de armazenamento, um SSD de 1 TB teria sido, em nossa opinião, uma escolha melhor

Condições de teste

O Ace Magician AMR5 oferece aos usuários a opção de operar o dispositivo sob três configurações diferentes. As configurações podem ser alteradas através de um interruptor rotativo, que também é o botão de alimentação. Como resultado, o SoC pode ser operado permanentemente a 12, 18 ou 25 watts (Silencioso, Automático, Desempenho). Escolhemos exclusivamente o perfil de desempenho para esta revisão, a fim de obter os melhores resultados possíveis

Processador

A built-in AMD Ryzen 5 5600Ua APU oferece 6 núcleos Zen 3 com SMT, e provém do setor móvel. O APU, que de outra forma é encontrado em laptops, é frugal, algo que beneficia o design compacto, já que não requer refrigeração complexa. O SoC pode ser operado em três modos diferentes. Um máximo de 28 watts está disponível no modo Performance, embora 25 watts seja o que pode ser mantido a longo prazo. O SoC pode ser acelerado para 18 ou 12 watts, respectivamente, os outros modos. Naturalmente, isto também impacta o desempenho do sistema. Para ilustrar isto, rodamos o Cinebench R15 uma vez em cada um dos três modos, como mostram as capturas de tela abaixo

Em uma comparação direta com a concorrência, o Ace Magician AMR5 tem um desempenho bastante bom, embora a CPU nativa octa-core ofereça um melhor desempenho multithread. Entretanto, o desempenho geral da AMD Ryzen 5 5600U é ligeiramente melhor que o desempenho médio que conseguimos alcançar com este SoC até o momento. No entanto, você ainda pode obter mais desempenho usando uma RAM ligeiramente mais rápida, uma vez que a RAM embutida só cronometrou a 2.666 MHz.

Mais referências sobre os processadores podem ser encontradas aqui.

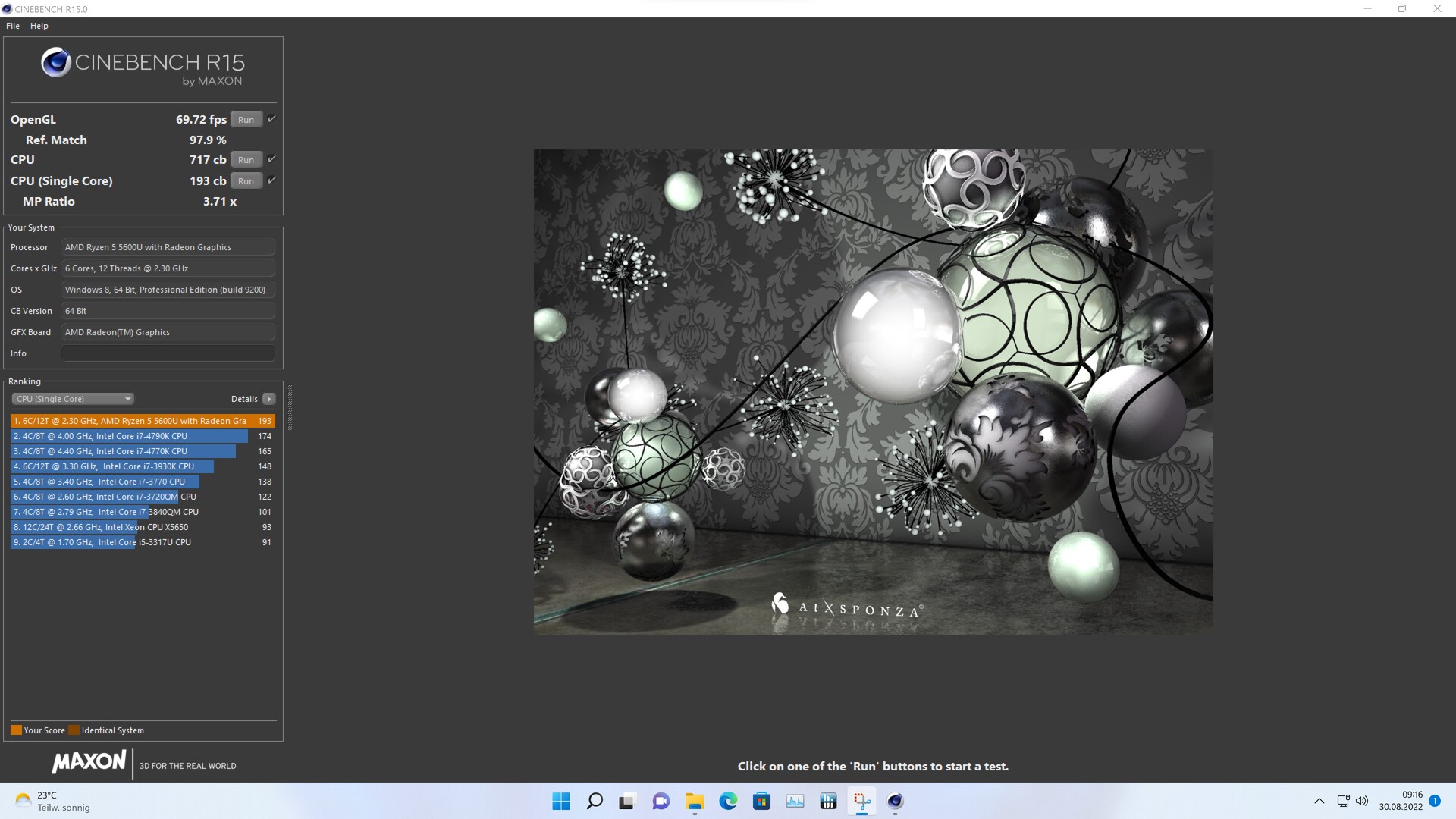

Cinebench R15 - Performance Mode (usado para todos os testes)

Performance Rating - Percent
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Beelink SER4 ^-16! AMD Ryzen 7 4800U, 1800 MHz	44.9 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Average AMD Ryzen 5 5600U	41.5 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points
Average AMD Ryzen 5 5600U (220 - 223, n=6)	222 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points -5%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	187 Points -16%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +76%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +52%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1411 (1390.29^min - 1411.03^max) Points +12%
Average AMD Ryzen 5 5600U (1265 - 1546, n=6)	1347 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points -25%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points
Average AMD Ryzen 5 5600U (532 - 536, n=7)	534 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	488 Points -9%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +74%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +51%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	3248 Points +9%
Average AMD Ryzen 5 5600U (2345 - 3632, n=7)	3036 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points -22%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points
Average AMD Ryzen 5 5600U (2.61 - 2.64, n=3)	2.63 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points -5%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +49%
Average AMD Ryzen 5 5600U (14.5 - 16, n=3)	15.1 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +3%
Average AMD Ryzen 5 5600U (11098 - 11143, n=3)	11124 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +61%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +42%
Average AMD Ryzen 5 5600U (45363 - 50831, n=3)	47704 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points -7%

Blender - v2.79 BMW27 CPU
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * -29%
Average AMD Ryzen 5 5600U (328 - 481, n=6)	413 Seconds * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds *
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	340 Seconds * +15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +34%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +43%

wPrime 2.10
32m
Average AMD Ryzen 5 5600U (4.85 - 8.78, n=3)	6.34 s * -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +38%
1024m
Average AMD Ryzen 5 5600U (147.8 - 277, n=3)	193.8 s * -24%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +41%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +13%
Average AMD Ryzen 5 5600U (234 - 236, n=2)	235 fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +47%
Average AMD Ryzen 5 5600U (76 - 81, n=2)	78.5 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s
Average AMD Ryzen 5 5600U (6346 - 6877, n=3)	6694 KB/s -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -38%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -4%
Average AMD Ryzen 5 5600U (5.1 - 8.3, n=3)	7.03 GB/s -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s -21%
Twofish Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +36%
Average AMD Ryzen 5 5600U (1.1 - 1.2, n=3)	1.133 GB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -16%
Serpent Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +71%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +57%
Average AMD Ryzen 5 5600U (0.7 - 0.796, n=3)	0.759 GB/s +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -25%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +27%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6375 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -8%
Average AMD Ryzen 5 5600U (4506 - 6523, n=5)	5611 Points -9%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points
Average AMD Ryzen 5 5600U (1334 - 1430, n=5)	1388 Points -3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1192 Points -17%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points
Average AMD Ryzen 5 5600U (5031 - 6479, n=3)	5876 Points -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -8%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points
Average AMD Ryzen 5 5600U (1340 - 1383, n=3)	1365 Points -1%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points
Average AMD Ryzen 5 5600U (5553 - 5918, n=3)	5775 Points -1%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +30%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points
Average AMD Ryzen 5 5600U (21830 - 25738, n=3)	24021 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -10%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	12541 Points -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points -8%
Average AMD Ryzen 5 5600U (7823 - 13130, n=6)	11018 Points -13%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +46%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +40%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	40117 MIPS +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS
Average AMD Ryzen 5 5600U (32052 - 43071, n=6)	37855 MIPS -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS -31%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS
Average AMD Ryzen 5 5600U (5118 - 5260, n=6)	5198 MIPS -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS -6%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	4603 MIPS -12%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +44%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	10.4 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps
Average AMD Ryzen 5 5600U (7.31 - 11.8, n=6)	9.72 fps -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps -22%

R Benchmark 2.5 - Overall mean
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * -16%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	0.576 sec * -7%
Average AMD Ryzen 5 5600U (0.537 - 0.59, n=6)	0.555 sec * -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +8%

LibreOffice - 20 Documents To PDF
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	62.6 s * -23%
Average AMD Ryzen 5 5600U (49.3 - 57.5, n=6)	54 s * -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +5%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points
Average AMD Ryzen 5 5600U (243 - 265, n=6)	255 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	219 Points -14%

Mozilla Kraken 1.1 - Total
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	793 ms * -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * -4%
Average AMD Ryzen 5 5600U (646 - 667, n=6)	656 ms * -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +7%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +32%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +31%
Average AMD Ryzen 5 5600U (16412 - 20528, n=3)	18169 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17516 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points -22%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17885 Points -1%
Average AMD Ryzen 5 5600U (14756 - 20872, n=6)	17757 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points -24%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +28%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6514 Points +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points -4%
Average AMD Ryzen 5 5600U (3820 - 5685, n=6)	4931 Points -9%

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	94.9 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	84.5 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	84.4 pt
Average of class Mini PC	73 pt
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	64.6 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	59.2 pt
Average AMD Ryzen 5 5600U	57.9 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +48%
Average of class Mini PC (561 - 51004, n=118, last 2 years)	12276 KRay/s +35%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +11%
Average AMD Ryzen 5 5600U (7902 - 10892, n=6)	9154 KRay/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s -18%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +51%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +49%
Average of class Mini PC (3604 - 214250, n=118, last 2 years)	62123 Points +8%
Average AMD Ryzen 5 5600U (55397 - 69193, n=6)	59694 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points -45%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +48%
Average of class Mini PC (225 - 9399, n=118, last 2 years)	2738 MB/s +39%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +6%
Average AMD Ryzen 5 5600U (1906 - 2359, n=6)	2032 MB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -7%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +56%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +41%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +17%
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	77819 Points +16%
Average AMD Ryzen 5 5600U (67224 - 77176, n=6)	70668 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -22%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +54%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +44%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +42%
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8454 Points +2%
Average AMD Ryzen 5 5600U (7897 - 9215, n=6)	8412 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points -40%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +77%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +52%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +50%
Average AMD Ryzen 5 5600U (30542 - 38158, n=6)	32514 Points +4%
Average of class Mini PC (1958 - 113499, n=118, last 2 years)	32406 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points -40%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +48%
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	85412 MB/s +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s -2%
Average AMD Ryzen 5 5600U (34865 - 92244, n=6)	67096 MB/s -14%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -30%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +48%
Average of class Mini PC (74.8 - 2039, n=118, last 2 years)	709 MB/s +40%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +17%
Average AMD Ryzen 5 5600U (493 - 597, n=6)	527 MB/s +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s -19%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +55%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +55%
Average of class Mini PC (308 - 26952, n=118, last 2 years)	6564 KRay/s +42%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +20%
Average AMD Ryzen 5 5600U (4104 - 5644, n=6)	4749 KRay/s +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s -13%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +58%
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	27624 MPixel/s +42%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s +25%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -24%
Average AMD Ryzen 5 5600U (7147 - 19395, n=6)	13587 MPixel/s -30%

O Mágico Ás AMR5 na Cinebench R15 Multi loop

Um olhar sobre a eficiência do sistema de refrigeração embutido é fornecido pelo loop contínuo Cinebench R15. Após a sétima corrida, o desempenho cai em cerca de 10%. Ainda assim, com uma média de 1.158 pontos, o Ace Magician AMR5 pode completar este teste com um resultado bastante bom.

Medidas da CPU durante a execução do laço Cinebench R15

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Beelink SER4 AMD Ryzen 7 4800U, AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Desempenho do sistema

Mais uma vez, o Ace Magician AMR5 pode acompanhar bem os benchmarks em termos de desempenho do sistema. O espaço para os octa-cores mais rápidos permanece dentro dos limites e não é realmente perceptível durante as tarefas diárias.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	82.3 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	5257 Points -9%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points -11%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -2%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points -8%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	9188 Points -12%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	7916 Points -17%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points -28%

Performance Rating - Percent
Morefine S500+, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	93.4 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	81.1 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	78.5 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	76.4 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	75.3 pt

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	64.5 fps +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	61.8 fps +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	59.4 fps +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	52 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.3 fps -28%
1900x1060 Siemens NX (snx-02)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.7 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.1 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	20.1 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.44 fps -89%
1900x1060 Showcase (showcase-01)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +8%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.4 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	17 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.4 fps -15%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.7 fps -19%
1900x1060 Medical (medical-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	14.8 fps +35%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	12.4 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	12.2 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	11.1 fps +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	11 fps
1900x1060 Maya (maya-04)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.2 fps +25%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	36.8 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	31.4 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	31 fps -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	30 fps -4%
1900x1060 Energy (energy-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	2.19 fps +68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1.3 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.53 fps -59%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.52 fps -60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	0.43 fps -67%
1900x1060 Creo (creo-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	37.2 fps +61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	35.9 fps +55%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.6 fps +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	23.1 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	8.37 fps -64%
1900x1060 Catia (catia-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	41.2 fps +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	37.7 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.1 fps +13%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.4 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.9 fps
1900x1060 3ds Max (3dsmax-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	43.7 fps +10%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.8 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.9 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.8 fps -3%

SPECviewperf 13
Solidworks (sw-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	71.7 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	69.6 fps +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	67.7 fps +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	60.2 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	49.7 fps -17%
Siemens NX (snx-03)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	59.1 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	38.2 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	36.3 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	33.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6.19 fps -90%
Showcase (showcase-02)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.3 fps +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	16.8 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.1 fps -16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.8 fps -18%
Medical (medical-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.2 fps +45%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	19.2 fps +32%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.7 fps +28%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	14.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	13.1 fps -10%
Maya (maya-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	48.6 fps +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	44.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.3 fps -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	39.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	38.9 fps -13%
Energy (energy-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6.93 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5.92 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.64 fps -39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.88 fps -85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.87 fps -85%
Creo (creo-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	50.4 fps +20%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	44.9 fps +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	42 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	41.8 fps 0%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	34.2 fps -19%
Catia (catia-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	59.3 fps +26%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	52.9 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	52.2 fps +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	49.3 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	47 fps
3ds Max (3dsmax-06)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	42.9 fps +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.5 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.8 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.5 fps -3%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	4148 Points +29%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	3843 Points +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	3499 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3414 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	3225 Points
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	306 Points +37%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	276 Points +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	235 Points +5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	235 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	224 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	292 Points +38%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	272 Points +28%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	231 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	220 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	212 Points
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1280 Points +30%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1217 Points +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1066 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	982 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	763 Points -22%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1115 Points +23%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1047 Points +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	964 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	906 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	853 Points -6%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1205 Points +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1200 Points +33%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1123 Points +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1002 Points +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	900 Points

LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	2320 Samples/s +134%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1287 Samples/s +30%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	993 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	948 Samples/s -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	939 Samples/s -5%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	693 Samples/s +54%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	547 Samples/s +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	451 Samples/s 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	450 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	392 Samples/s -13%

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

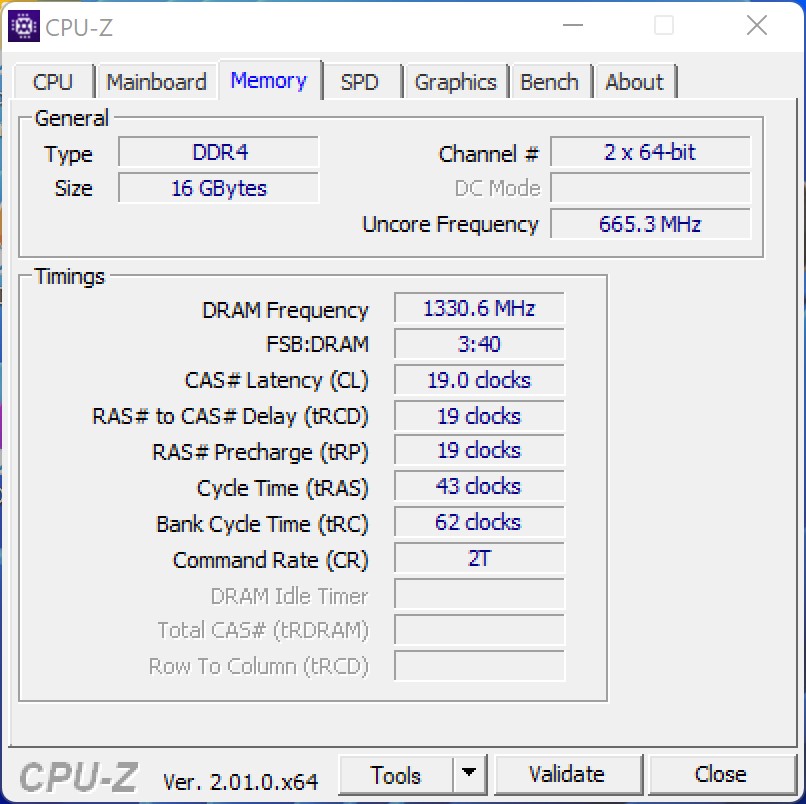

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +39%
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	47240 MB/s +35%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +7%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s
Average AMD Ryzen 5 5600U (19785 - 38102, n=6)	28327 MB/s -19%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 98398, n=118, last 2 years)	47897 MB/s +25%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +22%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s
Average AMD Ryzen 5 5600U (22505 - 40126, n=6)	31392 MB/s -18%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	51663 MB/s +38%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +34%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s +17%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -6%
Average AMD Ryzen 5 5600U (19884 - 40633, n=6)	30023 MB/s -20%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -4%
Average AMD Ryzen 5 5600U (88.2 - 96.2, n=6)	92.1 ns * -1%
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	91.8 ns * -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +19%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +19%

* ... smaller is better

Latências DPC

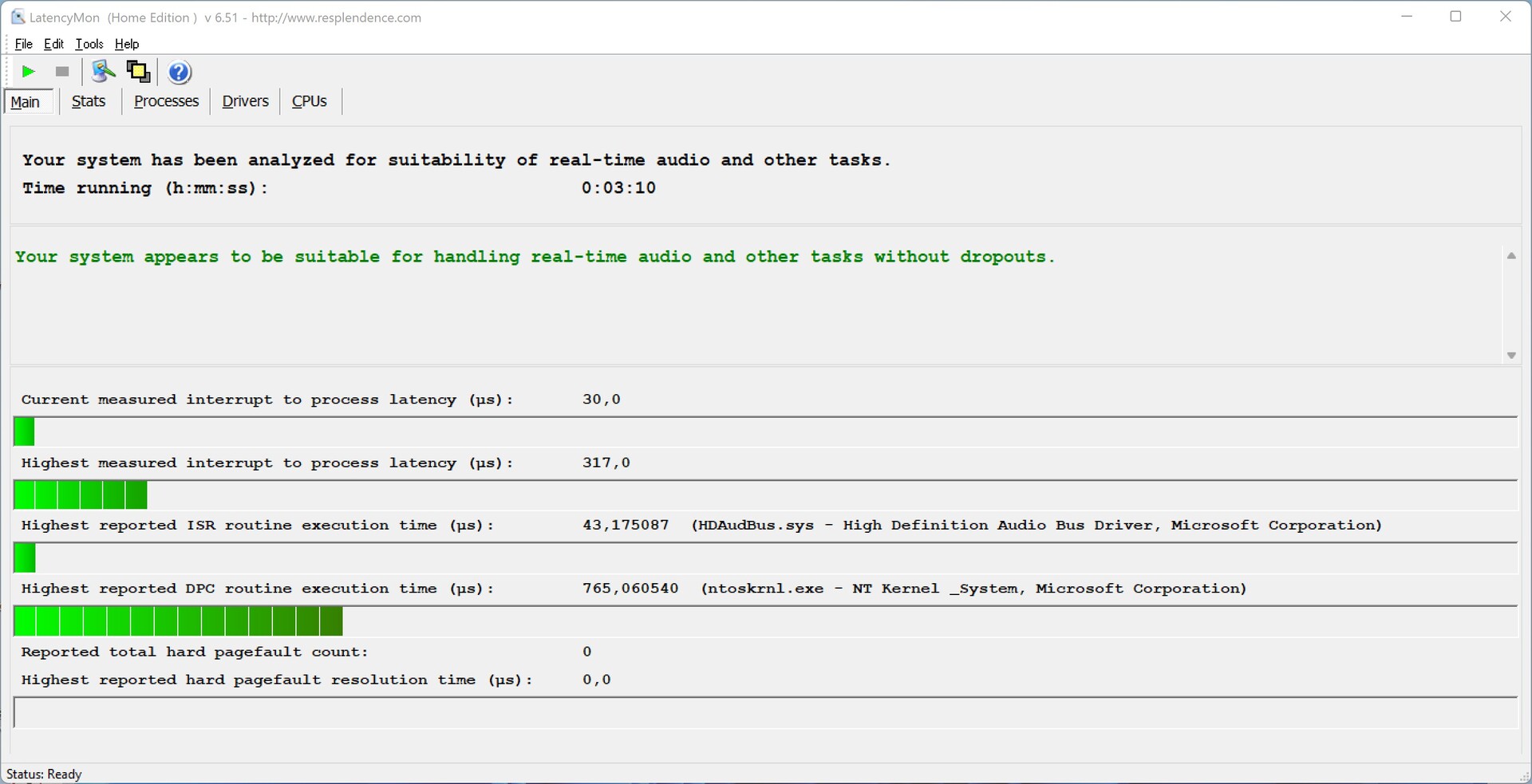

LatencyMon não revela nenhum problema de latência no Ace Magician AMR5. Não há problemas ao reproduzir o vídeo 4K do YouTube, navegar na Internet ou sob carga com Prime95. A carga no iGPU do AMD Ryzen 5 5600U é de cerca de 20% quando se reproduz nosso vídeo de teste 4K

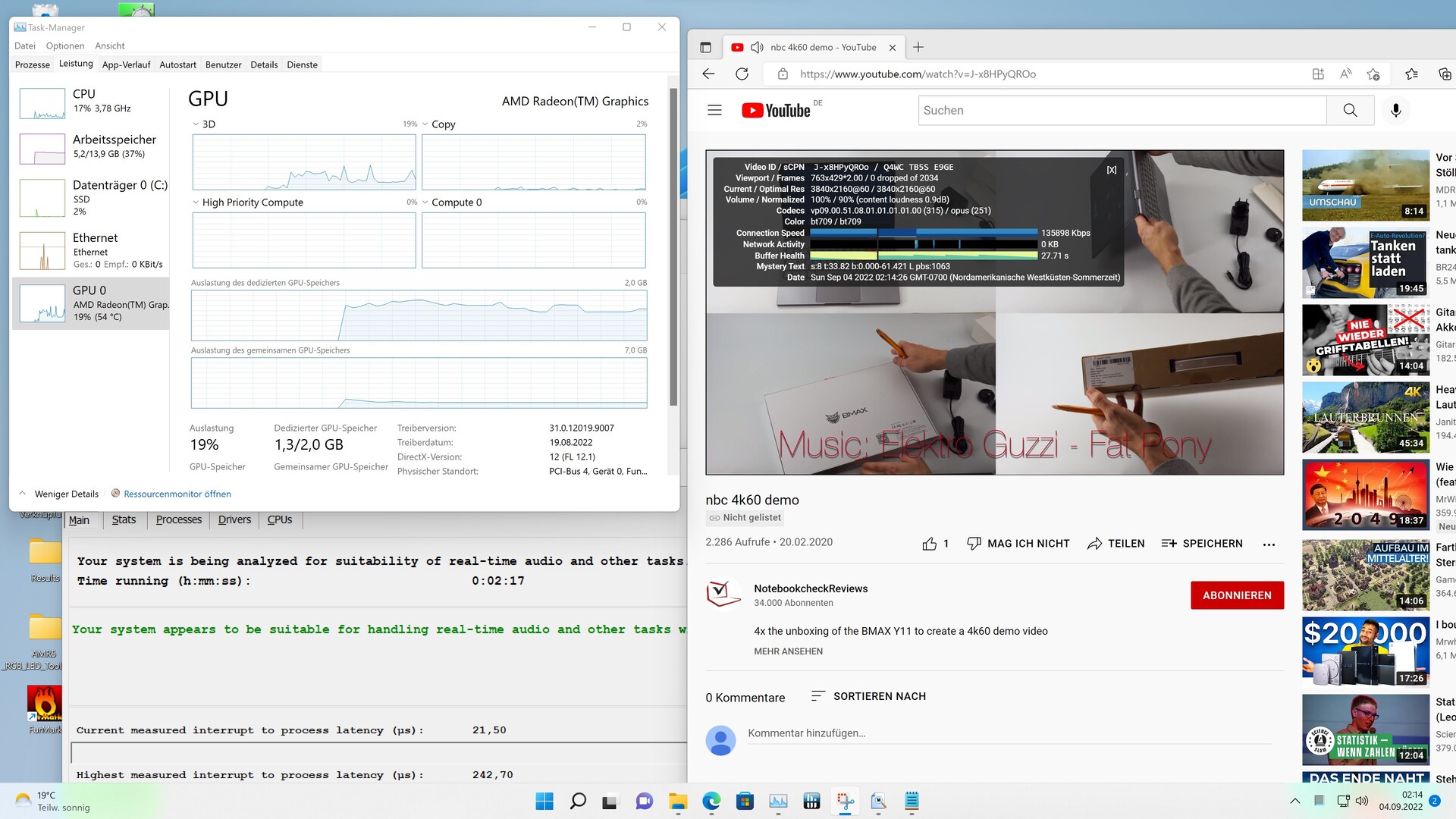

Máxima latência ao abrir várias abas do navegador e reproduzir conteúdo de vídeo 4K.

Latência máxima após 10 segundos de Prime95

Motoristas classificados por maior tempo de execução

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -144%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -112%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * -45%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +54%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	336 μs * +56%

* ... smaller is better

Armazenamento

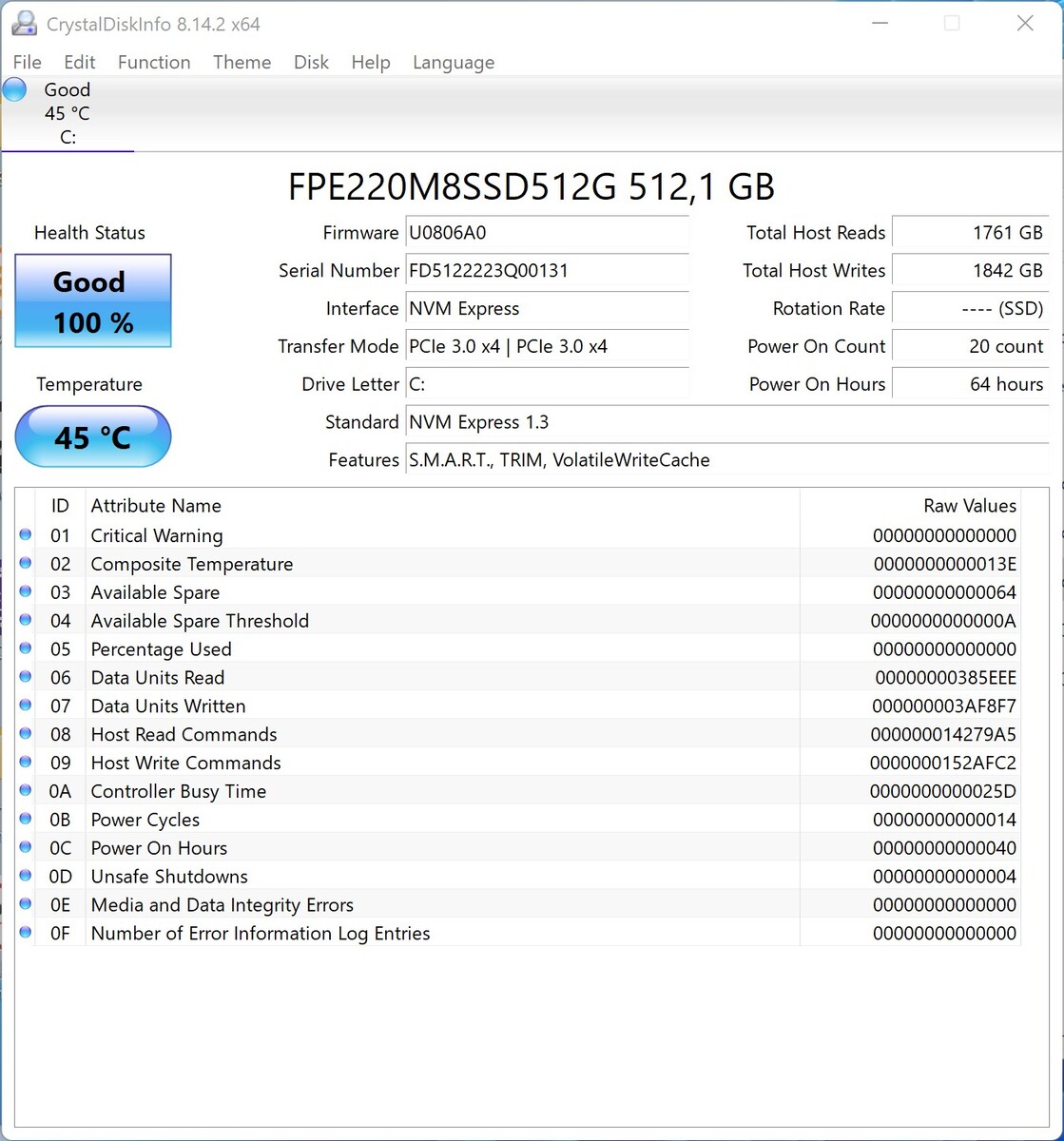

A Minipc Union equipa a Ace Magician AMR5 com um SSD de 512 GB. O modelo da Future Path faz uso da interface PCIe e é capaz de assumir a liderança no teste com um bom desempenho. A boa taxa de leitura de 4K torna possível carregar muitos arquivos pequenos rapidamente, o que é uma vantagem durante a inicialização do sistema. Entretanto, o teste de estresse mostra que este desempenho não pode ser inteiramente mantido durante um longo período de tempo. Apesar do dissipador de calor passivo, a temperatura sob carga parece levar a que o desempenho tenha que ser estrangulado de tempos em tempos. Infelizmente, não há refrigeração ativa para o dispositivo de armazenamento de massa. Infelizmente, com 512 GB, o modelo só pode ser recomendado de forma limitada, considerando que está sendo anunciado como um sistema de jogo. Entretanto, um segundo SSD pode ser facilmente instalado.

Para mais comparações e referências, por favor consulte nosso Artigo de Benchmarks HDD/SSD.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

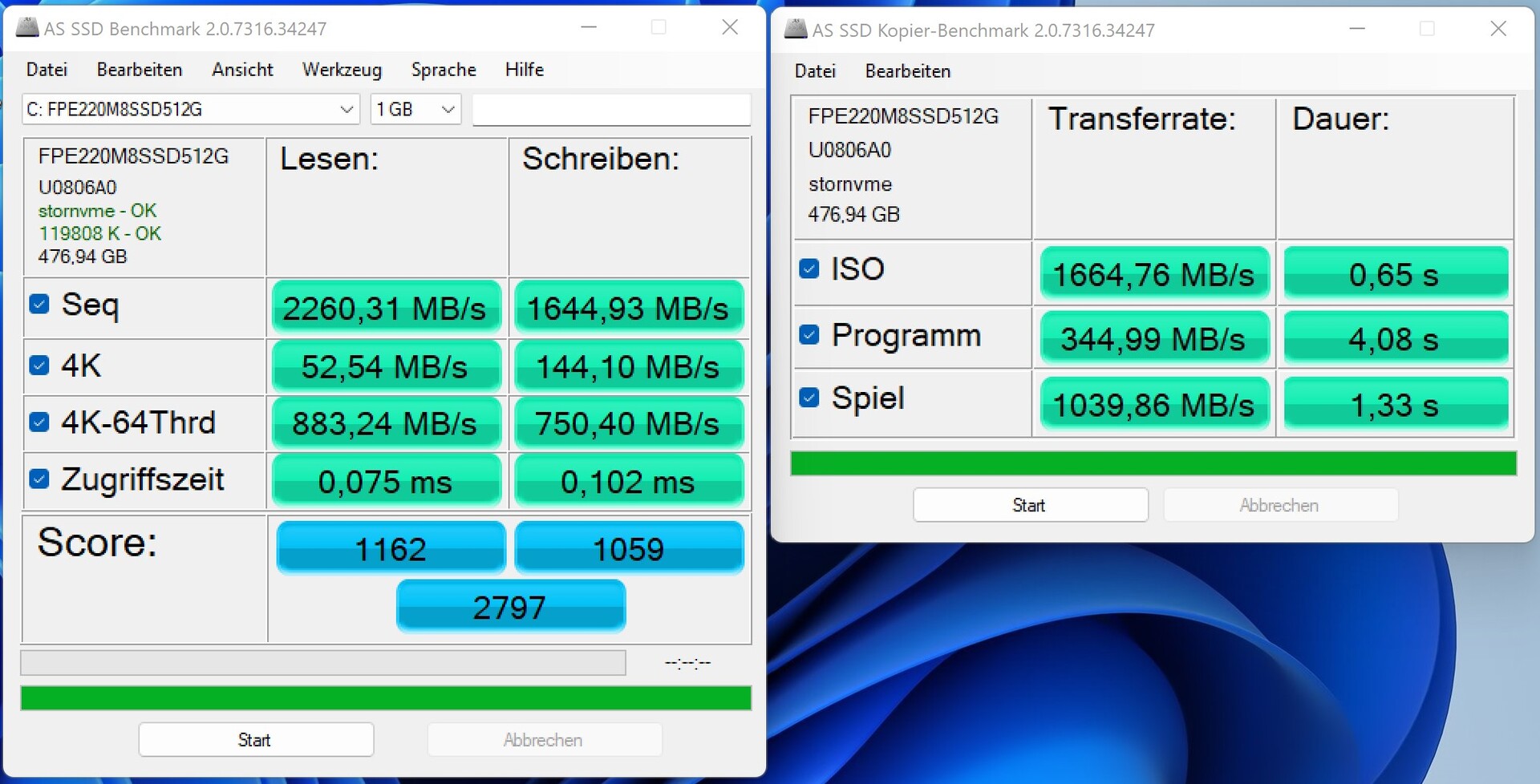

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2124 MB/s

Sequential Write: 1817 MB/s

512K Read: 1359 MB/s

512K Write: 1280 MB/s

4K Read: 50.3 MB/s

4K Write: 145.5 MB/s

4K QD32 Read: 581.6 MB/s

4K QD32 Write: 366.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	91.1 pt
Average Future Path FPE220M8SSD512G	69.6 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	69.4 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	66.7 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	58.2 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	54.7 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	53.2 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	52.8 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4357, n=118, last 2 years)	2284 MB/s +10%
Average Future Path FPE220M8SSD512G (2014 - 2184, n=3)	2093 MB/s +1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -2%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -18%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s -27%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -37%
seq write
Average of class Mini PC (222 - 5595, n=118, last 2 years)	2438 MB/s +36%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s
Average Future Path FPE220M8SSD512G (1598 - 1792, n=3)	1727 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -29%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -46%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -69%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3694 MB/s +51%
Average Future Path FPE220M8SSD512G (2399 - 2525, n=3)	2456 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -3%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -11%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -19%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -36%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=118, last 2 years)	2736 MB/s +55%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s
Average Future Path FPE220M8SSD512G (1602 - 1790, n=3)	1720 MB/s -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -26%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -32%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -69%
4k q1 t1 read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +29%
Average of class Mini PC (5.67 - 86.6, n=118, last 2 years)	55.1 MB/s +14%
Average Future Path FPE220M8SSD512G (45.1 - 55, n=3)	49.4 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -2%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -8%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -21%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -39%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s -5%
Average Future Path FPE220M8SSD512G (194.7 - 210, n=3)	200 MB/s -5%
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	195.6 MB/s -7%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -20%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -24%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -34%
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1349 MB/s +36%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +7%
Average Future Path FPE220M8SSD512G (985 - 1005, n=3)	994 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -19%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s -32%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -68%
4k q32 t16 write
Average of class Mini PC (30.2 - 4288, n=118, last 2 years)	1282 MB/s +95%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +57%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +48%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +25%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s
Average Future Path FPE220M8SSD512G (499 - 774, n=3)	644 MB/s -2%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -20%

AS SSD
Score Total
Average of class Mini PC (181.5 - 10021, n=116, last 2 years)	4101 Points +47%
Average Future Path FPE220M8SSD512G (2797 - 2887, n=2)	2842 Points +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -20%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -22%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -34%
Score Read
Average of class Mini PC (61 - 3741, n=116, last 2 years)	1527 Points +31%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points
Average Future Path FPE220M8SSD512G (1152 - 1162, n=2)	1157 Points 0%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -40%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -53%
Score Write
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1841 Points +74%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +18%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +9%
Average Future Path FPE220M8SSD512G (1059 - 1169, n=2)	1114 Points +5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -6%
Seq Read
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3157 MB/s +40%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s
Average Future Path FPE220M8SSD512G (2204 - 2260, n=2)	2232 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -9%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -21%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -27%
Seq Write
Average of class Mini PC (240 - 5783, n=116, last 2 years)	2202 MB/s +34%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s
Average Future Path FPE220M8SSD512G (1603 - 1644, n=2)	1624 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -24%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -43%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s -47%
4K Read
Average of class Mini PC (6.08 - 104.3, n=116, last 2 years)	58.8 MB/s +12%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +10%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +7%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s
Average Future Path FPE220M8SSD512G (39.7 - 52.5, n=2)	46.1 MB/s -12%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -47%
4K Write
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	175.9 MB/s +22%
Average Future Path FPE220M8SSD512G (144.1 - 185.3, n=2)	164.7 MB/s +14%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s +14%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +6%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -16%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1153 MB/s +31%
Average Future Path FPE220M8SSD512G (883 - 892, n=2)	887 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -19%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -47%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -64%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1444 MB/s +92%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +31%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +22%
Average Future Path FPE220M8SSD512G (750 - 824, n=2)	787 MB/s +5%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -1%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -105%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -40%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09752 ms * -30%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -13%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms *
Average Future Path FPE220M8SSD512G (0.06 - 0.075, n=2)	0.0675 ms * +10%
Access Time Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -34%
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.116 ms * -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -1%
Average Future Path FPE220M8SSD512G (0.102 - 0.103, n=2)	0.1025 ms * -0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +76%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Beelink SER4 Intel SSD 660p SSDPEKNW512G8: Ø1407 (1225.09-1439.28)

Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1: Ø1905 (1097.76-2359.4)

Placa gráfica

OAMD Ryzen 5 5600U vem com umAMD Radeon RX Vega 7 iGPU, que é o único responsável pelo desempenho 3D. Este é um grande fardo, considerando que a Minipc Union anuncia o Ace Magician AMR5 como um dispositivo de jogo compacto. Com base em nossa experiência revisando muitos laptops, fica claro para nós o que é mais ou menos o que se espera aqui.

Entretanto, o AMD Radeon RX Vega 7 é capaz de oferecer um bom desempenho que está acima de nossas taxas médias. Em comparação, porém, nosso modelo compete cada vez mais com oMinisforum EliteMini TH50 aqui. Como o desempenho do iGPU depende da quantidade de RAM, deve ser possível aumentar o desempenho em um ou dois pontos percentuais usando módulos mais rápidos.

Para mais comparações e benchmarks, por favor, consulte nosso Artigo do GPU Benchmarks.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.8 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.3 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	83.3 pt
Beelink SER4 ^-2! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	82.2 pt
Minisforum EliteMini B550 ^-1! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	72.9 pt
Average AMD Radeon RX Vega 7	71 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +27%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +16%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +12%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +8%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +3%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points -10%

3DMark
1280x720 Sky Diver Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	14274 Points +70%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	13595 Points +62%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	12457 Points +49%
Average AMD Radeon RX Vega 7 (8008 - 12857, n=8)	10587 Points +26%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	8374 Points
1920x1080 Ice Storm Extreme Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	121736 Points +33%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	102227 Points +12%
Average AMD Radeon RX Vega 7 (76256 - 130476, n=13)	97550 Points +7%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	96874 Points +6%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	91576 Points
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	50500 Points -45%
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +25%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +10%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	27339 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points 0%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points -10%
Average AMD Radeon RX Vega 7 (13713 - 31437, n=43)	23324 Points -11%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +32%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +22%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points +10%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +5%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -6%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points -11%
2560x1440 Time Spy Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1592 Points +44%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points +28%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points +13%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +13%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points -10%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	96.2 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	91.4 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	76.7 pt
Average AMD Radeon RX Vega 7	76.2 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	73.3 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	70.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +31%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +11%
Average AMD Radeon RX Vega 7 (14.2 - 20.9, n=4)	17.9 fps +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -8%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -16%
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +36%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +5%
Average AMD Radeon RX Vega 7 (15.9 - 19.8, n=4)	17.8 fps +4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -2%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +3%
Average AMD Radeon RX Vega 7 (9.6 - 13.2, n=4)	11.6 fps +3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -6%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +38%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Average AMD Radeon RX Vega 7 (8.5 - 13.5, n=4)	11.4 fps -1%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -7%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -20%

Unigine Superposition
1280x720 720p Low
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +45%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points +20%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points +15%
Average AMD Radeon RX Vega 7 (5347 - 7180, n=4)	6142 Points +15%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points +12%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points
1920x1080 1080p High
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +37%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +32%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +17%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points +8%
Average AMD Radeon RX Vega 7 (1274 - 1664, n=4)	1495 Points +2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points

Desempenho do jogo

É claro que os usuários terão de suportar limitações quando se trata de desempenho em jogos, porque oAMD Radeon RX Vega 7 atinge rapidamente seus limites nos jogos modernos. No entanto, aqueles que gostam de títulos mais antigos e menos exigentes podem definitivamente esperar taxas de quadros jogáveis. Em 720p e com poucos detalhes, o Mágico Ás AMR5 também lida com jogos modernos como o F1 22. No entanto, você deve estar ciente de que o desempenho do AMD Radeon RX Vega 7 não consegue acompanhar o de uma placa gráfica moderna e dedicada

Para mais comparações e referências, por favor, consulte nossa Artigo sobre jogos GPU.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.5 pt
Minisforum EliteMini HX90 ^-1! AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	78.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	76.2 pt
Average AMD Radeon RX Vega 7	68.4 pt

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps -13%
Average AMD Radeon RX Vega 7 (43.1 - 140.7, n=35)	89.5 fps -22%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps -10%
Average AMD Radeon RX Vega 7 (38 - 123, n=33)	78.7 fps -17%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps
Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50)	58.1 fps -6%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +43%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps
Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37)	34.1 fps -13%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +41%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps
Average AMD Radeon RX Vega 7 (27 - 57, n=24)	40.5 fps -8%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +38%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +5%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps
Average AMD Radeon RX Vega 7 (13 - 27, n=23)	19.1 fps -9%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps
Average AMD Radeon RX Vega 7 (24 - 52, n=4)	39.8 fps 0%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps
Average AMD Radeon RX Vega 7 (13 - 26, n=4)	20 fps 0%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps -1%
Average AMD Radeon RX Vega 7 (56.1 - 102.7, n=8)	82.3 fps -9%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps 0%
Average AMD Radeon RX Vega 7 (27 - 45.3, n=7)	38.9 fps -6%

F1 2021
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	122 (97^min, 96^P1) fps +29%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	105 (81^min, 78^P1) fps +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.1 (72^min, 71^P1) fps -4%
Average AMD Radeon RX Vega 7 (71 - 107.9, n=13)	83.6 fps -12%
1920x1080 Medium Preset AA:T AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52 (42^min, 42^P1) fps +30%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.3 (40^min, 40^P1) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.3 (32^min, 32^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps
Average AMD Radeon RX Vega 7 (29 - 45.8, n=12)	35.8 fps -10%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps
Average AMD Radeon RX Vega 7 (32.9 - 137.7, n=58)	99 fps -11%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps 0%
Average AMD Radeon RX Vega 7 (32.7 - 107.8, n=58)	76.7 fps -15%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps
Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41)	70.4 fps -12%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps
Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41)	27.1 fps -10%

	baixo	média	alto	ultra
GTA V (2015)	114.3	94.3	27.2	12
The Witcher 3 (2015)	61.8	39.4	19.6	13
Dota 2 Reborn (2015)	111	90.3	50.5	47.3
Rise of the Tomb Raider (2016)	43.3	30.4	18.1	14.6
Final Fantasy XV Benchmark (2018)	34.6	17.3	12.6
Far Cry 5 (2018)	44	21	20	18
Strange Brigade (2018)	80.1	30.2	25.5	21.7
Shadow of the Tomb Raider (2018)	50.3	18.8	17.1	14.7
Forza Horizon 4 (2018)	79	37	35	27
Far Cry New Dawn (2019)	40	20	19	18
Metro Exodus (2019)	37.9	15.9	11.9	10.2
Borderlands 3 (2019)	53.4	21.2	13.3	10.3
F1 2020 (2020)	90.4	41.2	30.8	22
F1 2021 (2021)	94.7	39.9	31.1	21
Far Cry 6 (2021)	40.3	18.9	15.8
Forza Horizon 5 (2021)	66	41
Farming Simulator 22 (2021)	98.9	41.8	30	23.9
Tiny Tina's Wonderlands (2022)	27	20.7	13.2	9.58
F1 22 (2022)	36.6	32.7	23.8	20.6

Emissões - Frugal, mas audível

Emissões sonoras

O Ace Magician AMR5 é agradavelmente silencioso sob carga baixa e às vezes até mesmo completamente silencioso. Entretanto, torna-se muito audível sob carga, atingindo picos de até 50,9 dB(A). Os dispositivos nesta comparação fazem um trabalho muito melhor aqui, no entanto. O nível máximo de ruído cai para 35,9 dB(A) no modo silencioso, o que é um bom resultado. No entanto, isto vem à custa de um desempenho reduzido

Barulho

Ocioso		31.5 / 32.6 / 33.8 dB
HDD		0 dB
Carga		49.3 / 50.9 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Arta (15 cm de distância) environment noise: 30.5 dB(A)

Temperatura

O caso do Ace Magician AMR5 não esquenta excessivamente, o que se deve à seleção do material. Além disso, o ventilador garante que o calor residual seja dissipado diretamente da caixa na parte de trás, para que não se desenvolva um acúmulo excessivo de calor. Quando o SoC está em seu máximo de 28 watts, ele atinge cerca de 84 °C (~183 °F) por um curto período de tempo no pico de carga. A temperatura se fixa em torno de 75-78 °C (~167-172 °F) ao longo do tempo.

O Mágico Ás AMR5 no teste de estresse — Ace Magician AMR5

Consumo de energia

O Ace Magician AMR5 é relativamente frugal em termos de consumo de energia, mas Beelink mostra que isto pode ser feito ainda melhor com o SER4. No entanto, a média de 46,4 watts é uma boa taxa à qual um PC de mesa convencional não pode chegar perto. O adaptador de energia externa fornece um máximo de 65 watts e tem capacidade suficiente. Isto deixa espaço suficiente para um segundo SSD

Consumo de energia

desligado	0.85 / 2.5 Watt
Ocioso	8.4 / 8.7 / 9.3 Watt
Carga	46.4 / 52 Watt


Key: min: , med: , max: Metrahit Energy

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Average AMD Radeon RX Vega 7	Average AMD Ryzen 5 5600U	Average of class Mini PC
Power Consumption		-50%	40%	16%	17%	-43%
Idle Minimum *	8.4	8.9 -6%	4.1 51%	4.66 ?(2.6 - 8.4, n=52) 45%	5.03 ?(3.6 - 8.4, n=6) 40%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -13%
Idle Average *	8.7	9.6 -10%	4.1 53%	7.56 ?(4.8 - 10.7, n=52) 13%	7.4 ?(6.3 - 8.7, n=6) 15%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -32%
Idle Maximum *	9.3	11.8 -27%	4.6 51%	8.95 ?(5.6 - 13.8, n=52) 4%	8.57 ?(7.5 - 9.3, n=6) 8%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -60%
Load Average *	46.4	98.9 -113%	35.6 23%	38.7 ?(21.6 - 54.9, n=53) 17%	36 ?(27 - 46.4, n=6) 22%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -24%
Load Maximum *	52	101.8 -96%	39.9 23%	51.9 ?(31 - 73.4, n=52) -0%	51.1 ?(44 - 68.4, n=6) 2%	97.5 ?(18.1 - 423, n=119, last 2 years) -88%
Witcher 3 ultra *			35.6

* ... smaller is better

Veredicto - Conectividade moderna embalada em um elegante estojo

O Mágico Ás AMR5 em revisão, fornecido pela Minipc Union

A Minipc Union não oferece um Mini PC convencional pronto com o Ace Magician AMR5, porque este modelo se destaca da multidão devido a seu design ligeiramente diferente. O PC compacto chama a atenção por assemelhar-se aos PCs de mesa convencionais e fornecer uma iluminação sutil. Durante todo o tempo, o modelo é muito compacto, leve, e oferece um SoC moderno na forma do AMD Ryzen 5 5600U. O processador hexa-core é frugal, e seu sólido desempenho garante velocidades de trabalho rápidas. Ao mesmo tempo, a velocidade da RAM embutida é algo que pode ser criticado. O potencial valioso está sendo desperdiçado aqui; o uso de RAM mais rápida poderia ter reduzido um pouco a distância em relação à concorrência.

Graças ao seu tamanho, o compacto Ace Magician AMR5 cabe em qualquer mesa. Com sua grande iluminação RGB, o computador compacto chama a atenção sem parecer garrido.

Quando se trata de PCs compactos para jogos, vemos o Ace Magician AMR5 apenas como um PC de nível básico para jogar títulos simples ou mais antigos. Infelizmente, oAMD Radeon RX Vega 7 carece do desempenho necessário para tornar os jogos modernos mais suaves em 1080p. No que diz respeito à seleção do porto, há muitas coisas que o fabricante fez bem. Desde a colocação dos portos até o número deles, não há muito que possamos criticar aqui. Em última análise, até três displays podem ser usados ao mesmo tempo.

Características pequenas mas agradáveis, tais como a possibilidade de deixar o sistema funcionar em vários modos de desempenho em vôo, funcionam bem e raramente são vistas. Se você não precisa do desempenho completo do hexa-core, você pode usar com confiança o modo Silent aqui. Isto economiza energia e garante baixos níveis de ruído. Entretanto, gostaríamos de ter visto mais algumas opções nos ajustes para a iluminação RGB. O Ace Magician AMR5 está atualmente disponível por 590 euros (~$598). Um preço justo, já que a concorrência não está necessariamente disponível a preços mais baixos no momento.

Preço e disponibilidade

No momento de escrever, você pode encontrar o Ace Magician AMR5 em Amazon por $499.

Ace Magician AMR5 em revisão: Mini PC elegante com um Ryzen 5 5600U e iluminação RGB discreta

Um grande chamativo!

Possíveis concorrentes em comparação

A Minipc Union Ace Magician AMR5 em detalhes

Caso

Conectividade

Comunicação

Manutenção

Desempenho

Condições de teste

Processador

O Mágico Ás AMR5 na Cinebench R15 Multi loop

Desempenho do sistema

Latências DPC

Armazenamento

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Placa gráfica

Desempenho do jogo

Emissões - Frugal, mas audível

Emissões sonoras

Temperatura

Consumo de energia

Energy consumption with an external monitor

Pro

Contra

Veredicto - Conectividade moderna embalada em um elegante estojo

Preço e disponibilidade

More articles related to this device

3DMark 05 Standard		36912 pontos
3DMark 06 Standard Score		22493 pontos
3DMark Vantage P Result		17714 pontos
3DMark 11 Performance		5920 pontos
3DMark Ice Storm Standard Score		113920 pontos
3DMark Cloud Gate Standard Score		20395 pontos
3DMark Fire Strike Score		3229 pontos
3DMark Fire Strike Extreme Score		1456 pontos
3DMark Time Spy Score		1251 pontos
Ajuda

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs
Noise		12%	6%	15%	10%	10%
off / environment *	30.5	30.8 -1%	30.1 1%	30.2 1%	23.4 23%	30.2 1%
Idle Minimum *	31.5			30.5 3%	33.2 -5%	30.8 2%
Idle Average *	32.6	31.6 3%	33.15 -2%	30.5 6%	33.2 -2%	32.1 2%
Idle Maximum *	33.8			30.5 10%	33.2 2%	32.9 3%
Load Average *	49.3			31.2 37%	38.6 22%	33.9 31%
Load Maximum *	50.9	33.4 34%	41.63 18%	35.1 31%	40.8 20%	41.4 19%
Witcher 3 ultra *					39.2
