Revisão do Beelink SER6 Pro: O AMD Radeon 680M é impressionante em um mini PC

O Beelink SER6 Pro sucede à geração mais antiga Beelink SER5 Pro. Ele introduz novas mudanças externas e uma CPU Zen 3+ Ryzen 7 6800H atualizada para substituir a CPU Zen 3 Ryzen 7 5800H no modelo de saída. Nenhuma outra opção de CPU está disponível para o SER6 Pro no momento.

O SER6 Pro compete diretamente com muitas soluções Intel NUC assim como com a Zotac ZBox ou a série MSI Cubi. Nossa configuração específica dos varejistas Beelink entre $600 e $700 USD.

Mais análises da Beelink:

Rating	Date	Model	Weight	Height	Resolution
v ^(old)	01/2023	Beelink SER6 Pro R7 6800H, Radeon 680M	511 g	42 mm	x
v ^(old)	11/2022	Beelink GTR6 R9 6900HX, Radeon 680M	815 g	43 mm	x
v ^(old)	09/2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 g	40 mm	x
78.9 % v7 ^(old)	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm	x
v ^(old)	04/2021	Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile	1.4 kg	42 mm	x
v ^(old)		Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH	1.3 kg	39 mm	x

Caso

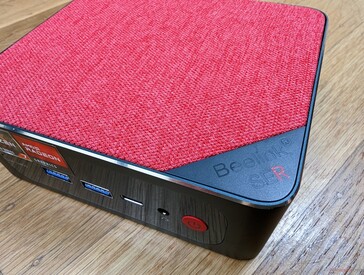

O chassi é de metal em todos os lados, além da tampa superior de tecido removível. Suas dimensões gerais são muito similares às doSEi11 Pro embora ligeiramente mais pesado devido aos internos revisados. Surpreendentemente, o SER6 Pro pesa tanto quanto o NUC 12 Pro embora o NUC seja menor.

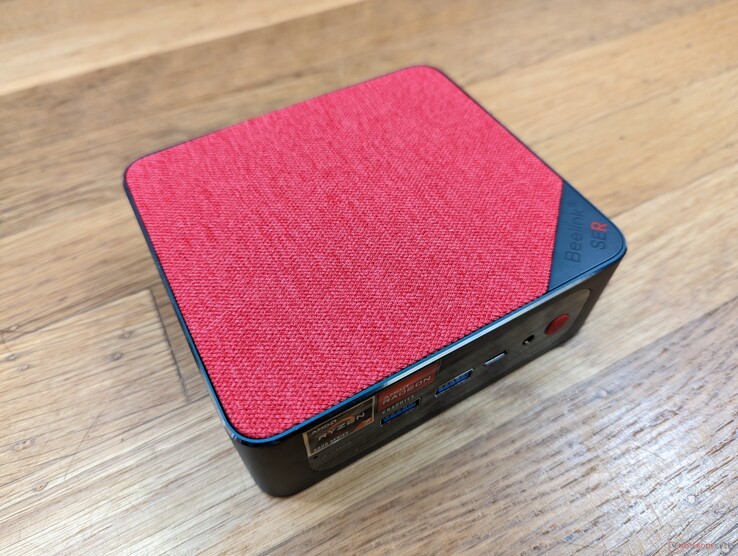

O topo em tecido respirável acrescenta uma sensação de estilo ou qualidade quando comparado com o plástico comum ou metal liso

Guarnições e cantos cromados ao longo da base metálica

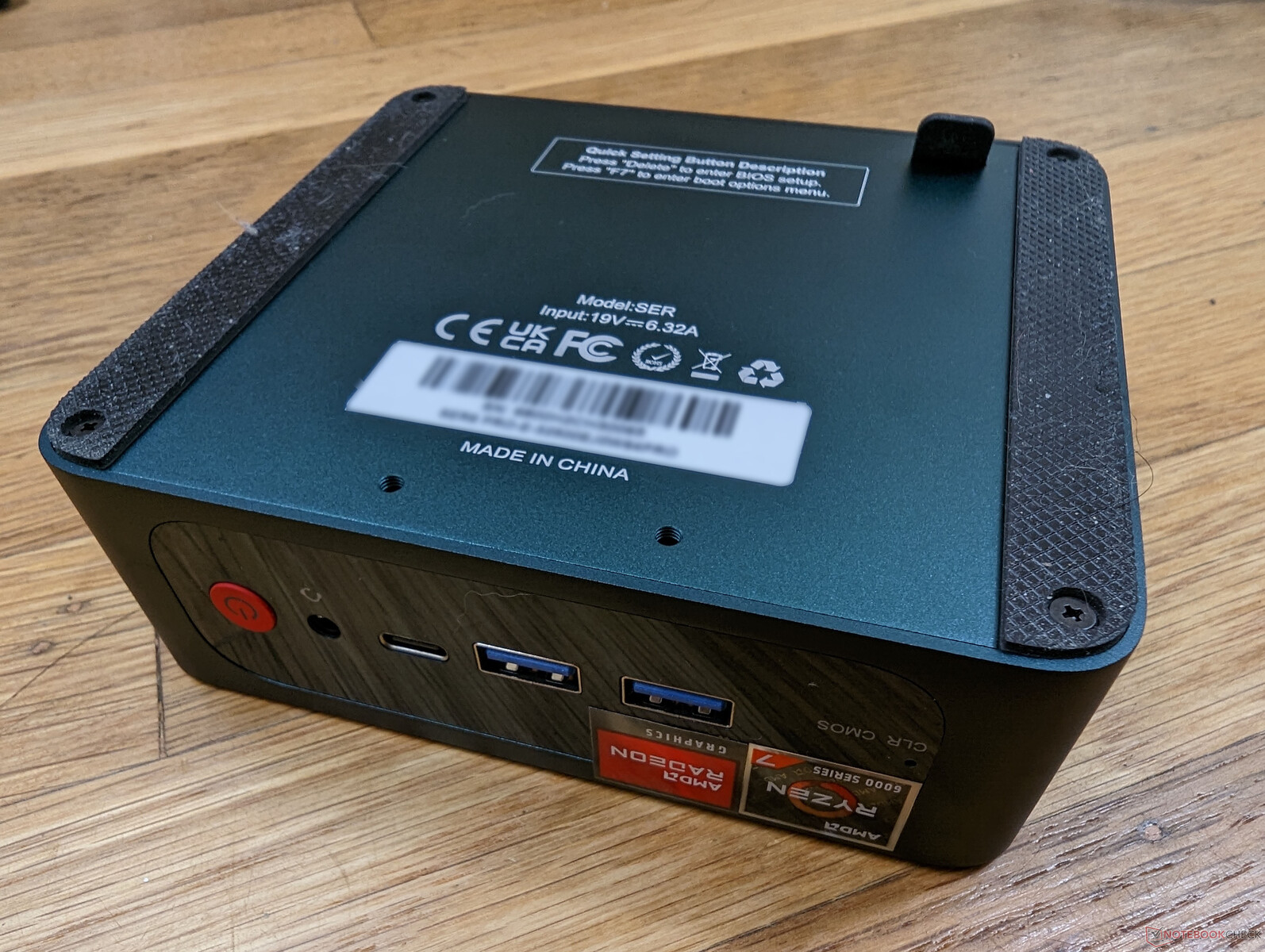

O lado inferior inclui suporte de montagem VESA, uma aba de borracha para puxar a placa, e pés de borracha

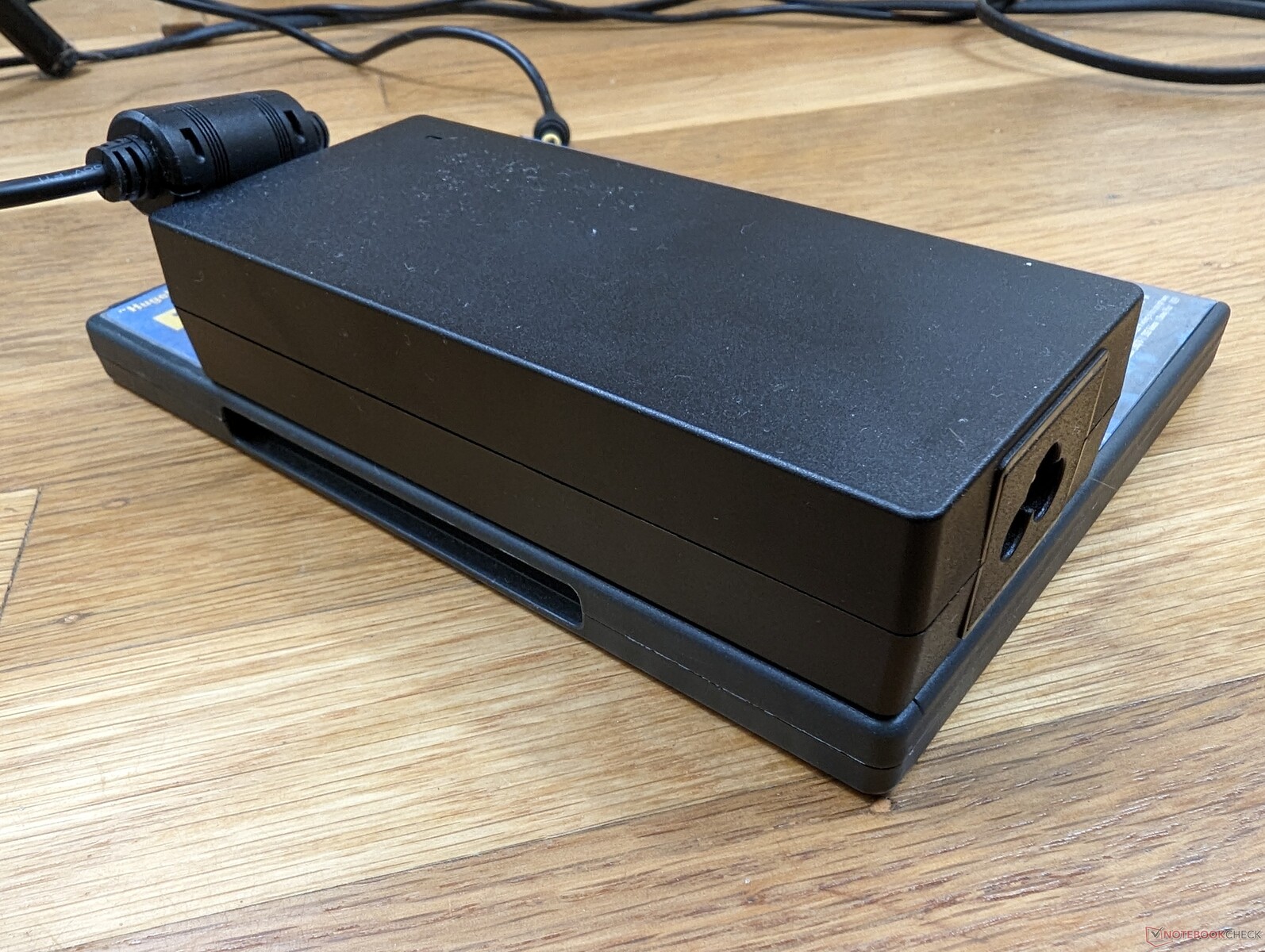

O adaptador AC de 120 W é grande (14,5 x 6,4 x 3 cm) em relação ao mini PC pequeno

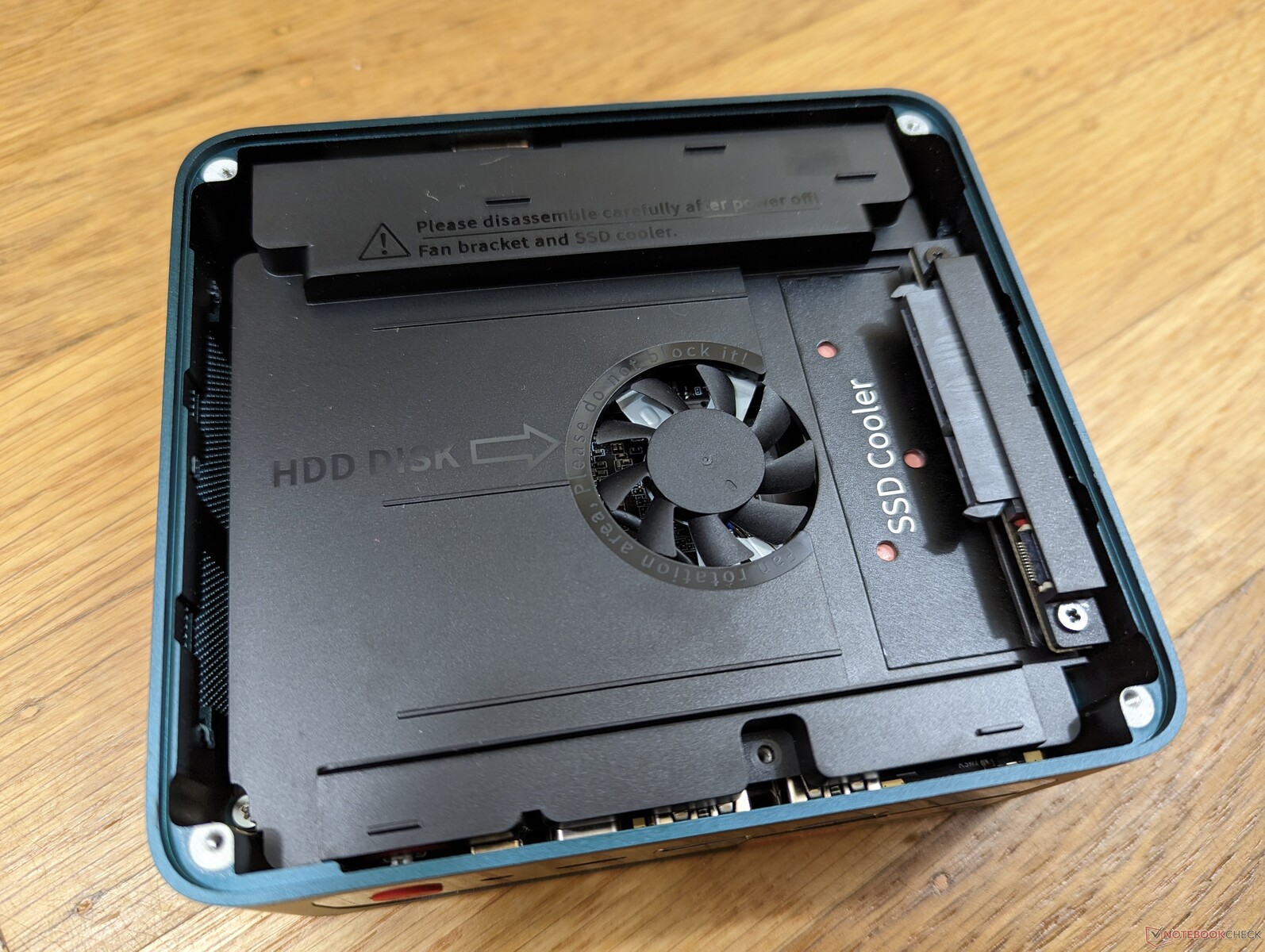

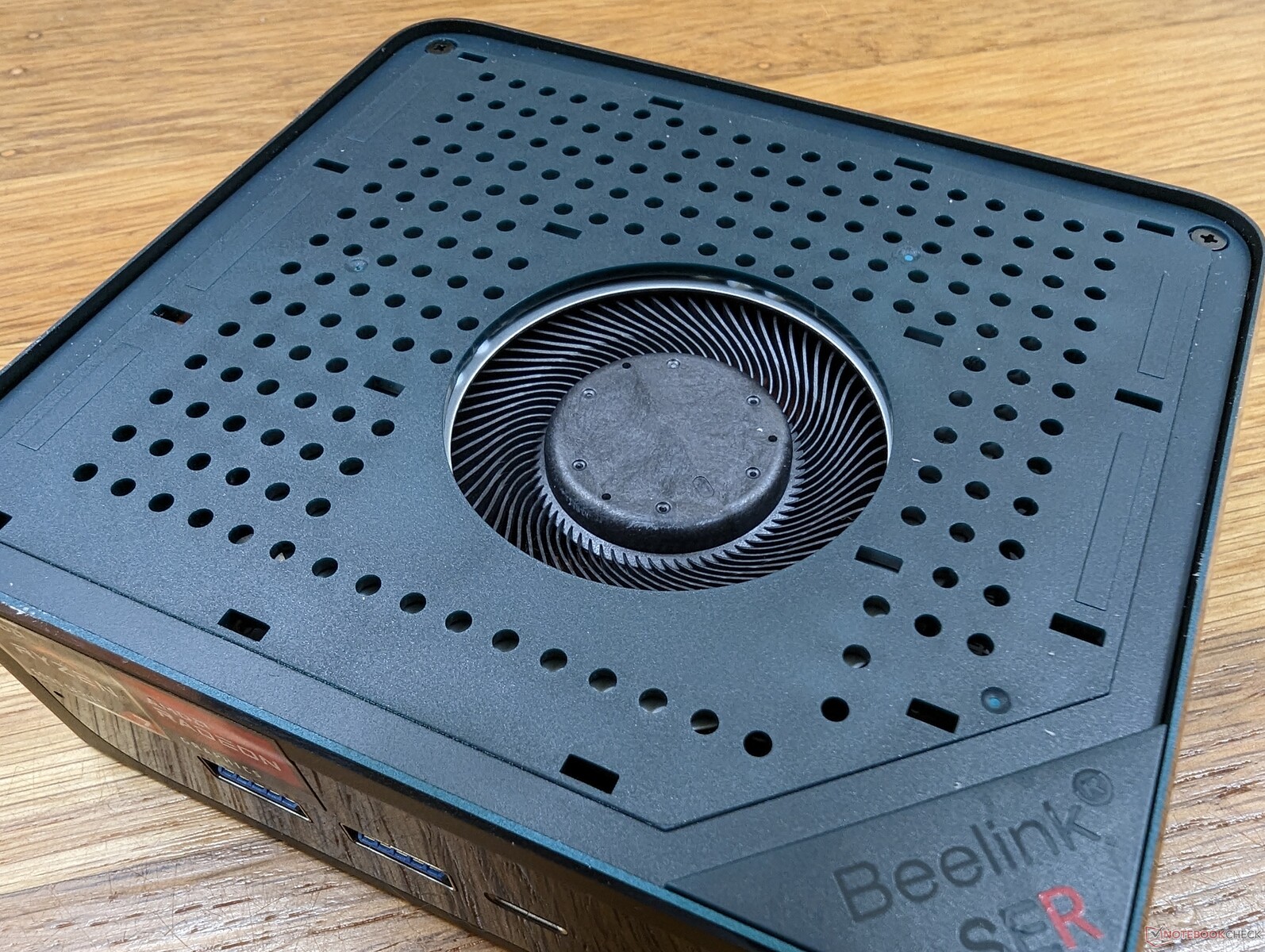

A remoção do tecido vermelho superior revela o primeiro ventilador de 50 mm

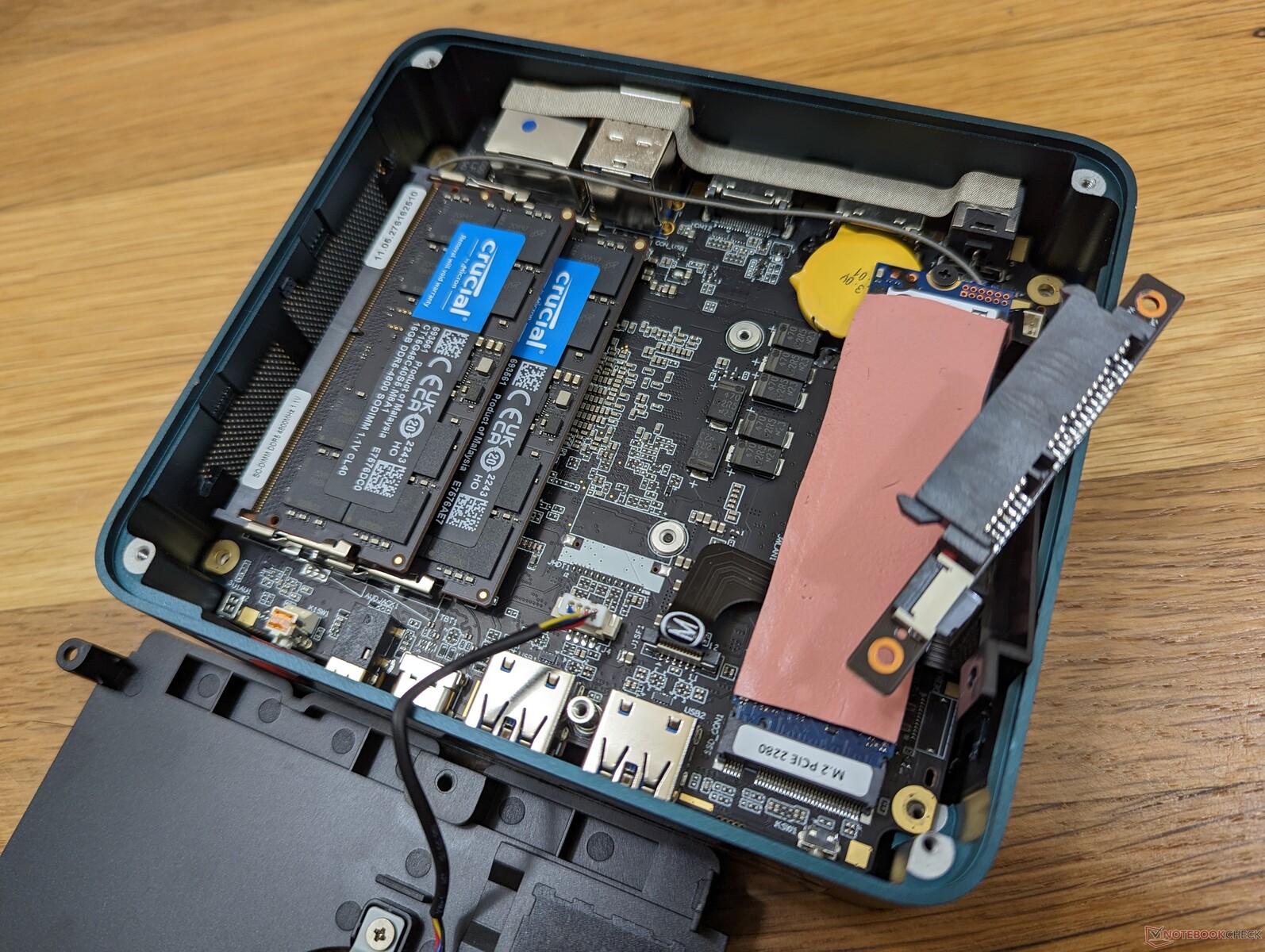

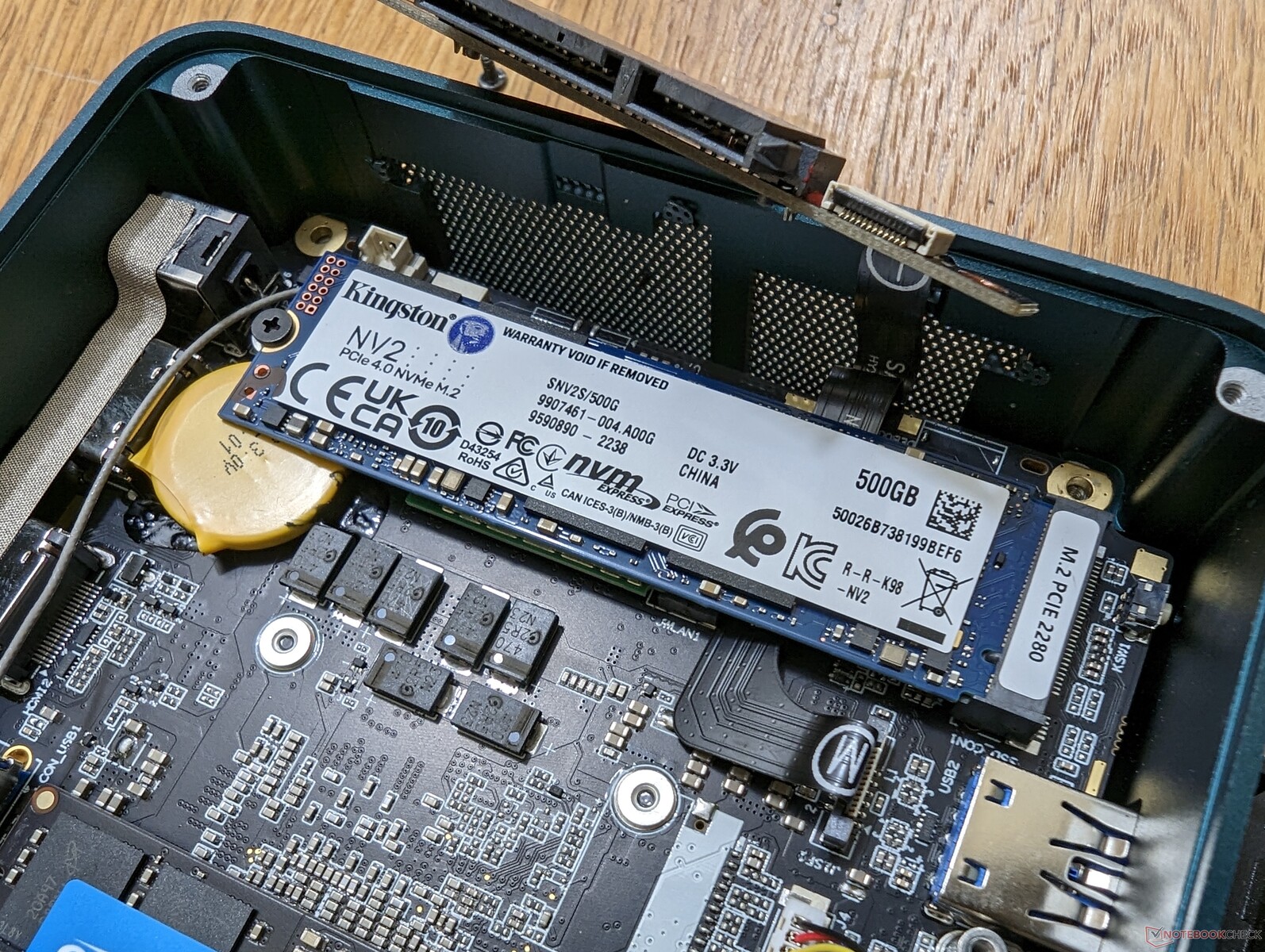

A remoção da placa metálica inferior revela o slot SATA III expansível de 2,5 polegadas e o segundo ventilador de 35 mm

Comparação de tamanho

Intel NUC11PHKi7C Intel Hades Canyon NUC8i7HVK Beelink GTR6 Beelink SER6 Pro Beelink SEi11 Pro Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

Conectividade

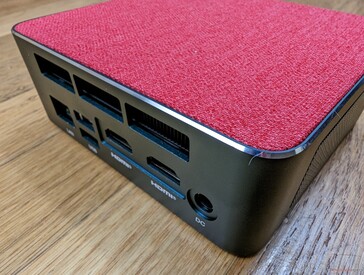

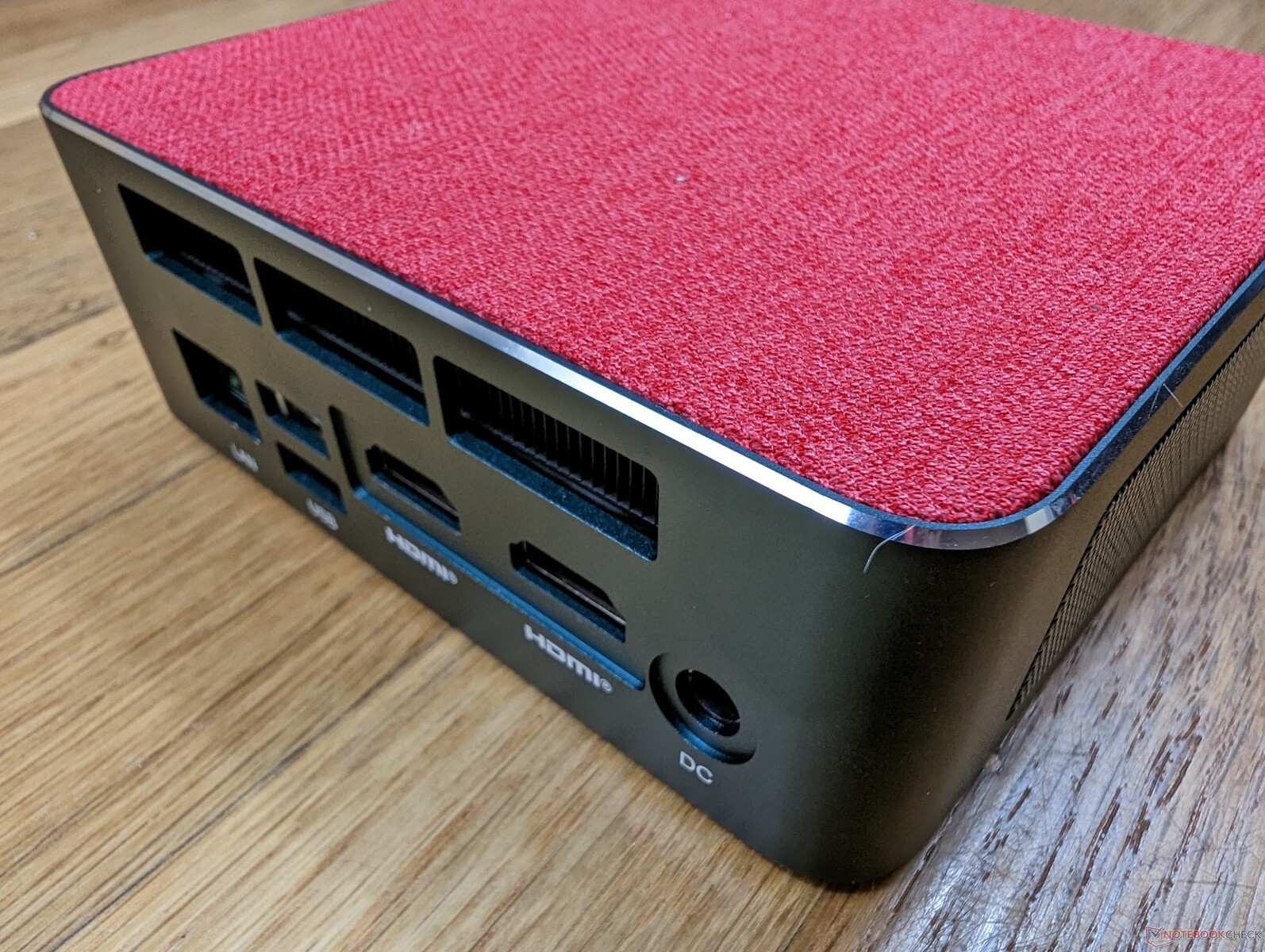

As opções de porta e posicionamento são idênticos ao SER5 Pro, mas com uma atualização notável: a porta RJ-45 agora suporta velocidades de 2,5 Gbps em vez de apenas 1 Gbps. O sistema também pode ser alimentado por adaptadores USB-C AC de terceiros, caso você venha a perder o adaptador proprietário que vem na caixa do varejo. Nosso adaptador AC de 130 W que vem com o Dell XPS 17por exemplo, o SER6 Pro não teria nenhum problema.

Comunicação

A Beelink trocou o MediaTek RZ608 no SER5 Pro pelo módulo mais comum Intel AX200. Este módulo específico da Intel não tem capacidade Wi-Fi 6E, mas as taxas de transferência são rápidas, em média, em torno de 1200 Mbps quando emparelhado com nosso roteador de teste Asus AXE11000.

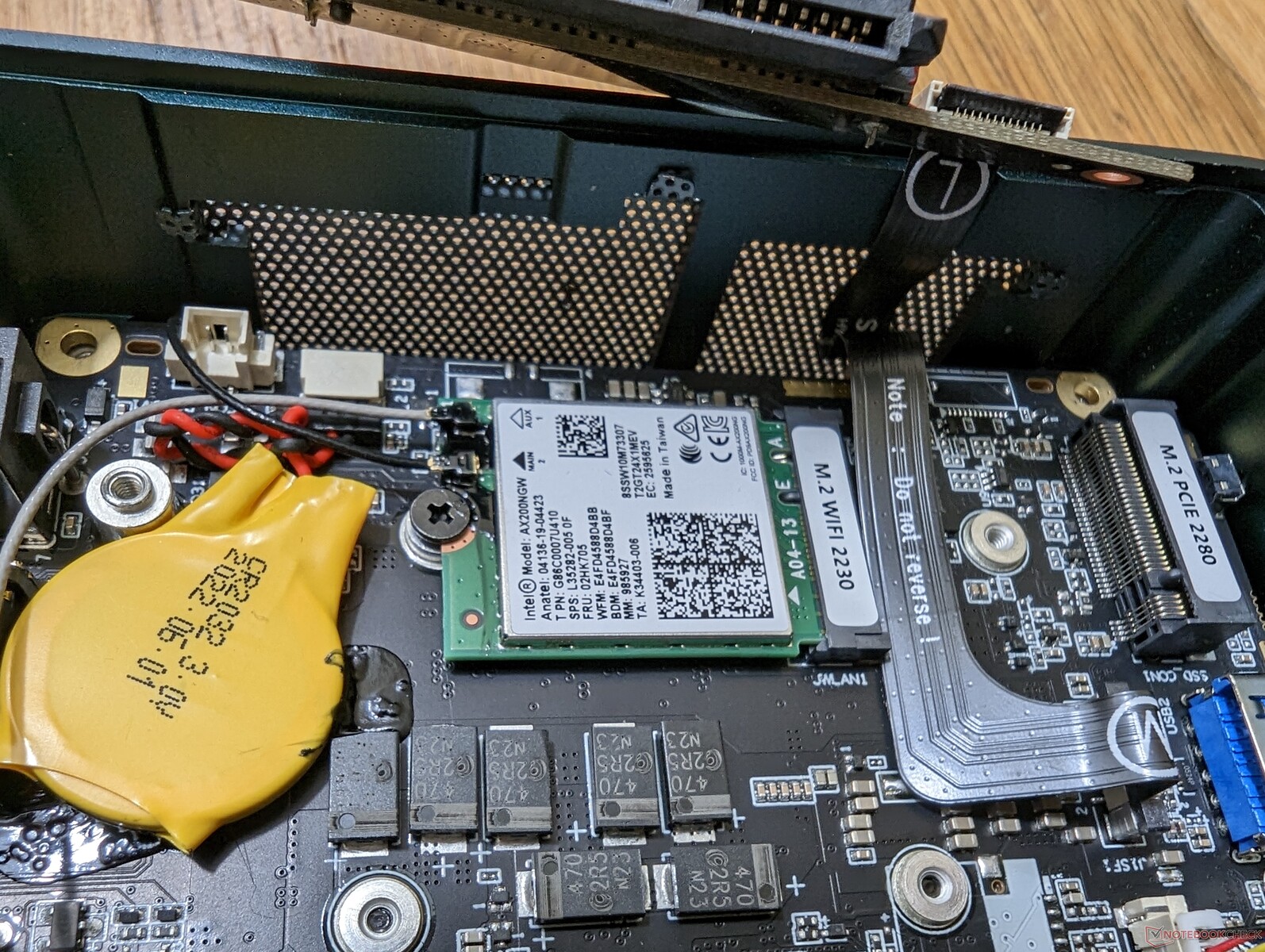

O módulo WLAN removível fica sob o SSD M.2

Networking
iperf3 transmit AX12
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	1129 (1014^min - 1229^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s
iperf3 receive AX12
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	870 (452^min - 924^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s
Beelink GTR6 MediaTek RZ608	886 (867^min - 900^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s
iperf3 receive AXE11000
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1282 (247^min - 1409^max) MBit/s
Beelink GTR6 MediaTek RZ608	860 (440^min - 882^max) MBit/s -33%
iperf3 transmit AXE11000
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1273 (1063^min - 1401^max) MBit/s
Beelink GTR6 MediaTek RZ608	909 (429^min - 966^max) MBit/s -29%
iperf3 transmit AXE11000 6GHz
Beelink GTR6 MediaTek RZ608	948 (476^min - 1030^max) MBit/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s

Beelink SER6 Pro Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø1273 (1063-1401)

Beelink GTR6 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø895 (429-966)

Beelink SER6 Pro Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø1282 (247-1409)

Beelink GTR6 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø845 (440-882)

Manutenção

A RAM e as atualizações de armazenamento são fáceis e requerem apenas uma chave de fenda Philips. Os usuários podem instalar até dois módulos de RAM SODIMM e dois drives (1x M.2 PCIe4 x4 + 1x SATA III de 2,5 polegadas).

Acessórios e Garantia

A caixa de varejo inclui dois cabos HDMI, um suporte de montagem VESA removível, tampas superiores em tecido preto e vermelho, adaptador AC e papelaria. A habitual garantia limitada de um ano do fabricante se aplica se comprada nos EUA.

Desempenho

Condições de teste

Ajustamos nossa unidade para o modo Performance antes de executar quaisquer benchmarks abaixo. Não há aplicações do tipo centro de controle pré-instalado.

Processador

O desempenho do processador bruto é quase idêntico ao da geração anterior Ryzen 7 5800H. O desempenho da rosca única pode ser até 5% mais rápido, mas quaisquer diferenças são, na melhor das hipóteses, marginais. Em vez disso, a maior melhoria entre as duas CPUs está relacionada com suas GPUs integradas, como demonstrará nossa seção de GPUs abaixo.

Cinebench R15 Multi Loop

Beelink SER6 Pro AMD Ryzen 7 6800H: Ø1854 (1821.83-1930.5)

Beelink GTR6 AMD Ryzen 9 6900HX: Ø1922 (1894.3-1968.5)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Intel NUC11PHKi7C Intel Core i7-1165G7: Ø914 (901.51-1011.79)

Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G: Ø857 (853.53-862.44)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	5276 Points +18%
Average AMD Ryzen 7 6800H (4460 - 5661, n=9)	5101 Points +14%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points +4%
Dell G15 5515 AMD Ryzen 7 5800H	4588 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	4578 Points +3%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points -31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	2975 Points -33%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points -50%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points -55%
Intel NUC11PHKi7C Intel Core i7-1165G7	1660 Points -63%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1498 Points -66%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points -67%
Trigkey S3 AMD Ryzen 5 3550H	1421 Points -68%

Cinebench R20 / CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	698 Points +20%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points +8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points +6%
Average AMD Ryzen 7 6800H (580 - 605, n=9)	596 Points +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points
Intel NUC11PHKi7C Intel Core i7-1165G7	583 Points 0%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	580 Points -1%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points -4%
Dell G15 5515 AMD Ryzen 7 5800H	554 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	534 Points -9%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	415 Points -29%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points -31%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points -32%
Trigkey S3 AMD Ryzen 5 3550H	357 Points -39%

Cinebench R23 / Multi Core
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	13528 Points +18%
Average AMD Ryzen 7 6800H (11481 - 14660, n=11)	12957 Points +13%
Dell G15 5515 AMD Ryzen 7 5800H	11912 Points +4%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	11815 Points +3%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points -29%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points -31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	7615 Points -34%
Intel NUC11PHKi7C Intel Core i7-1165G7	6093 (5825.6^min - 6093.08^max) Points -47%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points -50%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3867 Points -66%
Trigkey S3 AMD Ryzen 5 3550H	3646 (3617.23^min - 3645.96^max) Points -68%
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points -74%

Cinebench R23 / Single Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1812 Points +20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points +7%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points +7%
Intel NUC11PHKi7C Intel Core i7-1165G7	1533 Points +2%
Average AMD Ryzen 7 6800H (1500 - 1552, n=9)	1527 Points +1%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	1491 Points -1%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points -3%
Dell G15 5515 AMD Ryzen 7 5800H	1417 Points -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1376 Points -9%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1082 Points -28%
Trigkey S3 AMD Ryzen 5 3550H	922 Points -39%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points -58%

Cinebench R15 / CPU Multi 64Bit
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	2222 Points +15%
Average AMD Ryzen 7 6800H (1585 - 2366, n=10)	2090 Points +8%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points +2%
Dell G15 5515 AMD Ryzen 7 5800H	1968 Points +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1879 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points -27%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points -32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1265 Points -34%
Intel NUC11PHKi7C Intel Core i7-1165G7	1012 (901.51^min - 1011.79^max) Points -48%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -55%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points -56%
Trigkey S3 AMD Ryzen 5 3550H	643 (633.41^min - 642.56^max) Points -67%
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points -68%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	623 Points -68%

Cinebench R15 / CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	260 Points +7%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points +7%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	242 Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points
Average AMD Ryzen 7 6800H (182.7 - 250, n=10)	234 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points -5%
Intel NUC11PHKi7C Intel Core i7-1165G7	229 Points -5%
Dell G15 5515 AMD Ryzen 7 5800H	229 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	223 Points -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points -9%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points -12%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points -26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	170 Points -30%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points -35%
Trigkey S3 AMD Ryzen 5 3550H	141.8 Points -41%

Blender / v2.79 BMW27 CPU
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * -171%
Trigkey S3 AMD Ryzen 5 3550H	724 Seconds * -170%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	694 Seconds * -159%
Intel NUC11PHKi7C Intel Core i7-1165G7	543 Seconds * -103%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds * -102%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * -100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	399 Seconds * -49%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * -46%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * -43%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	280 Seconds * -4%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds *
Dell G15 5515 AMD Ryzen 7 5800H	259 Seconds * +3%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * +4%
Average AMD Ryzen 7 6800H (213 - 268, n=8)	242 Seconds * +10%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	231 Seconds * +14%

7-Zip 18.03 / 7z b 4
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	61760 MIPS +10%
Average AMD Ryzen 7 6800H (55067 - 64817, n=8)	59319 MIPS +6%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS
Dell G15 5515 AMD Ryzen 7 5800H	53762 MIPS -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	47064 MIPS -16%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	39207 MIPS -30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS -36%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS -56%
Intel NUC11PHKi7C Intel Core i7-1165G7	24684 MIPS -56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	20163 MIPS -64%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS -65%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS -66%
Trigkey S3 AMD Ryzen 5 3550H	17375 MIPS -69%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS +4%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	5798 MIPS +1%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	5738 MIPS -1%
Average AMD Ryzen 7 6800H (5521 - 5803, n=8)	5726 MIPS -1%
Dell G15 5515 AMD Ryzen 7 5800H	5538 MIPS -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS -6%
Intel NUC11PHKi7C Intel Core i7-1165G7	5260 MIPS -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	5249 MIPS -9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS -10%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4638 MIPS -20%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS -29%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS -30%
Trigkey S3 AMD Ryzen 5 3550H	3652 MIPS -37%

Geekbench 5.5 / Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	9935 Points +8%
Average AMD Ryzen 7 6800H (8898 - 10355, n=10)	9458 Points +3%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points +1%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	9020 Points -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points -15%
Dell G15 5515 AMD Ryzen 7 5800H	7441 Points -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	6175 Points -33%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points -34%
Intel NUC11PHKi7C Intel Core i7-1165G7	5209 Points -43%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points -46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3934 Points -57%
Trigkey S3 AMD Ryzen 5 3550H	3281 Points -64%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points -80%

Geekbench 5.5 / Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1715 Points +10%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points +5%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	1560 Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points
Average AMD Ryzen 7 6800H (1518 - 1568, n=10)	1550 Points 0%
Intel NUC11PHKi7C Intel Core i7-1165G7	1544 Points -1%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points -2%
Dell G15 5515 AMD Ryzen 7 5800H	1453 Points -6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1430 Points -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1219 Points -22%
Trigkey S3 AMD Ryzen 5 3550H	907 Points -42%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points -59%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 6800H (14.9 - 18.5, n=9)	16.3 fps +9%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	15.9 fps +6%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps +3%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps
Dell G15 5515 AMD Ryzen 7 5800H	14.3 fps -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	13.2 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	10.1 fps -33%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps -37%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps -51%
Intel NUC11PHKi7C Intel Core i7-1165G7	7.14 fps -52%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps -53%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.2 fps -65%
Trigkey S3 AMD Ryzen 5 3550H	4.04 fps -73%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps -88%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * -121%
Dell G15 5515 AMD Ryzen 7 5800H	107 s * -119%
Trigkey S3 AMD Ryzen 5 3550H	87.8 s * -80%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	68.2 s * -40%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	59 s * -21%
Average AMD Ryzen 7 6800H (48.7 - 79.5, n=8)	55.1 s * -13%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	51.1 s * -5%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s * -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s *
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * -0%
Intel NUC11PHKi7C Intel Core i7-1165G7	48 s * +2%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	45 s * +8%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * -152%
Trigkey S3 AMD Ryzen 5 3550H	0.732 sec * -47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.7 sec * -40%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec * -16%
Intel NUC11PHKi7C Intel Core i7-1165G7	0.561 sec * -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	0.537 sec * -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * -6%
Dell G15 5515 AMD Ryzen 7 5800H	0.518 sec * -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * -3%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec *
Average AMD Ryzen 7 6800H (0.4783 - 0.515, n=8)	0.4943 sec * +1%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	0.492 sec * +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	0.4787 sec * +4%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * +7%

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Average AMD Ryzen 7 6800H	99.3 pt
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	94.4 pt
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	91.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	71.8 pt
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	51.6 pt
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	49.5 pt

AIDA64 / FP32 Ray-Trace
Average AMD Ryzen 7 6800H (12876 - 17031, n=8)	15103 KRay/s +17%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	13630 KRay/s +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	12876 KRay/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s -20%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	7216 KRay/s -44%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s -45%

AIDA64 / FPU Julia
Average AMD Ryzen 7 6800H (82673 - 105987, n=8)	94742 Points +15%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	86563 Points +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	82673 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -37%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	30533 Points -63%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points -64%

AIDA64 / CPU SHA3
Average AMD Ryzen 7 6800H (2886 - 3634, n=8)	3236 MB/s +12%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	3033 MB/s +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	2886 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s -10%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	2059 MB/s -29%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s -31%

AIDA64 / CPU Queen
Average AMD Ryzen 7 6800H (75117 - 106322, n=8)	97317 Points +4%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	94363 Points +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	93785 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points -12%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	50477 Points -46%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points -49%

AIDA64 / FPU SinJulia
Average AMD Ryzen 7 6800H (11771 - 13120, n=8)	12524 Points +5%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	12291 Points +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	11981 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -44%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	4793 Points -60%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points -60%

AIDA64 / FPU Mandel
Average AMD Ryzen 7 6800H (45287 - 58327, n=8)	52044 Points +15%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	47561 Points +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	45287 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -43%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	18656 Points -59%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points -60%

AIDA64 / CPU AES
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	122402 MB/s +3%
Average AMD Ryzen 7 6800H (67816 - 137383, n=8)	119730 MB/s +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	118383 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s -22%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	73326 MB/s -38%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s -42%

AIDA64 / CPU ZLib
Average AMD Ryzen 7 6800H (732 - 901, n=8)	819 MB/s +12%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	757 MB/s +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	732 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s -1%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	397 MB/s -46%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s -50%

AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 7 6800H (6917 - 8980, n=8)	8014 KRay/s +16%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	7214 KRay/s +4%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	6917 KRay/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s -19%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	3838 KRay/s -45%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s -45%

AIDA64 / CPU PhotoWorxx
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	30600 MPixel/s +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	30360 MPixel/s
Average AMD Ryzen 7 6800H (26496 - 30360, n=8)	29028 MPixel/s -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s -7%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	27471 MPixel/s -10%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s -14%

Desempenho do sistema

Os resultados PCMark são alguns dos mais altos para qualquer mini PC sem gráficos dedicados. As altas pontuações são atribuídas ao novo Radeon 680M que é um salto substancial sobre os mais antigos integrados Radeon RX série Vega ou Série Iris Xe.

PCMark 10 / Score
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	7109 Points +2%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	6936 Points
Average AMD Ryzen 7 6800H, AMD Radeon 680M (6591 - 6936, n=4)	6764 Points -2%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5931 Points -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points -15%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5902 Points -15%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points -24%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points -27%

PCMark 10 / Essentials
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	11323 Points +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	11158 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points -4%
Average AMD Ryzen 7 6800H, AMD Radeon 680M (10381 - 11158, n=4)	10642 Points -5%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	10351 Points -7%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points -8%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	9233 Points -17%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points -18%

PCMark 10 / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	10210 Points +5%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	9759 Points
Average AMD Ryzen 7 6800H, AMD Radeon 680M (9140 - 9759, n=4)	9467 Points -3%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	9293 Points -5%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	8818 Points -10%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points -19%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points -22%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points -29%

PCMark 10 / Digital Content Creation
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	8432 Points +1%
Average AMD Ryzen 7 6800H, AMD Radeon 680M (8092 - 8485, n=4)	8341 Points 0%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	8319 Points
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	6957 Points -16%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	6908 Points -17%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5801 Points -30%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points -33%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points -39%

CrossMark / Overall
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1704 Points
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1691 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points -1%
Average AMD Ryzen 7 6800H, AMD Radeon 680M (1590 - 1704, n=3)	1647 Points -3%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points -22%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1311 Points -23%

CrossMark / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1701 Points +2%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1674 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points -1%
Average AMD Ryzen 7 6800H, AMD Radeon 680M (1566 - 1674, n=3)	1623 Points -3%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points -15%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1355 Points -19%

CrossMark / Creativity
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1763 Points
Average AMD Ryzen 7 6800H, AMD Radeon 680M (1696 - 1763, n=3)	1722 Points -2%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1698 Points -4%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1315 Points -25%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points -29%

CrossMark / Responsiveness
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1639 Points +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1625 Points
Average AMD Ryzen 7 6800H, AMD Radeon 680M (1340 - 1625, n=3)	1510 Points -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points -9%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points -18%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1177 Points -28%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51186 MB/s
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	50935 MB/s 0%
Average AMD Ryzen 7 6800H (48209 - 51186, n=8)	50144 MB/s -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s -13%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s -20%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	35353 MB/s -31%

AIDA64 / Memory Read
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	51869 MB/s 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51679 MB/s
Average AMD Ryzen 7 6800H (43828 - 51778, n=8)	50259 MB/s -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s -10%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s -10%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	41238 MB/s -20%

AIDA64 / Memory Write
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	55316 MB/s 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	55238 MB/s
Average AMD Ryzen 7 6800H (51116 - 55307, n=8)	54668 MB/s -1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s -16%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	39237 MB/s -29%

AIDA64 / Memory Latency
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * -11%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	92 ns * -10%
Average AMD Ryzen 7 6800H (83.1 - 104.1, n=8)	88.6 ns * -6%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	83.5 ns *
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	82.9 ns * +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns * +3%

* ... smaller is better

Latência do DPC

LatencyMon revela problemas de DPC ao abrir várias abas do navegador em nossa página inicial. a reprodução do vídeo de 4K a 60 FPS é, de outra forma, suave com apenas dois quadros descartados durante nosso vídeo de teste de um minuto.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1329 μs *
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	1132 μs * +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +41%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	509.9 μs * +62%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * +87%

* ... smaller is better

Dispositivos de armazenamento

o Kingston SNV2S O PCIe4 x4 SSD em nossa unidade é uma unidade NVMe de médio alcance com leitura sequencial e taxas de cerca de 3700 MB/s e 2200 MB/s, respectivamente, em comparação com 5000 MB/s ou mais com alternativas como o Samsung PM9A1. O drive entra em contato com uma placa metálica interna sob o slot SATA III de 2,5 polegadas para dissipação de calor.

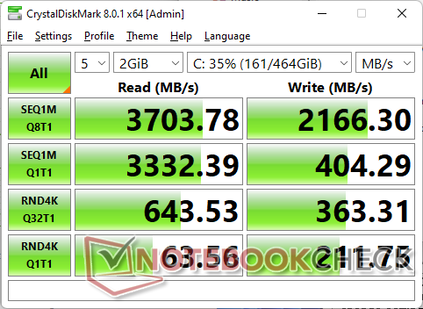

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV2 500GB SNV2S/500G

CDM 5/6 Read Seq Q32T1: 3456 MB/s

CDM 5/6 Write Seq Q32T1: 2145 MB/s

CDM 5/6 Read 4K Q32T1: 645.2 MB/s

CDM 5/6 Write 4K Q32T1: 344.5 MB/s

CDM 5 Read Seq: 3195 MB/s

CDM 5 Write Seq: 408.3 MB/s

CDM 5/6 Read 4K: 61.29 MB/s

CDM 5/6 Write 4K: 208.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	93.6 pt
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	56.8 pt
Intel Hades Canyon NUC8i7HVK ^-8! Intel Optane 120 GB SSDPEK1W120GA	52.6 pt
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	46.6 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	40.9 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.7 pt

DiskSpd
seq read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	4168 (3579.63^min - 4168.09^max) MB/s +36%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3074 (3056.63^min - 3074.49^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2068 (2046.82^min - 2067.79^max) MB/s -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s -42%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s -47%
seq write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3783.49^min - 3937.52^max) MB/s +73%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2277 (2253.07^min - 2277.24^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1887 (1880.31^min - 1887.23^max) MB/s -17%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -57%
seq q8 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	7061 (6122.84^min - 7060.97^max) MB/s +99%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3553 (3164.22^min - 3552.99^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3415 (3195.01^min - 3414.88^max) MB/s -4%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s -36%
seq q8 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3914.12^min - 3937.52^max) MB/s +73%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3400 (3383.13^min - 3399.9^max) MB/s +50%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2271 (2252.65^min - 2271.35^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s -23%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s -37%
4k q1 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	80.4 (79.66^min - 80.38^max) MB/s +89%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s +48%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s +19%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	42.6 (42.44^min - 42.57^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	41.8 (41.45^min - 41.8^max) MB/s -2%
4k q1 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	284 (282.24^min - 284.12^max) MB/s +19%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	239 (236.27^min - 238.58^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s -17%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s -27%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	60.6 (60.37^min - 60.61^max) MB/s -75%
4k q32 t16 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1942 (1940.94^min - 1941.94^max) MB/s +24%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1568 (1565.33^min - 1568.49^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1146 (1123.37^min - 1146.36^max) MB/s -27%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s -52%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -78%
4k q32 t16 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3741 (3667.09^min - 3740.76^max) MB/s +169%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1391 (1351.44^min - 1391.2^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s -60%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	502 (468.48^min - 501.52^max) MB/s -64%

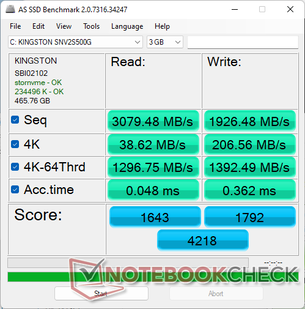

AS SSD
Score Total
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	6722 Points +59%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	4218 Points
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	4036 Points -4%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	3023 Points -28%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points -35%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points -68%
Score Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2207 Points +34%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1643 Points
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1524 Points -7%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1439 Points -12%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points -41%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -60%
Score Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3477 Points +94%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1923 Points +7%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1792 Points
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points -28%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	714 Points -60%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -77%
Seq Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	5799.1 MB/s +88%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3079.48 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -12%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2562 MB/s -17%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s -27%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1379 MB/s -55%
Seq Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3737.17 MB/s +94%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1926.48 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s -27%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1265 MB/s -34%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	553 MB/s -71%
4K Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	127.9 MB/s +231%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	75.39 MB/s +95%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s +14%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	39.24 MB/s +2%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	38.62 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -11%
4K Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	237.79 MB/s +15%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	206.56 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s -7%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	103.5 MB/s -50%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -51%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	63.5 MB/s -69%
4K-64 Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1551.47 MB/s +20%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1296.75 MB/s
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1258 MB/s -3%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1143 MB/s -12%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s -46%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s -73%
4K-64 Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2865.66 MB/s +106%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1733 MB/s +24%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1392.49 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s -34%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	556 MB/s -60%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -88%
Access Time Read
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -75%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.075 ms * -56%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.057 ms * -19%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * -10%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.048 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.025 ms * +48%
Access Time Write
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.362 ms *
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * +6%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.193 ms * +47%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.047 ms * +87%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * +90%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.033 ms * +91%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SER6 Pro: Ø3043 (2655.48-3280.21)

Desempenho da GPU

A integração Radeon 680M é uma atualização significativa em relação à geração anterior Radeon RX Vega 7 ou Vega 8 como encontrado no Ryzen 5 5600H ou Ryzen 7 5800H, respectivamente. O desempenho bruto é 70 a 100% mais rápido para uma experiência de jogo visivelmente melhor. Isto não quer dizer que o SER6 Pro seja uma máquina de jogo, pois ainda é mais 2x mais lento do que um GeForce Computador portátil acionada por RTX 2060mas ainda tem potência suficiente para rodar a maioria dos jogos confortavelmente a 1080p em ambientes de baixa a média baixa.

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	22884 Points +226%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	17077 Points +143%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	10248 Points +46%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -1%
Average AMD Radeon 680M (3791 - 7653, n=35)	6673 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points -31%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points -36%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points -43%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points -44%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	3769 Points -46%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -49%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	2616 Points -63%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1288 Points -82%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -85%
2560x1440 Time Spy Graphics
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	7685 Points +213%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6599 Points +169%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	2908 Points +19%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points -1%
Average AMD Radeon 680M (1359 - 2607, n=35)	2219 Points -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points -34%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points -41%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -49%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1212 Points -51%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points -53%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -55%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	682 Points -72%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	422 Points -83%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points -85%
2560x1440 Time Spy Score
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	8015 Points +191%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6380 Points +132%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	3096 Points +13%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points -1%
Average AMD Radeon 680M (1546 - 2914, n=35)	2485 Points -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1854 Points -33%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1612 Points -41%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1405 Points -49%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1383 Points -50%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points -52%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1251 Points -55%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	771 Points -72%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	484 Points -82%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	419 Points -85%

3DMark 11 - 1280x720 Performance GPU
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	31877 Points +195%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	23992 Points +122%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	14302 Points +32%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points -2%
Average AMD Radeon 680M (6858 - 11668, n=34)	10018 Points -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points -37%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points -39%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points -44%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	5679 Points -47%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -48%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points -53%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	4191 Points -61%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1744 Points -84%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -85%

3DMark | 3DMark 11

Blender
v3.3 Classroom HIP/AMD
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	926 Seconds * -191%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds * -12%
Average AMD Radeon 680M (270 - 555, n=31)	346 Seconds * -9%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds *
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	87 Seconds * +73%
v3.3 Classroom CPU
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1402 Seconds * -209%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1346 Seconds * -197%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	1297 Seconds * -186%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	995 Seconds * -120%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * -56%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	494 Seconds * -9%
Average AMD Radeon 680M (389 - 609, n=31)	478 Seconds * -6%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * +4%
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	405 Seconds * +11%

* ... smaller is better

Final Fantasy XV Benchmark
1280x720 Lite Quality
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	197.7 fps +190%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	130 fps +91%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.8 fps +20%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps
Average AMD Radeon 680M (34.4 - 74.7, n=33)	59.2 fps -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	42.8 fps -37%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps -40%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.6 fps -43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps -48%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	34.6 fps -49%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	27.2 fps -60%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	10.8 fps -84%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.61 fps -92%
1920x1080 Standard Quality
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	111.1 fps +220%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	89.2 fps +157%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	41.2 fps +19%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps
Average AMD Radeon 680M (18.3 - 36.9, n=34)	30.7 fps -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23 fps -34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	20.3 fps -41%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps -41%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps -44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	17.3 fps -50%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	13.8 fps -60%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5.08 fps -85%
1920x1080 High Quality
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	81.4 fps +231%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	67.5 fps +174%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps 0%
Average AMD Radeon 680M (12.9 - 26.2, n=34)	22 fps -11%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	16.4 fps -33%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps -39%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps -42%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps -45%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	12.6 fps -49%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	9.68 fps -61%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	3.75 fps -85%

GTA V
1024x768 Lowest Settings possible
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	179.6 (3.66^min, 142.9^P1) fps +18%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	168 (5.58^min, 111^P1) fps +10%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (1.676^min, 100^P1) fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps
Average AMD Radeon 680M (67.7 - 155.4, n=30)	133.8 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	132.9 (18.4^min, 90.9^P1) fps -13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps -23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps -25%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	108.6 (21.4^min, 71.4^P1) fps -29%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	94.2 (16.5^min, 58.8^P1) fps -38%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	81.2 (24.5^min, 50^P1) fps -47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps -78%
1920x1080 Lowest Settings possible
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	178.2 (5.76^min, 125^P1) fps +60%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (4.25^min, 111^P1) fps +48%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	156 (4.99^min, 111^P1) fps +40%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps
Average AMD Radeon 680M (56.9 - 115.8, n=22)	102.6 fps -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81 (12.3^min, 58.8^P1) fps -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	75.1 (18.8^min, 52.6^P1) fps -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	67.8 (9.62^min, 47.6^P1) fps -39%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps -40%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.9 (13.2^min, 45.5^P1) fps -41%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	51.6 (14.7^min, 38.5^P1) fps -54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.7 (10.2^min, 12.8^P1) fps -83%
1366x768 Normal/Off AF:4x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	172.2 (4.2^min, 125^P1) fps +23%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	158 (4.71^min, 100^P1) fps +13%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	158 (4.65^min, 90.9^P1) fps +13%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps -1%
Average AMD Radeon 680M (60.7 - 143.9, n=27)	119.3 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	117.6 (20.9^min, 71.4^P1) fps -16%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps -32%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	93.9 (23.8^min, 58.8^P1) fps -33%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	77.6 (21.9^min, 50^P1) fps -44%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	72.3 (16.7^min, 47.6^P1) fps -48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps -80%
1920x1080 Normal/Off AF:4x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	173.2 (3.81^min, 125^P1) fps +57%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	157 (3.27^min, 100^P1) fps +42%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	147 (4.13^min, 90.9^P1) fps +33%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps -1%
Average AMD Radeon 680M (54.9 - 117.3, n=22)	101.9 fps -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.8 (14.1^min, 55.6^P1) fps -26%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	69.3 (15.7^min, 47.6^P1) fps -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	66.5 (20.6^min, 43.5^P1) fps -40%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps -41%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	57.3 (22.2^min, 38.5^P1) fps -48%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	51.2 (12.1^min, 38.5^P1) fps -54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.2 (9.02^min, 12.3^P1) fps -84%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	157.4 (1.891^min, 83.3^P1) fps +203%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	119 (39.3^min, 76.9^P1) fps +129%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.2 (1.964^min, 62.5^P1) fps +56%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps 0%
Average AMD Radeon 680M (25.9 - 99.1, n=30)	49.1 fps -5%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	32.2 (8.1^min, 23.3^P1) fps -38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	27.2 (6.42^min, 20^P1) fps -48%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 (11.5^min, 15.9^P1) fps -55%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	21.8 (7.98^min, 15.6^P1) fps -58%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	19.4 (8.25^min, 15.2^P1) fps -63%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps -67%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	6.56 (3.2^min, 4.55^P1) fps -87%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	86.6 (3.43^min, 58.8^P1) fps +265%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.6 (19.2^min, 47.6^P1) fps +194%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +66%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps
Average AMD Radeon 680M (11.3 - 24.8, n=30)	21.4 fps -10%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.5 (4.85^min, 10.3^P1) fps -39%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	12 (4.36^min, 8.77^P1) fps -49%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.3 (1.411^min, 6.71^P1) fps -57%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	8.27 (3.9^min, 4.85^P1) fps -65%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps -69%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	2.67 (1.309^min, 1.961^P1) fps -89%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	367 (5.67^min, 43.9^P0.1, 264^P1) fps +166%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	220.7 (196^min) fps +60%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165.5 (148^min) fps +20%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps
Average AMD Radeon 680M (67.4 - 150, n=30)	114.8 fps -17%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.7 (45^min) fps -35%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps -36%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	79.2 (75^min) fps -43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps -44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -55%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	50.7 (41^min) fps -63%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	23.8 (20^min) fps -83%
1366x768 Medium Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	260 (41.7^min, 170.3^P0.1, 202^P1) fps +206%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	152.2 (142^min) fps +79%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	105.1 (100^min) fps +24%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps -1%
Average AMD Radeon 680M (44.5 - 85.3, n=23)	70 fps -18%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.7 (44^min) fps -37%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	48.7 (45^min) fps -43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps -43%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps -54%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	33.8 (31^min) fps -60%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	13.5 (10^min) fps -84%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	144.9 (35^min, 96.3^P0.1, 115.6^P1) fps +235%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	101.5 (96^min) fps +134%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	59.7 (56^min) fps +38%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps
Average AMD Radeon 680M (22.3 - 48, n=32)	37.4 fps -14%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.8 (25^min) fps -36%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps -40%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 (22^min) fps -42%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -55%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	18.3 (16^min) fps -58%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -65%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	7.3 (2^min) fps -83%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	88 (41.9^min, 48.7^P0.1, 72.5^P1) fps +226%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	61.4 (59^min) fps +127%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +27%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps
Average AMD Radeon 680M (14.3 - 27.1, n=32)	23 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.8 (14^min) fps -41%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps -49%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	13 (9.89^min, 10^P0.1, 11^P1) fps -52%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps -55%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.1 (8^min) fps -63%

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	94.8 fps +43%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.3 fps -6%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	61.8 fps -7%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	60.1 fps -9%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	58.2 fps -12%
Average AMD Radeon 680M (26.8 - 66.7, n=35)	55.1 fps -17%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	53.4 fps -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps -27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	20.2 fps -70%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	11.5 fps -83%
1920x1080 med (fps_test=2)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	81.3 fps +54%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	52.8 fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps -1%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	49.8 fps -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	46.2 fps -13%
Average AMD Radeon 680M (21.1 - 53.1, n=35)	43.6 fps -18%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	41.2 fps -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.3 fps -24%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps -38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	13.1 fps -75%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.5 fps -80%
1920x1080 high (fps_test=3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.8 fps +62%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	47.1 fps +10%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	40.4 fps -6%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps -13%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	35.7 fps -17%
Average AMD Radeon 680M (16.6 - 43.1, n=35)	35.7 fps -17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps -31%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	12 fps -72%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	9.58 fps -78%

Cyberpunk 2077 1.6
1280x720 Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	137 fps +88%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	72.8 (23.7^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	72.2 (23.3^min) fps -1%
Average AMD Radeon 680M (46.1 - 77.6, n=14)	63.7 fps -12%
1920x1080 Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	107.3 fps +148%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (18.6^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps -1%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39 (25^min) fps -10%
Average AMD Radeon 680M (26 - 50.6, n=15)	38 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.9 (14^min) fps -52%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	18.6 (8.1^min) fps -57%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.4 (8.9^min) fps -69%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.8 (7.4^min) fps -75%
1920x1080 Medium Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	82.6 fps +150%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	33.1 (19.1^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps 0%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	30 (21^min) fps -9%
Average AMD Radeon 680M (20.1 - 41.8, n=15)	29 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	16.2 (12^min) fps -51%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.6 (7.8^min) fps -53%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	11.4 (8^min) fps -66%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	8.6 (5.5^min) fps -74%
1920x1080 High Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	68.8 fps +223%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (16^min) fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps +5%
Average AMD Radeon 680M (16.3 - 33.6, n=15)	21.4 fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	21.3 (3^min) fps
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	11.7 (6.1^min) fps -45%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.4 (8.7^min) fps -46%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	9 (6.7^min) fps -58%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	6.3 (4.5^min) fps -70%
1920x1080 Ultra Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	61.2 fps +256%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (15^min) fps +34%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps +2%
Average AMD Radeon 680M (14 - 23.8, n=15)	17.5 fps +2%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	17.2 (3.2^min) fps
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.8 (4.9^min) fps -43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.4 (5.3^min) fps -57%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	5 (3.2^min) fps -71%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	154.9 (131.8^min) fps +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps -1%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	139 (124.5^min) fps -3%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps -4%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	127 (103.6^min) fps -11%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	119.6 (108.4^min) fps -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	116.4 (93.7^min) fps -19%
Average AMD Radeon 680M (34.4 - 143.3, n=35)	114.1 fps -20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps -35%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	73 (59.4^min) fps -49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps -49%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	42.4 (30.8^min) fps -70%
1366x768 med (1/3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	123 (107.7^min) fps +8%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	120.2 (96.5^min) fps +6%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	119 (95.8^min) fps +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -1%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps -9%
Average AMD Radeon 680M (33.3 - 121.4, n=35)	95 fps -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps -22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	87.9 (69.9^min) fps -22%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	78.6 (66.2^min) fps -31%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	64.4 (52.7^min) fps -43%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps -60%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	8.6 (6.3^min) fps -92%
1920x1080 high (2/3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	116 (100.9^min) fps +38%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	108 (87.1^min) fps +29%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	106.8 (85.9^min) fps +27%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -4%
Average AMD Radeon 680M (33.2 - 89.1, n=35)	71.3 fps -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	63.1 (57.2^min) fps -25%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	59.3 (52.5^min) fps -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	50.5 (43.6^min) fps -40%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.4 (41.9^min) fps -40%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps -46%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	40.7 (36.4^min) fps -51%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.4 (17^min) fps -78%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (4.2^min) fps -93%
1920x1080 ultra (3/3) best looking
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	112 (98.7^min) fps +53%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	96.6 (75.3^min) fps +32%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +29%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -2%
Average AMD Radeon 680M (33.2 - 84.9, n=35)	62.7 fps -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	57.9 (52^min) fps -21%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	56.3 (49.3^min) fps -23%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	47.3 (39.8^min) fps -35%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps -42%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	37.8 (34.2^min) fps -48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	16 (14.9^min) fps -78%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -92%

Strange Brigade
1280x720 lowest AF:1
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	447 (227^min, 334^P1) fps +215%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	287 (77^min, 220^P1) fps +102%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	210 (146^min, 184^P1) fps +48%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps
Average AMD Radeon 680M (72.9 - 167.5, n=33)	131.6 fps -7%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	95.3 (72.8^min, 84.4^P1) fps -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.1 (16.9^min, 29.3^P1) fps -37%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps -44%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.3 (18.8^min, 25.6^P1) fps -44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps -54%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	65.5 (26.1^min, 55.9^P1) fps -54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps -82%
1920x1080 medium AA:medium AF:4
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	216 (163.8^min, 183.9^P1) fps +274%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	148 (64.5^min, 124^P1) fps +156%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	85.3 (73.4^min, 74.4^P1) fps +48%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps -1%
Average AMD Radeon 680M (30 - 63, n=33)	53.7 fps -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.5 (13.2^min, 21.1^P1) fps -32%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36 (29.9^min, 31^P1) fps -38%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	33.9 (10.3^min, 19.8^P1) fps -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps -48%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps -54%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	21.8 (18.4^min, 18.9^P1) fps -62%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps -83%
1920x1080 high AA:high AF:8
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	174.1 (119.5^min, 125.7^P1) fps +258%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	124 (75.3^min, 98^P1) fps +155%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	68 (51.7^min, 52.9^P1) fps +40%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps 0%
Average AMD Radeon 680M (25.3 - 53.1, n=33)	44.4 fps -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.5 (8.7^min, 17^P1) fps -33%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (23.7^min, 24.1^P1) fps -38%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.7 (10^min, 15.1^P1) fps -43%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	25.5 (19.2^min, 20.6^P1) fps -48%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps -56%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	17.5 (13.4^min, 13.6^P1) fps -64%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	10.1 (5^min, 5^P1) fps -79%
1920x1080 ultra AA:ultra AF:16
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	151.8 (107^min, 110.3^P1) fps +262%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	109 (68.2^min, 83.9^P1) fps +160%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +35%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps -1%
Average AMD Radeon 680M (22 - 44.2, n=33)	38.1 fps -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	26.2 (8.6^min, 9.63^P1) fps -37%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.5 (19.5^min, 20.8^P1) fps -39%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps -47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21.7 (15.3^min, 17.4^P1) fps -48%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps -58%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	14.6 (10.1^min, 11.6^P1) fps -65%

Nossa unidade exibiria problemas para manter as taxas de estrutura. Quando ociosos em Witcher 3a taxa de quadros cairia periodicamente de ~80 FPS para ~70 FPS, aparentemente sem razão aparente. Até experimentamos uma queda de até 18 FPS, como mostra o gráfico abaixo. A instabilidade sugere a interrupção da atividade de fundo ou uma má administração das aplicações de fundo.

Witcher 3 FPS Chart

Beelink SER6 Pro: Ø77.6 (18-84)

	baixo	média	alto	ultra
GTA V (2015)	152.3	139.7	51.9	23.7
The Witcher 3 (2015)	138.1	85.1	43.3	27
Dota 2 Reborn (2015)	143.3	113.4	83.9	73.1
Final Fantasy XV Benchmark (2018)	68.1	34.7	24.6
X-Plane 11.11 (2018)	66.4	52.9	43
Strange Brigade (2018)	141.9	57.8	48.6	41.9
Cyberpunk 2077 1.6 (2022)	43.3	33.1	21.3	17.2

Emissões

Ruído do sistema

Os ventiladores internos são sensíveis a cargas na tela. Ao navegar na web ou no fluxo de vídeo, por exemplo, o ruído dos ventiladores pode ocasionalmente aumentar até 33 dB(A) por curtos períodos. O ruído dos ventiladores também alcançaria seu máximo de cerca de 40 dB(A) mais rapidamente do que na maioria dos outros mini PCs.

Experimentamos algum leve ruído eletrônico ou lamentação da bobina em nossa unidade de teste. Assim, somos capazes de registrar um ruído de 24,1 dB(A) contra um fundo silencioso de 22,8 dB(A), mesmo quando o ventilador estava ocioso.

Perfil de ruído do ventilador (Branco: Fundo, Vermelho: Sistema ocioso, Azul: 3DMark 06, Laranja: Witcher 3, Verde: Prime95+FurMark stress)

Barulho

Ocioso		24.1 / 24.1 / 33.8 dB
Carga		40.1 / 40.1 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 22.8 dB(A)

Temperatura

Adaptador AC ao executar aplicações exigentes por longos períodos

As temperaturas superficiais não são um problema. Ao contrário de muitos outros mini PCs, o SER6 Pro incorpora dois ventiladores para melhorar o potencial de resfriamento. O ar frio entra pelos lados e sai pela parte de cima enquanto o ar quente sai pela parte de trás. Colocar itens em cima do mini PC ou posicioná-lo verticalmente obstruirá, portanto, algum fluxo de ar.

Teste de estresse

Ao executar Prime95 para enfatizar a CPU, as taxas de clock e o consumo de energia da placa aumentariam para 3,3 GHz e 45 W, respectivamente, durando apenas alguns segundos. A CPU se estabilizaria rapidamente em 3 GHz, 38 W e 82 C em seguida. Repetindo este mesmo teste noBeelink SEi11 alimentado pelo núcleo mais lento i5-11320H resultaria em uma temperatura de núcleo mais quente de 89 C.

Ao funcionar Witcher 3 para representar cargas típicas de jogos, o relógio GPU e a temperatura estabilizariam em 1956 MHz e 70 C, respectivamente, em comparação com 83 C no SEi11. O SER6 Pro não só é mais rápido, como também funciona mais frio.

Gestão de energia

Consumo de energia

O consumo de energia quando o jogo é cerca de 33% maior do que o SER5 Pro que funciona na última geração Ryzen 5 5600H e também ligeiramente superior ao SEi11 Pro rodando em uma CPU Intel Core H série 12th gen. Considerando que nosso Radeon 680M pode oferecer até 2x o desempenho do Radeon RX Vega 7, no entanto, o maior consumo de energia certamente vale a pena. A manipulação no desktop ainda consumiria tanta energia quanto no modelo do ano passado, apesar da atualização dos gráficos.

Somos capazes de registrar um consumo máximo de 72 W do adaptador AC de 120 W quando a CPU está em 100% de utilização. O alto overhead permite que o mini PC alimente ou carregue certos dispositivos USB-C às custas de um adaptador AC mais volumoso.

Witcher 3 1080p Ultra consumo de energia

Ao iniciar Prime95, o consumo aumentaria para 71 W durante cerca de 10 segundos antes de se estabilizar em 62 W

Prime95+FurMark stress iniciado na marca dos 10s

Consumo de energia

desligado	0.31 / 0.89 Watt
Ocioso	8.3 / 8.4 / 8.7 Watt
Carga	60.8 / 72 Watt


Key: min: , med: , max: Metrahit Energy

	Beelink SER6 Pro R7 6800H, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x,	Beelink SER Pro Ryzen 5 5600H R5 5600H, Vega 7, Kingston NV1 SNVS/500GCN, , x,	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S, , x,	Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption		19%	-3%	-35%	-93%	-91%
Idle Minimum *	8.3	5.4 35%	9.8 -18%	12.1 -46%	5.8 30%	15.5 -87%
Idle Average *	8.4	8.2 2%	10.3 -23%	12.2 -45%	5.9 30%	16.2 -93%
Idle Maximum *	8.7	8.3 5%	10.5 -21%	12.3 -41%	20.7 -138%	16.5 -90%
Load Average *	60.8	49.3 19%	54.2 11%	64 -5%	130.8 -115%	83.4 -37%
Witcher 3 ultra *	61.4	46.1 25%	53.1 14%		154.4 -151%	121.7 -98%
Load Maximum *	72	50.2 30%	59 18%	98.8 -37%	225.2 -213%	173.5 -141%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink SER6 Pro R7 6800H, Radeon 680M; Witcher 3 ultra: Ø61.4 (59.7-62.8)

Beelink GTR6 R9 6900HX, Radeon 680M; Witcher 3 ultra: Ø69 (65.6-72.5)

Beelink SER6 Pro R7 6800H, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø63.3 (62-72)

Beelink GTR6 R9 6900HX, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø71.7 (68.7-80.4)

Power Consumption external Monitor

Beelink SER6 Pro R7 6800H, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø62.1 (60.9-70.6)

Beelink GTR6 R9 6900HX, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø70.3 (60.8-77.9)

Beelink SER6 Pro R7 6800H, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø61 (57.5-66.4)

Beelink GTR6 R9 6900HX, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø68.2 (64.3-74)

Beelink SER6 Pro R7 6800H, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.6 (61.3-68.3)

Beelink GTR6 R9 6900HX, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø70.7 (68-76.7)

Beelink SER6 Pro R7 6800H, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø61.4 (59.7-62.8)

Beelink GTR6 R9 6900HX, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø69 (65.6-72.5)

Beelink SER6 Pro R7 6800H, Radeon 680M; Idle 1min (external Monitor): Ø8.51 (8.12-9.32)

Beelink GTR6 R9 6900HX, Radeon 680M; Idle 1min (external Monitor): Ø9.04 (8.31-13.1)

Veredicto - Uma batida de adormecido

Em revisão: Beelink SER6 Pro. Unidade de teste fornecida pela Beelink

O SER6 Pro compartilha muitas das mesmas vantagens e desvantagens que o recente GTR6. Mais especificamente, o desempenho é especialmente forte quando comparado a outros mini PCs alimentados por gráficos integrados, mas tanto o ruído do ventilador quanto o consumo de energia são mais ruidosos e ligeiramente superiores, respectivamente. Suas duas principais desvantagens não diminuem o incrível valor que os compradores estariam obtendo: 32 GB de RAM, 500 GB de NVMe SSD, Windows 11 Pro, e um dos mais rápidos mini PCs com gráficos integrados, todos por apenas US$650.

O Beelink SER6 Pro bate o preço equivalente do Intel Core U-series NUC, tanto em desempenho quanto em valor, por amplas margens.

Para futuras revisões, gostaríamos de ver um adaptador AC menor e apenas um grande ventilador interno em vez de dois menores. O atual adaptador CA é mais pesado que o próprio mini PC, enquanto um ventilador maior resultaria em um ventilador com menor ruído e menos perceptível. Os usuários também devem estar atentos a possíveis problemas de estabilidade da taxa de quadros quando estiverem jogando. Fora isso, Beelink tem batido para fora do parque com seu SEi e SER série de mini PCs, tanto em desempenho quanto em valor.

Preço e Disponibilidade

A Amazon está enviando atualmente nossa configuração exata SER6 Pro por US$650. Os usuários também podem comprar diretamente do fabricante por $659.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

3DMark 11 Performance		10825 pontos
3DMark Cloud Gate Standard Score		33584 pontos
3DMark Fire Strike Score		6492 pontos
3DMark Time Spy Score		2751 pontos
Ajuda

Revisão do Beelink SER6 Pro: O AMD Radeon 680M é impressionante em um mini PC

Envergonhando a Intel NUC Iris Xe.

Possíveis concorrentes em comparação

Caso

Comparação de tamanho

Conectividade

Comunicação

Manutenção

Acessórios e Garantia

Desempenho

Condições de teste

Processador

Cinebench R15 Multi Loop

Desempenho do sistema

Latência do DPC

Dispositivos de armazenamento

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Desempenho da GPU

Witcher 3 FPS Chart

Emissões

Ruído do sistema

Temperatura

Teste de estresse

Gestão de energia

Consumo de energia

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pro

Contra

Veredicto - Uma batida de adormecido

Preço e Disponibilidade

More articles related to this device

Transparency

Price comparison

	Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise		-3%	8%	-18%	-1%	-11%
off / environment *	22.8	23.2 -2%	22.8 -0%	30.4 -33%	24.5 -7%	28.7 -26%
Idle Minimum *	24.1	23.6 2%	24.7 -2%	33.1 -37%	25.3 -5%	29 -20%
Idle Average *	24.1	23.8 1%	24.7 -2%	33.1 -37%	25.3 -5%	29 -20%
Idle Maximum *	33.8	36.2 -7%	25.3 25%	33.1 2%	25.3 25%	29 14%
Load Average *	40.1	39.7 1%	33.2 17%	38.1 5%	36.4 9%	36 10%
Witcher 3 ultra *	38.7	41 -6%	34.5 11%		39.7 -3%	42 -9%
Load Maximum *	40.1	43 -7%	37.8 6%	43.6 -9%	47.9 -19%	49.4 -23%

	Relógio CPU (GHz)	Relógio GPU (MHz)	Temperatura média da CPU (°C)
System Idle	--	--	34
Prime95 Stress	3.0	--	82
Prime95 + FurMark Stress	2.7	941	74
Witcher 3 Estresse	~0.6	1956	70
