Análise do Minisforum Venus Series NAB9: O mini PC com um Intel Core i9-12900HK, 32 GB de RAM e resfriamento ativo de SSD

Bom desempenho a um preço justo?

O Minisforum Venus Series NAB9 foi equipado com o modelo Alder Lake H mais potente da Intel, prometendo um ótimo desempenho como resultado. No entanto, seus limites de potência revelam que a Minisforum colocou o Intel Core i9-12900HK sob controle, pelo menos quando se trata de seu turbo máximo. Mesmo assim, seu desempenho ainda é comparativamente bom. Nossa análise detalhada revelará quais são as vantagens e desvantagens do Minisforum Venus Series NAB9.

O Venus Series NAB9 é o mais recente e poderoso mini PC lançado pelo fabricante Minisforum. É um pequeno PC baseado em um processador Intel Core i9-12900HK que atualmente já pode ser encontrado por US$ 359 (MRSP: US$ 439). No entanto, esse preço é apenas para o modelo barebone, que não está equipado com RAM ou SSD. A configuração topo de linha do Venus Series NAB9, que é a que estamos testando, custa US$ 509 (MRSP: US$ 629). Ele é equipado com 32 GB de RAM e um SSD de 1 TB. Como alternativa, a Minisforum oferece modelos mais fracos na mesma base, equipados com um Intel Core i7-12650H (NAB6) ou um Intel Core i7-12700H (NAB7). Os preços de cada um não são muito diferentes um do outro.

Minisforum Venus Series NAB9
Processador
Intel Core i9-12900HK 14 x 1.8 - 5 GHz, 64 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H
Placa gráfica
Memória
32 GB
, DDR4-3200, 2 of 2 installed, max. 64 GB
placa mãe
Intel Alder Lake-P PCH
Disco rígido
Kingston OM3PGP41024P-A0, 1024 GB
, M.2-2280, NVMe, 930 GB livre
Placa de Som
Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)
Conexões
7 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Conexões Audio: 3.5mm Kombibuchse, Intel Ethernet Controller I226-V
Funcionamento em rede
Intel Ethernet Controller I226-V (10/2500MBit/s), MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Tamanho
altura x largura x profundidade (em mm): 55 x 127 x 127
Sistema Operativo
Microsoft Windows 11 Home
Características adicionais
120-watt power supply with cable, HDMI cable, VESA mount assembly kit, manual, 24 Meses Garantia
peso
615 g, Suprimento de energia: 277 g
Preço
709 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possíveis concorrentes em comparação

Rating
Date
Model
Memory
Weight
Height
82.4 %
v7 (old)
05/2024
Minisforum Venus Series NAB9
i9-12900HK, Iris Xe G7 96EUs
32768 MB615 g55 mm
83.4 %
v7 (old)
04/2024
Acemagic F2A
Ultra 7 155H, Arc 8-Core
32768 MB768 g57 mm
84.1 %
04/2024
Geekom XT12 Pro
i9-12900H, Iris Xe G7 96EUs
32768 MB545 g37 mm
82.6 %
v7 (old)
03/2024
Geekom A7
R9 7940HS, Radeon 780M
32768 MB417 g38 mm
81.7 %
v7 (old)
08/2023
Minisforum Venus Series NPB5
i5-13500H, Iris Xe G7 80EUs
16384 MB604 g55 mm
79.9 %
v7 (old)
01/2024
NiPoGi AD08
i7-12650H, UHD Graphics 64EUs
32768 MB878 g188.5 mm
79.5 %
v7 (old)
02/2024
Maxtang MTN-FP750
R7 7735HS, Radeon 680M
16384 MB601 g52 mm

O Minisforum Venus Series NAB9 em detalhes

Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Série Vênus NAB9
Minisforum Venus Series NAB9 com RAM DDR4
Minisforum Venus Series NAB9 e sua fonte de alimentação (19 V; 6,32 A)

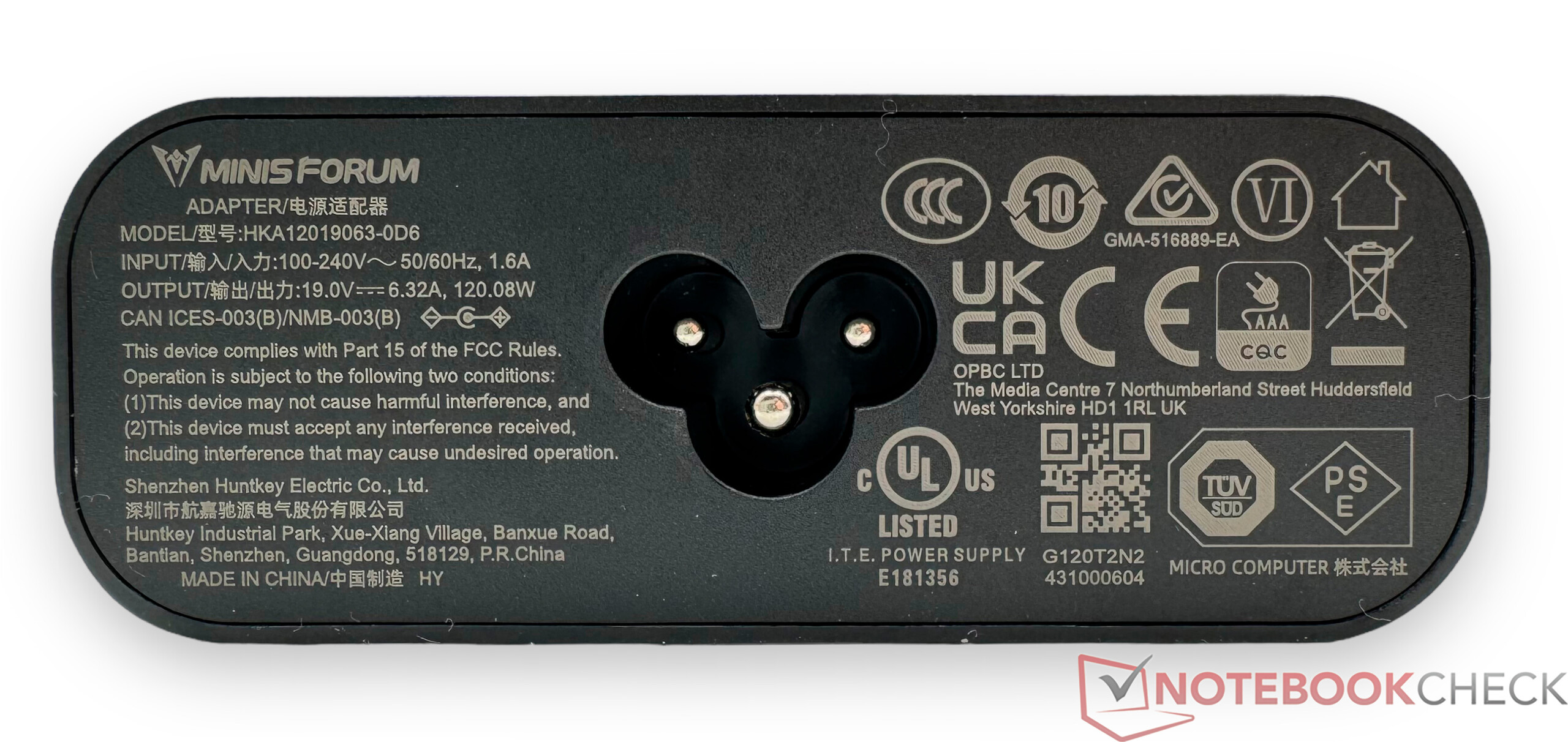

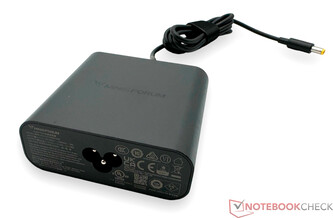

Fonte de alimentação (19 V; 6,32 A)
Fonte de alimentação (19 V; 6,32 A)

Caso

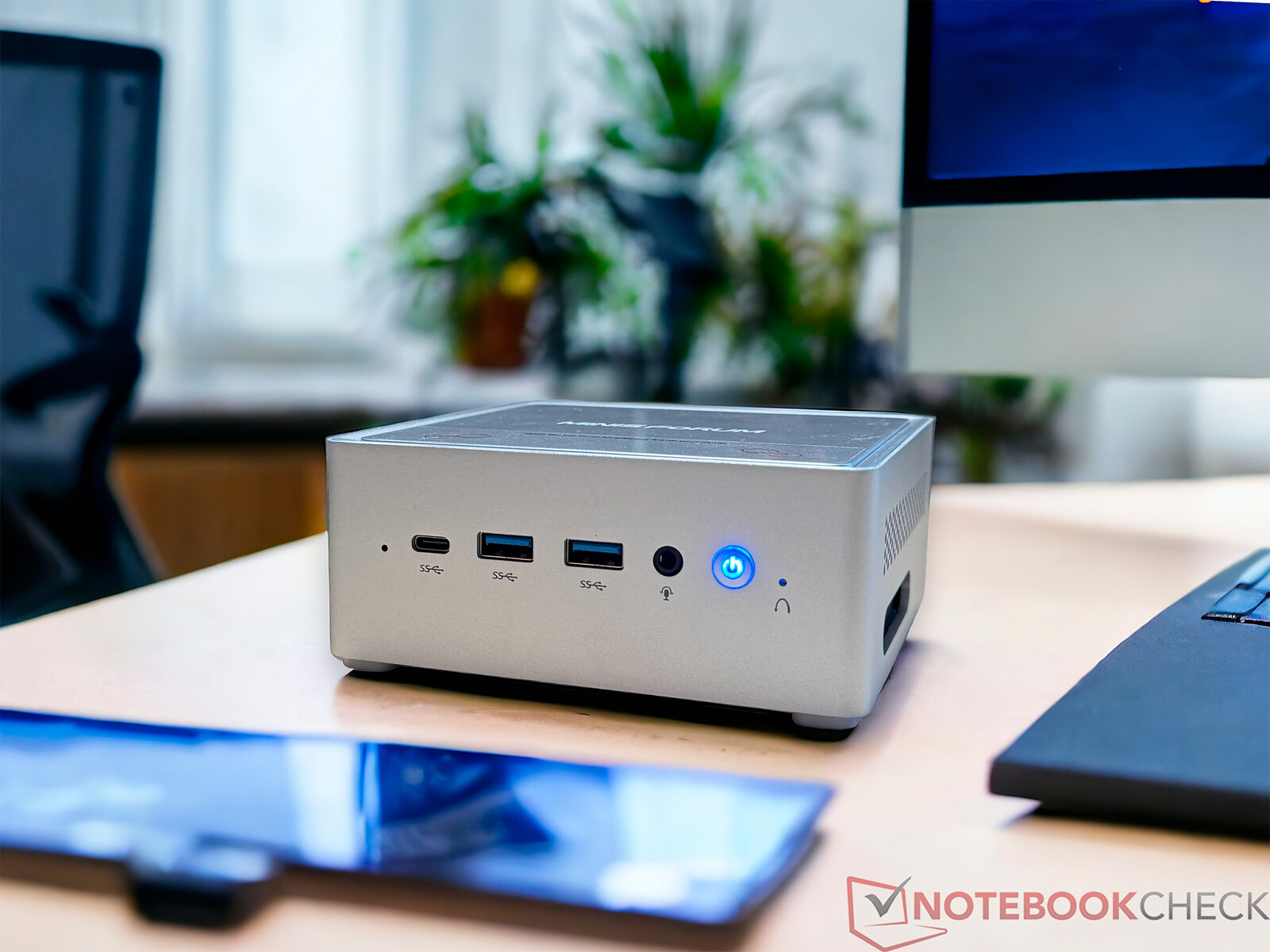

Visualmente, o Minisforum Venus Series NAB9 não parece diferente do NAB6 ou do NPB5: o gabinete é o mesmo, o que, obviamente, traz as mesmas vantagens e desvantagens. Um ponto positivo é a estabilidade de sua construção - isso se deve ao fato de o gabinete ser feito de metal. A tampa e a parte inferior são feitas de plástico, o que resulta em uma sensação um pouco mais barata do que as superfícies de metal. Quando se trata da qualidade de construção, não temos nada negativo a dizer.

Graças ao seu tamanho compacto, o Minisforum Venus Series NAB9 não deve ocupar muito espaço em sua mesa. Ele ocupa apenas 12,7 cm x 12,7 cm. Ainda assim, nossa amostra de teste não é a mais compacta no campo de comparação. Os dois modelos da Geekom (XT12 Pro, A7) são ainda mais compactos. O Minisforum Venus Series NAB9 também pode ser fixado na parte traseira de um monitor usando o suporte VESA fornecido. O dispositivo em si pesa apenas 615 gramas e sua fonte de alimentação acrescenta apenas mais 277 gramas à balança.

Comparação de tamanho

77.8 mm 146.9 mm 188.5 mm 878 g146 mm 146 mm 57 mm 768 g127 mm 127 mm 55 mm 615 g127 mm 127 mm 55 mm 604 g130 mm 128 mm 52 mm 601 g117 mm 112 mm 37 mm 545 g112 mm 112 mm 38 mm 417 g297 mm 210 mm 1 mm 5.7 g

Conectividade

A Minisforum equipou o Venus Series NAB9 com uma variedade de portas externas que estão espalhadas entre a parte frontal e traseira do dispositivo. No total, o mini PC possui sete portas USB, três das quais são do tipo C. Infelizmente, elas não são portas USB4. Mesmo assim, elas podem ser usadas como saídas para monitores e, juntamente com as portas HDMI, o PC pode alimentar até quatro monitores ao mesmo tempo. Sua resolução máxima suportada é 4K@60Hz.

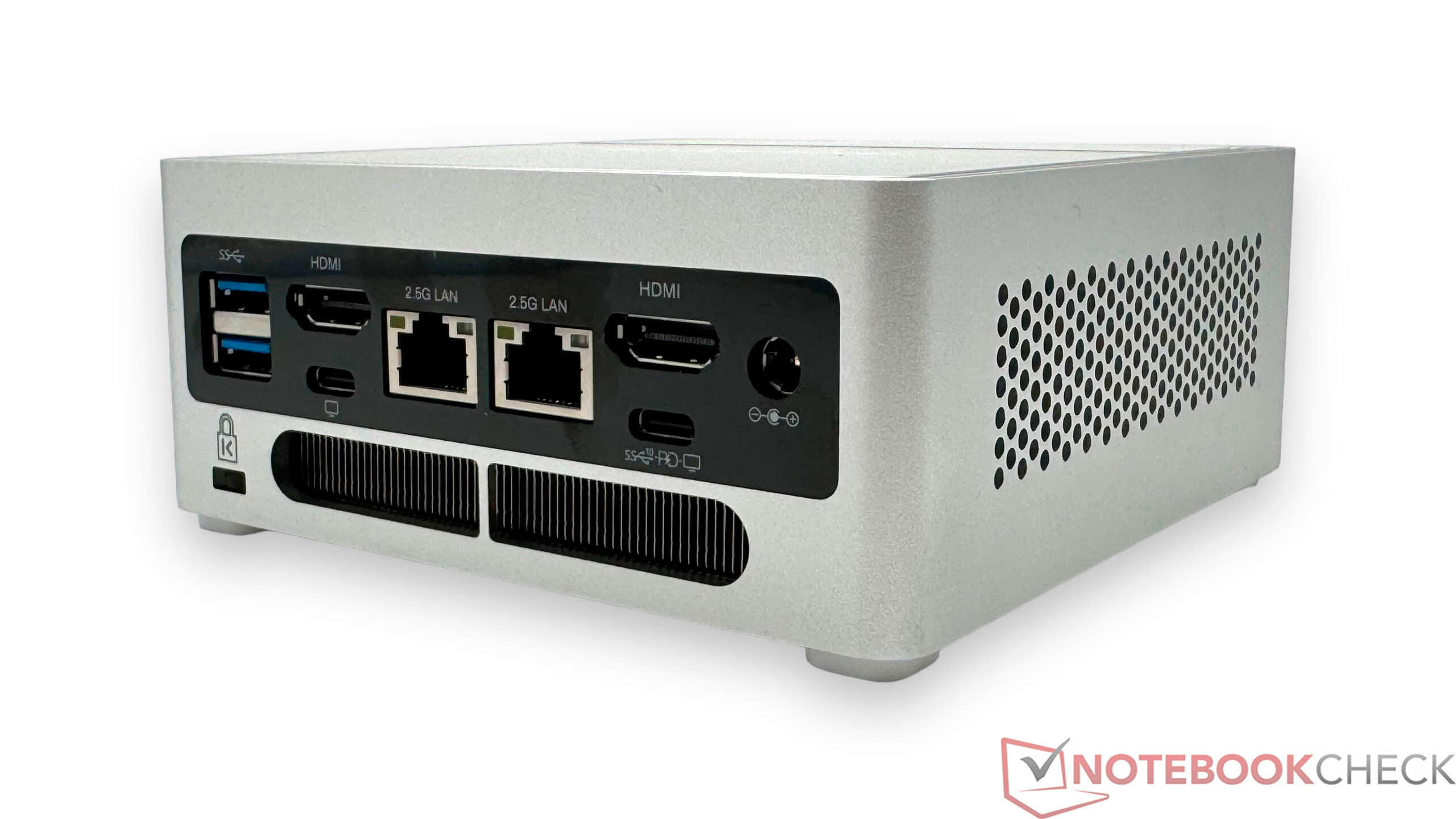

As portas externas do Minisforum Venus Series NAB9 (fonte: Minisforum)
As portas externas do Minisforum Venus Series NAB9 (fonte: Minisforum)

Comunicação

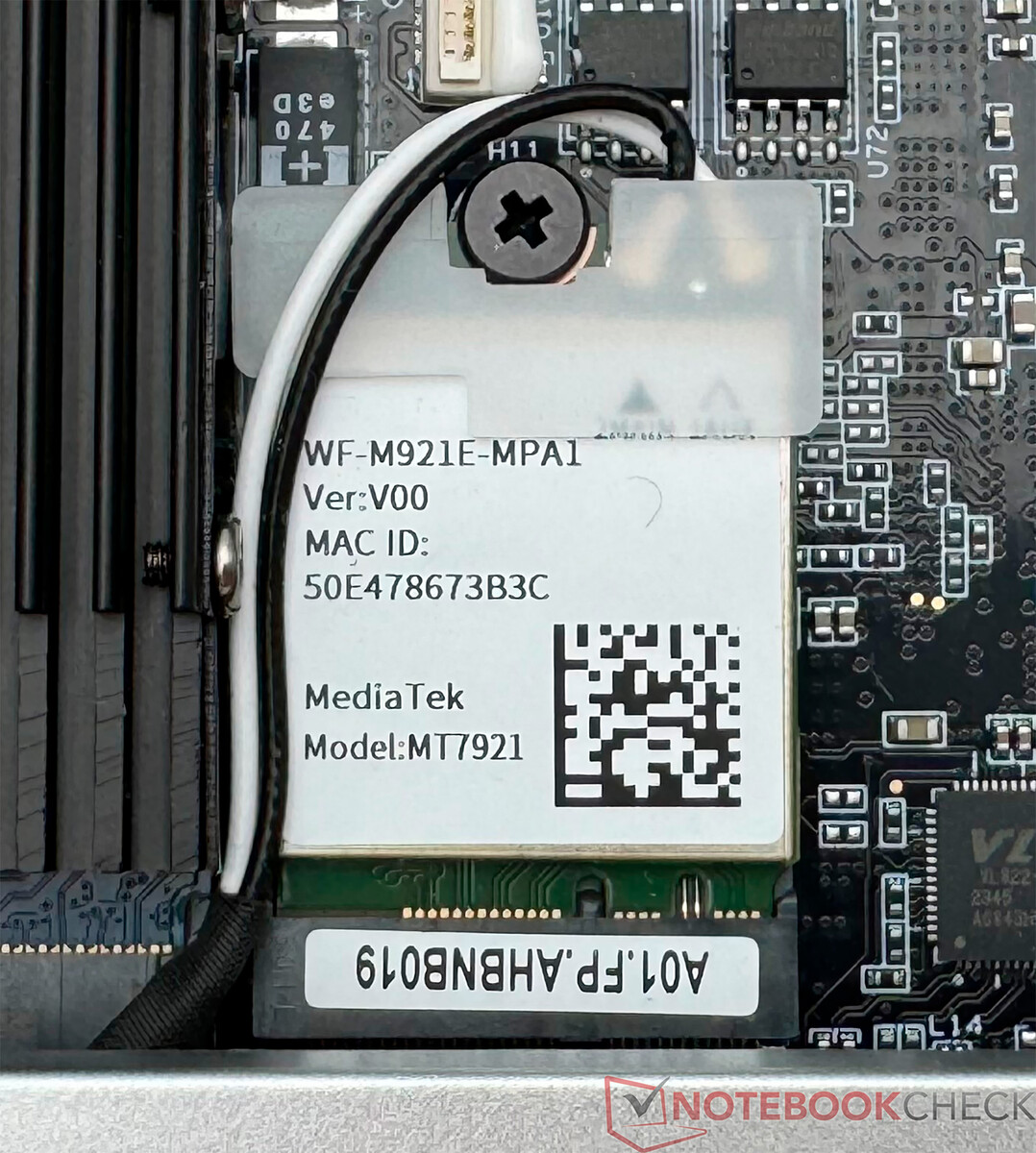

Módulo WLAN
Módulo WLAN

O Minisforum instalou um módulo WLAN da Mediatek no NAB9. Já encontramos esse modelo várias vezes, embora seu desempenho nesse dispositivo tenha ficado consideravelmente abaixo da média do módulo. Em comparação com seus concorrentes, o Minisforum Venus Series NAB9 tem que admitir a derrota. Mesmo assim, sua largura de banda é boa o suficiente para o trabalho diário no escritório. Usamos o Asus ROG Rapture GT-AXE11000 como roteador de teste. Como alternativa, o Minisforum Venus Series NAB9 oferece duas conexões RJ45, ambas permitindo taxas de transferência de até 2,5 GBit/s.

Networking
iperf3 receive AXE11000
Average of class Mini PC
  (320 - 1796, n=113, last 2 years)
945 MBit/s +88%
Minisforum Venus Series NPB5
MediaTek RZ608
902 (865min - 926max) MBit/s +79%
Geekom XT12 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
892 (460min - 921max) MBit/s +77%
Geekom A7
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
858 (827min - 886max) MBit/s +71%
Maxtang MTN-FP750
Intel Wi-Fi 6 AX200
852 (802min - 903max) MBit/s +69%
Acemagic F2A
Intel Wi-Fi 7 BE200 320MHz
838 (728min - 926max) MBit/s +67%
Average MediaTek MT7921
  (104.2 - 968, n=18)
778 MBit/s +55%
Minisforum Venus Series NAB9
MediaTek MT7921
503 (371min - 687max) MBit/s
iperf3 transmit AXE11000
Minisforum Venus Series NPB5
MediaTek RZ608
951 (864min - 1006max) MBit/s +79%
Average of class Mini PC
  (184.1 - 1776, n=113, last 2 years)
874 MBit/s +65%
Geekom A7
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
831 (755min - 940max) MBit/s +56%
Maxtang MTN-FP750
Intel Wi-Fi 6 AX200
828 (743min - 896max) MBit/s +56%
Average MediaTek MT7921
  (47.8 - 985, n=18)
795 MBit/s +50%
Acemagic F2A
Intel Wi-Fi 7 BE200 320MHz
709 (369min - 977max) MBit/s +34%
Geekom XT12 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
589 (295min - 624max) MBit/s +11%
Minisforum Venus Series NAB9
MediaTek MT7921
531 (255min - 725max) MBit/s
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400Tooltip
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1367 (1268-1443)
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1352 (688-1438)
Minisforum Venus Series NAB9 MediaTek MT7921; iperf3 receive AXE11000; iperf 3.1.3: Ø503 (371-687)
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø858 (827-886)
Minisforum Venus Series NAB9 MediaTek MT7921; iperf3 transmit AXE11000; iperf 3.1.3: Ø522 (255-725)
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø831 (755-940)

Acessórios

Além do próprio dispositivo, o escopo de fornecimento do PC inclui uma fonte de alimentação de 120 watts e um suporte VESA para fixá-lo em um monitor. Além disso, ele vem com um cabo HDMI e um cabo de conexão para uma unidade de armazenamento de 2,5 polegadas.

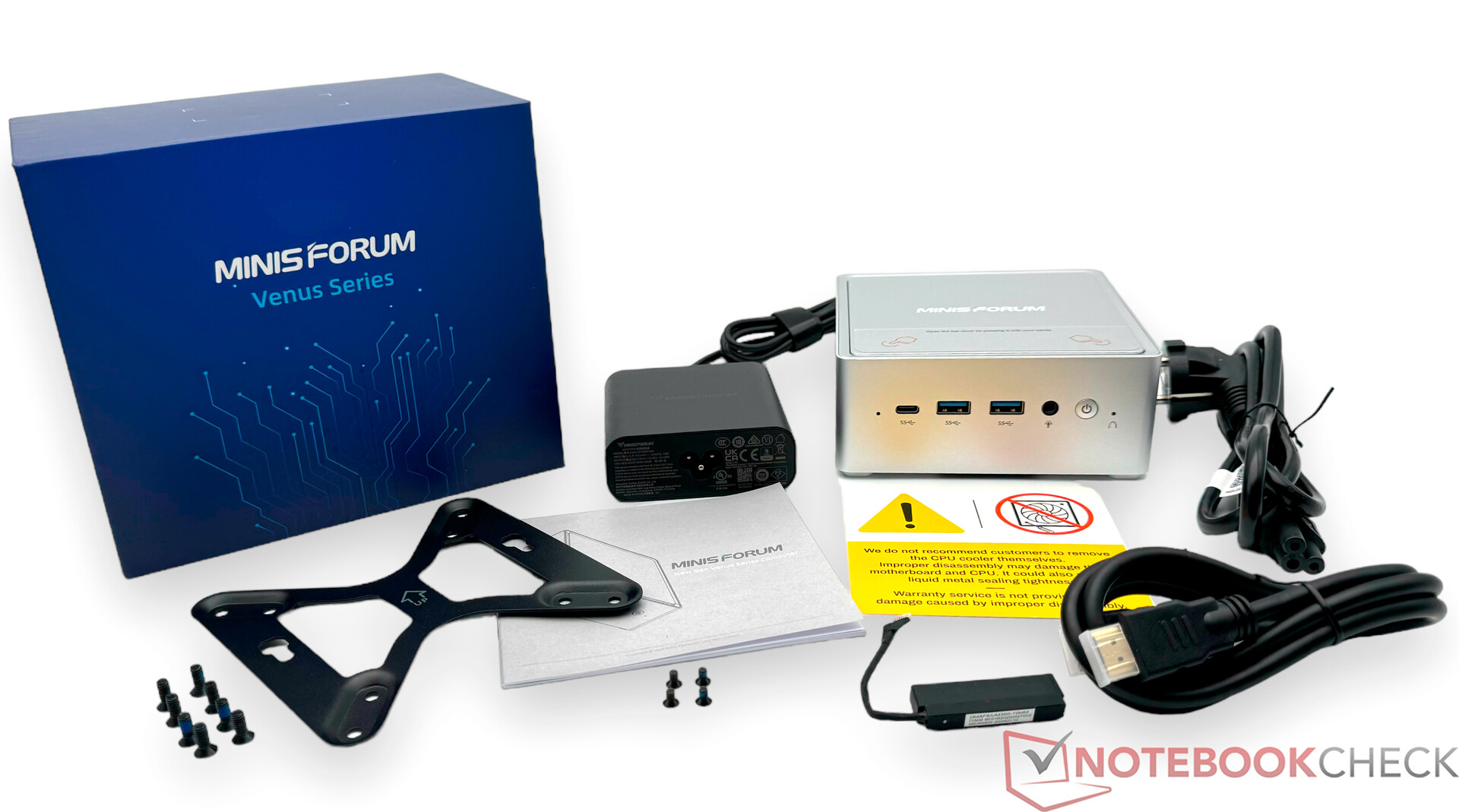

O escopo de entrega do Minisforum Venus Series NAB9
O escopo de entrega do Minisforum Venus Series NAB9

Manutenção

É muito fácil fazer a manutenção do Minisforum Venus Series NPB9. A tampa do gabinete pode ser removida sem a necessidade de ferramentas e, embaixo dela, estão todos os componentes importantes, como SSD, RAM e o módulo WLAN. Como a Minisforum também oferece o NAB9 como uma versão barebone, o senhor pode instalar os componentes com muita facilidade. A ventoinha da CPU, que está localizada na parte inferior do dispositivo, é um pouco mais difícil de acessar. Para isso, o senhor terá que remover a placa inferior. O fabricante desaconselha a remoção do cooler da CPU, pois ele usa metal líquido.

O Minisforum Venus Series NAB9 sem a tampa da caixa
O Minisforum Venus Series NAB9 com a tampa inferior removida
O Minisforum Venus Series NAB9 com a tampa inferior removida

Desempenho - Intel Alder Lake-H com 14 núcleos e 20 threads

Minisforum NAB9 da série Venus Intel Core i9-12900HK é um SoC muito potente. O processador domina as tarefas cotidianas sem problemas.

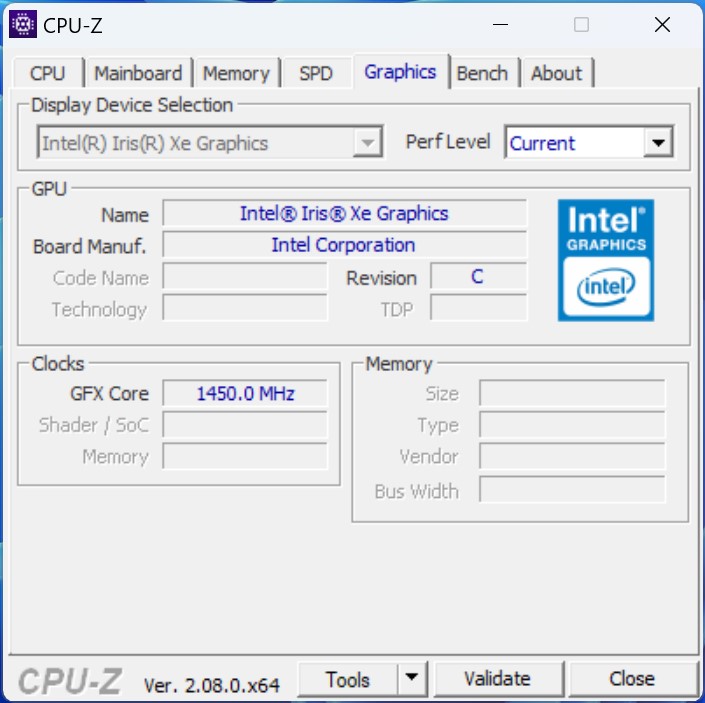

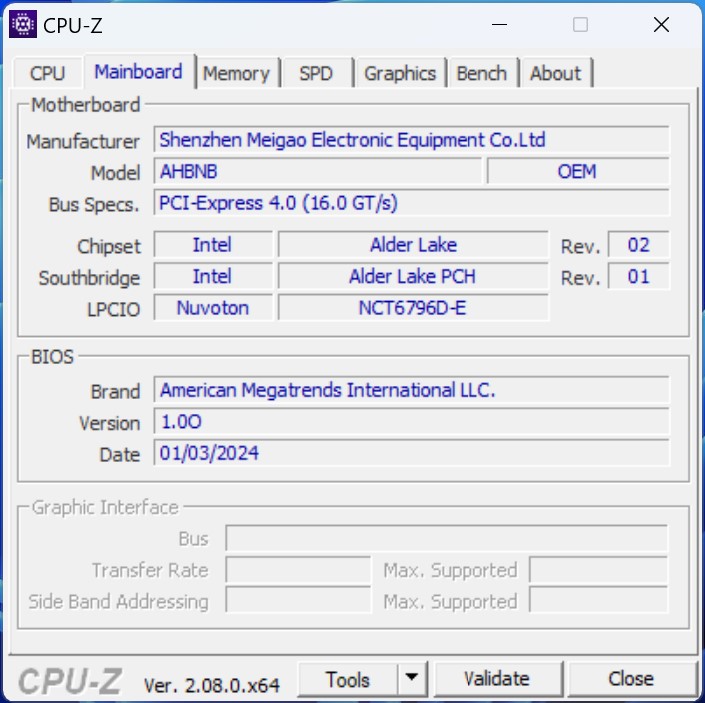

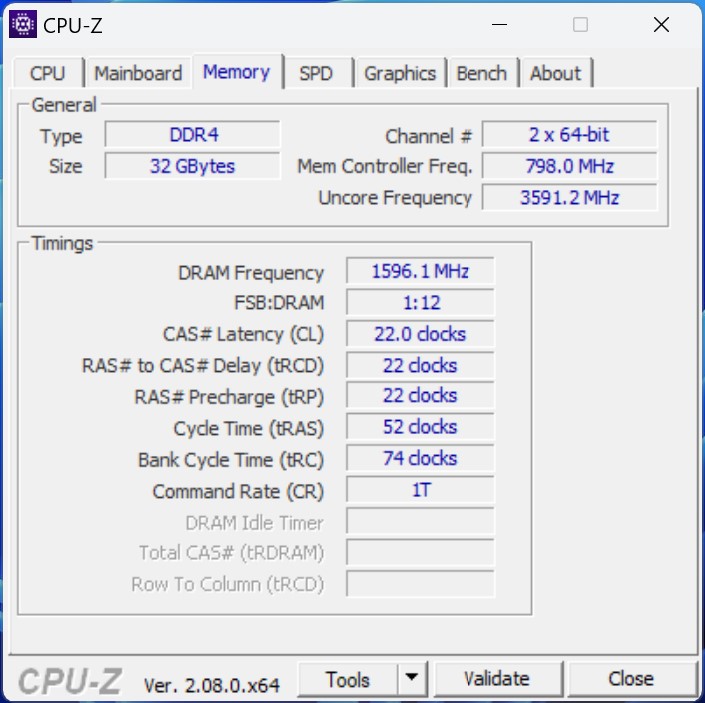

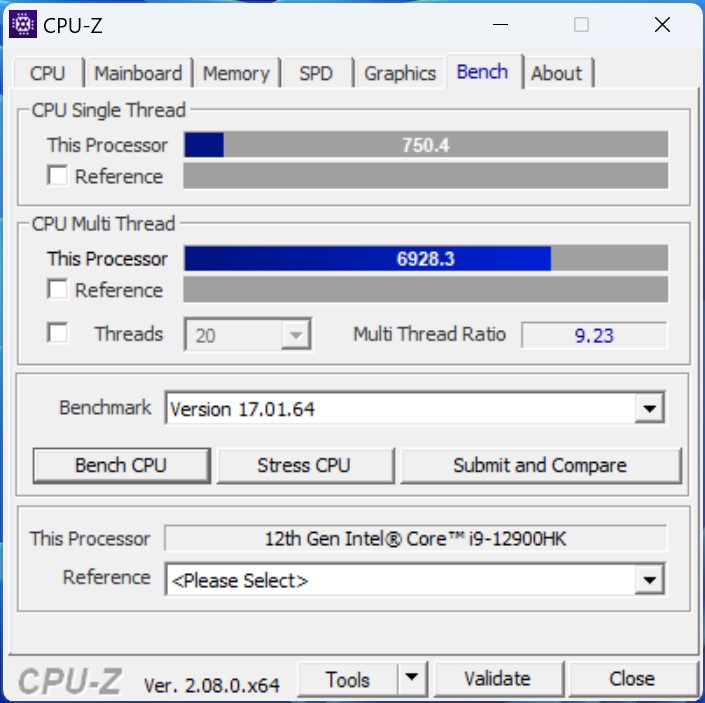

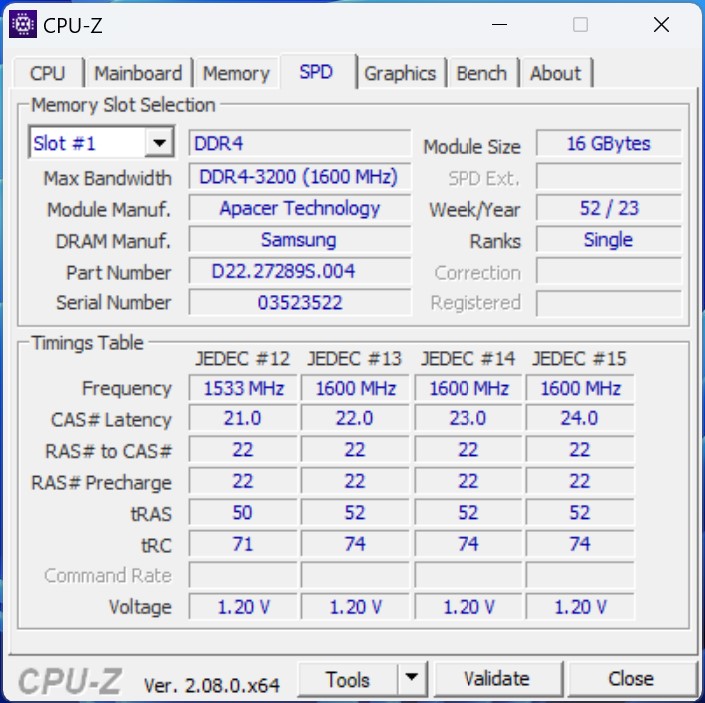

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z
HWiNFO

Condições de teste

Realizamos todos os testes de desempenho usando o perfil de energia de desempenho máximo. O desempenho do SoC não foi alterado no BIOS e, em vez disso, foi deixado no estado de entrega do PC de acordo com as configurações do fabricante.

Processador

O Minisforum Venus Series NAB9 é equipado com o Intel Core i9-12900HK. O SoC pertence à série Alder Lake e é o modelo superior da 12ª geração de processadores móveis. O SoC fez sua estreia em 2022, o que significa que o modelo instalado não está mais totalmente atualizado. Mesmo assim, a comparação de desempenho mostrou um resultado muito bom, pois o Intel Core i9-12900HK foi capaz de acompanhar os processadores mais novos, apesar de sua idade. Documentamos um excelente desempenho de núcleo único e o desempenho de vários núcleos também foi consistentemente alto. No total, os usuários têm 14 núcleos com 20 threads à sua disposição. O Minisforum atribui ao Intel Core i9-12900HK um consumo de energia de até 64 watts. Esse valor é um pouco menor do que o declarado pela Intel como o máximo. No entanto, sob carga contínua, sua necessidade de energia cai ligeiramente para 45 watts.

Para mais comparações e benchmarks, confira nossa Tabela de comparação de CPUs.

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Cinebench 2024
Cinebench 2024
Performance Rating - Percent
Geekom A7
AMD Ryzen 9 7940HS
54 pt
Acemagic F2A
Intel Core Ultra 7 155H
52.1 pt
Minisforum Venus Series NAB9
Intel Core i9-12900HK
52 pt
Minisforum Venus Series NPB5
Intel Core i5-13500H
51.7 pt
Geekom XT12 Pro
Intel Core i9-12900H
48.4 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
45 pt
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
39.5 pt
Cinebench 2024
CPU Multi Core
Acemagic F2A
Intel Core Ultra 7 155H
1022 Points +37%
Geekom A7
AMD Ryzen 9 7940HS
922 Points +24%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
746 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
706 Points -5%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
620 Points -17%
Geekom XT12 Pro
Intel Core i9-12900H
578 Points -23%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
294 Points -61%
CPU Single Core
Minisforum Venus Series NAB9
Intel Core i9-12900HK
114 Points
Geekom A7
AMD Ryzen 9 7940HS
108 Points -5%
Geekom XT12 Pro
Intel Core i9-12900H
108 Points -5%
Minisforum Venus Series NPB5
Intel Core i5-13500H
106 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H
106 Points -7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
90 Points -21%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
85 Points -25%
Cinebench R23
Multi Core
Acemagic F2A
Intel Core Ultra 7 155H
18497 Points +26%
Geekom A7
AMD Ryzen 9 7940HS
15556 Points +6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
14659 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
13542 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
11072 Points -24%
Geekom XT12 Pro
Intel Core i9-12900H
11036 Points -25%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
5362 Points -63%
Single Core
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1901 Points
Geekom XT12 Pro
Intel Core i9-12900H
1824 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1775 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H
1771 Points -7%
Geekom A7
AMD Ryzen 9 7940HS
1747 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1543 Points -19%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
1428 Points -25%
Cinebench R15
CPU Single 64Bit
Geekom A7
AMD Ryzen 9 7940HS
278 Points +3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
270 Points
Acemagic F2A
Intel Core Ultra 7 155H
258 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
255 Points -6%
Geekom XT12 Pro
Intel Core i9-12900H
251 Points -7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
245 Points -9%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
207 Points -23%
CPU Multi 64Bit
Acemagic F2A
Intel Core Ultra 7 155H
2738 Points +22%
Geekom A7
AMD Ryzen 9 7940HS
2470 Points +10%
Minisforum Venus Series NPB5
Intel Core i5-13500H
2304 Points +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
2249 Points
Geekom XT12 Pro
Intel Core i9-12900H
2121 Points -6%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1795 Points -20%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
753 Points -67%
Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB9
Intel Core i9-12900HK
734 Points
Geekom XT12 Pro
Intel Core i9-12900H
701 Points -4%
Geekom A7
AMD Ryzen 9 7940HS
692 Points -6%
Minisforum Venus Series NPB5
Intel Core i5-13500H
687 Points -6%
Acemagic F2A
Intel Core Ultra 7 155H
679 Points -7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
604 Points -18%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
552 Points -25%
CPU (Multi Core)
Acemagic F2A
Intel Core Ultra 7 155H
7188 Points +26%
Geekom A7
AMD Ryzen 9 7940HS
6277 Points +10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
5691 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
5108 Points -10%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
4339 Points -24%
Geekom XT12 Pro
Intel Core i9-12900H
4294 Points -25%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
2106 Points -63%
Cinebench R11.5
CPU Single 64Bit
Geekom A7
AMD Ryzen 9 7940HS
3.34 Points +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
3.26 Points
Acemagic F2A
Intel Core Ultra 7 155H
3.13 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
3.1 Points -5%
Geekom XT12 Pro
Intel Core i9-12900H
2.99 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
2.92 Points -10%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
2.52 Points -23%
CPU Multi 64Bit
Acemagic F2A
Intel Core Ultra 7 155H
33.49 Points +23%
Geekom A7
AMD Ryzen 9 7940HS
29.8 Points +9%
Minisforum Venus Series NPB5
Intel Core i5-13500H
28.34 Points +4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
27.25 Points
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
21.27 Points -22%
Geekom XT12 Pro
Intel Core i9-12900H
21.11 Points -23%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
9.35 Points -66%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB9
Intel Core i9-12900HK
15303 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
14421 Points -6%
Geekom A7
AMD Ryzen 9 7940HS
14300 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H
13938 Points -9%
Geekom XT12 Pro
Intel Core i9-12900H
13378 Points -13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
12156 Points -21%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
11960 Points -22%
Rendering Multiple CPUs 64Bit
Acemagic F2A
Intel Core Ultra 7 155H
95005 Points +25%
Minisforum Venus Series NPB5
Intel Core i5-13500H
85169 Points +12%
Geekom A7
AMD Ryzen 9 7940HS
84721 Points +12%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
75947 Points
Geekom XT12 Pro
Intel Core i9-12900H
69621 Points -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
61781 Points -19%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
29444 Points -61%
Blender - v2.79 BMW27 CPU
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
553 Seconds * -136%
Geekom XT12 Pro
Intel Core i9-12900H
296 Seconds * -26%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
279 Seconds * -19%
Minisforum Venus Series NPB5
Intel Core i5-13500H
260 Seconds * -11%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
234 Seconds *
Geekom A7
AMD Ryzen 9 7940HS
202 Seconds * +14%
Acemagic F2A
Intel Core Ultra 7 155H
178 Seconds * +24%
wPrime 2.10
32m
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
8.299 s * -140%
Geekom XT12 Pro
Intel Core i9-12900H
4.111 s * -19%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
3.934 s * -14%
Acemagic F2A
Intel Core Ultra 7 155H
3.523 s * -2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
3.454 s *
Minisforum Venus Series NPB5
Intel Core i5-13500H
3.268 s * +5%
Geekom A7
AMD Ryzen 9 7940HS
2.648 s * +23%
1024m
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
483.853 s * -160%
Minisforum Venus Series NPB5
Intel Core i5-13500H
225.417 s * -21%
Geekom XT12 Pro
Intel Core i9-12900H
202.68 s * -9%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
186.394 s *
Acemagic F2A
Intel Core Ultra 7 155H
139.617 s * +25%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
104.757 s * +44%
Geekom A7
AMD Ryzen 9 7940HS
98.222 s * +47%
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NPB5
Intel Core i5-13500H
336 (304min - 337max) fps +6%
Acemagic F2A
Intel Core Ultra 7 155H
325 (323min - 328max) fps +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
317.5 (292min - 319max) fps
Geekom A7
AMD Ryzen 9 7940HS
292.5 (291min - 296max) fps -8%
Geekom XT12 Pro
Intel Core i9-12900H
262 (259min - 282max) fps -17%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
234.5 (230min - 240max) fps -26%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
197.2 (175.1min - 220max) fps -38%
Pass 2
Acemagic F2A
Intel Core Ultra 7 155H
154.15 (153.8min - 154.3max) fps +23%
Geekom A7
AMD Ryzen 9 7940HS
140.8 (138.2min - 144.7max) fps +13%
Minisforum Venus Series NPB5
Intel Core i5-13500H
132.2 (107.8min - 142max) fps +6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
125.05 (112.4min - 132max) fps
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
105.3 (105.2min - 105.7max) fps -16%
Geekom XT12 Pro
Intel Core i9-12900H
92.2 (91min - 114.5max) fps -26%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
53.8 (49.8min - 70.6max) fps -57%
WinRAR - Result
Minisforum Venus Series NAB9
Intel Core i9-12900HK
8735 KB/s
Geekom XT12 Pro
Intel Core i9-12900H
7945 KB/s -9%
Acemagic F2A
Intel Core Ultra 7 155H
7723 KB/s -12%
Geekom A7
AMD Ryzen 9 7940HS
7490 KB/s -14%
Minisforum Venus Series NPB5
Intel Core i5-13500H
7325 KB/s -16%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
6992 KB/s -20%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
6378 KB/s -27%
TrueCrypt
AES Mean 100MB
Geekom A7
AMD Ryzen 9 7940HS
15.1 GB/s +16%
Minisforum Venus Series NPB5
Intel Core i5-13500H
13.3 GB/s +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
13 GB/s
Geekom XT12 Pro
Intel Core i9-12900H
11.2 GB/s -14%
Acemagic F2A
Intel Core Ultra 7 155H
10.6 GB/s -18%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
10.3 GB/s -21%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
6.7 GB/s -48%
Twofish Mean 100MB
Minisforum Venus Series NPB5
Intel Core i5-13500H
2.2 GB/s 0%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
2.2 GB/s
Geekom A7
AMD Ryzen 9 7940HS
2.1 GB/s -5%
Geekom XT12 Pro
Intel Core i9-12900H
1.9 GB/s -14%
Acemagic F2A
Intel Core Ultra 7 155H
1.7 GB/s -23%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1.5 GB/s -32%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
1.1 GB/s -50%
Serpent Mean 100MB
Geekom A7
AMD Ryzen 9 7940HS
1.3 GB/s +8%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1.2 GB/s 0%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1.2 GB/s
Geekom XT12 Pro
Intel Core i9-12900H
1.1 GB/s -8%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1 GB/s -17%
Acemagic F2A
Intel Core Ultra 7 155H
1 GB/s -17%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
0.674 GB/s -44%
Geekbench 5.5
Multi-Core
Acemagic F2A
Intel Core Ultra 7 155H
12662 Points +22%
Geekom A7
AMD Ryzen 9 7940HS
12261 Points +18%
Minisforum Venus Series NPB5
Intel Core i5-13500H
11465 Points +10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10378 Points
Geekom XT12 Pro
Intel Core i9-12900H
10028 Points -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7368 Points -29%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
6478 Points -38%
Single-Core
Geekom A7
AMD Ryzen 9 7940HS
2008 Points +8%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1866 Points
Geekom XT12 Pro
Intel Core i9-12900H
1790 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1762 Points -6%
Acemagic F2A
Intel Core Ultra 7 155H
1746 Points -6%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
1730 Points -7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1534 Points -18%
Geekbench 5.0
5.0 Multi-Core
Acemagic F2A
Intel Core Ultra 7 155H
12438 Points +21%
Geekom A7
AMD Ryzen 9 7940HS
12127 Points +18%
Minisforum Venus Series NPB5
Intel Core i5-13500H
11392 Points +11%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10276 Points
Geekom XT12 Pro
Intel Core i9-12900H
9892 Points -4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7319 Points -29%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
6287 Points -39%
5.0 Single-Core
Geekom A7
AMD Ryzen 9 7940HS
1918 Points +7%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1795 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
1730 Points -4%
Geekom XT12 Pro
Intel Core i9-12900H
1710 Points -5%
Acemagic F2A
Intel Core Ultra 7 155H
1708 Points -5%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
1592 Points -11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1528 Points -15%
Geekbench 4.4
64 Bit Single-Core Score
Geekom A7
AMD Ryzen 9 7940HS
8253 Points +4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
7932 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H
7737 Points -2%
Geekom XT12 Pro
Intel Core i9-12900H
7635 Points -4%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
7415 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H
6927 Points -13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
6412 Points -19%
64 Bit Multi-Core Score
Geekom A7
AMD Ryzen 9 7940HS
48723 Points +23%
Acemagic F2A
Intel Core Ultra 7 155H
45250 Points +15%
Minisforum Venus Series NPB5
Intel Core i5-13500H
42297 Points +7%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
39510 Points
Geekom XT12 Pro
Intel Core i9-12900H
37359 Points -5%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
29047 Points -26%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
24621 Points -38%
3DMark 11 - 1280x720 Performance Physics
Geekom A7
AMD Ryzen 9 7940HS
22600 Points +22%
Minisforum Venus Series NPB5
Intel Core i5-13500H
21177 Points +14%
Acemagic F2A
Intel Core Ultra 7 155H
20846 Points +12%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
18553 Points
Geekom XT12 Pro
Intel Core i9-12900H
16634 Points -10%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
13173 Points -29%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
9219 Points -50%
7-Zip 18.03
7z b 4
Geekom A7
AMD Ryzen 9 7940HS
70707 MIPS +27%
Acemagic F2A
Intel Core Ultra 7 155H
66438 MIPS +19%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
55620 MIPS
Minisforum Venus Series NPB5
Intel Core i5-13500H
52630 MIPS -5%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
48327 MIPS -13%
Geekom XT12 Pro
Intel Core i9-12900H
47146 MIPS -15%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
27053 MIPS -51%
7z b 4 -mmt1
Geekom A7
AMD Ryzen 9 7940HS
6744 MIPS +10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
6136 MIPS
Geekom XT12 Pro
Intel Core i9-12900H
5881 MIPS -4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
5796 MIPS -6%
Minisforum Venus Series NPB5
Intel Core i5-13500H
5695 MIPS -7%
Acemagic F2A
Intel Core Ultra 7 155H
5485 MIPS -11%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
5378 MIPS -12%
HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom A7
AMD Ryzen 9 7940HS
20.6 fps +27%
Acemagic F2A
Intel Core Ultra 7 155H
19.6 fps +21%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
16.2 fps
Minisforum Venus Series NPB5
Intel Core i5-13500H
14.6 fps -10%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
12.7 fps -22%
Geekom XT12 Pro
Intel Core i9-12900H
12.3 fps -24%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
6.62 fps -59%
R Benchmark 2.5 - Overall mean
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
0.507 sec * -15%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
0.506 sec * -15%
Minisforum Venus Series NPB5
Intel Core i5-13500H
0.473 sec * -8%
Acemagic F2A
Intel Core Ultra 7 155H
0.4652 sec * -6%
Geekom XT12 Pro
Intel Core i9-12900H
0.4632 sec * -5%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
0.4391 sec *
Geekom A7
AMD Ryzen 9 7940HS
0.4351 sec * +1%
LibreOffice - 20 Documents To PDF
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
54.8 s * -47%
Geekom A7
AMD Ryzen 9 7940HS
54.8 s * -47%
Acemagic F2A
Intel Core Ultra 7 155H
44.5 s * -20%
Minisforum Venus Series NPB5
Intel Core i5-13500H
44 s * -18%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
40.7 s * -9%
Geekom XT12 Pro
Intel Core i9-12900H
39.6 s * -6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
37.2 s *
WebXPRT 3 - Overall
Geekom A7
AMD Ryzen 9 7940HS
333 Points +11%
Minisforum Venus Series NPB5
Intel Core i5-13500H
307 Points +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
301 Points
Geekom XT12 Pro
Intel Core i9-12900H
291 Points -3%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
289 Points -4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
279 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H
276 Points -8%
Mozilla Kraken 1.1 - Total
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
593 ms * -19%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
571 ms * -14%
Acemagic F2A
Intel Core Ultra 7 155H
535 ms * -7%
Minisforum Venus Series NPB5
Intel Core i5-13500H
517 ms * -4%
Geekom XT12 Pro
Intel Core i9-12900H
511 ms * -2%
Geekom A7
AMD Ryzen 9 7940HS
503 ms * -1%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
499 ms *
3DMark
1920x1080 Fire Strike Physics
Minisforum Venus Series NPB5
Intel Core i5-13500H
27369 Points +5%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
26093 Points
Geekom A7
AMD Ryzen 9 7940HS
25816 Points -1%
Acemagic F2A
Intel Core Ultra 7 155H
25043 Points -4%
Geekom XT12 Pro
Intel Core i9-12900H
22242 Points -15%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
21576 Points -17%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
12668 Points -51%
2560x1440 Time Spy CPU
Minisforum Venus Series NPB5
Intel Core i5-13500H
10814 Points +4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10402 Points
Geekom A7
AMD Ryzen 9 7940HS
10397 Points 0%
Acemagic F2A
Intel Core Ultra 7 155H
10014 Points -4%
Geekom XT12 Pro
Intel Core i9-12900H
7985 Points -23%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7275 Points -30%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H
4231 Points -59%

* ... smaller is better

Performance Rating - Percent
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
43.1 pt
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
39 pt
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
38.5 pt
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
38.2 pt
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
36.5 pt
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
31 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
29.9 pt
Geekbench 5.5
Multi-Core
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
12662 Points +22%
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
12261 Points +18%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
11465 Points +10%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
10378 Points
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
10028 Points -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7368 Points -29%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
6478 Points -38%
Single-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
2008 Points +8%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
1866 Points
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
1790 Points -4%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
1762 Points -6%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
1746 Points -6%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
1730 Points -7%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1534 Points -18%
Geekbench 5.0
5.0 Multi-Core
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
12438 Points +21%
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
12127 Points +18%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
11392 Points +11%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
10276 Points
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
9892 Points -4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7319 Points -29%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
6287 Points -39%
5.0 Single-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
1918 Points +7%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
1795 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
1730 Points -4%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
1710 Points -5%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
1708 Points -5%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
1592 Points -11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1528 Points -15%
Geekbench 4.4
64 Bit Single-Core Score
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
8253 Points +4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
7932 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
7737 Points -2%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
7635 Points -4%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
7415 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
6927 Points -13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
6412 Points -19%
64 Bit Multi-Core Score
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
48723 Points +23%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
45250 Points +15%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
42297 Points +7%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
39510 Points
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
37359 Points -5%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
29047 Points -26%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
24621 Points -38%
Geekbench 6.0
Single-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
2603 Points +4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
2494 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
2381 Points -5%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
2325 Points -7%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
2313 Points -7%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
2173 Points -13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
1992 Points -20%
Multi-Core
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
12882 Points +25%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
12061 Points +17%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
11698 Points +13%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
10342 Points
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
9930 Points -4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
7540 Points -27%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
7273 Points -30%
GPU OpenCL 6.0
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
33510 Points +117%
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
32752 Points +112%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
15718 Points +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
15460 Points
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
14258 Points -8%
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
14018 Points -9%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
11192 Points -28%
GPU Vulkan 6.0
Geekom A7
AMD Ryzen 9 7940HS, 4000 MHz
30410 Points +52%
Acemagic F2A
Intel Core Ultra 7 155H, 3800 MHz
20794 Points +4%
Geekom XT12 Pro
Intel Core i9-12900H, 1800 MHz
20199 Points +1%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, 1800 MHz
20070 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H, 1900 MHz
19053 Points -5%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, 3200 MHz
17543 Points -13%
NiPoGi AD08
AD08 (Silent), Intel Core i7-12650H, 1700 MHz
13930 Points -31%
Performance Rating
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
98.6 pt
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
80.5 pt
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
62 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
60.8 pt
Average of class Mini PC

59.5 pt
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
59.1 pt
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
53.6 pt
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
34.2 pt
AIDA64 / FP32 Ray-Trace
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
25359 KRay/s +105%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
17544 KRay/s +42%
Average of class Mini PC
  (646 - 51004, n=119, last 2 years)
12878 KRay/s +4%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
12718 KRay/s +3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
12389 KRay/s
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
11161 KRay/s -10%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
10476 KRay/s -15%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
6788 KRay/s -45%
AIDA64 / FPU Julia
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
107540 Points +67%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
88829 Points +38%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
81722 Points +27%
Average of class Mini PC
  (3857 - 214250, n=119, last 2 years)
64921 Points +1%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
64350 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
57280 Points -11%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
54166 Points -16%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
35216 Points -45%
AIDA64 / CPU SHA3
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
4753 MB/s +57%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
4246 MB/s +40%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
3028 MB/s
Average of class Mini PC
  (260 - 9399, n=119, last 2 years)
2856 MB/s -6%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
2818 MB/s -7%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
2784 MB/s -8%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
2504 MB/s -17%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
1479 MB/s -51%
AIDA64 / CPU Queen
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
118174 Points +18%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
99851 Points
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
90101 Points -10%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
89748 Points -10%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
85501 Points -14%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
82291 Points -18%
Average of class Mini PC
  (8172 - 184747, n=119, last 2 years)
80187 Points -20%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
59278 Points -41%
AIDA64 / FPU SinJulia
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
14663 Points +74%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
11831 Points +41%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
10247 Points +22%
Average of class Mini PC
  (408 - 29064, n=119, last 2 years)
8812 Points +5%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
8417 Points
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
7317 Points -13%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
7297 Points -13%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
4690 Points -44%
AIDA64 / FPU Mandel
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
57402 Points +80%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
45718 Points +43%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
44756 Points +40%
Average of class Mini PC
  (1987 - 113499, n=119, last 2 years)
33863 Points +6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
31933 Points
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
28106 Points -12%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
26850 Points -16%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
17272 Points -46%
AIDA64 / CPU AES
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
164414 MB/s +46%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
144741 MB/s +29%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
112254 MB/s
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
100301 MB/s -11%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
95500 MB/s -15%
Average of class Mini PC
  (3691 - 325960, n=119, last 2 years)
88382 MB/s -21%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
54623 MB/s -51%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
32702 MB/s -71%
AIDA64 / CPU ZLib
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
1183 MB/s +36%
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
1020 MB/s +17%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
870 MB/s
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
790 MB/s -9%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
745 MB/s -14%
Average of class Mini PC
  (74.9 - 2039, n=119, last 2 years)
740 MB/s -15%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
674 MB/s -23%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
443 MB/s -49%
AIDA64 / FP64 Ray-Trace
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
13517 KRay/s +114%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
9284 KRay/s +47%
Average of class Mini PC
  (350 - 26952, n=119, last 2 years)
6881 KRay/s +9%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
6817 KRay/s +8%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
6325 KRay/s
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
5998 KRay/s -5%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s -9%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
3648 KRay/s -42%
AIDA64 / CPU PhotoWorxx
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
40570 MPixel/s +63%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
37433 MPixel/s +50%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
33092 MPixel/s +33%
Average of class Mini PC
  (4408 - 50500, n=119, last 2 years)
28301 MPixel/s +14%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
24903 MPixel/s
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
24858 MPixel/s 0%
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
22046 MPixel/s -11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
19153 MPixel/s -23%
Cinebench R10 Rendering Single 32Bit
9397
Cinebench R10 Shading 64Bit
21823 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
75947 Points
Cinebench R10 Rendering Single CPUs 64Bit
15303 Points
Cinebench R10 Shading 32Bit
19704
Cinebench R10 Rendering Multiple CPUs 32Bit
49924
Cinebench R11.5 CPU Single 32Bit
2.82 Points
Cinebench R11.5 CPU Multi 32Bit
24.7 Points
Cinebench R11.5 OpenGL 32Bit
99.95 fps
Cinebench R11.5 CPU Single 64Bit
3.26 Points
Cinebench R11.5 CPU Multi 64Bit
27.25 Points
Cinebench R11.5 OpenGL 64Bit
99.89 fps
Cinebench R15 CPU Single 64Bit
270 Points
Cinebench R15 CPU Multi 64Bit
2249 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
119.99 fps
Cinebench R20 CPU (Single Core)
734 Points
Cinebench R20 CPU (Multi Core)
5691 Points
Cinebench R23 Multi Core
14659 Points
Cinebench R23 Single Core
1901 Points
Cinebench 2024 CPU Single Core
114 Points
Cinebench 2024 CPU Multi Core
746 Points
Ajuda

O Minisforum Venus Series NAB9 durante o Multi Loop do Cinebench R15

Durante o loop contínuo do Cinebench R15, notamos uma queda significativa no desempenho após a quarta execução. Entretanto, o desempenho do Intel Core i9-12900HK ainda foi bom e nossa amostra de teste atingiu 1.981 pontos em 50 execuções.

Métricas da CPU durante o loop do Cinebench R15
Métricas da CPU durante o loop do Cinebench R15
01452904355807258701015116013051450159517401885203021752320246526102755Tooltip
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1981 (1895.47-2262.7)
Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)
Geekom XT12 Pro Intel Core i9-12900H, Intel Core i9-12900H: Ø1545 (1395.97-2133.22)
Geekom A7 AMD Ryzen 9 7940HS, AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Core i5-13500H: Ø1783 (1762.11-2310.94)
NiPoGi AD08 Intel Core i7-12650H, Intel Core i7-12650H: Ø770 (673.9-1055.91)
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, AMD Ryzen 7 7735HS: Ø1772 (1721.99-1800.59)

Desempenho do sistema

O desempenho total do sistema do PC se beneficia do excelente desempenho da CPU, o que faz com que o Minisforum Venus Series NPB9 tenha novamente uma boa pontuação. Entretanto, durante os testes de RAM, nossa amostra de teste ficou um pouco atrás. O motivo disso é o padrão utilizado, pois os três primeiros lugares são ocupados por mini PCs equipados com RAM DDR5. Subjetivamente, o Minisforum Venus Series NPB9 funciona muito rapidamente e sem latências perceptíveis.

PCMark 10 / Score
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
7455 Points +16%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
7120 Points +11%
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
6435 Points
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
6295 Points -2%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
6280 Points -2%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
5722 Points -11%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
5156 Points -20%
PCMark 10 / Essentials
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
11591 Points
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
11273 Points -3%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
11125 Points -4%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
11114 Points -4%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
11035 Points -5%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
9933 Points -14%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
9905 Points -15%
PCMark 10 / Productivity
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
10291 Points +30%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
8901 Points +12%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
8829 Points +11%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
8212 Points +4%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
8114 Points +2%
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
7924 Points
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
7167 Points -10%
CrossMark / Overall
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
1986 Points
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
1982 Points 0%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
1861 Points -6%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1860 Points -6%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1802 Points -9%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1532 Points -23%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1387 Points -30%
CrossMark / Responsiveness
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
2205 Points
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
2110 Points -4%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1919 Points -13%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1700 Points -23%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
1540 Points -30%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1444 Points -35%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1263 Points -43%
CrossMark / Creativity
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
2072 Points +9%
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
1985 Points +4%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1929 Points +1%
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
1907 Points
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1870 Points -2%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1554 Points -19%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1376 Points -28%
CrossMark / Productivity
Minisforum Venus Series NAB9, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0
1996 Points
Minisforum Venus Series NPB5, Intel Core i5-13500H
Intel Iris Xe Graphics G7 80EUs, Kingston OM8PGP4512Q-A0
1938 Points -3%
Geekom XT12 Pro, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Lexar SSD NM7A1 1TB
1831 Points -8%
Geekom A7, AMD Ryzen 9 7940HS
AMD Radeon 780M, Acer N5000
1781 Points -11%
Acemagic F2A, Intel Core Ultra 7 155H
Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0
1717 Points -14%
NiPoGi AD08, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530
1541 Points -23%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS
AMD Radeon 680M, Foresee VP1000F512G
1443 Points -28%
AIDA64 / Memory Copy
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
67161 MB/s +51%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
62397 MB/s +40%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
57457 MB/s +29%
Average of class Mini PC
  (6481 - 89287, n=119, last 2 years)
48357 MB/s +9%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
45792 MB/s +3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
44442 MB/s
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
43261 MB/s -3%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
30324 MB/s -32%
AIDA64 / Memory Read
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
65470 MB/s +37%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
64323 MB/s +34%
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
61542 MB/s +28%
Average of class Mini PC
  (6914 - 99171, n=119, last 2 years)
49177 MB/s +3%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
48963 MB/s +2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
47960 MB/s
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
47313 MB/s -1%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
33938 MB/s -29%
AIDA64 / Memory Write
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
86810 MB/s +89%
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
65057 MB/s +42%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
59816 MB/s +30%
Average of class Mini PC
  (6862 - 98583, n=119, last 2 years)
52856 MB/s +15%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
47201 MB/s +3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
45952 MB/s
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
45915 MB/s 0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
33175 MB/s -28%
AIDA64 / Memory Latency
Acemagic F2A
Intel Core Ultra 7 155H, Arc 8-Core
149 ns * -86%
Minisforum Venus Series NPB5
Intel Core i5-13500H, Iris Xe G7 80EUs
93.8 ns * -17%
Average of class Mini PC
  (44.9 - 184.8, n=119, last 2 years)
92.1 ns * -15%
Geekom A7
AMD Ryzen 9 7940HS, Radeon 780M
89 ns * -11%
Minisforum Venus Series NAB9
Intel Core i9-12900HK, Iris Xe G7 96EUs
79.9 ns *
NiPoGi AD08
Intel Core i7-12650H, UHD Graphics 64EUs
79.7 ns * -0%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS, Radeon 680M
78.2 ns * +2%
Geekom XT12 Pro
Intel Core i9-12900H, Iris Xe G7 96EUs
74.7 ns * +7%

* ... smaller is better

Latências de DPC

Não documentamos nenhum aumento de latência ao simplesmente navegar na Web. Só notamos isso ao reproduzir o vídeo de teste em 4K. No entanto, não houve queda de quadros e, de modo geral, o Minisforum Venus Series NAB9 não teve problemas para reproduzir vídeos de alta resolução. Por esse motivo, acreditamos que ele seja adequado para uso como cliente de streaming.

Latências máximas ao abrir várias guias do navegador e reproduzir vídeo 4K
Latências máximas ao abrir várias guias do navegador e reproduzir vídeo 4K
Latências máximas após dez segundos de Prime95
Latências máximas após dez segundos de Prime95
Motoristas classificados pela maior duração de execução
Motoristas classificados pela maior duração de execução
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
2724 μs * -165%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
2151 μs * -110%
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
1616.1 μs * -58%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
1097.7 μs * -7%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
1026 μs *
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
813.7 μs * +21%

* ... smaller is better

Dispositivos de armazenamento

sSD de 1 TB (Kingston)
sSD de 1 TB (Kingston)

O Minisforum Venus Series NAB9 abriga um SSD de 1 TB da Kingston. A SSD em nosso sistema de teste permite velocidades de trabalho rápidas e isso foi confirmado em seus resultados de benchmark. Suas taxas de leitura e gravação foram perfeitas e, mesmo sob carga permanente, permaneceram estáveis. A Minisforum instalou uma unidade de resfriamento relativamente grande no próprio SSD, que possui um resfriador ativo. No total, podem ser instaladas duas SSDs no PC. Além do SSD NVMe em nossa amostra de teste, há espaço para outro dispositivo de armazenamento de 2,5 polegadas sob a tampa do gabinete. Entretanto, ele só pode ter uma altura máxima de montagem de sete milímetros.

Para mais comparações e benchmarks, dê uma olhada em nossa tabela de comparação.

SSD AS
SSD AS
MDL 3
MDL 3
MDL 5
MDL 5
MDL 6
MDL 6
CDI
CDI
Kingston OM3PGP41024P-A0
Sequential Read: 3020 MB/s
Sequential Write: 3394 MB/s
512K Read: 2174 MB/s
512K Write: 3894 MB/s
4K Read: 63.1 MB/s
4K Write: 406.6 MB/s
4K QD32 Read: 924.3 MB/s
4K QD32 Write: 634.7 MB/s
Drive Performance Rating - Percent
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
94.2 pt
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
83.7 pt
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
73.2 pt
Geekom A7
Acer N5000
64 pt
Average of class Mini PC

55.1 pt
Acemagic F2A
Kingston OM8SEP1024Q-A0
52.5 pt
NiPoGi AD08
Netac NS512GSSD530
40.9 pt
Maxtang MTN-FP750
Foresee VP1000F512G
36.6 pt
DiskSpd
seq read
Geekom A7
Acer N5000
3755 (3733.85min - 3754.99max) MB/s +41%
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
3372 (3365.32min - 3372.43max) MB/s +26%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
2668 (2648.91min - 2668.42max) MB/s
Average of class Mini PC
  (277 - 4357, n=119, last 2 years)
2333 MB/s -13%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
2178 (2158.39min - 2177.68max) MB/s -18%
NiPoGi AD08
Netac NS512GSSD530
1862 (1837.94min - 1861.64max) MB/s -30%
Acemagic F2A
Kingston OM8SEP1024Q-A0
1674 (1242.56min - 1673.54max) MB/s -37%
Maxtang MTN-FP750
Foresee VP1000F512G
1658 (1638.79min - 1658.01max) MB/s -38%
seq write
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
3866 (206.78min - 3865.71max) MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
3518 (3504.76min - 3518.39max) MB/s -9%
Geekom A7
Acer N5000
3492 (3398.43min - 3491.76max) MB/s -10%
Average of class Mini PC
  (229 - 5595, n=119, last 2 years)
2509 MB/s -35%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
2341 (2252.02min - 2341.4max) MB/s -39%
NiPoGi AD08
Netac NS512GSSD530
1601 (692.06min - 1601.39max) MB/s -59%
Acemagic F2A
Kingston OM8SEP1024Q-A0
1348 (1117.85min - 1347.87max) MB/s -65%
Maxtang MTN-FP750
Foresee VP1000F512G
700 (690.38min - 700.03max) MB/s -82%
seq q8 t1 read
Geekom A7
Acer N5000
4861 (4468.61min - 4860.57max) MB/s +2%
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
4791 (4243.38min - 4790.88max) MB/s 0%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
4780 (4492.97min - 4780.46max) MB/s
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
4769 (3791.02min - 4769.24max) MB/s 0%
Average of class Mini PC
  (236 - 8430, n=119, last 2 years)
3790 MB/s -21%
Acemagic F2A
Kingston OM8SEP1024Q-A0
3194 (2810.81min - 3194.17max) MB/s -33%
Maxtang MTN-FP750
Foresee VP1000F512G
3116 (2788.16min - 3115.59max) MB/s -35%
NiPoGi AD08
Netac NS512GSSD530
2298 (2080.34min - 2297.85max) MB/s -52%
seq q8 t1 write
Geekom A7
Acer N5000
4695 (4470.16min - 4694.73max) MB/s +20%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
3901 (912.47min - 3901.29max) MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
3533 (3516.71min - 3532.86max) MB/s -9%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
3255 (2485.13min - 3254.57max) MB/s -17%
Average of class Mini PC
  (239 - 6669, n=119, last 2 years)
2810 MB/s -28%
Acemagic F2A
Kingston OM8SEP1024Q-A0
2212 (1222.43min - 2212.27max) MB/s -43%
NiPoGi AD08
Netac NS512GSSD530
1697 (642.54min - 1696.6max) MB/s -56%
Maxtang MTN-FP750
Foresee VP1000F512G
1019 (702.55min - 1018.53max) MB/s -74%
4k q1 t1 read
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
82.3 (82.16min - 82.3max) MB/s +2%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
80.9 (78.95min - 80.85max) MB/s
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
64.1 (56.32min - 64.06max) MB/s -21%
Maxtang MTN-FP750
Foresee VP1000F512G
63.1 (63.03min - 63.11max) MB/s -22%
NiPoGi AD08
Netac NS512GSSD530
60.1 (56.51min - 60.14max) MB/s -26%
Average of class Mini PC
  (6.85 - 86.6, n=119, last 2 years)
55.3 MB/s -32%
Geekom A7
Acer N5000
52.3 (51.85min - 52.27max) MB/s -35%
Acemagic F2A
Kingston OM8SEP1024Q-A0
47.3 (47.07min - 47.31max) MB/s -42%
4k q1 t1 write
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
422 (409.3min - 421.98max) MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
406 (403.52min - 406max) MB/s -4%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
279 (237.61min - 279.08max) MB/s -34%
NiPoGi AD08
Netac NS512GSSD530
225 (89.96min - 225.06max) MB/s -47%
Average of class Mini PC
  (30.4 - 435, n=119, last 2 years)
196.9 MB/s -53%
Acemagic F2A
Kingston OM8SEP1024Q-A0
187.2 (181.54min - 187.2max) MB/s -56%
Geekom A7
Acer N5000
165.9 (164.35min - 165.92max) MB/s -61%
Maxtang MTN-FP750
Foresee VP1000F512G
159.1 (147.33min - 159.12max) MB/s -62%
4k q32 t16 read
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
2967 (2962.7min - 2967.4max) MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
1943 (1940.06min - 1942.8max) MB/s -35%
Acemagic F2A
Kingston OM8SEP1024Q-A0
1824 (1239.47min - 1824.09max) MB/s -39%
Geekom A7
Acer N5000
1560 (1546.89min - 1559.94max) MB/s -47%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
1452 (1402.67min - 1451.9max) MB/s -51%
Average of class Mini PC
  (26.1 - 4158, n=119, last 2 years)
1411 MB/s -52%
NiPoGi AD08
Netac NS512GSSD530
967 (657.18min - 966.9max) MB/s -67%
Maxtang MTN-FP750
Foresee VP1000F512G
436 (434.71min - 436.44max) MB/s -85%
4k q32 t16 write
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
3412 (3388.97min - 3411.66max) MB/s +1%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
3364 (866.38min - 3364.31max) MB/s
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
1499 (1114.25min - 1499.4max) MB/s -55%
Acemagic F2A
Kingston OM8SEP1024Q-A0
1434 (1410.26min - 1433.71max) MB/s -57%
Average of class Mini PC
  (32.6 - 4288, n=119, last 2 years)
1332 MB/s -60%
Maxtang MTN-FP750
Foresee VP1000F512G
864 (598.32min - 864.46max) MB/s -74%
NiPoGi AD08
Netac NS512GSSD530
703 (297.38min - 702.57max) MB/s -79%
Geekom A7
Acer N5000
595 (582.97min - 594.71max) MB/s -82%
AS SSD
Score Total
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
7931 Points
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
6154 Points -22%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
5975 Points -25%
Geekom A7
Acer N5000
5177 Points -35%
Acemagic F2A
Kingston OM8SEP1024Q-A0
4412 Points -44%
Average of class Mini PC
  (211 - 10021, n=117, last 2 years)
4244 Points -46%
Maxtang MTN-FP750
Foresee VP1000F512G
2841 Points -64%
NiPoGi AD08
Netac NS512GSSD530
2676 Points -66%
Score Read
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
2899 Points
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
2381 Points -18%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
2119 Points -27%
Geekom A7
Acer N5000
1685 Points -42%
Average of class Mini PC
  (76 - 3741, n=117, last 2 years)
1578 Points -46%
Acemagic F2A
Kingston OM8SEP1024Q-A0
1561 Points -46%
NiPoGi AD08
Netac NS512GSSD530
1159 Points -60%
Maxtang MTN-FP750
Foresee VP1000F512G
1078 Points -63%
Score Write
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
3564 Points
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
2777 Points -22%
Geekom A7
Acer N5000
2676 Points -25%
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
2573 Points -28%
Acemagic F2A
Kingston OM8SEP1024Q-A0
2082 Points -42%
Average of class Mini PC
  (88 - 4371, n=117, last 2 years)
1902 Points -47%
Maxtang MTN-FP750
Foresee VP1000F512G
1228 Points -66%
NiPoGi AD08
Netac NS512GSSD530
943 Points -74%
Seq Read
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
4349.85 MB/s +5%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
4162 MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
4129 MB/s -1%
Geekom A7
Acer N5000
3650 MB/s -12%
Average of class Mini PC
  (291 - 6620, n=117, last 2 years)
3231 MB/s -22%
Acemagic F2A
Kingston OM8SEP1024Q-A0
3010 MB/s -28%
Maxtang MTN-FP750
Foresee VP1000F512G
2976 MB/s -28%
NiPoGi AD08
Netac NS512GSSD530
2250 MB/s -46%
Seq Write
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
3936.64 MB/s +13%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
3477 MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
3283 MB/s -6%
Geekom A7
Acer N5000
2611 MB/s -25%
Acemagic F2A
Kingston OM8SEP1024Q-A0
2369 MB/s -32%
Average of class Mini PC
  (242 - 5783, n=117, last 2 years)
2292 MB/s -34%
Maxtang MTN-FP750
Foresee VP1000F512G
2286 MB/s -34%
NiPoGi AD08
Netac NS512GSSD530
1495 MB/s -57%
4K Read
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
104.3 MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
104.2 MB/s 0%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
80.89 MB/s -22%
NiPoGi AD08
Netac NS512GSSD530
62.5 MB/s -40%
Average of class Mini PC
  (21.4 - 104.3, n=117, last 2 years)
59.7 MB/s -43%
Maxtang MTN-FP750
Foresee VP1000F512G
58.6 MB/s -44%
Geekom A7
Acer N5000
49.7 MB/s -52%
Acemagic F2A
Kingston OM8SEP1024Q-A0
41.8 MB/s -60%
4K Write
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
366 MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
353 MB/s -4%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
316.33 MB/s -14%
Acemagic F2A
Kingston OM8SEP1024Q-A0
196.9 MB/s -46%
Average of class Mini PC
  (30.9 - 366, n=117, last 2 years)
177.5 MB/s -52%
Geekom A7
Acer N5000
160 MB/s -56%
Maxtang MTN-FP750
Foresee VP1000F512G
155.6 MB/s -57%
NiPoGi AD08
Netac NS512GSSD530
116.9 MB/s -68%
4K-64 Read
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
2379 MB/s
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
1864 MB/s -22%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
1602.91 MB/s -33%
Geekom A7
Acer N5000
1270 MB/s -47%
Acemagic F2A
Kingston OM8SEP1024Q-A0
1218 MB/s -49%
Average of class Mini PC
  (23.4 - 3220, n=117, last 2 years)
1195 MB/s -50%
NiPoGi AD08
Netac NS512GSSD530
872 MB/s -63%
Maxtang MTN-FP750
Foresee VP1000F512G
722 MB/s -70%
4K-64 Write
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
2850 MB/s
Geekom A7
Acer N5000
2255 MB/s -21%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
2066.57 MB/s -27%
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
1892 MB/s -34%
Acemagic F2A
Kingston OM8SEP1024Q-A0
1649 MB/s -42%
Average of class Mini PC
  (32.8 - 3731, n=117, last 2 years)
1495 MB/s -48%
Maxtang MTN-FP750
Foresee VP1000F512G
844 MB/s -70%
NiPoGi AD08
Netac NS512GSSD530
677 MB/s -76%
Access Time Read
Maxtang MTN-FP750
Foresee VP1000F512G
0.18 ms * -309%
Geekom A7
Acer N5000
0.138 ms * -214%
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
0.106 ms * -141%
NiPoGi AD08
Netac NS512GSSD530
0.104 ms * -136%
Average of class Mini PC
  (0.022 - 0.489, n=117, last 2 years)
0.09579 ms * -118%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
0.049 ms * -11%
Acemagic F2A
Kingston OM8SEP1024Q-A0
0.046 ms * -5%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
0.044 ms *
Access Time Write
Maxtang MTN-FP750
Foresee VP1000F512G
0.17 ms * -448%
Acemagic F2A
Kingston OM8SEP1024Q-A0
0.126 ms * -306%
Average of class Mini PC
  (0.014 - 0.765, n=117, last 2 years)
0.1133 ms * -265%
NiPoGi AD08
Netac NS512GSSD530
0.103 ms * -232%
Geekom A7
Acer N5000
0.072 ms * -132%
Geekom XT12 Pro
Lexar SSD NM7A1 1TB
0.059 ms * -90%
Minisforum Venus Series NPB5
Kingston OM8PGP4512Q-A0
0.031 ms * -0%
Minisforum Venus Series NAB9
Kingston OM3PGP41024P-A0
0.031 ms *

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

02755508251100137516501925220024752750302533003575385041254400467549505225Tooltip
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4764 (3862.99-4794.3)
Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)
Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)
Geekom A7 Acer N5000; diskspd 2.0.17 f: Ø4848 (4561.2-4857.36)
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ: Ø5462 (4797.39-5479.86)
Khadas Mind WD PC SN740 SDDPTQD-1T00: Ø5222 (4952.01-5235.75)

Placa de vídeo

A Intel Iris Xe Graphics G7 cuida dos cálculos 3D, bem como da saída de imagens no Minisforum Venus Series NAB9. Embora essa seja uma das iGPUs mais rápidas da série, a Intel tem que admitir uma clara derrota para as iGPUs mais recentes da AMD. A Intel apenas revisou a arquitetura de suas iGPUs com base no Meteor Lake. Os senhores podem olhar para a Acemagic F2Acomo exemplo. No entanto, a AMD ainda oferece um pouco mais de desempenho 3D com sua Radeon 780M.

Outras comparações e benchmarks podem ser encontrados em nossa Tabela de comparação de GPUs.

3DMark Performance Rating - Percent
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
97.5 pt
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
92.9 pt
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
54.7 pt
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
54.7 pt
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
52.3 pt
Average Intel Iris Xe Graphics G7 96EUs

50.3 pt
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
48.5 pt
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
39 pt
3DMark 11 - 1280x720 Performance GPU
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
13932 Points +99%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
12085 Points +73%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
6999 Points
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
6975 Points 0%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
6858 Points -2%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
6477 Points -7%
Average Intel Iris Xe Graphics G7 96EUs
  (2867 - 7676, n=202)
6353 Points -9%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
5030 Points -28%
3DMark
2560x1440 Time Spy Graphics
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
3205 Points +102%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
2968 Points +87%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
1583 Points
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1581 Points 0%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
1508 Points -5%
Average Intel Iris Xe Graphics G7 96EUs
  (707 - 1871, n=212)
1495 Points -6%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
1399 Points -12%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1106 Points -30%
1920x1080 Fire Strike Graphics
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
8391 Points +55%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
7710 Points +43%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
5421 Points 0%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
5407 Points
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
5305 Points -2%
Average Intel Iris Xe Graphics G7 96EUs
  (2286 - 6482, n=215)
4920 Points -9%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
4424 Points -18%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
3891 Points -28%
Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
31.6 fps +42%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
26 fps +17%
Average Intel Iris Xe Graphics G7 96EUs
  (17.3 - 31.2, n=21)
23.3 fps +4%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
22.3 fps
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
21.8 fps -2%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
21.2 fps -5%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
21.1 fps -5%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
12.7 fps -43%
Extreme Preset DX11
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
32.7 fps +41%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
32 fps +38%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
25.8 fps +11%
Average Intel Iris Xe Graphics G7 96EUs
  (17.7 - 31.9, n=21)
23.9 fps +3%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
23.2 fps
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
22.7 fps -2%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
19.7 fps -15%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
11.7 fps -50%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
17.7 fps +29%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
17.1 fps +25%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
17 fps +24%
Average Intel Iris Xe Graphics G7 96EUs
  (11.3 - 20, n=19)
15 fps +9%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
13.7 fps
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
13.3 fps -3%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
11.8 fps -14%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
11.7 fps -15%
1920x1080 Extreme HD Preset OpenGL AA:x8
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
18.3 fps +25%
Average Intel Iris Xe Graphics G7 96EUs
  (11.7 - 21.7, n=19)
16.6 fps +14%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
16.2 fps +11%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
14.6 fps
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
13.9 fps -5%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
13.2 fps -10%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
13 fps -11%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
12.2 fps -16%
Unigine Superposition
1280x720 720p Low
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
10491 Points +71%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
9725 Points +59%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
6928 Points +13%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
6129 Points
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
6081 Points -1%
Average Intel Iris Xe Graphics G7 96EUs
  (4088 - 8223, n=16)
5965 Points -3%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
5950 Points -3%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
5257 Points -14%
1920x1080 1080p High
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
3391 Points +60%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
3129 Points +48%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
2216 Points +5%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
2113 Points
Average Intel Iris Xe Graphics G7 96EUs
  (1522 - 2744, n=16)
2103 Points 0%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
2035 Points -4%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
1958 Points -7%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1630 Points -23%
1920x1080 1080p Extreme
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
1920 Points +81%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
1577 Points +49%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
1060 Points
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1042 Points -2%
Average Intel Iris Xe Graphics G7 96EUs
  (768 - 1251, n=16)
1027 Points -3%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
1018 Points -4%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
985 Points -7%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
747 Points -30%
ComputeMark v2.1
1024x600 Normal, Score
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
9796 Points +190%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
7480 Points +121%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
4417 Points +31%
Average Intel Iris Xe Graphics G7 96EUs
  (2693 - 3877, n=25)
3403 Points +1%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
3390 Points 0%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
3382 Points
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
3152 Points -7%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
2375 Points -30%
1024x600 Normal, Fluid 3DTex
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
479 Points +112%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
427 Points +89%
Average Intel Iris Xe Graphics G7 96EUs
  (186 - 420, n=25)
308 Points +36%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
306 Points +35%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
231 Points +2%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
226 Points
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
215 Points -5%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
208 Points -8%
1024x600 Normal, Fluid 2DTexArr
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
484 Points +103%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
422 Points +77%
Average Intel Iris Xe Graphics G7 96EUs
  (204 - 398, n=25)
300 Points +26%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
299 Points +25%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
246 Points +3%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
239 Points
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
214 Points -10%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
212 Points -11%
1024x600 Normal, Mandel Vector
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
2574 Points +203%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
1961 Points +131%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
1100 Points +29%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
860 Points +1%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
850 Points
Average Intel Iris Xe Graphics G7 96EUs
  (558 - 918, n=25)
789 Points -7%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
692 Points -19%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
447 Points -47%
1024x600 Normal, Mandel Scalar
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
2608 Points +201%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
1594 Points +84%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
948 Points +9%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
872 Points +1%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
866 Points
Average Intel Iris Xe Graphics G7 96EUs
  (747 - 888, n=25)
836 Points -3%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
823 Points -5%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
745 Points -14%
1024x600 Normal, QJuliaRayTrace
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
3650 Points +204%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
3076 Points +156%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
1941 Points +62%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
1201 Points
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1182 Points -2%
Average Intel Iris Xe Graphics G7 96EUs
  (936 - 1323, n=25)
1169 Points -3%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
1032 Points -14%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
762 Points -37%
LuxMark v2.0 64Bit
Room GPUs-only
Average Intel Iris Xe Graphics G7 96EUs
  (415 - 2721, n=20)
832 Samples/s +44%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
817 Samples/s +42%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
577 Samples/s
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
558 Samples/s -3%
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
549 Samples/s -5%
Sala GPUs-only
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
2349 Samples/s
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
2319 Samples/s -1%
Average Intel Iris Xe Graphics G7 96EUs
  (942 - 3188, n=20)
2234 Samples/s -5%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1717 Samples/s -27%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
1522 Samples/s -35%
Affinity Photo 2 - Combined (Single / Multi GPU)
Acemagic F2A
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
4928 Points +17%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
4215 Points
Average Intel Iris Xe Graphics G7 96EUs
  (1560 - 4958, n=11)
3909 Points -7%
Geekom XT12 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
3830 Points -9%
NiPoGi AD08
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
2490 Points -41%
Geekom A7
AMD Radeon 780M, AMD Ryzen 9 7940HS
1396 Points -67%
Minisforum Venus Series NAB9, Intel Iris Xe Graphics G7 96EUs
i9-12900HK
Acemagic F2A, Intel Arc 8-Core iGPU
Ultra 7 155H
Geekom XT12 Pro, Intel Iris Xe Graphics G7 96EUs
i9-12900H
Geekom A7, AMD Radeon 780M
R9 7940HS
Minisforum Venus Series NPB5, Intel Iris Xe Graphics G7 80EUs
i5-13500H
NiPoGi AD08, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
i7-12650H
Maxtang MTN-FP750, AMD Radeon 680M
R7 7735HS
Average of class Mini PC

SPECviewperf 12
30%
-2%
766%
-8%
-6%
28%
472%
1900x1060 3ds Max (3dsmax-05)
40.2
49.8
24%
40.1
0%
84.7
111%
41.5
3%
34.2
-15%
46.9
17%
1900x1060 Catia (catia-04)
35.9
48.2
34%
37.1
3%
89
148%
31
-14%
29.9
-17%
51.5
43%
1900x1060 Creo (creo-01)
27.7
23.1
-17%
26.9
-3%
55.4
100%
23.4
-16%
20.1
-27%
33.2
20%
1900x1060 Energy (energy-01)
0.4
0.91
128%
0.4
0%
20.7
5075%
0.35
-12%
0.77
93%
1900x1060 Maya (maya-04)
39.8
54.9
38%
38.3
-4%
69.7
75%
35.9
-10%
31.4
-21%
45.2
14%
1900x1060 Medical (medical-01)
12.2
16.9
39%
11.8
-3%
60.5
396%
8.44
-31%
8.25
-32%
17.9
47%
1900x1060 Showcase (showcase-01)
17.4
18.2
5%
16.6
-5%
30.3
74%
20.4
17%
15.1
-13%
17.5
1%
1900x1060 Solidworks (sw-03)
47.3
42.7
-10%
45.3
-4%
116
145%
46.1
-3%
38.6
-18%
72.1
52%
SPECviewperf 13
21%
0%
192%
-13%
-23%
52%
118%
3ds Max (3dsmax-06)
39.9
46.4
16%
40.1
1%
83.9
110%
41.5
4%
34.1
-15%
48.3
21%
Catia (catia-05)
51.6
71.6
39%
51.3
-1%
130
152%
44.8
-13%
42.8
-17%
73.9
43%
Creo (creo-02)
40.2
29.6
-26%
41.1
2%
93.4
132%
37.1
-8%
32.4
-19%
44.9
12%
Energy (energy-02)
4.39
5.69
30%
4.5
3%
23.8
442%
2.03
-54%
2.6
-41%
11.4
160%
Maya (maya-05)
48.3
59.5
23%
47.5
-2%
107
122%
46
-5%
40.4
-16%
58.3
21%
Medical (medical-02)
14.4
29.7
106%
14.4
0%
77.6
439%
7.92
-45%
8.61
-40%
32.8
128%
Showcase (showcase-02)
17.3
18.2
5%
17.3
0%
25.4
47%
20.4
18%
15
-13%
17.4
1%
Solidworks (sw-04)
57.4
44.8
-22%
57.1
-1%
109
90%
56
-2%
46.6
-19%
72.9
27%
SPECviewperf 2020
29%
-2%
276%
-20%
92%
195%
3840x2160 Medical (medical-03)
3.48
5.05
45%
3.49
0%
11.1
219%
1.37
-61%
4.72
36%
3840x2160 Energy (energy-03)
3
4.61
54%
3.05
2%
14.1
370%
1.18
-61%
6.6
120%
3840x2160 Creo (creo-03)
15.1
17.9
19%
14.8
-2%
31.4
108%
13.6
-10%
17.5
16%
3840x2160 CATIA (catia-06)
8.08
10
24%
7.78
-4%
24.8
207%
7.41
-8%
13.1
62%
3840x2160 3ds Max (3dsmax-07)
9.78
12.9
32%
9.69
-1%
20.9
114%
10.1
3%
9.26
-5%
3840x2160 Siemens NX (snx-04)
6.67
5.7
-15%
6.29
-6%
61.4
821%
6.71
1%
33
395%
3840x2160 Maya (maya-06)
24.4
35.4
45%
23.9
-2%
47
93%
23.6
-3%
29.5
21%
Total Average (Program / Settings)
27% / 27%
-1% / -1%
411% / 417%
-14% / -13%
-15% / -14%
57% / 57%
262% / 265%
3DMark 05 Standard
38071 pontos
3DMark 06 Standard Score
34204 pontos
3DMark Vantage P Result
26973 pontos
3DMark 11 Performance
7623 pontos
3DMark Ice Storm Standard Score
145950 pontos
3DMark Cloud Gate Standard Score
26523 pontos
3DMark Fire Strike Score
5048 pontos
3DMark Fire Strike Extreme Score
2364 pontos
3DMark Time Spy Score
1813 pontos
Ajuda

Desempenho em jogos

Muitos jogos sobrecarregam a iGPU e ela só consegue fornecer taxas de quadros jogáveis em resoluções baixas com poucos detalhes. Em comparação direta com a concorrência, nossa amostra de teste ficou atrás do Geekom A7 e do Acemagic F2A. Infelizmente, não há uma maneira de usar o dispositivo com uma placa gráfica externa para melhorar o desempenho 3D. Como alternativa, o senhor pode dar uma olhada mais de perto no Minisforum Venus Series NPB5.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
154.6 (12.9min, 32P0.1, 98.7P1) fps +58%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
126 (36.4min, 62.1P0.1, 99.1P1) fps +28%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
98.1 (22.4min, 35.3P0.1, 58.9P1) fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
97.4 fps -1%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
87.7 (4.87min, 27.9P0.1, 53P1) fps -11%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
73 (13.3min, 24.8P0.1, 40.9P1) fps -26%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
64.3 (27.3min, 29.2P0.1, 37P1) fps -34%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
49.6 (13.7min, 22.8P0.1, 39.2P1) fps +54%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
44.8 (26.8min, 32P0.1, 37.7P1) fps +39%
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
33.5 fps +4%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
32.2 (15.4min, 16P0.1, 18.1P1) fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
31.4 (16min, 16.2P0.1, 17.4P1) fps -2%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
23.7 (12.8min, 13.7P0.1, 19P1) fps -26%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
22.7 (11min, 12P0.1, 12.4P1) fps -30%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
100.5 fps +76%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
68.5 fps +20%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
58.2 fps +2%
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
57.6 fps +1%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
57.2 fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
49.2 fps -14%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
36.8 fps -36%
1920x1080 High Overall Quality (DX11)
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
27.7 fps +72%
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
25.8 fps +60%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
16.1 fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
15.7 fps -2%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
15.7 fps -2%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
14.9 fps -7%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
10.7 fps -34%
GTA V
1024x768 Lowest Settings possible
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
167.5 (5.17min, 125P1) fps +39%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
161 (4.76min, 100P1) fps +33%
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
144.6 (8.46min, 100P1) fps +20%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
120.8 (22.9min, 83.3P1) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
97.7 (29.9min, 62.5P1) fps -19%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
95.5 (8.24min, 62.5P1) fps -21%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
66.6 (4.46min, 37P1) fps +228%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
31.3 (2.94min, 22.7P1) fps +54%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
28.2 (4.09min, 18.5P1) fps +39%
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
24.3 (14.7min, 18.9P1) fps +20%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
20.3 (10.5min, 16.1P1) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
16.4 (7.58min, 12.8P1) fps -19%
Far Cry 5
1280x720 Low Preset AA:T
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
86 (76min) fps
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
69 (25min) fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
63 (57min) fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
50 (45min) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
46 (37min) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
35 (32min) fps
1920x1080 High Preset AA:T
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
43 (38min) fps
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
37 (30min) fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
29 (25min) fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
23 (21min) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
22 (19min) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
17 (15min) fps
Far Cry New Dawn
1280x720 Low Preset
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
75 (56min) fps
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
65 (11min) fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
59 (40min) fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
47 (31min) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
40 (23min) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
34 (24min) fps
1920x1080 High Preset
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
41 (27min) fps
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
37 (25min) fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
30 (22min) fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
24 (18min) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
21 (8min) fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
18 (14min) fps
Dota 2 Reborn
1280x720 min (0/3) fastest
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
155.8 (135.9min) fps +30%
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
140.3 (102.2min) fps +17%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
119.5 (88.5min) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
115.8 (101.2min) fps -3%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
106.9 (74.1min) fps -11%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
106.3 (81.7min) fps -11%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
103.2 (59.8min) fps -14%
1920x1080 high (2/3)
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
87.6 (75min) fps +31%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
77.3 (52.5min) fps +15%
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
70.7 (65.7min) fps +6%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
67 (60.7min) fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
61.3 (54.1min) fps -9%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
60.5 (53.8min) fps -10%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
48.3 (44.7min) fps -28%
GRID Legends
1280x720 Low Preset
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
139.5 (50.7min) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
80.1 (35.4min) fps
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
80 (35min) fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
68.3 (26.8min) fps
1920x1080 High Preset
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
62.5 (27.3min) fps
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
41.7 (24min) fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
35.5 (24min) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
34.2 (17.8min) fps
Shadow of the Tomb Raider
1280x720 Lowest Preset
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
131.4 fps
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
96.7 fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
62.8 fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
53.3 fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
39.6 fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
36.1 fps
1920x1080 High Preset AA:SM
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
49.5 fps
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
32.1 fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
25.9 fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
19.8 fps
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
18.8 fps
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
16.5 fps
F1 2021
1280x720 Ultra Low Preset
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
225 (178min, 175P1) fps +120%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
145.9 (119min, 118P1) fps +42%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
102.5 (79min, 76P1) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
97 (74min, 73P1) fps -5%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
94.8 (70min, 69P1) fps -8%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
76.9 (61min, 62P1) fps -25%
1920x1080 High Preset AA:T AF:16x
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
79.5 (50min, 42P1) fps +105%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
63.2 (55min, 49P1) fps +63%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
38.8 (33min, 31P1) fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
36.4 (31min, 27P1) fps -6%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
36.4 (28min, 28P1) fps -6%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
27.6 (23min, 21P1) fps -29%
Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
98.6 fps +75%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
83.8 fps +48%
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
76.6 fps +36%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
56.5 fps
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
55 fps -3%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
49.3 fps -13%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
27 fps -52%
1920x1080 High Preset (DX12)
Geekom A7
Radeon 780M, R9 7940HS, Acer N5000
29.9 fps +24%
Acemagic F2A
Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0
29.1 fps +21%
Minisforum Venus Series NAB9
Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0
24.1 fps
Maxtang MTN-FP750
Radeon 680M, R7 7735HS, Foresee VP1000F512G
20.2 fps -16%
Minisforum Venus Series NPB5
Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0
14.7 fps -39%
Geekom XT12 Pro
Iris Xe G7 96EUs, i9-12900H, Lexar SSD NM7A1 1TB
14.4 fps -40%
NiPoGi AD08
UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530
10.6 fps -56%

Witcher 3 FPS diagram

051015202530Tooltip
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs: Ø15.6 (15-17)
Acemagic F2A Ultra 7 155H, Arc 8-Core: Ø22.8 (21-25)
Geekom XT12 Pro i9-12900H, Iris Xe G7 96EUs: Ø15 (13-16)
Geekom A7 R9 7940HS, Radeon 780M: Ø25.7 (20-33)
baixomédiaaltoultra
GTA V (2015) 120.8 103.9 20.3 8.4
The Witcher 3 (2015) 98.1 64 32.2 15.3
Dota 2 Reborn (2015) 119.5 89.4 67 60.6
Final Fantasy XV Benchmark (2018) 44.4 24.3 20.1
X-Plane 11.11 (2018) 54.1 39.9 34.8
Strange Brigade (2018) 92.3 39.5 32.2 25.8
Metro Exodus (2019) 39.2 19.5 14 11.4
Borderlands 3 (2019) 57.2 26 16.1 12.1
F1 2020 (2020) 88.7 45.7 35.6 23.2
F1 2021 (2021) 102.5 50.1 38.8 27.4
God of War (2022) 21 18.2 14 10.2
Tiny Tina's Wonderlands (2022) 53 40.1 24.1 18.4
F1 22 (2022) 45.2 41.2 30.1 23.2
F1 23 (2023) 41.9 38.4 27 20.9
Cyberpunk 2077 2.1 Phantom Liberty (2023) 18.2 14.5 12.2 10.9
Total War Pharaoh (2023) 64.2 46.8 33.5 29.1

Emissões - unidade de resfriamento potente, mas audível

Emissões de ruído

É claro que o Minisforum Venus Series NAB9 não é um dos dispositivos mais silenciosos. Mesmo assim, o sistema funciona de forma relativamente silenciosa, atingindo apenas 45 dB(A) sob carga. Suas emissões médias de ruído de 42,8 dB(A) não são muito mais silenciosas, atingindo apenas 27 a 33 dB(A) quando em marcha lenta. Em nenhum momento o PC funciona de forma totalmente silenciosa.

Barulho

Ocioso
27.5 / 28 / 33 dB
Carga
42.8 / 44.9 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R (15 cm de distância)   environment noise: 25.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.935.832.934.430.132.832.92528.431.2333230.333.128.43128.230.731.330.128.827.828.24021.923.322.422.626.420.221.95033.133.133.133.333.531.533.16320.820.22021.219.417.920.88023.422.621.721.921.914.923.410022.622.918.718.217.819.322.6125232217.514.315.111.52316023.522.317.213.813.210.923.520026.624.718.215.414.812.326.625027.625.819.916.415.510.227.631527.525.520.21715.81027.540028.226.221.316.315.910.228.25003028.722.317.617.311.43063031.330.422.817.216.810.931.380033.431.723.217.81711.133.4100033.131.122.316.416.111.633.1125032.430.822.216.415.711.932.4160034.132.422.716.715.511.234.120003533.323.616.715.611.935250033.13120.714.814.312.833.131503330.82114.61413.533400031.729.918.714.414.214.231.7500037.334.217.114.614.514.937.3630029.225.615.71514.815.429.2800023.420.815.615.21515.223.41000020.719.316.31616.215.820.71250017.516.915.915.415.315.917.51600017.416.917.115.615.515.417.4SPL44.942.8332827.525.444.9N4.84.11.710.90.64.8median 29.2median 26.2median 19.9median 16median 15.5median 11.9median 29.2Delta54.82.710.82.15hearing rangehide median Fan NoiseMinisforum Venus Series NAB9
Minisforum Venus Series NAB9
i9-12900HK, Iris Xe G7 96EUs
Acemagic F2A
Ultra 7 155H, Arc 8-Core
Geekom XT12 Pro
i9-12900H, Iris Xe G7 96EUs
Geekom A7
R9 7940HS, Radeon 780M
Minisforum Venus Series NPB5
i5-13500H, Iris Xe G7 80EUs
NiPoGi AD08
i7-12650H, UHD Graphics 64EUs
Maxtang MTN-FP750
R7 7735HS, Radeon 680M
Noise
2%
2%
-5%
4%
15%
6%
off / environment *
25.4
24.9
2%
25.4
-0%
25.4
-0%
25.1
1%
25
2%
25
2%
Idle Minimum *
27.5
25.4
8%
28
-2%
33.3
-21%
27.8
-1%
25
9%
25.3
8%
Idle Average *
28
25.7
8%
28.1
-0%
33.6
-20%
27.8
1%
25
11%
25.3
10%
Idle Maximum *
33
25.7
22%
28.5
14%
33.7
-2%
27.9
15%
25.1
24%
25.4
23%
Load Average *
42.8
47.8
-12%
39.6
7%
43.3
-1%
38.9
9%
34
21%
45.1
-5%
Witcher 3 ultra *
44.5
45.23
-2%
47.2
-6%
43.2
3%
Load Maximum *
44.9
49
-9%
44.2
2%
43.3
4%
45.8
-2%
35.5
21%
45.3
-1%

* ... smaller is better

Temperatura

O gabinete do Minisforum Venus Series NAB9 aquece apenas ligeiramente quando está em marcha lenta. Sob carga, suas superfícies metálicas esquentam um pouco mais. As saídas do ventilador estão localizadas à direita e na parte traseira do PC.

O processador em si atingiu apenas 78 °C durante o teste de estresse, o que é um resultado impressionante. Com 71 °C, a temperatura média do computador é bem mais baixa e foi atingida com uma carga contínua de 45 watts. Com isso em mente, o fabricante poderia ter escolhido uma curva de ventoinha um pouco mais conservadora para reduzir um pouco as emissões de ruído. No entanto, o Minisforum também poderia ter dado ao Intel Core i9-12900HK um limite de potência mais alto, já que a unidade de resfriamento é certamente potente.

Teste de estresse Prime95, solo
Teste de estresse Prime95, solo
Teste de estresse FurMark, solo
Teste de estresse FurMark, solo
Teste de estresse Prime95 e FurMark
Teste de estresse Prime95 e FurMark
Minisforum Venus Series NAB9 durante o teste de estresse (acima)
Minisforum Venus Series NAB9 durante o teste de estresse (acima)
Minisforum Venus Series NAB9 durante o teste de estresse (parte inferior)
Minisforum Venus Series NAB9 durante o teste de estresse (parte inferior)
Minisforum Venus Series NAB9 durante o teste de estresse (atrás)
Minisforum Venus Series NAB9 durante o teste de estresse (atrás)
Fonte de alimentação durante o teste de estresse
Fonte de alimentação durante o teste de estresse
As entranhas do PC durante o teste de estresse
As entranhas do PC durante o teste de estresse
As entranhas do PC durante o teste de estresse
As entranhas do PC durante o teste de estresse


Carga Máxima
 31.5 °C32 °C31 °C
 40 °C39.6 °C35.9 °C
 36.8 °C34.2 °C32.8 °C
Máximo: 40 °C
Médio: 34.9 °C
38.6 °C46.7 °C36.7 °C
38.5 °C28.5 °C33.1 °C
34.9 °C35.5 °C34.4 °C
Máximo: 46.7 °C
Médio: 36.3 °C
alimentação elétrica  43.9 °C | Temperatura do quarto 21.9 °C | Fluke t3000FC (calibrated)
(±) The average temperature for the upper side under maximal load is 34.9 °C / 95 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 46.7 °C / 116 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 32.3 °C / 90 F.

Consumo de energia

Em termos de eficiência, o Minisforum Venus Series NAB9 não consegue mais acompanhar seus concorrentes. Seu consumo de energia é muito maior sob carga, mas ainda está dentro de uma faixa aceitável. Os valores de três dígitos foram atingidos apenas brevemente, sendo que o consumo médio de energia ficou equilibrado em torno de 83 watts. A fonte de alimentação de 120 watts fornece energia suficiente em todos os momentos e ainda tem reservas suficientes para um segundo dispositivo de armazenamento.

O Minisforum Venus Series NAB9 e sua fonte de alimentação (19 V; 6,32 A)
O Minisforum Venus Series NAB9 e sua fonte de alimentação (19 V; 6,32 A)
Fonte de alimentação (19 V; 6,32 A)
Fonte de alimentação (19 V; 6,32 A)
Consumo de energia
desligadodarklight 2.7 / 3 Watt
Ociosodarkmidlight 12.1 / 13.2 / 14.1 Watt
Carga midlight 82.9 / 106.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Minisforum Venus Series NAB9
i9-12900HK, Iris Xe G7 96EUs
Acemagic F2A
Ultra 7 155H, Arc 8-Core
Geekom XT12 Pro
i9-12900H, Iris Xe G7 96EUs
Geekom A7
R9 7940HS, Radeon 780M
Minisforum Venus Series NPB5
i5-13500H, Iris Xe G7 80EUs
NiPoGi AD08
i7-12650H, UHD Graphics 64EUs
Maxtang MTN-FP750
R7 7735HS, Radeon 680M
Average Intel Iris Xe Graphics G7 96EUs

Average of class Mini PC

Power Consumption
15%
24%
42%
4%
-9%
40%
39%
11%
Idle Minimum *
12.1
9.1
25%
5.7
53%
3.8
69%
8.4
31%
14.3
-18%
7
42%
Idle Average *
13.2
10.3
22%
9.5
28%
4.8
64%
11.3
14%
16.8
-27%
8.1
39%
8.55 ?(3.8 - 63, n=193)
35%
Idle Maximum *
14.1
14.4
-2%
16.5
-17%
6.5
54%
14.5
-3%
24.9
-77%
8.4
40%
Load Average *
82.9
54.9
34%
53.3
36%
71.9
13%
70
16%
51.4
38%
54.2
35%
Load Maximum *
106.8
110.4
-3%
87.8
18%
94.7
11%
149
-40%
63.9
40%
61.4
43%

* ... smaller is better

Power consumption with external monitor

0102030405060708090100110Tooltip
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø13.2 (12-14.1)
Acemagic F2A Ultra 7 155H, Arc 8-Core; Idle 1min (external Monitor): Ø10.4 (9.08-14.4)
Geekom A7 R9 7940HS, Radeon 780M; Idle 1min (external Monitor): Ø4.81 (3.82-6.48)
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø78.2 (71.7-80.4)
Acemagic F2A Ultra 7 155H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø48.4 (45.6-52.4)
Geekom A7 R9 7940HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.1 (66.4-82.2)
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø83.6 (75.6-106.8)
Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.2 (78.7-114)
Geekom A7 R9 7940HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (55.6-95.8)

Power consumption with external monitor

0102030405060708090100110Tooltip
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø82.3 (73.7-104.6)
Acemagic F2A Ultra 7 155H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø99.6 (92-110.4)
Geekom A7 R9 7940HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø70 (57.2-94.7)
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø97.2 (95-98.2)
Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø103 (99.2-107)
Geekom A7 R9 7940HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø73 (64.8-85.1)
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø54.4 (46.8-96.4)
Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø32.7 (19.4-55.3)
Geekom A7 R9 7940HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø28.7 (24.1-75.1)
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø99 (96.7-101)
Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø100.7 (97.2-108.6)
Geekom A7 R9 7940HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø66.2 (63.5-84.2)
Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø86.7 (72.2-97.2)
Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.7 (47.3-60.6)
Geekom A7 R9 7940HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø72.8 (57.4-85.5)

Pro

+ design atraente e elegante
+ gabinete muito estável
+ O Intel Core i9-12900HK pode tirar proveito de toda a sua potência
+ até quatro monitores podem ser alimentados ao mesmo tempo
+ pode ser aberto sem a necessidade de ferramentas (tampa do gabinete)
+ ethernet dupla de 2,5 Gbits/s
+ fonte de alimentação compacta
+ desempenho estável de SSD

Contra

- unidade de resfriamento audível sob carga
- sem USB4 / Thunderbolt
- Desempenho da WLAN

Veredicto - Um mini PC potente a um preço justo

Análise do Minisforum Venus Series NAB9 - amostra de teste fornecida pelo Minisforum
Análise do Minisforum Venus Series NAB9 - amostra de teste fornecida pelo Minisforum

O Minisforum Venus Series NAB9 oferece um desempenho impressionante. Seu Intel Core i9-12900HK ainda pode competir com SoCs mais modernos quando se trata apenas do desempenho da CPU. Em termos de desempenho 3D, a iGPU, agora desatualizada, é claramente inferior aos modelos mais novos da Intel e da AMD. No entanto, o Minisforum Venus Series NAB9 não pode ganhar nenhum prêmio de eficiência, como revelam seus valores de consumo de energia. Em termos de preço, o minicomputador não custará muito caro, custando US$ 509, embora o Geekom A7 ou o Acemagic F2A sejam significativamente mais caros. Ambos os concorrentes oferecem um desempenho ligeiramente superior, embora o Acemagic F2A não apresente necessariamente as melhores opções de conectividade. A seleção de portas do NAB9 é boa se o senhor se basear apenas em números. Por outro lado, infelizmente, ele não tem nenhuma porta USB-4, o que poderia proporcionar ao dispositivo uma gama muito maior de usos possíveis.

O Minisforum Venus Series NAB9 é um dispositivo de trabalho atraente com desempenho fantástico. Entretanto, no momento, o Minisforum Venus Series NAB9 só pode se diferenciar da grande massa de minicomputadores devido ao seu preço.

Visualmente, o senhor terá que se conformar com o fato de o minicomputador ser prateado, mas isso não é algo ruim. Todas as suas superfícies estão alinhadas uniformemente e não notamos nenhuma falha de construção. Infelizmente, a Minisforum decidiu não usar um gabinete feito inteiramente de alumínio, o que teria elevado ainda mais a sensação tátil. Isso certamente faria com que o preço atual não fosse mais mantido e é exatamente isso que torna o dispositivo uma opção muito interessante no momento.

Preços e disponibilidade

O senhor pode comprar o Minisforum Venus Series NAB9 na Amazon por US$ 503,99. Esse é o modelo com um Intel Core i9-12900HK e 32 GB de RAM. O senhor também pode encomendar o mini PC diretamente em Minisforum. Os preços começam a partir de US$ 359.

Minisforum Venus Series NAB9 - 05/01/2024 v7 (old)
Sebastian Bade

Acabamento
82 / 98 → 84%
Conectividade
60 / 81 → 74%
Peso
81%
Desempenho do jogos
73%
Desempenho da aplicação
94%
Workstation
60%
Temperatura
89%
Ruído
80%
Médio
77%
82%
Mini PC - Médio equilibrado

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Análise do Minisforum Venus Series NAB9: O mini PC com um Intel Core i9-12900HK, 32 GB de RAM e resfriamento ativo de SSD
Sebastian Bade, 2024-05- 3 (Update: 2024-05- 3)
