Análise do Geekom AS 5: Um companheiro perfeito para projetos exigentes e inclui um AMD Ryzen 9 5900HX e AMD Radeon Vega 8

Name: Geekom AS 5
Brand: Geekom

Muita potência nos espaços mais apertados!

A Geekom colocou um poderoso AMD Ryzen 9 5900HX em seu pequeno minicomputador AS 5. Leia nossa extensa análise para saber como o assistente de computador compacto se comporta no uso diário e se a combinação de 32 GB de RAM e um SSD de 1 TB pode se equiparar aos modelos Intel NUC.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 07/03/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Radeon Cezanne (Zen 3)

Apesar de ser um mini-PC pequeno, o Geekom AS 5 ainda consegue oferecer umAMD Ryzen 9 5900HXe um SoC rápido que talvez já seja bom demais para o uso diário. Mas, como diz o ditado, é melhor ter do que precisar. Como consequência, você pode esperar um futuro confiante com o Geekom AS 5, desde que se preocupe apenas com o trabalho de escritório.

Os conhecedores de mini-PCs de longa data darão uma olhada no Geekom AS 5 e certamente pensarão que já o viram antes em algum lugar. Bem, isso não é sem uma boa razão. A Geekom e a Asus formaram uma cooperação, o que significa que o Geekom AS 5 e o Asus ExpertCenter PN52 são construídos da mesma forma. Ao contrário da Asus, cujo PN52 também vem com SoCs de especificações inferiores, a única opção da Geekom é baseada no Ryzen 9 5900HX da AMD. Atualmente, o Geekom AS 5 está sendo vendido por US$ 609. Um preço justo, já que a Asus está pedindo um alto valor de US$ 900 por um mini-PC de construção idêntica com apenas 16 GB de RAM e o mesmo SSD.

Nesta análise, a amostra de teste é comparada com os atuais minicomputadores equipados de forma semelhante no mesmo segmento de preço. Você pode encontrar uma lista deles na tabela a seguir.

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom AS 5

Processador

AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 54 W PL2 / Short Burst, 35 W PL1 / Sustained, Cezanne-H (Zen 3)

Placa gráfica

AMD Radeon RX Vega 8 (Ryzen 4000/5000), Adrenalin 13.5.1

Memória

32 GB

, DDR4 3200, 2 of 2 occupied, max. 64 GB

placa mãe

AMD Promontory/Bixby FCH

Disco rígido

Kingston NV2 1000GB SNV2S/1000G, 1000 GB

, M.2 2280, NVMe, 920 GB livre

Placa de Som

AMD Zen - Audio Processor - HD Audio Controller

Conexões

5 USB 3.0, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensington Lock

Funcionamento em rede

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 58 x 130 x 120

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

120-watt PSU, VESA mount mounting plate, 24 Meses Garantia

peso

742 g, Suprimento de energia: 350 g

Preço

599 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height
79.5 % v7 ^(old)	07/2023	Geekom AS 5 R9 5900HX, Vega 8	742 g	58 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
83.7 % v7 ^(old)	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
82.3 % v7 ^(old)	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.9 % v7 ^(old)	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.8 % v7 ^(old)	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm

O Geekom AS 5 em detalhes

Caso

Como já mencionamos, o Geekom AS 5 e o Asus ExpertCenter PN52 compartilham a mesma plataforma. Isso significa que estamos lidando com um design diferente doGeekom Mini IT12. As dimensões do AS 5 aumentaram um pouco em comparação com o outro dispositivo interno, embora o tamanho do dispositivo continue sendo pequeno. No que diz respeito ao peso, com 724 gramas, nossa amostra de análise garante uma posição intermediária. Os materiais consistem principalmente de plástico e alumínio. Mais uma vez, isso nos lembra o design familiar do NUC visto no Geekom Mini IT12. Basicamente, o conceito é bom e excepcionalmente robusto. Em termos subjetivos, com seu chassi de alumínio, os dispositivos da Morefine parecem ter um toque mais premium. Não há reclamações reais com relação à qualidade de construção. Tudo se encaixa perfeitamente e não encontramos nenhuma falha em nosso modelo de análise.

Como muitos outros minicomputadores, o Geekom AS 5 também pode ser conectado a um monitor com o suporte VESA incluído.

Comparação de tamanho

Minisforum Neptune Series NAD9 Geekom AS 5 Morefine M600, 6900HX Morefine M600, 6600U Minisforum Venus Series NAB6 Geekom Mini IT12 Intel NUC 13 Pro Kit NUC13ANK DIN A4 ❌

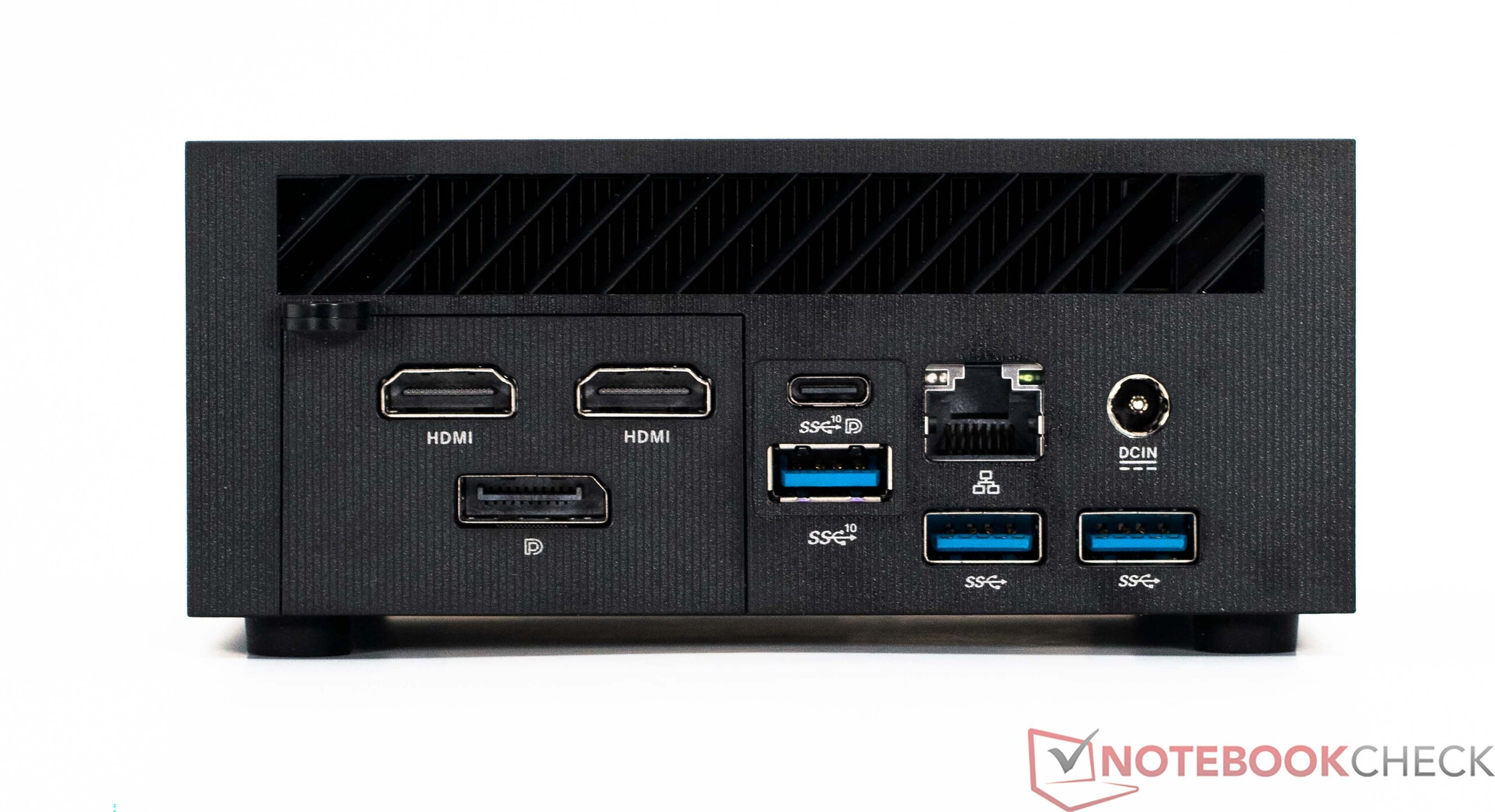

Recursos

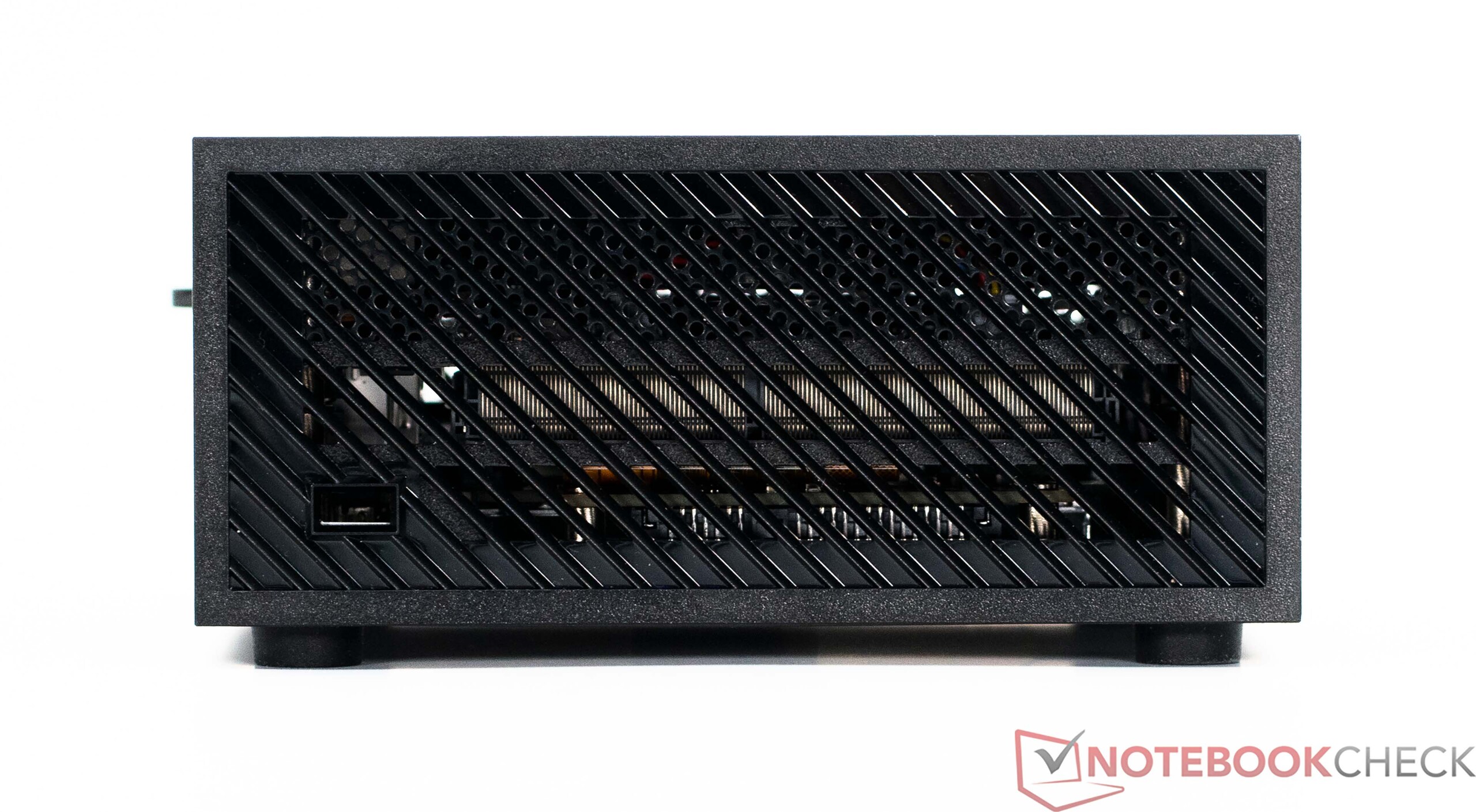

Apesar de seu tamanho, o pequeno Geekom AS 5 oferece muitas opções de interface. Todas as portas podem ser encontradas na parte frontal e traseira do dispositivo. Em ambos os lados do mini-PC, há aberturas de ventilação de tamanho generoso projetadas para ajudar no resfriamento. Com seus sete conectores USB, nosso modelo de análise de mini-PC tem algumas das mais portas vistas em uma máquina desse tipo. Além disso, dois deles são equipados com um conector tipo C. No entanto, o AS 5 não tem suporte para Thunderbolt. No entanto, qualquer pessoa que deseje conectar vários monitores simultaneamente pode pegar o Geekom AS 5 com confiança, pois o nosso modelo de teste pode lidar facilmente com até quatro monitores.

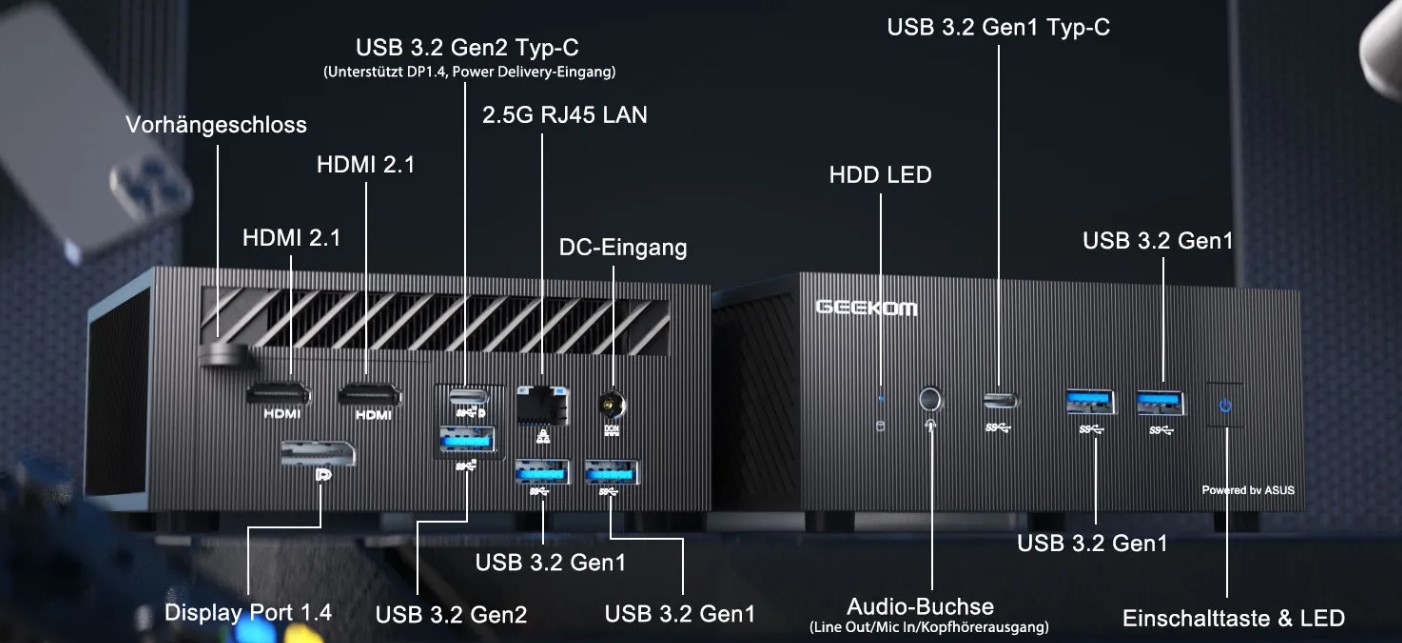

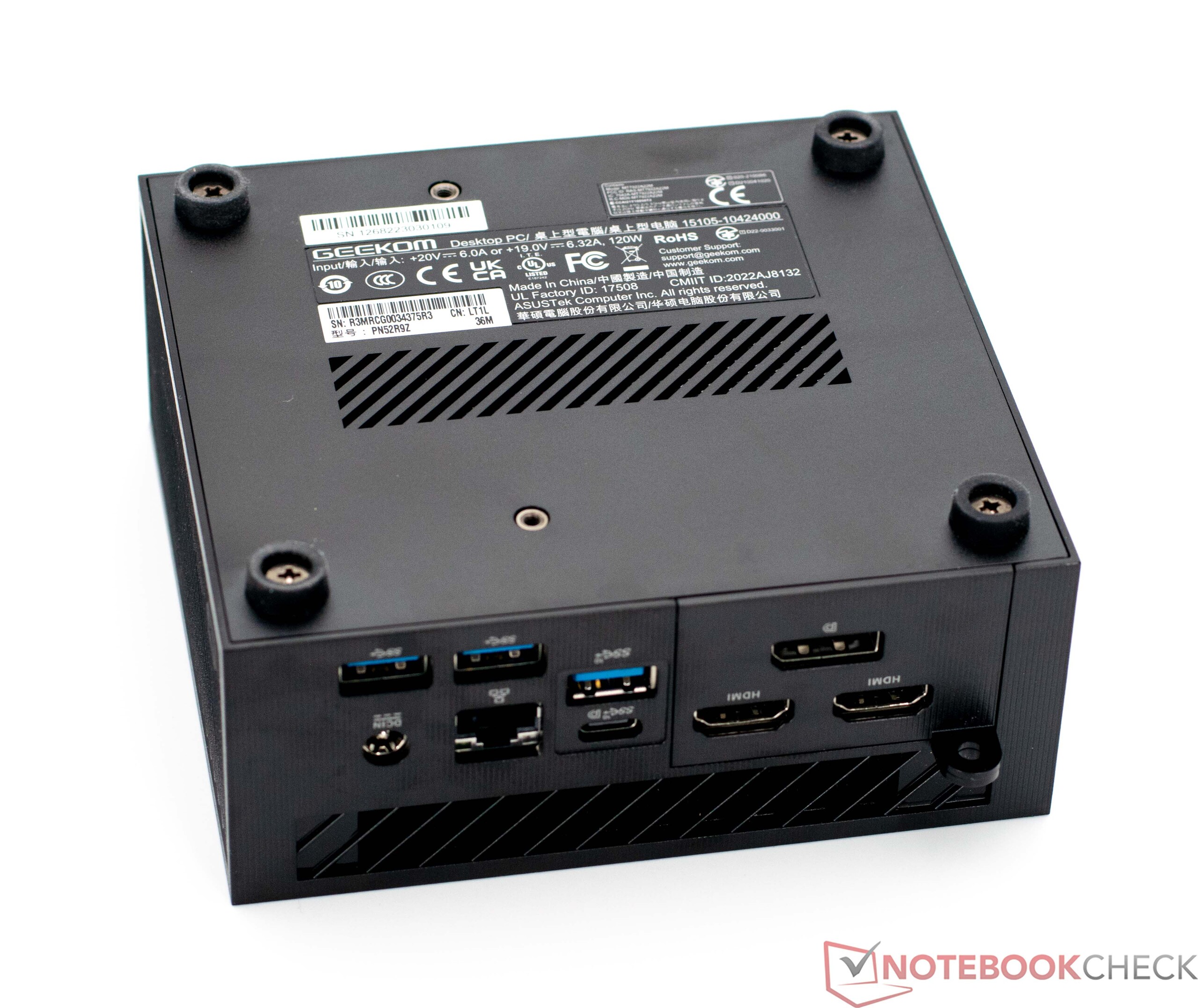

As portas extremas do Geekom AS 5 (fonte: Geekom)

Comunicação

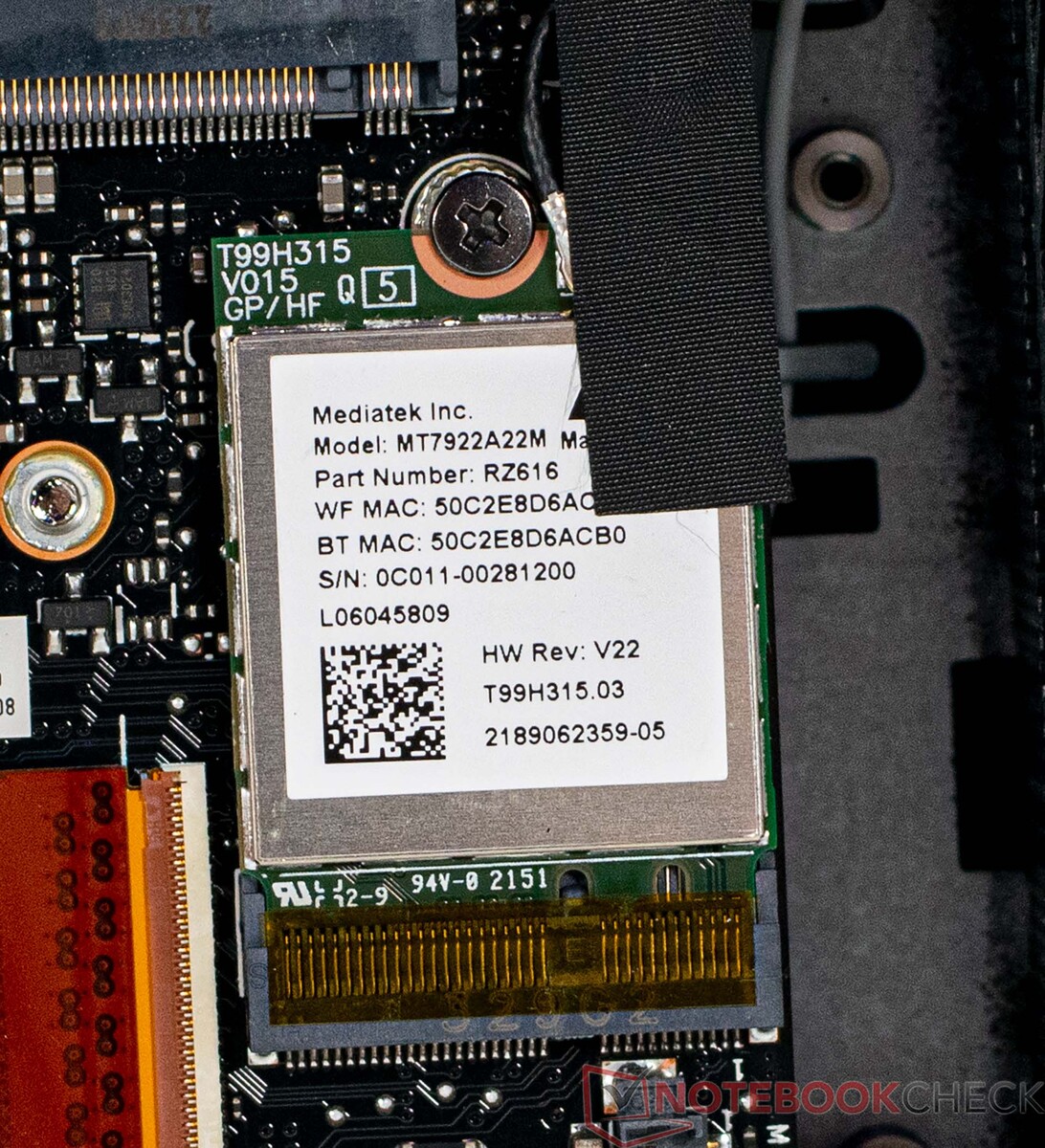

A Geekom equipou seu AS 5 com um moderno módulo Wi-Fi 6E da MediaTek. A placa M.2 intercambiável também pode lidar com a veloz banda de 6 GHz, na qual é possível obter velocidades de transferência de dados significativamente mais altas do que em uma conexão com a banda de frequência normal de 5 GHz. Nessa área, nosso dispositivo de análise não apenas lidera o grupo de concorrentes, mas também os deixa para trás. As coisas não parecem tão boas nos testes com uma conexão de 5 GHz e o nosso Geekom AS 5 desliza para uma posição baixa, no meio da tabela, atrás de grande parte da concorrência. Com exceção doMinisforum Neptune Series NAD9a concorrência está bem agrupada. Como sempre, usamos nosso roteador de teste para este teste - o Asus ROG Rapture GT-AXE11000. Como alternativa, também é possível conectar o AS 5 a uma rede por meio de um conector ethernet. Com até 2,5 Gbit/s, essa conexão é ainda mais rápida do que a conexão sem fio de 6 GHz.

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1758^min - 1782^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s -6%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s -14%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=39)	1433 MBit/s -19%
Average of class Mini PC (684 - 1771, n=55, last 2 years)	1380 MBit/s -22%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s -46%
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s -55%
iperf3 transmit AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1764 (1647^min - 1826^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s -18%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1800, n=38)	1399 MBit/s -21%
Average of class Mini PC (394 - 1800, n=55, last 2 years)	1330 MBit/s -25%
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s -48%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s -57%
iperf3 receive AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (707 - 1775, n=55)	1397 MBit/s +61%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +51%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +9%
Average of class Mini PC (320 - 1796, n=113, last 2 years)	945 MBit/s +9%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +8%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +7%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	870 (788^min - 885^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -10%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +58%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=55)	1279 MBit/s +53%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +15%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +10%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	874 MBit/s +4%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	838 (749^min - 923^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -1%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -6%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -25%

Geekom AS 5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1764 (1647-1826)

Geekom AS 5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1771 (1758-1782)

Geekom AS 5; iperf3 receive AXE11000; iperf 3.1.3: Ø870 (788-885)

Geekom AS 5; iperf3 transmit AXE11000; iperf 3.1.3: Ø838 (749-923)

Acessórios

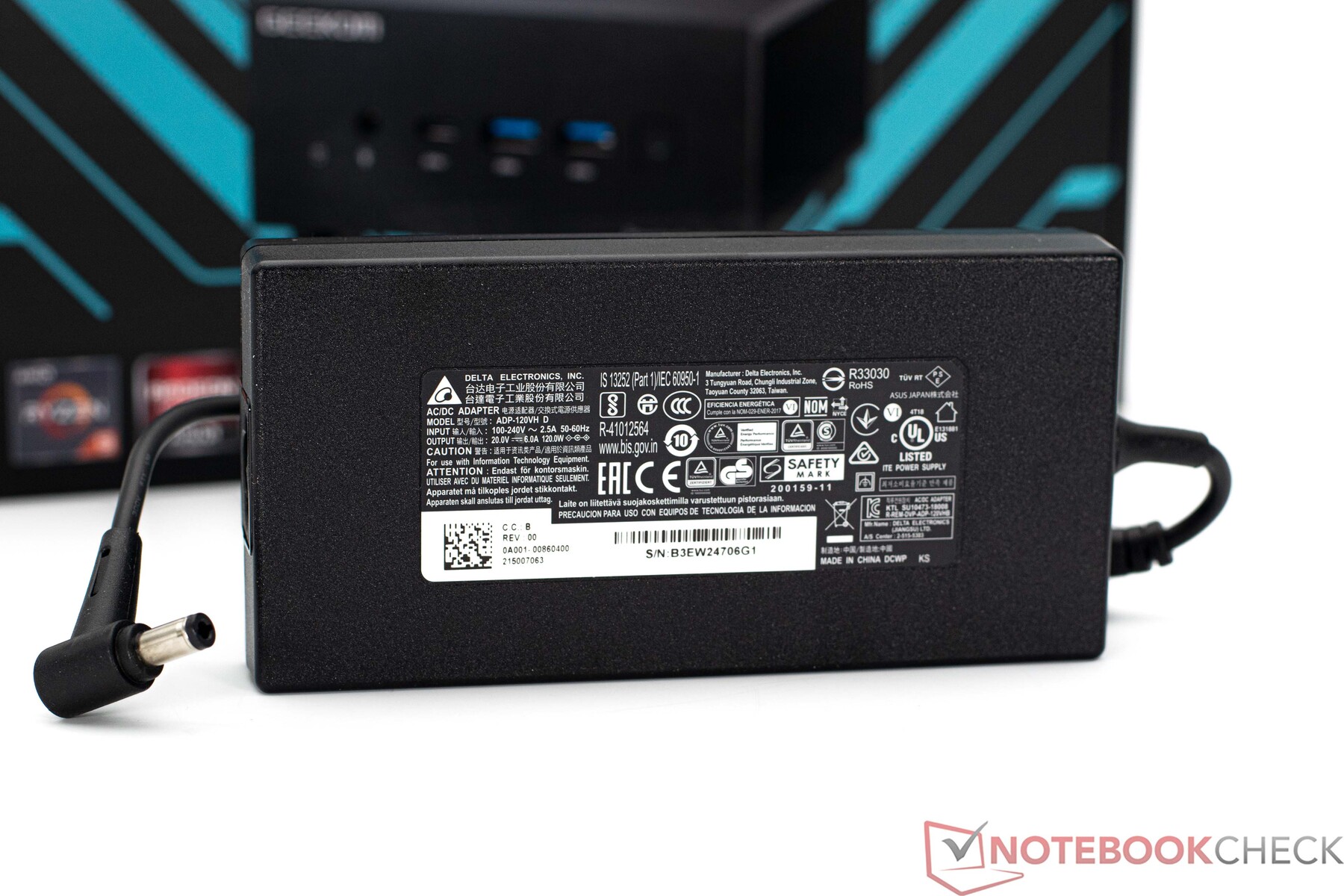

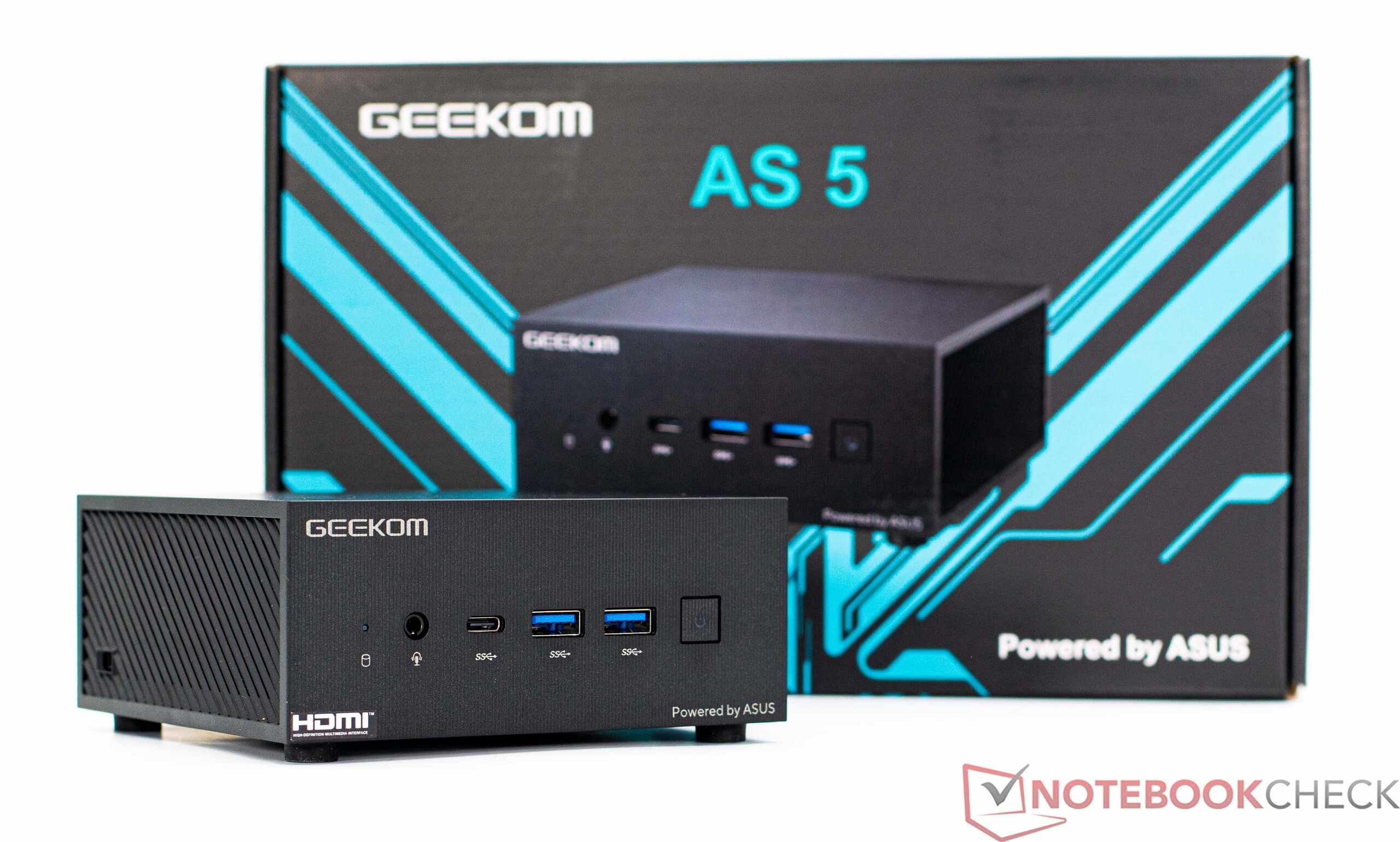

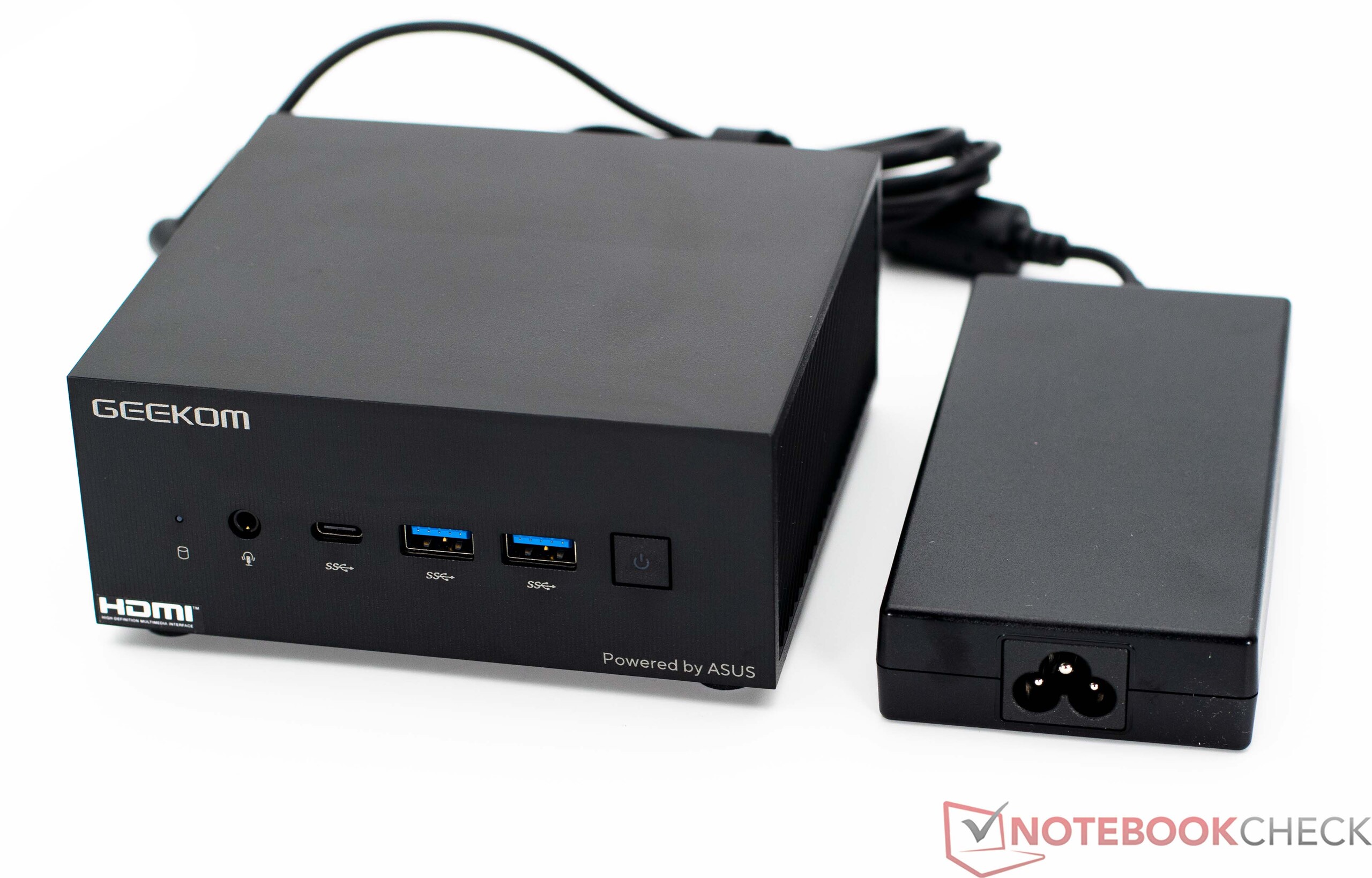

O conteúdo da caixa do Geekom AS 5 inclui a fonte de alimentação de 120 watts, bem como a placa de montagem para instalar o dispositivo em um monitor (montagem VESA), um cabo HDMI, um guia rápido e alguns parafusos.

Manutenção

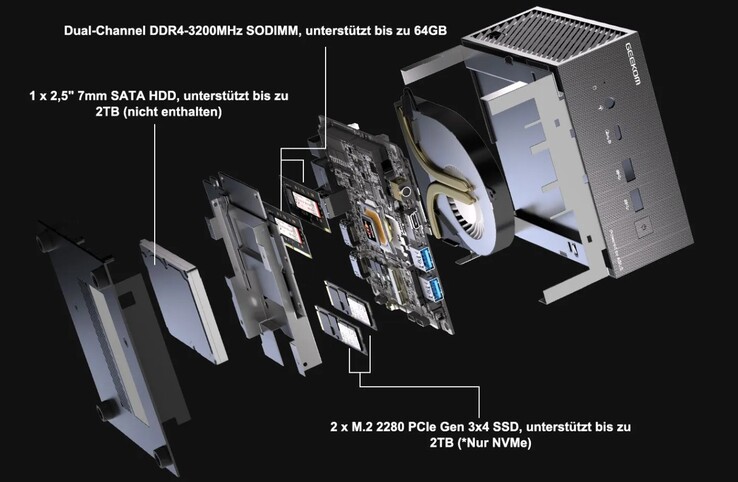

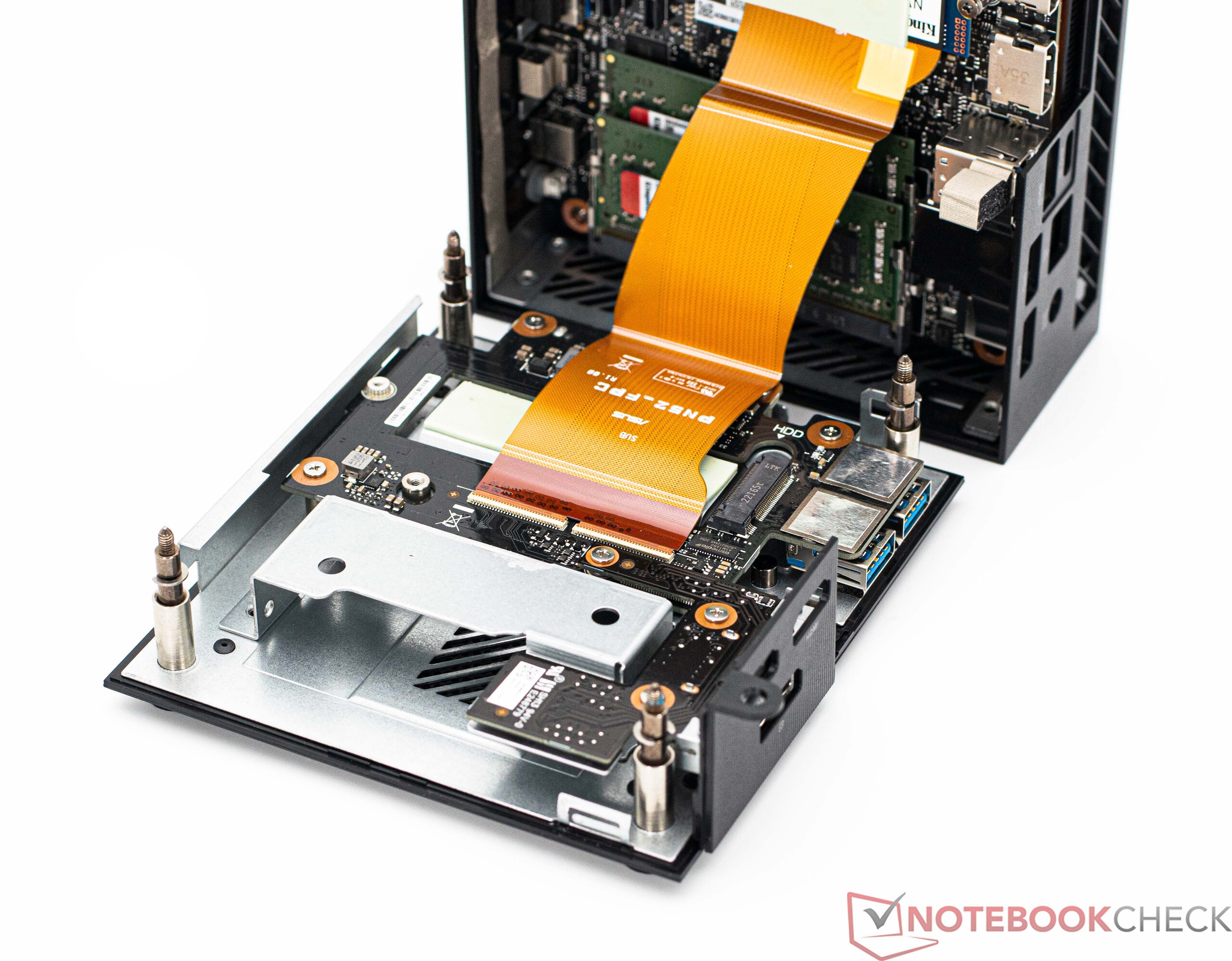

O Geekom AS 5 pode ser aberto pela base. Os quatro parafusos fazem parte do suporte e mantêm a base, juntamente com algumas portas de comunicação na parte superior do chassi. A remoção da tampa inferior não é difícil, embora a almofada térmica do SSD ofereça alguma resistência. Basicamente, acessar os componentes integrados, como a RAM e o SSD, é muito fácil. Entretanto, quem quiser inspecionar a unidade de resfriamento terá que desmontar um pouco mais o dispositivo. No entanto, você deve proceder com cuidado para não danificar os delicados cabos da antena Wi-Fi.

Desempenho - Um AMD Ryzen 9 5900HX no centro da questão

Com o AMD Ryzen 9 5900HX-baseado no Geekom AS 5, você obtém muita potência no menor espaço possível. Com 32 GB de RAM e um SSD de 1 TB, o restante das especificações também é motivo de orgulho. Tudo isso faz com que o Geekom AS 5 seja perfeitamente equipado para o uso diário no escritório e até mesmo tarefas mais exigentes, como edição de fotos e edição simples de vídeo, não são obstáculos para esse servidor de computação.

Condições de teste

Todos os testes de desempenho foram realizados usando o modo Highest Performance. O desempenho do SoC não foi alterado no BIOS e foi deixado de acordo com as configurações de fábrica do fabricante.

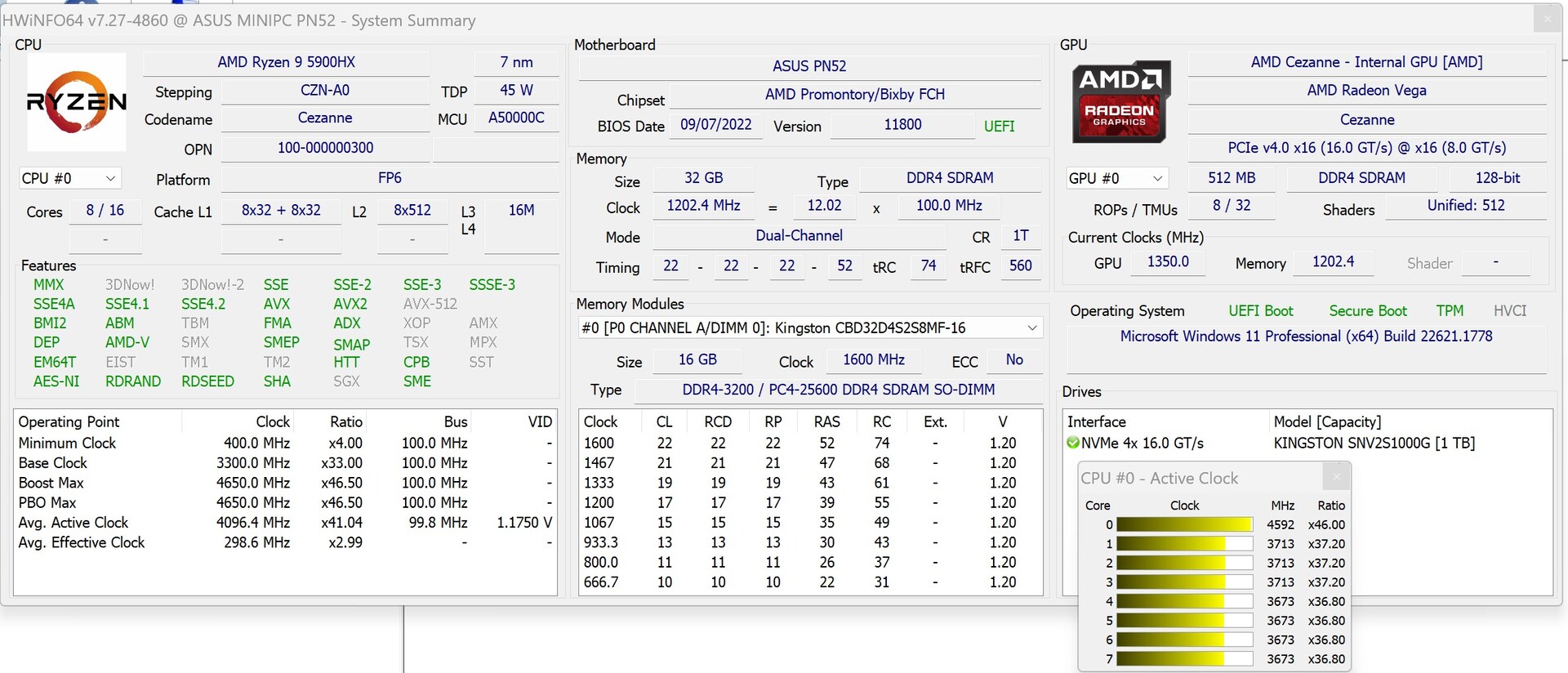

Processador

Com oAMD Ryzen 9 5900HXo Geekom AS 5 oferece um bom SoC com 8 núcleos e 16 threads que, no entanto, não pertence mais aos chips mais modernos, pois a AMD já tem seu sucessor, oRyzen 9 6900HX- um chip que analisaremos em um de nossos próximos testes.

No entanto, nas comparações atuais, nosso dispositivo de análise se saiu relativamente bem e está próximo dos concorrentes equipados com o SoC mais recente. A Geekom não reduziu o consumo de energia do AMD Ryzen 9 5900HX, o que significa que o SoC opera com 54 watts no modo turbo e 35 watts sob carga contínua, de acordo com as alegações do fabricante. Um dos pontos fortes do SoC usado aqui é seu desempenho multi-thread, embora, em comparação com a concorrência, o desempenho de núcleo único caia um pouco. A Intel está jogando em outra liga aqui com seus atuais processadores Raptor Lake P, como visto, por exemplo, com o Intel NUC 13 Pro. Até mesmo o Morefine M600, que já está equipado com um AMD Ryzen 9 6900HX, não pode fazer nada a respeito.

No entanto, o Geekom AS 5 tem uma pontuação surpreendentemente boa quando se trata dos benchmarks AIDA64, com nosso dispositivo de análise até mesmo liderando o caminho e empurrando o Morefine M600 para o segundo lugar. Basicamente, vemos que os dispositivos baseados na AMD têm vantagens claras. A Intel parece ligeiramente em desvantagem nesse aspecto, com o Intel NUC 13 Pro tendo que lidar com o fato de estar cerca de 19% atrás de seu primo da AMD.

Outras comparações e benchmarks podem ser encontrados em nossaTabela de comparação de CPUs.

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	50.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.6 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.9 pt
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	47.5 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.5 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43.4 pt

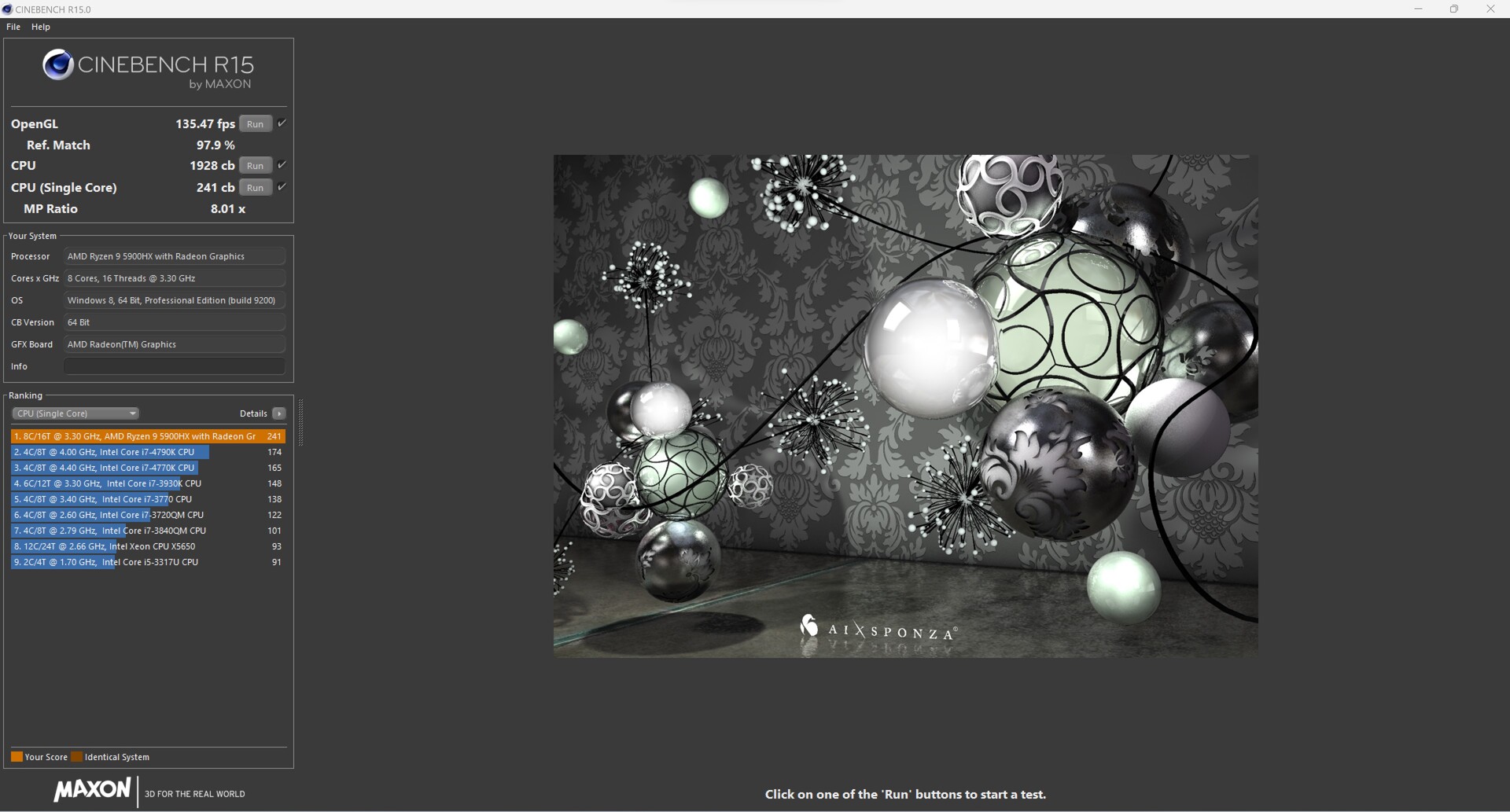

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	241 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -6%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1928 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -19%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -29%

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	581 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -4%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	4574 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -25%

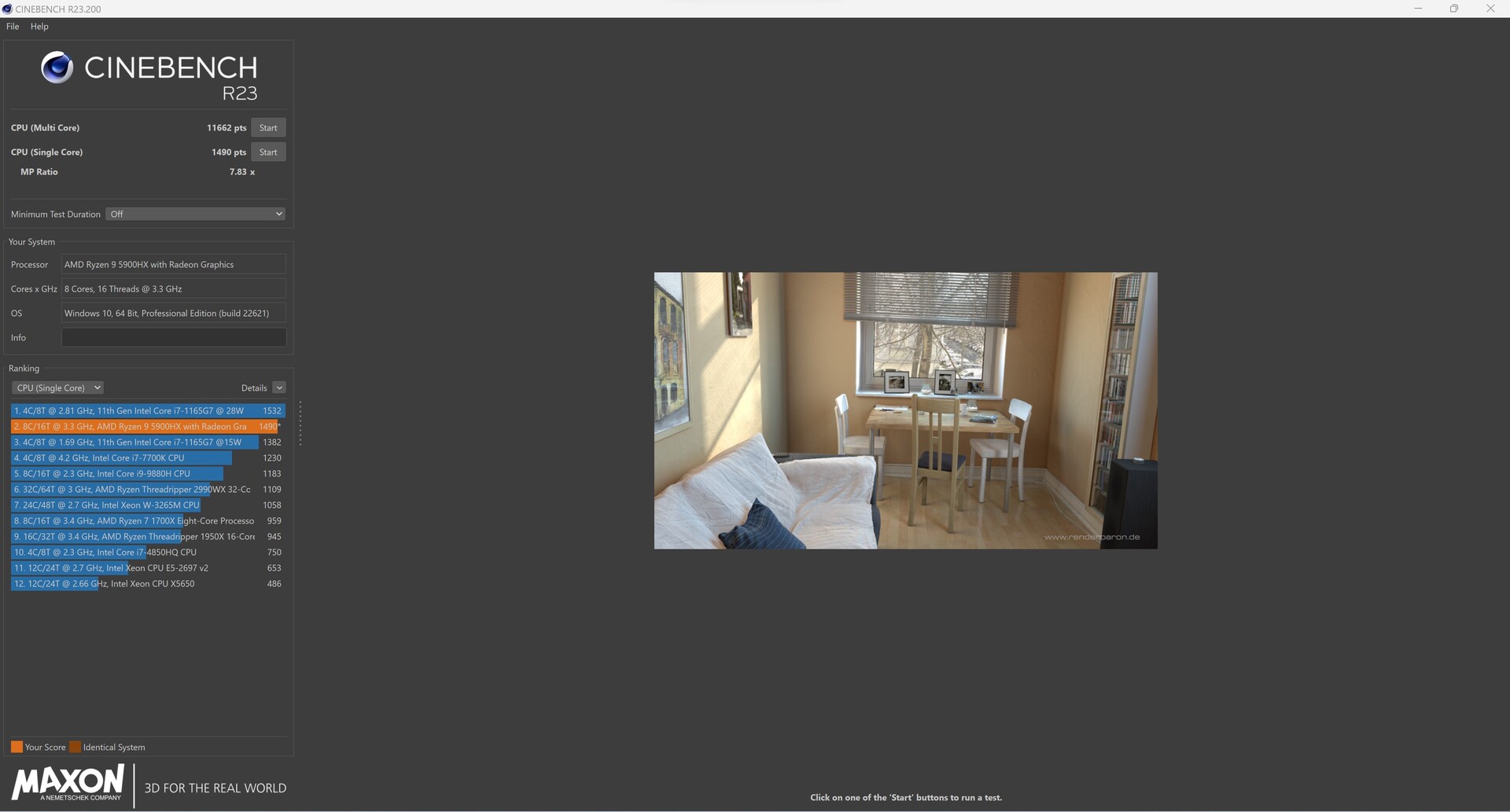

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1490 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -5%
Multi Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	11662 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -24%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points -27%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	2.84 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -4%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	22.78 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -25%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +21%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12025 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -3%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	66904 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -19%

Blender - v2.79 BMW27 CPU
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -60%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	260 Seconds *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +11%

wPrime 2.10
32m
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * -31%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * -2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	3.58 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +4%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -297%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -168%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -130%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -83%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * -42%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	103.299 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * -0%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +14%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	274 (272^min - 279^max) fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -23%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	112.45 (112.3^min - 114.9^max) fps
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -31%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -36%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	6599 KB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -13%

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12.3 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s -15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -30%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s -19%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s -22%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8826 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points -13%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +12%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1574 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -4%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8750 Points
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points +3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1517 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points +2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	6591 Points
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	34237 Points

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points +8%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	16684 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -22%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -30%

7-Zip 18.03
7z b 4
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50673 MIPS
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -26%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	5653 MIPS
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS -3%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	15 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -33%

R Benchmark 2.5 - Overall mean
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	0.506 sec *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +12%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50.1 s *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +24%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	285 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -4%

Mozilla Kraken 1.1 - Total
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	601 ms *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +18%

3DMark
3840x2160 Fire Strike Ultra Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	23977 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -34%
1920x1080 Fire Strike Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	24427 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points -8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -32%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -35%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8653 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -41%

* ... smaller is better

Performance Rating
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	95.5 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93.2 pt
Average of class Mini PC	84.2 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	80.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	76.9 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	75.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	67.9 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	61.7 pt

AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	13746 KRay/s
Average of class Mini PC (646 - 51004, n=119, last 2 years)	12878 KRay/s -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -42%

AIDA64 / FPU Julia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	86566 Points
Average of class Mini PC (3857 - 214250, n=119, last 2 years)	64921 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -31%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -36%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -36%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -37%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -54%

AIDA64 / CPU SHA3
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	2980 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s -2%
Average of class Mini PC (260 - 9399, n=119, last 2 years)	2856 MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s -21%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -33%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -33%

AIDA64 / CPU Queen
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	100712 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points -18%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	80187 Points -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -25%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -27%

AIDA64 / FPU SinJulia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	12082 Points
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8812 Points -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -40%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -54%

AIDA64 / FPU Mandel
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47652 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points -6%
Average of class Mini PC (1987 - 113499, n=119, last 2 years)	33863 Points -29%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -41%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -42%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -44%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -58%

AIDA64 / CPU AES
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	117773 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -21%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	88382 MB/s -25%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -52%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -66%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +8%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	750 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -1%
Average of class Mini PC (74.9 - 2039, n=119, last 2 years)	740 MB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s -10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -23%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -29%

AIDA64 / FP64 Ray-Trace
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	7289 KRay/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s 0%
Average of class Mini PC (350 - 26952, n=119, last 2 years)	6881 KRay/s -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -43%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +51%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +47%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	28301 MPixel/s +43%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +42%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +39%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s +23%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	19749 MPixel/s

Geekom AS 5 vs. Cinebench R15-Multi-Loop

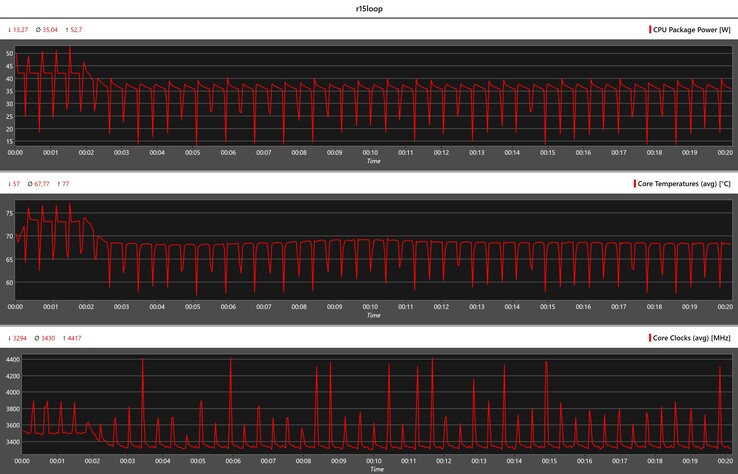

Com o loop contínuo do Cinebench R15, avaliamos o comportamento do SoC sob carga, durante um longo período de tempo. O Geekom AS 5 lidou relativamente bem com as 50 execuções, embora tenhamos registrado uma ligeira queda no desempenho após a 20ª execução.

Métricas da CPU durante o loop do Cinebench R15

Geekom AS 5 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1896 (1822.41-1994.52)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Desempenho do sistema

Os benchmarks sintéticos de desempenho do sistema são sólidos. No PCMark 10, nosso Geekom AS 5 obteve um excelente resultado, ficando em segundo lugar. No entanto, a tendência observada no Crossmark e nos benchmarks de RAM não se manteve. Nessa área, nosso modelo de análise chegou a cair para o último lugar, já que os sistemas baseados em Intel são um pouco mais adequados para o teste Crossmark. O Geekom AS 5 tem dificuldades para acompanhar os sistemas DDR5 quando se trata de benchmarks de RAM, pois só possui DDR4. Apesar disso, podemos afirmar com segurança que nada disso será sentido no uso diário.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +3%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	6430 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points -2%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -4%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -12%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +8%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +5%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10702 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -3%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -5%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -8%

PCMark 10 / Productivity
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10120 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -11%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -19%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -22%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -24%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -27%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +35%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +34%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points +29%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +24%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points +8%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +8%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1402 Points

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +98%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +94%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +62%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points +48%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points +16%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +16%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1068 Points

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +27%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +17%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +16%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +13%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points +6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +6%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1553 Points

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +39%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +35%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points +25%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +25%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points +7%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +7%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1387 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +21%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	48357 MB/s +17%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +8%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +8%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	41434 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -15%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +5%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	49177 MB/s +4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +1%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47137 MB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -19%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +28%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +27%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52856 MB/s +23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +9%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s +7%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	43042 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -13%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -22%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -17%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	92.1 ns * -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -16%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -2%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	78.9 ns *

* ... smaller is better

Latências de DPC

Inicialmente, a interação dos componentes integrados foi boa e não foi responsável por nenhuma latência alta na reprodução de nosso vídeo de teste em 4K. Com relação à iGPU, observamos uma carga relativamente baixa de apenas 10%. As latências só aumentaram após o lançamento do Prime95, mas, apesar disso, nosso dispositivo de análise ainda conseguiu garantir o segundo lugar entre seus pares.

Latência máxima ao abrir várias guias do navegador e reproduzir material de vídeo 4K

Latência máxima após dez segundos de Prime95

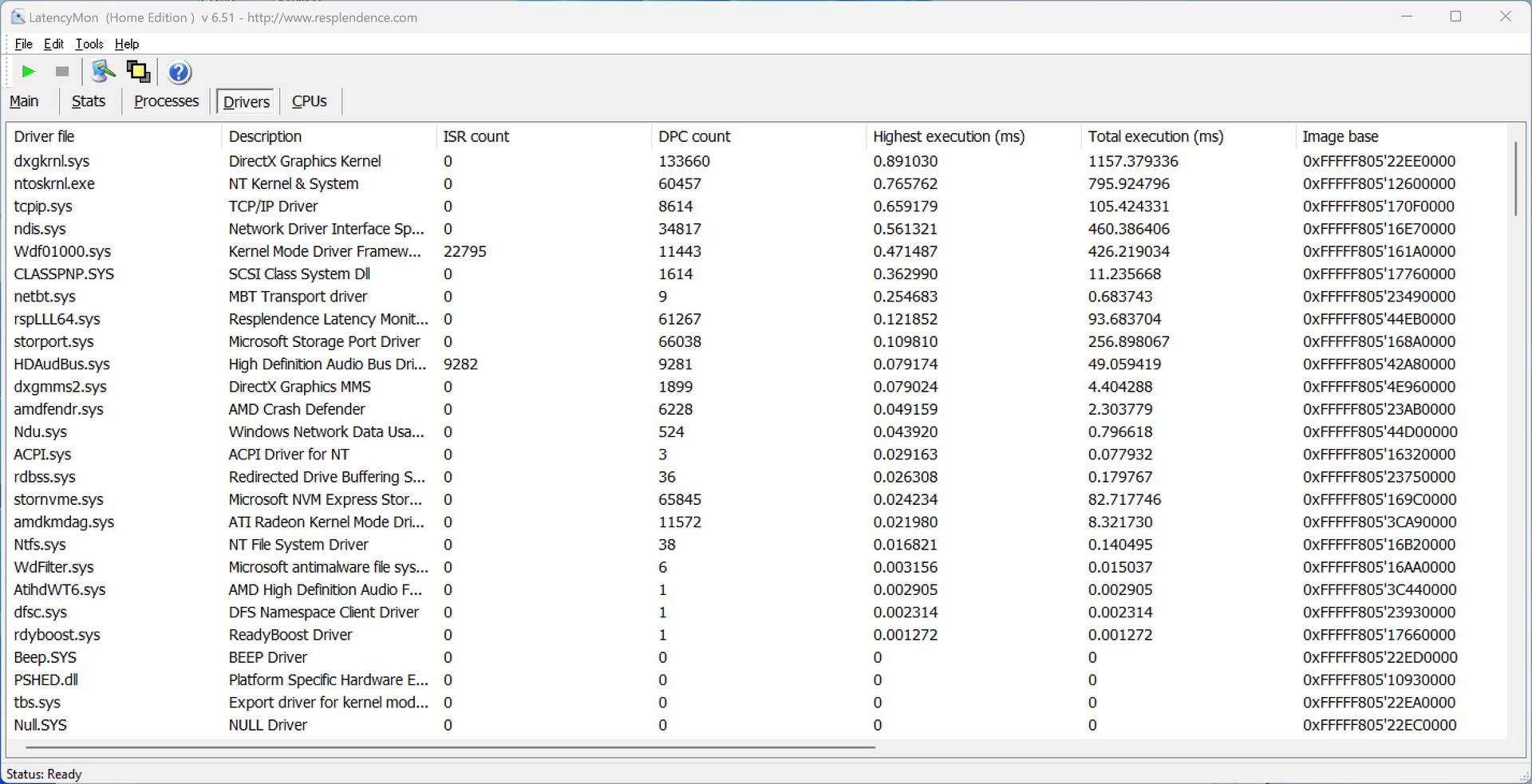

Motoristas listados de acordo com o período mais longo de uso

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -25%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -22%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -11%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	891 μs *
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +11%

* ... smaller is better

Armazenamento em massa

A Geekom equipou o AS 5 com um SSD NVMe de 1024 GB da Kingston. O modelo instalado usa a interface NVMe e deve fornecer as taxas de transferência correspondentes. Em termos de velocidade de leitura, observamos um desempenho sólido, embora as velocidades de gravação tenham sido péssimas. Para descartar a possibilidade de esse ser um problema com o Geekom AS 5, também testamos o Kingston NV2 em outro minicomputador. Entretanto, o desempenho não foi significativamente melhor. Como comparação, também equipamos o Geekom AS 5 com nosso Kingston KC3000. Isso resultou em taxas de transferência consideravelmente melhores e deixou claro que o problema não está em nosso dispositivo de análise, mas no Kingston NV2.

No teste, os problemas do nosso modelo de análise fizeram com que ele tivesse que se contentar com o último lugar. Além disso, também houve quedas contínuas no desempenho no teste de estresse. Embora as superfícies metálicas internas sejam usadas para resfriamento, a perda de desempenho associada a acessos de leitura contínuos não pode ser evitada.

Enquanto isso, o Geekom AS 5 pode abrigar até três unidades de armazenamento. Duas delas usam a interface M.2 e uma unidade adicional de formato de 2,5 polegadas também pode ser instalada.

Para outras comparações e benchmarks, dê uma olhada na nossa tabela de comparação.

Observação:

Nossos colegas americanos também receberam um Geekom AS 5 ao mesmo tempo que nós. Rapidamente, pudemos fazer uma comparação com um dispositivo que compartilhava a mesma estrutura. E eis que suas taxas de transferência registradas são de um padrão muito melhor.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV2 1000GB SNV2S/1000G

Sequential Read: 2390 MB/s

Sequential Write: 304.7 MB/s

512K Read: 1558 MB/s

512K Write: 302.2 MB/s

4K Read: 30.79 MB/s

4K Write: 147.3 MB/s

4K QD32 Read: 562.3 MB/s

4K QD32 Write: 273.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	84.5 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	71.2 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	71.1 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.9 pt
Average of class Mini PC	54.8 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	39 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.7 pt
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	22 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +74%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +45%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +39%
Average of class Mini PC (277 - 4357, n=119, last 2 years)	2333 MB/s +21%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1935 (1920.15^min - 1935.25^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -11%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -25%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -39%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +1077%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +1030%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +1016%
Average of class Mini PC (229 - 5595, n=119, last 2 years)	2509 MB/s +734%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s +408%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s +300%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s +257%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.06^min - 301.12^max) MB/s
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +184%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +103%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +103%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3790 MB/s +60%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +7%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2366 (1354.13^min - 2365.71^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -16%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -28%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +1076%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +1030%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +840%
Average of class Mini PC (239 - 6669, n=119, last 2 years)	2810 MB/s +834%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s +431%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s +303%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s +260%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.44^min - 301.12^max) MB/s
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +170%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +167%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +81%
Average of class Mini PC (6.85 - 86.6, n=119, last 2 years)	55.3 MB/s +80%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s +69%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +58%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s +31%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	30.7 (30.15^min - 30.74^max) MB/s
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +217%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +213%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +106%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +71%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +64%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	196.9 MB/s +47%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s +33%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	134 (102.93^min - 134.02^max) MB/s
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +155%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +155%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1411 MB/s +85%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +61%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	761 (756^min - 761.3^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -45%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -53%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +1106%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +753%
Average of class Mini PC (32.6 - 4288, n=119, last 2 years)	1332 MB/s +374%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +235%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +218%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +123%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +94%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	281 (203.56^min - 280.69^max) MB/s

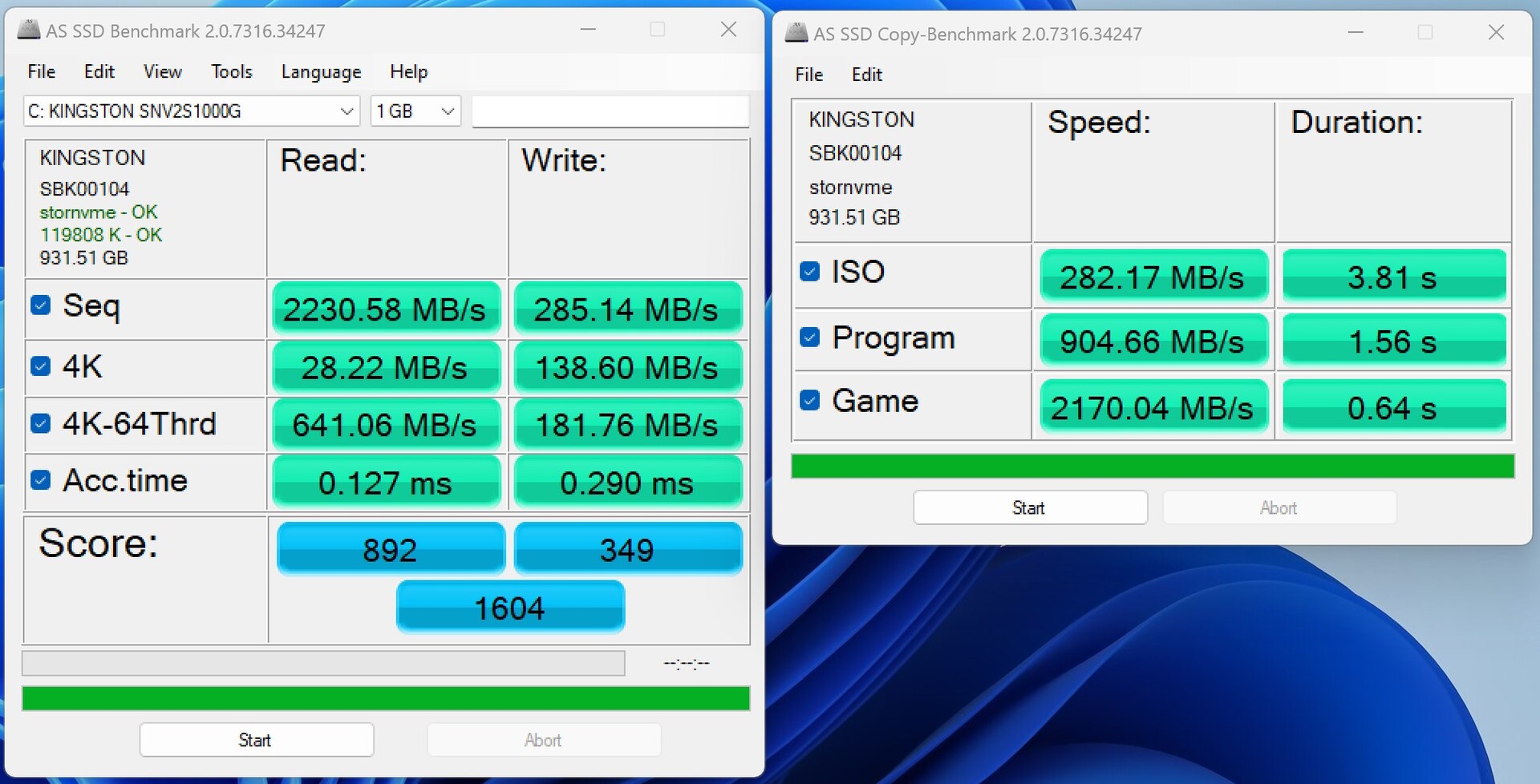

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +463%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +345%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +274%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +196%
Average of class Mini PC (211 - 10021, n=117, last 2 years)	4244 Points +165%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points +55%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1604 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -53%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +308%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +168%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +164%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +88%
Average of class Mini PC (76 - 3741, n=117, last 2 years)	1578 Points +77%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	892 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -19%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -26%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +936%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +924%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +914%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1902 Points +445%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +317%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points +275%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points +101%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	349 Points
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +139%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +114%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +86%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +74%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3231 MB/s +45%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +25%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2231 MB/s
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +1278%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +1055%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +757%
Average of class Mini PC (242 - 5783, n=117, last 2 years)	2292 MB/s +704%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s +332%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s +210%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s +84%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	285 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +268%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +265%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +178%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +136%
Average of class Mini PC (21.4 - 104.3, n=117, last 2 years)	59.7 MB/s +112%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +90%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s +73%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	28.2 MB/s
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +164%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +156%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +97%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +51%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +51%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +34%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	177.5 MB/s +28%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	138.6 MB/s
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +373%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +192%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +191%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1195 MB/s +86%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +74%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	641 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -38%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -50%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +1616%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +1557%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +1464%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1495 MB/s +722%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +483%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s +376%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s +154%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	181.8 MB/s
Access Time Read
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.127 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * +8%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +23%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09579 ms * +25%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +42%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +48%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +53%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +65%
Access Time Write
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.29 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * +59%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1133 ms * +61%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * +62%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +89%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +92%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +93%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +94%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Geekom AS 5: Ø2244 (336.8-2451.44)

Placa de vídeo

Com a AMD Radeon RX Vega 8, o SoC vem com uma iGPU que nos acompanha há muitos anos. Infelizmente, isso também pode ser observado nesse meio tempo, pois, nos benchmarks, a iGPU já antiga é visivelmente inferior à sua sucessora. No entanto, ele ainda pode competir bem com um Intel Iris Xe Graphics G7. Isso significa que o Geekom AS 5 é capaz de garantir uma colocação no meio da tabela devido aos muitos sistemas Intel aqui em nossa comparação.

Infelizmente, o Geekom AS 5 não tem a opção Thunderbolt, o que significa que o dispositivo não pode ser conectado a uma GPU externa para acelerar o desempenho 3D.

Outras comparações e benchmarks podem ser encontrados em nossoG Tabela de comparação de PU.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	74 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.2 pt
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	65.6 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	64.3 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	63.7 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	54.9 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +54%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7166 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points 0%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -2%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -8%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -21%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -24%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +30%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	31638 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points -4%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -13%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -29%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -32%
1920x1080 Fire Strike Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +50%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +18%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +10%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +5%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4419 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points -7%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +68%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +17%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +16%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +7%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points 0%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1430 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -15%
Fire Strike Extreme Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +66%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +33%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points +27%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +17%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +17%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +1%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1844 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	100 pt
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	69.8 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	68.9 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	64 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	62 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	54 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps +5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	22.4 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -12%
Extreme Preset DX11
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps +14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	21.5 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps -5%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +49%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps +7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.1 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps -9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -23%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps +23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +5%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.4 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -19%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +39%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	4178 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points -14%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -40%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +15%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	276 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -15%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -22%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +39%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points +5%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	264 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -6%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -17%
1024x600 Normal, Mandel Vector
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1295 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points -28%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points -30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -34%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -36%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -63%
1024x600 Normal, Mandel Scalar
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +31%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1126 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -26%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -32%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1217 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -2%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points -4%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -32%

Unigine Superposition
1280x720 720p Low
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	9915 Points +28%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	7731 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5662 Points -27%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	5162 Points -33%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5141 Points -34%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4088 Points -47%
1920x1080 1080p High
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points +51%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points +7%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1935 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1923 Points -1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points -7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	1659 Points -14%
1920x1080 1080p Extreme
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points +55%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points +22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	992 Points +13%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	875 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points -8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	796 Points -9%

3DMark 06 Standard Score		29311 pontos
3DMark Vantage P Result		23140 pontos
3DMark 11 Performance		7473 pontos
3DMark Ice Storm Standard Score		132906 pontos
3DMark Cloud Gate Standard Score		27070 pontos
3DMark Fire Strike Score		4015 pontos
3DMark Fire Strike Extreme Score		1825 pontos
3DMark Time Spy Score		1634 pontos
Ajuda

... comparado com

Desempenho em jogos

A iGPU integrada não pode mais ser recomendada como uma solução para jogos. Com sua AMD Radeon RX Vegao Geekom AS 5 só consegue gerenciar taxas de quadros jogáveis em títulos mais antigos e, muitas vezes, em baixa resolução e detalhes esparsos. Baseado noAMD Ryzen 9 6900HXo Morefine M600oferece uma iGPU muito mais potente, o que nos faz esperar que os sucessores da Geekom sejam mais competitivos.

Qualquer pessoa que esteja em busca de um desempenho tangivelmente melhor em jogos deve dar uma olhada no Minisforum HX99G e no NUCXi7. Ambos os modelos do Minisforum mencionados acima são equipados com uma placa de vídeo dedicada e, em testes, apresentam bom desempenho em jogos.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	84.7 fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps -5%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps -9%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +52%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +24%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +12%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25.9 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps -13%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +25%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	72.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -29%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps -32%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps -37%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +35%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	17.9 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -24%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps -32%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	141.6 (8.77^min, 90.9^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps -8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -16%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +62%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	33.1 (15.2^min, 23.8^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -37%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -44%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps -44%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +23%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	61 (56^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -18%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -25%
1920x1080 High Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +31%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	26 (23^min) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps -15%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +25%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps +9%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	53 (40^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps -2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -13%
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +48%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps +16%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps 0%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25 (20^min) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps -8%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	135 (114.8^min) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps 0%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -20%
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	62.8 (54.9^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps -8%

	baixo	média	alto	ultra
GTA V (2015)	141.6	129.5	33.1	14.5
The Witcher 3 (2015)	84.7		25.9	17.3
Dota 2 Reborn (2015)	135	106.6	62.8	59.1
Final Fantasy XV Benchmark (2018)	44.4	22.2	16
X-Plane 11.11 (2018)	53.2	40.3	34.5
Far Cry 5 (2018)	61	28	26	25
Strange Brigade (2018)	97.8	37.9	32.1	27.3
Shadow of the Tomb Raider (2018)	69.2	25	23	19.9
Far Cry New Dawn (2019)	53	27	25	24
Metro Exodus (2019)	48.4	19.8	15.3	12.5
Borderlands 3 (2019)	72.5	28.3	17.9	13.9
F1 2020 (2020)	113.3	50.3	39.3	27.5
F1 2021 (2021)	118.5	50.1	38.1	25.9
GRID Legends (2022)	64	47.6	36.9	28
Tiny Tina's Wonderlands (2022)	38.4	28.8	18	13.1
F1 22 (2022)	46.7	41.2	31.2	22.1

Emissões - Bom, mas não um resfriamento perfeito

Emissões de ruído

Em uso inativo, o potente SoC ainda pode ser resfriado sem uma cacofonia de ruídos. Por outro lado, sob carga, notamos que o Geekom AS 5 sofre um aumento significativo no ruído da ventoinha. Com um máximo de 47,1 dB(A), nossa amostra de teste funciona mais alto do que a maioria dos outros mini-PCs nas comparações atuais. Com 50,9 dB(A), só registramos níveis de ruído mais altos noAce Magician AMR5

Barulho

Ocioso		30.8 / 30.8 / 30.8 dB
Carga		47 / 47.1 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30 dB(A)

	Geekom AS 5 R9 5900HX, Vega 8	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7
Noise		7%	7%	5%	12%	12%	-6%
off / environment *	30	30.4 -1%	30.5 -2%	29.8 1%	29.8 1%	30.2 -1%	30.5 -2%
Idle Minimum *	30.8	30.9 -0%	31.6 -3%	30.2 2%	29.9 3%	30.5 1%	31.5 -2%
Idle Average *	30.8	31.5 -2%	31.6 -3%	31.1 -1%	30.1 2%	30.5 1%	32.6 -6%
Idle Maximum *	30.8	31.5 -2%	31.6 -3%	31.9 -4%	30.2 2%	30.5 1%	33.8 -10%
Load Average *	47	37.5 20%	33.9 28%	40 15%	32.1 32%	30.5 35%	49.3 -5%
Load Maximum *	47.1	34.1 28%	34.4 27%	40.5 14%	32.5 31%	30.5 35%	50.9 -8%

* ... smaller is better

Temperatura

Em marcha lenta, o gabinete do Geekom AS 5 esquenta um pouco. Isso significa que não há acúmulo real de calor, pois o ar quente segue o caminho mais curto possível e é direcionado para a parte traseira do dispositivo antes de ser expelido.

No teste de estresse Prime95, o AMD Ryzen 9 5900HX só conseguiu atingir 77,8 °C, o que significa que o SoC ainda tem muito espaço para respirar antes de atingir seus limites térmicos. Ao colocar a CPU e a iGPU sob carga simultaneamente, observamos temperaturas apenas marginalmente baixas porque ambos os componentes precisam compartilhar o TDP combinado de até 54 watts.

Geekom AS 5 vs. teste de estresse (frente)

Geekom AS 5 vs. teste de estresse (traseira)

Consumo de energia

Quando se trata de requisitos de energia, o Geekom AS 5 tem uma pontuação muito boa. Em uso inativo, medimos cerca de 8,6 a 9,6 watts, embora o consumo médio sob carga tenha ficado em torno de 60 watts. O máximo que medimos foi de 84 watts, o que significa que a PSU de 120 watts não tem dificuldades e também tem muitas reservas para dois dispositivos adicionais de armazenamento em massa.

Consumo de energia

desligado	0.1 / 1.1 Watt
Ocioso	8.6 / 9.3 / 9.6 Watt
Carga	59.8 / 83.7 Watt


Key: min: , med: , max: Metrahit Energy

	Geekom AS 5 R9 5900HX, Vega 8	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Average of class Mini PC
Power Consumption		15%	-25%	6%	-19%	-45%	6%	23%	-24%
Idle Minimum *	8.6	5 42%	10.4 -21%	5.1 41%	9.9 -15%	12.1 -41%	8 7%	5.26 ?(3 - 12.5, n=46) 39%	9.69 ?(1.9 - 45.7, n=121, last 2 years) -13%
Idle Average *	9.3	7 25%	12.3 -32%	5.8 38%	11 -18%	13 -40%	8.7 6%	7.78 ?(4.1 - 12.8, n=46) 16%	11.9 ?(1.9 - 47.5, n=119, last 2 years) -28%
Idle Maximum *	9.6	10.7 -11%	12.4 -29%	10.2 -6%	11.2 -17%	18.2 -90%	8.8 8%	9.18 ?(4.6 - 15.7, n=46) 4%	15.2 ?(2.6 - 57.1, n=121, last 2 years) -58%
Load Average *	59.8	50.3 16%	72.9 -22%	68.1 -14%	74.2 -24%	70.6 -18%	54.6 9%	44.9 ?(28.2 - 98.9, n=46) 25%	59 ?(11.3 - 170.6, n=121, last 2 years) 1%
Load Maximum *	83.7	82 2%	101.2 -21%	108.3 -29%	103.2 -23%	113 -35%	83.2 1%	59.4 ?(29.5 - 101.8, n=46) 29%	100.5 ?(18.1 - 423, n=121, last 2 years) -20%

* ... smaller is better

Power consumption with an external monitor

Geekom AS 5; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.2-84.5)

Geekom AS 5; Cinebench R15 Multi (external Monitor): Ø64.8 (59.2-81)

Geekom AS 5; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø55.2 (52.2-72.6)

Geekom AS 5; 1920x1080 The Witcher 3 ultra (external Monitor): Ø54 (51.4-73.9)

Geekom AS 5; Idle 1min (external Monitor): Ø9.67 (6-17.3)

Geekom AS 5; Cinebench R23 Multi (external Monitor): Ø60.7 (59-80.8)

Geekom AS 5; Cinebench R23 Single (external Monitor): Ø33.1 (31.1-71.6)

Pro

+ gabinete compacto e estável

+ aMD Ryzen 9 5900HX rápido

+ baixas latências de DPC

+ bom desempenho de Wi-Fi

+ possibilidade de instalação de três dispositivos de armazenamento em massa

+ muitas portas USB

+ suporte a quatro monitores

+ 32 GB de RAM

+ fácil de abrir

+ sSD DE 1 TB

Contra

- claramente audível sob carga

- sem Thunderbolt

- desempenho ruim do SSD (velocidades de leitura)

Veredicto - Poderoso, mas com pontos fracos

Geekom AS 5 revisado - fornecido pela Geekom

O Geekom AS 5 é, sem dúvida, um minicomputador pequeno, se não o menor, muito potente e que tem muito a oferecer. A base fornecida pelo processadorAMD Ryzen 9 5900HX é uma boa escolha e é suficiente para o uso diário no escritório. Você pode exigir ainda mais do minicomputador, pois, com 32 GB de RAM e um SSD de 1 TB, poucos recursos foram cortados.

Considerando o tamanho compacto do dispositivo, a seleção de portas é muito generosa. O Geekom AS 5 traz muitas interfaces USB para o passeio. Mesmo as configurações de vários monitores não são problema, pois é possível conectar até quatro monitores. Em termos de desempenho de Wi-Fi, o dispositivo só é superior à concorrência quando se trata das bandas de 6 GHz neste teste. Se você optar por usar as frequências de Wi-Fi de 5 GHz, espere estar em pé de igualdade com a concorrência. Até este ponto, o Geekom AS 5 realmente não dá um passo em falso. A única coisa que você tem que engolir é a falta do Thunderbolt.

O Geekom AS 5 é um bom minicomputador com um veloz AMD Ryzen 9 5900HX. Entretanto, sem o Thunderbolt, ele não está totalmente preparado para o futuro.

Não vemos a cooperação com a Asus de forma crítica, mas sim como uma vantagem. Por US$ 609, nossa configuração de análise Geekom tem um preço perfeito e é mais barata do que o PC da Asus. A escolha da SSD é digna de crítica, pois não atendeu às demandas esperadas de uma SSD NVMe em nossos benchmarks. Um ponto adicional de crítica é o nível de ruído sob carga. O dispositivo só é realmente silencioso em uso inativo ou sob carga leve. Devido às temperaturas registradas em nosso teste de estresse, a Geekom poderia ter ajustado a curva da ventoinha um pouco melhor. Isso significa que cabe ao usuário confiar em suas próprias habilidades. Felizmente, o BIOS oferece diversas opções para neutralizar esse problema.

Preço e disponibilidade

O Geekom AS 5 custa atualmente US$ 609 e pode ser adquirido diretamente do fabricante https://www.geekompc.com/geekom-as-5-mini-pc/.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Geekom AS 5 - 06/04/2023 v7 ^(old)
Sebastian Bade

Acabamento

84 / 98 → 85%

Conectividade

63 / 81 → 77%

Peso

79%

Desempenho do jogos

69%

Desempenho da aplicação

92%

Workstation

61%

Ruído

73%

Médio

74%

80%

Mini PC - Médio equilibrado

Possíveis concorrentes em comparação

O Geekom AS 5 em detalhes

Caso

Comparação de tamanho

Recursos

Comunicação

Acessórios

Manutenção

Desempenho - Um AMD Ryzen 9 5900HX no centro da questão

Condições de teste

Processador

Geekom AS 5 vs. Cinebench R15-Multi-Loop

Desempenho do sistema

Latências de DPC

Armazenamento em massa

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Placa de vídeo

Desempenho em jogos

Emissões - Bom, mas não um resfriamento perfeito

Emissões de ruído

Temperatura

Consumo de energia

Power consumption with an external monitor

Pro

Contra

Veredicto - Poderoso, mas com pontos fracos

Preço e disponibilidade

Transparency

More articles related to this device
