Name: Intel NUC 13 Pro Kit NUC13ANK
Brand: Intel

O Kit Intel NUC 13 Pro é um mini-PC muito compacto que proporciona excelente conectividade. A empresa oferece dois modelos sob o nome de código "Arena Canyon": uma variante delgada e uma variante alta. O modelo fisicamente mais alto (com "Tall" em seu nome) pode abrigar um drive adicional de 2,5 polegadas em seu chassi. Nossa unidade de revisão é a variante esbelta, que só pode conter até dois dispositivos de armazenamento e é aproximadamente 100 euros (US$109) mais barata.

Com a nova linha Arena Canyon, a Intel está em grande parte apenas fazendo uma atualização do produto, atualizando sua linha NUC com as mais recentes CPUs Raptor Lake-P. O mini-PC da NUC nesta revisão apresenta um Intel Core i7-1360Puma CPU extremamente poderosa com 12 núcleos e 16 roscas. Nossa unidade de revisão já vem com 32 GB de RAM DDR4, mas você pode atualizá-la para 64 GB. Este modelo também vem com um SSD de 512 GB, assim como o Windows 11 Professional, a última versão do sistema operacional no momento desta revisão.

Caso

O Arena Canyon NUC parece muito parecido com seu homólogo de Wall Street Canyon. A variante mais fina que estamos analisando é bastante fina, com 37 mm (1,46") e ocupa 11,7 x 11,2 cm (4,6 x 4,4") de espaço de escrivaninha. Se isto soa familiar, é porque o Kit Intel NUC 12 Pro tem exatamente as mesmas dimensões físicas. Os mini-PCs Intel NUC são consideravelmente mais compactos do que alguns dos outros dispositivos em nossa comparação.

O dispositivo tem uma aparência bastante despretensiosa, e você também terá que aturar sua construção plástica. No entanto, há uma estrutura metálica robusta dentro do Kit Intel NUC 13 Pro que aumenta significativamente a robustez geral da unidade. Dito isto, esperamos que a Intel mude para o uso de um chassi totalmente de metal no futuro. Uma outra coisa a mencionar é que você pode fixar o Kit Intel NUC 13 Pro na parte de trás de um monitor usando o suporte VESA incluído.

Comparação de tamanho

Minisforum Neptune Series NAD9 Minipc Union Ace Magician AMR5 Minipc Union Ace Magician TK11-A0 Morefine M600, 6900HX Minisforum Mars Series MC560 Intel NUC 13 Pro Kit NUC13ANK Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

Especificações

Como mencionado anteriormente, o Kit Intel NUC 13 Pro compartilha o mesmo design e dimensões de seu predecessor. O mesmo também se aplica à seleção do porto. Há mais uma vez uma infinidade de portas USB, incluindo duas portas Thunderbolt. O dispositivo pode ser conectado a monitores via HDMI ou Thunderbolt e também vem com uma porta de rede 2,5G.

Frente: 2x USB 3.2, conector de áudio de 3,5 mm

Voltar: Porta de alimentação, 2x USB 4 (Tipo C), 1x USB 3.2, 1x USB 2.0, 2.5G LAN, 2x HDMI 2.1

Conectividade

A Intel equipou o Kit NUC 13 Pro com o mesmo módulo Wi-Fi 6E AX211 encontrado no Kit NUC 12 Pro. Em nossos testes, vimos excelentes e estáveis taxas de transferência de dados quando o dispositivo foi conectado a uma rede de 6GHz. Nossas medições mostram que o dispositivo oferece baixas velocidades de transferência se você só tiver acesso a uma conexão de 5GHz por razões técnicas. Dito isto, as velocidades que medimos ainda são muito estáveis e boas o suficiente para o uso diário. Este teste Wi-Fi foi realizado com nosso roteador de referência, o ASUS ROG Rapture GT-AXE11000.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s -8%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=211)	1493 MBit/s -10%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -17%
Minisforum Mars Series MC560 MediaTek RZ608	961 (949^min - 968^max) MBit/s -42%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s -46%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -77%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=212)	1372 MBit/s -5%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -8%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s -36%
Minisforum Mars Series MC560 MediaTek RZ608	849 (799^min - 898^max) MBit/s -41%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -48%
iperf3 receive AXE11000
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=238)	1379 MBit/s +47%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +40%
Minisforum Mars Series MC560 MediaTek RZ608	949 (924^min - 954^max) MBit/s +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s -1%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s -1%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s -4%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -58%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +58%
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=238)	1233 MBit/s +48%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +16%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +16%
Minisforum Mars Series MC560 MediaTek RZ608	936 (873^min - 988^max) MBit/s +12%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -11%

Intel NUC 13 Pro Kit NUC13ANK; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1420 (736-1476)

Intel NUC 13 Pro Kit NUC13ANK; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1668 (1467-1725)

Intel NUC 13 Pro Kit NUC13ANK; iperf3 receive AXE11000; iperf 3.1.3: Ø939 (921-952)

Intel NUC 13 Pro Kit NUC13ANK; iperf3 transmit AXE11000; iperf 3.1.3: Ø833 (805-866)

Acessórios

Dentro da caixa, você encontrará uma fonte de alimentação de 120 watts e uma placa de montagem VESA ao lado do próprio mini-PC.

Manutenção

O Kit Intel NUC 13 Pro é relativamente fácil de abrir. A tampa inferior, que também ajuda a dissipar o calor do SSD, é mantida no lugar por quatro parafusos. A remoção da tampa inferior lhe dará acesso muito conveniente aos slots de RAM e SSD por baixo.

Kit Intel NUC 13 Pro - Arena Canyon com a tampa inferior removida

Desempenho - Core i7 com 12 núcleos e 16 roscas

A julgar peloNúcleo i7-1360Pesperamos que o Kit NUC 13 Pro tenha um desempenho semelhante a um Kit NUC 12 Pro com um Núcleo i7-1260P. Com 12 núcleos e 16 fios à sua disposição, a NUC 13 Pro oferece desempenho suficiente para lidar com todos os tipos de tarefas exigentes.

Condições de teste

Todos os testes relacionados ao desempenho foram realizados em modo de potência "balanceada". Não fizemos nenhuma modificação no desempenho do SoC e o deixamos no modo automático padrão nas configurações da BIOS.

Processador

Embora o Núcleo i7-1360P no NUC 13 Pro Kit é um SoC de última geração, suas melhorias em relação Núcleo i7-1260P são bastante modestos. Essencialmente, o novo relógio base da CPU foi aumentado em 100MHz para 1,6GHz. No entanto, o processador é capaz de aumentar até 5,0GHz, o que corresponde a um ganho de 300MHz. Não há grandes mudanças na arquitetura em termos de seu cache. Conseqüentemente, embora tenhamos visto grandes resultados de referência similares aos do Núcleo i7-1260Pa diferença na classificação de desempenho geral é minúscula, com apenas 3%. O gerenciamento de energia também não mudou em nada; a Núcleo i7-1360P tem uma potência máxima de curto prazo de 64 watts (PL2) e uma potência de longo prazo de 40 watts (PL1) - exatamente como seu predecessor.

O Intel NUC 13 Pro Kit teve um desempenho um pouco melhor que seu predecessor, bem como os outros dispositivos em nossa comparação. Mas também mostra como estes dispositivos concorrentes estão próximos uns dos outros. Um exemplo para ilustrar este ponto seria a comparação com o Minisforum Série Neptune NAD9que apresenta umNúcleo i9-12900H (14 núcleos nativos e 20 fios) e ficou em segundo lugar em nosso ranking de desempenho.

Consulte a nossa tabela de comparação de CPU https://www.notebookcheck.net/Mobile-Processors-Benchmark-List.2436.0.htmlpara mais informações e benchmarks.

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	51.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.4 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.4 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	42.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	223 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -27%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points -7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1356 Points -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -72%

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	535 Points -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -27%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -30%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	3189 Points -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -39%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -71%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -20%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	2.61 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -30%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	15.96 Points -36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -75%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	11132 Points -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -33%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	50831 Points -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -68%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -173%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	426 Seconds * -55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -45%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +16%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -82%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -44%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	4.848 s * -30%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +8%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +44%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	147.807 s * +47%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +63%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps -15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	236 (235^min - 246^max) fps -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -47%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	80.95 (76.3^min - 82.4^max) fps -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -68%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +19%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6858 KB/s +19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -27%

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -31%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	8.3 GB/s -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -58%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s -14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -27%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1.2 GB/s -45%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -66%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -19%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.796 GB/s -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -63%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -13%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points -38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -54%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -23%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -25%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points -37%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -53%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points -12%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -13%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -39%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	13130 Points -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -57%

7-Zip 18.03
7z b 4
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS -11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	40318 MIPS -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -67%
7z b 4 -mmt1
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS -4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5161 MIPS -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -20%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps -7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	10.2 fps -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -63%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -44%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.548 sec * -23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec *

LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	57.5 s * -32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +13%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points -7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	263 Points -14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -23%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -47%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	659 ms * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -31%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms *

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -13%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	16412 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -53%
1920x1080 Fire Strike Physics
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -16%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	17499 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -57%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -42%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5077 Points -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -69%

* ... smaller is better

Performance Rating
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	94.9 pt
Average of class Mini PC	83.5 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	82.3 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	79.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	77.2 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	69.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67.3 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46 pt

AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +25%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -49%

AIDA64 / FPU Julia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +58%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +13%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -57%

AIDA64 / CPU SHA3
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +7%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -40%

AIDA64 / CPU Queen
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points -5%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -10%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -46%

AIDA64 / FPU SinJulia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +71%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +17%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -45%

AIDA64 / FPU Mandel
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +61%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points +19%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -46%

AIDA64 / CPU AES
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s -7%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -43%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s -11%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s -34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -67%

AIDA64 / FP64 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +23%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -49%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s -3%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -33%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s -39%

Kit Intel NUC 13 Pro - Arena Canyon vs. Cinebench R15 Multi loop

O funcionamento do Cinebench R15 em um loop nos deu uma pista inicial sobre a eficácia da solução de resfriamento integrada. Após a terceira corrida, nossa unidade de revisão se estabeleceu em um nível de desempenho relativamente consistente, recebendo uma pontuação média de 1.825 ao longo de 50 corridas. Em comparação, a Kit Intel NUC 12 Pro completou o mesmo teste com uma pontuação final de 1.702. O desempenho de ambos os dispositivos caiu substancialmente após a primeira corrida por causa de sua unidade de resfriamento e seu gerenciamento de energia em conexão com o PL2.

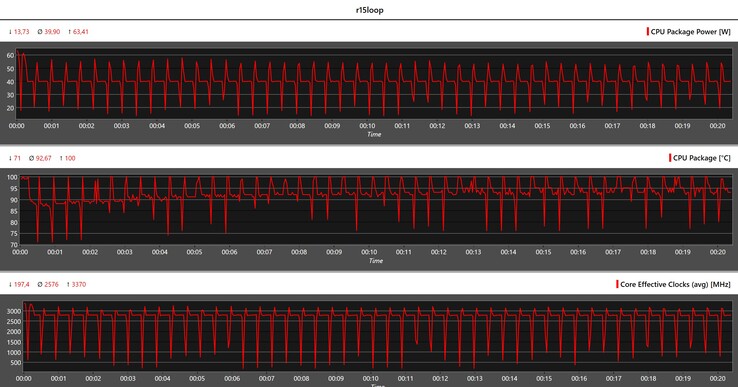

Métricas de CPU durante o loop Cinebench R15

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Desempenho do sistema

Nos benchmarks sintéticos relacionados ao desempenho do sistema, o Kit Intel NUC 13 Pro foi capaz de manter o bom desempenho visto durante os benchmarks de CPU. Dito isto, ele não conseguiu chegar em primeiro lugar em alguns dos testes. O Minisforum Neptuno NAD9 e Morefine M600 alcançaram melhores resultados em alguns casos. Este último tem uma vantagem significativa nos benchmarks AIDA64, graças à sua memória DDR5 mais rápida. No entanto, o Kit Intel NUC 13 Pro ainda é uma peça de hardware muito respeitável que mostrou grande desempenho em nossos testes e é capaz de lidar com tarefas do dia-a-dia.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +6%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points -6%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	5862 Points -7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -28%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points -8%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	10484 Points -10%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -10%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -23%

PCMark 10 / Productivity
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +24%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	9545 Points +21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +21%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -19%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +5%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points -7%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points -16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -24%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1300 Points -28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -31%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +34%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points -6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -20%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points -22%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -22%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1133 Points -28%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points -9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points -9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -30%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1325 Points -33%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -39%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +10%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points -14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -19%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1335 Points -23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -25%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +12%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	38102 MB/s -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -22%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +10%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40126 MB/s -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -15%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +20%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40633 MB/s -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -19%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -4%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	96.2 ns * -0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * +4%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +28%

* ... smaller is better

Latência do DPC

LatencyMon relatou um aumento das latências quando várias abas foram mantidas abertas no Microsoft Edge. Quando o dispositivo estava reproduzindo nosso vídeo demo de 4K, as latências não pioraram e a utilização do iGPU foi ligeiramente superior a 40%.

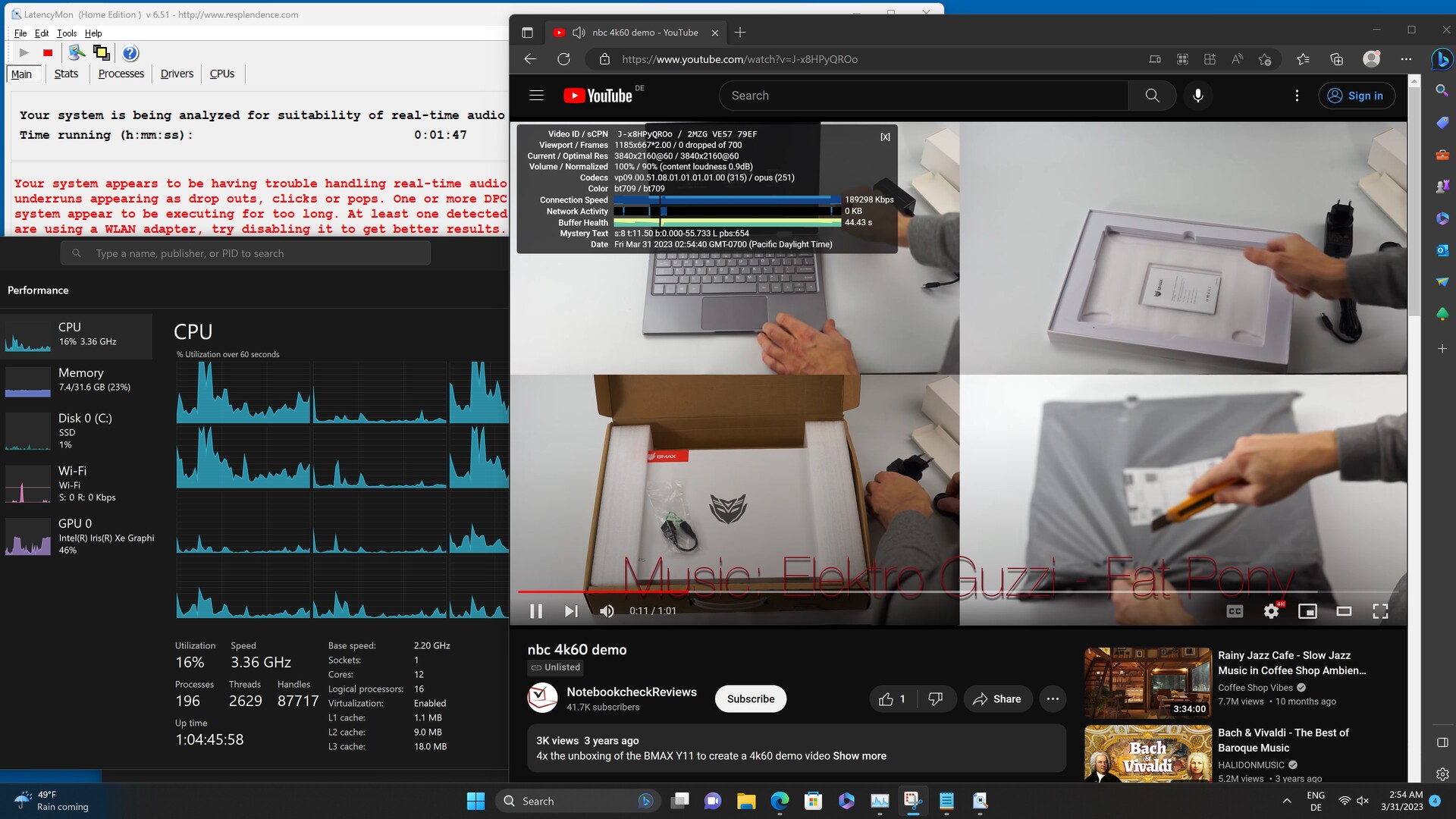

Latência máxima com várias abas do navegador abertas e durante a reprodução do vídeo 4K

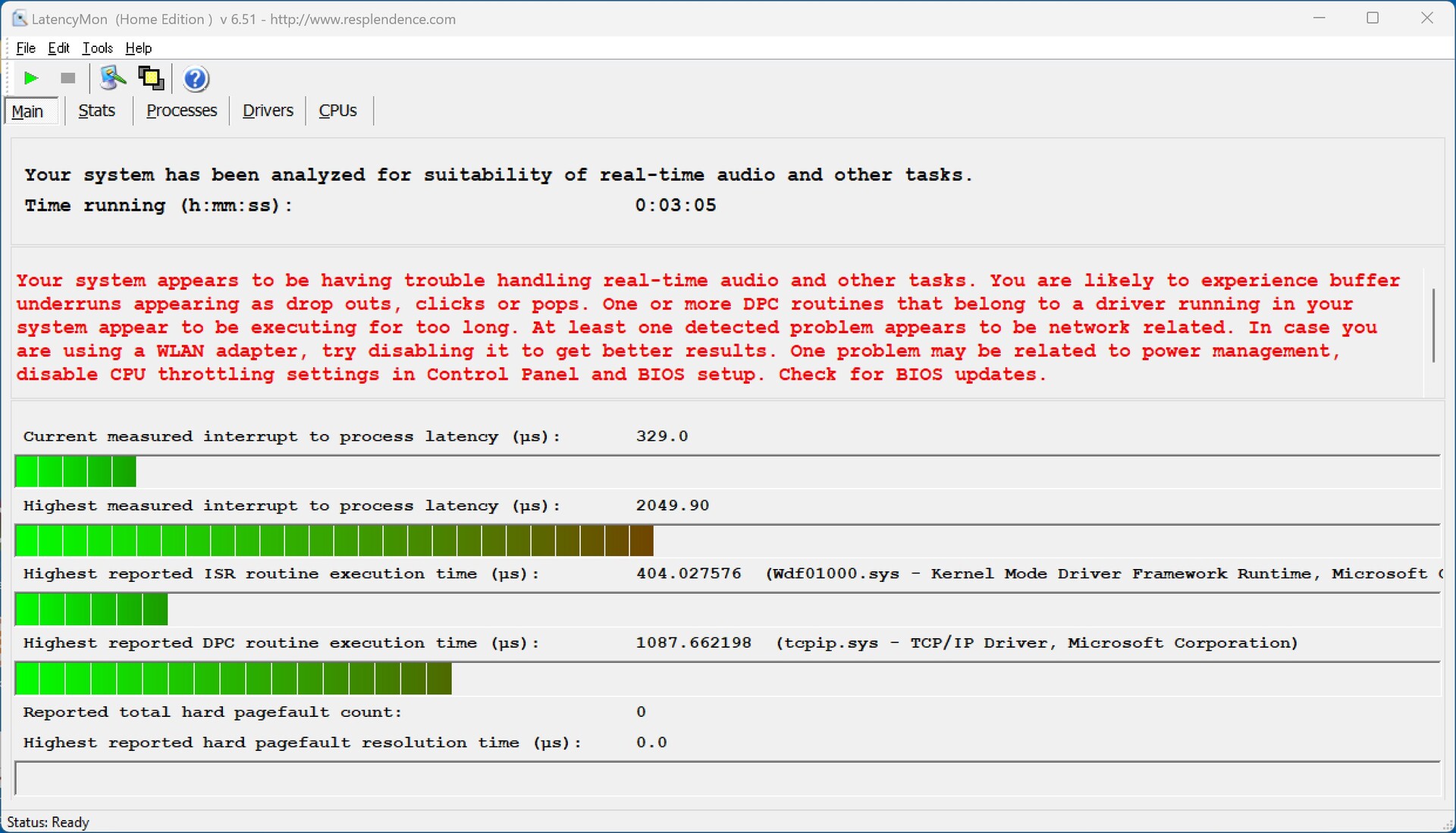

Latência máxima após rodar Prime95 por dez segundos

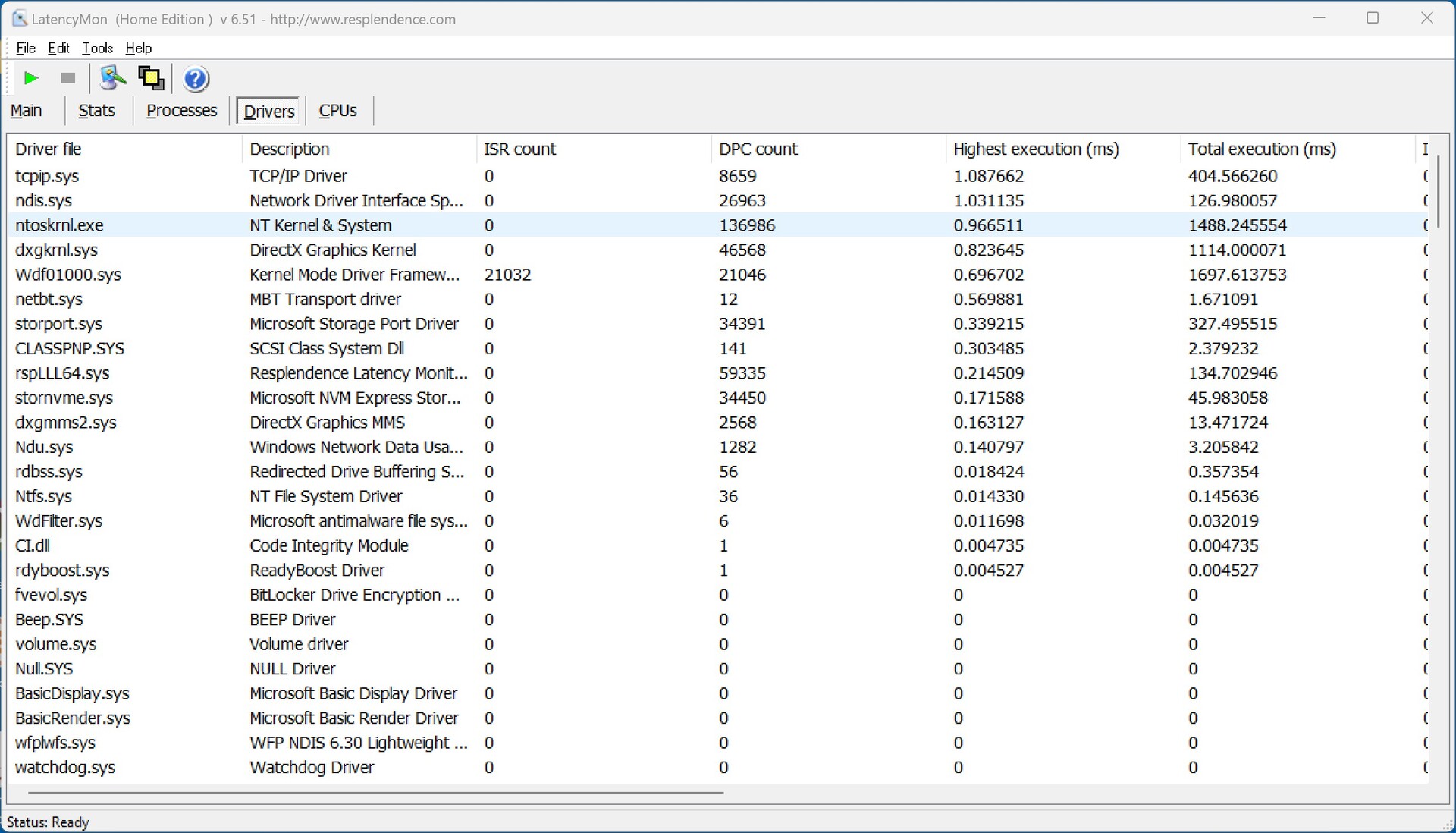

Motoristas ordenados com base no tempo de execução (de alto a baixo)

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	1359.1 μs * -25%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs *
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +28%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +30%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +39%

* ... smaller is better

Armazenamento em massa

Nossa unidade de revisão veio com um SSD NVMe de 512 GB feito pela Samsung. Além desta unidade, a versão mais fina do Kit NUC 13 Pro pode acomodar outro dispositivo de armazenamento. Entretanto, o segundo slot só pode caber em um SSD M.2 com 42 mm de comprimento e está limitado apenas às velocidades SATA.

O SSD da Samsung, incluído em nosso modelo de revisão, proporciona desempenho adequado tanto em operações de leitura como de escrita. Como você pode ver no gráfico abaixo, o Kit Intel NUC 13 Pro também não tem nenhum problema em lidar com a carga sustentada em seu SSD. Particularmente relevante aqui é que o fundo do dispositivo serve como um dissipador de calor.

Você pode consultar a nossa tabela de comparação de armazenamento https://www.notebookcheck.net/Laptop-harddisks-HDD-SSD-benchmarks.22089.0.html para mais informações e benchmarks.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Samsung PM9A1 MZVL2512HCJQ

Sequential Read: 3869 MB/s

Sequential Write: 3400 MB/s

512K Read: 1957 MB/s

512K Write: 915.7 MB/s

4K Read: 51.73 MB/s

4K Write: 175.2 MB/s

4K QD32 Read: 605.8 MB/s

4K QD32 Write: 562 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	84.7 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	70.8 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.4 pt
Average of class Mini PC	50.3 pt
Minisforum Mars Series MC560 ESO512GYLCT	41 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	40.2 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	39.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	32.8 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -17%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -32%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s -35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s -38%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s -47%
Minisforum Mars Series MC560 ESO512GYLCT	1310 (1296.67^min - 1309.67^max) MB/s -61%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -65%
seq write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -27%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s -47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -47%
Minisforum Mars Series MC560 ESO512GYLCT	1735 (1689.26^min - 1735.49^max) MB/s -48%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -54%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -71%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s -29%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -45%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s -62%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s -66%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -70%
Minisforum Mars Series MC560 ESO512GYLCT	1749 (1565.12^min - 1749.09^max) MB/s -74%
seq q8 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +20%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -3%
Minisforum Mars Series MC560 ESO512GYLCT	1815 (1770.86^min - 1814.81^max) MB/s -36%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s -38%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -62%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +58%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s +22%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s +6%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s -6%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -7%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -13%
Minisforum Mars Series MC560 ESO512GYLCT	35.4 (35.09^min - 35.36^max) MB/s -32%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +139%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +24%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s +12%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +10%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +10%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	164.5 (163.24^min - 164.49^max) MB/s -7%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +59%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +11%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s -18%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s -19%
Minisforum Mars Series MC560 ESO512GYLCT	424 (413.36^min - 423.78^max) MB/s -65%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -71%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -71%
4k q32 t16 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +283%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +106%
Minisforum Mars Series MC560 ESO512GYLCT	934 (912.82^min - 933.64^max) MB/s +49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +24%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +5%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s -10%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +50%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +19%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -31%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -52%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -53%
Minisforum Mars Series MC560 ESO512GYLCT	2491 Points -59%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points -78%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +117%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +43%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points -31%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -31%
Minisforum Mars Series MC560 ESO512GYLCT	965 Points -42%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -61%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +1%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points -1%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -48%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -67%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -70%
Minisforum Mars Series MC560 ESO512GYLCT	1037 Points -71%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -89%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +12%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s -13%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -34%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -43%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -54%
Minisforum Mars Series MC560 ESO512GYLCT	2181 MB/s -54%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +61%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +35%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -9%
Minisforum Mars Series MC560 ESO512GYLCT	1769 MB/s -28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s -33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s -34%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s -42%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +32%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s -15%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -25%
Minisforum Mars Series MC560 ESO512GYLCT	55.1 MB/s -30%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s -33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -49%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -56%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +75%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -11%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -16%
Minisforum Mars Series MC560 ESO512GYLCT	160.1 MB/s -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -52%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +171%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +68%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -20%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s -21%
Minisforum Mars Series MC560 ESO512GYLCT	692 MB/s -38%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s -69%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s -3%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s -9%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -74%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -76%
Minisforum Mars Series MC560 ESO512GYLCT	699 MB/s -78%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -95%
Access Time Read
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * -116%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -87%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -67%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -64%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * -47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * -33%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms *
Minisforum Mars Series MC560 ESO512GYLCT	0.022 ms * +51%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -477%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -415%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -410%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * -75%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -55%
Minisforum Mars Series MC560 ESO512GYLCT	0.024 ms * -20%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms *
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +10%

* ... smaller is better

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Intel NUC 13 Pro Kit NUC13ANK: Ø6536 (5743.42-6561.78)

Placa gráfica

Para processamento gráfico, o Kit NUC 13 Pro utiliza o familiar Intel Iris Xe Graphics G7 com 96EUs. No Core i7-1360P, a GPU integrada pode rodar a velocidades de até 1,5GHz - um pouco mais rápido que sua contraparte no Core i7-1260P. Isto resulta em um desempenho 3D marginalmente melhor nos benchmarks sintéticos que realizamos. Entretanto, em termos de performance gráfica integrada, a unidade de revisão não pôde corresponder exatamente ao Minisforum Neptune Series NAD9, que apresenta um Core i9-12900H. Nossa comparação também demonstra claramente que o Radeon 680M da AMD é um iGPU excepcionalmente potente. Com base em nossos testes, ele fornece cerca de 40% mais desempenho do que o Iris Xe Graphics G7.

Você pode conectar uma placa gráfica externa ao kit NUC 13 Pro via Thunderbolt. Isto é algo que testamos com um Razer Core X e um Nvidia GeForce RTX 3060 Ti. Combinado com uma placa gráfica dedicada, a unidade forneceu um bom desempenho que é marginalmente melhor do que o que o Kit NUC 12 Pro é capaz de fazer.

Visite nossa tabela de comparação de GPU para mais informações e benchmarks.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	74 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	65 pt
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	55.5 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	52.5 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	51.7 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +55%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points -4%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5923 Points -17%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -22%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +49%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	27497 Points 0%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -26%
1920x1080 Fire Strike Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +27%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points -7%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3819 Points -27%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -29%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -31%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +44%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points -3%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1153 Points -31%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -34%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -34%
Fire Strike Extreme Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +31%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -26%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1583 Points -32%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -37%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | LuxMark v2.0 64Bit

Performance Rating - Percent
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	96.4 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	69 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	68.9 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	66.9 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	54.8 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	53.1 pt
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	49.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +42%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps -6%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.6 fps -21%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -27%
Extreme Preset DX11
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps -8%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.2 fps -26%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -28%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -30%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -10%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.3 fps -19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -24%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -25%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps -8%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -14%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -23%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.2 fps -31%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -35%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +61%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -6%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points -10%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	2999 Points -17%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -25%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	243 Points -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -18%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points -21%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -35%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +32%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points -13%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	231 Points -17%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -26%
1024x600 Normal, Mandel Vector
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +84%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -7%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	790 Points -13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -39%
1024x600 Normal, Mandel Scalar
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +71%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +5%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	877 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	874 Points +1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points -13%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +52%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -6%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -22%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points -29%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	857 Points -32%

LuxMark v2.0 64Bit
Room GPUs-only
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	676 Samples/s
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	603 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	508 Samples/s
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	450 Samples/s
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	415 Samples/s
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	201 Samples/s
Sala GPUs-only
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2470 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	2188 Samples/s
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1640 Samples/s
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1406 Samples/s
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	993 Samples/s
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	276 Samples/s

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	98.8 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.4 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	94.7 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +370%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +368%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +361%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +358%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +357%
	7143 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	123559 Points +349%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +343%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	118686 Points +331%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +324%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +309%
	27511 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +391%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +379%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +376%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +366%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +363%
	5229 Points
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +559%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +559%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +544%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +541%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +529%
	1673 Points
Fire Strike Extreme Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	13552 Points +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13299 Points +468%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +467%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +456%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +453%
	2340 Points

Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +619%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	169.6 fps +619%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +609%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	167.3 fps +609%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +502%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	164.8 fps +573%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +571%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +531%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	154.3 fps +530%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +452%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	143.1 fps +848%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +838%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +789%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	131.7 fps +772%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +520%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +619%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	125.8 fps +611%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +593%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	122.2 fps +590%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +418%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps

Unigine Superposition
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15114 Points +633%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	14751 Points +615%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +613%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +295%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7129 Points +567%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	7036 Points +558%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +558%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	4171 Points +290%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +673%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27847 Points +673%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27811 Points +672%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +670%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +850%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2691 Points +848%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2689 Points +847%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +843%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +849%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2622 Points +847%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +845%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2619 Points +845%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +527%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5694 Points +525%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5689 Points +524%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +521%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	10555 Points +732%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	10539 Points +731%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +731%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +731%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points

Desempenho do jogo

O iGPU embarcado não é suficientemente bom para jogos, apesar de oferecer melhor desempenho do que os gráficos integrados no Kit NUC 12 Pro. Só conseguimos obter taxas de quadros jogáveis em baixas resoluções e configurações. Se você está procurando um mini-PC para jogar, você deve procurar um modelo com uma placa gráfica dedicada, como o Minisforum HX99G.

Como com os benchmarks sintéticos, também examinamos o desempenho do jogo quando o dispositivo é conectado via Thunderbolt a um Razer Core X com um Nvidia GeForce RTX 3060 Tidentro. Fundamentalmente, esta configuração lhe dará um desempenho 3D muito melhor e permitirá que os jogos sejam executados corretamente em altas resoluções e configurações máximas. Entretanto, a performance da GPU dedicada é limitada pelas quatro pistas PCIe 3.0 da doca do eGPU.

Intel Iris Xe Graphics G7

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps -13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -35%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	63.6 fps -37%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -39%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps -24%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20.7 fps -33%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -51%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +63%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +6%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	54.3 fps -2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps -6%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps -39%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +49%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps -18%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	13.2 fps -19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps -35%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	121.3 (9.08^min, 83.3^P1) fps -4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps -14%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps -46%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +158%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	28.5 (10.1^min, 21.3^P1) fps +38%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps +31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps +1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -6%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps -21%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +63%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps +13%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	49 (42^min) fps +7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps -46%
1920x1080 High Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +36%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps -20%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (17^min) fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps -36%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps -10%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	43 (33^min) fps -17%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps -23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps -44%
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps -7%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (12^min) fps -29%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps -32%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps -46%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +11%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	117.4 (100.8^min) fps -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps -6%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps -10%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -36%
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps -7%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	57.2 (52.1^min) fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps -36%

	baixo	média	alto	ultra
GTA V (2015)	126.2	107.3	20.7
The Witcher 3 (2015)	101.7		31.1	16.3
Dota 2 Reborn (2015)	123.8	93.9	67.6	61.6
Far Cry 5 (2018)	46	26	25	23
Strange Brigade (2018)	95.4	37.3	31	25.2
Shadow of the Tomb Raider (2018)	36.1	24	22.7	19.4
Far Cry New Dawn (2019)	52	29	28	26
Metro Exodus (2019)	41.3	20.6	14.9	11.8
Borderlands 3 (2019)	55.5	25.4	16.2	12.3
F1 2020 (2020)	94.4	49.2	37.9	24.2
F1 2021 (2021)	109.7	53.3	42	29.2
Far Cry 6 (2021)		27.1	22.7	19
God of War (2022)	21.5	18.8	14.5	10.8
Tiny Tina's Wonderlands (2022)	32.5	25.2	16.1	12.7
F1 22 (2022)	48	44.3	31.2	24

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	97.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	95.9 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.1 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	83.3 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	72.8 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +362%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +359%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +273%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +255%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +245%
	16.3 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +118%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +107%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +84%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +81%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +51%
	61.6 (54.6^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +495%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +490%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +420%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +406%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +355%
	25.2 (5.1^min, 6.91^P1 - 314^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +422%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +409%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +365%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +352%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +161%
	23 (21^min - 27^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +288%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +281%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +238%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +235%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +108%
	26 (18^min - 32^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	106.1 (59^min - 146^max) fps +338%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +324%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +258%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +240%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +237%
	24.2 (18^min - 30^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +124%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	54.2 (36^min, 31^P1 - 61^max) fps +86%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +77%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +51%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +49%
	29.2 (23^min, 23^P1 - 32^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +580%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +573%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +521%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +480%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +467%
	12.3 fps

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	180.5	175.5	164.4	100.6	90.9	103.6
The Witcher 3 (2015)	310.6	209.2	151.4	74.8		61
Dota 2 Reborn (2015)	165.7	147.3	139.3	127.5		106.8
Final Fantasy XV Benchmark (2018)	176.9	141.1	98.5		77	48
X-Plane 11.11 (2018)	139.6	122.5	93.2			84.4
Far Cry 5 (2018)	155	131	125	117	100	58
Strange Brigade (2018)	204	157	153.3	150	128.3	84.4
Shadow of the Tomb Raider (2018)	148	102.3	98.6	92.1	75.2	49.4
Far Cry New Dawn (2019)	118	113	109	99	91	55
Metro Exodus (2019)	144.3	92.3	70.4	53.3	46.3	34
Borderlands 3 (2019)	138	122.2	98.7	82.8	63.9	38.1
F1 2020 (2020)	203	119.2	124.8	106.1	89.5	60.2
F1 2021 (2021)	141	109.1	68.9	54.2	49.4	36.3
Far Cry 6 (2021)	75.3	63.4	52.3	45.6	44.8
God of War (2022)	109.2	95.4	80	60.5	53.5	39.6
Tiny Tina's Wonderlands (2022)	168.1	136.7	98.5	80.4	61.2	35.9
F1 22 (2022)	60.3	53.7	43	28.5	26.8	19.7

Emissões - consumo moderado de energia, mas audível sob carga

Emissões sonoras

O Kit Intel NUC 13 Pro é bastante discreto e pouco audível ao ocioso, não produzindo mais do que 31,1 dB(A) de ruído de acordo com nossas medições. O ventilador gira até velocidades bastante altas sob carga: o nível de ruído foi de 40 dB(A) em média durante nossos testes. O dispositivo só se tornou marginalmente mais alto sob carga total, atingindo um pico de 40,5 dB(A) em nossa análise. Em geral, o Kit Intel NUC 13 Pro é um pouco menos ruidoso do que seu predecessor, mas os dispositivos Minisforum são os mais silenciosos dentro de nosso grupo de comparação.

Barulho

Ocioso		30.2 / 31.1 / 31.9 dB
Carga		40 / 40.5 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 29.8 dB(A)

Temperatura

O chassi do Kit NUC 13 Pro mal aquece ao ralenti. O ar quente é expelido diretamente do chassi na parte de trás.

Durante o teste de carga com Prime95, o Núcleo i7-1360P atingiu uma temperatura máxima muito alta de 100°C (212°F), mas isto só ocorreu no início do teste quando o processador estava funcionando em seu relógio de impulso. Durante o teste de estresse com Prime95, a CPU foi capaz de manter o uso de energia consistentemente em seu PL1 de 40 watts. Seus núcleos P funcionavam a uma velocidade média de 2,8GHz, enquanto seus núcleos E conseguiam atingir aproximadamente 2,2GHz. Fundamentalmente, o calor não é algo com que se tenha que se preocupar porque estas altas temperaturas foram a conseqüência de um cenário extremo que é improvável que aconteça no uso diário.

Intel NUC 13 Pro Kit vs. teste de estresse (frente)

Intel NUC 13 Pro Kit vs. teste de estresse (atrás)

Consumo de energia

Nós não diríamos realmente que o Kit Intel NUC 12 Pro era extremamente eficiente na época. A Intel parece ter feito algumas melhorias decentes nesta área. O consumo de energia ociosa do NUC 13 Pro Kit é agora substancialmente menor. Mas o dispositivo extraiu até 108 watts da fonte de alimentação de 120 watts sob carga - cerca de 10 watts a mais do que seu predecessor. Sob carga moderada, no entanto, o consumo de energia aumentou apenas 4 watts entre as duas gerações, para 68 watts, o que é fantástico dado o desempenho do Núcleo i7-1360P.

Consumo de energia

desligado	0.5 / 1.2 Watt
Ocioso	5.1 / 5.8 / 10.2 Watt
Carga	68.1 / 108.3 Watt


Key: min: , med: , max: Metrahit Energy

	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-51%	-40%	-69%	18%	-4%	30%	3%	-41%
Idle Minimum *	5.1	12.1 -137%	9.9 -94%	12.1 -137%	6.2 -22%	8.4 -65%	3.4 33%	5.34 ?(2.2 - 46.5, n=193) -5%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -86%
Idle Average *	5.8	12.2 -110%	11 -90%	13 -124%	6.3 -9%	8.7 -50%	5.7 2%	8.55 ?(3.8 - 63, n=193) -47%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -98%
Idle Maximum *	10.2	12.3 -21%	11.2 -10%	18.2 -78%	7.5 26%	9.3 9%	7 31%	10.8 ?(5.8 - 68.9, n=193) -6%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -46%
Load Average *	68.1	64 6%	74.2 -9%	70.6 -4%	41.3 39%	46.4 32%	36.5 46%	45.3 ?(12.5 - 87.3, n=193) 33%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 16%
Load Maximum *	108.3	98.8 9%	103.2 5%	113 -4%	49 55%	52 52%	68 37%	67.5 ?(30.1 - 123.3, n=193) 38%	97.5 ?(18.1 - 423, n=119, last 2 years) 10%

* ... smaller is better

Veredicto - Hardware atualizado em um design familiar

O Kit Intel NUC 13 Pro (Arena Canyon) foi gentilmente fornecido pela Intel Alemanha para esta revisão

A Intel está ativa no espaço mini-PC há anos com sua linha NUC e entende o que realmente importa para este fator de forma. O Intel NUC 13 Pro Kit, codinome Arena Canyon, é certamente uma ótima escolha para quem procura um PC pequeno mas potente. Como mencionado anteriormente nesta revisão, a Intel está refrescando a linha NUC dando-lhe um Core i7-1360P e agora conta com a série Raptor Lake-P (que substitui o Alder Lake-P). Há um aumento no desempenho, mas ele é bastante modesto. Portanto, você não deve esperar um salto dramático no desempenho em relação a um Kit Pro Intel NUC 12 com um Core i7-1260P. Também não há muito de novo a dizer sobre a seleção de portas. Mas um aspecto positivo é a variedade de portos modernos, que é algo que você não vê com freqüência em PCs minúsculos. O NUC 13 Pro Kit oferece duas conexões Thunderbolt de pleno direito. Devido a seu formato, o dispositivo não tem mais do que quatro portas USB-A, mas estas devem ser suficientes para satisfazer a maioria dos usuários.

O Intel NUC 13 Pro Kit é um PC de escritório excepcionalmente compacto e de alto desempenho. O minúsculo cavalo de trabalho também pode ser expandido de forma significativa graças a sua excelente conectividade externa.

Em nossos testes, o Kit Intel NUC 13 Pro proporcionou um desempenho excepcional. Tanto o SoC quanto o SSD tiveram um desempenho impressionante. Juntamente com uma generosa 32 GB de RAM DDR4 (atualizável para 64 GB), o mini PC nos permitiu trabalhar rapidamente em todos os momentos. Nossa unidade de revisão não tinha nenhuma falha importante. Mas notamos algumas falhas menores com sua conectividade de 5GHz durante nosso teste Wi-Fi. Além disso, esperamos ver materiais de maior qualidade sendo usados em futuros NUCs. A eliminação do corpo de plástico seria definitivamente um começo e um ótimo ajuste para o dispositivo. Isto também alinharia mais a sensação do dispositivo com o pacote geral. Os fabricantes chineses Minisforum e Morefine demonstraram com seus produtos (Minisforum Neptune Series NAD9 e Morefine M600) que isto é algo realizável.

Baseado apenas na aparência, o Kit NUC 13 Pro faz inequivocamente parte da série NUC da Intel. Ele tem excelente ajuste e acabamento. Dito isto, o dispositivo enfrenta uma grande quantidade de concorrentes no espaço do mini-PC. Liderando o pacote está o Kit Intel NUC 12 Proque está quente nos calcanhares de seu sucessor. Os MinisForum NAD9 e Morefine M600 são também formidáveis concorrentes que oferecem desempenho semelhante.

Preço e disponibilidade

O Kit Intel NUC 13 Pro (Arena Canyon) ainda não está disponível no momento. Segundo a Intel, deve custar aproximadamente o mesmo que um kit Intel NUC 12 Pro Kit. O Kit NUC 13 Pro estará disponível tanto como um sistema de barebone quanto como um PC completo equipado com RAM e SSD. Quando revisamos o Kit NUC 12 Pro, ele tinha um preço de aproximadamente 660 euros (US$720). Na Alemanha, atualmente você pode adquirir um modelo de barebone com um Core i7-1260P em Notebooksbillger.de por 540 euros (US$590).

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Intel NUC 13 Pro Kit NUC13ANK - 08/12/2023 v7 ^(old)
Sebastian Bade

Acabamento

81 / 98 → 83%

Conectividade

57 / 81 → 71%

Peso

83%

Desempenho do jogos

68%

Desempenho da aplicação

95%

Workstation

59%

Ruído

82%

Médio

75%

81%

Mini PC - Médio equilibrado

Rating	Date	Model	Weight	Height
80.8 % v7 ^(old)	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm
78.9 % v7 ^(old)	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
79.5 % v7 ^(old)	02/2023	Minisforum Mars Series MC560 R5 5600U, Vega 7	562 g	66 mm
v ^(old)	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

Intel NUC 13 Pro Kit aka Arena Canyon review: MiniPC moderno com Intel Core i7-1360P para aplicações exigentes

Atualização de produto da Intel.

Possíveis concorrentes em comparação

Veja em detalhes o kit Intel NUC 13 Pro

Caso

Comparação de tamanho

Especificações

Conectividade

Acessórios

Manutenção

Desempenho - Core i7 com 12 núcleos e 16 roscas

Condições de teste

Processador

Kit Intel NUC 13 Pro - Arena Canyon vs. Cinebench R15 Multi loop

Desempenho do sistema

Latência do DPC

Armazenamento em massa

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Placa gráfica

Desempenho do jogo

Intel Iris Xe Graphics G7

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Emissões - consumo moderado de energia, mas audível sob carga

Emissões sonoras

Temperatura

Consumo de energia

Power consumption with external monitor

Pro

Contra

Veredicto - Hardware atualizado em um design familiar

Preço e disponibilidade

Transparency

More articles related to this device

3DMark 05 Standard		40633 pontos
3DMark 06 Standard Score		34555 pontos
3DMark Vantage P Result		27877 pontos
3DMark 11 Performance		7752 pontos
3DMark Ice Storm Standard Score		64338 pontos
3DMark Cloud Gate Standard Score		23389 pontos
3DMark Fire Strike Score		4873 pontos
3DMark Fire Strike Extreme Score		2339 pontos
3DMark Time Spy Score		1907 pontos
Ajuda

	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		-4%	3%	9%	7%	-11%	1%
off / environment *	29.8	30.4 -2%	30.4 -2%	30.2 -1%	30.2 -1%	30.5 -2%	30.28 -2%
Idle Minimum *	30.2	33.1 -10%	30.9 -2%	30.5 -1%	30.4 -1%	31.5 -4%	31.82 -5%
Idle Average *	31.1	33.1 -6%	31.5 -1%	30.5 2%	30.4 2%	32.6 -5%	32.27 -4%
Idle Maximum *	31.9	33.1 -4%	31.5 1%	30.5 4%	30.4 5%	33.8 -6%	33.17 -4%
Load Average *	40	38.1 5%	37.5 6%	30.5 24%	31.8 20%	49.3 -23%	35.82 10%
Load Maximum *	40.5	43.6 -8%	34.1 16%	30.5 25%	33.4 18%	50.9 -26%	37.1 8%
