Análise do PC desktop Morefine M600 6600U: O mini PC acessível com um AMD Ryzen 5 6600U com 32 GB de RAM e USB4

Name: Morefine M600, 6600U
Brand: Morefine

Silencioso por toda parte!

Já demos uma olhada no topo de gama Morefine M600 com um AMD Ryzen 9 6900HX - agora, é hora de dar uma olhada no M600 com um AMD Ryzen 5 6600U, que também faz parte da série Rembrandt da AMD. Nesta análise, você poderá ver como o SoC de médio porte se saiu em nossos testes e se vale a pena comprar esse modelo.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 05/16/2023 🇺🇸 🇩🇪 ...

AMD Desktop Mini PC Ryzen (Zen)

Configurações da Morefine M600 (fonte: Morefine)

Recentemente, analisamos o topo de linhaMorefine M600 6900HXque foi impressionante, para dizer o mínimo. Agora, chegou a hora de darmos uma olhada no Morefine M600 6600U, que, com seuAMD Ryzen 5 6600Utem um desempenho de CPU um pouco menor, embora o restante de seus recursos seja idêntico. Por sua vez, isso significa que também podemos nos animar com suas portas modernas, como a USB4. Conseguimos colocar as mãos em uma versão barebone do Morefine M600 6600U. Atualmente, ele tem um MRSP de US$ 388. Para nossos testes, utilizamos os componentes disponíveis do Morefine M600 6900HX, o que significa que nosso dispositivo de teste também está equipado com 32 GB de RAM DDR5 e um SSD de 512 GB da Transcend.

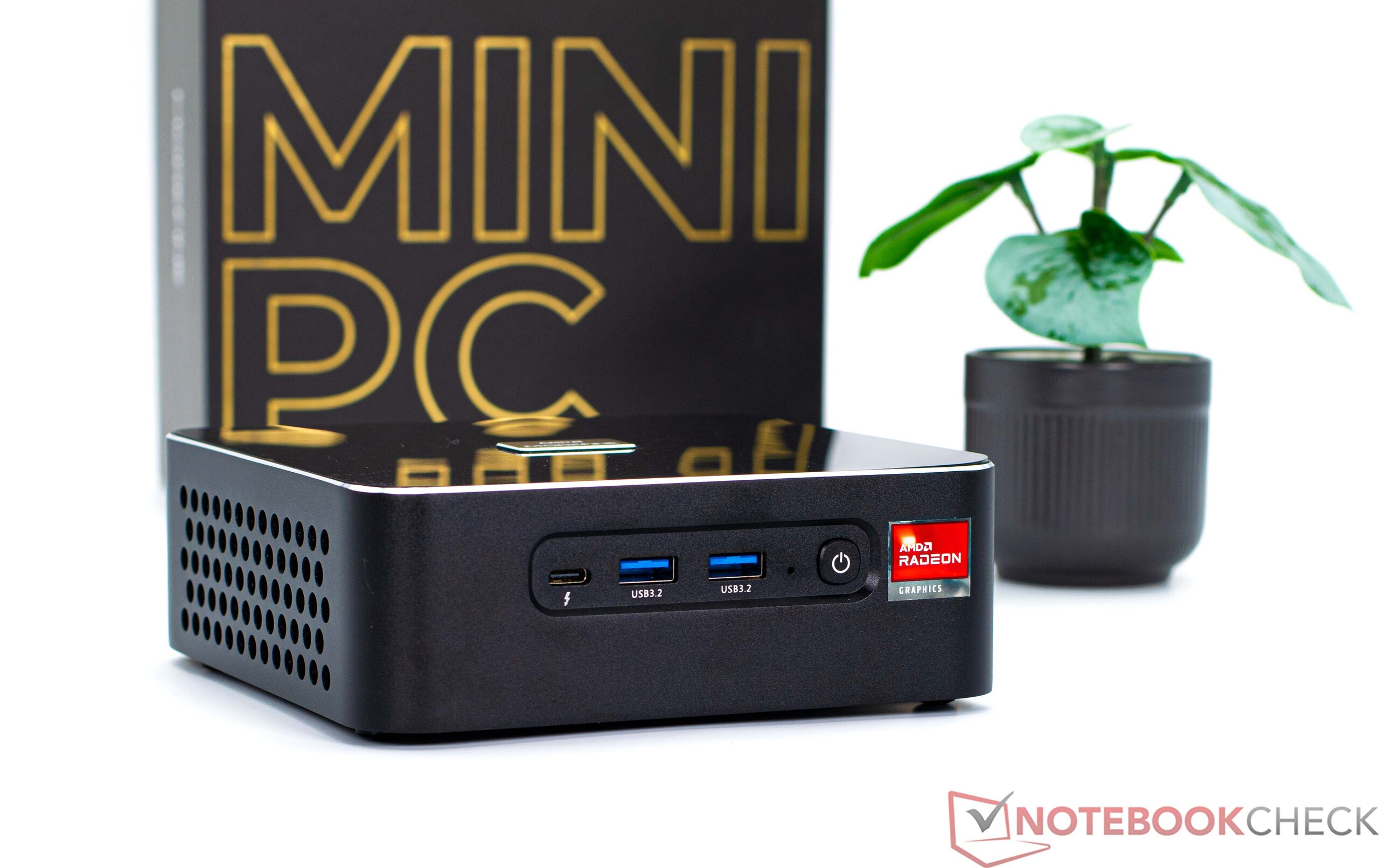

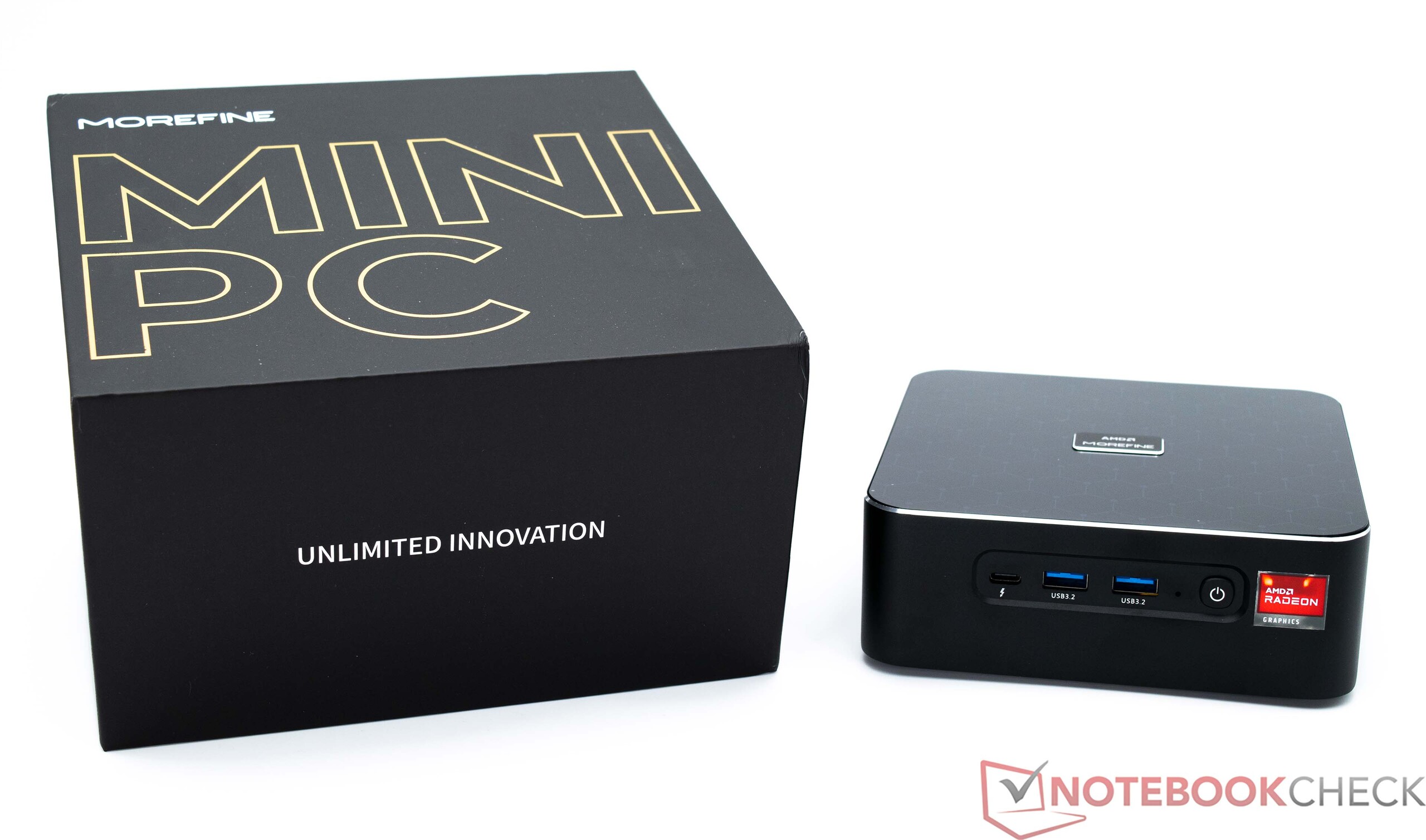

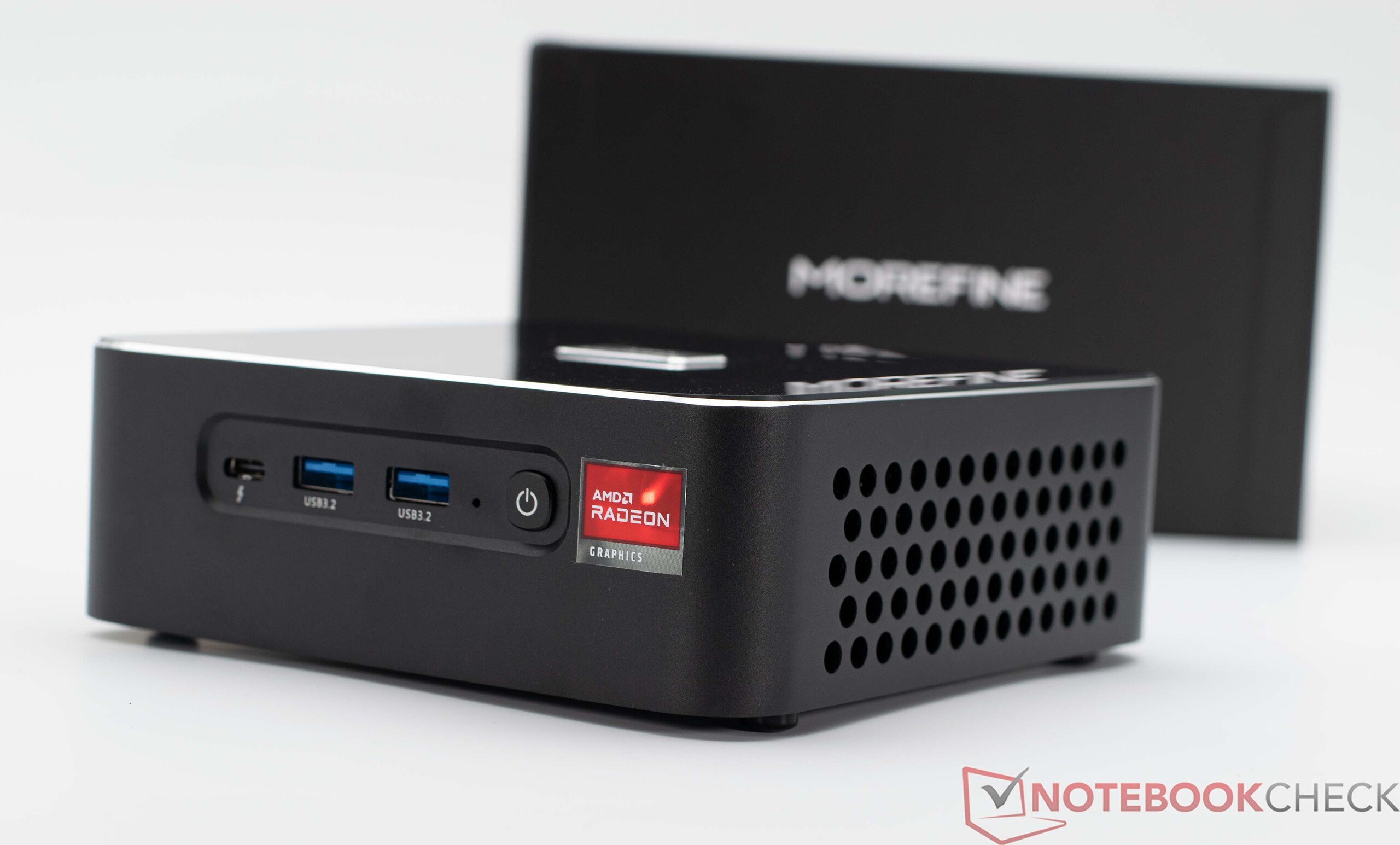

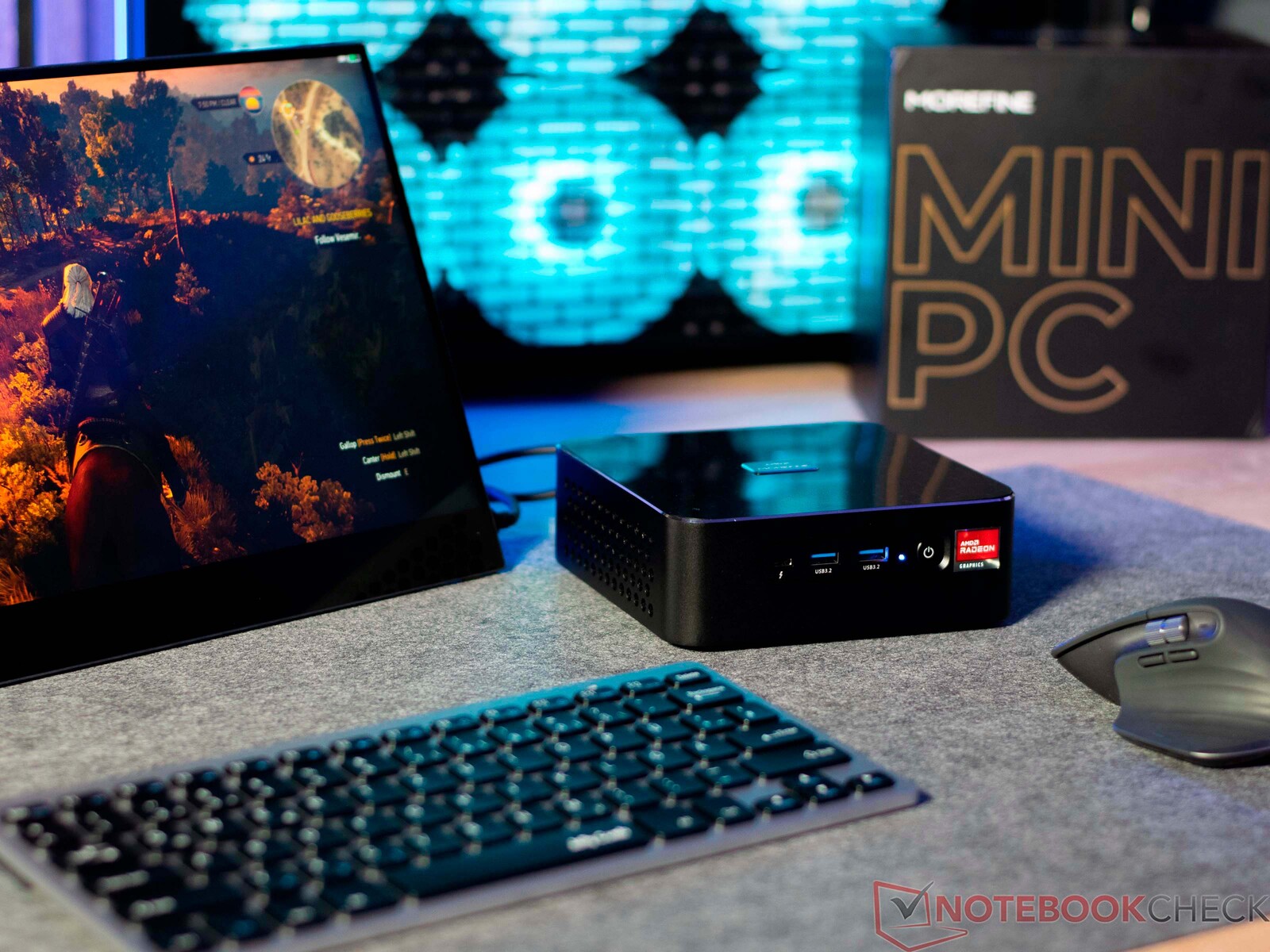

O Morefine M600 6600U vem em uma embalagem visualmente atraente com uma etiqueta dourada. O escopo de entrega inclui todas as peças necessárias. O PC ainda vem com uma placa de montagem para conectá-lo a um monitor (montagem VESA). O dispositivo pode ser equipado com até três SSDs - aqui, todos os cabos necessários também estão incluídos. Nesta análise, analisaremos de perto seu desempenho em comparação com o modelo topo de linha, que custa cerca de US$ 200 a mais em sua configuração básica. Esse preço mais alto se justifica ou faz sentido escolher o modelo introdutório? Também escolhemos dispositivos do MinisForum, Geekom e Intel para atuarem como concorrentes diretos com os quais podemos comparar nosso dispositivo. Você pode encontrar uma lista desses dispositivos na tabela abaixo.

Test device courtesy of Morefine

Download your licensed rating image as PNG / SVG

Morefine M600, 6600U

Processador

AMD Ryzen 5 6600U 6 x 2.9 - 4.5 GHz, 28 W PL2 / Short Burst, 28 W PL1 / Sustained, Rembrandt-U (Zen 3+)

Placa gráfica

AMD Radeon 660M, Adrenalin 23.3.1

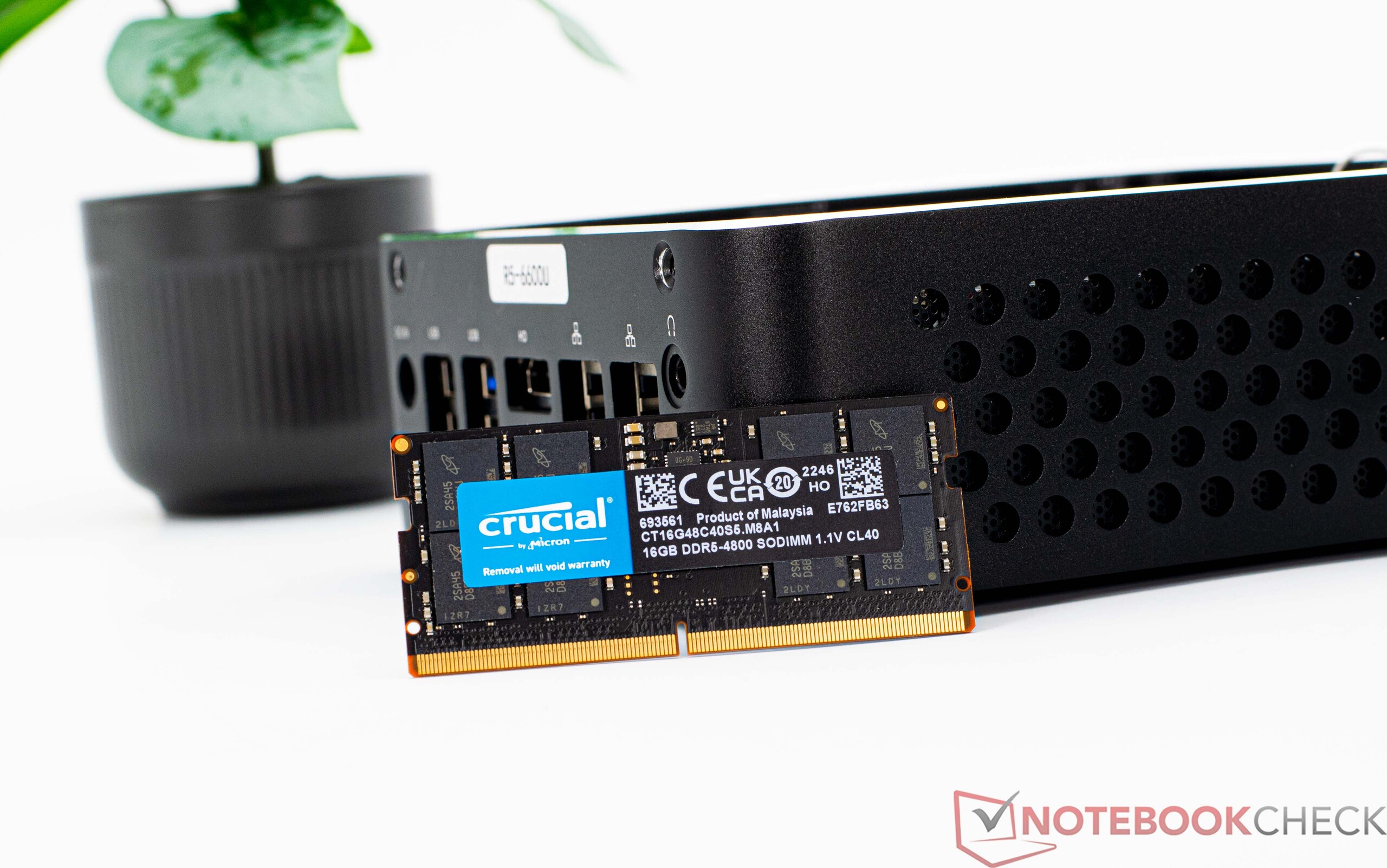

Memória

32 GB

, DDR5-4800 MT/s, 2 von 2 installiert, max. 64 GB

placa mãe

AMD Promontory/Bixby FCH

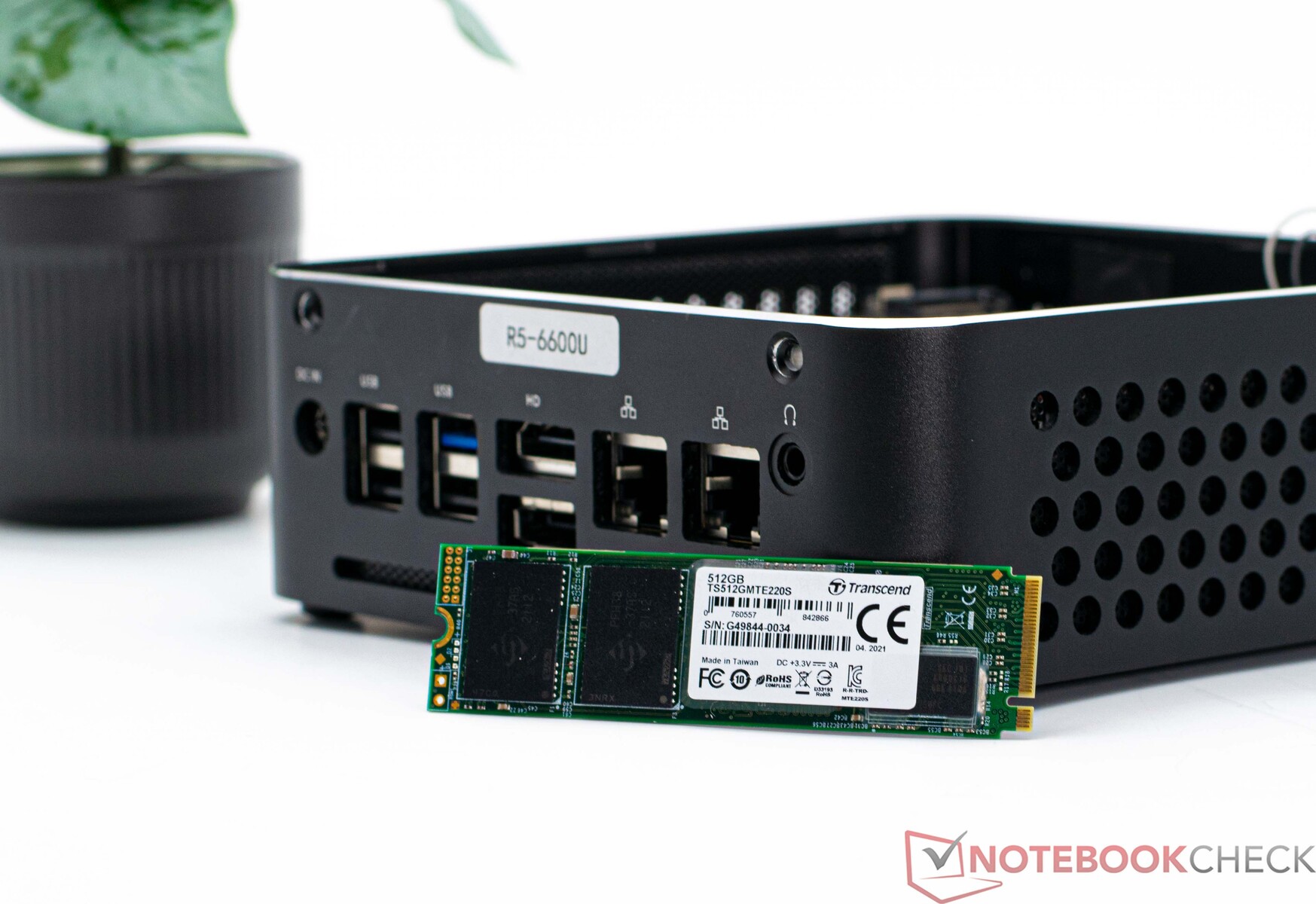

Disco rígido

Transcend M.2 SSD 2200S TS512GMTE220S, 512 GB

, M.2 2280, NVMe

Placa de Som

AMD Zen - Audio Processor - HD Audio Controller

Conexões

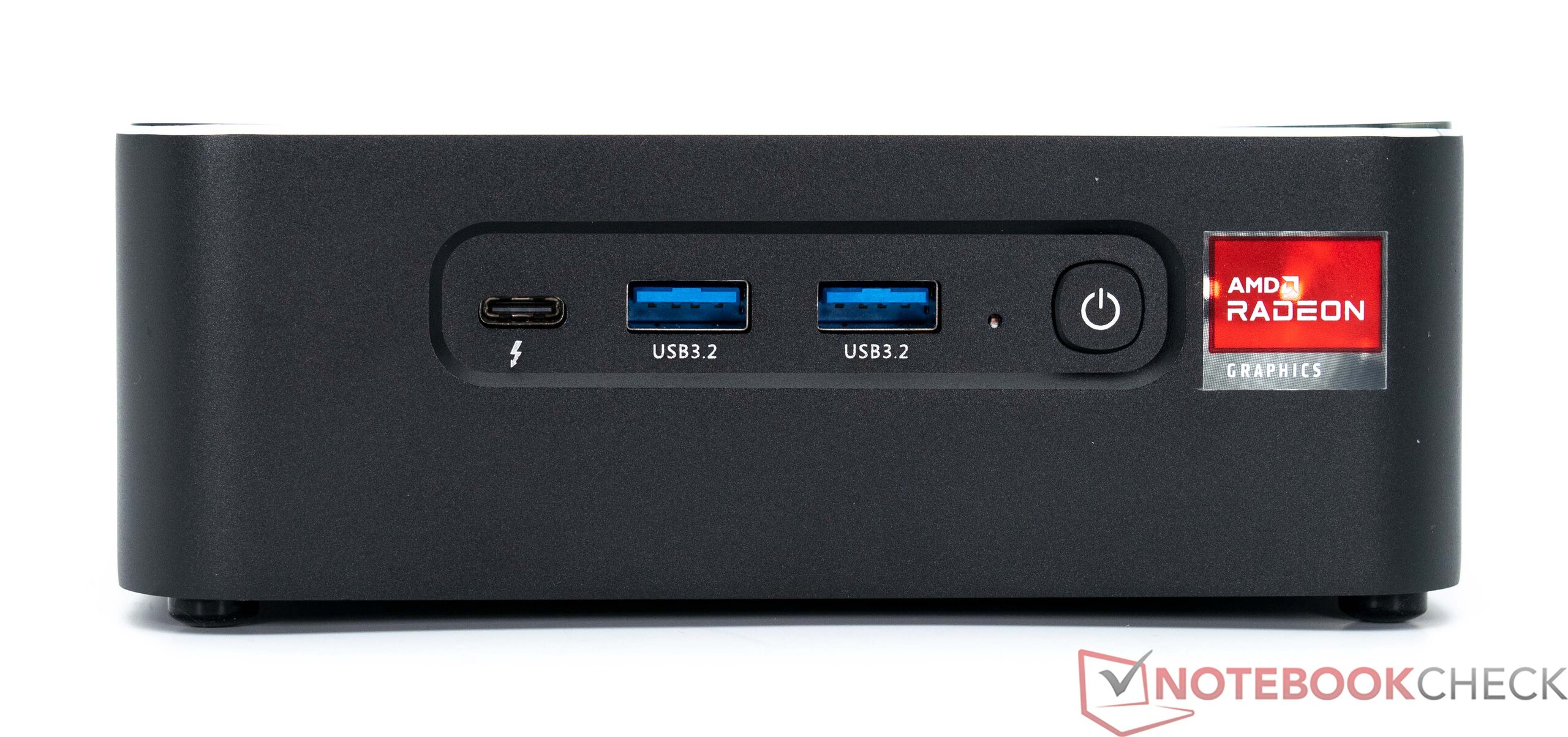

2 USB 2.0, 2 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, Conexões Audio: 3,5mm Klinke, Realtek RTL8125 2.5 GBe Family Ethernet Controller

Funcionamento em rede

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 40.6 x 147.3 x 144.7

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

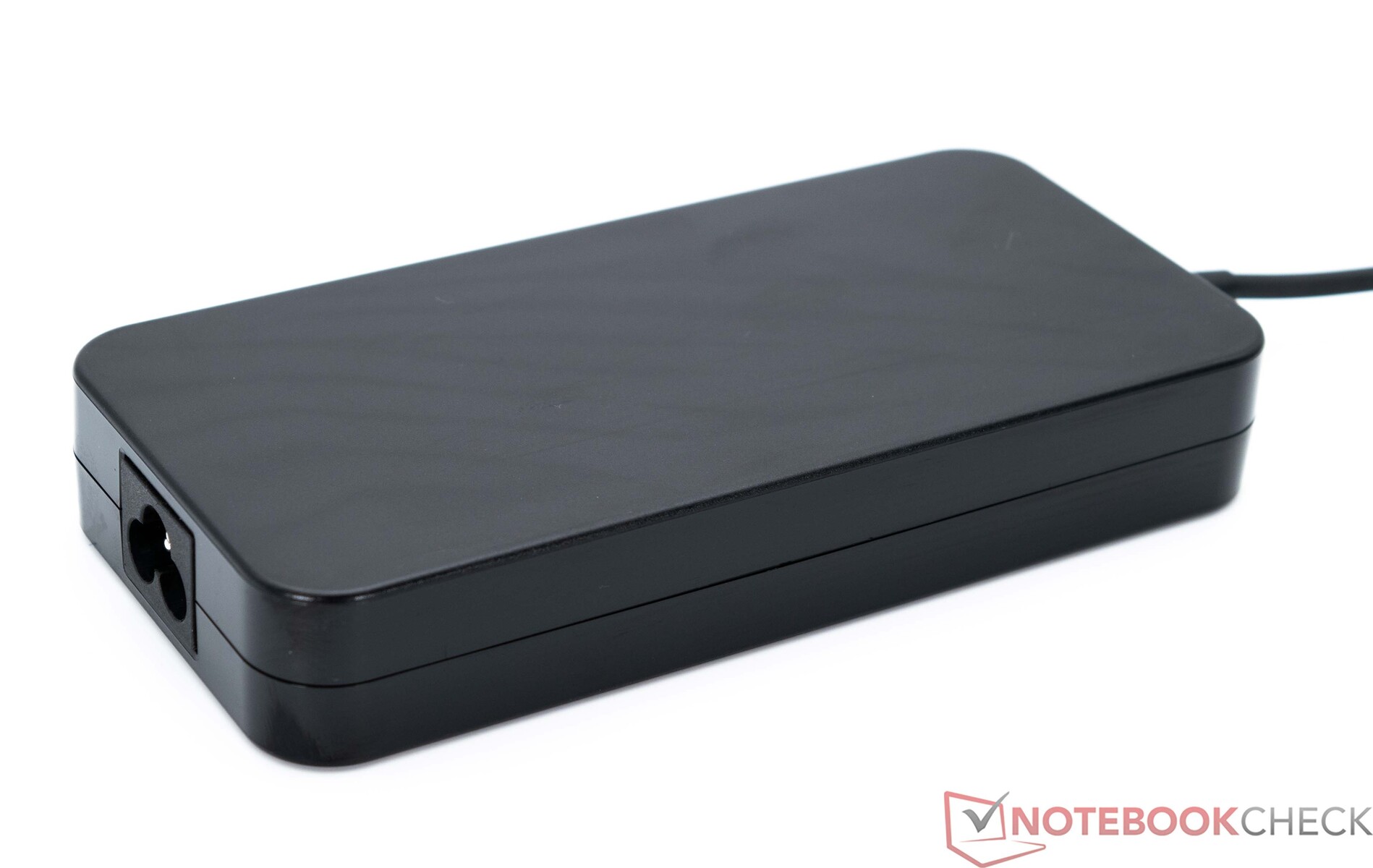

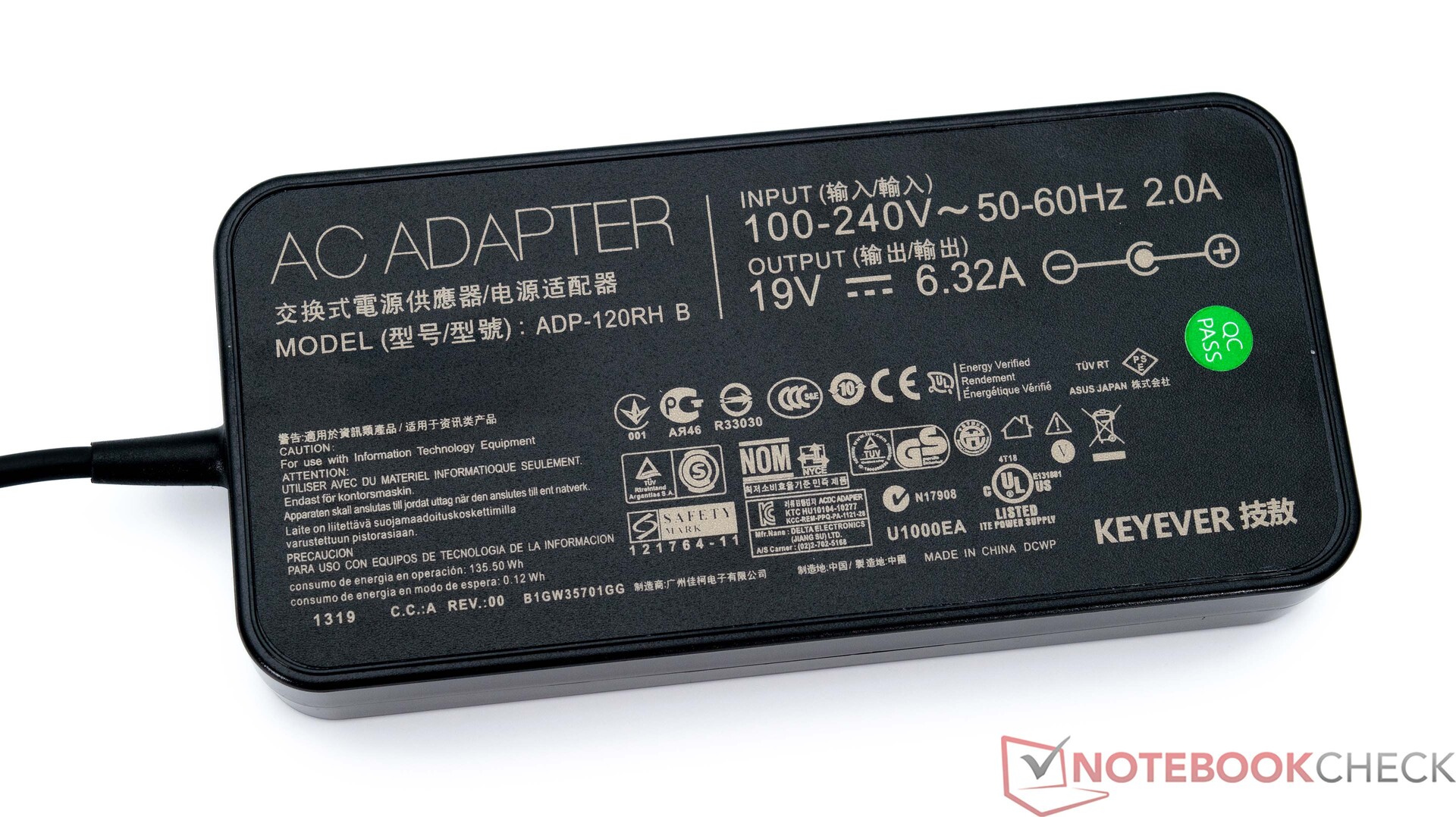

120-Watt-Netzteil, 24 Meses Garantia

peso

768 g, Suprimento de energia: 372 g

Preço

552 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height
83.7 % v7 ^(old)	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 % v7 ^(old)	02/2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
78.9 % v7 ^(old)	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
v ^(old)	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v ^(old)	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm

O Morefine M600 com um AMD Ryzen 5 6600U em detalhes

Caso

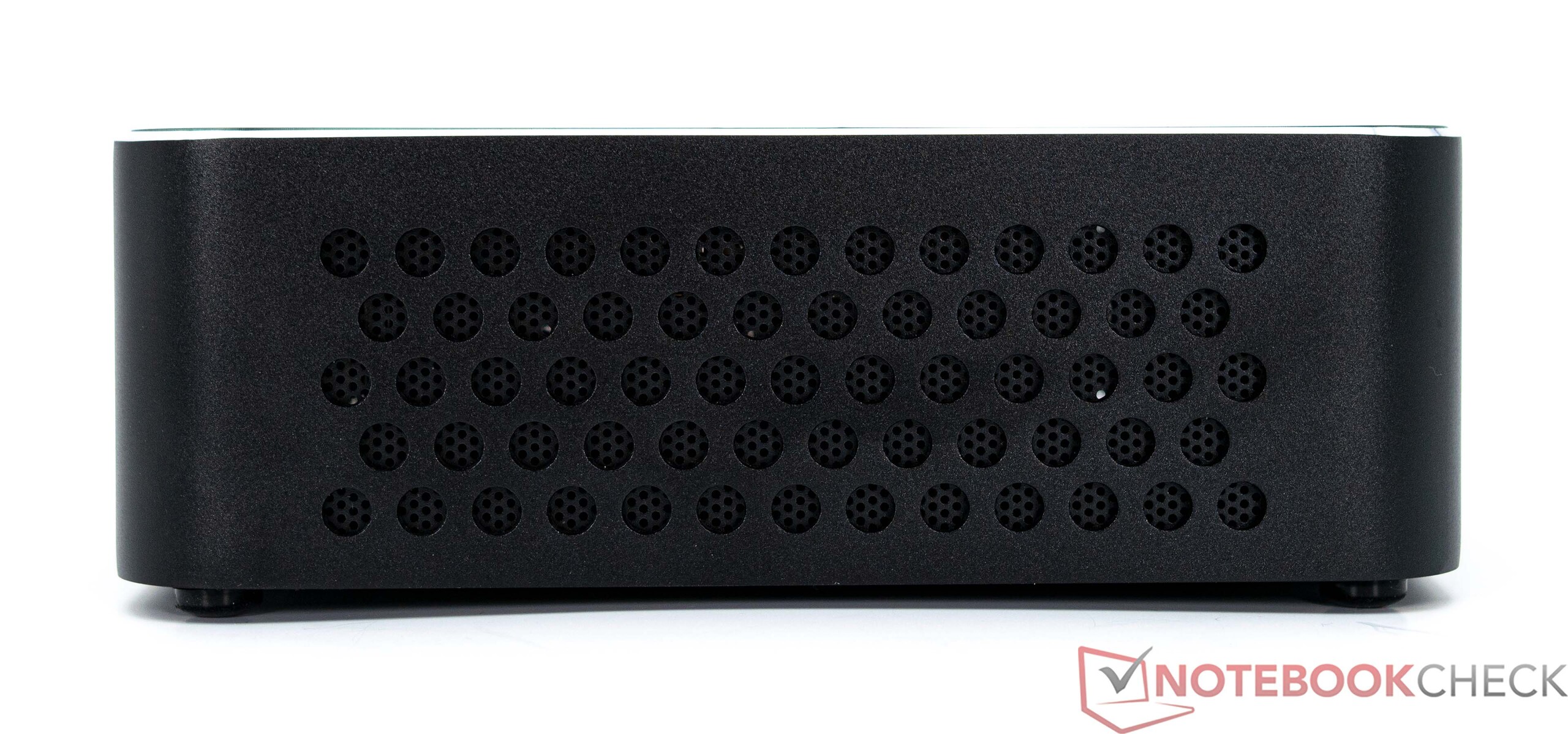

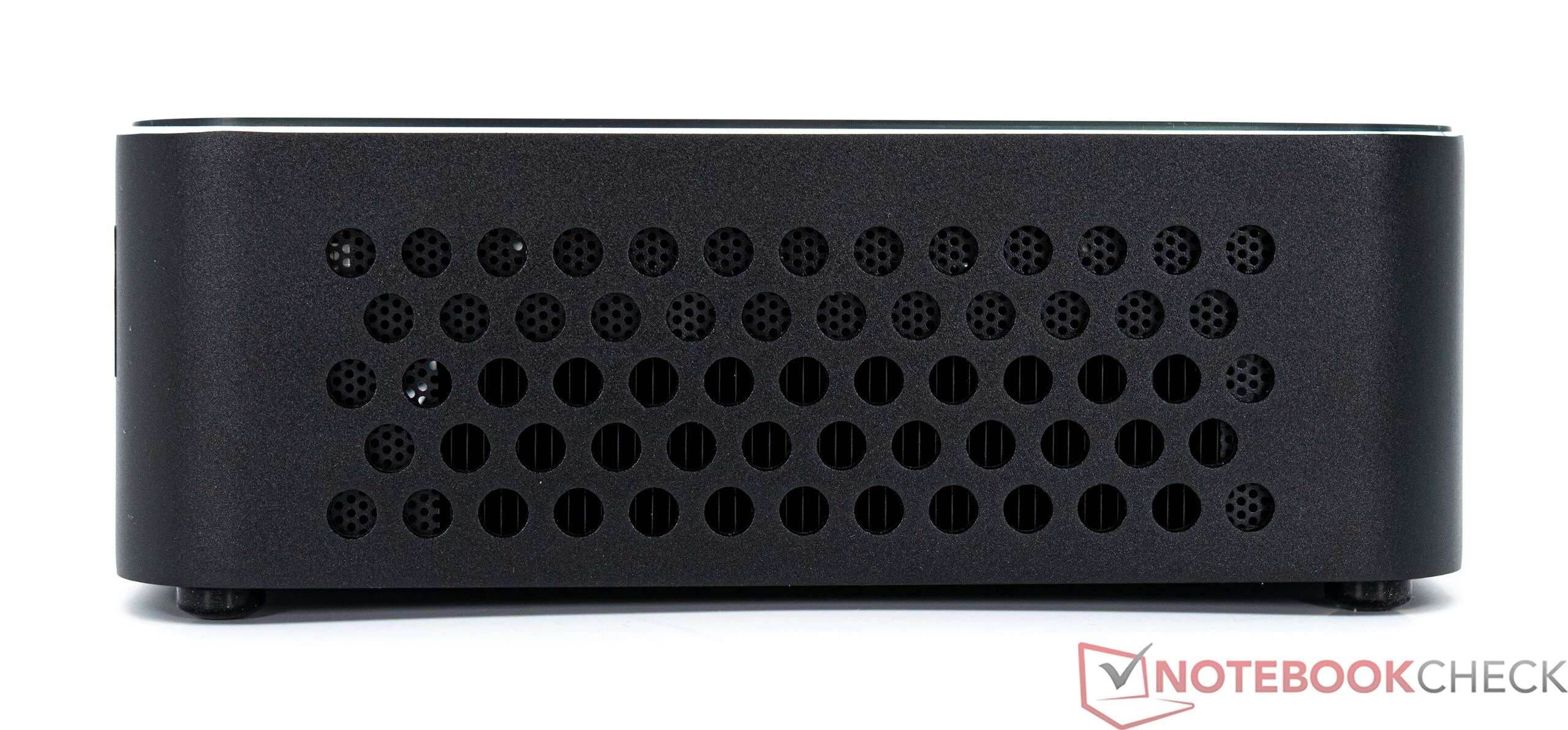

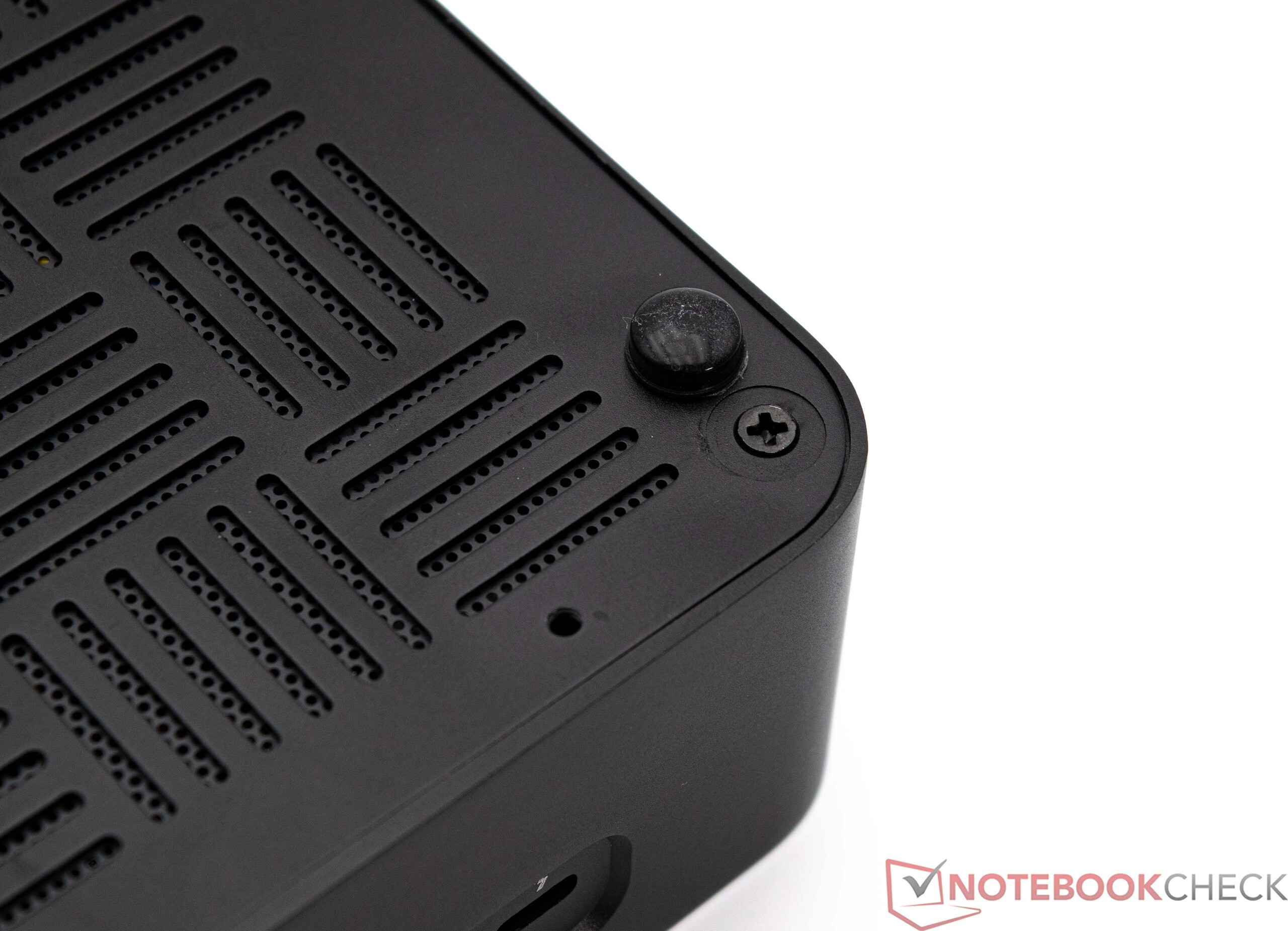

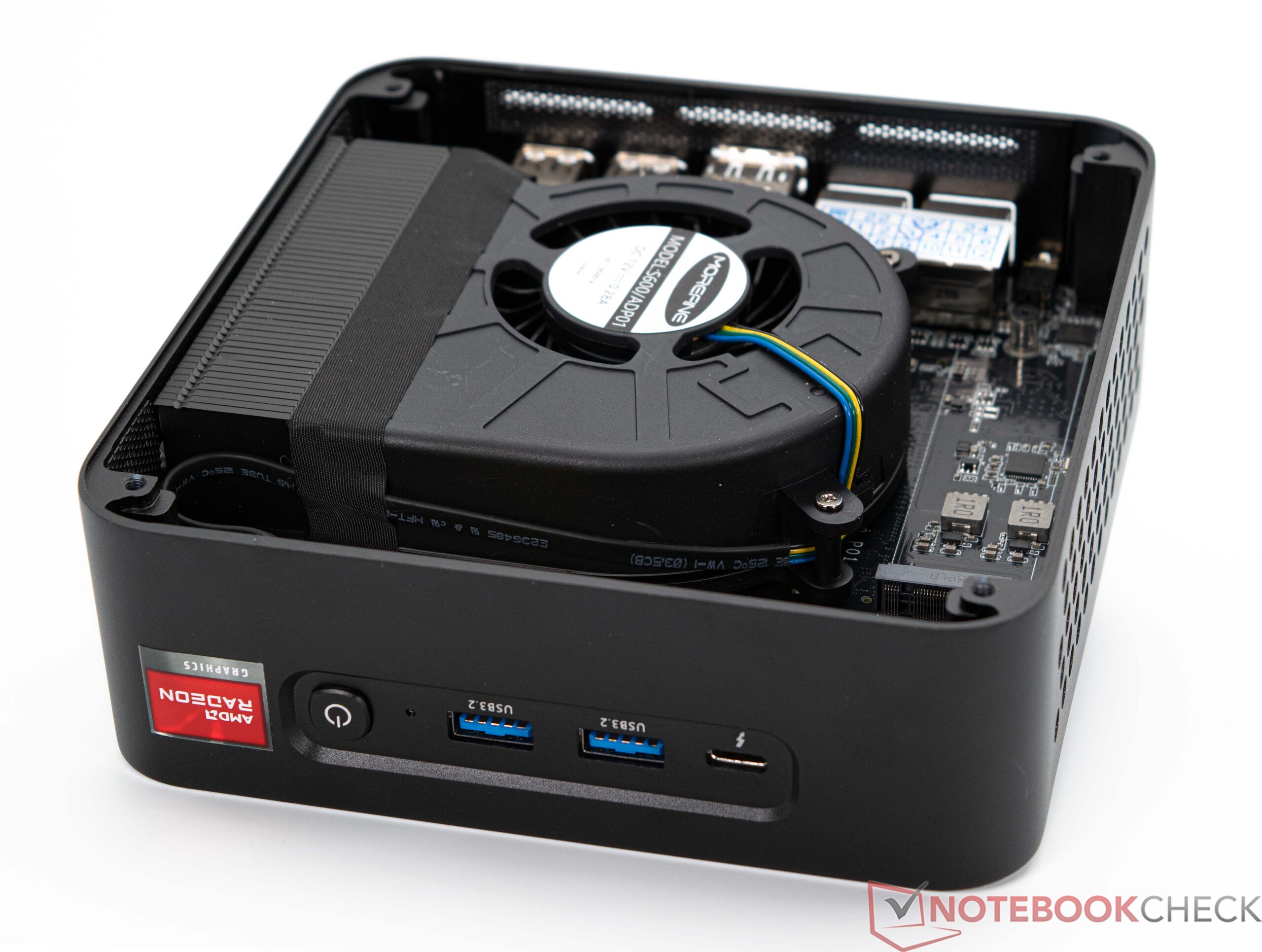

A construção da nossa amostra de teste é exatamente a mesma do Morefine M600 com um AMD Ryzen 9 6900HX. Para obter mais detalhes sobre o gabinete, dê uma olhada em nossa análise do modelo topo de linha. O mesmo pode ser dito sobre suas opções de conectividade, que também são as mesmas no modelo menor.

Neste ponto, ainda gostaríamos de mencionar uma questão relacionada a esse teste: O modelo com o Ryzen 5 6600U também tem uma porta Thunderbolt, que pode ampliar enormemente a gama de usos do dispositivo. No entanto, após nosso primeiro teste, não foi possível conectar nosso dock de GPU externo ao dispositivo. Depois de falar com o fabricante, fomos orientados a verificar algumas das configurações do BIOS. Depois de ativar alguns recursos relacionados ao USB4, conseguimos conectar o dock.

Configurações do BIOS para ativar a porta Thunderbolt:

USB4 Habilitar caminho:BIOS--Advanced--AMD CBS--FCH Common Options--USB4 Configuration Options--USB4 pre-CM Enable [Disabled] to [Enabled].
USB4 RT0--RT0 Router Enable [Disabled] to [Enabled].

Comparação de tamanho

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U Morefine S500+ Minisforum Venus Series UM690 Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +39%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s
Average of class Mini PC (320 - 1796, n=113, last 2 years)	945 MBit/s 0%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s -2%
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s -7%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -59%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +68%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +23%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +20%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	874 MBit/s +11%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s +10%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -5%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s -27%
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s +60%
Average of class Mini PC (684 - 1771, n=55, last 2 years)	1380 MBit/s +44%
Minisforum Venus Series UM690 MediaTek RZ608	961 (954^min - 967^max) MBit/s 0%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -59%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (394 - 1800, n=55, last 2 years)	1330 MBit/s +74%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s +20%
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s +8%
Minisforum Venus Series UM690 MediaTek RZ608	787 (638^min - 865^max) MBit/s +3%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -3%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -25%

Morefine M600, 6600U; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø765 (718-814)

Morefine M600, 6600U; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø957 (943-967)

Morefine M600, 6600U; iperf3 receive AXE11000; iperf 3.1.3: Ø948 (934-957)

Morefine M600, 6600U; iperf3 transmit AXE11000; iperf 3.1.3: Ø771 (381-874)

Desempenho - O SoC Rembrandt da AMD é rápido com seus 6 núcleos

O Morefine M600 tem umAMD Ryzen 5 6600Ucom 6 núcleos e 12 threads em sua menor configuração. Esse desempenho é mais do que suficiente para o uso diário, com um pouco mais de reserva. O SoC temAMD Radeon 660Mé uma iGPU pequena, semelhante à AMD Radeon RX Vega 8 em termos de desempenho.

Condições de teste

Selecionamos o perfil de energia de potência máxima para todos os testes de desempenho. Os desvios foram feitos apenas nas medições de emissão de energia e ruído, de acordo com nossos critérios de teste. O desempenho da CPU não foi alterado no BIOS e não fizemos nenhum ajuste na curva da ventoinha em termos de resfriamento.

Processador

OAMD Ryzen 5 6600Ufaz parte da série Rembrandt da AMD e tem 6 núcleos com um total de 12 threads. O Morefine M600 6600U perde cerca de 10% em sua classificação de desempenho, que representa uma média de todos os benchmarks de CPU, em comparação com o modelo topo de linha com umAMD Ryzen 9 6900HX. Nossa amostra de teste ficou em penúltimo lugar, embora a distância para seus concorrentes seja mínima. Vimos uma diferença considerável no desempenho entre o Morefine M600 6600U e oAce Magician TK11-A0.

Você pode encontrar mais benchmarks de processadores em aqui.

Performance Rating - Percent
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.6 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.4 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48.4 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -13%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +64%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +52%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +41%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -59%

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -7%
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +56%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +40%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +36%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +31%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -58%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points +15%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -15%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +54%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +51%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +28%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -63%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points +24%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -11%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +41%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +40%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points +34%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -55%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -81%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +39%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +44%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -45%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * +22%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +23%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +27%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -96%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * -61%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -29%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +30%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +33%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +36%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +24%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps +24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -22%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +79%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +63%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +60%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +57%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps +55%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -49%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -40%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s +25%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -43%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +54%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s +46%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -42%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +28%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s +28%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -48%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points +30%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -36%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -8%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -53%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points +9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -12%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -20%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +58%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points +57%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points +55%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +44%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -33%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -60%
7z b 4 -mmt1
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -55%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +3%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +9%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +28%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points +4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -14%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * +14%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +25%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -49%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +58%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +50%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +40%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points +30%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -41%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +106%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +83%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points +69%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points +64%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -44%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	86 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	85.8 pt
Average of class Mini PC	77.4 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	69.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.8 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	41.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +59%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +41%
Average of class Mini PC (646 - 51004, n=119, last 2 years)	12878 KRay/s +35%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -41%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +66%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +47%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +43%
Average of class Mini PC (3857 - 214250, n=119, last 2 years)	64921 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -60%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +48%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +46%
Average of class Mini PC (260 - 9399, n=119, last 2 years)	2856 MB/s +43%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s +30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +28%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -17%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +30%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points +10%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	80187 Points +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -38%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +50%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +40%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +37%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8812 Points +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -55%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +45%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +37%
Average of class Mini PC (1987 - 113499, n=119, last 2 years)	33863 Points +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -54%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +245%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +202%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +191%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +151%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s +133%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	88382 MB/s +123%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +48%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +46%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +41%
Average of class Mini PC (74.9 - 2039, n=119, last 2 years)	740 MB/s +40%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s +36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -50%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +58%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +44%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +42%
Average of class Mini PC (350 - 26952, n=119, last 2 years)	6881 KRay/s +36%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -41%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s +3%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	28301 MPixel/s +3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -11%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -46%

A Morefine M600 no Multi Loop do Cinebench R15

O loop contínuo do Cinebench R15 mostra o desempenho do sistema em carga contínua. O sistema simplesmente não consegue manter os níveis iniciais de desempenho do SoC. Entretanto, são poucos os dispositivos que conseguem fazer isso, o que significa que o Morefine M600 6600U não está sozinho. O desempenho do SoC caiu continuamente durante as primeiras dez execuções e se igualou a 1.105 pontos em média. Isso significa que seu desempenho contínuo caiu cerca de 20% em comparação com uma única passagem.

Métricas da CPU durante o loop do Cinebench R15

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Desempenho do sistema

Nossos benchmarks de sistema refletem o desempenho dos benchmarks de CPU. O Morefine M600 6600U conseguiu manter oAce Magician TK11-A0sob controle - sua defasagem em relação aos demais concorrentes não foi tão grande. Os testes de RAM mostraram resultados relativamente bons graças à sua DDR5.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +20%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points +1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -23%

PCMark 10 / Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +14%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points +9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points +6%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -9%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +9%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -15%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -30%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +25%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -18%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +29%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -12%

CrossMark / Creativity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points -12%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -28%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +71%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points +35%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -1%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s -6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -26%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -12%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +12%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s -6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -21%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -28%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * +1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +21%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +27%

* ... smaller is better

Latência DPC

O LatencyMon também não mostrou nenhuma latência crítica no Morefine M600 6600U. Observamos latências ligeiramente mais altas ao abrir várias guias no Edge, que não aumentaram ainda mais ao reproduzir o vídeo de teste em 4K. Também não observamos latências mais altas com o Prime95.

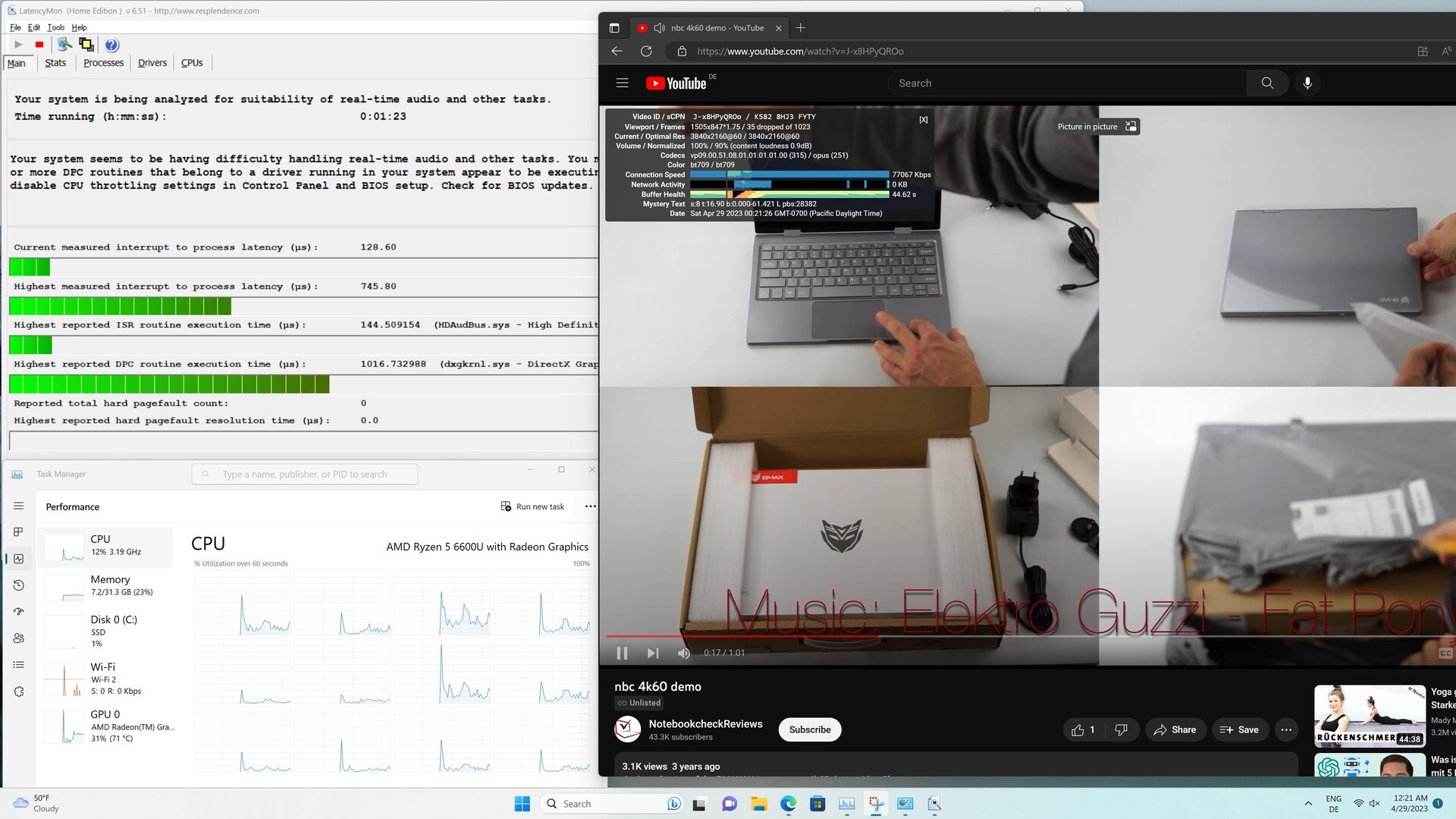

Latência máxima ao abrir várias guias do navegador e reproduzir material de vídeo 4K

Latência máxima após dez segundos de Prime95

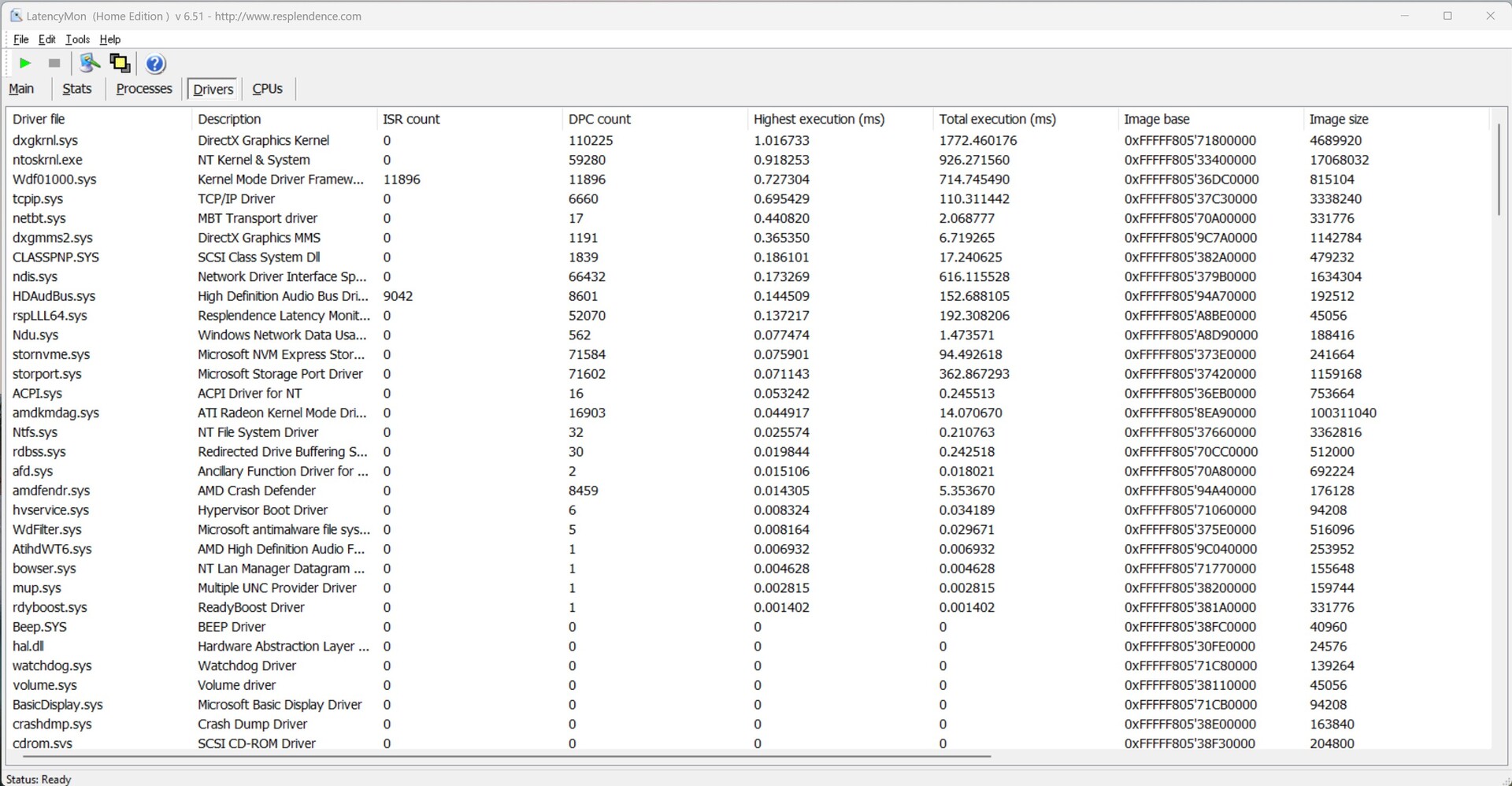

Drivers classificados pelo tempo de execução mais longo

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -84%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -60%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * -46%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -30%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * -10%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs *
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +35%

* ... smaller is better

Dispositivos de armazenamento

Recebemos a presente amostra de teste como uma versão barebone e realizamos o teste usando um SSD Transcend de 512 GB. O mesmo modelo também foi usado no Intel NUC 12 Pro Kit. No entanto, o mesmo SSD apresentou taxas ligeiramente melhores no Morefine M600 6600U. No entanto, você poderia obter resultados muito melhores se usasse um SSD que utilizasse toda a largura de banda do PCIe 4.0. Para isso, você pode dar uma olhada no Morefine M600 6900HXque oferece taxas de transferência significativamente mais altas do que o KC3000 da Kingston. Entretanto, o Morefine M600 teve problemas para manter o desempenho do SSD sob carga permanente. Às vezes, é aconselhável instalar uma SSD com uma unidade de resfriamento, pois a circulação de ar no dispositivo é muito limitada.

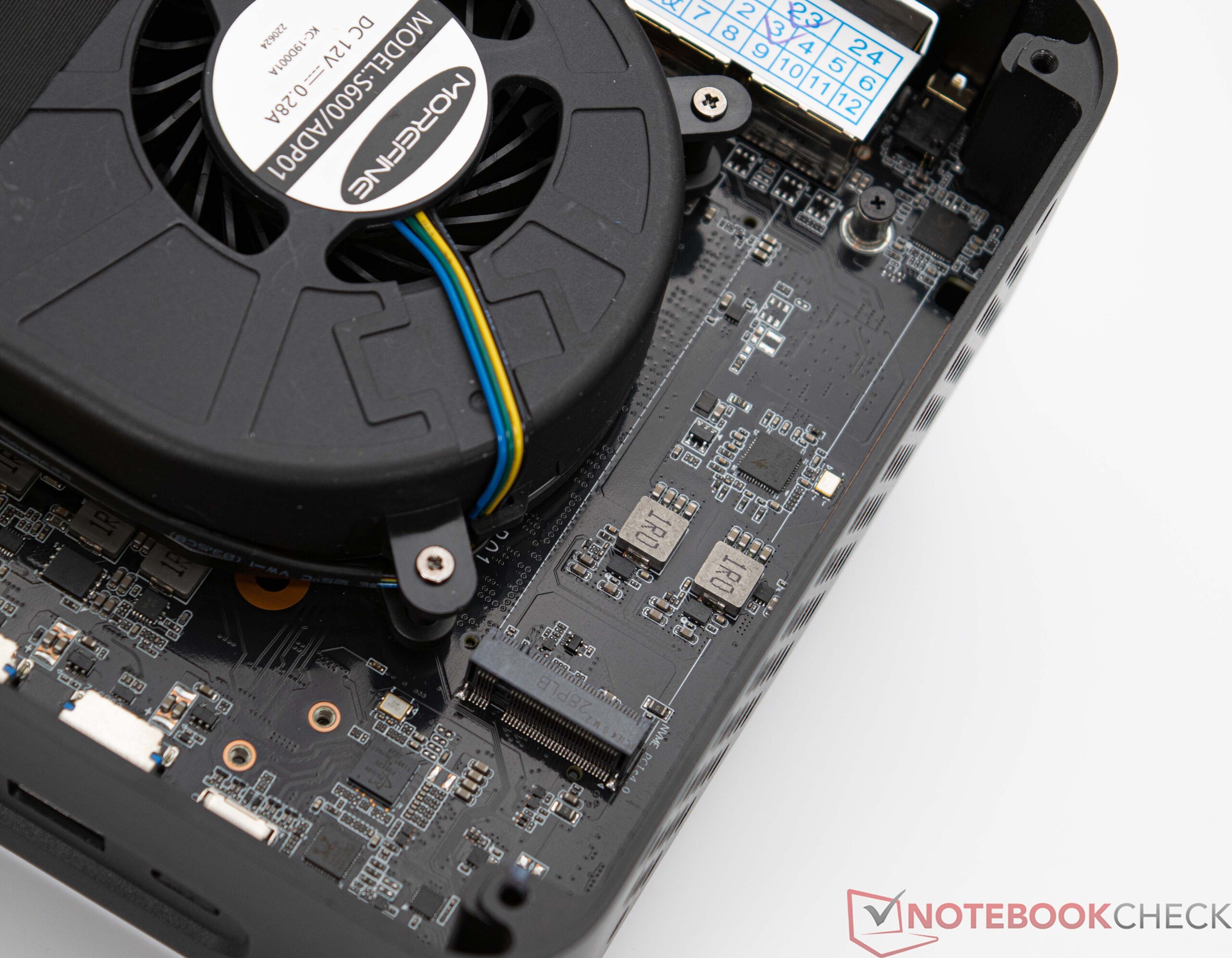

O Morefine M600 pode ser equipado com três dispositivos de armazenamento em massa, independentemente da configuração do SoC. O dispositivo tem dois slots M.2 e um suporte de dados de 2,5 polegadas (veja a imagem) também pode ser acomodado na tampa do gabinete. No entanto, ele não pode exceder uma altura de 9 milímetros. O cabo de conexão apropriado está incluído no escopo de fornecimento.

Para obter mais comparações e benchmarks, dê uma olhada em nossa tabela de comparação.

Nosso SSD de teste da Transcend com 512 GB

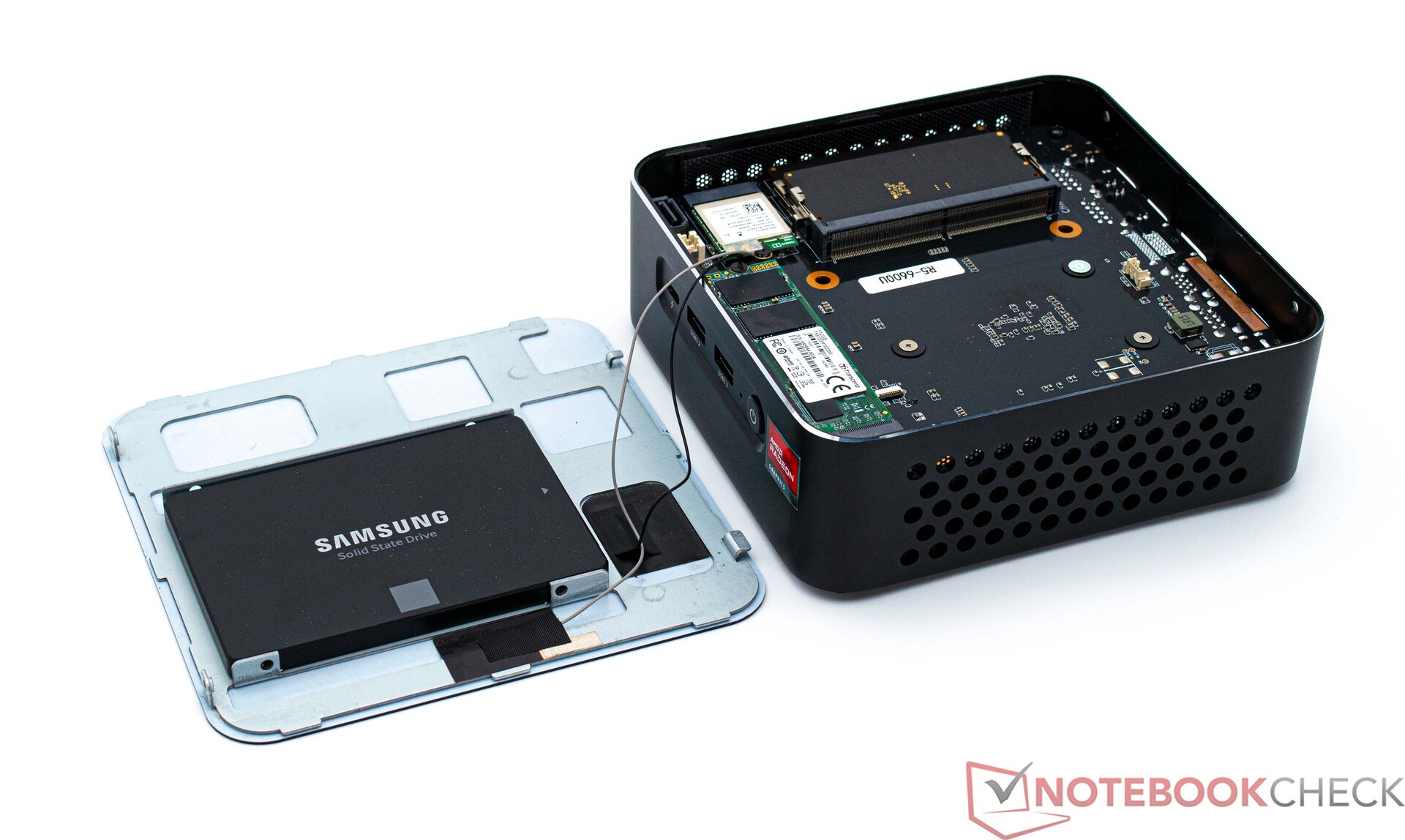

Exemplo de instalação de uma SSD Samsung de 2,5 polegadas

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Transcend M.2 SSD 2200S TS512GMTE220S

Sequential Read: 2523 MB/s

Sequential Write: 894.3 MB/s

512K Read: 947.1 MB/s

512K Write: 533.2 MB/s

4K Read: 53.23 MB/s

4K Write: 204.2 MB/s

4K QD32 Read: 467.4 MB/s

4K QD32 Write: 385.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	86.1 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	82 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.9 pt
Average of class Mini PC	53.8 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	41.7 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	39.9 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	37.4 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.9 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	31.2 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +86%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +64%
Average of class Mini PC (277 - 4357, n=119, last 2 years)	2333 MB/s +36%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +27%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s +4%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s 0%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -32%
seq write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +229%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +216%
Average of class Mini PC (229 - 5595, n=119, last 2 years)	2509 MB/s +133%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +67%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s +42%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s +10%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -8%
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +91%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +90%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3790 MB/s +50%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s 0%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s -10%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -14%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -21%
seq q8 t1 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +121%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +113%
Average of class Mini PC (239 - 6669, n=119, last 2 years)	2810 MB/s +76%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +12%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s +10%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -18%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -25%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -32%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +104%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +76%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s +56%
Average of class Mini PC (6.85 - 86.6, n=119, last 2 years)	55.3 MB/s +37%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +20%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +12%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s +10%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -27%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +86%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s -13%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	196.9 MB/s -14%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -14%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -30%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -40%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +247%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +245%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1411 MB/s +152%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +89%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +79%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s +43%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -38%
4k q32 t16 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +512%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +340%
Average of class Mini PC (32.6 - 4288, n=119, last 2 years)	1332 MB/s +145%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +90%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +64%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +64%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +42%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s +3%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +1106%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +853%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +790%
Average of class Mini PC (211 - 10021, n=117, last 2 years)	4244 Points +467%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +286%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points +264%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +200%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points +79%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +450%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +262%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +256%
Average of class Mini PC (76 - 3741, n=117, last 2 years)	1578 Points +139%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +74%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points +51%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +29%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -1%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +416%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +405%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +349%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1902 Points +172%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +79%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +67%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -42%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +88%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +46%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +42%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3231 MB/s +14%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -4%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s -19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -23%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -28%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +649%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +528%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +477%
Average of class Mini PC (242 - 5783, n=117, last 2 years)	2292 MB/s +337%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +206%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s +168%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +139%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s +119%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +94%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +61%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +24%
Average of class Mini PC (21.4 - 104.3, n=117, last 2 years)	59.7 MB/s +12%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +8%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -26%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -36%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -48%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +97%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +30%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +13%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s 0%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	177.5 MB/s -4%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -18%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -35%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -46%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +840%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +480%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +476%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1195 MB/s +270%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s +120%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +93%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s +8%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s
4K-64 Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +552%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +515%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +463%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1495 MB/s +224%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +113%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +78%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +61%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -64%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -157%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -75%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09579 ms * -60%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -40%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -23%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * -10%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * -8%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * -0%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms *
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1133 ms * -393%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -348%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -348%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * -52%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -35%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * -35%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * -26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms *
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +22%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S: Ø2242 (1995.64-2278.98)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Placa de vídeo

O Morefine M600 6600U tem uma placa de vídeo integradaAMD Radeon 660Mintegrada. Em comparação com aAMD Radeon 680Mque é uma iGPU encontrada no AMD Ryzen 9 6900HX, você terá que se contentar com um desempenho muito menor com a AMD Radeon 660M. Há uma diferença de 50% entre os dois modelos, o que significa que a AMD Radeon 660M compete com uma AMD Radeon RX Vega 8 e com a Intel Iris Xe Graphics.

Como o Morefine M600 6600U tem uma porta Thunderbolt 3, demos uma olhada em seu desempenho em combinação com o Razer Core X e umaNvidia GeForce RTX 3060 Ti. Embora o desempenho da placa de vídeo para desktop seja um pouco limitado devido à sua conexão PCI Express inferior, seu desempenho 3D pode ser drasticamente aumentado nessa combinação em comparação com a iGPU. Nos testes sintéticos, observamos um desempenho semelhante em comparação com seus concorrentes, que também combinamos com o Razer Core X e a Nvidia GeForce RTX 3060 Ti. Somente oAce Magician TK11-A0 não conseguiu acompanhar o ritmo devido à sua CPU mais fraca.

Você pode encontrar outros benchmarks da AMD Radeon 660M aqui.

AMD Radeon 660M

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	99.1 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	72.5 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	64.3 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	63.8 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62.3 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	51.6 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	50.7 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +96%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points +92%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +26%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +25%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points +21%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +3%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -1%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points +54%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +46%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +17%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +8%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points -25%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -27%
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points +45%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +44%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points +6%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -19%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -27%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +68%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points +64%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points +14%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points -1%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points -20%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -22%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points +49%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +43%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points +1%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1823 Points -15%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -19%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1509 Points -30%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	98.4 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	91.6 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	61.2 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	61.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 ^-2! Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	59.2 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	57.7 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	50.8 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	47.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +70%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +65%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps +9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -15%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -27%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +60%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps +8%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +2%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -15%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -20%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +93%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps +72%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +31%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps +25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -3%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +97%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +84%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps +40%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +31%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +18%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -21%

Unigine Superposition
1920x1080 1080p High
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	3187 Points +77%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points +62%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points +16%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points -12%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points -15%
1920x1080 1080p Extreme
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1481 Points +85%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points +70%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points +34%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	868 Points +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	776 Points -3%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	736 Points -8%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points +107%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +69%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +21%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points +12%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points +3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -22%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points +26%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points -13%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -26%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points -30%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -42%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points +19%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points -20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points -29%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points -35%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -40%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points +118%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +80%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +37%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points +30%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -40%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points +142%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +100%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points +35%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +24%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points +17%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	98.8 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.4 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	96.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	94.7 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +496%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +493%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +484%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +481%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	32467 Points +476%
	5634 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	123559 Points +339%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +333%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	118686 Points +321%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +314%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	115545 Points +310%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +300%
	28159 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +455%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +443%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +439%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	24738 Points +435%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +427%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +424%
	4621 Points
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +671%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +671%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +654%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	10768 Points +653%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +649%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +636%
	1430 Points
Fire Strike Extreme Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	13552 Points +531%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13299 Points +519%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +517%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	13186 Points +514%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +505%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +502%
	2149 Points

Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +731%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	169.6 fps +731%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +720%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	167.3 fps +720%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	166.1 fps +714%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +597%
	20.4 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	164.8 fps +689%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +687%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +639%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	154.3 fps +638%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	153.4 fps +634%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +547%
	20.9 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	143.1 fps +1213%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +1199%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +1131%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	131.7 fps +1108%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	127.9 fps +1073%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +759%
	10.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +997%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	125.8 fps +984%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +958%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	122.2 fps +953%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	120.1 fps +935%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +690%
	11.6 fps

Unigine Superposition
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15114 Points +740%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	14836 Points +724%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	14751 Points +720%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +717%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +352%
	1800 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7129 Points +790%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	7036 Points +778%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +778%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7012 Points +775%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	4171 Points +421%
	801 Points

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +710%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27847 Points +710%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27811 Points +709%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +707%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	27566 Points +702%
	3439 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +748%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2691 Points +746%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2689 Points +746%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +742%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2675 Points +741%
	318 Points
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +673%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2622 Points +671%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +670%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2619 Points +670%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2606 Points +666%
	340 Points
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +512%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5694 Points +510%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5689 Points +510%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +506%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	5603 Points +501%
	933 Points
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	10555 Points +996%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	10539 Points +994%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +994%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +994%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10462 Points +986%
	963 Points

Desempenho em jogos

AAMD Radeon 660Mé uma iGPU que só pode lidar com os requisitos dos jogos atuais de forma limitada. Por exemplo, só conseguimos atingir taxas de quadros não jogáveis a 720p ao executar God of War. Em comparação, isso significa uma troca de golpes entre ela, a AMD Radeon RX Vega 8 e a Intel Iris Xe Graphics, que também eram apenas limitadamente adequadas para jogos.

Como antes em nossos testes sintéticos, também demos uma olhada no desempenho esperado do PC em combinação com o Razer Core X e aNvidia GeForce RTX 3060 Ti em nossos testes de jogos. O desempenho 3D pode ser aumentado significativamente via Thunderbolt com os acessórios correspondentes. Em comparação com o Morefine M600 6900HX, nossa amostra de teste baseada no Ryzen 5 6600U sempre ficou atrás, com uma pequena diferença.

Para mais comparações e benchmarks, dê uma olhada em nossa Lista de jogos de GPU.

AMD Radeon 660M

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps +72%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +27%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps +15%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps -10%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -14%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps +83%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +74%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +42%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	25.6 (19.1^min, 20^P0.1, 22.1^P1) fps +13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps +5%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19.3 (2.25^min, 2.26^P0.1, 2.92^P1) fps -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -33%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +85%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps +68%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	72.7 fps +48%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	61 fps +24%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps +7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps -31%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps +95%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +77%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	17.7 fps +30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +19%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps +10%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.8 fps +9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps -23%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +6%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps +4%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	136 (6.37^min, 90.9^P1) fps -5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -5%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	113.4 (25.6^min, 76.9^P1) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps -24%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +58%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps +45%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	33.9 (11^min, 24.4^P1) fps 0%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	26.5 (10.4^min, 18.9^P1) fps -22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -38%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -43%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps -52%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +21%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps +15%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	62 (57^min) fps 0%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps -16%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	44 (19^min) fps -29%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps -60%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps +34%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	27 (24^min) fps -7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -7%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps -14%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	20 (10^min) fps -31%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps -45%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +14%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps +12%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	56 (43^min) fps -3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps -19%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	42 (33^min) fps -28%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps -50%
1920x1080 High Preset
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps +28%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +28%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -3%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	26 (21^min) fps -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps -10%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19 (6^min) fps -34%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps -48%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps +5%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	137.4 (117.3^min) fps +1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -2%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	124.2 (110.5^min) fps -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps -14%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -42%
1920x1080 high (2/3)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps +30%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +27%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +5%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	66.7 (61^min) fps +3%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps -3%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	51.7 (47.2^min) fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps -33%

	baixo	média	alto	ultra
GTA V (2015)	142.9	124.9	33.9	14.5
The Witcher 3 (2015)	76.8	46.8	22.6	14.4
Dota 2 Reborn (2015)	135.9	107.7	64.9	55.7
Final Fantasy XV Benchmark (2018)	40.9	19.8	14.5
X-Plane 11.11 (2018)	50.6	36.7	30.8
Far Cry 5 (2018)	62	29	29	26
Strange Brigade (2018)	99.9	37.8	29.5	24.3
Shadow of the Tomb Raider (2018)	69.3	22.2	17.3	13.4
Far Cry New Dawn (2019)	58	32	29	27
Metro Exodus (2019)	48	18.8	14.4	11.2
Borderlands 3 (2019)	49	20.5	13.6	10.7
F1 2020 (2020)	102.1	44.6	32.3	22.2
F1 2021 (2021)	109.5	44.4	35.2	14.7
Far Cry 6 (2021)	58.5	25.6	21.8	18.3
God of War (2022)	16	12.6	9.95
GRID Legends (2022)	49.6	36.5	27.4	19.5
Tiny Tina's Wonderlands (2022)	26.9	19.7	12.6	9.57
F1 22 (2022)	44.7	40.2	27.2	5.91

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	85.5 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.7 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	79.7 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	73.8 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	21.3 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +524%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +517%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +487%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	76.1 (11.9^min, 50^P1 - 151.7^max) fps +425%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +287%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.5 (2.64^min, 10.4^P1 - 72.3^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +423%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +322%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +302%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	56.6 fps +293%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +291%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.4 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +141%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +103%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +101%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	105 (89.2^min) fps +89%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +67%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	55.7 (49.1^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps +573%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +536%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +531%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	91.2 fps +529%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps +445%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.5 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +512%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +440%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	128.7 (36^min, 76.1^P1 - 249^max) fps +430%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +424%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +372%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	24.3 (10.4^min, 12^P1 - 274^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +362%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +312%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +300%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	88 (68^min - 117^max) fps +238%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +131%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	26 (23^min - 34^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +274%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +226%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +222%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	77 (54^min - 122^max) fps +185%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +100%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	27 (20^min - 33^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +363%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +291%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	84.5 (42^min - 120^max) fps +281%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +271%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +267%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	22.2 (17^min - 27^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +345%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +252%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +199%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +196%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	42.8 (11^min, 19^P1 - 50^max) fps +191%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	14.7 (12^min, 12^P1 - 17^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +681%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +614%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +566%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +552%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	68.7 fps +542%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	10.7 fps

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	164.9	158.4	130.7	76.1	73.8	94
The Witcher 3 (2015)	207.5	142.8	108.4	56.6		61.1
Dota 2 Reborn (2015)	131.8	116.9	108.6	105		90.8
Final Fantasy XV Benchmark (2018)	149.2	124.4	91.2		73.4	46.9
X-Plane 11.11 (2018)	90.8	79.2	64.9			56.7
Far Cry 5 (2018)	113	98	94	88	82	55
Strange Brigade (2018)	169.8	131.1	128.3	128.7	119.6	79.4
Shadow of the Tomb Raider (2018)	108.4	89.6	87.4	84.7	78	52.1
Far Cry New Dawn (2019)	100	89	85	77	72	56
Metro Exodus (2019)	110.4	77.7	59.3	44.7	40	30.8
Borderlands 3 (2019)	83.3	88.2	84.2	68.7	56.9	33.5
F1 2020 (2020)	163.9	95.8	97.6	84.5	72.5	51.7
F1 2021 (2021)	113.7	87.6	54.5	42.8	38.8	32.8
Far Cry 6 (2021)	60.1	51.5	42.3	36.6	35.8
God of War (2022)	98.1	87.8	73.8	56	49.2	37.7
GRID Legends (2022)	91.6	81	70.1	57.7	52.6	44.1
Tiny Tina's Wonderlands (2022)	151.4	126.8	91.9	75.3	58.1	35.1
F1 22 (2022)	49.1	44.3	34.8	22.6	21.7	17.3

Emissões - econômico e extremamente silencioso

Emissões de ruído

Em termos de emissões de ruído, o Morefine M600 6600U não pode ser criticado. Em comparação com o ruído ambiente, observamos apenas um aumento mínimo nos níveis de ruído, mesmo com carga total. Portanto, podemos afirmar que o dispositivo funciona quase silenciosamente, apesar do resfriamento a ar ativo. Somente oMinisforum NAD9 se apresentou de forma semelhante.

	Morefine M600, 6600U R5 6600U, Radeon 660M	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine M600, 6900HX R9 6900HX, Radeon 680M
Noise		-19%	-6%	-13%	-3%	-20%	-9%	-11%
off / environment *	29.4	30.1 -2%	30.2 -3%	30.28 -3%	30.2 -3%	30.4 -3%	30.5 -4%	30.4 -3%
Idle Minimum *	29.4		30.5 -4%	31.82 -8%	30.5 -4%	33.1 -13%	31.6 -7%	30.9 -5%
Idle Average *	29.4	33.15 -13%	30.5 -4%	32.27 -10%	30.5 -4%	33.1 -13%	31.6 -7%	31.5 -7%
Idle Maximum *	29.5		30.5 -3%	33.17 -12%	30.5 -3%	33.1 -12%	31.6 -7%	31.5 -7%
Load Average *	29.6		31.2 -5%	35.82 -21%	30.5 -3%	38.1 -29%	33.9 -15%	37.5 -27%
Load Maximum *	29.6	41.63 -41%	35.1 -19%	37.1 -25%	30.5 -3%	43.6 -47%	34.4 -16%	34.1 -15%

* ... smaller is better

Barulho

Ocioso		29.4 / 29.4 / 29.5 dB
Carga		29.6 / 29.6 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 29.4 dB(A)

Temperatura

O gabinete do Morefine M600 6600U aquece apenas ligeiramente, embora a ventoinha funcione de forma muito conservadora. Registramos um máximo de 90,8 °C para oAMD Ryzen 5 6600U em nosso teste de estresse, que simula um cenário extremo. O fabricante limita a temperatura máxima no BIOS a 90 °C - isso ocorre porque o limite térmico do AMD Ryzen 5 6600U é de 95 °C, de acordo com as especificações do fabricante.

O Morefine M600 6600U durante o teste de estresse (frente)

O Morefine M600 6600U durante o teste de estresse (atrás)

Consumo de energia

Uma olhada na tabela de comparação mostra que o Morefine M600 6600U teve uma pontuação excelente. O SoC econômico garantiu um baixo consumo de energia em todas as medições. Observamos apenas 8 a 8,8 watts em modo inativo, embora apenas cerca de 55 watts fossem necessários em carga média. No entanto, a fonte de alimentação de 120 watts também precisou fornecer até 83 watts por um curto período, mas isso não causou nenhum problema em nosso teste.

adaptador de energia de 120 watts (parte superior)

adaptador de energia de 120 watts (parte inferior)

Consumo de energia

desligado	1.6 / 1.9 Watt
Ocioso	8 / 8.7 / 8.8 Watt
Carga	54.6 / 83.2 Watt


Key: min: , med: , max: Metrahit Energy

	Morefine M600, 6600U R5 6600U, Radeon 660M	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Average AMD Radeon 660M	Average of class Mini PC
Power Consumption		-1%	-32%	32%	-54%	-33%	-15%	-27%	22%	-32%
Idle Minimum *	8	8.1 -1%	8.9 -11%	3.4 57%	12.1 -51%	12.1 -51%	8.7 -9%	9.9 -24%	4.41 ?(2.4 - 8, n=9) 45%	9.69 ?(1.9 - 45.7, n=121, last 2 years) -21%
Idle Average *	8.7	8.4 3%	9.6 -10%	5.7 34%	13 -49%	12.2 -40%	9.6 -10%	11 -26%	6.74 ?(4.6 - 8.7, n=9) 23%	11.9 ?(1.9 - 47.5, n=119, last 2 years) -37%
Idle Maximum *	8.8	11.9 -35%	11.8 -34%	7 20%	18.2 -107%	12.3 -40%	10.5 -19%	11.2 -27%	8.29 ?(5.1 - 13, n=9) 6%	15.2 ?(2.6 - 57.1, n=121, last 2 years) -73%
Load Average *	54.6	47.1 14%	98.9 -81%	36.5 33%	70.6 -29%	64 -17%	65.8 -21%	74.2 -36%	46 ?(24.4 - 61.5, n=9) 16%	59 ?(11.3 - 170.6, n=121, last 2 years) -8%
Load Maximum *	83.2	72.9 12%	101.8 -22%	68 18%	113 -36%	98.8 -19%	94.5 -14%	103.2 -24%	65.7 ?(47.5 - 88, n=9) 21%	100.5 ?(18.1 - 423, n=121, last 2 years) -21%

* ... smaller is better

Power consumption with external monitor

Morefine M600, 6600U; Prime95 V2810 Stress (external Monitor): Ø44.6 (37.4-67.8)

Morefine M600, 6600U; Cinebench R15 Multi (external Monitor): Ø41.9 (39.5-46.1)

Morefine M600, 6600U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø46.4 (41.3-64.1)

Morefine M600, 6600U; 1920x1080 The Witcher 3 ultra (external Monitor): Ø45.6 (42.7-54.8)

Morefine M600, 6600U; Idle 1min (external Monitor): Ø8.82 (8.4-12.2)

Pro

+ caixa robusta e compacta feita de materiais de alta qualidade

+ design atraente

+ várias portas USB, inclusive Thunderbolt

+ até três SSDs podem ser instalados

+ muito silencioso

+ baixo consumo de energia

+ opção de usar até três monitores ao mesmo tempo

+ LAN dupla 2.5G

+ preço razoável

Contra

- sem leitor de cartão SD

- altas temperaturas da SSD

Veredicto - Bom desempenho e baixas emissões

O Morefine M600 6600U oferece um desempenho aceitável e é uma boa alternativa ao modelo topo de linha. OAMD Ryzen 5 6600Ué baseado na mais recente arquitetura Rembrandt e, com seus 6 núcleos e 12 threads, é uma boa CPU versátil. Visualmente, não há praticamente nenhuma diferença entre os dois modelos M600 - eles são bem construídos e os vários materiais usados são de alta qualidade. Em comparação com a iGPU, o AMD Ryzen 5 6600U tem que perder um pouco do desempenho. Aqui, oAMD Ryzen 9 6900HXcom suaAMD Radeon 680Mtem um desempenho visivelmente melhor. Portanto, o Morefine M600 não pode ser recomendado como um PC exclusivamente para jogos, embora, graças às suas modernas opções de conectividade, incluindo o Thunderbolt 4, o sistema possa ser aprimorado com os acessórios certos.

O Morefine M600 6600U é um mini PC moderno e econômico com muitas portas externas. Felizmente, o modelo Ryzen 5 não precisa perder as modernas portas Thunderbolt 4.

Sua unidade de resfriamento integrada é boa, embora, ao mesmo tempo, mereça uma pequena crítica. O ventilador funciona silenciosamente, mesmo com carga máxima. Mesmo assim, o fabricante poderia ter otimizado a velocidade da ventoinha para garantir que o SoC tenha um desempenho melhor em carga permanente.

Preços e disponibilidade

Atualmente, você pode comprar o Morefine M600 6600U diretamente do fabricante https://morefine.com/en-de/products/morefine-m600-mini-pc-amd-6900hx-6800u-6600u?variant=40036452466775. Os preços da versão barebone com um AMD Ryzen 5 6600U começam em US$ 388.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was freely purchased by the author at his/her own expense. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Morefine M600, 6600U - 05/11/2023 v7 ^(old)
Sebastian Bade

Acabamento

87 / 98 → 89%

Conectividade

63 / 81 → 78%

Peso

79%

Desempenho do jogos

68%

Desempenho da aplicação

90%

Workstation

67%

Ruído

95%

Médio

78%

84%

Mini PC - Médio equilibrado

Possíveis concorrentes em comparação

O Morefine M600 com um AMD Ryzen 5 6600U em detalhes

Caso

Comparação de tamanho

Desempenho - O SoC Rembrandt da AMD é rápido com seus 6 núcleos

Condições de teste

Processador

A Morefine M600 no Multi Loop do Cinebench R15

Desempenho do sistema

Latência DPC

Dispositivos de armazenamento

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Placa de vídeo

AMD Radeon 660M

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Desempenho em jogos

AMD Radeon 660M

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Emissões - econômico e extremamente silencioso

Emissões de ruído

Temperatura

Consumo de energia

Power consumption with external monitor

Pro

Contra

Veredicto - Bom desempenho e baixas emissões

Preços e disponibilidade

Transparency

More articles related to this device
