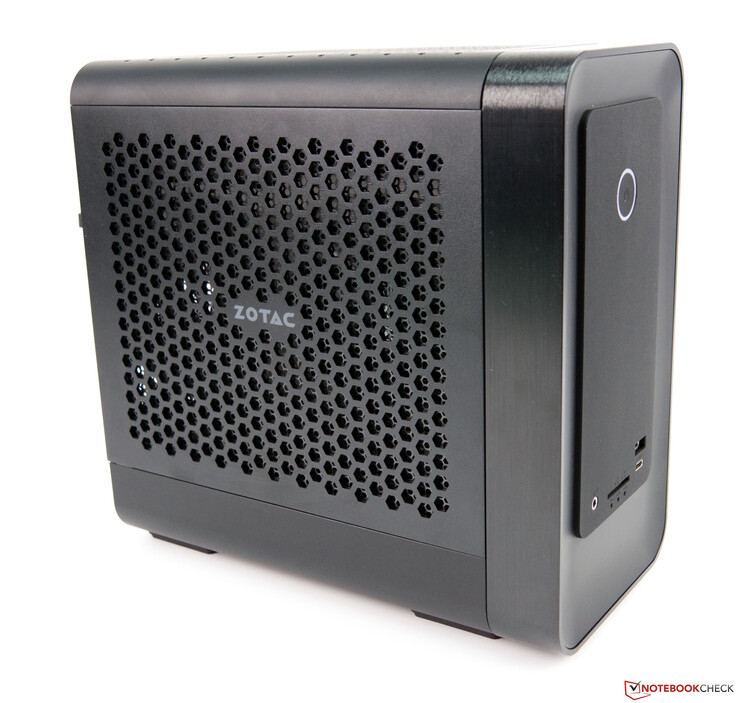

Com a nova série Magnus One, a Zotac introduz outro computador de jogos compacto em seu portfólio. Entretanto, deve ser mencionado imediatamente que o Zotac Magnus One é um sistema de barebone. Isto significa que a RAM, o armazenamento em massa e também o sistema operacional têm que ser adquiridos separadamente. Uma abordagem semelhante é adotada pela Zotac com seu ZBOX Magnus, que é ainda mais compacto, no entanto.

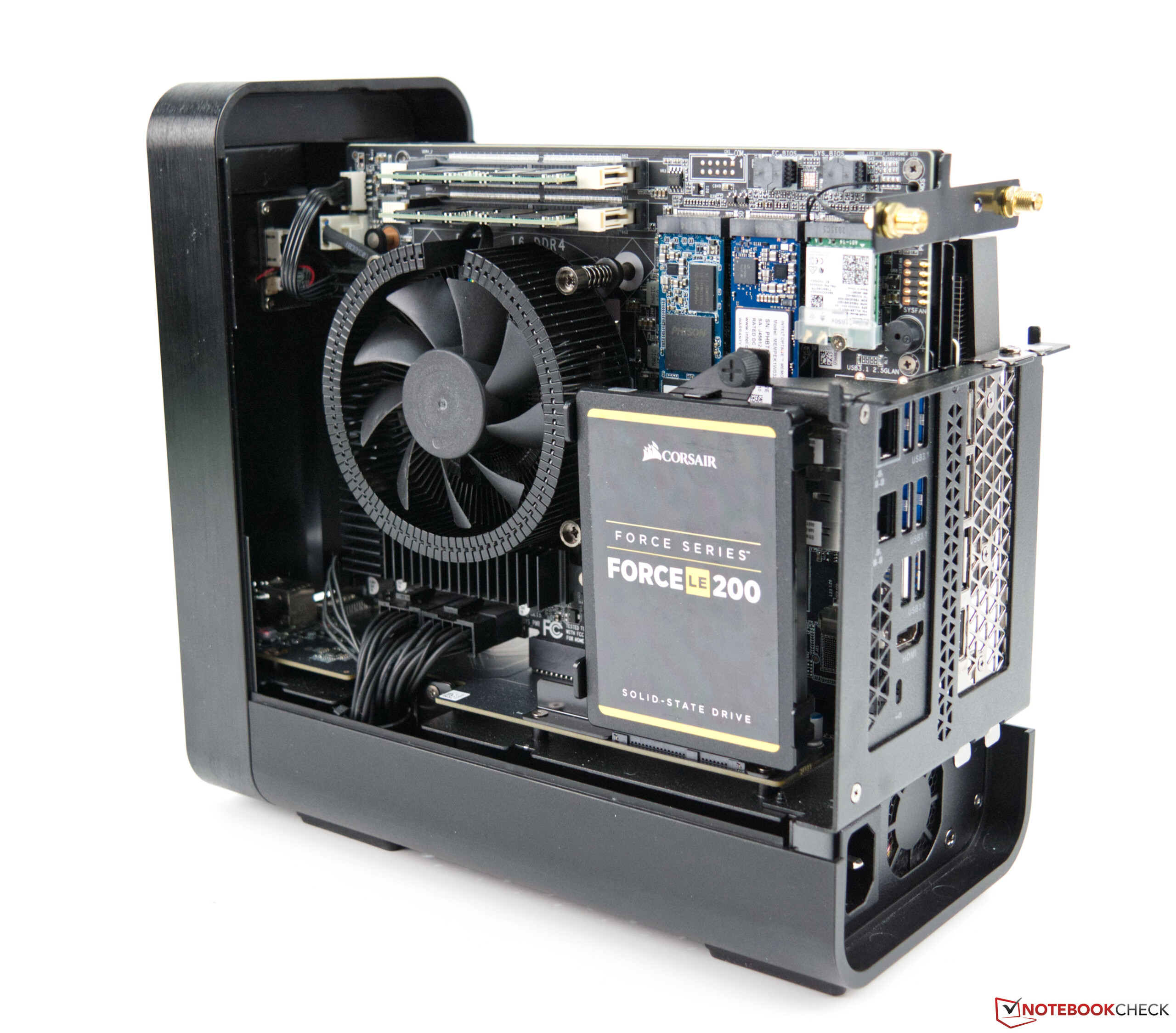

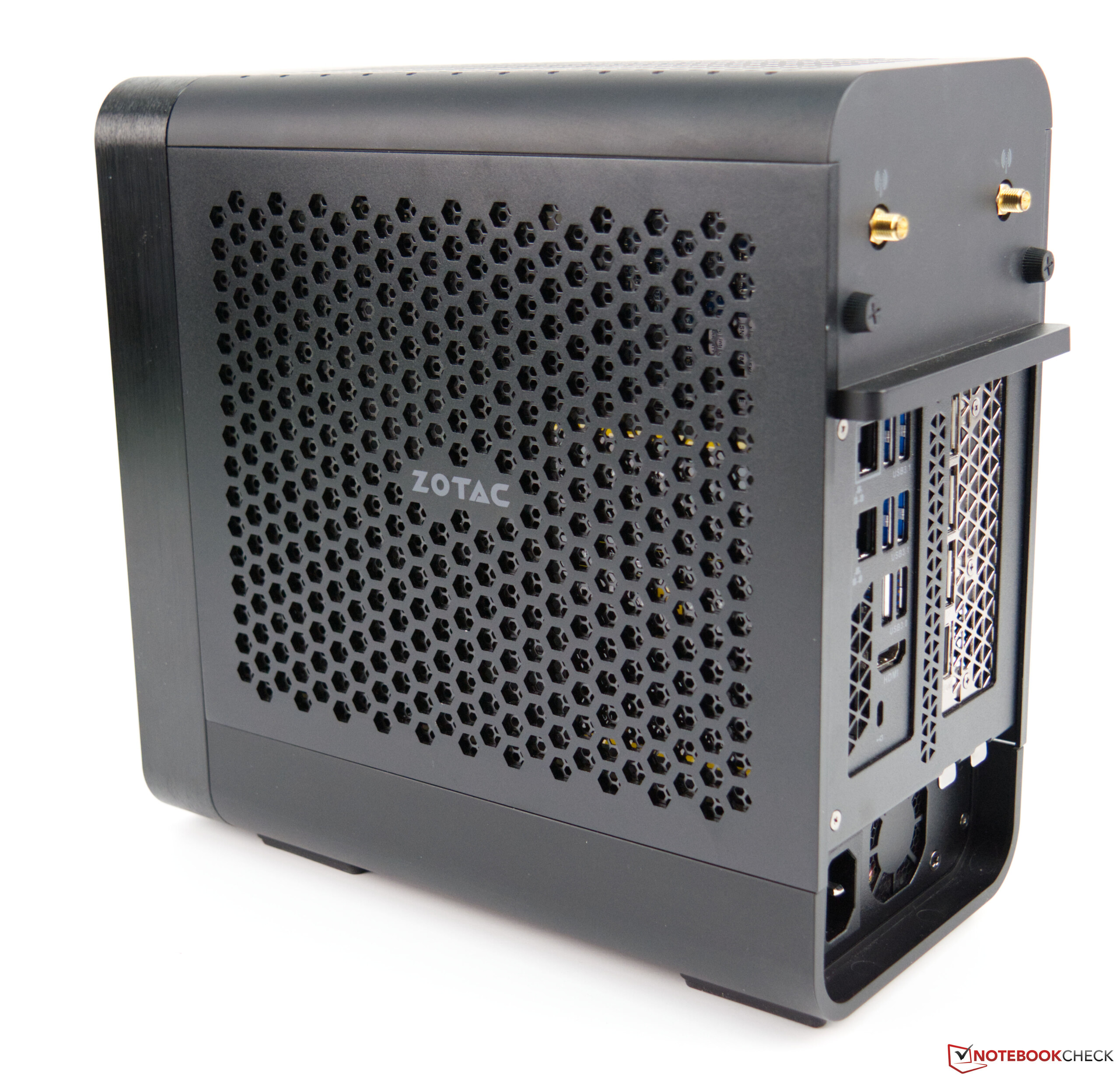

A caixa muito compacta inclui tudo o que você precisa para um PC de jogo completo. Mesmo a fonte de alimentação está dentro da caixa, e não precisa ser conectada separadamente como no MEK Mini. Uma plataforma especialmente desenvolvida com base no soquete 1200 da Intel serve como base. Com o Intel Core i7-10700, você obtém um processador razoavelmente moderno que faz bem seu trabalho, já que mesmo tarefas exigentes podem ser dominadas muito bem com seus 8 núcleos e 16 roscas. O modelo de 65 watts é uma boa escolha, porque o desenvolvimento do calor não deve ser negligenciado. Além disso, o sistema está equipado com um Zotac GeForce RTX 3070. Devido ao espaço limitado, a Zotac decidiu usar um módulo SO-DIMM para a RAM, que se encontra em sua maioria em laptops. Você pode escolher entre uma variante convencional de 2,5 polegadas ou uma variante M.2 para armazenamento em massa. Entretanto, também é possível combinar ambos. Os slots não interferem um com o outro

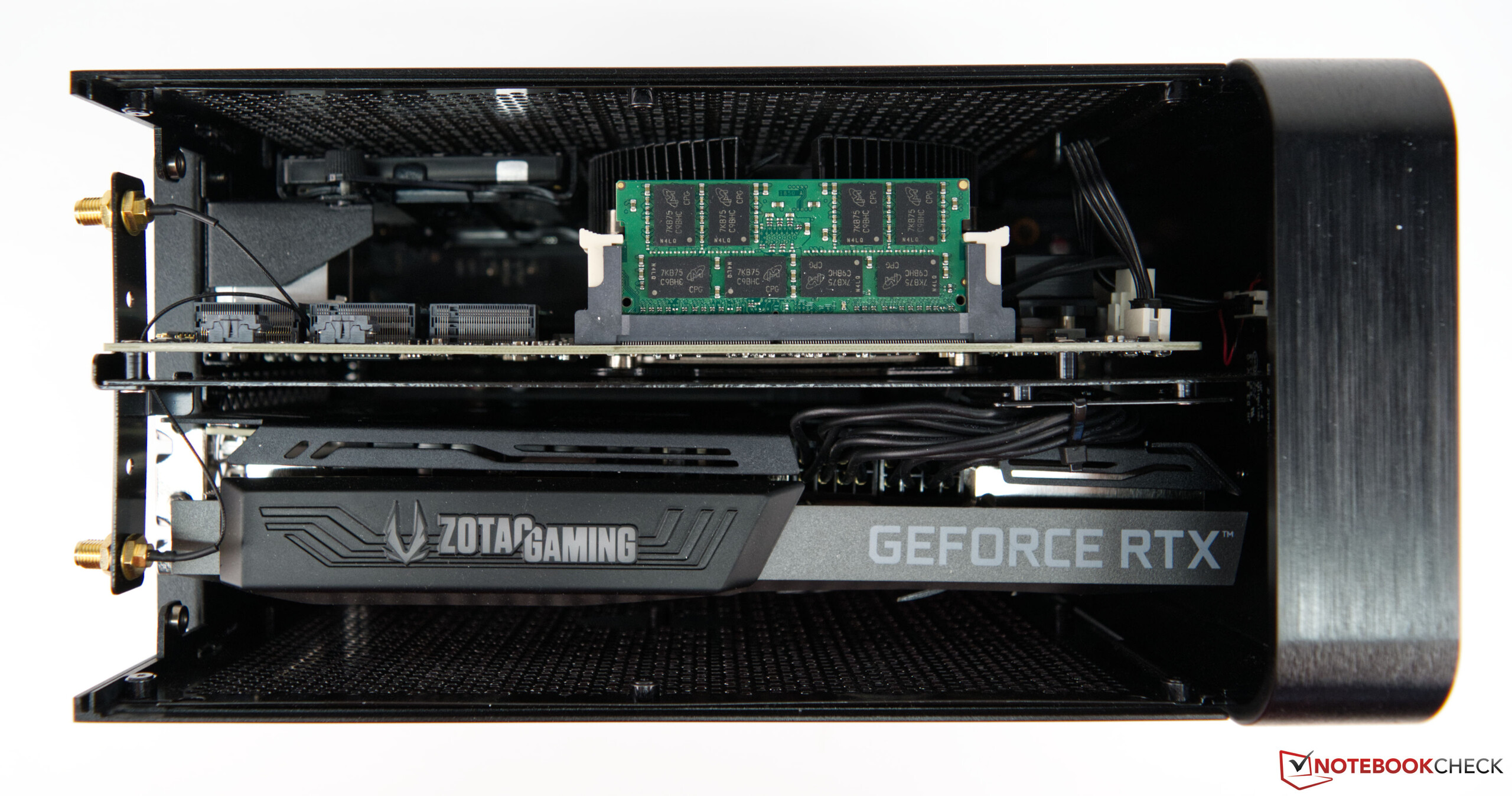

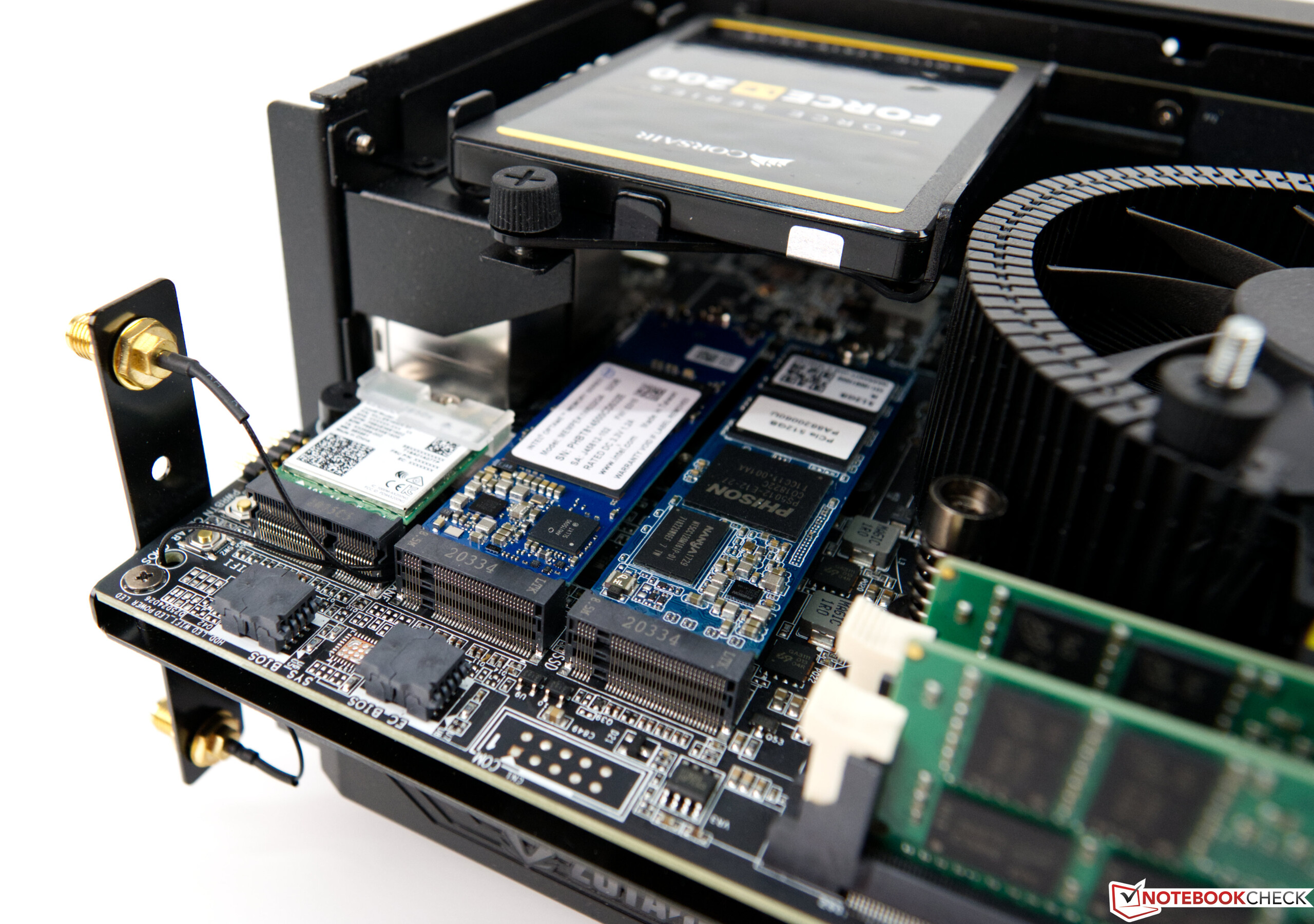

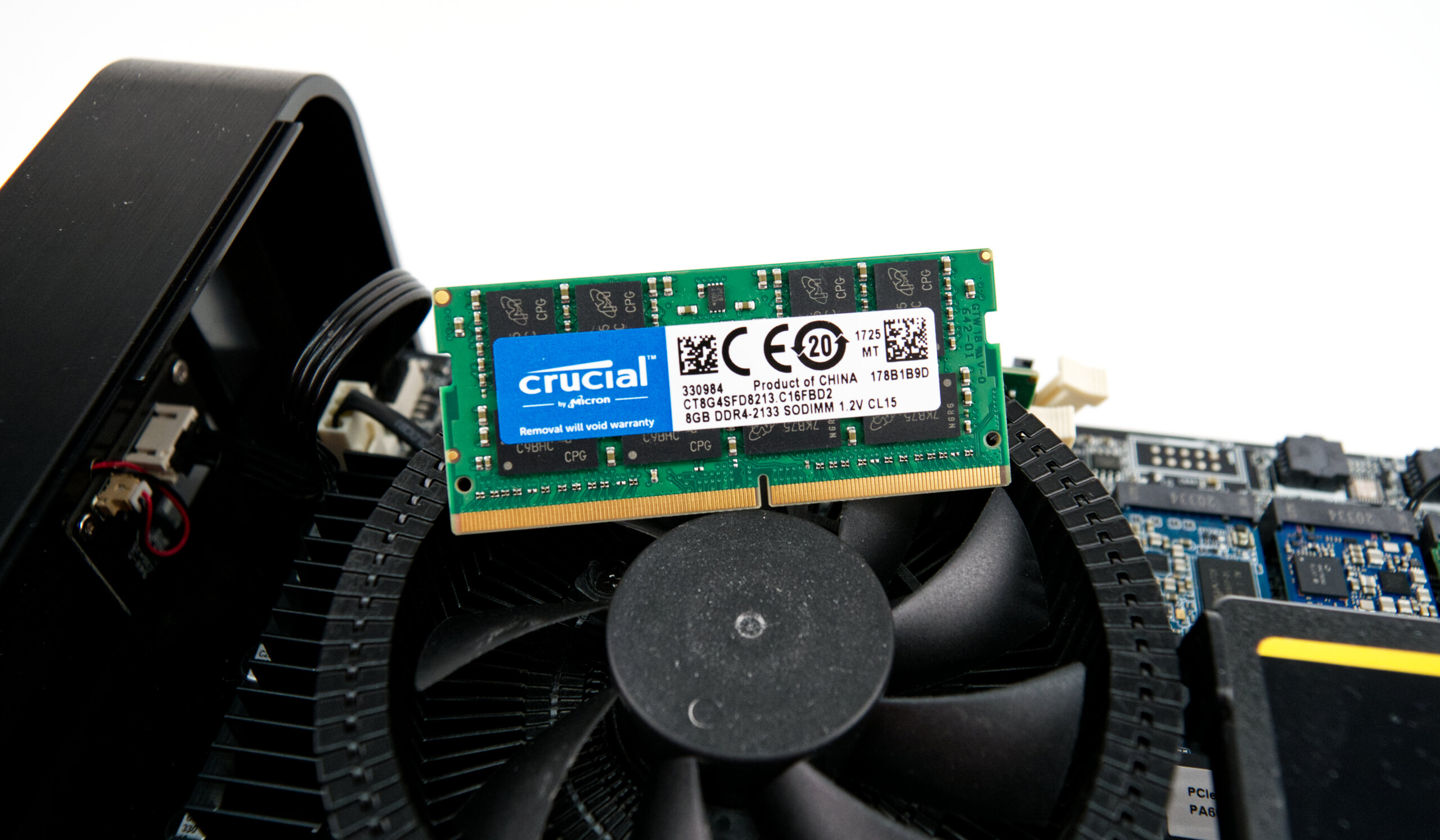

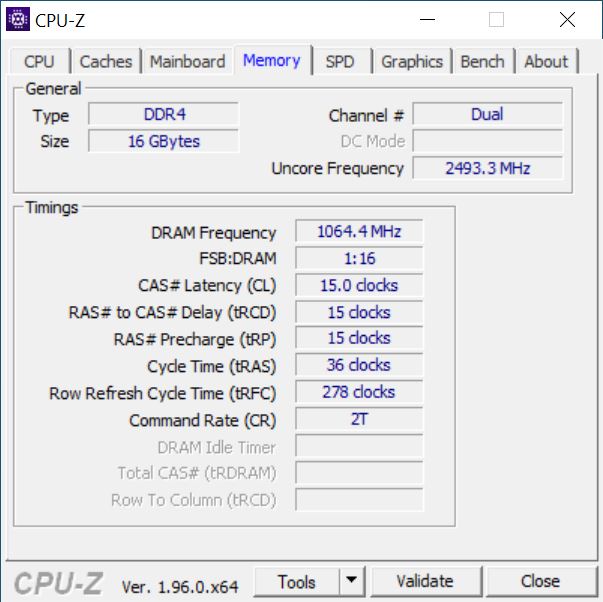

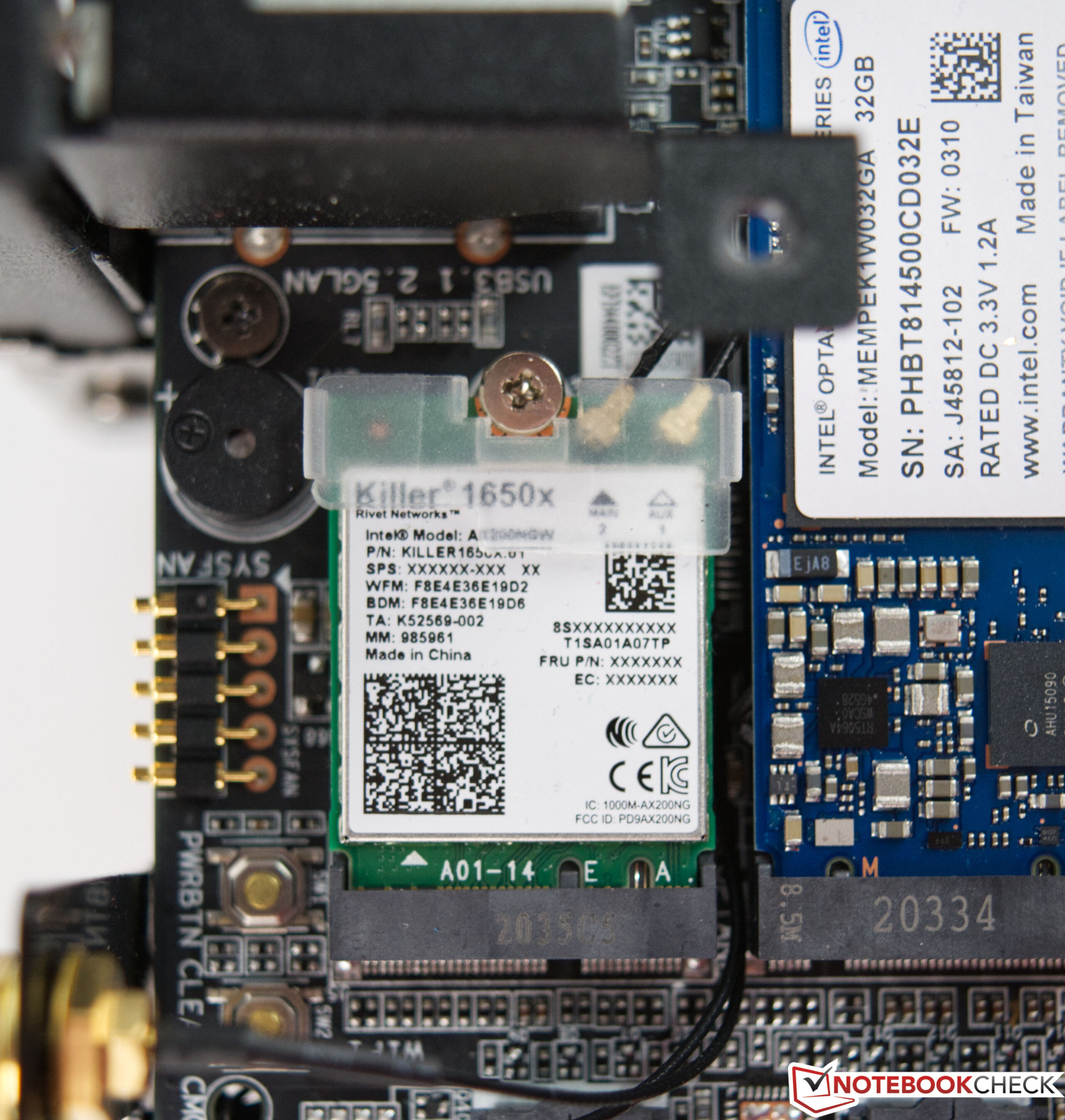

A Zotac nos forneceu um Magnus One com 16 GB de RAM DDR4 e SSDs oferecendo um total de 750 GB de espaço de armazenamento. O sistema de barebone com o GeForce RTX 3070 é oferecido oficialmente pela Zotac a um MSRP de 1.499 Euros (~$1.825). Entretanto, os modelos disponíveis estão listados significativamente acima do MSRP (a partir de 1.650 Euros (~$2.009)) no momento do teste, o que está relacionado com os baixos níveis de estoque de placas gráficas.

Referências de processadores

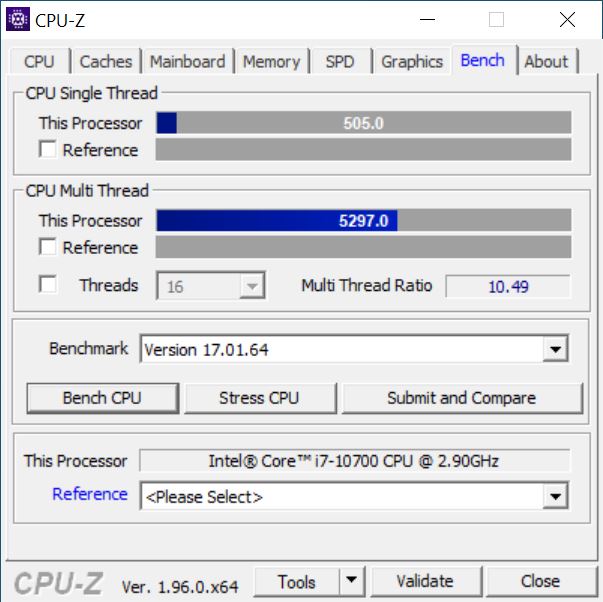

OIntel Core i7-10700é um processador octa-core com um TDP de 65 watts. A velocidade do relógio base é de 2,9 GHz e a velocidade máxima de impulso é especificada em 4,8 GHz. O Core i7-10700 atinge um resultado sólido no Zotac Magnus One, não deixando espaço para mais, devido à compactação deste último. No entanto, o sistema tem um bom desempenho e pode em grande parte deixar oIntel Core i7-9700Kpara trás nos testes multithread. Nos testes de núcleo único, o Intel Core i7-10700 em nosso sistema de testes está um pouco em igualdade com o Intel Core i5-10600K

.

Para mais comparações e benchmarks, consulte nossatabela de comparação de CPUMobile Processors - Benchmark List aqui.

Cinebench R15
CPU Single 64Bit
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	266 Points +36%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	254 Points +30%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	224 Points +14%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	208 Points +6%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	205 Points +5%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	203 Points +4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	196 Points
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	180 Points -8%
CPU Multi 64Bit
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	2620 Points +80%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	2616 Points +80%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	1987 Points +37%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	1968 Points +35%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	1455 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	1452 Points 0%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	1433 Points -2%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	1332 Points -8%

Cinebench R20
CPU (Single Core)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	625 Points
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	601 Points
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	532 Points
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	495 Points
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	475 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	464 Points
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	438 Points
CPU (Multi Core)
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	6381 Points
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	6068 Points
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	4816 Points
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	4567 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	3443 Points
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	3250 Points
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	3201 Points

Cinebench R11.5
CPU Single 64Bit
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	3.09 Points +37%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	2.95 Points +31%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	2.56 Points +13%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	2.37 Points +5%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	2.33 Points +3%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	2.26 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	2.19 Points -3%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	2.03 Points -10%
CPU Multi 64Bit
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	29.31 Points +76%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	29.03 Points +74%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	21.76 Points +30%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	21.75 Points +30%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	16.7 Points
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	15.83 Points -5%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	15.76 Points -6%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	14.39 Points -14%

Cinebench R10
Rendering Single CPUs 64Bit
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	13039 Points +32%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	12563 Points +27%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	10625 Points +7%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	10167 Points +3%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	9898 Points
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	9774 Points -1%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	9594 Points -3%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	8849 Points -11%
Rendering Multiple CPUs 64Bit
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	83426 Points +59%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	80495 Points +53%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	69545 Points +32%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	63009 Points +20%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	53600 Points +2%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	52577 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	51816 Points -1%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	47901 Points -9%

Blender - v2.79 BMW27 CPU
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	495.1 Seconds * -57%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	332.4 Seconds * -5%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	315.4 Seconds *
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	307 Seconds * +3%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	302.4 Seconds * +4%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	260.2 Seconds * +18%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	223.8 Seconds * +29%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	196.8 Seconds * +38%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	167.3 Seconds * +47%

wPrime 2.10
32m
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	6.25 s * -92%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	4.648 s * -43%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	4.491 s * -38%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	3.891 s * -19%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	3.582 s * -10%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	3.276 s * -1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	3.257 s *
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	3.037 s * +7%
1024m
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	134.7 s * -13%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	120.5 s * -1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	119.5 s *
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	113.9 s * +5%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	113.2 s * +5%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	91.3 s * +24%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	86.1 s * +28%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	66.3 s * +45%

X264 HD Benchmark 4.0
Pass 1
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	339 (338^min - 341^max) fps +44%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	320 (319^min - 321^max) fps +36%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	289.5 (289^min - 291^max) fps +23%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	270 (270^min - 271^max) fps +14%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	267.5 (267^min - 268^max) fps +13%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	251.5 (250^min - 253^max) fps +7%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	236 (235^min - 257^max) fps
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	228.5 (228^min - 231^max) fps -3%
Pass 2
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	152 (151^min - 152^max) fps +79%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	149 (149^min - 149^max) fps +76%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	117.5 (117^min - 118^max) fps +39%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	117 (117^min - 117^max) fps +38%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	94.8 (94.7^min - 95^max) fps +12%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	88.2 (88^min - 88.2^max) fps +4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	84.8 (84.6^min - 105^max) fps
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	81.2 (81^min - 81.3^max) fps -4%

WinRAR - Result
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	15604 KB/s +138%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	13282 KB/s +103%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	9739 KB/s +49%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	7621 KB/s +16%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	7396 KB/s +13%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	6555 KB/s
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	6536 KB/s 0%

TrueCrypt
AES Mean 100MB
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	15 GB/s +46%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	14.6 GB/s +42%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	11.5 GB/s +12%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	10.7 GB/s +4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	10.3 GB/s
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	8.1 GB/s -21%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	8 GB/s -22%
Twofish Mean 100MB
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	2.6 GB/s +44%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	2 GB/s +11%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	1.9 GB/s +6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	1.8 GB/s
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	1.5 GB/s -17%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	1.4 GB/s -22%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	1.3 GB/s -28%
Serpent Mean 100MB
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	1.5 GB/s +36%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	1.3 GB/s +18%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	1.1 GB/s 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	1.1 GB/s
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	0.938 GB/s -15%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	0.82 GB/s -25%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	0.774 GB/s -30%

Geekbench 5.5
Multi-Core
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	11414 Points +40%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	11354 Points +39%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	8980 Points +10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	8173 Points
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	7440 Points -9%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	7248 Points -11%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	6372 Points -22%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	6358 Points -22%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	4740 Points -42%
Single-Core
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	1665 Points +28%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	1657 Points +28%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	1449 Points +12%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	1300 Points 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	1299 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	1286 Points -1%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	1223 Points -6%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	1217 Points -6%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	1171 Points -10%

Geekbench 5.0
5.0 Multi-Core
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	11407 Points +39%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	11246 Points +37%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	8926 Points +9%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	8196 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	7237 Points -12%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	6349 Points -23%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	4724 Points -42%
5.0 Single-Core
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	1673 Points +28%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	1587 Points +22%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	1440 Points +10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	1304 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	1281 Points -2%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	1217 Points -7%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	1167 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	7333 Points +28%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	6953 Points +21%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	6348 Points +11%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	6043 Points +6%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	6014 Points +5%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	5821 Points +2%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	5726 Points
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	5587 Points -2%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	5494 Points -4%
64 Bit Multi-Core Score
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	44131 Points +37%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	43058 Points +34%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	35617 Points +11%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	33892 Points +5%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	32174 Points
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	29659 Points -8%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	28391 Points -12%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	25403 Points -21%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	18622 Points -42%

3DMark 11 - 1280x720 Performance Physics
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	23381 Points +51%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	22140 Points +43%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	19649 Points +27%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	19169 Points +24%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	16091 Points +4%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	15961 Points +3%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	15497 Points
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	14539 Points -6%

7-Zip 18.03
7z b 4
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	74306 MIPS +73%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	70968 MIPS +65%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	56607 MIPS +32%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	53166 MIPS +24%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	43007 MIPS
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	40379 MIPS -6%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	36731 MIPS -15%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	24319 MIPS -43%
7z b 4 -mmt1
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	6970 MIPS +32%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	6594 MIPS +25%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	5954 MIPS +12%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	5311 MIPS 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	5293 MIPS
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	5289 MIPS 0%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	5064 MIPS -4%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	4797 MIPS -9%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	21 fps +81%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	20.8 fps +79%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	15.8 fps +36%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	15.7 fps +35%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	13 fps +12%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	12.2 fps +5%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	11.6 fps
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	11.2 fps -3%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	7.7 fps -34%

R Benchmark 2.5 - Overall mean
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	0.652 sec * -11%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	0.618 sec * -5%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	0.593 sec * -1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	0.588 sec *
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	0.528 sec * +10%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	0.4778 sec * +19%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	0.4509 sec * +23%

LibreOffice - 20 Documents To PDF
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	76 s * -28%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	59.5 s *
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	58.1 s * +2%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	57.1 s * +4%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	46.06 s * +23%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	45.14 s * +24%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	43.31 s * +27%

WebXPRT 3 - Overall
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	296 Points +21%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	286 Points +17%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	255 Points +5%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	244 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	239 Points -2%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	215 Points -12%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	213 Points -13%

Mozilla Kraken 1.1 - Total
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	849 ms * -13%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	838 ms * -11%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	760 ms * -1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	752 ms *
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	709 ms * +6%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	578 ms * +23%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	558 ms * +26%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	34056 Points +58%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	31095 Points +44%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	29374 Points +36%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	26038 Points +21%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	24544 Points +14%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	21542 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	19942 Points -7%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	18796 Points -13%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	18082 Points -16%
1920x1080 Fire Strike Physics
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	35894 Points +79%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	30938 Points +54%
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	29805 Points +48%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	25990 Points +29%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	24697 Points +23%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	20080 Points
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	20040 Points 0%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	18780 Points -6%
2560x1440 Time Spy CPU
Intel Core i9-10900K, Intel Core i9-10900K i9-10900K, 3700 MHz	14326 Points +67%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X R7 5800X, 3800 MHz	11599 Points +35%
Corsair One i160, Intel Core i9-9900K i9-9900K, 3600 MHz	10867 Points +27%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X R5 5600X, 3700 MHz	8911 Points +4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 i7-10700, 2900 MHz	8580 Points
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K i7-9700K, 3600 MHz	8349 Points -3%
Intel Core i5-10600K, Intel Core i5-10600K i5-10600K, 4100 MHz	8290 Points -3%
Intel Core i5-10400F, Intel Core i5-10400F i5-10400F, 2900 MHz	7548 Points -12%
Intel Core i3-10100, Intel Core i3-10100 i3-10100, 3600 MHz	5333 Points -38%

* ... smaller is better

Zotac Magnus One na Cinebench R15 multi-loop

O Intel Core i7-10700 experimenta uma leve queda de desempenho após a primeira corrida, mas se torna cada vez mais estável no decorrer do teste. No entanto, o desempenho está em um nível elevado, com uma média de 1.338 pontos

Zotac Magnus One (ECM73070C): Ø1338 (1184.66-1454.54)

Desempenho da aplicação

Nossa configuração de teste do Magnus One atinge taxas relativamente boas em nossos benchmarks de aplicação. No entanto, esperávamos um melhor desempenho devido aos componentes incorporados. Em comparação com nossos outros sistemas de teste, o Magnus One é freqüentemente deixado para trás. Nós gostamos do fato de não ter um disco rígido convencional. Entretanto, os usuários têm a liberdade de escolher o tipo de dispositivo de armazenamento em massa que desejam usar. As imagens anexas dão uma idéia aproximada do desempenho que pode ser esperado. Um total de três dispositivos de armazenamento em massa pode ser acomodado no estojo

PCMark 10 | SPECviewperf 12 | SPECviewperf 13

PCMark 10
Score
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	8270 Points +27%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	8252 Points +27%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	7926 Points +22%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	7641 Points +18%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	7279 Points +12%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	6797 Points +5%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	6551 Points +1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	6499 Points
Digital Content Creation
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	14158 Points +39%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	13130 Points +29%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	12754 Points +26%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	12414 Points +22%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	11150 Points +10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	10161 Points
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	9845 Points -3%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	9206 Points -9%
Productivity
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	11069 Points +49%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	10963 Points +47%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	9414 Points +26%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	9361 Points +26%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	9332 Points +25%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	9057 Points +22%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	8191 Points +10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	7447 Points
Essentials
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	11386 Points +16%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	11280 Points +15%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	10483 Points +6%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	10138 Points +3%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	10028 Points +2%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	9922 Points +1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	9846 Points
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	9465 Points -4%

SPECviewperf 12
1900x1060 Solidworks (sw-03)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	199.1 fps +142%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	194 fps +136%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	172.2 fps +109%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	158.2 fps +92%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	153.8 fps +87%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	146.7 fps +78%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	82.5 fps 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	82.3 fps
1900x1060 Siemens NX (snx-02)
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	268 fps +2133%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	266.3 fps +2119%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	266 fps +2117%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	263.3 fps +2094%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	260.2 fps +2068%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	259.1 fps +2059%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	28.85 fps +140%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	12 fps
1900x1060 Showcase (showcase-01)
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	196.1 fps +19%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	194.2 fps +18%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	193.3 fps +17%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	192.4 fps +17%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	191.9 fps +16%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	190.6 fps +16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	165 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	115.1 fps -30%
1900x1060 Medical (medical-01)
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	94.6 fps +93%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	94.5 fps +93%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	94.3 fps +92%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	92.5 fps +89%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	88.4 fps +80%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	88.3 fps +80%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	51 fps +4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	49 fps
1900x1060 Maya (maya-04)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	233.8 fps +17%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	226 fps +13%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	200 fps
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	188.7 fps -6%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	169.4 fps -15%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	161.9 fps -19%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	155.1 fps -22%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	84.1 fps -58%
1900x1060 Energy (energy-01)
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	28.77 fps +120%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	28.72 fps +119%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	28.62 fps +118%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	28.54 fps +118%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	27.85 fps +113%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	27.75 fps +112%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	13.1 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	5.21 fps -60%
1900x1060 Creo (creo-01)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	175.2 fps +185%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	169.7 fps +176%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	157.2 fps +156%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	142.7 fps +132%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	135.8 fps +121%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	133.6 fps +117%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	62.5 fps +2%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	61.5 fps
1900x1060 Catia (catia-04)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	267.4 fps +129%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	263.4 fps +125%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	225.2 fps +92%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	215.5 fps +84%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	207.7 fps +78%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	197.8 fps +69%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	158.6 fps +36%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	117 fps
1900x1060 3ds Max (3dsmax-05)
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	299.9 fps +41%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	297.4 fps +40%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	296.9 fps +39%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	296 fps +39%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	291.3 fps +37%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	288.4 fps +35%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	213 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	130.8 fps -39%

SPECviewperf 13
Solidworks (sw-04)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	199.9 fps +75%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	195.1 fps +71%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	166.2 fps +46%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	153.9 fps +35%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	148.1 fps +30%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	141.6 fps +24%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	114 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	100.5 fps -12%
Siemens NX (snx-03)
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	482.9 fps +2105%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	481.9 fps +2100%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	480.1 fps +2092%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	472.9 fps +2059%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	469.1 fps +2042%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	467.8 fps +2036%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	51.5 fps +135%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	21.9 fps
Showcase (showcase-02)
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	195.1 fps +18%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	194.1 fps +18%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	193.9 fps +18%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	193.2 fps +17%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	192 fps +16%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	190.8 fps +16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	165 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	115 fps -30%
Medical (medical-02)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	90.8 fps +16%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	90.6 fps +16%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	90 fps +15%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	89.7 fps +15%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	88.7 fps +13%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	87.3 fps +11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	78.3 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	38.31 fps -51%
Maya (maya-05)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	459.6 fps +25%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	453.6 fps +24%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	405.9 fps +11%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	388 fps +6%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	387.5 fps +6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	367 fps
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	364.3 fps -1%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	199.5 fps -46%
Energy (energy-02)
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	53.3 fps +89%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	53.2 fps +89%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	53 fps +88%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	52.3 fps +85%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	52.2 fps +85%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	52.2 fps +85%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	28.2 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	7.55 fps -73%
Creo (creo-02)
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	353.3 fps +47%
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	350 fps +45%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	338.7 fps +41%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	336.3 fps +40%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	331.7 fps +38%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	328.5 fps +36%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	241 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	108.9 fps -55%
Catia (catia-05)
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	427.8 fps +150%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	415.1 fps +143%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	362.1 fps +112%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	341.7 fps +100%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	324.6 fps +90%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	314.8 fps +84%
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	236 fps +38%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	171 fps
3ds Max (3dsmax-06)
AMD Ryzen 5 5600X, AMD Ryzen 5 5600X NVIDIA Titan RTX	298.8 fps +40%
AMD Ryzen 7 5800X, AMD Ryzen 7 5800X NVIDIA Titan RTX	297.6 fps +40%
Intel Core i5-10600K, Intel Core i5-10600K NVIDIA Titan RTX	294.4 fps +38%
Intel Core i9-10900K, Intel Core i9-10900K NVIDIA Titan RTX	292.5 fps +37%
Intel Core i5-10400F, Intel Core i5-10400F NVIDIA Titan RTX	288.3 fps +35%
Intel Core i3-10100, Intel Core i3-10100 NVIDIA Titan RTX	288.2 fps +35%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 NVIDIA GeForce RTX 3070	213 fps
Intel Core i7-9700K, AMD Radeon RX Vega 64, Intel Core i7-9700K AMD Radeon RX Vega 64	131 fps -38%

Desempenho em 3D e jogos

UmNvidia GeForce RTX 3070que vem diretamente do portfólio interno da Zotac é responsável pelo bom desempenho 3D. O sistema apresentou um desempenho sólido no teste e teve uma pontuação geral um pouco melhor do que nos testes anteriores que só examinaram a CPU. Em termos de desempenho absoluto, o Magnus One com o GeForce RTX 3070 está logo atrás de nosso sistema de teste baseado no AMD Ryzen 9 5900X ligeiramente mais rápido e no MSI GeForce RTX 3070 Ventus 3X. Entretanto, o desempenho um pouco mais baixo não pode ser descrito como sendo perceptível. No entanto, o RTX 3070 tem um desempenho fácil quando se trata da geração anterior equipada com o RTX 2070 Super. Uma melhoria de até 30% no desempenho é possível, e é definitivamente perceptível quando se trata de jogos também. O equipamento do Magnus One certamente permite que muitos jogos sejam desfrutados em 2160p, embora os jogos de 1440p devam ser o alvo principal.

Para mais comparações e benchmarks relativos à performance do RTX 3070, consulte nossa tabela de comparação de GPUMobile Graphics Cards - Benchmark List.

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	98.8 fps
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	95.3 fps -4%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (74.3 - 86, n=5)	80.9 fps -18%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	79.4 fps -20%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	79 fps -20%
Average NVIDIA GeForce RTX 2070 (Desktop) (70.9 - 74.4, n=2)	72.7 fps -26%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (68.6 - 74.1, n=4)	71.2 fps -28%

Metro Exodus - 1920x1080 Ultra Quality AF:16x
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	93.7 (46.52^min - 161.6^max) fps +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	93.1 (45.73^min - 151.06^max) fps
Average NVIDIA GeForce RTX 2070 Super (Desktop) (67.8 - 79.1, n=5)	72.3 fps -22%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	70 (33^min - 128^max) fps -25%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	67.8 (36^min - 110^max) fps -27%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (58 - 67.4, n=4)	62.3 fps -33%
Average NVIDIA GeForce RTX 2070 (Desktop) (33.4 - 62.8, n=4)	54.4 fps -42%

Far Cry New Dawn - 1920x1080 Ultra Preset
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	116 (77^min - 187^max) fps +22%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (80 - 133, n=5)	105.6 fps +11%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (85 - 121, n=4)	105.5 fps +11%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	98 (69^min - 151^max) fps +3%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	95 (66^min - 149^max) fps
Average NVIDIA GeForce RTX 2070 (Desktop) (79 - 94, n=3)	87.7 fps -8%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	87 (63^min - 135^max) fps -8%

Far Cry 5 - 1920x1080 Ultra Preset AA:T
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	143 (108^min - 192^max) fps +22%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (99 - 148, n=5)	121.8 fps +4%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	117 (89^min - 155^max) fps
Average NVIDIA GeForce RTX 2060 Super (Desktop) (99 - 130, n=4)	116.3 fps -1%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	110 (86^min - 143^max) fps -6%
Average NVIDIA GeForce RTX 2070 (Desktop) (86 - 105, n=4)	99.8 fps -15%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	99 (76^min - 132^max) fps -15%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Average NVIDIA GeForce RTX 2060 Super (Desktop) (77 - 158.2, n=4)	120 fps +32%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (66.8 - 157.3, n=6)	104.8 fps +15%
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	95.4 fps +5%
Average NVIDIA GeForce RTX 2070 (Desktop) ()	92.7 fps +2%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	91.9 fps +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	91 fps
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	76 fps -16%

Final Fantasy XV Benchmark - 1920x1080 High Quality
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	122 fps +9%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	112 fps
Average NVIDIA GeForce RTX 2070 Super (Desktop) (75.5 - 120, n=6)	99.5 fps -11%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	89 (45^min - 141^max) fps -21%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (79 - 93.8, n=4)	86.4 fps -23%
Average NVIDIA GeForce RTX 2070 (Desktop) (60.8 - 90.6, n=5)	81.9 fps -27%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	75.5 (49^min - 135^max) fps -33%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Average NVIDIA GeForce RTX 2060 Super (Desktop) (109.8 - 241, n=4)	180.3 fps +39%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (103.2 - 236, n=6)	154.6 fps +19%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	136.7 (117.4^min) fps +5%
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	136.3 (108.9^min) fps +5%
Average NVIDIA GeForce RTX 2070 (Desktop) ()	130.3 fps 0%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	129.7 (113.4^min) fps
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	107.7 (90.5^min) fps -17%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	121 (112^min - 134^max) fps 0%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	121 fps
Average NVIDIA GeForce RTX 2070 Super (Desktop) (95.6 - 109.6, n=6)	100.9 fps -17%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	99.4 (89^min - 109^max) fps -18%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	97 (83^min - 109^max) fps -20%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (79 - 91.1, n=5)	84.8 fps -30%
Average NVIDIA GeForce RTX 2070 (Desktop) (40.9 - 95, n=5)	79.2 fps -35%

3DMark
Fire Strike Extreme Graphics
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	15722 Points +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	15597 Points
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	11976 Points -23%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	11951 Points -23%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (11382 - 12044, n=8)	11872 Points -24%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	11634 Points -25%
Average NVIDIA GeForce RTX 2070 (Desktop) (9979 - 11423, n=5)	10987 Points -30%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (10182 - 10743, n=7)	10533 Points -32%
1920x1080 Fire Strike Graphics
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	31020 Points +3%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	30090 Points
Average NVIDIA GeForce RTX 2070 Super (Desktop) (22819 - 25799, n=9)	24689 Points -18%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	24640 Points -18%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	24637 Points -18%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	24151 Points -20%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (20522 - 22764, n=8)	22051 Points -27%
Average NVIDIA GeForce RTX 2070 (Desktop) (16770 - 24242, n=6)	21999 Points -27%
2560x1440 Time Spy Graphics
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	13111 Points +3%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	12668 Points
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	10094 Points -20%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	9871 Points -22%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (9564 - 10094, n=9)	9833 Points -22%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	9623 Points -24%
Average NVIDIA GeForce RTX 2070 (Desktop) (7445 - 9656, n=6)	8952 Points -29%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (8396 - 8795, n=8)	8644 Points -32%

3DMark 11
1280x720 Performance GPU
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	43005 Points +5%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	40950 Points
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	35377 Points -14%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (33257 - 37235, n=8)	34838 Points -15%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	33293 Points -19%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	33257 Points -19%
Average NVIDIA GeForce RTX 2070 (Desktop) (22174 - 32373, n=7)	29866 Points -27%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (29148 - 30342, n=7)	29742 Points -27%
1280x720 Performance
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	33248 Points +14%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (24879 - 35274, n=8)	29228 Points +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	29057 Points
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	28994 Points 0%
KFA2 GeForce RTX 2070 Super Work The Frames GeForce RTX 2070 Super (Desktop), R9 3900X	27896 Points -4%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (22211 - 30486, n=7)	26700 Points -8%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	25183 Points -13%
Average NVIDIA GeForce RTX 2070 (Desktop) (15341 - 27206, n=7)	23703 Points -18%

Unigine Superposition
1280x720 720p Low
Average NVIDIA GeForce RTX 2070 Super (Desktop) (26742 - 45424, n=3)	38495 Points +41%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (26634 - 40961, n=3)	35859 Points +31%
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	34602 Points +27%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	27330 Points
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	26742 Points -2%
1920x1080 1080p High
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	17244 Points +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	17054 Points
Average NVIDIA GeForce RTX 2070 Super (Desktop) (13655 - 13832, n=3)	13765 Points -19%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	13655 Points -20%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (11421 - 11785, n=3)	11649 Points -32%
1920x1080 1080p Extreme
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	8365 Points +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	8276 Points
Average NVIDIA GeForce RTX 2070 Super (Desktop) (6161 - 6178, n=3)	6169 Points -25%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	6167 Points -25%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (5049 - 5143, n=3)	5105 Points -38%
3840x2160 4k Optimized
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	10673 Points +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	10544 Points
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	8111 Points -23%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (8096 - 8111, n=3)	8101 Points -23%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (6747 - 6863, n=3)	6811 Points -35%
7680x4320 8k Optimized
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5	4639 Points +1%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U	4587 Points
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	3434 Points -25%
Average NVIDIA GeForce RTX 2070 Super (Desktop) (3419 - 3435, n=3)	3429 Points -25%
Average NVIDIA GeForce RTX 2060 Super (Desktop) (2873 - 2914, n=3)	2900 Points -37%

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	180	173	161	95.6	91.6	110
The Witcher 3 (2015)	367	316	235	121		84
Dota 2 Reborn (2015)	164.2	143.8	138.2	129.7		127.4
Final Fantasy XV Benchmark (2018)	167	146	112		89.2	54.8
X-Plane 11.11 (2018)	124	110	91			78.8
Far Cry 5 (2018)	150	133	126	117	112	70
Strange Brigade (2018)	430	311	253	222	165	97.1
Far Cry New Dawn (2019)	126	110	106	95	92	70
Metro Exodus (2019)	166	136	116	93.1	76.1	49
Borderlands 3 (2019)	149	132	118	98.8	75.5	42.7

Emissões

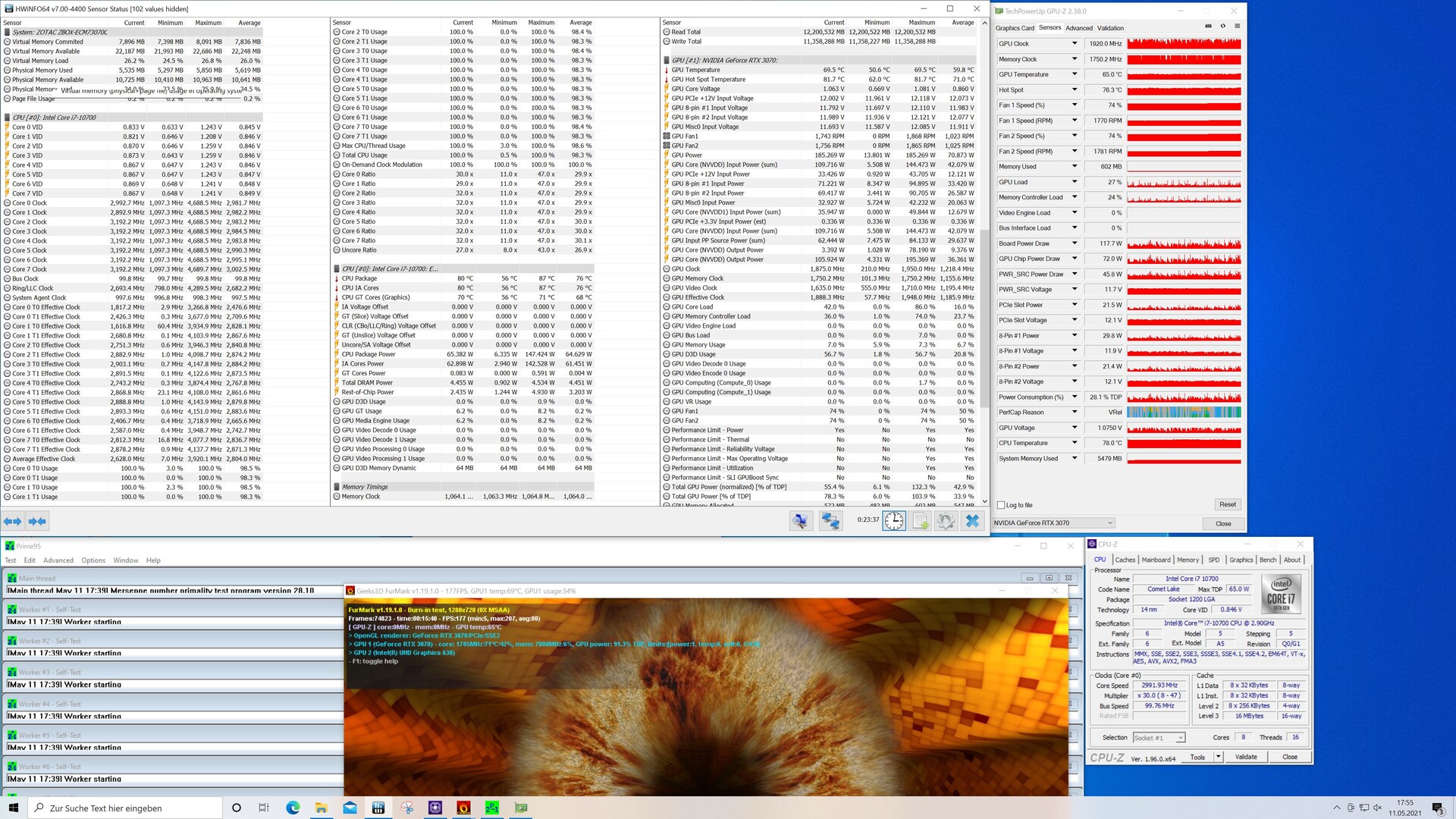

O Zotac Magnus One no teste de estresse

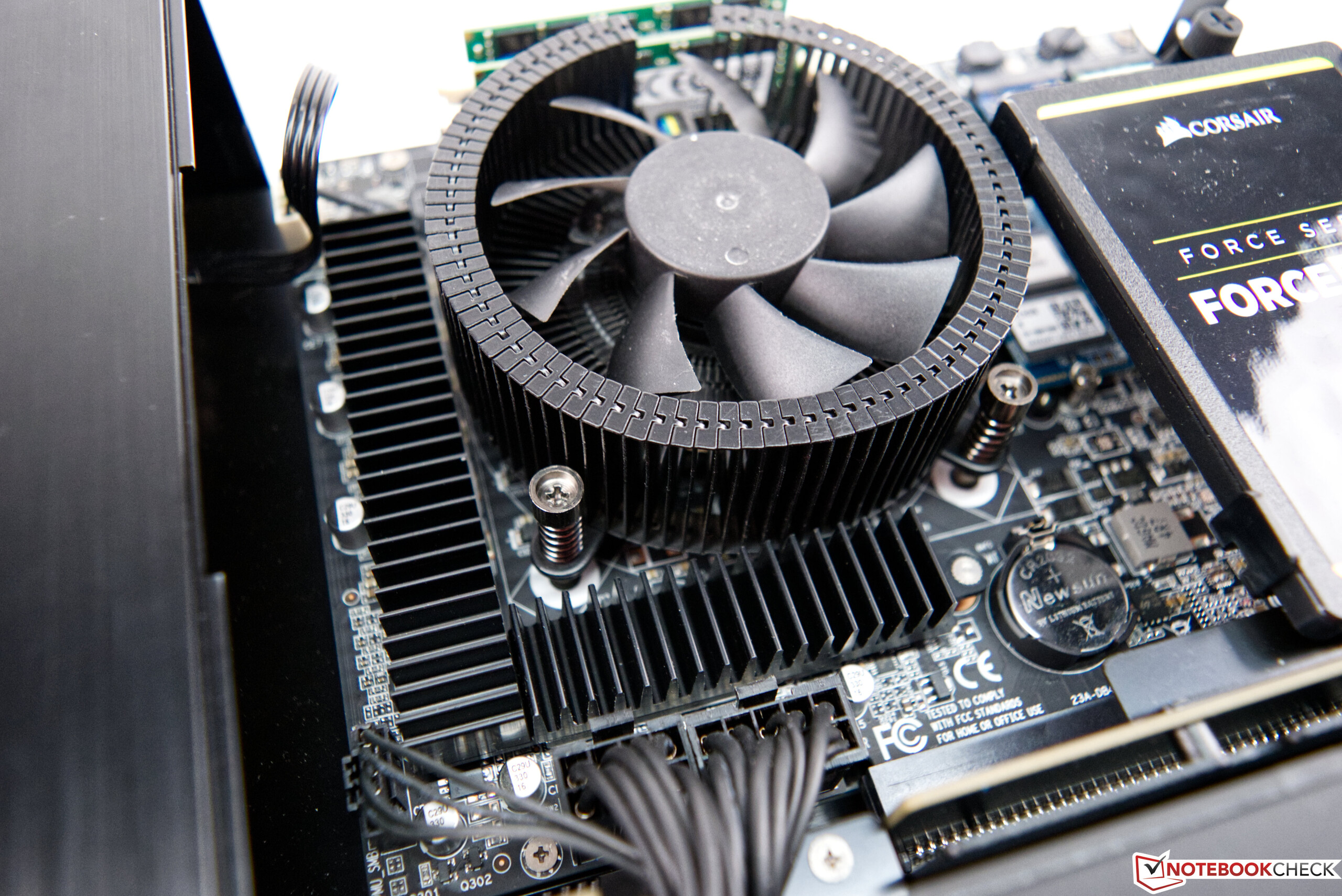

O projeto compacto requer um sistema de resfriamento inteligente. Zotac usa o chamado "efeito chaminé" aqui e instala dois ventiladores no topo que transportam bem o calor residual resultante da caixa. No entanto, o Intel Core i7-10700 aquece até um máximo de 87 °C (~187 °F) durante o teste de estresse. Além disso, a temperatura do GeForce RTX 3070 subiuaté quase 81 °C (~178 °F) duranteo teste de estresse

. Tudo isso ainda está dentro de limites aceitáveis, e não há motivo para preocupação. Mesmo durante longas sessões de jogo, não houve quedas de desempenho perceptíveis que indicassem que as temperaturas estavam muito altas.

Para um sistema desktop, porém, o Magnus One é claramente audível sob carga devido à sua situação de resfriamento. Medimos apenas 33,5 dB(A) em uso ocioso, embora tenha ficado consideravelmente mais alto a 48,7 dB(A) quando jogando. O nível de ruído foi um pouco menor no teste de estresse a 44,2 dB(A). Neste ponto, gostaríamos de fazer uma nota positiva do fato de não termos notado nenhum ruído de ventoinha de alta freqüência ou choradeira de bobina

Por um lado, o Magnus One é relativamente econômico em termos de consumo de energia, mas, por outro lado, também é muito sedento de energia quando se trata de jogos. Nosso dispositivo de medição mostrou uma média de 550 watts no teste de jogo. A fonte de energia instalada é especificada em 500 watts. Entretanto, não houve quedas durante o teste que apontassem para uma sobrecarga.

Power Consumption | Temperatures

Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U (Idle: 37.6 W)	550 (346^min - 570^max) Watt *
AMD Ryzen 7 5800X NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)	418.7 (403^min - 452^max) Watt * +24%
AMD Ryzen 5 5600X NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)	409.2 (381^min - 434^max) Watt * +26%
Intel Core i5-10600K NVIDIA Titan RTX, i5-10600K (Idle: 52.2 W)	386.9 (380^min - 404^max) Watt * +30%
Intel Core i7-9700K, AMD Radeon RX Vega 64 RX Vega 64, i7-9700K	365.3 (316^min - 388^max) Watt * +34%
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 91.46 W)	316.5 (309^min - 329^max) Watt * +42%
Prime95 V2810 Stress (external Monitor)
AMD Ryzen 7 5800X NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)	242.3 (222^min - 254^max) Watt * -108%
Intel Core i7-9700K, AMD Radeon RX Vega 64 RX Vega 64, i7-9700K	222.4 (193^min - 249^max) Watt * -91%
Intel Core i5-10600K NVIDIA Titan RTX, i5-10600K (Idle: 52.2 W)	204.4 (191^min - 261^max) Watt * -76%
AMD Ryzen 5 5600X NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)	175.8 (170^min - 179^max) Watt * -51%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U (Idle: 37.6 W)	116.3 (110^min - 238^max) Watt *
Cinebench R15 Multi (external Monitor)
AMD Ryzen 7 5800X NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5 (Idle: 77.5 W)	220.7 (219^min - 222^max) Watt * -49%
Intel Core i7-9700K, AMD Radeon RX Vega 64 RX Vega 64, i7-9700K	202.6 (190^min - 207^max) Watt * -37%
Intel Core i5-10600K NVIDIA Titan RTX, i5-10600K (Idle: 52.2 W)	172.5 (170^min - 176^max) Watt * -17%
AMD Ryzen 5 5600X NVIDIA Titan RTX, R5 5600X, Intel Optane 905P 480GB 2.5 (Idle: 79.23 W)	170.1 (165^min - 210^max) Watt * -15%
Zotac Magnus One (ECM73070C) NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U (Idle: 37.6 W)	148 (104^min - 202^max) Watt *

Temperatures - CPU Temperature Prime95
AMD Ryzen 7 5800X NVIDIA Titan RTX, R7 5800X, Intel Optane 905P 480GB 2.5	90.6 °C
Intel Core i5-10600K NVIDIA Titan RTX, i5-10600K	70 °C

* ... smaller is better

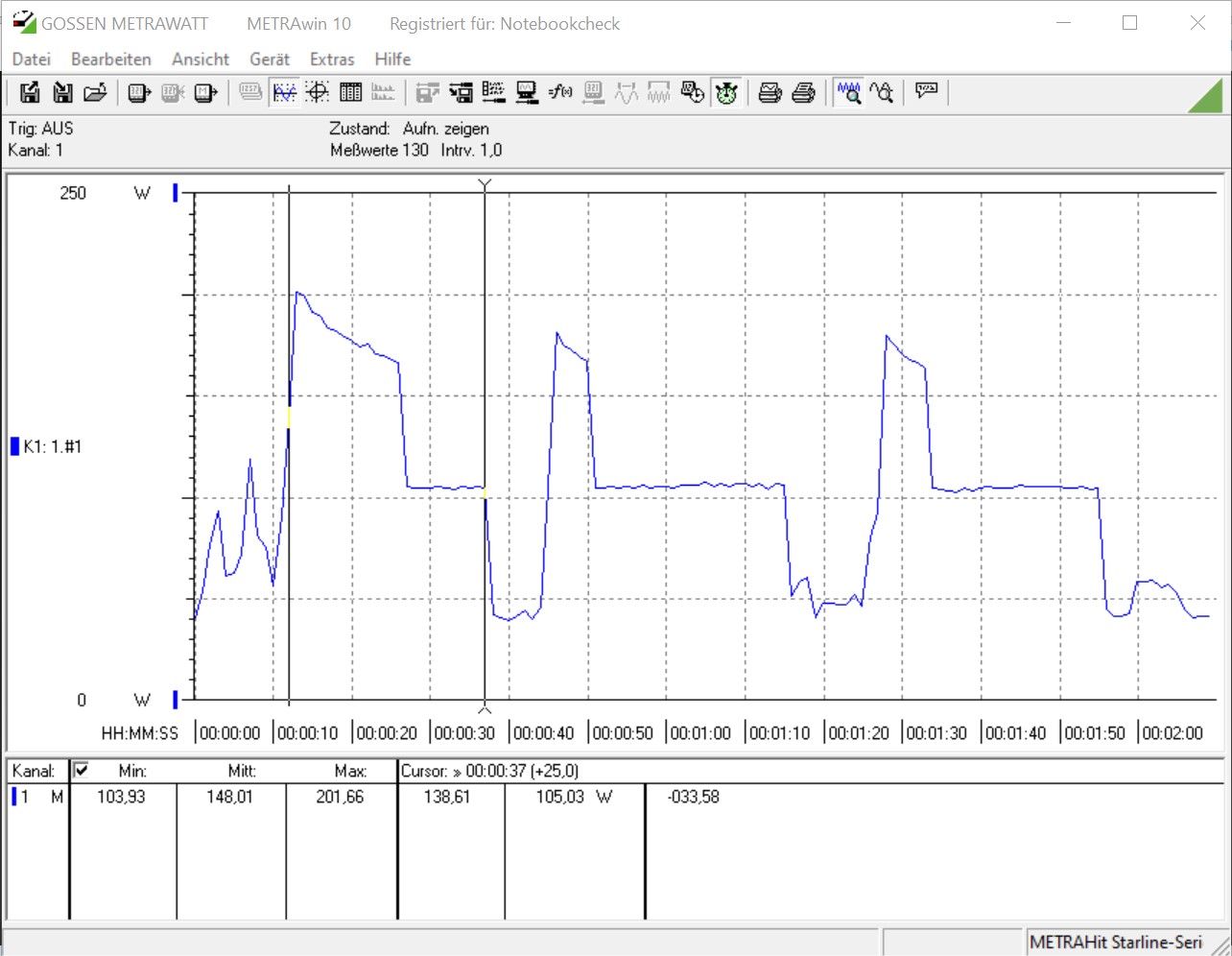

Cinebench R15 Consumo múltiplo de energia

Barulho

Ocioso		33.58 / / dB
Carga		44.25 / 48.72 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30 dB(A)

Veredicto - Bom desempenho e boa conectividade

O Zotac Magnus One em revisão, fornecido pela Zotac Alemanha

O Zotac's Magnus One é um dispositivo compacto que oferece muito bom desempenho nos menores espaços. Note que este é um sistema de barebone onde a RAM, o armazenamento em massa e o sistema operacional também não fazem parte do MSRP de 1.499 Euros (~$1.825). Entretanto, no momento do teste, os preços de rua realistas começam em 1.650 Euros (~$2.009) e sobem. Os usuários que conseguem obter o Magnus One a um bom preço podem até mesmo obter uma pechincha, já que só o GeForce RTX 3070 já custa consideravelmente mais de 1.000 Euros (~$1.218). O Intel Core i7-10700 não é a última versão dos processadores Core, mas isto não é um problema no uso diário. No total, o pequeno Core i7-10700, que não tem sido limitado em termos de TDP, se encaixa bem no sistema geral. No entanto, o Magnus One pontua melhor em nossos benchmarks 3D e de jogos do que nos testes de CPU dedicados. A AMD está um pouco melhor posicionada aqui com a série Ryzen 5000. Talvez a Zotac considere desenvolver um sistema baseado na AMD também.

O Magnus One é um sistema poderoso e compacto que chama a atenção, mesmo sem o RGB.

O estojo do PC parece bom sem muitos sinos e apitos, e os espetáculos RGB também foram completamente perdidos. Isto não é necessariamente uma coisa ruim, porque muitos usuários estão procurando um estojo sóbrio, e Zotac conseguiu criar isto com o Magnus One. Além disso, a escolha de materiais é muito boa, uma vez que o estojo é feito principalmente de metal. A seleção do porto é versátil também, e não deixa quase nada a desejar. No entanto, temos que criticar o resfriamento um tanto ou quanto intrusivo sob carga.

Não há muitas alternativas ao Zotac Magnus One, no entanto, já que os fabricantes populares geralmente se concentram em sistemas completos. Para comparação, no entanto, você pode dar uma olhada na série MSI MEG Trident X. Ela oferece uma configuração semelhante em um estojo atraente e compacto.
