Primeiras Impressões: Portátil Lenovo ThinkPad T480s (i5, WQHD)

Nova revisão. A Lenovo equipa o ThinkPad T480s com um novo chassi e fecha a abertura para o seu próprio ThinkPad X1 Carbon. Os processadores quad-core mais recentes da Intel estão obviamente incluídos também. Já verificamos um dos primeiros sistemas com o painel IPS WQHD de alta resolução.
Lenovo ThinkPad T480s-20L8S02D00 (ThinkPad T480s Serie)
Processador
Intel Core i5-8250U 4 x 1.6 - 3.4 GHz, Kaby Lake Refresh
Placa gráfica
Intel UHD Graphics 620, Análises do: 1100 MHz
Memória
8 GB
, DDR4-2400, soldado, 1 slot livre
Pantalha
14.00 polegadas 16:9, 2560 x 1440 pixel 210 PPI, LP140QH2-SPB1, IPS, Brilhante: não
placa mãe
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Disco rígido
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
Placa de Som
Intel Kaby Lake-U/Y PCH - High Definition Audio
Conexões
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: Conector estéreo de 3,5 mm, Card Reader: 4-em-1 (MMC, SD, SDHC, SDXC), 1 eSata, 1 Leitor de Impressões Digitais, TPM 2.0
Funcionamento em rede
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 18.45 x 331 x 226.8
Bateria
57 Wh Lítio-Polímero, Duração da bateria (de acordo com o fabricante): 12.8 h
Camera
Webcam: 720p HD, ThinkShutter
Características adicionais
Alto falantes: Stereo (2x 1W), Teclado: Chiclet, Iluminação do Teclado: sim, 65W PSU, 36 Meses Garantia
peso
1.367 kg, Suprimento de energia: 356 g
Preço
1259 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

338 mm 237 mm 18.9 mm 1.5 kg336.6 mm 232.5 mm 19.95 mm 1.7 kg332.6 mm 234 mm 19 mm 1.4 kg331 mm 226.8 mm 18.8 mm 1.4 kg331 mm 226.8 mm 18.45 mm 1.4 kg331 mm 220.9 mm 17.05 mm 1.5 kg323.5 mm 217.1 mm 15.95 mm 1.1 kg297 mm 210 mm 1 mm 5.7 g

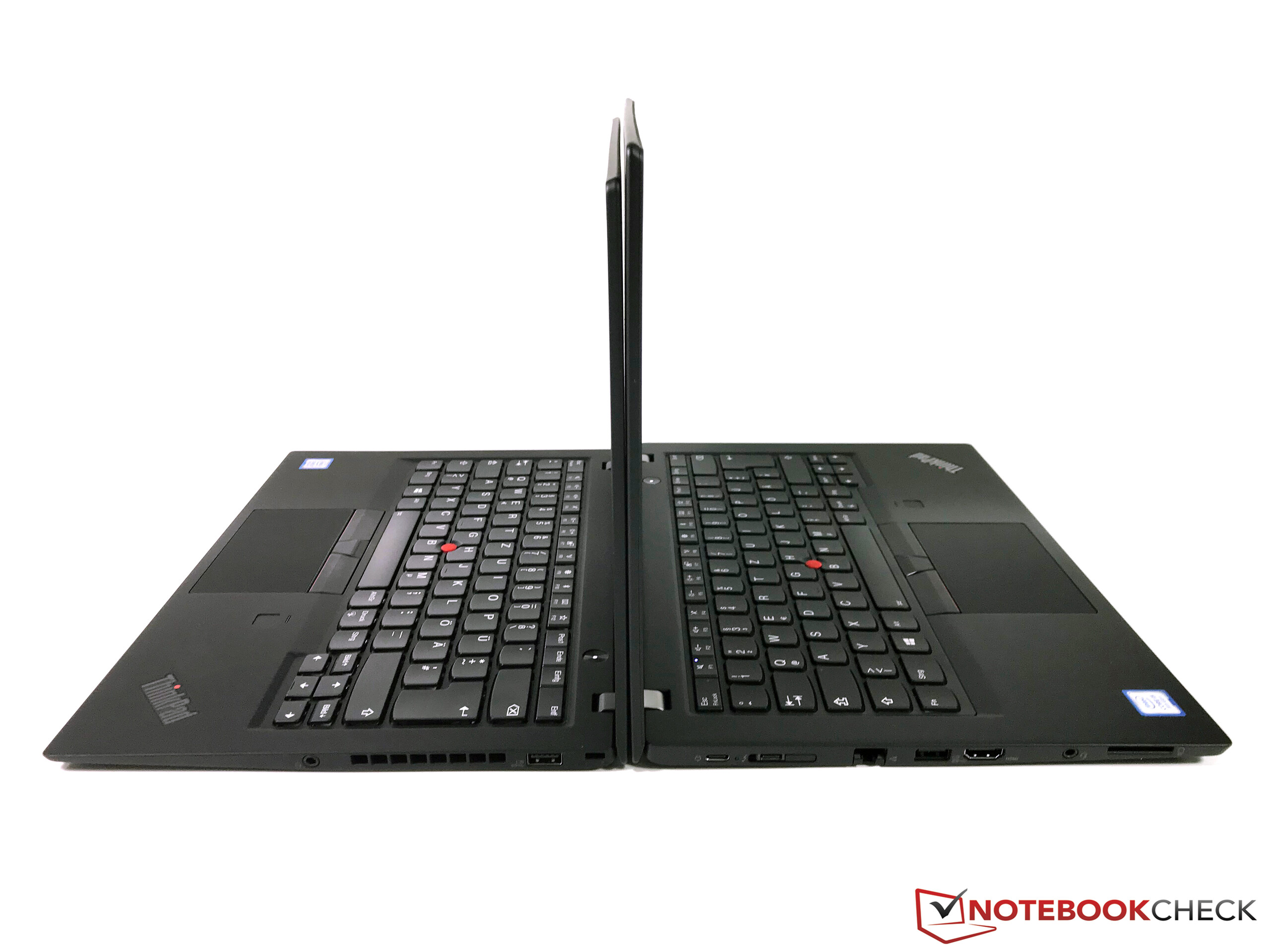

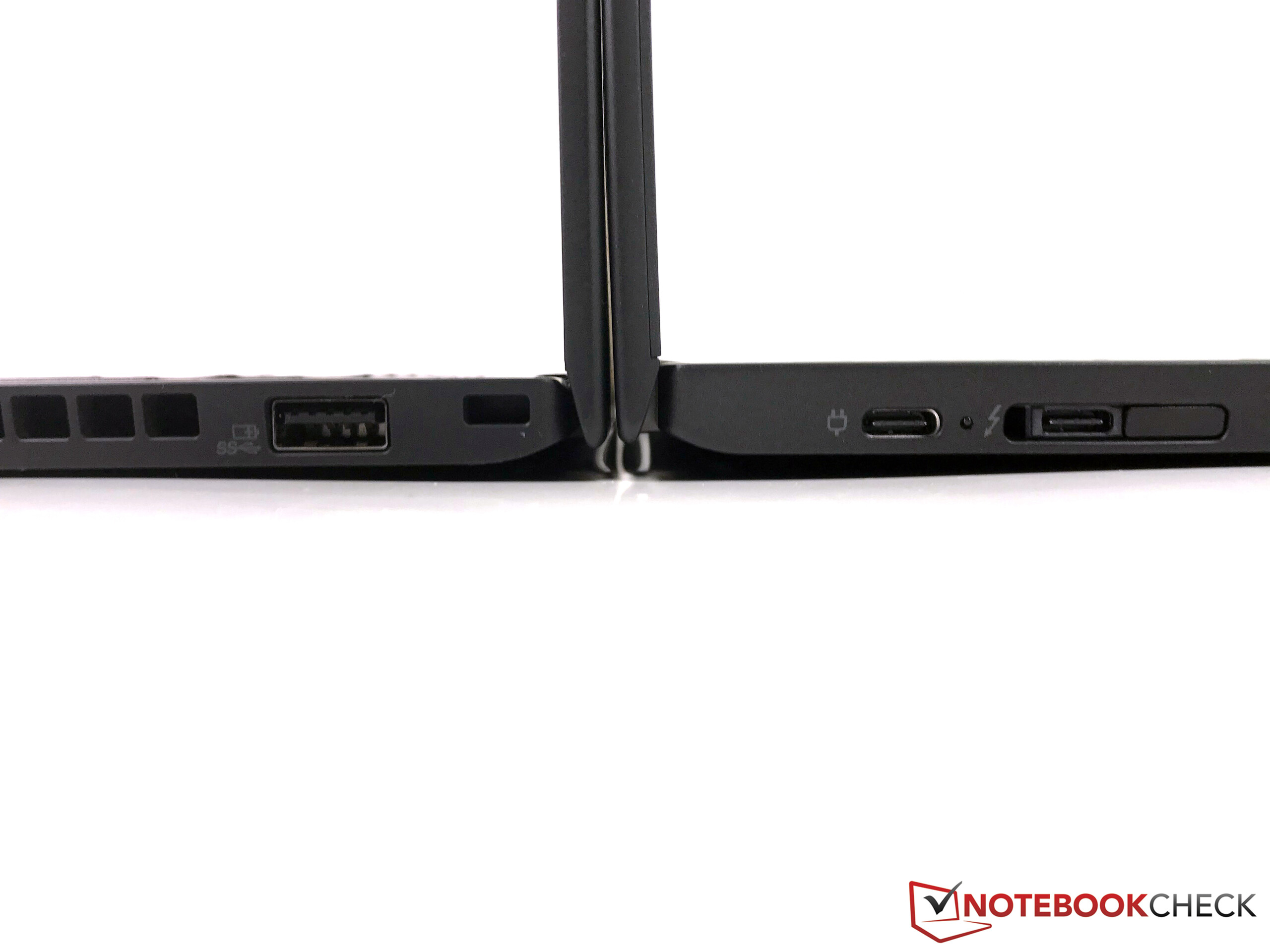

X1 Carbon 2018 HDR (left) vs. T480s (right)
X1 Carbon 2018 HDR (left) vs. T480s (right)
X1 Carbon 2018 HDR (left) vs. T480s (right)
X1 Carbon 2018 HDR (left) vs. T480s (right)

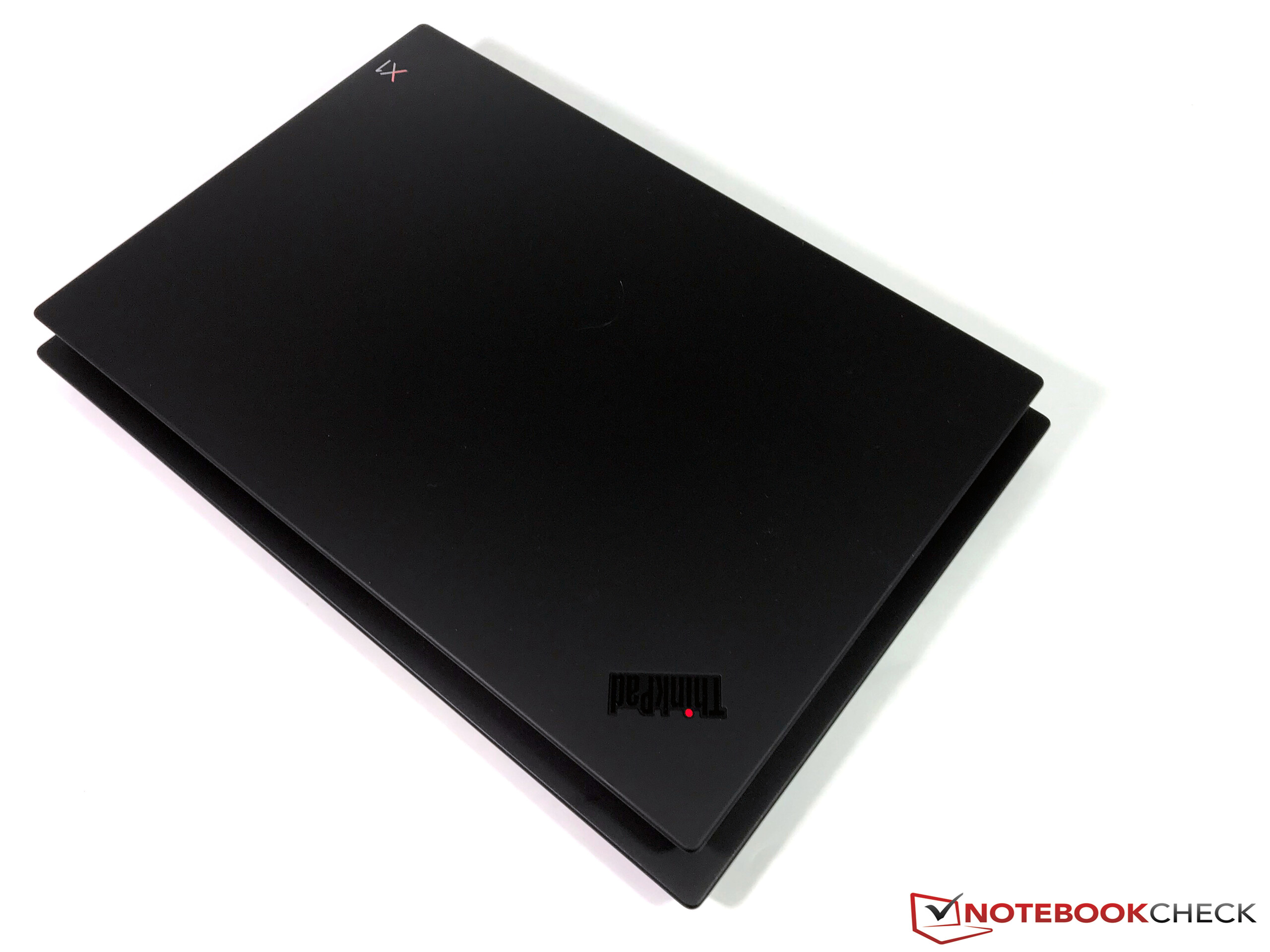

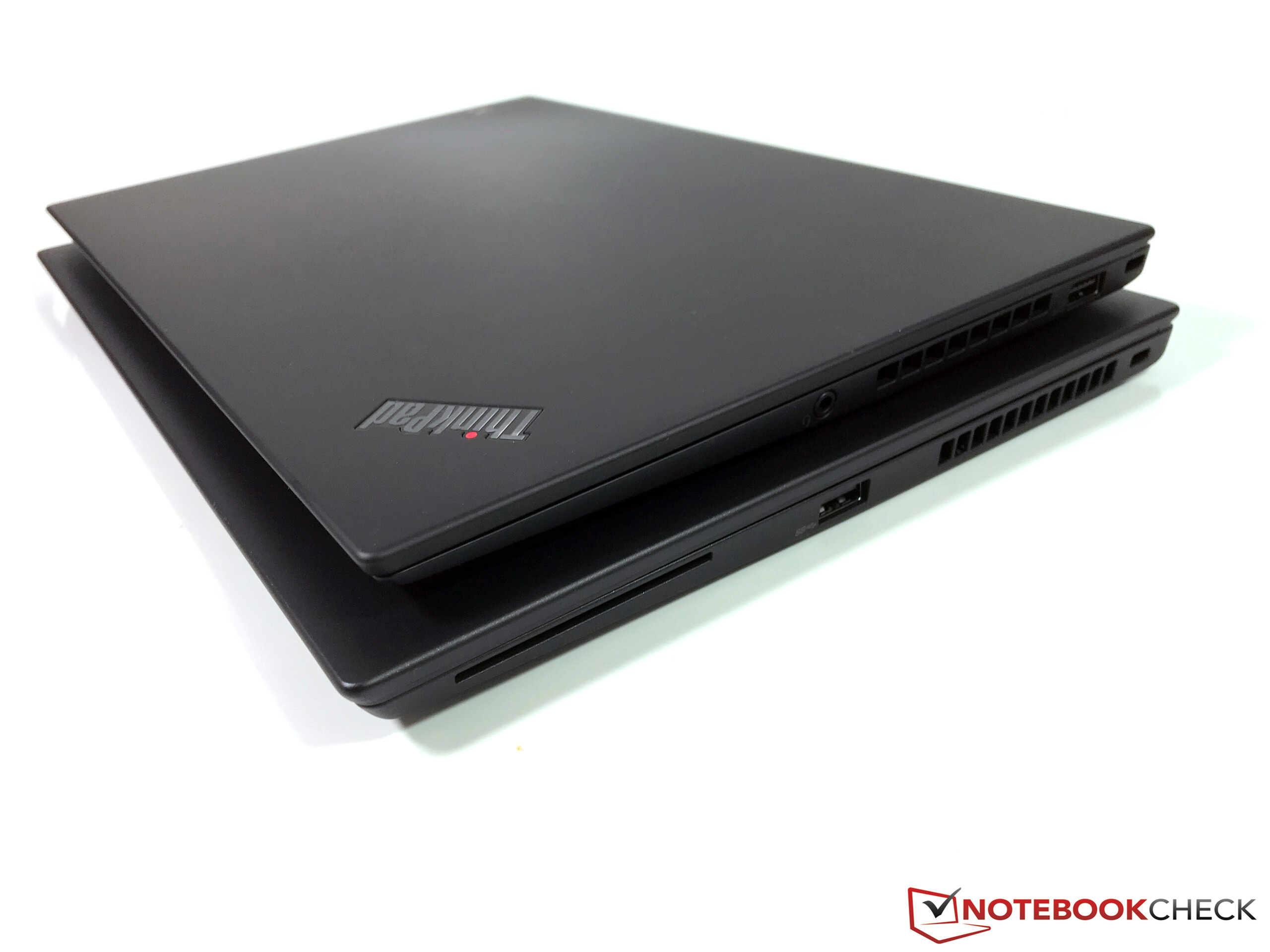

X1 Carbon 2018 HDR (top) vs. T480s (bottom)
X1 Carbon 2018 HDR (top) vs. T480s (bottom)
X1 Carbon 2018 HDR (top) vs. T480s (bottom)

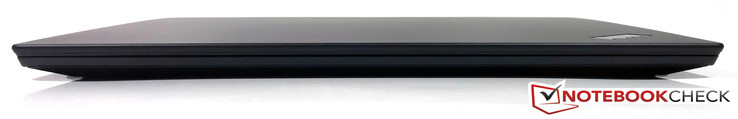

Front: no ports
Front: no ports

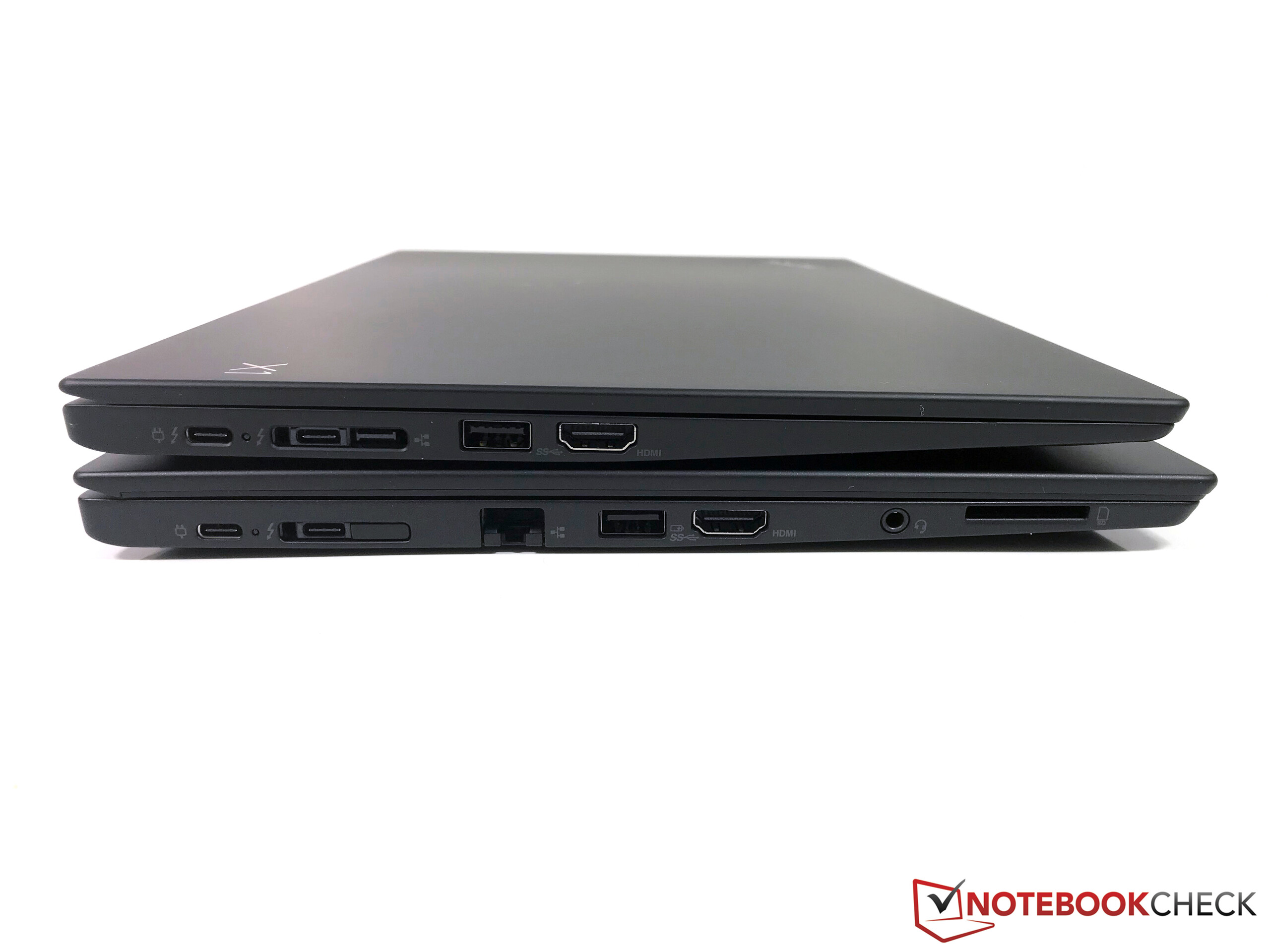

Left side: Thunderbolt 3, USB-C 3.1 (Gen1), docking, Gigabit Ethernet, USB 3.0, HDMI 1.4b, 3.5 mm stereo jack, full-size card reader
Left side: Thunderbolt 3, USB-C 3.1 (Gen1), docking, Gigabit Ethernet, USB 3.0, HDMI 1.4b, 3.5 mm stereo jack, full-size card reader

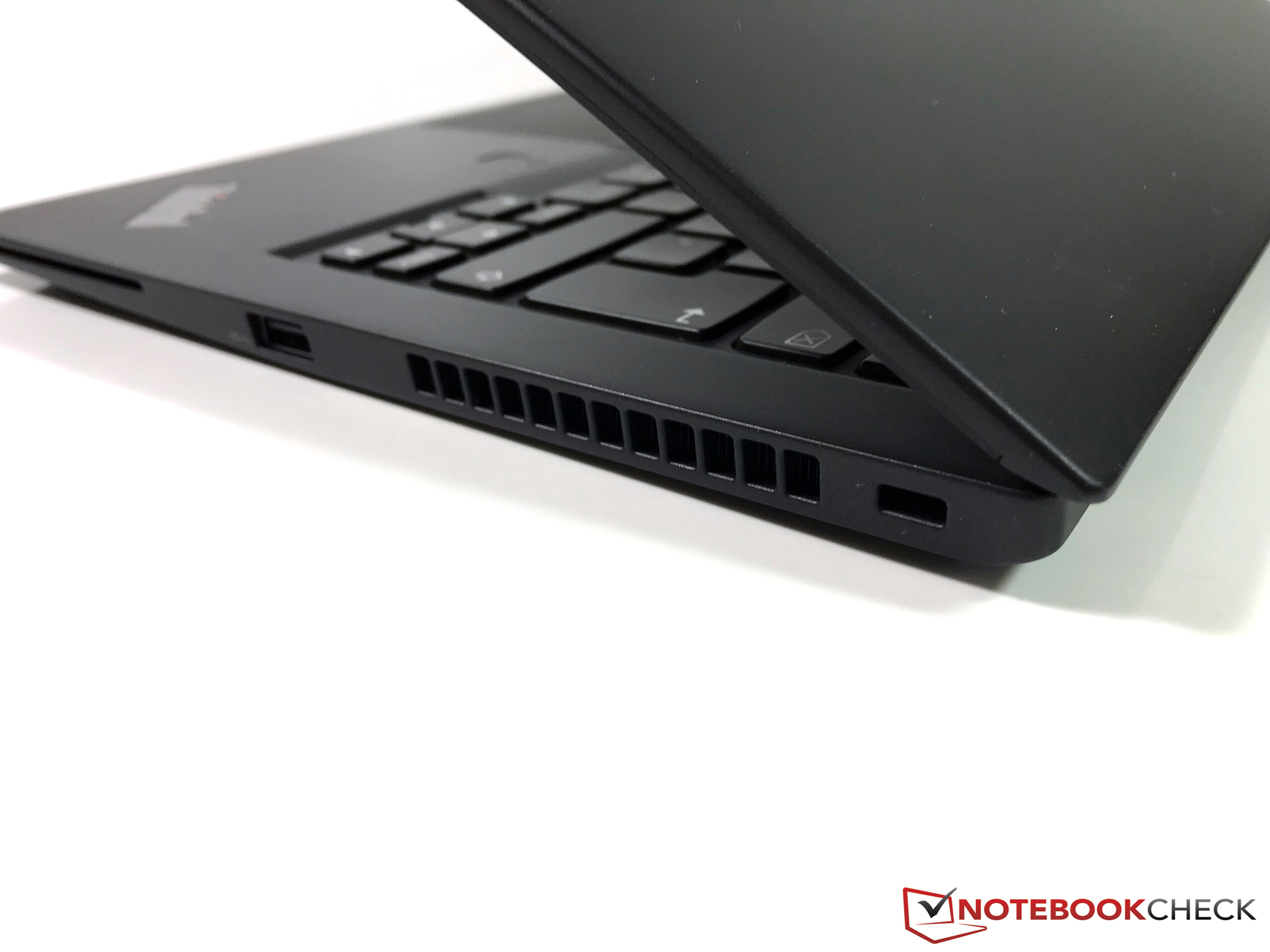

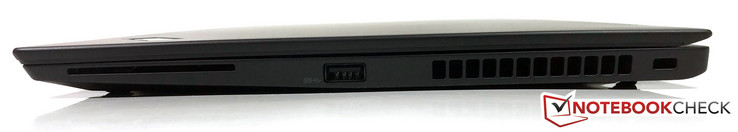

Right side: SmartCard, USB 3.0, slot for a security lock
Right side: SmartCard, USB 3.0, slot for a security lock
Rear: SIM tray
Rear: SIM tray
330
cd/m²
335
cd/m²
338
cd/m²
345
cd/m²
352
cd/m²
341
cd/m²
362
cd/m²
339
cd/m²
343
cd/m²
Distribuição do brilho
LP140QH2-SPB1 tested with X-Rite i1Pro 2
Máximo: 362 cd/m² (Nits) Médio: 342.8 cd/m² Minimum: 5 cd/m²
iluminação: 91 %
iluminação com acumulador: 351 cd/m²
Contraste: 765:1 (Preto: 0.46 cd/m²)
ΔE Color 3.3 | 0.5-29.43 Ø4.92
ΔE Greyscale 5.3 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
68.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
74.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.9% sRGB (Argyll 2.2.0 3D)
72.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
Lenovo ThinkPad T480s-20L8S02D00
LP140QH2-SPB1, , 2560x1440, 14"
Lenovo ThinkPad T470s-20HGS00V00
B140QAN01.5, , 2560x1440, 14"
Lenovo ThinkPad X1 Carbon 2017-20HR006FGE
LEN40AA (LP140QH2-SPB1), , 2560x1440, 14"
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
B140QAN02.0, , 2560x1440, 14"
Lenovo ThinkPad T470-20HD002HGE
N140HCA-EAB, , 1920x1080, 14"
HP EliteBook 840 G4-Z2V45ES ABD
LGD04F3, , 2560x1440, 14"
Dell Latitude 7480
LG Philips LGD0557, , 1920x1080, 14"
Display
-5%
1%
19%
-41%
-7%
-9%
Display P3 Coverage
72.8
69
-5%
73.5
1%
87.7
20%
41.6
-43%
66.2
-9%
65.4
-10%
sRGB Coverage
97.9
95.1
-3%
98.4
1%
100
2%
61.9
-37%
94.1
-4%
92.3
-6%
AdobeRGB 1998 Coverage
74.1
69.6
-6%
74.5
1%
99.9
35%
43.06
-42%
67.2
-9%
65.8
-11%
Response Times
-11%
14%
-38%
-14%
12%
-8%
Response Time Grey 50% / Grey 80% *
38.4 ?(19.6, 18.8)
46.4 ?(20.4, 26)
-21%
35.6 ?(18.4, 17.2)
7%
59.2 ?(28.4, 30.8)
-54%
41.6 ?(20.4, 21.2)
-8%
37.2 ?(23.6, 15.6)
3%
40.8 ?(19.2, 21.6)
-6%
Response Time Black / White *
28.4 ?(15.6, 12.8)
28.8 ?(16.4, 12.4)
-1%
22.4 ?(12.4, 12)
21%
34.4 ?(16.4, 18)
-21%
34 ?(9.6, 24.4)
-20%
22.8 ?(10.8, 12)
20%
31.2 ?(18.8, 12.4)
-10%
PWM Frequency
Screen
-13%
1%
39%
-23%
-0%
11%
Brightness middle
352
327
-7%
342
-3%
578
64%
306
-13%
340
-3%
344
-2%
Brightness
343
311
-9%
337
-2%
533
55%
287
-16%
304
-11%
321
-6%
Brightness Distribution
91
88
-3%
87
-4%
84
-8%
88
-3%
81
-11%
85
-7%
Black Level *
0.46
0.25
46%
0.37
20%
0.38
17%
0.3
35%
0.32
30%
0.32
30%
Contrast
765
1308
71%
924
21%
1521
99%
1020
33%
1063
39%
1075
41%
Colorchecker dE 2000 *
3.3
6.1
-85%
3.6
-9%
1.9
42%
6.2
-88%
4.3
-30%
2.6
21%
Colorchecker dE 2000 max. *
7.3
12.2
-67%
7.7
-5%
3.8
48%
13.6
-86%
7.5
-3%
7.8
-7%
Greyscale dE 2000 *
5.3
8.8
-66%
5.8
-9%
3
43%
5.8
-9%
5.3
-0%
2.6
51%
Gamma
2.22 99%
2.18 101%
2.2 100%
2.14 103%
2.04 108%
2.18 101%
2.28 96%
CCT
6452 101%
6172 105%
6693 97%
6377 102%
6277 104%
7016 93%
7050 92%
Color Space (Percent of AdobeRGB 1998)
68.4
61.56
-10%
68.8
1%
88.8
30%
39.62
-42%
60.9
-11%
65.82
-4%
Color Space (Percent of sRGB)
98
94.88
-3%
98.5
1%
100
2%
61.44
-37%
94.2
-4%
92.27
-6%
Colorchecker dE 2000 calibrated *
0.8
Total Average (Program / Settings)
-10% / -11%
5% / 3%
7% / 25%
-26% / -25%
2% / -0%
-2% / 5%

* ... smaller is better

Cinebench R15
CPU Single 64Bit
Average of class Office
  (98 - 284, n=92, last 2 years)
230 Points +61%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
168 Points +17%
Lenovo ThinkPad T470s-20HGS00V00
Intel Core i7-7600U
162 Points +13%
Dell Latitude 7480
Intel Core i7-7600U
162 Points +13%
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
143 Points
Asus ROG Strix GL702VI-WB74
Intel Core i7-7700HQ
142 Points -1%
Average Intel Core i5-8250U
  (81 - 147, n=97)
141.1 Points -1%
Asus GL702VM-GC102D
Intel Core i7-6700HQ
134 Points -6%
Fujitsu LifeBook U747
Intel Core i5-7200U
130 Points -9%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
126 Points -12%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Core i5-7200U
119 Points -17%
CPU Multi 64Bit
Average of class Office
  (246 - 2642, n=93, last 2 years)
1561 Points +116%
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
724 Points
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
716 Points -1%
Asus ROG Strix GL702VI-WB74
Intel Core i7-7700HQ
723 Points 0%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
708 Points -2%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
648 Points -10%
Asus GL702VM-GC102D
Intel Core i7-6700HQ
678 Points -6%
Average Intel Core i5-8250U
  (320 - 730, n=101)
570 Points -21%
Lenovo ThinkPad T470s-20HGS00V00
Intel Core i7-7600U
368 Points -49%
Dell Latitude 7480
Intel Core i7-7600U
343 Points -53%
Fujitsu LifeBook U747
Intel Core i5-7200U
331 Points -54%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Core i5-7200U
329 Points -55%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
326 Points -55%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720Tooltip
Cinebench R15 CPU Multi 64 Bit
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.530.730.132.234.833.52528.428.827.326.930.330.93137.634.233.531.935.433.24031.229.130.429.330.329502728.42726.126.628.5632626.426.325.625.825.38025.425.72724.624.723.810026.124.526.724.723.92512523.823.123.623.424.823.816023.72323.22224.127.120022.12524.325.623.92425021.622.721.921.421.823.131519.621.120.820.720.120.84001919.919.519.618.219.45001921.820.419.717.319.363018.823.522.119.81719.980018.422.221.119.516.518100018.124.12220.516.517.3125018.224.32320.115.816.9160020.128.126.922.915.716.5200020.329.326.623.515.416.2250019.429.426.82315.515.9315021.83128.825.21616.2400018.828.726.621.916.216.6500017.125.923.118.816.716.8630017.12119.117.51717.3800017.319.818.317.717.217.51000017.418.718.117.717.417.51250017.520.318.418.417.317.61600017.219.918.41917.217.3SPL31.338.936.933.628.929.7N1.52.82.41.81.21.3median 19median 23.1median 22.1median 20.5median 17.2median 17.5Delta1.633222.2hearing rangehide median Fan NoiseLenovo ThinkPad T480s-20L8S02D00
Tempo de Execução da Bateria
WiFi Websurfing (Edge)
8h 57min
Big Buck Bunny H.264 1080p
12h 01min
Carga (máximo brilho)
2h 04min
Lenovo ThinkPad T480s-20L8S02D00
i5-8250U, UHD Graphics 620, 57 Wh
Lenovo ThinkPad T470s-20HGS00V00
i7-7600U, HD Graphics 620, 51 Wh
Lenovo ThinkPad T470-20HD002HGE
i5-7200U, HD Graphics 620, 48 Wh
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
i5-8550U, UHD Graphics 620, 57 Wh
HP EliteBook 840 G4-Z2V49ET ABD
i5-7200U, HD Graphics 620, 51 Wh
Dell Latitude 7480
i7-7600U, HD Graphics 620, 60 Wh
Fujitsu LifeBook U747
i5-7200U, HD Graphics 620, 50 Wh
Battery Runtime
-30%
-16%
-12%
-6%
34%
-26%
H.264
721
454
-37%
623
-14%
566
-21%
591
-18%
490
-32%
WiFi v1.3
537
417
-22%
438
-18%
519
-3%
571
6%
719
34%
430
-20%

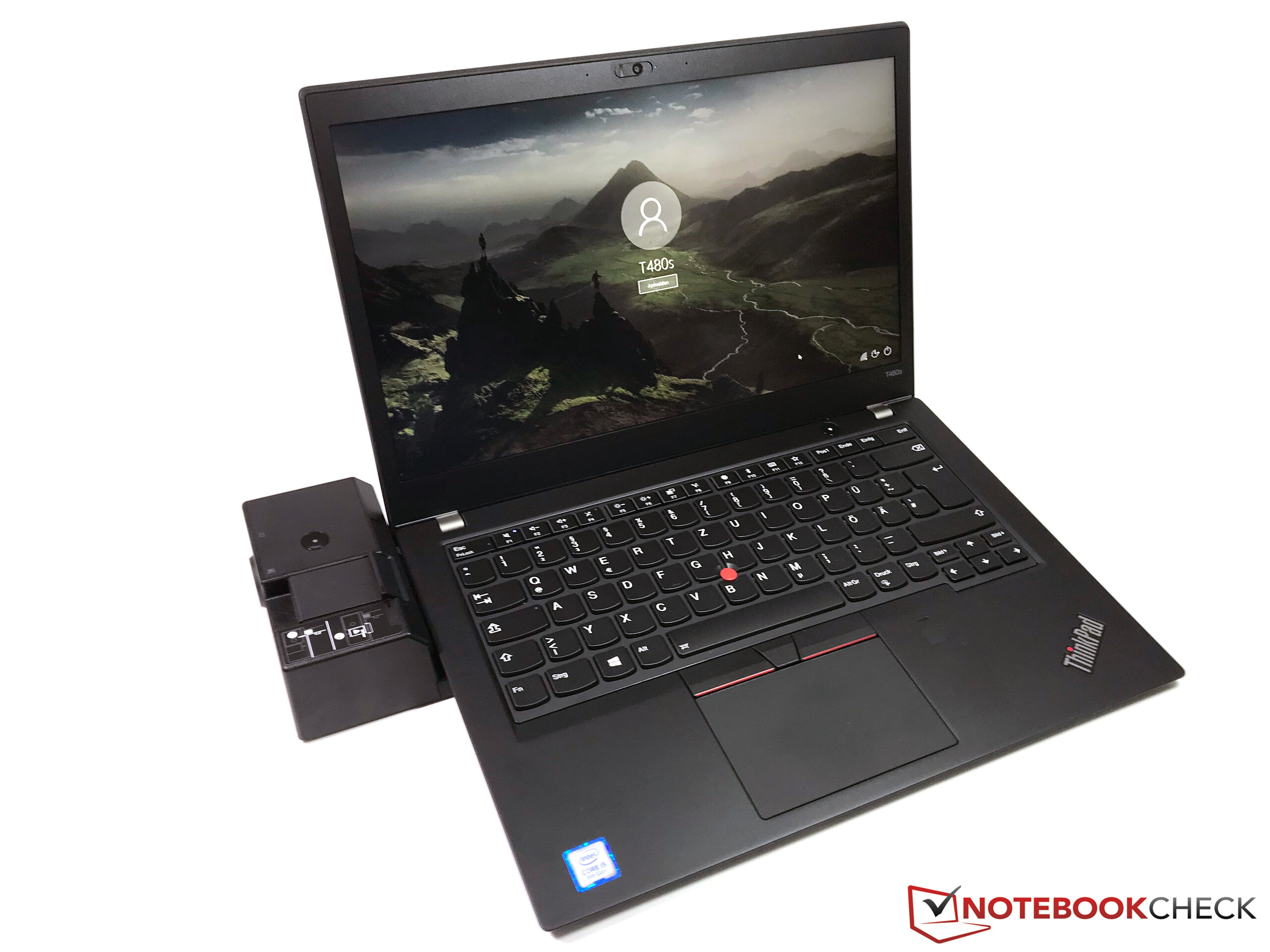

In review: Lenovo ThinkPad T480s. Test model courtesy of Campuspoint.
In review: Lenovo ThinkPad T480s. Test model courtesy of Campuspoint.

Nossa impressão inicial do novo ThinkPad T480s é muito positiva. A Lenovo agora usa o painel WQHD aparentemente mais eficiente do X1 Carbon e conseguiu melhorar bastante o tempo de duração da bateria.

A utilização do desempenho é uma história interessante agora. O Core i5-8250U oferece excelentes figuras de desempenho sem a limitação de TDP e a solução de resfriamento não está sobrecarregada. As temperaturas da superfície resultantes são certamente muito quentes, mas ainda mais baixas do que no X1 Carbon 2018, por exemplo. O ruído dos ventiladores também está bem. Nós suspeitamos que esta exata unidade de resfriamento também será usada para SKUs com a discreta GPU MX 150 da Nvidia. Nós também testaremos esse modelo em breve.

A análise completa do novo ThinkPad T480s estará disponível na próxima semana.
