Intel Pentium P6200

Intel P6200

O Intel Pentium P6200 é um CPU de nível básico para portáteis. Funciona com uma freqüência de 2,13 GHz e não suporta TurboBoost para a aceleração automática. Além disso as instruções AES e o hyperthreading estão desabilitados. O CPU suporta Enhanced Speedstep, mas pode haver alguns outros recursos para economizar energia desabilitados (como tinham as séries Penryn - Pentium).

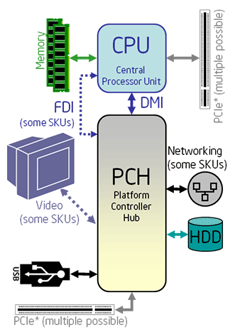

O P6200 baseia-se nos CPUs Arrandale e, portanto, contém um controlador de memória integrada e placa de vídeo Intel HD Graphics (ambos produzidos em 45nm, o CPU em 32nm). A também chamada de GMA HD no CPU tem uma freqüência de 500MHz e é capaz de acelerar até 667MHz devido ao Turbo Boost (somente GPU).

O desempenho do CPU é um pouco limitado devido à baixa freqüência e à falta do Turbo Boost e Hyperthreading. Mesmo assim, o desempenho por GHz deve ser um pouco melhor que o de um Core 2 Duo com freqüência similar, devido ao controlador de memória integrado e pequenas melhorias no núcleo.

SérieIntel Pentium
CodinomeArrandale

Serie: Pentium Arrandale

Intel Pentium P63002.27 GHz2 / 2 cores3 MB L3
Intel Pentium P6200 « 2.13 GHz2 / 2 cores3 MB L3
Intel Pentium P61002 GHz2 / 2 cores3 MB L3
Intel Pentium P60001.86 GHz2 / 2 cores3 MB L3
Intel Pentium U56001.33 GHz2 / 2 cores3 MB L3
Intel Pentium U54001.2 GHz2 / 2 cores3 MB L3
Frequência2133 MHz
Barramento Frontal2500
Cache de Nível 1128 KB
Cache de Nível 2512 KB
Cache de Nível 33 MB
Número de Núcelos / Subprocessos2 / 2
Consumo de Energia (TDP = Thermal Design Power)35 Watt
Contagem de transistores382+177 Milhão
Tecnologia de Produção32 nm
Tamanho da Matriz81+114 mm2
Tempratura Máx.90 °C
ConectorPGA988
CaracterísticasIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 BitSuporte para 64 Bit
Architecturex86
Data do Anúncio09/26/2010
Link do Produto (externo)ark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 1.28     avg: 1.4     median: 1.4 (2%)     max: 1.4 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
0.7 Points (17%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 2389     avg: 2404     median: 2394 (14%)     max: 2428 pontos
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 4594     avg: 4619     median: 4620 (3%)     max: 4643 pontos
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 5763     avg: 5773     median: 5773 (4%)     max: 5783 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 2987     avg: 2997     median: 2996.5 (4%)     max: 3006 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 987     avg: 1031     median: 1031 (12%)     max: 1075 s
wPrime 2.10 - wPrime 2.0 32m *
min: 31.1     avg: 32.5     median: 32.5 (7%)     max: 33.84 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 1396     avg: 1812     median: 1949 (4%)     max: 1954 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 20.4     avg: 20.6     median: 20.6 (4%)     max: 20.75 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 46.88     avg: 47.5     median: 47.5 (2%)     max: 48.17 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
1114 s (5%)
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
19570 MIPS (9%)
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
13850 MFLOPS (11%)
Windows 7 Experience Index - Win7 CPU
5.8 Points (74%)
- Gama de valores benchmark para essa solução gráfica
- Média de valores benchmark para essa solução gráfica
* Smaller numbers mean a higher performance
