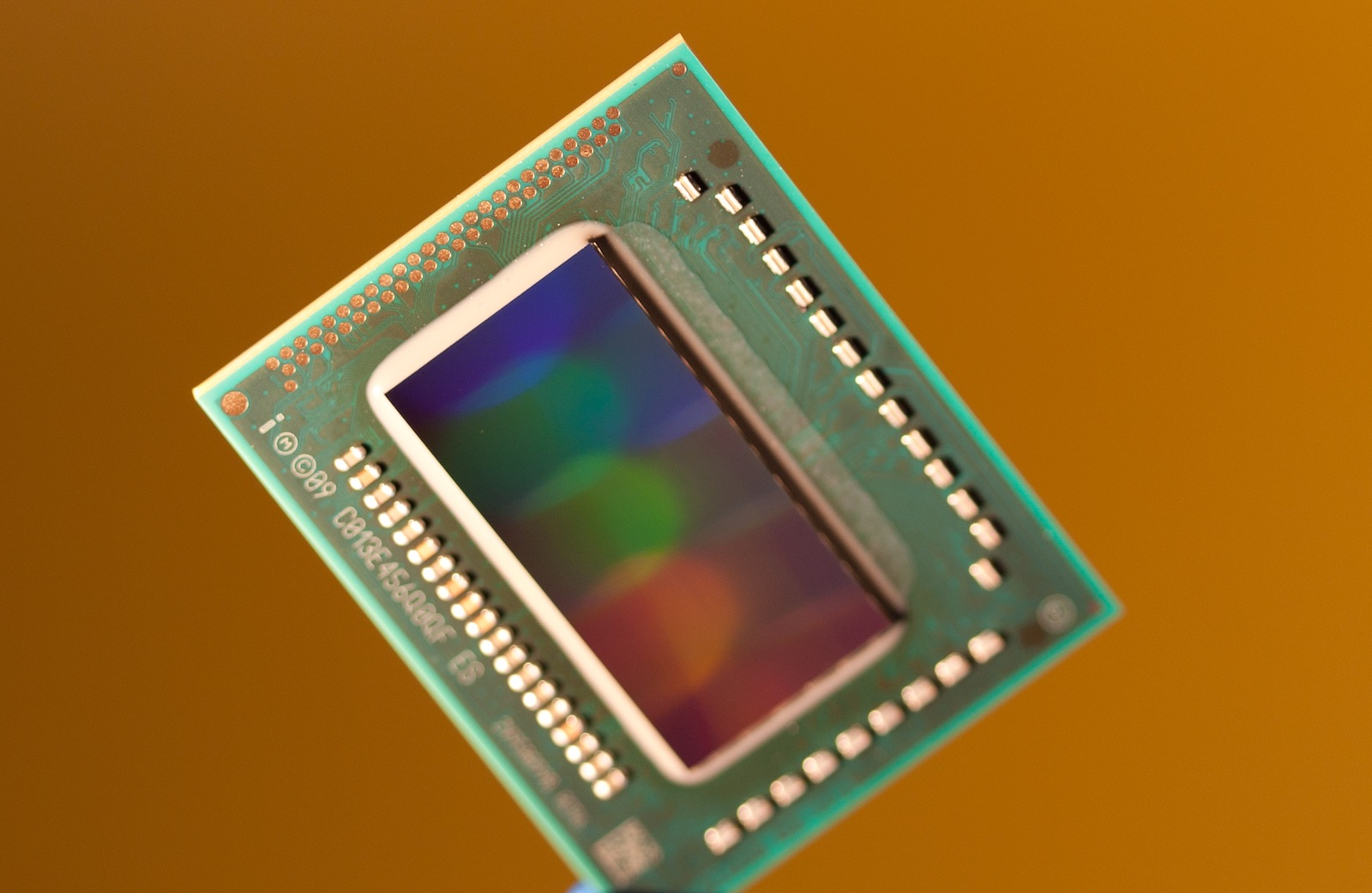

Intel Core i7-3520M

Intel 3520M

O Intel Core i7-3520M é o mais veloz processador dual-core para portáteis, baseado na arquitetura Ivy Bridge no momento da introdução no segundo trimestre de 2012. Graças ao Hyperthreading, os dois núcleos podem suportar até quatro threads em paralelo fazendo uma melhor utilização do CPU. Cada núcleo oferece uma velocidade base de 2,9 GHz, mas pode aumentar a freqüência dinamicamente com Turbo Boost, até 3,4 GHz (para 2 núcleos ativos), e 3,6 GHz (para 1 núcleo ativo). Como o seu predecessor, o Core i7-2640M baseado em Sandy-Bridge, ele oferece um cache de 4 MB L3.

Ivy Bridge é uma matriz aprimorada e encolhida da arquitetura Sandy Bridge com melhorias no desempenho do GPU e CPU. Os CPUs são produzidos em 22nm (contra 32nm dos CPUs Sandy Bridge) e são os primeiros em introduzir transistores 3D para uma maior eficiência energética quando comparado com processadores Sandy Bridge com freqüências similares. Outros novos recursos são o PCI Express 3.0 integrado e suporte para DDR3(L)-1600.

O desempenho do Core i7-3520M deve ser ligeiramente superior que o de um processador Sandy Bridge com freqüência similar graças a ligeiras alterações estruturais. Como resultado, o desempenho geral está cerca de 5 - 10 % acima do antigo i7-2640M (veja os benchmarks abaixo).

A Intel HD Graphics 4000 integrada oferece 16 Unidades de Execução (EUs) a uma freqüência de 350 MHz até 1050 MHz com Turbo Boost, fornecendo um desempenho comparável com o de um AMD Radeon HD 6620G.

Tal como a maioria dos outros dual-cores Ivy Bridge, o i7-3520M está classificado em um TDP de 35 W. Portanto, até mesmo os portáteis menores podem utilizar o Core i7.

CodinomeIvy Bridge
SérieIntel Core i7

Serie: Core i7 Ivy Bridge

Intel Core i7-3940XM3 - 3.9 GHz4 / 8 cores8 MB L3
Intel Core i7-3920XM2.9 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3840QM2.8 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3820QM2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-3740QM2.7 - 3.7 GHz4 / 8 cores6 MB L3
Intel Core i7-3720QM2.6 - 3.6 GHz4 / 8 cores6 MB L3
Intel Core i7-3635QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3630QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3615QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3610QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3632QM2.2 - 3.2 GHz4 / 8 cores6 MB L3
Intel Core i7-3612QM2.1 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-3540M3 - 3.7 GHz2 / 4 cores4 MB L3
Intel Core i7-3520M « 2.9 - 3.6 GHz2 / 4 cores4 MB L3
Intel Core i7-3687U2.1 - 3.3 GHz2 / 4 cores4 MB L3
Intel Core i7-3667U2 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-3537U2 - 3.1 GHz2 / 4 cores4 MB L3
Intel Core i7-3517U1.9 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-3689Y1.5 - 2.6 GHz2 / 4 cores4 MB L3
Frequência2900 - 3600 MHz
Cache de Nível 1128 KB
Cache de Nível 2512 KB
Cache de Nível 34 MB
Número de Núcelos / Subprocessos2 / 4
Consumo de Energia (TDP = Thermal Design Power)35 Watt
Tecnologia de Produção22 nm
Tempratura Máx.105 °C
ConectorBGA1023, PGA988
CaracterísticasHD Graphics 4000, DDR3-1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
GPUIntel HD Graphics 4000 (650 - 1250 MHz)
64 BitSuporte para 64 Bit
Architecturex86
Preço Inicial$346 U.S.
Data do Anúncio06/03/2012
Link do Produto (externo)ark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 3     avg: 3.3     median: 3.4 (4%)     max: 3.44 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
min: 1.41     avg: 1.4     median: 1.5 (35%)     max: 1.47 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 4408     avg: 4813     median: 4855 (29%)     max: 4903 pontos
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 9112     avg: 10167     median: 10467 (8%)     max: 10605 pontos
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 11581     avg: 12766     median: 12889.5 (8%)     max: 13151 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 6029     avg: 6128     median: 6146.5 (7%)     max: 6203 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 456     avg: 493.2     median: 492.1 (6%)     max: 570 s
wPrime 2.10 - wPrime 2.0 32m *
min: 14.4     avg: 15.5     median: 15.4 (3%)     max: 17.1 s
WinRAR - WinRAR 4.0
min: 2661     avg: 2863     median: 2715 (4%)     max: 3527 pontos
X264 HD Benchmark 4.0 - x264 Pass 2
min: 6.7     avg: 16.1     median: 18.9 (6%)     max: 19.44 fps
X264 HD Benchmark 4.0 - x264 Pass 1
min: 35.1     avg: 86.2     median: 98.6 (23%)     max: 101.8 fps
TrueCrypt - TrueCrypt Serpent
min: 0.164     avg: 0.2     median: 0.2 (5%)     max: 0.176 GB/s
TrueCrypt - TrueCrypt Twofish
min: 0.249     avg: 0.3     median: 0.3 (5%)     max: 0.302 GB/s
TrueCrypt - TrueCrypt AES
min: 1.2     avg: 1.6     median: 1.7 (4%)     max: 1.7 GB/s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 3528     avg: 4086     median: 4134 (9%)     max: 4212 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 10     avg: 10.3     median: 10 (2%)     max: 10.94 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 24     avg: 24.8     median: 25 (1%)     max: 25.87 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 565     avg: 591     median: 594 (3%)     max: 612 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 55800     avg: 63808     median: 67130 (32%)     max: 69140 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 41450     avg: 42502     median: 42450 (33%)     max: 44032 MFLOPS
Windows 7 Experience Index - Win7 CPU
7.2 Points (92%)
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 9277     avg: 11188     median: 11511 (9%)     max: 11788 Points
3DMark 11 - 3DM11 Performance Physics
min: 3582     avg: 4275     median: 4466 (11%)     max: 4774 Points
3DMark - 3DMark Ice Storm Physics
39221 Points (32%)
3DMark - 3DMark Cloud Gate Physics
3393 Points (9%)
3DMark - 3DMark Fire Strike Standard Physics
4772 Points (9%)
- Gama de valores benchmark para essa solução gráfica
red legend - Média de valores benchmark para essa solução gráfica
* Smaller numbers mean a higher performance
