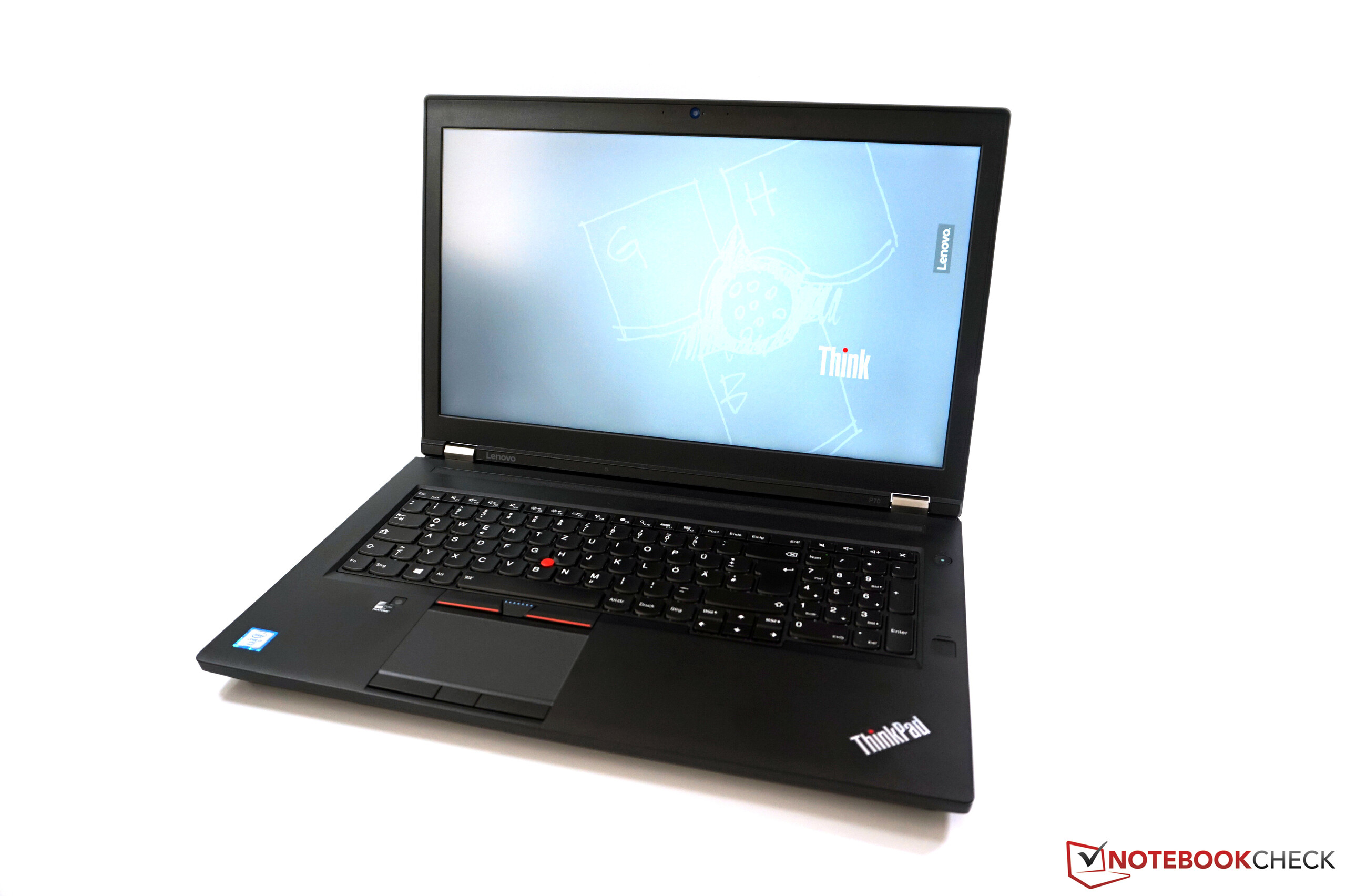

Breve Análise do Workstation Lenovo ThinkPad P70

Name: Lenovo ThinkPad P70
Brand: Lenovo

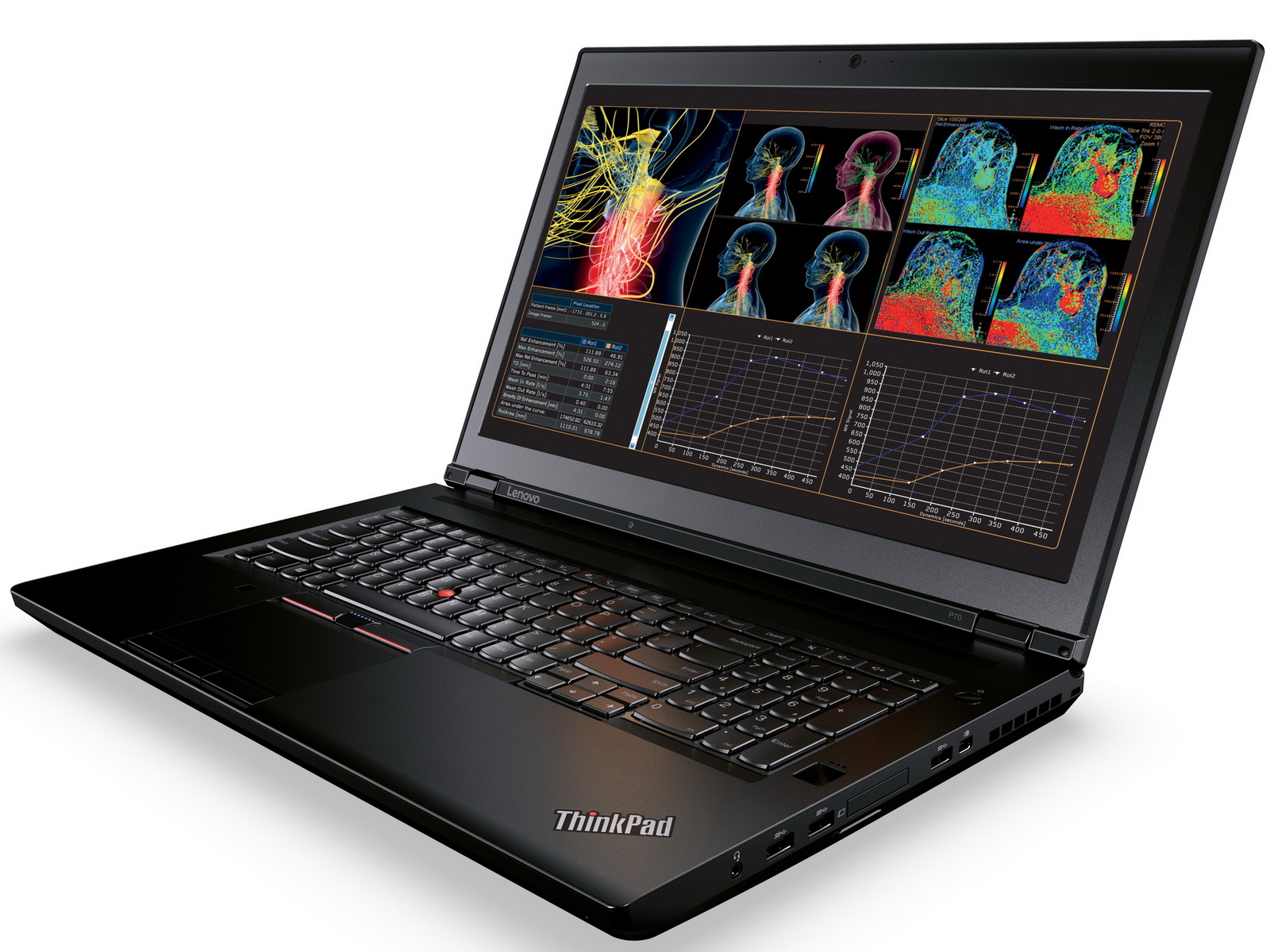

O retorno do workstation de 17 polegadas. A Lenovo agora oferece um workstation de 17-polegadas pela primeira vez em quase cinco anos. Contrário ä tendência atual, no entanto, você não obtém apenas um aparelho de consumo com componentes profissionais. Valeu a pena a espera?

Andreas Osthoff, ✓ Tanja Hinum (traduzido por Ricardo Soto), Published 02/03/2016 🇺🇸 🇩🇪 ...

Laptop / Notebook Windows Workstation Skylake Business

Test device courtesy of notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad P70 (ThinkPad P1 Serie)

Processador

Intel Core i7-6820HQ 4 x 2.7 - 3.6 GHz, Skylake

Placa gráfica

NVIDIA Quadro M3000M - 4 GB VRAM, Análises do: 1050 MHz, Memoría: 1253 MHz, GDDR5, ForceWare 354.25, Optimus

Memória

16 GB

, DDR4-2133, 2x 8 GB, até 64 GB

Pantalha

17.30 polegadas 16:9, 3840 x 2160 pixel, No, LEN4123, IPS, Brilhante: não

placa mãe

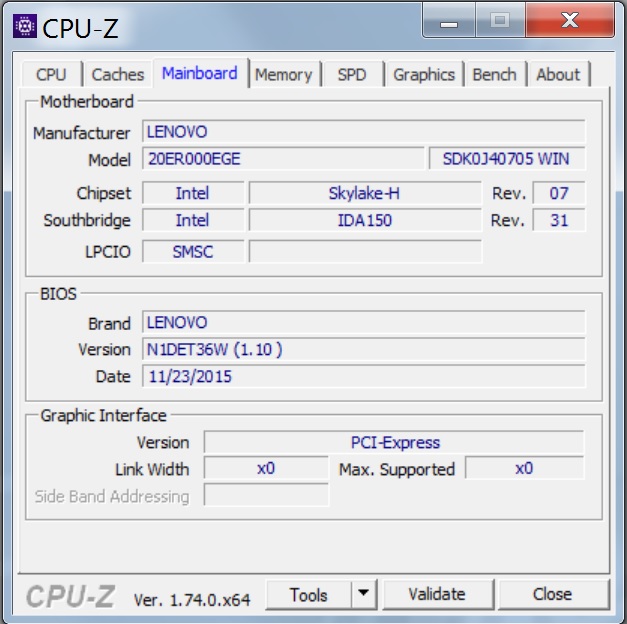

Intel CM236 (Skylake PCH-H)

Disco rígido

Samsung SSD PM871 MZNLN512HCJH, 512 GB

, 400 GB livre

Placa de Som

Intel Skylake PCH-H High Definition Audio Controller

Conexões

1 Express Card 34mm, 4 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: Áudio combinado de 3,5 mm, Card Reader: 4-in-1 (MMC, SD, SDHC, SDXC), 1 eSata, 1 Leitor de Impressões Digitais, TPM 1.2

Funcionamento em rede

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2 + LE

Unidade ótica

HL-DT-ST DVDRAM GUB0N

Tamanho

altura x largura x profundidade (em mm): 34.2 x 416 x 275.5

Bateria

96 Wh Lítio-Ion, removeable, 8 cells, Duração da bateria (de acordo com o fabricante): 10.8 h

Sistema Operativo

Microsoft Windows 7 Professional 64 Bit

Camera

Webcam: 720p

Características adicionais

Alto falantes: Alto falantes estéreo (2x 2Watts), Teclado: Chiclet, Iluminação do Teclado: sim, PSU de 230-Watts, Guia de início rápido, Informação da garantia, Windows 10 Pro (downgrade para Windows 7 Professional), Lenovo Tools, McAffee LiveSafe (avaliação), Microsoft Office (avaliação), Adobe Reader, 36 Meses Garantia

peso

3.6 kg, Suprimento de energia: 916 g

Preço

3400 Euros

Links

Lenovo página inicial
Lenovo Seção de notebook

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

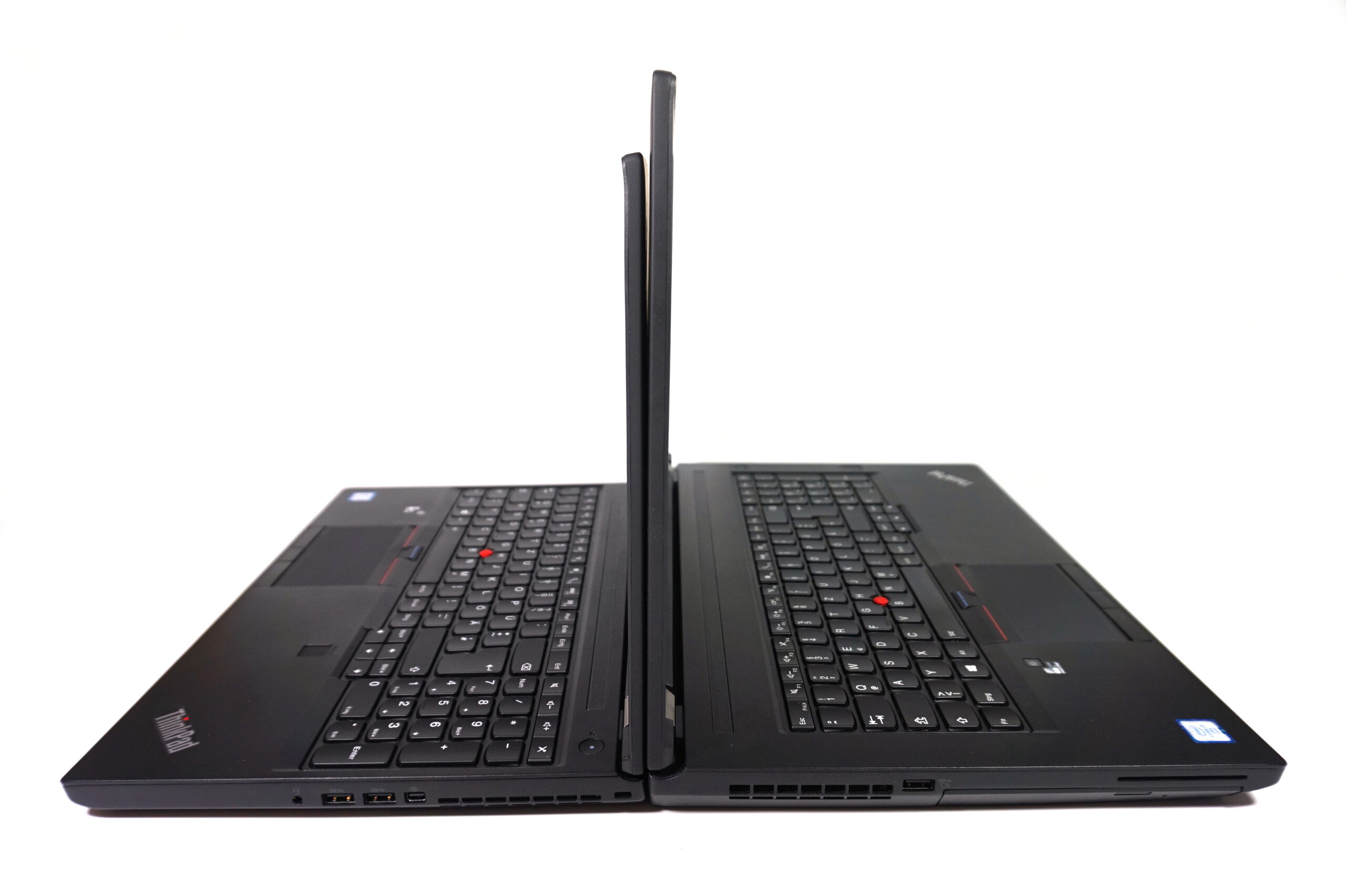

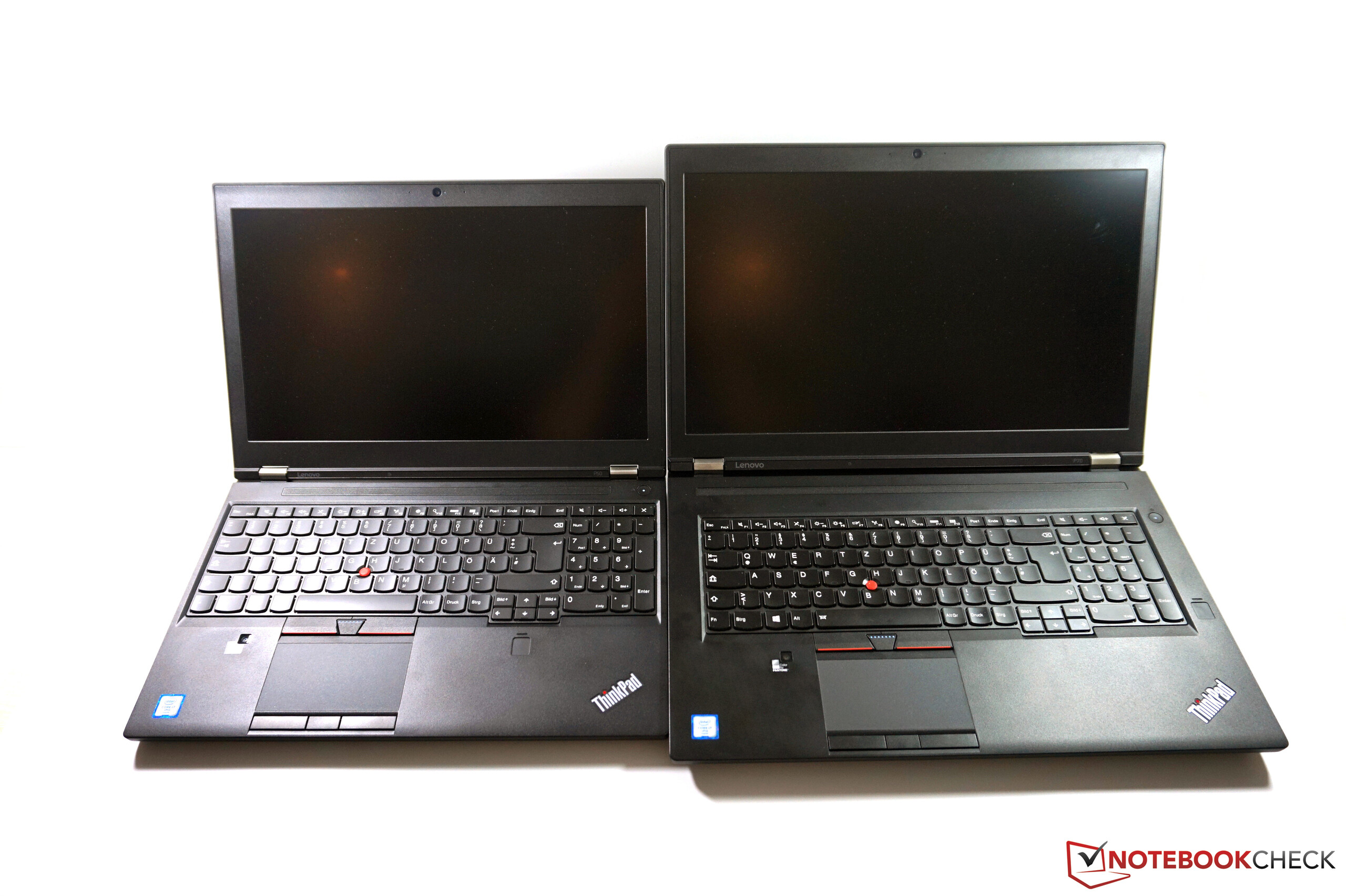

ThinkPad P50 (left) vs. ThinkPad P70 (right)

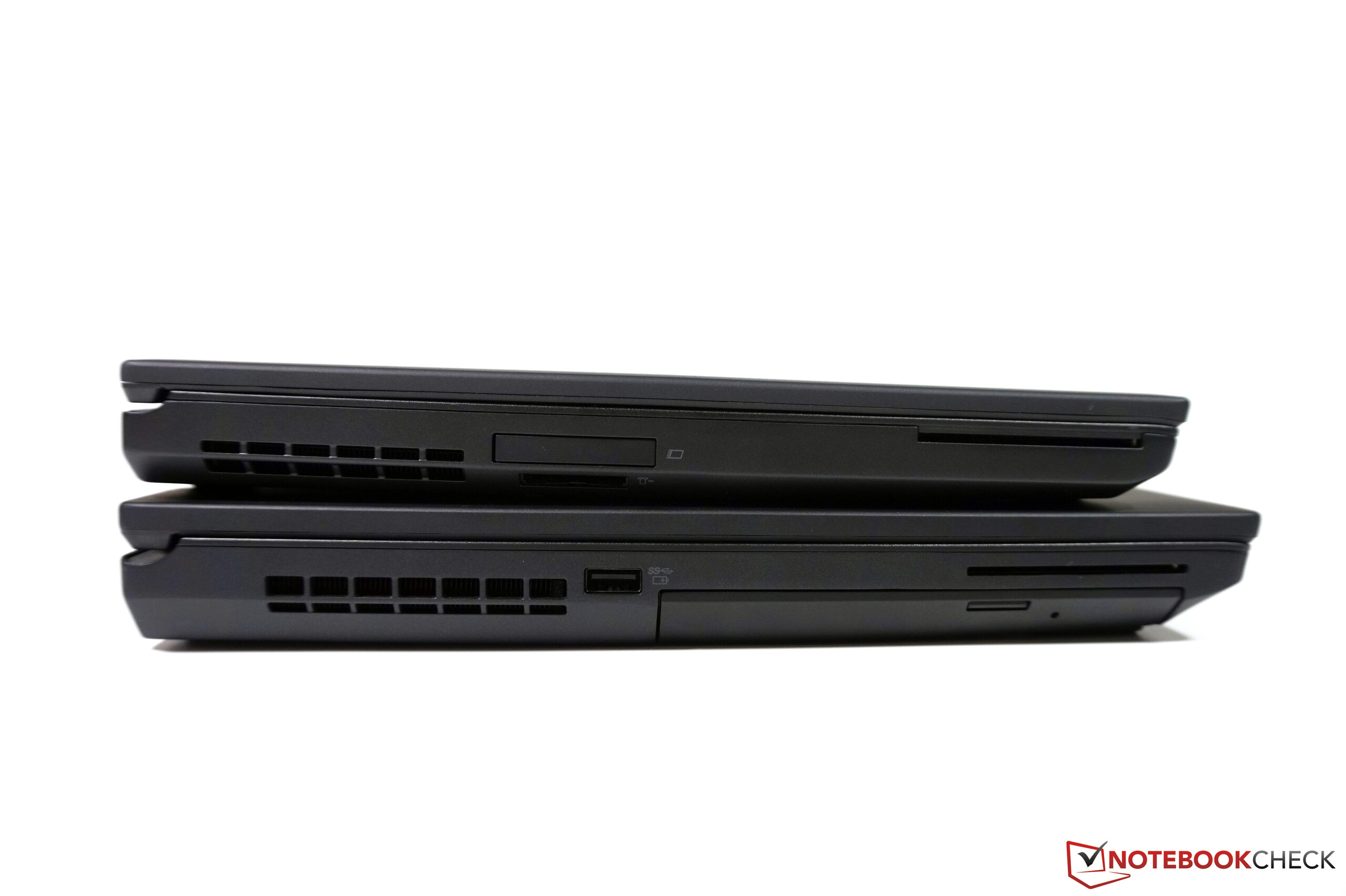

ThinkPad P50 (top) vs. ThinkPad P70 (bottom)

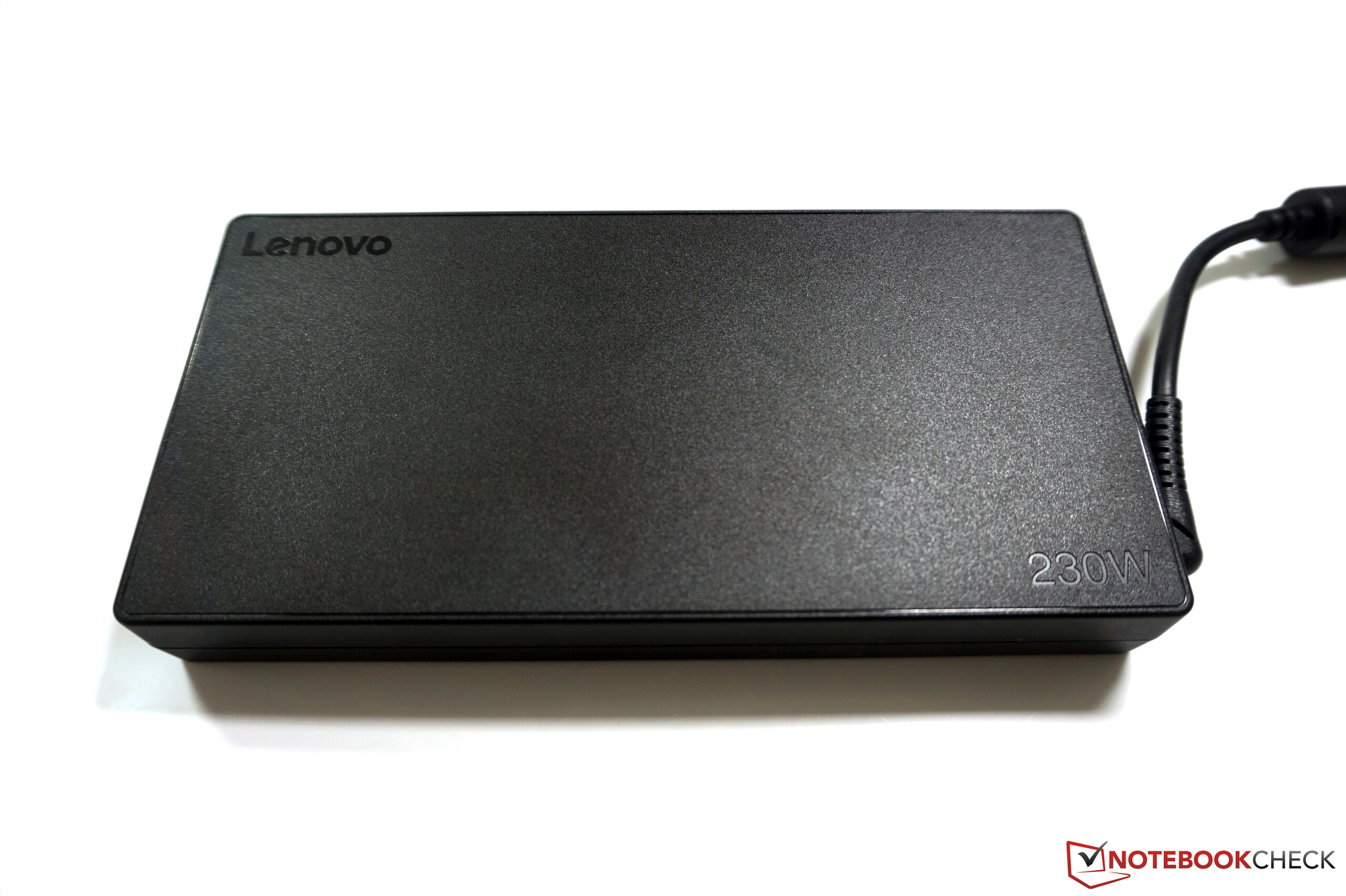

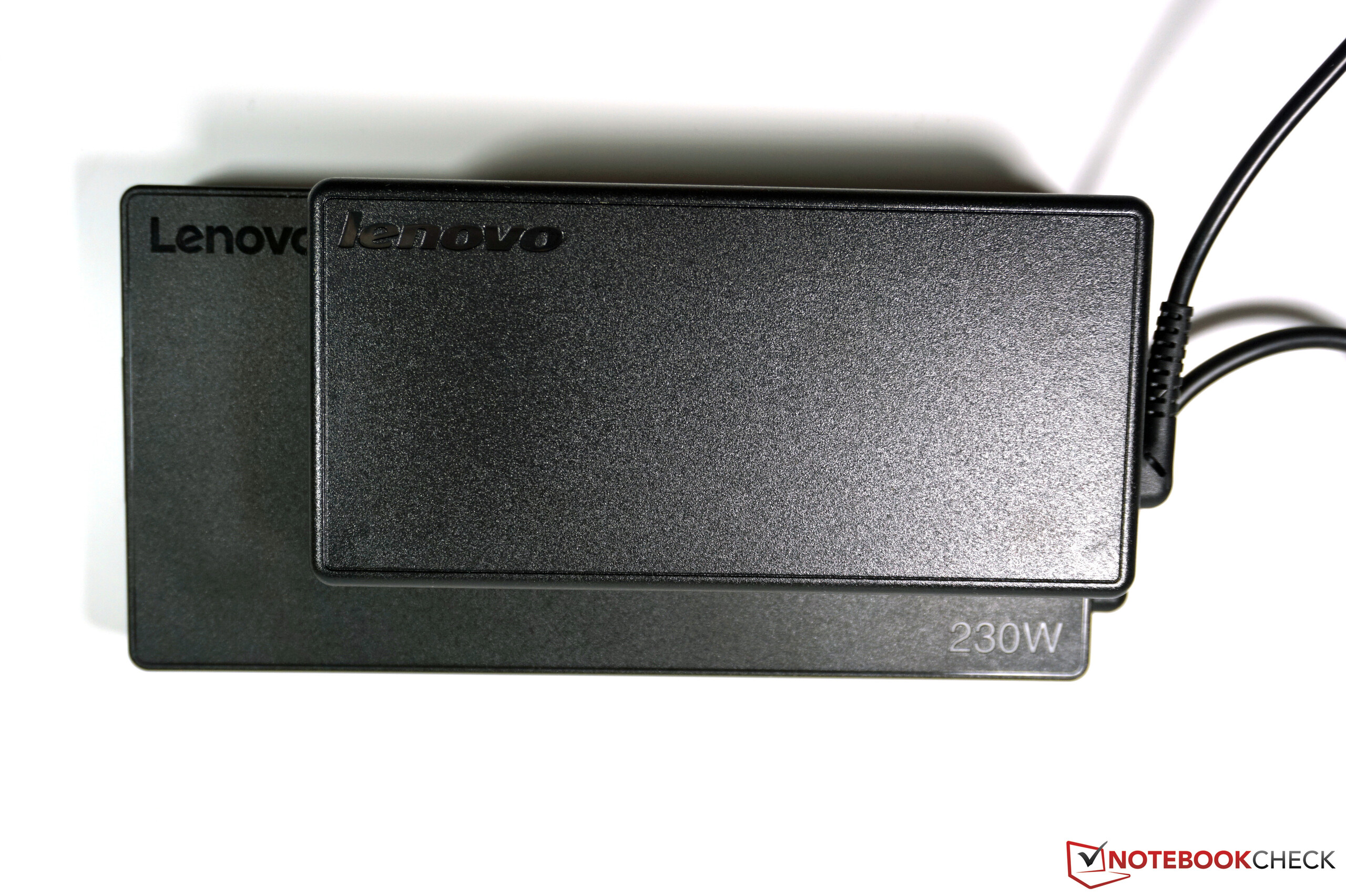

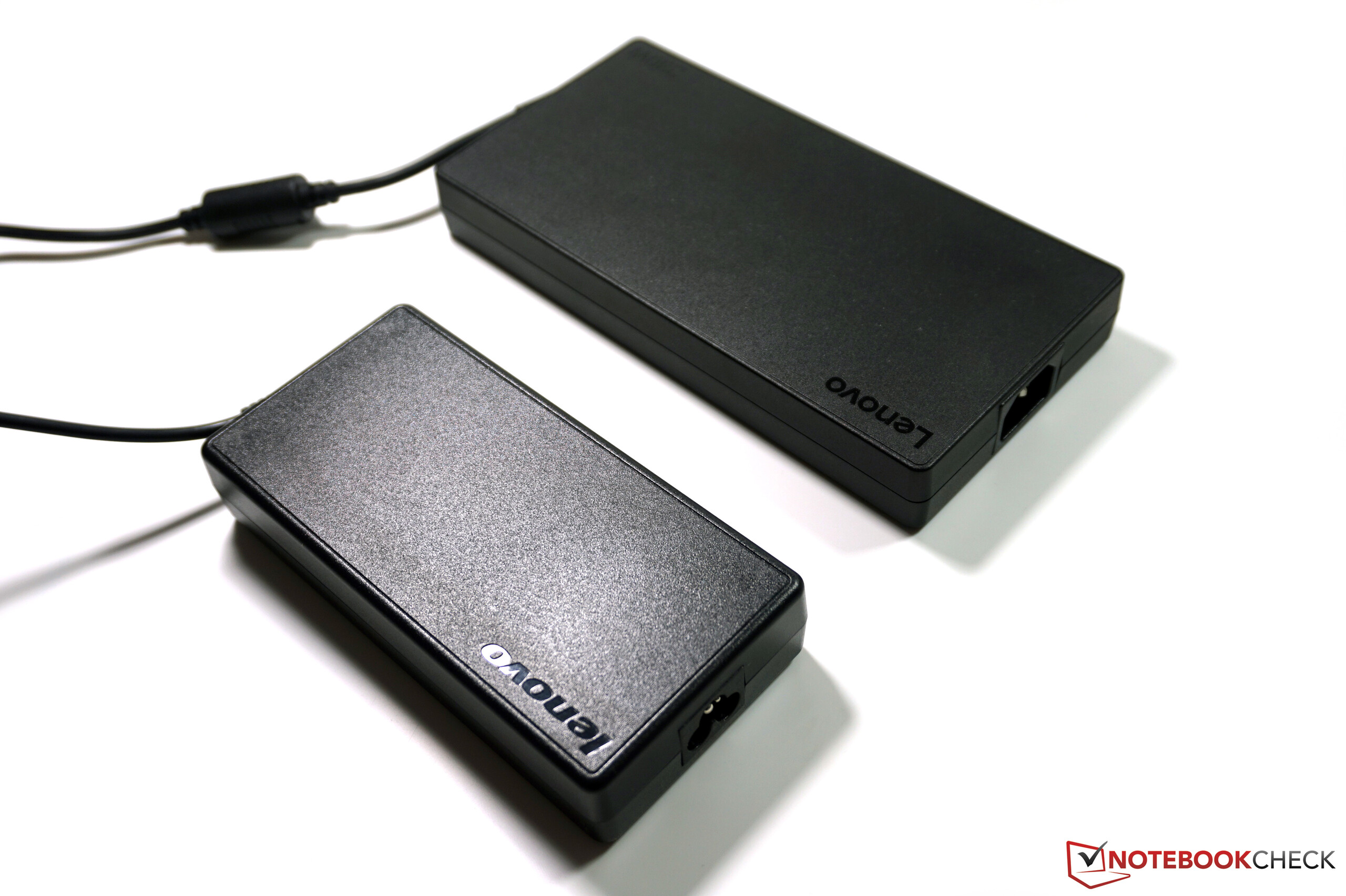

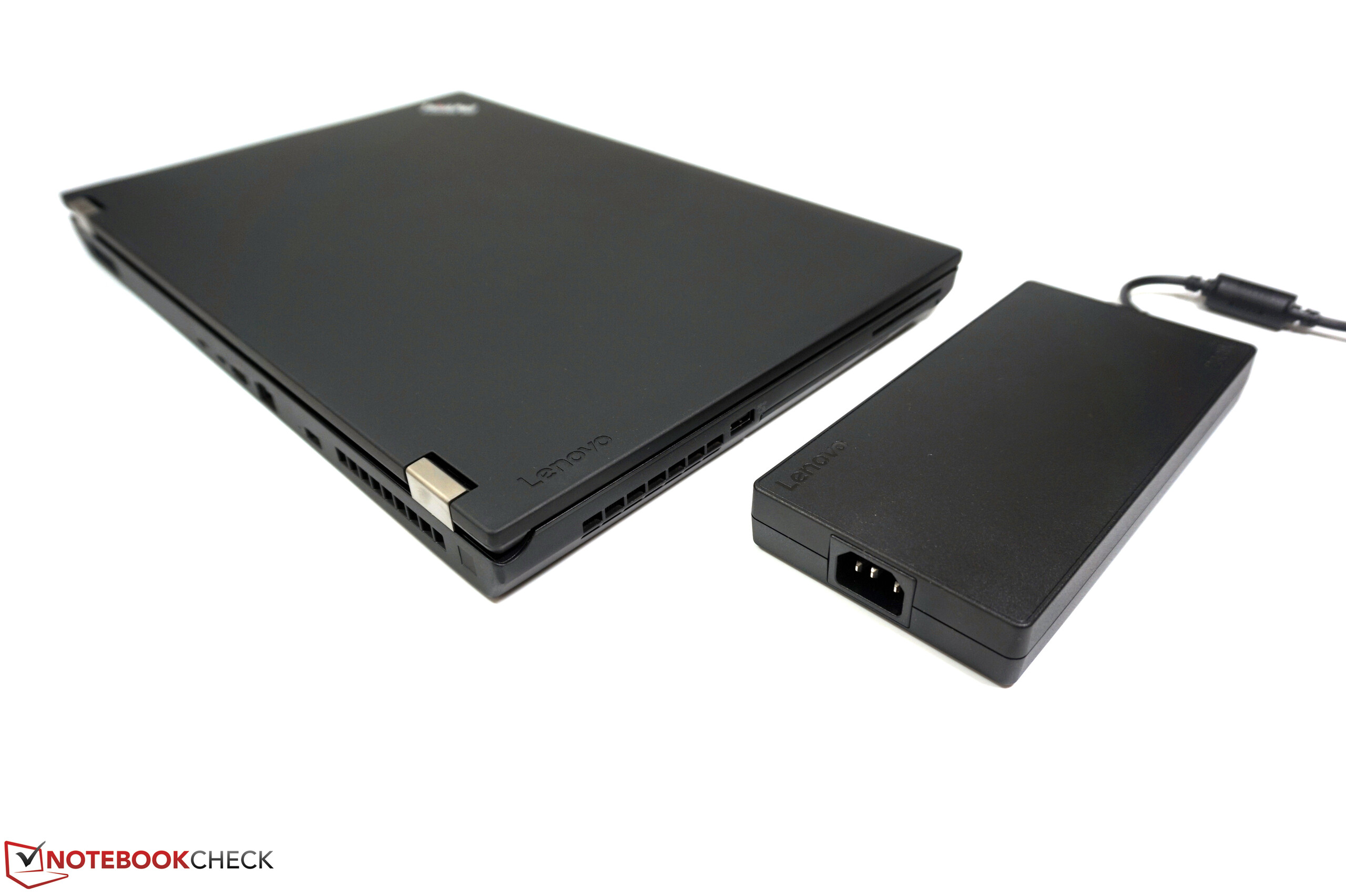

170-Watt PSU (bottom) vs. 230-Watt PSU (top)

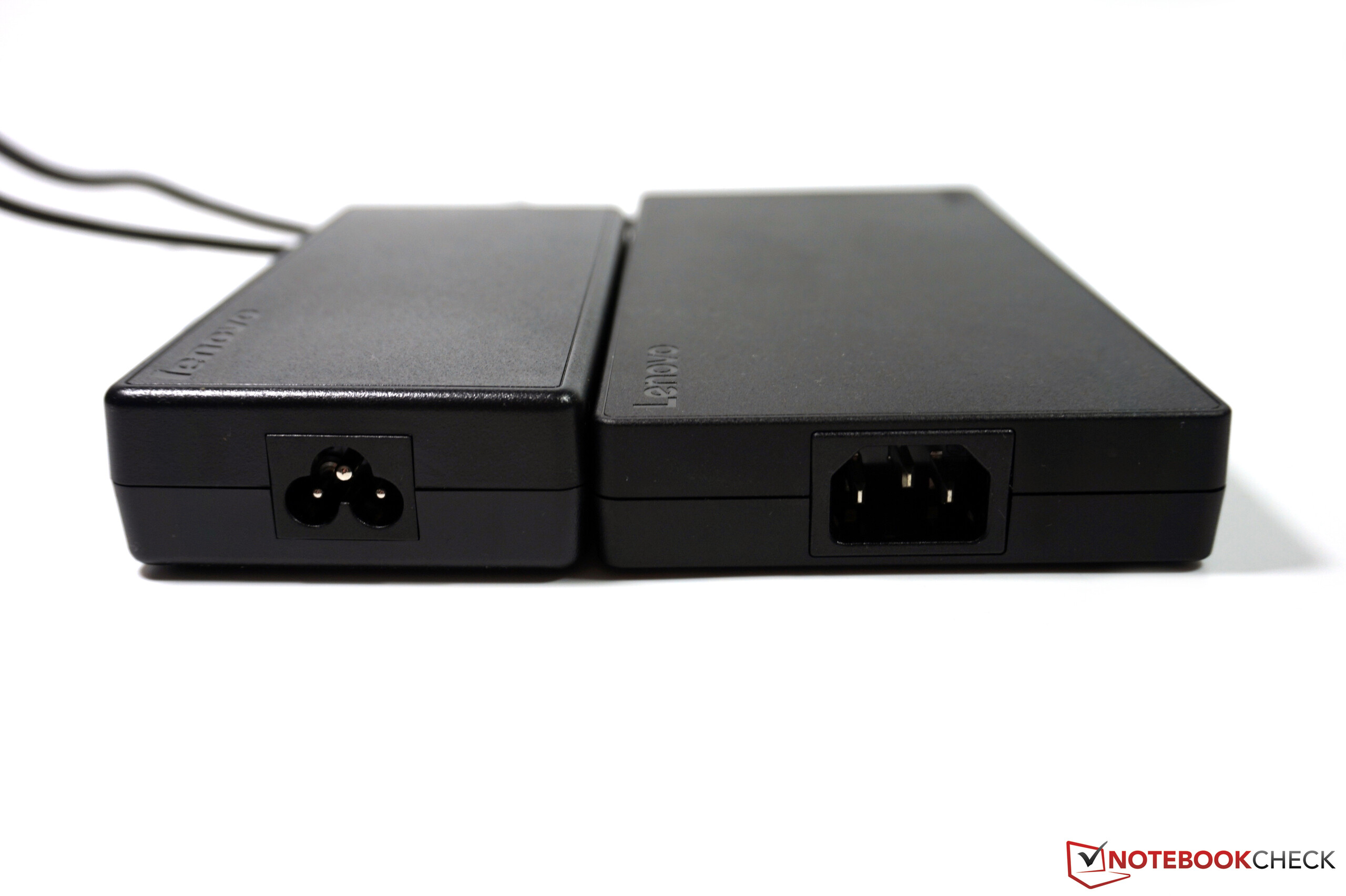

170-Watt PSU (left) vs. 230-Watt PSU (right)

170-Watt PSU (top) vs. 230-Watt PSU (bottom)

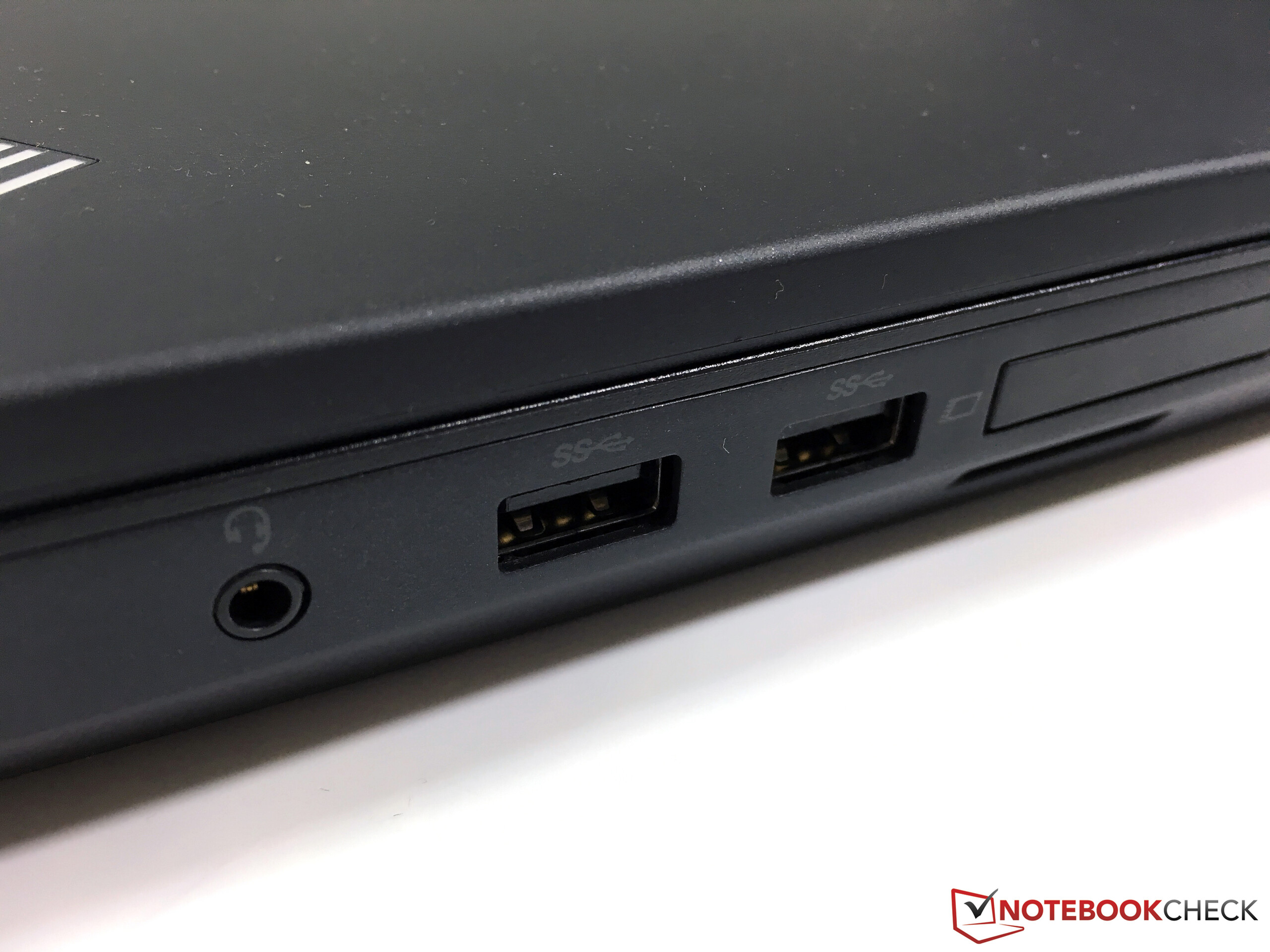

Right: combo audio, 2x USB 3.0, ExpressCard (34 mm), card reader, USB 3.0, Mini-DisplayPort 1.2

Rear: 2x USB 3.1 Type-C (Gen 2)/Thunderbolt 3, HDMI 1.4, Gigabit-Ethernet, AC

Left: USB 3.0 (Always on), DVD burner, smart-card reader


321 cd/m²	379 cd/m²	338 cd/m²
321 cd/m²	365 cd/m²	326 cd/m²
324 cd/m²	360 cd/m²	335 cd/m²

Distribuição do brilho

LEN4123 tested with X-Rite i1Pro 2

Máximo: 379 cd/m² (Nits) Médio: 341 cd/m²
iluminação: 85 %
iluminação com acumulador: 361 cd/m²
Contraste: 913:1 (Preto: 0.4 cd/m²)
ΔE Color 3.8 | 0.5-29.43 Ø4.92
ΔE Greyscale 6.09 | 0.5-98 Ø5.2
99.97% sRGB (Argyll 1.6.3 3D)
76.01% AdobeRGB 1998 (Argyll 1.6.3 3D)
85.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
90.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3

Download Arquivo ICC (X-Rite i1Pro 2)

	Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	HP ZBook 17 E9X11AA-ABA Quadro K610M, 4900MQ, Micron RealSSD C400 MTFDDAK128MAM	MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
Display		-17%	3%	-24%	-23%
Display P3 Coverage	90.8	66.6 -27%	85.7 -6%	66.5 -27%	66.5 -27%
sRGB Coverage	100	96.9 -3%	100 0%	84.3 -16%	84.5 -15%
AdobeRGB 1998 Coverage	85.4	68.6 -20%	99.2 16%	61.7 -28%	61.8 -28%
Response Times		-19%
Response Time Grey 50% / Grey 80% *	44 ?(17.2, 26.8)	50 ?(17, 33) -14%
Response Time Black / White *	27.6 ?(4.8, 22.8)	36 ?(11, 25) -30%
PWM Frequency	228 ?(95)	198 ?(25) -13%
Screen		4%	13%	-9%	-1%
Brightness middle	365	332 -9%	320 -12%	303 -17%	355 -3%
Brightness	341	307 -10%	311 -9%	276 -19%	335 -2%
Brightness Distribution	85	83 -2%	88 4%	83 -2%	89 5%
Black Level *	0.4	0.33 17%	0.359 10%	0.34 15%	0.44 -10%
Contrast	913	1006 10%	891 -2%	891 -2%	807 -12%
Colorchecker dE 2000 *	3.8	3 21%	2.04 46%	5.57 -47%	3.73 2%
Greyscale dE 2000 *	6.09	4 34%	2.45 60%	4.08 33%	2.84 53%
Gamma	2.3 ^96%	2 ^110%	2.28 ^96%	2.19 ^100%	2.12 ^104%
CCT	6332 ^103%	7089 ^92%	6518 ^100%	7362 ^88%	6457 ^101%
Color Space (Percent of AdobeRGB 1998)	76.01	62 -18%	93 22%	55.34 -27%	55.45 -27%
Color Space (Percent of sRGB)	99.97	97 -3%	100 0%	84.21 -16%	84.39 -16%
Total Average (Program / Settings)		-11% / -4%	8% / 11%	-17% / -13%	-12% / -7%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

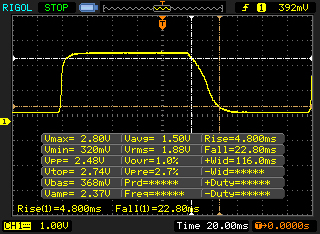

↔ Response Time Black to White
27.6 ms ... rise ↗ and fall ↘ combined	↗ 4.8 ms rise
27.6 ms ... rise ↗ and fall ↘ combined	↘ 22.8 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 67 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

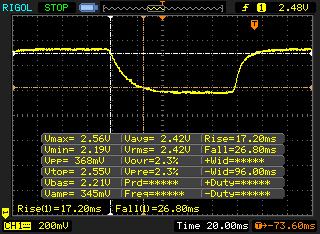

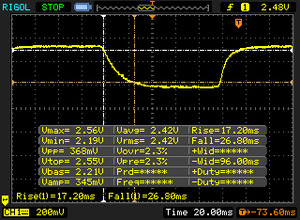

↔ Response Time 50% Grey to 80% Grey
44 ms ... rise ↗ and fall ↘ combined	↗ 17.2 ms rise
44 ms ... rise ↗ and fall ↘ combined	↘ 26.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

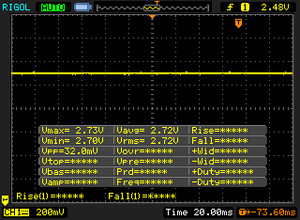

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

228 Hz

≤ 95 % brightness setting

The display backlight flickers at 228 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 95 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 228 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8747 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R10 Shading 64Bit

5278 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

27072 Points

Cinebench R10 Rendering Single CPUs 64Bit

6965 Points

Cinebench R10 Shading 32Bit

4455

Cinebench R10 Rendering Multiple CPUs 32Bit

20682

Cinebench R10 Rendering Single 32Bit

5429

Cinebench R11.5 OpenGL 64Bit

42.4 fps

Cinebench R11.5 CPU Multi 64Bit

7.63 Points

Cinebench R11.5 CPU Single 64Bit

1.7 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

68 fps

Cinebench R15 CPU Multi 64Bit

699 Points

Cinebench R15 CPU Single 64Bit

153 Points

Ajuda

... comparado com

Cinebench R15 | Cinebench R11.5 | Cinebench R10

Cinebench R15
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	699 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	746 Points +7%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	657 Points -6%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	715 Points +2%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	843 Points +21%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	732 Points +5%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	665 Points -5%
CPU Single 64Bit (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	153 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	162 Points +6%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	135 Points -12%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	154 Points +1%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	174 Points +14%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	142 Points -7%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	141 Points -8%

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	7.63 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	8.24 Points +8%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	7.11 Points -7%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	7.43 Points -3%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	9.14 Points +20%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	7.93 Points +4%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	7.36 Points -4%
CPU Single 64Bit (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	1.7 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	1.84 Points +8%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	1.54 Points -9%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	1.74 Points +2%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	1.95 Points +15%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	1.6 Points -6%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	1.62 Points -5%

Cinebench R10
Rendering Multiple CPUs 64Bit (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	27072 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	29375 Points +9%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	24894 Points -8%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	31767 Points +17%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	28057 Points +4%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	26299 Points -3%
Rendering Single CPUs 64Bit (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	6965 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	7608 Points +9%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	6635 Points -5%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	8597 Points +23%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	6890 Points -1%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	7083 Points +2%

PCMark 7 Score		5003 pontos
PCMark 8 Home Score Accelerated v2		3345 pontos
PCMark 8 Work Score Accelerated v2		4411 pontos
Ajuda

... comparado com

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	5003 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5072 Points +1%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	3356 Points -33%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	6447 Points +29%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	5317 Points +6%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	5839 Points +17%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	3345 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4770 Points +43%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	4464 Points +33%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	4241 Points +27%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	4355 Points +30%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	3941 Points +18%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	3703 Points +11%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	4411 Points
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5417 Points +23%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	4595 Points +4%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	4997 Points +13%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	5372 Points +22%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	5100 Points +16%
MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	4797 Points +9%

CrystalDiskMark 3.0

AS SSD

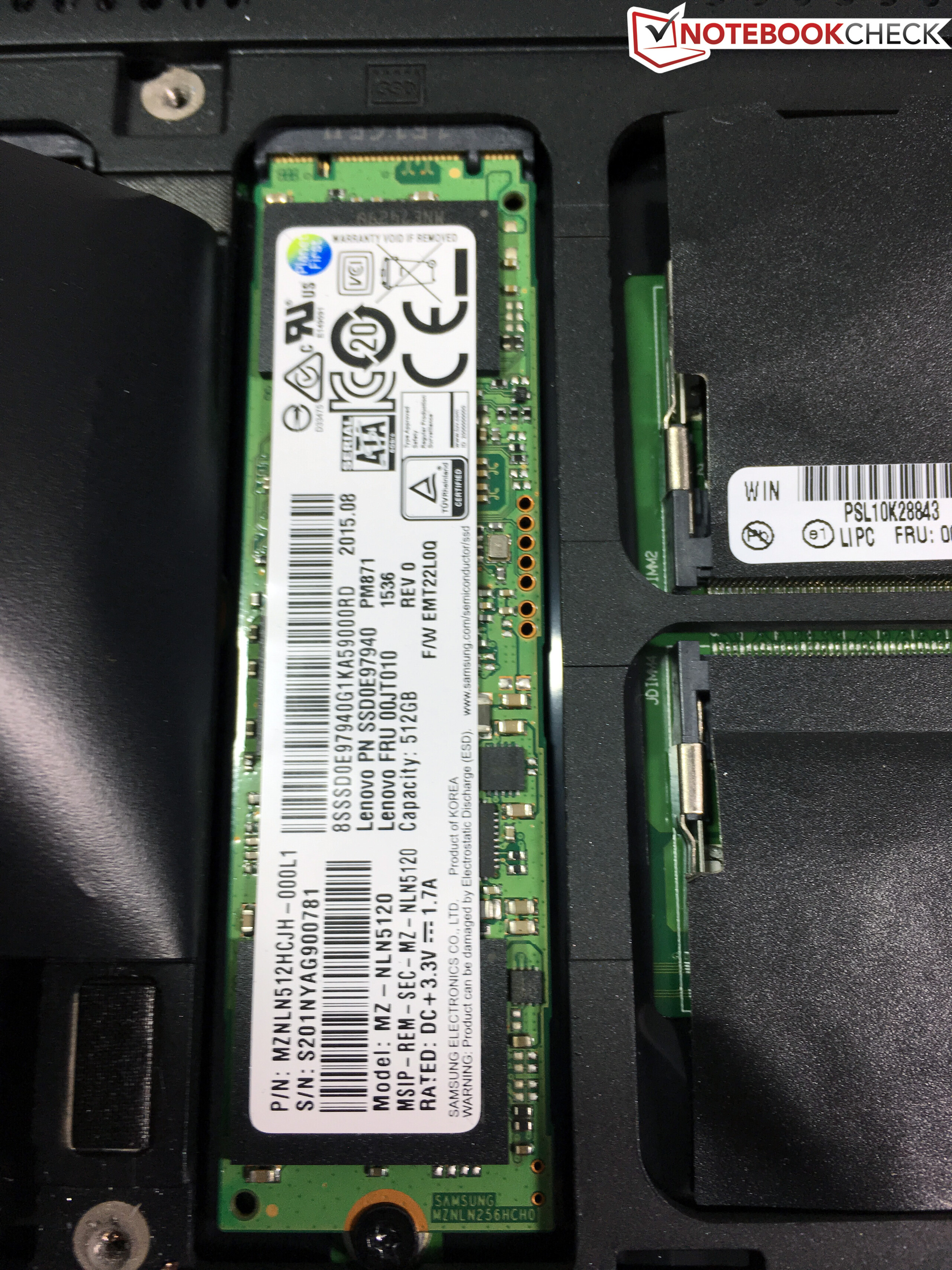

Samsung SSD PM871 MZNLN512HCJH

Sequential Read: 509 MB/s

Sequential Write: 457.8 MB/s

512K Read: 420.3 MB/s

512K Write: 420.5 MB/s

4K Read: 29.88 MB/s

4K Write: 104.1 MB/s

4K QD32 Read: 391.8 MB/s

4K QD32 Write: 350.4 MB/s

SPECviewperf 11 | SPECviewperf 12

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Lenovo ThinkPad P70	67.4 fps
Dell Precision 7710	49 fps -27%
HP ZBook 17 G2 J8Z55ET	47.84 fps -29%
MSI WT72-2OL32SR311BW	45 fps -33%
Bullman E-Klasse 5	39 fps -42%
Dell Precision 5510	41 fps -39%
SCHENKER W706	51 fps -24%
1920x1080 Tcvis (sort by value)
Lenovo ThinkPad P70	41.16 fps
Dell Precision 7710	36 fps -13%
HP ZBook 17 G2 J8Z55ET	28.37 fps -31%
MSI WT72-2OL32SR311BW	50 fps +21%
Bullman E-Klasse 5	42 fps +2%
Dell Precision 5510	40 fps -3%
SCHENKER W706	54 fps +31%
1920x1080 SolidWorks (sort by value)
Lenovo ThinkPad P70	35.28 fps
Dell Precision 7710	74 fps +110%
HP ZBook 17 G2 J8Z55ET	68.7 fps +95%
MSI WT72-2OL32SR311BW	54 fps +53%
Bullman E-Klasse 5	52 fps +47%
Dell Precision 5510	51 fps +45%
SCHENKER W706	50 fps +42%
1920x1080 Pro/ENGINEER (sort by value)
Lenovo ThinkPad P70	16.08 fps
Dell Precision 7710	11.7 fps -27%
HP ZBook 17 G2 J8Z55ET	10.66 fps -34%
MSI WT72-2OL32SR311BW	24 fps +49%
Bullman E-Klasse 5	21 fps +31%
Dell Precision 5510	21 fps +31%
SCHENKER W706	20 fps +24%
1920x1080 Maya (sort by value)
Lenovo ThinkPad P70	86 fps
Dell Precision 7710	106 fps +23%
HP ZBook 17 G2 J8Z55ET	99.7 fps +16%
MSI WT72-2OL32SR311BW	58 fps -33%
Bullman E-Klasse 5	55 fps -36%
Dell Precision 5510	56 fps -35%
SCHENKER W706	58 fps -33%
1920x1080 Lightwave (sort by value)
Lenovo ThinkPad P70	35.34 fps
Dell Precision 7710	84 fps +138%
HP ZBook 17 G2 J8Z55ET	77.8 fps +120%
MSI WT72-2OL32SR311BW	53 fps +50%
Bullman E-Klasse 5	56 fps +58%
Dell Precision 5510	54 fps +53%
SCHENKER W706	53 fps +50%
1920x1080 Ensight (sort by value)
Lenovo ThinkPad P70	59.5 fps
Dell Precision 7710	70 fps +18%
HP ZBook 17 G2 J8Z55ET	55.7 fps -6%
MSI WT72-2OL32SR311BW	52 fps -13%
Bullman E-Klasse 5	39 fps -34%
Dell Precision 5510	39 fps -34%
SCHENKER W706	59 fps -1%
1920x1080 Catia (sort by value)
Lenovo ThinkPad P70	43.12 fps
Dell Precision 7710	61 fps +41%
HP ZBook 17 G2 J8Z55ET	49.28 fps +14%
MSI WT72-2OL32SR311BW	57 fps +32%
Bullman E-Klasse 5	47 fps +9%
Dell Precision 5510	54 fps +25%
SCHENKER W706	52 fps +21%

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Lenovo ThinkPad P70	52.3 fps
Dell Precision 7710	73 fps +40%
HP ZBook 17 G2 J8Z55ET	66.5 fps +27%
MSI WT72-2OL32SR311BW	83 fps +59%
Bullman E-Klasse 5	62 fps +19%
Dell Precision 5510	62 fps +19%
SCHENKER W706	105 fps +101%
1900x1060 Siemens NX (snx-02) (sort by value)
Lenovo ThinkPad P70	39.84 fps
Dell Precision 7710	63 fps +58%
HP ZBook 17 G2 J8Z55ET	50.7 fps +27%
MSI WT72-2OL32SR311BW	45 fps +13%
Bullman E-Klasse 5	32 fps -20%
Dell Precision 5510	31 fps -22%
SCHENKER W706	88 fps +121%
1900x1060 Showcase (showcase-01) (sort by value)
Lenovo ThinkPad P70	39.81 fps
Dell Precision 7710	37 fps -7%
HP ZBook 17 G2 J8Z55ET	26.31 fps -34%
MSI WT72-2OL32SR311BW	23 fps -42%
Bullman E-Klasse 5	19 fps -52%
Dell Precision 5510	20 fps -50%
SCHENKER W706	44 fps +11%
1900x1060 Medical (medical-01) (sort by value)
Lenovo ThinkPad P70	17.46 fps
Dell Precision 7710	27 fps +55%
HP ZBook 17 G2 J8Z55ET	16.27 fps -7%
MSI WT72-2OL32SR311BW	14 fps -20%
Bullman E-Klasse 5	10 fps -43%
Dell Precision 5510	12 fps -31%
SCHENKER W706	33 fps +89%
1900x1060 Maya (maya-04) (sort by value)
Lenovo ThinkPad P70	23.08 fps
Dell Precision 7710	46 fps +99%
HP ZBook 17 G2 J8Z55ET	39.17 fps +70%
MSI WT72-2OL32SR311BW	39 fps +69%
Bullman E-Klasse 5	28 fps +21%
Dell Precision 5510	30 fps +30%
SCHENKER W706	73 fps +216%
1900x1060 Energy (energy-01) (sort by value)
Lenovo ThinkPad P70	4.68 fps
Dell Precision 7710	3.17 fps -32%
HP ZBook 17 G2 J8Z55ET	0.59 fps -87%
MSI WT72-2OL32SR311BW	2.12 fps -55%
Bullman E-Klasse 5	2.1 fps -55%
Dell Precision 5510	0.69 fps -85%
SCHENKER W706	7.4 fps +58%
1900x1060 Creo (creo-01) (sort by value)
Lenovo ThinkPad P70	42.17 fps
Dell Precision 7710	50 fps +19%
HP ZBook 17 G2 J8Z55ET	42.61 fps +1%
MSI WT72-2OL32SR311BW	38 fps -10%
Bullman E-Klasse 5	29 fps -31%
Dell Precision 5510	34 fps -19%
SCHENKER W706	82 fps +94%
1900x1060 Catia (catia-04) (sort by value)
Lenovo ThinkPad P70	45.24 fps
Dell Precision 7710	58 fps +28%
HP ZBook 17 G2 J8Z55ET	44.02 fps -3%
MSI WT72-2OL32SR311BW	48 fps +6%
Bullman E-Klasse 5	33 fps -27%
Dell Precision 5510	37 fps -18%
SCHENKER W706	99 fps +119%

Legend

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

Bullman E-Klasse 5 Intel Core i7-4790K, NVIDIA Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

SCHENKER W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

LuxMark v2.0 64Bit | SiSoft Sandra 2016

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Lenovo ThinkPad P70	1258 Samples/s
Dell Precision 7710	782 Samples/s -38%
HP ZBook 17 G2 J8Z55ET	598 Samples/s -52%
MSI WT72-2OL32SR311BW	325 Samples/s -74%
Bullman E-Klasse 5	215 Samples/s -83%
Dell Precision 5510	534 Samples/s -58%
SCHENKER W706	1324 Samples/s +5%
Sala GPUs-only (sort by value)
Lenovo ThinkPad P70	2234 Samples/s
Dell Precision 7710	1412 Samples/s -37%
HP ZBook 17 G2 J8Z55ET	1084 Samples/s -51%
MSI WT72-2OL32SR311BW	648 Samples/s -71%
Bullman E-Klasse 5	423 Samples/s -81%
Dell Precision 5510	889 Samples/s -60%
SCHENKER W706	2167 Samples/s -3%

SiSoft Sandra 2016
Image Processing (sort by value)
Lenovo ThinkPad P70	367.1 MPix/s
Dell Precision 7710	527 MPix/s +44%
Dell Precision 5510	127.5 MPix/s -65%
SCHENKER W706	277 MPix/s -25%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Lenovo ThinkPad P70	11.12 GB/s
Dell Precision 7710	12.47 GB/s +12%
Dell Precision 5510	7.38 GB/s -34%
SCHENKER W706	17 GB/s +53%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Lenovo ThinkPad P70	32.97 KOPT/s
Dell Precision 7710	66.4 KOPT/s +101%
Dell Precision 5510	17 KOPT/s -48%
SCHENKER W706	47.63 KOPT/s +44%

Legend

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

Bullman E-Klasse 5 Intel Core i7-4790K, NVIDIA Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

SCHENKER W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

3DMark 06 Standard Score		26746 pontos
3DMark Vantage P Result		27405 pontos
3DMark 11 Performance		8493 pontos
3DMark Ice Storm Standard Score		42156 pontos
3DMark Cloud Gate Standard Score		19732 pontos
3DMark Fire Strike Score		5835 pontos
Ajuda

... comparado com

Unigine Heaven 3.0 | Unigine Valley 1.0

Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Lenovo ThinkPad P70	43.4 fps
Dell Precision 7710	59.3 fps +37%
HP ZBook 17 G2 J8Z55ET	48.8 fps +12%
Bullman E-Klasse 5	35.8 fps -18%
SCHENKER W706	104 fps +140%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Lenovo ThinkPad P70	79.3 fps
Dell Precision 7710	76.9 fps -3%
HP ZBook 17 G2 J8Z55ET	56.2 fps -29%
Bullman E-Klasse 5	37 fps -53%
SCHENKER W706	116 fps +46%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Lenovo ThinkPad P70	37.8 fps
Dell Precision 7710	30.7 fps -19%
SCHENKER W706	48.4 fps +28%
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Lenovo ThinkPad P70	22 fps
Dell Precision 7710	26.6 fps +21%
SCHENKER W706	39.2 fps +78%

Legend

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

Bullman E-Klasse 5 Intel Core i7-4790K, NVIDIA Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL

SCHENKER W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

Tomb Raider
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	185 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	167 fps -10%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	81 fps -56%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	240 fps +30%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	140 (113^min - 168^max) fps -24%
MSI GE62-2QEUi716H21BW GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1	132.4 fps -28%
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	82.1 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	51 fps -38%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	45 fps -45%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	74.4 fps -9%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	67 (54^min - 80^max) fps -18%
MSI GE62-2QEUi716H21BW GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1	57.9 fps -29%

BioShock Infinite
1366x768 High Preset (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	163.8 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	158 fps -4%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	94 fps -43%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	212 fps +29%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	127 fps -22%
MSI GE62-2QEUi716H21BW GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1	130.7 fps -20%
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	69.7 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	66 fps -5%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	34 fps -51%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	92 fps +32%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	55 (9^min - 95^max) fps -21%
MSI GE62-2QEUi716H21BW GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1	52.7 fps -24%

Just Cause 3
1920x1080 High / On AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	50.4 fps
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	46.6 (41^min - 53^max) fps -8%
1920x1080 Very High / On AA:SM AF:16x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	43.7 fps
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	39 (30^min - 45^max) fps -11%
3840x2160 High / On AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	17.8 fps

Rainbow Six Siege
1920x1080 High Preset AA:T AF:4x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	76.8 fps
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	69 (10^min - 144^max) fps -10%
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	54.5 fps
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	40.8 (10^min - 109^max) fps -25%
3840x2160 High Preset AA:T AF:4x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	23.8 fps

Star Wars Battlefront
1920x1080 High Preset AA:FX (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	59.4 fps
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	53 (44^min - 65^max) fps -11%
1920x1080 Ultra Preset AA:FX (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	50.9 fps
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	45.8 (39^min - 55^max) fps -10%
3840x2160 High Preset AA:FX (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	17.8 fps
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	15.6 (13^min - 20^max) fps -12%

The Witcher 3
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	40.9 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	31 fps -24%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	67 fps +64%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	36.8 (29^min - 43^max) fps -10%
SCHENKER XMG P506 GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e	45.8 fps +12%
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	22.1 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	23 fps +4%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	38 fps +72%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	20.2 (16^min - 25^max) fps -9%
SCHENKER XMG P506 GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e	25.7 fps +16%
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	14.1 fps

Dirt Rally
1920x1080 High Preset (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	89.6 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	89 fps -1%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	67 fps -25%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	45 fps -50%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	126 fps +41%
SCHENKER XMG P506 GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e	114.4 fps +28%
1920x1080 Ultra Preset AA:4x MS (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	53.6 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	63 fps +18%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	33 fps -38%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	23 fps -57%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	73 fps +36%
SCHENKER XMG P506 GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e	59.7 fps +11%
3840x2160 High Preset (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	39.2 fps
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	12.5 fps -68%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	17 fps -57%

GTA V
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	69.1 fps
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	29.7 fps
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	35.3 fps

Thief
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	77.4 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	57 fps -26%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	54 fps -30%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	45 fps -42%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	32 fps -59%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	104 fps +34%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	62.5 fps -19%
MSI GE62-2QEUi716H21BW GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1	61.3 fps -21%
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	43.1 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	40 fps -7%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	26.6 fps -38%
MSI WT72-2OL32SR311BW Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)	26 fps -40%
Bullman E-Klasse 5 Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL	19 fps -56%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	61 fps +42%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	37.5 (28^min - 52^max) fps -13%
MSI GE62-2QEUi716H21BW GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1	34.9 fps -19%

Metro: Last Light
1366x768 High (DX11) AF:16x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	82.9 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	94 fps +13%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	49 fps -41%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	122 fps +47%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	76 fps -8%
1920x1080 Very High (DX11) AF:16x (sort by value)
Lenovo ThinkPad P70 Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH	44.6 fps
Dell Precision 7710 FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	44 fps -1%
HP ZBook 17 G2 J8Z55ET FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630	27 fps -39%
SCHENKER W706 Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e	66 fps +48%
MSI GE72 965M Ti GeForce GTX 965M, 6700HQ	42 (7^min - 95^max) fps -6%

	média	alto	ultra	4K
Tomb Raider (2013)	255.1	185	82.1
BioShock Infinite (2013)	176	163.8	69.7
Metro: Last Light (2013)	124.5	82.9	44.6
Thief (2014)	88.6	77.4	43.1
GTA V (2015)	136.1	69.1	29.7	35.3
Dirt Rally (2015)	108.6	89.6	53.6	39.2
The Witcher 3 (2015)	73.1	40.9	22.1	14.1
Star Wars Battlefront (2015)	124.5	59.4	50.9	17.8
Rainbow Six Siege (2015)	146.8	76.8	54.5	23.8
Just Cause 3 (2015)	85.6	50.4	43.7	17.8

Barulho

Ocioso		30 / 30 / 30 dB
Carga		36.5 / 40.8 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Audix TM1 Arta (15 cm de distância) environment noise: 30 dB(A)

Carga Máxima

Inatividade


39 °C	36.1 °C	35.6 °C
31.2 °C	31.6 °C	29.3 °C
24.4 °C	28.1 °C	24.2 °C

Máximo: 39 °C
Médio: 31.1 °C


34.7 °C	35.4 °C	34.4 °C
30.8 °C	33 °C	30.1 °C
23.9 °C	29 °C	24.4 °C

Máximo: 35.4 °C
Médio: 30.6 °C

alimentação elétrica 40.8 °C | Temperatura do quarto 20 °C | Fennel FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 39 °C / 102 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(+) The bottom heats up to a maximum of 35.4 °C / 96 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.1 °C / 82.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-0.2 °C / -0.4 F).

Consumo de energia

desligado	0.29 / 0.35 Watt
Ocioso	12.1 / 19.7 / 20.5 Watt
Carga	94.3 / 139.6 Watt


Key: min: , med: , max: Metrahit Energy

Tempo de Execução da Bateria

Ocioso (sem WLAN, min brilho)		7h 44min
WiFi Websurfing		6h 01min
Big Buck Bunny H.264 1080p		7h 32min
Carga (máximo brilho)		1h 04min

Pro

+ Muito boa tela de 4K

+ Excelente desempenho, até mesmo sob uso intenso

+ Muito boa qualidade de construção e estabilidade

+ Excelentes dispositivos de entrada

+ Portas modernas

+ Muitos recursos de segurança

+ Baixas temperaturas

+ Solução de resfriamento silenciosa

+ Boas durações da bateria

+ Pode ser configurada

+ Boa capacidade de atualização (4x RAM, 4x armazenamento)

+ Garantia de 36 meses

Contra

- Calibrador de cores integrado da unidade de teste não oferece resultados ideais

- Problemas ocasionais do controlador e de escalamento da nossa unidade de teste com Windows 7

- Alto falantes ruins

- Medíocre desempenho do USB 3.0

- "Bleeding" irritante da tela

- PWM abaixo de 95 % de brilho

- Webcam ruim

- Nossa unidade de teste não suporta RAID

- Desempenho reduzido da GPU com a bateria

- Preço

In review: Lenovo ThinkPad P70. Test model courtesy of Notebooksandmore.

O Lenovo ThinkPad P70 é uma excelente reentrada no segmento de workstations de 17-polegadas. Nós gostamos especialmente que a Lenovo supostamente tenha escutado os comentários de clientes e tenha revertido algumas decisões controvertidas do design de anteriores gerações e inclusive tenha melhorado. Estamos falando sobre o touchpad e o TrackPoint em particular, que mais uma vez estão equipados com botões dedicados.

O chassi do workstation, que agora é preto novamente, está perfeitamente construído e a unidade base, bem como o teclado, em particular, são extremamente sólidos. A tampa fina não consegue alcançar o nível e as dobradiças também têm problemas com a tela pesada em ângulos extremos. Outra vantagem do chassi é a grande escotilha de manutenção e a boa capacidade de manutenção.

Um aspecto muito importante de um workstation é, obviamente, o desempenho, e o ThinkPad P70 consegue convencer com resultados muito bons. Graças à boa solução de resfriamento (e também silenciosa), os componentes podem também usar uma grande parte de seu desempenho sob uso intenso. A situação poderia ter sido ainda melhor se a Lenovo não fosse tão conservadora no que diz respeito às temperaturas. Apenas o desempenho da GPU é um pouco reduzido com a energia da bateria.

Bem-vinda de volta, Lenovo! O ThinkPad P70 é mais uma vez um excelente workstation do fabricante chinês após 5 anos. A Lenovo escutou os comentários dos clientes e evitou alguns problemas das gerações anteriores.

Listamos alguns contras no lado direito, mas nenhum deles é realmente sério e alguns dos pontos somente se aplicam para nossa unidade de teste em combinação com o Windows 7. O P70 não apresenta grandes problemas, assim você notará os problemas menores. O problemas mais irritante é certamente o "bleeding" da tela, que não deve acontecer nesta faixa de preços. A Lenovo também economizou um pouco de dinheiro com a webcam e os alto falantes.

Você também deveria usar Windows 10 se solicitar uma configuração com uma tela 4K, porque notamos alguns problemas de dimensionamento com o Windows 7. Se você ainda quiser usar o sistema operacional antigo, tal vez queira considerar o modelo FHD, que também deveria ter uma boa vantagem no consumo, especialmente em cenários com uso leve.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Lenovo ThinkPad P70 - 2016-03-17 03/17/2016 v5 ^(old)
Andreas Osthoff

Acabamento

85 / 98 → 87%

Teclado

94%

Mouse

86%

Conectividade

75 / 81 → 93%

Peso

53 / 10-66 → 77%

Bateria

89%

Pantalha

89%

Desempenho do jogos

95%

Desempenho da aplicação

94%

Workstation

68%

Temperatura

93 / 95 → 97%

Ruído

91 / 90 → 100%

Audio

64%

Camera

42 / 85 → 49%

Médio

80%

86%

Workstation - Médio equilibrado

Read about the changes in the new rating version 5

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1693 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Workstation Lenovo ThinkPad P70

Andreas Osthoff, 2016-02- 3 (Update: 2024-11- 4)
