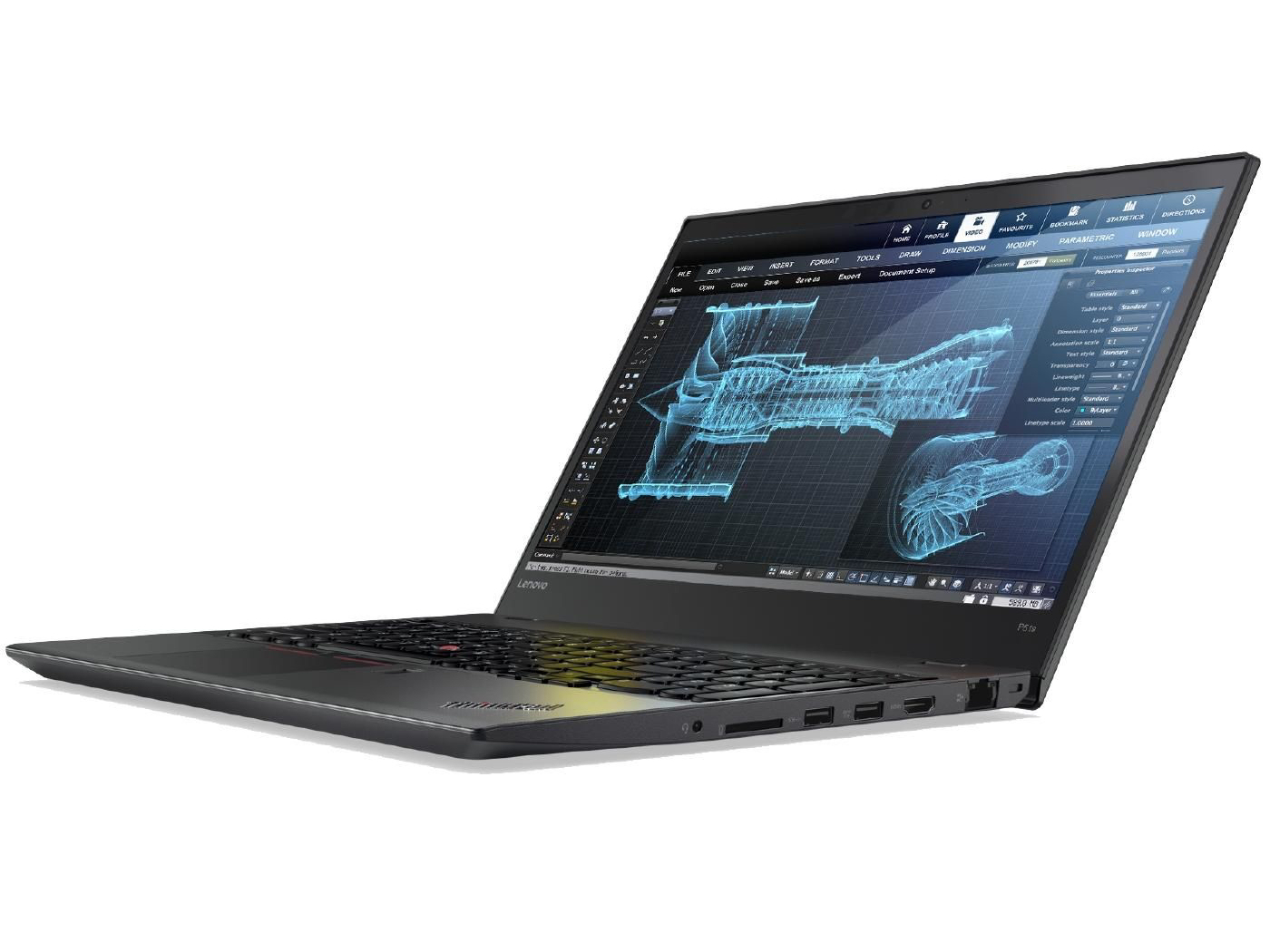

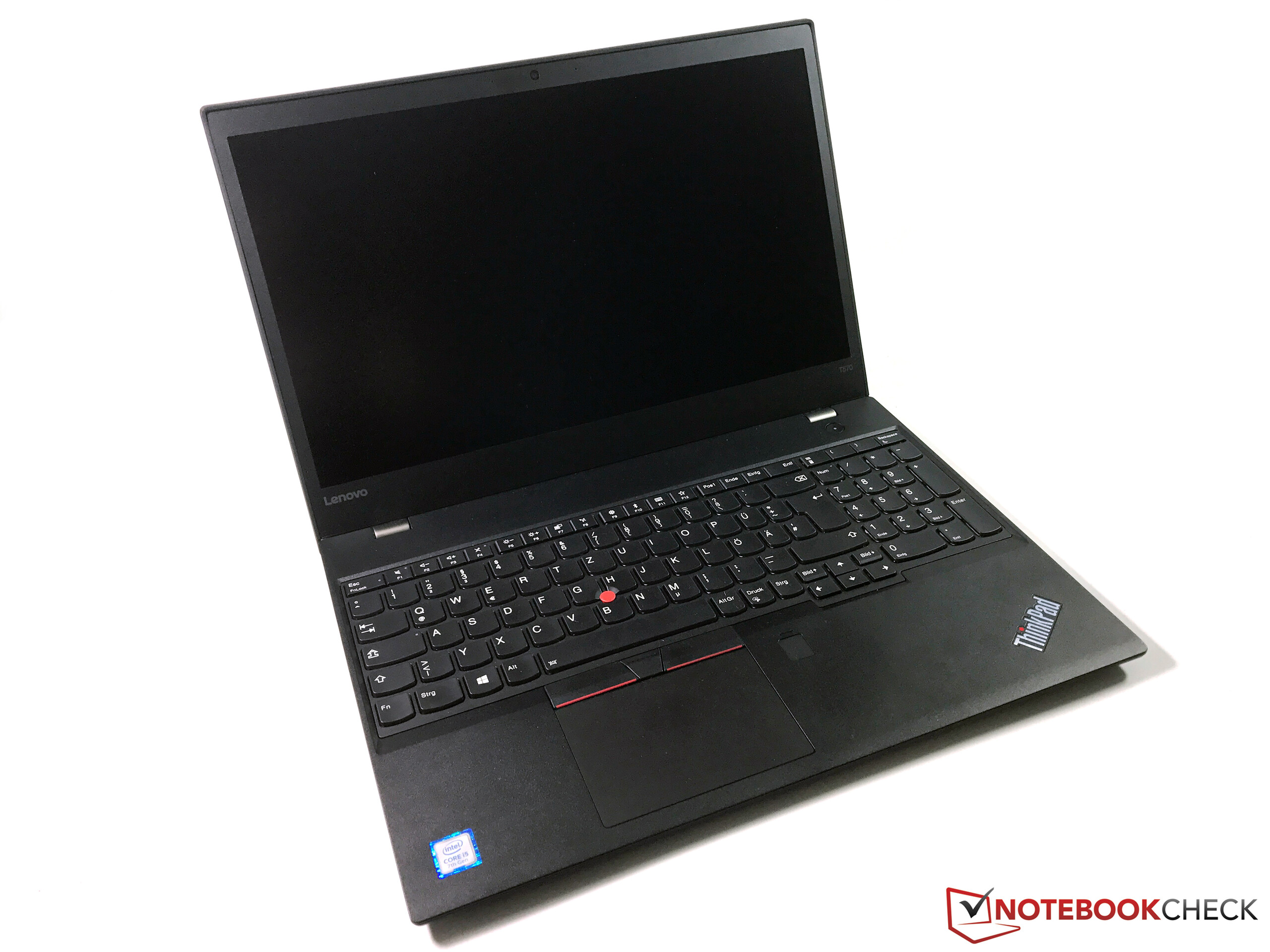

Breve Análise do Workstation Lenovo ThinkPad P51s (Core i7, 4K)

Duradouro. O workstation Lenovo ThinkPad P51s é mais fino e mais compacto que o seu predecessor. O aparelho agora também pode oferecer uma interface Thunderbolt 3 moderna. Graças a uma bateria externa de alta capacidade, o portátil atinge uma excelente duração de bateria.
Lenovo ThinkPad P51s 20HB000SGE
Processador
Intel Core i7-7600U 2 x 2.8 - 3.9 GHz, Kaby Lake
Placa gráfica
NVIDIA Quadro M520 - 2048 MB VRAM, Análises do: 1176 MHz, Memoría: 1253 MHz, GDDR5, interface de 64 bits, ForceWare 382.05, Optimus
Memória
16 GB
, DDR4-2400, single-channel, dois bancos de memória (um banco ocupado)
Pantalha
15.60 polegadas 16:9, 3840 x 2160 pixel 282 PPI, BOE NV156QUM-N44, IPS, Brilhante: não
placa mãe
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Disco rígido
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), 1024 GB
, 924 GB livre
Placa de Som
Realtek ALC298 @ Intel Sunrise Point PCH - High Definition Audio Controller

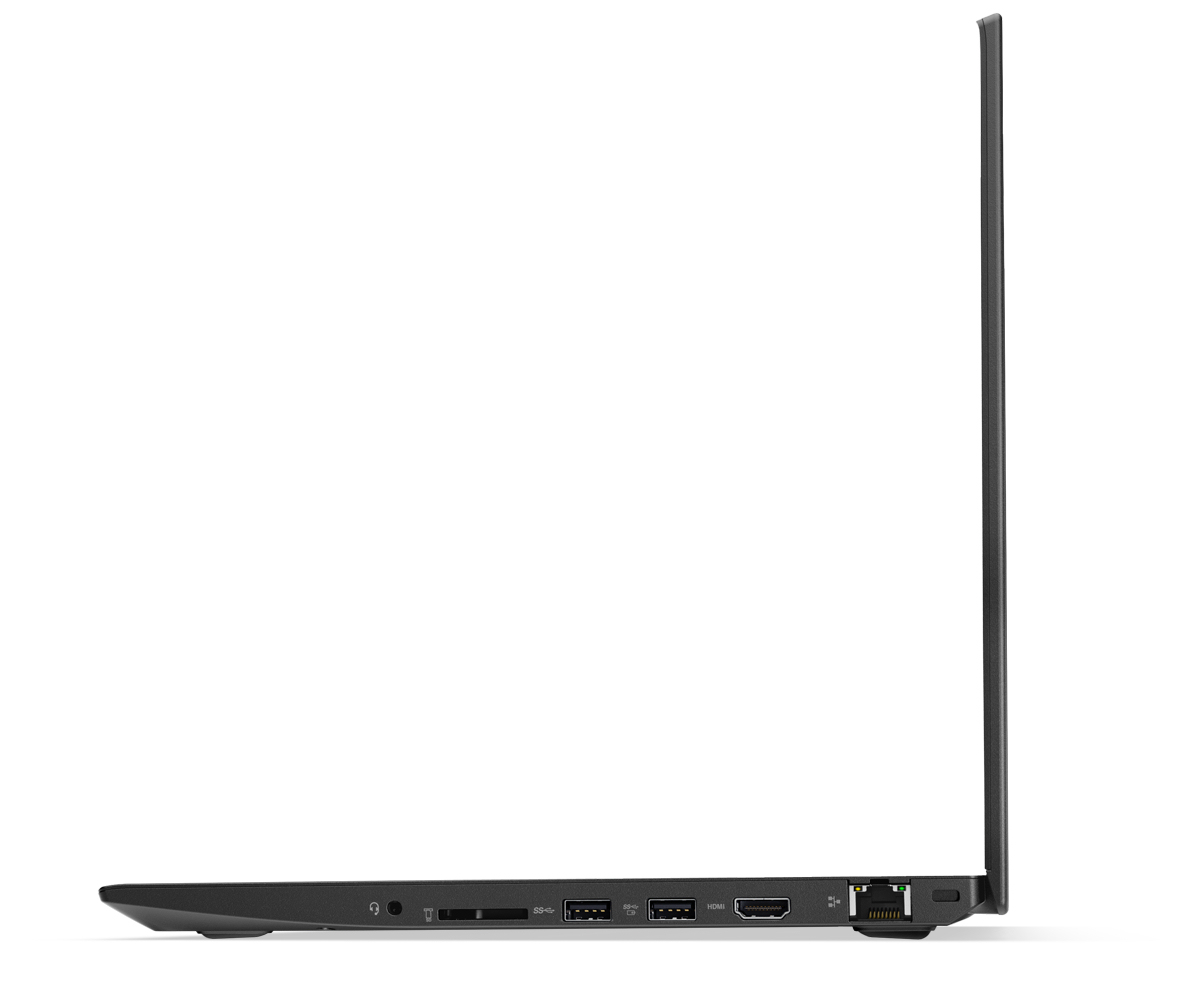

Conexões
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: Áudio combinado, Card Reader: SD, 1 eSata, 1 Leitor de Impressões Digitais, TPM 2.0
Funcionamento em rede
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 22 x 357 x 253
Bateria
104 Wh Lítio-Ion, removeable
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD, câmera infravermelha
Características adicionais

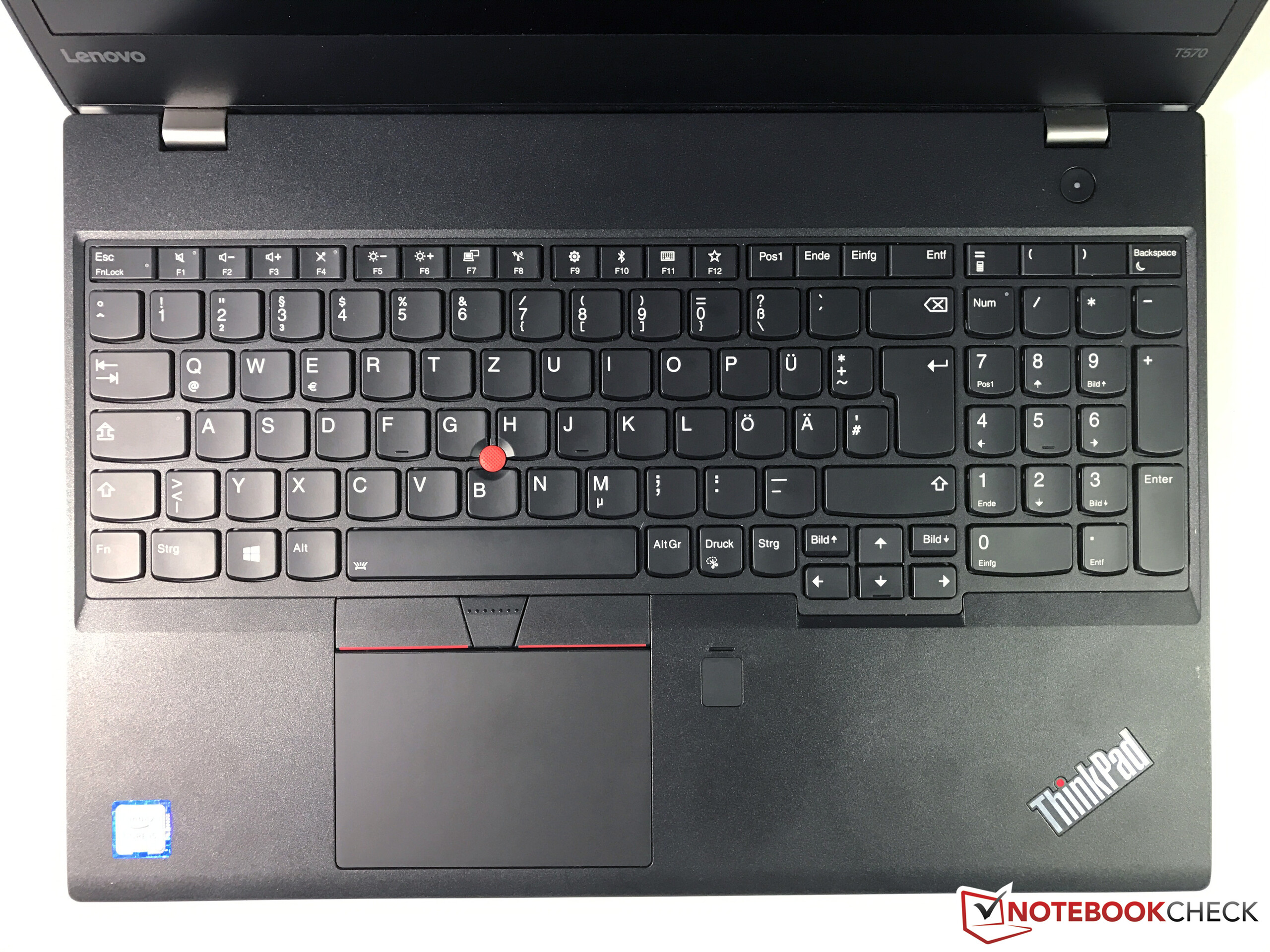

Alto falantes: estéreo, Teclado: chiclet, Iluminação do Teclado: sim, MS Office Home e Student 365, 36 Meses Garantia
peso
2.2 kg, Suprimento de energia: 351 g
Preço
2300 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

380.6 mm 258.2 mm 22.45 mm 2.2 kg375 mm 255 mm 18 mm 2.1 kg357 mm 253 mm 22 mm 2.2 kg358 mm 237 mm 21 mm 2.1 kg297 mm 210 mm 1 mm 5.7 g
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Precision 5520 UHD

157.5 MB/s +105%
HP ZBook Studio G3

142 MB/s +85%
Lenovo ThinkPad P51s 20HB000SGE

76.8 MB/s
Lenovo ThinkPad T570-20HAS01E00

76.3 MB/s -1%
Lenovo ThinkPad P50s-20FKS00400

70.5 MB/s -8%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 5520 UHD

254.5 MB/s +186%
HP ZBook Studio G3

214 MB/s +140%
Lenovo ThinkPad T570-20HAS01E00

90.7 MB/s +2%
Lenovo ThinkPad P50s-20FKS00400

89 MB/s 0%
Lenovo ThinkPad P51s 20HB000SGE

89 MB/s
Networking
iperf3 transmit AX12
Lenovo ThinkPad P51s 20HB000SGE
Intel Dual Band Wireless-AC 8265
508 MBit/s
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
506 (622min) MBit/s 0%
Lenovo ThinkPad T570-20HAS01E00
Intel Dual Band Wireless-AC 8265
498 MBit/s -2%
iperf3 receive AX12
Lenovo ThinkPad P51s 20HB000SGE
Intel Dual Band Wireless-AC 8265
672 MBit/s
Lenovo ThinkPad T570-20HAS01E00
Intel Dual Band Wireless-AC 8265
667 MBit/s -1%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
622 MBit/s -7%
283
cd/m²
305
cd/m²
279
cd/m²
292
cd/m²
317
cd/m²
282
cd/m²
289
cd/m²
291
cd/m²
271
cd/m²
Distribuição do brilho
BOE NV156QUM-N44 tested with X-Rite i1Pro 2
Máximo: 317 cd/m² (Nits) Médio: 289.9 cd/m² Minimum: 2.95 cd/m²
iluminação: 85 %
iluminação com acumulador: 318 cd/m²
Contraste: 991:1 (Preto: 0.32 cd/m²)
ΔE Color 3.6 | 0.5-29.43 Ø4.93
ΔE Greyscale 4.2 | 0.5-98 Ø5.2
91.1% sRGB (Argyll 1.6.3 3D)
59.5% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
91.2% sRGB (Argyll 2.2.0 3D)
69.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo ThinkPad P51s 20HB000SGE
IPS, 3840x2160, 15.6", BOE NV156QUM-N44
Lenovo ThinkPad P50s-20FKS00400
IPS, 2880x1620, 15.5", WX16T028J00, LEN40B5
Lenovo ThinkPad T570-20HAS01E00
IPS, 3840x2160, 15.6", BOE NV156QUM-N44
Dell Precision 5520 UHD
IPS, 3840x2160, 15.6", SHP1476
HP ZBook Studio G3
IPS, 3840x2160, 15.6", Sharp SPH1445
Display
-6%
0%
3%
26%
Display P3 Coverage
69.7
63.7
-9%
70
0%
67.4
-3%
86
23%
sRGB Coverage
91.2
87.6
-4%
91.1
0%
98.5
8%
98.9
8%
AdobeRGB 1998 Coverage
66.8
63.8
-4%
66.7
0%
68.9
3%
98
47%
Response Times
-31%
8%
-61%
-30%
Response Time Grey 50% / Grey 80% *
38.4 ?(20.4, 18)
38 ?(15.2, 22.8)
1%
41.6 ?(13.2, 28.4)
-8%
59.2 ?(27.6, 31.6)
-54%
44 ?(17, 27)
-15%
Response Time Black / White *
24.8 ?(13.6, 11.2)
28.8 ?(8.4, 20.4)
-16%
15.2 ?(2, 13.2)
39%
41.6 ?(26.8, 14.8)
-68%
23.2 ?(6, 17.2)
6%
PWM Frequency
980 ?(90)
219 ?(90)
-78%
926 ?(90)
-6%
200 ?(55)
-80%
Screen
-9%
-5%
5%
-9%
Brightness middle
317
319
1%
339
7%
372.4
17%
310
-2%
Brightness
290
290
0%
314
8%
368
27%
299
3%
Brightness Distribution
85
82
-4%
89
5%
90
6%
86
1%
Black Level *
0.32
0.31
3%
0.36
-13%
0.48
-50%
0.29
9%
Contrast
991
1029
4%
942
-5%
776
-22%
1069
8%
Colorchecker dE 2000 *
3.6
4.8
-33%
4.2
-17%
2.6
28%
5.9
-64%
Colorchecker dE 2000 max. *
6.6
7.8
-18%
7.8
-18%
5.6
15%
10.7
-62%
Greyscale dE 2000 *
4.2
5.7
-36%
5.1
-21%
3.7
12%
5.5
-31%
Gamma
2.24 98%
2.07 106%
2.16 102%
2.14 103%
2.09 105%
CCT
6740 96%
6260 104%
6569 99%
7096 92%
5980 109%
Color Space (Percent of AdobeRGB 1998)
59.5
56.9
-4%
59.4
0%
63
6%
85
43%
Color Space (Percent of sRGB)
91.1
87.4
-4%
91
0%
99
9%
99
9%
Total Average (Program / Settings)
-15% / -13%
1% / -2%
-18% / -4%
-4% / -6%

* ... smaller is better

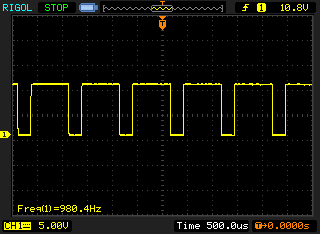

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 980 Hz ≤ 90 % brightness setting

The display backlight flickers at 980 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 980 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

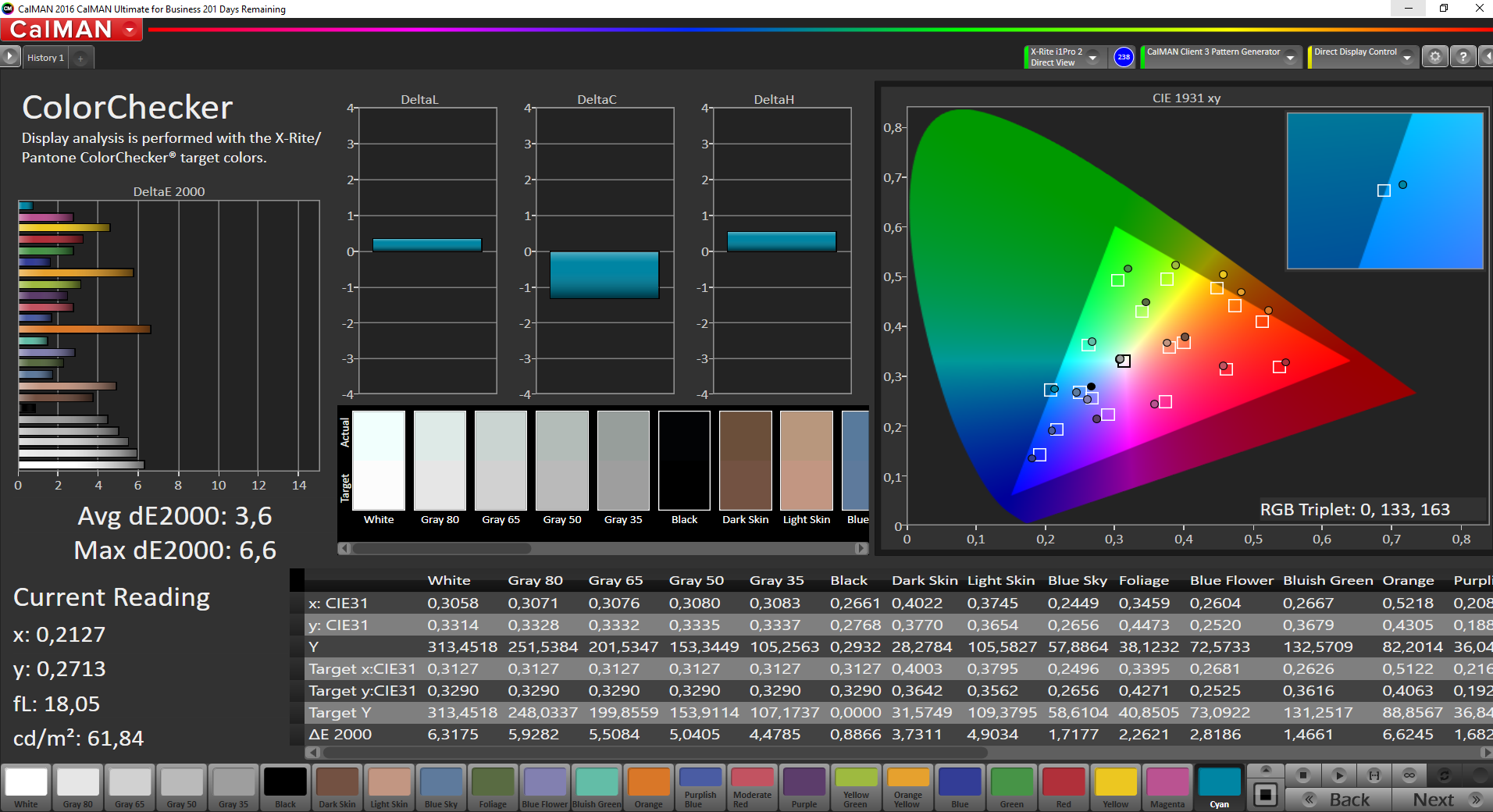

CalMAN - ColorChecker
CalMAN - ColorChecker

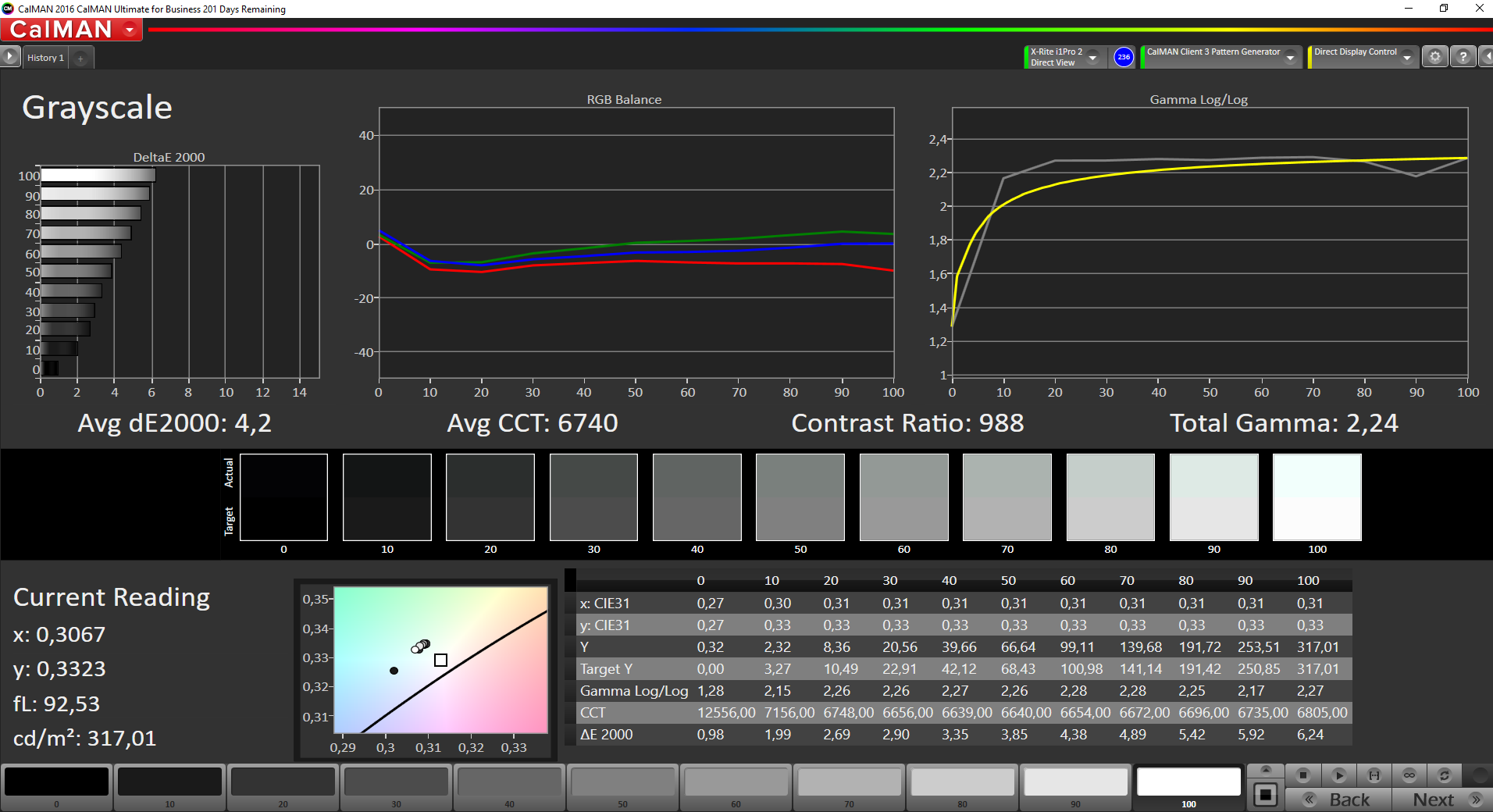

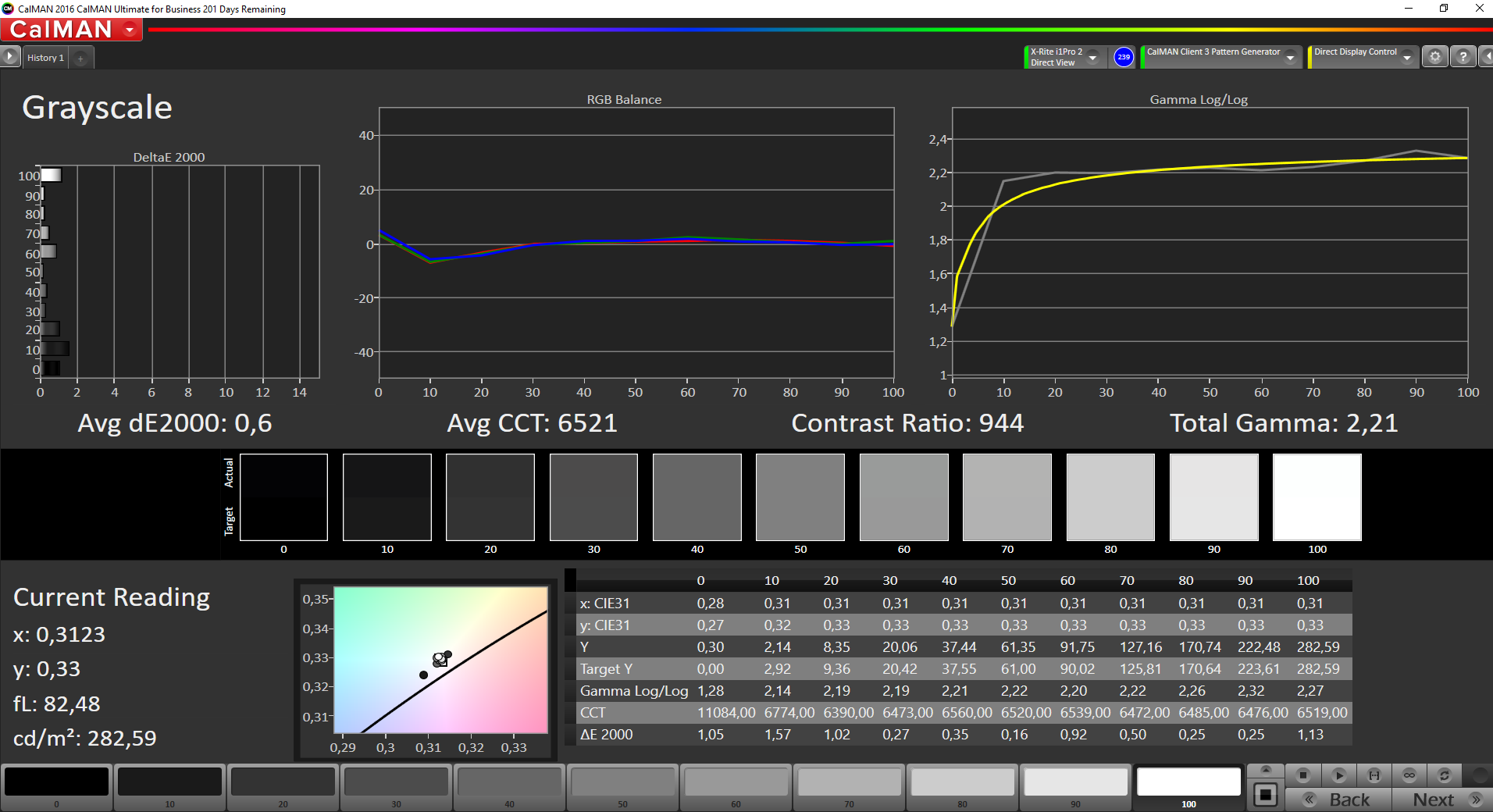

CalMAN - Grayscale
CalMAN - Grayscale

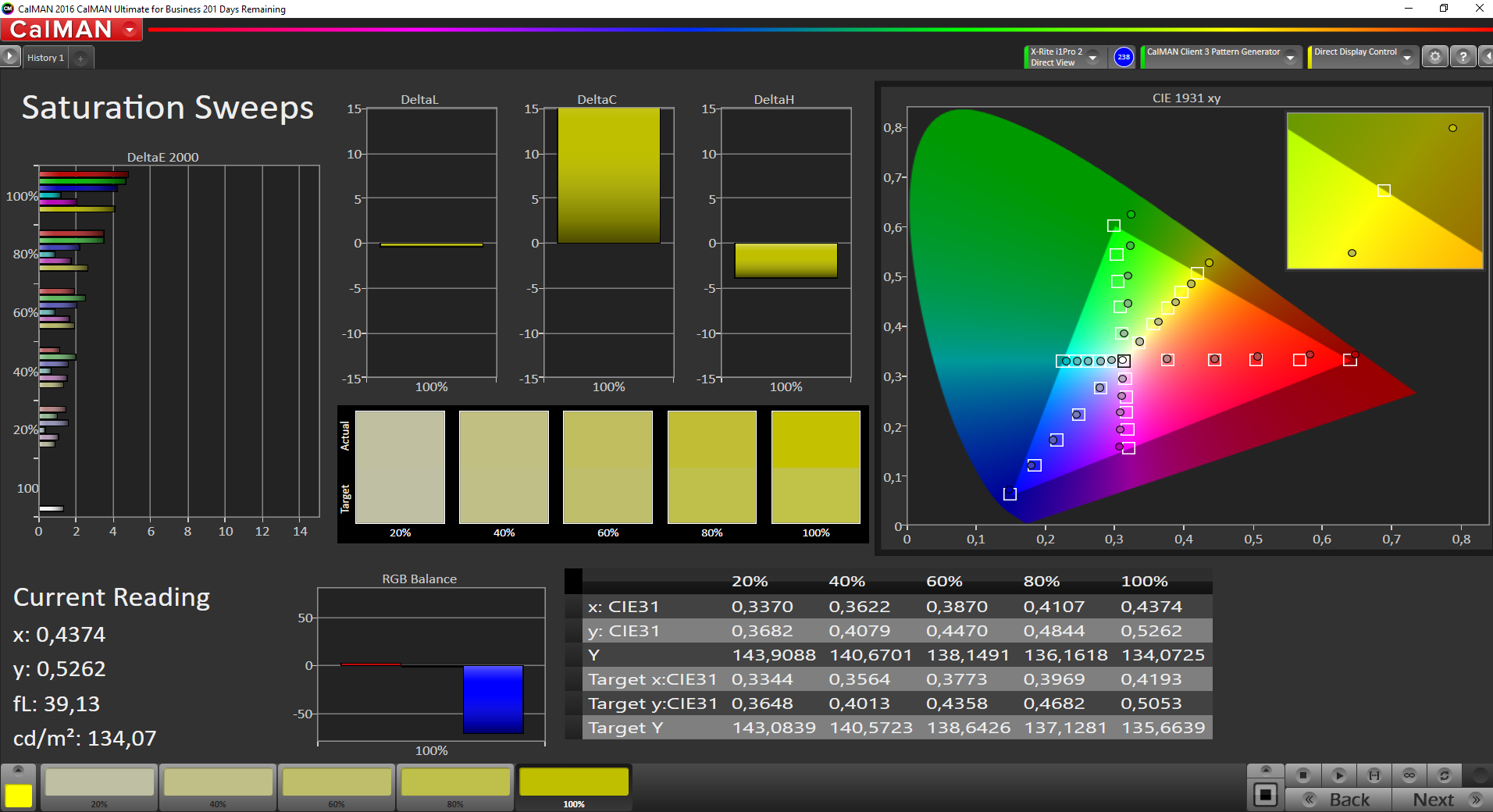

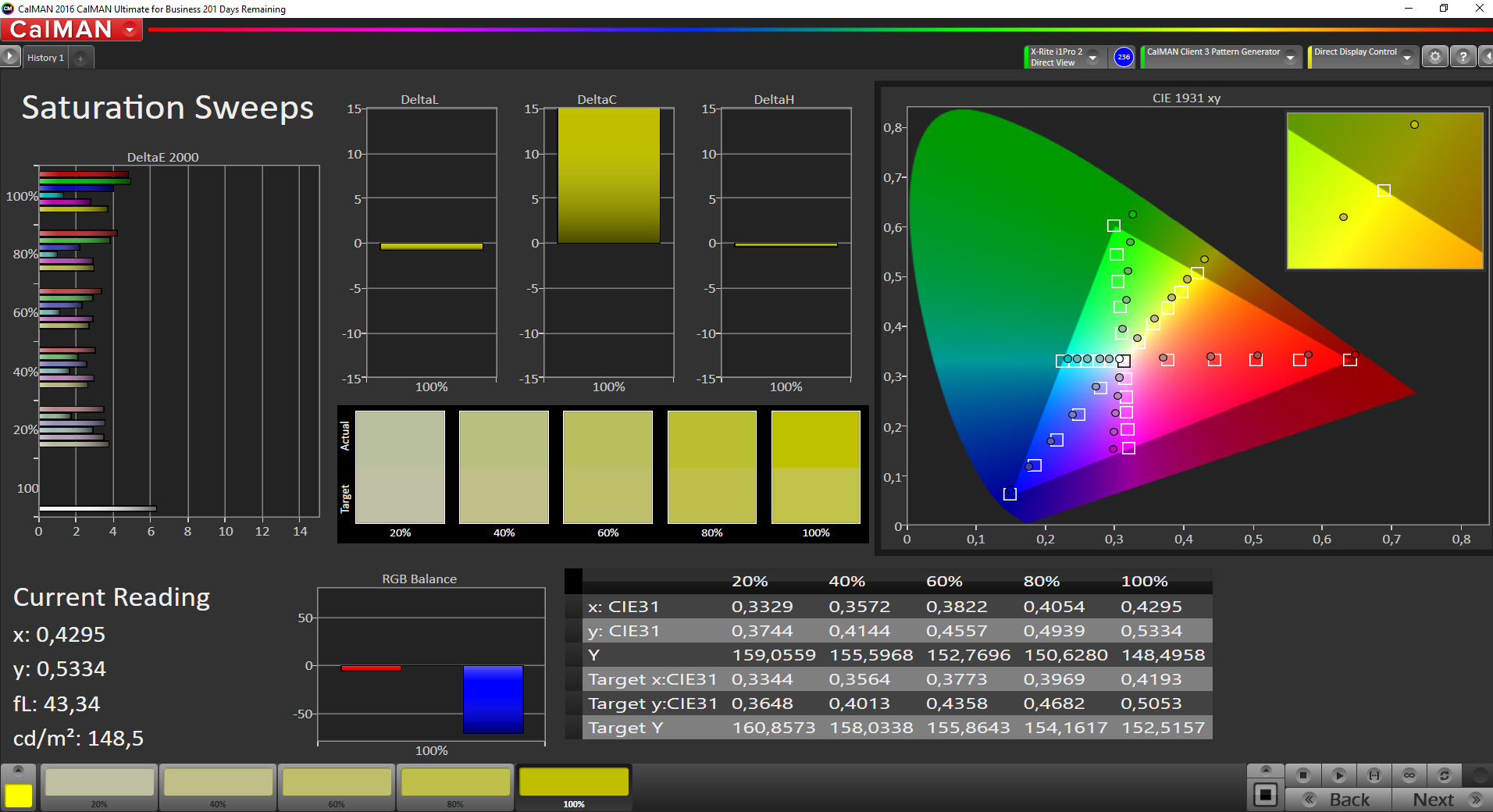

CalMAN - Saturation Sweeps
CalMAN - Saturation Sweeps

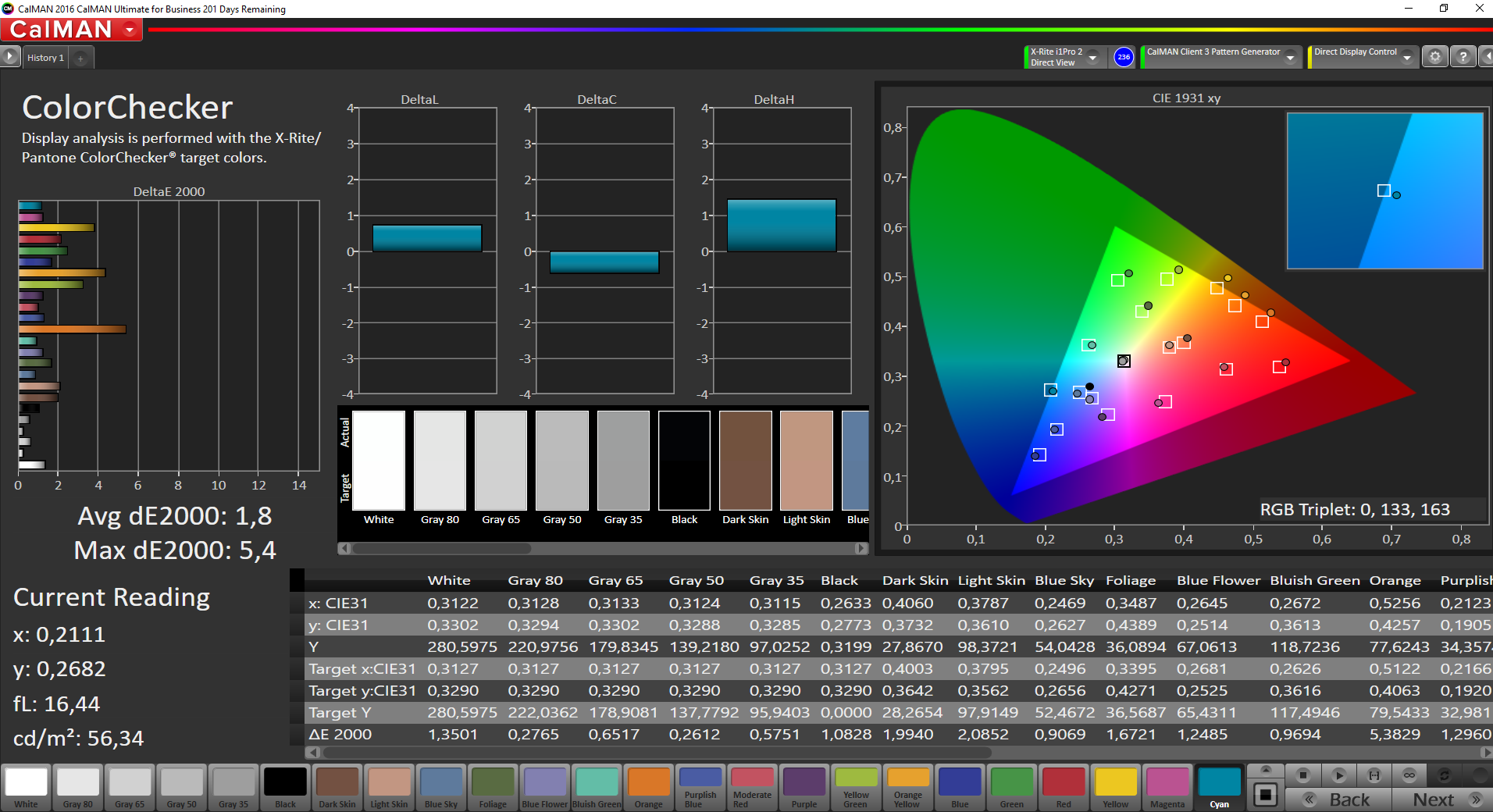

CalMAN - ColorChecker (calibrated)
CalMAN - ColorChecker (calibrated)
CalMAN - Grayscale (calibrated)
CalMAN - Grayscale (calibrated)
CalMAN - Saturation Sweeps (calibrated)
CalMAN - Saturation Sweeps (calibrated)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

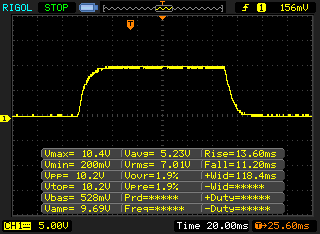

       Response Time Black to White
24.8 ms ... rise ↗ and fall ↘ combined↗ 13.6 ms rise
↘ 11.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 54 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

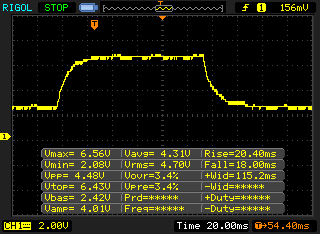

       Response Time 50% Grey to 80% Grey
38.4 ms ... rise ↗ and fall ↘ combined↗ 20.4 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 53 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z
HWInfo
HWInfo
LatencyMon
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Shading 32Bit
6813
Cinebench R10 Rendering Multiple CPUs 32Bit
13170
Cinebench R10 Rendering Single 32Bit
6263
Cinebench R11.5 OpenGL 64Bit
70.9 fps
Cinebench R11.5 CPU Multi 64Bit
4.03 Points
Cinebench R11.5 CPU Single 64Bit
1.85 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
75.5 fps
Cinebench R15 CPU Multi 64Bit
379 Points
Cinebench R15 CPU Single 64Bit
162 Points
Ajuda
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
171 Points +6%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
170 Points +5%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
162 Points
HP ZBook Studio G3
Intel Core i7-6820HQ
149 Points -8%
Lenovo ThinkPad T570-20HAS01E00
Intel Core i7-7500U
146 Points -10%
Lenovo ThinkPad P50s-20FKS00400
Intel Core i7-6500U
129 Points -20%
CPU Multi 64Bit
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
792 Points +109%
HP ZBook Studio G3
Intel Core i7-6820HQ
706 Points +86%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
654 Points +73%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
379 Points
Lenovo ThinkPad T570-20HAS01E00
Intel Core i7-7500U
373 Points -2%
Lenovo ThinkPad P50s-20FKS00400
Intel Core i7-6500U
307 Points -19%
Cinebench R11.5
CPU Single 64Bit
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
1.92 Points +4%
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
1.92 Points +4%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
1.85 Points
HP ZBook Studio G3
Intel Core i7-6820HQ
1.74 Points -6%
Lenovo ThinkPad P50s-20FKS00400
Intel Core i7-6500U
1.49 Points -19%
CPU Multi 64Bit
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
8.61 Points +114%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
7.89 Points +96%
HP ZBook Studio G3
Intel Core i7-6820HQ
7.7 Points +91%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
4.03 Points
Lenovo ThinkPad P50s-20FKS00400
Intel Core i7-6500U
3.45 Points -14%
Cinebench R10
Rendering Single 32Bit
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
6332 Points +1%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
6263 Points
HP ZBook Studio G3
Intel Core i7-6820HQ
5401 Points -14%
Lenovo ThinkPad P50s-20FKS00400
Intel Core i7-6500U
4886 Points -22%
Rendering Multiple CPUs 32Bit
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
23780 Points +81%
HP ZBook Studio G3
Intel Core i7-6820HQ
20868 Points +58%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
13170 Points
Lenovo ThinkPad P50s-20FKS00400
Intel Core i7-6500U
10447 Points -21%
Geekbench 3
32 Bit Multi-Core Score
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
14680 Points +98%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
7427 Points
32 Bit Single-Core Score
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
4042 Points +16%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
3486 Points
Geekbench 4.0
64 Bit Multi-Core Score
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
7978 Points
64 Bit Single-Core Score
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
4272 Points
Geekbench 4.4
64 Bit Multi-Core Score
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
8278 Points
64 Bit Single-Core Score
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
4386 Points
JetStream 1.1 - Total Score
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
278.4 Points +5%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
270.4 Points +2%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
265.1 Points
PCMark 7 Score
5568 pontos
PCMark 8 Home Score Accelerated v2
3232 pontos
PCMark 8 Creative Score Accelerated v2
4640 pontos
PCMark 8 Work Score Accelerated v2
4193 pontos
Ajuda
PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
3641 Points +13%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3504 Points +8%
HP ZBook Studio G3
Quadro M1000M, 6820HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
3262 Points +1%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3232 Points
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP
3049 Points -6%
Lenovo ThinkPad P50s-20FKS00400
Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP
2790 Points -14%
Work Score Accelerated v2
HP ZBook Studio G3
Quadro M1000M, 6820HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
4301 Points +3%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4291 Points +2%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
4256 Points +2%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
4193 Points
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP
3892 Points -7%
Lenovo ThinkPad P50s-20FKS00400
Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP
3744 Points -11%
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
Sequential Read: 1189 MB/s
Sequential Write: 1138 MB/s
512K Read: 782 MB/s
512K Write: 959 MB/s
4K Read: 54.8 MB/s
4K Write: 161.4 MB/s
4K QD32 Read: 642 MB/s
4K QD32 Write: 549 MB/s
Lenovo ThinkPad P51s 20HB000SGE
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
Lenovo ThinkPad P50s-20FKS00400
Samsung PM871 MZYLN256HCHP
Dell Precision 5520 UHD
Samsung SM961 MZVKW512HMJP m.2 PCI-e
HP ZBook Studio G3
Samsung SM951 MZVPV512HDGL m.2 PCI-e
Lenovo ThinkPad T570-20HAS01E00
Samsung PM961 NVMe MZVLW512HMJP
Lenovo ThinkPad P51 20HH0016GE
Samsung PM961 NVMe MZVLW512HMJP
CrystalDiskMark 3.0
-54%
20%
29%
-4%
20%
Read Seq
1189
475.5
-60%
2253
89%
1578
33%
1210
2%
1705
43%
Write Seq
1138
304.7
-73%
1662
46%
1557
37%
1134
0%
1541
35%
Read 512
782
379.3
-51%
459.1
-41%
1234
58%
789
1%
1038
33%
Write 512
959
303.4
-68%
1611
68%
1391
45%
903
-6%
1157
21%
Read 4k
54.8
34.31
-37%
56.1
2%
59.9
9%
58.4
7%
61.3
12%
Write 4k
161.4
89.4
-45%
169.4
5%
225.6
40%
144.1
-11%
176
9%
Read 4k QD32
642
319.9
-50%
633
-1%
946
47%
559
-13%
664
3%
Write 4k QD32
549
279.4
-49%
506
-8%
359
-35%
474.4
-14%
560
2%
3DMark 06 Standard Score
17305 pontos
3DMark Vantage P Result
11278 pontos
3DMark 11 Performance
2884 pontos
3DMark Ice Storm Standard Score
32374 pontos
3DMark Cloud Gate Standard Score
8544 pontos
3DMark Fire Strike Score
2139 pontos
3DMark Fire Strike Extreme Score
1058 pontos
3DMark Time Spy Score
684 pontos
Ajuda
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
7425 Points +179%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
5105 Points +92%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
4225 Points +59%
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
2727 Points +3%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
2658 Points
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
2222 Points -16%
3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
36877 Points +175%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
28254 Points +111%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
23067 Points +72%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
13394 Points
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
13181 Points -2%
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
8281 Points -38%
1920x1080 Fire Strike Graphics
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
5850 Points +150%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
4165 Points +78%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
3478 Points +49%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
2342 Points
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
2294 Points -2%
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
1610 Points -31%
Geekbench 4.0 - Compute OpenCL Score
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
32765 Points
Geekbench 4.4 - Compute OpenCL Score
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
32814 Points
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex Offscreen
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
178.5 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
129.5 fps -27%
T-Rex Onscreen
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
53.8 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
47.3 fps -12%
GFXBench 3.0
1920x1080 1080p Manhattan Offscreen
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
95.4 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
67.9 fps -29%
on screen Manhattan Onscreen OGL
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
28.5 fps +4%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
27.3 fps
GFXBench 3.1
1920x1080 Manhattan ES 3.1 Offscreen
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
74.3 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
53.2 fps -28%
on screen Manhattan ES 3.1 Onscreen
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
18.6 fps +4%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
17.9 fps
GFXBench
1920x1080 Car Chase Offscreen
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
53.1 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
28.9 fps -46%
on screen Car Chase Onscreen
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
12.4 fps +7%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
11.6 fps
LuxMark v2.0 64Bit
Room GPUs-only
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
1318 Samples/s +225%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
979 Samples/s +142%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
830 Samples/s +105%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
405 Samples/s
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
378 Samples/s -7%
Sala GPUs-only
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
2107 Samples/s +198%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
1562 Samples/s +121%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
1470 Samples/s +108%
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
945 Samples/s +33%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
708 Samples/s
ComputeMark v2.1 - 1024x600 Normal, Score
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
2045 Points
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
1792 Points -12%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
388 Points -81%
SPECviewperf 11
1920x1080 Siemens NX
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
40.87 fps +31%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
31.28 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
29.41 fps -6%
1920x1080 Tcvis
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
43.34 fps +21%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
35.81 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
35.63 fps -1%
1920x1080 SolidWorks
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
46.32 fps +6%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
43.69 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
39.63 fps -9%
1920x1080 Pro/ENGINEER
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
20.22 fps +20%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
16.84 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
14.87 fps -12%
1920x1080 Maya
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
56.2 fps +11%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
50.8 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
46.88 fps -8%
1920x1080 Lightwave
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
50.9 fps +5%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
48.34 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
46.9 fps -3%
1920x1080 Ensight
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
40.12 fps +62%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
24.78 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
20.44 fps -18%
1920x1080 Catia
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
53.1 fps +31%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
40.53 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
38.08 fps -6%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
86.2 fps +88%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
69 fps +50%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
56.7 fps +24%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
45.9 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
37.22 fps -19%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
57.7 fps +139%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
34.18 fps +42%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
31.13 fps +29%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
24.13 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
19.13 fps -21%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
32.8 fps +178%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
26.2 fps +122%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
20.72 fps +76%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
11.8 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
6.08 fps -48%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
25.66 fps +210%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
17.49 fps +111%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
12.06 fps +45%
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
9.51 fps +15%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
8.29 fps
1900x1060 Maya (maya-04)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
46.93 fps +141%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
32.07 fps +64%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
31.27 fps +60%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
19.51 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
11.14 fps -43%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
5.26 fps +892%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
3.78 fps +613%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
2.72 fps +413%
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
0.53 fps 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
0.53 fps
1900x1060 Creo (creo-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
68.2 fps +144%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
46.12 fps +65%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
33.8 fps +21%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
27.98 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
20.62 fps -26%
1900x1060 Catia (catia-04)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
72 fps +175%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
45.75 fps +74%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
37.89 fps +45%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
26.22 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
21.42 fps -18%
1900x1060 3ds Max (3dsmax-05)
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
19.73 fps
Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
61.3 fps +55%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
39.5 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
28.9 fps -27%
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
43.8 fps +52%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
28.8 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
20 fps -31%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
44.9 fps +61%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
27.9 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
21 fps -25%
Unigine Heaven 4.0
Extreme Preset OpenGL
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
30.7 fps +210%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
9.9 fps
Extreme Preset DX11
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
35.1 fps +231%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
10.6 fps
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
23.2 fps +104%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
18.9 fps +66%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
11.4 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
6.5 fps -43%
1920x1080 Extreme HD Preset OpenGL AA:x8
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
28.3 fps +186%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
16.4 fps +66%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
9.9 fps
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
6.8 fps -31%
SiSoft Sandra 2016
GP Financial Analysis (FP High/Double Precision)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
31.9 KOPT/s +128%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
17 KOPT/s +21%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
14 KOPT/s
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
12.82 KOPT/s -8%
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
11.7 GB/s +141%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
7.77 GB/s +60%
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
5.37 GB/s +10%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
4.86 GB/s
Image Processing
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
265.3 MPix/s +78%
HP ZBook Studio G3
NVIDIA Quadro M1000M, Intel Core i7-6820HQ
194.4 MPix/s +30%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
149.3 MPix/s
Lenovo ThinkPad P50s-20FKS00400
NVIDIA Quadro M500M, Intel Core i7-6500U
99.5 MPix/s -33%
baixomédiaaltoultra4K
Tomb Raider (2013) 188.1 97.9 59.5 28.8
BioShock Infinite (2013) 138.2 76.9 64.1 24.2
Middle-earth: Shadow of Mordor (2014) 54.6 32.9 22.8 16.2
Dragon Age: Inquisition (2014) 68.2 51.7 18.3 12.2
Battlefield Hardline (2015) 81.1 74.2 30.4 19.6
Dirt Rally (2015) 145.6 75.1 40.5 18.7 14.7
World of Warships (2015) 135.6 108.1 54 36.7 11
Anno 2205 (2015) 60.1 36.2 17.7 7.4
Star Wars Battlefront (2015) 78.2 48.9 22.3 19.1
Rainbow Six Siege (2015) 94.5 60.1 31.8 22.8 8.1
Rise of the Tomb Raider (2016) 30 21.5 13.3 11.7
Far Cry Primal (2016) 46 20 18 12
The Division (2016) 52.2 31.8 14.8 11.2
Ashes of the Singularity (2016) 23.6 14.3 12
Deus Ex Mankind Divided (2016) 27.2 21 11.6 5.3
Battlefield 1 (2016) 56.4 43.9 33 28.2
Civilization VI (2016) 50.8 30.4 15.2 11.7
Farming Simulator 17 (2016) 183.1 120.6 49.8 32.1 13.7
Titanfall 2 (2016) 72.2 52.5 21.3 17.3
Resident Evil 7 (2017) 84 40 22.1 6.6
For Honor (2017) 64.6 23 21.9 15.9
Ghost Recon Wildlands (2017) 38.1 14.3 12 3.6
Prey (2017) 85.4 32.8 26.7 22
BioShock Infinite - 1366x768 High Preset
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
125 fps +95%
HP ZBook Studio G3
Quadro M1000M, 6820HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
100.1 fps +56%
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP
64.3 fps 0%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
64.1 fps
Lenovo ThinkPad P50s-20FKS00400
Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP
43.8 fps -32%

Barulho

Ocioso
29.2 / 29.2 / 31.1 dB
Carga
36.7 / 39.4 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 29.2 dB(A)
Lenovo ThinkPad P51s 20HB000SGE
i7-7600U, Quadro M520
Lenovo ThinkPad P50s-20FKS00400
6500U, Quadro M500M
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200
HP ZBook Studio G3
6820HQ, Quadro M1000M
Lenovo ThinkPad T570-20HAS01E00
i7-7500U, GeForce 940MX
Noise
0%
-6%
-13%
-0%
off / environment *
29.2
28.7
2%
30
-3%
29.3
-0%
Idle Minimum *
29.2
30
-3%
28.7
2%
30
-3%
29.3
-0%
Idle Average *
29.2
30
-3%
32.1
-10%
30
-3%
29.3
-0%
Idle Maximum *
31.1
30
4%
32.1
-3%
30
4%
31.1
-0%
Load Average *
36.7
33.5
9%
41.3
-13%
51
-39%
35.2
4%
Load Maximum *
39.4
41.9
-6%
45.5
-15%
52.8
-34%
41.3
-5%
Witcher 3 ultra *
45.5

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203529.231.334.831352534.43434.834.73334.4313430.830.232.431.6344031.230.930.832.529.631.25028.928.529.129.328.128.96327.128.626.929.72727.18027.828.827.728.326.727.810026.426.125.325.225.226.412526.625.224.524.926.426.616024.323.923.423.923.124.320025.124.723.723.72425.125026.125.222.622.621.926.131525.323.32221.920.525.340023.823.220.920.619.323.850024.923.321.52018.924.963025.223.422.319.718.125.280025.923.421.619.41725.9100025.924.121.619.316.625.9125026.424.621.719.716.226.4160025.42421.318.216.625.4200024.923.62118.416.524.9250026.72421.417.915.926.7315030.827.723.319.216.330.8400032.528.523.919.716.632.5500027.524.820.517.916.327.5630022.921.218.617.416.922.9800020.819.618.217.31720.81000018.418.818.217.316.918.41250017.518.518.417.316.817.51600017.720.720.518.117.117.7SPL39.436.733.631.129.239.4N3.12.51.91.51.23.1median 25.3median 23.9median 21.6median 19.4median 17median 25.3Delta1.41.81.62.11.61.4hearing rangehide median Fan NoiseLenovo ThinkPad P51s 20HB000SGE
Carga Máxima
 41.6 °C42 °C39.4 °C
 42.8 °C43.6 °C38.7 °C
 38.8 °C39 °C34.5 °C
Máximo: 43.6 °C
Médio: 40 °C
47 °C51 °C50.2 °C
40.7 °C60.8 °C53.5 °C
28.1 °C29.4 °C31.3 °C
Máximo: 60.8 °C
Médio: 43.6 °C
alimentação elétrica  53.1 °C | Temperatura do quarto 20.8 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 40 °C / 104 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 60.8 °C / 141 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 32 °C / 90 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39 °C / 102.2 F.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-11.2 °C / -20.2 F).
Lenovo ThinkPad P51s 20HB000SGE
i7-7600U, Quadro M520
Lenovo ThinkPad P50s-20FKS00400
6500U, Quadro M500M
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200
HP ZBook Studio G3
6820HQ, Quadro M1000M
Lenovo ThinkPad T570-20HAS01E00
i7-7500U, GeForce 940MX
Heat
3%
6%
-33%
9%
Maximum Upper Side *
43.6
44.2
-1%
51.6
-18%
69.8
-60%
43.1
1%
Maximum Bottom *
60.8
57.8
5%
43.6
28%
77.3
-27%
55.4
9%
Idle Upper Side *
27.3
26.4
3%
26.6
3%
37.8
-38%
24.3
11%
Idle Bottom *
29
28.1
3%
26.2
10%
31.4
-8%
25
14%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203338.42532.739.33129.6384030.736.95027.834.66327.936.78027.639.410025.237.412525.741.516024.245.220023.653.32502262.631521.462.540020.35850019.558.763018.861.980017.770.2100017.366.7125016.858.4160016.762.6200016.460.8250016.458.3315016.656.6400016.364.8500016.664.9630017.263800017.157.61000017.156.9125001757.3160001754.1SPL29.675.2N1.336.9median 17.2median 58.4Delta2.44.645.64345.638.335.938.336.535.936.535.734.235.735.433.235.433.934.333.936.835.136.846.732.646.753.731.153.758.23058.254.229.154.249.627.649.65427.95457.527.157.556.826.856.866.625.766.668.325.268.366.725.166.765.524.765.56925.16958.824.558.862.524.262.569.223.969.27223.97266.423.866.463.323.763.37123.67166.823.666.869.523.769.566.323.766.379.636.879.646.82.946.8median 65.5median 25.1median 65.56.31.36.3hearing rangehide median Pink NoiseLenovo ThinkPad P51s 20HB000SGEDell Precision 5520 UHD
Lenovo ThinkPad P51s 20HB000SGE audio analysis

(±) | speaker loudness is average but good (75.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.7% lower than median
(±) | linearity of bass is average (11% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(±) | linearity of mids is average (10.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.6% difference to median)
Compared to same class
» 31% of all tested devices in this class were better, 9% similar, 60% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 21% of all tested devices were better, 4% similar, 75% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Dell Precision 5520 UHD audio analysis

(±) | speaker loudness is average but good (79.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.8% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (12% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 10% similar, 50% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 25% of all tested devices were better, 7% similar, 68% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.25 / 0.38 Watt
Ociosodarkmidlight 5.8 / 10.4 / 13.5 Watt
Carga midlight 62.4 / 73.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad P51s 20HB000SGE
i7-7600U, Quadro M520
Lenovo ThinkPad P50s-20FKS00400
6500U, Quadro M500M
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200
HP ZBook Studio G3
6820HQ, Quadro M1000M
Lenovo ThinkPad T570-20HAS01E00
i7-7500U, GeForce 940MX
Power Consumption
22%
-44%
-42%
10%
Idle Minimum *
5.8
4.3
26%
8.9
-53%
8.7
-50%
4.7
19%
Idle Average *
10.4
9.7
7%
13.6
-31%
14.2
-37%
9.9
5%
Idle Maximum *
13.5
10.2
24%
14.1
-4%
14.4
-7%
10.9
19%
Load Average *
62.4
45.7
27%
100.3
-61%
85.6
-37%
56.1
10%
Load Maximum *
73.1
55.8
24%
126.3
-73%
129.7
-77%
75
-3%
Witcher 3 ultra *
100.2

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
26h 21min
WiFi Websurfing (Edge 40)
11h 52min
Big Buck Bunny H.264 1080p
11h 40min
Carga (máximo brilho)
5h 23min
Lenovo ThinkPad P51s 20HB000SGE
i7-7600U, Quadro M520, 104 Wh
Lenovo ThinkPad P50s-20FKS00400
6500U, Quadro M500M, 67 Wh
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, 97 Wh
HP ZBook Studio G3
6820HQ, Quadro M1000M, 64 Wh
Lenovo ThinkPad T570-20HAS01E00
i7-7500U, GeForce 940MX, 56 Wh
Battery Runtime
-39%
-66%
-72%
-42%
Reader / Idle
1581
1107
-30%
724
-54%
511
-68%
799
-49%
H.264
700
537
-23%
228
-67%
484
-31%
WiFi v1.3
712
408
-43%
254
-64%
208
-71%
414
-42%
Load
323
129
-60%
61
-81%
65
-80%
171
-47%

Pro

+ Tela IPS mate
+ Carcaça estável e bem construída
+ Muito boa duração da bateria
+ SSD NVMe
+ Slot livre para um modem LTE
+ Thunderbolt 3
+ Três anos de garantia

Contra

- A CPU se afoga no modo de bateria
- As temperaturas são muito altas durante o uso intenso
- Fonte de alimentação subdimensionada
In review: Lenovo ThinkPad P51s 20HB000SGE. Review sample courtesy of Notebooks and More.de
In review: Lenovo ThinkPad P51s 20HB000SGE. Review sample courtesy of Notebooks and More.de

A Lenovo fornece um compacto workstation móvel de 15,6 polegadas com o seu ThinkPad P51s. No entanto, os compradores devem estar cientes de que o desempenho do workstation é limitado devido ao processador ULV. Um workstation com um processador quad-core será necessário para um desempenho muito maior - por exemplo, o ThinkPad P51.

O ThinkPad é o irmão construído de forma idêntica do ThinkPad T570. Assim, s P51s apresenta a mesma carcaça sólida, os bons dispositivos de entrada, e a diversificada conectividade do T570. A câmera infravermelha também está instalada.

Infelizmente, o P51s também herda as falhas do T570. Por exemplo, a CPU se afoga no modo de bateria. Medimos as velocidades de aproximadamente 1,8 a 2,4 GHz. Este afogamento resulta em uma dedução. Além disso, o laptop esquentou muito em nosso teste de estresse. Registramos uma temperatura de 60,8 °C em um ponto de medição - muito alto para um portátil ULV. A produção de ruído parece melhor; o ThinkPad está em um nível normal aqui.

A excelente duração da bateria é o destaque do portátil.

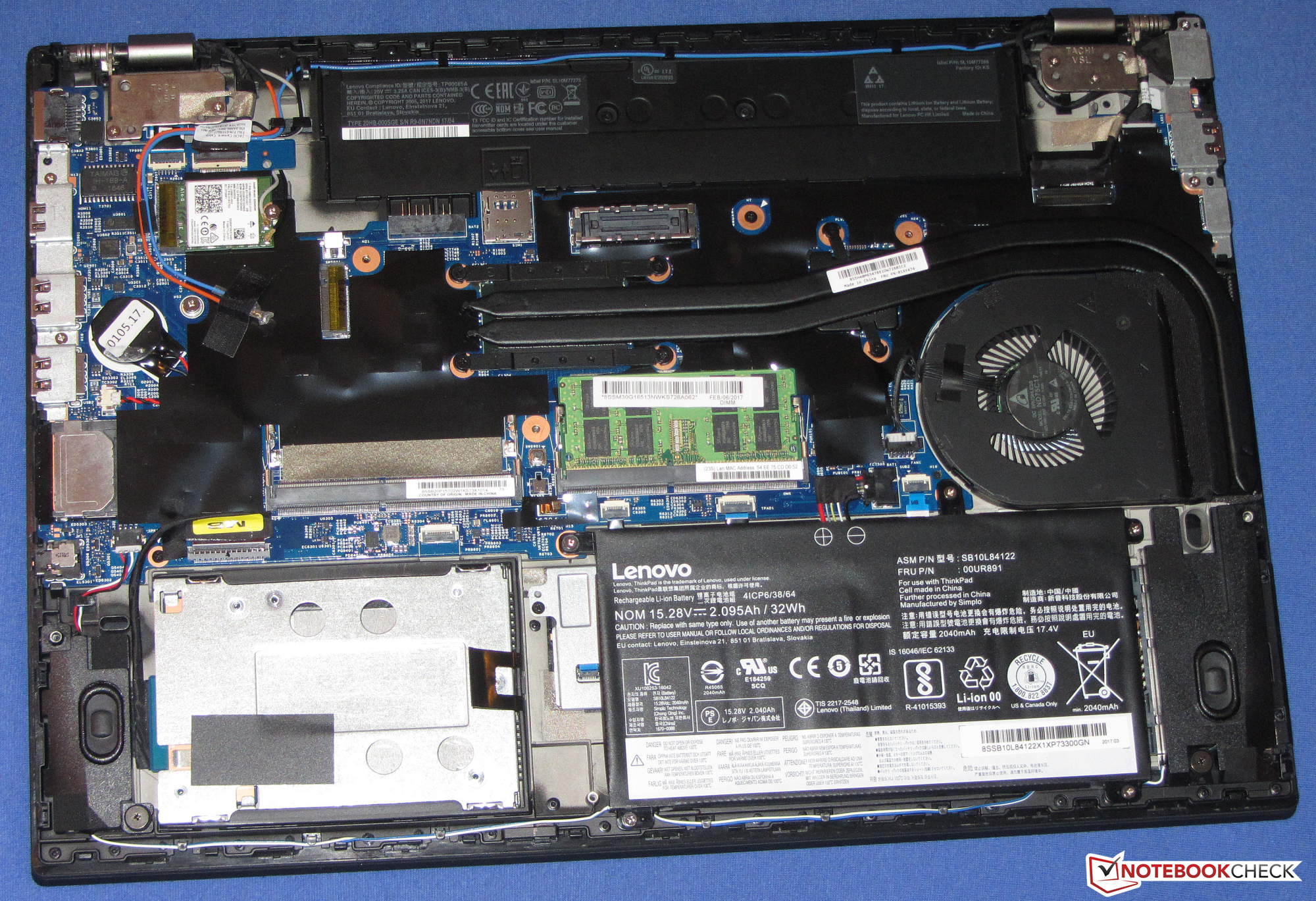

No total, o P51s tem uma capacidade de bateria de 104 Wh (interna: 32 Wh, externa: 72 Wh). Isso é suficiente para manter até um portátil 4K funcionando por um longo período de tempo. Um veloz SSD garante um sistema ágil. O portátil também poderia ter sido equipado com um disco rígido de 2,5 polegadas em vez de um SSD M.2 NVMe. Um modem LTE também pode ser adaptado; nosso modelo de teste tem um slot vazio e as antenas correspondentes.

A tela Mate 4K no P51s é conhecida pelo ThinkPad T570. Ambos os portáteis estão equipados com o mesmo painel. A tela IPS agrada com ângulos de visão estáveis e um contraste bom. O brilho é satisfatório, embora poderia ser melhor. Infelizmente, a tela mostra flickering PWM em níveis de brilho de 90% e inferiores.

Lenovo ThinkPad P51s 20HB000SGE - 06/03/2017 v6 (old)
Sascha Mölck

Acabamento
88 / 98 → 90%
Teclado
94%
Mouse
89%
Conectividade
72 / 81 → 88%
Peso
62 / 10-66 → 92%
Bateria
94%
Pantalha
91%
Desempenho do jogos
69%
Desempenho da aplicação
86%
Workstation
59%
Temperatura
84 / 95 → 89%
Ruído
92 / 90 → 100%
Audio
71%
Camera
53 / 85 → 62%
Impressão
-2%
Médio
73%
83%
Workstation - Médio equilibrado

Price comparison

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Workstation Lenovo ThinkPad P51s (Core i7, 4K)
Sascha Mölck, 2017-06-18 (Update: 2017-06-22)
