MagyarBreve Análise do Workstation Lenovo ThinkPad P40 Yoga
| |||||||||||||||||||||||||
iluminação: 89 %
iluminação com acumulador: 227 cd/m²
Contraste: 954:1 (Preto: 0.24 cd/m²)
ΔE Color 6.3 | 0.5-29.43 Ø4.92
ΔE Greyscale 5.4 | 0.5-98 Ø5.2
65.5% sRGB (Calman 2D)
62% sRGB (Argyll 1.6.3 3D)
39.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.7% sRGB (Argyll 2.2.0 3D)
41.82% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S | Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH | Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe | Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP | |
|---|---|---|---|---|---|
| Display | 60% | 56% | 47% | ||
| Display P3 Coverage | 41.82 | 68.1 63% | 66.3 59% | 63.7 52% | |
| sRGB Coverage | 62.7 | 97.2 55% | 96 53% | 87.6 40% | |
| AdobeRGB 1998 Coverage | 43.2 | 70.2 63% | 68 57% | 63.8 48% | |
| Response Times | 9% | 6% | 11% | ||
| Response Time Grey 50% / Grey 80% * | 55 ? | 38 ? 31% | 39 ? 29% | 38 ? 31% | |
| Response Time Black / White * | 28.8 ? | 30.4 ? -6% | 34 ? -18% | 28.8 ? -0% | |
| PWM Frequency | 217 ? | 219 ? 1% | 219 ? 1% | ||
| Screen | 8% | 2% | 53% | 17% | |
| Brightness middle | 229 | 284.7 24% | 286 25% | 438 91% | 319 39% |
| Brightness | 241 | 272 13% | 274 14% | 414 72% | 290 20% |
| Brightness Distribution | 89 | 89 0% | 90 1% | 88 -1% | 82 -8% |
| Black Level * | 0.24 | 0.383 -60% | 0.3 -25% | 0.25 -4% | 0.31 -29% |
| Contrast | 954 | 743 -22% | 953 0% | 1752 84% | 1029 8% |
| Colorchecker dE 2000 * | 6.3 | 5.24 17% | 5.62 11% | 2.06 67% | 4.8 24% |
| Colorchecker dE 2000 max. * | 12.6 | 11.22 11% | 7.8 38% | ||
| Greyscale dE 2000 * | 5.4 | 7.32 -36% | 6.19 -15% | 2.87 47% | 5.7 -6% |
| Gamma | 2.22 99% | 2.22 99% | 2.35 94% | 2.44 90% | 2.07 106% |
| CCT | 6592 99% | 6277 104% | 5606 116% | 6820 95% | 6260 104% |
| Color Space (Percent of AdobeRGB 1998) | 39.4 | 70.17 78% | 64 62% | 56.9 44% | |
| Color Space (Percent of sRGB) | 62 | 94.68 53% | 96 55% | 87.4 41% | |
| Total Average (Program / Settings) | 26% /
18% | 2% /
2% | 38% /
47% | 25% /
21% |
* ... smaller is better

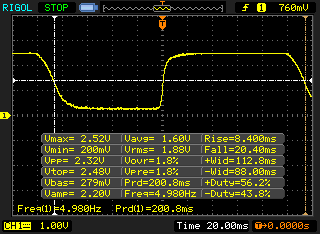

Display Response Times

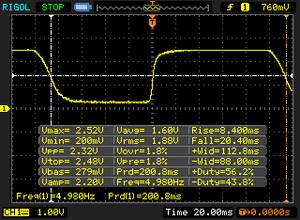

| ↔ Response Time Black to White | ||
|---|---|---|
| 28.8 ms ... rise ↗ and fall ↘ combined | ↗ 8.4 ms rise |  |
| ↘ 20.4 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

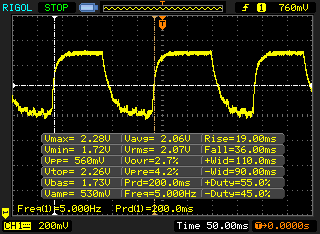

| ↔ Response Time 50% Grey to 80% Grey | ||
| 55 ms ... rise ↗ and fall ↘ combined | ↗ 19 ms rise |  |
| ↘ 36 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 91 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||

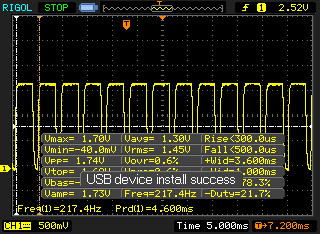

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 217 Hz | ≤ 40 % brightness setting |  |
The display backlight flickers at 217 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 217 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| PCMark 8 | |
| Home Score Accelerated v2 | |
| Lenovo Thinkpad X1 Yoga 20FQ-000QUS | |
| Microsoft Surface Book Core i7 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Creative Score Accelerated v2 | |
| Microsoft Surface Book Core i7 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Work Score Accelerated v2 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo Thinkpad X1 Yoga 20FQ-000QUS | |
| Microsoft Surface Book Core i7 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| PCMark 7 Score | 4095 pontos | |
| PCMark 8 Home Score Accelerated v2 | 2875 pontos | |
| PCMark 8 Creative Score Accelerated v2 | 3744 pontos | |
| PCMark 8 Work Score Accelerated v2 | 4377 pontos | |
Ajuda | ||
| SiSoft Sandra 2016 | |
| Image Processing | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| GP Cryptography (Higher Security AES256+SHA2-512) | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| GP Financial Analysis (FP High/Double Precision) | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Unigine Heaven 3.0 | |
| 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| 1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad P50s-20FKS00400 | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE | |
| 3DMark 06 Standard Score | 11913 pontos | |
| 3DMark 11 Performance | 2462 pontos | |
| 3DMark Ice Storm Standard Score | 41915 pontos | |
| 3DMark Cloud Gate Standard Score | 6491 pontos | |
| 3DMark Fire Strike Score | 1388 pontos | |
Ajuda | ||
| baixo | média | alto | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 89.1 | 50.1 | 40.3 | 13.8 |
| The Witcher 3 (2015) | 29 | 17.9 | 9.9 | |
| Rainbow Six Siege (2015) | 65.4 | 38.2 | 20.2 | 11.9 |
Barulho
| Ocioso |
| 30 / 30 / 30 dB |
| Carga |
| 37.3 / 39.8 dB |
 | ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm de distância) environment noise: 30 dB(A) | ||
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S | Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH | Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe | Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP | |
|---|---|---|---|---|---|
| Noise | 6% | 5% | -3% | 1% | |
| off / environment * | 30 | 28.8 4% | 31.3 -4% | ||
| Idle Minimum * | 30 | 28.8 4% | 29.6 1% | 31.3 -4% | 30 -0% |
| Idle Average * | 30 | 28.8 4% | 29.6 1% | 31.3 -4% | 30 -0% |
| Idle Maximum * | 30 | 28.8 4% | 29.6 1% | 31.3 -4% | 30 -0% |
| Load Average * | 37.3 | 35.2 6% | 34.2 8% | 38 -2% | 33.5 10% |
| Load Maximum * | 39.8 | 35.2 12% | 34.5 13% | 40.5 -2% | 41.9 -5% |
* ... smaller is better
(-) The maximum temperature on the upper side is 54.8 °C / 131 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.2 °C / 131 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.5 °C / 88.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-3.6 °C / -6.5 F).
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S | Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH | Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe | Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP | |
|---|---|---|---|---|---|
| Heat | 0% | 10% | 5% | 6% | |
| Maximum Upper Side * | 54.8 | 42.8 22% | 43.5 21% | 47.4 14% | 44.2 19% |
| Maximum Bottom * | 55.2 | 49.4 11% | 47 15% | 50.2 9% | 57.8 -5% |
| Idle Upper Side * | 28.1 | 32.4 -15% | 26.7 5% | 30.4 -8% | 26.4 6% |
| Idle Bottom * | 28.6 | 33.4 -17% | 28.8 -1% | 27.4 4% | 28.1 2% |
* ... smaller is better
| desligado | 0.4 / 0.6 Watt |
| Ocioso | 3.7 / 6.8 / 7.2 Watt |
| Carga |
41.5 / 50.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE 53 Wh | Lenovo Thinkpad X1 Yoga 20FQ-000QUS 52 Wh | Lenovo ThinkPad Yoga 14 56 Wh | Microsoft Surface Book Core i7 78 Wh | Lenovo ThinkPad P50s-20FKS00400 67 Wh | |
|---|---|---|---|---|---|
| Power Consumption | -37% | 8% | -31% | -24% | |
| Idle Minimum * | 3.7 | 6.82 -84% | 3.1 16% | 4.5 -22% | 4.3 -16% |
| Idle Average * | 6.8 | 8.21 -21% | 7.2 -6% | 9.8 -44% | 9.7 -43% |
| Idle Maximum * | 7.2 | 17.55 -144% | 7.7 -7% | 12.2 -69% | 10.2 -42% |
| Load Average * | 41.5 | 28.81 31% | 36.2 13% | 46 -11% | 45.7 -10% |
| Load Maximum * | 50.5 | 34.07 33% | 38.5 24% | 56 -11% | 55.8 -10% |
* ... smaller is better
| Lenovo ThinkPad P40 Yoga 20GQ-0004GE 53 Wh | Lenovo Thinkpad X1 Yoga 20FQ-000QUS 52 Wh | Lenovo ThinkPad Yoga 14 56 Wh | Microsoft Surface Book Core i7 78 Wh | Lenovo ThinkPad P50s-20FKS00400 67 Wh | |
|---|---|---|---|---|---|
| Battery Runtime | 13% | 3% | 104% | 22% | |
| Reader / Idle | 724 | 922 27% | 747 3% | 1107 53% | |
| H.264 | 537 | 537 0% | |||
| WiFi v1.3 | 318 | 356 12% | 648 104% | 408 28% | |
| Load | 120 | 120 0% | 129 8% | ||
| WiFi | 352 |
Pro
Contra
Não estamos completamente convencidos com o ThinkPad P40 Yoga. Similar ao modelo maior de workstation ThinkPad P50s, a Lenovo dispensa muitas tecnologias modernas (USB-C, USB 3.1, Thunderbolt, NVMe-SSDs, M.2-2280), que resulta da construção do chassi. Este último também é utilizado para o muito mais econômico ThinkPad Yoga 460, que se baseia no antigo ThinkPad Yoga 14. O chassi é compacto, portanto, a grande unidade de 2,5-polegadas desperdiça muito espaço.
Nosso modelo e teste revela algumas desvantagens que não esperávamos nesta faixa de preços. A estabilidade poderia ser melhor, porque conseguimos provocar rapidamente distorções na imagem. As dobradiças também não são suficientes, porque os toques ou as vibrações resultarão em um balanço significante. Nosso modelo de teste – apesar do slot M.2 disponível – não está preparado para WWAN e a garantia está limitada para apenas um ano. O painel refletivo também é muito escuro para o uso em exteriores e não conseguem convencer nas outras disciplinas. O aparelho é muito silencioso, mas, em troca, aceita altas temperaturas, que podem limitar rapidamente o desempenho, sob uso intenso.
Certamente haverá compradores para o P40 Yoga, mas existem melhores alternativas se não precisar de uma placa de vídeo profissional. O fabricante também desperdiça muito potencial devido à falta de tecnologias modernas, e existem limites desnecessários, como a memória, por exemplo.
As vantagens do P40 Yoga são obviamente os distintos modos de operação, mas também existem limitações devido ao peso e às dobradiças. Inclusive o teclado, normalmente uma fortaleza dos ThinkPads, tem problemas com a estabilidade. Ainda obtemos um dispositivo de entrada muito bom, mas fica atrás de outros modelos ThinkPad atuais.
O ThinkPad P40 Yoga tem como alvo um grupo muito especial de clientes. Se precisar de uma GPU profissional, bem como um conversível, atualmente não existe alternativa para o P40 Yoga. No entanto, se você não precisar da GPU Quadro, deveria dar uma olhada no ThinkPad X1 Yoga mais leve, ou no muito mais econômico ThinkPad Yoga 460.
Nota: A avaliação geral seria 81% para um conversível.
Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.
Lenovo ThinkPad P40 Yoga 20GQ-0004GE
- 04/25/2016 v5.1 (old)
Andreas Osthoff
