Breve Análise do Workstation HP ZBook 17 G3

Name: HP ZBook 17 G3 TZV66eA
Brand: HP

O workstation perfeito? O ZBook 17 G3 da HP é um workstation convencional sem o desejo de ser o mais fino possível. Em vez disso se foca no desempenho. Mas será que a HP convence os exigentes clientes empresariais com a nova geração?

Andreas Osthoff, ✓ Stefanie Voigt (traduzido por Ricardo Soto), Published 06/03/2016 🇺🇸 🇩🇪 ...

Business Geforce Laptop / Notebook Skylake Windows Workstation

Test device courtesy of HP Deutschland

Download your licensed rating image as PNG / SVG

HP ZBook 17 G3 TZV66eA (ZBook 17 G3 Serie)

Processador

Intel Xeon E3-1535M v5 4 x 2.9 - 3.8 GHz, Skylake

Placa gráfica

NVIDIA Quadro M3000M - 4 GB VRAM, Análises do: 1050 MHz, Memoría: 1253 MHz, GDDR5, 362.13, Optimus

Memória

32 GB

, DDR4-2133, Dual-Channel, 2/4 slots livres, até 64 GB

Pantalha

17.30 polegadas 16:9, 1920 x 1080 pixel 127 PPI, SDC3854, IPS, Brilhante: não

placa mãe

Intel CM236 (Skylake PCH-H)

Disco rígido

Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB

Placa de Som

Intel Skylake PCH-H High Definition Audio Controller

Conexões

3 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Conexões Audio: 3.5 mm Headset, Card Reader: SD UHS-II, 1 eSata, 1 Leitor de Impressões Digitais, Sensores: Acelerômetro

Funcionamento em rede

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Tamanho

altura x largura x profundidade (em mm): 30 x 420 x 280

Bateria

96 Wh Lítio-Ion, 6 células

Sistema Operativo

Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)

Camera

Webcam: HD-Webcam

Características adicionais

Alto falantes: Alto falantes estéreo, Áudio da Bang & Olufsen, Teclado: Chiclet, Iluminação do Teclado: sim, PSU de 200-Watts, guia de início rápido, informação de garantia, bandeja para 2 HDs de 2,5-polegadas + cabo conector, HP Performance Advisor, HP Remote Graphics Software, HP Velocity, HP Client Security, Microsoft Security Essentials, HP ePrint Driver, HP Recovery Manager, Foxit PhantomPDF Express, 36 Meses Garantia

peso

3.26 kg, Suprimento de energia: 987 g

Preço

4500 Euro

Links

HP página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

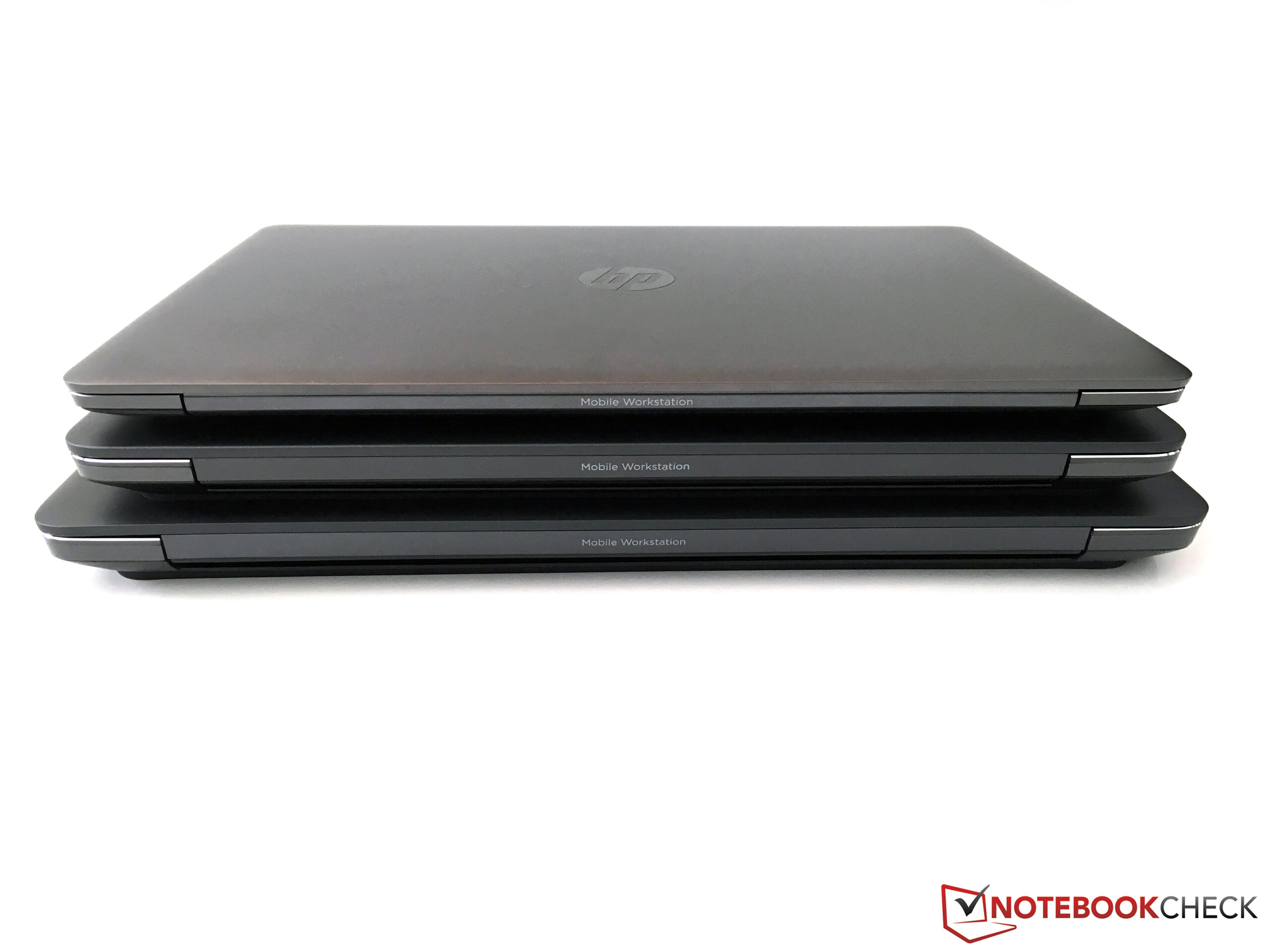

From top to bottom: ZBook Studio G3, ZBook 15 G3, ZBook 17 G3

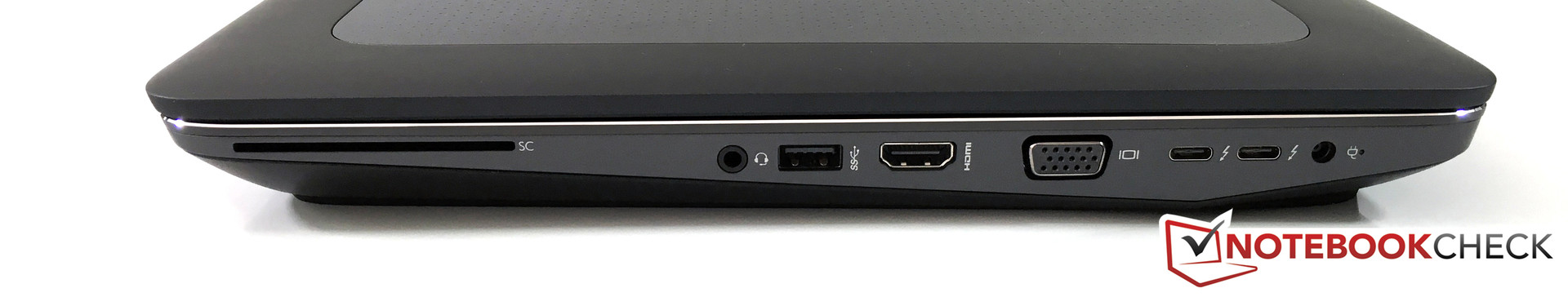

Right: SmartCard reader, headset, USB 3.0, HDMI 1.4, VGA, 2x Thunderbolt 3, power

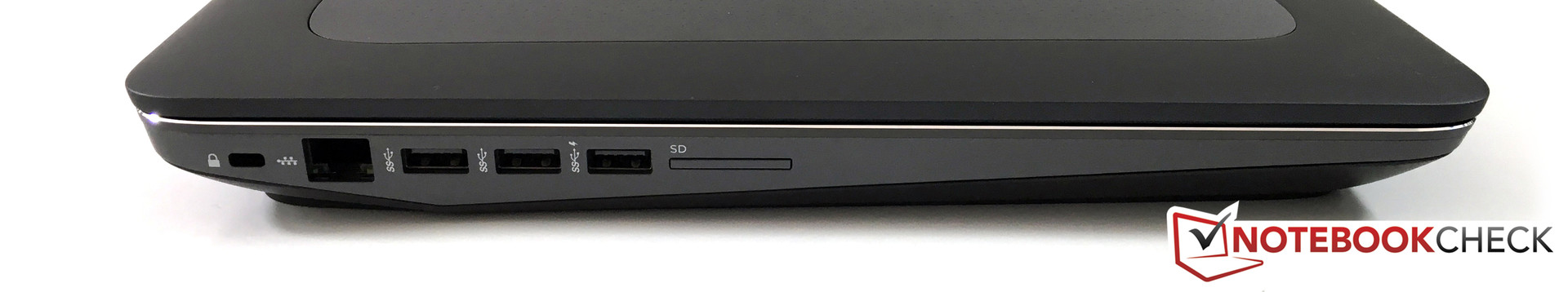

Left: Kensington lock, Gigabit-Ethernet, 3x USB 3.0 (1x Always-On), SD-card reader

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

200 Hz

≤ 40 % brightness setting

The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.


249 cd/m²	256 cd/m²	242 cd/m²
259 cd/m²	252 cd/m²	240 cd/m²
241 cd/m²	227 cd/m²	222 cd/m²

Distribuição do brilho

SDC3854 tested with X-Rite i1Pro 2

Máximo: 259 cd/m² (Nits) Médio: 243.1 cd/m² Minimum: 13 cd/m²
iluminação: 86 %
iluminação com acumulador: 252 cd/m²
Contraste: 1200:1 (Preto: 0.21 cd/m²)
ΔE Color 2.2 | 0.5-29.43 Ø4.92
ΔE Greyscale 2.7 | 0.5-98 Ø5.2
97% sRGB (Calman 2D)
96% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.9% sRGB (Argyll 2.2.0 3D)
67.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28

Download Arquivo ICC (X-Rite i1Pro 2)

	HP ZBook 17 G3 TZV66eA IPS, 1920x1080	Dell Precision 7710 IPS LED, 1920x1080	Lenovo ThinkPad P70 IPS, 3840x2160	MSI WT72-6QM IPS, 1920x1080	Bullman E-Klasse 5 AH-IPS WLED, 1920x1080	HP ZBook 17 E9X11AA-ABA LED IPS, 1920x1080
Display		-0%	21%	-7%	-8%	25%
Display P3 Coverage	67.3	66.6 -1%	90.8 35%	67.3 0%	66.5 -1%	85.7 27%
sRGB Coverage	95.9	96.9 1%	100 4%	85.4 -11%	84.5 -12%	100 4%
AdobeRGB 1998 Coverage	69	68.6 -1%	85.4 24%	62.5 -9%	61.8 -10%	99.2 44%
Response Times		-9%	10%	-11%
Response Time Grey 50% / Grey 80% *	50.4 ?(17.2, 33.2)	50 ?(17, 33) 1%	44 ?(17.2, 26.8) 13%	42 ?(13, 29) 17%
Response Time Black / White *	28.4 ?(7.2, 21.2)	36 ?(11, 25) -27%	27.6 ?(4.8, 22.8) 3%	26 ?(7, 19) 8%
PWM Frequency	200 ?(40)	198 ?(25) -1%	228 ?(95) 14%	86 ?(10, 15) -57%
Screen		-11%	-22%	-42%	-18%	3%
Brightness middle	252	332 32%	365 45%	303 20%	355 41%	320 27%
Brightness	243	307 26%	341 40%	298 23%	335 38%	311 28%
Brightness Distribution	86	83 -3%	85 -1%	94 9%	89 3%	88 2%
Black Level *	0.21	0.33 -57%	0.4 -90%	0.46 -119%	0.44 -110%	0.359 -71%
Contrast	1200	1006 -16%	913 -24%	659 -45%	807 -33%	891 -26%
Colorchecker dE 2000 *	2.2	3 -36%	3.8 -73%	5.77 -162%	3.73 -70%	2.04 7%
Colorchecker dE 2000 max. *	3.8
Greyscale dE 2000 *	2.7	4 -48%	6.09 -126%	4.87 -80%	2.84 -5%	2.45 9%
Gamma	2.28 ^96%	2 ^110%	2.3 ^96%	1.99 ^111%	2.12 ^104%	2.28 ^96%
CCT	6686 ^97%	7089 ^92%	6332 ^103%	7363 ^88%	6457 ^101%	6518 ^100%
Color Space (Percent of AdobeRGB 1998)	62	62 0%	76.01 23%	56.04 -10%	55.45 -11%	93 50%
Color Space (Percent of sRGB)	96	97 1%	99.97 4%	85.27 -11%	84.39 -12%	100 4%
Total Average (Program / Settings)		-7% / -9%	3% / -7%	-20% / -28%	-13% / -15%	14% / 9%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

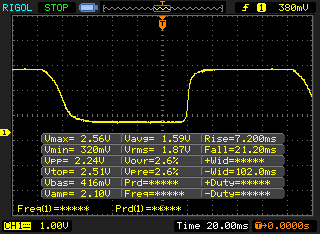

↔ Response Time Black to White
28.4 ms ... rise ↗ and fall ↘ combined	↗ 7.2 ms rise
28.4 ms ... rise ↗ and fall ↘ combined	↘ 21.2 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).
↔ Response Time 50% Grey to 80% Grey
50.4 ms ... rise ↗ and fall ↘ combined	↗ 17.2 ms rise
50.4 ms ... rise ↗ and fall ↘ combined	↘ 33.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 85 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Cinebench R15 | Cinebench R11.5 | Cinebench R10

Cinebench R15
CPU Multi 64Bit
Bullman E-Klasse 5 Intel Core i7-4790K	843 Points +14%
Dell Precision 7710 Intel Xeon E3-1535M v5	746 Points +1%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	742 Points
MSI WT72-6QM Intel Xeon E3-1505M v5	724 Points -2%
Lenovo ThinkPad P70 Intel Core i7-6820HQ	699 Points -6%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	657 Points -11%
CPU Single 64Bit
Bullman E-Klasse 5 Intel Core i7-4790K	174 Points +12%
Dell Precision 7710 Intel Xeon E3-1535M v5	162 Points +4%
MSI WT72-6QM Intel Xeon E3-1505M v5	157 Points +1%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	156 Points
Lenovo ThinkPad P70 Intel Core i7-6820HQ	153 Points -2%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	135 Points -13%

Cinebench R11.5
CPU Multi 64Bit
Bullman E-Klasse 5 Intel Core i7-4790K	9.14 Points +12%
Dell Precision 7710 Intel Xeon E3-1535M v5	8.24 Points +1%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	8.16 Points
MSI WT72-6QM Intel Xeon E3-1505M v5	7.85 Points -4%
Lenovo ThinkPad P70 Intel Core i7-6820HQ	7.63 Points -6%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	7.11 Points -13%
CPU Single 64Bit
Bullman E-Klasse 5 Intel Core i7-4790K	1.95 Points +7%
Dell Precision 7710 Intel Xeon E3-1535M v5	1.84 Points +1%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	1.83 Points
MSI WT72-6QM Intel Xeon E3-1505M v5	1.77 Points -3%
Lenovo ThinkPad P70 Intel Core i7-6820HQ	1.7 Points -7%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	1.54 Points -16%

Cinebench R10
Rendering Multiple CPUs 32Bit
Bullman E-Klasse 5 Intel Core i7-4790K	25082 Points +13%
Dell Precision 7710 Intel Xeon E3-1535M v5	22496 Points +2%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	22147 Points
MSI WT72-6QM Intel Xeon E3-1505M v5	21475 Points -3%
Lenovo ThinkPad P70 Intel Core i7-6820HQ	20682 Points -7%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	19450 Points -12%
Rendering Single 32Bit
Bullman E-Klasse 5 Intel Core i7-4790K	6398 Points +12%
Dell Precision 7710 Intel Xeon E3-1535M v5	5837 Points +2%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	5708 Points
MSI WT72-6QM Intel Xeon E3-1505M v5	5627 Points -1%
Lenovo ThinkPad P70 Intel Core i7-6820HQ	5429 Points -5%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	4993 Points -13%
Rendering Multiple CPUs 64Bit
Bullman E-Klasse 5 Intel Core i7-4790K	31767 Points +8%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	29416 Points
Dell Precision 7710 Intel Xeon E3-1535M v5	29375 Points 0%
MSI WT72-6QM Intel Xeon E3-1505M v5	27938 Points -5%
Lenovo ThinkPad P70 Intel Core i7-6820HQ	27072 Points -8%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	24894 Points -15%
Rendering Single CPUs 64Bit
Bullman E-Klasse 5 Intel Core i7-4790K	8597 Points +17%
Dell Precision 7710 Intel Xeon E3-1535M v5	7608 Points +3%
MSI WT72-6QM Intel Xeon E3-1505M v5	7421 Points +1%
HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5	7353 Points
Lenovo ThinkPad P70 Intel Core i7-6820HQ	6965 Points -5%
HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ	6635 Points -10%

Cinebench R10 Rendering Single CPUs 64Bit

7353 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

29416 Points

Cinebench R10 Shading 64Bit

6847 Points

Cinebench R10 Shading 32Bit

6844

Cinebench R10 Rendering Multiple CPUs 32Bit

22147

Cinebench R10 Rendering Single 32Bit

5708

Cinebench R11.5 OpenGL 64Bit

99.7 fps

Cinebench R11.5 CPU Multi 64Bit

8.16 Points

Cinebench R11.5 CPU Single 64Bit

1.83 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

116.1 fps

Cinebench R15 CPU Multi 64Bit

742 Points

Cinebench R15 CPU Single 64Bit

156 Points

Ajuda

... comparado com

PCMark 7 | PCMark 8

PCMark 7 - Score
MSI WT72-6QM E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7	6657 Points +21%
Bullman E-Klasse 5 4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL	6447 Points +17%
HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5487 Points
Dell Precision 7710 E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5072 Points -8%
Lenovo ThinkPad P70 6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH	5003 Points -9%
HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630	3356 Points -39%

PCMark 8
Work Score Accelerated v2
MSI WT72-6QM E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7	5655 Points +7%
Dell Precision 7710 E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5417 Points +3%
Bullman E-Klasse 5 4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL	5372 Points +2%
HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5271 Points
HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630	4595 Points -13%
Lenovo ThinkPad P70 6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH	4411 Points -16%
Creative Score Accelerated v2
Dell Precision 7710 E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5668 Points +24%
HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630	4890 Points +7%
Bullman E-Klasse 5 4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL	4761 Points +4%
HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4564 Points
Home Score Accelerated v2
Dell Precision 7710 E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4770 Points +15%
MSI WT72-6QM E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7	4731 Points +14%
HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630	4464 Points +8%
Bullman E-Klasse 5 4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL	4355 Points +5%
HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4133 Points
Lenovo ThinkPad P70 6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH	3345 Points -19%

PCMark 7 Score		5487 pontos
PCMark 8 Home Score Accelerated v2		4133 pontos
PCMark 8 Creative Score Accelerated v2		4564 pontos
PCMark 8 Work Score Accelerated v2		5271 pontos
Ajuda

... comparado com

CrystalDiskMark 3.0

AS SSD

Samsung SM951 MZVPV256HDGL m.2 PCI-e

Sequential Read: 1481 MB/s

Sequential Write: 1243 MB/s

512K Read: 1202 MB/s

512K Write: 1163 MB/s

4K Read: 58.7 MB/s

4K Write: 207.4 MB/s

4K QD32 Read: 832 MB/s

4K QD32 Write: 377.9 MB/s

SPECviewperf 12 | SPECviewperf 11

SPECviewperf 12
1900x1060 Solidworks (sw-03)
MSI WT72-6QM NVIDIA Quadro M5000M	101 fps +19%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	84.8 fps
Dell Precision 7710 AMD FirePro W7170M	73 fps -14%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	66.5 fps -22%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	62 fps -27%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	52.3 fps -38%
1900x1060 Siemens NX (snx-02)
MSI WT72-6QM NVIDIA Quadro M5000M	86.9 fps +32%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	65.8 fps
Dell Precision 7710 AMD FirePro W7170M	63 fps -4%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	50.7 fps -23%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	39.84 fps -39%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	32 fps -51%
1900x1060 Showcase (showcase-01)
MSI WT72-6QM NVIDIA Quadro M5000M	44.14 fps +1%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	43.81 fps
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	39.81 fps -9%
Dell Precision 7710 AMD FirePro W7170M	37 fps -16%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	26.31 fps -40%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	19 fps -57%
1900x1060 Medical (medical-01)
MSI WT72-6QM NVIDIA Quadro M5000M	31.35 fps +40%
Dell Precision 7710 AMD FirePro W7170M	27 fps +21%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	22.34 fps
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	17.46 fps -22%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	16.27 fps -27%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	10 fps -55%
1900x1060 Maya (maya-04)
MSI WT72-6QM NVIDIA Quadro M5000M	69.6 fps +38%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	50.4 fps
Dell Precision 7710 AMD FirePro W7170M	46 fps -9%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	39.17 fps -22%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	28 fps -44%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	23.08 fps -54%
1900x1060 Energy (energy-01)
MSI WT72-6QM NVIDIA Quadro M5000M	6.86 fps +41%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	4.85 fps
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	4.68 fps -4%
Dell Precision 7710 AMD FirePro W7170M	3.17 fps -35%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	2.1 fps -57%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	0.59 fps -88%
1900x1060 Creo (creo-01)
MSI WT72-6QM NVIDIA Quadro M5000M	81.3 fps +25%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	64.8 fps
Dell Precision 7710 AMD FirePro W7170M	50 fps -23%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	42.61 fps -34%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	42.17 fps -35%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	29 fps -55%
1900x1060 Catia (catia-04)
MSI WT72-6QM NVIDIA Quadro M5000M	94.4 fps +21%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	77.9 fps
Dell Precision 7710 AMD FirePro W7170M	58 fps -26%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	45.24 fps -42%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	44.02 fps -43%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	33 fps -58%

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	67.4 fps +35%
MSI WT72-6QM NVIDIA Quadro M5000M	61.8 fps +24%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	49.91 fps
Dell Precision 7710 AMD FirePro W7170M	49 fps -2%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	47.84 fps -4%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	39 fps -22%
1920x1080 Tcvis
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	56.3 fps
MSI WT72-6QM NVIDIA Quadro M5000M	55.9 fps -1%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	42 fps -25%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	41.16 fps -27%
Dell Precision 7710 AMD FirePro W7170M	36 fps -36%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	28.37 fps -50%
1920x1080 SolidWorks
Dell Precision 7710 AMD FirePro W7170M	74 fps +54%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	68.7 fps +43%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	52 fps +8%
MSI WT72-6QM NVIDIA Quadro M5000M	49.26 fps +3%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	48.01 fps
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	35.28 fps -27%
1920x1080 Pro/ENGINEER
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	22.46 fps
Bullman E-Klasse 5 NVIDIA Quadro K3100M	21 fps -7%
MSI WT72-6QM NVIDIA Quadro M5000M	17.87 fps -20%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	16.08 fps -28%
Dell Precision 7710 AMD FirePro W7170M	11.7 fps -48%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	10.66 fps -53%
1920x1080 Maya
Dell Precision 7710 AMD FirePro W7170M	106 fps +83%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	99.7 fps +72%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	86 fps +49%
MSI WT72-6QM NVIDIA Quadro M5000M	71.6 fps +24%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	57.8 fps
Bullman E-Klasse 5 NVIDIA Quadro K3100M	55 fps -5%
1920x1080 Lightwave
Dell Precision 7710 AMD FirePro W7170M	84 fps +62%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	77.8 fps +50%
MSI WT72-6QM NVIDIA Quadro M5000M	59.6 fps +15%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	56 fps +8%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	51.9 fps
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	35.34 fps -32%
1920x1080 Ensight
MSI WT72-6QM NVIDIA Quadro M5000M	74 fps +25%
Dell Precision 7710 AMD FirePro W7170M	70 fps +18%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	59.5 fps +1%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	59.1 fps
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	55.7 fps -6%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	39 fps -34%
1920x1080 Catia
Dell Precision 7710 AMD FirePro W7170M	61 fps +14%
MSI WT72-6QM NVIDIA Quadro M5000M	55.3 fps +4%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	53.4 fps
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	49.28 fps -8%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	47 fps -12%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	43.12 fps -19%

LuxMark v2.0 64Bit | SiSoft Sandra 2016

LuxMark v2.0 64Bit
Room GPUs-only
MSI WT72-6QM NVIDIA Quadro M5000M	1331 Samples/s +3%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	1288 Samples/s
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	1258 Samples/s -2%
Dell Precision 7710 AMD FirePro W7170M	782 Samples/s -39%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	598 Samples/s -54%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	215 Samples/s -83%
Sala GPUs-only
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	2288 Samples/s
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	2234 Samples/s -2%
MSI WT72-6QM NVIDIA Quadro M5000M	2179 Samples/s -5%
Dell Precision 7710 AMD FirePro W7170M	1412 Samples/s -38%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	1084 Samples/s -53%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	423 Samples/s -82%

SiSoft Sandra 2016
Image Processing
Dell Precision 7710 AMD FirePro W7170M	527 MPix/s +63%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	367.1 MPix/s +14%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	322.6 MPix/s
GP Cryptography (Higher Security AES256+SHA2-512)
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	12.74 GB/s
Dell Precision 7710 AMD FirePro W7170M	12.47 GB/s -2%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	11.12 GB/s -13%
GP Financial Analysis (FP High/Double Precision)
Dell Precision 7710 AMD FirePro W7170M	66.4 KOPT/s +105%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	32.97 KOPT/s +2%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	32.46 KOPT/s

Unigine Heaven 3.0 | Unigine Valley 1.0 | 3DMark

Unigine Heaven 3.0
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WT72-6QM NVIDIA Quadro M5000M	108.6 fps +35%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	80.6 fps
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	79.3 fps -2%
Dell Precision 7710 AMD FirePro W7170M	76.9 fps -5%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	56.2 fps -30%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	37 fps -54%
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WT72-6QM NVIDIA Quadro M5000M	101.5 fps +33%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	76.2 fps
Dell Precision 7710 AMD FirePro W7170M	59.3 fps -22%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	48.8 fps -36%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	43.4 fps -43%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	35.8 fps -53%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
MSI WT72-6QM NVIDIA Quadro M5000M	47.3 fps +23%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	38.5 fps
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	37.8 fps -2%
Dell Precision 7710 AMD FirePro W7170M	30.7 fps -20%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	32.2 fps
Dell Precision 7710 AMD FirePro W7170M	26.6 fps -17%
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	22 fps -32%

3DMark
1920x1080 Fire Strike Score
MSI WT72-6QM NVIDIA Quadro M5000M	7979 Points +31%
Acer Predator 15 G9-592-7925 NVIDIA GeForce GTX 970M	6719 Points +10%
Dell Precision 7710 AMD FirePro W7170M	6180 Points +1%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	6108 Points
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	5835 Points -4%
SCHENKER XMG A726 NVIDIA GeForce GTX 965M	5339 Points -13%
MSI GE62-6QD16H11 NVIDIA GeForce GTX 960M	4018 Points -34%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	3644 Points -40%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	2731 Points -55%
1920x1080 Fire Strike Graphics
MSI WT72-6QM NVIDIA Quadro M5000M	9087 Points +36%
Acer Predator 15 G9-592-7925 NVIDIA GeForce GTX 970M	7624 Points +15%
Dell Precision 7710 AMD FirePro W7170M	6935 Points +4%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M	6658 Points
Lenovo ThinkPad P70 NVIDIA Quadro M3000M	6415 Points -4%
SCHENKER XMG A726 NVIDIA GeForce GTX 965M	6103 Points -8%
MSI GE62-6QD16H11 NVIDIA GeForce GTX 960M	4372 Points -34%
HP ZBook 17 G2 J8Z55ET AMD FirePro M6100	4010 Points -40%
Bullman E-Klasse 5 NVIDIA Quadro K3100M	2855 Points -57%

3DMark 06 Standard Score		27895 pontos
3DMark 11 Performance		8586 pontos
3DMark Ice Storm Standard Score		91685 pontos
3DMark Cloud Gate Standard Score		23083 pontos
3DMark Fire Strike Score		6108 pontos
Ajuda

... comparado com

	baixo	média	alto	ultra
BioShock Infinite (2013)	226.3	182.7	166.7	69.8
The Witcher 3 (2015)	122.7	74.6	42.4	22.5
Rise of the Tomb Raider (2016)	114.9	69.9	40.2	33.4

Barulho

Ocioso		30 / 30 / 30 dB
Carga		48.9 / 48.9 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Audix TM1 Arta (15 cm de distância) environment noise: 30 dB(A)

	HP ZBook 17 G3 TZV66eA Quadro M3000M	Dell Precision 7710 FirePro W7170M	Lenovo ThinkPad P70 Quadro M3000M	MSI WT72-6QM Quadro M5000M	Bullman E-Klasse 5 Quadro K3100M	HP ZBook 17 G2 J8Z55ET FirePro M6100
Noise		3%	7%	1%	3%	2%
off / environment *	30	30 -0%	30 -0%
Idle Minimum *	30	30 -0%	30 -0%	33.3 -11%	28.5 5%	29.2 3%
Idle Average *	30	30 -0%	30 -0%	33.4 -11%	28.5 5%	29.9 -0%
Idle Maximum *	30	30 -0%	30 -0%	33.5 -12%	28.5 5%	29.9 -0%
Load Average *	48.9	43.2 12%	36.5 25%	38.8 21%	47.8 2%	46.8 4%
Load Maximum *	48.9	47.13 4%	40.8 17%	40.2 18%	50.8 -4%	46.8 4%

* ... smaller is better

Carga Máxima

Inatividade


41.8 °C	55.5 °C	44.7 °C
31.7 °C	39.5 °C	31.7 °C
26.3 °C	29.4 °C	28.4 °C

Máximo: 55.5 °C
Médio: 36.6 °C


37.9 °C	55.8 °C	37.9 °C
29.2 °C	45.3 °C	28.8 °C
27.1 °C	31.2 °C	26.6 °C

Máximo: 55.8 °C
Médio: 35.5 °C

alimentação elétrica 50.6 °C | Temperatura do quarto 20 °C | Fennel FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 36.6 °C / 98 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 55.5 °C / 132 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.8 °C / 132 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.4 °C / 84.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-1.5 °C / -2.7 F).

	HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M	Dell Precision 7710 E3-1535M v5, FirePro W7170M	Lenovo ThinkPad P70 6820HQ, Quadro M3000M	MSI WT72-6QM E3-1505M v5, Quadro M5000M	Bullman E-Klasse 5 4790K, Quadro K3100M	HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100
Heat		6%	12%	5%	-12%	12%
Maximum Upper Side *	55.5	35.6 36%	39 30%	40.6 27%	42.3 24%	39.2 29%
Maximum Bottom *	55.8	55 1%	35.4 37%	42.6 24%	44.2 21%	37.2 33%
Idle Upper Side *	29.1	29.3 -1%	30.8 -6%	28.2 3%	41.6 -43%	28.9 1%
Idle Bottom *	29	32.8 -13%	33.1 -14%	38.6 -33%	43.9 -51%	33 -14%

* ... smaller is better

Consumo de energia

desligado	0.4 / 0.7 Watt
Ocioso	6.7 / 12.5 / 13.2 Watt
Carga	128.2 / 158.9 Watt


Key: min: , med: , max: Metrahit Energy

	HP ZBook 17 G3 TZV66eA E3-1535M v5, Quadro M3000M, 1920x1080	Dell Precision 7710 E3-1535M v5, FirePro W7170M, 1920x1080	Lenovo ThinkPad P70 6820HQ, Quadro M3000M, 3840x2160	MSI WT72-6QM E3-1505M v5, Quadro M5000M, 1920x1080	Bullman E-Klasse 5 4790K, Quadro K3100M, 1920x1080	HP ZBook 17 G2 J8Z55ET 4710MQ, FirePro M6100, 1920x1080
Power Consumption		-47%	-31%	-108%	-175%	-164%
Idle Minimum *	6.7	6.04 10%	12.1 -81%	24.8 -270%	33.7 -403%	29.7 -343%
Idle Average *	12.5	15.2 -22%	19.7 -58%	29.7 -138%	39.3 -214%	41.6 -233%
Idle Maximum *	13.2	42.3 -220%	20.5 -55%	30.1 -128%	40.2 -205%	42.3 -220%
Load Average *	128.2	112.8 12%	94.3 26%	105.2 18%	148 -15%	136.1 -6%
Load Maximum *	158.9	182.2 -15%	139.6 12%	192.2 -21%	221 -39%	184 -16%

* ... smaller is better

Tempo de Execução da Bateria

Ocioso (sem WLAN, min brilho)		15h 56min
WiFi Websurfing (IE 11)		4h 50min
Big Buck Bunny H.264 1080p		4h 59min
Carga (máximo brilho)		1h 50min

	HP ZBook 17 G3 TZV66eA 96 Wh, mAh	Dell Precision 7710 72 Wh, mAh	Lenovo ThinkPad P70 96 Wh, mAh	MSI WT72-6QM Wh, 86580 mAh	Bullman E-Klasse 5 82 Wh, mAh	HP ZBook 17 G2 J8Z55ET 75 Wh, mAh
Battery Runtime		-5%	-5%	-35%	-54%	-64%
Reader / Idle	956	775 -19%	464 -51%	413 -57%	166 -83%	162 -83%
H.264	299	283 -5%	452 51%		123 -59%	142 -53%
WiFi v1.3	290	365 26%	361 24%	245 -16%	144 -50%
Load	110	85 -23%	64 -42%	76 -31%	85 -23%	49 -55%
WiFi						149

Pro

+ Ótimo chassi

+ Comparativamente fino e leve

+ Desempenho muito alto

+ Tela precisa

+ Bons dispositivos de entrada

+ Portas modernas

+ Muito boa expansibilidade

+ WLAN veloz

+ Grande seleção de componentes

Contra

- Barulhento e quente sob uso intenso

- A tela poderia ser mais brilhante

- Nossa unidade de teste tem uma dobradiça sibilante

- O processador não pode utilizar todo seu potencial durante longos períodos de uso intenso

- Desempenho reduzido com a bateria

- A bateria não é mais acessível pelo exterior

- PWM flickering

- Localização do slot SIM

- Muito caro

In review: HP ZBook 17 G3. Test model courtesy of HP Germany.

Será que o HP ZBook 17 G3 é o workstation perfeito? A resposta é não, mas a HP ainda oferece um aparelho muito bom. Nós particularmente gostamos do design atual da carcaça da série G3, que certamente está entre o melhor em termos de qualidade. Obtemos portas modernas, uma ampla gama de componentes e a capacidade de manutenção é excelente.

Uma das maiores desvantagens são as emissões, porque alguns dos rivais se desempenham muito melhor, apesar de ter os mesmos componentes poderosos. A tela Full HD também não conseguiu nos convencer completamente. Já é bastante precisa de fábrica, e o contraste é muito alto, mas a luminescência é muito inferior em comparação com os rivais, incluindo o predecessor. A tela 4K DreamColor opcional deve se desempenhar melhor neste aspecto, mas ainda não há configurações correspondentes. Outro problema do nosso modelo de teste é a dobradiça barulhenta, mas consideramos que é um incidente isolado.

O HP ZBook 17 G3 é um workstation muito bom, com interfaces modernas e um excelente chassi. A configuração testada, no entanto, também é o aparelho mais caro, mas ainda é derrotado pelos rivais em algumas seções.

Outro aspecto muito importante é obviamente o preço, e nosso modelo de teste é extremamente caro, a amis de 4.500 Euros (~$5014). Certamente valeria a penas dar uma olhada em algumas configurações com especificações inferiores, que já começa em cerca de 2.100 Euros (~$2340). Agora já analisamos todos os workstations atuais dos grandes fabricantes, e não é fácil determinar um claro vencedor. O ZBook 17 G3 consegue uma avaliação um pouco superior, mas cada aparelho tem o seu próprio conjunto de vantagens e desvantagens, portanto, as preferências pessoais e obviamente o cenário de uso pretendido, também serão importantes. As emissões do ZBook 17 G3, em particular, ainda deixam espaço para melhorar.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

HP ZBook 17 G3 TZV66eA - 05/24/2016 v5.1 ^(old)
Andreas Osthoff

Acabamento

94 / 98 → 96%

Teclado

91%

Mouse

89%

Conectividade

85 / 81 → 100%

Peso

55 / 10-66 → 80%
