SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
HP ZBook 15 G4-Y4E80AV | |
Eurocom Tornado F5W | |
Dell Precision 5520 UHD | |
Lenovo ThinkPad P51 20HH0016GE | |
MSI WS63VR 7RL-023US | |
Fujitsu Celsius H970 | |
maximum AS SSD Seq Read Test (1GB) | |
Dell Precision 5520 UHD | |
Lenovo ThinkPad P51 20HH0016GE | |
MSI WS63VR 7RL-023US | |
HP ZBook 15 G4-Y4E80AV | |
Eurocom Tornado F5W | |
Fujitsu Celsius H970 |
|
iluminação: 92 %
iluminação com acumulador: 405.7 cd/m²
Contraste: 624:1 (Preto: 0.65 cd/m²)
ΔE Color 8.5 | 0.5-29.43 Ø4.92
ΔE Greyscale 11.6 | 0.5-98 Ø5.2
87% sRGB (Argyll 1.6.3 3D)
57% AdobeRGB 1998 (Argyll 1.6.3 3D)
64.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
87.7% sRGB (Argyll 2.2.0 3D)
66.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37
Eurocom Tornado F5W AUO52ED B156HTN05.2, TN, 15.6", 1920x1080 | Fujitsu Celsius H970 LP173WF4-SPF3, IPS LED, 17.3", 1920x1080 | HP ZBook 15 G4-Y4E80AV LG Philips LGD057E, IPS, 15.6", 1920x1080 | MSI WS63VR 7RL-023US SAMSUNG LƒFL156FL02-101 , IPS, 15.6", 3840x2160 | Lenovo ThinkPad P51 20HH0016GE LEN40BD, B156ZAN02.1, IPS, 15.6", 3840x2160 | Dell Precision 5520 UHD SHP1476, IPS, 15.6", 3840x2160 | |
---|---|---|---|---|---|---|
Display | -2% | -5% | -24% | 33% | 7% | |
Display P3 Coverage | 66.1 | 66.8 1% | 64 -3% | 47.43 -28% | 86.3 31% | 67.4 2% |
sRGB Coverage | 87.7 | 84.6 -4% | 82.7 -6% | 71.4 -19% | 99.5 13% | 98.5 12% |
AdobeRGB 1998 Coverage | 64.2 | 61.8 -4% | 60.4 -6% | 49 -24% | 99.3 55% | 68.9 7% |
Response Times | -125% | -135% | -147% | -136% | -272% | |
Response Time Grey 50% / Grey 80% * | 23.2 ? | 32 ? -38% | 39.2 ? -69% | 36.8 ? -59% | 40.8 ? -76% | 59.2 ? -155% |
Response Time Black / White * | 8.5 ? | 26.4 ? -211% | 25.6 ? -201% | 28.4 ? -234% | 25.2 ? -196% | 41.6 ? -389% |
PWM Frequency | 20830 ? | 1351 ? | ||||
Screen | 23% | 24% | 4% | 32% | 26% | |
Brightness middle | 405.7 | 368 -9% | 321 -21% | 259.4 -36% | 317 -22% | 372.4 -8% |
Brightness | 397 | 360 -9% | 320 -19% | 247 -38% | 309 -22% | 368 -7% |
Brightness Distribution | 92 | 91 -1% | 89 -3% | 85 -8% | 89 -3% | 90 -2% |
Black Level * | 0.65 | 0.3 54% | 0.29 55% | 0.43 34% | 0.36 45% | 0.48 26% |
Contrast | 624 | 1227 97% | 1107 77% | 603 -3% | 881 41% | 776 24% |
Colorchecker dE 2000 * | 8.5 | 6.4 25% | 4.5 47% | 5.5 35% | 2.7 68% | 2.6 69% |
Colorchecker dE 2000 max. * | 16.2 | 10.1 38% | 9.5 41% | 12.7 22% | 4.1 75% | 5.6 65% |
Greyscale dE 2000 * | 11.6 | 7.2 38% | 2.9 75% | 3.6 69% | 3 74% | 3.7 68% |
Gamma | 2.37 93% | 2.02 109% | 2.27 97% | 2.24 98% | 2.27 97% | 2.14 103% |
CCT | 10468 62% | 6882 94% | 6519 100% | 7163 91% | 6077 107% | 7096 92% |
Color Space (Percent of AdobeRGB 1998) | 57 | 55.5 -3% | 54.2 -5% | 45 -21% | 87.6 54% | 63 11% |
Color Space (Percent of sRGB) | 87 | 84.4 -3% | 82.6 -5% | 71 -18% | 99.5 14% | 99 14% |
Total Average (Program / Settings) | -35% /
-2% | -39% /
-3% | -56% /
-22% | -24% /
10% | -80% /
-18% |
* ... smaller is better
Display Response Times
↔ Response Time Black to White | ||
---|---|---|
8.5 ms ... rise ↗ and fall ↘ combined | ↗ 6.8 ms rise | |
↘ 1.7 ms fall | ||
The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 20 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||

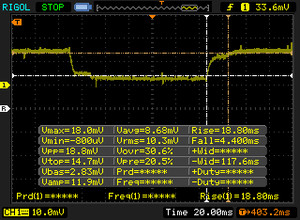

↔ Response Time 50% Grey to 80% Grey | ||
23.2 ms ... rise ↗ and fall ↘ combined | ↗ 18.8 ms rise | |
↘ 4.4 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). |

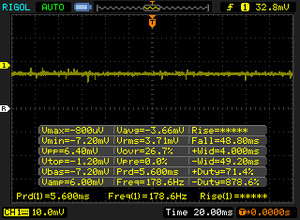

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. |
wPrime 2.10 - 1024m | |
Fujitsu Celsius H970 | |
Lenovo ThinkPad P51 20HH0016GE | |
Dell Precision 5520 UHD | |
Eurocom Tornado F5W | |
MSI WS63VR 7RL-023US |
* ... smaller is better
PCMark 8 Home Score Accelerated v2 | 5273 pontos | |
PCMark 8 Creative Score Accelerated v2 | 8015 pontos | |
PCMark 8 Work Score Accelerated v2 | 5433 pontos | |
PCMark 10 Score | 5340 pontos | |
Ajuda |
Eurocom Tornado F5W Samsung SSD 960 Pro 512 GB m.2 | Fujitsu Celsius H970 Samsung SM961 MZVKW512HMJP m.2 PCI-e | HP ZBook 15 G4-Y4E80AV Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH | Lenovo ThinkPad P51 20HH0016GE Samsung PM961 NVMe MZVLW512HMJP | Dell Precision 5520 UHD Samsung SM961 MZVKW512HMJP m.2 PCI-e | |
---|---|---|---|---|---|
AS SSD | -15% | 11% | 3% | 4% | |
Copy Game MB/s | 1094 | 839 -23% | 982 -10% | 1140 4% | 921 -16% |
Copy Program MB/s | 419.8 | 297.5 -29% | 325.4 -22% | 425.6 1% | 372.8 -11% |
Copy ISO MB/s | 1905 | 1722 -10% | 1486 -22% | 1607 -16% | 1659 -13% |
Score Total | 3241 | 3509 8% | 4303 33% | 3424 6% | 3681 14% |
Score Write | 1667 | 1210 -27% | 1472 -12% | 917 -45% | 1379 -17% |
Score Read | 1066 | 1557 46% | 1902 78% | 1690 59% | 1554 46% |
Access Time Write * | 0.024 | 0.048 -100% | 0.023 4% | 0.025 -4% | 0.023 4% |
Access Time Read * | 0.042 | 0.05 -19% | 0.034 19% | 0.032 24% | 0.038 10% |
4K-64 Write | 1319 | 971 -26% | 1136 -14% | 623 -53% | 1055 -20% |
4K-64 Read | 719 | 1246 73% | 1578 119% | 1372 91% | 1223 70% |
4K Write | 154.6 | 78.1 -49% | 158 2% | 143.1 -7% | 155.3 0% |
4K Read | 51.1 | 38.88 -24% | 51.7 1% | 55.6 9% | 51.5 1% |
Seq Write | 1939 | 1609 -17% | 1777 -8% | 1506 -22% | 1694 -13% |
Seq Read | 2956 | 2726 -8% | 2719 -8% | 2624 -11% | 2799 -5% |
* ... smaller is better
3DMark 06 Standard Score | 33236 pontos | |
3DMark 11 Performance | 16603 pontos | |
3DMark Ice Storm Standard Score | 161394 pontos | |
3DMark Cloud Gate Standard Score | 29658 pontos | |
3DMark Fire Strike Score | 12441 pontos | |
3DMark Fire Strike Extreme Score | 6666 pontos | |
Ajuda |
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF) (sort by value) | |
Eurocom Tornado F5W | |
Fujitsu Celsius H970 | |
HP ZBook 15 G4-Y4E80AV | |
MSI WS63VR 7RL-023US | |
Dell Precision 5520 UHD | |
Eurocom Tornado F5 | |
Eurocom Tornado F5 Killer Edition | |
Alienware 17 R4 |
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x (sort by value) | |
Eurocom Tornado F5W | |
MSI WS63VR 7RL-023US | |
Eurocom Tornado F5 | |
Eurocom Tornado F5 Killer Edition | |
Alienware 17 R4 |
Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value) | |
Eurocom Tornado F5W | |
MSI WS63VR 7RL-023US | |
Eurocom Tornado F5 Killer Edition | |
Alienware 17 R4 |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value) | |
Eurocom Tornado F5W | |
Fujitsu Celsius H970 | |
HP ZBook 15 G4-Y4E80AV | |
MSI WS63VR 7RL-023US | |
Lenovo ThinkPad P51 20HH0016GE | |
Eurocom Tornado F5 Killer Edition | |
Alienware 17 R4 |
Batman: Arkham Knight - 1920x1080 High / On AA:SM AF:16x (sort by value) | |
Eurocom Tornado F5W | |
MSI WS63VR 7RL-023US | |
Dell Precision 5520 UHD | |
Eurocom Tornado F5 | |
Eurocom Tornado F5 Killer Edition | |
Alienware 17 R4 |
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x (sort by value) | |
Eurocom Tornado F5W | |
Fujitsu Celsius H970 | |
HP ZBook 15 G4-Y4E80AV | |
MSI WS63VR 7RL-023US | |
Lenovo ThinkPad P51 20HH0016GE | |
Eurocom Tornado F5 | |
Eurocom Tornado F5 Killer Edition | |
Alienware 17 R4 |
baixo | média | alto | ultra | |
---|---|---|---|---|
BioShock Infinite (2013) | 129 | |||
Metro: Last Light (2013) | 99 | |||
Thief (2014) | 98 | |||
The Witcher 3 (2015) | 54 | |||
Batman: Arkham Knight (2015) | 79 | |||
Rise of the Tomb Raider (2016) | 90 |
Barulho
Ocioso |
| 31.2 / 31.2 / 32.6 dB |
Carga |
| 32.6 / 43.3 dB |
| ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min: , med: , max: BK Precision 732A (15 cm de distância) environment noise: 29.6 dB(A) |
Eurocom Tornado F5W Quadro P5000, E3-1280 v5, Samsung SSD 960 Pro 512 GB m.2 | Fujitsu Celsius H970 Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e | HP ZBook 15 G4-Y4E80AV Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH | MSI WS63VR 7RL-023US Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7 | Lenovo ThinkPad P51 20HH0016GE Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP | Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e | |
---|---|---|---|---|---|---|
Noise | -10% | 3% | -4% | 6% | -4% | |
off / environment * | 29.6 | 30.2 -2% | 29.5 -0% | 28 5% | 29.6 -0% | 28.7 3% |
Idle Minimum * | 31.2 | 30.2 3% | 29.5 5% | 33.2 -6% | 29.6 5% | 28.7 8% |
Idle Average * | 31.2 | 32.8 -5% | 29.5 5% | 33.2 -6% | 29.6 5% | 32.1 -3% |
Idle Maximum * | 32.6 | 32.8 -1% | 30 8% | 33.2 -2% | 29.6 9% | 32.1 2% |
Load Average * | 32.6 | 47.3 -45% | 39.5 -21% | 41.4 -27% | 32.2 1% | 41.3 -27% |
Witcher 3 ultra * | 43.1 | 39.5 8% | 38.4 11% | 45.5 -6% | ||
Load Maximum * | 43.3 | 47.3 -9% | 36 17% | 43.5 -0% | 36.6 15% | 45.5 -5% |
* ... smaller is better
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 51.4 °C / 125 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 30.7 °C / 87 F, compared to the device average of 32 °C / 90 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 40.3 °C / 105 F, compared to the device average of 32 °C / 90 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.8 °C / 103.6 F.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-11.9 °C / -21.4 F).
Eurocom Tornado F5W audio analysis
(-) | not very loud speakers (70.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(±) | linearity of bass is average (12.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (13.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(±) | linearity of highs is average (8.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.7% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 7% similar, 8% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 76% of all tested devices were better, 5% similar, 19% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell Precision 5520 UHD audio analysis
(±) | speaker loudness is average but good (79.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.8% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (12% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 10% similar, 50% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 26% of all tested devices were better, 7% similar, 68% worse
» The best had a delta of 4%, average was 25%, worst was 134%
desligado | 1.1 / 1.9 Watt |
Ocioso | 23.7 / 24.9 / 28.4 Watt |
Carga |
104.1 / 136.8 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Eurocom Tornado F5W E3-1280 v5, Quadro P5000, Samsung SSD 960 Pro 512 GB m.2, TN, 1920x1080, 15.6" | Fujitsu Celsius H970 E3-1535M v6, Quadro P4000, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS LED, 1920x1080, 17.3" | HP ZBook 15 G4-Y4E80AV E3-1535M v6, Quadro M2200, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 1920x1080, 15.6" | MSI WS63VR 7RL-023US i7-7700HQ, Quadro P4000 Max-Q, Toshiba NVMe THNSN5512GPU7, IPS, 3840x2160, 15.6" | Lenovo ThinkPad P51 20HH0016GE E3-1505M v6, Quadro M2200, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6" | Dell Precision 5520 UHD E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6" | |
---|---|---|---|---|---|---|
Power Consumption | 28% | 38% | 30% | 29% | 33% | |
Idle Minimum * | 23.7 | 10.7 55% | 5.9 75% | 13.3 44% | 8.6 64% | 8.9 62% |
Idle Average * | 24.9 | 15.8 37% | 8.9 64% | 17.2 31% | 15.9 36% | 13.6 45% |
Idle Maximum * | 28.4 | 17.8 37% | 12.7 55% | 17.9 37% | 22.1 22% | 14.1 50% |
Load Average * | 104.1 | 92 12% | 95.2 9% | 83.7 20% | 84.4 19% | 100.3 4% |
Witcher 3 ultra * | 145.9 | 87.7 40% | 101.9 30% | 100.2 31% | ||
Load Maximum * | 136.8 | 137 -0% | 154 -13% | 114.3 16% | 130.6 5% | 126.3 8% |
* ... smaller is better
Eurocom Tornado F5W E3-1280 v5, Quadro P5000, 75.24 Wh | Fujitsu Celsius H970 E3-1535M v6, Quadro P4000, 96 Wh | HP ZBook 15 G4-Y4E80AV E3-1535M v6, Quadro M2200, 90 Wh | MSI WS63VR 7RL-023US i7-7700HQ, Quadro P4000 Max-Q, 48 Wh | Lenovo ThinkPad P51 20HH0016GE E3-1505M v6, Quadro M2200, 90 Wh | Dell Precision 5520 UHD E3-1505M v6, Quadro M1200, 97 Wh | |
---|---|---|---|---|---|---|
Battery Runtime | 128% | 159% | -23% | 117% | 49% | |
Reader / Idle | 284 | 1002 253% | 1096 286% | 235 -17% | 981 245% | 724 155% |
WiFi v1.3 | 242 | 542 124% | 547 126% | 175 -28% | 413 71% | 254 5% |
Load | 70 | 74 6% | 115 64% | 54 -23% | 95 36% | 61 -13% |
Pro
Contra
Em quase $6.000, não é nada econômico, mas a configuração atual do Eurocom Tornado F5W prova que o desempenho de desktop é mais do que possível em um workstation móvel de 15,6 polegadas. Com uma CPU e GPU poderosa que é (em alguns testes) 70% mais rápida do que a concorrente mais próxima, se a capacidade de processamento bruto é o que você está procurando, existem poucas máquinas que podem competir. O melhor de tudo, o Tornado lida com tudo isso sem qualquer vestígio de afogamento no desempenho, com o aspecto térmico sob controle em todas as condições e um modo de ventilador Turbo opcional (oo estilo dos portáteis MSI) para aumentar ainda mais o potencial de resfriamento e espremer um pouco de desempenho adicional .
Perdoando a portabilidade, o peso e o custo, o Eurocom Tornado F5W é um workstation com desempenho de desktop e muito poucos compromissos em qualquer área.
Os potenciais compradores apreciarão a facilidade de manutenção e atualizações; inclusive a CPU e GPU são substituíveis no Tornado F5W. As velocidades de armazenamento e o desempenho geral do sistema também são fantásticos, com um SSD Samsung 960 Pro (e configurações RAID-0 opcionais) provando ser mais do que capaz. Os níveis de ruído do sistema de resfriamento de ventilador duplo são razoáveis e as temperaturas da superfície não são preocupantes. Não ficamos impressionados com os alto-falantes integrados ou a duração da bateria da máquina, mas nenhuma dessas duas categorias quebram um workstation.
A tela de 120 Hz em nossa unidade de teste, embora boa em geral, se beneficia muito do trabalho de calibração profissional e é muito imprecisa no estado de fábrica. Ainda assim, existem muitas outras opções, e o mesmo se aplica aos outros componentes - incluindo a CPU e GPU, onde também não existem menos de meia dúzia de outras opções (menos dispendiosas). O preço pode, portanto, ser alguns milhares de dólares mais baixos e o usuário ainda pode acabar com um workstation muito capaz.
Em resumo: perdoando a portabilidade, o peso e o custo, o Eurocom Tornado F5W é um workstation com desempenho de desktop e muito poucos compromissos em qualquer área.
Eurocom Tornado F5W
- 11/10/2017 v6 (old)
Steve Schardein
