Breve Análise do Workstation Dell Precision 5530 (Xeon E-2176M, Quadro P2000)

Refinement.

O Precision 5530 é, em muitos aspectos, o que o Precision 5520 deveria ter sido Enquanto a máquina atualizada ainda luta com o afogamento térmico, a estabilidade e o desempenho da CPU foram aprimorados. A GPU também foi atualizada sem muito sacrifício para a saída de calor. A experiência geral é muito melhor.
Dell Precision 5530 Xeon E-2176M (Precision 5000 Serie)
Processador
Intel Xeon E-2176M 6 x 2.7 - 4.4 GHz, Coffee Lake-H
Placa gráfica
NVIDIA Quadro P2000 - 4 GB VRAM, Análises do: 1215 MHz, Memoría: 2002 MHz, GDDR5, Optimus
Memória
32 GB
, PC4-21300 / DDR4-2666
Pantalha
15.60 polegadas 16:9, 3840 x 2160 pixel 282 PPI, Multitouch de 10 pontos, Sharp SHP148D / LQ156D1, IGZO, Brilhante: sim
placa mãe
Intel CM246
Disco rígido
SK hynix PC400 512 GB, 475 GB livre
Placa de Som
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Conexões
2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: Headset (combo mic/audio), Card Reader: Leitor de cartões SD/SDHC/SDXC de tamanho reduzido, 1 Leitor de Impressões Digitais, Brightness Sensor
Funcionamento em rede
Intel Wireless-AC 9260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 16.82 x 357 x 235.3
Bateria
97 Wh Lítio-Ion
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Características adicionais
Alto falantes: 2x 2 W, Teclado: Chiclet, Iluminação do Teclado: sim, USB-C para Ethernet, 12 Meses Garantia
peso
1.98 kg, Suprimento de energia: 428 g
Preço
3500 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



386 mm 264 mm 26 mm 2.6 kg377.4 mm 252.3 mm 29.4 mm 2.6 kg376 mm 251 mm 24.3 mm 2.3 kg380 mm 249 mm 18 mm 1.9 kg366 mm 253 mm 20.2 mm 2 kg357 mm 253 mm 22 mm 2.2 kg357 mm 235.3 mm 16.82 mm 2 kg349.3 mm 240.7 mm 15.5 mm 1.8 kg297 mm 210 mm 1 mm 5.7 g
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP ZBook 15 G4-Y4E80AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
186 MB/s +12%
Dell Precision 3530
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
179 MB/s +8%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.2 MB/s
Dell Precision 5520 UHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
157.5 MB/s -5%
Lenovo ThinkPad P51 20HH0016GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
155 MB/s -7%
MSI WS63VR 7RL-023US

151.3 MB/s -9%
Average of class Workstation
  (49.6 - 200, n=15, last 2 years)
96 MB/s -42%
Lenovo ThinkPad P52S-20LB001FUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81.4 MB/s -51%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 5520 UHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
254.5 MB/s +33%
Lenovo ThinkPad P51 20HH0016GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
215 MB/s +13%
MSI WS63VR 7RL-023US

211.7 MB/s +11%
HP ZBook 15 G4-Y4E80AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
209.8 MB/s +10%
Dell Precision 3530
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
201 MB/s +5%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
190.7 MB/s
Average of class Workstation
  (81.2 - 227, n=15, last 2 years)
122.7 MB/s -36%
Lenovo ThinkPad P52S-20LB001FUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.8 MB/s -54%
Networking
iperf3 transmit AX12
Dell Precision 3530
Intel Wireless-AC 9560
690 MBit/s +6%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
648 MBit/s
Lenovo ThinkPad P51 20HH0016GE
Intel Dual Band Wireless-AC 8265
508 MBit/s -22%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
506 (622min) MBit/s -22%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
475 MBit/s -27%
MSI WS63VR 7RL-023US
Intel Dual Band Wireless-AC 8265
472 MBit/s -27%
Lenovo ThinkPad P52S-20LB001FUS
Intel Dual Band Wireless-AC 8265
158 MBit/s -76%
iperf3 receive AX12
Dell Precision 3530
Intel Wireless-AC 9560
680 MBit/s +3%
Lenovo ThinkPad P52S-20LB001FUS
Intel Dual Band Wireless-AC 8265
672 MBit/s +1%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
663 MBit/s
MSI WS63VR 7RL-023US
Intel Dual Band Wireless-AC 8265
655 MBit/s -1%
Lenovo ThinkPad P51 20HH0016GE
Intel Dual Band Wireless-AC 8265
643 MBit/s -3%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
622 MBit/s -6%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
559 MBit/s -16%
428.3
cd/m²
458.1
cd/m²
449.3
cd/m²
424.8
cd/m²
451.7
cd/m²
454.7
cd/m²
413.7
cd/m²
433.5
cd/m²
446.2
cd/m²
Distribuição do brilho
Sharp SHP148D / LQ156D1 tested with X-Rite i1Pro 2
Máximo: 458.1 cd/m² (Nits) Médio: 440 cd/m² Minimum: 23.1 cd/m²
iluminação: 90 %
iluminação com acumulador: 451.7 cd/m²
Contraste: 1129:1 (Preto: 0.4 cd/m²)
ΔE Color 3.11 | 0.5-29.43 Ø4.92, calibrated: 3.07
ΔE Greyscale 3.7 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
69% AdobeRGB 1998 (Argyll 1.6.3 3D)
76.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.4% sRGB (Argyll 2.2.0 3D)
76.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.11
Dell Precision 5530 Xeon E-2176M
Sharp SHP148D / LQ156D1, IGZO, 15.6", 3840x2160
Dell Precision 5520 UHD
SHP1476, IPS, 15.6", 3840x2160
Lenovo ThinkPad P52S-20LB001FUS
Lenovo LEN40BD, IPS, 15.6", 3840x2160
Dell Precision 3530
BOE BOE06F1, IPS, 15.6", 1920x1080
HP ZBook 15 G4-Y4E80AV
LG Philips LGD057E, IPS, 15.6", 1920x1080
Lenovo ThinkPad P51 20HH0016GE
LEN40BD, B156ZAN02.1, IPS, 15.6", 3840x2160
MSI WS63VR 7RL-023US
SAMSUNG LƒFL156FL02-101 , IPS, 15.6", 3840x2160
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
APPA040, IPS, 15.4", 2880x1800
Display
-7%
-12%
-6%
-18%
15%
-34%
15%
Display P3 Coverage
76.5
67.4
-12%
67.3
-12%
72.8
-5%
64
-16%
86.3
13%
47.43
-38%
98.7
29%
sRGB Coverage
98.4
98.5
0%
89.4
-9%
94.6
-4%
82.7
-16%
99.5
1%
71.4
-27%
99.9
2%
AdobeRGB 1998 Coverage
76.4
68.9
-10%
65.4
-14%
69.3
-9%
60.4
-21%
99.3
30%
49
-36%
86.6
13%
Response Times
-24%
18%
6%
675%
20%
24%
3872%
Response Time Grey 50% / Grey 80% *
48 ?(24.4, 23.6)
59.2 ?(27.6, 31.6)
-23%
43.2 ?(24.4, 18.8)
10%
40.4 ?(22, 18.4)
16%
39.2 ?(20.4, 18.8)
18%
40.8 ?(20.8, 20)
15%
36.8 ?(21.2, 15.6)
23%
43.2 ?(20.4, 22.8)
10%
Response Time Black / White *
33.6 ?(19.6, 14)
41.6 ?(26.8, 14.8)
-24%
18 ?(13.2, 14.8)
46%
34.8 ?(20.8, 14)
-4%
25.6 ?(14.8, 10.8)
24%
25.2 ?(14, 11.2)
25%
28.4 ?(19.6, 8.8)
15%
31.2 ?(16.4, 14.8)
7%
PWM Frequency
1000
980
-2%
1053 ?(98)
5%
20830 ?(80)
1983%
1351 ?(30)
35%
117000 ?(75, 150)
11600%
Screen
-4%
-6%
-23%
-10%
4%
-33%
31%
Brightness middle
451.7
372.4
-18%
305.5
-32%
285.7
-37%
321
-29%
317
-30%
259.4
-43%
520
15%
Brightness
440
368
-16%
282
-36%
275
-37%
320
-27%
309
-30%
247
-44%
492
12%
Brightness Distribution
90
90
0%
78
-13%
85
-6%
89
-1%
89
-1%
85
-6%
88
-2%
Black Level *
0.4
0.48
-20%
0.24
40%
0.31
22%
0.29
27%
0.36
10%
0.43
-8%
0.39
2%
Contrast
1129
776
-31%
1273
13%
922
-18%
1107
-2%
881
-22%
603
-47%
1333
18%
Colorchecker dE 2000 *
3.11
2.6
16%
3.51
-13%
5.84
-88%
4.5
-45%
2.7
13%
5.5
-77%
1.2
61%
Colorchecker dE 2000 max. *
8.62
5.6
35%
7.28
16%
8.76
-2%
9.5
-10%
4.1
52%
12.7
-47%
2.3
73%
Colorchecker dE 2000 calibrated *
3.07
3.15
-3%
3.14
-2%
Greyscale dE 2000 *
3.7
3.7
-0%
4
-8%
6.5
-76%
2.9
22%
3
19%
3.6
3%
1.3
65%
Gamma
2.11 104%
2.14 103%
2.18 101%
2.383 92%
2.27 97%
2.27 97%
2.24 98%
2.18 101%
CCT
6492 100%
7096 92%
7291 89%
7176 91%
6519 100%
6077 107%
7163 91%
6738 96%
Color Space (Percent of AdobeRGB 1998)
69
63
-9%
58
-16%
62
-10%
54.2
-21%
87.6
27%
45
-35%
Color Space (Percent of sRGB)
98
99
1%
89
-9%
94
-4%
82.6
-16%
99.5
2%
71
-28%
Total Average (Program / Settings)
-12% / -7%
0% / -2%
-8% / -15%
216% / 117%
13% / 8%
-14% / -23%
1306% / 850%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
33.6 ms ... rise ↗ and fall ↘ combined↗ 19.6 ms rise
↘ 14 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 89 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

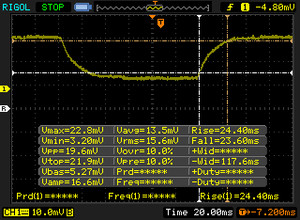

       Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined↗ 24.4 ms rise
↘ 23.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 81 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1000 Hz

The display backlight flickers at 1000 Hz (worst case, e.g., utilizing PWM) .

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

CPU-Z: CPU
CPU-Z: CPU
CPU-Z: Caches
CPU-Z: Caches
CPU-Z: Mainboard
CPU-Z: Mainboard
CPU-Z: Memory
CPU-Z: Memory
CPU-Z: SPD
CPU-Z: SPD
GPU-Z
GPU-Z
HWiNFO64
HWiNFO64

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130Tooltip
Precision 5530 Cinebench R15 CPU Multi 64 Bit
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720Tooltip
Precision 5520 Cinebench R15 CPU Multi 64 Bit
03060901201501802102402703003303603904204504805105405706006306606907207507808108408709009309609901020105010801110114011701200Tooltip
Dell Precision 5530 Xeon E-2176M Quadro P2000, E-2176M, SK hynix PC400 512 GB: Ø1024 (1006.14-1126.25)
Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e: Ø575 (458.82-712.59)
HP EliteBook 1050 G1-4QY20EA GeForce GTX 1050 Max-Q, i7-8750H, Toshiba XG5-P KXG50PNV2T04: Ø1015 (972-1114)
Lenovo ThinkPad P52 20MAS03N00 Quadro P1000, i7-8750H, Samsung SSD PM981 MZVLB512HAJQ: Ø1034 (1019-1128)
Alienware 17 R5 GeForce GTX 1070 Mobile, i7-8750H, SK hynix PC401 HFS256GD9TNG: Ø922 (893.28-993)
HP Omen 17t-3AW55AV_1 GeForce GTX 1070 Mobile, i7-8750H, Samsung SSD PM981 MZVLB512HAJQ: Ø981 (957.01-1046.68)
MSI GS73 Stealth 8RF-011 GeForce GTX 1070 Max-Q, i7-8750H, Samsung PM961 MZVLW256HEHP: Ø995 (976.78-1132)
Dell XPS 15 9570 i7 UHD GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5 KXG50ZNV512G; Undervolting: Ø1168 (1123.47-1219.85)
Dell XPS 15 9570 i7 UHD GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5 KXG50ZNV512G: Ø1012 (980.27-1215.12)
Cinebench R15
CPU Single 64Bit
Average of class Workstation
  (166.2 - 301, n=28, last 2 years)
265 Points +40%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
189 Points
Average Intel Xeon E-2176M
  (169 - 189, n=3)
181.7 Points -4%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
177 Points -6%
MSI GS73 Stealth 8RF-011
Intel Core i7-8750H
175 Points -7%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
170 Points -10%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
168 Points -11%
Dell G3 15 3579
Intel Core i5-8300H
168 Points -11%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
163 Points -14%
Huawei MateBook D 15-53010BAJ
Intel Core i5-8250U
146 Points -23%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
144 Points -24%
HP EliteBook 755 G5 3UN79EA
AMD Ryzen 7 2700U
134 Points -29%
CPU Multi 64Bit
Average of class Workstation
  (1863 - 4363, n=28, last 2 years)
2780 Points +154%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
1408 Points +29%
MSI GS73 Stealth 8RF-011
Intel Core i7-8750H
1132 Points +3%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1095 Points
Average Intel Xeon E-2176M
  (987 - 1118, n=3)
1067 Points -3%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
1064 Points -3%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
1057 Points -3%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
971 Points -11%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
953 Points -13%
Dell G3 15 3579
Intel Core i5-8300H
831 Points -24%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
815 Points -26%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
654 Points -40%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
647 Points -41%
HP EliteBook 755 G5 3UN79EA
AMD Ryzen 7 2700U
626 Points -43%
Huawei MateBook D 15-53010BAJ
Intel Core i5-8250U
505 Points -54%
Cinebench R11.5
CPU Single 64Bit
Average of class Workstation
  (last 2 years)
2.97 Points +49%
Average Intel Xeon E-2176M
  (1.99 - 2.12, n=3)
2.05 Points +3%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1.99 Points
MSI GS73 Stealth 8RF-011
Intel Core i7-8750H
1.98 Points -1%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
1.92 Points -4%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
1.92 Points -4%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
1.92 Points -4%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
1.63 Points -18%
CPU Multi 64Bit
Average of class Workstation
  (last 2 years)
21.6 Points +74%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
15.76 Points +27%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
12.4 Points
MSI GS73 Stealth 8RF-011
Intel Core i7-8750H
12.33 Points -1%
Average Intel Xeon E-2176M
  (9.32 - 12.4, n=3)
11.3 Points -9%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
8.91 Points -28%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
7.89 Points -36%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
7.01 Points -43%
Cinebench R10
Rendering Multiple CPUs 32Bit
Average of class Workstation
  (last 2 years)
39399 Points +23%
Average Intel Xeon E-2176M
  (31923 - 43681, n=3)
35912 Points +12%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
32132 Points
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
29330 Points -9%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
16227 Points -49%
Rendering Single 32Bit
Average Intel Xeon E-2176M
  (6928 - 9142, n=3)
7681 Points +10%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
6973 Points
Average of class Workstation
  (last 2 years)
6888 Points -1%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
6782 Points -3%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
4286 Points -39%
wPrime 2.10 - 1024m
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
319 s * -117%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
299 s * -103%
Average Intel Xeon E-2176M
  (147 - 179.6, n=2)
163.3 s * -11%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
147 s *

* ... smaller is better

Cinebench R10 Shading 32Bit
6782
Cinebench R10 Rendering Multiple CPUs 32Bit
32132
Cinebench R10 Rendering Single 32Bit
6973
Cinebench R11.5 OpenGL 64Bit
133.3 fps
Cinebench R11.5 CPU Multi 64Bit
12.4 Points
Cinebench R11.5 CPU Single 64Bit
1.99 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
196.2 fps
Cinebench R15 CPU Multi 64Bit
1095 Points
Cinebench R15 CPU Single 64Bit
189 Points
Ajuda
PCMark 10 - Score
Average of class Workstation
  (5953 - 8587, n=28, last 2 years)
7259 Points +43%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5072 Points
Average Intel Xeon E-2176M, NVIDIA Quadro P2000
  ()
5072 Points 0%
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4834 Points -5%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
4817 Points -5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
4805 Points -5%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
4751 Points -6%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, i7-8650U, Samsung SSD PM981 MZVLB1T0HALR
3281 Points -35%
PCMark 8
Home Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4375 Points +14%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
4233 Points +10%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
3831 Points
Average Intel Xeon E-2176M, NVIDIA Quadro P2000
  ()
3831 Points 0%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
3739 Points -2%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
3735 Points -3%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
3641 Points -5%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3504 Points -9%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, i7-8650U, Samsung SSD PM981 MZVLB1T0HALR
3178 Points -17%
Work Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5423 Points +16%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
5295 Points +13%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
4666 Points
Average Intel Xeon E-2176M, NVIDIA Quadro P2000
  ()
4666 Points 0%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
4575 Points -2%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
4390 Points -6%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4291 Points -8%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
4256 Points -9%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, i7-8650U, Samsung SSD PM981 MZVLB1T0HALR
4196 Points -10%
Creative Score Accelerated v2
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
6301 Points +18%
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5663 Points +6%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5351 Points
Average Intel Xeon E-2176M, NVIDIA Quadro P2000
  ()
5351 Points 0%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
5328 Points 0%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
5126 Points -4%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5086 Points -5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
3836 Points -28%
PCMark 8 Home Score Accelerated v2
3831 pontos
PCMark 8 Creative Score Accelerated v2
5351 pontos
PCMark 8 Work Score Accelerated v2
4666 pontos
PCMark 10 Score
5072 pontos
Ajuda
Dell Precision 5530 Xeon E-2176M
SK hynix PC400 512 GB
Dell Precision 5520 UHD
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad P52S-20LB001FUS
Samsung SSD PM981 MZVLB1T0HALR
Dell Precision 3530
SK hynix PC400 512 GB
HP ZBook 15 G4-Y4E80AV
Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Lenovo ThinkPad P51 20HH0016GE
Samsung PM961 NVMe MZVLW512HMJP
MSI WS63VR 7RL-023US
Toshiba NVMe THNSN5512GPU7
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Apple SSD AP0512
Average SK hynix PC400 512 GB

AS SSD
38%
25%
0%
48%
29%
-17%
-48%
-2%
Copy Game MB/s
921
1050
982
1140
1050 ?()
Copy Program MB/s
372.8
346.1
325.4
425.6
346 ?()
Copy ISO MB/s
1659
1701
1486
1607
1701 ?()
Score Total
2922
3681
26%
4038
38%
3013
3%
4303
47%
3424
17%
1979
-32%
2119
-27%
Score Write
1121
1379
23%
1468
31%
1138
2%
1472
31%
917
-18%
557
-50%
347
-69%
Score Read
1226
1554
27%
1703
39%
1288
5%
1902
55%
1690
38%
962
-22%
1199
-2%
Access Time Write *
0.053
0.023
57%
0.04
25%
0.053
-0%
0.023
57%
0.025
53%
0.033
38%
Access Time Read *
0.073
0.038
48%
0.04
45%
0.099
-36%
0.034
53%
0.032
56%
0.128
-75%
0.225
-208%
0.082 ?(0.073 - 0.099, n=3)
-12%
4K-64 Write
926
1055
14%
1245
34%
908
-2%
1136
23%
623
-33%
314
-66%
163.5
-82%
899 ?(863 - 926, n=3)
-3%
4K-64 Read
970
1223
26%
1524
57%
994
2%
1578
63%
1372
41%
710
-27%
965
-1%
4K Write
92.8
155.3
67%
100.5
8%
102.8
11%
158
70%
143.1
54%
114.6
23%
18.78
-80%
4K Read
38.43
51.5
34%
44.33
15%
25.98
-32%
51.7
35%
55.6
45%
40.2
5%
9.46
-75%
34.5 ?(26 - 39.1, n=3)
-10%
Seq Write
1022
1694
66%
1220
19%
1272
24%
1777
74%
1506
47%
1287
26%
1644
61%
Seq Read
2169
2799
29%
1351
-38%
2682
24%
2719
25%
2624
21%
2133
-2%
2239
3%

* ... smaller is better

SK hynix PC400 512 GB
CDM 5/6 Read Seq Q32T1: 2948 MB/s
CDM 5/6 Write Seq Q32T1: 1385 MB/s
CDM 5/6 Read 4K Q32T1: 327.4 MB/s
CDM 5/6 Write 4K Q32T1: 449.5 MB/s
CDM 5 Read Seq: 1667 MB/s
CDM 5 Write Seq: 1312 MB/s
CDM 5/6 Read 4K: 41.21 MB/s
CDM 5/6 Write 4K: 97.8 MB/s
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Average of class Workstation
  (88.8 - 226, n=14, last 2 years)
175.5 fps +69%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
166.2 fps +60%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
119.9 fps +16%
Fujitsu Celsius H970
NVIDIA Quadro P4000, E3-1535M v6
117.1 fps +13%
Average NVIDIA Quadro P2000
  (103.8 - 104, n=2)
103.9 fps 0%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
103.8 fps
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
102.9 fps -1%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, E3-1535M v6
99.5 fps -4%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, i7-8750H
86.6 fps -17%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
78.4 fps -24%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
69 fps -34%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
69 fps -34%
HP ZBook x2 G4-2ZC12EA
NVIDIA Quadro M620, i7-8650U
62.5 fps -40%
Lenovo ThinkPad P52S-20LB001FUS
NVIDIA Quadro P500, i7-8650U
15.63 fps -85%
1900x1060 Medical (medical-01)
Average of class Workstation
  (29.5 - 136.7, n=9, last 2 years)
93.6 fps +310%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
71.5 fps +213%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
41.8 fps +83%
Fujitsu Celsius H970
NVIDIA Quadro P4000, E3-1535M v6
39.4 fps +73%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
29.82 fps +31%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, E3-1535M v6
24.64 fps +8%
Average NVIDIA Quadro P2000
  (22.8 - 23.1, n=2)
23 fps +1%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
22.84 fps
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
17.77 fps -22%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
17.49 fps -23%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, i7-8750H
15.41 fps -33%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
12.78 fps -44%
HP ZBook x2 G4-2ZC12EA
NVIDIA Quadro M620, i7-8650U
11.6 fps -49%
1900x1060 Maya (maya-04)
Average of class Workstation
  (62.9 - 232, n=14, last 2 years)
154.9 fps +162%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
102.1 fps +72%
Fujitsu Celsius H970
NVIDIA Quadro P4000, E3-1535M v6
77.9 fps +32%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
73 fps +23%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
67.7 fps +14%
Average NVIDIA Quadro P2000
  (59.2 - 60.3, n=2)
59.8 fps +1%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
59.2 fps
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, E3-1535M v6
48.34 fps -18%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, i7-8750H
42.26 fps -29%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
37.66 fps -36%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
37.29 fps -37%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
32.07 fps -46%
HP ZBook x2 G4-2ZC12EA
NVIDIA Quadro M620, i7-8650U
25.1 fps -58%
Lenovo ThinkPad P52S-20LB001FUS
NVIDIA Quadro P500, i7-8650U
6.73 fps -89%
3DMark
1280x720 Cloud Gate Standard Graphics
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
102368 Points +140%
Average of class Workstation
  (40615 - 152418, n=15, last 2 years)
81395 Points +91%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
74933 Points +76%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
65089 Points +53%
Fujitsu Celsius H970
NVIDIA Quadro P4000, E3-1535M v6
53834 Points +26%
Average NVIDIA Quadro P2000
  (42598 - 44533, n=2)
43566 Points +2%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
42598 Points
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, E3-1535M v6
37796 Points -11%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, i7-8750H
31396 Points -26%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
29178 Points -32%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
28254 Points -34%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
26860 Points -37%
HP ZBook x2 G4-2ZC12EA
NVIDIA Quadro M620, i7-8650U
20980 Points -51%
Lenovo ThinkPad P52S-20LB001FUS
NVIDIA Quadro P500, i7-8650U
12868 Points -70%
1920x1080 Fire Strike Graphics
Average of class Workstation
  (6121 - 45600, n=29, last 2 years)
20806 Points +209%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
14990 Points +122%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
12312 Points +83%
Fujitsu Celsius H970
NVIDIA Quadro P4000, E3-1535M v6
12259 Points +82%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
9489 Points +41%
Average NVIDIA Quadro P2000
  (6741 - 6953, n=2)
6847 Points +2%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
6741 Points
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, E3-1535M v6
5786 Points -14%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, i7-8750H
4843 Points -28%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
4165 Points -38%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
4127 Points -39%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
4118 Points -39%
HP ZBook x2 G4-2ZC12EA
NVIDIA Quadro M620, i7-8650U
2867 Points -57%
Lenovo ThinkPad P52S-20LB001FUS
NVIDIA Quadro P500, i7-8650U
2239 Points -67%
1920x1080 Ice Storm Extreme Graphics
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
310648 Points +312%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
121766 Points +61%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
75457 Points
Average NVIDIA Quadro P2000
  ()
75457 Points 0%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
42129 Points -44%
3DMark 11
1280x720 Performance GPU
Average of class Workstation
  (9356 - 59715, n=29, last 2 years)
29325 Points +258%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
20623 Points +151%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
15837 Points +93%
Fujitsu Celsius H970
NVIDIA Quadro P4000, E3-1535M v6
15433 Points +88%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
12105 Points +48%
Average NVIDIA Quadro P2000
  (8201 - 8573, n=2)
8387 Points +2%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8201 Points
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, i7-8750H
6115 Points -25%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
5515 Points -33%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
5105 Points -38%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
4702 Points -43%
HP ZBook x2 G4-2ZC12EA
NVIDIA Quadro M620, i7-8650U
3805 Points -54%
1280x720 Performance Combined
Average of class Workstation
  (6413 - 22977, n=29, last 2 years)
17213 Points +114%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
10428 Points +29%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
9296 Points +15%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
9063 Points +12%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8059 Points
Average NVIDIA Quadro P2000
  (7968 - 8059, n=2)
8014 Points -1%
Fujitsu Celsius H970
NVIDIA Quadro P4000, E3-1535M v6
7662 Points -5%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, i7-8750H
6375 Points -21%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
5312 Points -34%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
5166 Points -36%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
4936 Points -39%
HP ZBook x2 G4-2ZC12EA
NVIDIA Quadro M620, i7-8650U
3985 Points -51%
3DMark 06 Standard Score
33795 pontos
3DMark Vantage P Result
32964 pontos
3DMark 11 Performance
8660 pontos
3DMark Ice Storm Standard Score
53148 pontos
3DMark Cloud Gate Standard Score
25038 pontos
3DMark Fire Strike Score
6116 pontos
3DMark Fire Strike Extreme Score
3093 pontos
3DMark Time Spy Score
2259 pontos
Ajuda
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
33 fps
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
29 fps -12%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, i7-8650U, Samsung SSD PM981 MZVLB1T0HALR
13 fps -61%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
25 fps -24%
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
30.3 fps -8%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
79 fps +139%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
34 (29min - 38max) fps +3%
MSI GS73 Stealth 8RF-011
GeForce GTX 1070 Max-Q, i7-8750H, Samsung PM961 MZVLW256HEHP
91.6 fps +178%
Average NVIDIA Quadro P2000
  (33 - 43.2, n=2)
38.1 fps +15%
Average of class Workstation
  (34.9 - 298, n=23, last 2 years)
128.8 fps +290%
Rise of the Tomb Raider
1920x1080 High Preset AA:FX AF:4x (sort by value)
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
38 fps
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, i7-8650U, Samsung SSD PM981 MZVLB1T0HALR
12 fps -68%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
23 fps -39%
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
37.4 fps -2%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
77 fps +103%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
30.5 (28min - 33max) fps -20%
Average NVIDIA Quadro P2000
  ()
38 fps 0%
1920x1080 Very High Preset AA:FX AF:16x (sort by value)
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
32 fps
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, i7-8650U, Samsung SSD PM981 MZVLB1T0HALR
11 fps -66%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
20 fps -37%
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
33 fps +3%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
65 fps +103%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
24.3 (21min - 27max) fps -24%
Average NVIDIA Quadro P2000
  ()
32 fps 0%
Final Fantasy XV Benchmark
1920x1080 Standard Quality (sort by value)
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
35 fps
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
23.6 (18min - 30max) fps -33%
Average NVIDIA Quadro P2000
  ()
35 fps 0%
Average of class Workstation
  (27.5 - 208, n=28, last 2 years)
103.2 fps +195%
1920x1080 High Quality (sort by value)
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
26 fps
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
14.3 (6min - 20max) fps -45%
MSI GS73 Stealth 8RF-011
GeForce GTX 1070 Max-Q, i7-8750H, Samsung PM961 MZVLW256HEHP
47.8 fps +84%
Average NVIDIA Quadro P2000
  ()
26 fps 0%
Average of class Workstation
  (21.2 - 174.6, n=29, last 2 years)
80.9 fps +211%
baixomédiaaltoultraQHD4K
BioShock Infinite (2013) 317 213 184 68
Thief (2014) 133 99 85 47
The Witcher 3 (2015) 103 71 33 26 13
Batman: Arkham Knight (2015) 109 95 52 36 17
Metal Gear Solid V (2015) 60 60 60 60 25
Fallout 4 (2015) 98 88 51 38 13
Rise of the Tomb Raider (2016) 82 62 38 32 15
Hitman 2016 (2016) 88 78 37 36 16
Ashes of the Singularity (2016) 70 41 36 16
Doom (2016) 112 101 60 54 17
Deus Ex Mankind Divided (2016) 87 63 34 17 11
Civilization VI (2016) 116 89 51 46 30
Farming Simulator 17 (2016) 350 288 162 114 62
Resident Evil 7 (2017) 244 119 60 25 17
Prey (2017) 125 89 78 62 20
Rocket League (2017) 249 164 110 39
Dirt 4 (2017) 201 105 59 40 19
Playerunknown's Battlegrounds (PUBG) (2017) 101 53 41 29 7
F1 2017 (2017) 169 89 63 38 11
Ark Survival Evolved (2017) 85 30 19 12 3
Middle-earth: Shadow of War (2017) 115 61 41 28 9
The Evil Within 2 (2017) 59 32 29 28 3
Fortnite (2018) 201 144 60 45 24 10
Final Fantasy XV Benchmark (2018) 59 35 26 10
Kingdom Come: Deliverance (2018) 104 42 33 26 14 7
Far Cry 5 (2018) 89 47 41 35 21 9
F1 2018 (2018) 139 77 61 32 22 12
0123456789101112131415161718192021222324252627282930313233343536Tooltip
The Witcher 3 high

Barulho

Ocioso
28.4 / 28.4 / 28.4 dB
Carga
46.5 / 46.5 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   BK Precision 732A (15 cm de distância)   environment noise: 28.4 dB(A)
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, i7-8650U, Samsung SSD PM981 MZVLB1T0HALR
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, i7-7700HQ, Toshiba NVMe THNSN5512GPU7
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, i7-8850H, Apple SSD AP0512
Noise
-2%
5%
-1%
5%
6%
-2%
-0%
off / environment *
28.4
28.7
-1%
28.3
-0%
28.1
1%
29.5
-4%
29.6
-4%
28
1%
29.6
-4%
Idle Minimum *
28.4
28.7
-1%
28.3
-0%
28.3
-0%
29.5
-4%
29.6
-4%
33.2
-17%
30.1
-6%
Idle Average *
28.4
32.1
-13%
28.3
-0%
28.3
-0%
29.5
-4%
29.6
-4%
33.2
-17%
30.1
-6%
Idle Maximum *
28.4
32.1
-13%
29.8
-5%
28.4
-0%
30
-6%
29.6
-4%
33.2
-17%
30.1
-6%
Load Average *
46.5
41.3
11%
40.6
13%
46.2
1%
39.5
15%
32.2
31%
41.4
11%
46.8
-1%
Witcher 3 ultra *
46.5
45.5
2%
40.6
13%
39.5
15%
38.4
17%
36
23%
Load Maximum *
46.5
45.5
2%
40.6
13%
48.6
-5%
36
23%
36.6
21%
43.5
6%
46.8
-1%

* ... smaller is better

 38.2 °C50 °C33 °C
 37.4 °C37.8 °C31 °C
 29.2 °C29.4 °C27.8 °C
Máximo: 50 °C
Médio: 34.9 °C
36.2 °C46.2 °C37.2 °C
34.2 °C38.2 °C37.4 °C
32.4 °C34.8 °C35 °C
Máximo: 46.2 °C
Médio: 36.8 °C
alimentação elétrica  51 °C | Temperatura do quarto 23 °C | Fluke 62 Mini
(±) The average temperature for the upper side under maximal load is 34.9 °C / 95 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 46.2 °C / 115 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29.7 °C / 85 F, compared to the device average of 32 °C / 90 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.2 °C / 94 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.4 °C / 84.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-1.5 °C / -2.7 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.736.62536.436.53136.735.54033.132.35033.534.96335.335.48032.433.710028.836.912528.538.516027.844.320027.346.125026.451.131527.154.940026.160.150025.463.263024.971.480024.374.9100024.370.5125024.468.816002472.8200023.671.2250023.568.8315023.569.3400023.563.7500023.360.4630023.661.9800023.369.81000023.268.11250023.162.11600023.160.3SPL36.181.4N2.650.6median 24.3median 63.2Delta0.97.833.933.532.632.430.130.831.129.830.627.537.52846.425.557.525.664.625.267.523.966.822.871.521.970.521.872.820.874.320.474.519.771.218.870.318.570.91874.717.471.817.475.317.173.417.570.317.172.917.376.517.269.117.369.117.365.317.264.417.38583.430.270.561.21.4median 70.9median 18.5median 15.82.46.614.4hearing rangehide median Pink NoiseDell Precision 5530 Xeon E-2176MApple MacBook Pro 15 2018 (2.6 GHz, 560X)
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell Precision 5530 Xeon E-2176M audio analysis

(±) | speaker loudness is average but good (74.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.9% lower than median
(±) | linearity of bass is average (9.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.7% higher than median
(±) | linearity of mids is average (10.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(±) | linearity of highs is average (8.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23% difference to median)
Compared to same class
» 80% of all tested devices in this class were better, 3% similar, 16% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 65% of all tested devices were better, 6% similar, 29% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 15 2018 (2.6 GHz, 560X) audio analysis

(+) | speakers can play relatively loud (85 dB)
Bass 100 - 315 Hz
(+) | good bass - only 4.7% away from median
(±) | linearity of bass is average (8.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.8% away from median
(+) | mids are linear (3.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (6.4% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 1% similar, 96% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 99% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.34 / 4.1 Watt
Ociosodarkmidlight 9.8 / 16.8 / 16.9 Watt
Carga midlight 102.3 / 114.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Dell Precision 5530 Xeon E-2176M
E-2176M, Quadro P2000, SK hynix PC400 512 GB, IGZO, 3840x2160, 15.6"
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6"
Lenovo ThinkPad P52S-20LB001FUS
i7-8650U, Quadro P500, Samsung SSD PM981 MZVLB1T0HALR, IPS, 3840x2160, 15.6"
Dell Precision 3530
E-2176M, Quadro P600, SK hynix PC400 512 GB, IPS, 1920x1080, 15.6"
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 1920x1080, 15.6"
Lenovo ThinkPad P51 20HH0016GE
E3-1505M v6, Quadro M2200, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6"
MSI WS63VR 7RL-023US
i7-7700HQ, Quadro P4000 Max-Q, Toshiba NVMe THNSN5512GPU7, IPS, 3840x2160, 15.6"
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
i7-8850H, Radeon Pro 560X, Apple SSD AP0512, IPS, 2880x1800, 15.4"
Power Consumption
1%
33%
23%
12%
-2%
-10%
31%
Idle Minimum *
9.8
8.9
9%
5.9
40%
5.3
46%
5.9
40%
8.6
12%
13.3
-36%
3.4
65%
Idle Average *
16.8
13.6
19%
11.7
30%
10.7
36%
8.9
47%
15.9
5%
17.2
-2%
11
35%
Idle Maximum *
16.9
14.1
17%
15.6
8%
14.1
17%
12.7
25%
22.1
-31%
17.9
-6%
14.9
12%
Load Average *
102.3
100.3
2%
63
38%
85.4
17%
95.2
7%
84.4
17%
83.7
18%
78.9
23%
Witcher 3 ultra *
76.5
100.2
-31%
48.4
37%
75.5
1%
87.7
-15%
101.9
-33%
Load Maximum *
114.5
126.3
-10%
63.1
45%
91.9
20%
154
-34%
130.6
-14%
114.3
-0%
91.2
20%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
16h 31min
WiFi Websurfing
8h 21min
Carga (máximo brilho)
1h 50min
Dell Precision 5530 Xeon E-2176M
E-2176M, Quadro P2000, 97 Wh
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, 97 Wh
Lenovo ThinkPad P52S-20LB001FUS
i7-8650U, Quadro P500, 80 Wh
Dell Precision 3530
E-2176M, Quadro P600, 92 Wh
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, 90 Wh
Lenovo ThinkPad P51 20HH0016GE
E3-1505M v6, Quadro M2200, 90 Wh
MSI WS63VR 7RL-023US
i7-7700HQ, Quadro P4000 Max-Q, 48 Wh
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
i7-8850H, Radeon Pro 560X, 83 Wh
Battery Runtime
-40%
23%
4%
8%
-11%
-64%
23%
Reader / Idle
991
724
-27%
1031
4%
1128
14%
1096
11%
981
-1%
235
-76%
WiFi v1.3
501
254
-49%
665
33%
559
12%
547
9%
413
-18%
175
-65%
614
23%
Load
110
61
-45%
146
33%
96
-13%
115
5%
95
-14%
54
-51%
Witcher 3 ultra
88

Pro

+ Tamanho portável
+ Excelente qualidade de construção
+ Desing e cor chocante da carcaça
+ Bom desempenho de workstation
+ A CPU é muito mais estável que no Precision 5520
+ A GPU é muito boa
+ Armazenamento veloz
+ O trackpad é preciso
+ Thunderbolt 3
+ Leitor de cartões SD muito veloz
+ Bela tela 4K brilhante
+ Os ventiladores têm uma velocidade regular
+ As temperaturas externas são bem controladas
+ Boa duração da bateria (para a versão de 97 Wh)

Contra

- As teclas podem ser pequenas demais para alguns usuários
- Seleção medíocre de portas
- Apesar da velocidade regular dos ventiladores, eles podem se tornar barulhentos
- A CPU esquenta bastante sob uso intenso
- Desempenho oscilante da CPU durante cargas de trabalho longas
- Um pouco de afogamento sob uso intenso
- Sem opções de RAM ECC da Dell
- Muito caro
In review: Dell Precision 5530. Review unit courtesy of Dell.
In review: Dell Precision 5530. Review unit courtesy of Dell.

Assim é bem melhor. A Dell tentou por três anos aperfeiçoar o workstation fino e leve, e o Precision 5530 é o melhor esforço deles até agora. Esta é a máquina que esperávamos que o Precision 5520 fosse, e é bom ver esse refinamento em um pacote tão pequeno.

No entanto, o Precision 5530 não está livre de falhas. O afogamento térmico ainda é um problema, embora não no grau que vimos no 5520 (ou em outros workstations finos e leves). As cargas de trabalho sintéticas exigentes deixam o dispositivo de joelhos, mas não sem uma luta valente. Ainda assim, considerando que os workstations são normalmente projetados para funcionar com toda sua capacidade por períodos prolongados, o desempenho restrito da CPU sob carga e as altas temperaturas em todo o pacote são uma pequena brecha na armadura do Precision 5530.

Deve-se notar que o Precision 5530 preenche um nicho muito específico. Devido ao seu formato, faltam alguns recursos disponíveis em workstations mais grossos, como a série ThinkPad P ou a linha ZBook da HP. As opções de manutenção são limitadas, a seleção de portas é pequena e a falta de opções de RAM ECC pode ser um problema para alguns. Aqueles que precisam da experiência plena do workstation deveriam dar uma olhada na série Dell Precision 7000 ou as máquinas ThinkPad e ZBook mencionadas anteriormente.

O resto da máquina é tão bom que quase compensa o afogamento da CPU. A tela é absolutamente linda e uma das melhores que já vimos fora da linha MacBook Pro da Apple. A tela é brilhante, nítida e vívida; as imagens se destacam e tudo se vê lindo. O chassi continua sendo um ponto forte. A qualidade de construção é excelente e o design é impressionante (especialmente na cor "Onix Escovado" da nossa unidade). Há poucos portáteis que podem combinar com o Precision 5530 em termos de design e ainda menos workstations que sejam tão bonitos.

O Precision 5530 é, sem dúvida, um dos melhores workstations ultraportáteis. Alguns fabricantes se concentram na potência, ignorando o design e a portabilidade. Outros se concentram em tornar o dispositivo o mais fino possível, renunciando a componentes de nível profissional. O Precision 5530 é o melhor equilíbrio entre essas duas ideias que vimos e, se a Dell conseguir resolver os problemas de limitação térmica, o Precision 5540 do ano que vem pode ser o workstation ultraportátil perfeito. No entanto, a mais de $3.500 USD, o Precision 5530 não é para os fracos de coração (ou bolso). Bom trabalho, Dell.

Dell Precision 5530 Xeon E-2176M - 09/02/2018 v6 (old)
Sam Medley

Acabamento
96 / 98 → 98%
Teclado
89%
Mouse
94%
Conectividade
68 / 81 → 84%
Peso
66 / 10-66 → 99%
Bateria
91%
Pantalha
86%
Desempenho do jogos
88%
Desempenho da aplicação
94%
Workstation
82%
Temperatura
87 / 95 → 92%
Ruído
84 / 90 → 93%
Audio
75%
Camera
56 / 85 → 66%
Médio
83%
89%
Workstation - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Workstation Dell Precision 5530 (Xeon E-2176M, Quadro P2000)
Sam Medley, 2018-09-11 (Update: 2018-09-22)
