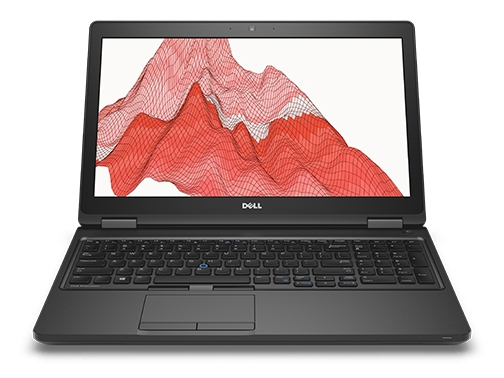

Breve Análise do Workstation Dell Precision 3520 (i7-7820HQ, M620M)

Name: Dell Precision 3520
Brand: Dell

Áspero nas bordas. Com sua série de workstations Precision 3000, a Dell promete muito desempenho por comparativamente pouco dinheiro. Nossa análise da atualização examina o conceito geral e verifica possíveis problemas.

Benjamin Herzig, 👁 Andreas Osthoff, ✓ Sven Kloevekorn (traduzido por Ricardo Soto), Published 06/09/2017 🇺🇸 🇩🇪 ...

Workstation Windows Laptop / Notebook Business

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Dell Precision 3520 (Precision Serie)

Processador

Intel Core i7-7820HQ 4 x 2.9 - 3.9 GHz, Kaby Lake

Placa gráfica

NVIDIA Quadro M620 - 2048 MB VRAM, Análises do: 1019.6 MHz, Memoría: 1252.8 MHz, GDDR5, 369.88, Optimus

Memória

32 GB

, DDR4 2400, 2 slots dos dois ocupados

Pantalha

15.60 polegadas 16:9, 1920 x 1080 pixel 141 PPI, BOE NV15N43, IPS LED, Brilhante: não

placa mãe

Intel CM238

Disco rígido

Toshiba XG4 NVMe (THNSN5512GPUK), 512 GB

, PCIe NVMe SSD, 469 GB livre

Placa de Som

Realtek High Definition Audio

Conexões

3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: 3,5 mm, Card Reader: SD 4.0

Funcionamento em rede

10/100/1000 LAN Card (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Tamanho

altura x largura x profundidade (em mm): 24.6 x 377.1 x 252.6

Bateria

68 Wh Lítio-Ion, 4 células

Sistema Operativo

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: 720p

Características adicionais

Alto falantes: Stereo, Teclado: Chiclet - 6 filas com tclado numérico, Iluminação do Teclado: sim, Ubuntu 16.04 LTS , 36 Meses Garantia

peso

2.34 kg, Suprimento de energia: 850 g

Preço

2500 Euro

Links

Dell página inicial
Dell Seção de notebook

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Right side: 3.5 mm audio combo-jack, SIM card tray, USB 3.0, VGA, Nobel lock slot

Back: Ethernet, HDMI, USB 3.0, power jack

Left side: Thunderbolt 3, USB 3.0, SD card reader

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Precision 3520	210 MB/s
Dell Precision 5520 UHD	157.5 MB/s -25%
Dell Precision 3510	128 MB/s -39%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 5520 UHD	254.5 MB/s +114%
Dell Precision 3510	205 MB/s +72%
Dell Precision 3520	119 MB/s

Networking
iperf3 transmit AX12
Dell Precision 5520 UHD Intel Dual Band Wireless-AC 8265	506 (622^min) MBit/s +34%
Dell Precision 3520 Intel Dual Band Wireless-AC 8265	378 MBit/s
iperf3 receive AX12
Dell Precision 3520 Intel Dual Band Wireless-AC 8265	705 MBit/s
Dell Precision 5520 UHD Intel Dual Band Wireless-AC 8265	622 MBit/s -12%


321 cd/m²	331 cd/m²	340 cd/m²
316 cd/m²	345 cd/m²	336 cd/m²
304 cd/m²	347 cd/m²	317 cd/m²

Distribuição do brilho

tested with X-Rite i1Pro 2

Máximo: 347 cd/m² (Nits) Médio: 328.6 cd/m² Minimum: 22 cd/m²
iluminação: 88 %

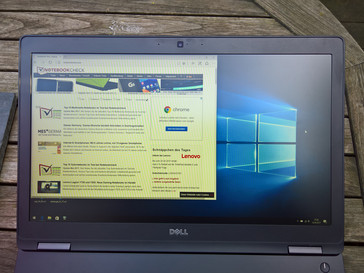

iluminação com acumulador: 346 cd/m²
Contraste: 932:1 (Preto: 0.37 cd/m²)
ΔE Color 5 | 0.5-29.43 Ø4.93
ΔE Greyscale 6.2 | 0.5-98 Ø5.2
94.7% sRGB (Argyll 1.6.3 3D)
61.8% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
94.8% sRGB (Argyll 2.2.0 3D)
72.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35

Download Arquivo ICC (X-Rite i1Pro 2)

	Dell Precision 3520 1920x1080, 15.6"	Dell Precision 3510 LGD04AF, K96D2_156WHU, , 1366x768, 15.6"	Dell Precision 5520 UHD SHP1476, , 3840x2160, 15.6"	Lenovo ThinkPad P50 LP156WF6-SPK1, , 1920x1080, 15.6"	HP ZBook 15 G3 Samsung SDC5344, , 1920x1080, 15.6"	Lenovo ThinkPad T570-20HAS01E00 BOE NV156QUM-N44, , 3840x2160, 15.6"
Display		-38%	-1%	-42%	-2%	-4%
Display P3 Coverage	72.7	41.48 -43%	67.4 -7%	39.13 -46%	66.8 -8%	70 -4%
sRGB Coverage	94.8	62.4 -34%	98.5 4%	58.5 -38%	95.5 1%	91.1 -4%
AdobeRGB 1998 Coverage	69.3	42.86 -38%	68.9 -1%	40.45 -42%	69 0%	66.7 -4%
Response Times		1%	-22%	14%	-32%	19%
Response Time Grey 50% / Grey 80% *	48 ?(24.4, 23.6)	56 ?(27, 29) -17%	59.2 ?(27.6, 31.6) -23%	46 ?(17, 29) 4%	54 ?(24.4, 29.6) -13%	41.6 ?(13.2, 28.4) 13%
Response Time Black / White *	34.4 ?(17.2, 17.2)	28 ?(11, 17) 19%	41.6 ?(26.8, 14.8) -21%	26 ?(9, 17) 24%	35.6 ?(11.6, 24) -3%	15.2 ?(2, 13.2) 56%
PWM Frequency	1064 ?(90)				198 ?(95) -81%	926 ?(90) -13%
Screen		-41%	10%	-6%	-6%	3%
Brightness middle	345	199 -42%	372.4 8%	263 -24%	306 -11%	339 -2%
Brightness	329	201 -39%	368 12%	236 -28%	289 -12%	314 -5%
Brightness Distribution	88	83 -6%	90 2%	78 -11%	85 -3%	89 1%
Black Level *	0.37	0.4 -8%	0.48 -30%	0.34 8%	0.34 8%	0.36 3%
Contrast	932	498 -47%	776 -17%	774 -17%	900 -3%	942 1%
Colorchecker dE 2000 *	5	9 -80%	2.6 48%	2.35 53%	5.1 -2%	4.2 16%
Colorchecker dE 2000 max. *	8	13.3 -66%	5.6 30%		9.9 -24%	7.8 2%
Greyscale dE 2000 *	6.2	9.6 -55%	3.7 40%	3.33 46%	7.4 -19%	5.1 18%
Gamma	2.35 ^94%	2.41 ^91%	2.14 ^103%	2.38 ^92%	2.37 ^93%	2.16 ^102%
CCT	6702 ^97%	10695 ^61%	7096 ^92%	6917 ^94%	7263 ^89%	6569 ^99%
Color Space (Percent of AdobeRGB 1998)	61.8	39.6 -36%	63 2%	37 -40%	63 2%	59.4 -4%
Color Space (Percent of sRGB)	94.7	62.4 -34%	99 5%	58 -39%	95 0%	91 -4%
Total Average (Program / Settings)		-26% / -35%	-4% / 3%	-11% / -11%	-13% / -11%	6% / 4%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

1064 Hz

≤ 90 % brightness setting

The display backlight flickers at 1064 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1064 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

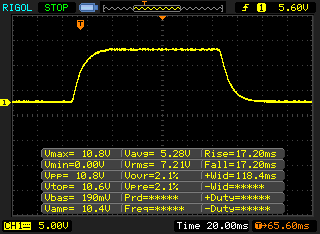

↔ Response Time Black to White
34.4 ms ... rise ↗ and fall ↘ combined	↗ 17.2 ms rise
34.4 ms ... rise ↗ and fall ↘ combined	↘ 17.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 91 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

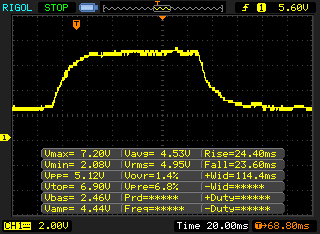

↔ Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined	↗ 24.4 ms rise
48 ms ... rise ↗ and fall ↘ combined	↘ 23.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 80 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Cinebench R15 CPU Multi 64 Bit

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad P51 20HH0016GE Intel Xeon E3-1505M v6	171 Points +7%
Dell Precision 5520 UHD Intel Xeon E3-1505M v6	170 Points +6%
Dell Precision 3520 Intel Core i7-7820HQ	160 Points
HP ZBook 15 G3 Intel Xeon E3-1505M v5	158 Points -1%
Dell Precision 3510 Intel Core i7-6700HQ	144 Points -10%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	117 Points -27%
CPU Multi 64Bit
Lenovo ThinkPad P51 20HH0016GE Intel Xeon E3-1505M v6	792 Points +8%
Dell Precision 3520 Intel Core i7-7820HQ	736 Points
HP ZBook 15 G3 Intel Xeon E3-1505M v5	732 Points -1%
Dell Precision 5520 UHD Intel Xeon E3-1505M v6	654 Points -11%
Dell Precision 3510 Intel Core i7-6700HQ	601 Points -18%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	592 Points -20%

Cinebench R10 Rendering Multiple CPUs 32Bit

22369

Cinebench R10 Shading 32Bit

6851

Cinebench R10 Rendering Single 32Bit

5776

Cinebench R11.5 CPU Multi 64Bit

7.96 Points

Cinebench R11.5 CPU Single 64Bit

1.79 Points

Cinebench R11.5 OpenGL 64Bit

72.4 fps

Cinebench R15 CPU Single 64Bit

160 Points

Cinebench R15 CPU Multi 64Bit

736 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

82.7 fps

Ajuda

... comparado com

PCMark 8
Home Score Accelerated v2
Dell Precision 3510 FirePro W5130M, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4405 Points +5%
Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP	4213 Points +1%
Dell Precision 3520 Quadro M620, i7-7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)	4183 Points
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	3959 Points -5%
Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e	3504 Points -16%
Work Score Accelerated v2
Dell Precision 3510 FirePro W5130M, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5258 Points +1%
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5221 Points +1%
Dell Precision 3520 Quadro M620, i7-7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)	5194 Points
Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP	4677 Points -10%
Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e	4291 Points -17%

PCMark 8 Home Score Accelerated v2		4183 pontos
PCMark 8 Work Score Accelerated v2		5194 pontos
Ajuda

	Dell Precision 3520 Toshiba XG4 NVMe (THNSN5512GPUK)	Dell Precision 5520 UHD Samsung SM961 MZVKW512HMJP m.2 PCI-e	HP ZBook 15 G3 Samsung SM951 MZVPV512HDGL m.2 PCI-e	Lenovo ThinkPad T570-20HAS01E00 Samsung PM961 NVMe MZVLW512HMJP	Lenovo ThinkPad P51 20HH0016GE Samsung PM961 NVMe MZVLW512HMJP
CrystalDiskMark 3.0		87%	86%	43%	79%
Read Seq	1096	2253 106%	1502 37%	1210 10%	1705 56%
Write Seq	476.3	1662 249%	1538 223%	1134 138%	1541 224%
Read 512	829	459.1 -45%	1164 40%	789 -5%	1038 25%
Write 512	456.1	1611 253%	1432 214%	903 98%	1157 154%
Read 4k	35.2	56.1 59%	59.1 68%	58.4 66%	61.3 74%
Write 4k	128	169.4 32%	207.3 62%	144.1 13%	176 38%
Read 4k QD32	552	633 15%	798 45%	559 1%	664 20%
Write 4k QD32	396.1	506 28%	393.8 -1%	474.4 20%	560 41%

CrystalDiskMark 3.0

AS SSD

Toshiba XG4 NVMe (THNSN5512GPUK)

Sequential Read: 1096 MB/s

Sequential Write: 476.3 MB/s

512K Read: 829 MB/s

512K Write: 456.1 MB/s

4K Read: 35.2 MB/s

4K Write: 128 MB/s

4K QD32 Read: 552 MB/s

4K QD32 Write: 396.1 MB/s

LuxMark v2.0 64Bit
Room GPUs-only
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	979 Samples/s +17%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	930 Samples/s +12%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	834 Samples/s
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	791 Samples/s -5%
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	484 Samples/s -42%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	358 Samples/s -57%
Sala GPUs-only
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	1562 Samples/s +8%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	1556 Samples/s +8%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	1440 Samples/s
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	1426 Samples/s -1%
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	1016 Samples/s -29%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	629 Samples/s -56%

SiSoft Sandra 2016
Image Processing
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	228.6 MPix/s +66%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	155.7 MPix/s +13%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	137.5 MPix/s
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	12.28 GB/s +54%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	9.82 GB/s +23%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	8 GB/s
GP Financial Analysis (FP High/Double Precision)
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	21.8 KOPT/s +14%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	21.75 KOPT/s +13%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	19.2 KOPT/s

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	43.31 fps +14%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	43.17 fps +14%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	37.9 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	34.2 fps -10%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	30 fps -21%
1920x1080 Tcvis
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	44.89 fps +11%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	43.93 fps +9%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	40.35 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	36.7 fps -9%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	8 fps -80%
1920x1080 SolidWorks
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	50.1 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	48.13 fps -4%
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	47.5 fps -5%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	46.69 fps -7%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	30 fps -40%
1920x1080 Pro/ENGINEER
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	21.57 fps +7%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	20.19 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	17.54 fps -13%
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	16.4 fps -19%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	4.3 fps -79%
1920x1080 Maya
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	57.7 fps +4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	56.9 fps +3%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	55.4 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	51.9 fps -6%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	21 fps -62%
1920x1080 Lightwave
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	54.8 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	52.3 fps -5%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	52 fps -5%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	48.27 fps -12%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	36 fps -34%
1920x1080 Ensight
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	46.68 fps +43%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	46.43 fps +42%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	32.63 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	27.6 fps -15%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	24 fps -26%
1920x1080 Catia
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	53.5 fps +4%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	53.5 fps +4%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	51.5 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	45.1 fps -12%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	13 fps -75%

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	71.7 fps +30%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	69 fps +25%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	66 fps +19%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	55.3 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	52.4 fps -5%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	32 fps -42%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	35.87 fps +30%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	34.18 fps +24%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	33.95 fps +23%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	27.54 fps
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	26 fps -6%
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	24.8 fps -10%
1900x1060 Showcase (showcase-01)
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	26.2 fps +30%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	23.86 fps +18%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	21.35 fps +6%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	20.17 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	17.2 fps -15%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	14 fps -31%
1900x1060 Medical (medical-01)
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	17.49 fps +69%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	15.03 fps +45%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	14.68 fps +42%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	10.34 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	7.5 fps -27%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	5.9 fps -43%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	38.46 fps +53%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	35.94 fps +43%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	32.07 fps +27%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	25.21 fps
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	22 fps -13%
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	22 fps -13%
1900x1060 Energy (energy-01)
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	3.78 fps +510%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	3.29 fps +431%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	3.2 fps +416%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	0.62 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	0.5 fps -19%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	0.38 fps -39%
1900x1060 Creo (creo-01)
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	46.12 fps +31%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	40.61 fps +15%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	38.95 fps +10%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	35.26 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	31.7 fps -10%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	20 fps -43%
1900x1060 Catia (catia-04)
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	47.08 fps +41%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	46.26 fps +39%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	45.75 fps +37%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	33.32 fps
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	27.6 fps -17%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	23 fps -31%
1900x1060 3ds Max (3dsmax-05)
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	32.47 fps

Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	73.4 fps +30%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	70.8 fps +25%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	56.6 fps
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	36 fps -36%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	20.4 fps +17%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	20.4 fps +17%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	17.4 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	18.3 fps +24%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	14.8 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	13.2 fps -11%

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	5107 Points +34%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	5105 Points +34%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4997 Points +31%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	3801 Points
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	2911 Points -23%

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	30495 Points +31%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	30236 Points +30%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	28254 Points +21%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	23259 Points
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	18491 Points -20%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	14501 Points -38%
1920x1080 Fire Strike Graphics
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	4165 Points +30%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	4126 Points +29%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4091 Points +28%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	3204 Points
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	2430 Points -24%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	2099 Points -34%
1280x720 Ice Storm Standard Graphics
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	163099 Points
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	124103 Points -24%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	76826 Points -53%
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	73348 Points -55%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	63463 Points -61%

Unigine Heaven 4.0
Extreme Preset OpenGL
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	14.6 fps +1%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	14.5 fps
Extreme Preset DX11
Lenovo ThinkPad P70-20ER000BMS NVIDIA Quadro M600M, Intel Core i7-6700HQ	15.9 fps +2%
Dell Precision 3520 NVIDIA Quadro M620, Intel Core i7-7820HQ	15.6 fps

3DMark 06 Standard Score		24751 pontos
3DMark Vantage P Result		17237 pontos
3DMark 11 Performance		4200 pontos
3DMark Ice Storm Standard Score		103599 pontos
3DMark Cloud Gate Standard Score		15759 pontos
3DMark Fire Strike Score		3059 pontos
Ajuda

... comparado com

The Witcher 3 ultra

BioShock Infinite | Rise of the Tomb Raider | Star Wars Battlefront

BioShock Infinite - 1366x768 High Preset
Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e	125 fps +35%
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	115.8 fps +25%
Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP	112.9 fps +22%
Dell Precision 3520 Quadro M620, i7-7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)	92.3 fps
Lenovo ThinkPad P70-20ER000BMS Quadro M600M, 6700HQ, Liteon L8H-256V2G	71.7 fps -22%
Lenovo ThinkPad T570-20HAS01E00 GeForce 940MX, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	64.3 fps -30%

Rise of the Tomb Raider - 1920x1080 High Preset AA:FX AF:4x
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	25.5 fps +25%
Dell Precision 3520 Quadro M620, i7-7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)	20.4 fps
Lenovo ThinkPad P70-20ER000BMS Quadro M600M, 6700HQ, Liteon L8H-256V2G	15.3 fps -25%

Star Wars Battlefront - 1920x1080 Ultra Preset AA:FX
Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP	32.7 fps +34%
Dell Precision 3520 Quadro M620, i7-7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)	24.37 fps
Lenovo ThinkPad P70-20ER000BMS Quadro M600M, 6700HQ, Liteon L8H-256V2G	18.5 fps -24%

	baixo	média	alto	ultra
BioShock Infinite (2013)	176.4	105.6	92.3	35.6
GRID 2 (2013)	192.8	147.4	126	39.1
Company of Heroes 2 (2013)	51.7	44.4	27.1	11.7
Total War: Rome II (2013)	190.5	139.6	114.4	17.8
Dirt Rally (2015)	249	118.5	62	28.2
The Witcher 3 (2015)	53.9	32.83	18.62	10
Star Wars Battlefront (2015)	110.6	64.3	28.92	24.37
Rise of the Tomb Raider (2016)	62.2	36.6	20.4
Doom (2016)	60.4	46.3	25.2	19.5
Warhammer 40.000: Dawn of War III (2017)	70.3	18.7

Barulho

Ocioso		29.6 / 29.6 / 31.2 dB
Carga		43 / 46.9 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Audix TM1, Arta (15 cm de distância) environment noise: 29.6 dB(A)

Carga Máxima

Inatividade

Witcher 3


43.2 °C	45.8 °C	42.8 °C
40.7 °C	39.6 °C	33.7 °C
34.1 °C	30 °C	28.3 °C

Máximo: 45.8 °C
Médio: 37.6 °C


35.2 °C	48.6 °C	57.1 °C
31.2 °C	41.2 °C	46.8 °C
29.1 °C	26.9 °C	28.1 °C

Máximo: 57.1 °C
Médio: 38.2 °C

alimentação elétrica 43.3 °C | Temperatura do quarto 19.6 °C | Voltcraft IR-900

Carga Máxima

Inatividade

Witcher 3


24.5 °C	24.4 °C	23.8 °C
24.6 °C	24.1 °C	23.7 °C
22.5 °C	22.9 °C	22.8 °C

Máximo: 24.6 °C
Médio: 23.7 °C


24.7 °C	25.2 °C	25.2 °C
23.8 °C	24.4 °C	25.5 °C
22.4 °C	22.5 °C	22.6 °C

Máximo: 25.5 °C
Médio: 24 °C

alimentação elétrica 23 °C | Temperatura do quarto 19.6 °C | Voltcraft IR-900

Carga Máxima

Inatividade

Witcher 3


37.9 °C	38.7 °C	29.3 °C
35.9 °C	35.6 °C	28.8 °C
28.9 °C	27 °C	25.6 °C

Máximo: 38.7 °C
Médio: 32 °C


30.3 °C	40 °C	40.4 °C
28.2 °C	37.8 °C	39 °C
28.1 °C	26.1 °C	25.8 °C

Máximo: 40.4 °C
Médio: 32.9 °C

alimentação elétrica 34.6 °C | Temperatura do quarto 19.5 °C | Voltcraft IR-900

(±) The average temperature for the upper side under maximal load is 37.6 °C / 100 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 45.8 °C / 114 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 57.1 °C / 135 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 32 °C / 90 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32 °C / 90 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.1 °C / 93.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-6.3 °C / -11.4 F).

Dell Precision 3520 audio analysis

(+) | speakers can play relatively loud (85.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.2% lower than median
(±) | linearity of bass is average (7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.2% higher than median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(+) | highs are linear (3.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.2% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 8% similar, 63% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 19% of all tested devices were better, 4% similar, 77% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia

desligado	0.4 / 0.68 Watt
Ocioso	5.8 / 10.7 / 13.3 Watt
Carga	78.2 / 116 Watt


Key: min: , med: , max: Metrahit Energy

	Dell Precision 3520 i7-7820HQ, Quadro M620, Toshiba XG4 NVMe (THNSN5512GPUK), IPS LED, 1920x1080, 15.6"	Dell Precision 3510 6700HQ, FirePro W5130M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, TN LED, 1366x768, 15.6"	Dell Precision 5520 UHD E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6"	Lenovo ThinkPad P50 6820HQ, Quadro M2000M, Samsung SSD PM871 MZNLN256HCHP, IPS, 1920x1080, 15.6"	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e, UWVA-IPS, 1920x1080, 15.6"
Power Consumption		28%	-32%	10%	-6%
Idle Minimum *	5.8	4.2 28%	8.9 -53%	5.6 3%	5.7 2%
Idle Average *	10.7	6.5 39%	13.6 -27%	8.6 20%	12.2 -14%
Idle Maximum *	13.3	7.1 47%	14.1 -6%	9.3 30%	12.6 5%
Load Average *	78.2	74.6 5%	100.3 -28%	89.5 -14%	83.1 -6%
Witcher 3 ultra *	58.8		100.2 -70%
Load Maximum *	116	92.2 21%	126.3 -9%	105 9%	138.2 -19%

* ... smaller is better

Tempo de Execução da Bateria

Ocioso (sem WLAN, min brilho)		16h 36min
WiFi Websurfing (Edge)		7h 35min
Big Buck Bunny H.264 1080p		8h 03min
Carga (máximo brilho)		1h 19min

	Dell Precision 3520 i7-7820HQ, Quadro M620, 68 Wh	Dell Precision 3510 6700HQ, FirePro W5130M, 84 Wh	Dell Precision 5520 UHD E3-1505M v6, Quadro M1200, 97 Wh	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M, 90 Wh	Lenovo ThinkPad T570-20HAS01E00 i7-7500U, GeForce 940MX, 56 Wh	Lenovo ThinkPad P50 6820HQ, Quadro M2000M, 90 Wh
Battery Runtime		28%	-31%	0%	22%	12%
Reader / Idle	996	1168 17%	724 -27%	822 -17%	799 -20%	860 -14%
H.264	483	605 25%		449 -7%	484 0%	533 10%
WiFi v1.3	455	591 30%	254 -44%	386 -15%	414 -9%	498 9%
Load	79	111 41%	61 -23%	110 39%	171 116%	113 43%

Pro

+ Bom complemento de portos físicos

+ Muito boa tela IPS Full HD

+ Chassi projetado para uso diário

+ Bons dispositivos de entrada

+ As durações da bateria são boas, mesmo com a pequena bateria

+ Bom desempenho

Contra

- A CPU chega a um máximo de 35 watts de TDP

- Desempenho não consistente no teste de estresse

- A ventoinha funciona de forma silenciosa e é muito barulhenta

- Ruído da bobina

In Review: Dell Precision 3520, courtesy of cyberport.de

O Precision 3520 definitivamente tem seus pontos positivos. Primeiro, está a tela, que é vívida e brilhante e agradável para trabalhar. A duração da bateria também é muito boa para um workstation e deve ser excelente com uma opção de bateria maior de 92 Wh. O número de portas físicas é suficiente. O chassi e os dispositivos de entrada são suficientemente bons para uma máquina empresarial, mas também não tão perfeitos.

Infelizmente, o Precision vacila quando se trata dos critérios mais importantes para estações de trabalho: desempenho e nível de ruído. A restrição para um TDP de 35 W pode já levantar algumas sobrancelhas - a Dell provavelmente teria que investir em um sistema de resfriamento mais sofisticado, o que, claro, não é tão realista, dado que este é um workstation econômico. Temos que perguntar se uma CPU nominalmente mais fraca não seria a melhor opção. Nosso teste de estresse revelou que o desempenho pode flutuar enormemente sob carga, provavelmente porque o firmware poderia ser melhorado. Infelizmente, isso também é verdade para o controle da ventoinha, porque a ventoinha gira frequentemente gira mesmo quando não há carga de trabalho. Após os benchmarks, demora um longo tempo para que a ventoinha pare de girar. Além disso, o 3520 sofre com o ruído de bobina.

O Precision 3520 é um workstation sólido - mas poderia ser ainda melhor.

Em resumo, podemos dizer que o Precision 3520 definitivamente tem potencial. O notebook é bastante poderoso e apresenta uma relação preço-desempenho comparativamente boa. Depois de tudo: os workstations podem ser bastante caros. No entanto, a Dell precisa voltar para a mesa do design e melhorar o controle da ventoinha e otimizar o desempenho. Assim que isso acontecer, o 3520 definitivamente será digno de uma recomendação.

Dell Precision 3520 - 2017-05-25 05/25/2017 v6 ^(old)
Benjamin Herzig

Acabamento

84 / 98 → 85%

Teclado

88%

Mouse

90%

Conectividade

64 / 81 → 79%

Peso

61 / 10-66 → 91%

Bateria

90%

Pantalha

87%

Desempenho do jogos

75%

Desempenho da aplicação

93%

Workstation

63%

Temperatura

88 / 95 → 93%

Ruído

78 / 90 → 87%

Audio

56%

Camera

44 / 85 → 52%

Médio

76%

82%

Workstation - Médio equilibrado

Price comparison

Editor of the original article: Bernie Pechlaner - Senior Tech Writer - 276 articles published on Notebookcheck since 2012

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Workstation Dell Precision 3520 (i7-7820HQ, M620M)

Benjamin Herzig, 2017-06- 9 (Update: 2017-06-14)

Screen Flickering / PWM (Pulse-Width Modulation)

Display Response Times

Dell Precision 3520 audio analysis

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

Pro

Contra

More articles related to this device

Price comparison
