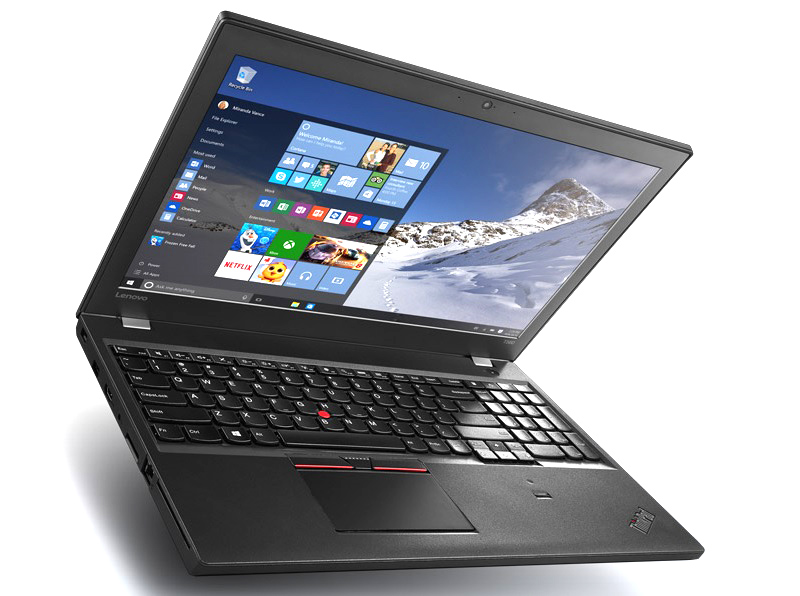

Breve Análise do Ultrabook Lenovo ThinkPad T560 (Core i5, SSHD)

Name: Lenovo ThinkPad T560-20FH001FGE
Brand: Lenovo

Mais veloz, mais alto, mais potente? O novo ThinkPad T560 da Lenovo convence com uma tela IPS com amplo ângulo de visão e promete mais desempenho e durações mais longas da bateria graças à plataforma Skylake. No entanto, as outras modificações do aparelho de 15-polegadas são muito discretas – será que ainda é suficiente para a vitória nesta categoria?

Till Schönborn (traduzido por Ricardo Soto), Published 03/06/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Ultrabook Windows

Test device courtesy of notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T560-20FH001FGE (ThinkPad T560 Serie)

Processador

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

Placa gráfica

Intel HD Graphics 520, Análises do: 1000 MHz, Memoría: 800 MHz, 20.19.15.4352

Memória

4 GB

, 1x 4 GB DDR3L-1600, 1 de 2 slots ocupados

Pantalha

15.60 polegadas 16:9, 1920 x 1080 pixel, LTN156HL09901, Painel IPS, Iluminação LED, Brilhante: não

placa mãe

Intel Skylake-U Premium PCH

Disco rígido

Seagate ST500LM000 Solid State Hybrid Drive, 500 GB

, 5400 rpm, 8 GB SSD-Cache

Placa de Som

Intel Skylake-U/Y PCH - High Definition Audio

Conexões

3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: Conector para fones de 3,5 mm, Card Reader: SD, 1 eSata, 1 Leitor de Impressões Digitais

Funcionamento em rede

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Tamanho

altura x largura x profundidade (em mm): 22.4 x 380 x 252

Bateria

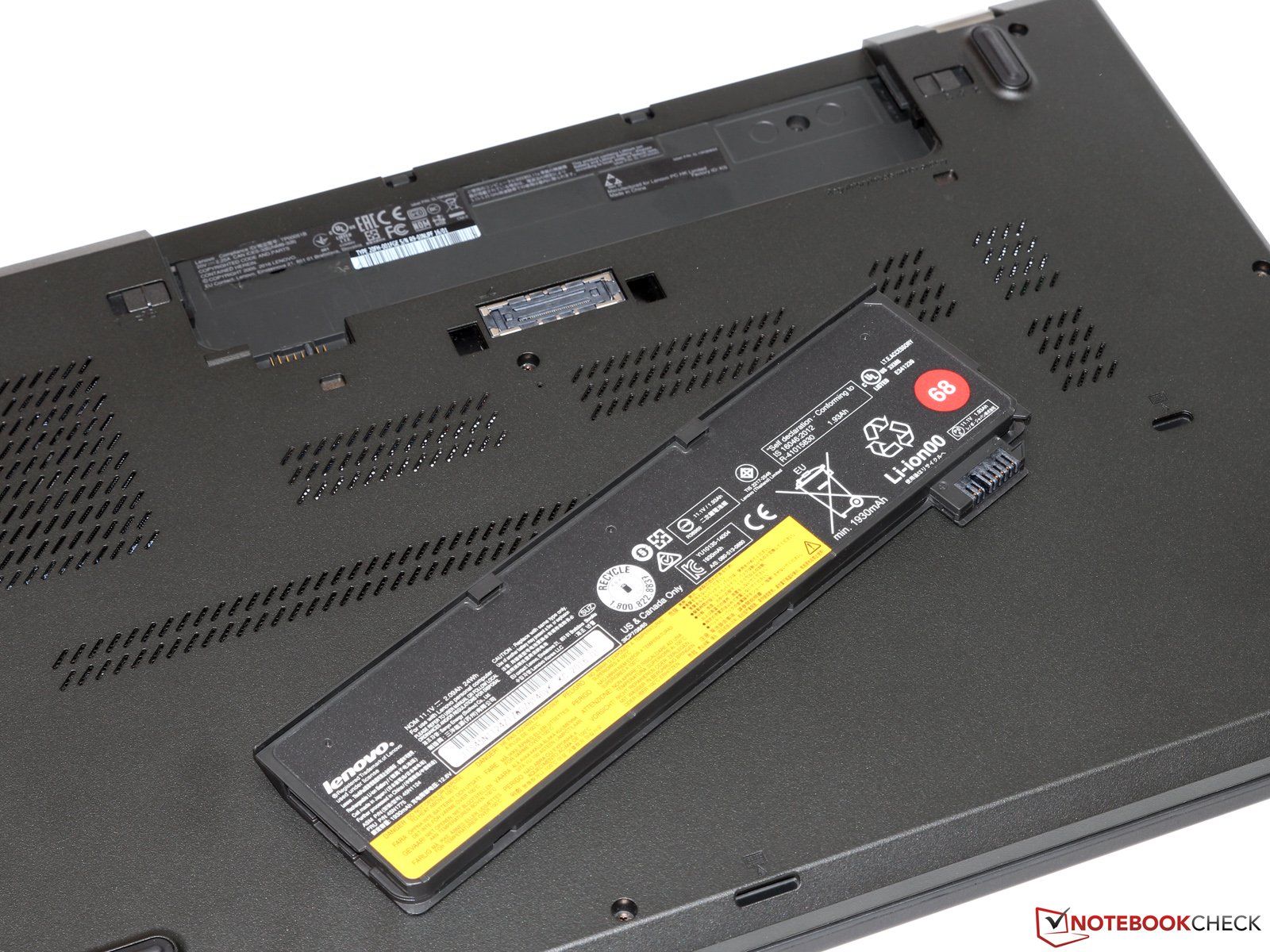

67 Wh Lítio-Ion, 44 Wh interna + 23 Wh externa

Sistema Operativo

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: 720p

Características adicionais

Alto falantes: Stereo, Teclado: Chiclet, Iluminação do Teclado: sim, Adaptador de força de 45 Watt, 36 Meses Garantia

peso

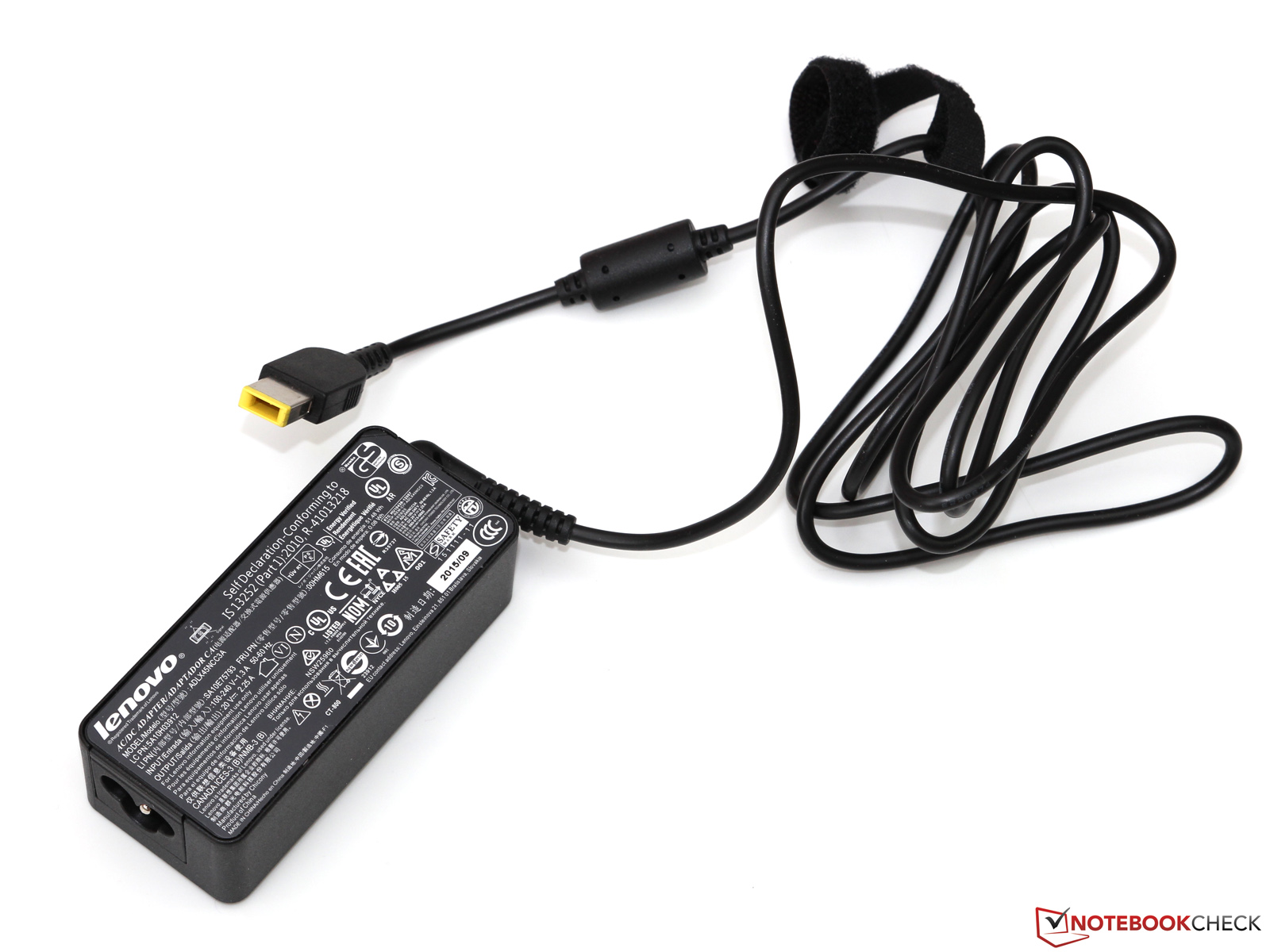

2.256 kg, Suprimento de energia: 185 g

Preço

1400 Euro

Links

Lenovo página inicial
Lenovo Seção de notebook

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

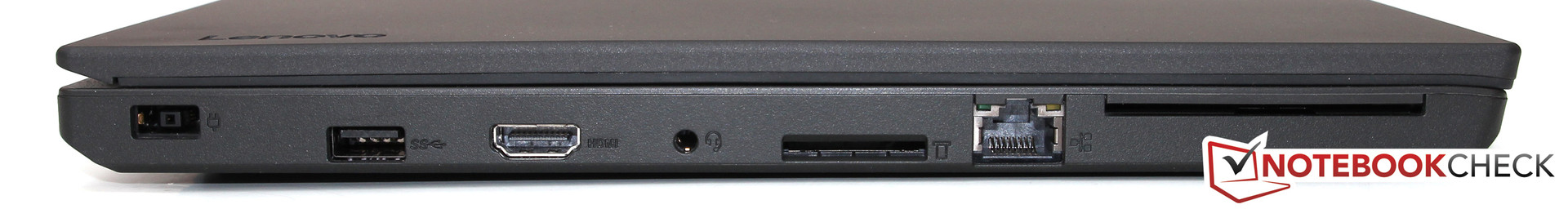

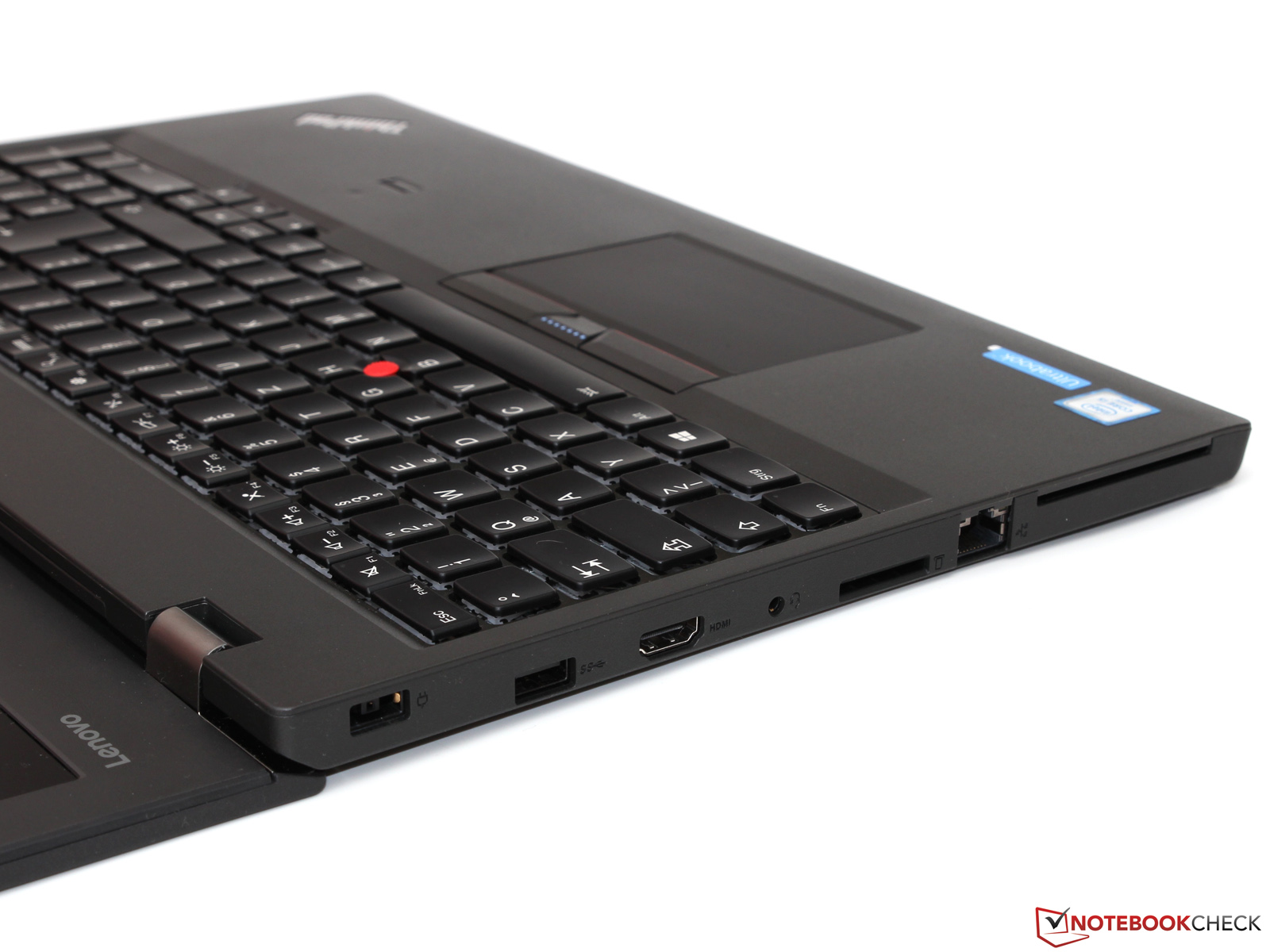

left side: power, USB 3.0, HDMI, headset port, card reader, Gbit-LAN, SmartCard reader

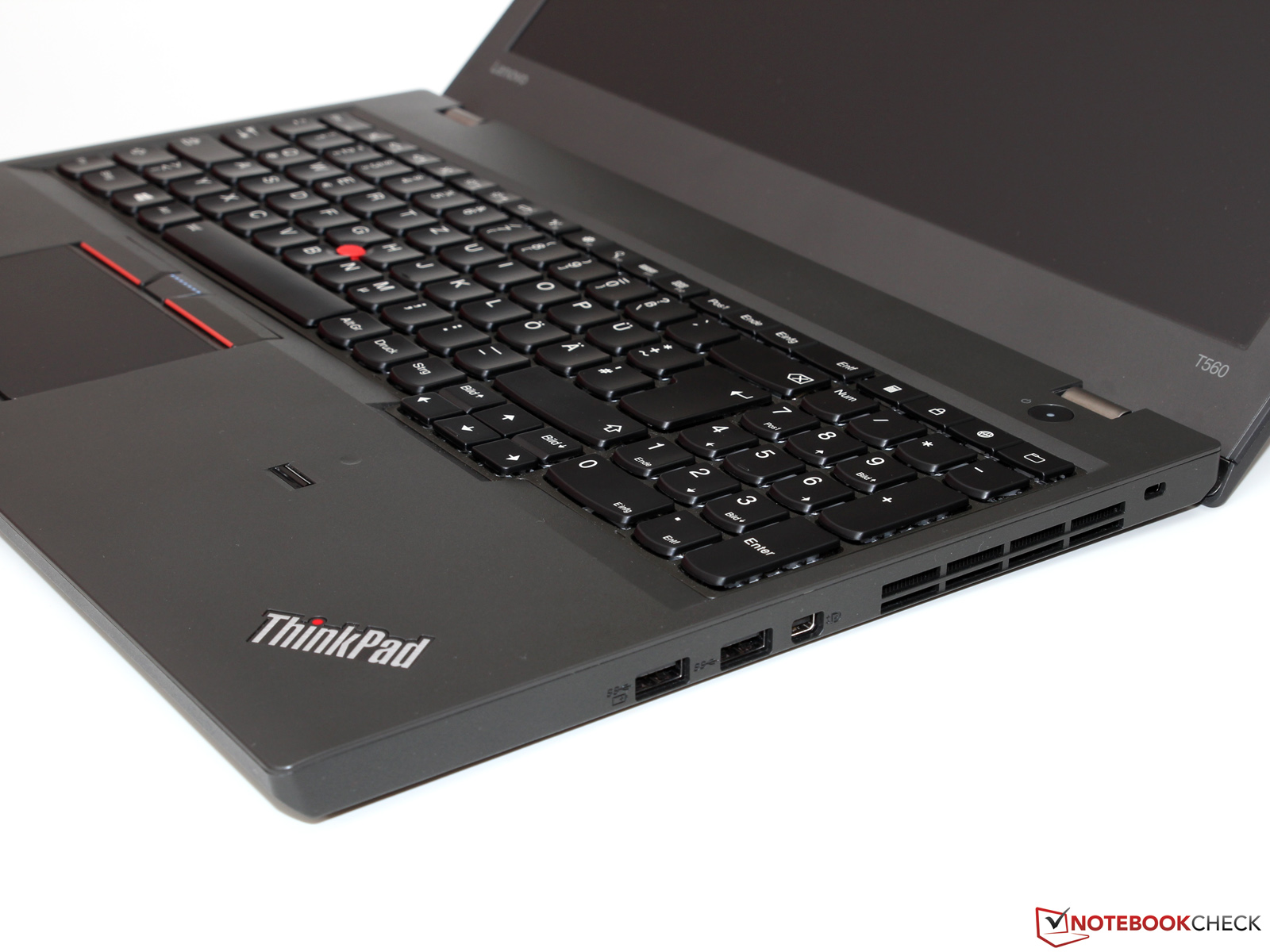

right side: 2x USB 3.0, Mini-DisplayPort, fan exhaust, Kensington Lock

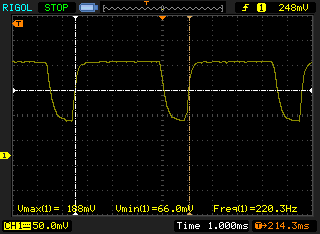

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

220 Hz

≤ 50 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.


224 cd/m²	218 cd/m²	207 cd/m²
224 cd/m²	243 cd/m²	212 cd/m²
229 cd/m²	214 cd/m²	205 cd/m²

Distribuição do brilho

LTN156HL09901 tested with X-Rite i1Pro 2

Máximo: 243 cd/m² (Nits) Médio: 219.6 cd/m² Minimum: 3 cd/m²
iluminação: 84 %
iluminação com acumulador: 241 cd/m²
Contraste: 900:1 (Preto: 0.27 cd/m²)
ΔE Color 7.49 | 0.5-29.43 Ø4.93
ΔE Greyscale 7.5 | 0.5-98 Ø5.2
60.9% sRGB (Argyll 1.6.3 3D)
38.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.36% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.3% sRGB (Argyll 2.2.0 3D)
40.96% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35

Download Arquivo ICC (X-Rite i1Pro 2)

	Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	Lenovo ThinkPad T540p-20BE005YGE GeForce GT 730M, 4700MQ, Samsung SSD 840 250GB MZ7TD256HAFV	Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
Screen		-32%	3%	9%
Brightness middle	243	297 22%	333 37%	263 8%
Brightness	220	287 30%	310 41%	236 7%
Brightness Distribution	84	83 -1%	82 -2%	78 -7%
Black Level *	0.27	0.9 -233%	0.62 -130%	0.34 -26%
Contrast	900	330 -63%	537 -40%	774 -14%
Colorchecker dE 2000 *	7.49	8.74 -17%	4.67 38%	2.35 69%
Colorchecker dE 2000 max. *	15.13
Greyscale dE 2000 *	7.5	9.31 -24%	5.66 25%	3.33 56%
Gamma	2.35 ^94%	2.42 ^91%	2.46 ^89%	2.38 ^92%
CCT	6115 ^106%	10649 ^61%	5966 ^109%	6917 ^94%
Color Space (Percent of AdobeRGB 1998)	38.9	50.8 31%	61 57%	37 -5%
Color Space (Percent of sRGB)	60.9			58 -5%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

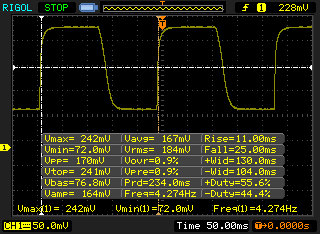

↔ Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
36 ms ... rise ↗ and fall ↘ combined	↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

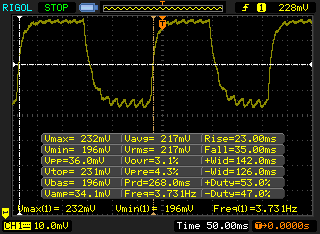

↔ Response Time 50% Grey to 80% Grey
58 ms ... rise ↗ and fall ↘ combined	↗ 23 ms rise
58 ms ... rise ↗ and fall ↘ combined	↘ 35 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 94 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T550 Intel Core i7-5600U	131 Points +16%
Microsoft Surface Book Core i7 Intel Core i7-6600U	129 Points +14%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	124 Points +10%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points +9%
HP ProBook 440 G3 PL Intel Core i5-6200U	116 Points +3%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	113 Points
Fujitsu LifeBook A555G PL Intel Core i5-5200U	107 Points -5%
CPU Multi 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	335 Points +16%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	319 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	290 Points 0%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	290 Points
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -3%
Lenovo ThinkPad T550 Intel Core i7-5600U	279 Points -4%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	261 Points -10%

Cinebench R11.5
CPU Single 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	1.49 Points +16%
Lenovo ThinkPad T550 Intel Core i7-5600U	1.48 Points +15%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	1.45 Points +12%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	1.33 Points +3%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	1.29 Points
Fujitsu LifeBook A555G PL Intel Core i5-5200U	1.26 Points -2%
CPU Multi 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	3.73 Points +15%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	3.55 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	3.25 Points +1%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	3.23 Points
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -3%
Lenovo ThinkPad T550 Intel Core i7-5600U	3.07 Points -5%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	2.84 Points -12%

X264 HD Benchmark 4.0
Pass 1
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	107.6 fps +10%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	98 fps
HP ProBook 440 G3 PL Intel Core i5-6200U	95 fps -3%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -9%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	84 fps -14%
Pass 2
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	20.95 fps +10%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	19.04 fps
HP ProBook 440 G3 PL Intel Core i5-6200U	19 fps 0%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -9%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	16 fps -16%

Cinebench R10 Shading 32Bit

6773

Cinebench R10 Rendering Multiple CPUs 32Bit

9862

Cinebench R10 Rendering Single 32Bit

4304

Cinebench R10 Shading 64Bit

5639 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

12462 Points

Cinebench R10 Rendering Single CPUs 64Bit

5267 Points

Cinebench R11.5 CPU Single 64Bit

1.29 Points

Cinebench R11.5 OpenGL 64Bit

23.13 fps

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

31.33 fps

Cinebench R15 CPU Single 64Bit

113 Points

Cinebench R15 CPU Multi 64Bit

290 Points

Ajuda

... comparado com

	Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	HP EliteBook 850 G2 J7B56EA HD Graphics 5500, 5300U, Samsung SSD 850 EVO 250GB
CrystalDiskMark 3.0		-7%	11072%	15072%
Read Seq	108.6	122.8 13%	528 386%	523 382%
Write Seq	113.2	123.5 9%	241.1 113%	462.9 309%
Read 512	33.82	33.14 -2%	454.6 1244%	472.1 1296%
Write 512	60.8	56.5 -7%	239.8 294%	380.7 526%
Read 4k	0.36	0.341 -5%	36.61 10069%	50.9 14039%
Write 4k	5.223	0.721 -86%	124 2274%	129.6 2381%
Read 4k QD32	0.807	0.897 11%	296.1 36591%	389.9 48215%
Write 4k QD32	0.64	0.727 14%	241.3 37603%	342.6 53431%

HD Tune

CrystalDiskMark 3.0

Seagate ST500LM000 Solid State Hybrid Drive

Velocidade de Transferência Mínima: 15.5 MB/s

Velocidade de Transferência Máxima: 105 MB/s

Velocidade de Transferência Média: 85.5 MB/s

Tempo de Acesso: 18.5 ms

Índice de Explosão: 57.2 MB/s

Uso da CPU: 5.2 %

PCMark 7 | PCMark 8

PCMark 7 - Score
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4905 Points +36%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4518 Points +25%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	3609 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3075 Points -15%

PCMark 8
Home Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3726 Points +27%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	2988 Points +2%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	2928 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2910 Points -1%
Creative Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3826 Points +8%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	3546 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3460 Points -2%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3261 Points -8%
Work Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4491 Points +10%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4193 Points +2%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	4091 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3901 Points -5%

PCMark 7 Score		3609 pontos
PCMark 8 Home Score Accelerated v2		2928 pontos
PCMark 8 Creative Score Accelerated v2		3546 pontos
PCMark 8 Work Score Accelerated v2		4091 pontos
Ajuda

... comparado com

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B	1852 Points +52%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1793 Points +47%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP	1527 Points +25%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	1477 Points +21%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	1222 Points 0%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	1219 Points
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	992 Points -19%

3DMark - 1920x1080 Fire Strike Graphics
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1157 Points +96%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B	1153 Points +95%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	861 Points +46%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP	782 Points +32%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	620 Points +5%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	591 Points

3DMark 06 Standard Score		6358 pontos
3DMark Vantage P Result		4381 pontos
3DMark 11 Performance		1219 pontos
3DMark Ice Storm Standard Score		35672 pontos
3DMark Cloud Gate Standard Score		4304 pontos
3DMark Fire Strike Score		552 pontos
Ajuda

... comparado com

	baixo	média	alto
Sims 4 (2014)	140.4	33	15.1
Dirt Rally (2015)	65.3	18.5	12.5
FIFA 16 (2015)	25

Barulho

Ocioso		30.8 / 30.8 / 30.8 dB
HDD		31 dB
Carga		33.1 / 34.4 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: ECM8000 + Voltcraft SL-451 (15 cm de distância) environment noise: 29 dB(A)

Carga Máxima

Inatividade


26.4 °C	30 °C	33.3 °C
27 °C	31.2 °C	32.3 °C
25.7 °C	27.8 °C	29.5 °C

Máximo: 33.3 °C
Médio: 29.2 °C


33 °C	29 °C	28.3 °C
40.1 °C	39 °C	28.4 °C
30.9 °C	28.9 °C	26.1 °C

Máximo: 40.1 °C
Médio: 31.5 °C

alimentação elétrica 38 °C | Temperatura do quarto 19.4 °C | Fluke 62 Max

(+) The average temperature for the upper side under maximal load is 29.2 °C / 85 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 33.3 °C / 92 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.1 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.5 °C / 85.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.8 °C / -3.2 F).

Consumo de energia

desligado	0.2 / 0.36 Watt
Ocioso	4.3 / 7.3 / 7.8 Watt
Carga	26.3 / 32 Watt


Key: min: , med: , max: Metrahit Energy

In review: Lenovo ThinkPad T560. Test model courtesy of Notebooksandmore.

Atualização chata ou desenvolvimento sensato? Devemos admitir: Exceto pela nova plataforma Skylake, as melhorias do T560 são limitadas aos detalhes, mas isto não deve ser um problema considerando o excelente desempenho do predecessor.

Os aspectos positivos do ThinkPad mais uma vez incluem um chassi sólido, ótimos dispositivos de entrada – o ótimo teclado em particular – bem como as extremamente baixas emissões de ruído e calor. Este último é parcialmente um resultado da decisão da Lenovo de equipar exclusivamente o grande chassi de 15-polegadas com processadores ULV frugais. Baseado na atual arquitetura Skylake da Intel, inclusive o Core i5-6200U da configuração de análise já é mais que suficientemente poderosa e também pode lidar com software complexo, bem como multitarefas. Todo o sistema é impressionantemente frugal ao mesmo tempo e permite durações de bateria práticas de cerca de 11 horas.

A Lenovo infelizmente não utilizou o novo modelo da série T5x0 para implementar as modernas portas USB 3.1 ou Tipo-C ou inclusive Thunderbolt 3. A nova tela IPS nem sempre é melhor que o anterior painel TN: O contraste e a estabilidade dos ângulos de visão aumentaram de forma significante, mas as cores e a luminância máxima do T560 são ainda piores que antes. Pelo menos o painel 3K opcional deve resolver estes problemas, mas é bastante caro.

Em resumo, a Lenovo mais uma vez criou um excelente pacote geral com o ThinkPad T560, que é a referência para os concorrentes como o HP EliteBook 850 G3.

Mesmo assim, você realmente deve pensar bem a compra, considerando o preço alto – devido às pequenas diferenças, o recém-chegado T550 poderia ser uma alternativa interessante para os usuários conscientes dos preços.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Pro

+ Design robusto, funcional do chassi

+ Dobradiças da tela flexíveis

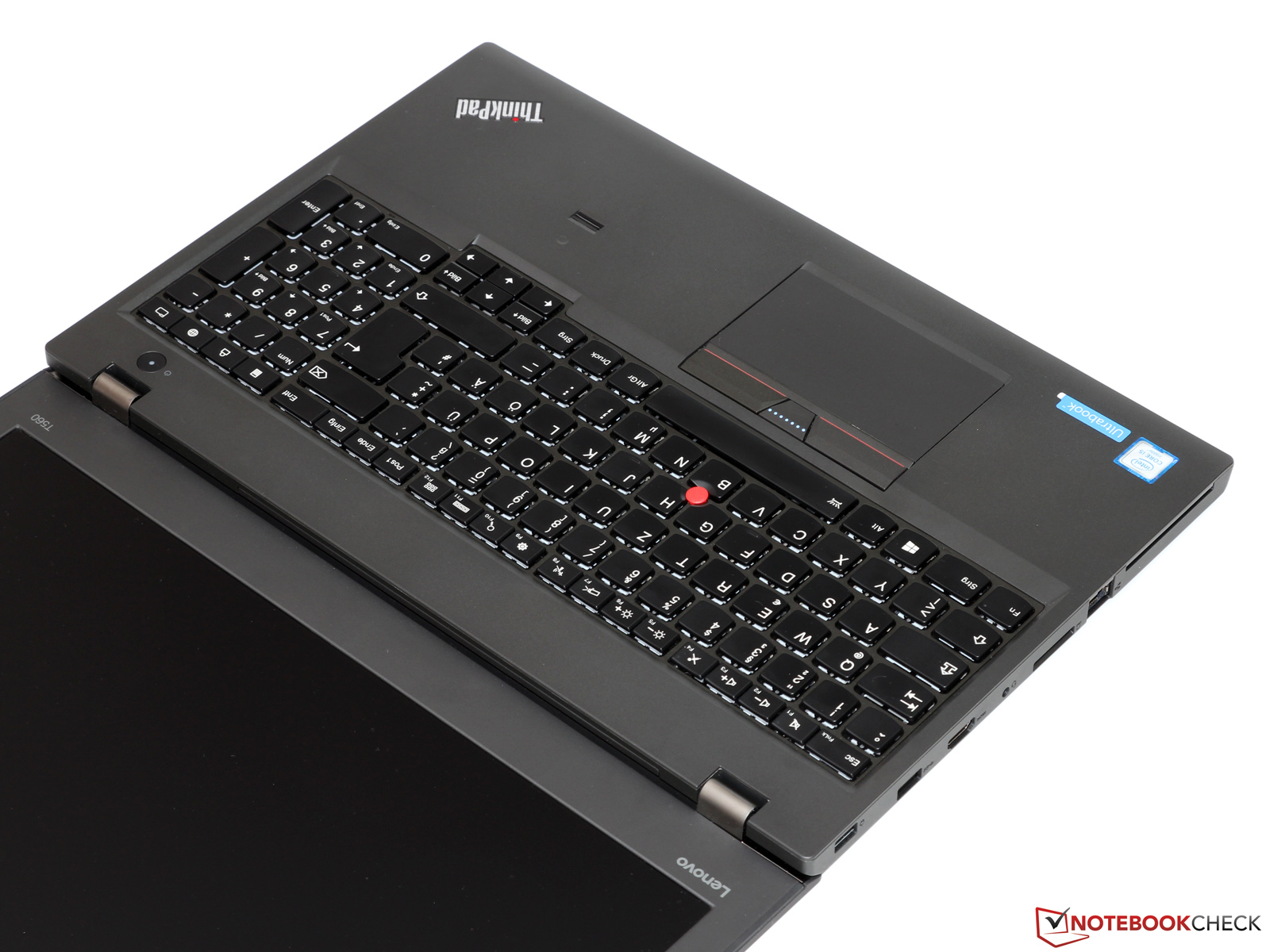

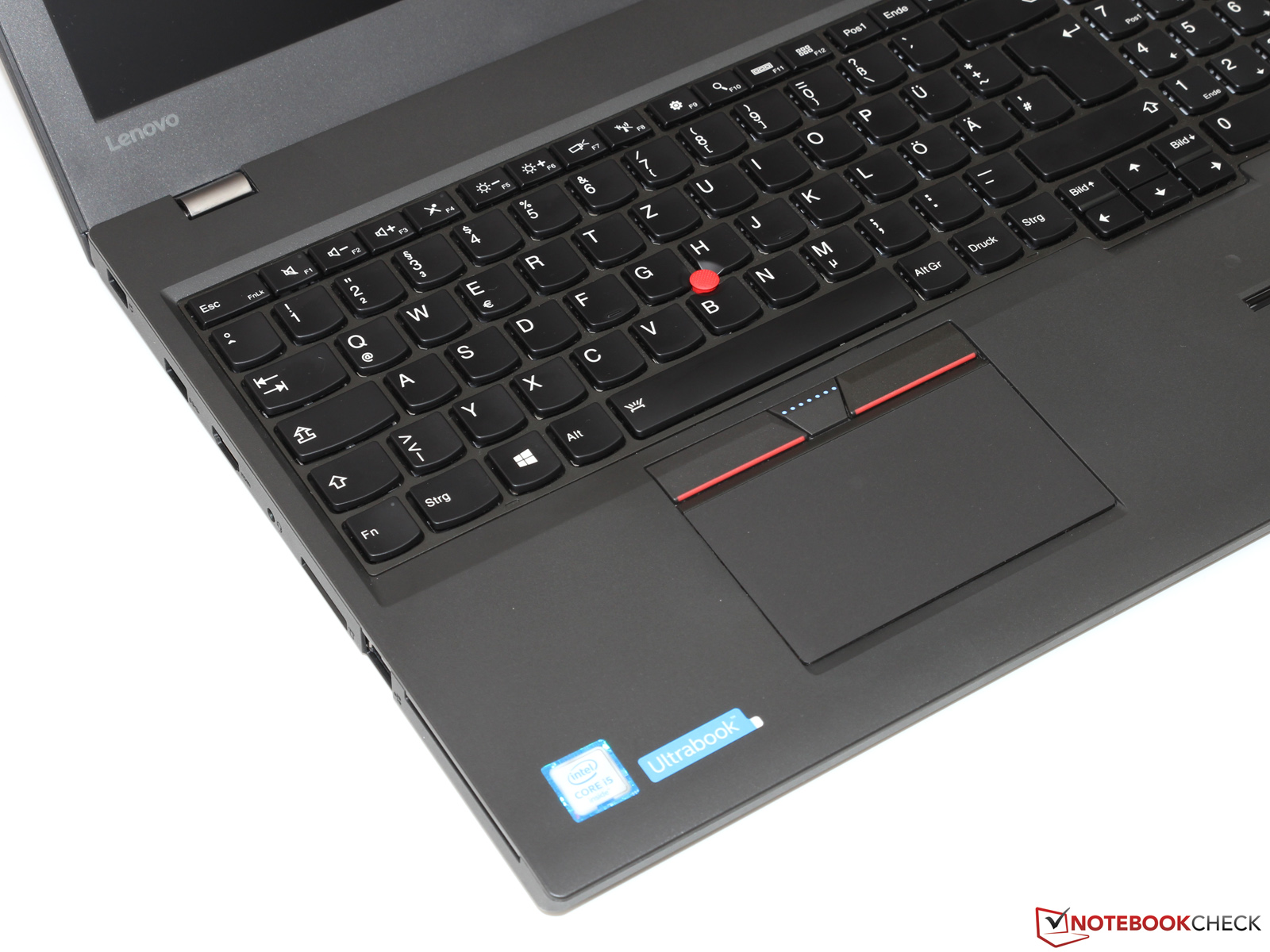

+ Excelente teclado

+ WLAN veloz, LTE opcional

+ Painel IPS com amplos ângulos de visão

+ Bom desempenho de aplicativos

+ Baixas emissões de ruído e calor

+ Diversos recursos de segurança

+ Impressionantes durações da bateria

+ 3 anos de garantia

Contra

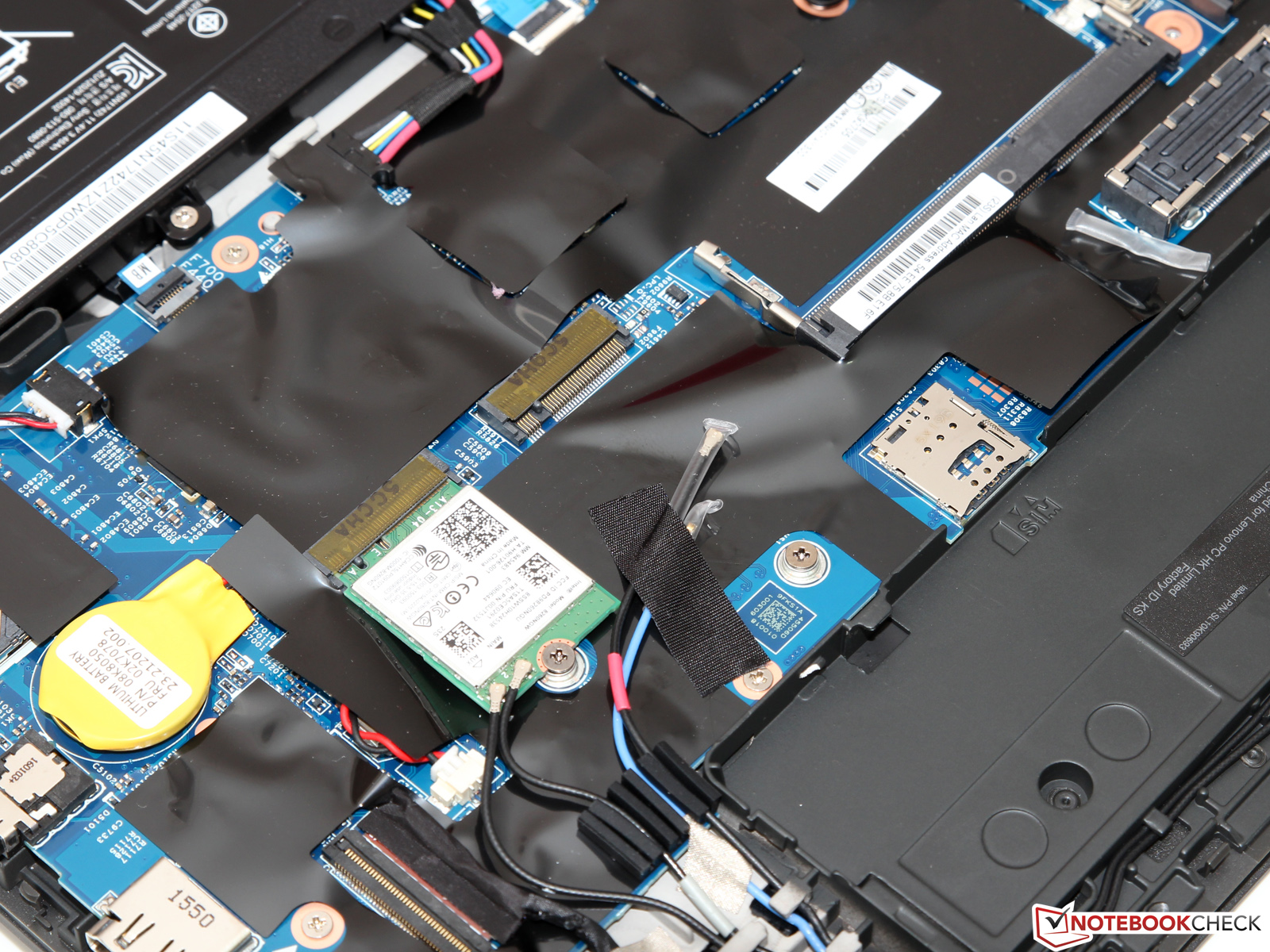

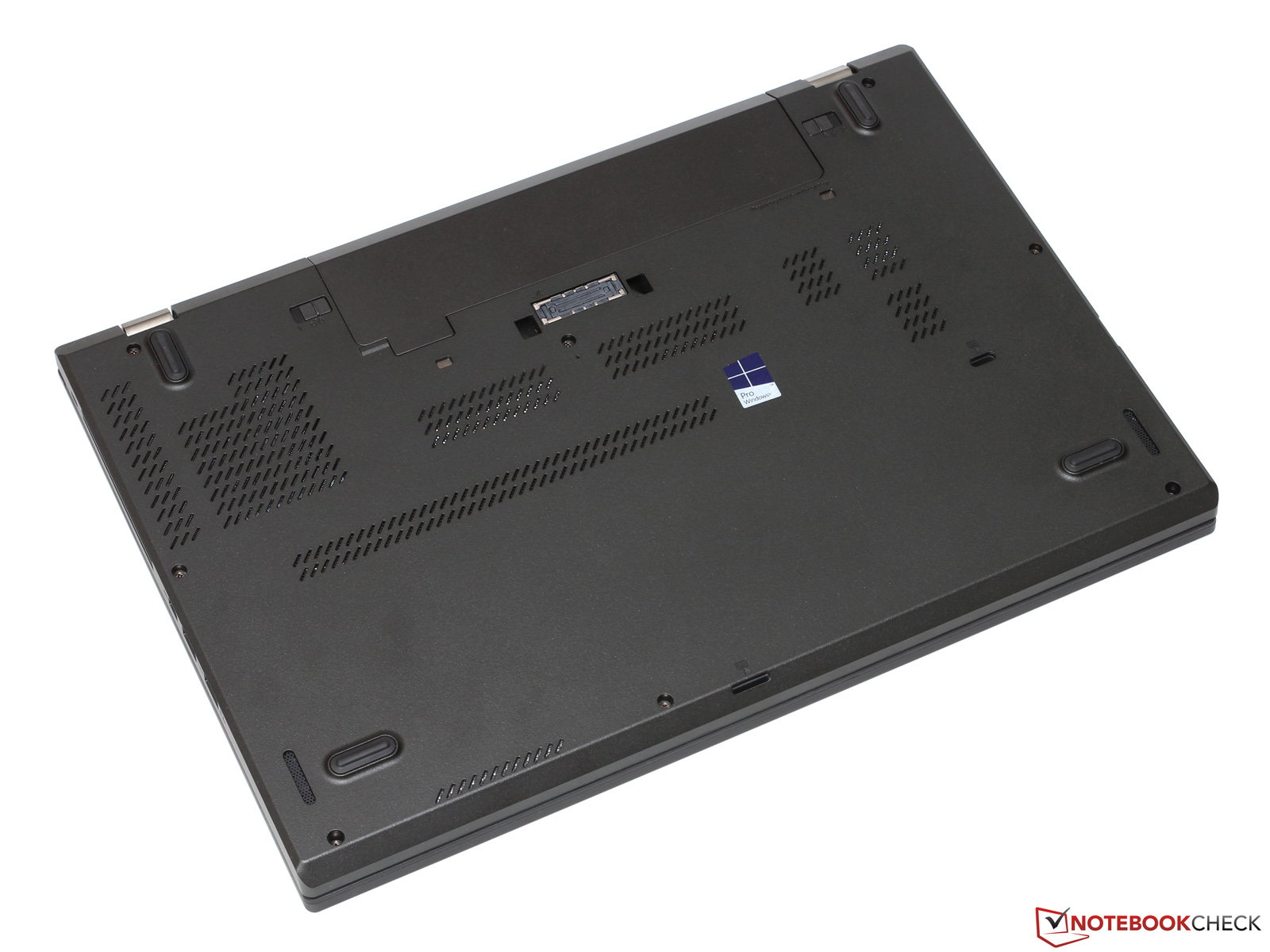

- Sem escotilha de manutenção

- Sem USB 3.1 ou Tipo-C

- Iluminação bastante baixa

- Preço alto

Lenovo ThinkPad T560-20FH001FGE - 2016-02-23 02/23/2016 v5 ^(old)
Till Schönborn

Acabamento

90 / 98 → 92%

Teclado

94%

Mouse

87%

Conectividade

66 / 80 → 83%

Peso

61 / 20-67 → 87%

Bateria

93%

Pantalha

82%

Desempenho do jogos

56 / 68 → 82%

Desempenho da aplicação

71 / 92 → 77%

Temperatura

93%

Ruído

93%

Audio

69%

Camera

53 / 85 → 62%

Médio

78%

88%

Office - Médio equilibrado

Read about the changes in the new rating version 5

Price comparison

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Ultrabook Lenovo ThinkPad T560 (Core i5, SSHD)

Till Schönborn, 2016-03- 6 (Update: 2016-03-15)
