Breve Análise do Subportátil Lenovo IdeaPad 710S-13ISK (Core i7)

Companheiro nobre. A Lenovo fez um bom trabalho com o novo subportátil de alumínio, em termos de design. Uma olhada rápida nas especificações sugere bom desempenho, mas também revela a escassa variedade de portas. E o que há sobre os dispositivos de entrada, tela, emissões e as durações da bateria?
Lenovo IdeaPad 710S-13ISK (IdeaPad 710S Serie)
Processador
Intel Core i7-6560U 2 x 2.2 - 3.2 GHz, Skylake
Placa gráfica
Intel Iris Graphics 540, Análises do: 1050 MHz, Memória compartilhada, 20.19.15.4364
Memória
8 GB
, LPDDR3, 1866 MHz, Dual-Channel, soldada
Pantalha
13.30 polegadas 16:9, 1920 x 1080 pixel 166 PPI, Sharp SHP 1447 / LQ133M1JW15, IPS, Brilhante: não
placa mãe
Intel Skylake-U Premium PCH
Disco rígido
Samsung PM951 NVMe MZVLV256, 256 GB
Placa de Som
Intel Skylake-U/Y PCH - High Definition Audio

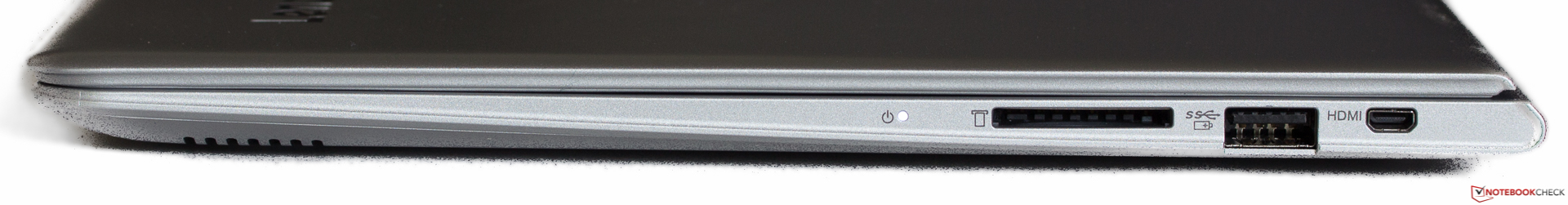

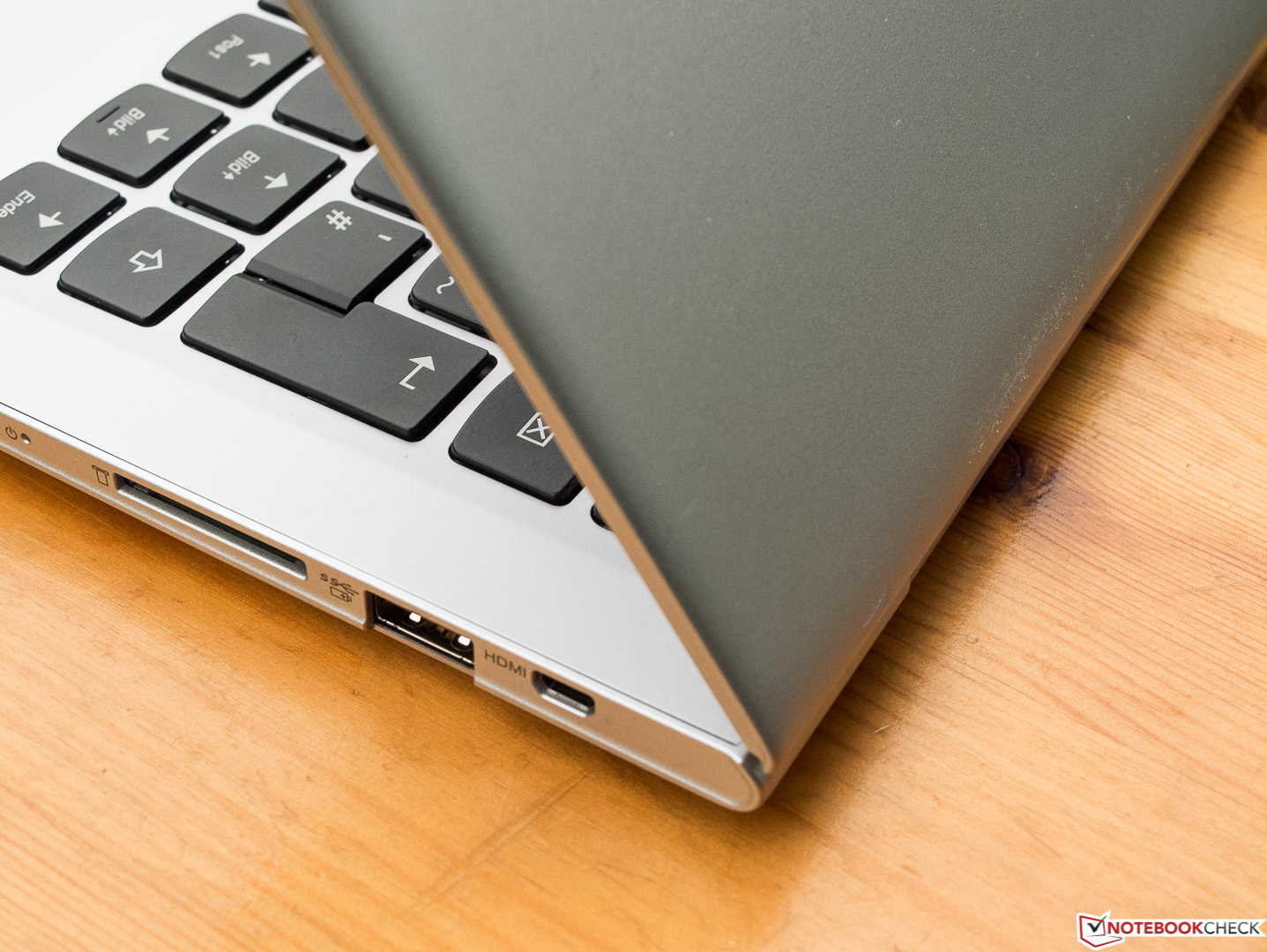

Conexões
2 USB 3.0, 1 HDMI, Conexões Audio: Áudio combinado, conector de 3,5 mm, Card Reader: SD/SDHC/SDXC, Brightness Sensor
Funcionamento em rede
Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 14 x 307 x 214
Bateria
46 Wh Lítio-Polímero, 4 células
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p (0,9 MP)
Características adicionais

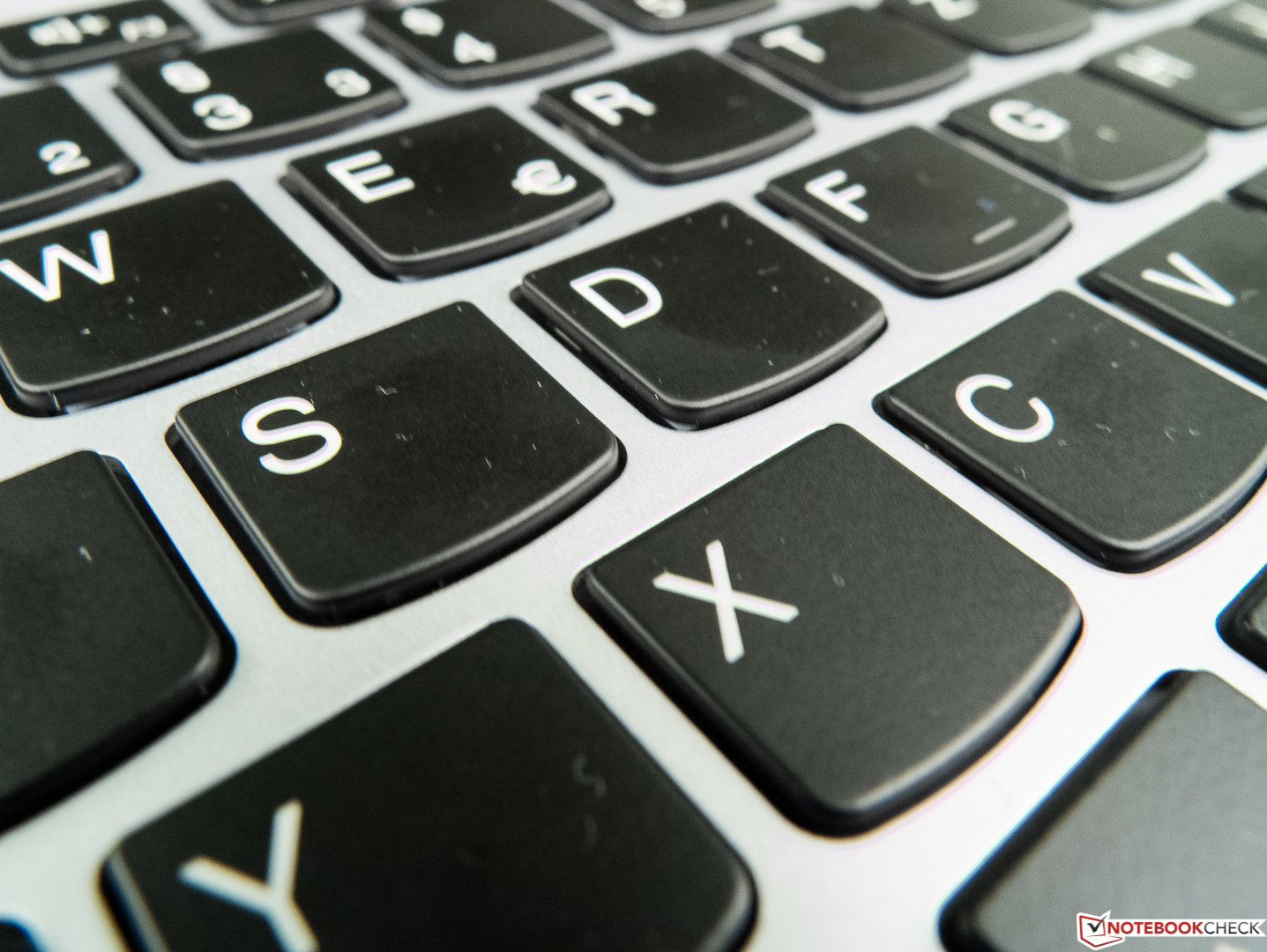

Alto falantes: stereo, 2 x 2 W, Teclado: Chiclet, Iluminação do Teclado: sim, 24 Meses Garantia
peso
1.16 kg, Suprimento de energia: 170 g
Preço
1099 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
335
cd/m²
349
cd/m²
335
cd/m²
322
cd/m²
344
cd/m²
326
cd/m²
309
cd/m²
309
cd/m²
303
cd/m²
Distribuição do brilho
Sharp SHP 1447 / LQ133M1JW15 tested with X-Rite i1Pro 2
Máximo: 349 cd/m² (Nits) Médio: 325.8 cd/m² Minimum: 4 cd/m²
iluminação: 87 %
iluminação com acumulador: 343 cd/m²
Contraste: 956:1 (Preto: 0.36 cd/m²)
ΔE Color 6.09 | 0.5-29.43 Ø4.92
ΔE Greyscale 5.36 | 0.5-98 Ø5.2
97.54% sRGB (Argyll 1.6.3 3D)
62.25% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.5% sRGB (Argyll 2.2.0 3D)
66.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.01

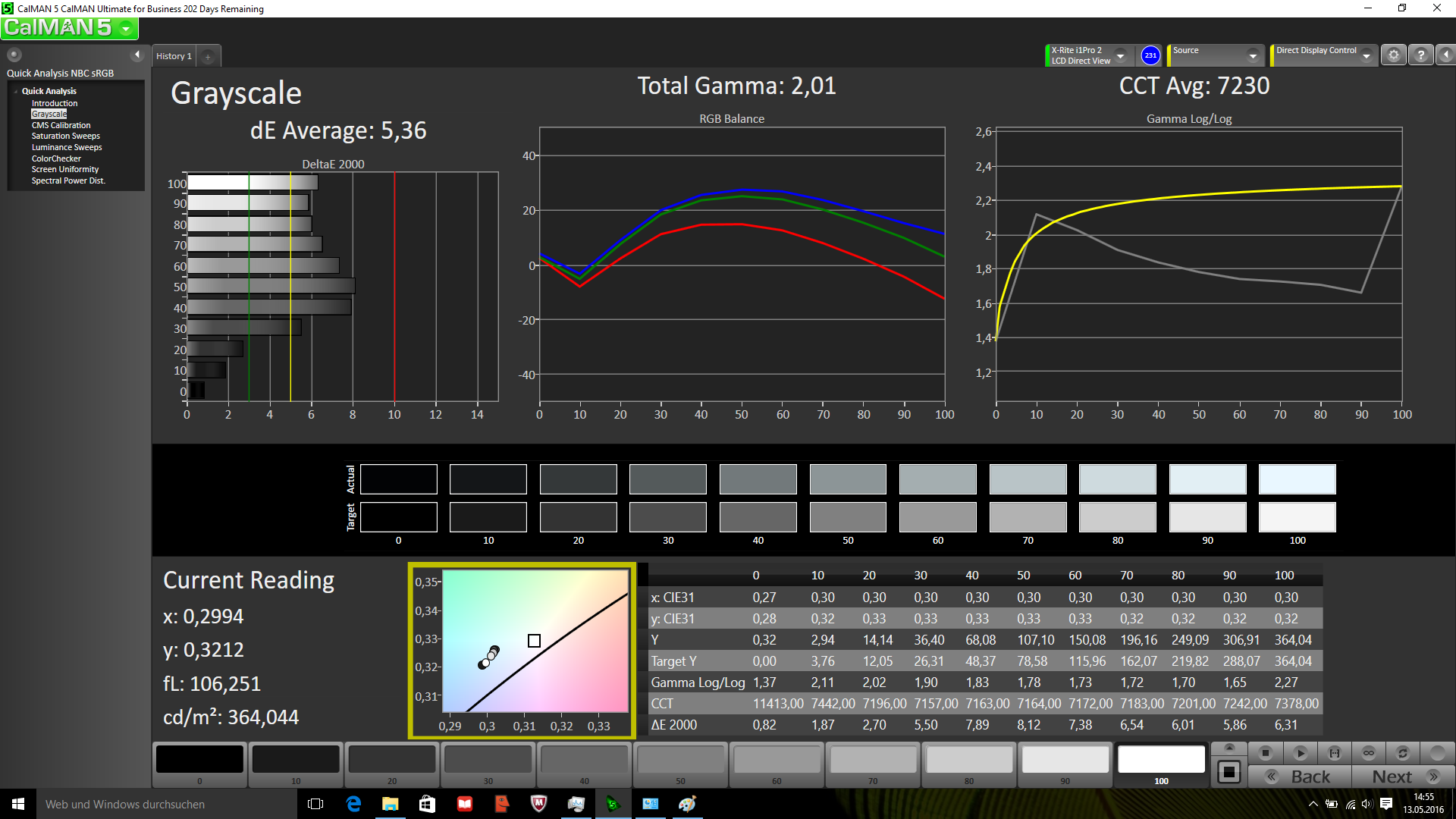

CalMAN Grayscale before calibration
CalMAN Grayscale before calibration

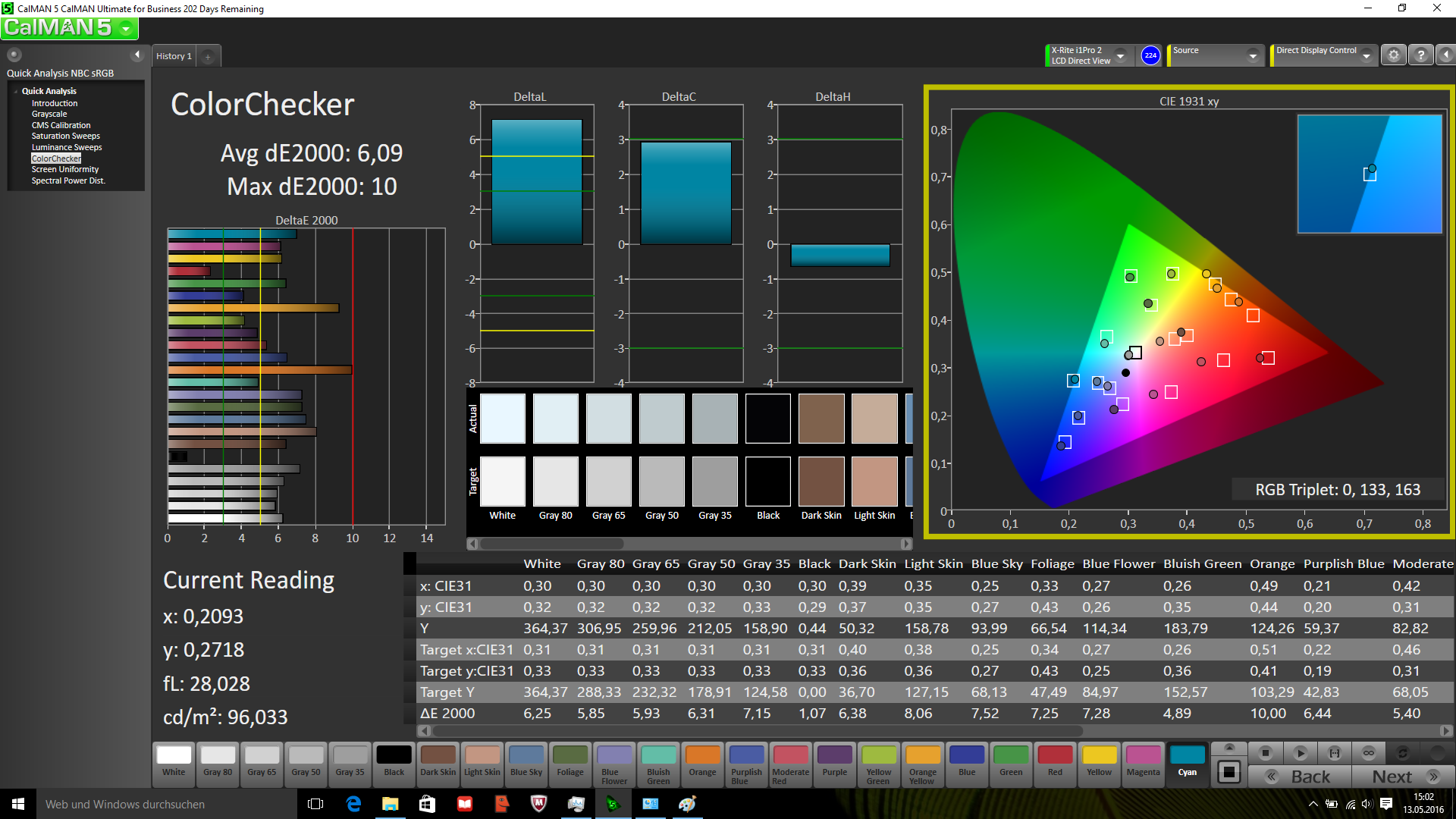

CalMAN ColorChecker before calibration
CalMAN ColorChecker before calibration

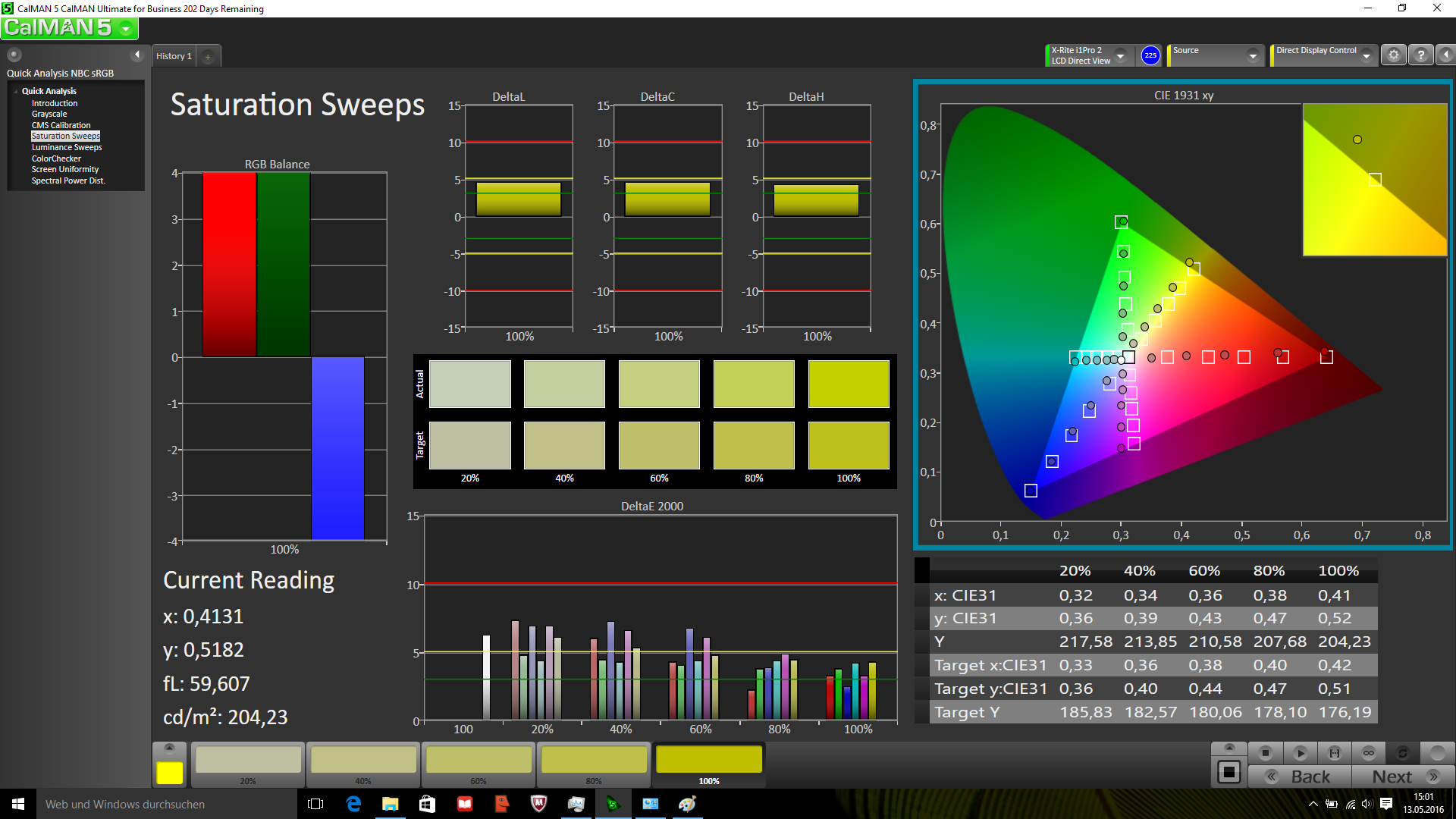

CalMAN Saturation Sweeps before calibration
CalMAN Saturation Sweeps before calibration

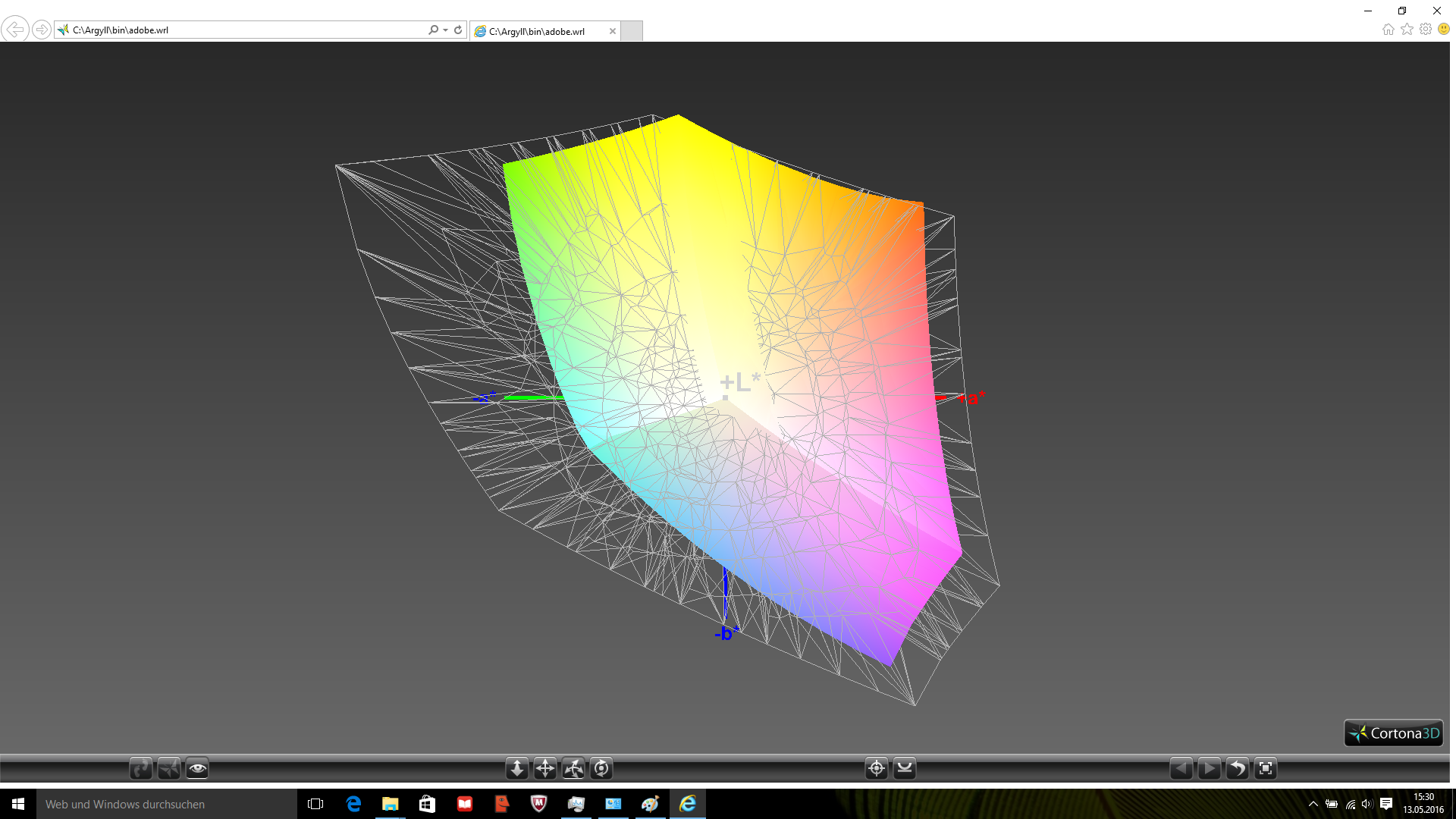

Lenovo Ideapad 710S vs. AdobeRGB
Lenovo Ideapad 710S vs. AdobeRGB

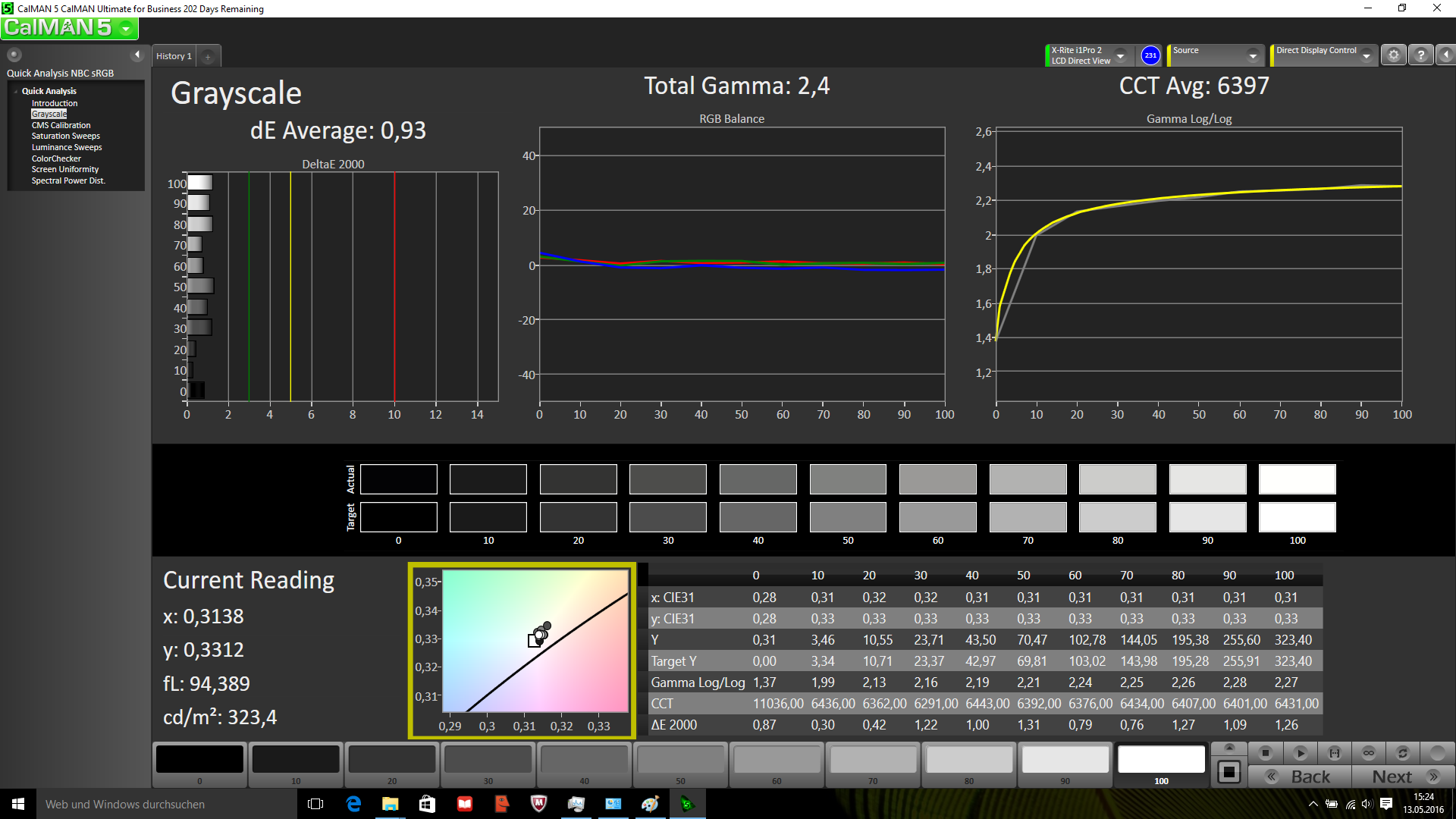

CalMAN Grayscale after calibration
CalMAN Grayscale after calibration

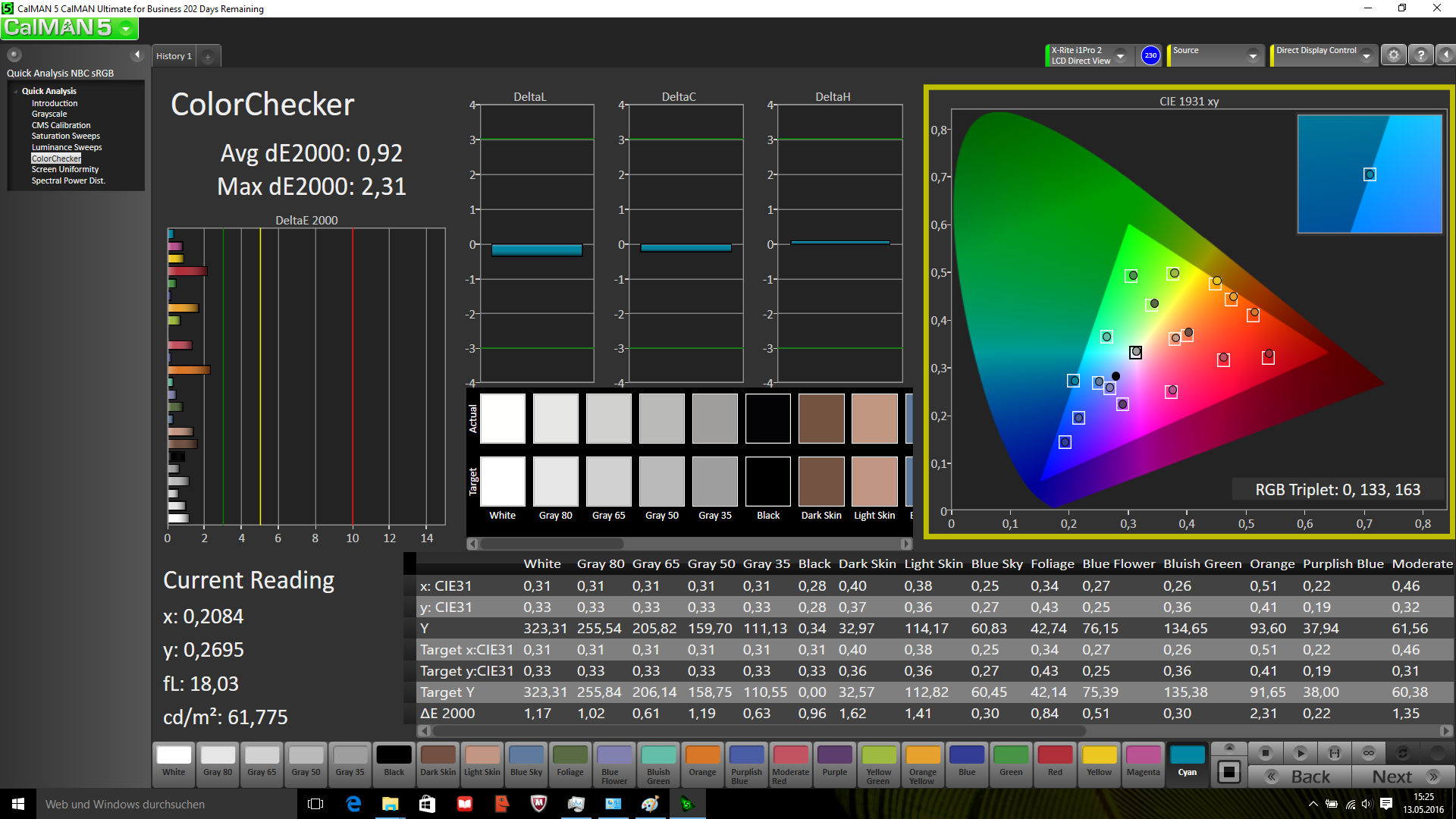

CalMAN ColorChecker after calibration
CalMAN ColorChecker after calibration

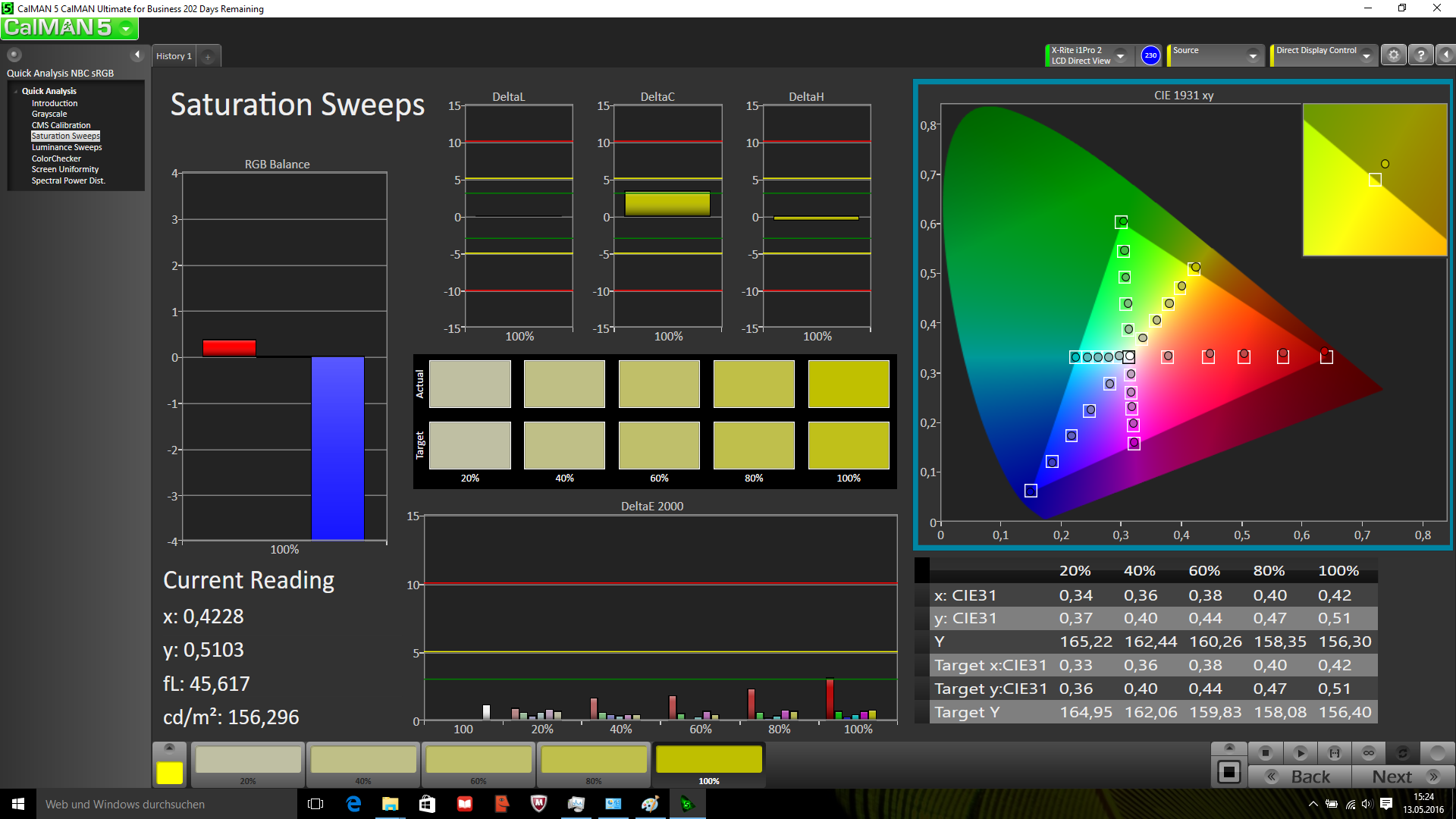

CalMAN Saturation Sweeps after calibration
CalMAN Saturation Sweeps after calibration

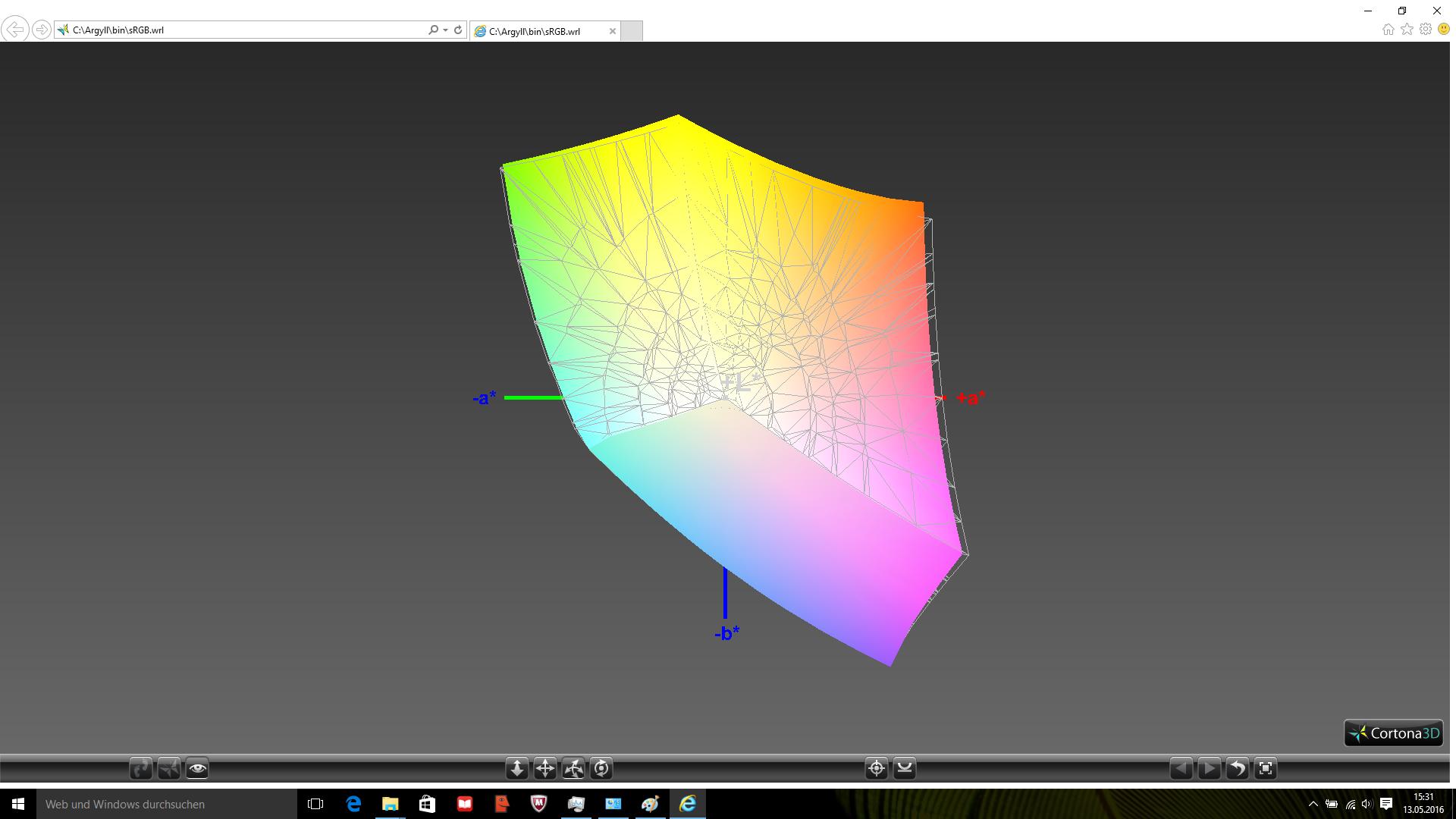

Lenovo Ideapad 710S vs. sRGB
Lenovo Ideapad 710S vs. sRGB
Lenovo IdeaPad 710S-13ISKAcer Aspire S 13 S5-371-71QZDell XPS 13 9350 WQXGAAsus Zenbook UX305UA-FC040T
Display
-4%
-3%
Display P3 Coverage
66.4
63.6
-4%
65.1
-2%
sRGB Coverage
97.5
92.3
-5%
92.8
-5%
AdobeRGB 1998 Coverage
68.4
65.4
-4%
66.3
-3%
Response Times
-10%
-11%
-15%
Response Time Grey 50% / Grey 80% *
52.4 ?(18.4, 34)
50 ?(22, 28)
5%
50.8 ?(18.4, 32.4)
3%
25 ?(15, 10)
52%
Response Time Black / White *
23.6 ?(12, 11.6)
29.6 ?(7.6, 22)
-25%
29.6 ?(6, 23.6)
-25%
28 ?(8, 20)
-19%
PWM Frequency
220 ?(50)
50 ?(20)
-77%
Screen
6%
13%
-9%
Brightness middle
344
375
9%
307.5
-11%
358
4%
Brightness
326
358
10%
297
-9%
351
8%
Brightness Distribution
87
87
0%
92
6%
86
-1%
Black Level *
0.36
0.39
-8%
0.207
42%
0.4
-11%
Contrast
956
962
1%
1486
55%
895
-6%
Colorchecker dE 2000 *
6.09
4.6
24%
4.18
31%
5.96
2%
Colorchecker dE 2000 max. *
10
8.8
12%
7.84
22%
10.99
-10%
Greyscale dE 2000 *
5.36
4
25%
4.94
8%
8.93
-67%
Gamma
2.01 109%
2.34 94%
2.31 95%
2.28 96%
CCT
7230 90%
7304 89%
7645 85%
6548 99%
Color Space (Percent of AdobeRGB 1998)
62.25
57.9
-7%
59
-5%
60
-4%
Color Space (Percent of sRGB)
97.54
88.7
-9%
92
-6%
93
-5%
Total Average (Program / Settings)
-2% / 3%
-1% / 7%
-9% / -9%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
23.6 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 11.6 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 50 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
52.4 ms ... rise ↗ and fall ↘ combined↗ 18.4 ms rise
↘ 34 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 88 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 220 Hz ≤ 50 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Multi 64Bit
Lenovo IdeaPad 710S-13ISK
Intel Core i7-6560U
318 Points
Asus Zenbook UX305UA-FC040T
Intel Core i7-6500U
312 Points -2%
Dell XPS 13 9350 WQXGA
Intel Core i7-6560U
303 Points -5%
Acer Aspire S 13 S5-371-71QZ
Intel Core i7-6500U
293 Points -8%
CPU Single 64Bit
Dell XPS 13 9350 WQXGA
Intel Core i7-6560U
132 Points +2%
Lenovo IdeaPad 710S-13ISK
Intel Core i7-6560U
130 Points
Acer Aspire S 13 S5-371-71QZ
Intel Core i7-6500U
129 Points -1%
Asus Zenbook UX305UA-FC040T
Intel Core i7-6500U
123 Points -5%
Cinebench R15 CPU Single 64Bit
130 Points
Cinebench R15 CPU Multi 64Bit
318 Points
Ajuda
PCMark 8
Home Score Accelerated v2
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
3883 Points
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
3386 Points -13%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
3341 Points -14%
Dell XPS 13 9350 WQXGA
Iris Graphics 540, 6560U, Samsung PM951 NVMe 512 GB
2928 Points -25%
Work Score Accelerated v2
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
4680 Points
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
4316 Points -8%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
4225 Points -10%
Dell XPS 13 9350 WQXGA
Iris Graphics 540, 6560U, Samsung PM951 NVMe 512 GB
3438 Points -27%
PCMark 8 Home Score Accelerated v2
3883 pontos
PCMark 8 Work Score Accelerated v2
4680 pontos
Ajuda
Lenovo IdeaPad 710S-13ISK
Samsung PM951 NVMe MZVLV256
Acer Aspire S 13 S5-371-71QZ
LiteOn CV1-8B512
Dell XPS 13 9350 WQXGA
Samsung PM951 NVMe 512 GB
Asus Zenbook UX305UA-FC040T
SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
AS SSD
-46%
26%
-41%
Seq Read
1273
486
-62%
1442
13%
496.8
-61%
4K Read
39.13
27
-31%
38.29
-2%
26.87
-31%
4K-64 Read
1091
290
-73%
1497
37%
375.5
-66%
Score Write
429
347
-19%
664
55%
405
-6%
CrystalDiskMark 3.0
-44%
3%
-49%
Read Seq
1193
502
-58%
1236
4%
469.1
-61%
Read 4k
42.43
29.69
-30%
42.36
0%
28.08
-34%
Read 4k QD32
549
301.3
-45%
572
4%
262
-52%
Total Average (Program / Settings)
-45% / -45%
15% / 16%
-45% / -44%
Samsung PM951 NVMe MZVLV256
Sequential Read: 1193 MB/s
Sequential Write: 309.6 MB/s
512K Read: 613 MB/s
512K Write: 311 MB/s
4K Read: 42.43 MB/s
4K Write: 144.9 MB/s
4K QD32 Read: 549 MB/s
4K QD32 Write: 311.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo IdeaPad 710S-13ISK
Intel Iris Graphics 540
2101 Points
Dell XPS 13 9350 WQXGA
Intel Iris Graphics 540
1898 Points -10%
Dell Latitude E7470 N001LE747014EMEA
Intel HD Graphics 520
1482 Points -29%
Acer Aspire S 13 S5-371-71QZ
Intel HD Graphics 520
1428 Points -32%
Asus Zenbook UX305UA-FC040T
Intel HD Graphics 520
1362 Points -35%
3DMark
1280x720 Ice Storm Standard Graphics
Dell Latitude E7470 N001LE747014EMEA
Intel HD Graphics 520
82882 Points +12%
Lenovo IdeaPad 710S-13ISK
Intel Iris Graphics 540
73869 Points
Dell XPS 13 9350 WQXGA
Intel Iris Graphics 540
67714 Points -8%
Asus Zenbook UX305UA-FC040T
Intel HD Graphics 520
63784 Points -14%
1280x720 Cloud Gate Standard Graphics
Lenovo IdeaPad 710S-13ISK
Intel Iris Graphics 540
11531 Points
Dell XPS 13 9350 WQXGA
Intel Iris Graphics 540
9392 Points -19%
Dell Latitude E7470 N001LE747014EMEA
Intel HD Graphics 520
8204 Points -29%
Asus Zenbook UX305UA-FC040T
Intel HD Graphics 520
7047 Points -39%
3DMark 11 Performance
2244 pontos
3DMark Ice Storm Standard Score
60021 pontos
3DMark Cloud Gate Standard Score
7646 pontos
Ajuda
BioShock Infinite
1280x720 Very Low Preset
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
86.8 fps +26%
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
73.5 fps +6%
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
69.1 fps
Dell Latitude E7470 N001LE747014EMEA
HD Graphics 520, 6300U, Crucial MX200 M.2 CT500MX200SSD4
57.7 fps -16%
Asus ASUSPRO Advanced B8430UA-FA0084E
HD Graphics 520, 6200U, Hynix HFS256G39MND
44.04 fps -36%
1366x768 Medium Preset
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
51.4 fps +22%
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
49.1 fps +16%
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
42.2 fps
Dell Latitude E7470 N001LE747014EMEA
HD Graphics 520, 6300U, Crucial MX200 M.2 CT500MX200SSD4
32 fps -24%
Asus ASUSPRO Advanced B8430UA-FA0084E
HD Graphics 520, 6200U, Hynix HFS256G39MND
23.58 fps -44%
1366x768 High Preset
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
42.27 fps +18%
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
41.2 fps +15%
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
35.7 fps
Dell Latitude E7470 N001LE747014EMEA
HD Graphics 520, 6300U, Crucial MX200 M.2 CT500MX200SSD4
27.2 fps -24%
Asus ASUSPRO Advanced B8430UA-FA0084E
HD Graphics 520, 6200U, Hynix HFS256G39MND
19.79 fps -45%
baixomédiaaltoultra
Crysis 3 (2013) 37.6 27.6 19.6 6.6
BioShock Infinite (2013) 69.1 42.2 35.7 10
Metro: Last Light (2013) 21.9 9.5
Battlefield 4 (2013) 29 small graphical problems 18 small graphical problems 11.4
Dirt Rally (2015) 119.2 30.4 14.3 12.5
The Witcher 3 (2015) 17.8 12 0
Mad Max (2015) 28.9 13.2
Anno 2205 (2015) 29 small graphical problems 15 small graphical problems 6 small graphical problems
Star Wars Battlefront (2015) 40.2 22.9 0
Assassin's Creed Syndicate (2015) 4.9
Rainbow Six Siege (2015) 39.1 24.2 13.5 11
Rise of the Tomb Raider (2016) 21.5 0 0
XCOM 2 (2016) 18 6.7
Far Cry Primal (2016) 22 10 8
The Division (2016) 21.7 12.9
Hitman 2016 (2016) 13.5 13.8 7.6

Barulho

Ocioso
30.1 / 30.1 / 30.1 dB
Carga
39.2 / 39.3 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm de distância)   environment noise: 29 dB(A)
Carga Máxima
 31.5 °C42 °C34.1 °C
 29.8 °C36.3 °C31.1 °C
 28.8 °C28.7 °C29.8 °C
Máximo: 42 °C
Médio: 32.5 °C
35.8 °C37.5 °C34.7 °C
34.5 °C36.8 °C32.1 °C
32.1 °C32 °C31.5 °C
Máximo: 37.5 °C
Médio: 34.1 °C
alimentação elétrica  45.8 °C | Temperatura do quarto 22.8 °C | Fluke 62 Max
(±) The average temperature for the upper side under maximal load is 32.5 °C / 91 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 37.5 °C / 100 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 31.3 °C / 88 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.9 °C / 85.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-1.6 °C / -2.9 F).
Consumo de energia
desligadodarklight 0.32 / 0.35 Watt
Ociosodarkmidlight 3.3 / 7.4 / 8.2 Watt
Carga midlight 36.5 / 43.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
Dell XPS 13 9350 WQXGA
Iris Graphics 540, 6560U, Samsung PM951 NVMe 512 GB
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
Battery Runtime
17%
-2%
39%
Reader / Idle
810
1028
27%
604
-25%
1427
76%
H.264
486
545
12%
WiFi v1.3
418
472
13%
311
-26%
561
34%
Load
89
99
11%
128
44%
118
33%
Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
13h 30min
WiFi Websurfing
6h 58min
Big Buck Bunny H.264 1080p
8h 06min
Carga (máximo brilho)
1h 29min

Pro

+ Leve e fino
+ Carcaça de alumínio sólida com ótima qualidade de construção
+ Superfícies belas e nobres
+ Impressões digitais não visíveis

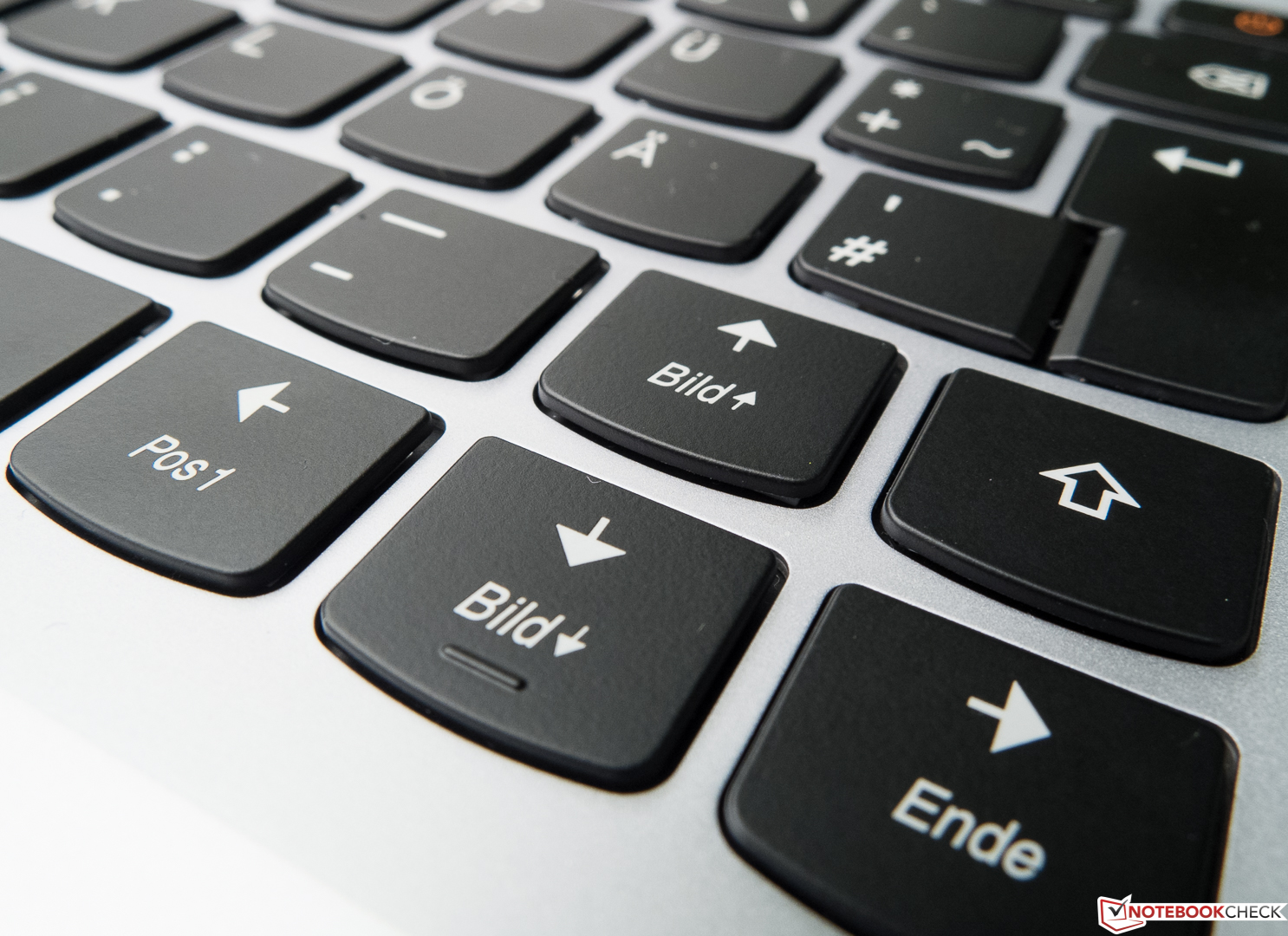

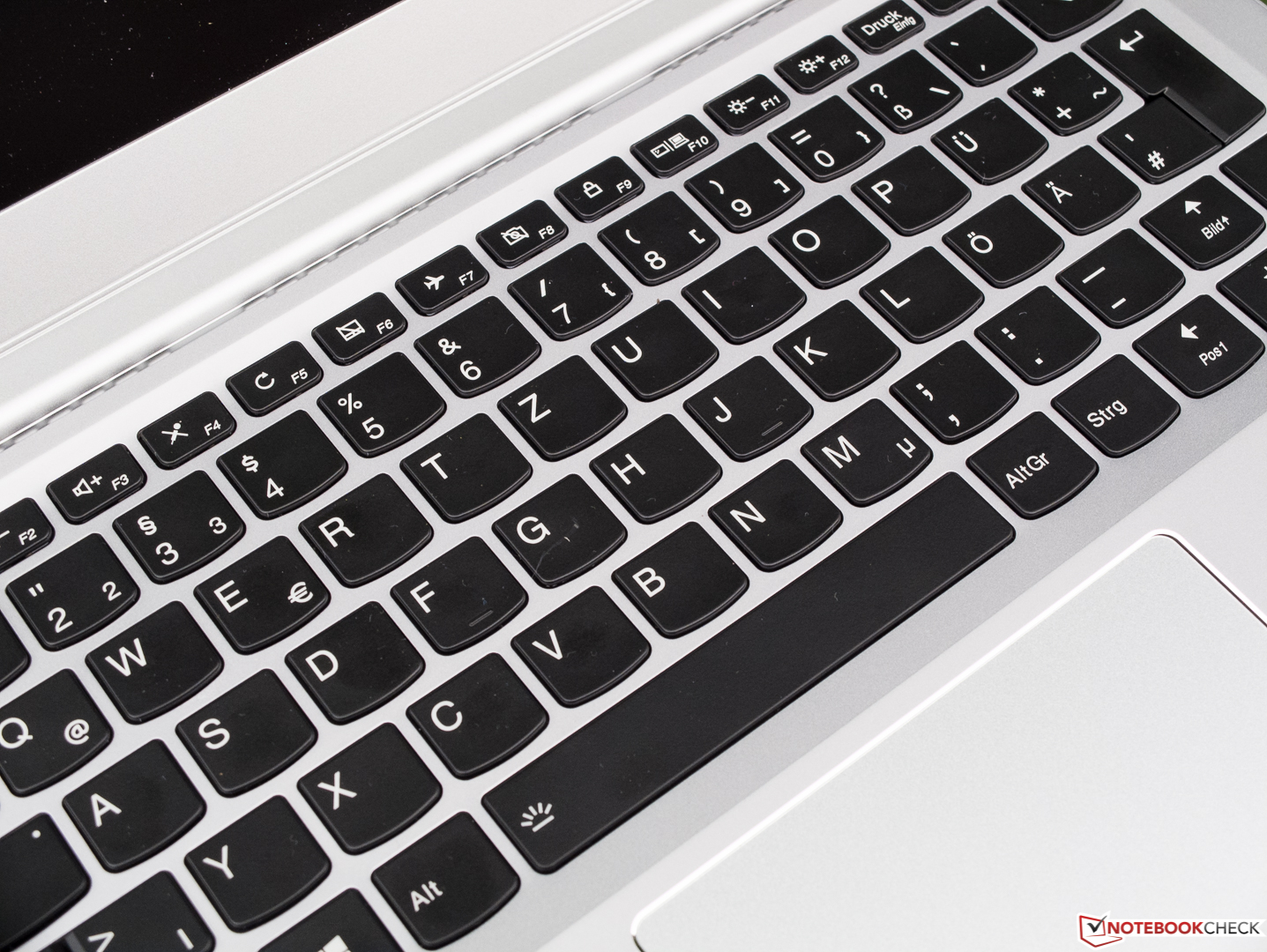

+ Bom teclado
+ Tela brilhante e de alto contraste com amplos ângulos de visão
+ SSD extremamente veloz
+ GPU com eDRAM
+ Silencioso e frio

Contra

- Diferentes modelos com a mesma designação
- A tampa não pode ser aberta com uma só mão

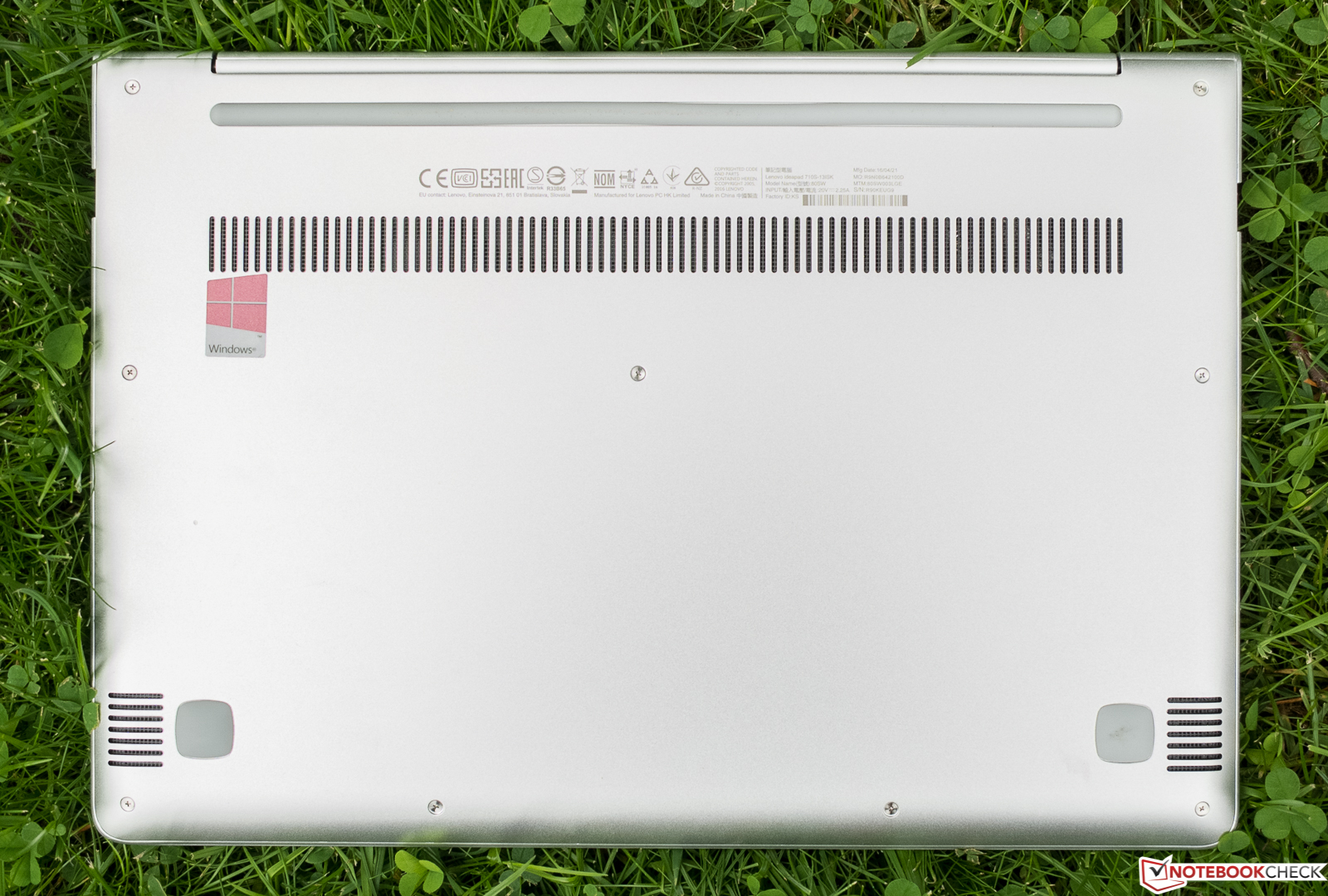

- Sem escotilha de manutenção

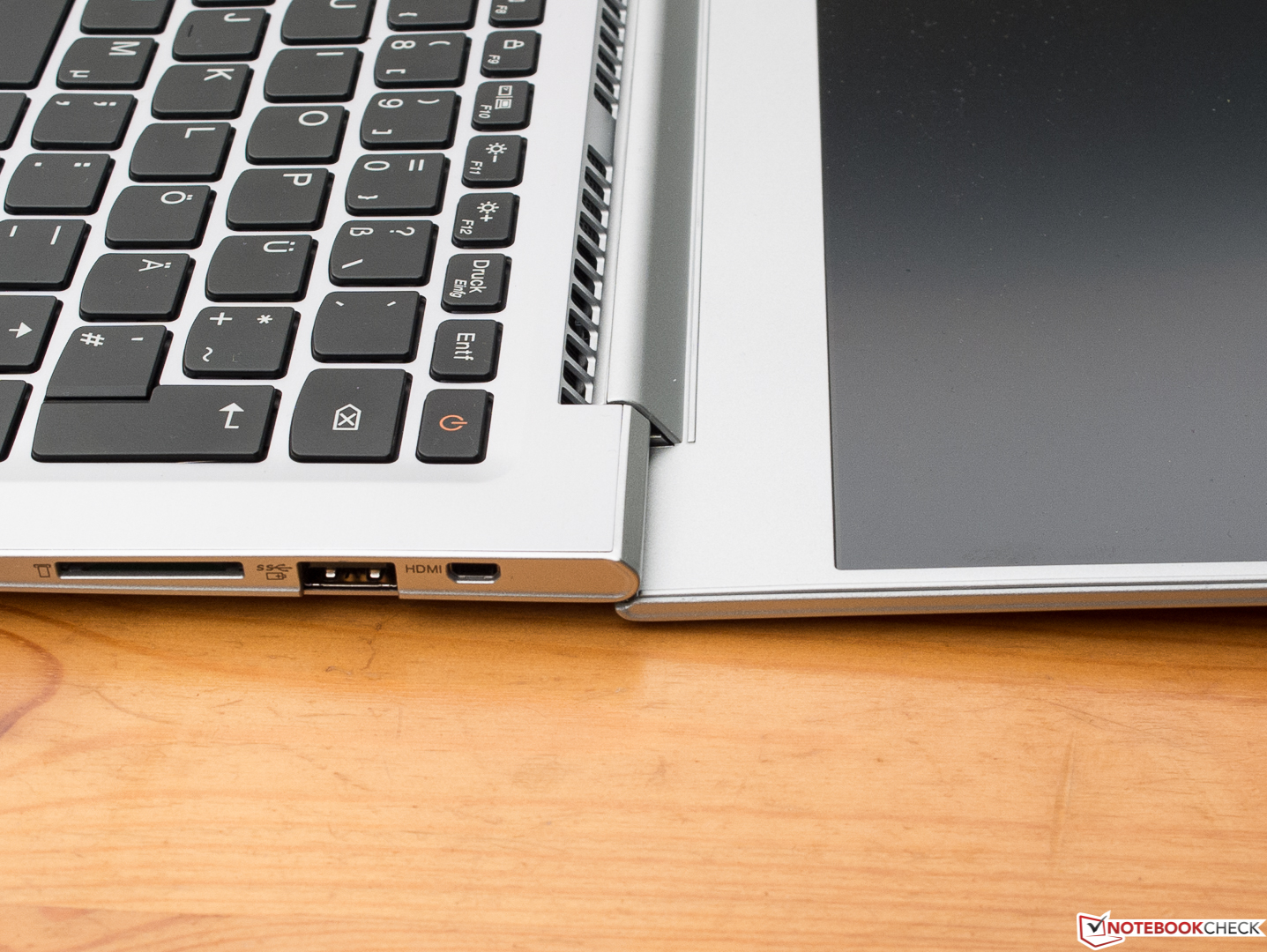

- Seleção de portas muito escassa
- Mini-HDMI
- Desempenho WLAN fraco
- Propriedade ruim de deslizamento do Clickpad
- PWM a 50 % do brilho e menos
- As ventoinhas produzem barulhos irritantes sob uso intenso
- Afogamento extremo quando você estressa a CPU e GPU
In review: Lenovo IdeaPad 710S-13ISK. Test model courtesy of Campuspoint.
In review: Lenovo IdeaPad 710S-13ISK. Test model courtesy of Campuspoint.

O compacto e leve Lenovo IdeaPad 710S-13ISK deixou uma ótima impressão durante nossa análise e não revelou sérias desvantagens. Uma grande parte desta impressão se resume á conveniente carcaça de alumínio-magnésio, porque achamos que o seu visual é muito bom e a qualidade de construção também convence.

Outro destaque é a tela boa, no geral. O teclado também convence, mas não a superfície um pouco grudenta, do touchpad. Se desejar conectar muitos periféricos ao mesmo tempo, terá que procurar outro aparelho, devido ao número limitado de portas. Uma escotilha de manutenção não está disponível, mas parece que o painel inferior pode ser removido com facilidade.



Notamos algumas fraquezas técnicas, como o afogamento extremo durante o teste de estresse e a ventoinha um pouco barulhenta, mas isto não é importante aqui, porque o uso intenso será um cenário raro para o aparelho, na prática. Tanto o Dell XPS 13 9350 quanto o Asus Zenbook UX305FA-FC040T conseguiram melhores pontuações. Portanto, podemos recomendar o modelo de teste e também a versão menor com i5-6200U e 4 GB de RAM em particular, porque, onde você poderia encontrar um aparelho melhor na faixa de preços entre 850-900 Euros (~$962-~$1019)?

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Lenovo IdeaPad 710S-13ISK - 06/02/2016 v5.1 (old)
Sven Kloevekorn

Acabamento
88 /  98 → 90%
Teclado
86%
Mouse
82%
Conectividade
44 / 80 → 54%
Peso
73 / 35-78 → 88%
Bateria
89%
Pantalha
87%
Desempenho do jogos
62 / 68 → 91%
Desempenho da aplicação
88 / 87 → 100%
Temperatura
91 / 91 → 100%
Ruído
88%
Audio
60 / 91 → 66%
Camera
53 / 85 → 62%
Médio
76%
86%
Subnotebook - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Subportátil Lenovo IdeaPad 710S-13ISK (Core i7)
Sven Kloevekorn, 2016-06-16 (Update: 2016-06-25)
