Breve Análise do Subportátil Lenovo IdeaPad 510S-13IKB 80V00026GE

Atualização Kaby Lake. Com o IdeaPad 510S-13IKB, a Lenovo oferece um subportátil bem equipado no formato de 13,3-polegadas. A impressão bastante boa é manchada pelas durações apenas médias da bateria.
Lenovo IdeaPad 510S-13IKB 80V00026GE (IdeaPad 510S Serie)
Processador
Intel Core i7-7500U 2 x 2.7 - 3.5 GHz, Kaby Lake
Placa gráfica
Intel HD Graphics 620, Análises do: 1050 MHz, single-channel, 21.20.16.4542
Memória
8 GB
, DDR4-2400, single-channel, um slot de RAM slot (ocupado)
Pantalha
13.30 polegadas 16:9, 1920 x 1080 pixel 166 PPI, LG Philips LP133WF2-SPL1, IPS, Brilhante: não
placa mãe
Intel Kaby Lake-U Premium PCH
Disco rígido
Samsung MZYTY256HDHP, 256 GB
, 170 GB livre
Placa de Som
Realtek ALC236 @ Intel Kaby Lake-U/Y High Definition Audio Controller

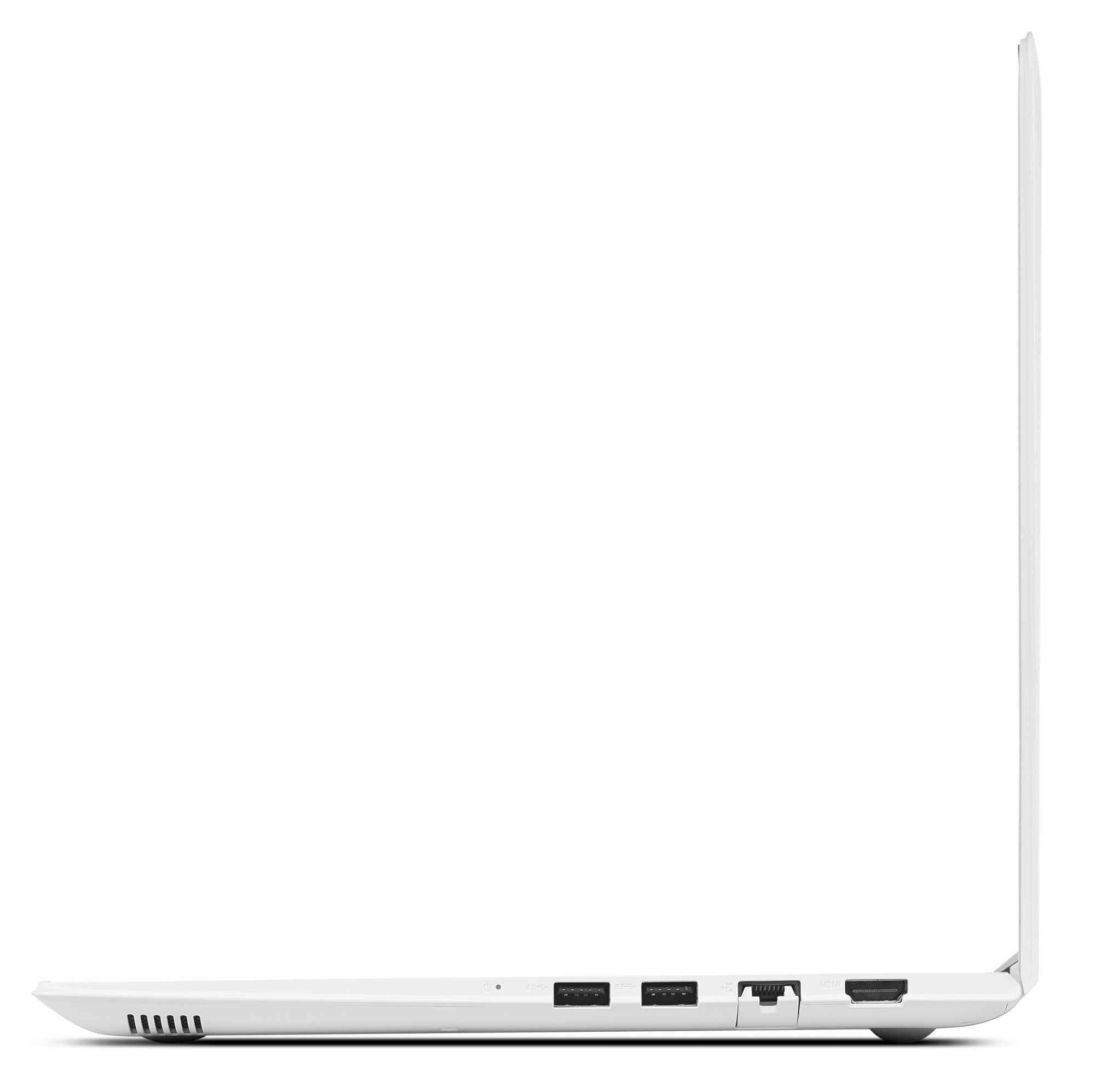

Conexões
1 USB 2.0, 2 USB 3.0, 1 HDMI, 1 Kensington Lock, Conexões Audio: Áudio combinado, Card Reader: SD, TPM 2.0
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 18.7 x 320 x 225
Bateria
35 Wh, 4610 mAh Lítio-Ion, 7.6 V
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Características adicionais
Alto falantes: Estéreo, Teclado: Chiclet, Iluminação do Teclado: sim, Lenovo Photo Master, McAfee LiveSafe-Internet Security (versão de teste), MS Office (versão de teste), 24 Meses Garantia
peso
1.5 kg, Suprimento de energia: 169 g
Preço
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



262
cd/m²
274
cd/m²
258
cd/m²
264
cd/m²
259
cd/m²
224
cd/m²
250
cd/m²
244
cd/m²
240
cd/m²
Distribuição do brilho
LG Philips LP133WF2-SPL1 tested with X-Rite i1Pro 2
Máximo: 274 cd/m² (Nits) Médio: 252.8 cd/m² Minimum: 3 cd/m²
iluminação: 82 %
iluminação com acumulador: 259 cd/m²
Contraste: 785:1 (Preto: 0.33 cd/m²)
ΔE Color 5.12 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.8 | 0.5-98 Ø5.2
58% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.92% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.9% sRGB (Argyll 2.2.0 3D)
38.61% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.39
Lenovo IdeaPad 510S-13IKB 80V00026GE
IPS, 1920x1080, 13.3"
Lenovo Ideapad 510S-13ISK
IPS, 1920x1080, 13.3"
Asus X302UV-FN016T
TN LED, 1366x768, 13.3"
Acer Aspire V3-372-57CW
IPS, 1920x1080, 13.3"
HP Envy 13-d020ng
IPS, 1920x1080, 13.3"
Asus Zenbook UX303UA-R4051T
IPS, 1920x1080, 13.3"
Display
2%
25%
1%
63%
68%
Display P3 Coverage
38.61
39.48
2%
48.37
25%
39.18
1%
63.7
65%
67.5
75%
sRGB Coverage
57.9
59.2
2%
72.6
25%
58.6
1%
93
61%
92.5
60%
AdobeRGB 1998 Coverage
39.92
40.8
2%
49.98
25%
40.51
1%
65.1
63%
67.7
70%
Response Times
-20%
-28%
-24%
-1%
3%
Response Time Grey 50% / Grey 80% *
39 ?(14, 25)
33 ?(12, 21)
15%
42 ?(20, 22)
-8%
41 ?(16, 25)
-5%
34 ?(11, 23)
13%
31 ?(12, 19)
21%
Response Time Black / White *
24 ?(5, 19)
23 ?(5, 18)
4%
23 ?(6, 17)
4%
34.4 ?(11.6, 12.8)
-43%
24 ?(5, 19)
-0%
22 ?(9, 13)
8%
PWM Frequency
250 ?(80)
50 ?(80)
-80%
50 ?(90)
-80%
208 ?(40)
-17%
198 ?(70)
-21%
Screen
3%
-5%
-14%
27%
22%
Brightness middle
259
265
2%
218
-16%
247
-5%
345
33%
357
38%
Brightness
253
261
3%
210
-17%
239
-6%
335
32%
351
39%
Brightness Distribution
82
90
10%
88
7%
81
-1%
95
16%
90
10%
Black Level *
0.33
0.33
-0%
0.5
-52%
0.38
-15%
0.25
24%
0.58
-76%
Contrast
785
803
2%
436
-44%
650
-17%
1380
76%
616
-22%
Colorchecker dE 2000 *
5.12
4.98
3%
3.89
24%
5.95
-16%
4.94
4%
3.39
34%
Colorchecker dE 2000 max. *
10.12
9.75
4%
7.11
30%
14.2
-40%
8.85
13%
6.76
33%
Greyscale dE 2000 *
3.8
3.9
-3%
4.9
-29%
5.25
-38%
5.85
-54%
2.36
38%
Gamma
2.39 92%
2.55 86%
2.41 91%
2.42 91%
2.25 98%
2.2 100%
CCT
7405 88%
7318 89%
7860 83%
6736 96%
7105 91%
6653 98%
Color Space (Percent of AdobeRGB 1998)
37
38
3%
46
24%
37.28
1%
60
62%
60
62%
Color Space (Percent of sRGB)
58
59
2%
73
26%
58.37
1%
93
60%
93
60%
Total Average (Program / Settings)
-5% / -2%
-3% / -4%
-12% / -12%
30% / 28%
31% / 27%

* ... smaller is better

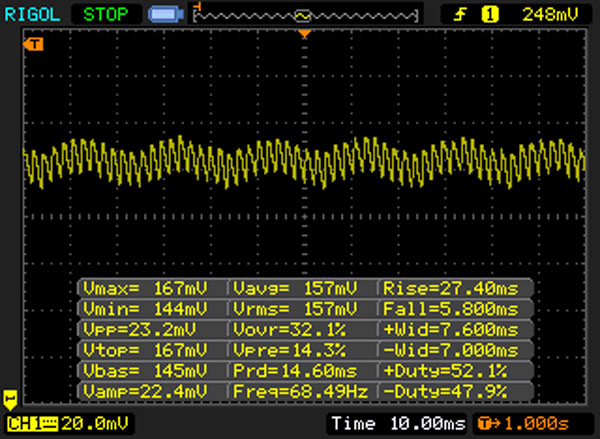

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 250 Hz ≤ 80 % brightness setting

The display backlight flickers at 250 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 80 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 250 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

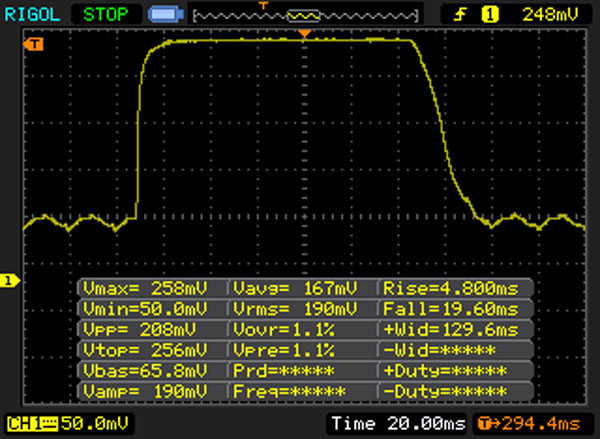

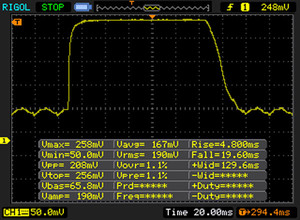

       Response Time Black to White
24 ms ... rise ↗ and fall ↘ combined↗ 5 ms rise
↘ 19 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 50 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

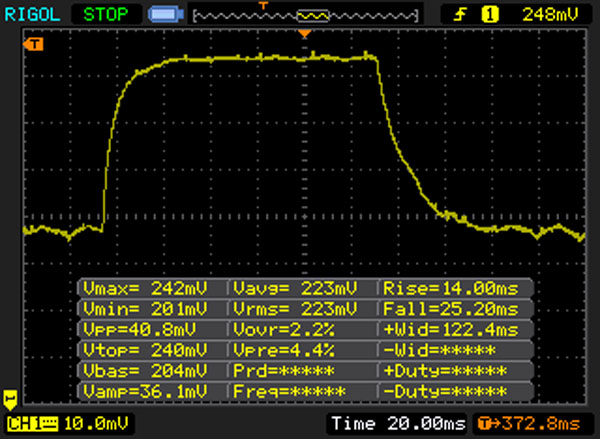

       Response Time 50% Grey to 80% Grey
39 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 55 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
HWInfo
LatencyMon
Cinebench R10 Shading 32Bit
8198
Cinebench R10 Rendering Multiple CPUs 32Bit
11662
Cinebench R10 Rendering Single 32Bit
5678
Cinebench R11.5 OpenGL 64Bit
34.85 fps
Cinebench R11.5 CPU Multi 64Bit
3.7 Points
Cinebench R11.5 CPU Single 64Bit
1.6 Points
Cinebench R15 Ref. Match 64Bit
97.7 %
Cinebench R15 OpenGL 64Bit
38.99 fps
Cinebench R15 CPU Multi 64Bit
333 Points
Cinebench R15 CPU Single 64Bit
141 Points
Ajuda
Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
141 Points
Acer Aspire V3-372-57CW
Intel Core i5-6267U
138 Points -2%
Asus Zenbook UX303UA-R4051T
Intel Core i7-6500U
128 Points -9%
Asus X302UV-FN016T
Intel Core i5-6200U
115 Points -18%
HP Envy 13-d020ng
Intel Core i5-6200U
112 Points -21%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
109 Points -23%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U
109 Points -23%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
83 Points -41%
CPU Multi 64Bit
Acer Aspire V3-372-57CW
Intel Core i5-6267U
339 Points +2%
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
333 Points
Asus Zenbook UX303UA-R4051T
Intel Core i7-6500U
307 Points -8%
Asus X302UV-FN016T
Intel Core i5-6200U
290 Points -13%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U
290 Points -13%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
286 Points -14%
HP Envy 13-d020ng
Intel Core i5-6200U
285 Points -14%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
209 Points -37%
Cinebench R10
Rendering Multiple CPUs 32Bit
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
11662 Points
Acer Aspire V3-372-57CW
Intel Core i5-6267U
11447 Points -2%
Asus Zenbook UX303UA-R4051T
Intel Core i7-6500U
10458 Points -10%
HP Envy 13-d020ng
Intel Core i5-6200U
9959 Points -15%
Asus X302UV-FN016T
Intel Core i5-6200U
9940 Points -15%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
9925 Points -15%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U
9570 Points -18%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
7048 Points -40%
Rendering Single 32Bit
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
5678 Points
Acer Aspire V3-372-57CW
Intel Core i5-6267U
5216 Points -8%
Asus Zenbook UX303UA-R4051T
Intel Core i7-6500U
4791 Points -16%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U
4419 Points -22%
Asus X302UV-FN016T
Intel Core i5-6200U
4400 Points -23%
HP Envy 13-d020ng
Intel Core i5-6200U
4376 Points -23%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
4148 Points -27%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
3144 Points -45%
Geekbench 3
32 Bit Single-Core Score
Acer Aspire V3-372-57CW
Intel Core i5-6267U
3290 Points +2%
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
3211 Points
HP Envy 13-d020ng
Intel Core i5-6200U
2882 Points -10%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
2878 Points -10%
Asus X302UV-FN016T
Intel Core i5-6200U
2877 Points -10%
32 Bit Multi-Core Score
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
6872 Points
Acer Aspire V3-372-57CW
Intel Core i5-6267U
6805 Points -1%
HP Envy 13-d020ng
Intel Core i5-6200U
6093 Points -11%
Asus X302UV-FN016T
Intel Core i5-6200U
6067 Points -12%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
6042 Points -12%
Geekbench 4.0
64 Bit Single-Core Score
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
4033 Points
64 Bit Multi-Core Score
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
7282 Points
JetStream 1.1 - Total Score
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel Core i7-7500U
239 Points
Acer Aspire V3-372-57CW
Intel Core i5-6267U
209.3 Points -12%
Asus X302UV-FN016T
Intel Core i5-6200U
197.5 Points -17%
HP Envy 13-d020ng
Intel Core i5-6200U
194.6 Points -19%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U
192.2 Points -20%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
189.2 Points -21%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
106.9 Points -55%
PCMark 7 Score
5427 pontos
PCMark 8 Home Score Accelerated v2
3574 pontos
PCMark 8 Creative Score Accelerated v2
4506 pontos
PCMark 8 Work Score Accelerated v2
4712 pontos
Ajuda
PCMark 8
Home Score Accelerated v2
Acer Aspire V3-372-57CW
Iris Graphics 550, 6267U, Kingston RBU-SNS8152S3256GG2
4079 Points +14%
Lenovo IdeaPad 510S-13IKB 80V00026GE
HD Graphics 620, i7-7500U, Samsung MZYTY256HDHP
3574 Points
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
3466 Points -3%
Asus Zenbook UX303UA-R4051T
HD Graphics 520, 6500U, SK hynix SSD Canvas SC300 HFS256G32MND
3454 Points -3%
HP Envy 13-d020ng
HD Graphics 520, 6200U, Samsung MZRPC256HADR-000SO
3246 Points -9%
Asus Zenbook UX303UA-FN121T
HD Graphics 520, 6200U, Hitachi Travelstar Z5K500 HTS545050A7E680
3209 Points -10%
Lenovo Ideapad 510S-13ISK
HD Graphics 520, 6200U, WDC Slim WD10SPCX-24HWST1
3077 Points -14%
Lenovo E31-70 80KX015RGE
HD Graphics 5500, 5005U, Seagate ST500LM000 Solid State Hybrid Drive
2782 Points -22%
Work Score Accelerated v2
Lenovo IdeaPad 510S-13IKB 80V00026GE
HD Graphics 620, i7-7500U, Samsung MZYTY256HDHP
4712 Points
Acer Aspire V3-372-57CW
Iris Graphics 550, 6267U, Kingston RBU-SNS8152S3256GG2
4676 Points -1%
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
4464 Points -5%
Asus Zenbook UX303UA-R4051T
HD Graphics 520, 6500U, SK hynix SSD Canvas SC300 HFS256G32MND
4256 Points -10%
HP Envy 13-d020ng
HD Graphics 520, 6200U, Samsung MZRPC256HADR-000SO
4113 Points -13%
Asus Zenbook UX303UA-FN121T
HD Graphics 520, 6200U, Hitachi Travelstar Z5K500 HTS545050A7E680
4086 Points -13%
Lenovo Ideapad 510S-13ISK
HD Graphics 520, 6200U, WDC Slim WD10SPCX-24HWST1
3629 Points -23%
Samsung MZYTY256HDHP
Sequential Read: 494.5 MB/s
Sequential Write: 494.1 MB/s
512K Read: 383.9 MB/s
512K Write: 155.5 MB/s
4K Read: 36.08 MB/s
4K Write: 96.4 MB/s
4K QD32 Read: 403.3 MB/s
4K QD32 Write: 176.4 MB/s
Lenovo IdeaPad 510S-13IKB 80V00026GE
Samsung MZYTY256HDHP
Lenovo Ideapad 510S-13ISK
WDC Slim WD10SPCX-24HWST1
Asus X302UV-FN016T
Hynix HFS128G3MND
Acer Aspire V3-372-57CW
Kingston RBU-SNS8152S3256GG2
HP Envy 13-d020ng
Samsung MZRPC256HADR-000SO
Asus Zenbook UX303UA-R4051T
SK hynix SSD Canvas SC300 HFS256G32MND
CrystalDiskMark 3.0
-89%
-29%
12%
3%
2%
Read Seq
494.5
108.3
-78%
428.2
-13%
515
4%
478.7
-3%
465
-6%
Write Seq
494.1
109
-78%
178.6
-64%
338
-32%
268.5
-46%
321
-35%
Read 512
383.9
35.24
-91%
282.6
-26%
368.1
-4%
386.6
1%
331.4
-14%
Write 512
155.5
53.3
-66%
179.1
15%
338.6
118%
268.8
73%
321.2
107%
Read 4k
36.08
0.395
-99%
6.559
-82%
28.88
-20%
26.88
-25%
21.41
-41%
Write 4k
96.4
1.19
-99%
71.2
-26%
74.2
-23%
78.7
-18%
74.6
-23%
Read 4k QD32
403.3
1.139
-100%
253
-37%
319.9
-21%
369.4
-8%
325.4
-19%
Write 4k QD32
176.4
1.212
-99%
174
-1%
309.4
75%
259.7
47%
263
49%
3DMark 06 Standard Score
8449 pontos
3DMark 11 Performance
1603 pontos
3DMark Ice Storm Standard Score
52169 pontos
3DMark Cloud Gate Standard Score
5407 pontos
3DMark Fire Strike Score
764 pontos
Ajuda
3DMark 11 - 1280x720 Performance GPU
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
2524 Points +71%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1747 Points +19%
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel HD Graphics 620, Intel Core i7-7500U
1474 Points
Asus Zenbook UX303UA-R4051T
Intel HD Graphics 520, Intel Core i7-6500U
1408 Points -4%
Lenovo Ideapad 510S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
1354 Points -8%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
1326 Points -10%
Asus Zenbook UX303UA-FN121T
Intel HD Graphics 520, Intel Core i5-6200U
1261 Points -14%
Lenovo E31-70 80KX015RGE
Intel HD Graphics 5500, Intel Core i3-5005U
887 Points -40%
3DMark
1280x720 Cloud Gate Standard Graphics
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
12812 Points +79%
Asus Zenbook UX303UA-R4051T
Intel HD Graphics 520, Intel Core i7-6500U
8312 Points +16%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
7733 Points +8%
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel HD Graphics 620, Intel Core i7-7500U
7174 Points
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
7031 Points -2%
Lenovo Ideapad 510S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
6661 Points -7%
Asus Zenbook UX303UA-FN121T
Intel HD Graphics 520, Intel Core i5-6200U
6577 Points -8%
1920x1080 Fire Strike Graphics
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
1520 Points +86%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1282 Points +57%
Asus Zenbook UX303UA-R4051T
Intel HD Graphics 520, Intel Core i7-6500U
926 Points +13%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
848 Points +4%
Lenovo IdeaPad 510S-13IKB 80V00026GE
Intel HD Graphics 620, Intel Core i7-7500U
818 Points
Asus Zenbook UX303UA-FN121T
Intel HD Graphics 520, Intel Core i5-6200U
803 Points -2%
Lenovo Ideapad 510S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
800 Points -2%
baixomédiaaltoultra
Tomb Raider (2013) 68.5 34.4 19.7 9.6
BioShock Infinite (2013) 42.7 25.3 21.3 7.1
Battlefield 4 (2013) 33.8 26.1 16.9 6.3
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.838.240.440.739.232.82535.336.840.336.637.835.33132.432.334.933.931.532.44032.130.634.133.131.732.1503332.533.53433.333633332.433.934.934338029.630.630.730.330.929.610028.629.430.232.334.328.612526.92726.828.729.226.916025.725.927.428.528.925.720026.42627.928.32826.425023.523.925.726.628.123.531523.824.425.726.627.423.84002222.623.825.426.42250021.521.823.225.726.221.563021.421.42326.126.321.480020.820.623.128.72920.8100019.919.822.430.230.619.9125019.219.621.328.929.519.216001919.221.730.130.419200018.719.120.431.33218.7250018.618.819.830.531.218.6315018.418.919.72626.818.4400018.518.819.725.325.918.5500018.318.919.522.62318.3630018.318.919.52121.318.3800018.318.819.519.920.118.31000018.218.719.419.619.718.2125001818.419.119.319.4181600018.118.519.319.419.418.1SPL31.631.933.339.840.431.6N1.71.723.23.41.7median 19.2median 19.6median 21.7median 26.6median 27.4median 19.2Delta2.72.22.53.43.52.7hearing rangehide median Fan NoiseLenovo IdeaPad 510S-13IKB 80V00026GE

Barulho

Ocioso
31.2 / 31.2 / 33.3 dB
Carga
40 / 39.8 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 31.6 dB(A)
Lenovo IdeaPad 510S-13IKB 80V00026GE
i7-7500U, HD Graphics 620
Lenovo Ideapad 510S-13ISK
6200U, HD Graphics 520
Asus X302UV-FN016T
6200U, GeForce 920MX
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550
Lenovo E31-70 80KX015RGE
5005U, HD Graphics 5500
HP Envy 13-d020ng
6200U, HD Graphics 520
Asus Zenbook UX303UA-R4051T
6500U, HD Graphics 520
Noise
-1%
4%
3%
6%
3%
6%
off / environment *
31.6
31.2
1%
31.2
1%
29.1
8%
29.2
8%
31.3
1%
Idle Minimum *
31.2
32.1
-3%
32.9
-5%
29.1
7%
30.1
4%
32.5
-4%
31.3
-0%
Idle Average *
31.2
32.1
-3%
32.9
-5%
29.1
7%
30.1
4%
32.5
-4%
31.3
-0%
Idle Maximum *
33.3
32.1
4%
33
1%
29.1
13%
30.1
10%
32.4
3%
31.5
5%
Load Average *
40
40
-0%
33
17%
41.1
-3%
38.1
5%
36
10%
33.2
17%
Load Maximum *
39.8
40.9
-3%
34.6
13%
46.4
-17%
38.1
4%
36.5
8%
34.1
14%

* ... smaller is better

Carga Máxima
 26.6 °C33 °C31 °C
 25 °C32 °C28.6 °C
 22.8 °C23.6 °C25.2 °C
Máximo: 33 °C
Médio: 27.5 °C
27.1 °C35.4 °C29 °C
27.6 °C31.6 °C24.1 °C
25.4 °C25.4 °C22.5 °C
Máximo: 35.4 °C
Médio: 27.6 °C
alimentação elétrica  20.9 °C | Temperatura do quarto 34.7 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 27.5 °C / 82 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 33 °C / 91 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 35.4 °C / 96 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.4 °C / 79.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+1.9 °C / 3.4 F).
Lenovo IdeaPad 510S-13IKB 80V00026GE
i7-7500U, HD Graphics 620
Lenovo Ideapad 510S-13ISK
6200U, HD Graphics 520
Asus X302UV-FN016T
6200U, GeForce 920MX
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550
Lenovo E31-70 80KX015RGE
5005U, HD Graphics 5500
HP Envy 13-d020ng
6200U, HD Graphics 520
Asus Zenbook UX303UA-R4051T
6500U, HD Graphics 520
Heat
-11%
3%
-17%
-12%
-16%
-3%
Maximum Upper Side *
33
38
-15%
29.6
10%
37.1
-12%
38.6
-17%
51
-55%
38.1
-15%
Maximum Bottom *
35.4
39.1
-10%
41
-16%
43.2
-22%
41.1
-16%
46
-30%
40.3
-14%
Idle Upper Side *
27.2
30.7
-13%
24.8
9%
32.1
-18%
29.5
-8%
25.5
6%
25.8
5%
Idle Bottom *
29.3
31.1
-6%
26.6
9%
34.4
-17%
30.8
-5%
24.4
17%
25.5
13%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2041.732.841.72539.435.339.43137.332.437.34038.732.138.75037.73337.76340.63340.68041.229.641.210040.928.640.912543.526.943.516044.325.744.320048.426.448.425052.423.552.431559.623.859.640060.92260.950061.321.561.363062.721.462.780064.220.864.2100062.519.962.5125062.119.262.11600631963200062.618.762.6250063.318.663.3315062.818.462.8400062.118.562.1500063.218.363.2630063.918.363.9800066.318.366.31000066.118.266.11250065.31865.31600062.218.162.2SPL75.431.675.4N37.91.737.9median 62.5median 19.2median 62.5Delta4.32.74.335.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseLenovo IdeaPad 510S-13IKB 80V00026GEApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo IdeaPad 510S-13IKB 80V00026GE audio analysis

(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.4% lower than median
(±) | linearity of bass is average (7.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 0.7% away from median
(+) | mids are linear (2.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (2.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.2% difference to median)
Compared to same class
» 19% of all tested devices in this class were better, 4% similar, 77% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 11% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.29 / 0.45 Watt
Ociosodarkmidlight 3.3 / 5.8 / 7.4 Watt
Carga midlight 29.2 / 28.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo IdeaPad 510S-13IKB 80V00026GE
i7-7500U, HD Graphics 620
Lenovo Ideapad 510S-13ISK
6200U, HD Graphics 520
Asus X302UV-FN016T
6200U, GeForce 920MX
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550
Lenovo E31-70 80KX015RGE
5005U, HD Graphics 5500
HP Envy 13-d020ng
6200U, HD Graphics 520
Asus Zenbook UX303UA-R4051T
6500U, HD Graphics 520
Power Consumption
-24%
-3%
-27%
-14%
-25%
-6%
Idle Minimum *
3.3
5
-52%
3.3
-0%
3.4
-3%
4.2
-27%
4.2
-27%
3.5
-6%
Idle Average *
5.8
7.2
-24%
5.1
12%
6.5
-12%
6.1
-5%
7.4
-28%
7.3
-26%
Idle Maximum *
7.4
8.7
-18%
5.2
30%
7
5%
7.4
-0%
10.1
-36%
7.9
-7%
Load Average *
29.2
32
-10%
29.5
-1%
44.5
-52%
31.5
-8%
33.4
-14%
26.6
9%
Load Maximum *
28.6
33
-15%
44
-54%
49.5
-73%
37.1
-30%
34.7
-21%
28
2%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
10h 50min
WiFi Websurfing (Edge 38)
5h 40min
Big Buck Bunny H.264 1080p
5h 30min
Carga (máximo brilho)
1h 58min
Lenovo IdeaPad 510S-13IKB 80V00026GE
i7-7500U, HD Graphics 620, 35 Wh
Lenovo Ideapad 510S-13ISK
6200U, HD Graphics 520, 35 Wh
Asus X302UV-FN016T
6200U, GeForce 920MX, 38 Wh
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550, 51 Wh
Lenovo E31-70 80KX015RGE
5005U, HD Graphics 5500, 35 Wh
HP Envy 13-d020ng
6200U, HD Graphics 520, 45 Wh
Asus Zenbook UX303UA-R4051T
6500U, HD Graphics 520, 50 Wh
Battery Runtime
-9%
15%
52%
-25%
12%
20%
Reader / Idle
650
555
-15%
1035
59%
H.264
330
325
-2%
WiFi v1.3
340
351
3%
392
15%
412
21%
254
-25%
381
12%
407
20%
Load
118
94
-20%
206
75%

Pro

+ Tela IPS mate
+ Resolução Full HD
+ Funciona silenciosamente
+ SSD
+ Teclado muito bom
+ Iluminação de teclado

Contra

- Durações médias da bateria
- Sem USB Type-C

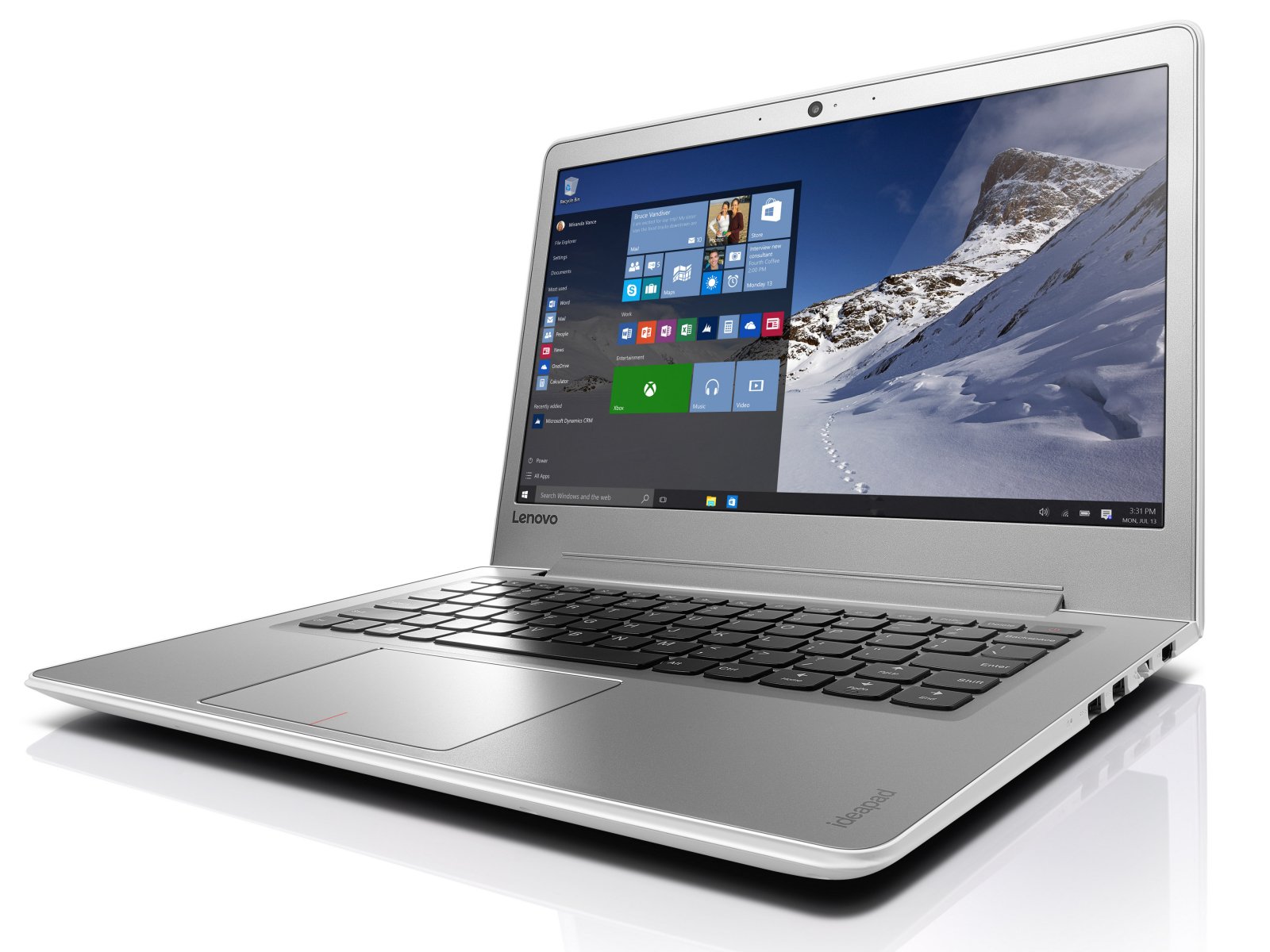

In review: Lenovo IdeaPad 510S-13IKB 80V00026GE. Test model provided by Campuspoint.de
In review: Lenovo IdeaPad 510S-13IKB 80V00026GE. Test model provided by Campuspoint.de

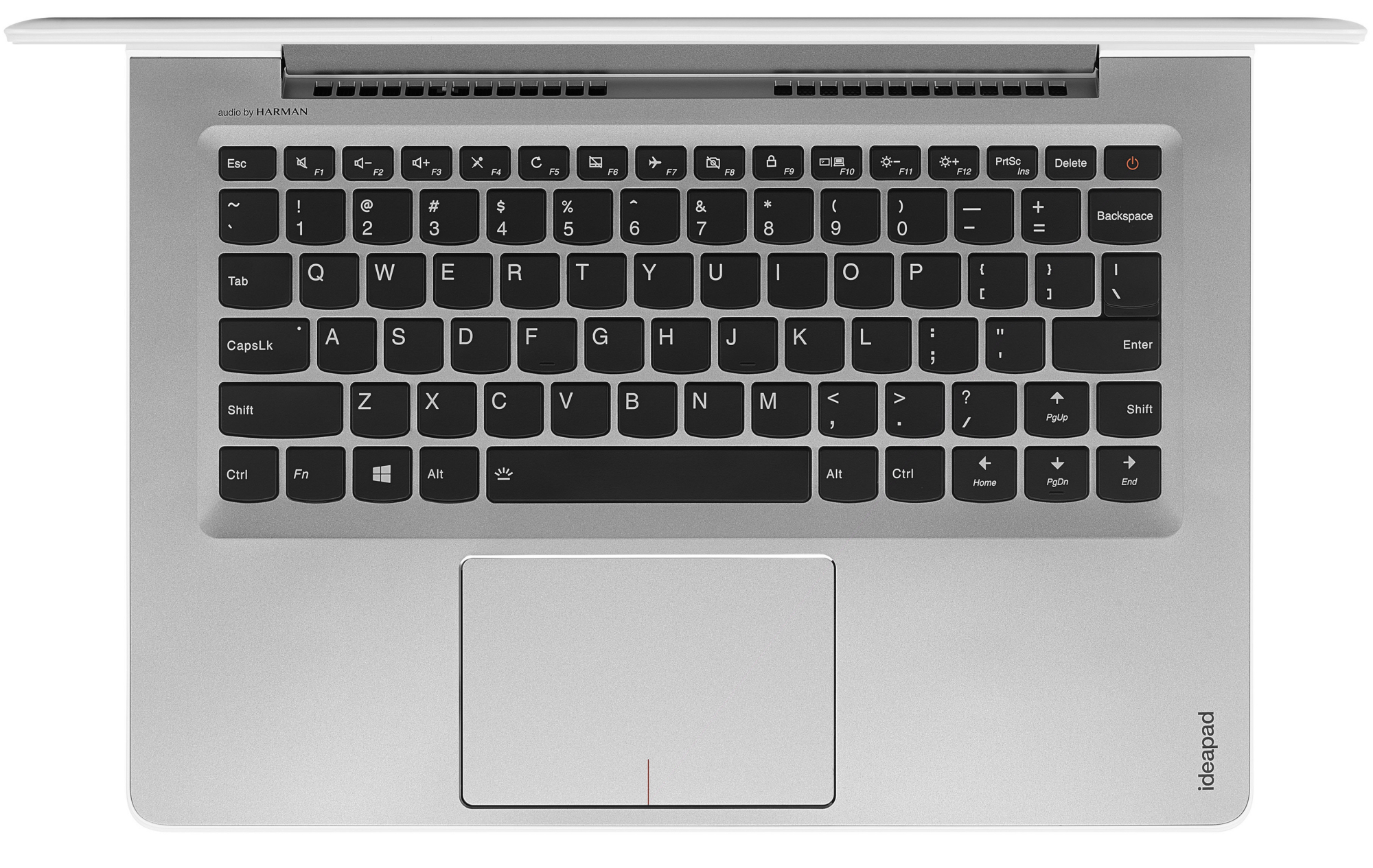

Os portáteis de 13,3 polegadas da Lenovo também estão disponíveis com processadores Kaby Lake desde agora. A nova geração de CPU da Intel oferece suficiente desempenho para os anos vindouros. O ganho de desempenho do Kaby Lake em comparação com Skylake não leva a maior ruído do sistema, nem aumentos de temperatura. Um veloz SSD garante um sistema veloz. Embora seja possível substituir o SSD, isto requer abrir a carcaça, dado que o computador não possui uma escotilha de manutenção. O teclado iluminado parace ser bom, no geral.

O processador Kaby Lake não traz uma verdadeira vantagem. Aqueles que desejem economizar alguns Euros, podem selecionar com segurança um modelo Skylake do IdeaPad.

As durações da bateria são bastante boas. No entanto, um portátil de 13,3-polegadas nesta faixa de preços poderia se desempenhar melhor. A Lenovo não considerou que longas durações da bateria são mais importantes que ao desempenho mais alto possível na gama de 13,3 polegadas. O IdeaPad teria se beneficiado mais de uma bateria com maior capacidade que de um novo processador Kaby Lake.  A tela IPS Full HD com ângulos de visão amplos fornece resultados aceitáveis de medição. No entanto, esperamos mais de um portátil de 880-Euros (~$944).

Lenovo IdeaPad 510S-13IKB 80V00026GE - 12/05/2016 v6 (old)
Sascha Mölck

Acabamento
81 /  98 → 82%
Teclado
82%
Mouse
82%
Conectividade
46 / 80 → 57%
Peso
69 / 35-78 → 79%
Bateria
84%
Pantalha
85%
Desempenho do jogos
55 / 68 → 81%
Desempenho da aplicação
88 / 87 → 100%
Temperatura
95 / 91 → 100%
Ruído
87%
Audio
56 / 91 → 62%
Camera
40 / 85 → 47%
Médio
73%
83%
Subnotebook - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Subportátil Lenovo IdeaPad 510S-13IKB 80V00026GE
Sascha Mölck, 2016-12-16 (Update: 2017-01- 2)
