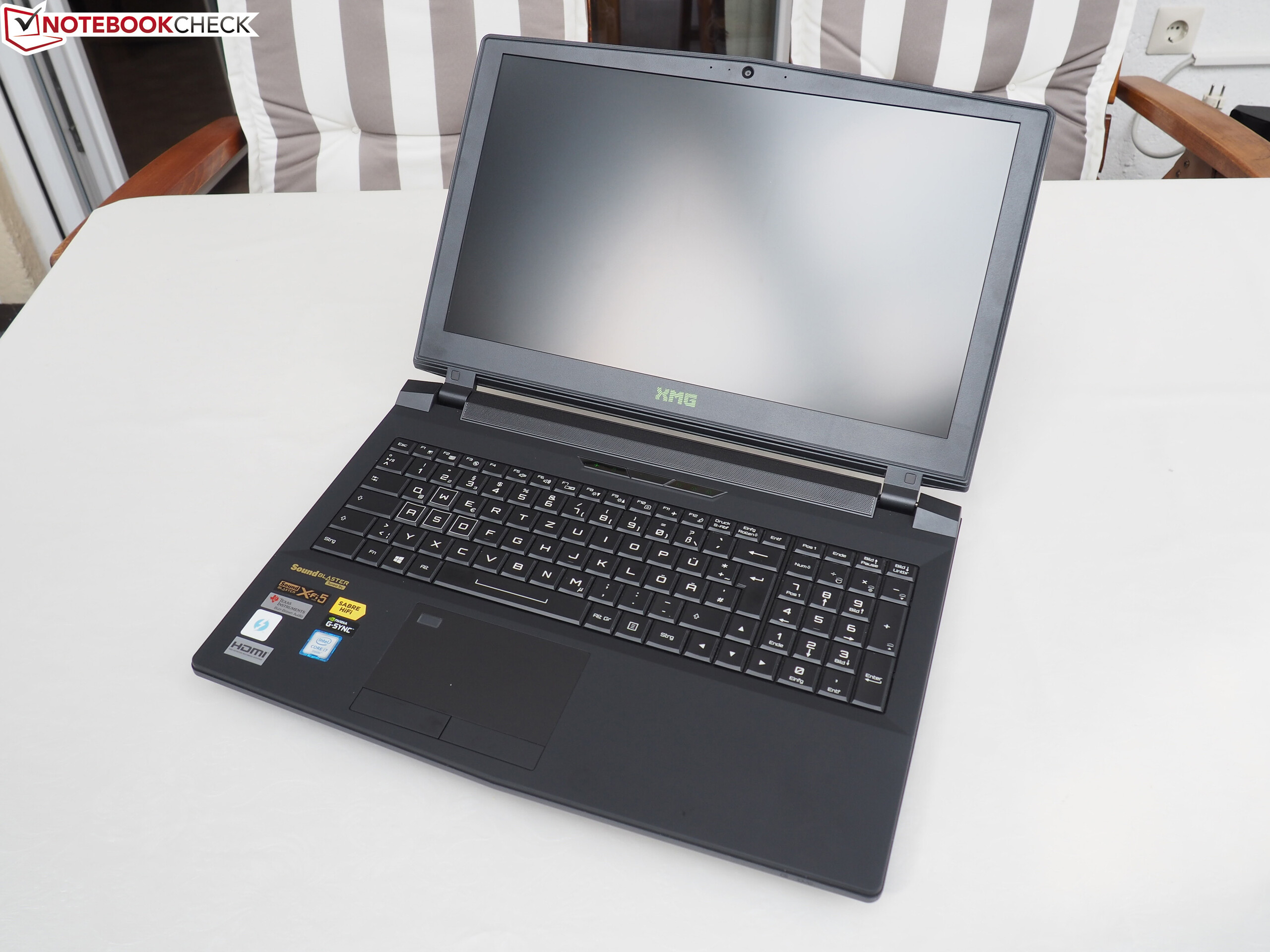

Breve Análise do Portátil Schenker XMG U507 (Clevo P751DM2-G)

Amigável para a manutenção.Portáteis de jogos de alto desempenho são muito comuns. No entanto, muitos aparelhos são decepcionantes quando se trata de limpar e atualizar opções abaixo do capô. O XMG U507 da Schenker Technologies tem como alvo fazer um melhor trabalho neste quesito e permite que seus clientes possam "mexer" em muitos aspectos. Submetemos o portátil de 15 polegadas ao nosso curso de testes exaustivos.
SCHENKER XMG U507 2017
Processador
Intel Core i7-7700K 4 x 4.2 - 4.5 GHz, Kaby Lake, socket 1151, reduzido
Placa gráfica
NVIDIA GeForce GTX 1070 Mobile - 8 GB VRAM, Análises do: 1480 MHz, Memoría: 4000 MHz, GDDR5, MXM 3.0, ForceWare 376.74

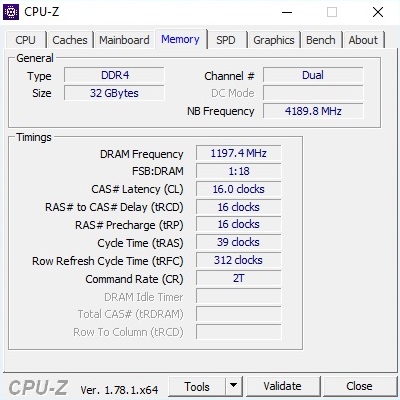

Memória
32 GB
, 4x 8 GB SO-DIMM DDR4-2400, todos os slots ocupados, máx. 64 GB
Pantalha
15.60 polegadas 16:9, 1920 x 1080 pixel 141 PPI, B156HTN05.2 (AUO52ED), TN LED, Full HD, 120 Hz, G-Sync, Brilhante: não
placa mãe
Intel Sunrise Point Z170
Disco rígido
Samsung SSD 960 Evo 500GB m.2 NVMe, 500 GB
, + Seagate FireCuda ST2000LX001, 2 TB SSHD @ 5400 RPM. Slots: 2x m.2 Type 2280 PCIe Gen3 x4 & 2x 2.5 inches
Placa de Som
Realtek ALC899 @ Intel Sunrise Point PCH - High Definition Audio Controller
Conexões
1 USB 2.0, 3 USB 3.0, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Conexões Audio: Fones, microfone, linha de entrada, linha de saída, Card Reader: SD,SDHC,SDXC,Mini SD,MMC,RSMMC, 1 Leitor de Impressões Digitais, Brightness Sensor
Funcionamento em rede
Killer E2400 Gigabit Ethernet Controller (10/100/1000MBit/s), Killer Wireless-n/a/ac 1535 Wireless Network Adapter (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Tamanho
altura x largura x profundidade (em mm): 38 x 386 x 262

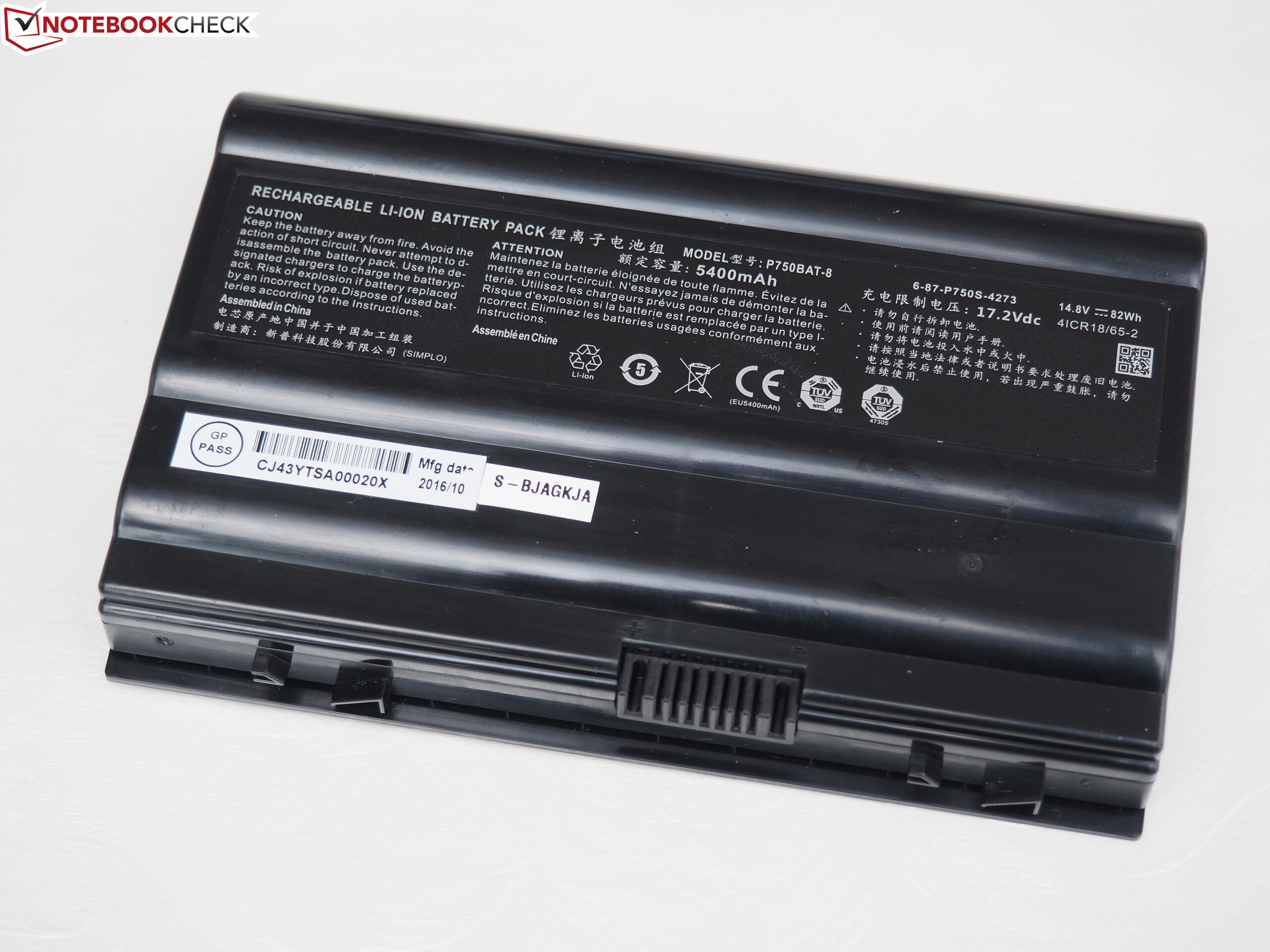

Bateria
82 Wh, 5400 mAh Lítio-Ion, removeable, 14.8V
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 2 MP (FHD)
Características adicionais
Alto falantes: 2.0 (Sound Blaster X-Fi MB5), Teclado: 3 zones, Iluminação do Teclado: sim, Fonte de alimentação de 230 watts, acessórios de 2,5 polegadas, USB flash drive, DVD de controaldores, recovery-DVD, manual, XMG sticker, pano de limpeza, Control Center, 24 Meses Garantia
peso
3.626 kg, Suprimento de energia: 910 g
Preço
3343 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

390 mm 266 mm 40 mm 2.9 kg390 mm 266 mm 39.8 mm 3.1 kg386 mm 262 mm 38 mm 3.6 kg389 mm 305 mm 25 mm 3.5 kg385 mm 271 mm 29 mm 2.9 kg297 mm 210 mm 1 mm 5.7 g

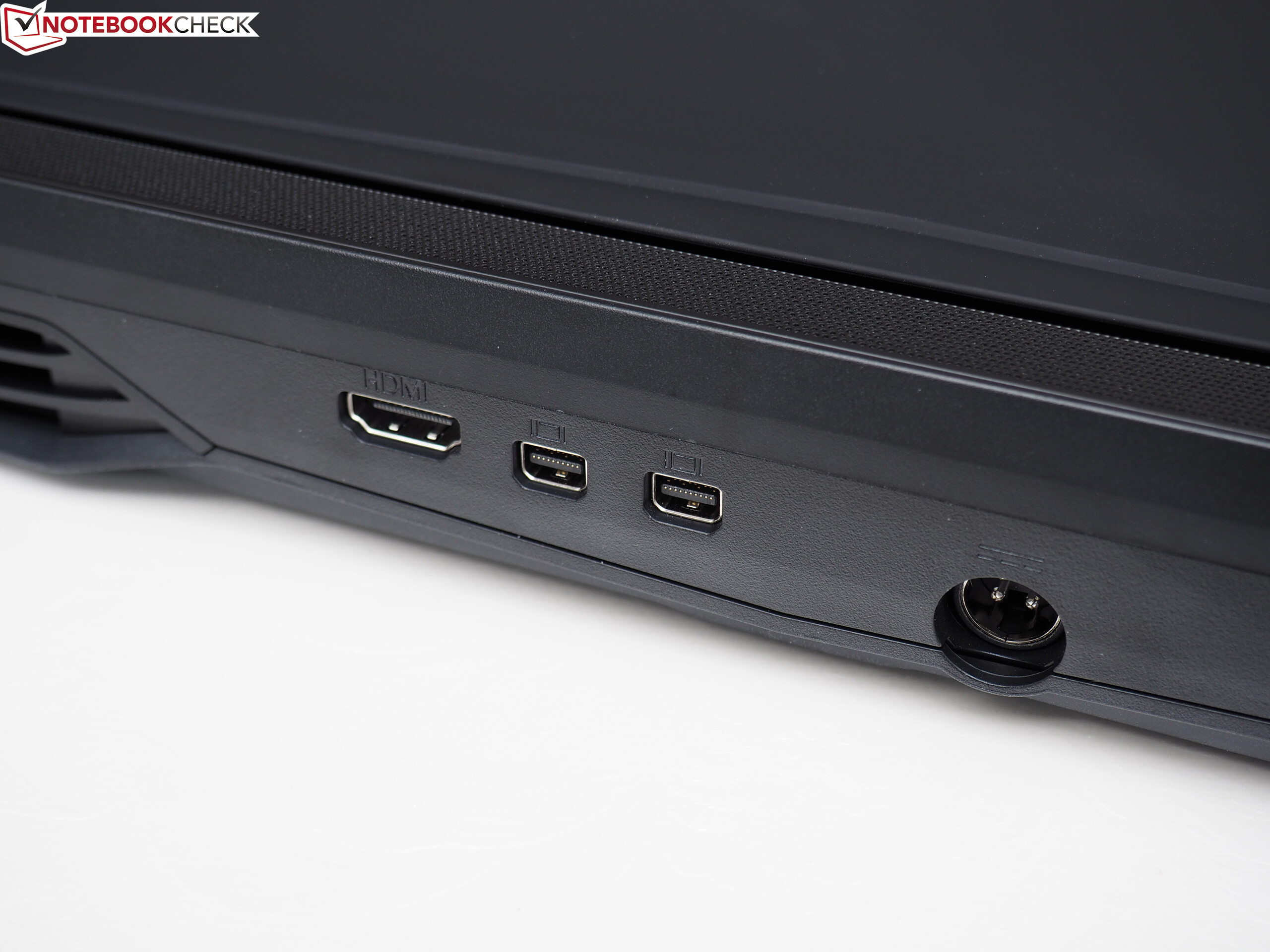

Rear: HDMI 2.0, 2x mini-DisplayPort 1.3, power-in
Rear: HDMI 2.0, 2x mini-DisplayPort 1.3, power-in

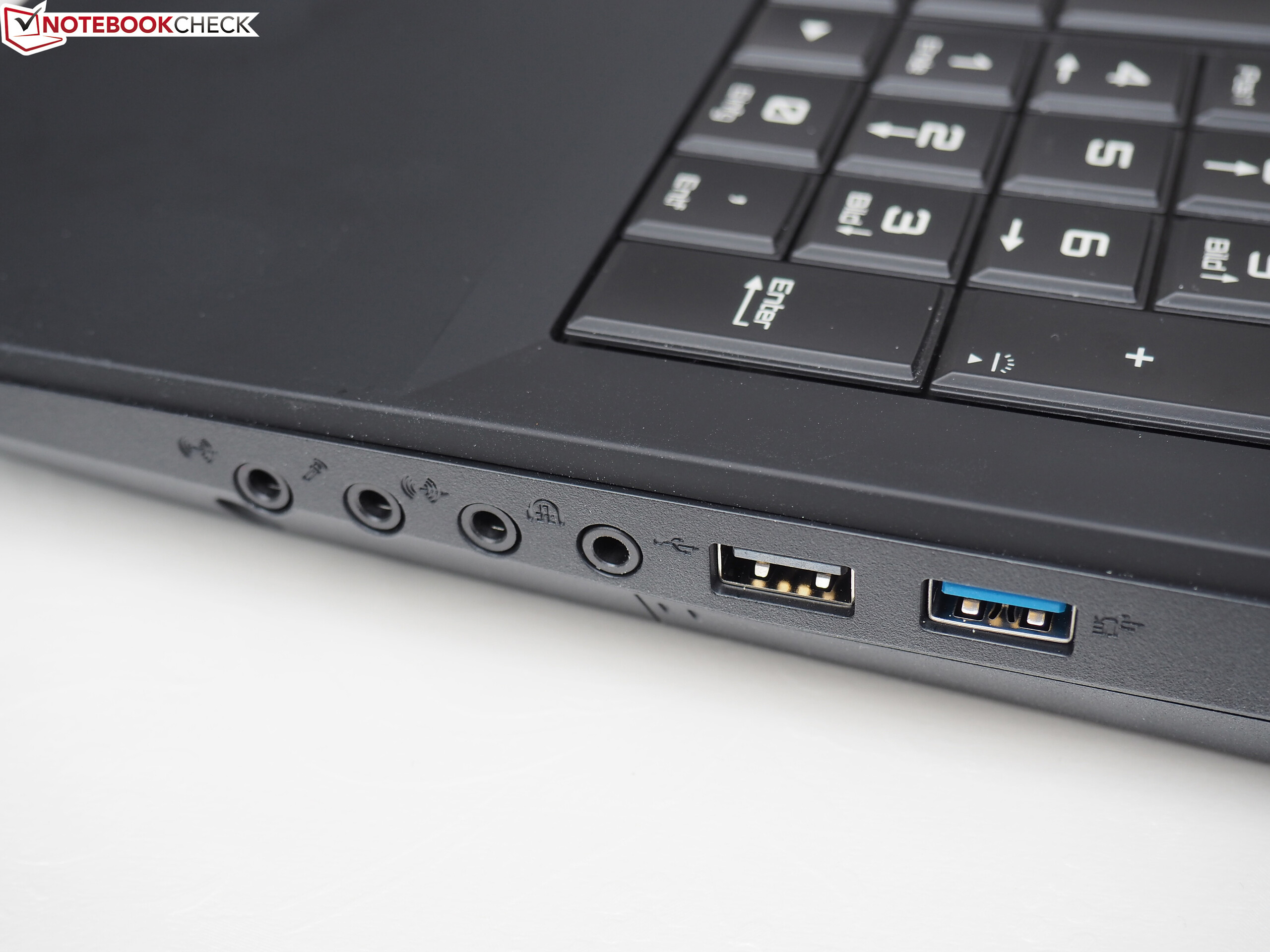

Right: Line-in, micorphone, line-out, headphone, USB-A 2.0, USB-A 3.1 Gen1, Kensington
Right: Line-in, micorphone, line-out, headphone, USB-A 2.0, USB-A 3.1 Gen1, Kensington
Left: RJ45-LAN, Thunderbolt 3, USB-C 3.1 Gen2, 2x USB-A 3.1 Gen1, 6-in-1 card reader
Left: RJ45-LAN, Thunderbolt 3, USB-C 3.1 Gen2, 2x USB-A 3.1 Gen1, 6-in-1 card reader
SD Card Reader
average JPG Copy Test (av. of 3 runs)
SCHENKER XMG U507 2017

168 MB/s
Eurocom Tornado F5

159.5 MB/s -5%
MSI GT62VR 7RE-223

153 MB/s -9%
SCHENKER XMG P507 PRO

78 MB/s -54%
maximum AS SSD Seq Read Test (1GB)
MSI GT62VR 7RE-223

209 MB/s +1%
SCHENKER XMG U507 2017

206 MB/s
Eurocom Tornado F5

191.9 MB/s -7%
SCHENKER XMG P507 PRO

88 MB/s -57%
Networking
iperf3 transmit AX12
MSI GT62VR 7RE-223
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
579 MBit/s +1%
SCHENKER XMG U507 2017
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
576 MBit/s
Eurocom Tornado F5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
569 MBit/s -1%
Alienware 15 R3
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
560 MBit/s -3%
SCHENKER XMG P507 PRO
Intel Dual Band Wireless-AC 8265
513 MBit/s -11%
iperf3 receive AX12
SCHENKER XMG U507 2017
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
683 MBit/s
Alienware 15 R3
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
681 MBit/s 0%
SCHENKER XMG P507 PRO
Intel Dual Band Wireless-AC 8265
674 MBit/s -1%
MSI GT62VR 7RE-223
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
669 MBit/s -2%
Eurocom Tornado F5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
558 MBit/s -18%
391
cd/m²
371
cd/m²
369
cd/m²
390
cd/m²
384
cd/m²
367
cd/m²
377
cd/m²
353
cd/m²
346
cd/m²
Distribuição do brilho
B156HTN05.2 (AUO52ED) tested with X-Rite i1Pro 2
Máximo: 391 cd/m² (Nits) Médio: 372 cd/m² Minimum: 17 cd/m²
iluminação: 88 %
iluminação com acumulador: 380 cd/m²
Contraste: 573:1 (Preto: 0.67 cd/m²)
ΔE Color 9.89 | 0.5-29.43 Ø4.92
ΔE Greyscale 10.41 | 0.5-98 Ø5.2
89% sRGB (Argyll 1.6.3 3D)
58% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
89.2% sRGB (Argyll 2.2.0 3D)
66.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.02
SCHENKER XMG U507 2017
B156HTN05.2 (AUO52ED), 1920x1080
Eurocom Tornado F5
1920x1080
MSI GT62VR 7RE-223
LG Philips LP156WF6 (LGD046F), 1920x1080
Alienware 15 R3
HPJGK_B156HTN (AUO51ED), 1920x1080
SCHENKER XMG P507 PRO
AUO B156HTN05.2 (AUO52ED), 1920x1080
Display
-6%
-6%
0%
0%
Display P3 Coverage
66.4
64.5
-3%
63.9
-4%
66
-1%
66.4
0%
sRGB Coverage
89.2
83
-7%
83.1
-7%
90.5
1%
88.9
0%
AdobeRGB 1998 Coverage
65.3
60.7
-7%
60.8
-7%
66.2
1%
65.1
0%
Response Times
-188%
-150%
-34%
-32%
Response Time Grey 50% / Grey 80% *
26 ?(14, 12)
33.6 ?(8.4, 25.2)
-29%
37 ?(16, 21)
-42%
25 ?(12, 13)
4%
24 ?(12, 12)
8%
Response Time Black / White *
7 ?(4.6, 2.4)
31.2 ?(4.4, 26.8)
-346%
25 ?(4, 21)
-257%
12 ?(4, 8)
-71%
12 ?(4, 8)
-71%
PWM Frequency
Screen
21%
23%
11%
4%
Brightness middle
384
315.8
-18%
310
-19%
386
1%
357
-7%
Brightness
372
310
-17%
311
-16%
382
3%
365
-2%
Brightness Distribution
88
90
2%
85
-3%
93
6%
85
-3%
Black Level *
0.67
0.33
51%
0.3
55%
0.39
42%
0.5
25%
Contrast
573
957
67%
1033
80%
990
73%
714
25%
Colorchecker dE 2000 *
9.89
5
49%
4.82
51%
10.2
-3%
9.93
-0%
Colorchecker dE 2000 max. *
14.56
10.1
31%
10.14
30%
15.81
-9%
14.87
-2%
Greyscale dE 2000 *
10.41
4.2
60%
3.94
62%
11.28
-8%
10.32
1%
Gamma
2.02 109%
2.12 104%
2.45 90%
2.23 99%
2.11 104%
CCT
9919 66%
6107 106%
6877 95%
11383 57%
10096 64%
Color Space (Percent of AdobeRGB 1998)
58
54.5
-6%
54
-7%
59
2%
58
0%
Color Space (Percent of sRGB)
89
83
-7%
83
-7%
90
1%
89
0%
Total Average (Program / Settings)
-58% / -12%
-44% / -6%
-8% / 3%
-9% / -2%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
7 ms ... rise ↗ and fall ↘ combined↗ 4.6 ms rise
↘ 2.4 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 17 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
26 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 32 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R11.5 CPU Single 64Bit
2.18 Points
Cinebench R11.5 CPU Multi 64Bit
10.14 Points
Cinebench R15 CPU Single 64Bit
192 Points
Cinebench R15 CPU Multi 64Bit
919 Points
Ajuda
Cinebench R15
CPU Single 64Bit
SCHENKER XMG U507 2017
Intel Core i7-7700K
192 Points
Eurocom Tornado F5
Intel Core i7-7700K
190 Points -1%
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
161 Points -16%
Alienware 15 R3
Intel Core i7-7700HQ
160 Points -17%
MSI GT62VR 7RE-223
Intel Core i7-7700HQ
160 Points -17%
CPU Multi 64Bit
SCHENKER XMG U507 2017
Intel Core i7-7700K
919 Points
Eurocom Tornado F5
Intel Core i7-7700K
897 Points -2%
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
742 Points -19%
Alienware 15 R3
Intel Core i7-7700HQ
737 Points -20%
MSI GT62VR 7RE-223
Intel Core i7-7700HQ
731 Points -20%
Cinebench R11.5
CPU Single 64Bit
Eurocom Tornado F5
Intel Core i7-7700K
2.19 Points 0%
SCHENKER XMG U507 2017
Intel Core i7-7700K
2.18 Points
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
1.82 Points -17%
Alienware 15 R3
Intel Core i7-7700HQ
1.82 Points -17%
MSI GT62VR 7RE-223
Intel Core i7-7700HQ
1.81 Points -17%
CPU Multi 64Bit
SCHENKER XMG U507 2017
Intel Core i7-7700K
10.14 Points
Eurocom Tornado F5
Intel Core i7-7700K
9.78 Points -4%
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
8.16 Points -20%
Alienware 15 R3
Intel Core i7-7700HQ
8.16 Points -20%
MSI GT62VR 7RE-223
Intel Core i7-7700HQ
8.15 Points -20%
PCMark 8
Home Score Accelerated v2
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K, Samsung SSD 960 Evo 500GB m.2 NVMe
5478 Points
Eurocom Tornado F5
GeForce GTX 1070 Mobile, i7-7700K, Samsung SSD 960 Pro 512 GB m.2
5476 Points 0%
MSI GT62VR 7RE-223
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD PM871a MZNLN256HMHQ
5011 Points -9%
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
4966 Points -9%
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
4320 Points -21%
Work Score Accelerated v2
Eurocom Tornado F5
GeForce GTX 1070 Mobile, i7-7700K, Samsung SSD 960 Pro 512 GB m.2
6515 Points +16%
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K, Samsung SSD 960 Evo 500GB m.2 NVMe
5629 Points
MSI GT62VR 7RE-223
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD PM871a MZNLN256HMHQ
5406 Points -4%
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
5299 Points -6%
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
5180 Points -8%
PCMark 7 - Score
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K, Samsung SSD 960 Evo 500GB m.2 NVMe
7892 Points
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
6886 Points -13%
MSI GT62VR 7RE-223
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD PM871a MZNLN256HMHQ
6831 Points -13%
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
6390 Points -19%
PCMark 7 Score
7892 pontos
PCMark 8 Home Score Accelerated v2
5478 pontos
PCMark 8 Work Score Accelerated v2
5629 pontos
Ajuda
SCHENKER XMG U507 2017
Samsung SSD 960 Evo 500GB m.2 NVMe
Eurocom Tornado F5
Samsung SSD 960 Pro 512 GB m.2
MSI GT62VR 7RE-223
Samsung SSD PM871a MZNLN256HMHQ
Alienware 15 R3

SCHENKER XMG P507 PRO
Samsung SSD 960 Evo 500GB m.2 NVMe
AS SSD
3%
-61%
-4%
Seq Read
2634
2819
7%
510
-81%
2604
-1%
Seq Write
1621
2046
26%
288.2
-82%
1678
4%
4K Read
49.18
51
4%
37.2
-24%
49.2
0%
4K Write
180.9
150.5
-17%
104
-43%
160.3
-11%
Score Total
4122
3943
-4%
1019
-75%
3629
-12%
Samsung SSD 960 Evo 500GB m.2 NVMe
Sequential Read: 1665 MB/s
Sequential Write: 1671 MB/s
512K Read: 761 MB/s
512K Write: 1035 MB/s
4K Read: 59.1 MB/s
4K Write: 202.4 MB/s
4K QD32 Read: 741 MB/s
4K QD32 Write: 639 MB/s
3DMark - 1920x1080 Fire Strike Graphics
SCHENKER XMG U507 2017
NVIDIA GeForce GTX 1070 Mobile
18624 Points
Alienware 15 R3
NVIDIA GeForce GTX 1070 Mobile
17675 Points -5%
MSI GT62VR 7RE-223
NVIDIA GeForce GTX 1070 Mobile
17477 Points -6%
Eurocom Tornado F5
NVIDIA GeForce GTX 1070 Mobile
17321 Points -7%
SCHENKER XMG P507 PRO
NVIDIA GeForce GTX 1070 Mobile
16873 Points -9%
3DMark 11 - 1280x720 Performance GPU
SCHENKER XMG U507 2017
NVIDIA GeForce GTX 1070 Mobile
23828 Points
Eurocom Tornado F5
NVIDIA GeForce GTX 1070 Mobile
23042 Points -3%
Alienware 15 R3
NVIDIA GeForce GTX 1070 Mobile
22810 Points -4%
MSI GT62VR 7RE-223
NVIDIA GeForce GTX 1070 Mobile
22704 Points -5%
SCHENKER XMG P507 PRO
NVIDIA GeForce GTX 1070 Mobile
21922 Points -8%
Unigine Heaven 4.0 - Extreme Preset DX11
SCHENKER XMG U507 2017
NVIDIA GeForce GTX 1070 Mobile
115.5 fps
Alienware 15 R3
NVIDIA GeForce GTX 1070 Mobile
109.6 fps -5%
SCHENKER XMG P507 PRO
NVIDIA GeForce GTX 1070 Mobile
109.1 fps -6%
3DMark 11 Performance
18882 pontos
3DMark Ice Storm Standard Score
189309 pontos
3DMark Cloud Gate Standard Score
32726 pontos
3DMark Fire Strike Score
15106 pontos
Ajuda
Watch Dogs 2
1920x1080 Ultra Preset
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
67 fps
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
62.9 fps -6%
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
55.1 fps -18%
1920x1080 High Preset
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
92.3 fps
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
83.2 fps -10%
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
75.3 fps -18%
Mass Effect Andromeda
1920x1080 Ultra Preset (Resolution Scale Mode off) AA:T
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
75.6 fps
1920x1080 High Preset (Resolution Scale Mode off) AA:T
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
83.5 fps
Ghost Recon Wildlands
1920x1080 Ultra Preset AA:T AF:16x
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
53.9 fps
1920x1080 High Preset AA:T AF:4x
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
94 fps
For Honor
1920x1080 Extreme Preset AA:T AF:16x
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
111 fps
1920x1080 High Preset AA:T AF:8x
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
148 fps
Dishonored 2
1920x1080 Ultra Preset AA:TX
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
85 fps
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
73.3 fps -14%
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
62.1 fps -27%
1920x1080 High Preset AA:TX
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
104 fps
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
85.4 fps -18%
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
85 fps -18%
FIFA 17
1920x1080 Ultra Preset AA:4xMS
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
365 fps
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
196 fps -46%
1920x1080 High Preset
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
370 fps
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
200 fps -46%
XCOM 2
1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
42.6 fps
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
41.7 fps -2%
1920x1080 High Preset AA:FX AF:8x
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
87.7 fps
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
71.3 fps -19%
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
63 fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
SCHENKER XMG U507 2017
GeForce GTX 1070 Mobile, i7-7700K
112 fps
baixomédiaaltoultra
The Witcher 3 (2015) 112 63
XCOM 2 (2016) 87.7 42.6
FIFA 17 (2016) 370 365
Dishonored 2 (2016) 104 85
Watch Dogs 2 (2016) 92.3 67
For Honor (2017) 148 111
Ghost Recon Wildlands (2017) 94 53.9
Mass Effect Andromeda (2017) 83.5 75.6
012345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364Tooltip
The Witcher 3 ultra

Barulho

Ocioso
32 / 35 / 38 dB
HDD
33 dB
Carga
45 / 49 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 30 dB(A)
SCHENKER XMG U507 2017
i7-7700K, GeForce GTX 1070 Mobile
Eurocom Tornado F5
i7-7700K, GeForce GTX 1070 Mobile
MSI GT62VR 7RE-223
i7-7700HQ, GeForce GTX 1070 Mobile
Alienware 15 R3
i7-7700HQ, GeForce GTX 1070 Mobile
SCHENKER XMG P507 PRO
i7-7700HQ, GeForce GTX 1070 Mobile
Noise
2%
3%
-2%
-5%
off / environment *
30
29.4
2%
30
-0%
30
-0%
31
-3%
Idle Minimum *
32
33.3
-4%
34
-6%
31
3%
33
-3%
Idle Average *
35
33.5
4%
35
-0%
32
9%
34
3%
Idle Maximum *
38
33.5
12%
36
5%
42
-11%
44
-16%
Load Average *
45
44.2
2%
40
11%
49
-9%
46
-2%
Witcher 3 ultra *
45
Load Maximum *
49
52.5
-7%
46
6%
50
-2%
52
-6%

* ... smaller is better

 46.4 °C46.5 °C41.2 °C
 47.4 °C47.8 °C41.3 °C
 34.3 °C37.6 °C33.9 °C
Máximo: 47.8 °C
Médio: 41.8 °C
51.1 °C43.4 °C48.6 °C
44.1 °C39.2 °C34.9 °C
38.7 °C39.4 °C28.6 °C
Máximo: 51.1 °C
Médio: 40.9 °C
alimentação elétrica  50 °C | Temperatura do quarto 20 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 41.8 °C / 107 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 47.8 °C / 118 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 51.1 °C / 124 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28.7 °C / 84 F, compared to the device average of 33.9 °C / 93 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 37.4 °C / 99 F, compared to the device average of 33.9 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.6 °C / 99.7 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-8.7 °C / -15.7 F).
SCHENKER XMG U507 2017
i7-7700K, GeForce GTX 1070 Mobile
Eurocom Tornado F5
i7-7700K, GeForce GTX 1070 Mobile
MSI GT62VR 7RE-223
i7-7700HQ, GeForce GTX 1070 Mobile
Alienware 15 R3
i7-7700HQ, GeForce GTX 1070 Mobile
SCHENKER XMG P507 PRO
i7-7700HQ, GeForce GTX 1070 Mobile
Heat
16%
9%
-14%
-12%
Maximum Upper Side *
47.8
37.4
22%
40.6
15%
46
4%
49.2
-3%
Maximum Bottom *
51.1
44.8
12%
48.4
5%
51.8
-1%
62
-21%
Idle Upper Side *
30.5
25.4
17%
26.8
12%
36.5
-20%
32.4
-6%
Idle Bottom *
27.8
24.8
11%
26.4
5%
38.2
-37%
33
-19%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.438.92532.335.63127.833.14030.436.55025.529.86326.430.98028.341.410025.344.712524.242.61602253.820022.561.625020.764.131523.364.440020.862.750019.761.463019.761.680018.763.4100019.164125018.464.5160018.264.72000186925001868.8315018.270.5400018.269.1500018.167.6630018.167.3800018.1671000018.763.81250018.360.11600017.854.7SPL30.879.1N1.546.3median 18.7median 64Delta0.9533.436.735.134.933.634.330.334.331.232.930.831.629.831.929.932.530.835.129.436.827.242.226.35025.751.625.255.524.858.325.559.127.560.523.865.123.461.523.454.522.962.422.960.922.657.822.554.522.555.422.455.722.352.922.34922.448.922.352.435.871.32.527.6median 23.4median 54.51.66.3hearing rangehide median Pink NoiseSCHENKER XMG U507 2017Eurocom Tornado F5
SCHENKER XMG U507 2017 audio analysis

(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9% lower than median
(±) | linearity of bass is average (10% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.6% away from median
(+) | mids are linear (2.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.8% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.3% difference to median)
Compared to same class
» 12% of all tested devices in this class were better, 5% similar, 83% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Eurocom Tornado F5 audio analysis

(-) | not very loud speakers (71.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(±) | linearity of mids is average (12.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.4% difference to median)
Compared to same class
» 87% of all tested devices in this class were better, 4% similar, 9% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 71% of all tested devices were better, 6% similar, 23% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.3 / 1.3 Watt
Ociosodarkmidlight 28 / 34 / 44 Watt
Carga midlight 125 / 270 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
SCHENKER XMG U507 2017
i7-7700K, GeForce GTX 1070 Mobile
Eurocom Tornado F5
i7-7700K, GeForce GTX 1070 Mobile
MSI GT62VR 7RE-223
i7-7700HQ, GeForce GTX 1070 Mobile
Alienware 15 R3
i7-7700HQ, GeForce GTX 1070 Mobile
SCHENKER XMG P507 PRO
i7-7700HQ, GeForce GTX 1070 Mobile
Power Consumption
16%
31%
32%
40%
Idle Minimum *
28
21.2
24%
20
29%
19
32%
14
50%
Idle Average *
34
25.1
26%
24
29%
23
32%
18
47%
Idle Maximum *
44
26.3
40%
29
34%
29
34%
24
45%
Load Average *
125
169.4
-36%
82
34%
85
32%
87
30%
Witcher 3 ultra *
178
Load Maximum *
270
202.4
25%
193
29%
192
29%
201
26%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
3h 14min
WiFi Websurfing
2h 50min
Carga (máximo brilho)
1h 30min
SCHENKER XMG U507 2017
i7-7700K, GeForce GTX 1070 Mobile, 82 Wh
Eurocom Tornado F5
i7-7700K, GeForce GTX 1070 Mobile, 75.24 Wh
MSI GT62VR 7RE-223
i7-7700HQ, GeForce GTX 1070 Mobile, 75 Wh
Alienware 15 R3
i7-7700HQ, GeForce GTX 1070 Mobile, 99 Wh
SCHENKER XMG P507 PRO
i7-7700HQ, GeForce GTX 1070 Mobile, 60 Wh
Battery Runtime
17%
49%
55%
15%
Reader / Idle
194
291
50%
377
94%
382
97%
WiFi v1.3
170
216
27%
246
45%
264
55%
195
15%
Load
90
67
-26%
98
9%
102
13%
H.264
252
266
213

Pro

+ Muitas interfaces (por exemplo, Thunderbolt 3)
+ Teclado iluminado RGB
+ CPU e GPU substituíveis
+ Até quatro dispositivos de armazenamento
+ Controle manual da ventoinha
+ Configurações individuais
+ Desempenho premium
+ Ferramentas de overclock
+ Acessórios generosos
+ Fácil manutenção
+ Sem bloatware
+ Bom som
+ G-Sync

Contra

- A fonte de alimentação de 230 watts, às vezes se desliga durante o uso intenso (muito fraco para a configuração de teste)
- Tela de 120 Hz de baixo contraste com ângulos de visão pobres
- Os componentes podem esquentar muito no modo 3D
- Carcaça robusta e pesada
- Alto consumo de energia
- Duração pobre da bateria
- Tampa instável
In review: XMG U507 2017. Review sample courtesy of Schenker Technologies.
In review: XMG U507 2017. Review sample courtesy of Schenker Technologies.

Poder luxuoso a um preço luxuoso: O XMG U507 da Schenker Technologies poderia ser resumido em essa frase. A configuração básica não é tão cara com 1.749 Euros (~$1879), mas quando opta-se pelo hardware de alto desempeno (GeForce GTX 1070, Core i7 com Hyperthreading, pelo menos 16 GB de RAM, solid state drive baseado em PCIe), o preço pode aumentar muito facilmente para 2500 (~$2686) se não 3000 Euros (~$3223). Os jogadores exigentes que esperam muitas interfaces, boas opções de manutenção, uma configuração individual, e detalhes máximos em Full HD devem ficar contentes com XMG U507.

A decisão entre o painel IPS ou o TN de 120 Hz depende principalmente da preferência do usuário. Os usuários que sentem cada fotograma adicional e que conseguem perceber a mínima mudança na tela, provavelmente podem ignorar as fraquezas da tela de 120 Hz (nível de preto pobre, baixo contraste, forte tonalidade azul). Os paineis IPS são a melhor opção para o resto das pessoas, dado que possuem maior contraste e têm ângulos de visão mais estáveis. A Schenker também deveria fazer melhorias na fonte de alimentação  que está um pouco subdimensionada para uma combinação de GeForce GTX 1070 e Core i7-7700K - pelos menos em cenários de uso intenso. De outra forma, somente a duração da bateria e a tampa extremamente instável que acaba produzindo distorções na imagem quando pressionada, devem ser colocadas na lista dos pontos negativos.

Normalmente é suficiente para o primeiro lugar em outros aspectos. A conectividade, desempenho, e o som deixam os concorrentes de 15 polegadas um pouco atrás. No entanto, o MSI GT62VR 7REAlienware 15 R3 e o Acer Predator 15 (ainda não testado com Kaby Lake) atingem avaliações comparáveis. Pode valer a penas dar uma olhada no Schenker se preferir um portátil relativamente leve e fino.

SCHENKER XMG U507 2017 - 03/26/2017 v6 (old)
Florian Glaser

Acabamento
72 / 98 → 74%
Teclado
83%
Mouse
83%
Conectividade
75 / 81 → 93%
Peso
52 / 10-66 → 76%
Bateria
68%
Pantalha
81%
Desempenho do jogos
97%
Desempenho da aplicação
100%
Temperatura
85 / 95 → 89%
Ruído
69 / 90 → 76%
Audio
80%
Impressão
-1%
Médio
73%
85%
Gaming - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Schenker XMG U507 (Clevo P751DM2-G)
Florian Glaser, 2017-04- 4 (Update: 2017-04-11)
