Breve Análise do Portátil Schenker Technologies XMG Core 15 (i7-7700HQ, GTX 1060, Full HD)

Veloz, porém, quente e voraz. A Schenker está usando uma nova carcaça para o seu portátil Core 15 e eles ficaram calados sobre onde eles o conseguiram. Avaliaremos se a mudança valeu a pena e o quão bem este aparelho de 15 polegadas se compara com portáteis de jogos equipados de forma semelhante.
Gaming Geforce Kaby Lake Laptop / Notebook Windows
CORE 15-L17dyv (XMG Core 15 Serie)
Processador
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake
Placa gráfica
NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, Análises do: 1405 MHz, Memoría: 8000 MHz, GDDR5, ForceWare 387.92, No Optimus
Memória
16 GB
, 2x 8 GB SO-DIMM DDR4-2400, Dual Channel, ambos slots ocupados
Pantalha
15.60 polegadas 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LP156WF6 (LGD046F), IPS, Full-HD, Brilhante: não
placa mãe
Intel HM175 (Skylake PCH-H)
Disco rígido
Samsung SSD 960 Evo 250GB m.2 NVMe, 250 GB
, plus Seagate ST1000LM048, 1 TB HDD @5400 rpm. Connections: 1x M.2 Type 2280 & 1x 2.5-inch
Placa de Som
Realtek ALC255 @ Intel Sunrise Point PCH - High Definition Audio Controller
Conexões
4 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: Combined (headphones and microphone), Card Reader: 6-in-1
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 25.1 x 386 x 262
Bateria
82 Wh, 7180 mAh Lítio-Polímero, 6 células, não-removível
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Características adicionais
Alto falantes: 2.1, Teclado: Chiclet, Iluminação do Teclado: sim, Fonte de alimentação de 200 Watts, Control Center, 24 Meses Garantia
peso
2.566 kg, Suprimento de energia: 850 g
Preço
1 Euro
Links
SCHENKER página inicial
SCHENKER Seção de notebook
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

❌
380 mm 269 mm 34 mm 2.6 kg391 mm 266 mm 22.5 mm 2.5 kg390 mm 266 mm 23 mm 2.6 kg386 mm 262 mm 25.1 mm 2.6 kg380 mm 277 mm 30 mm 3.1 kg378 mm 267 mm 30 mm 2.4 kg297 mm 210 mm 1 mm 5.7 g
Left:: Power, 2x USB-A 3.0, Headset/Microphone, Status LEDs
Left:: Power, 2x USB-A 3.0, Headset/Microphone, Status LEDs

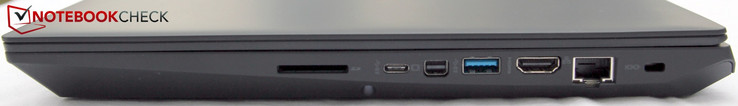

Right: SD Card Reader, USB-C 3.1, miniDP, USB-A 3.0, HDMI, Ethernet, Kensington
Right: SD Card Reader, USB-C 3.1, miniDP, USB-A 3.0, HDMI, Ethernet, Kensington
Back: Air Vents
Back: Air Vents

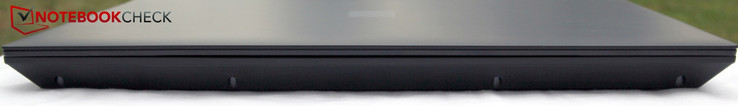

Front: Nothing
Front: Nothing
SD Card Reader
average JPG Copy Test (av. of 3 runs)
SCHENKER XMG Core 15
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
80 MB/s
Asus FX502VM-AS73
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
78.8 MB/s -1%
SCHENKER XMG A517
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
78 MB/s -2%
Gigabyte P55W v7
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76 MB/s -5%
Acer Aspire VN7-593G-73HP V15 Nitro BE

22.7 MB/s -72%
maximum AS SSD Seq Read Test (1GB)
Gigabyte P55W v7
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88 MB/s +1%
SCHENKER XMG A517
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87 MB/s 0%
SCHENKER XMG Core 15
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87 MB/s
Asus FX502VM-AS73
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.9 MB/s 0%
Acer Aspire VN7-593G-73HP V15 Nitro BE

27.2 MB/s -69%
Networking
iperf3 transmit AX12
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Dual Band Wireless-AC 8265
661 MBit/s +77%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Atheros/Qualcomm QCA6174
618 MBit/s +66%
SCHENKER XMG A517
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
616 MBit/s +65%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
513 MBit/s +38%
Gigabyte P55W v7
Intel Dual Band Wireless-AC 8260
470 MBit/s +26%
SCHENKER XMG Core 15
Intel Dual Band Wireless-AC 8265
373 MBit/s
iperf3 receive AX12
SCHENKER XMG A517
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
683 MBit/s +3%
SCHENKER XMG Core 15
Intel Dual Band Wireless-AC 8265
664 MBit/s
Gigabyte P55W v7
Intel Dual Band Wireless-AC 8260
663 MBit/s 0%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
541 MBit/s -19%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Atheros/Qualcomm QCA6174
541 MBit/s -19%
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Dual Band Wireless-AC 8265
511 MBit/s -23%
268
cd/m²		278
cd/m²		263
cd/m²
299
cd/m²		297
cd/m²		282
cd/m²
269
cd/m²		263
cd/m²		261
cd/m²
Distribuição do brilho
LG Philips LP156WF6 (LGD046F) tested with X-Rite i1Pro 2
Máximo: 299 cd/m² (Nits) Médio: 275.6 cd/m² Minimum: 46 cd/m²
iluminação: 87 %
iluminação com acumulador: 297 cd/m²
Contraste: 990:1 (Preto: 0.3 cd/m²)
ΔE Color 5.25 | 0.5-29.43 Ø4.93
ΔE Greyscale 4.64 | 0.5-98 Ø5.2
83% sRGB (Argyll 1.6.3 3D)
54% AdobeRGB 1998 (Argyll 1.6.3 3D)
60.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
83% sRGB (Argyll 2.2.0 3D)
64.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.39
SCHENKER XMG Core 15
LG Philips LP156WF6 (LGD046F), 1920x1080, 15.6"		SCHENKER XMG A517
LG Philips LP156WF6 (LGD046F), 1920x1080, 15.6"		Asus FX502VM-AS73
1920x1080, 15.6"		Lenovo Lenovo Legion Y720 80VR002XGE
LG Philips LGD0533 LP156WF6-SPK3, 1920x1080, 15.6"		Gigabyte P55W v7
LG Philips LP156WF6 (LGD046F), 1920x1080, 15.6"		Acer Aspire VN7-593G-73HP V15 Nitro BE
LG Display LP156WF6-SPP1, 1920x1080, 15.6"
Display
2%
-35%
-35%
-1%
3%
Display P3 Coverage
64.3
65
1%
38.28
-40%
38.43
-40%
63.5
-1%
65.8
2%
sRGB Coverage
83
85.1
3%
56.9
-31%
57.5
-31%
82
-1%
85.1
3%
AdobeRGB 1998 Coverage
60.6
62.2
3%
39.47
-35%
39.75
-34%
59.9
-1%
62.2
3%
Response Times
12%
28%
6%
14%
-6%
Response Time Grey 50% / Grey 80% *
40.8 ?(20.4, 20.4)
36 ?(18, 18)
12%
28.4 ?(11.2, 17.2)
30%
43 ?(22, 21)
-5%
37 ?(15, 22)
9%
41 ?(21, 20)
-0%
Response Time Black / White *
30.4 ?(16.4, 14)
24 ?(12.4, 11.6)
21%
22.4 ?(6, 16.4)
26%
24 ?(12, 12)
21%
25 ?(5, 20)
18%
34 ?(21, 13)
-12%
PWM Frequency
20490 ?(95)
21000 ?(95)
2%
21000 ?(90)
2%
Screen
1%
-33%
-10%
2%
5%
Brightness middle
297
320
8%
209.5
-29%
288
-3%
287
-3%
322
8%
Brightness
276
311
13%
205
-26%
275
0%
289
5%
297
8%
Brightness Distribution
87
90
3%
92
6%
86
-1%
87
0%
86
-1%
Black Level *
0.3
0.36
-20%
0.69
-130%
0.36
-20%
0.29
3%
0.31
-3%
Contrast
990
889
-10%
304
-69%
800
-19%
990
0%
1039
5%
Colorchecker dE 2000 *
5.25
5.08
3%
4.7
10%
5.29
-1%
4.92
6%
4.73
10%
Colorchecker dE 2000 max. *
10.3
10.73
-4%
19.7
-91%
9.97
3%
11
-7%
12.37
-20%
Greyscale dE 2000 *
4.64
4.04
13%
1.8
61%
4.5
3%
3.66
21%
2.99
36%
Gamma
2.39 92%
2.34 94%
2.23 99%
2.39 92%
2.32 95%
2.32 95%
CCT
6600 98%
7029 92%
6975 93%
6839 95%
6482 100%
6905 94%
Color Space (Percent of AdobeRGB 1998)
54
56
4%
36.2
-33%
37
-31%
54
0%
56
4%
Color Space (Percent of sRGB)
83
85
2%
56.6
-32%
57
-31%
82
-1%
85
2%
Total Average (Program / Settings)
5% / 3%
-13% / -26%
-13% / -12%
5% / 3%
1% / 3%

* ... smaller is better

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
   ↔    Response Time Black to White
30.4 ms ... rise ↗ and fall ↘ combined↗ 16.4 ms rise
↘ 14 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 81 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

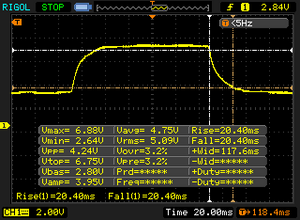

   ↔    Response Time 50% Grey to 80% Grey
40.8 ms ... rise ↗ and fall ↘ combined↗ 20.4 ms rise
↘ 20.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 60 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 20490 Hz ≤ 95 % brightness setting

The display backlight flickers at 20490 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 95 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 20490 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15 | Cinebench R11.5 | Cinebench R10
Cinebench R15
CPU Single 64Bit
SCHENKER XMG A517
Intel Core i7-7700HQ
161 Points +1%
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Core i7-7700HQ
160 Points 0%
SCHENKER XMG Core 15
Intel Core i7-7700HQ
160 Points
Gigabyte P55W v7
Intel Core i7-7700HQ
156 Points -2%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Intel Core i7-7700HQ
152 Points -5%
Asus FX502VM-AS73
Intel Core i7-7700HQ
140 Points -12%
CPU Multi 64Bit
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Core i7-7700HQ
737 Points +2%
Gigabyte P55W v7
Intel Core i7-7700HQ
733 Points +2%
Asus FX502VM-AS73
Intel Core i7-7700HQ
725 Points 0%
SCHENKER XMG Core 15
Intel Core i7-7700HQ
722 Points
SCHENKER XMG A517
Intel Core i7-7700HQ
710 Points -2%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Intel Core i7-7700HQ
673 (660min - 673max) Points -7%
Cinebench R11.5
CPU Single 64Bit
SCHENKER XMG Core 15
Intel Core i7-7700HQ
1.81 Points
SCHENKER XMG A517
Intel Core i7-7700HQ
1.8 Points -1%
Asus FX502VM-AS73
Intel Core i7-7700HQ
1.67 Points -8%
CPU Multi 64Bit
SCHENKER XMG Core 15
Intel Core i7-7700HQ
8.11 Points
Asus FX502VM-AS73
Intel Core i7-7700HQ
7.99 Points -1%
SCHENKER XMG A517
Intel Core i7-7700HQ
7.65 Points -6%
Cinebench R10
Rendering Single CPUs 64Bit
SCHENKER XMG Core 15
Intel Core i7-7700HQ
7795 Points
Rendering Multiple CPUs 64Bit
SCHENKER XMG Core 15
Intel Core i7-7700HQ
29210 Points
Cinebench R10 Shading 64Bit
6836 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
29210 Points
Cinebench R10 Rendering Single CPUs 64Bit
7795 Points
Cinebench R11.5 CPU Multi 64Bit
8.11 Points
Cinebench R11.5 OpenGL 64Bit
72.3 fps
Cinebench R11.5 CPU Single 64Bit
1.81 Points
Cinebench R15 CPU Single 64Bit
160 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
113.7 fps
Cinebench R15 CPU Multi 64Bit
722 Points
Ajuda
PCMark 8
Home Score Accelerated v2
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
4765 Points +3%
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
4626 Points
SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
4187 Points -9%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
4115 Points -11%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
4013 Points -13%
Work Score Accelerated v2
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
5332 Points
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
5317 Points 0%
SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
5198 Points -3%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
5083 Points -5%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
2722 Points -49%
PCMark 8 Home Score Accelerated v2
4626 pontos
PCMark 8 Work Score Accelerated v2
5332 pontos
PCMark 10 Score
5134 pontos
Ajuda
SCHENKER XMG Core 15
Samsung SSD 960 Evo 250GB m.2 NVMe		Asus FX502VM-AS73
SK Hynix HFS256G39TND-N210A		Lenovo Lenovo Legion Y720 80VR002XGE
Samsung PM961 MZVLW256HEHP		Gigabyte P55W v7
Liteonit CV3-8D256		Acer Aspire VN7-593G-73HP V15 Nitro BE
Seagate Mobile HDD 1TB ST1000LM035
CrystalDiskMark 3.0
-63%
3%
-61%
-96%
Read Seq
1338
503
-62%
2196
64%
466.2
-65%
120.9
-91%
Write Seq
1188
138.2
-88%
1144
-4%
261.9
-78%
101.8
-91%
Read 512
780
343.5
-56%
747
-4%
252.5
-68%
37.83
-95%
Write 512
1006
137.8
-86%
810
-19%
254.8
-75%
84.4
-92%
Read 4k
58.3
29.36
-50%
60.1
3%
25.4
-56%
0.473
-99%
Write 4k
134
70.9
-47%
153.5
15%
55
-59%
0.313
-100%
Read 4k QD32
577
369.9
-36%
485.4
-16%
358.5
-38%
1.133
-100%
Write 4k QD32
481.9
99.7
-79%
396.3
-18%
240.1
-50%
0.274
-100%
CrystalDiskMark 3.0
CrystalDiskMark 5.2 / 6
AS SSD
hddimg
Samsung SSD 960 Evo 250GB m.2 NVMe
Sequential Read: 1338 MB/s
Sequential Write: 1188 MB/s
512K Read: 780 MB/s
512K Write: 1006 MB/s
4K Read: 58.3 MB/s
4K Write: 134 MB/s
4K QD32 Read: 577 MB/s
4K QD32 Write: 481.9 MB/s
3DMark | 3DMark 11
3DMark - 1920x1080 Fire Strike Graphics
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile
11633 Points +3%
Acer Aspire VN7-593G-73HP V15 Nitro BE
NVIDIA GeForce GTX 1060 Mobile
11494 Points +2%
SCHENKER XMG A517
NVIDIA GeForce GTX 1060 Mobile
11439 Points +1%
Gigabyte P55W v7
NVIDIA GeForce GTX 1060 Mobile
11426 Points +1%
SCHENKER XMG Core 15
NVIDIA GeForce GTX 1060 Mobile
11322 Points
Lenovo Lenovo Legion Y720 80VR002XGE
NVIDIA GeForce GTX 1060 Mobile
11134 Points -2%
3DMark 11 - 1280x720 Performance GPU
Acer Aspire VN7-593G-73HP V15 Nitro BE
NVIDIA GeForce GTX 1060 Mobile
14942 Points +3%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile
14732 Points +2%
Gigabyte P55W v7
NVIDIA GeForce GTX 1060 Mobile
14693 Points +2%
SCHENKER XMG Core 15
NVIDIA GeForce GTX 1060 Mobile
14471 Points
SCHENKER XMG A517
NVIDIA GeForce GTX 1060 Mobile
14399 Points 0%
Lenovo Lenovo Legion Y720 80VR002XGE
NVIDIA GeForce GTX 1060 Mobile
14233 Points -2%
3DMark 11 Performance
12840 pontos
3DMark Cloud Gate Standard Score
26226 pontos
3DMark Fire Strike Score
9660 pontos
Ajuda
baixomédiaaltoultra
The Witcher 3 (2015) 207.2 132 69.6 38.2
Rise of the Tomb Raider (2016) 181.1 136.1 71.1 59.4
Doom (2016) 155.3 146.4 102.2 97.4
0123456789101112131415161718192021222324252627282930313233343536373839Tooltip
The Witcher 3 ultra
The Witcher 3 | Rise of the Tomb Raider | Doom
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ
39.2 fps +3%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ
38.4 fps +1%
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ
38.3 fps 0%
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
38.2 fps
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ
35.5 fps -7%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ
70.9 fps +2%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ
70.4 fps +1%
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
69.6 fps
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ
68 fps -2%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ
66 fps -5%
Rise of the Tomb Raider
1920x1080 Very High Preset AA:FX AF:16x
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ
61.8 fps +4%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ
61.3 fps +3%
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ
60.7 fps +2%
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
59.4 fps
1920x1080 High Preset AA:FX AF:4x
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ
74.5 fps +5%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ
72.6 fps +2%
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
71.1 fps
Doom
1920x1080 Ultra Preset AA:SM
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
97.4 fps
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ
95.1 fps -2%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ
93 fps -5%
1920x1080 High Preset AA:FX
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
102.2 fps
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ
97 fps -5%

Barulho

Ocioso
31 / 32 / 34 dB
Carga
41 / 47 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 29 dB(A)
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ		SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ		Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ		Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ		Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ		Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ
Noise
-7%
-2%
2%
-3%
-1%
off / environment *
29
30
-3%
28.7
1%
30.3
-4%
30
-3%
30.4
-5%
Idle Minimum *
31
30
3%
30.6
1%
31
-0%
33
-6%
30.9
-0%
Idle Average *
32
35
-9%
30.6
4%
30.9
3%
34
-6%
30.9
3%
Idle Maximum *
34
40
-18%
31
9%
31.5
7%
35
-3%
31.5
7%
Load Average *
41
43
-5%
46.2
-13%
38.7
6%
39
5%
40.7
1%
Witcher 3 ultra *
39
43
-10%
42
-8%
45.5
-17%
Load Maximum *
47
49
-4%
52.3
-11%
41.9
11%
50
-6%
43.9
7%

* ... smaller is better

Carga Máxima
 50 °C50 °C53 °C
 51 °C50 °C45 °C
 35 °C32 °C33 °C
Máximo: 53 °C
Médio: 44.3 °C
54 °C59 °C43 °C
58 °C61 °C38 °C
27 °C29 °C25 °C
Máximo: 61 °C
Médio: 43.8 °C
alimentação elétrica  38 °C | Temperatura do quarto 20 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 44.3 °C / 112 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 53 °C / 127 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 61 °C / 142 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 31.8 °C / 89 F, compared to the device average of 33.9 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 42.7 °C / 109 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35 °C / 95 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-6.1 °C / -11 F).
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ		SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ		Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ		Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ		Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ		Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ
Heat
12%
11%
32%
25%
14%
Maximum Upper Side *
53
53
-0%
53.2
-0%
41.6
22%
49.6
6%
51.9
2%
Maximum Bottom *
61
49
20%
56.8
7%
37
39%
47.7
22%
54.6
10%
Idle Upper Side *
35
33
6%
28.8
18%
24.9
29%
23.6
33%
29.1
17%
Idle Bottom *
39
30
23%
31.4
19%
24.3
38%
24.6
37%
29.3
25%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs204345.42536.739.93129.431.84034.140.55027.2306324.829.58025.738.810025.439.812522.234.216021.644.220022.748.825022.452.531519.853.140018.350.850017.361.163017.269.580017.172.7100016.866.3125016.863.5160016.960.4200016.858.7250017.155.531501751.2400016.953500017.153.5630017.156.6800017.258.51000017.554.11250017.843.41600017.134.9SPL29.475.3N1.232.1median 17.2median 53.5Delta1.16.43734.931.629.128.726.529.330.827.226.225.32625.32625.436.422.54923.547.522.457.319.963.620.566.218.868.618.266.818.369.617.67117.770.717.171.116.971.617.268.417.365.717.264.717.365.217.462.517.359.617.559.918.166.917.572.717.26829.780.21.349.2median 17.6median 66.21.74.6hearing rangehide median Pink NoiseSCHENKER XMG Core 15HP Omen 15-ce002ng
SCHENKER XMG Core 15 audio analysis

(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 10.1% higher than median
(±) | linearity of mids is average (13.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.6% difference to median)
Compared to same class
» 84% of all tested devices in this class were better, 5% similar, 12% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 67% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP Omen 15-ce002ng audio analysis

(±) | speaker loudness is average but good (80 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.9% lower than median
(±) | linearity of bass is average (14.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(+) | mids are linear (3.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.6% difference to median)
Compared to same class
» 19% of all tested devices in this class were better, 6% similar, 74% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 12% of all tested devices were better, 4% similar, 84% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.4 / 0.8 Watt
Ociosodarkmidlight 18 / 22 / 26 Watt
Carga midlight 93 / 175 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ		SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ		Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ		Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ		Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ		Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ
Power Consumption
20%
18%
36%
33%
28%
Idle Minimum *
18
8
56%
14.9
17%
8
56%
8
56%
7.2
60%
Idle Average *
22
12
45%
15.1
31%
10.9
50%
13
41%
10.5
52%
Idle Maximum *
26
25
4%
15.2
42%
11.8
55%
18
31%
16
38%
Load Average *
93
85
9%
105.8
-14%
70
25%
76
18%
82
12%
Witcher 3 ultra *
119
110
8%
102
14%
124
-4%
Load Maximum *
175
180
-3%
148.8
15%
148
15%
143
18%
155
11%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
5h 00min
WiFi Websurfing
4h 42min
Big Buck Bunny H.264 1080p
3h 54min
Carga (máximo brilho)
1h 20min
SCHENKER XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ, 82 Wh		SCHENKER XMG A517
GeForce GTX 1060 Mobile, i7-7700HQ, 62 Wh		Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, 64 Wh		Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, 60 Wh		Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, 63 Wh		Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ, 69 Wh
Battery Runtime
28%
-0%
48%
70%
58%
Reader / Idle
300
447
49%
363
21%
707
136%
789
163%
501
67%
H.264
234
310
32%
312
33%
WiFi v1.3
282
301
7%
277
-2%
380
35%
346
23%
357
27%
Load
80
99
24%
64
-20%
71
-11%
98
23%
144
80%

Pro

+ Acabamento emborrachada anti deslizante
+ Placa posterior de fácil remoção
+ Bons dispositivos de entrada
+ Boa tela IPS
+ SSD muito bom
+ Alto desempenho do sistema
+ Permanece relativamente silencioso

Contra

- Sem Thunderbolt 3
- Muitas conexões adjacentes no lado direito
- Latências e quedas repentinas
- Afogamento extremo com a bateria
- Altas temperaturas
- Alto uso de energia
- Duração pobre da bateria

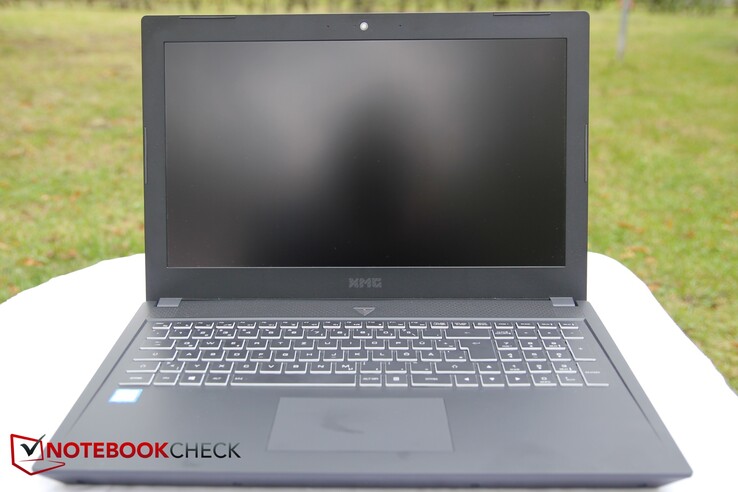

The Schenker XMG Core 15, provided by Schenker Technologies.

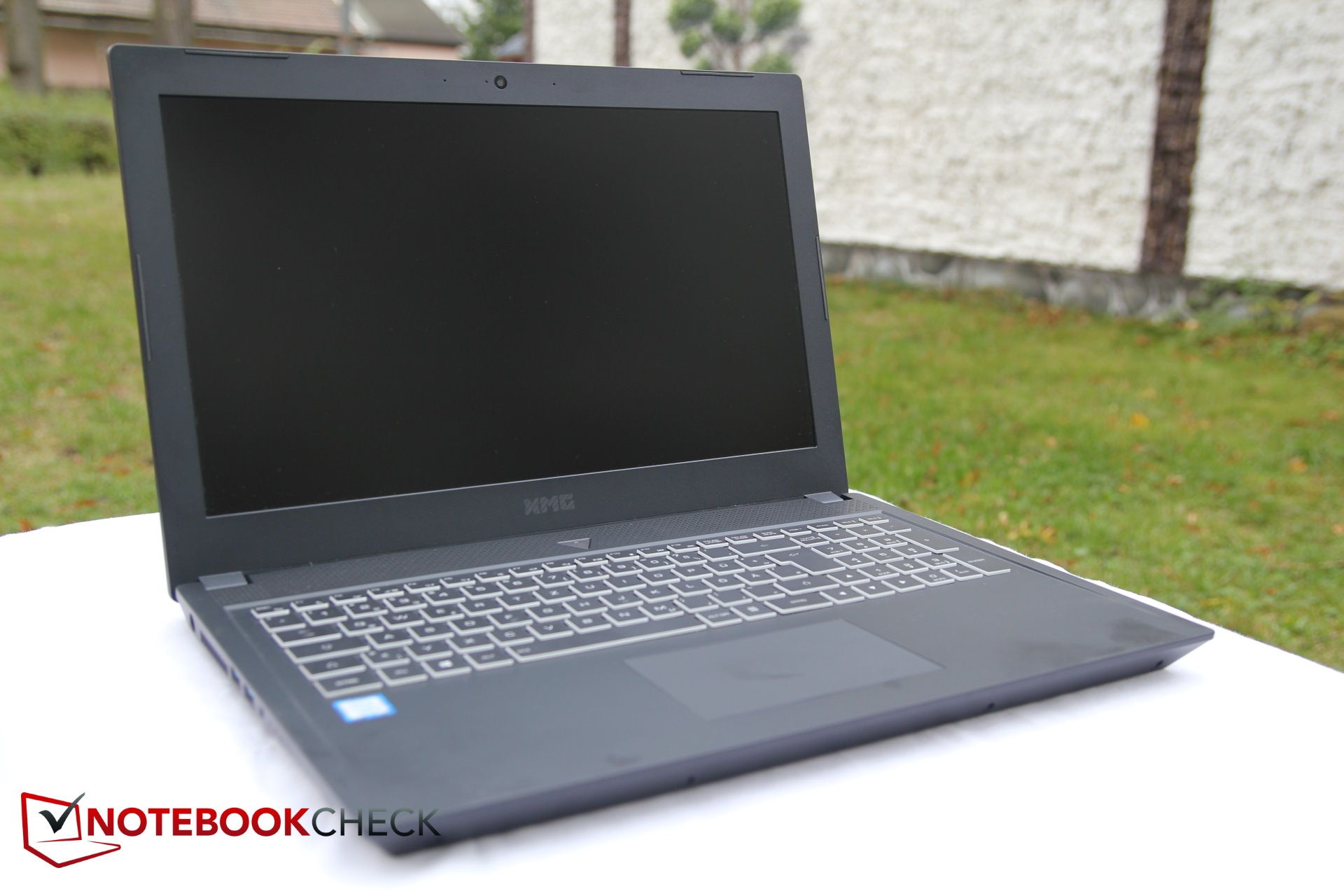

The Schenker XMG Core 15, provided by Schenker Technologies.

O bastante bom portátil de jogos Schenker XMG Core 15 estava ficando sem fôlego em nossos testes finais.

O Core 15 marca pontos com sua tela bastante decente, fácil acesso aos seus componentes, boa configuração e, acima de tudo, muito bom desempenho.

Por outro lado, o dispositivo sofre de uma fraca dissipação do calor, alto uso de energia, uma duração de bateria um tanto curta e falta de otimização dos controladores (palavra-chave: latência). O novo chassi parece ser um downgrade em vez de uma atualização em termos de dissipação de calor, embora seja bastante agradável e acima de tudo mais silencioso do que o XMG A517. A falta de Thunderbolt 3 e portas USB 3.1 de segunda geração também é um pouco irritante.

No Core i7-7700HQ e na configuração GeForce GTX 1060, o Schenker XMG Core 15 é um portátil de jogos voltado para aqueles que valorizam o desempenho mais que o consumo de energia, temperatura e mobilidade.

Por cerca de 1.580 Euros (~$1.850), você pode esperar um bom portátil de jogos e um poderoso companheiro para o dia a dia, mas não é para quando você está em movimento devido à forte limitação do dispositivo, longe de uma tomada elétrica.

SCHENKER XMG Core 15 - 11/07/2017 v6 (old)
Christian Hintze

Acabamento
74 / 98 → 75%
Teclado
83%
Mouse
81%
Conectividade
60 / 81 → 73%
Peso
59 / 10-66 → 88%
Bateria
76%
Pantalha
85%
Desempenho do jogos
93%
Desempenho da aplicação
96%
Temperatura
78 / 95 → 82%
Ruído
80 / 90 → 89%
Audio
60%
Médio
77%
84%
Gaming - Médio equilibrado

Price comparison

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Schenker Technologies XMG Core 15 (i7-7700HQ, GTX 1060, Full HD)
Christian Hintze, 2017-11-23 (Update: 2017-11-28)
