Breve Análise do Portátil MSI GS30

Transformação. Subportátil compacto ou completo substituto de desktop: A MSI GS30 quer ser ambos ao mesmo tempo. Nossa análise irá revelar se o modelo GamingDock se sai bem ou se fica em cima do muro.
MSI GS30 Shadow (GS30 Serie)

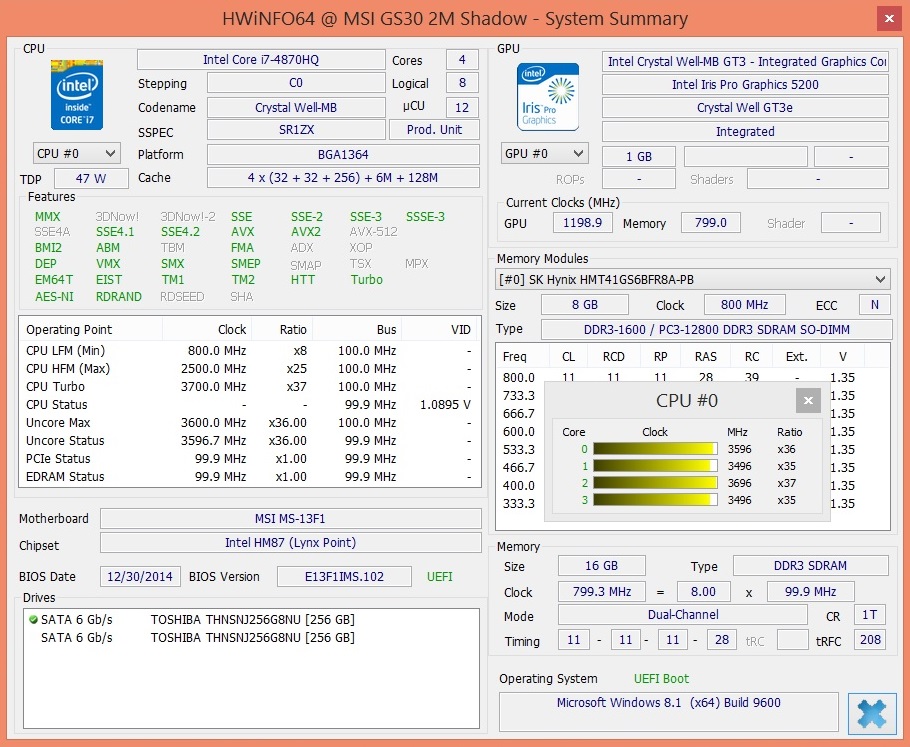

Processador
Intel Core i7-4870HQ 4 x 2.5 - 3.7 GHz, Haswell
Placa gráfica
Intel Iris Pro Graphics 5200, Análises do: 1200 MHz, + GamingDock with Nvidia GeForce GTX 970 (desktop), Core clock: 1064-1266 MHz, memory clock: 3500 MHz, 4 GB GDDR5, ForceWare 344.11, Intel 10.18.10.3977
Memória
16 GB
, 2x 8 GB DDR3L PC3-12800 (1600 MHz), 2 de 2 slots usados, máx. 16 GB
Pantalha
13.30 polegadas 16:9, 1920 x 1080 pixel, BOEhydis HN133WU3-102 (BOE05E3), IPS, Full HD, Brilhante: não
placa mãe
Intel HM87 (Lynx Point)
Disco rígido
2x Toshiba HG6 THNSNJ256G8NU (RAID 0), 512 GB
, M.2 SSDs (Typ 2280)
Placa de Som
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Conexões
2 USB 3.0, 1 HDMI, 1 Kensington Lock, Conexões Audio: fones, microfone, Card Reader: SD,SDHC,SDXC, Docking module, GamingDock: 2x Audio, 4x USB 3.0, 1x RJ45, 1x HDMI, 1x DisplayPort, 2x DVI
Funcionamento em rede
Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Tamanho
altura x largura x profundidade (em mm): 20 x 320 x 227
Bateria
Lítio-Polímero, 4 células
Sistema Operativo
Microsoft Windows 8.1 64 Bit
Camera
Webcam: HD (720p @ 30 fps)
Características adicionais
Alto falantes: Estéreo (Sound Blaster Cinema 2), Teclado: Chiclet, Iluminação do Teclado: sim, Adaptador de força: 65 Watt, cartão de garantia/panfleto, Guia de recuperação, Guia de início rápido, DVD de controladores, Bolsa de portátil, pano de lipeza, acessórios espciais para a caixa gráfica graphics box: SATA cabo, driver DVD #2, Quick , Software: MAGIX MX Suite, MS Office 365 Trial, Norton Security package, Windows Essentials 2012, WinZip 17.5, XSplit Gamecaster, diversas ferramentas do fabricante, 24 Meses Garantia
peso
1.3 kg, Suprimento de energia: 226 g
Preço
1840 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



345 mm 235 mm 17.9 mm 2 kg330 mm 227 mm 32 mm 2.1 kg340 mm 239 mm 21 mm 1.8 kg340 mm 253 mm 20.9 mm 1.9 kg328 mm 235 mm 28 mm 2 kg320 mm 227 mm 20 mm 1.3 kg297 mm 210 mm 1 mm 5.7 g

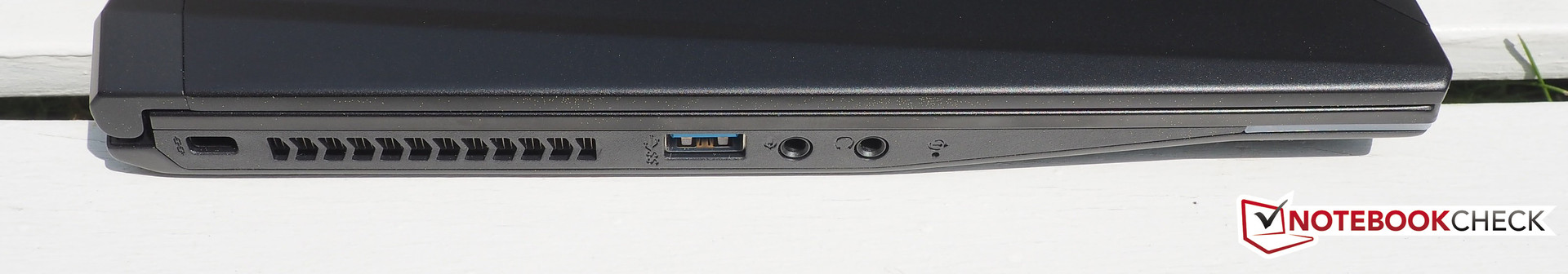

Left side: Kensington lock, USB 3.0, microphone, headphones
Left side: Kensington lock, USB 3.0, microphone, headphones

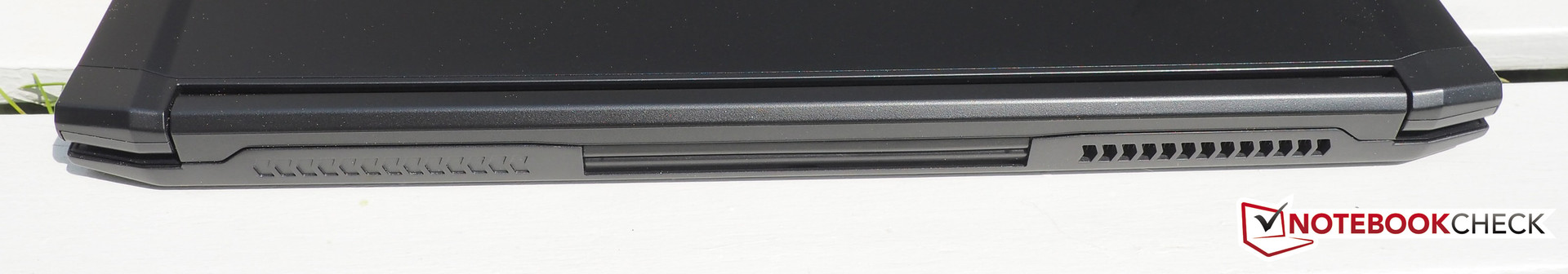

Rear side: docking module
Rear side: docking module

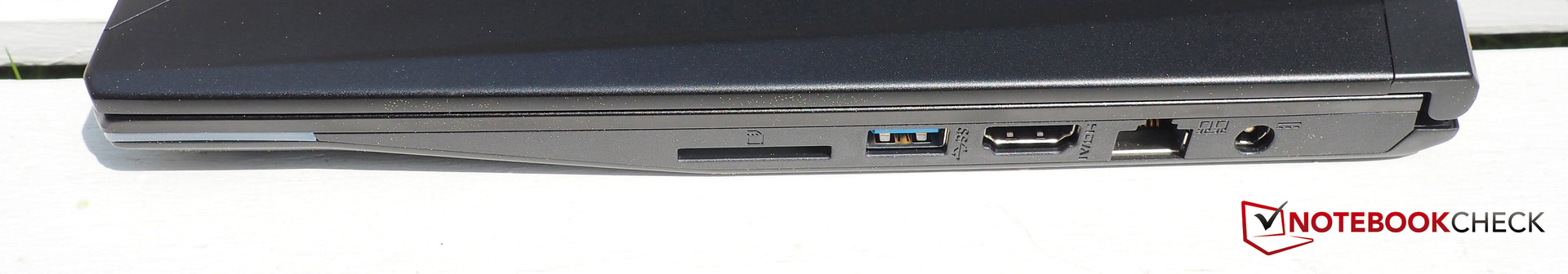

Right side: card reader, USB 3.0, HDMI, RJ45-LAN, power adapter
Right side: card reader, USB 3.0, HDMI, RJ45-LAN, power adapter
255
cd/m²
254
cd/m²
260
cd/m²
253
cd/m²
273
cd/m²
264
cd/m²
241
cd/m²
266
cd/m²
258
cd/m²
Distribuição do brilho
BOEhydis HN133WU3-102 (BOE05E3) tested with X-Rite i1Pro 2
Máximo: 273 cd/m² (Nits) Médio: 258.2 cd/m²
iluminação: 88 %
iluminação com acumulador: 273 cd/m²
Contraste: 718:1 (Preto: 0.38 cd/m²)
ΔE Color 4.86 | 0.5-29.43 Ø4.93
ΔE Greyscale 4.56 | 0.5-98 Ø5.2
56% AdobeRGB 1998 (Argyll 1.6.3 3D)
62.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
85.5% sRGB (Argyll 2.2.0 3D)
65.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
MSI GS30 Shadow
BOEhydis HN133WU3-102 (BOE05E3)
SCHENKER S413
AUO B140HAN01
Alienware 13
9T7WM_133HL (SDC4C48)
SCHENKER XMG A305
CMN N133HSE-EA1 (CMN1343)
SCHENKER XMG C405
AU Optronics B140HAN01.1 (AUO113ED)
Razer Blade 14 2015

Display
2%
-1%
4%
12%
Display P3 Coverage
65.9
64.7
-2%
61.8
-6%
66.8
1%
70.3
7%
sRGB Coverage
85.5
88.5
4%
88.3
3%
89.6
5%
97.1
14%
AdobeRGB 1998 Coverage
62.5
64.6
3%
63.4
1%
65.6
5%
71.1
14%
Response Times
Response Time Grey 50% / Grey 80% *
38 ?(16, 22)
Response Time Black / White *
28 ?(10, 18)
PWM Frequency
Screen
-1%
-1%
1%
2%
6%
Brightness middle
273
262
-4%
319
17%
315
15%
280
3%
318.4
17%
Brightness
258
268
4%
295
14%
310
20%
267
3%
311
21%
Brightness Distribution
88
88
0%
83
-6%
86
-2%
85
-3%
78
-11%
Black Level *
0.38
0.59
-55%
0.32
16%
0.35
8%
0.32
16%
0.416
-9%
Contrast
718
444
-38%
997
39%
900
25%
875
22%
765
7%
Colorchecker dE 2000 *
4.86
3.4
30%
5.83
-20%
5.63
-16%
4.75
2%
3.67
24%
Greyscale dE 2000 *
4.56
2.5
45%
7.63
-67%
6.71
-47%
5.91
-30%
5.41
-19%
Gamma
2.23 99%
2.62 84%
2.57 86%
2.53 87%
2.52 87%
2.26 97%
CCT
7292 89%
6723 97%
7195 90%
5920 110%
5742 113%
7118 91%
Color Space (Percent of AdobeRGB 1998)
56
60
7%
57
2%
57
2%
59
5%
64.64
15%
Total Average (Program / Settings)
1% / -1%
-1% / -1%
1% / 1%
3% / 3%
9% / 7%

* ... smaller is better

Cinebench R11.5 CPU Single 64Bit
1.6 Points
Cinebench R11.5 CPU Multi 64Bit
6.66 Points
Cinebench R11.5 OpenGL 64Bit
53.6 fps
Cinebench R15 CPU Single 64Bit
141 Points
Cinebench R15 CPU Multi 64Bit
607 Points
Cinebench R15 OpenGL 64Bit
52.3 fps
Ajuda
Cinebench R11.5
CPU Single 64Bit (sort by value)
MSI GS30 Shadow
Intel Core i7-4870HQ
1.6 Points
SCHENKER S413
Intel Core i7-4750HQ
1.42 Points -11%
Alienware 13
Intel Core i5-4210U
1.14 Points -29%
SCHENKER XMG A305
Intel Core i7-4710MQ
1.54 Points -4%
SCHENKER XMG C405
Intel Core i7-4720HQ
1.51 Points -6%
Razer Blade 14 2015
Intel Core i7-4720HQ
1.56 Points -2%
MSI GamingDock
Intel Core i7-4870HQ
1.61 Points +1%
CPU Multi 64Bit (sort by value)
MSI GS30 Shadow
Intel Core i7-4870HQ
6.66 Points
SCHENKER S413
Intel Core i7-4750HQ
6.55 Points -2%
Alienware 13
Intel Core i5-4210U
2.6 Points -61%
SCHENKER XMG A305
Intel Core i7-4710MQ
7.17 Points +8%
SCHENKER XMG C405
Intel Core i7-4720HQ
6.47 Points -3%
Razer Blade 14 2015
Intel Core i7-4720HQ
7.35 Points +10%
MSI GamingDock
Intel Core i7-4870HQ
7.05 Points +6%
Cinebench R15
CPU Single 64Bit (sort by value)
MSI GS30 Shadow
Intel Core i7-4870HQ
141 Points
SCHENKER S413
Intel Core i7-4750HQ
123 Points -13%
Alienware 13
Intel Core i5-4210U
103 Points -27%
SCHENKER XMG A305
Intel Core i7-4710MQ
136 Points -4%
SCHENKER XMG C405
Intel Core i7-4720HQ
135 Points -4%
Razer Blade 14 2015
Intel Core i7-4720HQ
138 Points -2%
MSI GamingDock
Intel Core i7-4870HQ
142 Points +1%
CPU Multi 64Bit (sort by value)
MSI GS30 Shadow
Intel Core i7-4870HQ
607 Points
SCHENKER S413
Intel Core i7-4750HQ
612 Points +1%
Alienware 13
Intel Core i5-4210U
239 Points -61%
SCHENKER XMG A305
Intel Core i7-4710MQ
645 Points +6%
SCHENKER XMG C405
Intel Core i7-4720HQ
610 Points 0%
Razer Blade 14 2015
Intel Core i7-4720HQ
678 Points +12%
MSI GamingDock
Intel Core i7-4870HQ
652 Points +7%
PCMark 7 Score
6510 pontos
PCMark 8 Home Score Accelerated v2
4087 pontos
PCMark 8 Creative Score Accelerated v2
5165 pontos
PCMark 8 Work Score Accelerated v2
4916 pontos
Ajuda
PCMark 7 - Score (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ, 2x Toshiba HG6 THNSNJ256G8NU (RAID 0)
6510 Points
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ, Crucial M4-CT256M4SSD3
6365 Points -2%
Alienware 13
GeForce GTX 860M, 4210U, Samsung SSD PM851 256 GB MZNTE256HMHP
4877 Points -25%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ, Samsung SSD 850 EVO 500GB
5989 Points -8%
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ, Lite-On IT L8T-256L9G
6008 Points -8%
PCMark 8
Work Score Accelerated v2 (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ, 2x Toshiba HG6 THNSNJ256G8NU (RAID 0)
4916 Points
Alienware 13
GeForce GTX 860M, 4210U, Samsung SSD PM851 256 GB MZNTE256HMHP
3990 Points -19%
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ, Crucial M550 CT256M550SSD3
4813 Points -2%
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ, Lite-On IT L8T-256L9G
4074 Points -17%
Creative Score Accelerated v2 (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ, 2x Toshiba HG6 THNSNJ256G8NU (RAID 0)
5165 Points
Alienware 13
GeForce GTX 860M, 4210U, Samsung SSD PM851 256 GB MZNTE256HMHP
3481 Points -33%
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ, Crucial M550 CT256M550SSD3
4759 Points -8%
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ, Lite-On IT L8T-256L9G
4606 Points -11%
Home Score Accelerated v2 (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ, 2x Toshiba HG6 THNSNJ256G8NU (RAID 0)
4087 Points
Alienware 13
GeForce GTX 860M, 4210U, Samsung SSD PM851 256 GB MZNTE256HMHP
3044 Points -26%
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ, Crucial M550 CT256M550SSD3
3869 Points -5%
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ, Lite-On IT L8T-256L9G
3309 Points -19%
2x Toshiba HG6 THNSNJ256G8NU (RAID 0)
Sequential Read: 1072 MB/s
Sequential Write: 883 MB/s
512K Read: 718 MB/s
512K Write: 796 MB/s
4K Read: 21.63 MB/s
4K Write: 67.7 MB/s
4K QD32 Read: 503 MB/s
4K QD32 Write: 442 MB/s
3DMark 11 Performance
2156 pontos
3DMark Ice Storm Standard Score
84120 pontos
3DMark Cloud Gate Standard Score
9626 pontos
3DMark Fire Strike Score
1281 pontos
Ajuda
3DMark 11 - 1280x720 Performance GPU (sort by value)
MSI GS30 Shadow
Intel Iris Pro Graphics 5200
1923 Points
SCHENKER S413
Intel Iris Pro Graphics 5200
1957 Points +2%
Alienware 13
NVIDIA GeForce GTX 860M
4453 Points +132%
SCHENKER XMG A305
NVIDIA GeForce GTX 960M
5428 Points +182%
SCHENKER XMG C405
NVIDIA GeForce GTX 965M
7322 Points +281%
Razer Blade 14 2015
NVIDIA GeForce GTX 970M
9571 Points +398%
MSI GamingDock
NVIDIA GeForce GTX 970
15071 Points +684%
3DMark
1920x1080 Fire Strike Graphics (sort by value)
MSI GS30 Shadow
Intel Iris Pro Graphics 5200
1361 Points
SCHENKER S413
Intel Iris Pro Graphics 5200
1536 Points +13%
Alienware 13
NVIDIA GeForce GTX 860M
3822 Points +181%
SCHENKER XMG A305
NVIDIA GeForce GTX 960M
4428 Points +225%
SCHENKER XMG C405
NVIDIA GeForce GTX 965M
5536 Points +307%
Razer Blade 14 2015
NVIDIA GeForce GTX 970M
7321 Points +438%
MSI GamingDock
NVIDIA GeForce GTX 970
11155 Points +720%
1280x720 Sky Diver Graphics (sort by value)
MSI GS30 Shadow
Intel Iris Pro Graphics 5200
5050 Points
Alienware 13
NVIDIA GeForce GTX 860M
11751 Points +133%
SCHENKER XMG A305
NVIDIA GeForce GTX 960M
14165 Points +180%
SCHENKER XMG C405
NVIDIA GeForce GTX 965M
17576 Points +248%
MSI GamingDock
NVIDIA GeForce GTX 970
35256 Points +598%
1280x720 Cloud Gate Standard Graphics (sort by value)
MSI GS30 Shadow
Intel Iris Pro Graphics 5200
11930 Points
SCHENKER S413
Intel Iris Pro Graphics 5200
11338 Points -5%
Alienware 13
NVIDIA GeForce GTX 860M
23217 Points +95%
SCHENKER XMG A305
NVIDIA GeForce GTX 960M
31365 Points +163%
SCHENKER XMG C405
NVIDIA GeForce GTX 965M
35541 Points +198%
Razer Blade 14 2015
NVIDIA GeForce GTX 970M
38777 Points +225%
MSI GamingDock
NVIDIA GeForce GTX 970
74166 Points +522%
1280x720 Ice Storm Standard Graphics (sort by value)
MSI GS30 Shadow
Intel Iris Pro Graphics 5200
112713 Points
SCHENKER S413
Intel Iris Pro Graphics 5200
86896 Points -23%
Alienware 13
NVIDIA GeForce GTX 860M
46010 Points -59%
SCHENKER XMG A305
NVIDIA GeForce GTX 960M
118750 Points +5%
SCHENKER XMG C405
NVIDIA GeForce GTX 965M
153322 Points +36%
Razer Blade 14 2015
NVIDIA GeForce GTX 970M
65105 Points -42%
MSI GamingDock
NVIDIA GeForce GTX 970
321805 Points +186%
Unigine Heaven 4.0 - Extreme Preset DX11 (sort by value)
MSI GS30 Shadow
Intel Iris Pro Graphics 5200
7.1 fps
MSI GamingDock
NVIDIA GeForce GTX 970
66.7 fps +839%
baixomédiaaltoultra
Crysis 3 (2013) 45.9 27.9 18.4 6.9
Watch Dogs (2014) 33.8 21.4 5.7 0 ()
Sims 4 (2014) 194.9 68.4 32.7 22.1
Fifa 15 (2014) 87.9 59.9 37
Far Cry 4 (2014) 26.5 19.8 9.4 7
Dragon Age: Inquisition (2014) 39.3 26.3 9.7 5.5
Battlefield Hardline (2015) 47.8 34.1 15 8.6
GTA V (2015) 48.7 38.4 7.8 2.9
GTA V
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x (sort by value)
MSI GamingDock
GeForce GTX 970, 4870HQ
51.4 fps
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
2.9 fps
MSI GamingDock
GeForce GTX 970, 4870HQ
39.8 fps +1272%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
7.8 fps
MSI GamingDock
GeForce GTX 970, 4870HQ
97.8 fps +1154%
1366x768 Normal/Off AF:4x (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
38.4 fps
MSI GamingDock
GeForce GTX 970, 4870HQ
159 fps +314%
1024x768 Lowest Settings possible (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
48.7 fps
MSI GamingDock
GeForce GTX 970, 4870HQ
167.9 fps +245%
Battlefield Hardline
1920x1080 Ultra Graphics Quality (DX11) AA:4x MS (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
8.6 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
30.8 fps +258%
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
38.7 fps +350%
MSI GamingDock
GeForce GTX 970, 4870HQ
78.4 fps +812%
1920x1080 High Graphics Quality (DX11) (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
15 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
49.6 fps +231%
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
61.9 fps +313%
MSI GamingDock
GeForce GTX 970, 4870HQ
129.1 fps +761%
1366x768 Medium Graphics Quality (DX11) (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
34.1 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
107.7 fps +216%
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
131.9 fps +287%
MSI GamingDock
GeForce GTX 970, 4870HQ
171.1 fps +402%
1024x768 Low Graphics Quality (DX11) (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
47.8 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
147.6 fps +209%
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
167.9 fps +251%
MSI GamingDock
GeForce GTX 970, 4870HQ
176 fps +268%
Dragon Age: Inquisition
1920x1080 Ultra Graphics Quality AA:2x MS (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
5.5 fps
Alienware 13
GeForce GTX 860M, 4210U
18.6 fps +238%
MSI GamingDock
GeForce GTX 970, 4870HQ
54.2 fps +885%
1920x1080 High Graphics Quality (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
9.7 fps
Alienware 13
GeForce GTX 860M, 4210U
26 fps +168%
MSI GamingDock
GeForce GTX 970, 4870HQ
79.5 fps +720%
1366x768 Medium Graphics Quality (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
26.3 fps
Alienware 13
GeForce GTX 860M, 4210U
40.1 fps +52%
MSI GamingDock
GeForce GTX 970, 4870HQ
171.4 fps +552%
1024x768 Low Graphics Quality (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
39.3 fps
Alienware 13
GeForce GTX 860M, 4210U
47.1 fps +20%
MSI GamingDock
GeForce GTX 970, 4870HQ
175.3 fps +346%
Far Cry 4
1920x1080 Ultra Graphics Quality AA:SM (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
7 fps
Alienware 13
GeForce GTX 860M, 4210U
22.7 fps +224%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
30.9 fps +341%
MSI GamingDock
GeForce GTX 970, 4870HQ
67.9 fps +870%
1920x1080 High Graphics Quality AA:SM (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
9.4 fps
Alienware 13
GeForce GTX 860M, 4210U
28.4 fps +202%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
38.2 fps +306%
MSI GamingDock
GeForce GTX 970, 4870HQ
89.6 fps +853%
1366x768 Medium Graphics Quality (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
19.8 fps
Alienware 13
GeForce GTX 860M, 4210U
43.9 fps +122%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
79.2 fps +300%
MSI GamingDock
GeForce GTX 970, 4870HQ
130.6 fps +560%
1024x768 Low Graphics Quality (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
26.5 fps
Alienware 13
GeForce GTX 860M, 4210U
47.1 fps +78%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
88.6 fps +234%
MSI GamingDock
GeForce GTX 970, 4870HQ
130.8 fps +394%
Fifa 15
3840x2160 High Preset (sort by value)
MSI GamingDock
GeForce GTX 970, 4870HQ
150.5 fps
1920x1080 High Preset AA:4x MS (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
37 fps
Alienware 13
GeForce GTX 860M, 4210U
84.4 fps +128%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
126.6 fps +242%
MSI GamingDock
GeForce GTX 970, 4870HQ
297.2 fps +703%
1366x768 High Preset AA:2x MS (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
59.9 fps
Alienware 13
GeForce GTX 860M, 4210U
113.8 fps +90%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
179.9 fps +200%
MSI GamingDock
GeForce GTX 970, 4870HQ
357.7 fps +497%
1280x720 Low Preset (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
87.9 fps
Alienware 13
GeForce GTX 860M, 4210U
124 fps +41%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
200.3 fps +128%
MSI GamingDock
GeForce GTX 970, 4870HQ
419.6 fps +377%
Sims 4
1920x1080 Ultra Preset (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
22.1 fps
Alienware 13
GeForce GTX 860M, 4210U
40 fps +81%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
60.1 fps +172%
MSI GamingDock
GeForce GTX 970, 4870HQ
127.3 fps +476%
1920x1080 High Preset (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
32.7 fps
Alienware 13
GeForce GTX 860M, 4210U
41.4 fps +27%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
68.9 fps +111%
MSI GamingDock
GeForce GTX 970, 4870HQ
140 fps +328%
1366x768 Medium Preset (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
68.4 fps
Alienware 13
GeForce GTX 860M, 4210U
63.1 fps -8%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
106 fps +55%
MSI GamingDock
GeForce GTX 970, 4870HQ
167.7 fps +145%
1024x768 Low Preset (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
194.9 fps
Alienware 13
GeForce GTX 860M, 4210U
126.6 fps -35%
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
178.7 fps -8%
MSI GamingDock
GeForce GTX 970, 4870HQ
183.9 fps -6%
Watch Dogs
1920x1080 Ultra Overall Quality, Ultra Textures AA:4x MS (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
0 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
13.9 fps
MSI GamingDock
GeForce GTX 970, 4870HQ
53.9 fps
1920x1080 High Overall Quality, High Textures AA:2x MS (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
5.7 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
29.2 fps +412%
MSI GamingDock
GeForce GTX 970, 4870HQ
73.4 fps +1188%
1366x768 Medium Overall Quality, Medium Textures (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
21.4 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
58.3 fps +172%
MSI GamingDock
GeForce GTX 970, 4870HQ
102 fps +377%
1024x768 Low Overall Quality, Medium Textures (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
33.8 fps
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
68.4 fps +102%
MSI GamingDock
GeForce GTX 970, 4870HQ
122.9 fps +264%
Crysis 3
1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
6.9 fps
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
7.7 fps +12%
MSI GamingDock
GeForce GTX 970, 4870HQ
50.6 fps +633%
1366x768 High Preset AA:FX AF:16x (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
18.4 fps
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
20.9 fps +14%
MSI GamingDock
GeForce GTX 970, 4870HQ
111.4 fps +505%
1366x768 Medium Preset AF:16x (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
27.9 fps
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
31.4 fps +13%
MSI GamingDock
GeForce GTX 970, 4870HQ
145.4 fps +421%
1024x768 Low Preset (sort by value)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
45.9 fps
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
50.7 fps +10%
MSI GamingDock
GeForce GTX 970, 4870HQ
167.6 fps +265%

Barulho

Ocioso
29.4 / 36.2 / 42 dB
Carga
52.8 / 53.6 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm de distância)
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
Alienware 13
GeForce GTX 860M, 4210U
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ
Noise
12%
17%
10%
2%
11%
Idle Minimum *
29.4
30.1
-2%
29.2
1%
29.4
-0%
29.2
1%
29.7
-1%
Idle Average *
36.2
30.7
15%
29.4
19%
30.1
17%
34.6
4%
29.9
17%
Idle Maximum *
42
33.3
21%
29.8
29%
30.8
27%
38.8
8%
30
29%
Load Average *
52.8
46.4
12%
37.6
29%
49.2
7%
54
-2%
42.1
20%
Load Maximum *
53.6
46.7
13%
50.8
5%
53.8
-0%
54.4
-1%
59
-10%

* ... smaller is better

Carga Máxima
 49.8 °C49.5 °C40 °C
 46.7 °C46.8 °C39.4 °C
 32.6 °C30.1 °C30.9 °C
Máximo: 49.8 °C
Médio: 40.6 °C
44.1 °C52.5 °C44.5 °C
43.5 °C49 °C40.5 °C
32 °C33.5 °C34.5 °C
Máximo: 52.5 °C
Médio: 41.6 °C
alimentação elétrica  65.4 °C | Temperatura do quarto 24 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 40.6 °C / 105 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 49.8 °C / 122 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 52.5 °C / 127 F, compared to the average of 43.2 °C / 110 F
(±) In idle usage, the average temperature for the upper side is 33 °C / 91 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.6 °C / 90.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-3.7 °C / -6.7 F).
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
Alienware 13
GeForce GTX 860M, 4210U
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ
Heat
4%
8%
3%
-10%
9%
Maximum Upper Side *
49.8
41.9
16%
44.5
11%
46.2
7%
47.8
4%
51.6
-4%
Maximum Bottom *
52.5
54.6
-4%
60.2
-15%
47.7
9%
60.4
-15%
51.2
2%
Idle Upper Side *
35.2
34.2
3%
29.4
16%
35
1%
37.7
-7%
29.2
17%
Idle Bottom *
36.8
36.7
-0%
29.6
20%
38.2
-4%
44.8
-22%
28.8
22%

* ... smaller is better

Consumo de energia
desligadodarklight 0.1 / 0.2 Watt
Ociosodarkmidlight 7.5 / 11.6 / 21.2 Watt
Carga midlight 65.4 / 66.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
Alienware 13
GeForce GTX 860M, 4210U
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ
Power Consumption
-13%
19%
-49%
-86%
Idle Minimum *
7.5
10.1
-35%
5.1
32%
11.4
-52%
15.8
-111%
Idle Average *
11.6
14.9
-28%
7.3
37%
16.3
-41%
22.8
-97%
Idle Maximum *
21.2
15.4
27%
11.2
47%
22.6
-7%
27.3
-29%
Load Average *
65.4
73
-12%
51.5
21%
92.4
-41%
106.8
-63%
Load Maximum *
66.4
78.3
-18%
92.9
-40%
136
-105%
152
-129%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
6h 43min
Navegar com WLAN
3h 30min
Big Buck Bunny H.264 1080p
2h 46min
Carga (máximo brilho)
0h 48min
MSI GS30 Shadow
Iris Pro Graphics 5200, 4870HQ
SCHENKER S413
Iris Pro Graphics 5200, 4750HQ
Alienware 13
GeForce GTX 860M, 4210U
SCHENKER XMG A305
GeForce GTX 960M, 4710MQ
SCHENKER XMG C405
GeForce GTX 965M, 4720HQ
Razer Blade 14 2015
GeForce GTX 970M, 4720HQ
Battery Runtime
47%
98%
65%
16%
Reader / Idle
403
357
-11%
723
79%
420
4%
380
-6%
H.264
166
324
95%
266
60%
WiFi
210
257
22%
292
39%
Load
48
110
129%
134
179%
111
131%
66
38%
WiFi v1.3
236
222

Pro

+ Chassi fino e ultra leve
+ Estação docking com GPU de desktop
+ Teclado iluminado
+ Design elegante
+ Tela IPS

Contra

- Poucas portas (portátil)
- Utilização do Turbo não ideal
- Ruído do ventilador muito irritante
- Afogamentos sob uso intenso
- Duração pobre da bateria

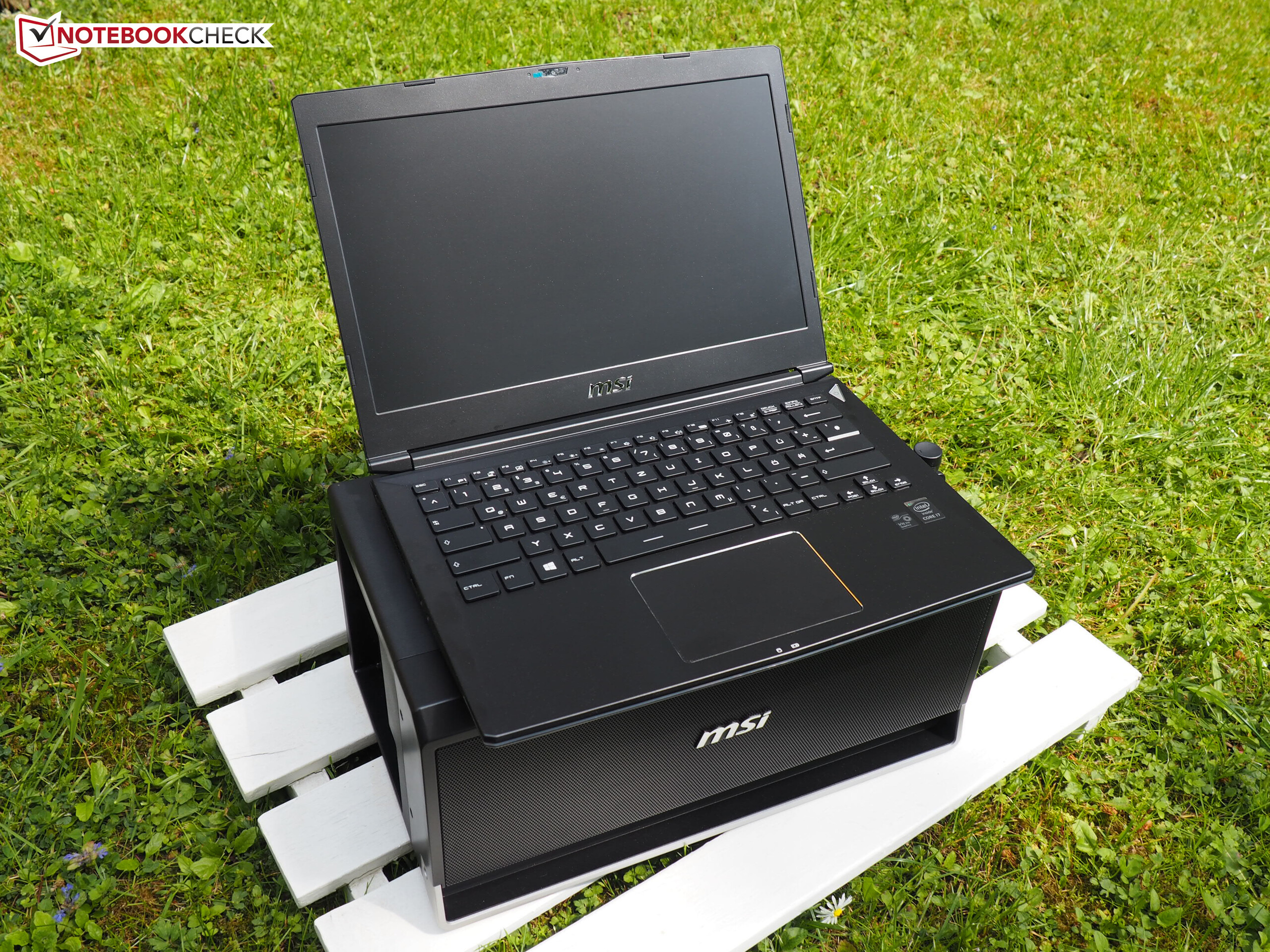

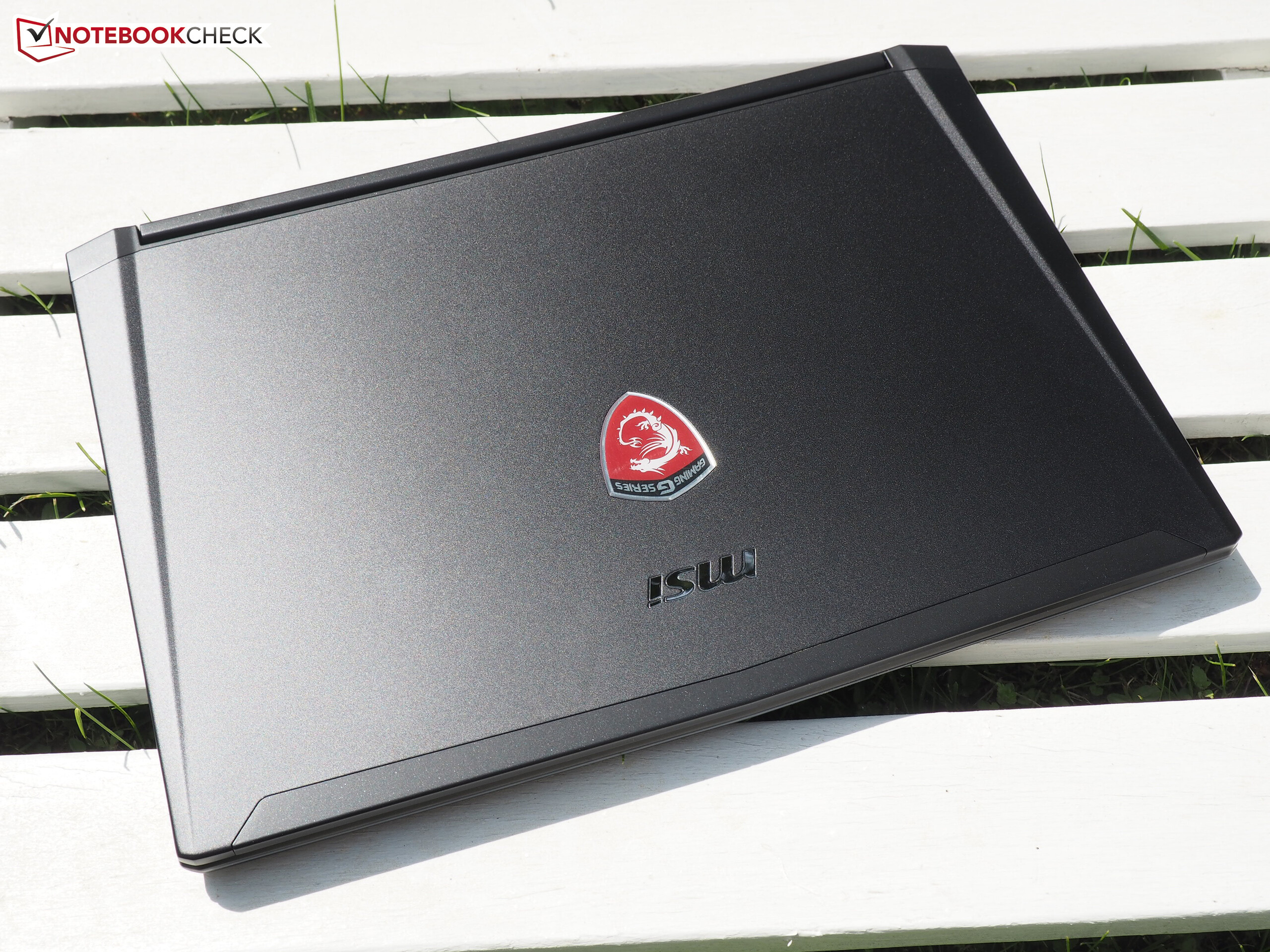

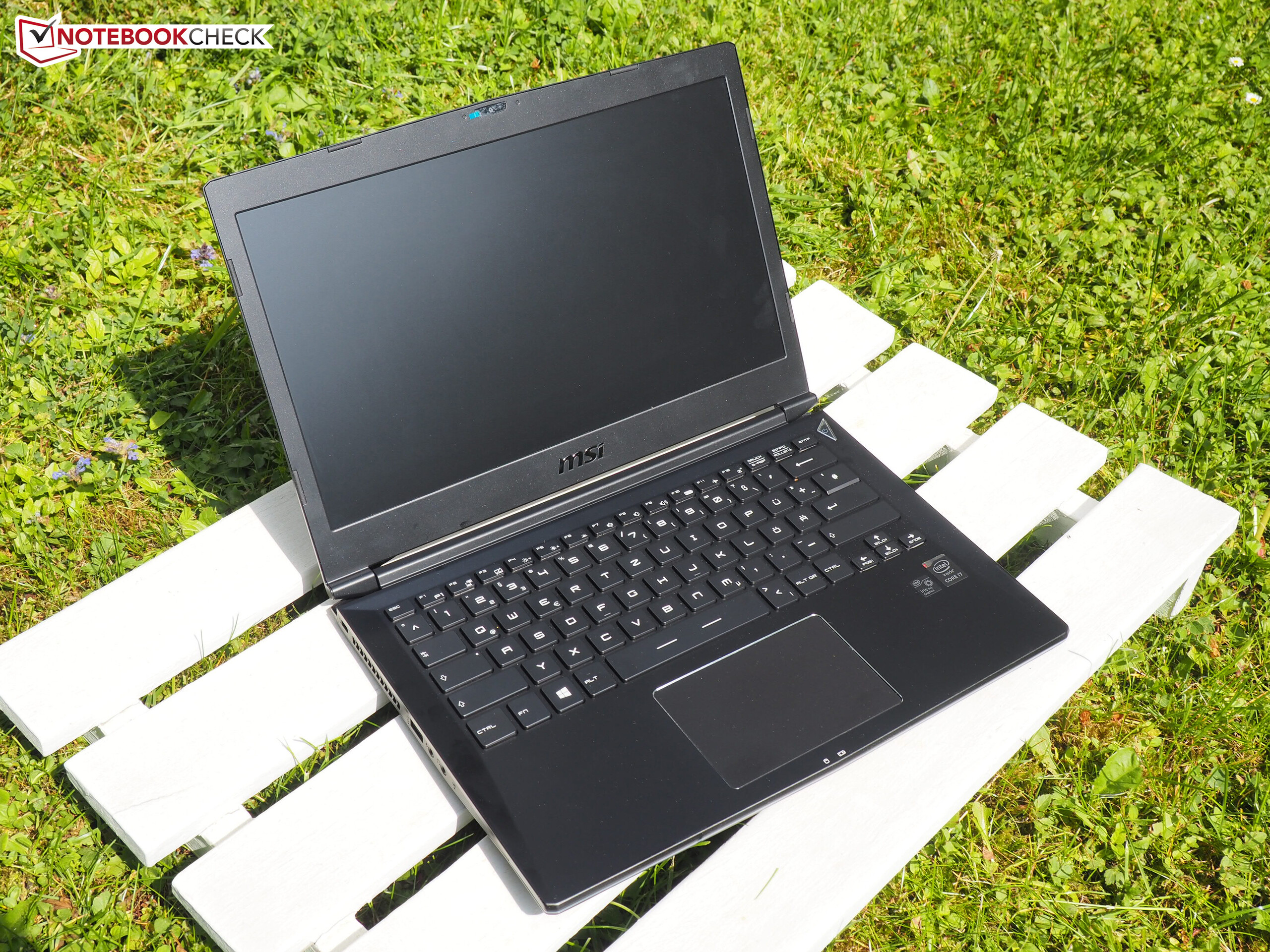

MSI GS30. Test model by courtesy of Cyberport.de
MSI GS30. Test model by courtesy of Cyberport.de

Além da Alienware, a MSI pertence às poucas novas empresas de jogos que tem a coragem de oferecer um portátil com amplificador de gráficos opcional. No entanto, o conceito arriscado foi implementado bastante bem. Devido ao Core i7-4870HQ de cabeça quente, o portátil já pode ficar muito barulhento durante o modo inativo, o que poderia desencorajar muitos clientes a comprá-lo. Sem mencionar o fato de que o Turbo é dificilmente utilizado sob carga. Além disso, a estabilidade da carcaça, a duração da bateria, o ClickPad e a conectividade não são as melhores.

De outra maneira, a MSI fez muitas coisas corretamente. Sem importar o design, tela ou o uso da estação docking: o GS30 atinge uma boa pontuação na maioria dos aspectos. Com a GPU de desktop, o aparelho de 13-polegadas se transforma em uma poderosa plataforma de jogos, que pode rodar todos os jogos mais recentes, inclusive com detalhes e resoluções altas sem engasgamentos.

É difícil para nós categorizar tal sistema. De fato o G30 deve ser considerado um subportátil devido a sua Iris Pro 5200 integrada, mas não atinge o nível para este conceito. Finalmente, decidimos colocar o modelo de teste na categoria "jogos", dado que você não precisa comprar a placa de vídeo da estação docking de forma separada.

Com os resultados dos benchmarks da GeForce GTX 970, o desempenho dos jogos seria 100% em vez de 84% (Iris Pro 5200), e a pontuação total aumentaria 3%. Adicionamos manualmente este 3% em nossa tabela de pontuações. Sem o GamingDock a avaliação seria de apenas 79% em vez de 82%.

Por favor, deixe-nos saber em um comentário, se você acredita que este procedimento sé adequado ou se deveríamos avaliar tais sistemas de forma diferente no futuro.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

MSI GS30 Shadow - 05/17/2015 v4 (old)
Florian Glaser

Acabamento
74 / 98 → 76%
Teclado
76%
Mouse
72%
Conectividade
60 / 81 → 74%
Peso
71 / 10-66 → 100%
Bateria
74%
Pantalha
86%
Desempenho do jogos
84%
Desempenho da aplicação
96%
Temperatura
76 / 95 → 80%
Ruído
50 / 90 → 56%
Audio
65%
Impressão
+3%
Médio
68%
82%
Gaming - Médio equilibrado

Price comparison

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil MSI GS30
Florian Glaser, 2015-06- 2 (Update: 2015-06- 7)
