Breve Análise do Portátil MSI Creator 17 A10SGS: Ganhando com um Mini LED

Name: MSI Creator 17 A10SGS
Brand: MSI

Uma luz crescente.

Em contraste com o GS75, equipado de forma semelhante, o Creator 17 é voltado para profissionais criativos, como o nome já nos diz. No entanto, sua característica mais exclusiva não é o grupo-alvo, mas a novíssima tela Mini LED com suporte para HDR. Vale o preço alto ou a tecnologia é apenas uma ilusão?

Florian Glaser, 👁 Florian Glaser, ✓ Andrea Grüblinger (traduzido por Ricardo Soto), Published 07/19/2020 🇺🇸 🇩🇪 ...

Comet Lake Gaming Geforce Laptop / Notebook MSI

Test device courtesy of MSI Deutschland

Download your licensed rating image as PNG / SVG

MSI Creator 17 A10SGS (Creator 17 Serie)

Processador

Intel Core i7-10875H 8 x 2.3 - 5.1 GHz, Comet Lake-H

Placa gráfica

NVIDIA GeForce RTX 2080 Super Max-Q - 8 GB VRAM, Análises do: 735 MHz, Memoría: 1375 MHz, GDDR6, ForceWare 446.14, Optimus

Memória

32 GB

, 2x 16 GB SO-DIMM DDR4-2666, dual channel, all slots occupied, max. 64 GB

Pantalha

17.30 polegadas 16:9, 3840 x 2160 pixel 255 PPI, B173ZAN05.0 (AUO278E), Nível Mini LED IPS, 4K/UHD, Brilhante: não, HDR, 60 Hz

placa mãe

Intel HM470

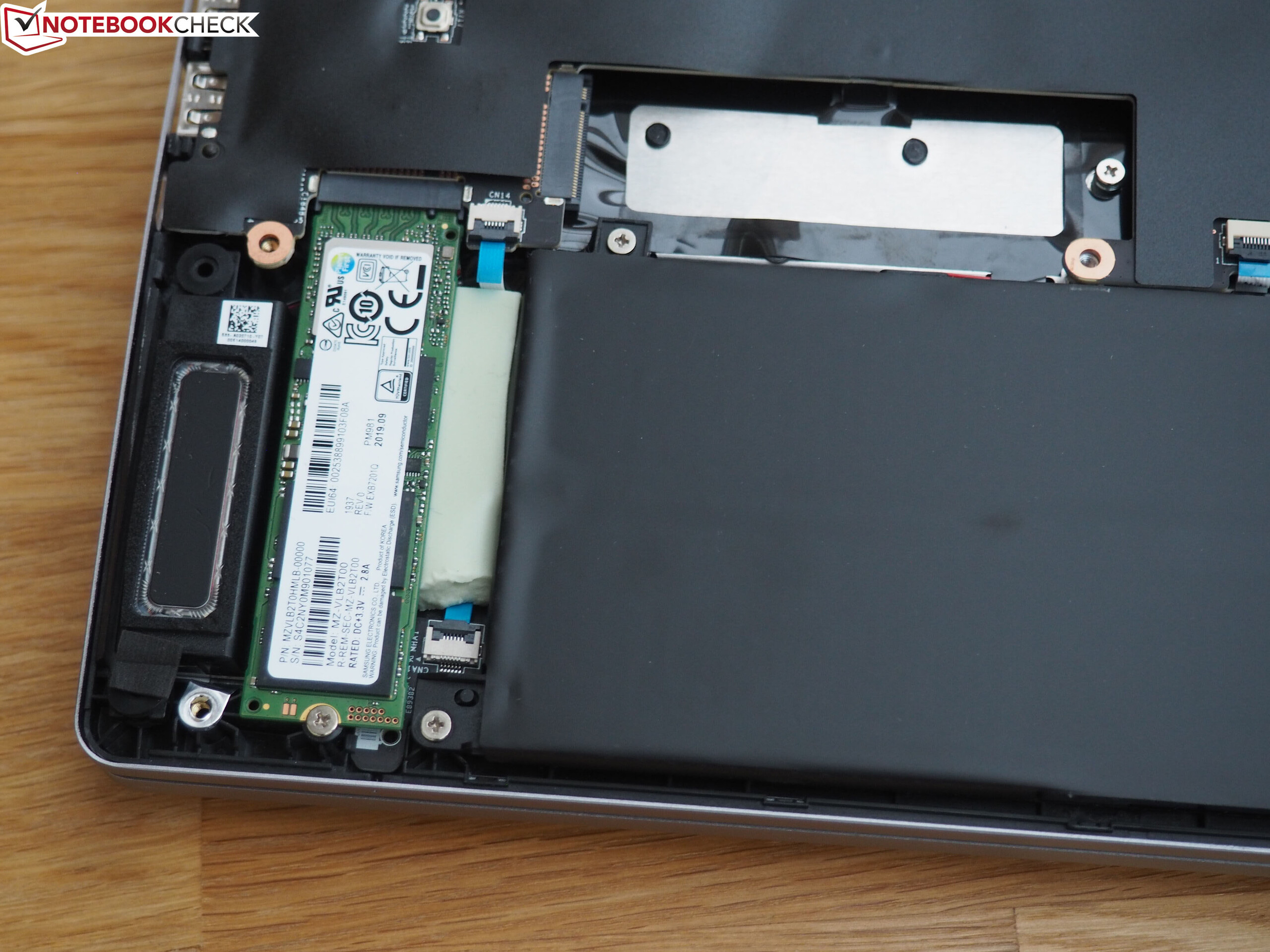

Disco rígido

Samsung SSD PM981 MZVLB2T0HMLB, 2048 GB

, NVMe, slots: 2x M.2 Type 2280 (1 slot empty)

Placa de Som

Realtek ALC298 @ Intel Comet Point PCH - cAVS

Conexões

3 USB 3.0, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Conexões Audio: 1x fones, 1x microfone, Card Reader: microSD, 1 Leitor de Impressões Digitais

Funcionamento em rede

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1

Tamanho

altura x largura x profundidade (em mm): 20 x 396 x 259

Bateria

82 Wh Lítio-Polímero, 4 células

Sistema Operativo

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: HD (720p)

Características adicionais

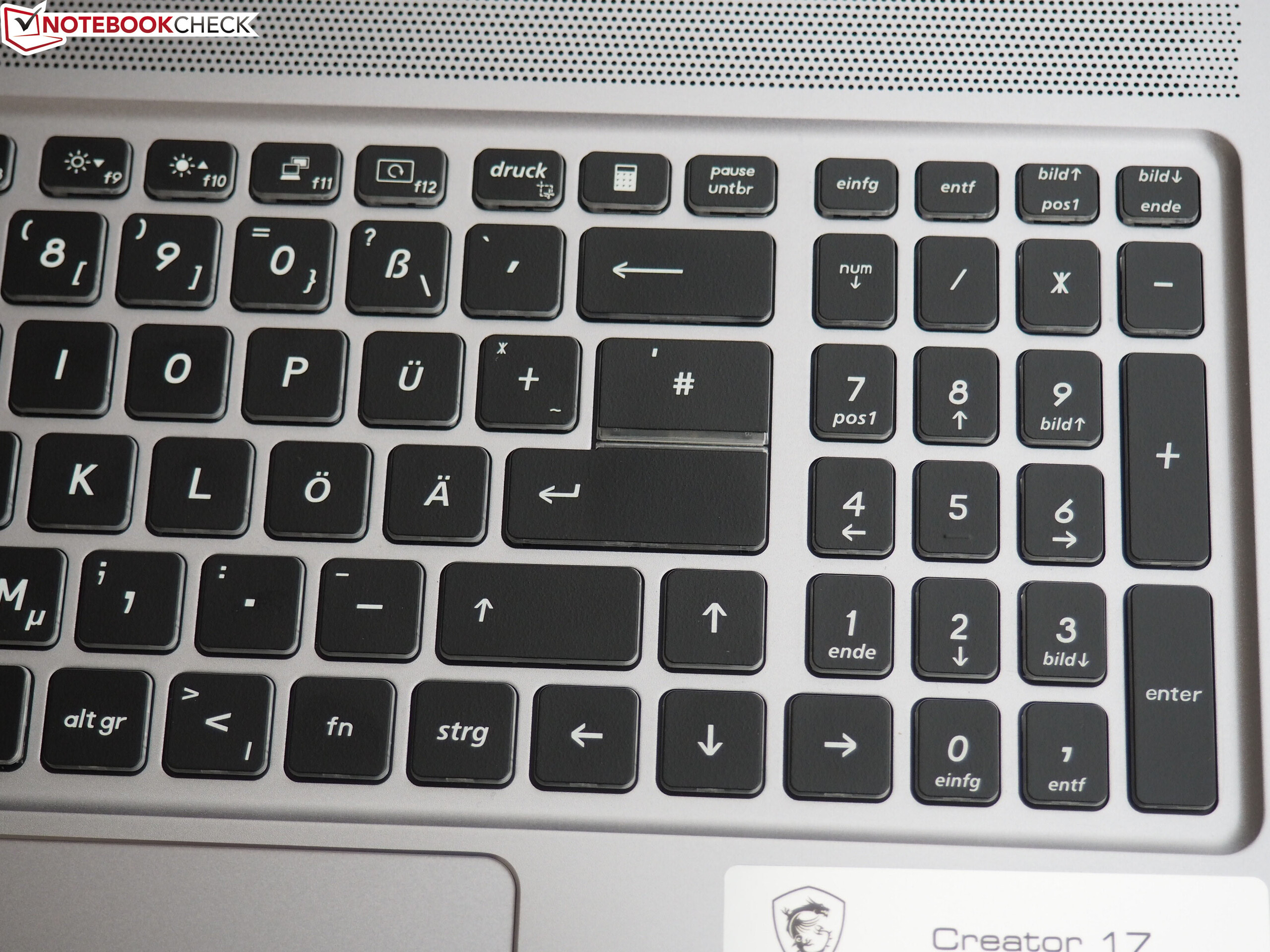

Alto falantes: 2.0, Teclado: chiclet, Iluminação do Teclado: sim, Fonte de alimentação de 230 watts, Creator Center, 24 Meses Garantia

peso

2.39 kg, Suprimento de energia: 725 g

Preço

4200 EUR

Links

MSI página inicial
MSI Seção de notebook

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Rating	Date	Model	Weight	Height	Size	Resolution
82.5 % v7 ^(old)	07/2020	MSI Creator 17 A10SGS i7-10875H, GeForce RTX 2080 Super Max-Q	2.4 kg	20 mm	17.30"	3840x2160
82.9 % v7 ^(old)	07/2019	MSI GS75 Stealth 9SG i7-9750H, GeForce RTX 2080 Max-Q	2.3 kg	18.9 mm	17.30"	1920x1080
87.7 % v7 ^(old)	06/2019	Razer Blade Pro 17 RTX 2080 Max-Q i7-9750H, GeForce RTX 2080 Max-Q	2.8 kg	19.9 mm	17.30"	1920x1080
81.2 % v7 ^(old)	12/2019	Asus ROG Zephyrus S GX701GXR i7-9750H, GeForce RTX 2080 Max-Q	2.7 kg	18.7 mm	17.30"	1920x1080
84.2 % v7 ^(old)	03/2020	Alienware m17 R2 P41E i9-9980HK, GeForce RTX 2080 Max-Q	2.6 kg	20.5 mm	17.30"	1920x1080

Size Comparison

Alienware m17 R2 P41E Asus ROG Zephyrus S GX701GXR MSI Creator 17 A10SGS MSI GS75 Stealth 9SG Razer Blade Pro 17 RTX 2080 Max-Q DIN A4 ❌

Left side: power, RJ45 LAN, USB-A 3.0, microSD, microphone, headphones

Right side: USB-C 3.1 Gen2, 2x USB-A 3.0, Thunderbolt 3, HDMI 2.0, Kensington lock

Networking
iperf3 transmit AX12
MSI Creator 17 A10SGS Intel Wi-Fi 6 AX201	1270 MBit/s
Asus ROG Zephyrus S GX701GXR Intel Wireless-AC 9560	1110 MBit/s -13%
Razer Blade Pro 17 RTX 2080 Max-Q Intel Wi-Fi 6 AX200	697 MBit/s -45%
MSI GS75 Stealth 9SG Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)	668 MBit/s -47%
Alienware m17 R2 P41E Intel Dual Band Wireless-AC 8265	496 (459^min - 531^max) MBit/s -61%
iperf3 receive AX12
MSI Creator 17 A10SGS Intel Wi-Fi 6 AX201	1340 MBit/s
Asus ROG Zephyrus S GX701GXR Intel Wireless-AC 9560	924 MBit/s -31%
Razer Blade Pro 17 RTX 2080 Max-Q Intel Wi-Fi 6 AX200	686 MBit/s -49%
MSI GS75 Stealth 9SG Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)	682 MBit/s -49%
Alienware m17 R2 P41E Intel Dual Band Wireless-AC 8265	638 (625^min - 645^max) MBit/s -52%

ColorChecker MSI Creator 17 A10SGS: 10.44 ∆E min: 1.76 - max: 20.34 ∆E


958 cd/m²	974 cd/m²	927 cd/m²
929 cd/m²	996 cd/m²	943 cd/m²
935 cd/m²	965 cd/m²	942 cd/m²

Distribuição do brilho

B173ZAN05.0 (AUO278E) tested with X-Rite i1Pro 2

Máximo: 996 cd/m² (Nits) Médio: 952.1 cd/m² Minimum: 60 cd/m²
iluminação: 93 %
iluminação com acumulador: 996 cd/m²
Contraste: 1465:1 (Preto: 0.68 cd/m²)
ΔE Color 4.21 | 0.5-29.43 Ø4.92, calibrated: 2.03
ΔE Greyscale 4.1 | 0.5-98 Ø5.2
97% sRGB (Argyll 1.6.3 3D)
84% AdobeRGB 1998 (Argyll 1.6.3 3D)
84% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.5% sRGB (Argyll 2.2.0 3D)
82% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.207

Download Arquivo ICC (X-Rite i1Pro 2)

	MSI Creator 17 A10SGS B173ZAN05.0 (AUO278E), Mini-LED IPS-Level, 3840x2160	MSI Creator 17 A10SGS HDR 3840x2160	MSI GS75 Stealth 9SG Chi Mei N173HCE-G33 (CMN175C), IPS, 1920x1080	Razer Blade Pro 17 RTX 2080 Max-Q AU Optronics B173HAN04.0, IPS, 1920x1080	Asus ROG Zephyrus S GX701GXR AU Optronics B173HAN05.1, IPS, 1920x1080	Alienware m17 R2 P41E Chi Mei 173HCE, CMN175F, IPS, 1920x1080
Display			-17%	-20%	-10%	-9%
Display P3 Coverage	82		62.6 -24%	60.6 -26%	70 -15%	70.8 -14%
sRGB Coverage	97.5		93.5 -4%	89 -9%	96.6 -1%	98.5 1%
AdobeRGB 1998 Coverage	84		64.7 -23%	62.1 -26%	72.3 -14%	72.2 -14%
Response Times		0%	-9%	-9%	14%	-12%
Response Time Grey 50% / Grey 80% *			7.2 ?(3.8, 3.4)	6.8 ?(3.4, 3.4)	5.6 ?(2.4, 3.2)	17.2 ?(8.8, 8.4)
Response Time Black / White *	8.8 ?(1.2, 7.6)	8.8 ?(1.2, 7.6) -0%	10 ?(5.2, 4.8) -14%	9.6 ?(5.2, 4.4) -9%	7.6 ?(3.4, 4.2) 14%	10.8 ?(6, 4.8) -23%
PWM Frequency	26600 ?(83)	26600 ?(85) 0%	25510 ?(17) -4%			26320 ?(25) -1%
Screen		102%	11%	-10%	3%	11%
Brightness middle	996	770 -23%	366 -63%	299.3 -70%	288 -71%	384.2 -61%
Brightness	952	759 -20%	343 -64%	294 -69%	276 -71%	357 -62%
Brightness Distribution	93	94 1%	91 -2%	94 1%	93 0%	90 -3%
Black Level *	0.68	0.07 90%	0.29 57%	0.29 57%	0.24 65%	0.29 57%
Contrast	1465	11000 651%	1262 -14%	1032 -30%	1200 -18%	1325 -10%
Colorchecker dE 2000 *	4.21		1.51 64%	2.55 39%	1.92 54%	1.35 68%
Colorchecker dE 2000 max. *	6.79		3.22 53%	4.73 30%	4.57 33%	3.45 49%
Colorchecker dE 2000 calibrated *	2.03		0.71 65%	2.9 -43%	1.14 44%	1.42 30%
Greyscale dE 2000 *	4.1		1.93 53%	3.5 15%	3.08 25%	1.2 71%
Gamma	2.207 ^100%		2.38 ^92%	2.28 ^96%	2.42 ^91%	2.23 ^99%
CCT	7491 ^87%		6881 ^94%	7101 ^92%	7055 ^92%	6580 ^99%
Color Space (Percent of AdobeRGB 1998)	84	94 12%	60 -29%	57 -32%	65 -23%	65.5 -22%
Color Space (Percent of sRGB)	97	99 2%	94 -3%	88.7 -9%	96 -1%	98.5 2%
Total Average (Program / Settings)		51% / 79%	-5% / 3%	-13% / -12%	2% / 1%	-3% / 4%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
8.8 ms ... rise ↗ and fall ↘ combined	↗ 1.2 ms rise
8.8 ms ... rise ↗ and fall ↘ combined	↘ 7.6 ms fall
The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 21 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms).

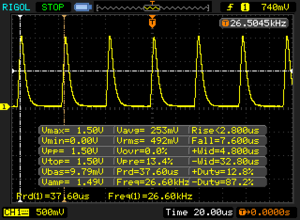

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

26600 Hz

≤ 83 % brightness setting

The display backlight flickers at 26600 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 83 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 26600 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

MSI Creator 17 A10SGS Intel Core i7-10875H, Intel Core i7-10875H: Ø1291 (1283.24-1369.77)

MSI GS75 Stealth 9SG Intel Core i7-9750H, Intel Core i7-9750H: Ø1133 (1114.27-1233.11)

Razer Blade Pro 17 RTX 2080 Max-Q Intel Core i7-9750H, Intel Core i7-9750H: Ø1076 (1067.18-1187.86)

Asus ROG Zephyrus S GX701GXR Intel Core i7-9750H, Intel Core i7-9750H: Ø912 (890.85-1097.33)

Cinebench R20
CPU (Single Core)
Average of class Multimedia (341 - 853, n=86, last 2 years)	652 Points +36%
MSI Creator 17 A10SGS Intel Core i7-10875H	479 Points
Alienware m17 R2 P41E Intel Core i9-9980HK	478 Points 0%
MSI GS75 Stealth 9SG Intel Core i7-9750H	434 Points -9%
Asus ROG Zephyrus S GX701GXR Intel Core i7-9750H	422 Points -12%
CPU (Multi Core)
Average of class Multimedia (2681 - 11768, n=86, last 2 years)	5683 Points +80%
Alienware m17 R2 P41E Intel Core i9-9980HK	4136 Points +31%
MSI Creator 17 A10SGS Intel Core i7-10875H	3155 Points
MSI GS75 Stealth 9SG Intel Core i7-9750H	2723 Points -14%
Asus ROG Zephyrus S GX701GXR Intel Core i7-9750H	2357 Points -25%

Cinebench R15
CPU Single 64Bit
Average of class Multimedia (99.6 - 323, n=86, last 2 years)	257 Points +30%
MSI Creator 17 A10SGS Intel Core i7-10875H	197 Points
Alienware m17 R2 P41E Intel Core i9-9980HK	195 Points -1%
MSI GS75 Stealth 9SG Intel Core i7-9750H	180 Points -9%
Razer Blade Pro 17 RTX 2080 Max-Q Intel Core i7-9750H	180 Points -9%
Asus ROG Zephyrus S GX701GXR Intel Core i7-9750H	173 Points -12%
CPU Multi 64Bit
Average of class Multimedia (1252 - 4774, n=90, last 2 years)	2435 Points +78%
Alienware m17 R2 P41E Intel Core i9-9980HK	1754 Points +28%
MSI Creator 17 A10SGS Intel Core i7-10875H	1370 (1283.24^min - 1369.77^max) Points
MSI GS75 Stealth 9SG Intel Core i7-9750H	1233 Points -10%
Razer Blade Pro 17 RTX 2080 Max-Q Intel Core i7-9750H	1180 Points -14%
Asus ROG Zephyrus S GX701GXR Intel Core i7-9750H	1097 Points -20%

Blender - v2.79 BMW27 CPU
MSI Creator 17 A10SGS Intel Core i7-10875H	356 Seconds *
Average of class Multimedia (107 - 502, n=84, last 2 years)	253 Seconds * +29%

7-Zip 18.03
7z b 4 -mmt1
Average of class Multimedia (3398 - 7545, n=79, last 2 years)	5722 MIPS +8%
MSI Creator 17 A10SGS Intel Core i7-10875H	5277 MIPS
7z b 4
Average of class Multimedia (30592 - 121228, n=79, last 2 years)	60265 MIPS +51%
MSI Creator 17 A10SGS Intel Core i7-10875H	40008 MIPS

Geekbench 5.5
Single-Core
Average of class Multimedia (891 - 2342, n=86, last 2 years)	1818 Points +41%
MSI Creator 17 A10SGS Intel Core i7-10875H	1287 Points
Multi-Core
Average of class Multimedia (4990 - 23059, n=86, last 2 years)	11967 Points +71%
MSI Creator 17 A10SGS Intel Core i7-10875H	6988 Points

HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Multimedia (5.26 - 30.5, n=78, last 2 years)	16.4 fps +59%
MSI Creator 17 A10SGS Intel Core i7-10875H	10.3 fps

LibreOffice - 20 Documents To PDF
MSI Creator 17 A10SGS Intel Core i7-10875H	54.6 s *
Average of class Multimedia (6.7 - 146.7, n=80, last 2 years)	49.6 s * +9%

R Benchmark 2.5 - Overall mean
MSI Creator 17 A10SGS Intel Core i7-10875H	0.58 sec *
Average of class Multimedia (0.3604 - 0.947, n=79, last 2 years)	0.484 sec * +17%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1370 Points

Cinebench R15 OpenGL 64Bit

142 fps

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 CPU Single 64Bit

197 Points

Cinebench R20 CPU (Multi Core)

3155 Points

Cinebench R20 CPU (Single Core)

479 Points

Ajuda

... comparado com

PCMark 10 | V-Ray Benchmark Next 4.10

PCMark 10 - Score
Average of class Multimedia (4542 - 8670, n=72, last 2 years)	6795 Points +18%
Asus ROG Zephyrus S GX701GXR GeForce RTX 2080 Max-Q, i7-9750H, Samsung SSD PM981 MZVLB1T0HALR	6049 Points +5%
MSI GS75 Stealth 9SG GeForce RTX 2080 Max-Q, i7-9750H, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)	5804 Points +1%
MSI Creator 17 A10SGS GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB	5758 Points
Razer Blade Pro 17 RTX 2080 Max-Q GeForce RTX 2080 Max-Q, i7-9750H, Samsung SSD PM981 MZVLB512HAJQ	5734 Points 0%
Alienware m17 R2 P41E GeForce RTX 2080 Max-Q, i9-9980HK, 2x SK Hynix PC601 NVMe 512 GB (RAID 0)	5502 Points -4%

V-Ray Benchmark Next 4.10
CPU
Average of class Multimedia (7035 - 30140, n=64, last 2 years)	15553 ksamples +58%
MSI Creator 17 A10SGS GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB	9833 ksamples
GPU
Average of class Multimedia (45 - 684, n=64, last 2 years)	270 mpaths +29%
MSI Creator 17 A10SGS GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB	210 mpaths

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Creator 17 A10SGS GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB	973 μs *

* ... smaller is better

	MSI Creator 17 A10SGS Samsung SSD PM981 MZVLB2T0HMLB	MSI GS75 Stealth 9SG 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)	Razer Blade Pro 17 RTX 2080 Max-Q Samsung SSD PM981 MZVLB512HAJQ	Asus ROG Zephyrus S GX701GXR Samsung SSD PM981 MZVLB1T0HALR	Alienware m17 R2 P41E 2x SK Hynix PC601 NVMe 512 GB (RAID 0)
CrystalDiskMark 5.2 / 6		8%	-23%	-22%	1%
Write 4K	158.7	95.5 -40%	100.7 -37%	96.1 -39%	110.6 -30%
Read 4K	41.59	42.59 2%	41.03 -1%	40.86 -2%	41.46 0%
Write Seq	2388	2851 19%	1146 -52%	1317 -45%	2378 0%
Read Seq	1623	2696 66%	1115 -31%	1030 -37%	2114 30%
Write 4K Q32T1	432.6	402.6 -7%	384.6 -11%	350.4 -19%	445.4 3%
Read 4K Q32T1	526	443.9 -16%	429.5 -18%	404.1 -23%	509 -3%
Write Seq Q32T1	2438	3420 40%	1859 -24%	2396 -2%	2735 12%
Read Seq Q32T1	3457	3514 2%	3179 -8%	3194 -8%	3206 -7%

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Samsung SSD PM981 MZVLB2T0HMLB

CDM 5/6 Read Seq Q32T1: 3457 MB/s

CDM 5/6 Write Seq Q32T1: 2438 MB/s

CDM 5/6 Read 4K Q32T1: 526 MB/s

CDM 5/6 Write 4K Q32T1: 432.6 MB/s

CDM 5 Read Seq: 1623 MB/s

CDM 5 Write Seq: 2388 MB/s

CDM 5/6 Read 4K: 41.59 MB/s

CDM 5/6 Write 4K: 158.7 MB/s

Constant Reads Performance: DiskSpd Read Loop, Queue Depth 8

No graph data

3DMark | 3DMark 11 | SPECviewperf 13

3DMark
1920x1080 Fire Strike Graphics
Razer Blade Pro 17 RTX 2080 Max-Q NVIDIA GeForce RTX 2080 Max-Q	23032 Points +17%
Alienware m17 R2 P41E NVIDIA GeForce RTX 2080 Max-Q	22391 Points +14%
Asus ROG Zephyrus S GX701GXR NVIDIA GeForce RTX 2080 Max-Q	20917 Points +6%
MSI GS75 Stealth 9SG NVIDIA GeForce RTX 2080 Max-Q	20119 Points +2%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	19655 Points
Average of class Multimedia (1835 - 46022, n=80, last 2 years)	14437 Points -27%
2560x1440 Time Spy Graphics
Razer Blade Pro 17 RTX 2080 Max-Q NVIDIA GeForce RTX 2080 Max-Q	8844 Points +20%
Alienware m17 R2 P41E NVIDIA GeForce RTX 2080 Max-Q	8479 Points +15%
Asus ROG Zephyrus S GX701GXR NVIDIA GeForce RTX 2080 Max-Q	8036 Points +9%
MSI GS75 Stealth 9SG NVIDIA GeForce RTX 2080 Max-Q	7923 Points +7%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	7372 Points
Average of class Multimedia (622 - 17620, n=81, last 2 years)	5446 Points -26%
2560x1440 Port Royal Graphics
Razer Blade Pro 17 RTX 2080 Max-Q NVIDIA GeForce RTX 2080 Max-Q	5148 Points +14%
Alienware m17 R2 P41E NVIDIA GeForce RTX 2080 Max-Q	5092 Points +13%
Asus ROG Zephyrus S GX701GXR NVIDIA GeForce RTX 2080 Max-Q	4713 Points +5%
Average of class Multimedia (522 - 10798, n=23, last 2 years)	4600 Points +2%
MSI GS75 Stealth 9SG NVIDIA GeForce RTX 2080 Max-Q	4545 Points +1%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	4497 Points

3DMark 11 - 1280x720 Performance GPU
Razer Blade Pro 17 RTX 2080 Max-Q NVIDIA GeForce RTX 2080 Max-Q	30910 Points +18%
Alienware m17 R2 P41E NVIDIA GeForce RTX 2080 Max-Q	29220 Points +11%
Asus ROG Zephyrus S GX701GXR NVIDIA GeForce RTX 2080 Max-Q	29052 Points +10%
MSI GS75 Stealth 9SG NVIDIA GeForce RTX 2080 Max-Q	27204 Points +3%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	26292 Points
Average of class Multimedia (3505 - 60250, n=77, last 2 years)	20075 Points -24%

SPECviewperf 13
3ds Max (3dsmax-06)
Average of class Multimedia (last 2 years)	216 fps +22%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	176.6 fps
Catia (catia-05)
Average of class Multimedia (last 2 years)	150.2 fps +14%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	132.3 fps
Creo (creo-02)
Average of class Multimedia (last 2 years)	241 fps +42%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	170 fps
Energy (energy-02)
Average of class Multimedia (last 2 years)	42.1 fps +141%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	17.49 fps
Maya (maya-05)
Average of class Multimedia (last 2 years)	319 fps +52%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	210.2 fps
Medical (medical-02)
Average of class Multimedia (last 2 years)	74.4 fps +40%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	53.1 fps
Showcase (showcase-02)
Average of class Multimedia (last 2 years)	111.2 fps +16%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	96.2 fps
Siemens NX (snx-03)
Average of class Multimedia (last 2 years)	22.8 fps +9%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	20.88 fps
Solidworks (sw-04)
Average of class Multimedia (last 2 years)	109.6 fps +23%
MSI Creator 17 A10SGS NVIDIA GeForce RTX 2080 Super Max-Q	88.9 fps

MSI Creator 17 A10SGS GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB: Ø72.2 (65-77)

3DMark 11 Performance		22567 pontos
3DMark Fire Strike Score		17053 pontos
3DMark Time Spy Score		7482 pontos
Ajuda

... comparado com

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Razer Blade Pro 17 RTX 2080 Max-Q GeForce RTX 2080 Max-Q, i7-9750H	87.4 fps +16%
Asus ROG Zephyrus S GX701GXR GeForce RTX 2080 Max-Q, i7-9750H	80.7 fps +7%
Alienware m17 R2 P41E GeForce RTX 2080 Max-Q, i9-9980HK	78 fps +4%
MSI GS75 Stealth 9SG GeForce RTX 2080 Max-Q, i7-9750H	76.9 fps +2%
MSI Creator 17 A10SGS GeForce RTX 2080 Super Max-Q, i7-10875H	75.1 (62^min) fps
Average of class Multimedia (8 - 143.2, n=80, last 2 years)	54 fps -28%

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	180	174	157	85.3		71.5
The Witcher 3 (2015)			138	75.1		49.8
Dota 2 Reborn (2015)	155	141	139	125		102
X-Plane 11.11 (2018)	113	99.8	84.3			67
Shadow of the Tomb Raider (2018)			105	92	63	32
Battlefield V (2018)			127	118	95.4	52.6
Far Cry New Dawn (2019)			98	92	78	43
Rage 2 (2019)			102	101	63.8	30.9
Control (2019)			71.1		46.1	22
Borderlands 3 (2019)			79.8	71.6	51.7	26.9
FIFA 20 (2019)			217	213	189	114
Call of Duty Modern Warfare 2019 (2019)			114	91.8	67.3	36.8
Star Wars Jedi Fallen Order (2019)			102	95.2	72.2	36.8
Red Dead Redemption 2 (2019)			62.4	41	35	21.5
Gears Tactics (2020)			114	78.4	54	28.1

Barulho

Ocioso		32 / 33 / 40 dB
Carga		47 / 48 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Audix TM1, Arta (15 cm de distância) environment noise: 30 dB(A)

	MSI Creator 17 A10SGS i7-10875H, GeForce RTX 2080 Super Max-Q	MSI GS75 Stealth 9SG i7-9750H, GeForce RTX 2080 Max-Q	Razer Blade Pro 17 RTX 2080 Max-Q i7-9750H, GeForce RTX 2080 Max-Q	Asus ROG Zephyrus S GX701GXR i7-9750H, GeForce RTX 2080 Max-Q	Alienware m17 R2 P41E i9-9980HK, GeForce RTX 2080 Max-Q	Average of class Multimedia
Noise		1%	7%	3%	3%	21%
off / environment *	30	30 -0%	28.2 6%	30 -0%	29.1 3%	24 ?(19.4 - 26.5, n=85, last 2 years) 20%
Idle Minimum *	32	31 3%	28.2 12%	32 -0%	29.4 8%	24.3 ?(20.1 - 30.9, n=85, last 2 years) 24%
Idle Average *	33	32 3%	28.2 15%	33 -0%	29.4 11%	24.8 ?(20.1 - 31.8, n=85, last 2 years) 25%
Idle Maximum *	40	38 5%	30.8 23%	34 15%	31.5 21%	26.3 ?(20.1 - 36.8, n=85, last 2 years) 34%
Load Average *	47	47 -0%	42 11%	40 15%	49.7 -6%	38.2 ?(23.7 - 59.7, n=84, last 2 years) 19%
Witcher 3 ultra *	46	48 -4%	51 -11%	49 -7%	49.5 -8%
Load Maximum *	48	49 -2%	53 -10%	50 -4%	53.3 -11%	46.4 ?(29.6 - 62.6, n=85, last 2 years) 3%

* ... smaller is better

Carga Máxima

Inatividade

Witcher 3


48 °C	52 °C	49 °C
46 °C	51 °C	45 °C
40 °C	43 °C	39 °C

Máximo: 52 °C
Médio: 45.9 °C


59 °C	58 °C	49 °C
51 °C	52 °C	47 °C
42 °C	43 °C	43 °C

Máximo: 59 °C
Médio: 49.3 °C

alimentação elétrica 51 °C | Temperatura do quarto 24 °C | Fluke t3000FC (calibrated), Voltcraft IR-900

Carga Máxima

Inatividade

Witcher 3


31 °C	32 °C	30 °C
31 °C	34 °C	30 °C
30 °C	32 °C	28 °C

Máximo: 34 °C
Médio: 30.9 °C


31 °C	31 °C	31 °C
30 °C	31 °C	33 °C
29 °C	29 °C	30 °C

Máximo: 33 °C
Médio: 30.6 °C

alimentação elétrica 39 °C | Temperatura do quarto 24 °C | Fluke t3000FC (calibrated), Voltcraft IR-900

Carga Máxima

Inatividade

Witcher 3


52 °C	53 °C	51 °C
48 °C	52 °C	47 °C
42 °C	43 °C	39 °C

Máximo: 53 °C
Médio: 47.4 °C


60 °C	62 °C	51 °C
55 °C	58 °C	50 °C
43 °C	44 °C	43 °C

Máximo: 62 °C
Médio: 51.8 °C

alimentação elétrica 54 °C | Temperatura do quarto 24 °C | Fluke t3000FC (calibrated), Voltcraft IR-900

(-) The average temperature for the upper side under maximal load is 45.9 °C / 115 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 52 °C / 126 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 59 °C / 138 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 30.9 °C / 88 F, compared to the device average of 31.3 °C / 88 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 47.4 °C / 117 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 43 °C / 109.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-14.2 °C / -25.6 F).

	MSI Creator 17 A10SGS i7-10875H, GeForce RTX 2080 Super Max-Q	MSI GS75 Stealth 9SG i7-9750H, GeForce RTX 2080 Max-Q	Razer Blade Pro 17 RTX 2080 Max-Q i7-9750H, GeForce RTX 2080 Max-Q	Asus ROG Zephyrus S GX701GXR i7-9750H, GeForce RTX 2080 Max-Q	Alienware m17 R2 P41E i9-9980HK, GeForce RTX 2080 Max-Q	Average of class Multimedia
Heat		-0%	17%	6%	-9%	17%
Maximum Upper Side *	52	55 -6%	43 17%	50 4%	54.2 -4%	43.1 ?(26 - 59, n=87, last 2 years) 17%
Maximum Bottom *	59	65 -10%	47.2 20%	47 20%	61.4 -4%	46 ?(25 - 62.4, n=87, last 2 years) 22%
Idle Upper Side *	34	30 12%	27.2 20%	33 3%	37.8 -11%	28.2 ?(21.2 - 41.7, n=85, last 2 years) 17%
Idle Bottom *	33	32 3%	30 9%	34 -3%	38.6 -17%	28.9 ?(21.4 - 39.8, n=85, last 2 years) 12%

* ... smaller is better

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

MSI Creator 17 A10SGS audio analysis

(+) | speakers can play relatively loud (91 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33.3% lower than median
(+) | bass is linear (6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (3.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.7% difference to median)
Compared to same class
» 63% of all tested devices in this class were better, 6% similar, 31% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 46% of all tested devices were better, 7% similar, 47% worse
» The best had a delta of 4%, average was 25%, worst was 134%

MSI GS75 Stealth 9SG audio analysis

(±) | speaker loudness is average but good (81 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.4% lower than median
(±) | linearity of bass is average (7.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5.8% lower than median
(±) | linearity of mids is average (10% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.2% difference to median)
Compared to same class
» 83% of all tested devices in this class were better, 5% similar, 13% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 66% of all tested devices were better, 6% similar, 28% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia

desligado	1.2 / 1.8 Watt
Ocioso	15 / 20 / 42 Watt
Carga	150 / 210 Watt


Key: min: , med: , max: Metrahit Energy

	MSI Creator 17 A10SGS i7-10875H, GeForce RTX 2080 Super Max-Q	MSI GS75 Stealth 9SG i7-9750H, GeForce RTX 2080 Max-Q	Razer Blade Pro 17 RTX 2080 Max-Q i7-9750H, GeForce RTX 2080 Max-Q	Asus ROG Zephyrus S GX701GXR i7-9750H, GeForce RTX 2080 Max-Q	Alienware m17 R2 P41E i9-9980HK, GeForce RTX 2080 Max-Q	Average of class Multimedia
Power Consumption		16%	9%	-19%	-38%	53%
Idle Minimum *	15	13 13%	16.2 -8%	32 -113%	24.7 -65%	6.78 ?(2.17 - 21.1, n=86, last 2 years) 55%
Idle Average *	20	17 15%	20.4 -2%	34 -70%	35.9 -80%	11.3 ?(4.6 - 30, n=86, last 2 years) 43%
Idle Maximum *	42	25 40%	26.1 38%	36 14%	69.6 -66%	13.4 ?(5.6 - 30.4, n=86, last 2 years) 68%
Load Average *	150	96 36%	96.5 36%	95 37%	141.8 5%	71.1 ?(14.3 - 147, n=84, last 2 years) 53%
Witcher 3 ultra *	170	156 8%	182.9 -8%	155 9%	185.8 -9%
Load Maximum *	210	239 -14%	214.3 -2%	187 11%	235.4 -12%	117.3 ?(47.7 - 270, n=85, last 2 years) 44%

* ... smaller is better

Tempo de Execução da Bateria

Ocioso (sem WLAN, min brilho)		7h 14min
WiFi Websurfing		4h 26min
Carga (máximo brilho)		1h 07min

	MSI Creator 17 A10SGS i7-10875H, GeForce RTX 2080 Super Max-Q, 82 Wh	MSI GS75 Stealth 9SG i7-9750H, GeForce RTX 2080 Max-Q, 80.25 Wh	Razer Blade Pro 17 RTX 2080 Max-Q i7-9750H, GeForce RTX 2080 Max-Q, 70 Wh	Asus ROG Zephyrus S GX701GXR i7-9750H, GeForce RTX 2080 Max-Q, 76 Wh	Alienware m17 R2 P41E i9-9980HK, GeForce RTX 2080 Max-Q, 76 Wh	Average of class Multimedia
Battery Runtime		17%	0%	-24%	-16%	117%
Reader / Idle	434	461 6%	295 -32%	246 -43%	426 -2%	1168 ?(612 - 2760, n=17, last 2 years) 169%
WiFi v1.3	266	357 34%	280 5%	182 -32%	290 9%	625 ?(279 - 1204, n=85, last 2 years) 135%
Load	67	74 10%	86 28%	69 3%	31 -54%	97.8 ?(39 - 212, n=64, last 2 years) 46%
H.264		410		168		821 ?(319 - 1481, n=52, last 2 years)

Pro

+ Painel Mini LED extremamente brilhante com suporte para HDR

+ Relativamente compacto e leve para um dispositivo de 17 polegadas

+ Conexões modernas incluindo Thunderbolt 3

+ Muito bom desempenho do sistema

+ Design luxuoso

Contra

- A carcaça deixa espaço para melhorias (particularmente estabilidade)

- O turbo da GPU e da CPU poderia ser melhor

- Desenvolvimento de alta temperatura sob uso intenso

- Som e webcam apenas medíocres

- Manutenção limitada

MSI Creator 17 A10SGS. Test unit provided by MSI Germany.

A configuração mais cara do Creator 17 apresentou um desempenho misto em nosso teste. Enquanto o painel Mini LED, oferecido pela MSI pela primeira vez, é capaz de convencer em todos os aspectos, roubando o show de outros concorrentes (brilho de quase 1000 cd/m²!), a carcaça oferece menos do que o esperado (estabilidade, impressão de qualidade, etc.).

Considerando o desempenho do RTX 2080 Super Max-Q, que não tem relação com o preço, recomendamos a versão mais acessível com o RTX 2070 (Super) Max-Q para os usuários interessados. O uso do Turbo Core i7-10875H também poderia ser melhor.

O fato de que o Creator 17 chegue até nossa mesa dos Top 10 para Edição de Fotografias e Vídeo apesar dessas fraquezas, não é menos importante devido ao seu rico equipamento de conexões, incluindo o Thunderbolt 3. Para o sucessor, desejaríamos uma carcaça mais robusta e menos barulhenta, com um sistema de resfriamento que não funcionasse tão próximo dos limites.

MSI Creator 17 A10SGS - 07/05/2020 v7 ^(old)
Florian Glaser

Acabamento

71 / 98 → 73%

Teclado

79%

Mouse

78%

Conectividade

68 / 80 → 85%

Peso

61 / 20-72 → 78%

Bateria
