MagyarBreve Análise do Portátil Lenovo ThinkPad T490 (i7, MX250, Low Power FHD)
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Dell Latitude 7490 (Toshiba Exceria Pro M501 UHS-II) | |
| Lenovo ThinkPad T480s-20L8S02D00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T480-20L6S01V00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T490-20N3S02L00 (Toshiba Exceria Pro M501) | |
| Fujitsu LifeBook U748 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T490s-20NYS02A00 (Toshiba Exceria Pro M501) | |
| Average of class Office (22.7 - 198.5, n=35, last 2 years) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Dell Latitude 7490 (Toshiba Exceria Pro M501 UHS-II) | |
| Lenovo ThinkPad T480s-20L8S02D00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T490s-20NYS02A00 (Toshiba Exceria Pro M501) | |
| Lenovo ThinkPad T480-20L6S01V00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T490-20N3S02L00 (Toshiba Exceria Pro M501) | |
| Fujitsu LifeBook U748 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Average of class Office (25 - 249, n=32, last 2 years) | |
| |||||||||||||||||||||||||
iluminação: 88 %
iluminação com acumulador: 420 cd/m²
Contraste: 1742:1 (Preto: 0.24 cd/m²)
ΔE Color 4.7 | 0.5-29.43 Ø4.93, calibrated: 2.1
ΔE Greyscale 5.9 | 0.5-98 Ø5.2
92.1% sRGB (Argyll 1.6.3 3D)
59.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
67.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.2% sRGB (Argyll 2.2.0 3D)
69.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.06
Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 2451 Hz | ≤ 50 % brightness setting |  |
The display backlight flickers at 2451 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 2451 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Lenovo ThinkPad T490-20N3S02L00 NE140FHM-N61, , 1920x1080, 14" | Lenovo ThinkPad T480-20L6S01V00 Lenovo LP140WF6-SPB7, , 1920x1080, 14" | Lenovo ThinkPad T480s-20L8S02D00 LP140QH2-SPB1, , 2560x1440, 14" | HP EliteBook 840 G5-3JX66EA AUO3B3D, , 1920x1080, 14" | Dell Latitude 7490 AUO503D (D04YD_B140HAN), , 1920x1080, 14" | Fujitsu LifeBook U748 LG, LP140WF6-SPF1, , 1920x1080, 14" | |
|---|---|---|---|---|---|---|
| Display | -40% | 7% | -9% | 1% | ||
| Display P3 Coverage | 69.3 | 39.24 -43% | 72.8 5% | 60.2 -13% | 66.6 -4% | |
| sRGB Coverage | 92.2 | 58.8 -36% | 97.9 6% | 88.2 -4% | 96.8 5% | |
| AdobeRGB 1998 Coverage | 67.4 | 40.56 -40% | 74.1 10% | 61.3 -9% | 67.9 1% | |
| Response Times | 49% | 43% | 37% | 37% | 47% | |
| Response Time Grey 50% / Grey 80% * | 74 ? | 35.6 ? 52% | 38.4 ? 48% | 42.4 ? 43% | 41.6 ? 44% | 39.2 ? 47% |
| Response Time Black / White * | 45.6 ? | 24.8 ? 46% | 28.4 ? 38% | 31.6 ? 31% | 32 ? 30% | 24.4 ? 46% |
| PWM Frequency | 2451 ? | |||||
| Screen | -37% | -10% | -7% | -11% | -2% | |
| Brightness middle | 418 | 307 -27% | 352 -16% | 414 -1% | 308.6 -26% | 334 -20% |
| Brightness | 400 | 295 -26% | 343 -14% | 387 -3% | 294 -26% | 313 -22% |
| Brightness Distribution | 88 | 90 2% | 91 3% | 87 -1% | 89 1% | 89 1% |
| Black Level * | 0.24 | 0.25 -4% | 0.46 -92% | 0.25 -4% | 0.23 4% | 0.41 -71% |
| Contrast | 1742 | 1228 -30% | 765 -56% | 1656 -5% | 1342 -23% | 815 -53% |
| Colorchecker dE 2000 * | 4.7 | 5.7 -21% | 3.3 30% | 5.5 -17% | 6.07 -29% | 2.2 53% |
| Colorchecker dE 2000 max. * | 8.7 | 21.3 -145% | 7.3 16% | 9.9 -14% | 10.58 -22% | 5.7 34% |
| Colorchecker dE 2000 calibrated * | 2.1 | 4.7 -124% | 2.3 -10% | 1.67 20% | ||
| Greyscale dE 2000 * | 5.9 | 3.7 37% | 5.3 10% | 6.4 -8% | 7.3 -24% | 2.9 51% |
| Gamma | 2.06 107% | 2.11 104% | 2.22 99% | 2.31 95% | 2.061 107% | 2.34 94% |
| CCT | 7350 88% | 7353 88% | 6452 101% | 7811 83% | 7269 89% | 6855 95% |
| Color Space (Percent of AdobeRGB 1998) | 59.9 | 37.4 -38% | 68.4 14% | 56.9 -5% | 62 4% | 65.3 9% |
| Color Space (Percent of sRGB) | 92.1 | 58.7 -36% | 98 6% | 88.1 -4% | 97 5% | 91.8 0% |
| Total Average (Program / Settings) | -9% /
-27% | 13% /
1% | 7% /
-2% | 9% /
-3% | 23% /
6% |
* ... smaller is better
Display Response Times

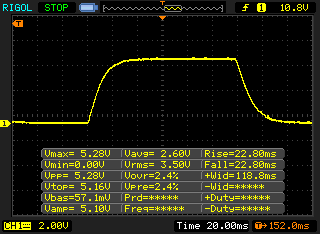

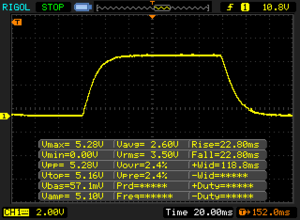

| ↔ Response Time Black to White | ||
|---|---|---|
| 45.6 ms ... rise ↗ and fall ↘ combined | ↗ 22.8 ms rise |  |
| ↘ 22.8 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

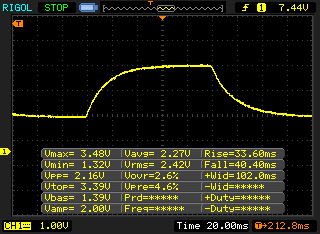

| ↔ Response Time 50% Grey to 80% Grey | ||
| 74 ms ... rise ↗ and fall ↘ combined | ↗ 33.6 ms rise |  |
| ↘ 40.4 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||
| PCMark 8 Home Score Accelerated v2 | 4052 pontos | |
| PCMark 8 Creative Score Accelerated v2 | 5740 pontos | |
| PCMark 8 Work Score Accelerated v2 | 5277 pontos | |
| PCMark 10 Score | 4341 pontos | |
Ajuda | ||
| Lenovo ThinkPad T490-20N3S02L00 Toshiba XG5 KXG50ZNV512G | Lenovo ThinkPad T480-20L6S01V00 Samsung SSD PM981 MZVLB512HAJQ | Lenovo ThinkPad T480s-20L8S02D00 Samsung SSD PM981 MZVLB512HAJQ | Lenovo ThinkPad T490s-20NYS02A00 Intel SSD Pro 7600p SSDPEKKF512G8L | HP EliteBook 840 G5-3JX66EA Toshiba XG5 KXG50ZNV256G | Dell Latitude 7490 Toshiba KSG60ZMV256G | Fujitsu LifeBook U748 Samsung PM961 MZVLW256HEHP | Average Toshiba XG5 KXG50ZNV512G | |
|---|---|---|---|---|---|---|---|---|
| CrystalDiskMark 5.2 / 6 | -9% | 8% | 2% | -25% | -58% | 13% | -10% | |
| Write 4K | 126.6 | 153.1 21% | 155.4 23% | 122 -4% | 92.8 -27% | 79.4 -37% | 135.5 7% | 114 ? -10% |
| Read 4K | 43.61 | 48.3 11% | 47.61 9% | 45.56 4% | 30.67 -30% | 27.37 -37% | 43.76 0% | 35.6 ? -18% |
| Write Seq | 1342 | 866 -35% | 1624 21% | 1497 12% | 353.2 -74% | 343.9 -74% | 1006 -25% | 684 ? -49% |
| Read Seq | 1251 | 904 -28% | 1346 8% | 2385 91% | 1937 55% | 472.7 -62% | 1761 41% | 1612 ? 29% |
| Write 4K Q32T1 | 297.7 | 424.6 43% | 340.7 14% | 240.9 -19% | 358 20% | 206 -31% | 660 122% | 401 ? 35% |
| Read 4K Q32T1 | 376.4 | 403.2 7% | 449.3 19% | 338 -10% | 253.1 -33% | 188.3 -50% | 432.6 15% | 427 ? 13% |
| Write Seq Q32T1 | 2969 | 1725 -42% | 1965 -34% | 1528 -49% | 359.6 -88% | 343.3 -88% | 1231 -59% | 830 ? -72% |
| Read Seq Q32T1 | 3228 | 1780 -45% | 3398 5% | 2915 -10% | 2613 -19% | 533 -83% | 3220 0% | 2950 ? -9% |
| 3DMark 11 Performance | 4878 pontos | |
| 3DMark Cloud Gate Standard Score | 13642 pontos | |
| 3DMark Fire Strike Score | 3469 pontos | |
| 3DMark Time Spy Score | 1249 pontos | |
Ajuda | ||
| The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
| Average of class Office (7.82 - 106.3, n=74, last 2 years) | |
| Lenovo ThinkPad T490-20N3S02L00 | |
| Average NVIDIA GeForce MX250 (30 - 40, n=27) | |
| Lenovo ThinkPad T480-20L6S01V00 | |
| Lenovo ThinkPad T480s-20L8S02E00 | |
| baixo | média | alto | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 192.9 | 114.6 | 99.7 | 38.1 |
| The Witcher 3 (2015) | 67.1 | 36.8 | 21.2 | 10.7 |
| Dota 2 Reborn (2015) | 102 | 89 | 69 | 59.7 |
| Rise of the Tomb Raider (2016) | 78.2 | 46.2 | 24.5 | 18.1 |
| X-Plane 11.11 (2018) | 55.3 | 46.3 | 41.6 |
Barulho
| Ocioso |
| 29.4 / 29.4 / 29.4 dB |
| Carga |
| 34.7 / 37.2 dB |
 | ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm de distância) environment noise: 29.4 dB(A) | ||
(-) The maximum temperature on the upper side is 45.2 °C / 113 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 56.6 °C / 134 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 21.7 °C / 71 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 36.5 °C / 98 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.8 °C / 87.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-3.1 °C / -5.5 F).
Lenovo ThinkPad T490-20N3S02L00 audio analysis
(-) | not very loud speakers (70.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.8% lower than median
(±) | linearity of bass is average (8.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(±) | linearity of mids is average (8.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.9% difference to median)
Compared to same class
» 89% of all tested devices in this class were better, 2% similar, 9% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 85% of all tested devices were better, 3% similar, 12% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP EliteBook 840 G5-3JX66EA audio analysis
(+) | speakers can play relatively loud (85.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.7% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.1% higher than median
(+) | highs are linear (4.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.6% difference to median)
Compared to same class
» 42% of all tested devices in this class were better, 10% similar, 48% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 51% of all tested devices were better, 8% similar, 41% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| desligado | 0.31 / 0.52 Watt |
| Ocioso | 2.16 / 5.04 / 8.64 Watt |
| Carga |
63.2 / 67.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad T490-20N3S02L00 i7-8565U, GeForce MX250, Toshiba XG5 KXG50ZNV512G, IGZO IPS LED, 1920x1080, 14" | Lenovo ThinkPad T480-20L6S01V00 i5-8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14" | Lenovo ThinkPad T480s-20L8S02E00 i5-8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 2560x1440, 14" | Lenovo ThinkPad T490s-20NYS02A00 i5-8265U, UHD Graphics 620, Intel SSD Pro 7600p SSDPEKKF512G8L, IPS, 1920x1080, 14" | HP EliteBook 840 G5-3JX66EA i5-8250U, UHD Graphics 620, Toshiba XG5 KXG50ZNV256G, IPS, 1920x1080, 14" | Dell Latitude 7490 i5-8350U, UHD Graphics 620, Toshiba KSG60ZMV256G, IPS, 1920x1080, 14" | Fujitsu LifeBook U748 i5-8250U, UHD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 14" | Average NVIDIA GeForce MX250 | Average of class Office | |
|---|---|---|---|---|---|---|---|---|---|
| Power Consumption | -21% | -15% | 4% | -9% | 26% | 1% | -32% | -24% | |
| Idle Minimum * | 2.16 | 3.6 -67% | 3.4 -57% | 2.62 -21% | 3.2 -48% | 2 7% | 3.33 -54% | 4.1 ? -90% | 4.51 ? -109% |
| Idle Average * | 5.04 | 7.1 -41% | 7.5 -49% | 5.16 -2% | 6.6 -31% | 4.7 7% | 6.9 -37% | 7.91 ? -57% | 7.47 ? -48% |
| Idle Maximum * | 8.64 | 9.5 -10% | 10.8 -25% | 8.7 -1% | 9.5 -10% | 5.7 34% | 8.2 5% | 10.4 ? -20% | 9.11 ? -5% |
| Load Average * | 63.2 | 63.9 -1% | 55.4 12% | 40 37% | 36.2 43% | 38.4 39% | 29.4 53% | 58.6 ? 7% | 42.4 ? 33% |
| Witcher 3 ultra * | 50 | 53.9 -8% | 34 32% | ||||||
| Load Maximum * | 67.5 | 67.3 -0% | 70.3 -4% | 64 5% | 65.6 3% | 38.9 42% | 43.4 36% | 68.9 ? -2% | 60.5 ? 10% |
* ... smaller is better
| Lenovo ThinkPad T490-20N3S02L00 i7-8565U, GeForce MX250, 50 Wh | Lenovo ThinkPad T480-20L6S01V00 i5-8550U, GeForce MX150, 72 Wh | Lenovo ThinkPad T480s-20L8S02E00 i5-8550U, GeForce MX150, 57 Wh | Lenovo ThinkPad T490s-20NYS02A00 i5-8265U, UHD Graphics 620, 57 Wh | HP EliteBook 840 G5-3JX66EA i5-8250U, UHD Graphics 620, 50 Wh | Dell Latitude 7490 i5-8350U, UHD Graphics 620, 60 Wh | Fujitsu LifeBook U748 i5-8250U, UHD Graphics 620, 50 Wh | Average of class Office | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | 60% | 1% | 34% | 22% | 1% | -4% | 33% | |
| H.264 | 523 | 638 22% | 550 5% | 834 59% | 399 -24% | 397 -24% | 703 ? 34% | |
| WiFi v1.3 | 543 | 794 46% | 530 -2% | 607 12% | 447 -18% | 548 1% | 390 -28% | 598 ? 10% |
| Load | 75 | 159 112% | 76 1% | 99 32% | 156 108% | 106 41% | 117.1 ? 56% | |
| Reader / Idle | 1671 | 1366 | 1138 | 937 | 1300 ? |
Pro
Contra
No papel, é claro que o Lenovo ThinkPad T490 é o sucessor do ThinkPad T480. Mas, na realidade, o design do ThinkPad T490 é radicalmente diferente, o que torna apropriado chamá-lo de uma mistura do T480 e do T480s em vez de um sucessor direto para o T480. Essa combinação é muito bem feita, mas também há pontos fracos.

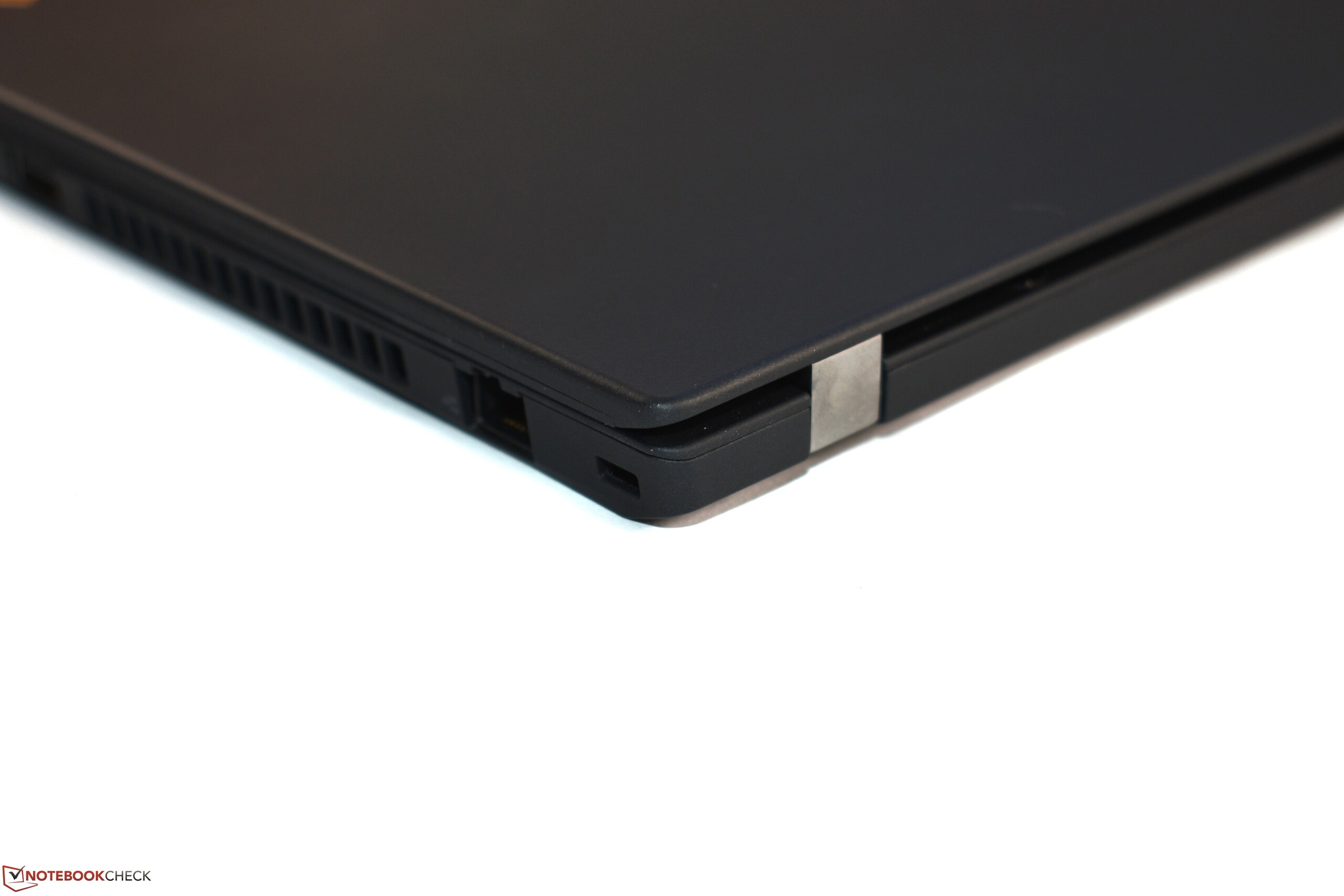

O ThinkPad T490 tem uma carcaça robusta feita de plástico reforçado com magnésio, que é muito mais leve e compacta que a carcaça do T480. As opções de conectividade são abundantes, assim como os recursos de segurança disponíveis e as opções de comunicação com o RJ45 de tamanho completo, além do LTE (opcional), além do Wi-Fi. Como é típico para um ThinkPad, os dispositivos de entrada são muito bons. A maior melhoria em comparação com as antigas gerações do ThinkPad está relacionada à tela. Finalmente, a Lenovo coloca uma tela FHD de alta qualidade com um bom brilho de tela e gama de cores. O desempenho da CPU do ThinkPad T490 está acima da média graças ao TDP mais alto e a Nvidia GeForce MX250 opcional, permite até mesmo alguns jogos leves, tornando o T490 ainda mais flexível. Apesar do bom desempenho, os ventiladores do ThinkPad T490 são silenciosos, e a duração da bateria é boa. Por último, mas não menos importante, o pacote de garantia do T490 que testamos, é generoso.
Embora a tela seja um dos melhores argumentos para o ThinkPad T490, seus tempos de resposta são extremamente ruins e os movimentos rápidos do cursor resultam em fantasmas. O T490 tem muitas portas, mas infelizmente, a Lenovo substituiu o slot para cartão SD com um slot para cartão microSD - uma mudança desnecessária em nossa opinião. Também é lamentável que a porta Thunderbolt 3 esteja conectada através de apenas duas pistas PCIe. De todos os recentes ThinkPads T/X com tela de 14 polegadas, o T490 é o modelo mais atualizável, mas é difícil abrir e fechar a carcaça. As altas temperaturas sob carga também são problemáticas, pois elas cruzam o importante limiar de 50 °C (122 °F). O bom desempenho e o ventilador silencioso têm seu preço, afinal, dado que o T490 também se afoga no teste de estresse. Outro problema do T490 é o ruído que emite: É atormentado pelo ruído do alto-falante e da bobina. Finalmente, lamentamos a perda do recurso PowerBridge - as baterias USB C podem ter a mesma função, mas o PowerBridge era um recurso interessante e confortável.
O Lenovo ThinkPad T490 é o mais novo modelo da série T tradicional - a Lenovo fez muitas alterações em comparação com o modelo anterior. Embora nem todas essas mudanças tenham sido boas, considerando tudo, o ThinkPad T490 é um melhor portátil que o T480.
No geral, o Lenovo ThinkPad T490 é um portátil corporativo muito bom, mas a Lenovo deve consertar o alto-falante com uma atualização de software. Além disso, a questão é quão bem o sistema de resfriamento iGPU mais fraco pode resfriar o processador. Nós damos ao ThinkPad T490 uma recomendação básica, mas os usuários devem escolher um modelo com a tela FHD de baixa potência ou o LCD QHD.
Lenovo ThinkPad T490-20N3S02L00
-
10/22/2019 v7 (old)
Benjamin Herzig
