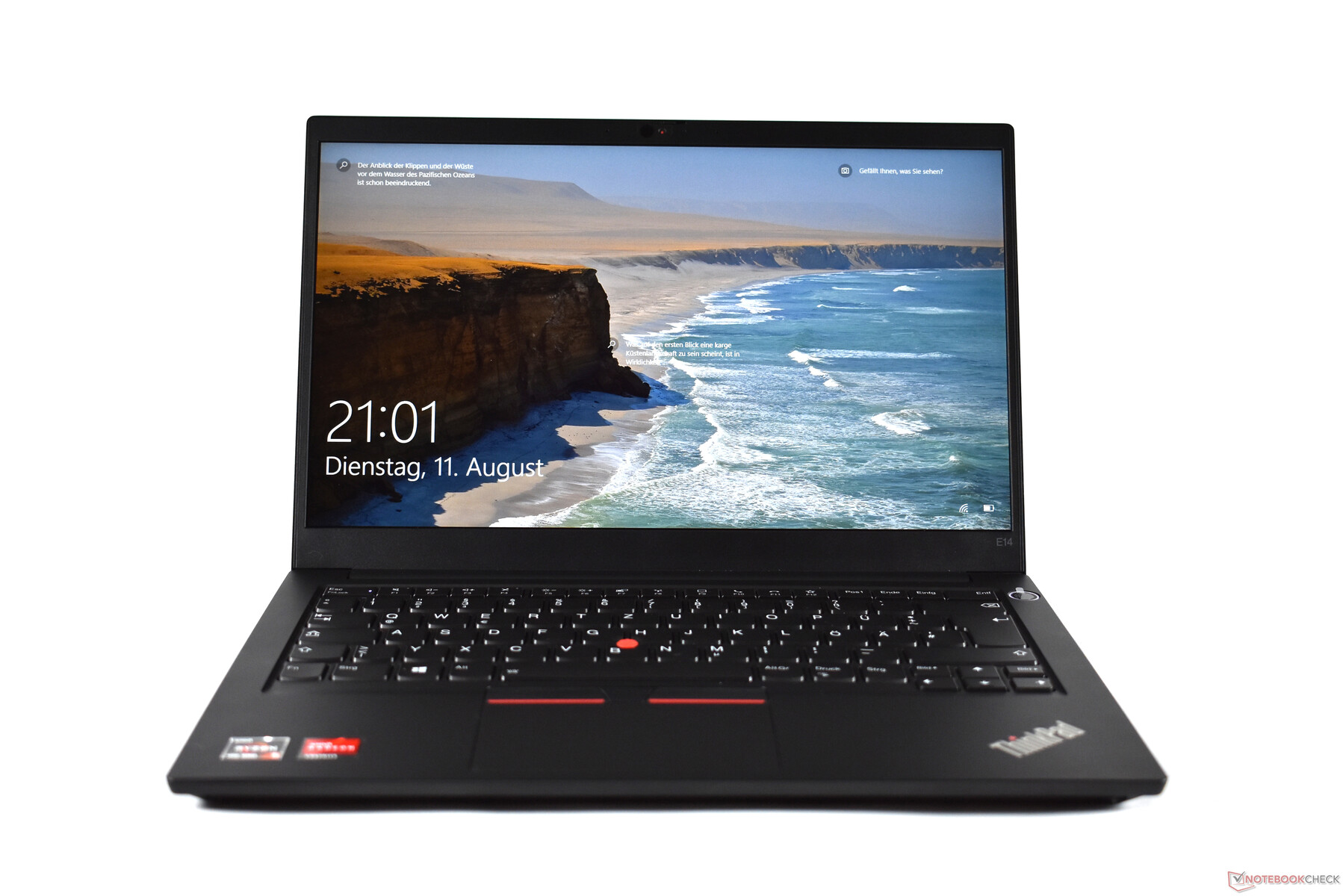

Breve Análise do Portátil Lenovo ThinkPad E14 Gen 2: Acessível e rápido graças à AMD Renoir
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 85.6 % v7 (old) | 09/2020 | Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6 | 1.6 kg | 17.9 mm | 14.00" | 1920x1080 | |
| 84.2 % v7 (old) | 09/2019 | Lenovo ThinkPad E495-20NE000JGE R5 3500U, Vega 8 | 1.8 kg | 19.9 mm | 14.00" | 1920x1080 | |
| 84.5 % v7 (old) | 03/2020 | Lenovo ThinkPad E14 20RA001MGE i5-10210U, UHD Graphics 620 | 1.6 kg | 17.9 mm | 14.00" | 1920x1080 | |
| 83.2 % v7 (old) | 08/2020 | HP ProBook 445 G7 175W4EA R5 4500U, Vega 6 | 1.6 kg | 18 mm | 14.00" | 1920x1080 | |
| 90.5 % v7 (old) | 08/2020 | Lenovo ThinkPad T14s-20UJS00K00 R7 PRO 4750U, Vega 7 | 1.3 kg | 16.1 mm | 14.00" | 1920x1080 |
| |||||||||||||||||||||||||
iluminação: 87 %
iluminação com acumulador: 281 cd/m²
Contraste: 1124:1 (Preto: 0.25 cd/m²)
ΔE Color 5.8 | 0.5-29.43 Ø4.91, calibrated: 4.9
ΔE Greyscale 3.2 | 0.5-98 Ø5.2
56.9% sRGB (Argyll 1.6.3 3D)
36.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.42% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.2% sRGB (Argyll 2.2.0 3D)
38.16% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.15
| Lenovo ThinkPad E14 Gen2-20T7S00W00 B140HAN05.7, a-Si IPS LED, 1920x1080, 14" | Lenovo ThinkPad E495-20NE000JGE N140HCA-EAC, IPS, 1920x1080, 14" | Lenovo ThinkPad E14 20RA001MGE NV140FHM-N48, IPS LED, 1920x1080, 14" | HP ProBook 445 G7 175W4EA BOE0868, IPS, 1920x1080, 14" | Lenovo ThinkPad T14s-20UJS00K00 N140HCG-GQ2, IPS , 1920x1080, 14" | |
|---|---|---|---|---|---|
| Display | 11% | 6% | 5% | 74% | |
| Display P3 Coverage | 38.16 | 42.37 11% | 40.31 6% | 39.92 5% | 66.8 75% |
| sRGB Coverage | 57.2 | 63.5 11% | 60 5% | 59.6 4% | 97.9 71% |
| AdobeRGB 1998 Coverage | 39.42 | 43.8 11% | 41.65 6% | 41.25 5% | 69 75% |
| Response Times | -1% | -28% | 2% | 37% | |
| Response Time Grey 50% / Grey 80% * | 46.4 ? | 40.8 ? 12% | 52 ? -12% | 40 ? 14% | 32.4 ? 30% |
| Response Time Black / White * | 27.2 ? | 30.8 ? -13% | 39.2 ? -44% | 30 ? -10% | 15.2 ? 44% |
| PWM Frequency | 25000 ? | 1250 ? | 192 ? | 26040 ? | |
| Screen | 9% | 10% | -4% | 45% | |
| Brightness middle | 281 | 241 -14% | 305 9% | 277 -1% | 404 44% |
| Brightness | 264 | 230 -13% | 292 11% | 270 2% | 371 41% |
| Brightness Distribution | 87 | 75 -14% | 89 2% | 88 1% | 88 1% |
| Black Level * | 0.25 | 0.17 32% | 0.17 32% | 0.285 -14% | 0.34 -36% |
| Contrast | 1124 | 1418 26% | 1794 60% | 972 -14% | 1188 6% |
| Colorchecker dE 2000 * | 5.8 | 4.7 19% | 5.9 -2% | 5.53 5% | 1.4 76% |
| Colorchecker dE 2000 max. * | 22.3 | 19.7 12% | 18.4 17% | 10.68 52% | 3.2 86% |
| Colorchecker dE 2000 calibrated * | 4.9 | 4.2 14% | 4.6 6% | 4.43 10% | 0.8 84% |
| Greyscale dE 2000 * | 3.2 | 2.6 19% | 4.4 -38% | 6.2 -94% | 1.6 50% |
| Gamma | 2.15 102% | 2.12 104% | 2.05 107% | 2.34 94% | 2.13 103% |
| CCT | 6452 101% | 6507 100% | 6921 94% | 7342 89% | 6480 100% |
| Color Space (Percent of AdobeRGB 1998) | 36.2 | 40.3 11% | 38.2 6% | 38 5% | 63 74% |
| Color Space (Percent of sRGB) | 56.9 | 63.3 11% | 59.6 5% | 59 4% | 97.9 72% |
| Total Average (Program / Settings) | 6% /
8% | -4% /
4% | 1% /
-2% | 52% /
50% |
* ... smaller is better
Display Response Times

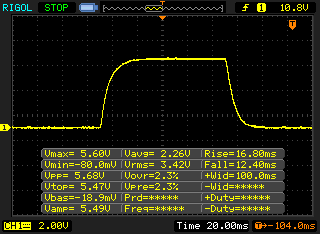

| ↔ Response Time Black to White | ||
|---|---|---|
| 27.2 ms ... rise ↗ and fall ↘ combined | ↗ 16.8 ms rise |  |
| ↘ 12.4 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 66 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

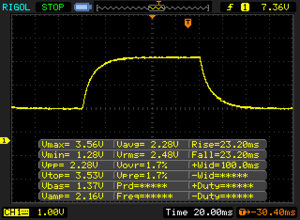

| ↔ Response Time 50% Grey to 80% Grey | ||
| 46.4 ms ... rise ↗ and fall ↘ combined | ↗ 23.2 ms rise |  |
| ↘ 23.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 78 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=98, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Average AMD Ryzen 5 4500U (715 - 1007, n=18) | |
| HP ProBook 445 G7 175W4EA | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Lenovo ThinkPad E495-20NE000JGE | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Office (98 - 284, n=97, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| HP ProBook 445 G7 175W4EA | |
| Average AMD Ryzen 5 4500U (156 - 177, n=13) | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Lenovo ThinkPad E495-20NE000JGE | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=97, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Average AMD Ryzen 5 4500U (1843 - 2530, n=13) | |
| HP ProBook 445 G7 175W4EA | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Lenovo ThinkPad E495-20NE000JGE | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 766, n=97, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| HP ProBook 445 G7 175W4EA | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Average AMD Ryzen 5 4500U (424 - 453, n=12) | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Lenovo ThinkPad E495-20NE000JGE | |
| Blender / v2.79 BMW27 CPU | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Lenovo ThinkPad E495-20NE000JGE | |
| HP ProBook 445 G7 175W4EA | |
| Average AMD Ryzen 5 4500U (533 - 748, n=11) | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Average of class Office (208 - 1956, n=98, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=98, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| HP ProBook 445 G7 175W4EA | |
| Average AMD Ryzen 5 4500U (4235 - 4338, n=11) | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Lenovo ThinkPad E495-20NE000JGE | |
| 7-Zip 18.03 / 7z b 4 | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Average of class Office (7532 - 65460, n=98, last 2 years) | |
| Average AMD Ryzen 5 4500U (22466 - 25891, n=11) | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| HP ProBook 445 G7 175W4EA | |
| Lenovo ThinkPad E495-20NE000JGE | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Geekbench 5.5 / Single-Core | |
| Average of class Office (510 - 1995, n=98, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Average AMD Ryzen 5 4500U (1082 - 1220, n=10) | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| HP ProBook 445 G7 175W4EA | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 11980, n=97, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Average AMD Ryzen 5 4500U (4352 - 6234, n=10) | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| HP ProBook 445 G7 175W4EA | |
| Lenovo ThinkPad E14 20RA001MGE | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Office (1.72 - 18.7, n=96, last 2 years) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Average AMD Ryzen 5 4500U (5.86 - 7.33, n=10) | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Lenovo ThinkPad E495-20NE000JGE | |
| LibreOffice / 20 Documents To PDF | |
| HP ProBook 445 G7 175W4EA | |
| Average AMD Ryzen 5 4500U (58.2 - 78, n=11) | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Average of class Office (31.3 - 129.6, n=96, last 2 years) | |
| R Benchmark 2.5 / Overall mean | |
| Lenovo ThinkPad E14 20RA001MGE | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
| Average AMD Ryzen 5 4500U (0.614 - 0.654, n=10) | |
| Lenovo ThinkPad T14s-20UJS00K00 | |
| Average of class Office (0.4244 - 1.135, n=95, last 2 years) | |
* ... smaller is better
| PCMark 8 Home Score Accelerated v2 | 4223 pontos | |
| PCMark 8 Work Score Accelerated v2 | 5414 pontos | |
| PCMark 10 Score | 4433 pontos | |
Ajuda | ||
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 | |
* ... smaller is better
| Lenovo ThinkPad E14 Gen2-20T7S00W00 Toshiba BG4 KBG40ZNT512G | Lenovo ThinkPad E495-20NE000JGE SK hynix BC501 HFM256GDHTNG | Lenovo ThinkPad E14 20RA001MGE SK hynix BC501 HFM512GDHTNG-8310A | HP ProBook 445 G7 175W4EA Samsung PM991 MZVLQ512HALU | Lenovo ThinkPad T14s-20UJS00K00 WDC PC SN730 SDBPNTY-1T00 | Average Toshiba BG4 KBG40ZNT512G | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 5.2 / 6 | -19% | -3% | 2% | 33% | 2% | |
| Write 4K | 102.3 | 121.3 19% | 121.9 19% | 144.6 41% | 108 6% | 133.9 ? 31% |
| Read 4K | 32.12 | 41.24 28% | 42.66 33% | 38.08 19% | 39.82 24% | 40.4 ? 26% |
| Write Seq | 1518 | 814 -46% | 628 -59% | 1320 -13% | 2028 34% | 1212 ? -20% |
| Read Seq | 1501 | 1098 -27% | 1193 -21% | 1397 -7% | 1826 22% | 1372 ? -9% |
| Write 4K Q32T1 | 356.4 | 267 -25% | 590 66% | 324.2 -9% | 570 60% | 338 ? -5% |
| Read 4K Q32T1 | 459.6 | 334.6 -27% | 414.5 -10% | 434.8 -5% | 401.5 -13% | 491 ? 7% |
| Write Seq Q32T1 | 1507 | 819 -46% | 866 -43% | 1382 -8% | 3091 105% | 1343 ? -11% |
| Read Seq Q32T1 | 2327 | 1646 -29% | 2078 -11% | 2354 1% | 2872 23% | 2279 ? -2% |
Continuous read: DiskSpd Read Loop, Queue Depth 8
| 3DMark 11 Performance | 4640 pontos | |
| 3DMark Cloud Gate Standard Score | 14756 pontos | |
| 3DMark Fire Strike Score | 2537 pontos | |
| 3DMark Time Spy Score | 931 pontos | |
Ajuda | ||
| baixo | média | alto | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 52.7 | 16.1 | ||
| Dota 2 Reborn (2015) | 98.2 | 79 | 44.4 | 41.8 |
| X-Plane 11.11 (2018) | 40.8 | 30.4 | 27.5 | |
| Shadow of the Tomb Raider (2018) | 43.8 | 15.8 | ||
| Total War: Three Kingdoms (2019) | 48.7 | 14.6 |
Barulho
| Ocioso |
| 29.1 / 29.1 / 29.1 dB |
| Carga |
| 31.7 / 32.7 dB |
 | ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm de distância) environment noise: 29.1 dB(A) | ||
(-) The maximum temperature on the upper side is 47.1 °C / 117 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.1 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.5 °C / 101.3 F.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-10.9 °C / -19.6 F).
Lenovo ThinkPad E14 Gen2-20T7S00W00 audio analysis
(±) | speaker loudness is average but good (74.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.5% lower than median
(±) | linearity of bass is average (13.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 11% similar, 50% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 49% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP ProBook 445 G7 175W4EA audio analysis
(±) | speaker loudness is average but good (76.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.1% lower than median
(±) | linearity of bass is average (9.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(±) | linearity of mids is average (9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 9% similar, 55% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 47% of all tested devices were better, 7% similar, 46% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad E495-20NE000JGE audio analysis
(-) | not very loud speakers (70.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.9% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 11% similar, 50% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 49% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| desligado | 0.44 / 0.71 Watt |
| Ocioso | 4.6 / 7.6 / 9.7 Watt |
| Carga |
39.1 / 50.3 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6, Toshiba BG4 KBG40ZNT512G, a-Si IPS LED, 1920x1080, 14" | Lenovo ThinkPad E495-20NE000JGE R5 3500U, Vega 8, SK hynix BC501 HFM256GDHTNG, IPS, 1920x1080, 14" | Lenovo ThinkPad E14 20RA001MGE i5-10210U, UHD Graphics 620, SK hynix BC501 HFM512GDHTNG-8310A, IPS LED, 1920x1080, 14" | HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, Samsung PM991 MZVLQ512HALU, IPS, 1920x1080, 14" | Lenovo ThinkPad T14s-20UJS00K00 R7 PRO 4750U, Vega 7, WDC PC SN730 SDBPNTY-1T00, IPS , 1920x1080, 14" | Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) | Average of class Office | |
|---|---|---|---|---|---|---|---|
| Power Consumption | 18% | 18% | 17% | -6% | 9% | -4% | |
| Idle Minimum * | 4.6 | 4.1 11% | 3.01 35% | 3.5 24% | 5.7 -24% | 3.98 ? 13% | 4.5 ? 2% |
| Idle Average * | 7.6 | 5.86 23% | 6.32 17% | 6.2 18% | 8.9 -17% | 6.53 ? 14% | 7.46 ? 2% |
| Idle Maximum * | 9.7 | 6.36 34% | 8.78 9% | 8.8 9% | 11 -13% | 8.65 ? 11% | 9.09 ? 6% |
| Load Average * | 39.1 | 30.4 22% | 32.5 17% | 30 23% | 38.2 2% | 35 ? 10% | 42.8 ? -9% |
| Load Maximum * | 50.3 | 50 1% | 45.5 10% | 45 11% | 40.2 20% | 51.5 ? -2% | 61.8 ? -23% |
* ... smaller is better
| Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6, 45 Wh | Lenovo ThinkPad E495-20NE000JGE R5 3500U, Vega 8, 45 Wh | Lenovo ThinkPad E14 20RA001MGE i5-10210U, UHD Graphics 620, 45 Wh | HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, 45 Wh | Lenovo ThinkPad T14s-20UJS00K00 R7 PRO 4750U, Vega 7, 57 Wh | Average of class Office | |
|---|---|---|---|---|---|---|
| Battery Runtime | 19% | 32% | 38% | 66% | 57% | |
| H.264 | 545 | 472 -13% | 617 13% | 792 45% | 728 ? 34% | |
| WiFi v1.3 | 498 | 497 0% | 507 2% | 523 5% | 612 23% | 612 ? 23% |
| Load | 55 | 93 69% | 100 82% | 94 71% | 127 131% | 117.8 ? 114% |
Pro
Contra
A Lenovo cometeu um erro com o ThinkPad E14 Gen 1: Fez um downgrade da memória para single-channel para um chassi mais fino. O Lenovo ThinkPad E14 Gen 2 corrige este erro. Ao mesmo tempo, oferece melhor desempenho que qualquer E ThinkPad até agora, graças à AMD Ryzen 4000.
Com isso em mente, a série ThinkPad E, claro, continua sendo uma série de portáteis orientada para o orçamento. Isso explica a tela relativamente escura e com cores fracas, a ausência do slot microSD e a pobre seleção de portas. Os ThinkPads das séries L e T têm vantagens aqui, e o mesmo vale para os recursos empresariais disponíveis. Além disso, o ThinkPad E14 Gen 2 aquece em torno do apoio para as mãos sob uso intenso, e os materiais usados aqui tornam o chassi pesado e a duração da bateria poderia ser melhor.
Dispositivos de entrada ThinkPad, AMD Ryzen 4000 e acessível: Se alguém busca essa combinação, o ThinkPad E14 Gen 2 pode ser a escolha ideal para um portátil de escritório doméstico - embora os cortes de custos da Lenovo possam ser um obstáculo para alguns usuários.
Se você está disposto a diminuir suas expectativas para a tela e seleção de portas, o Lenovo ThinkPad E14 Gen 2 ainda pode ser atraente. Os dispositivos de entrada muito bons, chassis compacto e ventilador silencioso são todos atributos desejáveis. O E14 AMD também é bastante atualizável e com o AMD Renoir tem uma ótima relação preço/desempenho. Podemos recomendar o ThinkPad E14 Gen 2 para clientes mais sensíveis ao preço.
Lenovo ThinkPad E14 Gen2-20T7S00W00
- 08/25/2020 v7 (old)
Benjamin Herzig
Price comparison
