Breve Análise do Portátil Gigabyte Aero 15 (7700HQ, GTX 1060, FHD)
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Dell XPS 15 9560 (i7-7700HQ, UHD) | |
| Gigabyte Aero 15 | |
| MSI GS63VR 7RF-228US | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| maximum AS SSD Seq Read Test (1GB) | |
| Dell XPS 15 9560 (i7-7700HQ, UHD) | |
| Gigabyte Aero 15 | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| MSI GS63VR 7RF-228US | |
| |||||||||||||||||||||||||
iluminação: 90 %
iluminação com acumulador: 320 cd/m²
Contraste: 889:1 (Preto: 0.36 cd/m²)
ΔE Color 4.62 | 0.5-29.43 Ø4.91
ΔE Greyscale 6 | 0.5-98 Ø5.2
92% sRGB (Argyll 1.6.3 3D)
60% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.5% sRGB (Argyll 2.2.0 3D)
65.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.46
| Gigabyte Aero 15 N156HCA-EA1 (CMN15D7), 1920x1080, 15.6" | Dell XPS 15 9560 (i7-7700HQ, UHD) 3840x2160, 15.6" | MSI GS63VR 7RF-228US 3840x2160, 15.6" | Acer Aspire VN7-593G-73HP V15 Nitro BE LG Display LP156WF6-SPP1, 1920x1080, 15.6" | Razer Blade (2017) LP140WF3-SPD1, 1920x1080, 14" | |
|---|---|---|---|---|---|
| Display | 32% | -24% | -4% | ||
| Display P3 Coverage | 65.2 | 89.7 38% | 48.21 -26% | 65.8 1% | |
| sRGB Coverage | 92.5 | 100 8% | 72.6 -22% | 85.1 -8% | |
| AdobeRGB 1998 Coverage | 66.5 | 100 50% | 49.81 -25% | 62.2 -6% | |
| Response Times | -51% | -11% | -1% | 15% | |
| Response Time Grey 50% / Grey 80% * | 42.8 ? | 57.2 ? -34% | 28 ? 35% | 41 ? 4% | 25.2 ? 41% |
| Response Time Black / White * | 32 ? | 39.2 ? -23% | 23.6 ? 26% | 34 ? -6% | 24.8 ? 22% |
| PWM Frequency | 26000 ? | 962 -96% | 1351 ? -95% | 21370 -18% | |
| Screen | 10% | -30% | 3% | 4% | |
| Brightness middle | 320 | 370.1 16% | 274.2 -14% | 322 1% | 272 -15% |
| Brightness | 316 | 356 13% | 263 -17% | 297 -6% | 277 -12% |
| Brightness Distribution | 90 | 87 -3% | 92 2% | 86 -4% | 84 -7% |
| Black Level * | 0.36 | 0.37 -3% | 0.44 -22% | 0.31 14% | 0.26 28% |
| Contrast | 889 | 1000 12% | 623 -30% | 1039 17% | 1046 18% |
| Colorchecker dE 2000 * | 4.62 | 5.3 -15% | 8 -73% | 4.73 -2% | 4.59 1% |
| Colorchecker dE 2000 max. * | 9.75 | 9.9 -2% | 14.6 -50% | 12.37 -27% | 8.49 13% |
| Greyscale dE 2000 * | 6 | 4.6 23% | 9.1 -52% | 2.99 50% | 4.28 29% |
| Gamma | 2.46 89% | 2.31 95% | 2.24 98% | 2.32 95% | 2.23 99% |
| CCT | 6761 96% | 6284 103% | 5020 129% | 6905 94% | 6848 95% |
| Color Space (Percent of AdobeRGB 1998) | 60 | 88.3 47% | 45.7 -24% | 56 -7% | 55 -8% |
| Color Space (Percent of sRGB) | 92 | 100 9% | 72.1 -22% | 85 -8% | 83 -10% |
| Total Average (Program / Settings) | -3% /
3% | -22% /
-26% | -1% /
1% | 10% /
6% |
* ... smaller is better
Display Response Times

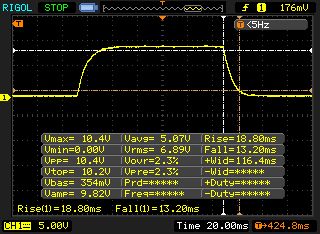

| ↔ Response Time Black to White | ||
|---|---|---|
| 32 ms ... rise ↗ and fall ↘ combined | ↗ 18.8 ms rise |  |
| ↘ 13.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

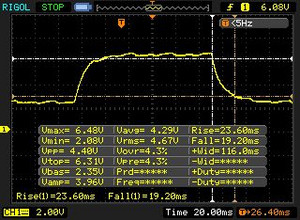

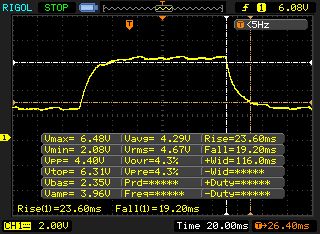

| ↔ Response Time 50% Grey to 80% Grey | ||
| 42.8 ms ... rise ↗ and fall ↘ combined | ↗ 23.6 ms rise |  |
| ↘ 19.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

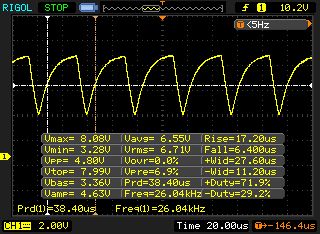

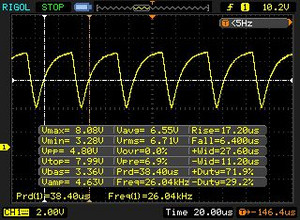

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 26000 Hz | ≤ 20 % brightness setting |  |
The display backlight flickers at 26000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 26000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R11.5 | |
| CPU Single 64Bit | |
| Gigabyte Aero 15 | |
| Dell XPS 15 9560 (i7-7700HQ, UHD) | |
| MSI GS63VR 7RF-228US | |
| CPU Multi 64Bit | |
| Gigabyte Aero 15 | |
| MSI GS63VR 7RF-228US | |
| Dell XPS 15 9560 (i7-7700HQ, UHD) | |
| PCMark 8 | |
| Home Score Accelerated v2 | |
| Gigabyte Aero 15 | |
| MSI GS63VR 7RF-228US | |
| Razer Blade (2017) | |
| Dell XPS 15 9560 (i7-7700HQ, UHD) | |
| Work Score Accelerated v2 | |
| Gigabyte Aero 15 | |
| MSI GS63VR 7RF-228US | |
| Razer Blade (2017) | |
| Dell XPS 15 9560 (i7-7700HQ, UHD) | |
| PCMark 7 Score | 6290 pontos | |
| PCMark 8 Home Score Accelerated v2 | 4248 pontos | |
| PCMark 8 Work Score Accelerated v2 | 5290 pontos | |
Ajuda | ||
| Gigabyte Aero 15 Lite-On CX2-8B512-Q11 | Dell XPS 15 9560 (i7-7700HQ, UHD) Lite-On CX2-8B512-Q11 | MSI GS63VR 7RF-228US Samsung SM961 MZVKW512HMJP m.2 PCI-e | Acer Aspire VN7-593G-73HP V15 Nitro BE Seagate Mobile HDD 1TB ST1000LM035 | Razer Blade (2017) Samsung PM951 NVMe MZVLV256 | |
|---|---|---|---|---|---|

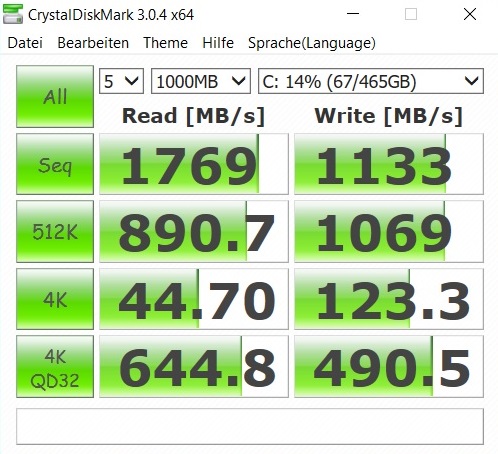

| CrystalDiskMark 3.0 | -3% | 15% | -96% | -33% | |
| Read Seq | 1769 | 1684 -5% | 2141 21% | 120.9 -93% | 1122 -37% |
| Write Seq | 1133 | 1106 -2% | 1621 43% | 101.8 -91% | 311 -73% |
| Read 512 | 891 | 977 10% | 499.7 -44% | 37.83 -96% | 682 -23% |
| Write 512 | 1069 | 1119 5% | 1531 43% | 84.4 -92% | 310 -71% |
| Read 4k | 44.7 | 45.14 1% | 54.2 21% | 0.473 -99% | 34.8 -22% |
| Write 4k | 123.3 | 134.1 9% | 158.2 28% | 0.313 -100% | 134.3 9% |
| Read 4k QD32 | 645 | 509 -21% | 632 -2% | 1.133 -100% | 565 -12% |
| Write 4k QD32 | 490.5 | 398.1 -19% | 527 7% | 0.274 -100% | 308 -37% |
| 3DMark - 1920x1080 Fire Strike Graphics | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| MSI GS63VR 7RF-228US | |
| Gigabyte Aero 15 | |
| Razer Blade (2017) | |
| Dell XPS 15 9560 (i7-7700HQ, UHD) | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| MSI GS63VR 7RF-228US | |
| Gigabyte Aero 15 | |
| Razer Blade (2017) | |
| 3DMark 11 Performance | 12471 pontos | |
| 3DMark Ice Storm Standard Score | 111791 pontos | |
| 3DMark Cloud Gate Standard Score | 25949 pontos | |
| 3DMark Fire Strike Score | 9546 pontos | |
Ajuda | ||
| baixo | média | alto | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 68.2 | 37.7 | ||
| XCOM 2 (2016) | 57.9 | 29.1 | ||
| Far Cry Primal (2016) | 74 | 57 | ||
| Mirror's Edge Catalyst (2016) | 72.8 | 65.8 | ||
| FIFA 17 (2016) | 223 | 213 | ||
| Call of Duty Infinite Warfare (2016) | 96.3 | 86.1 | ||
| Watch Dogs 2 (2016) | 60.9 | 42.8 | ||
| Resident Evil 7 (2017) | 98.9 | 81.5 | ||
| For Honor (2017) | 95.6 | 70.1 | ||
| Ghost Recon Wildlands (2017) | 62.9 | 34.5 | ||
| Mass Effect Andromeda (2017) | 51.4 | 46.4 |
Barulho
| Ocioso |
| 32 / 33 / 34 dB |
| Carga |
| 39 / 50 dB |
 | ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm de distância) environment noise: 31 dB(A) | ||
| Gigabyte Aero 15 i7-7700HQ, GeForce GTX 1060 Mobile | Dell XPS 15 9560 (i7-7700HQ, UHD) i7-7700HQ, GeForce GTX 1050 Mobile | MSI GS63VR 7RF-228US i7-7700HQ, GeForce GTX 1060 Mobile | Acer Aspire VN7-593G-73HP V15 Nitro BE i7-7700HQ, GeForce GTX 1060 Mobile | Razer Blade (2017) i7-7700HQ, GeForce GTX 1060 Mobile | |
|---|---|---|---|---|---|
| Noise | -0% | 1% | 3% | -1% | |
| off / environment * | 31 | 28.4 8% | 28.8 7% | 30.4 2% | |
| Idle Minimum * | 32 | 29 9% | 33.1 -3% | 30.9 3% | 30 6% |
| Idle Average * | 33 | 29 12% | 33.1 -0% | 30.9 6% | 30 9% |
| Idle Maximum * | 34 | 32.2 5% | 34 -0% | 31.5 7% | 30 12% |
| Load Average * | 39 | 47.1 -21% | 37.2 5% | 40.7 -4% | 51 -31% |
| Witcher 3 ultra * | 43 | 52 -21% | 46.1 -7% | 45.5 -6% | |
| Load Maximum * | 50 | 47.1 6% | 47.1 6% | 43.9 12% | 51 -2% |
* ... smaller is better
(-) The maximum temperature on the upper side is 56 °C / 133 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 61 °C / 142 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 31.3 °C / 88 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 43.7 °C / 111 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 40 °C / 104 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-11.2 °C / -20.2 F).
| Gigabyte Aero 15 i7-7700HQ, GeForce GTX 1060 Mobile | Dell XPS 15 9560 (i7-7700HQ, UHD) i7-7700HQ, GeForce GTX 1050 Mobile | MSI GS63VR 7RF-228US i7-7700HQ, GeForce GTX 1060 Mobile | Acer Aspire VN7-593G-73HP V15 Nitro BE i7-7700HQ, GeForce GTX 1060 Mobile | Razer Blade (2017) i7-7700HQ, GeForce GTX 1060 Mobile | |
|---|---|---|---|---|---|
| Heat | 8% | -19% | -5% | ||
| Maximum Upper Side * | 56 | 48.8 13% | 51.9 7% | ||
| Maximum Bottom * | 61 | 42.6 30% | 54.6 10% | ||
| Idle Upper Side * | 25 | 26 -4% | 28.4 -14% | 29.1 -16% | |
| Idle Bottom * | 24 | 25.4 -6% | 29.6 -23% | 29.3 -22% |
* ... smaller is better
Gigabyte Aero 15 audio analysis
(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.3% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.8% away from median
(+) | mids are linear (4.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.3% difference to median)
Compared to same class
» 52% of all tested devices in this class were better, 7% similar, 40% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 36% of all tested devices were better, 8% similar, 56% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell XPS 15 9560 (i7-7700HQ, UHD) audio analysis
(-) | not very loud speakers (70.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.9% lower than median
(±) | linearity of bass is average (14.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.2% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 8% similar, 55% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 23% of all tested devices were better, 5% similar, 72% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| desligado | 1.2 / 1.7 Watt |
| Ocioso | 12 / 15 / 20 Watt |
| Carga |
82 / 161 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Gigabyte Aero 15 i7-7700HQ, GeForce GTX 1060 Mobile | Dell XPS 15 9560 (i7-7700HQ, UHD) i7-7700HQ, GeForce GTX 1050 Mobile | MSI GS63VR 7RF-228US i7-7700HQ, GeForce GTX 1060 Mobile | Acer Aspire VN7-593G-73HP V15 Nitro BE i7-7700HQ, GeForce GTX 1060 Mobile | Razer Blade (2017) i7-7700HQ, GeForce GTX 1060 Mobile | |
|---|---|---|---|---|---|
| Power Consumption | 3% | -10% | 14% | 22% | |
| Idle Minimum * | 12 | 11.9 1% | 14.5 -21% | 7.2 40% | 7.5 37% |
| Idle Average * | 15 | 17.1 -14% | 17.3 -15% | 10.5 30% | 12.1 19% |
| Idle Maximum * | 20 | 17.3 13% | 17.4 13% | 16 20% | 14.3 28% |
| Load Average * | 82 | 94.7 -15% | 93 -13% | 82 -0% | 73.5 10% |
| Witcher 3 ultra * | 111 | 104.8 6% | 128.8 -16% | 124 -12% | 108 3% |
| Load Maximum * | 161 | 122 24% | 155 4% | 110.2 32% |
* ... smaller is better
| Gigabyte Aero 15 i7-7700HQ, GeForce GTX 1060 Mobile, 94.24 Wh | Dell XPS 15 9560 (i7-7700HQ, UHD) i7-7700HQ, GeForce GTX 1050 Mobile, 97 Wh | MSI GS63VR 7RF-228US i7-7700HQ, GeForce GTX 1060 Mobile, 65 Wh | Acer Aspire VN7-593G-73HP V15 Nitro BE i7-7700HQ, GeForce GTX 1060 Mobile, 69 Wh | Razer Blade (2017) i7-7700HQ, GeForce GTX 1060 Mobile, 70 Wh | |
|---|---|---|---|---|---|
| Battery Runtime | 8% | -39% | -2% | 29% | |
| Reader / Idle | 638 | 831 30% | 386 -39% | 501 -21% | |
| H.264 | 464 | ||||
| WiFi v1.3 | 422 | 434 3% | 232 -45% | 357 -15% | 545 29% |
| Load | 112 | 103 -8% | 75 -33% | 144 29% |
Pro
Contra
Verdict
Ora você considere o Aero 15 principalmente como um poli funcional, ou como uma plataforma de jogos, a Gigabyte deu um passo importante no desenvolvimento de seus portáteis. O portátil de 15 polegadas extremamente fino (19 mm/~0,75 pol.) pode alcançar um lugar no topo de nossa Multimedia Top 10 assim como na Gaming Top 10.
Não apenas o seu hardware balanceado, mas também deus diversos recursos, que raramente podem ser encontrados em concorrentes, contribuem à impressão positiva do Aero 15. Por exemplo, o marco muito pequeno da tela garante um visual elegante. Além disso, a calibração da tela (X-Rite Pantone) e a porta Thunderbolt 3, que finalmente é utilizada pela Gigabyte, merecem um elogio. A duração da bateria também é respeitável. Apenas alguns portáteis de alto desempenho passam das 7 a 8 horas no uso do dia a dia do Windows.
Não temos queixas graves. Além de uma qualidade de som decepcionante, criticamos apenas o preço alto e o touchpad que nem sempre é confiável.
No geral, o Aero 15 demonstra ser um rival digno para os melhores aparelhos multimídia, como o Dell XPS 15, o Razer Blade 2017, e o Acer V15 Nitro.
Gigabyte Aero 15
