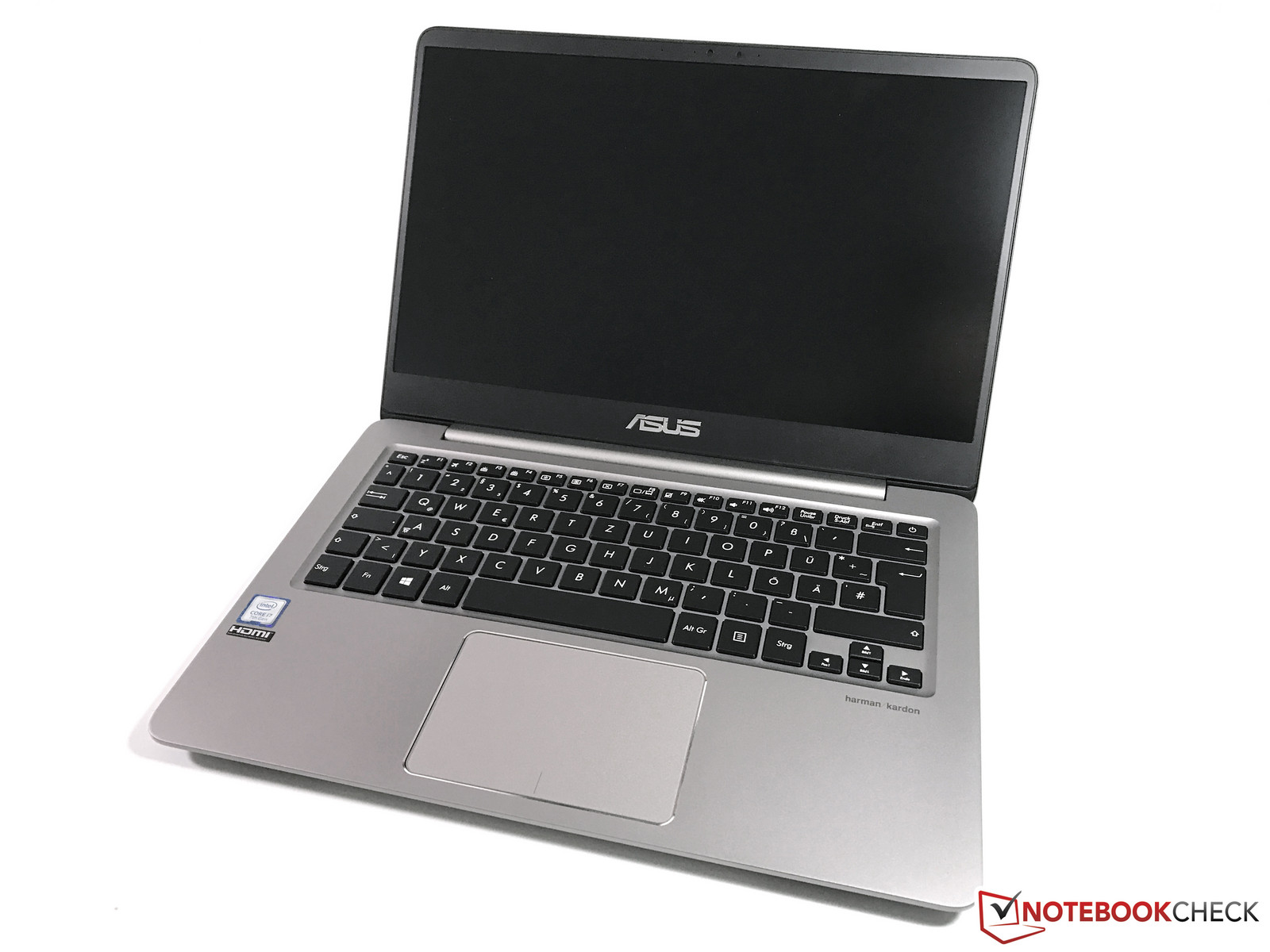

Breve Análise do Portátil Asus ZenBook UX3410UA

O ZenBook com uma tela de 14-polegadas. A Asus expande a sua linha ZenBook com o sistema UX3410UA e coloca uma tela de 14 polegadas em um chassi de 13 polegadas. O design atraente não muda e recebemos uma tela brilhante, bem como desempenho suficiente. O único que afeta um pouco a impressão geral é o estado atual da ventoinha.
Asus Zenbook UX3410UA (Zenbook UX3410UA Serie)
Processador

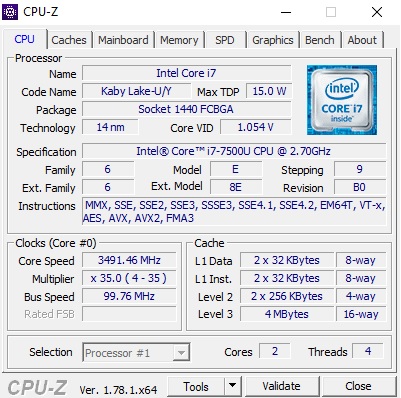

Intel Core i7-7500U 2 x 2.7 - 3.5 GHz, Kaby Lake
Placa gráfica
Memória
16 GB
, DDR4 (8 GB integrados)
Pantalha
14.00 polegadas 16:9, 1920 x 1080 pixel 157 PPI, ChiMei N140HCE-EN1, IPS, Brilhante: não
placa mãe
Intel Kaby Lake-U Premium PCH
Disco rígido
SanDisk SD8SN8U512G1002, 512 GB
, 440 GB livre
Placa de Som
Intel Kaby Lake-U/Y PCH - High Definition Audio
Conexões
2 USB 2.0, 2 USB 3.0, 1 HDMI, 1 DisplayPort, Conexões Audio: 3.5 mm Headset, Card Reader: SD, Brightness Sensor
Funcionamento em rede
Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 18.95 x 323 x 223
Bateria
48 Wh Lítio-Ion, 3 células
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Características adicionais
Alto falantes: Sistema de áudio harman/kardon, Teclado: Chiclet, Iluminação do Teclado: sim, Adaptador de força de 45 Watts, capa protetora, Asus Tools, Office 365 (teste), McAfee LiveSafe (teste), Team Viewer, Evernote, WPS Office, Cyberlink PhotoDirector & PowerDirector, 24 Meses Garantia
peso
1.335 kg, Suprimento de energia: 175 g
Preço
1199 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

341 mm 236.6 mm 17.9 mm 1.5 kg323 mm 223 mm 18.95 mm 1.3 kg327 mm 228 mm 14.6 mm 1.4 kg323 mm 223 mm 18.35 mm 1.5 kg322 mm 223 mm 17.3 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g

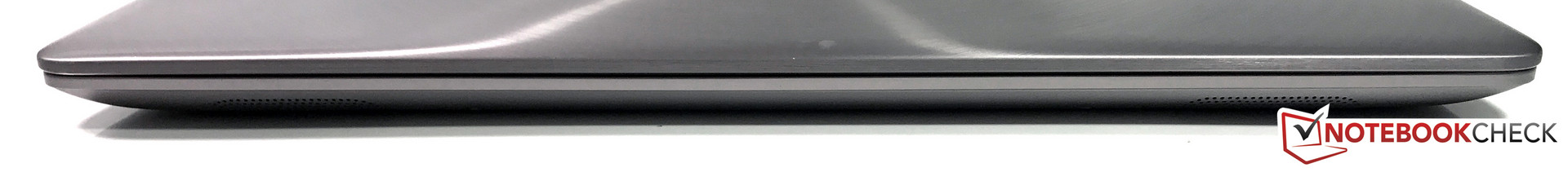

Front: speakers
Front: speakers

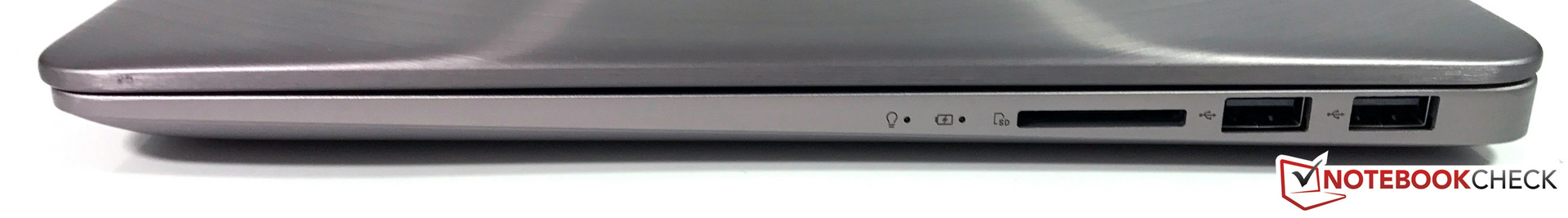

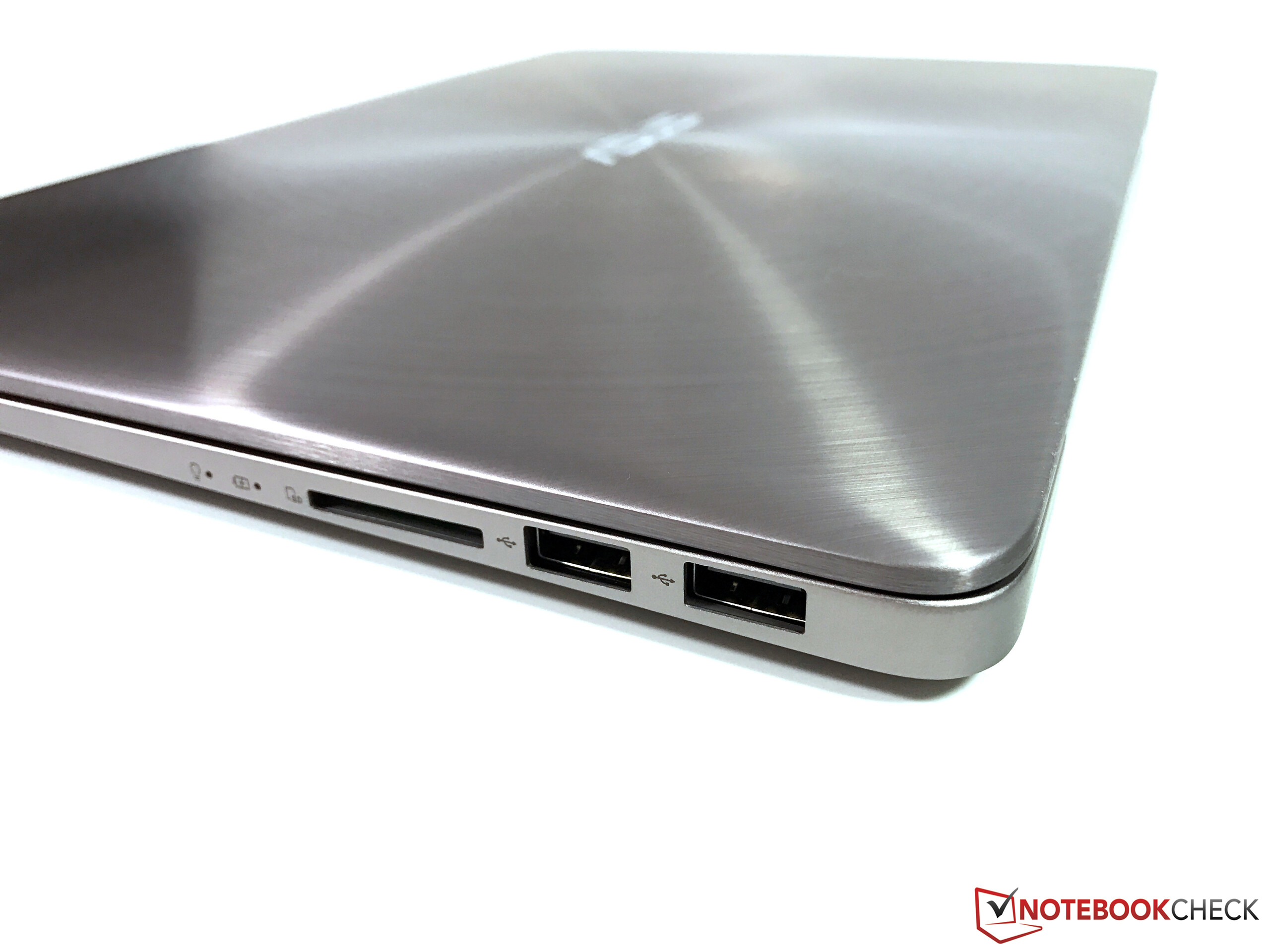

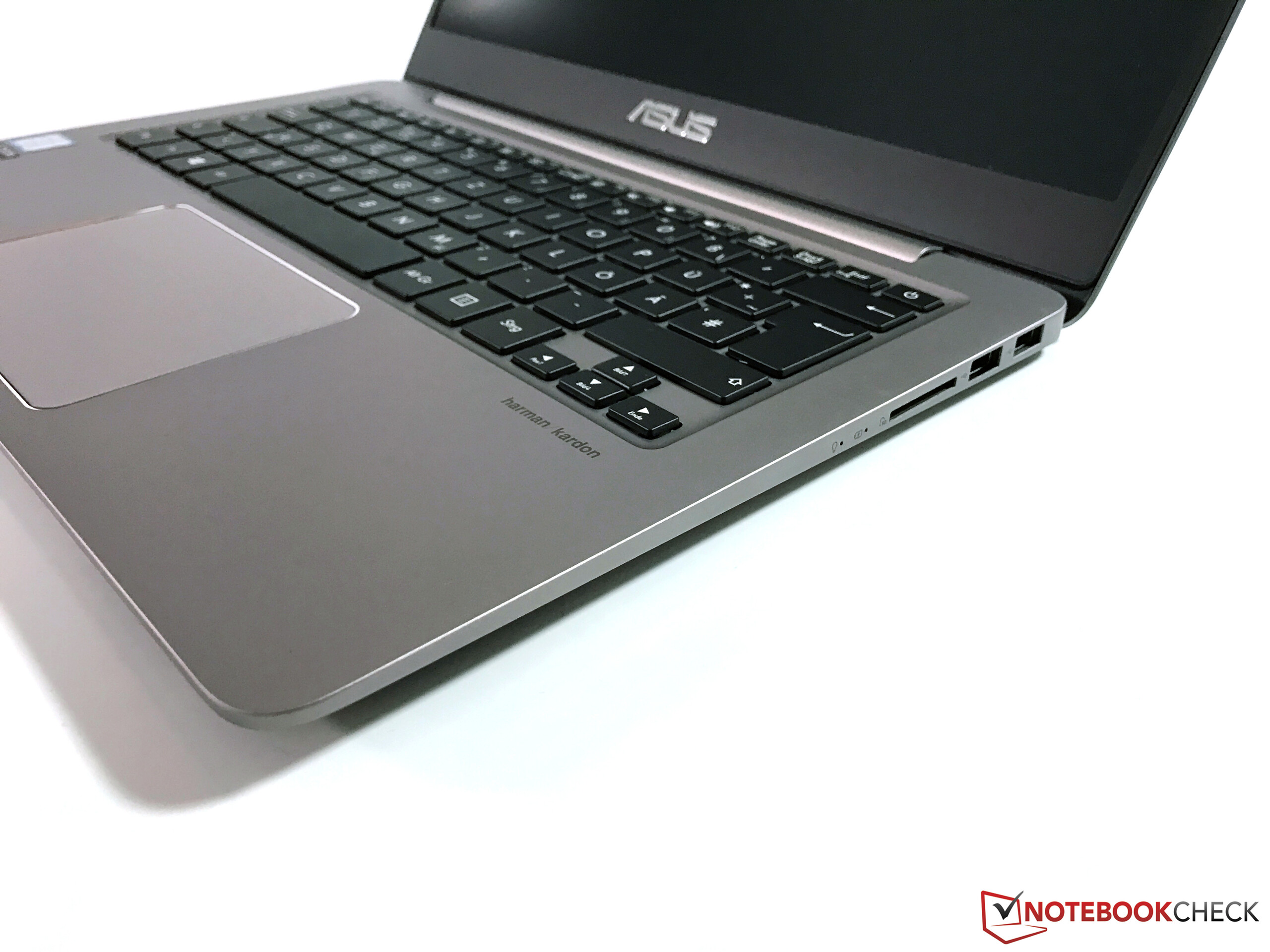

Right side: SD-card reader, 2x USB 2.0
Right side: SD-card reader, 2x USB 2.0

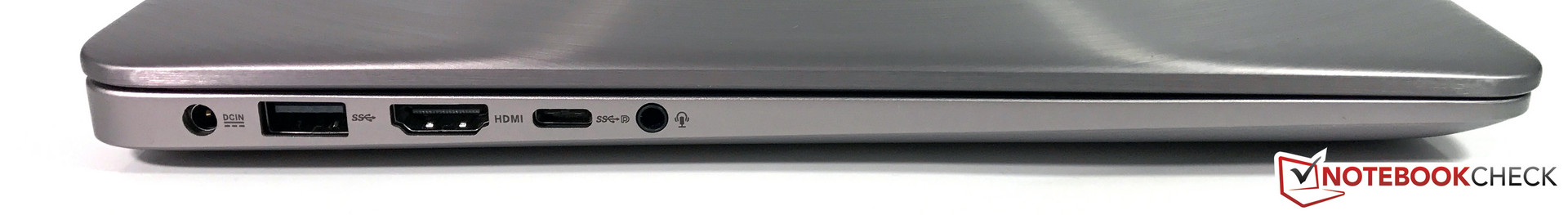

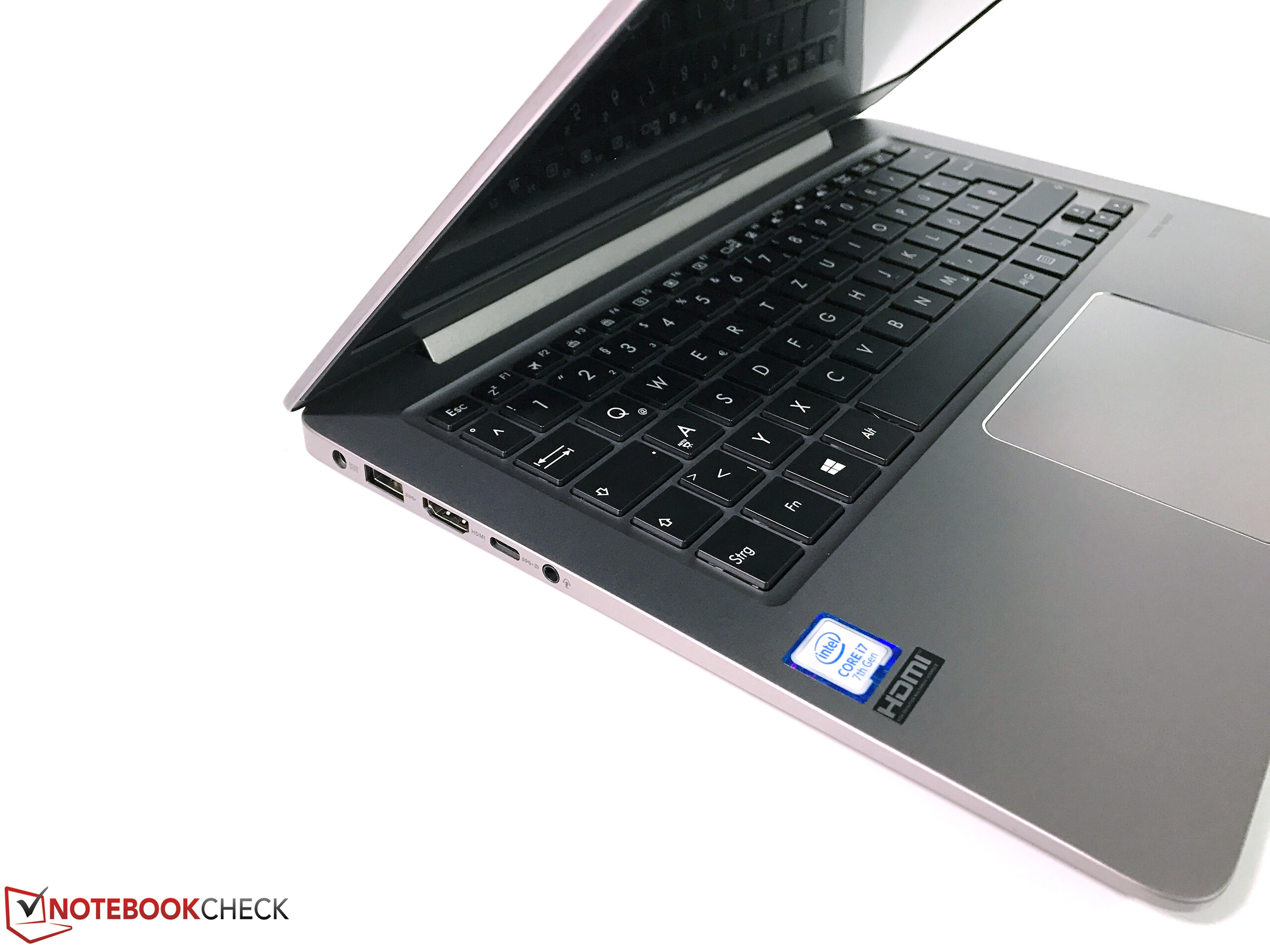

Left side: power, USB 3.0, USB 3.1 Type-C (Gen.1 + DisplayPort), 3.5 mm audio
Left side: power, USB 3.0, USB 3.1 Type-C (Gen.1 + DisplayPort), 3.5 mm audio
Rear: no ports
Rear: no ports
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Acer Swift 5 SF514-51-59AV

68.1 MB/s +107%
Lenovo Yoga 710-14IKB 80V4002HGE

64.1 MB/s +95%
Asus Zenbook UX310UQ-GL011T

34 MB/s +3%
Asus Zenbook UX3410UA

32.9 MB/s
Acer TravelMate X3 X349-M-7261

19.1 MB/s -42%
maximum AS SSD Seq Read Test (1GB)
Acer Swift 5 SF514-51-59AV

88 MB/s +129%
Lenovo Yoga 710-14IKB 80V4002HGE

84 MB/s +118%
Asus Zenbook UX310UQ-GL011T

39.7 MB/s +3%
Asus Zenbook UX3410UA

38.49 MB/s
Acer TravelMate X3 X349-M-7261

26.1 MB/s -32%
Networking
iperf3 transmit AX12
Apple MacBook Pro 13 2016 (2.9 GHz)
Broadcom BCM15700A2 802.11ac
949 MBit/s +102%
Dell XPS 13 9360 QHD+ i7
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
587 MBit/s +25%
Acer Aspire VX5-591G-D0DD
Intel Dual Band Wireless-AC 7265
524 MBit/s +12%
Asus Zenbook UX3410UA
Intel Dual Band Wireless-AC 8260
469 MBit/s
MSI GE72VR-6RF16H21
Intel Dual Band Wireless-AC 3165
299 MBit/s -36%
iperf3 receive AX12
Apple MacBook Pro 13 2016 (2.9 GHz)
Broadcom BCM15700A2 802.11ac
950 MBit/s +194%
Dell XPS 13 9360 QHD+ i7
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
674 MBit/s +109%
Acer Aspire VX5-591G-D0DD
Intel Dual Band Wireless-AC 7265
647 MBit/s +100%
Asus Zenbook UX3410UA
Intel Dual Band Wireless-AC 8260
323 MBit/s
MSI GE72VR-6RF16H21
Intel Dual Band Wireless-AC 3165
308 MBit/s -5%

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

349
cd/m²
380
cd/m²
374
cd/m²
345
cd/m²
376
cd/m²
362
cd/m²
333
cd/m²
345
cd/m²
331
cd/m²
Distribuição do brilho
ChiMei N140HCE-EN1 tested with X-Rite i1Pro 2
Máximo: 380 cd/m² (Nits) Médio: 355 cd/m² Minimum: 21.8 cd/m²
iluminação: 87 %
iluminação com acumulador: 376 cd/m²
Contraste: 1175:1 (Preto: 0.32 cd/m²)
ΔE Color 3.2 | 0.5-29.43 Ø4.92
ΔE Greyscale 4.4 | 0.5-98 Ø5.2
98.98% sRGB (Argyll 1.6.3 3D)
63.78% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.1% sRGB (Argyll 2.2.0 3D)
67.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.12
Asus Zenbook UX3410UA
ChiMei N140HCE-EN1, , 1920x1080, 14"
Asus Zenbook UX310UQ-GL011T
AU Optronics AUO142D, , 1920x1080, 13.3"
Acer Swift 5 SF514-51-59AV
AU Optronics B140HAN3.2, , 1920x1080, 14"
Acer TravelMate X3 X349-M-7261
AU Optronics B140HAN02.1, , 1920x1080, 14"
Lenovo Yoga 710-14IKB 80V4002HGE
AU Optronics B140HAN03.0, , 1920x1080, 14"
Display
-10%
-7%
-45%
-9%
Display P3 Coverage
67.7
61.9
-9%
62.8
-7%
36.97
-45%
62
-8%
sRGB Coverage
99.1
88.3
-11%
91.3
-8%
55.6
-44%
89.5
-10%
AdobeRGB 1998 Coverage
69.4
63
-9%
64.3
-7%
38.2
-45%
63.3
-9%
Response Times
6%
-19%
-5%
-29%
Response Time Grey 50% / Grey 80% *
33 ?(14, 19)
39 ?(20, 19)
-18%
51 ?(20, 31)
-55%
42 ?(15, 27)
-27%
53 ?(17, 36, Plateau)
-61%
Response Time Black / White *
34 ?(15, 19)
24 ?(7, 17)
29%
28 ?(7, 21)
18%
28 ?(8, 20)
18%
33 ?(7, 26)
3%
PWM Frequency
50 ?(30)
50 ?(10)
Screen
-26%
-22%
-21%
-34%
Brightness middle
376
247
-34%
393
5%
230
-39%
340
-10%
Brightness
355
240
-32%
338
-5%
226
-36%
302
-15%
Brightness Distribution
87
90
3%
79
-9%
86
-1%
77
-11%
Black Level *
0.32
0.43
-34%
0.29
9%
0.2
37%
0.31
3%
Contrast
1175
574
-51%
1355
15%
1150
-2%
1097
-7%
Colorchecker dE 2000 *
3.2
4.74
-48%
6.17
-93%
5.07
-58%
6.75
-111%
Colorchecker dE 2000 max. *
7.1
9.14
-29%
11.21
-58%
10.07
-42%
12.4
-75%
Greyscale dE 2000 *
4.4
4.87
-11%
6.8
-55%
3.64
17%
8.47
-93%
Gamma
2.12 104%
2.57 86%
2.27 97%
2.46 89%
2.22 99%
CCT
7440 87%
7450 87%
6873 95%
6521 100%
6557 99%
Color Space (Percent of AdobeRGB 1998)
63.78
57
-11%
51
-20%
35
-45%
58
-9%
Color Space (Percent of sRGB)
98.98
88
-11%
91
-8%
55
-44%
89
-10%
Total Average (Program / Settings)
-10% / -18%
-16% / -19%
-24% / -24%
-24% / -28%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
34 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 90 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
33 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.9 ms).
LatencyMon with active wireless modules
LatencyMon with active wireless modules


Cinebench R15
CPU Single 64Bit
HP Envy x360 15t-w200
Intel Core i7-7500U
146 Points +3%
Asus Zenbook UX3410UA
Intel Core i7-7500U
142 Points
Dell XPS 13 9360 QHD+ i7
Intel Core i7-7500U
137 Points -4%
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
130 Points -8%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
130 Points -8%
Acer Swift 5 SF514-51-59AV
Intel Core i5-7200U
128 Points -10%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel Core i5-7200U
118 Points -17%
Acer Swift 7 SF713-51
Intel Core i5-7Y54
111 Points -22%
CPU Multi 64Bit
Asus Zenbook UX3410UA
Intel Core i7-7500U
368 Points
HP Envy x360 15t-w200
Intel Core i7-7500U
349 Points -5%
Dell XPS 13 9360 QHD+ i7
Intel Core i7-7500U
334 Points -9%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel Core i5-7200U
328 Points -11%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
327 Points -11%
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
324 Points -12%
Acer Swift 5 SF514-51-59AV
Intel Core i5-7200U
320 Points -13%
Acer Swift 7 SF713-51
Intel Core i5-7Y54
207 Points -44%
Cinebench R15 CPU Single 64Bit
142 Points
Cinebench R15 CPU Multi 64Bit
368 Points
Cinebench R15 OpenGL 64Bit
50.7 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Ajuda
PCMark 8
Home Score Accelerated v2
Asus Zenbook UX3410UA
HD Graphics 620, i7-7500U, SanDisk SD8SN8U512G1002
3965 Points
Asus Zenbook UX310UQ-GL011T
GeForce 940MX, 6500U, SanDisk SD8SNAT256G1002
3769 Points -5%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
3545 Points -11%
Acer Swift 5 SF514-51-59AV
HD Graphics 620, i5-7200U, SK Hynix HFS256G39TND-N210A
3370 Points -15%
Lenovo Yoga 710-14IKB 80V4002HGE
HD Graphics 620, i5-7200U, Samsung MZYTY256HDHP
3268 Points -18%
Work Score Accelerated v2
Asus Zenbook UX3410UA
HD Graphics 620, i7-7500U, SanDisk SD8SN8U512G1002
5033 Points
Asus Zenbook UX310UQ-GL011T
GeForce 940MX, 6500U, SanDisk SD8SNAT256G1002
4603 Points -9%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
4361 Points -13%
PCMark 8 Home Score Accelerated v2
3965 pontos
PCMark 8 Work Score Accelerated v2
5033 pontos
Ajuda
Asus Zenbook UX3410UA
SanDisk SD8SN8U512G1002
Asus Zenbook UX310UQ-GL011T
SanDisk SD8SNAT256G1002
Acer Swift 5 SF514-51-59AV
SK Hynix HFS256G39TND-N210A
Acer TravelMate X3 X349-M-7261
Liteonit CV3-8D512
Lenovo Yoga 710-14IKB 80V4002HGE
Samsung MZYTY256HDHP
CrystalDiskMark 3.0
-18%
-6%
8%
3%
Read Seq
494.5
468.1
-5%
517
5%
484.1
-2%
490.5
-1%
Write Seq
461.7
319.2
-31%
258.1
-44%
449.8
-3%
452.3
-2%
Read 512
328
318.6
-3%
355
8%
399.1
22%
386.2
18%
Write 512
419.7
272.8
-35%
258.5
-38%
355.1
-15%
219.9
-48%
Read 4k
27.53
22.03
-20%
29.65
8%
33.44
21%
34.35
25%
Write 4k
56.5
72.1
28%
77.3
37%
67.5
19%
91.2
61%
Read 4k QD32
351
147.4
-58%
277.1
-21%
368.5
5%
378.9
8%
Write 4k QD32
249.3
200.2
-20%
242.5
-3%
280.6
13%
152.2
-39%
SanDisk SD8SN8U512G1002
Sequential Read: 494.5 MB/s
Sequential Write: 461.7 MB/s
512K Read: 328 MB/s
512K Write: 419.7 MB/s
4K Read: 27.53 MB/s
4K Write: 56.5 MB/s
4K QD32 Read: 351 MB/s
4K QD32 Write: 249.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
2321 Points +39%
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
2206 Points +32%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
1947 Points +17%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1747 Points +5%
Asus Zenbook UX3410UA
Intel HD Graphics 620, Intel Core i7-7500U
1666 Points
Acer Swift 5 SF514-51-59AV
Intel HD Graphics 620, Intel Core i5-7200U
1529 Points -8%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
1481 Points -11%
HP ProBook 430 G4-Y8B47EA
Intel HD Graphics 620, Intel Core i7-7500U
1463 Points -12%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel HD Graphics 620, Intel Core i5-7200U
1403 Points -16%
3DMark
1280x720 Cloud Gate Standard Graphics
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
9788 Points +5%
Asus Zenbook UX3410UA
Intel HD Graphics 620, Intel Core i7-7500U
9307 Points
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
9056 Points -3%
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
8519 Points -8%
Acer Swift 5 SF514-51-59AV
Intel HD Graphics 620, Intel Core i5-7200U
8219 Points -12%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
7733 Points -17%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
7407 Points -20%
HP ProBook 430 G4-Y8B47EA
Intel HD Graphics 620, Intel Core i7-7500U
6881 Points -26%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel HD Graphics 620, Intel Core i5-7200U
6670 Points -28%
1920x1080 Fire Strike Graphics
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
1621 Points +46%
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
1589 Points +43%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1282 Points +15%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
1194 Points +7%
Asus Zenbook UX3410UA
Intel HD Graphics 620, Intel Core i7-7500U
1114 Points
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
864 Points -22%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel HD Graphics 620, Intel Core i5-7200U
777 Points -30%
HP ProBook 430 G4-Y8B47EA
Intel HD Graphics 620, Intel Core i7-7500U
765 Points -31%
3DMark 11 Performance
1863 pontos
3DMark Cloud Gate Standard Score
7237 pontos
3DMark Fire Strike Score
1019 pontos
Ajuda
baixomédiaaltoultra
Tomb Raider (2013) 100.1 47.2 29.4 13.5
BioShock Infinite (2013) 62.9 32.7 28.5 9.2
Battlefield 4 (2013) 49.2 32.9 23.6
The Witcher 3 (2015) 15.8 10.3
Rise of the Tomb Raider (2016) 21.5 13.3

Barulho

Ocioso
29.9 / 29.9 / 35.2 dB
Carga
43.5 / 43.8 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 29.9 dB(A)
Asus Zenbook UX3410UA
i7-7500U, HD Graphics 620
Asus Zenbook UX310UQ-GL011T
6500U, GeForce 940MX
Acer Swift 5 SF514-51-59AV
i5-7200U, HD Graphics 620
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520
Lenovo Yoga 710-14IKB 80V4002HGE
i5-7200U, HD Graphics 620
Noise
5%
10%
8%
7%
off / environment *
29.9
30.5
-2%
30.5
-2%
31.15
-4%
30.16
-1%
Idle Minimum *
29.9
30.5
-2%
30.5
-2%
31.5
-5%
30.16
-1%
Idle Average *
29.9
30.5
-2%
30.5
-2%
31.5
-5%
30.16
-1%
Idle Maximum *
35.2
31.5
11%
30.5
13%
31.5
11%
30.5
13%
Load Average *
43.5
36.2
17%
32.25
26%
31.7
27%
37.2
14%
Load Maximum *
43.8
40
9%
32.6
26%
34.1
22%
37
16%

* ... smaller is better

Carga Máxima
 32.9 °C39.4 °C38.5 °C
 34.4 °C33.8 °C28.7 °C
 29.3 °C31.5 °C27.3 °C
Máximo: 39.4 °C
Médio: 32.9 °C
33.9 °C35.2 °C33.2 °C
29 °C32.8 °C33 °C
27.5 °C28.9 °C30 °C
Máximo: 35.2 °C
Médio: 31.5 °C
alimentação elétrica  49.5 °C | Temperatura do quarto 21.3 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 32.9 °C / 91 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 39.4 °C / 103 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 35.2 °C / 95 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 28.1 °C / 83 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.5 °C / 88.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-3.2 °C / -5.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.638.52525.433.43125.3284032.932.85033.648.26331.634.58028.430.81002737.712520.835.81602244.620021.350.825020.855.231521.255.240019.457.950019.557.163017.760.880017.964.7100017.863.8125017.363.7160017.465.3200016.764250017.265.9315018.265.2400017.968.8500017.669630017.769.7800017.8701000017.970.61250018.169.91600018.261SPL3078.9N1.343.9median 17.9median 63.8Delta1.45.934.734.634.73539.63539.539.939.53635.23640.132.340.12928.22929.92629.937.22637.241.825.441.841.723.341.737.223.837.244.322.744.351.921.651.956.120.256.157.619.657.656.318.656.365.218.665.265.31865.364.117.464.166.917.966.964.117.564.16717.86763.817.963.858.71858.757.118.357.161.418.461.461.218.461.256.818.456.852.318.252.347.618.447.675.430.575.434.51.434.5median 57.1median 18.4median 57.19.11.19.1hearing rangehide median Pink NoiseAsus Zenbook UX3410UAAcer Swift 5 SF514-51-59AV
Asus Zenbook UX3410UA audio analysis

(±) | speaker loudness is average but good (78.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.2% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (4.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.7% away from median
(+) | highs are linear (2.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.3% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 10% similar, 49% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 29% of all tested devices were better, 8% similar, 63% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Acer Swift 5 SF514-51-59AV audio analysis

(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.7% lower than median
(±) | linearity of bass is average (13.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.3% higher than median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(±) | linearity of highs is average (8.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22% difference to median)
Compared to same class
» 72% of all tested devices in this class were better, 6% similar, 22% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 60% of all tested devices were better, 7% similar, 34% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.14 / 0.44 Watt
Ociosodarkmidlight 3.7 / 6 / 6.78 Watt
Carga midlight 37.3 / 47.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus Zenbook UX3410UA
i7-7500U, HD Graphics 620, 1920x1080, 14"
Asus Zenbook UX310UQ-GL011T
6500U, GeForce 940MX, 1920x1080, 13.3"
Acer Swift 5 SF514-51-59AV
i5-7200U, HD Graphics 620, 1920x1080, 14"
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, 1920x1080, 14"
Lenovo Yoga 710-14IKB 80V4002HGE
i5-7200U, HD Graphics 620, 1920x1080, 14"
Power Consumption
-8%
-4%
-8%
3%
Idle Minimum *
3.7
3
19%
3.6
3%
4.9
-32%
3.7
-0%
Idle Average *
6
5.6
7%
7
-17%
7.3
-22%
7.16
-19%
Idle Maximum *
6.78
6.8
-0%
9.3
-37%
9.4
-39%
8.3
-22%
Load Average *
37.3
48.7
-31%
37
1%
26
30%
30.4
18%
Load Maximum *
47.4
63
-33%
32.6
31%
36
24%
30.3
36%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
17h 43min
WiFi Websurfing (Edge 38.14393.0.0)
7h 23min
Big Buck Bunny H.264 1080p
10h 07min
Carga (máximo brilho)
1h 38min
Asus Zenbook UX3410UA
i7-7500U, HD Graphics 620, 48 Wh
Asus Zenbook UX310UQ-GL011T
6500U, GeForce 940MX, 48 Wh
Acer Swift 5 SF514-51-59AV
i5-7200U, HD Graphics 620, 53.9 Wh
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, 48.9 Wh
Lenovo Yoga 710-14IKB 80V4002HGE
i5-7200U, HD Graphics 620, 53 Wh
Battery Runtime
-8%
3%
-18%
8%
Reader / Idle
1063
878
-17%
1014
-5%
675
-37%
957
-10%
H.264
607
419
-31%
555
-9%
400
-34%
520
-14%
WiFi v1.3
443
486
10%
549
24%
392
-12%
561
27%
Load
98
103
5%
100
2%
109
11%
126
29%

Pro

+ Ótima tela IPS
+ Chassi compacto e resistente
+ Design atraente
+ Alto desempenho do sistema
+ Bons dispositivos de entrada
+ Durações de bateria práticas

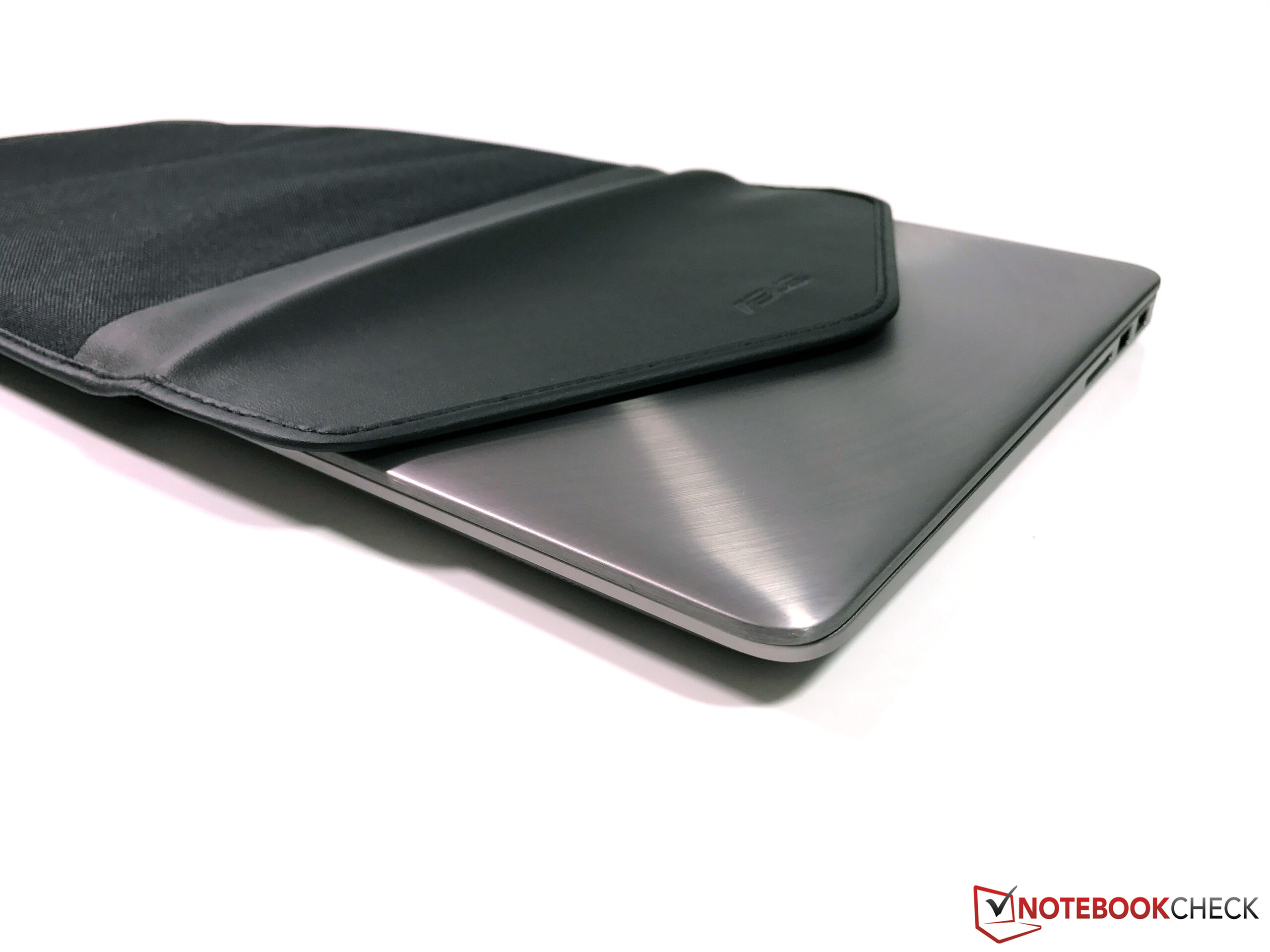

+ Capa protetora incluída

Contra

- 2 USB 2.0
- Lento leitor de cartões SD
- O deslocamento das teclas poderia ser um pouco mais firme
- Leve balanço da tela e máximo ângulo de abertura limitado
- Ventoinha barulhenta; normalmente ativa com cargas leves.
In review: Asus ZenBook UX3410UA-GV078T. Test model courtesy of Asus Germany.
In review: Asus ZenBook UX3410UA-GV078T. Test model courtesy of Asus Germany.

O novo Asus ZenBook UC3410UA segue a tendência de usar uma tela maior. O painel de 14 polegadas funciona muito bem dentro do chassi de 13,3 polegadas e não existem aspectos negativos em comparação com o ZenBook UX310 regular, exceto pela duração um pouco mais curta com o Wi-Fi. Muito pelo contrário: A estabilidade é ainda melhor graças à tampa um pouco mais grossa e a ótima tela IPS inclusive supera a tela TN do UX310 em todos os aspectos.

O ZenBook UX3410UA é ainda mais atraente com a tela maior. A Asus também usa um muito bom painel FHD-IPS mate.

O ZenBook também consegue convencer em muitas outras seções. A carcaça de alumínio é sofisticada e sólida, a utilização do desempenho do processador é muito boa, e os dispositivos de entrada também são bons. Oferecer quatro portas USB é loável, mas não esperamos portas USB 2.0 lentas em um aparelho que custa 1.200 Euros (~$1287). O leitor de cartões integrado também não é um modelo veloz.

Estamos menos convencidos pela ventoinha, que pode ser bastante barulhenta e também começa a girar com cargas leves. Isto talvez esteja relacionado com o nosso modelo de teste pré-produção, e esperamos que uma atualização do software melhore a situação. A solução de resfriamento idêntica é, pelo menos notoriamente mais silenciosa no ZenBook UX310UQ regular, apesar da placa de vídeo dedicada.

Asus Zenbook UX3410UA - 01/20/2017 v6 (old)
Andreas Osthoff

Acabamento
82 /  98 → 83%
Teclado
81%
Mouse
75%
Conectividade
54 / 80 → 68%
Peso
71 / 35-78 → 84%
Bateria
90%
Pantalha
90%
Desempenho do jogos
57 / 68 → 84%
Desempenho da aplicação
89 / 87 → 100%
Temperatura
93 / 91 → 100%
Ruído
83%
Audio
61 / 91 → 67%
Camera
59 / 85 → 69%
Médio
76%
85%
Subnotebook - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Asus ZenBook UX3410UA
Andreas Osthoff, 2017-02- 7 (Update: 2024-11- 4)
