Size Comparison
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Dell XPS 13 9360 FHD i5 | |
Asus Zenbook UX310UQ-GL011T | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX3410UA | |
Asus Zenbook UX310UA-FC347T iGP | |
maximum AS SSD Seq Read Test (1GB) | |
Dell XPS 13 9360 FHD i5 | |
Asus Zenbook UX310UQ-GL011T | |
Asus Zenbook UX3410UA | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UA-FC347T iGP |
Networking | |
iperf3 transmit AX12 | |
Asus Zenbook UX310UA-FC347T iGP (jseb) | |
Asus UX310UQ-FC396T (jseb) | |
Dell XPS 13 9360 FHD i5 | |
Asus Zenbook UX3410UA | |
iperf3 receive AX12 | |
Dell XPS 13 9360 FHD i5 | |
Asus UX310UQ-FC396T (jseb) | |
Asus Zenbook UX310UA-FC347T iGP (jseb) | |
Asus Zenbook UX3410UA |
|
iluminação: 87 %
iluminação com acumulador: 362 cd/m²
Contraste: 1377:1 (Preto: 0.26 cd/m²)
ΔE Color 5.22 | 0.5-29.43 Ø4.93
ΔE Greyscale 6.69 | 0.5-98 Ø5.2
91% sRGB (Argyll 1.6.3 3D)
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
65.3% sRGB (Argyll 2.2.0 3D)
64.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35
Asus Zenbook UX310UA-FC347T iGP AU Optronics AUO272D, 1920x1080, 13.3" | Asus Zenbook UX310UQ-GL011T AU Optronics AUO142D, 1920x1080, 13.3" | Asus UX310UQ-FC396T AU Optronics AUO272D, 1920x1080, 13.3" | Asus Zenbook UX3410UA ChiMei N140HCE-EN1, 1920x1080, 14" | Acer Swift 7 SF713-51 Chimei Innolux, N133HCE-GP1, 1920x1080, 13.3" | Dell XPS 13 9360 FHD i5 Sharp SHP1449 LQ133M1, 1920x1080, 13.3" | |
---|---|---|---|---|---|---|
Display | 9% | 14% | 21% | 12% | -12% | |
Display P3 Coverage | 64.2 | 61.9 -4% | 64.1 0% | 67.7 5% | 64.6 1% | 48.94 -24% |
sRGB Coverage | 65.3 | 88.3 35% | 92.2 41% | 99.1 52% | 89.1 36% | 73.3 12% |
AdobeRGB 1998 Coverage | 65.3 | 63 -4% | 65.3 0% | 69.4 6% | 64.8 -1% | 50.5 -23% |
Response Times | -27% | 8% | -19% | -1% | -17% | |
Response Time Grey 50% / Grey 80% * | 40 ? | 39 ? 2% | 31 ? 22% | 33 ? 17% | 31 ? 22% | 32.8 ? 18% |
Response Time Black / White * | 22 ? | 24 ? -9% | 21 ? 5% | 34 ? -55% | 27 ? -23% | 33.2 ? -51% |
PWM Frequency | 200 ? | 50 ? -75% | 192 ? -4% | |||
Screen | -15% | 1% | 8% | 4% | -2% | |
Brightness middle | 358 | 247 -31% | 362 1% | 376 5% | 359 0% | 351.2 -2% |
Brightness | 347 | 240 -31% | 343 -1% | 355 2% | 344 -1% | 325 -6% |
Brightness Distribution | 87 | 90 3% | 92 6% | 87 0% | 92 6% | 89 2% |
Black Level * | 0.26 | 0.43 -65% | 0.28 -8% | 0.32 -23% | 0.25 4% | 0.195 25% |
Contrast | 1377 | 574 -58% | 1293 -6% | 1175 -15% | 1436 4% | 1801 31% |
Colorchecker dE 2000 * | 5.22 | 4.74 9% | 5.08 3% | 3.2 39% | 4.57 12% | 7.4 -42% |
Colorchecker dE 2000 max. * | 9.19 | 9.14 1% | 8.95 3% | 7.1 23% | 9.25 -1% | 9.08 1% |
Greyscale dE 2000 * | 6.69 | 4.87 27% | 6.21 7% | 4.4 34% | 5.2 22% | 6.71 -0% |
Gamma | 2.35 94% | 2.57 86% | 2.4 92% | 2.12 104% | 2.47 89% | 2.74 80% |
CCT | 6745 96% | 7450 87% | 6817 95% | 7440 87% | 6887 94% | 7222 90% |
Color Space (Percent of AdobeRGB 1998) | 59 | 57 -3% | 60 2% | 63.78 8% | 58 -2% | 50.48 -14% |
Color Space (Percent of sRGB) | 91 | 88 -3% | 92 1% | 98.98 9% | 89 -2% | 73.31 -19% |
Total Average (Program / Settings) | -11% /
-13% | 8% /
5% | 3% /
7% | 5% /
5% | -10% /
-6% |
* ... smaller is better
Display Response Times
↔ Response Time Black to White | ||
---|---|---|
22 ms ... rise ↗ and fall ↘ combined | ↗ 5 ms rise | |
↘ 17 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21 ms). | ||
↔ Response Time 50% Grey to 80% Grey | ||
40 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise | |
↘ 28 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |
Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 200 Hz | ≤ 20 % brightness setting | |
The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus Zenbook UX310UQ-GL011T | |
Acer Swift 7 SF713-51 | |
Rendering Multiple CPUs 64Bit | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UQ-GL011T | |
Acer Swift 7 SF713-51 |
JetStream 1.1 - Total Score | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus Zenbook UX310UQ-GL011T | |
Asus Zenbook UX3410UA | |
Acer Swift 7 SF713-51 |
Octane V2 - Total Score | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UA-FC347T iGP | |
Dell XPS 13 9360 FHD i5 | |
Asus Zenbook UX3410UA | |
Asus Zenbook UX310UQ-GL011T | |
Acer Swift 7 SF713-51 |
Mozilla Kraken 1.1 - Total | |
Acer Swift 7 SF713-51 | |
Asus Zenbook UX310UQ-GL011T | |
Asus Zenbook UX3410UA | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus UX310UQ-FC396T |
* ... smaller is better
PCMark Vantage Result | 18093 pontos | |
PCMark 7 Score | 5857 pontos | |
PCMark 8 Home Score Accelerated v2 | 3980 pontos | |
PCMark 8 Creative Score Accelerated v2 | 4931 pontos | |
PCMark 8 Work Score Accelerated v2 | 4990 pontos | |
Ajuda |

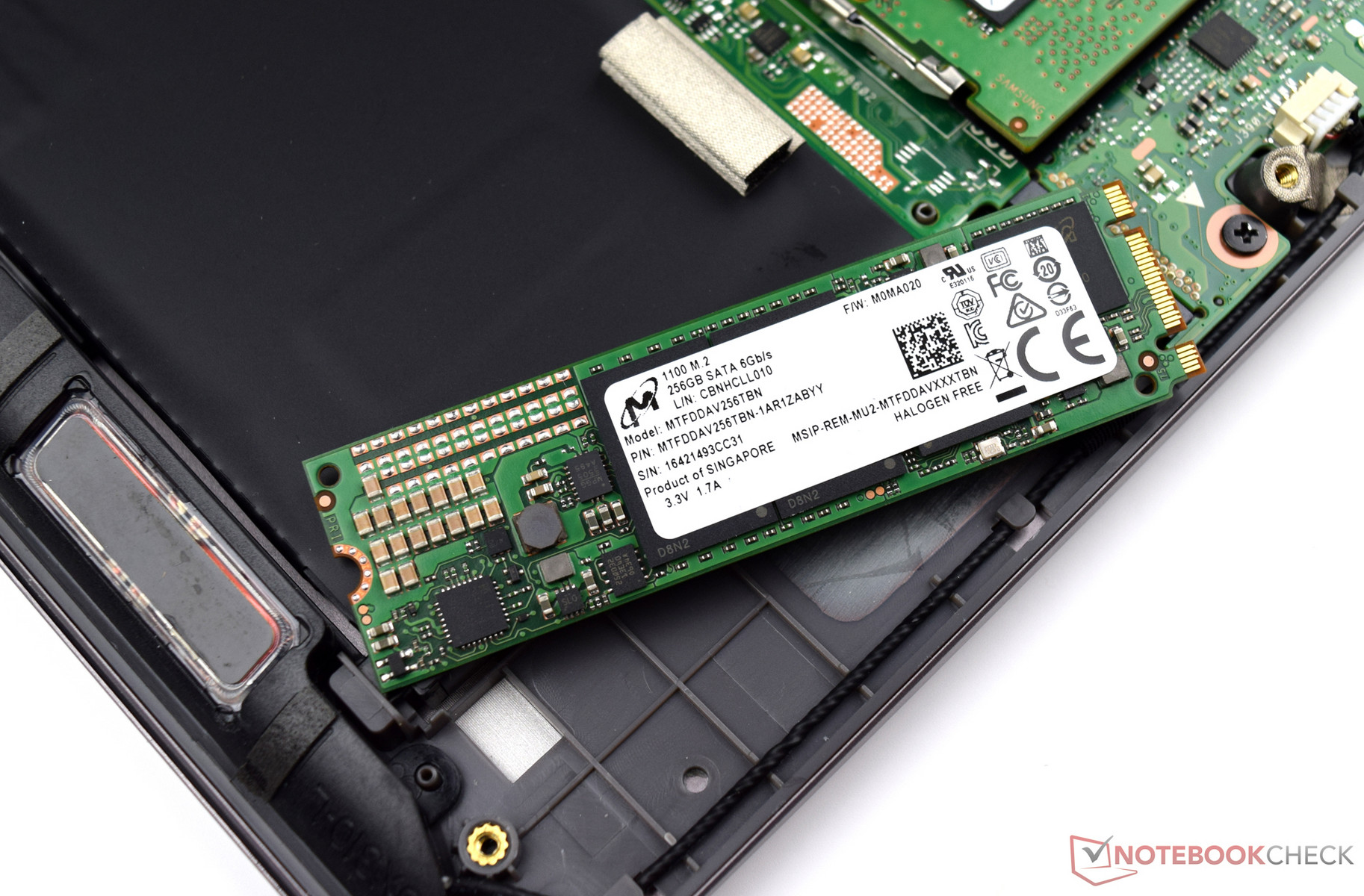

Asus Zenbook UX310UA-FC347T iGP Micron SSD 1100 (MTFDDAV256TBN) | Asus Zenbook UX310UQ-GL011T SanDisk SD8SNAT256G1002 | Asus UX310UQ-FC396T SanDisk SD8SN8U512G1002 | Asus Zenbook UX3410UA SanDisk SD8SN8U512G1002 | Acer Swift 7 SF713-51 Kingston RBU-SNS4180S3256GG | Dell XPS 13 9360 FHD i5 Toshiba NVMe THNSN5256GPUK | |
---|---|---|---|---|---|---|
CrystalDiskMark 3.0 | -21% | 2% | 2% | 4% | 69% | |
Read Seq | 489.4 | 468.1 -4% | 519 6% | 494.5 1% | 431.2 -12% | 1233 152% |
Write Seq | 431.6 | 319.2 -26% | 468 8% | 461.7 7% | 401 -7% | 733 70% |
Read 512 | 356.7 | 318.6 -11% | 344.8 -3% | 328 -8% | 283.7 -20% | 1036 190% |
Write 512 | 389.1 | 272.8 -30% | 458 18% | 419.7 8% | 313.6 -19% | 439.9 13% |
Read 4k | 26.68 | 22.03 -17% | 28.45 7% | 27.53 3% | 36.62 37% | 29.31 10% |
Write 4k | 88.7 | 72.1 -19% | 56.2 -37% | 56.5 -36% | 76.1 -14% | 116.9 32% |
Read 4k QD32 | 246.3 | 147.4 -40% | 286 16% | 351 43% | 329.4 34% | 479.2 95% |
Write 4k QD32 | 251.5 | 200.2 -20% | 257.7 2% | 249.3 -1% | 325.6 29% | 218.3 -13% |

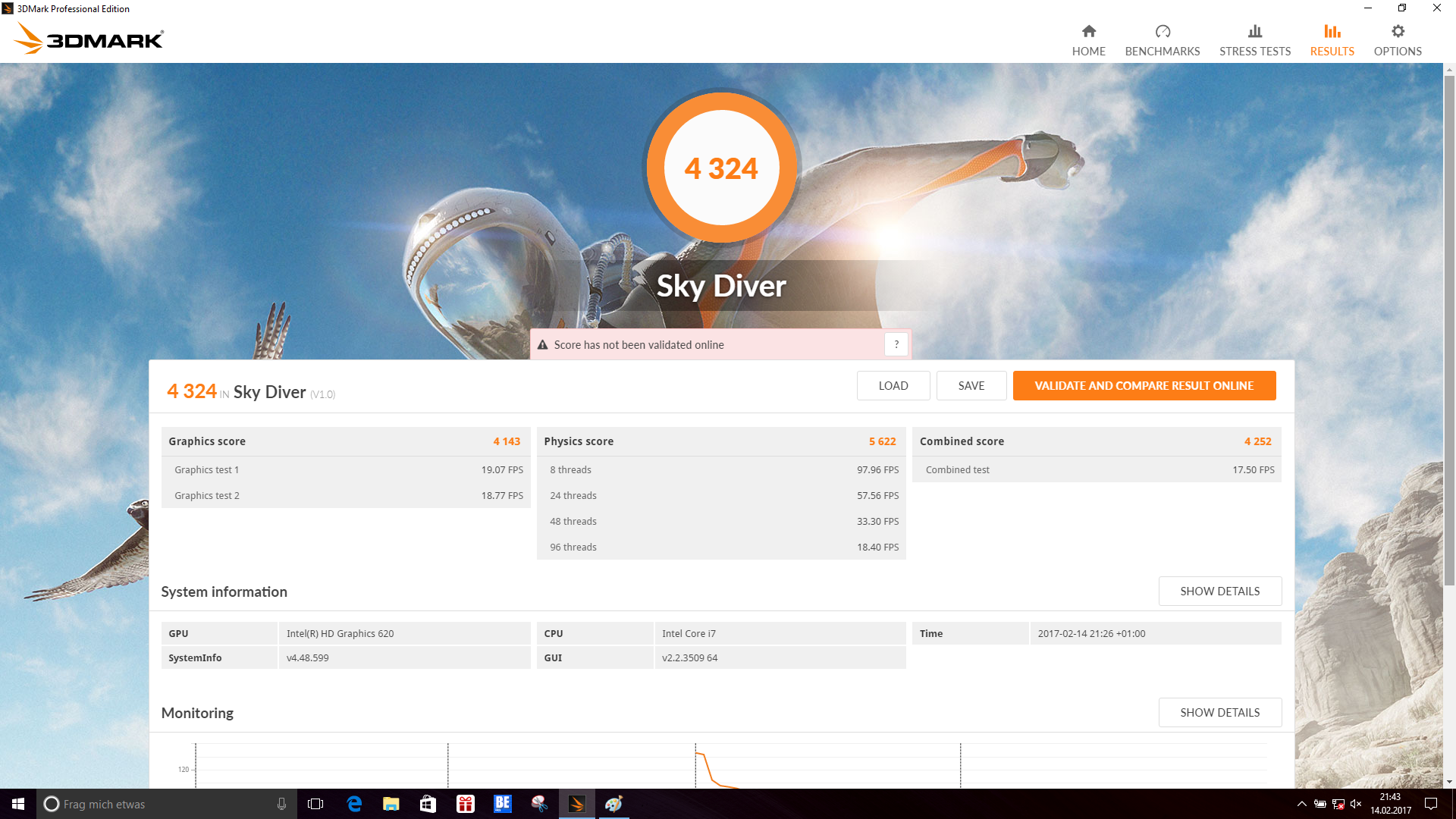

3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus Zenbook UX3410UA | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UQ-GL011T | |
Dell XPS 13 9360 FHD i5 | |
Acer Swift 7 SF713-51 | |
1920x1080 Fire Strike Graphics | |
Asus Zenbook UX310UQ-GL011T | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus Zenbook UX3410UA | |
Dell XPS 13 9360 FHD i5 | |
Acer Swift 7 SF713-51 | |
1280x720 Ice Storm Standard Graphics | |
Asus Zenbook UX310UA-FC347T iGP | |
Dell XPS 13 9360 FHD i5 | |
Acer Swift 7 SF713-51 | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UQ-GL011T |
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UQ-GL011T | |
Asus Zenbook UX310UA-FC347T iGP | |
Acer Swift 7 SF713-51 |
3DMark 03 Standard | 23293 pontos | |
3DMark 05 Standard | 16394 pontos | |
3DMark 06 Standard Score | 10161 pontos | |
3DMark Vantage P Result | 6610 pontos | |
3DMark 11 Performance | 1828 pontos | |
3DMark Ice Storm Standard Score | 74524 pontos | |
3DMark Cloud Gate Standard Score | 7245 pontos | |
3DMark Fire Strike Score | 1022 pontos | |
3DMark Fire Strike Extreme Score | 476 pontos | |
3DMark Time Spy Score | 398 pontos | |
Ajuda |
BioShock Infinite - 1366x768 Medium Preset | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UQ-GL011T | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus Zenbook UX3410UA | |
Acer Swift 7 SF713-51 |
Battlefield 4 - 1366x768 Medium Preset | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UQ-GL011T | |
Asus Zenbook UX3410UA | |
Asus Zenbook UX310UA-FC347T iGP | |
Acer Swift 7 SF713-51 |
The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
Asus Zenbook UX310UA-FC347T iGP | |
Asus UX310UQ-FC396T | |
Asus Zenbook UX310UQ-GL011T | |
Asus Zenbook UX3410UA |
baixo | média | alto | ultra | |
---|---|---|---|---|
BioShock Infinite (2013) | 64.5 | 34.9 | 29.1 | 8.9 |
Battlefield 4 (2013) | 48.6 | 30.5 | 22.4 | 7.8 |
The Witcher 3 (2015) | 24.3 | 17.1 | 6.9 |
Barulho
Ocioso |
| 30.9 / 30.9 / 30.9 dB |
Carga |
| 35.6 / 34.1 dB |
| ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min: , med: , max: Audix TM1, Arta (15 cm de distância) environment noise: 30.7 dB(A) |
Asus Zenbook UX310UA-FC347T iGP Intel Core i7-7500U, HD Graphics 620 | Asus Zenbook UX310UQ-GL011T Intel Core i7-6500U, GeForce 940MX | Asus UX310UQ-FC396T Intel Core i7-7500U, GeForce 940MX | Asus Zenbook UX3410UA Intel Core i7-7500U, HD Graphics 620 | Acer Swift 7 SF713-51 Intel Core i5-7Y54, HD Graphics 615 | Dell XPS 13 9360 FHD i5 Intel Core i5-7200U, HD Graphics 620 | |
---|---|---|---|---|---|---|
Noise | -3% | -5% | -9% | 7% | ||
off / environment * | 30.7 | 30.5 1% | 30.7 -0% | 29.9 3% | ||
Idle Minimum * | 30.9 | 30.5 1% | 31.1 -1% | 29.9 3% | 28.9 6% | |
Idle Average * | 30.9 | 30.5 1% | 31.1 -1% | 29.9 3% | 28.9 6% | |
Idle Maximum * | 30.9 | 31.5 -2% | 31.5 -2% | 35.2 -14% | 28.9 6% | |
Load Average * | 35.6 | 36.2 -2% | 38.5 -8% | 43.5 -22% | 30.9 13% | |
Load Maximum * | 34.1 | 40 -17% | 39.7 -16% | 43.8 -28% | 33.5 2% |
* ... smaller is better
Asus Zenbook UX310UA-FC347T iGP HD Graphics 620, i7-7500U, Micron SSD 1100 (MTFDDAV256TBN) | Asus Zenbook UX310UQ-GL011T GeForce 940MX, 6500U, SanDisk SD8SNAT256G1002 | Asus UX310UQ-FC396T GeForce 940MX, i7-7500U, SanDisk SD8SN8U512G1002 | Asus Zenbook UX3410UA HD Graphics 620, i7-7500U, SanDisk SD8SN8U512G1002 | Acer Swift 7 SF713-51 HD Graphics 615, i5-7Y54, Kingston RBU-SNS4180S3256GG | Dell XPS 13 9360 FHD i5 HD Graphics 620, i5-7200U, Toshiba NVMe THNSN5256GPUK | |
---|---|---|---|---|---|---|
Heat | -7% | -15% | -13% | -21% | -22% | |
Maximum Upper Side * | 33.7 | 38.5 -14% | 40 -19% | 39.4 -17% | 45.7 -36% | 43.4 -29% |
Maximum Bottom * | 34.1 | 40.4 -18% | 42.4 -24% | 35.2 -3% | 48.7 -43% | 49.2 -44% |
Idle Upper Side * | 25.2 | 24.8 2% | 23.9 5% | 29.4 -17% | 25.5 -1% | 26.4 -5% |
Idle Bottom * | 24.1 | 23.8 1% | 29.3 -22% | 27.6 -15% | 25.2 -5% | 26.4 -10% |
* ... smaller is better
(+) The maximum temperature on the upper side is 33.7 °C / 93 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 34.1 °C / 93 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.4 °C / 74 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-0.5 °C / -0.9 F).
Asus Zenbook UX310UA-FC347T iGP audio analysis
(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.7% lower than median
(+) | bass is linear (6.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.5% away from median
(+) | mids are linear (3.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.7% higher than median
(+) | highs are linear (4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 5% similar, 60% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 22% of all tested devices were better, 5% similar, 73% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%
desligado | 0.29 / 0.48 Watt |
Ocioso | 3.5 / 6.6 / 7.5 Watt |
Carga |
34.7 / 39.6 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Asus Zenbook UX310UA-FC347T iGP i7-7500U, HD Graphics 620, Micron SSD 1100 (MTFDDAV256TBN), IPS, LED, 1920x1080, 13.3" | Asus Zenbook UX310UQ-GL011T 6500U, GeForce 940MX, SanDisk SD8SNAT256G1002, TN LED, 1920x1080, 13.3" | Asus UX310UQ-FC396T i7-7500U, GeForce 940MX, SanDisk SD8SN8U512G1002, IPS, LED, 1920x1080, 13.3" | Asus Zenbook UX3410UA i7-7500U, HD Graphics 620, SanDisk SD8SN8U512G1002, IPS, 1920x1080, 14" | Acer Swift 7 SF713-51 i5-7Y54, HD Graphics 615, Kingston RBU-SNS4180S3256GG, IPS, WLED, 1920x1080, 13.3" | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, IPS, 1920x1080, 13.3" | |
---|---|---|---|---|---|---|
Power Consumption | -12% | -32% | -3% | 20% | 23% | |
Idle Minimum * | 3.5 | 3 14% | 4.1 -17% | 3.7 -6% | 4.1 -17% | 4.1 -17% |
Idle Average * | 6.6 | 5.6 15% | 8.2 -24% | 6 9% | 6.4 3% | 4.2 36% |
Idle Maximum * | 7.5 | 6.8 9% | 8.9 -19% | 6.78 10% | 6.8 9% | 5.1 32% |
Load Average * | 34.7 | 48.7 -40% | 48 -38% | 37.3 -7% | 16 54% | 22.1 36% |
Load Maximum * | 39.6 | 63 -59% | 64.1 -62% | 47.4 -20% | 18.7 53% | 29.4 26% |
* ... smaller is better

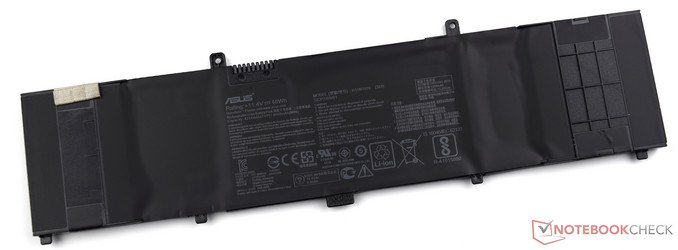

Asus Zenbook UX310UA-FC347T iGP i7-7500U, HD Graphics 620, 48 Wh | Asus Zenbook UX310UQ-GL011T 6500U, GeForce 940MX, 48 Wh | Asus UX310UQ-FC396T i7-7500U, GeForce 940MX, 48 Wh | Asus Zenbook UX3410UA i7-7500U, HD Graphics 620, 48 Wh | Acer Swift 7 SF713-51 i5-7Y54, HD Graphics 615, 41.58 Wh | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, 60 Wh | |
---|---|---|---|---|---|---|
Battery Runtime | -8% | -3% | 5% | 5% | 30% | |
Reader / Idle | 966 | 878 -9% | 918 -5% | 1063 10% | 792 -18% | 1295 34% |
H.264 | 416 | 419 1% | 439 6% | 607 46% | 410 -1% | |
WiFi v1.3 | 577 | 486 -16% | 530 -8% | 443 -23% | 438 -24% | 677 17% |
Load | 112 | 103 -8% | 109 -3% | 98 -12% | 182 63% | 157 40% |
Pro
Contra

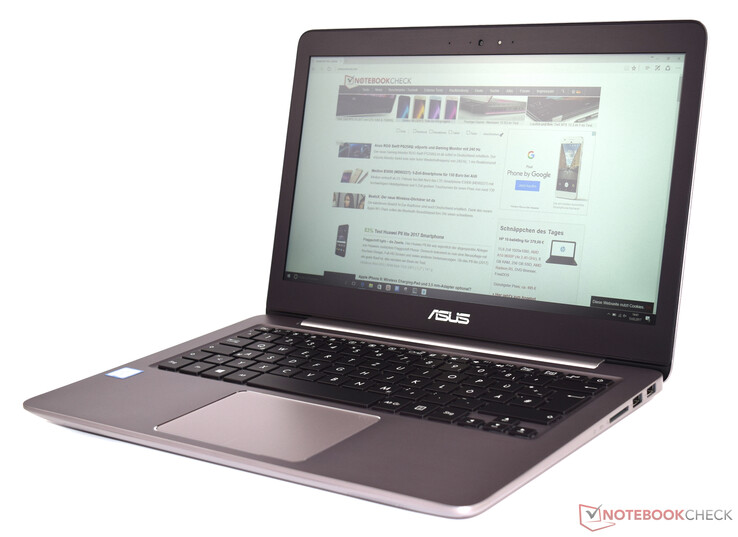

O Asus ZenBook UX310UA-FC347T é um portátil elegante que ganha muitos pontos pela sua excelente qualidade de construção. Com apenas 1,4 kg (~3,1 lbs), o aparelho é leve, porém, muito estável. O sistema é capaz de tomar vantagem do desempenho pleno disponível para o Intel Core i7-7500U, e tudo roda fluentemente. O espaço de armazenamento massivo certamente poderia ser maior, mas 256 GB de armazenamento flash deveria sobrar para iniciantes - e um slot livre de 2,5-polegadas dá ao usuário a opção de fazer atualizações. A falta de uma GPU dedicada não nos perturbou durante nossos testes, dado que o desempenho da Intel HD Graphics 620 é poderoso o suficiente para os usos antecipados do computador.
Com seu elegante design e construção impecável, o Asus ZenBook UX310UA-FC347T é um aparelho memorável. Não há quase nada a criticar, por isso achamos que aqueles que comprem o Asus ZenBook UX310UA-FC347T desfrutarão do portátl durante um longo tempo. Os bons dispositivos de entrada do ZenBook e a tela de alta qualidade também são recursos atraentes.
E finalmente, o Asus ZenBook UX310UA-FC347T é um subportátil com muito boa duração da bateria e capacidades de desempenho aceitavelmente poderosas. O fabricante foi generoso com seus recursos de conectividade, e graças à porta USB Type-C, o computador está bem equipado para o futuro. Por esses motivos, o preço de 999 Euros (~$1066) é justificável. Como resultado e um bônus sensato, nosso aparelho de teste veio com uma bolsa para protege-lo da poeira e arranhões durante o seu transporte.
Asus Zenbook UX310UA-FC347T iGP
-
02/24/2017 v6 (old)
Sebastian Bade
