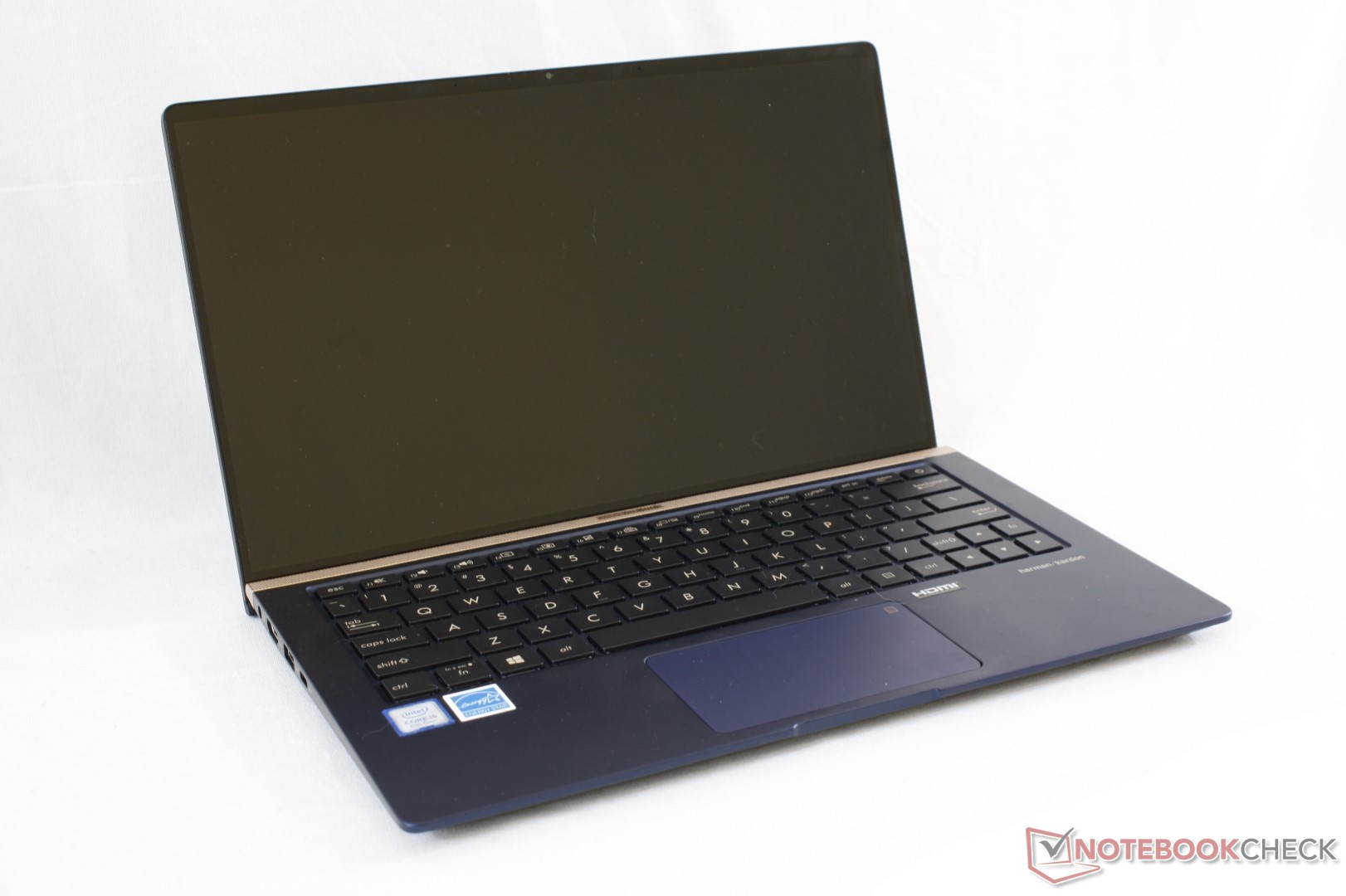

Breve Análise do Portátil Asus ZenBook 13 UX333FA (i5-8265U)

Smaller footprint than the XPS 13.

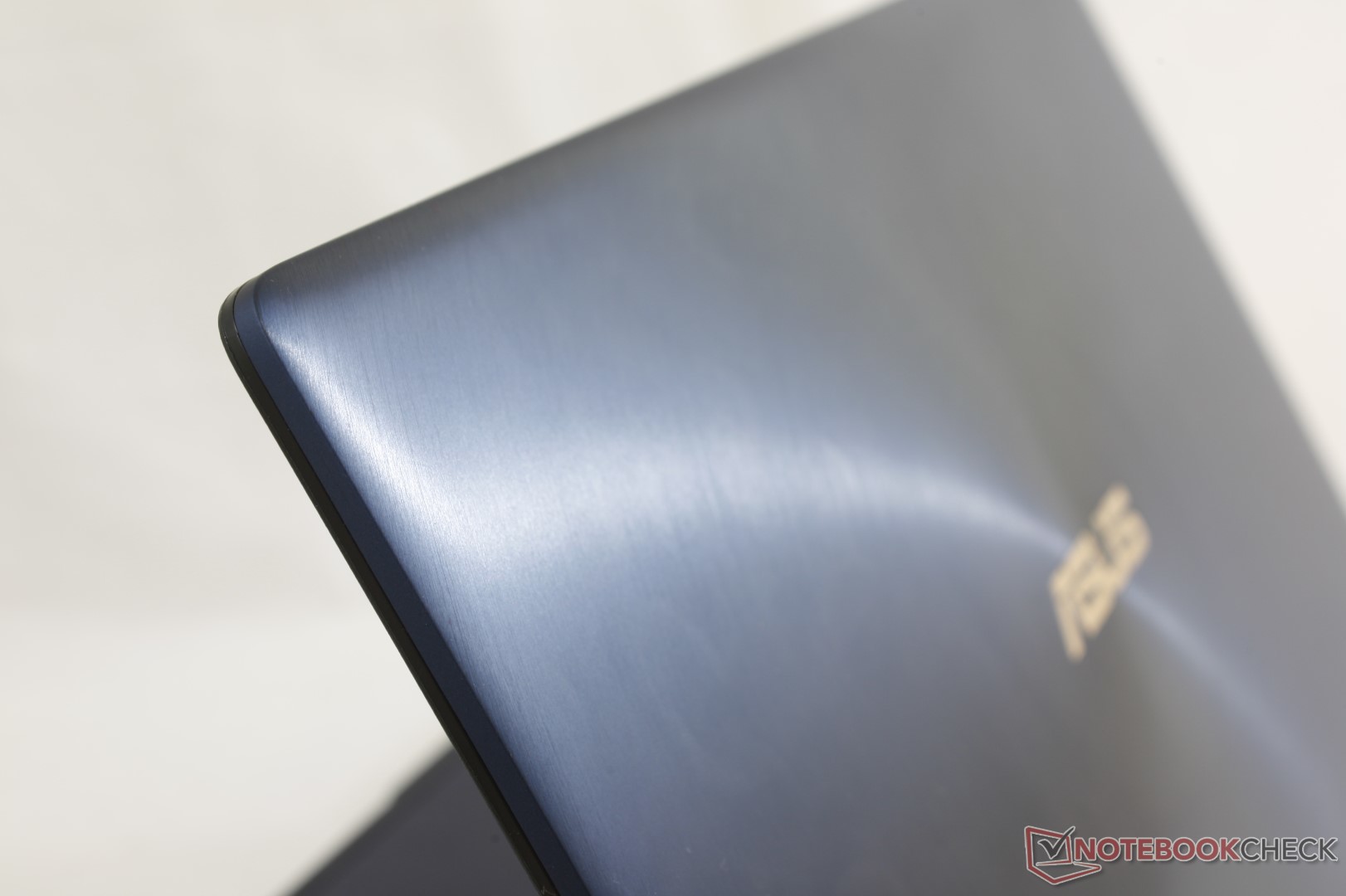

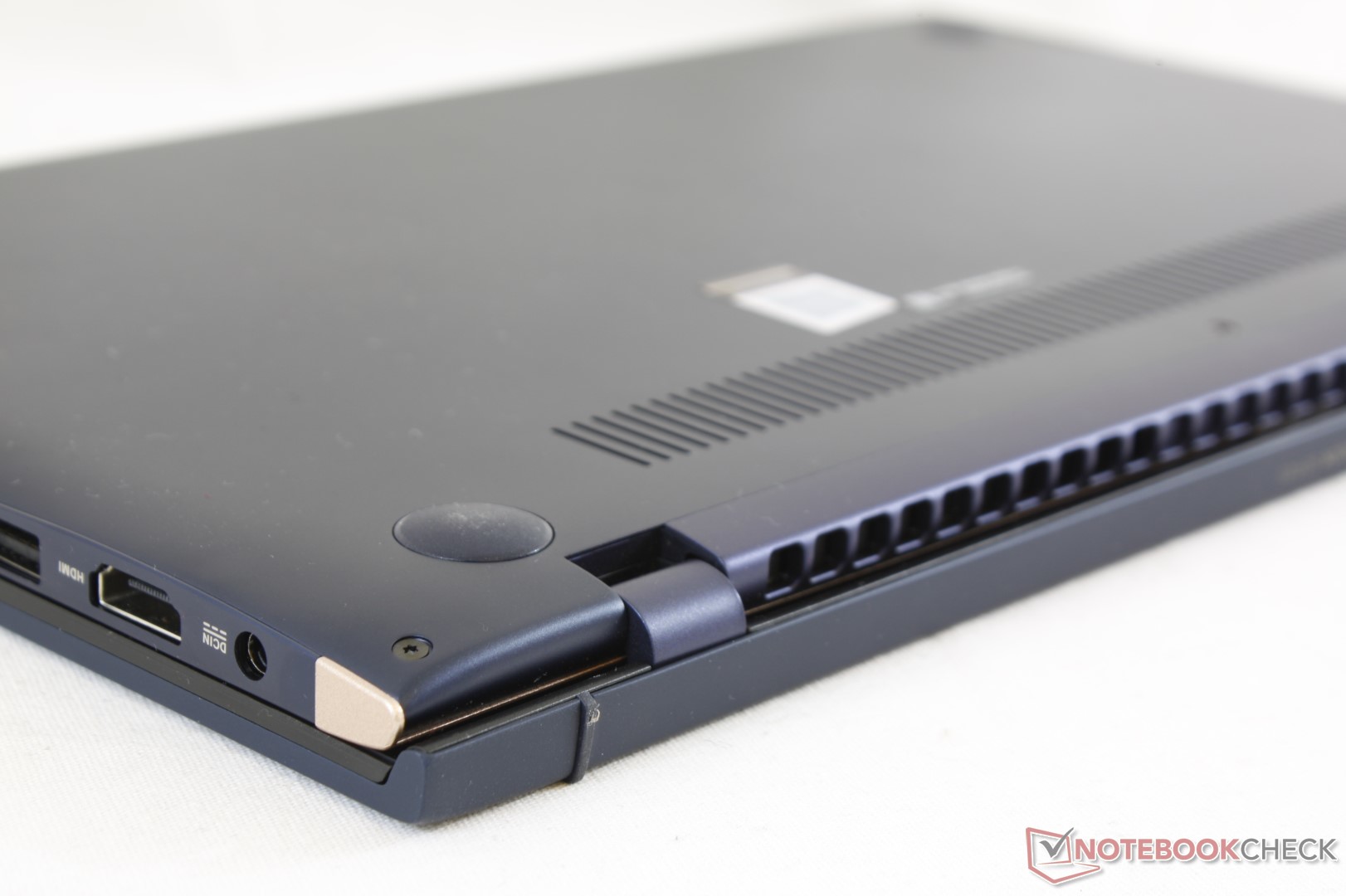

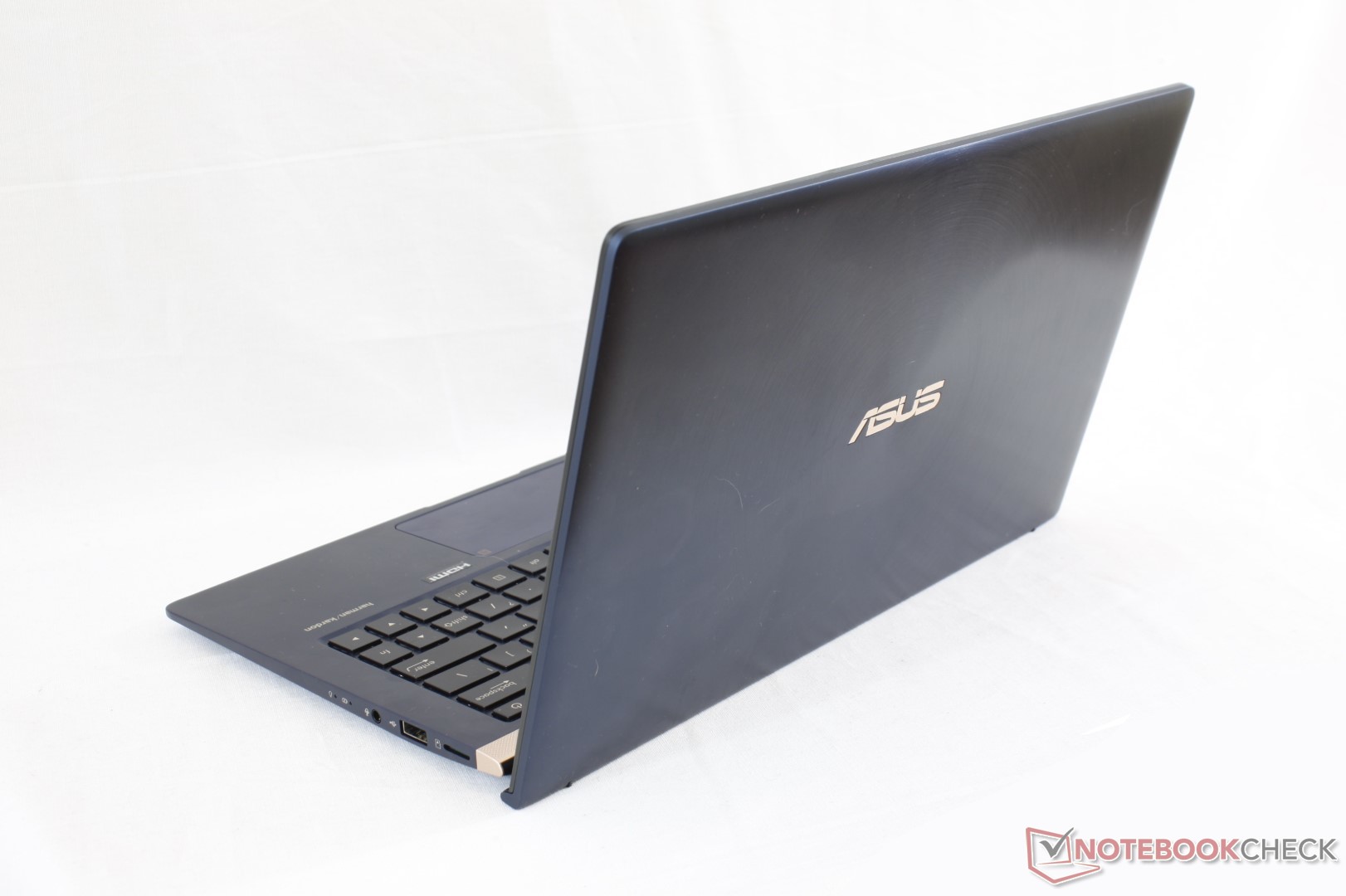

O design "ErgoLift" é um deleite visual, pois oferece uma tampa forte com marcos estreitos em todos os quatro lados da tela. No entanto, alguns recortes impedem o sistema de ser um aparelho indispensável contra seus concorrentes.

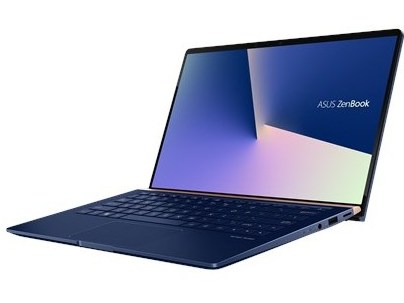

Asus ZenBook 13 UX333FA (ZenBook 13 Serie)
Processador
Intel Core i5-8265U 4 x 1.6 - 3.9 GHz, Whiskey Lake-U
Placa gráfica
Intel UHD Graphics 620, Análises do: 300 MHz, Memoría: 1067 MHz, LPDDR3, 24.20.100.6195
Memória
8 GB
, DDR3, 1200 MHz, 10-10-10-28, Dual-Channel
Pantalha
13.30 polegadas 16:9, 1920 x 1080 pixel 166 PPI, AU Optronics B133HAN05.C, IPS, AUO5C2D, Brilhante: sim
placa mãe
Intel Cannon Lake-U PCH-LP Premium
Disco rígido
WDC PC SN520 SDAPNUW-256G, 256 GB
Placa de Som
Intel Cannon Lake-LP - cAVS
Conexões
1 USB 2.0, 2 USB 3.0, 1 USB 3.1 Gen2, 1 HDMI, Conexões Audio: 3.5 mm combo, Card Reader: MicroSD
Funcionamento em rede
Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5
Tamanho
altura x largura x profundidade (em mm): 16.9 x 302 x 189
Bateria
50 Wh Lítio-Polímero
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 3D IR 720p
Características adicionais
Alto falantes: Stereo, Teclado: Chiclet, Iluminação do Teclado: sim, Asus Hello, Asus Keyboard Hotkeys, 12 Meses Garantia
peso
1.19 kg, Suprimento de energia: 149 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



322 mm 227 mm 14.9 mm 1.4 kg310 mm 216 mm 13.9 mm 1.1 kg302 mm 189 mm 16.9 mm 1.2 kg304 mm 217 mm 14.6 mm 1.3 kg308.2 mm 224.2 mm 10.4 mm 1.1 kg302 mm 199 mm 11.6 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

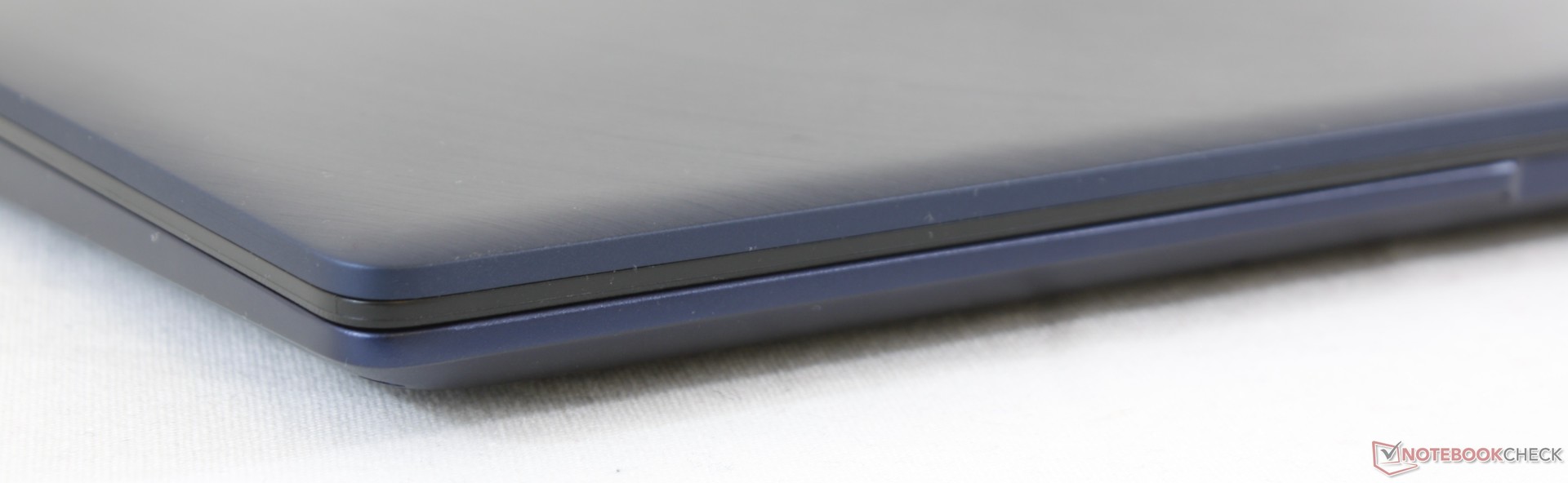

Front: No connectivity
Front: No connectivity

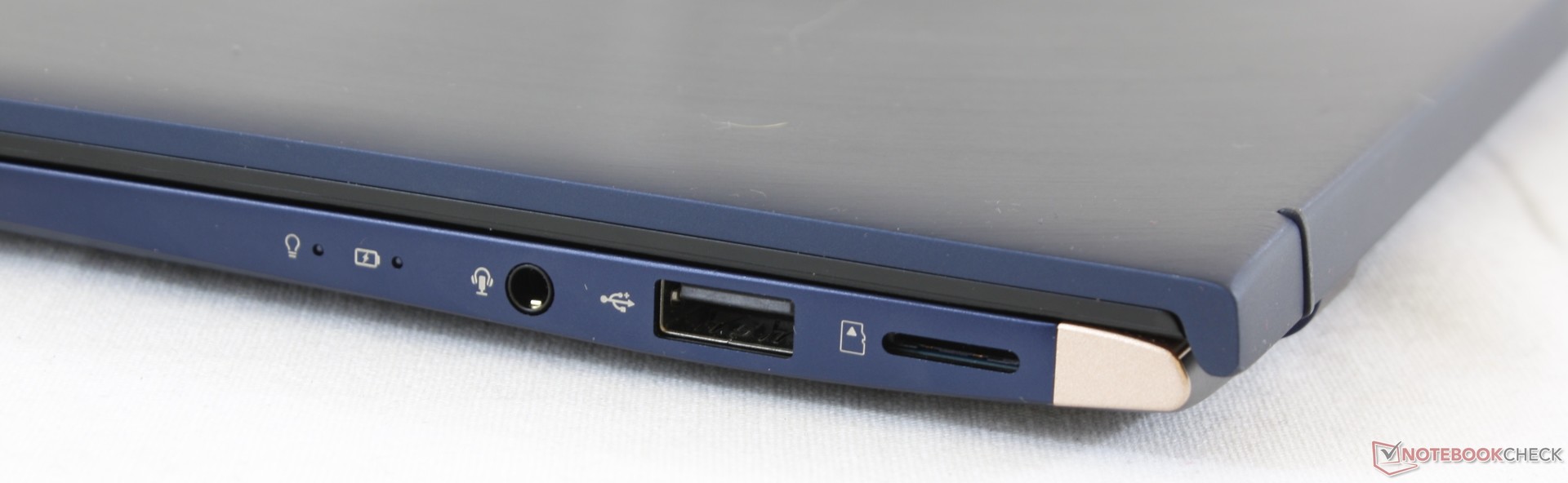

Right: 3.5 mm combo audio, USB Type-A 2.0, MicroSD reader
Right: 3.5 mm combo audio, USB Type-A 2.0, MicroSD reader
Rear: No connectivity
Rear: No connectivity

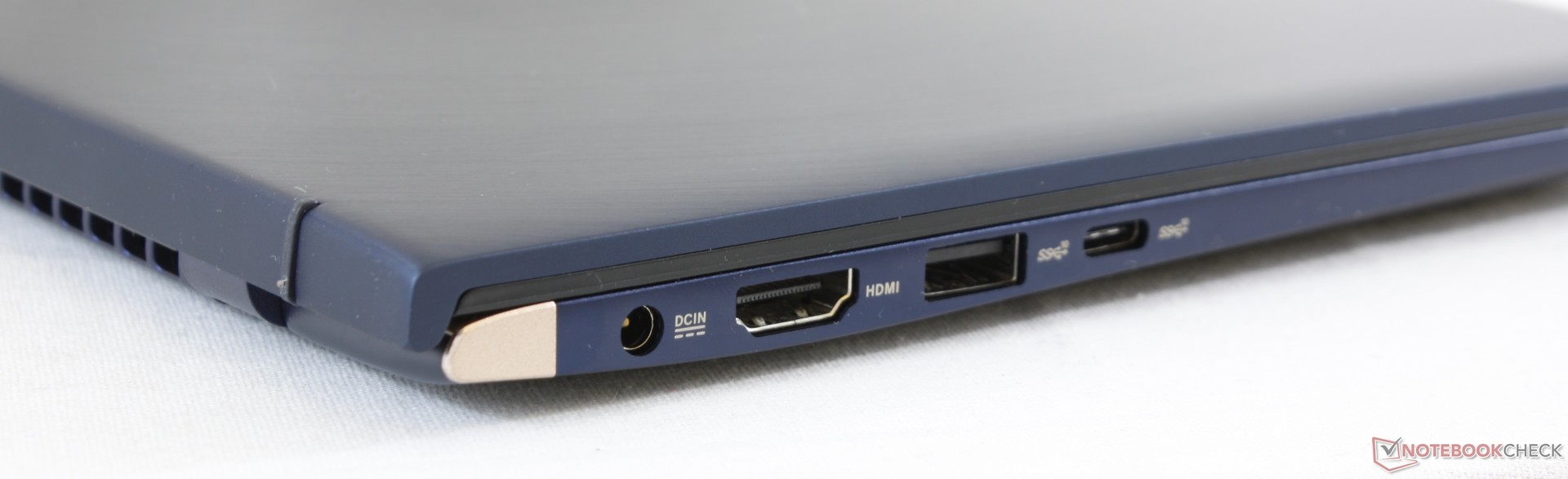

Left: AC adapter, HDMI, USB Type-A 3.1 (10 Gbps), USB Type-C Gen. 2
Left: AC adapter, HDMI, USB Type-A 3.1 (10 Gbps), USB Type-C Gen. 2
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 9370 i5 UHD
  (Toshiba Exceria Pro M501 64 GB UHS-II)
182 MB/s +661%
Asus ZenBook 13 UX331UN
  (Toshiba Exceria Pro M501 microSDXC 64GB)
69.7 MB/s +192%
Asus ZenBook 13 UX333FA
  (Toshiba Exceria Pro M501 microSDXC 64GB)
23.91 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 9370 i5 UHD
  (Toshiba Exceria Pro M501 64 GB UHS-II)
210.3 MB/s +687%
Asus ZenBook 13 UX331UN
  (Toshiba Exceria Pro M501 microSDXC 64GB)
84.9 MB/s +218%
Asus ZenBook 13 UX333FA
  (Toshiba Exceria Pro M501 microSDXC 64GB)
26.71 MB/s
Networking
iperf3 transmit AX12
Asus ZenBook 13 UX331UN
Intel Dual Band Wireless-AC 8265
655 MBit/s +89%
Dell XPS 13 9370 i5 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
505 MBit/s +46%
Asus ZenBook 13 UX333FA
Intel Wireless-AC 9560
347 MBit/s
iperf3 receive AX12
Asus ZenBook 13 UX333FA
Intel Wireless-AC 9560
673 MBit/s
Dell XPS 13 9370 i5 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
639 MBit/s -5%
Asus ZenBook 13 UX331UN
Intel Dual Band Wireless-AC 8265
522 MBit/s -22%
266.9
cd/m²
264.7
cd/m²
254.1
cd/m²
268.9
cd/m²
276
cd/m²
258.3
cd/m²
246.9
cd/m²
272.7
cd/m²
254.4
cd/m²
Distribuição do brilho
AU Optronics B133HAN05.C tested with X-Rite i1Pro 2
Máximo: 276 cd/m² (Nits) Médio: 262.5 cd/m² Minimum: 15.16 cd/m²
iluminação: 89 %
iluminação com acumulador: 276 cd/m²
Contraste: 1314:1 (Preto: 0.21 cd/m²)
ΔE Color 4.85 | 0.5-29.43 Ø4.91, calibrated: 1.6
ΔE Greyscale 5.7 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.4% sRGB (Argyll 2.2.0 3D)
67.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.08
Asus ZenBook 13 UX333FA
AU Optronics B133HAN05.C, IPS, 13.3", 1920x1080
Asus ZenBook 13 UX331UN
AU Optronics B133HAN04.9, IPS, 13.3", 1920x1080
Dell XPS 13 9370 i5 UHD
ID: Sharp SHP148B, Name: LQ133D1, Dell P/N: 8XDHY, IPS, 13.3", 3840x2160
Huawei Matebook X Pro i5
Tianma XM, IPS, 13.9", 3000x2000
HP Spectre 13-af033ng
AU Optronics AUO422D, IPS, 13.3", 1920x1080
Lenovo Yoga C930-13IKB 81C4
AUO B139HAN03_0, IPS, 13.9", 1920x1080
Display
-9%
1%
-2%
-6%
-7%
Display P3 Coverage
67.9
63.3
-7%
68.9
1%
65.9
-3%
64
-6%
62.7
-8%
sRGB Coverage
97.4
86.7
-11%
98.4
1%
95.2
-2%
90.7
-7%
92.6
-5%
AdobeRGB 1998 Coverage
69.2
63.4
-8%
69.5
0%
67.6
-2%
65.1
-6%
64.7
-7%
Response Times
28%
-18%
29%
43%
35%
Response Time Grey 50% / Grey 80% *
54.4 ?(24.4, 30)
44 ?(22, 22)
19%
67.2 ?(31.6, 35.6)
-24%
40.4 ?(19.2, 21.2)
26%
27 ?(12, 15)
50%
34.4 ?(18.8, 15.6)
37%
Response Time Black / White *
37.6 ?(18.8, 18.8)
24 ?(13, 11)
36%
41.6 ?(22.8, 18.8)
-11%
25.6 ?(11.6, 14)
32%
24 ?(14, 10)
36%
25.6 ?(15.6, 10)
32%
PWM Frequency
2500 ?(20)
Screen
3%
10%
9%
10%
-32%
Brightness middle
276
329
19%
496.4
80%
442.7
60%
304
10%
312
13%
Brightness
263
306
16%
469
78%
428
63%
287
9%
295
12%
Brightness Distribution
89
86
-3%
84
-6%
84
-6%
80
-10%
87
-2%
Black Level *
0.21
0.3
-43%
0.5
-138%
0.31
-48%
0.21
-0%
0.43
-105%
Contrast
1314
1097
-17%
993
-24%
1428
9%
1448
10%
726
-45%
Colorchecker dE 2000 *
4.85
4.07
16%
2.9
40%
2.24
54%
3.66
25%
7.6
-57%
Colorchecker dE 2000 max. *
8.24
7.05
14%
5.26
36%
7.19
13%
5.66
31%
15.06
-83%
Colorchecker dE 2000 calibrated *
1.6
1.11
31%
1.96
-23%
Greyscale dE 2000 *
5.7
2.76
52%
3.9
32%
9.7
-70%
3.51
38%
8.8
-54%
Gamma
2.08 106%
2.56 86%
2.066 106%
1.42 155%
2.55 86%
2.01 109%
CCT
7424 88%
6915 94%
7169 91%
6227 104%
6955 93%
6874 95%
Color Space (Percent of AdobeRGB 1998)
63
56
-11%
63.9
1%
61.6
-2%
59
-6%
59.1
-6%
Color Space (Percent of sRGB)
98
86
-12%
98.2
0%
95
-3%
91
-7%
92.3
-6%
Total Average (Program / Settings)
7% / 4%
-2% / 4%
12% / 10%
16% / 11%
-1% / -19%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

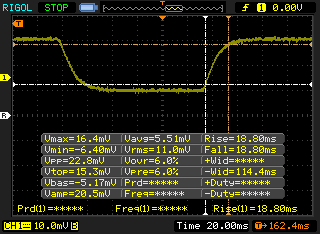

       Response Time Black to White
37.6 ms ... rise ↗ and fall ↘ combined↗ 18.8 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 95 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (20.9 ms).

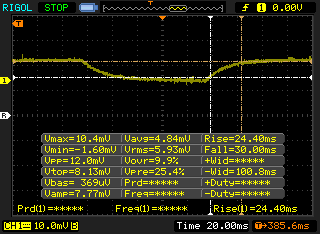

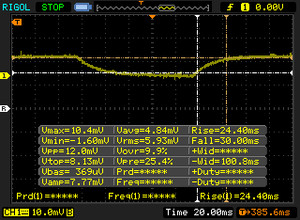

       Response Time 50% Grey to 80% Grey
54.4 ms ... rise ↗ and fall ↘ combined↗ 24.4 ms rise
↘ 30 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 90 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.8 ms).

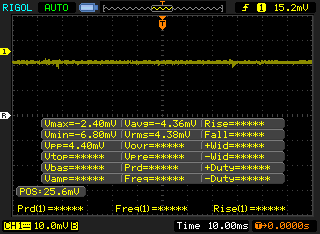

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.

03570105140175210245280315350385420455490525560595630Tooltip
Asus ZenBook 13 UX333FA UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G; CPU Multi 64Bit: Ø512 (506.95-595.21)
Asus ZenBook 13 UX331UN GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A; CPU Multi 64Bit: Ø544 (471.01-630.23)
Huawei Matebook X Pro i5 GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP; CPU Multi 64Bit: Ø465 (452.33-537.54)
Lenovo Yoga C930-13IKB 81C4 UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG; CPU Multi 64Bit: Ø588 (570.26-651.27)
Cinebench R15
CPU Single 64Bit
Razer Blade Stealth i7-8565U
Intel Core i7-8565U
174 Points +9%
HP Omen 15-dc0001ng
Intel Core i5-8300H
173 Points +9%
Asus ZenBook 13 UX333FA
Intel Core i5-8265U
159 Points
Average Intel Core i5-8265U
  (111 - 164, n=35)
155 Points -3%
Asus ZenBook 13 UX331UN
Intel Core i7-8550U
150 Points -6%
Acer Nitro 5 AN515-42-R6V0
AMD Ryzen 7 2700U
150 Points -6%
Huawei Matebook X Pro i5
Intel Core i5-8250U
146 Points -8%
Asus ZenBook UX530UX-FY070T
Intel Core i7-7500U
141 Points -11%
Alienware 13 R3 (i5-7300HQ, GTX 1050 Ti)
Intel Core i5-7300HQ
136 Points -14%
HP x2 210 G2
Intel Atom x5-Z8350
28 Points -82%
CPU Multi 64Bit
HP Omen 15-dc0001ng
Intel Core i5-8300H
805 Points +33%
Razer Blade Stealth i7-8565U
Intel Core i7-8565U
677 Points +12%
Acer Nitro 5 AN515-42-R6V0
AMD Ryzen 7 2700U
661 Points +10%
Asus ZenBook 13 UX331UN
Intel Core i7-8550U
630 Points +4%
Asus ZenBook 13 UX333FA
Intel Core i5-8265U
603 Points
Average Intel Core i5-8265U
  (457 - 750, n=38)
592 Points -2%
Huawei Matebook X Pro i5
Intel Core i5-8250U
538 Points -11%
Alienware 13 R3 (i5-7300HQ, GTX 1050 Ti)
Intel Core i5-7300HQ
512 Points -15%
Asus ZenBook UX530UX-FY070T
Intel Core i7-7500U
307 Points -49%
HP x2 210 G2
Intel Atom x5-Z8350
97 Points -84%
Cinebench R11.5
CPU Single 64Bit
HP Omen 15-dc0001ng
Intel Core i5-8300H
1.94 Points
Average Intel Core i5-8265U
  (1.73 - 1.88, n=6)
1.793 Points
Asus ZenBook 13 UX331UN
Intel Core i7-8550U
1.72 Points
Acer Nitro 5 AN515-42-R6V0
AMD Ryzen 7 2700U
1.71 Points
Huawei Matebook X Pro i5
Intel Core i5-8250U
1.66 Points
CPU Multi 64Bit
HP Omen 15-dc0001ng
Intel Core i5-8300H
8.68 Points
Acer Nitro 5 AN515-42-R6V0
AMD Ryzen 7 2700U
7.53 Points
Asus ZenBook 13 UX331UN
Intel Core i7-8550U
6.29 Points
Average Intel Core i5-8265U
  (5.22 - 7.22, n=6)
5.98 Points
Huawei Matebook X Pro i5
Intel Core i5-8250U
5.8 Points
Cinebench R10
Rendering Multiple CPUs 32Bit
Asus ZenBook 13 UX331UN
Intel Core i7-8550U
19873 Points
Average Intel Core i5-8265U
  (16318 - 22962, n=9)
18952 Points
Huawei Matebook X Pro i5
Intel Core i5-8250U
16904 Points
HP x2 210 G2
Intel Atom x5-Z8350
2994 Points
Rendering Single 32Bit
Asus ZenBook 13 UX331UN
Intel Core i7-8550U
6418 Points
Average Intel Core i5-8265U
  (5841 - 6209, n=9)
6044 Points
Huawei Matebook X Pro i5
Intel Core i5-8250U
5552 Points
HP x2 210 G2
Intel Atom x5-Z8350
847 Points
wPrime 2.10 - 1024m
Average Intel Core i5-8265U
  (371 - 433, n=2)
402 s *
Huawei Matebook X Pro i5
Intel Core i5-8250U
331.7 s *

* ... smaller is better

Cinebench R15 CPU Single 64Bit
159 Points
Cinebench R15 CPU Multi 64Bit
603 Points
Cinebench R15 OpenGL 64Bit
54.2 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Ajuda
PCMark 10
Score
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
4072 Points +8%
Asus ZenBook 13 UX333FA
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
3787 Points
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
3678 Points -3%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
3445 Points -9%
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
3160 Points -17%
Essentials
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
9291 Points +19%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
8258 Points +6%
Asus ZenBook 13 UX333FA
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
7786 Points
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
7083 Points -9%
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
6855 Points -12%
Productivity
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
6505 Points +8%
Asus ZenBook 13 UX333FA
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
6025 Points
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
5727 Points -5%
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
5664 Points -6%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
5370 Points -11%
Digital Content Creation
Asus ZenBook 13 UX333FA
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
3142 Points
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
3046 Points -3%
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
3033 Points -3%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
2735 Points -13%
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
2206 Points -30%
PCMark 8
Home Score Accelerated v2
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
3780 Points +20%
HP Spectre 13-af033ng
UHD Graphics 620, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
3705 Points +18%
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
3615 Points +15%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
3478 Points +10%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
3471 Points +10%
Asus ZenBook 13 UX333FA
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
3150 Points
Work Score Accelerated v2
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
5110 Points +18%
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
4811 Points +11%
HP Spectre 13-af033ng
UHD Graphics 620, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
4562 Points +5%
Asus ZenBook 13 UX333FA
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
4341 Points
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
4339 Points 0%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
4140 Points -5%
PCMark 8 Home Score Accelerated v2
3150 pontos
PCMark 8 Work Score Accelerated v2
4341 pontos
PCMark 10 Score
3787 pontos
Ajuda
Asus ZenBook 13 UX333FA
WDC PC SN520 SDAPNUW-256G
Asus ZenBook 13 UX331UN
SK Hynix HFS256G39TND-N210A
Dell XPS 13 9370 i5 UHD
Toshiba XG5 KXG50ZNV256G
Huawei Matebook X Pro i5
Samsung PM961 MZVLW256HEHP
Lenovo Yoga C930-13IKB 81C4
SK hynix PC401 HFS256GD9TNG
HP Elite x2 1013 G3 LTE i7
Samsung SSD PM981 MZVLB1T0HALR
CrystalDiskMark 5.2 / 6
-44%
21%
23%
12%
72%
Write 4K
113.7
78.4
-31%
121.4
7%
116.5
2%
108.7
-4%
100
-12%
Read 4K
43.18
30.77
-29%
33.42
-23%
42.18
-2%
40.91
-5%
40.23
-7%
Write Seq
970
264.5
-73%
385.3
-60%
1079
11%
798
-18%
1839
90%
Read Seq
1085
465.7
-57%
1958
80%
1030
-5%
1610
48%
2024
87%
Write 4K Q32T1
396.8
262.8
-34%
375.7
-5%
225.7
-43%
385.1
-3%
314.9
-21%
Read 4K Q32T1
317.8
283.8
-11%
364.1
15%
302.9
-5%
305.8
-4%
269.8
-15%
Write Seq Q32T1
518
262.7
-49%
1069
106%
1174
127%
779
50%
2402
364%
Read Seq Q32T1
1741
559
-68%
2564
47%
3394
95%
2359
35%
3306
90%
WDC PC SN520 SDAPNUW-256G
CDM 5/6 Read Seq Q32T1: 1741 MB/s
CDM 5/6 Write Seq Q32T1: 518 MB/s
CDM 5/6 Read 4K Q32T1: 317.8 MB/s
CDM 5/6 Write 4K Q32T1: 396.8 MB/s
CDM 5 Read Seq: 1085 MB/s
CDM 5 Write Seq: 970 MB/s
CDM 5/6 Read 4K: 43.18 MB/s
CDM 5/6 Write 4K: 113.7 MB/s
3DMark 11
1280x720 Performance GPU
Razer Blade Stealth i7-8565U
NVIDIA GeForce MX150, i7-8565U
4905 Points +183%
Asus ZenBook 13 UX331UN
NVIDIA GeForce MX150, i5-8550U
3461 Points +100%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
3081 Points +78%
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, R7 2700U
2907 Points +68%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
2124 Points +23%
Lenovo Yoga C930-13IKB 81C4
Intel UHD Graphics 620, i5-8550U
1911 Points +10%
Average Intel UHD Graphics 620
  (1144 - 3432, n=244)
1749 Points +1%
Asus ZenBook 13 UX333FA
Intel UHD Graphics 620, i5-8265U
1732 Points
Fujitsu Lifebook A357-A3570MPH06DE
Intel HD Graphics 620, i5-7200U
1527 Points -12%
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
349 Points -80%
1280x720 Performance Combined
Razer Blade Stealth i7-8565U
NVIDIA GeForce MX150, i7-8565U
4394 Points +161%
Asus ZenBook 13 UX331UN
NVIDIA GeForce MX150, i5-8550U
3553 Points +111%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2583 Points +53%
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, R7 2700U
1872 Points +11%
Lenovo Yoga C930-13IKB 81C4
Intel UHD Graphics 620, i5-8550U
1862 Points +11%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
1838 Points +9%
Asus ZenBook 13 UX333FA
Intel UHD Graphics 620, i5-8265U
1685 Points
Average Intel UHD Graphics 620
  (927 - 2505, n=244)
1578 Points -6%
Fujitsu Lifebook A357-A3570MPH06DE
Intel HD Graphics 620, i5-7200U
1212 Points -28%
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
392 Points -77%
3DMark
1280x720 Cloud Gate Standard Graphics
Razer Blade Stealth i7-8565U
NVIDIA GeForce MX150, i7-8565U
21755 Points +104%
Asus ZenBook 13 UX331UN
NVIDIA GeForce MX150, i5-8550U
18346 Points +72%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
16698 Points +57%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
11232 Points +5%
Asus ZenBook 13 UX333FA
Intel UHD Graphics 620, i5-8265U
10660 Points
Lenovo Yoga C930-13IKB 81C4
Intel UHD Graphics 620, i5-8550U
10490 Points -2%
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, R7 2700U
9904 Points -7%
Average Intel UHD Graphics 620
  (6205 - 16400, n=225)
9262 Points -13%
Fujitsu Lifebook A357-A3570MPH06DE
Intel HD Graphics 620, i5-7200U
7584 Points -29%
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
1841 Points -83%
1920x1080 Fire Strike Graphics
Razer Blade Stealth i7-8565U
NVIDIA GeForce MX150, i7-8565U
3726 Points
Asus ZenBook 13 UX331UN
NVIDIA GeForce MX150, i5-8550U
2826 Points
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2260 Points
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, R7 2700U
1740 Points
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
1369 Points
Average Intel UHD Graphics 620
  (557 - 2608, n=213)
1161 Points
Fujitsu Lifebook A357-A3570MPH06DE
Intel HD Graphics 620, i5-7200U
970 Points
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
234 Points
1920x1080 Ice Storm Extreme Graphics
Average Intel UHD Graphics 620
  (26409 - 59483, n=71)
42924 Points
Fujitsu Lifebook A357-A3570MPH06DE
Intel HD Graphics 620, i5-7200U
32762 Points
2560x1440 Time Spy Graphics
Razer Blade Stealth i7-8565U
NVIDIA GeForce MX150, i7-8565U
1147 Points
Asus ZenBook 13 UX331UN
NVIDIA GeForce MX150, i5-8550U
830 Points
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
633 Points
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
413 Points
Average Intel UHD Graphics 620
  (299 - 797, n=88)
389 Points
3DMark 11 Performance
1941 pontos
3DMark Cloud Gate Standard Score
9235 pontos
Ajuda
baixomédiaaltoultra
BioShock Infinite (2013) 63.4 35.8 31 9.6
Rise of the Tomb Raider (2016) 21.5 13.7 7.3 6.2
Rocket League (2017) 73.9 36.4 22.5

Barulho

Ocioso
28.6 / 28.6 / 28.6 dB
Carga
28.6 / 42.4 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 28.6 dB(A)
Asus ZenBook 13 UX333FA
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
HP Spectre 13-af033ng
UHD Graphics 620, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
Noise
-9%
-2%
-4%
-2%
-0%
off / environment *
28.6
30.13
-5%
29
-1%
27.9
2%
30.13
-5%
27.9
2%
Idle Minimum *
28.6
30.13
-5%
29
-1%
27.9
2%
30.13
-5%
27.9
2%
Idle Average *
28.6
30.3
-6%
29
-1%
27.9
2%
30.13
-5%
27.9
2%
Idle Maximum *
28.6
30.3
-6%
29
-1%
27.9
2%
30.13
-5%
29.3
-2%
Load Average *
28.6
39.2
-37%
32
-12%
36.2
-27%
31.5
-10%
32
-12%
Load Maximum *
42.4
41
3%
40.1
5%
45.2
-7%
33.5
21%
39.3
7%
Witcher 3 ultra *
45

* ... smaller is better

Carga Máxima
 37 °C29.2 °C30 °C
 32 °C31 °C25.8 °C
 27.4 °C24.8 °C24.2 °C
Máximo: 37 °C
Médio: 29 °C
35.6 °C43 °C44 °C
31 °C36.2 °C35.2 °C
28.2 °C30.6 °C31.2 °C
Máximo: 44 °C
Médio: 35 °C
alimentação elétrica  37 °C | Temperatura do quarto 20 °C | Raytek Raynger ST // Voltcraft IR-360 // FIRT 550-Pocket // Fluke 62 Mini
(+) The average temperature for the upper side under maximal load is 29 °C / 84 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 37 °C / 99 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 44 °C / 111 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.4 °C / 81.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.9 °C / 1.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.735.6253433.13132.131.8403133.45030.531.16330.530.68029.629.910027.430.512526.333.916025.941.220026.348.925025.653.83152555.840024.558.650024.160.163023.960.680023.759.3100023.564.3125023.266160023.165.9200022.760.525002358.931502354.7400022.852.250002354630022.860.1800022.9641000022.962.41250022.856.71600022.853.8SPL35.373.6N2.432.2median 23.2median 58.6Delta1.25.535.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAsus ZenBook 13 UX333FAApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ZenBook 13 UX333FA audio analysis

(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(±) | linearity of bass is average (12.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(±) | linearity of highs is average (8.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.2% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 5% similar, 26% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 55% of all tested devices were better, 7% similar, 37% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.27 / 0.38 Watt
Ociosodarkmidlight 1.6 / 4.6 / 7.3 Watt
Carga midlight 37.9 / 44.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus ZenBook 13 UX333FA
i5-8265U, UHD Graphics 620, WDC PC SN520 SDAPNUW-256G, IPS, 1920x1080, 13.3"
Asus ZenBook 13 UX331UN
i5-8550U, GeForce MX150, SK Hynix HFS256G39TND-N210A, IPS, 1920x1080, 13.3"
Dell XPS 13 9370 i5 UHD
i5-8250U, UHD Graphics 620, Toshiba XG5 KXG50ZNV256G, IPS, 3840x2160, 13.3"
Huawei Matebook X Pro i5
i5-8250U, GeForce MX150, Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13.9"
HP Spectre 13-af033ng
i5-8550U, UHD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 13.3"
HP EliteBook 735 G5 3UN62EA
R7 2700U, Vega 10, Toshiba KBG30ZMV256G, IPS, 1920x1080, 13.3"
Power Consumption
-11%
-58%
-68%
-21%
-82%
Idle Minimum *
1.6
2.2
-38%
4.3
-169%
3.5
-119%
2.8
-75%
5.5
-244%
Idle Average *
4.6
5
-9%
8
-74%
8.9
-93%
6.2
-35%
9.4
-104%
Idle Maximum *
7.3
8
-10%
8.1
-11%
12.3
-68%
9.4
-29%
11.6
-59%
Load Average *
37.9
33
13%
46.6
-23%
54.2
-43%
32.2
15%
39
-3%
Load Maximum *
44.8
49.4
-10%
49.8
-11%
52.1
-16%
36.6
18%
45.6
-2%
Witcher 3 ultra *
42.4

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
27h 48min
WiFi Websurfing
9h 53min
Carga (máximo brilho)
2h 12min
Asus ZenBook 13 UX333FA
i5-8265U, UHD Graphics 620, 50 Wh
Asus ZenBook 13 UX331UN
i5-8550U, GeForce MX150, 50 Wh
Dell XPS 13 9370 i5 UHD
i5-8250U, UHD Graphics 620, 52 Wh
Huawei Matebook X Pro i5
i5-8250U, GeForce MX150, 57.4 Wh
HP Spectre 13-af033ng
i5-8550U, UHD Graphics 620, 43 Wh
Lenovo Yoga C930-13IKB 81C4
i5-8550U, UHD Graphics 620, 60 Wh
Battery Runtime
-18%
-33%
-10%
-31%
12%
Reader / Idle
1668
1240
-26%
869
-48%
1243
-25%
WiFi v1.3
593
538
-9%
408
-31%
557
-6%
352
-41%
664
12%
Load
132
105
-20%
106
-20%
133
1%
104
-21%

Pro

+ GeForce MX150 (baixo poder) opcional
+ Alto contraste, cobertura sRGB completa
+ Teclas de setas relativamente grandes
+ Opções mate e refletiva
+ Duração da bateria respeitável
+ SSD M.2 atualizável
+ Formato muito pequeno
+ Sem ruído eletrônico
+ Teclado numérico virtual
+ Ruído baixo da ventoinha
+ Tampa forte

Contra

- Ainda depende do adaptador de CA de carregamento proprietário
- A sustentabilidade Turbo Boost poderia ser melhor
- Taxas de transferência sem fio lentas
- Bleeding moderado da iluminação de fundo
- Um pouco mais de ghosting do que o habitual
- Mais grosso do que muitos Ultrabooks
- Sem suporte para Thunderbolt 3
- A tela poderia ser mais brilhante
- RAM e WLAN soldadas
- Botões do clickpad esponjosos
- Sem leitor de digitais
- Lento leitor de MicroSD
In review: Asus ZenBook UX333FA. Test model provided by Asus US
In review: Asus ZenBook UX333FA. Test model provided by Asus US

Em termos de design, o novo chassi é um avanço em relação à última geração do ZenBook UX331. O UX333 se atreve a ser mais grosso para melhorar a rigidez, ao mesmo tempo em que elimina ainda mais os marcos para uma impressão compacta. O salto visual de geração a geração e o preço inicial razoável são talvez as maiores razões para possuir um ZenBook UX333, em vez do salto da Intel Core Kaby Lake-R de 8ª geração para a Whiskey Lake-U.

A maioria dos usuários no mercado por um Ultrabook de 13 polegadas provavelmente irá comparar este portátil com um Dell XPS 13 9370. A partir dessa perspectiva, o UX333 tem algumas vantagens e desvantagens a serem lembradas. Seu formato menor, portas USB tipo A e HDMI integradas, opção de GPU GeForce MX150 mais veloz e preço mais barato para a mesma CPU Core i5, tudo a favor da Asus. Por outro lado, o sistema Dell tem uma tela táctil opcional mais brilhante, ThunderBolt 3, carregador USB Tipo C mais versátil, leitor MicroSD mais rápido e trackpad maior. A escolha depende em grande parte da preferência do usuário.

O ZenBook UX333 faz o antigo UX331 parecer velho em comparação. Ele traz a série a par com as alternativas emblemáticas como o XPS 13 e o Spectre 13, ao mesmo tempo em que custa algumas centenas de dólares a menos no processo. A ausência do Thunderbolt 3, Carregador USB Type-C e tela táctil pode ser difícil de engolir para entusiastas e viajantes.

Asus ZenBook 13 UX333FA - 12/28/2018 v6 (old)
Allen Ngo

Acabamento
82 /  98 → 83%
Teclado
80%
Mouse
75%
Conectividade
47 / 80 → 59%
Peso
73 / 35-78 → 88%
Pantalha
82%
Desempenho do jogos
60 / 68 → 88%
Desempenho da aplicação
85 / 87 → 98%
Temperatura
93 / 91 → 100%
Ruído
94%
Audio
60 / 91 → 66%
Camera
45 / 85 → 53%
Médio
73%
84%
Subnotebook - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Asus ZenBook 13 UX333FA (i5-8265U)
Allen Ngo, 2018-12-28 (Update: 2019-01- 2)
