Breve Análise do Portátil Acer TravelMate P648-M-757N

Pacote balanceado. Com o TravelMate, a Acer oferece uma alternativa bem-feita de 14-polegadas, para os modelos empresariais das marcas estabelecidas HP, Dell e Lenovo. O TravelMate parece ser igual ao seu predecessor. No entanto, o fabricante atualizou o hardware: Skylake, DDR4, e Thunderbolt 3 estão abordo. Um computador de já era muito bom foi melhorado ainda mais. Positivo: A durações da bateria são excelentes.
Business Laptop / Notebook Skylake Windows

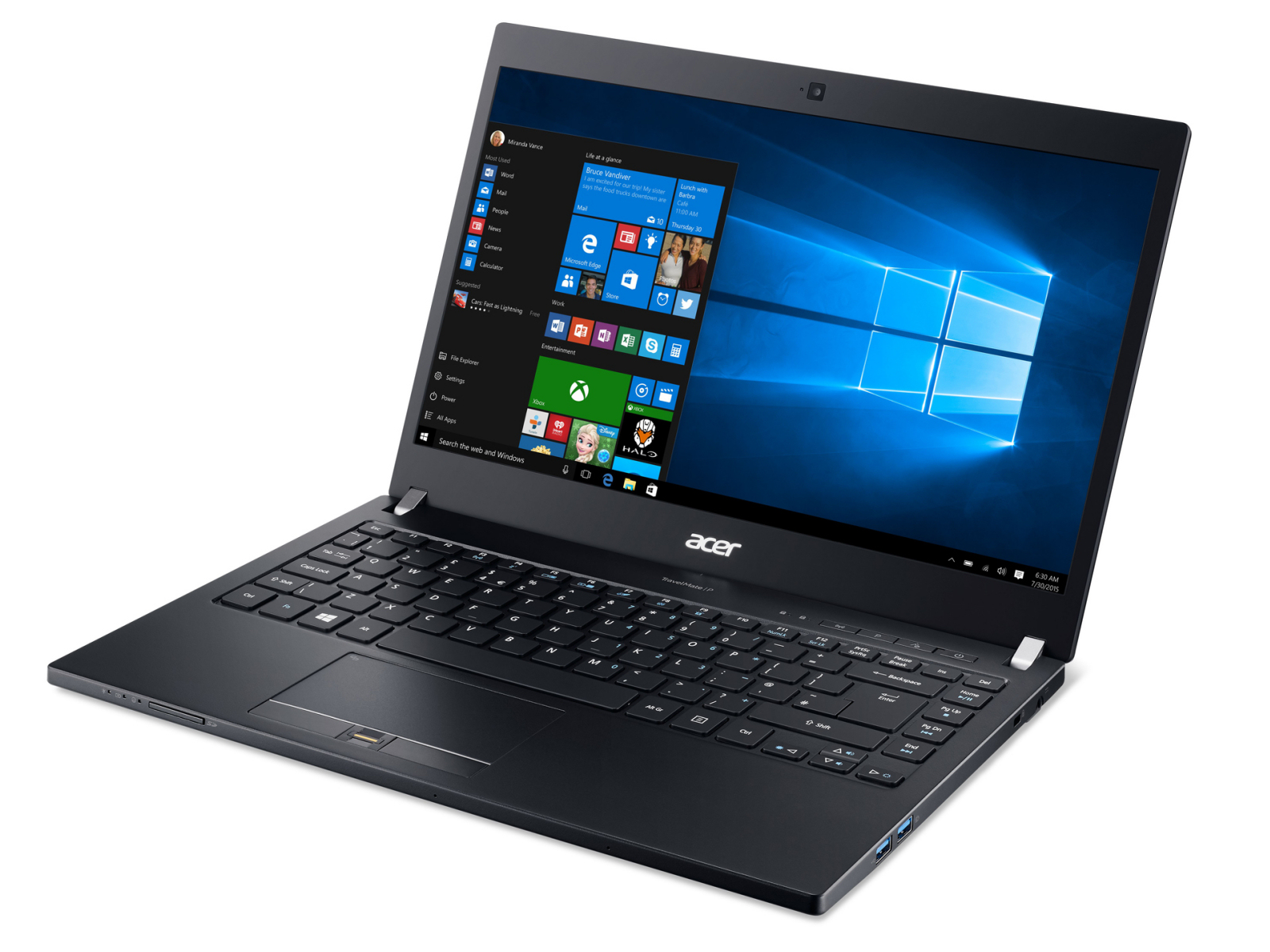

Acer TravelMate P648-M-757N (TravelMate P6 Serie)
Processador
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake
Placa gráfica
Intel HD Graphics 520, Análises do: 1000 MHz, Dual-Channel, 20.19.15.4390
Memória
8 GB
, DDR4-2132, Dual-Channel, um slot RAM (ocupado), 4 GB soldados
Pantalha
14.00 polegadas 16:9, 1920 x 1080 pixel 157 PPI, AU Optronics B140HAN02.1, IPS, Brilhante: não
placa mãe
Intel Skylake-U Premium PCH
Disco rígido
Lite-On CV1-8B256, 256 GB
, 170 GB livre
Placa de Som
Realtek ALC282 @ Intel Skylake PCH-H - High Definition Audio Controller
Conexões
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: áudio combinado, Card Reader: SD, 1 Leitor de Impressões Digitais, NFC, TPM 1.2
Funcionamento em rede
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, Huawei LTE, LTE
Tamanho
altura x largura x profundidade (em mm): 21.2 x 328.7 x 235.5
Bateria
54 Wh, 4850 mAh Lítio-Ion, 11,1 V
Sistema Operativo
Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)
Camera
Webcam: Webcam HD
Características adicionais
Alto falantes: Estéreo, Teclado: Chiclet, Iluminação do Teclado: sim, Foxit PhantomPDF, McAfee LiveSafe-Internet Security (versão de avaliação), MS Office (versão de avaliação), 36 Meses Garantia
peso
1.6 kg, Suprimento de energia: 392 g
Preço
1299 Euro
Links
Acer página inicial
Acer Seção de notebook
TravelMate P6 (Serie)
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



❌
339 mm 232 mm 21 mm 1.7 kg338 mm 236 mm 20.4 mm 1.5 kg335 mm 231 mm 23 mm 1.8 kg338 mm 237 mm 18.9 mm 1.6 kg329 mm 235 mm 21 mm 1.5 kg328.7 mm 235.5 mm 21.2 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g

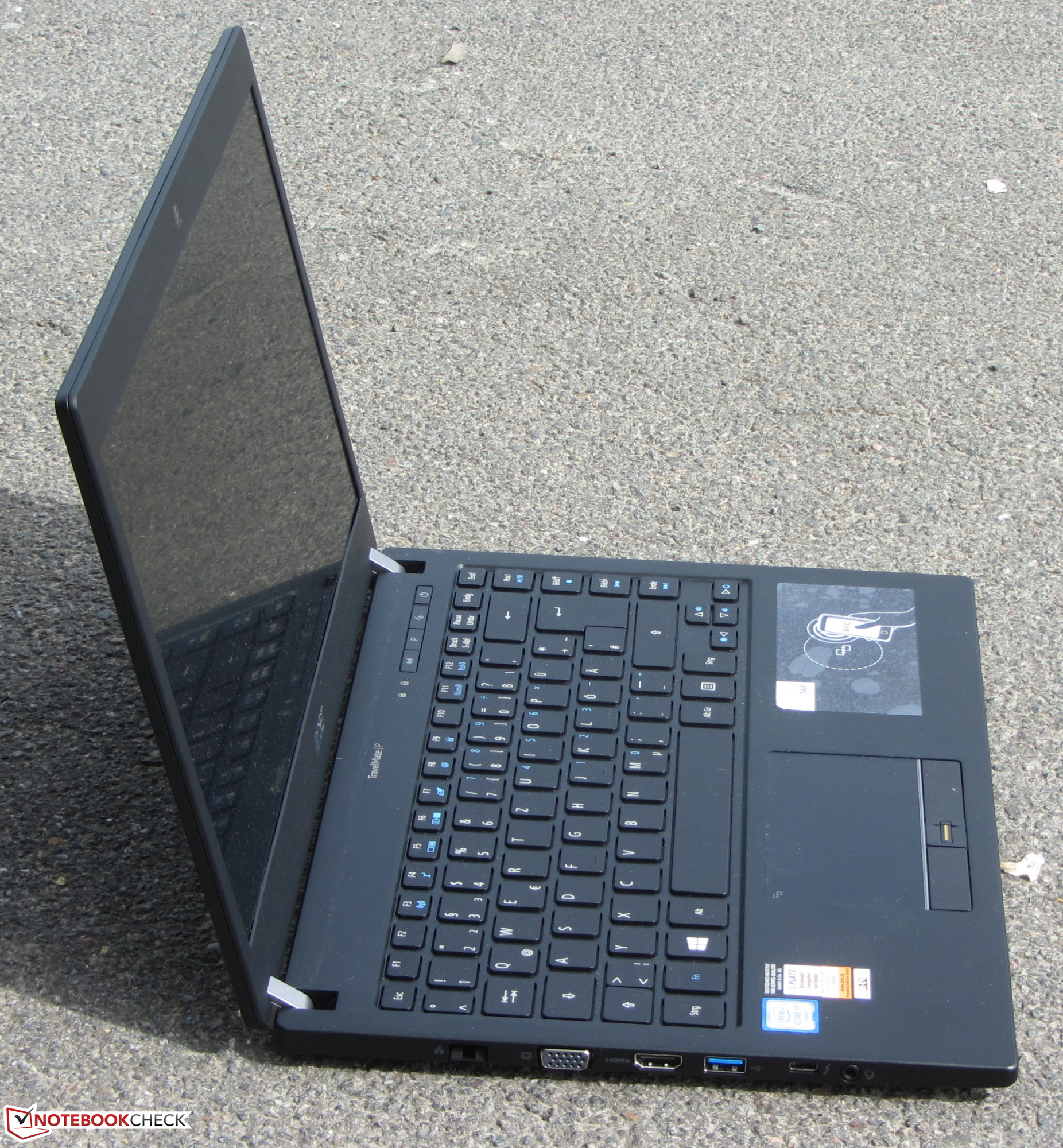

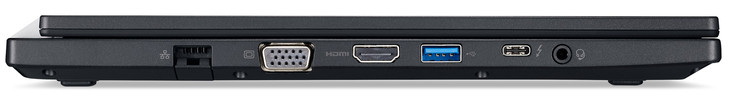

left: Gigabit-Ethernet, VGA-out, HDMI, USB 3.0, Thunderbolt 3, audio combo
left: Gigabit-Ethernet, VGA-out, HDMI, USB 3.0, Thunderbolt 3, audio combo

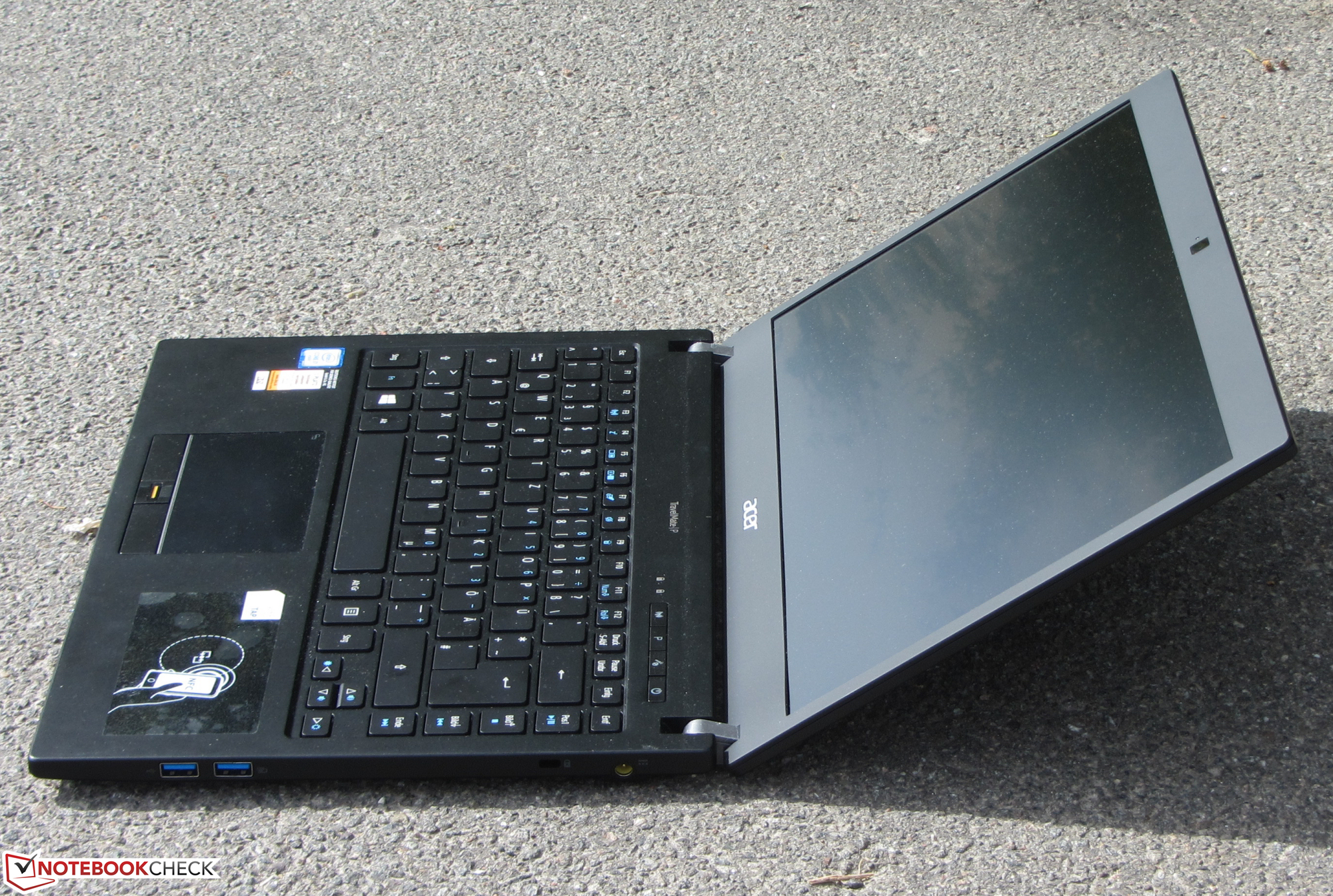

right: 2x USB 3.0, Kensington lock slot, power-in
right: 2x USB 3.0, Kensington lock slot, power-in

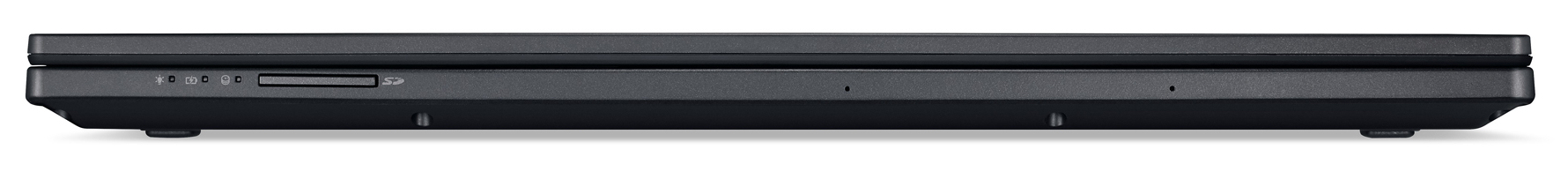

front: card reader
front: card reader
250
cd/m²		228
cd/m²		245
cd/m²
251
cd/m²		254
cd/m²		250
cd/m²
228
cd/m²		253
cd/m²		229
cd/m²
Distribuição do brilho
AU Optronics B140HAN02.1 tested with X-Rite i1Pro 2
Máximo: 254 cd/m² (Nits) Médio: 243.1 cd/m² Minimum: 22 cd/m²
iluminação: 90 %
iluminação com acumulador: 254 cd/m²
Contraste: 1337:1 (Preto: 0.19 cd/m²)
ΔE Color 4.93 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.71 | 0.5-98 Ø5.2
53% sRGB (Argyll 1.6.3 3D)
34% AdobeRGB 1998 (Argyll 1.6.3 3D)
36.72% AdobeRGB 1998 (Argyll 2.2.0 3D)
53.3% sRGB (Argyll 2.2.0 3D)
35.53% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.36

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured.

CalMAN - Color Checker
CalMAN - Color Checker
CalMAN - Gray levels
CalMAN - Gray levels
CalMAN - Color saturation
CalMAN - Color saturation

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
   ↔    Response Time Black to White
25 ms ... rise ↗ and fall ↘ combined↗ 7 ms rise
↘ 18 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 55 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (20.9 ms).
   ↔    Response Time 50% Grey to 80% Grey
44 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 28 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.8 ms).
Acer TravelMate P648-M-757N
IPS, 1920x1080		Acer TravelMate P645-S-58HK
IPS, 1920x1080		Toshiba Tecra Z40-C-106
IPS, 1920x1080		Lenovo ThinkPad T460-20FN003LGE
IPS, 1920x1080		HP EliteBook 840 G3 T9X59ET#ABD
TN LED, 1920x1080		Dell Latitude 14 E5470
TN, 1366x768
Display
80%
69%
18%
38%
13%
Display P3 Coverage
35.53
66.7
88%
64.8
82%
42.09
18%
48.93
38%
40.06
13%
sRGB Coverage
53.3
90.8
70%
84.4
58%
62
16%
73.7
38%
60.3
13%
AdobeRGB 1998 Coverage
36.72
66.5
81%
61.7
68%
43.6
19%
50.5
38%
41.42
13%
Response Times
12%
3%
1%
-22%
Response Time Grey 50% / Grey 80% *
44 ?(16, 28)
32.8 ?(12.8, 20)
25%
42.4 ?(16, 26.4)
4%
43 ?(20, 23)
2%
56.8 ?(35.6, 21.2)
-29%
Response Time Black / White *
25 ?(7, 18)
25.2 ?(11.6, 13.6)
-1%
24.8 ?(7.6, 17.2)
1%
25 ?(9, 16)
-0%
28.8 ?(19.6, 9.2)
-15%
PWM Frequency
204 ?(90)
Screen
-2%
-5%
-35%
-64%
-82%
Brightness middle
254
331
30%
269
6%
230
-9%
366
44%
229
-10%
Brightness
243
309
27%
257
6%
216
-11%
336
38%
207
-15%
Brightness Distribution
90
82
-9%
86
-4%
85
-6%
87
-3%
80
-11%
Black Level *
0.19
0.4
-111%
0.52
-174%
0.26
-37%
0.65
-242%
0.69
-263%
Contrast
1337
828
-38%
517
-61%
885
-34%
563
-58%
332
-75%
Colorchecker dE 2000 *
4.93
4.07
17%
3.45
30%
7.32
-48%
10.26
-108%
10.16
-106%
Colorchecker dE 2000 max. *
10.14
9.34
8%
18.14
-79%
17.18
-69%
Greyscale dE 2000 *
2.71
4.86
-79%
2.28
16%
6.98
-158%
11.51
-325%
10.87
-301%
Gamma
2.36 93%
2.49 88%
2.38 92%
2.5 88%
2.4 92%
2.41 91%
CCT
6914 94%
6109 106%
6230 104%
6683 97%
12725 51%
12881 50%
Color Space (Percent of AdobeRGB 1998)
34
59
74%
55.24
62%
39.97
18%
47
38%
38.4
13%
Color Space (Percent of sRGB)
53
90.6
71%
84.32
59%
61.55
16%
74
40%
60.4
14%
Total Average (Program / Settings)
39% / 18%
25% / 12%
-5% / -19%
-8% / -33%
-30% / -55%

* ... smaller is better

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
HWInfo
LatencyMon
Cinebench R10 Shading 32Bit
8102
Cinebench R10 Rendering Multiple CPUs 32Bit
9478
Cinebench R10 Rendering Single 32Bit
4198
Cinebench R11.5 OpenGL 64Bit
39.17 fps
Cinebench R11.5 CPU Multi 64Bit
3.11 Points
Cinebench R11.5 CPU Single 64Bit
1.26 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
43.09 fps
Cinebench R15 CPU Multi 64Bit
284 Points
Cinebench R15 CPU Single 64Bit
110 Points
Ajuda
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Geekbench 3 | Sunspider | JetStream 1.1 | Mozilla Kraken 1.1 | Octane V2 | Peacekeeper
Cinebench R15
CPU Multi 64Bit
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
322 Points +13%
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
311 Points +10%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
287 Points +1%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
284 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
250 Points -12%
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
184 Points -35%
CPU Single 64Bit
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
124 Points +13%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
119 Points +8%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
115 Points +5%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
110 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
91 Points -17%
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
70 Points -36%
Cinebench R11.5
CPU Multi 64Bit
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
3.44 Points +11%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
3.11 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
2.5 Points -20%
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
2.4 Points -23%
CPU Single 64Bit
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
1.42 Points +13%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
1.26 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
1.04 Points -17%
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
0.94 Points -25%
Cinebench R10
Rendering Multiple CPUs 32Bit
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
10705 Points +13%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
9478 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
7683 Points -19%
Rendering Single 32Bit
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
4805 Points +14%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
4198 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
3449 Points -18%
Geekbench 3
32 Bit Single-Core Score
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
3110 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
2270 Points -27%
32 Bit Multi-Core Score
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
6714 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
4691 Points -30%
Sunspider - 1.0 Total Score
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
129.6 ms * -23%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
105 ms *
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
85.9 ms * +18%
JetStream 1.1 - Total Score
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
197.5 Points +59%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
195 Points +57%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
124.4 Points
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
112.3 Points -10%
Mozilla Kraken 1.1 - Total
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
2966 ms * -39%
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
2438 ms * -15%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
2127 ms *
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
1236 ms * +42%
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
1168 ms * +45%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
1100 ms * +48%
Octane V2 - Total Score
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
31545 Points +97%
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
30699 Points +92%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
28219 Points +77%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
15973 Points
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
14631 Points -8%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
11048 Points -31%
Peacekeeper - ---
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
2815 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
2056 Points -27%

* ... smaller is better

PCMark 7 Score
4766 pontos
PCMark 8 Home Score Accelerated v2
3511 pontos
PCMark 8 Creative Score Accelerated v2
3798 pontos
PCMark 8 Work Score Accelerated v2
4594 pontos
Ajuda
PCMark 8 | PCMark 7
PCMark 8 - Work Score Accelerated v2
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
4599 Points 0%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
4594 Points
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
4383 Points -5%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
4275 Points -7%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
3956 Points -14%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
3698 Points -20%
PCMark 7 - Score
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
5125 Points +8%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
4766 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
4046 Points -15%
CrystalDiskMark 3.0
AS SSD
hddimg
Lite-On CV1-8B256
Sequential Read: 531 MB/s
Sequential Write: 358.8 MB/s
512K Read: 384.8 MB/s
512K Write: 363 MB/s
4K Read: 31.3 MB/s
4K Write: 80.3 MB/s
4K QD32 Read: 239.4 MB/s
4K QD32 Write: 225.3 MB/s
3DMark 06 Standard Score
9508 pontos
3DMark 11 Performance
1447 pontos
3DMark Ice Storm Standard Score
53073 pontos
3DMark Cloud Gate Standard Score
5599 pontos
3DMark Fire Strike Score
767 pontos
Ajuda
3DMark 11 | 3DMark | 3DMark 06
3DMark 11 - 1280x720 Performance
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
1468 Points +1%
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
1447 Points
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
1418 Points -2%
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
1269 Points -12%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
1263 Points -13%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
1183 Points -18%
3DMark
1280x720 Ice Storm Standard Score
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
53073 Points
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
50690 Points -4%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
48758 Points -8%
Toshiba Tecra Z40-C-106
HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NY
40187 Points -24%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
35373 Points -33%
1280x720 Cloud Gate Standard Score
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
5599 Points
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
5346 Points -5%
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
5176 Points -8%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
5000 Points -11%
Lenovo ThinkPad T460-20FN003LGE
HD Graphics 520, 6200U, Toshiba HG6 THNSFJ256GCSU
4165 Points -26%
1280x720 Sky Diver Score
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
3398 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
2759 Points -19%
1920x1080 Fire Strike Score
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
767 Points
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
751 Points -2%
Dell Latitude 14 E5470
HD Graphics 520, 6300U, Liteon L8H-256V2G
741 Points -3%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
734 Points -4%
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Acer TravelMate P648-M-757N
HD Graphics 520, 6500U, Lite-On CV1-8B256
9508 Points
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
7419 Points -22%
baixomédiaaltoultra
Tomb Raider (2013) 67.3 33.8 23.4 10.9
BioShock Infinite (2013) 48.3 26 22.2 6.7
Battlefield 4 (2013) 35.4 26.7 17.1 5.4
Just Cause 3 (2015) 21.6 16.7 6.2 3.8
Far Cry Primal (2016) 15 7 6 4
The Division (2016) 19.8 11.4 5 3.7
Mirror's Edge Catalyst (2016) 27.4 13.7

Barulho

Ocioso
31.2 / 31.2 / 31.6 dB
Carga
33.3 / 32.4 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 31.2 dB(A)
Acer TravelMate P648-M-757N
6500U, HD Graphics 520		Acer TravelMate P645-S-58HK
5200U, HD Graphics 5500		Toshiba Tecra Z40-C-106
6200U, HD Graphics 520		Lenovo ThinkPad T460-20FN003LGE
6200U, HD Graphics 520		HP EliteBook 840 G3 T9X59ET#ABD
6500U, HD Graphics 520		Dell Latitude 14 E5470
6300U, HD Graphics 520
Noise
-1%
1%
2%
-6%
3%
off / environment *
31.2
29
7%
29
7%
31.2
-0%
29.2
6%
Idle Minimum *
31.2
29.6
5%
29.8
4%
29
7%
31.2
-0%
29.2
6%
Idle Average *
31.2
29.6
5%
29.8
4%
29
7%
32.1
-3%
29.2
6%
Idle Maximum *
31.6
30.2
4%
29.8
6%
29
8%
33.1
-5%
29.2
8%
Load Average *
33.3
35.6
-7%
32.6
2%
34.2
-3%
36.2
-9%
32.1
4%
Load Maximum *
32.4
35.9
-11%
37.2
-15%
37.8
-17%
37.8
-17%
36.8
-14%

* ... smaller is better

Carga Máxima
 35.2 °C35.2 °C33.2 °C
 31.4 °C38.5 °C30.1 °C
 27.3 °C27.6 °C27.8 °C
Máximo: 38.5 °C
Médio: 31.8 °C
33.4 °C36.7 °C34.7 °C
30.8 °C34.4 °C31.9 °C
27.5 °C28.8 °C28.2 °C
Máximo: 36.7 °C
Médio: 31.8 °C
alimentação elétrica  38.4 °C | Temperatura do quarto 22.8 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.8 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 36.7 °C / 98 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.9 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.2 °C / -0.3 F).

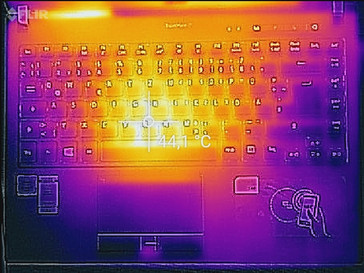

Load temperature - top side
Load temperature - top side
Load temperature - underside
Load temperature - underside

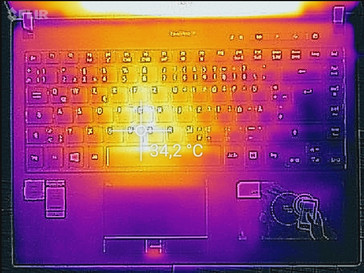

Idle temperature - top side
Idle temperature - top side

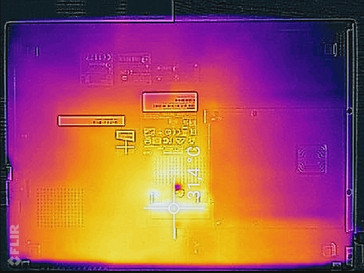

Idle temperature - underside
Idle temperature - underside
Acer TravelMate P648-M-757N
6500U, HD Graphics 520		Acer TravelMate P645-S-58HK
5200U, HD Graphics 5500		Toshiba Tecra Z40-C-106
6200U, HD Graphics 520		Lenovo ThinkPad T460-20FN003LGE
6200U, HD Graphics 520		HP EliteBook 840 G3 T9X59ET#ABD
6500U, HD Graphics 520		Dell Latitude 14 E5470
6300U, HD Graphics 520
Heat
-3%
8%
-3%
8%
-2%
Maximum Upper Side *
38.5
41.6
-8%
35.3
8%
37.3
3%
37
4%
41.5
-8%
Maximum Bottom *
36.7
41.7
-14%
34.5
6%
44.3
-21%
37.1
-1%
41.4
-13%
Idle Upper Side *
31.5
30.6
3%
27.7
12%
29
8%
25.3
20%
26.9
15%
Idle Bottom *
29.6
27.5
7%
27.5
7%
30.1
-2%
26.6
10%
29.6
-0%

* ... smaller is better

Consumo de energia
desligadodarklight 0.15 / 0.5 Watt
Ociosodarkmidlight 5.3 / 9.3 / 11.5 Watt
Carga midlight 30.8 / 32 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer TravelMate P648-M-757N
6500U, HD Graphics 520		Acer TravelMate P645-S-58HK
5200U, HD Graphics 5500		Toshiba Tecra Z40-C-106
6200U, HD Graphics 520		Lenovo ThinkPad T460-20FN003LGE
6200U, HD Graphics 520		HP EliteBook 840 G3 T9X59ET#ABD
6500U, HD Graphics 520		Dell Latitude 14 E5470
6300U, HD Graphics 520
Power Consumption
21%
15%
20%
20%
25%
Idle Minimum *
5.3
3.2
40%
4.3
19%
3.5
34%
3.8
28%
3.5
34%
Idle Average *
9.3
6.3
32%
7.6
18%
6.7
28%
6.3
32%
5.3
43%
Idle Maximum *
11.5
8.6
25%
8.3
28%
7.3
37%
6.8
41%
6
48%
Load Average *
30.8
30.3
2%
26.8
13%
28.2
8%
34.4
-12%
26.3
15%
Load Maximum *
32
30.4
5%
32.6
-2%
34.6
-8%
28.3
12%
36.6
-14%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
18h 03min
WiFi Websurfing (IE 11)
9h 03min
Big Buck Bunny H.264 1080p
9h 05min
Carga (máximo brilho)
1h 50min
Acer TravelMate P648-M-757N
54 Wh		Acer TravelMate P645-S-58HK
54 Wh		Toshiba Tecra Z40-C-106
64 Wh		Lenovo ThinkPad T460-20FN003LGE
46 Wh		HP EliteBook 840 G3 T9X59ET#ABD
46 Wh		Dell Latitude 14 E5470
62 Wh
Battery Runtime
1%
15%
-17%
3%
29%
Reader / Idle
1083
1143
6%
1045
-4%
953
-12%
1020
-6%
1304
20%
H.264
545
525
-4%
512
-6%
645
18%
WiFi v1.3
543
535
-1%
539
-1%
338
-38%
453
-17%
667
23%
Load
110
113
3%
164
49%
98
-11%
146
33%
172
56%

Pro

+ Tela IPS rica em contraste
+ Resolução Full HD
+ SSD veloz
+ Funciona silenciosamente
+ Dificilmente esquenta
+ Bons dispositivos de entrada
+ Modem LTE
+ Excelente duração da bateria
+ 3 anos de garantia
+ Thunderbolt 3

Contra

- Tela um pouco escura demais
- Aproveitamento inconsistente do Turbo da CPU
In review: Acer TravelMate P648-M-757N. Test model provided by Notebooksbilliger.de
In review: Acer TravelMate P648-M-757N. Test model provided by Notebooksbilliger.de

Com o TravelMate P648-M, a Acer oferece um portátil empresarial bem feito de 14-polegadas. O processador integrado oferece suficiente desempenho para todos os cenários de aplicação habituais. O computador sempre funciona de forma silenciosa e dificilmente esquenta. O veloz SSD garante um sistema veloz. É possível substituir o SSD. Isto requer a remoção do painel inferior do computador, o qual é fácil. Graças a um modem LTE, você pode se conectar à Internet via redes de telefonia celular. Você pode adicionar interfaces ao computador conectando uma estação docking Acer na porta docking no lado inferior do computador. O portátil fornece bons dispositivos de entrada e excelentes durações da bateria. A tela IPS do TravelMate possui ângulos de visão amplos e um contraste alto. No entanto, seu brilho é baixo demais. Esperamos mais de um computador nesta faixa de preços.

A Acer primeiramente atualizou o computador: Processador Skylake, RAM DDR4, e uma porta Thunderbolt-3. Estas mudanças razoáveis fizeram com que este portátil seja ainda melhor.

Quem estiver procurando por uma alternativa para as marcas estabelecidas como Lenovo, HP, e Dell deveria considerar o TravelMate. A Acer demonstra que e eles podem produzir portáteis empresariais.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Acer TravelMate P648-M-757N - 06/13/2016 v5.1 (old)
Sascha Mölck

Acabamento
93 / 98 → 95%
Teclado
88%
Mouse
92%
Conectividade
70 / 80 → 87%
Peso
68 / 20-67 → 100%
Bateria
91%
Pantalha
86%
Desempenho do jogos
55 / 68 → 81%
Desempenho da aplicação
83 / 92 → 90%
Temperatura
93%
Ruído
92%
Audio
66%
Camera
37 / 85 → 43%
Médio
78%
89%
Office - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Acer TravelMate P648-M-757N
Sascha Mölck, 2016-06-25 (Update: 2016-06-28)
