Breve Análise do Portátil Acer Aspire 5 A515-51G-509A (8250U, MX130, FHD)

Sucesso ou fracasso. Uma GeForce MX130? Até agora, apenas dois fabricantes de portáteis colocaram essa versão reduzida do MX150 em seus modelos. Uma delas é a Acer, que usa essa rara combinação de um i5-8250U e MX130 em seu Aspire 5 de 15 polegadas. Entre outras coisas, veremos em nosso teste quão grande é a diferença no desempenho gráfico e se o dispositivo da Acer é adequado principalmente para o trabalho ou também para jogos.
Acer Aspire 5 A515-51G-509A (Aspire 5 A515 Serie)
Processador
Intel Core i5-8250U 4 x 1.6 - 3.4 GHz, Kaby Lake Refresh
Placa gráfica
NVIDIA GeForce MX130 - 2048 MB VRAM, Análises do: 1189 MHz, Memoría: 1253 MHz, GDDR5, 391.24
Memória
8 GB
, DDR4-2400 17-17-17-39 CR2 dual-channel
Pantalha
15.60 polegadas 16:9, 1920 x 1080 pixel 141 PPI, Chi Mei (CMN15D5), TN, Brilhante: não
placa mãe
Intel Sunrise Point-LP
Disco rígido
SK Hynix HFS256G39TND-N210A, 256 GB
, 200 GB livre
Placa de Som
Intel Sunrise Point PCH - High Definition Audio Controller
Conexões
2 USB 2.0, 1 USB 3.0, 1 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Conexões Audio: Fones/microfone combinado, Card Reader: Leitor de cartões SD
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Tamanho
altura x largura x profundidade (em mm): 21.6 x 381 x 263
Bateria
48 Wh Lítio-Ion
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Características adicionais
Teclado: Chiclet, Iluminação do Teclado: sim, 24 Meses Garantia
Released
01/30/2018
peso
2.2 kg, Suprimento de energia: 314 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

381 mm 263 mm 21.6 mm 2.2 kg384 mm 255 mm 18 mm 1.9 kg378 mm 260 mm 22.9 mm 2 kg360 mm 244 mm 15 mm 2 kg355.6 mm 251 mm 17.8 mm 2 kg297 mm 210 mm 1 mm 5.7 g

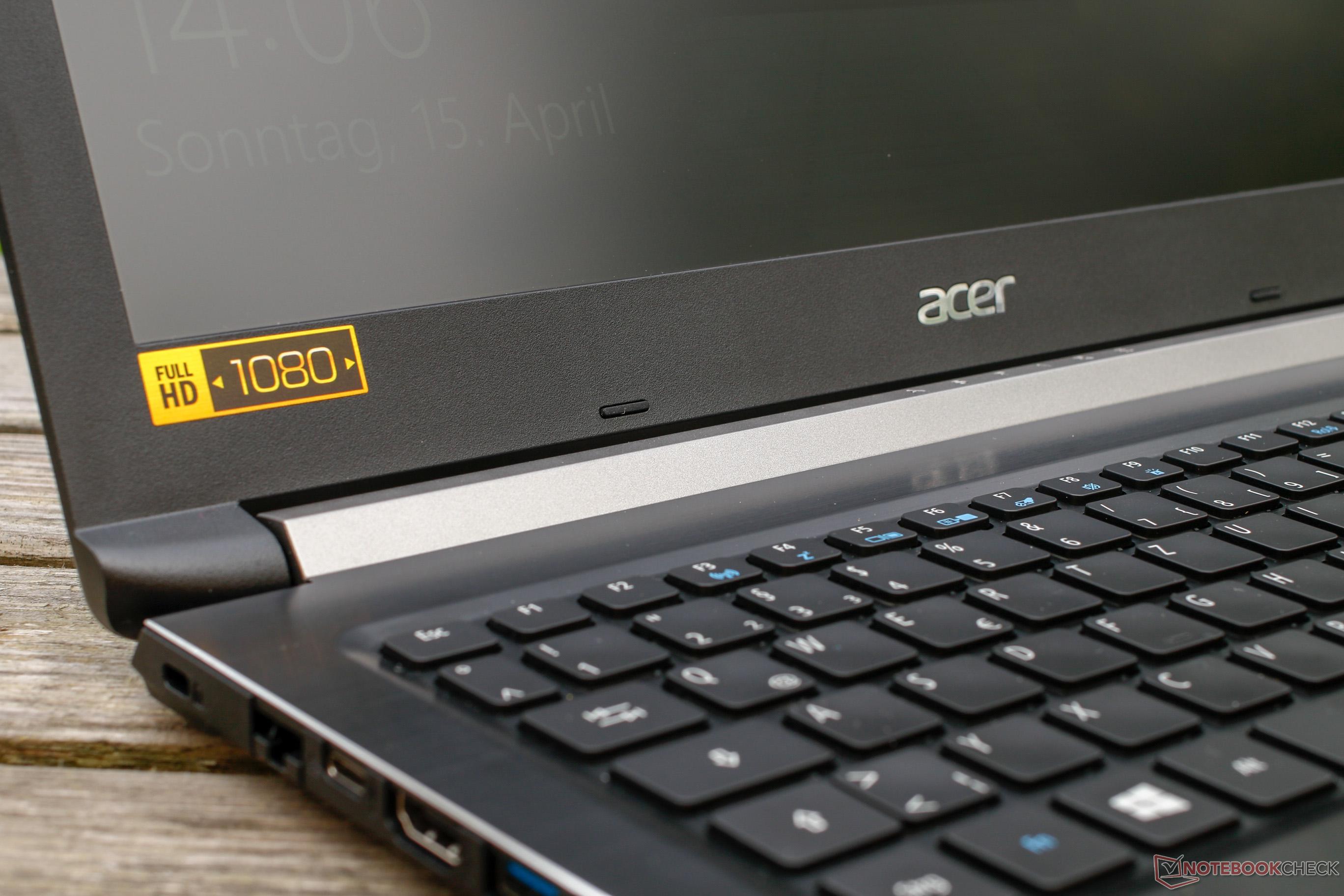

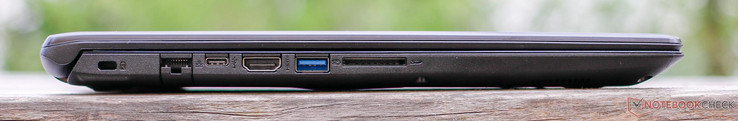

Left side: Kensington lock, Ethernet port, USB Type-C (3.0 Gen 1), HDMI, USB Type-A (3.0), SD card reader
Left side: Kensington lock, Ethernet port, USB Type-C (3.0 Gen 1), HDMI, USB Type-A (3.0), SD card reader

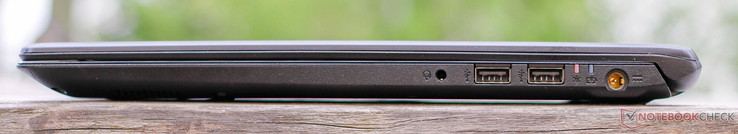

Right side: 3.5 mm audio port for microphone and headphones, 2x USB Type-A (2.0), status LEDs, power connection
Right side: 3.5 mm audio port for microphone and headphones, 2x USB Type-A (2.0), status LEDs, power connection
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP Spectre x360 15t-bl100
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
157.5 MB/s +107%
Average of class Multimedia
  (18.4 - 201, n=60, last 2 years)
102.1 MB/s +34%
Acer Aspire 5 A515-51G-509A
  (Toshiba Exceria Pro M510 microSD)
76 MB/s
Acer Aspire 5 A517-51G-80L
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
74.9 MB/s -1%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.8 MB/s -65%
Xiaomi Mi Notebook Pro i5

21.4 MB/s -72%
Acer Swift 3 SF315-51G-57E5
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
17.4 MB/s -77%
maximum AS SSD Seq Read Test (1GB)
HP Spectre x360 15t-bl100
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
217.6 MB/s +154%
Average of class Multimedia
  (25.8 - 266, n=59, last 2 years)
142.7 MB/s +67%
Acer Aspire 5 A515-51G-509A
  (Toshiba Exceria Pro M510 microSD)
85.6 MB/s
Acer Aspire 5 A517-51G-80L
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
84 MB/s -2%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
29.7 MB/s -65%
Acer Swift 3 SF315-51G-57E5
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
25.6 MB/s -70%
Xiaomi Mi Notebook Pro i5

17.4 MB/s -80%
Networking
iperf3 transmit AX12
HP Spectre x360 15t-bl100
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
664 MBit/s +95%
Acer Swift 3 SF315-51G-57E5
Intel Dual Band Wireless-AC 7265
611 MBit/s +80%
Xiaomi Mi Notebook Pro i5
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
471 MBit/s +39%
Acer Aspire 5 A515-51G-509A
Qualcomm Atheros QCA9377 Wireless Network Adapter
340 MBit/s
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
Qualcomm Atheros QCA9377 Wireless Network Adapter
325 MBit/s -4%
Acer Aspire 5 A517-51G-80L
Intel Dual Band Wireless-AC 3168
310 MBit/s -9%
iperf3 receive AX12
Xiaomi Mi Notebook Pro i5
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
585 MBit/s +102%
Acer Swift 3 SF315-51G-57E5
Intel Dual Band Wireless-AC 7265
541 MBit/s +87%
Acer Aspire 5 A517-51G-80L
Intel Dual Band Wireless-AC 3168
347 MBit/s +20%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
Qualcomm Atheros QCA9377 Wireless Network Adapter
294 MBit/s +1%
Acer Aspire 5 A515-51G-509A
Qualcomm Atheros QCA9377 Wireless Network Adapter
290 MBit/s
HP Spectre x360 15t-bl100
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
62.3 MBit/s -79%
236
cd/m²
242
cd/m²
230
cd/m²
226
cd/m²
246
cd/m²
215
cd/m²
217
cd/m²
214
cd/m²
200
cd/m²
Distribuição do brilho
Chi Mei (CMN15D5) tested with X-Rite i1Pro 2
Máximo: 246 cd/m² (Nits) Médio: 225.1 cd/m² Minimum: 22.9 cd/m²
iluminação: 81 %
iluminação com acumulador: 246 cd/m²
Contraste: 482:1 (Preto: 0.51 cd/m²)
ΔE Color 11 | 0.5-29.43 Ø4.92, calibrated: 4.6
ΔE Greyscale 11.6 | 0.5-98 Ø5.2
Gamma: 1.91
Acer Aspire 5 A515-51G-509A
Chi Mei (CMN15D5), , 1920x1080, 15.6"
Xiaomi Mi Notebook Pro i5
BOE0747 NV156FHM-N61, , 1920x1080, 15.6"
Acer Swift 3 SF315-51G-57E5
BOE NV156FHM-N48, , 1920x1080, 15.6"
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
Chi Mei CMN15D5, N156HGA-EAB, , 1920x1080, 15.6"
HP Spectre x360 15t-bl100
BOE06C3, , 3840x2160, 15.6"
Acer Aspire 5 A517-51G-80L
LG Display, LP173WF4-SPF5, , 1920x1080, 17.3"
Display
Display P3 Coverage
66.5
39.86
42.04
66.6
66.3
sRGB Coverage
86.9
58.7
62.8
86.9
84.2
AdobeRGB 1998 Coverage
63.5
41.18
43.44
63.5
61.6
Response Times
-57%
-49%
-7%
-68%
83%
Response Time Grey 50% / Grey 80% *
43.3 ?(22, 21.3)
47.9 ?(22.4, 25.5)
-11%
42 ?(22, 20)
3%
45.6 ?(24.4, 21.2)
-5%
41.2 ?(23.2, 18)
5%
41 ?(19, 22)
5%
Response Time Black / White *
13.8 ?(9.5, 4.3)
33.7 ?(19.2, 14.5)
-144%
32 ?(17, 15)
-132%
16 ?(11.6, 4.4)
-16%
29.6 ?(16.4, 13.2)
-114%
31 ?(17, 4)
-125%
PWM Frequency
25970 ?(19)
21800 ?(99)
-16%
21000 ?(80)
-19%
25770 ?(60)
-1%
1000
-96%
122000 ?(90)
370%
Screen
49%
50%
3%
59%
71%
Brightness middle
246
296
20%
248
1%
220
-11%
338.7
38%
397
61%
Brightness
225
288
28%
237
5%
194
-14%
325
44%
364
62%
Brightness Distribution
81
89
10%
79
-2%
84
4%
91
12%
84
4%
Black Level *
0.51
0.32
37%
0.21
59%
0.43
16%
0.28
45%
0.29
43%
Contrast
482
925
92%
1181
145%
512
6%
1210
151%
1369
184%
Colorchecker dE 2000 *
11
4.3
61%
4.98
55%
11.8
-7%
4.9
55%
3.88
65%
Colorchecker dE 2000 max. *
32.4
8.7
73%
8.41
74%
20.6
36%
8.7
73%
8.22
75%
Colorchecker dE 2000 calibrated *
4.6
Greyscale dE 2000 *
11.6
3
74%
4.26
63%
12.5
-8%
5.5
53%
3.1
73%
Gamma
1.91 115%
2.1 105%
2.37 93%
2.07 106%
2.08 106%
2.59 85%
CCT
11807 55%
7100 92%
7149 91%
14346 45%
7498 87%
6570 99%
Color Space (Percent of AdobeRGB 1998)
56.83
38
40.1
63.5
55
Color Space (Percent of sRGB)
86.86
58
62.7
86.92
84
Total Average (Program / Settings)
-4% / 20%
1% / 23%
-2% / 0%
-5% / 24%
77% / 74%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

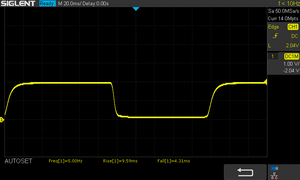

       Response Time Black to White
13.8 ms ... rise ↗ and fall ↘ combined↗ 9.5 ms rise
↘ 4.3 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 31 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
43.3 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 21.3 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 70 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 25970 Hz ≤ 19 % brightness setting

The display backlight flickers at 25970 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 19 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 25970 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit
Average of class Multimedia
  (99.6 - 323, n=86, last 2 years)
257 Points +77%
Acer Aspire 5 A517-51G-80L
Intel Core i7-8550U
171 Points +18%
HP Spectre x360 15t-bl100
Intel Core i7-8550U
154 Points +6%
Acer Swift 3 SF315-51G-57E5
Intel Core i5-8250U
145 Points 0%
Xiaomi Mi Notebook Pro i5
Intel Core i5-8250U
145 (144.66min - 144.78max) Points 0%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
Intel Core i5-8250U
145 Points 0%
Acer Aspire 5 A515-51G-509A
Intel Core i5-8250U
145 Points
Average Intel Core i5-8250U
  (81 - 147, n=97)
141.1 Points -3%
CPU Multi 64Bit
Average of class Multimedia
  (1252 - 4774, n=90, last 2 years)
2435 Points +370%
Acer Aspire 5 A517-51G-80L
Intel Core i7-8550U
585 Points +13%
Xiaomi Mi Notebook Pro i5
Intel Core i5-8250U
576 (544.28min - 575.47max) Points +11%
Average Intel Core i5-8250U
  (320 - 730, n=101)
570 Points +10%
Acer Swift 3 SF315-51G-57E5
Intel Core i5-8250U
560 Points +8%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
Intel Core i5-8250U
542 Points +5%
HP Spectre x360 15t-bl100
Intel Core i7-8550U
519 Points 0%
Acer Aspire 5 A515-51G-509A
Intel Core i5-8250U
518 Points
Cinebench R10 Shading 32Bit
4631
Cinebench R10 Rendering Multiple CPUs 32Bit
20995
Cinebench R10 Rendering Single 32Bit
7209
Cinebench R11.5 OpenGL 64Bit
64.5 fps
Cinebench R11.5 CPU Single 64Bit
1.65 Points
Cinebench R11.5 CPU Multi 64Bit
5.69 Points
Cinebench R15 CPU Single 64Bit
145 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
81.6 fps
Cinebench R15 CPU Multi 64Bit
518 Points
Ajuda
0306090120150180210240270300330360390420450480510540Tooltip
Acer Aspire 5 A515-51G-509A Intel Core i5-8250U: Ø493 (481.04-518.17)
Average Intel Core i5-8250U  : Ø526 (520-569)
PCMark 8
Home Score Accelerated v2
Acer Swift 3 SF315-51G-57E5
GeForce MX150, i5-8250U, Hynix HFS128G39TND
3935 Points +1%
Acer Aspire 5 A517-51G-80L
GeForce MX150, i5-8550U, Micron 1100 MTFDDAV256TBN
3910 Points 0%
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
3903 Points
Xiaomi Mi Notebook Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
3766 Points -4%
HP Spectre x360 15t-bl100
GeForce MX150, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
3457 Points -11%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
GeForce MX150, i5-8250U, Ramaxel RTNTE256PCA8EADL
3274 Points -16%
Work Score Accelerated v2
Acer Aspire 5 A517-51G-80L
GeForce MX150, i5-8550U, Micron 1100 MTFDDAV256TBN
5193 Points +9%
Acer Swift 3 SF315-51G-57E5
GeForce MX150, i5-8250U, Hynix HFS128G39TND
4992 Points +5%
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
4775 Points
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
GeForce MX150, i5-8250U, Ramaxel RTNTE256PCA8EADL
4760 Points 0%
Xiaomi Mi Notebook Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
4746 Points -1%
HP Spectre x360 15t-bl100
GeForce MX150, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
4217 Points -12%
PCMark 8 Home Score Accelerated v2
3903 pontos
PCMark 8 Creative Score Accelerated v2
4924 pontos
PCMark 8 Work Score Accelerated v2
4775 pontos
PCMark 10 Score
3175 pontos
Ajuda
Acer Aspire 5 A515-51G-509A
SK Hynix HFS256G39TND-N210A
Xiaomi Mi Notebook Pro i5
Samsung PM961 MZVLW256HEHP
Acer Swift 3 SF315-51G-57E5
Hynix HFS128G39TND
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
Ramaxel RTNTE256PCA8EADL
HP Spectre x360 15t-bl100
Samsung PM961 NVMe MZVLW512HMJP
Acer Aspire 5 A517-51G-80L
Micron 1100 MTFDDAV256TBN
Average SK Hynix HFS256G39TND-N210A

CrystalDiskMark 3.0
157%
-19%
5%
183%
-0%
-8%
Read Seq
499.5
1260
152%
481.5
-4%
530
6%
1248
150%
480.1
-4%
Write Seq
265.8
1241
367%
131.5
-51%
497.5
87%
1476
455%
385.6
45%
Read 512
314.3
1039
231%
324.8
3%
392
25%
849
170%
295.6
-6%
Write 512
266.3
827
211%
130.6
-51%
253.7
-5%
1118
320%
302.5
14%
Read 4k
29.24
60
105%
30.81
5%
29.67
1%
58.8
101%
27.58
-6%
Write 4k
78.4
154
96%
84.8
8%
78.3
0%
155.2
98%
81.4
4%
Read 4k QD32
402.5
526
31%
345
-14%
282.8
-30%
645
60%
247.4
-39%
Write 4k QD32
264.9
435
64%
131.6
-50%
149.8
-43%
547
106%
237.7
-10%
SK Hynix HFS256G39TND-N210A
Sequential Read: 499.5 MB/s
Sequential Write: 265.8 MB/s
512K Read: 314.3 MB/s
512K Write: 266.3 MB/s
4K Read: 29.24 MB/s
4K Write: 78.4 MB/s
4K QD32 Read: 402.5 MB/s
4K QD32 Write: 264.9 MB/s
3DMark 11 - 1280x720 Performance GPU
Average of class Multimedia
  (3505 - 60250, n=77, last 2 years)
20075 Points +597%
Acer Swift 3 SF315-51G-57E5
NVIDIA GeForce MX150, Intel Core i5-8250U
4742 Points +65%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
NVIDIA GeForce MX150, Intel Core i5-8250U
4582 Points +59%
HP Spectre x360 15t-bl100
NVIDIA GeForce MX150, Intel Core i7-8550U
4564 Points +58%
Acer Aspire 5 A517-51G-80L
NVIDIA GeForce MX150, Intel Core i7-8550U
4519 Points +57%
Xiaomi Mi Notebook Pro i5
NVIDIA GeForce MX150, Intel Core i5-8250U
4252 Points +48%
Acer Aspire 5 A515-51G-509A
NVIDIA GeForce MX130, Intel Core i5-8250U
2882 Points
Average NVIDIA GeForce MX130
  (2476 - 3203, n=14)
2872 Points 0%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Multimedia
  (14679 - 130614, n=38, last 2 years)
56887 Points +350%
Acer Swift 3 SF315-51G-57E5
NVIDIA GeForce MX150, Intel Core i5-8250U
21666 Points +71%
HP Spectre x360 15t-bl100
NVIDIA GeForce MX150, Intel Core i7-8550U
20470 Points +62%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
NVIDIA GeForce MX150, Intel Core i5-8250U
18940 Points +50%
Acer Aspire 5 A517-51G-80L
NVIDIA GeForce MX150, Intel Core i7-8550U
18188 Points +44%
Xiaomi Mi Notebook Pro i5
NVIDIA GeForce MX150, Intel Core i5-8250U
17552 Points +39%
Average NVIDIA GeForce MX130
  (12166 - 14880, n=13)
13617 Points +8%
Acer Aspire 5 A515-51G-509A
NVIDIA GeForce MX130, Intel Core i5-8250U
12654 Points
1920x1080 Fire Strike Graphics
Average of class Multimedia
  (1835 - 46022, n=80, last 2 years)
14437 Points +525%
Acer Swift 3 SF315-51G-57E5
NVIDIA GeForce MX150, Intel Core i5-8250U
3688 Points +60%
HP Spectre x360 15t-bl100
NVIDIA GeForce MX150, Intel Core i7-8550U
3563 Points +54%
Acer Aspire 5 A517-51G-80L
NVIDIA GeForce MX150, Intel Core i7-8550U
3542 Points +53%
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
NVIDIA GeForce MX150, Intel Core i5-8250U
3511 Points +52%
Xiaomi Mi Notebook Pro i5
NVIDIA GeForce MX150, Intel Core i5-8250U
3263 Points +41%
Average NVIDIA GeForce MX130
  (2149 - 2495, n=13)
2350 Points +2%
Acer Aspire 5 A515-51G-509A
NVIDIA GeForce MX130, Intel Core i5-8250U
2310 Points
3DMark 11 Performance
3159 pontos
3DMark Cloud Gate Standard Score
9860 pontos
3DMark Fire Strike Score
2179 pontos
3DMark Time Spy Score
725 pontos
Ajuda
FIFA 18
1920x1080 High Preset AA:2xMS
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
80 (56min - 90max) fps
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, i5-8550U, Samsung SSD PM981 MZVLB512HAJQ
78.1 fps
Acer Swift 3 SF315-51G-57E5
GeForce MX150, i5-8250U, Hynix HFS128G39TND
76.6 fps
Xiaomi Mi Notebook Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
73.2 fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
58.5 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
54.1 (39min - 59max) fps
1920x1080 Ultra Preset AA:4xMS
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, i5-8550U, Samsung SSD PM981 MZVLB512HAJQ
73 fps
Xiaomi Mi Notebook Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
72.3 fps
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
66 (54min - 72max) fps
Acer Swift 3 SF315-51G-57E5
GeForce MX150, i5-8250U, Hynix HFS128G39TND
59.5 fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
56.3 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
43.6 (33min - 47max) fps
Rocket League
1280x720 Performance
Xiaomi Mi Notebook Air 13.3 2018
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
156 (126min - 202max) fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
112.5 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
94 (74min - 127max) fps
HP Pavilion x360 14-ba011ng
GeForce 940MX, i5-7200U, Samsung CM871a MZNTY128HDHP
87 fps
1920x1080 Quality AA:Medium FX
Xiaomi Mi Notebook Air 13.3 2018
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
57.1 (48min - 75max) fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
45.8 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
40.9 (33min - 52max) fps
HP Pavilion x360 14-ba011ng
GeForce 940MX, i5-7200U, Samsung CM871a MZNTY128HDHP
31.3 fps
1920x1080 High Quality AA:High FX
Xiaomi Mi Notebook Air 13.3 2018
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
39.9 (32min - 56max) fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
32 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
28.9 (22min - 37max) fps
HP Pavilion x360 14-ba011ng
GeForce 940MX, i5-7200U, Samsung CM871a MZNTY128HDHP
20.7 fps
F1 2017
1280x720 Ultra Low Preset
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
78 (64min - 91max) fps
Samsung Notebook 9 NP900X5T-X01US
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
55 fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
51 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
50 (38min - 56max) fps
HP Pavilion x360 14-ba011ng
GeForce 940MX, i5-7200U, Samsung CM871a MZNTY128HDHP
43 fps
1920x1080 Medium Preset AF:4x
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
38 (33min - 42max) fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
25 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
25 (21min - 28max) fps
Samsung Notebook 9 NP900X5T-X01US
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
24 fps
HP Pavilion x360 14-ba011ng
GeForce 940MX, i5-7200U, Samsung CM871a MZNTY128HDHP
21 fps
1920x1080 High Preset AA:T AF:8x
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
30 (27min - 34max) fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
20 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
20 (18min - 22max) fps
Samsung Notebook 9 NP900X5T-X01US
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
19 fps
HP Pavilion x360 14-ba011ng
GeForce 940MX, i5-7200U, Samsung CM871a MZNTY128HDHP
17 fps
1920x1080 Ultra High Preset AA:T AF:16x
Samsung Notebook 9 NP900X5T-X01US
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
14 fps
HP Pavilion x360 14-ba011ng
GeForce 940MX, i5-7200U, Samsung CM871a MZNTY128HDHP
13 fps
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, i5-7200U, SK Hynix HFS256G3BTND
13 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
13 (10min - 14max) fps
Assassin´s Creed Origins
1280x720 Very Low Preset
Xiaomi Mi Notebook Air 13.3 2018
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
44 (6min - 68max) fps
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
42 (22min - 77max) fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
29 (21min - 36max) fps
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, i5-7200U, Micron SSD 1100 (MTFDDAV256TBN)
21 fps
1920x1080 Medium Preset
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
20 (7min - 25max) fps
Xiaomi Mi Notebook Air 13.3 2018
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
18 (2min - 39max) fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
13 (4min - 17max) fps
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, i5-7200U, Micron SSD 1100 (MTFDDAV256TBN)
10 fps
1920x1080 High Preset
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
16 (8min - 20max) fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
10 (4min - 14max) fps
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Xiaomi Mi Notebook Pro i7
GeForce MX150, i5-8550U, Samsung PM961 MZVLW256HEHP
32.2 (22min - 41max) fps
Xiaomi Mi Notebook Air 13.3 2018
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
29.3 (6min - 40max) fps
Asus ZenBook 13 UX331UN
GeForce MX150, i5-8550U, SK Hynix HFS256G39TND-N210A
28.3 fps
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
25.4 fps
Acer Aspire 5 A515-51G-509A
GeForce MX130, i5-8250U, SK Hynix HFS256G39TND-N210A
22.5 (6min - 29max) fps
baixomédiaaltoultra
Rocket League (2017) 94 40.9 28.9
F1 2017 (2017) 50 25 20 13
FIFA 18 (2017) 54.1 43.6
Middle-earth: Shadow of War (2017) 43 19 11
Assassin´s Creed Origins (2017) 29 13 10
Final Fantasy XV Benchmark (2018) 22.5

Barulho

Ocioso
31.4 / 31.9 / 32.2 dB
Carga
41 / 46.4 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 31.1 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.636.844.5394745.439.4253433.936.531.735.635.835.63131.931.833.432.934.633.430.44031.531.830.933.138.930.430.55030.631.831.230.733.929.530.3633132.431.732.432.73031.28028.127.229.428.228.929.327.210027.728.228.528.327.82826.812527.226.527.727.328.927.426.316031.72931.630.431.329.728.620029.526.629.929.129.127.726.625025.524.427.327.82828.726.431523.222.927.533.528.928.6224002122.728.833.930.530.422.750021.322.43134.132.231.221.563020.32129.531.631.528.920.480019.820.63034.331.429.920.3100019.219.929.336.233.130.418.9125018.82132.436.833.432.418.316001819.631.836.733.633.118200018.21930.434.832.130.418.125001818.830.435.731.63117.7315017.918.627.73630.927.417.4400017.71825.83328.126.217.5500017.717.925.132.927.625.617.7630017.818.222.430.324.822.917.6800017.91821.328.923.621.918.11000018.118.11924.220.119.218.112500181818.721.218.818.717.9160001818.218.419.118.318.518.1SPL31.431.94146.442.941.431.1N1.71.73.75.64.33.81.6median 18.8median 19.9median 28.5median 32.9median 29.1median 28.6median 18.3Delta32.83.43.33.53.42.338.439.235.542.238.434.733.933.335.934.729.929.630.627.929.930.531.929.129.830.532.332.731.830.832.333.133.335.535.633.128.5283029.128.527.22727.22827.225.324.525.92625.324.624.525.126.124.624.425.225.426.624.422.722.323.824.822.722.622.425.324.722.621.120.522.723.721.119.820.122.322.919.819.419.323.123.119.418.418.823.923.918.417.617.923.423.517.617.117.223.92417.116.316.624.524.216.316.116.324.824.816.115.815.922.822.315.815.815.721.321.715.815.615.519.420.115.615.715.718.719.115.715.715.717.71815.715.715.816.617.115.715.615.616.316.515.615.715.816.216.415.7161616.316.81629.429.479.634.434.529.41.31.344.82.12.11.3median 17.1median 17.2median 23.4median 23.5median 17.1median 15.33.33.32.32.83.314.138.940.837.739.841.241.940.333.435.83332.532.931.932.931.33231.832.132.330.732.431.23330.932.330.631.530.931.231.830.731.129.130.430.929.53130.53129.532.129.429.429.930.12827.929.428.626.727.431.927.630.427.728.426.327.228.526.827.726.527.826.526.827.928.127.327.227.325.726.627.626.526.726.426.324.324.62624.526.824.725.423.624.225.624.627.623.42422.723.530.72431.323.123.821.122.937.323.93920.823.420.121.33422.240.520.321.319.221.628.422.730.519.620.518.921.428.821.429.619.220.218.621.128.921.532.718.720.918.521.128.822.33218.321.217.720.828.821.230.818.220.417.520.329.921.332.318.120.217.519.430.521.233.918.119.517.61930.219.732.717.71917.718.328.718.330.917.518.217.71826.417.930.117.51817.618.12217.82417.717.817.817.820.717.82217.717.917.817.719.817.620.217.617.817.817.821.117.718.617.717.730.932.641.833.344.831.132.51.51.841.951.61.8median 18.6median 21.1median 28.7median 21.5median 30.4median 18.7median 20.52.42.92.22.632.33hearing rangehide median Fan NoiseAcer Aspire 5 A515-51G-509AAcer Aspire 5 A517-51G-80LXiaomi Mi Notebook Pro i5
 40 °C41 °C33 °C
 37 °C39 °C24 °C
 25 °C24 °C24 °C
Máximo: 41 °C
Médio: 31.9 °C
31 °C47 °C47 °C
26 °C49 °C40 °C
23 °C22 °C23 °C
Máximo: 49 °C
Médio: 34.2 °C
Temperatura do quarto 21 °C | Fluke 62 Mini
(+) The average temperature for the upper side under maximal load is 31.9 °C / 89 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41 °C / 106 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 49 °C / 120 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.3 °C / 76 F, compared to the device average of 31.3 °C / 88 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 28 °C / 82 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25 °C / 77 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+3.8 °C / 6.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.838.72533.533.63131.8324031.731.65030.830.46329.828.980282810027.726.812526.926.416028.835.720027.450.725023.459.331522.458.140021.458.150021.662.563019.666.980019.272.1100018.768.7125018.268.716001869.2200017.869.5250017.669.4315017.666400017.668.4500017.667.3630017.665.4800017.964.11000017.963.6125001862.8160001859.7SPL30.979.9N1.547.2median 18.2median 64.1Delta2.48.435.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAcer Aspire 5 A515-51G-509AApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Aspire 5 A515-51G-509A audio analysis

(±) | speaker loudness is average but good (79.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.2% lower than median
(±) | linearity of bass is average (13% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(+) | highs are linear (3.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.2% difference to median)
Compared to same class
» 59% of all tested devices in this class were better, 8% similar, 33% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 42% of all tested devices were better, 7% similar, 50% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Minimum power consumption during idle
Minimum power consumption during idle
Power consumption during the first 3DMark06 test
Power consumption during the first 3DMark06 test
Power consumption during our save game in The Witcher 3
Power consumption during our save game in The Witcher 3
Extreme loads with Furmark and Prime95
Extreme loads with Furmark and Prime95
Furmark with external display
Furmark with external display
Cinebench R15 power supply with external display
Cinebench R15 power supply with external display
Consumo de energia
desligadodarklight 0.19 / 0.47 Watt
Ociosodarkmidlight 5.1 / 7.6 / 8.2 Watt
Carga midlight 49.4 / 68 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer Aspire 5 A515-51G-509A
i5-8250U, GeForce MX130, SK Hynix HFS256G39TND-N210A, TN, 1920x1080, 15.6"
Xiaomi Mi Notebook Pro i5
i5-8250U, GeForce MX150, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.6"
Acer Swift 3 SF315-51G-57E5
i5-8250U, GeForce MX150, Hynix HFS128G39TND, IPS, 1920x1080, 15.6"
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
i5-8250U, GeForce MX150, Ramaxel RTNTE256PCA8EADL, TN LED, 1920x1080, 15.6"
HP Spectre x360 15t-bl100
i5-8550U, GeForce MX150, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6"
Acer Aspire 5 A517-51G-80L
i5-8550U, GeForce MX150, Micron 1100 MTFDDAV256TBN, aSi TFT, IPS, 1920x1080, 17.3"
Average NVIDIA GeForce MX130

Average of class Multimedia

Power Consumption
5%
8%
6%
-62%
-10%
0%
-52%
Idle Minimum *
5.1
3.7
27%
3.8
25%
4.03
21%
11.6
-127%
4.1
20%
Idle Average *
7.6
7.5
1%
6.5
14%
6.81
10%
13.8
-82%
9.3
-22%
Idle Maximum *
8.2
8
2%
9.1
-11%
8.34
-2%
14.2
-73%
9.8
-20%
9.08 ?(7 - 13, n=13)
-11%
Load Average *
49.4
49
1%
53.4
-8%
37.3
24%
67.9
-37%
64
-30%
54.1 ?(34 - 74.3, n=13)
-10%
Witcher 3 ultra *
42.1
50.6
-20%
52
-24%
59
-40%
Load Maximum *
68
55.2
19%
55.6
18%
65.5
4%
76.9
-13%
66.4
2%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
14h 27min
WiFi Websurfing
5h 50min
Big Buck Bunny H.264 1080p
8h 45min
Carga (máximo brilho)
2h 42min
Acer Aspire 5 A515-51G-509A
i5-8250U, GeForce MX130, 48 Wh
Xiaomi Mi Notebook Pro i5
i5-8250U, GeForce MX150, 60 Wh
Acer Swift 3 SF315-51G-57E5
i5-8250U, GeForce MX150, 49.7 Wh
Lenovo IdeaPad 320-15IKBRN 81BG001KGE
i5-8250U, GeForce MX150, 30 Wh
HP Spectre x360 15t-bl100
i5-8550U, GeForce MX150, 79.2 Wh
Acer Aspire 5 A517-51G-80L
i5-8550U, GeForce MX150, 48 Wh
Average of class Multimedia

Battery Runtime
22%
46%
-31%
13%
-28%
33%
Reader / Idle
867
631
-27%
934
8%
560
-35%
H.264
525
632
20%
300
-43%
321
-39%
WiFi v1.3
350
597
71%
511
46%
270
-23%
511
46%
377
8%
Load
162
122
-25%
110
-32%
136
-16%
89
-45%
Witcher 3 ultra
83

Pro

+ Carcaça de metal top
+ Baixo afogamento
+ GeForce MX130 dedicada
+ A carcaça lida bem com o resfriamento
+ Duas escotilhas de manutenção
+ Porta Ethernet

Contra

- Tela pobre em quase todas as áreas (brilho, cores, contraste)
- Teclado medíocre
- Carcaça relativamente grossa e grande
- Peso
- Desempenho WLAN
Provided by PCO Computer Handels GmbH
Provided by PCO Computer Handels GmbH

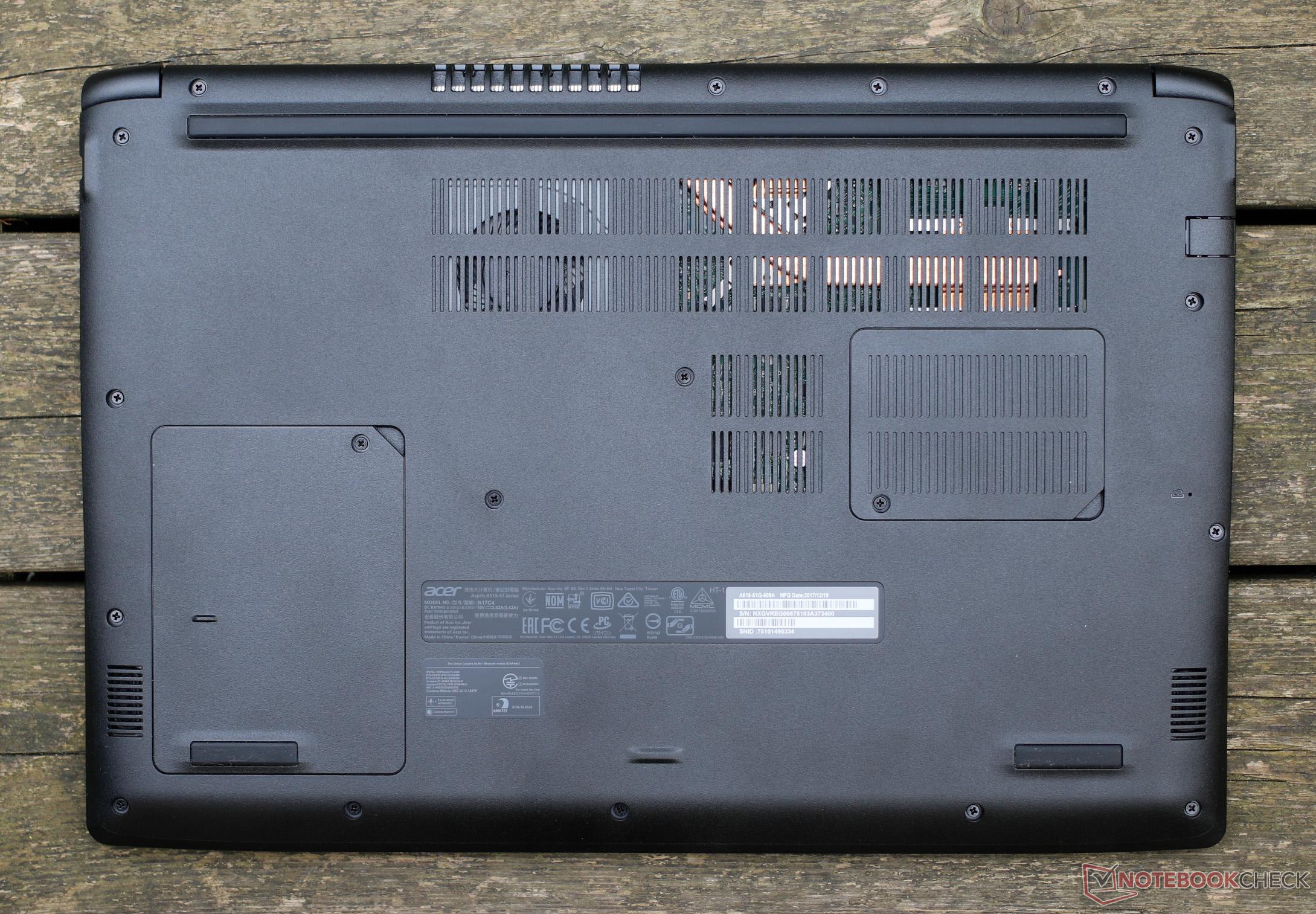

Olhando para o pacote, o Acer Aspire 5 poderia ter sido um sólido portátil multimídia se a tela não tivesse estragado a avaliação. Teríamos superado as pequenas deficiências, como ter apenas uma única conexão USB Tipo-A 3.0 ou as taxas de transferência de dados WLAN medíocres. Com a sua carcaça ligeiramente volumosa, com duas escotilhas de manutenção na parte inferior, o Aspire não parece ter sido construído com muita negligência. Apesar do preço do dispositivo, o teclado e o touchpad estão em um nível aceitável.

O significativo "porém" é claramente baseado na tela, o que faz com que a Acer caia em nossa avaliação. Infelizmente, os valores ruins de brilho, contraste, valor de preto e ColorChecker são irrefutáveis, assim como a falta de estabilidade dos ângulos de visão.

Isso também faz com que o Aspire perca alguns pontos em termos de mobilidade, já que ao sol direto em exteriores é difícil ver qualquer coisa na tela mate mesmo com o brilho no máximo. No desempenho gráfico, podemos dizer que, por um lado, uma placa gráfica dedicada é, naturalmente, sempre uma vantagem, mas, por outro lado, você não deve esperar muito do Uma GeForce MX130?, uma vez que seu desempenho claramente permanece atrás do MX150, e basicamente é apenas um novo GeForce 940MX. Os jogadores não devem, portanto, flertar demais com a ideia de adquirir o Aspire 5. No entanto, qualquer pessoa que ocasionalmente jogue alguns jogos e esteja procurando um dispositivo de 15 polegadas com um desempenho de sistema estável para uso doméstico que também ofereça um slot vazio de 2,5 polegadas para um disco rígido adicional pode encontrar um portátil acessível no Acer Aspire 5.

Acer Aspire 5 A515-51G-509A - 05/04/2018 v6 (old)
Daniel Puschina

Acabamento
83 / 98 → 84%
Teclado
77%
Mouse
94%
Conectividade
48 / 81 → 59%
Peso
62 / 20-67 → 89%
Bateria
89%
Pantalha
76%
Desempenho do jogos
72 / 85 → 84%
Desempenho da aplicação
89 / 92 → 97%
Temperatura
91%
Ruído
82 / 95 → 86%
Audio
50%
Camera
45 / 85 → 53%
Médio
74%
82%
Multimedia - Médio equilibrado

Price comparison

Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Acer Aspire 5 A515-51G-509A (8250U, MX130, FHD)
Daniel Puschina, 2018-05-11 (Update: 2018-06- 2)
