SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Dell XPS 15 7590 9980HK GTX 1650 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Average of class Multimedia (18.4 - 201, n=60, last 2 years) | |
Lenovo IdeaPad S540-14IWL (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
HP Omen 15-dc1020ng (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Lenovo IdeaPad S540-15IWL 81SW0015GE (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
maximum AS SSD Seq Read Test (1GB) | |
Dell XPS 15 7590 9980HK GTX 1650 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Average of class Multimedia (25.8 - 266, n=59, last 2 years) | |
Lenovo IdeaPad S540-14IWL (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
HP Omen 15-dc1020ng (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Lenovo IdeaPad S540-15IWL 81SW0015GE (Toshiba Exceria Pro SDXC 64 GB UHS-II) |
|
iluminação: 88 %
iluminação com acumulador: 332 cd/m²
Contraste: 1650:1 (Preto: 0.2 cd/m²)
ΔE Color 4.4 | 0.5-29.43 Ø4.92, calibrated: 2.7
ΔE Greyscale 4.8 | 0.5-98 Ø5.2
88.5% sRGB (Argyll 1.6.3 3D)
57.8% AdobeRGB 1998 (Argyll 1.6.3 3D)
64.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
88.7% sRGB (Argyll 2.2.0 3D)
64.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo IdeaPad S540-15IWL 81SW0015GE CMN N156HCE-EN1, , 1920x1080, 15.6" | HP Omen 15-dc1020ng LGD05CE, , 1920x1080, 15.6" | MSI PS63 Modern 8SC CMN N156HCE-EN1 (CMN15E8), , 1920x1080, 15.6" | Asus TUF FX505DT-EB73 Panda LM156LF-GL, , 1920x1080, 15.6" | Dell XPS 15 7590 9980HK GTX 1650 Samsung 156WR04, SDCA029, , 3840x2160, 15.6" | |
---|---|---|---|---|---|
Display | -38% | -1% | -36% | 30% | |
Display P3 Coverage | 64.9 | 38.37 -41% | 63.7 -2% | 39.56 -39% | 88.1 36% |
sRGB Coverage | 88.7 | 57.6 -35% | 87.7 -1% | 59.5 -33% | 99.6 12% |
AdobeRGB 1998 Coverage | 64.9 | 39.69 -39% | 64 -1% | 40.91 -37% | 91.8 41% |
Response Times | -1% | -6% | 15% | 29% | |
Response Time Grey 50% / Grey 80% * | 39.2 ? | 40 ? -2% | 41.6 ? -6% | 30.4 ? 22% | 2.3 ? 94% |
Response Time Black / White * | 29.6 ? | 29.6 ? -0% | 32.8 ? -11% | 27.6 ? 7% | 2.4 ? 92% |
PWM Frequency | 25510 ? | 25510 ? 0% | 59.5 ? -100% | ||
Screen | -35% | -6% | -42% | 8% | |
Brightness middle | 330 | 251 -24% | 207 -37% | 286.2 -13% | 421.2 28% |
Brightness | 315 | 232 -26% | 199 -37% | 267 -15% | 417 32% |
Brightness Distribution | 88 | 76 -14% | 84 -5% | 84 -5% | 94 7% |
Black Level * | 0.2 | 0.17 15% | 0.22 -10% | 0.33 -65% | |
Contrast | 1650 | 1476 -11% | 941 -43% | 867 -47% | |
Colorchecker dE 2000 * | 4.4 | 6.2 -41% | 3.77 14% | 5.45 -24% | 6.06 -38% |
Colorchecker dE 2000 max. * | 7.4 | 18.6 -151% | 5.98 19% | 18.08 -144% | 11.89 -61% |
Colorchecker dE 2000 calibrated * | 2.7 | 4.8 -78% | 2.59 4% | 4.47 -66% | |
Greyscale dE 2000 * | 4.8 | 4.2 12% | 3.22 33% | 5.3 -10% | 2.8 42% |
Gamma | 2.24 98% | 2.32 95% | 2.42 91% | 2.1 105% | 2.15 102% |
CCT | 6760 96% | 7454 87% | 7072 92% | 7679 85% | 6235 104% |
Color Space (Percent of AdobeRGB 1998) | 57.8 | 36.5 -37% | 57 -1% | 37.6 -35% | 81 40% |
Color Space (Percent of sRGB) | 88.5 | 57.4 -35% | 88 -1% | 59.1 -33% | 99.6 13% |
Total Average (Program / Settings) | -25% /
-32% | -4% /
-5% | -21% /
-34% | 22% /
17% |
* ... smaller is better
Display Response Times

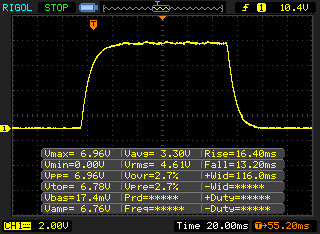

↔ Response Time Black to White | ||
---|---|---|
29.6 ms ... rise ↗ and fall ↘ combined | ↗ 16.4 ms rise | |
↘ 13.2 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 77 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

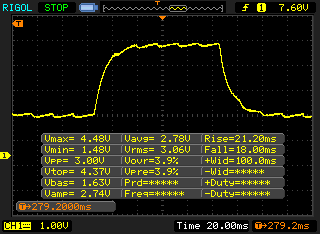

↔ Response Time 50% Grey to 80% Grey | ||
39.2 ms ... rise ↗ and fall ↘ combined | ↗ 21.2 ms rise | |
↘ 18 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 56 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |

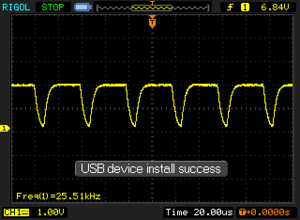

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 25510 Hz | ≤ 20 % brightness setting | |
The display backlight flickers at 25510 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25510 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Lenovo IdeaPad S540-15IWL 81SW0015GE | |
Average Intel Core i7-8565U (5474 - 9435, n=6) | |
Lenovo IdeaPad S540-14IWL | |
Rendering Multiple CPUs 64Bit | |
Lenovo IdeaPad S540-15IWL 81SW0015GE | |
Lenovo IdeaPad S540-14IWL | |
Average Intel Core i7-8565U (14542 - 26851, n=6) |
PCMark 8 Home Score Accelerated v2 | 3758 pontos | |
PCMark 8 Work Score Accelerated v2 | 5145 pontos | |
PCMark 10 Score | 4847 pontos | |
Ajuda |
Lenovo IdeaPad S540-15IWL 81SW0015GE Samsung PM981a MZVLB1T0HBLR | MSI PS63 Modern 8SC WDC PC SN520 SDAPNUW-512G | Asus TUF FX505DT-EB73 Intel SSD 660p SSDPEKNW512G8 | HP Omen 15-dc1020ng WDC PC SN720 SDAQNTW-512G | Average Samsung PM981a MZVLB1T0HBLR | |
---|---|---|---|---|---|
CrystalDiskMark 5.2 / 6 | -14% | -22% | 7% | 19% | |
Write 4K | 173 | 139.8 -19% | 137.5 -21% | 112.1 -35% | 139.7 ? -19% |
Read 4K | 51.9 | 46.24 -11% | 57 10% | 42.01 -19% | 49.9 ? -4% |
Write Seq | 1067 | 1346 26% | 984 -8% | 1964 84% | 2036 ? 91% |
Read Seq | 1024 | 1446 41% | 1564 53% | 2065 102% | 2014 ? 97% |
Write 4K Q32T1 | 462 | 346.8 -25% | 237.4 -49% | 318.2 -31% | 461 ? 0% |
Read 4K Q32T1 | 549 | 451.2 -18% | 340.7 -38% | 406.7 -26% | 499 ? -9% |
Write Seq Q32T1 | 3011 | 1456 -52% | 959 -68% | 2534 -16% | 2903 ? -4% |
Read Seq Q32T1 | 3520 | 1748 -50% | 1732 -51% | 3438 -2% | 3479 ? -1% |
AS SSD | -43% | -60% | -25% | -13% | |
Seq Read | 2170 | 1502 -31% | 1019 -53% | 2955 36% | 2553 ? 18% |
Seq Write | 2411 | 1372 -43% | 889 -63% | 2440 1% | 2084 ? -14% |
4K Read | 58.5 | 48 -18% | 48.22 -18% | 40.56 -31% | 53.1 ? -9% |
4K Write | 138.2 | 172.5 25% | 115.5 -16% | 118.6 -14% | 131.2 ? -5% |
4K-64 Read | 1671 | 1042 -38% | 321.5 -81% | 1283 -23% | 1477 ? -12% |
4K-64 Write | 1782 | 1182 -34% | 787 -56% | 1538 -14% | 1805 ? 1% |
Access Time Read * | 0.032 | 0.112 -250% | 0.065 -103% | 0.084 -163% | 0.04983 ? -56% |
Access Time Write * | 0.027 | 0.022 19% | 0.047 -74% | 0.032 -19% | 0.04222 ? -56% |
Score Read | 1947 | 1240 -36% | 472 -76% | 1619 -17% | 1786 ? -8% |
Score Write | 2161 | 1492 -31% | 992 -54% | 1901 -12% | 2144 ? -1% |
Score Total | 5123 | 3370 -34% | 1717 -66% | 4323 -16% | 4826 ? -6% |
Copy ISO MB/s | 942 | 1418 | 2098 ? | ||
Copy Program MB/s | 444.5 | 392.5 | 500 ? | ||
Copy Game MB/s | 867 | 907 | 1132 ? | ||
Total Average (Program / Settings) | -29% /
-30% | -41% /
-44% | -9% /
-11% | 3% /
0% |
* ... smaller is better
3DMark 11 Performance | 10679 pontos | |
3DMark Cloud Gate Standard Score | 20219 pontos | |
3DMark Fire Strike Score | 7107 pontos | |
Ajuda |
baixo | média | alto | ultra | |
---|---|---|---|---|
The Witcher 3 (2015) | 147 | 92 | 50 | 30.4 |
Dota 2 Reborn (2015) | 120 | 105 | 94 | 88 |
X-Plane 11.11 (2018) | 69 | 62 | 52.1 | |
Shadow of the Tomb Raider (2018) | 151 | 53 | 34 | 33 |
Lenovo IdeaPad S540-15IWL 81SW0015GE GeForce GTX 1650 Max-Q, i7-8565U, Samsung PM981a MZVLB1T0HBLR | MSI PS63 Modern 8SC GeForce GTX 1650 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G | Asus TUF FX505DT-EB73 GeForce GTX 1650 Mobile, R7 3750H, Intel SSD 660p SSDPEKNW512G8 | HP Omen 15-dc1020ng GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G | Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ | |
---|---|---|---|---|---|
Noise | -17% | -13% | -4% | 0% | |
off / environment * | 28.8 | 30 -4% | 28.2 2% | 28.8 -0% | 29.3 -2% |
Idle Minimum * | 28.9 | 32 -11% | 28.2 2% | 28.8 -0% | 29.3 -1% |
Idle Average * | 28.9 | 33 -14% | 28.2 2% | 29.5 -2% | 29.3 -1% |
Idle Maximum * | 30.1 | 34 -13% | 31.4 -4% | 31.1 -3% | 29.3 3% |
Load Average * | 34.6 | 44 -27% | 39.8 -15% | 35.2 -2% | 34.4 1% |
Witcher 3 ultra * | 34.6 | 41 -18% | 47 -36% | 35.2 -2% | 34.4 1% |
Load Maximum * | 34.6 | 45 -30% | 50.2 -45% | 41 -18% | 34.9 -1% |
* ... smaller is better
Barulho
Ocioso |
| 28.9 / 28.9 / 30.1 dB |
Carga |
| 34.6 / 34.6 dB |
| ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min: , med: , max: Audix TM1, Arta (15 cm de distância) environment noise: 28.8 dB(A) |
Lenovo IdeaPad S540-15IWL 81SW0015GE GeForce GTX 1650 Max-Q, i7-8565U, Samsung PM981a MZVLB1T0HBLR | MSI PS63 Modern 8SC GeForce GTX 1650 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G | Asus TUF FX505DT-EB73 GeForce GTX 1650 Mobile, R7 3750H, Intel SSD 660p SSDPEKNW512G8 | HP Omen 15-dc1020ng GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G | Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ | |
---|---|---|---|---|---|
Heat | -28% | -22% | -4% | -4% | |
Maximum Upper Side * | 42.5 | 56 -32% | 41.2 3% | 40.3 5% | 41.8 2% |
Maximum Bottom * | 45 | 60 -33% | 40 11% | 48.5 -8% | 43.3 4% |
Idle Upper Side * | 22.7 | 29 -28% | 34.6 -52% | 23.9 -5% | 25.1 -11% |
Idle Bottom * | 23 | 27 -17% | 34.4 -50% | 24.6 -7% | 25.4 -10% |
* ... smaller is better
(±) The maximum temperature on the upper side is 42.5 °C / 109 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 22.3 °C / 72 F, compared to the device average of 31.3 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.3 °C / 96 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.8 °C / 85.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1 °C / -1.8 F).
Lenovo IdeaPad S540-15IWL 81SW0015GE audio analysis
(-) | not very loud speakers (71.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.5% lower than median
(-) | bass is not linear (17% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.5% higher than median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(±) | linearity of highs is average (8.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.3% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 5% similar, 10% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 71% of all tested devices were better, 6% similar, 23% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%
desligado | 0.39 / 0.62 Watt |
Ocioso | 4.2 / 7.8 / 10.2 Watt |
Carga |
73.6 / 92.7 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Lenovo IdeaPad S540-15IWL 81SW0015GE i7-8565U, GeForce GTX 1650 Max-Q, Samsung PM981a MZVLB1T0HBLR, IPS, 1920x1080, 15.6" | MSI PS63 Modern 8SC i7-8565U, GeForce GTX 1650 Max-Q, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 15.6" | Asus TUF FX505DT-EB73 R7 3750H, GeForce GTX 1650 Mobile, Intel SSD 660p SSDPEKNW512G8, IPS, 1920x1080, 15.6" | HP Omen 15-dc1020ng i5-9300H, GeForce GTX 1650 Mobile, WDC PC SN720 SDAQNTW-512G, IPS, 1920x1080, 15.6" | Lenovo IdeaPad S540-14IWL i5-8265U, GeForce MX250, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14" | |
---|---|---|---|---|---|
Power Consumption | -10% | -29% | -15% | 26% | |
Idle Minimum * | 4.2 | 6 -43% | 7 -67% | 4.04 4% | 2.74 35% |
Idle Average * | 7.8 | 8 -3% | 9.9 -27% | 7.2 8% | 5.64 28% |
Idle Maximum * | 10.2 | 12 -18% | 12 -18% | 11.4 -12% | 8.4 18% |
Load Average * | 73.6 | 76 -3% | 68.4 7% | 80.8 -10% | 61.3 17% |
Witcher 3 ultra * | 75 | 60 20% | 94.9 -27% | 93.6 -25% | 49.2 34% |
Load Maximum * | 92.7 | 102 -10% | 130.9 -41% | 144.5 -56% | 69.4 25% |
* ... smaller is better
Lenovo IdeaPad S540-15IWL 81SW0015GE i7-8565U, GeForce GTX 1650 Max-Q, 70 Wh | Acer Aspire Nitro 5 AN515-54-53Z2 i5-9300H, GeForce GTX 1650 Mobile, 57 Wh | HP Omen 15-dc1020ng i5-9300H, GeForce GTX 1650 Mobile, 52.5 Wh | MSI PS63 Modern 8SC i7-8565U, GeForce GTX 1650 Max-Q, 82 Wh | Asus TUF FX505DT-EB73 R7 3750H, GeForce GTX 1650 Mobile, 48 Wh | Dell XPS 15 7590 9980HK GTX 1650 i9-9980HK, GeForce GTX 1650 Mobile, 97 Wh | Average of class Multimedia | |
---|---|---|---|---|---|---|---|
Battery Runtime | -17% | -29% | 10% | -36% | 30% | 5% | |
H.264 | 876 | 482 -45% | 821 ? -6% | ||||
WiFi v1.3 | 526 | 486 -8% | 385 -27% | 542 3% | 285 -46% | 467 -11% | 625 ? 19% |
Witcher 3 ultra | 63 | 59 -6% | 76.3 ? 21% | ||||
Load | 117 | 88 -25% | 71 -39% | 137 17% | 87 -26% | 199 70% | 97.8 ? -16% |
Reader / Idle | 1044 | 951 | 724 | 466 | 910 | 1168 ? |
Pro
Contra
Verdict - A good all-rounder with one significant weakness
A Lenovo oferece um pacote geral coerente, que é como deveria ser para um verdadeiro polivalente, mas raramente é alcançado pelos concorrentes: Uma ótima tela, um SSD muito rápido, componentes eficientes, um design elegante e fácil manutenção (se você tiver uma chave de fenda Torx) são apenas algumas das vantagens que vale a pena mencionar.
Obviamente, o IdeaPad também possui alguns pontos fracos, mas a maioria deles é mínima, como a falta de uma conexão LAN, pequenas quedas de desempenho (devido ao resfriamento) e a falta de um segundo slot de RAM. No entanto, precisamos apontar uma fraqueza significativa: Embora a Lenovo use um dos sistemas de refrigeração mais silenciosos em comparação, esse efeito positivo mensurável é desfeito por um ruído de alta frequência subjetivo e desagradável do ventilador. Isso deveria ser remediado pelo fabricante! Por outro lado, estudantes e outras pessoas que não são muito sensíveis podem querer comprá-lo por cerca de 1.100 Euros (~$1.203).
Aqueles cujos ouvidos são menos sensíveis ao ruído agudo do ventilador obterão um portátil versátil e equilibrado com o IdeaPad S540 de 15 polegadas, que oferece ótimos componentes e bom acabamento.
Lenovo IdeaPad S540-15IWL 81SW0015GE
- 09/30/2019 v7 (old)
Christian Hintze
