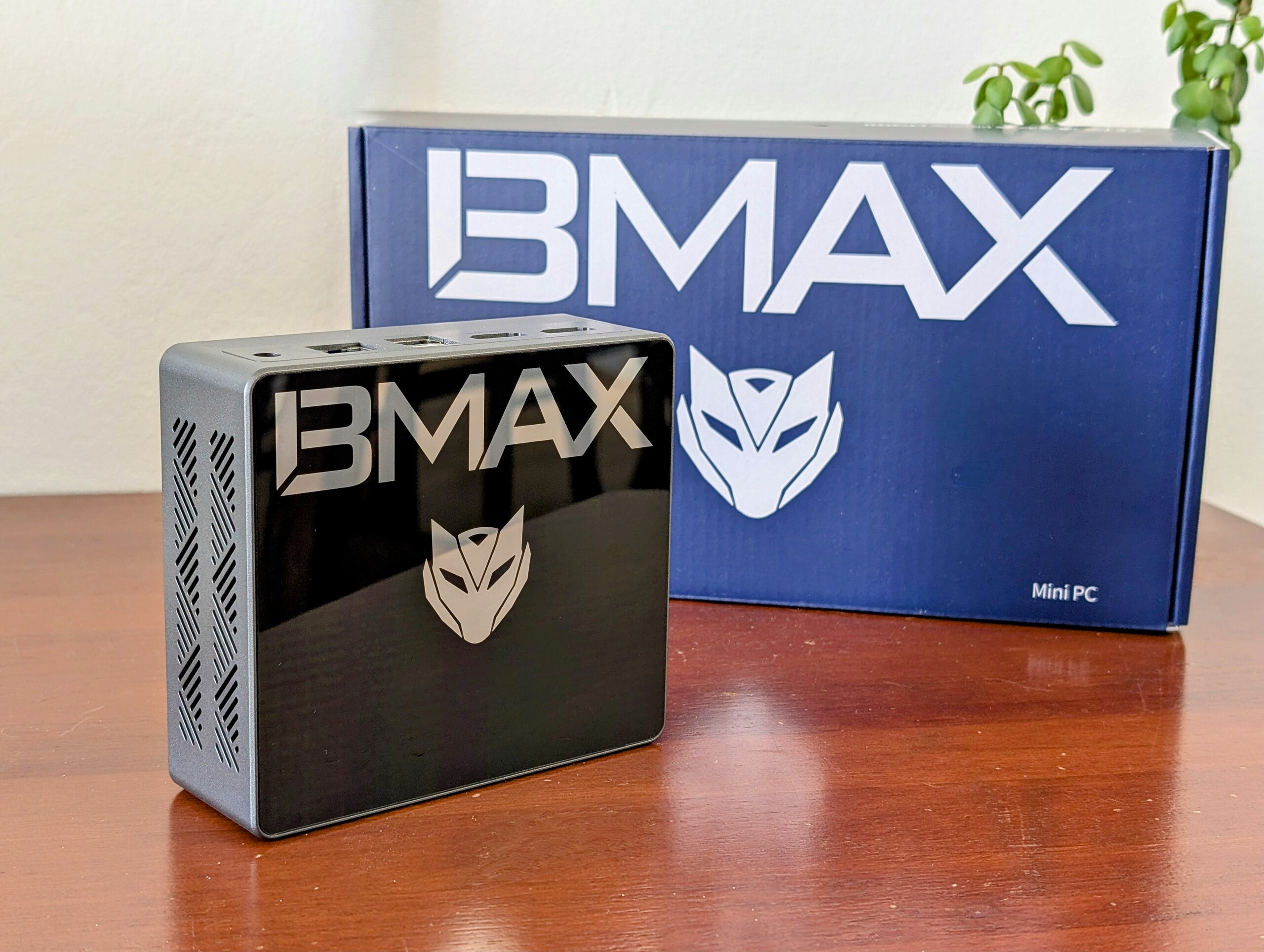

Análise do BMAX B4 Turbo: Mini PC econômico com Intel N150

Turbo com uma CPU de 6 W?

O B4 Turbo é vendido por menos de US$ 200, sendo um dos mini PCs prontos para uso mais baratos disponíveis sem recorrer a hardware muito antigo. Por outro lado, o processador Twin Lake não permite que o senhor faça muita coisa.
Allen Ngo, 👁 Allen Ngo (traduzido por DeepL / Ninh Duy) Publicado 🇺🇸 🇫🇷 ...
Mini PC Intel

Veredicto - Ótimo para as necessidades básicas de HTPC

Não é razoável esperar um processador rápido de um minicomputador pronto para uso vendido por menos de US$ 200. Embora a CPU Twin Lake N150 seja relativamente nova, ela ainda não chega perto das opções mais antigas do Core i3, como o Core i3-1115G4.

Para fins básicos de HTPC, como streaming de 1080p, servidores de impressão, música e outras cargas pouco exigentes ou de baixa multitarefa, no entanto, o B4 Max é suficiente na maior parte do tempo. O ruído da ventoinha e as velocidades sem fio poderiam ter sido mais silenciosas e mais rápidas, respectivamente, mas essas limitações não devem ser um problema em uma configuração de sala de estar de 1080p. Também apreciamos o suporte integrado para SSDs SAYA III de 2,5 polegadas, pois essa opção está se tornando cada vez mais incomum nos designs mais recentes.

Pro

+ suporta unidade SATA secundária de 2,5 polegadas
+ suporta montagem VESA
+ relativamente econômico
+ 3 portas de saída de vídeo
+ fácil manutenção

Contra

- cabo do adaptador CA relativamente curto
- reprodução imperfeita de vídeo 4K60
- rAM de canal único apenas
- desempenho lento do Wi-Fi
- a ventoinha está sempre ativa

Preço e disponibilidade

O BMax B4 Turbo está fora de estoque na Amazon e na loja oficial do fabricante https://www.bmaxit.com/MaxMini-B4-Turbo-16GB-1TB-pd536517658.html no momento em que este artigo foi escrito. O código de cupom temporário 'BMAXAnniversary5' é válido até 1º de abril para reduzir o preço para menos de US$ 150.

Amazon Logo
$179.00
Bmax N150 Mini PC,B4 Turbo Windows 11 Mini Desktop Computers 16GB DDR4 500GB M.2 SSD (up to 3.6 GHz,4C/4T),Triple Screen Display WiFi,4K,Type-C,Business,Home,Office PC
  • $12.99
    PWR+ 12V Power Supply for Bmax MaxMini B1 B2 B3 B4 B5 Pro Turbo Plus Mini PC Desktop Computer AC Adapter Extra Long Power Cord - (UL Listed Safety Certified)
  • $14.99
    PowerHOOD 12V AC/DC Adapter Compatible with Bmax B4 Turbo N150 Mini PC Small Desktop Computer 12VDC DC12V 12volt 12.0 Volts Power Supply Cord Wall Plug Charger Cable PSU Mains

Apesar do que o nome possa sugerir, o BMax B4 Turbo é um minicomputador de baixo custo com um processador N150 Twin Lake de baixa potência. Ele foi projetado mais para streaming ou aplicativos de servidor de orçamento do que para um PC primário ou sistema multimídia completo. Nossa unidade de teste pode ser encontrada on-line entre US$ 150 e US$ 200 com 16 GB de RAM, SSD de 512 GB e Windows 11 pré-instalado.

As alternativas incluem outros mini PCs econômicos, como o Acemagic S1, Beelink EQ14ou Asus NUC 14 Essential.

Mais análises da BMax:

Especificações

BMAX B4 Turbo
Processador
Intel Processor N150 4 x - 3.6 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Twin Lake
Placa gráfica
Intel UHD Graphics 24EUs (Alder Lake-N), Análises do: 1000 MHz, DDR5, 32.0.101.5972
Memória
16 GB
, DDR4-2666, Single-Channel, 19-19-19-43
placa mãe
Intel Alder Lake-N PCH
Placa de Som
Intel Alder Lake-N PCH - cAVS
Conexões
2 USB 2.0, 3 USB 3.0, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Conexões Audio: 3.5 mm combo
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0
Tamanho
altura x largura x profundidade (em mm): 44 x 125 x 112
Sistema Operativo
Microsoft Windows 11 Home
Características adicionais
12 Meses Garantia
peso
315 g, Suprimento de energia: 113 g
Preço
175 EUR
Nota: O fabricante pode utilizar componentes de diferentes fornecedores, incluindo painéis de exibição, unidades ou cartões de memória com especificações semelhantes.



Caso

O tamanho e os materiais são essencialmente idênticos aos do BMAX B7 Power exceto pelo fato de que a superfície superior agora é de plástico liso e brilhante. Como resultado, impressões digitais desagradáveis se acumulam facilmente na parte superior do sistema.

Comparação de tamanho

155 mm 126.5 mm 62 mm 1.2 kg135.6 mm 132.6 mm 50.1 mm 660 g135 mm 115 mm 36 mm 465 g128 mm 124 mm 42 mm 450 g125 mm 112 mm 44 mm 315 g125 mm 112 mm 44 mm 363 g126 mm 126 mm 39 mm 432 g210 mm 148 mm 1 mm 2.9 g

Conectividade

As opções de porta incluem todos os itens básicos, exceto uma DisplayPort de tamanho normal. Observe que a porta USB-C também pode ser usada para alimentação, caso o senhor perca o adaptador CA de barril incluído na caixa.

Frente: Botão Reset, fone de ouvido de 3,5 mm, USB-C com Power Delivery + DisplayPort, 2x USB-A 3.0, botão Power
Frente: Botão Reset, fone de ouvido de 3,5 mm, USB-C com Power Delivery + DisplayPort, 2x USB-A 3.0, botão Power
Traseira: 2x HDMI 2.1, 2x USB-A 2.0, RJ-45, adaptador CA
Traseira: 2x HDMI 2.1, 2x USB-A 2.0, RJ-45, adaptador CA

Comunicação

Networking
iperf3 transmit AXE11000
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
965 (927min - 1014max) MBit/s +284%
BMAX B7 Power G7A2
Realtek RTL8852BE
898 (858min - 935max) MBit/s +258%
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
636 (430min - 784max) MBit/s +153%
Acemagic S1
Realtek RTL8852BE
537 (512min - 556max) MBit/s +114%
Beelink EQ14
Intel Wi-Fi 6 AX101
432 (380min - 463max) MBit/s +72%
BMAX B4 Turbo
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
251 (226min - 264max) MBit/s
iperf3 receive AXE11000
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
956 (938min - 965max) MBit/s +258%
BMAX B7 Power G7A2
Realtek RTL8852BE
747 (374min - 763max) MBit/s +180%
Acemagic S1
Realtek RTL8852BE
707 (636min - 742max) MBit/s +165%
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
692 (506min - 872max) MBit/s +159%
Beelink EQ14
Intel Wi-Fi 6 AX101
460 (398min - 486max) MBit/s +72%
BMAX B4 Turbo
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
267 (232min - 293max) MBit/s
iperf3 transmit AXE11000 6GHz
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
1434 (1092min - 1585max) MBit/s
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
1400 (1199min - 1463max) MBit/s
iperf3 receive AXE11000 6GHz
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
1682 (1671min - 1693max) MBit/s
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
1560 (1528min - 1585max) MBit/s
050100150200250Tooltip
BMAX B4 Turbo; iperf3 transmit AXE11000; iperf 3.1.3: Ø251 (226-264)
BMAX B4 Turbo; iperf3 receive AXE11000; iperf 3.1.3: Ø266 (232-293)

Manutenção

O painel inferior pode ser removido com apenas uma chave de fenda Phillips. Há suporte para uma unidade secundária SATA III de 2,5 polegadas, enquanto a RAM está limitada a apenas um slot.

Opções de atualização do B4 Turbo
Opções de atualização do B4 Turbo

Sustentabilidade

A BMax não anuncia medidas explícitas de sustentabilidade tomadas durante o processo de fabricação.

Acessórios e garantia

A caixa de varejo inclui um cabo HDMI e um suporte VESA removível, além do adaptador CA e da documentação.

Desempenho




Condições de teste

Colocamos o Windows no modo Desempenho antes de executar os benchmarks abaixo.

Processador

O N150 funciona 15 e 25 por cento mais rápido do que o N100 em cargas de trabalho de thread único e multi-thread, respectivamente.

Cinebench R15 Multi Loop

055110165220275330385440495550605660715770825880935990Tooltip
BMAX B4 Turbo Intel Processor N150: Ø380 (363.55-401.51)
BMAX B7 Power G7A2 Intel Core i7-11390H: Ø695 (685.89-775.39)
Beelink EQ14 Intel Processor N150: Ø437 (433.6-454.68)
Asus NUC 14 Essential Intel Core 3 N355: Ø804 (728.77-884.19)
MSI Cubi NUC 1M Intel Core 7 150U: Ø971 (535.59-1039.66)
Newsmay AC8F-POE Intel Processor N100: Ø295 (290.65-304.47)
Acemagic S1 Intel Processor N97: Ø462 (454.89-465.38)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
94.4 pt
MSI Cubi NUC 1M
Intel Core 7 150U
74.9 pt
BMAX B7 Power G7A2
Intel Core i7-11390H
56.5 pt
Asus NUC 14 Essential
Intel Core 3 N355
46.8 pt
Acemagic S1
Intel Processor N97
38.1 pt
Beelink EQ14
Intel Processor N150
36.3 pt
Média Intel Processor N150

35.4 pt
BMAX B4 Turbo
Intel Processor N150
34.6 pt
Newsmay AC8F-POE
Intel Processor N100
29.3 pt
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
20.7 pt
Cinebench R23 / Multi Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
15012 Points +518%
MSI Cubi NUC 1M
Intel Core 7 150U
7226 (6983.97min - 7226.42max) Points +198%
Asus NUC 14 Essential
Intel Core 3 N355
5262 Points +117%
BMAX B7 Power G7A2
Intel Core i7-11390H
4570 Points +88%
Acemagic S1
Intel Processor N97
2913 Points +20%
Beelink EQ14
Intel Processor N150
2753 (2705.91min - 2753.1max) Points +13%
Média Intel Processor N150
  (2428 - 2753, n=2)
2591 Points +7%
BMAX B4 Turbo
Intel Processor N150
2428 (2385.1min - 2428.32max) Points
Newsmay AC8F-POE
Intel Processor N100
1946 Points -20%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1406 Points -42%
Cinebench R23 / Single Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
1917 Points +102%
MSI Cubi NUC 1M
Intel Core 7 150U
1878 Points +98%
BMAX B7 Power G7A2
Intel Core i7-11390H
1407 Points +48%
Asus NUC 14 Essential
Intel Core 3 N355
1039 Points +9%
Acemagic S1
Intel Processor N97
973 Points +3%
BMAX B4 Turbo
Intel Processor N150
949 Points
Média Intel Processor N150
  (943 - 949, n=2)
946 Points 0%
Beelink EQ14
Intel Processor N150
943 Points -1%
Newsmay AC8F-POE
Intel Processor N100
843 Points -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
690 Points -27%
Cinebench R20 / CPU (Multi Core)
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
5811 Points +523%
MSI Cubi NUC 1M
Intel Core 7 150U
2821 Points +202%
Asus NUC 14 Essential
Intel Core 3 N355
2015 Points +116%
BMAX B7 Power G7A2
Intel Core i7-11390H
1767 Points +89%
Acemagic S1
Intel Processor N97
1115 Points +20%
Beelink EQ14
Intel Processor N150
1051 Points +13%
Média Intel Processor N150
  (933 - 1051, n=2)
992 Points +6%
BMAX B4 Turbo
Intel Processor N150
933 Points
Newsmay AC8F-POE
Intel Processor N100
748 Points -20%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
542 Points -42%
Cinebench R20 / CPU (Single Core)
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
736 Points +103%
MSI Cubi NUC 1M
Intel Core 7 150U
718 Points +98%
BMAX B7 Power G7A2
Intel Core i7-11390H
550 Points +52%
Asus NUC 14 Essential
Intel Core 3 N355
393 Points +9%
Acemagic S1
Intel Processor N97
371 Points +2%
BMAX B4 Turbo
Intel Processor N150
362 Points
Média Intel Processor N150
  (359 - 362, n=2)
361 Points 0%
Beelink EQ14
Intel Processor N150
359 Points -1%
Newsmay AC8F-POE
Intel Processor N100
326 Points -10%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
265 Points -27%
Cinebench R15 / CPU Multi 64Bit
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
2435 Points +506%
MSI Cubi NUC 1M
Intel Core 7 150U
1040 (535.59min - 1039.66max) Points +159%
Asus NUC 14 Essential
Intel Core 3 N355
822 Points +104%
BMAX B7 Power G7A2
Intel Core i7-11390H
775 (685.89min - 775.39max) Points +93%
Acemagic S1
Intel Processor N97
479 Points +19%
Beelink EQ14
Intel Processor N150
455 (433.6min - 454.68max) Points +13%
Média Intel Processor N150
  (402 - 455, n=2)
429 Points +7%
BMAX B4 Turbo
Intel Processor N150
402 (363.55min - 401.51max) Points
Newsmay AC8F-POE
Intel Processor N100
298 Points -26%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
219 Points -46%
Cinebench R15 / CPU Single 64Bit
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
273 Points +77%
MSI Cubi NUC 1M
Intel Core 7 150U
258 Points +67%
BMAX B7 Power G7A2
Intel Core i7-11390H
209 Points +35%
Asus NUC 14 Essential
Intel Core 3 N355
168 Points +9%
Acemagic S1
Intel Processor N97
161 Points +4%
Beelink EQ14
Intel Processor N150
156.4 Points +1%
Média Intel Processor N150
  (154.3 - 156.4, n=2)
155.4 Points +1%
BMAX B4 Turbo
Intel Processor N150
154.3 Points
Newsmay AC8F-POE
Intel Processor N100
138 Points -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
113 Points -27%
Blender / v2.79 BMW27 CPU
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
2150 Seconds * -74%
Newsmay AC8F-POE
Intel Processor N100
1522 Seconds * -23%
BMAX B4 Turbo
Intel Processor N150
1233 Seconds *
Média Intel Processor N150
  (1094 - 1233, n=2)
1164 Seconds * +6%
Beelink EQ14
Intel Processor N150
1094 Seconds * +11%
Acemagic S1
Intel Processor N97
1020 Seconds * +17%
BMAX B7 Power G7A2
Intel Core i7-11390H
665 Seconds * +46%
Asus NUC 14 Essential
Intel Core 3 N355
574 Seconds * +53%
MSI Cubi NUC 1M
Intel Core 7 150U
451 Seconds * +63%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
223 Seconds * +82%
7-Zip 18.03 / 7z b 4
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
54851 MIPS +391%
MSI Cubi NUC 1M
Intel Core 7 150U
31447 MIPS +182%
Asus NUC 14 Essential
Intel Core 3 N355
23225 MIPS +108%
BMAX B7 Power G7A2
Intel Core i7-11390H
20822 MIPS +86%
Acemagic S1
Intel Processor N97
13174 MIPS +18%
Beelink EQ14
Intel Processor N150
12321 MIPS +10%
Média Intel Processor N150
  (11171 - 12321, n=2)
11746 MIPS +5%
BMAX B4 Turbo
Intel Processor N150
11171 MIPS
Newsmay AC8F-POE
Intel Processor N100
8725 MIPS -22%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
7146 MIPS -36%
7-Zip 18.03 / 7z b 4 -mmt1
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
6198 MIPS +61%
MSI Cubi NUC 1M
Intel Core 7 150U
5898 MIPS +53%
BMAX B7 Power G7A2
Intel Core i7-11390H
5539 MIPS +44%
Asus NUC 14 Essential
Intel Core 3 N355
4044 MIPS +5%
Acemagic S1
Intel Processor N97
4019 MIPS +4%
Beelink EQ14
Intel Processor N150
3906 MIPS +1%
Média Intel Processor N150
  (3859 - 3906, n=2)
3883 MIPS +1%
BMAX B4 Turbo
Intel Processor N150
3859 MIPS
Newsmay AC8F-POE
Intel Processor N100
3583 MIPS -7%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
3230 MIPS -16%
Geekbench 6.4 / Multi-Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
10644 Points +257%
MSI Cubi NUC 1M
Intel Core 7 150U
8756 Points +194%
Asus NUC 14 Essential
Intel Core 3 N355
5088 Points +71%
BMAX B7 Power G7A2
Intel Core i7-11390H
5066 Points +70%
Acemagic S1
Intel Processor N97
3181 Points +7%
Beelink EQ14
Intel Processor N150
3093 Points +4%
Média Intel Processor N150
  (2980 - 3093, n=2)
3037 Points +2%
BMAX B4 Turbo
Intel Processor N150
2980 Points
Newsmay AC8F-POE
Intel Processor N100
2780 Points -7%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1660 Points -44%
Geekbench 6.4 / Single-Core
MSI Cubi NUC 1M
Intel Core 7 150U
2646 Points +112%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
2583 Points +107%
BMAX B7 Power G7A2
Intel Core i7-11390H
2114 Points +69%
Asus NUC 14 Essential
Intel Core 3 N355
1344 Points +8%
Acemagic S1
Intel Processor N97
1300 Points +4%
Beelink EQ14
Intel Processor N150
1255 Points 0%
Média Intel Processor N150
  (1249 - 1255, n=2)
1252 Points 0%
BMAX B4 Turbo
Intel Processor N150
1249 Points
Newsmay AC8F-POE
Intel Processor N100
1209 Points -3%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
956 Points -23%
Geekbench 5.5 / Multi-Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
10543 Points +309%
MSI Cubi NUC 1M
Intel Core 7 150U
7788 Points +202%
Asus NUC 14 Essential
Intel Core 3 N355
4903 Points +90%
BMAX B7 Power G7A2
Intel Core i7-11390H
4457 Points +73%
Acemagic S1
Intel Processor N97
2757 Points +7%
Beelink EQ14
Intel Processor N150
2667 Points +3%
Média Intel Processor N150
  (2579 - 2667, n=2)
2623 Points +2%
BMAX B4 Turbo
Intel Processor N150
2579 Points
Newsmay AC8F-POE
Intel Processor N100
2332 Points -10%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1540 Points -40%
Geekbench 5.5 / Single-Core
MSI Cubi NUC 1M
Intel Core 7 150U
1910 Points +93%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
1898 Points +92%
BMAX B7 Power G7A2
Intel Core i7-11390H
1486 Points +50%
Asus NUC 14 Essential
Intel Core 3 N355
1082 Points +9%
Acemagic S1
Intel Processor N97
1060 Points +7%
Beelink EQ14
Intel Processor N150
1020 Points +3%
Média Intel Processor N150
  (991 - 1020, n=2)
1006 Points +2%
BMAX B4 Turbo
Intel Processor N150
991 Points
Newsmay AC8F-POE
Intel Processor N100
975 Points -2%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
928 Points -6%
HWBOT x265 Benchmark v2.2 / 4k Preset
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
16.4 fps +484%
MSI Cubi NUC 1M
Intel Core 7 150U
8.57 fps +205%
Asus NUC 14 Essential
Intel Core 3 N355
5.85 fps +108%
BMAX B7 Power G7A2
Intel Core i7-11390H
5.84 fps +108%
Acemagic S1
Intel Processor N97
3.49 fps +24%
Beelink EQ14
Intel Processor N150
3.21 fps +14%
Média Intel Processor N150
  (2.81 - 3.21, n=2)
3.01 fps +7%
BMAX B4 Turbo
Intel Processor N150
2.81 fps
Newsmay AC8F-POE
Intel Processor N100
2.12 fps -25%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1.52 fps -46%
LibreOffice / 20 Documents To PDF
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
120 s * -46%
Newsmay AC8F-POE
Intel Processor N100
100.2 s * -22%
Asus NUC 14 Essential
Intel Core 3 N355
86.4 s * -5%
BMAX B4 Turbo
Intel Processor N150
82.1 s *
Média Intel Processor N150
  (79.3 - 82.1, n=2)
80.7 s * +2%
Beelink EQ14
Intel Processor N150
79.3 s * +3%
Acemagic S1
Intel Processor N97
75.7 s * +8%
BMAX B7 Power G7A2
Intel Core i7-11390H
52.6 s * +36%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
46 s * +44%
MSI Cubi NUC 1M
Intel Core 7 150U
37.9 s * +54%
R Benchmark 2.5 / Overall mean
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1.149 sec * -31%
Newsmay AC8F-POE
Intel Processor N100
0.975 sec * -11%
BMAX B4 Turbo
Intel Processor N150
0.88 sec *
Média Intel Processor N150
  (0.846 - 0.88, n=2)
0.863 sec * +2%
Beelink EQ14
Intel Processor N150
0.846 sec * +4%
Asus NUC 14 Essential
Intel Core 3 N355
0.801 sec * +9%
Acemagic S1
Intel Processor N97
0.789 sec * +10%
BMAX B7 Power G7A2
Intel Core i7-11390H
0.571 sec * +35%
MSI Cubi NUC 1M
Intel Core 7 150U
0.4438 sec * +50%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
0.4356 sec * +50%

* ... menor é melhor

Cinebench R15 CPU Multi 64Bit
402 Points
Cinebench R15 OpenGL 64Bit
46.5 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
154.3 Points
Cinebench R20 CPU (Multi Core)
933 Points
Cinebench R20 CPU (Single Core)
362 Points
Cinebench R23 Single Core
949 Points
Cinebench R23 Multi Core
2428 Points
Cinebench 2024 CPU Single Core
60.4 Points
Cinebench 2024 CPU Multi Core
155.5 Points
Ajuda
Performance Rating
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
95.1 pt
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
83.4 pt
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
66.7 pt
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
37 pt
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
34.1 pt
Média Intel Processor N150

32.5 pt
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
30.8 pt
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
24.8 pt
AIDA64 / FP32 Ray-Trace
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
6306 KRay/s +216%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
5904 KRay/s +196%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
4535 KRay/s +127%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
2204 KRay/s +10%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
2172 KRay/s +9%
Média Intel Processor N150
  (1995 - 2172, n=2)
2084 KRay/s +4%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1995 KRay/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
1449 KRay/s -27%
AIDA64 / FPU Julia
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
32582 Points +232%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
25054 Points +156%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
22322 Points +128%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
11550 Points +18%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
11281 Points +15%
Média Intel Processor N150
  (9804 - 11281, n=2)
10543 Points +8%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
9804 Points
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
7395 Points -25%
AIDA64 / CPU SHA3
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
1747 MB/s +178%
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
1656 MB/s +163%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
1489 MB/s +137%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
808 MB/s +28%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
751 MB/s +19%
Média Intel Processor N150
  (629 - 751, n=2)
690 MB/s +10%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
629 MB/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
476 MB/s -24%
AIDA64 / CPU Queen
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
62280 Points +180%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
48368 Points +117%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
41583 Points +87%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
22866 Points +3%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
22407 Points +1%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
22334 Points 0%
Média Intel Processor N150
  (22243 - 22334, n=2)
22289 Points 0%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
22243 Points
AIDA64 / FPU SinJulia
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
4387 Points +293%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
4106 Points +268%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
2359 Points +111%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
1136 Points +2%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1118 Points 0%
Média Intel Processor N150
  (1116 - 1118, n=2)
1117 Points 0%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1116 Points
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
1019 Points -9%
AIDA64 / FPU Mandel
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
16042 Points +229%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
15441 Points +216%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
10882 Points +123%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
5834 Points +20%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
5448 Points +12%
Média Intel Processor N150
  (4882 - 5448, n=2)
5165 Points +6%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
4882 Points
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
3732 Points -24%
AIDA64 / CPU AES
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
58575 MB/s +428%
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
33007 MB/s +197%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
23724 MB/s +114%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
22028 MB/s +98%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
11103 MB/s
Média Intel Processor N150
  (11025 - 11103, n=2)
11064 MB/s 0%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
11025 MB/s -1%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
9214 MB/s -17%
AIDA64 / CPU ZLib
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
491 MB/s +167%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
447 MB/s +143%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
362 MB/s +97%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
220 MB/s +20%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
216 MB/s +17%
Média Intel Processor N150
  (184 - 216, n=2)
200 MB/s +9%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
184 MB/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
140.8 MB/s -23%
AIDA64 / FP64 Ray-Trace
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
3417 KRay/s +237%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
3138 KRay/s +210%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
2263 KRay/s +123%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
1190 KRay/s +17%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1166 KRay/s +15%
Média Intel Processor N150
  (1013 - 1166, n=2)
1090 KRay/s +8%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1013 KRay/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
754 KRay/s -26%
AIDA64 / CPU PhotoWorxx
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
37889 MPixel/s +203%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
20884 MPixel/s +67%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
14155 MPixel/s +13%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
13876 MPixel/s +11%
Média Intel Processor N150
  (12501 - 13876, n=2)
13189 MPixel/s +6%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
12501 MPixel/s
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
11409 MPixel/s -9%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
9750 MPixel/s -22%

Desempenho do sistema

PCMark 10 Standard
PCMark 10 Standard
PCMark 10 / Score
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
6080 Points +99%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
4598 Points +51%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
3817 Points +25%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
3435 Points +13%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
3050 Points
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2789 Points -9%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
2786 Points -9%
PCMark 10 / Essentials
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
10856 Points +86%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
9188 Points +57%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
7416 Points +27%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
7148 Points +22%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
6068 Points +4%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
5895 Points +1%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
5842 Points
PCMark 10 / Productivity
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
8387 Points +72%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
6442 Points +32%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
5122 Points +5%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
4952 Points +2%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
4867 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
4479 Points -8%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
4245 Points -13%
PCMark 10 / Digital Content Creation
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
6701 Points +147%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
4459 Points +65%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
4124 Points +52%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
2996 Points +11%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2708 Points
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2355 Points -13%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
2161 Points -20%
CrossMark / Overall
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1734 Points +143%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1274 Points +78%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
907 Points +27%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
844 Points +18%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
756 Points +6%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
715 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
706 Points -1%
CrossMark / Productivity
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1778 Points +124%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1399 Points +76%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
933 Points +18%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
930 Points +17%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
827 Points +4%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
794 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
779 Points -2%
CrossMark / Creativity
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1708 Points +151%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1198 Points +76%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
918 Points +35%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
751 Points +10%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
719 Points +6%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
681 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
672 Points -1%
CrossMark / Responsiveness
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1685 Points +179%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1159 Points +92%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
896 Points +49%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
805 Points +33%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
671 Points +11%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
608 Points +1%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
603 Points
WebXPRT 3 / Overall
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
311 Points +80%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
191.4 Points +11%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
182.4 Points +6%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
174.3 Points +1%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
172.3 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
163.3 Points -5%
WebXPRT 4 / Overall
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
271 Points +100%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
149.3 Points +10%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
145.3 Points +7%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
135.3 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
130.3 Points -4%
Mozilla Kraken 1.1 / Total
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
1083 ms * -3%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
1047 ms *
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
1044 ms * -0%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
975 ms * +7%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
968 ms * +8%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
647 ms * +38%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
647 ms * +38%
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
489 ms * +53%

* ... menor é melhor

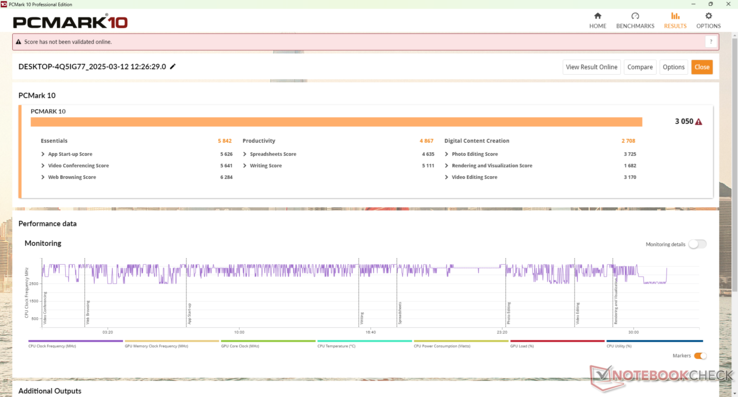

PCMark 10 Score
3050 pontos
Ajuda
AIDA64 / Memory Copy
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
59609 MB/s +222%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
29617 MB/s +60%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
22240 MB/s +20%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
22018 MB/s +19%
Média Intel Processor N150
  (18528 - 22240, n=2)
20384 MB/s +10%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
19409 MB/s +5%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
18620 MB/s 0%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
18528 MB/s
AIDA64 / Memory Read
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
68780 MB/s +256%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
32903 MB/s +70%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
23505 MB/s +22%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
23165 MB/s +20%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
21253 MB/s +10%
Média Intel Processor N150
  (19320 - 23165, n=2)
21243 MB/s +10%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
19509 MB/s +1%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
19320 MB/s
AIDA64 / Memory Write
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
60626 MB/s +210%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
30579 MB/s +56%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
23191 MB/s +19%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
23127 MB/s +18%
Média Intel Processor N150
  (19560 - 23191, n=2)
21376 MB/s +9%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
19684 MB/s +1%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
19560 MB/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
19528 MB/s 0%
AIDA64 / Memory Latency
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
74.5 ns * -44%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
66.3 ns * -28%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
52.2 ns * -1%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
51.8 ns *
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
49.5 ns * +4%
Média Intel Processor N150
  (47.1 - 51.8, n=2)
49.5 ns * +4%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
47.1 ns * +9%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
45 ns * +13%

* ... menor é melhor

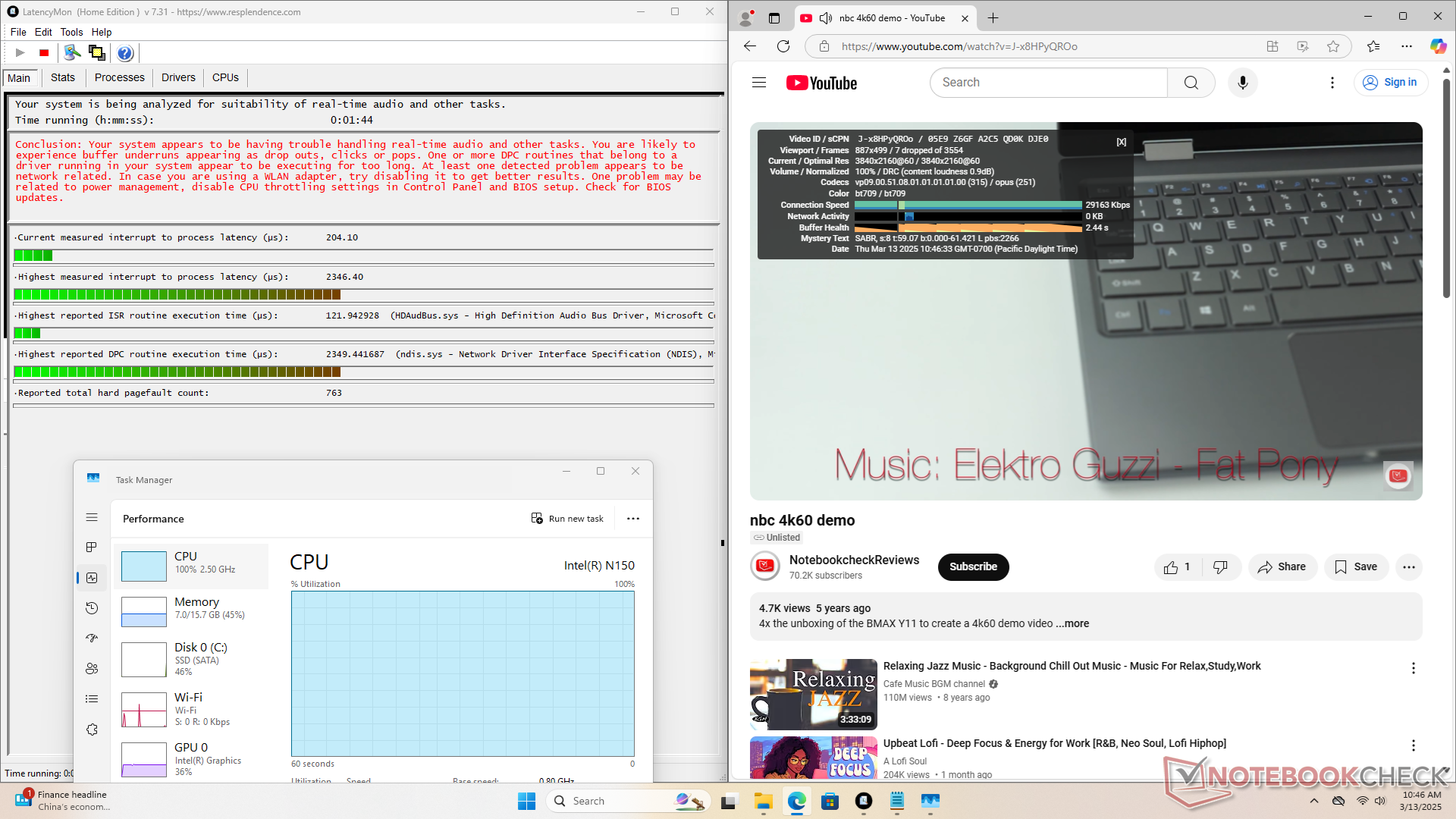

Latência DPC

Conseguimos registrar 7 quadros perdidos durante um teste de reprodução de vídeo 4k60 de um minuto, quando o ideal seria que não houvesse nenhum quadro perdido.

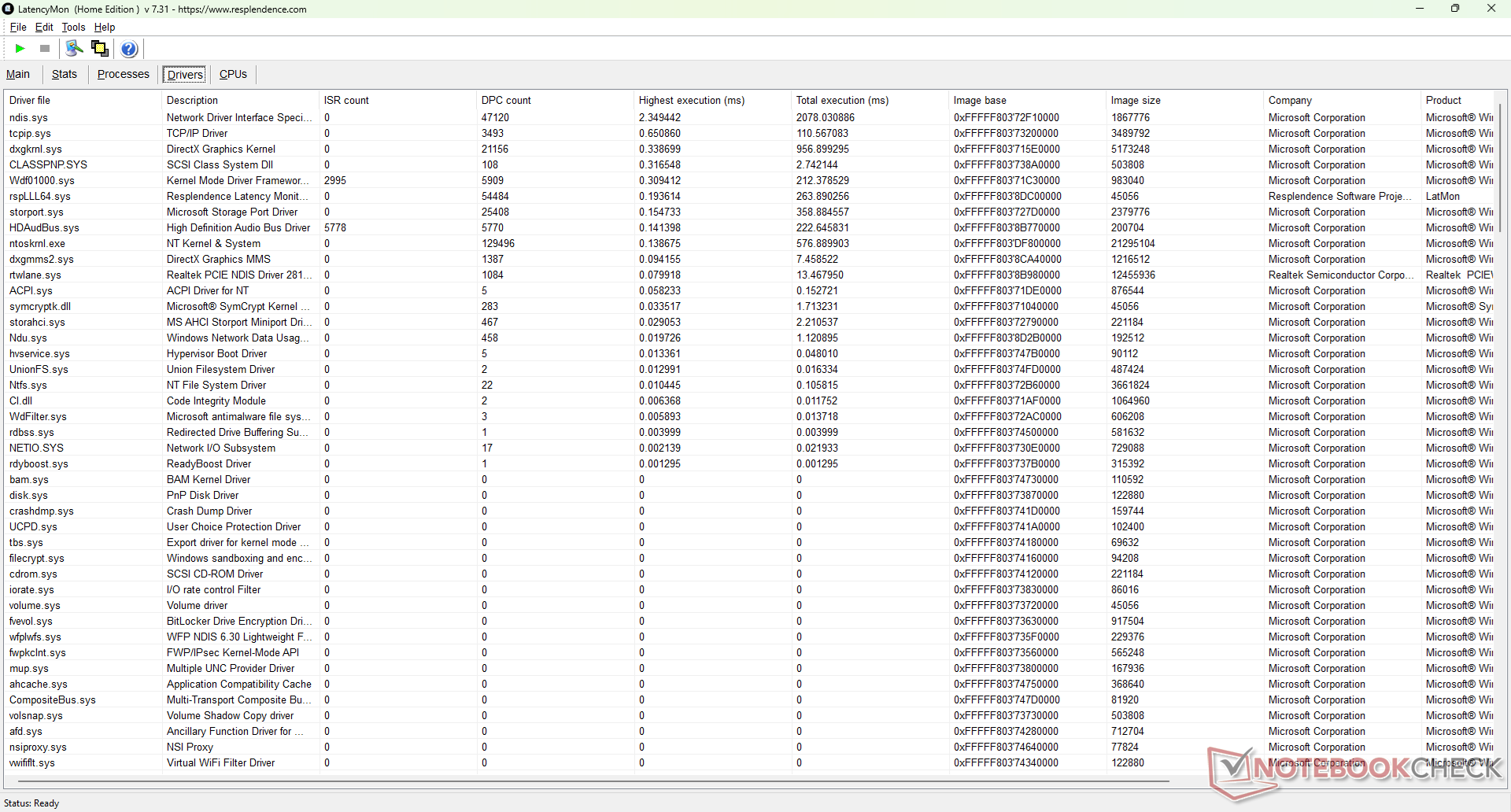

LatencyMon
LatencyMon
Lista de motoristas
Lista de motoristas
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
4103.1 μs * -75%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
2705 μs * -15%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2346.4 μs *
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
1925.1 μs * +18%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
639 μs * +73%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
584.8 μs * +75%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
449.2 μs * +81%

* ... menor é melhor

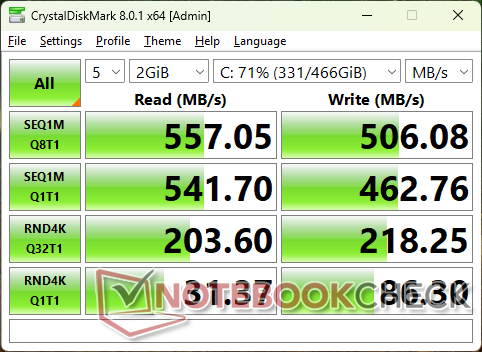

Dispositivos de armazenamento

O SSD M.2 2280 atinge o máximo de apenas ~500 MB/s em comparação com >2000 MB/s na maioria dos SSDs PCIe.

MDL 8
MDL 8
SSD AS
SSD AS
CDM 5/6 Read Seq Q32T1: 555.5 MB/s
CDM 5/6 Write Seq Q32T1: 505.4 MB/s
CDM 5/6 Read 4K Q32T1: 186.8 MB/s
CDM 5/6 Write 4K Q32T1: 217.7 MB/s
CDM 5 Read Seq: 541.4 MB/s
CDM 5 Write Seq: 486.2 MB/s
CDM 5/6 Read 4K: 29.11 MB/s
CDM 5/6 Write 4K: 82.35 MB/s
Drive Performance Rating - Percent
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
90.5 pt
BMAX B7 Power G7A2
Kston K765-1TB
73.2 pt
Acemagic S1
Netac G938E
63.7 pt
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
49.9 pt
Beelink EQ14

22.7 pt
Newsmay AC8F-POE
AirDisk AFF 10-128G
19.5 pt
BMAX B4 Turbo

18.7 pt
DiskSpd
seq read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
4128 (4092.8min - 4128.38max) MB/s +673%
BMAX B7 Power G7A2
Kston K765-1TB
2237 (2110.76min - 2237.45max) MB/s +319%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
1794 (1777.13min - 1793.93max) MB/s +236%
Acemagic S1
Netac G938E
1529 (1518.34min - 1529.45max) MB/s +186%
BMAX B4 Turbo

534 (532.64min - 533.92max) MB/s
Beelink EQ14

496 (484.73min - 495.71max) MB/s -7%
Newsmay AC8F-POE
AirDisk AFF 10-128G
413 (410.18min - 412.9max) MB/s -23%
seq write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
3215 (3133.8min - 3214.8max) MB/s +570%
BMAX B7 Power G7A2
Kston K765-1TB
1849 (1825.24min - 1848.98max) MB/s +285%
Acemagic S1
Netac G938E
1392 (1353.52min - 1392.3max) MB/s +190%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
1199 (1171.01min - 1198.64max) MB/s +150%
Beelink EQ14

506 (491.99min - 506.01max) MB/s +5%
BMAX B4 Turbo

480 (477.94min - 479.5max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
417 (409.15min - 416.7max) MB/s -13%
seq q8 t1 read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
4987 (4558.37min - 4987.33max) MB/s +808%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
3148 (2674.18min - 3147.62max) MB/s +473%
BMAX B7 Power G7A2
Kston K765-1TB
3045 (2569.64min - 3045.06max) MB/s +455%
Acemagic S1
Netac G938E
1788 (1591.28min - 1787.61max) MB/s +226%
Beelink EQ14

556 (429.92min - 556.16max) MB/s +1%
BMAX B4 Turbo

549 (424.25min - 549.08max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
397 (395.52min - 396.69max) MB/s -28%
seq q8 t1 write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
3308 (3211.45min - 3307.84max) MB/s +564%
BMAX B7 Power G7A2
Kston K765-1TB
1981 MB/s +298%
Acemagic S1
Netac G938E
1710 (1487.72min - 1710.37max) MB/s +243%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
1628 (1551.73min - 1628.02max) MB/s +227%
Beelink EQ14

526 (462.09min - 525.96max) MB/s +6%
BMAX B4 Turbo

498 (494.99min - 498.07max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
453 (445.02min - 453.26max) MB/s -9%
4k q1 t1 read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
73.3 (72.01min - 73.31max) MB/s +241%
BMAX B7 Power G7A2
Kston K765-1TB
54.6 (54.21min - 54.55max) MB/s +154%
Acemagic S1
Netac G938E
48.9 (48.33min - 48.93max) MB/s +127%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
37.4 (36.24min - 37.36max) MB/s +74%
Newsmay AC8F-POE
AirDisk AFF 10-128G
28.4 (28.01min - 28.38max) MB/s +32%
Beelink EQ14

23.8 (23.34min - 23.81max) MB/s +11%
BMAX B4 Turbo

21.5 (14.08min - 21.46max) MB/s
4k q1 t1 write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
282 (265.11min - 281.58max) MB/s +281%
BMAX B7 Power G7A2
Kston K765-1TB
184.7 (180.75min - 184.67max) MB/s +150%
Acemagic S1
Netac G938E
131.7 (130.58min - 131.74max) MB/s +78%
Beelink EQ14

81.4 (76.92min - 81.38max) MB/s +10%
BMAX B4 Turbo

74 (72.47min - 74.04max) MB/s
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
69.2 (65.75min - 69.23max) MB/s -6%
Newsmay AC8F-POE
AirDisk AFF 10-128G
40.4 (39.84min - 40.4max) MB/s -45%
4k q32 t16 read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
1533 (1419.74min - 1533.25max) MB/s +763%
BMAX B7 Power G7A2
Kston K765-1TB
883 (872.66min - 882.98max) MB/s +397%
Acemagic S1
Netac G938E
737 (736.82min - 737.34max) MB/s +315%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
463 (452.09min - 462.84max) MB/s +161%
Beelink EQ14

341 (335.23min - 341.31max) MB/s +92%
BMAX B4 Turbo

177.7 (177.33min - 177.69max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
161.3 (160.59min - 161.32max) MB/s -9%
4k q32 t16 write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
2010 (1622.95min - 2010.14max) MB/s +563%
BMAX B7 Power G7A2
Kston K765-1TB
1106 (1001.62min - 1105.76max) MB/s +265%
Acemagic S1
Netac G938E
830 (808.45min - 829.56max) MB/s +174%
BMAX B4 Turbo

303 (60.99min - 302.92max) MB/s
Beelink EQ14

275 (207.31min - 275.22max) MB/s -9%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
176.4 (166.69min - 176.44max) MB/s -42%
Newsmay AC8F-POE
AirDisk AFF 10-128G
165 (159.56min - 165.01max) MB/s -46%
AS SSD
Score Total
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
2750 Points +442%
BMAX B7 Power G7A2
Kston K765-1TB
2745 Points +441%
Acemagic S1
Netac G938E
2656 Points +424%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
2017 Points +298%
Beelink EQ14

698 Points +38%
Newsmay AC8F-POE
AirDisk AFF 10-128G
550 Points +8%
BMAX B4 Turbo

507 Points
Score Read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
1443 Points +652%
Acemagic S1
Netac G938E
1111 Points +479%
BMAX B7 Power G7A2
Kston K765-1TB
1062 Points +453%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
779 Points +306%
Beelink EQ14

238 Points +24%
BMAX B4 Turbo

192 Points
Newsmay AC8F-POE
AirDisk AFF 10-128G
172 Points -10%
Score Write
BMAX B7 Power G7A2
Kston K765-1TB
1151 Points +448%
Acemagic S1
Netac G938E
978 Points +366%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
917 Points +337%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
651 Points +210%
Beelink EQ14

333 Points +59%
Newsmay AC8F-POE
AirDisk AFF 10-128G
284 Points +35%
BMAX B4 Turbo

210 Points
Seq Read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
4327.67 MB/s +732%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
2547 MB/s +390%
BMAX B7 Power G7A2
Kston K765-1TB
2329 MB/s +348%
Acemagic S1
Netac G938E
1556 MB/s +199%
BMAX B4 Turbo

520.31 MB/s
Beelink EQ14

500.85 MB/s -4%
Newsmay AC8F-POE
AirDisk AFF 10-128G
483 MB/s -7%
Seq Write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
2606.84 MB/s +456%
BMAX B7 Power G7A2
Kston K765-1TB
1816 MB/s +287%
Acemagic S1
Netac G938E
1326 MB/s +183%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
838 MB/s +79%
Beelink EQ14

482.1 MB/s +3%
BMAX B4 Turbo

468.86 MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
346 MB/s -26%
4K Read
BMAX B7 Power G7A2
Kston K765-1TB
53.1 MB/s +145%
Acemagic S1
Netac G938E
44.6 MB/s +106%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
42.24 MB/s +95%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
35 MB/s +62%
Newsmay AC8F-POE
AirDisk AFF 10-128G
29.6 MB/s +37%
BMAX B4 Turbo

21.64 MB/s
Beelink EQ14

18.15 MB/s -16%
4K Write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
217.48 MB/s +223%
BMAX B7 Power G7A2
Kston K765-1TB
152.2 MB/s +126%
Acemagic S1
Netac G938E
110.7 MB/s +65%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
80.7 MB/s +20%
Beelink EQ14

69.81 MB/s +4%
BMAX B4 Turbo

67.27 MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
65.5 MB/s -3%
4K-64 Read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
967.82 MB/s +717%
Acemagic S1
Netac G938E
911 MB/s +669%
BMAX B7 Power G7A2
Kston K765-1TB
776 MB/s +555%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
489 MB/s +313%
Beelink EQ14

169.66 MB/s +43%
BMAX B4 Turbo

118.47 MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
94.3 MB/s -20%
4K-64 Write
BMAX B7 Power G7A2
Kston K765-1TB
817 MB/s +748%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
752 MB/s +681%
Acemagic S1
Netac G938E
735 MB/s +663%
Beelink EQ14

215.18 MB/s +123%
Newsmay AC8F-POE
AirDisk AFF 10-128G
183.9 MB/s +91%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
172.85 MB/s +79%
BMAX B4 Turbo

96.33 MB/s
Access Time Read
Newsmay AC8F-POE
AirDisk AFF 10-128G
0.288 ms * -76%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
0.24 ms * -46%
Beelink EQ14

0.169 ms * -3%
BMAX B4 Turbo

0.164 ms *
BMAX B7 Power G7A2
Kston K765-1TB
0.097 ms * +41%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
0.072 ms * +56%
Acemagic S1
Netac G938E
0.055 ms * +66%
Access Time Write
BMAX B4 Turbo

0.706 ms *
Beelink EQ14

0.518 ms * +27%
Newsmay AC8F-POE
AirDisk AFF 10-128G
0.316 ms * +55%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
0.14 ms * +80%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
0.088 ms * +88%
BMAX B7 Power G7A2
Kston K765-1TB
0.049 ms * +93%
Acemagic S1
Netac G938E
0.034 ms * +95%

* ... menor é melhor

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0306090120150180210240270300330360390420450480510540Tooltip
BMAX B4 Turbo; diskspd 2.0.17 f: Ø546 (420.06-550.87)

Desempenho da GPU

O N150 tem o mesmo sistema integrado de UHD Graphics 24EUs integradas do N100. No entanto, o desempenho gráfico ainda é mais rápido do que o sistema médio com a mesma iGPU em nosso banco de dados em 15 a 20 por cento.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Fire Strike
Fire Strike
Time Spy
Time Spy
3DMark Performance Rating - Percent
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
100 pt
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
65.1 pt
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
54.1 pt
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
45.5 pt
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
35.4 pt
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
30.3 pt
Média Intel UHD Graphics 24EUs (Alder Lake-N)

25.6 pt
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
24.8 pt
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
23.7 pt
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
23.7 pt
3DMark 11 - 1280x720 Performance GPU
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
6282 Points +236%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
4770 Points +155%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
3428 Points +83%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
2901 Points +55%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
2233 Points +19%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1872 Points
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (1458 - 2233, n=15)
1559 Points -17%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1470 Points -21%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1458 Points -22%
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
1349 Points -28%
3DMark
1280x720 Cloud Gate Standard Graphics
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
29301 Points +183%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
16589 Points +60%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
16443 Points +59%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
14227 Points +37%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
11498 Points +11%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
10356 Points
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
8740 Points -16%
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (7218 - 11498, n=15)
8624 Points -17%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
7970 Points -23%
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
7604 Points -27%
1920x1080 Fire Strike Graphics
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
4899 Points +258%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
2886 Points +111%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
2655 Points +94%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
2139 Points +56%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
1646 Points +20%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1367 Points
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (1080 - 1646, n=14)
1215 Points -11%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1154 Points -16%
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
1144 Points -16%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1122 Points -18%
2560x1440 Time Spy Graphics
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
1428 Points +256%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
986 Points +146%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
737 Points +84%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
625 Points +56%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
473 Points +18%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
401 Points
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
342 Points -15%
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (304 - 473, n=15)
335 Points -16%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
321 Points -20%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
304 Points -24%
3DMark 11 Performance
2095 pontos
3DMark Cloud Gate Standard Score
7731 pontos
3DMark Fire Strike Score
1271 pontos
3DMark Time Spy Score
454 pontos
Ajuda
Blender - v3.3 Classroom CPU
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
4297 Seconds * -77%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
3015 Seconds * -24%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
2429 Seconds *
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (1992 - 3964, n=13)
2386 Seconds * +2%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
2125 Seconds * +13%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
2014 Seconds * +17%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1259 Seconds * +48%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
1121 Seconds * +54%
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
829 Seconds * +66%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
396 Seconds * +84%

* ... menor é melhor

GTA V - 1024x768 Lowest Settings possible
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
102.4 (25.3min, 71.4P1) fps +98%
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
100.3 (39.9min, 62.5P1) fps +94%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
69.6 (9.06min, 41.7P1) fps +35%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
58.2 (7.46min, 37P1) fps +13%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
56.4 (18min, 34.5P1) fps +9%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
54.4 (1.684min, 34.5P1) fps +5%
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (44.7 - 59, n=10)
54.2 fps +5%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
51.6 (0.815min, 26.3P1) fps
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
36.8 (1.484min, 19.2P1) fps -29%
Dota 2 Reborn
1280x720 min (0/3) fastest
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
105.8 (73.2min) fps +81%
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
97.7 (57.3min) fps +68%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
92.3 (83.6min) fps +58%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
72.7 (53.4min) fps +25%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
70.4 (52.2min) fps +21%
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (44.7 - 80.8, n=14)
67.1 fps +15%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
58.3 (44.4min) fps
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
58.2 (36.9min) fps 0%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
35.1 (22.9min) fps -40%
1366x768 med (1/3)
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
78.4 (32.1min) fps +143%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
64.9 (55.9min) fps +102%
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
61.9 (45.9min) fps +92%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
52 (39.9min) fps +61%
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (27.6 - 52, n=14)
43 fps +34%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
39.7 (26.3min) fps +23%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
32.2 (20.1min) fps
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
28.8 (15.9min) fps -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
20.6 (14.9min) fps -36%
1920x1080 high (2/3)
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
62.5 (42.1min) fps +373%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
43.9 (24.2min) fps +233%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
34.9 (23.4min) fps +164%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
32.9 (30.6min) fps +149%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
26.8 (25.1min) fps +103%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
21.8 (1.7min) fps +65%
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (13.2 - 26.8, n=14)
19.4 fps +47%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
13.2 (4.8min) fps
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
10.9 (9.8min) fps -17%
1920x1080 ultra (3/3) best looking
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
57.8 (39.9min) fps +152%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
40.7 (22.6min) fps +78%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
32.1 (21.7min) fps +40%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
29.6 (27.2min) fps +29%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
24.9 (23.1min) fps +9%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
22.9 (14.8min) fps
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
20.1 (11.2min) fps -12%
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (13.4 - 24.9, n=14)
18.8 fps -18%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
9.9 (8.5min) fps -57%
Final Fantasy XV Benchmark
1280x720 Lite Quality
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
40.9 fps +173%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
26.2 fps +75%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
22.1 fps +47%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
21.6 fps +44%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
17.8 fps +19%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
17.2 fps +15%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
15 fps
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (12 - 17.8, n=12)
13.7 fps -9%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
5.91 fps -61%
1920x1080 Standard Quality
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
23 fps +207%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
14.3 fps +91%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
11.6 fps +55%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
10.5 fps +40%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
8.69 fps +16%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
7.5 fps
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (5.63 - 8.69, n=10)
6.52 fps -13%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
3.48 fps -54%
1920x1080 High Quality
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
16.6 fps +213%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
9.38 fps +77%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
8.15 fps +54%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
7.81 fps +47%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
6.26 fps +18%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
5.3 fps
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (4.22 - 6.26, n=9)
4.72 fps -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
2.5 fps -53%
Strange Brigade - 1280x720 lowest AF:1
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
88.2 (20min, 29.9P1) fps +185%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
49 (12.2min, 15P1) fps +58%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
48.5 (12.4min, 14.7P1) fps +56%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
37.7 (8.6min, 10.3P1) fps +22%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
31 (6.8min, 8.12P1) fps
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (23.2 - 37.7, n=11)
28.4 fps -8%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
26.6 (6min, 6.91P1) fps -14%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
25.2 (6.6min, 8.91P1) fps -19%
F1 22 - 1280x720 Ultra Low Preset AA:T AF:16x
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
71.8 (51min, 58P1) fps +183%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
25.4 (22min, 21P1) fps
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (20.3 - 25.4, n=2)
22.9 fps -10%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
20.3 (17min, 16P1) fps -20%
Cyberpunk 2077 2.2 Phantom Liberty - 1280x720 Low Preset (FSR off)
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
25.5 (19.8min) fps
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
15.1 (4.01min) fps
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
13.8 (10.8min) fps
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
11.1 (8.45min) fps
Média Intel UHD Graphics 24EUs (Alder Lake-N)
  (n=1)
11.1 fps

Cyberpunk 2077 ultra FPS Chart

00.20.30.50.60.80.91.11.21.41.51.71.822.12.32.42.62.72.9Tooltip
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø2.97 (2.81-3.02)
baixomédiaaltoultra
GTA V (2015) 51.6
Dota 2 Reborn (2015) 58.3 32.2 13.2 22.9
Final Fantasy XV Benchmark (2018) 15 7.5 5.3
Strange Brigade (2018) 31
F1 22 (2022)
Cyberpunk 2077 2.2 Phantom Liberty (2023)

Emissões

Ruído do sistema

A ventoinha está sempre ativa, mas é silenciosa quando ociosa. No entanto, ela aumenta rapidamente quando são introduzidas cargas mais altas, como ao abrir navegadores ou realizar várias tarefas. O comportamento de pulsação poderia ser melhorado.

Perfil de ruído do ventilador (Branco: Fundo, vermelho: Sistema inativo, Azul: 3DMark 06, Laranja: Cyberpunk 2077, Verde: Estresse do Prime95)
Perfil de ruído do ventilador (Branco: Fundo, vermelho: Sistema inativo, Azul: 3DMark 06, Laranja: Cyberpunk 2077, Verde: Estresse do Prime95)

Barulho

Ocioso
23.8 / 23.8 / 39.9 dB
Carga
40 / 40.8 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distância)   ruído ambiente: 23.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.434.734.33339.2253029.729.227.730.83127.52528.624.427.24024.824.624.221.624.15025.625.92522.325.96329.329.528.925.129.18028.926.126.724.927.910025.92423.323.224.21251918.218.717.318.216019.118.418.916.218.820033.133.331.115.533.925025.528.621.616.327.331520.923.824.419.720.540020.42323.41719.650021.120.621.113.520.463036.131.432.712.530.280025.125.3251026.1100023.924.125.4925125024.22424.29.624.6160029.129.529.99.730.7200027.828.527.89.529.2250028.428.628.410.129.6315031.131.13110.631.9400032.832.431.811.133.9500018.919.318.511.520630020.120.218.311.520.1800018.619.118.211.520.11000014.316.314.211.714.31250013.715.113.211.814.11600012.914.612.211.112.8SPL40.64039.923.840.8N3.33.23.10.53.4median 23.9median 24median 23.4median 11.5median 24.2Delta4.44.94.835.2hearing rangehide median Fan NoiseBMAX B4 Turbo
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
Noise
17%
24%
11%
-1%
17%
6%
desligado / ambiente *
23.8
23
3%
22.5
5%
24.9
-5%
23.5
1%
24.8
-4%
24.9
-5%
Idle Minimum *
23.8
23
3%
23.5
1%
25
-5%
29.9
-26%
24.8
-4%
25.8
-8%
Idle Average *
23.8
25.12
-6%
23.5
1%
25
-5%
29.9
-26%
24.8
-4%
25.9
-9%
Idle Maximum *
39.9
25.12
37%
23.8
40%
25
37%
32
20%
24.8
38%
26
35%
Load Average *
40
27.15
32%
24
40%
30.2
24%
33.5
16%
24.9
38%
34.5
14%
Cyberpunk 2077 ultra *
40.6
23.8
41%
39.1
4%
Load Maximum *
40.8
27.15
33%
24.4
40%
32.3
21%
40.5
1%
25
39%
38.2
6%
Witcher 3 ultra *
27.15

* ... menor é melhor

Temperatura

Adaptador CA
Adaptador CA

As temperaturas da superfície são relativamente baixas e não são um problema devido ao processador de baixo consumo de energia.

Sistema inativo (frente)
Sistema inativo (frente)
Sistema ocioso (traseiro)
Sistema ocioso (traseiro)
Estresse do Prime95+FurMark (frente)
Estresse do Prime95+FurMark (frente)
Estresse do Prime95+FurMark (traseiro)
Estresse do Prime95+FurMark (traseiro)

Teste de estresse

A CPU atingia um pico de 2,6 GHz e 20 W ao iniciar o estresse do Prime95. No entanto, após cerca de 30 segundos, ela caía para 2 GHz e 15 W. A temperatura do núcleo permanecia relativamente baixa, na faixa de 50 C.

Sistema ocioso
Sistema ocioso
Estresse do Cyberpunk 2077
Estresse do Cyberpunk 2077
Estresse Prime95
Estresse Prime95
Estresse do Prime95+FurMark
Estresse do Prime95+FurMark
Clock médio da CPU (GHz) Clock da GPU (MHz) Temperatura média da CPU (°C)
Sistema ocioso -- -- 31
Estresse do Prime95 2.2 -- 55
Prime95 + FurMark Stress 1.3 850 54
Cyberpunk 2077 Stress 1.4 950 51

Gerenciamento de energia

Consumo de energia

O consumo máximo é de pouco menos de 30 W ao executar cargas exigentes, apesar de o pequeno adaptador CA (~6,8 x 4,2 x 3,2 cm) ser classificado para apenas 26 W. Observe que o cabo do adaptador CA é relativamente curto, com apenas 1,5 m.

consumo do 3DMark 06
consumo do 3DMark 06
Cyberpunk 2077 1080p Ultra consumo
Cyberpunk 2077 1080p Ultra consumo
O consumo aumentaria para 27 W ao iniciar o estresse Prime95 antes de cair para 21 W após 30 segundos devido a limitações térmicas
O consumo aumentaria para 27 W ao iniciar o estresse Prime95 antes de cair para 21 W após 30 segundos devido a limitações térmicas
Prime95+FurMark estresse iniciado aos 10s
Prime95+FurMark estresse iniciado aos 10s
Consumo de energia
desligadodarklight 0.88 / 1.3 Watt
Ociosodarkmidlight 6.3 / 7.4 / 16.2 Watt
Carga midlight 22 / 29.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
BMAX B4 Turbo
Processor N150, UHD Graphics 24EUs (Alder Lake-N), , , x,
BMAX B7 Power G7A2
i7-11390H, Iris Xe G7 96EUs, Kston K765-1TB, , x,
Beelink EQ14
Processor N150, UHD Graphics 24EUs (Alder Lake-N), , , x,
Asus NUC 14 Essential
Core 3 N355, UHD Graphics 32EUs, Micron 2400 MTFDKBA512QF, , x,
MSI Cubi NUC 1M
Core 7 150U, Iris Xe G7 96EUs, WD PC SN560 SDDPNQE-1T00, , x,
Newsmay AC8F-POE
N100, UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G, , x,
Acemagic S1
N97, UHD Graphics 24EUs (Alder Lake-N), Netac G938E, , x,
Power Consumption
-13%
-2%
-4%
-34%
-2%
-36%
Idle Minimum *
6.3
9.1
-44%
7.9
-25%
4.1
35%
6.4
-2%
7.9
-25%
9.8
-56%
Idle Average *
7.4
9.5
-28%
8.9
-20%
5.4
27%
8.3
-12%
10.1
-36%
12
-62%
Idle Maximum *
16.2
10
38%
9.1
44%
6.5
60%
10.4
36%
10.3
36%
13.5
17%
Load Average *
22
27.1
-23%
21.2
4%
29.2
-33%
38.5
-75%
17.3
21%
27.6
-25%
Cyberpunk 2077 ultra external monitor *
20.7
22.3
-8%
30.1
-45%
36.1
-74%
Load Maximum *
29.8
32.3
-8%
31.6
-6%
50.5
-69%
52.5
-76%
31.6
-6%
46.2
-55%
Witcher 3 ultra *
29.1

* ... menor é melhor

Power Consumption Cyberpunk / Stress Test

05101520253035404550Tooltip
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø23.9 (22.2-29.7)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs: Ø33 (31.5-50.5)

Power Consumption external Monitor

051015202530354045Tooltip
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø21.6 (19.8-27.2)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Prime95 V2810 Stress (external Monitor): Ø31.9 (29.8-45.1)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø20.1 (18.1-24.5)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Cinebench R15 Multi (external Monitor): Ø35.6 (29.2-38.1)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø18.3 (17.8-23.6)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.2 (23.7-25.5)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø7.51 (6.32-16.2)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Idle 1min (external Monitor): Ø5.41 (4.99-6.52)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø20.7 (18.9-21.8)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø30.1 (25.6-36.9)

Classificação do Notebookcheck

BMAX B4 Turbo - 03/27/2025 v8
Allen Ngo

Acabamento
73 / 98 → 75%
Conectividade
49 / 81 → 60%
Peso
86%
Desempenho do jogos
8 / 80 → 10%
Desempenho da aplicação
59 / 92 → 64%
Temperatura
90%
Ruído
75%
Médio
51%
58%
Mini PC - Médio equilibrado
CO2 Emissions
No Data
Materials
50%
Packaging
50%
Power Use
72.9%
Repairability
40%
Software Updates
22.3%
Recycle Logo Total Sustainability Score: 39.2%

Potential Competitors in Comparison

Imagem
Modelo / Análises
Preço
Peso
Altura
Tela
1.
58.3%
BMAX B4 Turbo
BMAX B4 Turbo
Intel Processor N150 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
16 GB Memória
Amazon:
1. $179.00
Bmax N150 Mini PC,B4 Turbo W...
2. $12.99
PWR+ 12V Power Supply for Bm...
3. $14.99
PowerHOOD 12V AC/DC Adapter ...
Preço de tabela: 175 EUR
315 g44 mmx
2.
78.4% v7 (old)
BMAX B7 Power G7A2
BMAX B7 Power G7A2
Intel Core i7-11390H ⎘
Intel Iris Xe Graphics G7 96EUs ⎘
16 GB Memória, 1024 GB SSD
Preço de tabela: 399 US-Dollar363 g44 mmx
3.
61.3%
Beelink EQ14
Beelink EQ14
Intel Processor N150 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
16 GB Memória
Amazon: $199.00
Preço de tabela: 200 USD
432 g39 mmx
4.
68%
Asus NUC 14 Essential
Asus NUC 14 Essential
Intel Core 3 N355 ⎘
Intel UHD Graphics 32EUs (Alder Lake) ⎘
16 GB Memória, 512 GB SSD
Amazon:
1. $581.81
ASUS NUC 14 Pro Slim Barebon...
2. $526.55
ASUS NUC 14 Pro+ Barebone In...
3. $18.99
TAIFU 19V 65W Power Supply f...
Preço de tabela: 295 EUR
465 g36 mmx
5.
66.1%
MSI Cubi NUC 1M
MSI Cubi NUC 1M
Intel Core 7 150U ⎘
Intel Iris Xe Graphics G7 96EUs ⎘
16 GB Memória, 1024 GB SSD
Amazon: $699.00
Preço de tabela: 950 USD
660 g50.1 mmx
6.
61.3%
Newsmay AC8F-POE
Newsmay AC8F-POE
Intel Processor N100 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
8 GB Memória, 128 GB SSD
Amazon:
1. $21.99
PowerHOOD AC/DC Adapter Comp...
Preço de tabela: 295 EUR
1.2 kg62 mmx
7.
75.8% v7 (old)
Acemagic S1
Acemagic S1
Intel Processor N97 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
16 GB Memória, 512 GB SSD
Amazon:
1. $159.00
ACEMAGIC Vista V1 N97 Mini P...
2. $22.99
PowerHOOD 12V AC Adapter Com...
3. $9.99
Portable Charger Adapter for...
Preço de tabela: 249 EUR
450 g42 mmx

Transparência

A seleção dos dispositivos a serem analisados ​​é feita pela nossa equipe editorial. A amostra de teste foi fornecida ao autor como empréstimo pelo fabricante ou varejista para fins desta revisão. O credor não teve influência nesta revisão, nem o fabricante recebeu uma cópia desta revisão antes da publicação. Não houve obrigação de publicar esta revisão. Nunca aceitamos compensação ou pagamento em troca de nossas avaliações. Como empresa de mídia independente, a Notebookcheck não está sujeita à autoridade de fabricantes, varejistas ou editores.

É assim que o Notebookcheck está testando

Todos os anos, o Notebookcheck analisa de forma independente centenas de laptops e smartphones usando procedimentos padronizados para garantir que todos os resultados sejam comparáveis. Desenvolvemos continuamente nossos métodos de teste há cerca de 20 anos e definimos padrões da indústria no processo. Em nossos laboratórios de teste, equipamentos de medição de alta qualidade são utilizados por técnicos e editores experientes. Esses testes envolvem um processo de validação em vários estágios. Nosso complexo sistema de classificação é baseado em centenas de medições e benchmarks bem fundamentados, o que mantém a objetividade.
Please share our article, every link counts!
Mail Logo
> Análises e revisões de portáteis e celulares > Análises > Análises > Análise do BMAX B4 Turbo: Mini PC econômico com Intel N150
Allen Ngo, 2025-03-28 (Update: 2025-03-28)
