NVIDIA Quadro 5000M

NVIDIA Quadro 5000M

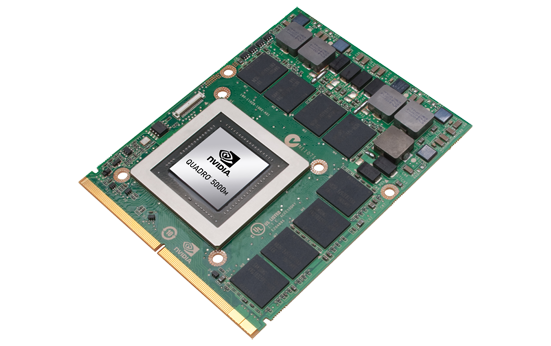

A NVIDIA Quadro 5000M é uma placa de vídeo profissional para workstations baseada na arquitetura Fremi. Portanto, a 5000M está relacionada com a GeForce GTX 480M de consumo baseada na GF100, a qual oferece mais núcleos CUDA. O Quadro é o primeiro GPU móvel que oferece RAM ECC e núcleos com pontos de flutuação de dupla precisão.

A série Quadro oferece controladores certificados que estão otimizados para estabilidade e desempenho em aplicativos profissionais como CAD, DCC, medicina, ou áreas de visualização. O desempenho do OpenGL , por exemplo deve ser significantemente melhor que placa de vídeo GeForce similares.

Os núcleos shader / CUDA podem ser acessados usando DirectX 11, OpenGL 4.1 para a reprodução gráfica e DirectCompute, OpenCL, AXE, e CUDA para cálculos gerais. Graças ao novo núcleo Fermi, o 5000M deve oferecer alto desempenho em cálculos gerais.

Além disso, a Nvidia Quadro 5000M é compatível com a nova solução estereoscópica da Nvidia chamada: NVIDIA 3D Vision Pro.

Como a GeForce GTX 480M, a Quadro 5000M está especificada com TDP de 100 Watt e, portanto, somente portáteis muito grandes, como o Clevo D901F, são capazes de alojar esta placa de alta capacidade.

No momento da chegada (meados de 2010), a Quadro 5000M é a placa de vídeo profissional para workstations e sucessora da antiga GeForce FX 3800M (G92b core). Comparada com placas Quadro para  desktop, a Quadro 5000 para  desktop oferece mais núcleos shader e provavelmente uma freqüência mais alta.

Quadro M Serie

Quadro M5500 2048 @ 1.14 - 1.14 GHz256 Bit @ 6606 MHz
Quadro M5000M 1536 @ 0.96 - 1.05 GHz256 Bit @ 5000 MHz
Quadro M4000M 1280 @ 0.98 - 1.01 GHz256 Bit @ 5012 MHz
Quadro M3000M 1024 @ 1.05 GHz256 Bit @ 5000 MHz
Quadro M2200 1024 @ 0.69 - 1.04 GHz128 Bit @ 5508 MHz
Quadro M1200 640 @ 0.99 - 1.15 GHz128 Bit @ 5000 MHz
Quadro M2000M 640 @ 1.04 - 1.2 GHz128 Bit @ 5000 MHz
Quadro M1000M 512 @ 0.99 - 1.07 GHz128 Bit @ 5000 MHz
Quadro M620 512 @ 1.02 GHz128 Bit @ 5012 MHz
Quadro 5010M 384 @ 0.45 GHz256 Bit @ 1300 MHz
Quadro 4000M 336 @ 0.48 GHz256 Bit @ 1200 MHz
Quadro M520 384 @ 0.76 - 1.02 GHz64 Bit
Quadro M600M 384 @ 0.84 - 0.88 GHz128 Bit @ 5012 MHz
Quadro M500M 384 @ 1.03 - 1.12 GHz64 Bit @ 4004 MHz
Quadro 5000M 320 @ 0.41 GHz256 Bit @ 1200 MHz
Quadro 3000M 240 @ 0.45 GHz256 Bit @ 625 MHz
Quadro 2000M 192 @ 0.55 GHz128 Bit @ 900 MHz
Quadro 1000M 96 @ 0.7 GHz128 Bit @ 900 MHz
CódigoFermi
ArquiteturaFermi
Pipelines320 - unificado
Velocidade do núcleo405 MHz
Velocidade de shader810 MHz
Velocidade da memória1200 MHz
Largura do Bus de Memória256 Bit
Modelo de memóriaGDDR5
Max. quantidade de memória2048 MB
Memória compartilhadanão
APIDirectX 11, Shader 5.0
Consumo de energia100 Watt
Contagem de transistores3 Billion
tecnología40 nm
CaracterísticasOpenGL 4.1, DirectX 11, DirectCompute, OpenCL, CUDA, AXE, Error-Correction-Codes (ECC)-Memory, IEEE-Double-Precision-Floating-Point, PowerMizer 9.0
Tamanho do Portátilgrande
Data do anúncio27.07.2010
Link à página do Fabricantewww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 7700     avg: 7767     median: 7766.5 (2%)     max: 7833 Points
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
7015 Points (4%)
62 -99%
...
6578 -6%
6661 -5%
6665 -5%
6673 -5%
6763 -4%
6770 -3%
6846 -2%
AMD Radeon R7 M260X
6931 -1%
6943 -1%
NVIDIA Quadro 5000M
7015
7078 1%
7119 1%
AMD Radeon 610M
7128 2%
7155 2%
7181 2%
AMD Radeon R8 M365DX
7243 3%
NVIDIA Quadro K620M
7268 4%
7362 5%
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
7387 5%
...
132443 1788%
max:
170928 2337%
0%
100%
3DMark 03 - 3DMark 03 - Standard
41650 Points (22%)
3DMark 05 - 3DMark 05 - Standard
18903 Points (21%)
133.4 -99%
...
17784 -6%
ATI Mobility Radeon HD 5870
18044 -5%
18136 -4%
18199 -4%
18199 -4%
18414 -3%
18466 -2%
18522 -2%
18829 0%
NVIDIA Quadro 5000M
18903
18965 0%
19079 1%
19100 1%
19187 2%
NVIDIA GeForce GTX 280M SLI
19268 2%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
19383 3%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
19694 4%
19971 6%
20171 7%
...
68064 260%
max:
87172 361%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
12967 Points (17%)
3DMark 06 - Standard 1280x768 +
3DMark 06
13127 Points (17%)
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
min: 28.13     avg: 28.6     median: 28.6 (17%)     max: 29 fps
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
min: 25.96     avg: 26.4     median: 26.4 (15%)     max: 26.82 fps
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
min: 29.99     avg: 30.1     median: 30.1 (23%)     max: 30.2 fps
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
min: 6.4     avg: 6.6     median: 6.6 (8%)     max: 6.71 fps
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
min: 43.9     avg: 44.6     median: 44.6 (34%)     max: 45.2 fps
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
min: 31.9     avg: 33.3     median: 33.3 (36%)     max: 34.7 fps
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
min: 28.6     avg: 29     median: 29 (14%)     max: 29.3 fps
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
min: 25.1     avg: 26.9     median: 26.9 (14%)     max: 28.7 fps
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
32.7 fps (11%)
- Gama de valores benchmark para essa solução gráfica
- Média de valores benchmark para essa solução gráfica
* Smaller numbers mean a higher performance
