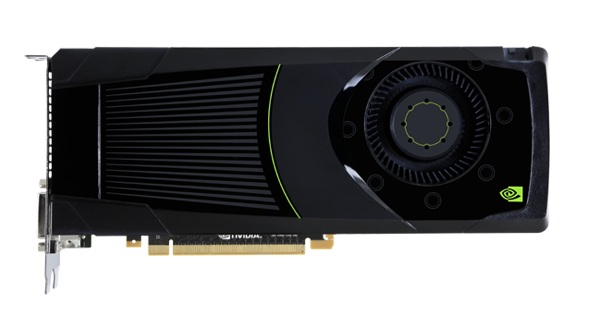

NVIDIA GeForce GTX 680
A Nvidia GeForce GTX 680 é uma placa de vídeo de desktop de gama alta com DirectX 11. Baseia-se no chip GK104 e é produzida em 28 nm na TSMC. A frequência do núcleo pode ser acelerada até 1058 MHz (a partir da frequência base de 1006) e a memória tem uma frequência de 3004 MHz (GDDR5).
A GeForce GTX 680M móvel com nome similar também se baseia no chip GK104, mas oferece apenas 1344 shaders como a GTX 670 de desktop e uma frequência baixa de 720 MHz.
O consumo de energia da placa GTX 680 para desktop é de TDP de 195 Watt e , portanto, são necessários dois conectores de força de 6 pinos para alimentar a placa.
GeForce GTX 600 Serie
| |||||||
Código | GK104 | ||||||
Arquitetura | Kepler | ||||||
Pipelines | 1536 - unificado | ||||||
Velocidade do núcleo | 1006 - 1058 (Boost) MHz | ||||||
Velocidade da memória | 6000 MHz | ||||||
Largura do Bus de Memória | 256 Bit | ||||||
Modelo de memória | GDDR5 | ||||||
Max. quantidade de memória | 2048 MB | ||||||
Memória compartilhada | não | ||||||
API | DirectX 11, Shader 5.1, OpenGL 4.2 | ||||||
Consumo de energia | 195 Watt | ||||||
Contagem de transistores | 3.5 Billion | ||||||
tecnología | 28 nm | ||||||
Características | SLI, PhysX, CUDA, 3D Vision, GPU Boost | ||||||
Data do anúncio | 22.03.2012 | ||||||
Link à página do Fabricante | www.geforce.com |
Benchmarks
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 2332 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 2068 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 215624 | |
Desktop GTX 680, Intel Core i7-2600K | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 278989 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 177730 | |
Desktop GTX 680, Intel Core i7-2600K | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 227768 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 19275 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 27025 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 46869 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 47391 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 6119 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 7603 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 6904 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 8270 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 190182 | |
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 280833 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 9255 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 10745 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 9861 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 10572 |
3DM Vant. Perf. total +
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 29702 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 33025 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 52955 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 84572 | |
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 98716 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 24071 | |
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 31001 |
modelo | CPU | GPU | RAM | valor | |
---|---|---|---|---|---|
3DMark 06 - Standard 1280x1024 | |||||
Desktop PC (3DMark 06 - Standard 1280x1024) | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 21143 | ||
Desktop GTX 680 (3DMark 06 - Standard 1280x1024) | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 24660 | |
(3DMark 06 - Standard 1280x1024) | 4770K | GeForce GTX 680 | 8 GB | 28391 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 45.1 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 139.4 |
Cinebench R15 OpenGL 64 Bit +
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 78.2 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 99.6 |
GFXBench T-Rex HD Offscreen C24Z16 +
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
4770K | GeForce GTX 680 | 8 GB | 652 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 284 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 626 |
modelo | CPU | GPU | RAM | valor |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 5790 |
- Média de valores benchmark para essa solução gráfica
* Smaller numbers mean a higher performance
Benchmarks de jogos
Os seguintes benchmarks têm origem em nossos benchmarks de portáteis de análise O desempenho depende da memória gráfica utilizada, frequência, processador, configurações do sistema, controladores, e sistemas operacionais. Assim os resultados não tem que representantes para todos os portáteis com esta GPU. Para informações detalhadas sobre os resultados de benchmark, clique no número de fps.
No Man's Sky
2016Overwatch
2016Doom
2016Hitman 2016
2016The Division
2016Far Cry Primal
2016XCOM 2
2016Rainbow Six Siege
2015Just Cause 3
2015Fallout 4
2015Anno 2205
2015FIFA 16
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 152 fps, max: 190 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 77 fps, max: 90 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 64 fps, max: 124 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 54 fps, max: 108 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 15 fps, max: 72 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 7 fps, max: 42 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 8 fps, max: 24 fps
The Witcher 3
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 76 fps, max: 121 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 55 fps, max: 78 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 28 fps, max: 47 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 16 fps, max: 25 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 12 fps, max: 17 fps
Dirt Rally
2015GTA V
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 45 fps, max: 206 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 26 fps, max: 198 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 21 fps, max: 122 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 1 fps, max: 119 fps
Battlefield Hardline
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 161 fps, max: 185 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 140 fps, max: 169 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 78 fps, max: 94 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 47 fps, max: 62 fps
Far Cry 4
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 33 fps, max: 59 fps
Sims 4
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 155 fps, max: 201 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 72 fps, max: 200 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 50 fps, max: 164 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 46 fps, max: 174 fps
Risen 3: Titan Lords
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 60 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 60 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 59 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 57 fps, max: 67 fps
GRID: Autosport
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 97 fps, max: 157 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 70 fps, max: 109 fps
Watch Dogs
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 66 fps, max: 107 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 56 fps, max: 87 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 38 fps, max: 56 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 12 fps, max: 39 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 56 fps, max: 62 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 88 fps, max: 100 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 83 fps, max: 100 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 70 fps, max: 100 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 47 fps, max: 91 fps
Titanfall
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 47 fps, max: 61 fps
Thief
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 49 fps, max: 153 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 48 fps, max: 121 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 35 fps, max: 112 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 22.4 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 48 fps, max: 63 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 46 fps, max: 63 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 44 fps, max: 63 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 34 fps, max: 49 fps
X-Plane 10.25
2013Call of Duty: Ghosts
2013Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 54 fps, max: 186 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 50 fps, max: 177 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 45 fps, max: 106 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 27 fps, max: 73 fps
Battlefield 4
2013Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 80 fps, max: 190 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 67 fps, max: 128 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 60 fps, max: 114 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 41 fps, max: 69 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 64 fps, max: 252 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 45 fps, max: 139 fps
F1 2013
2013Fifa 14
2013Total War: Rome II
2013Saints Row IV
2013Company of Heroes 2
2013Metro: Last Light
2013BioShock Infinite
2013SimCity
2013Tomb Raider
2013Crysis 3
2013Dead Space 3
2013Far Cry 3
2012Assassin´s Creed III
2012Hitman: Absolution
2012Dishonored
2012World of Tanks v8
2012Fifa 13
2012F1 2012
2012Borderlands 2
2012Guild Wars 2
2012Counter-Strike: GO
2012Darksiders II
2012Sleeping Dogs
2012The Secret World
2012Max Payne 3
2012Dirt Showdown
2012Diablo III
2012Risen 2: Dark Waters
2012Mass Effect 3
2012Alan Wake
2012Anno 2070
2011Battlefield 3
2011Batman: Arkham City
2011Fifa 12
2011F1 2011
2011Intel Core i7-2600K 3.4GHz
GeForce GTX 680
Problem during benchmarking occured: videos stutter at 1fps
Crysis 2
2011Mafia 2
2010StarCraft 2
2010Metro 2033
2010CoD Modern Warfare 2
2009Para mais jogos compatíveis e uma lista de todos os jogos e soluções gráficas visite nosso Lista de jogos
#0 ran 0s before starting gpusingle class +0s ... 0s
#1 no ids found in url (should be separated by "_") +0s ... 0s
#2 not redirecting to Ajax server +0s ... 0s
#3 did not recreate cache, as it is less than 5 days old! Created at Sat, 07 Dec 2024 05:31:35 +0100 +0.001s ... 0.001s
#4 no comparison url found in template nbc.compare_page_1 needed +0.023s ... 0.024s
#5 composed specs +0s ... 0.024s
#6 did output specs +0s ... 0.024s
#7 start showIntegratedCPUs +0s ... 0.024s
#8 getting avg benchmarks for device 3270 +0.026s ... 0.05s
#9 got single benchmarks 3270 +0.016s ... 0.066s
#10 got avg benchmarks for devices +0s ... 0.066s
#11 min, max, avg, median took s +0.476s ... 0.542s
#12 before gaming benchmark output +0s ... 0.543s
#13 Got 394 rows for game benchmarks. +0.006s ... 0.549s
#14 composed SQL query for gamebenchmarks +0s ... 0.549s
#15 got data and put it in $dataArray +0.057s ... 0.606s
#16 benchmarks composed for output. +2.635s ... 3.241s
#17 no comparison url found in template nbc.compare_page_1 needed +0.006s ... 3.247s
#18 return log +0s ... 3.247s
Não foram encontradas analises para esta placa de vídeo.
