O Kit Essencial NUC11 da Intel é baseado em um Intel Jasper Lake SoC e é perfeito para trabalhos de escritório. Demos uma olhada de perto no mini PC com um Intel Pentium Silver N6005 e Intel Celeron N4505. Nesta análise, você pode ler sobre o que ambos os sistemas têm a oferecer.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 03/19/2023 🇺🇸 🇩🇪 ...

Desktop Intel Jasper Lake Mini PC

Kit Essencial Intel NUC11 - Atlas Canyon

A Intel lançou sua série NUC 11 Essential Kit sob o pseudônimo de Atlas Canyon, que usa processadores Jasper Lake. As versões barebone dos PCs são bastante acessíveis. No momento dos testes, o sistema com um Intel Celeron N4505custa cerca de US$129 e a versão do Kit Essencial Intel NUC11 - Atlas Canyon com um Intel Pentium Silver N6005custa em torno de US$ 229. Os sistemas Barebone são freqüentemente vendidos sem RAM e SSDs, o que deve ser levado em conta quando se trata de calcular os custos. Uma licença para o sistema operacional também não está incluída no preço. Para nosso teste, instalamos 16 GB de RAM DDR4 e um SSD de 512 GB em ambos os nossos dispositivos de teste.

Os dispositivos de comparação, que têm especificações similares, estão listados na tabela a seguir.

Intel NUC11ATKPE, N6005

Processador

Intel Pentium Silver N6005 4 x 2 - 3.3 GHz, 25 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Placa gráfica

Intel UHD Graphics (Jasper Lake 32 EU)

Memória

16 GB

, DDR4-2933, dual channel, 2 of 2 installed

Disco rígido

WDC PC SN720 SDAPNTW-512G, 512 GB

, M.2 2280, NVMe

Placa de Som

Intel Jasper Lake PCH - cAVS Controller

Conexões

2 USB 2.0, 4 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: 2x 3.5 mm jack

Funcionamento em rede

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Tamanho

altura x largura x profundidade (em mm): 36 x 135 x 115

Características adicionais

36 Meses Garantia

peso

530 g, Suprimento de energia: 193 g

Preço

250 EUR

Links

Intel página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Intel NUC11ATKC2, N4505

Processador

Intel Celeron N4505 2 x 2 - 2.9 GHz, 15 W PL2 / Short Burst, 10 W PL1 / Sustained, Jasper Lake

Placa gráfica

Intel UHD Graphics (Jasper Lake 16 EU)

Memória

16 GB

, DDR4-2933, Dual Channel, 2 von 2 installiert

Disco rígido

WDC PC SN720 SDAPNTW-512G, 512 GB

, M.2 2280, NVMe

Placa de Som

Intel Jasper Lake PCH - cAVS Controller

Conexões

2 USB 2.0, 4 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: 2x 3,5mm Klinke

Funcionamento em rede

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Tamanho

altura x largura x profundidade (em mm): 36 x 135 x 115

Características adicionais

36 Meses Garantia

peso

535 g, Suprimento de energia: 197 g

Preço

150 EUR

Links

Intel página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height
70.9 % v7 ^(old)	03/2023	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	530 g	36 mm
63.2 % v7 ^(old)	03/2023	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	535 g	36 mm
65.9 % v7 ^(old)	01/2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	43.5 mm
66.5 % v7 ^(old)		Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	496 g	34.2 mm
v ^(old)	02/2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 g	48 mm
v ^(old)	08/2021	AC6-M Mini-PC Celeron J4125, UHD Graphics 600		58 mm
68.2 % v7 ^(old)	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	47 mm

Kit Essencial Intel NUC11 - Atlas Canyon em detalhes

Kit Essencial Intel NUC11 - Atlas Canyon (Intel Pentium Silver N6005)

Kit Essencial Intel NUC11 - Atlas Canyon (Intel Celeron N4505)

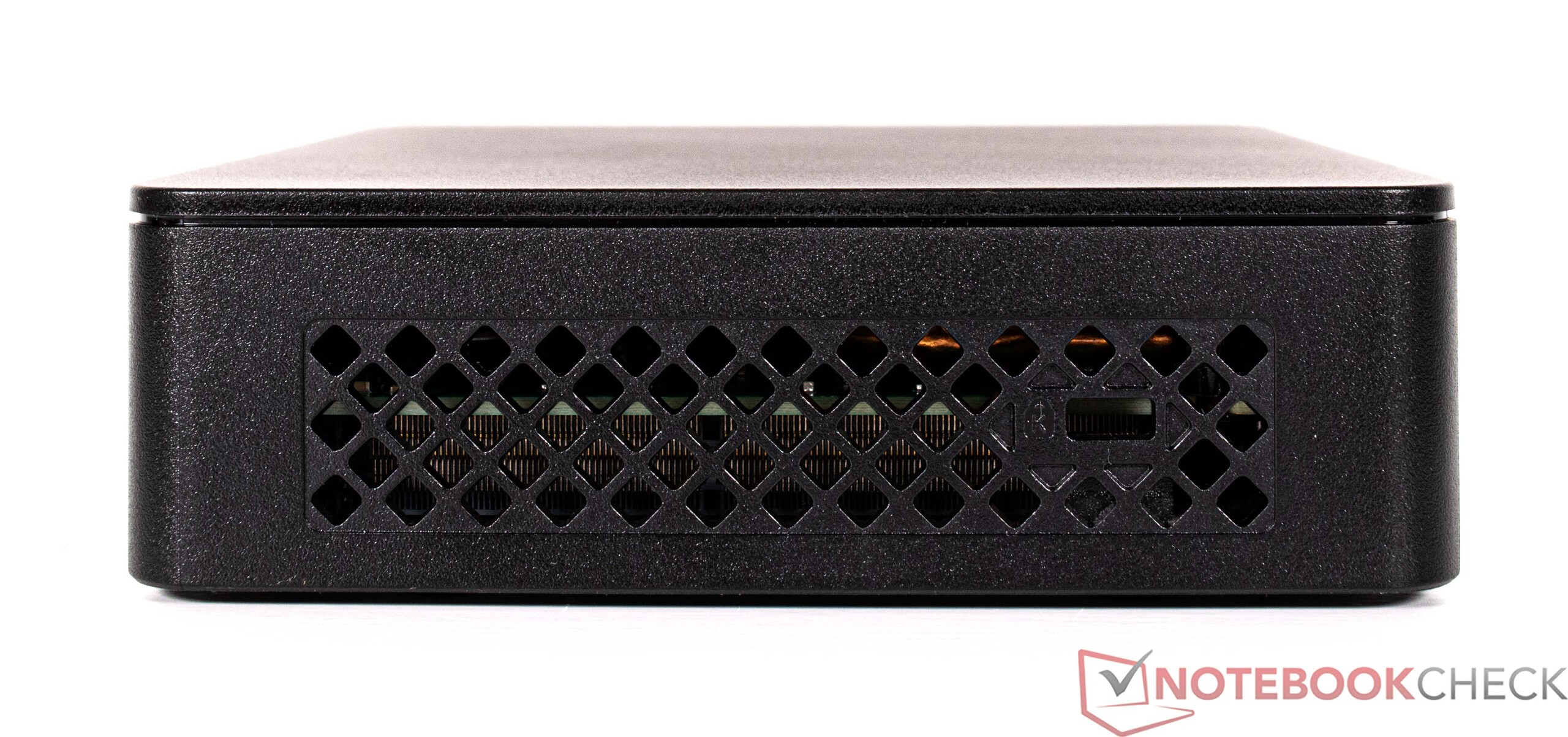

Caso

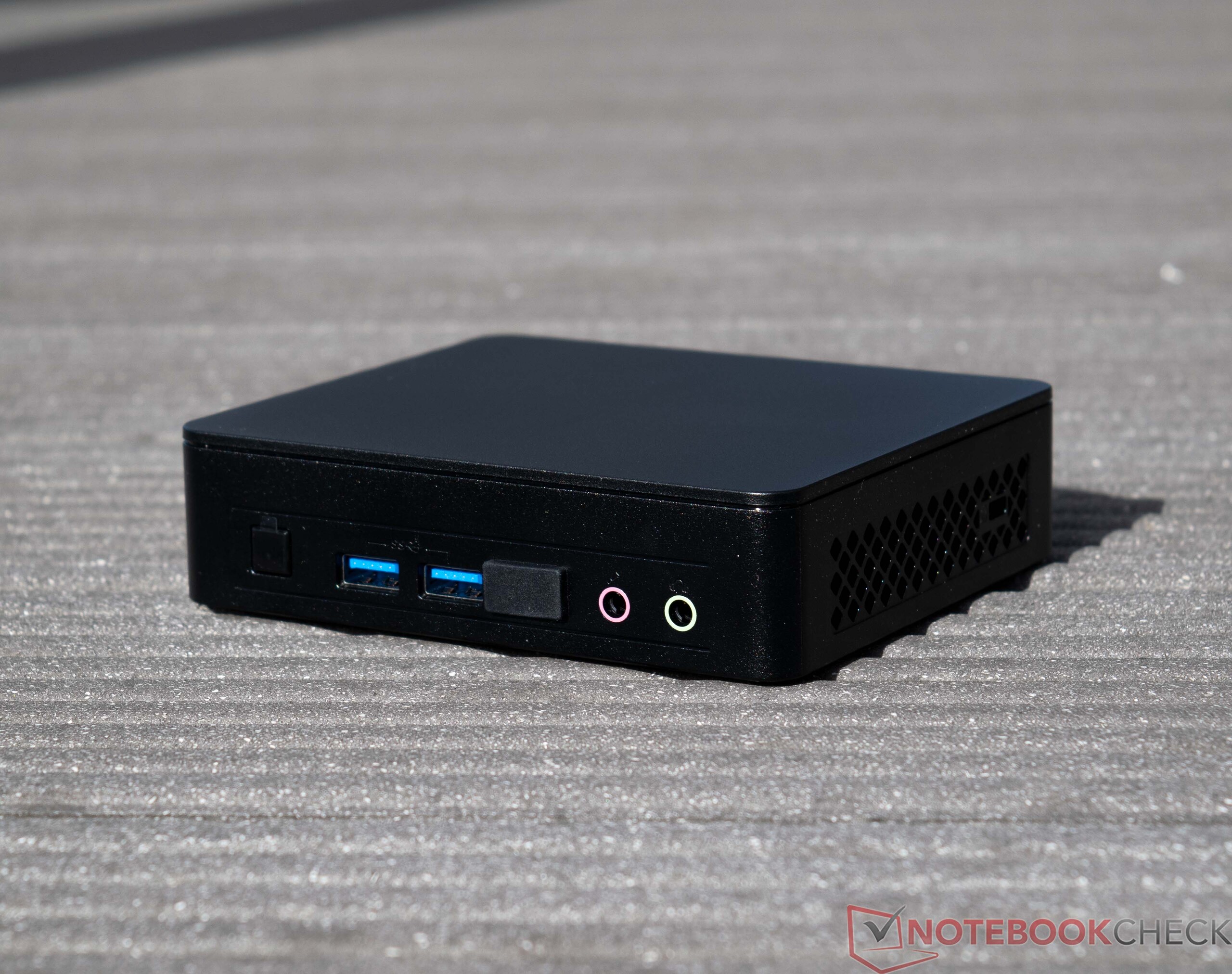

O Kit Essencial Intel NUC11 - Atlas Canyon é todo preto e não tem nenhuma superfície de alto brilho. À primeira vista, a caixa plástica parece um pouco barata. A sensação tátil real da caixa é muito melhor, porém - o dispositivo é muito resistente graças a seus suportes metálicos internos. Isto é muito semelhante a outros dispositivos da série NUC e o fabricante não faz nenhuma exceção para o Kit Essencial Intel NUC11 - Atlas Canyon. No que diz respeito ao tamanho, podemos ver uma pequena diferença em comparação com outros modelos da série. O mini PC tem uma pegada de 13,5 x 11,5 centímetros - opticamente, este dispositivo relativamente pequeno lembra o Elemento de Chassi Intel NUC Pro. Tecnicamente, eles são construídos de forma muito diferente um do outro. O Kit Essencial Intel NUC11 - Atlas Canyon pode ser acoplado a um monitor usando o suporte VESA fornecido.

Comparação de tamanho

Minipc Union NiPoGi GK3PLUS - N95 Newsmay AC8 N6005 Intel NUC11ATKPE, N6005 Intel NUC11ATKC2, N4505 Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A5 ❌

Conectividade

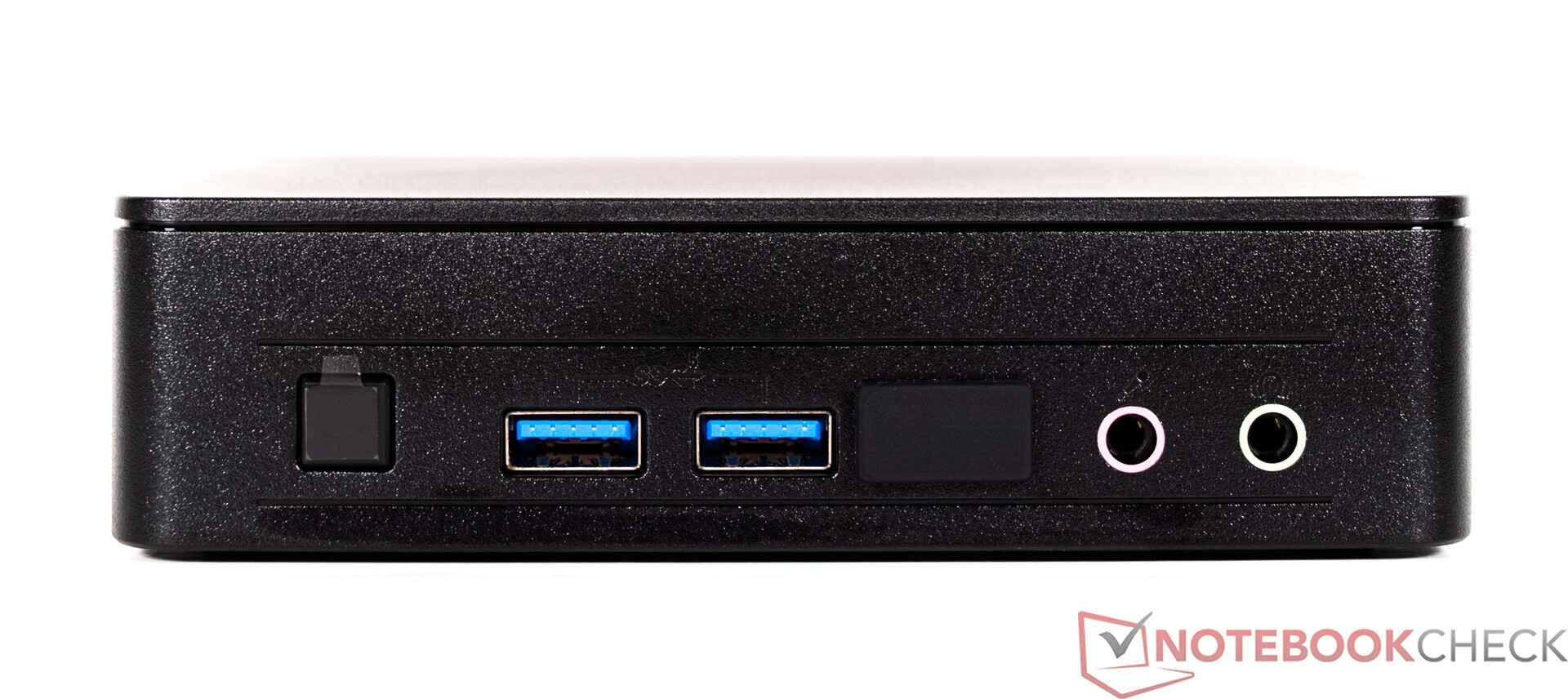

O Kit Essencial Intel NUC 11 - Atlas Canyon tem uma conectividade bastante padrão para um mini PC nesta classe de dispositivos. Seis portas USB Tipo A são mais do que suficientes para o uso diário. Você pode conectar monitores via DisplayPort ou HDMI. Ambos os dispositivos são instalados exatamente da mesma forma, por isso nos abstivemos de apresentá-los separadamente.

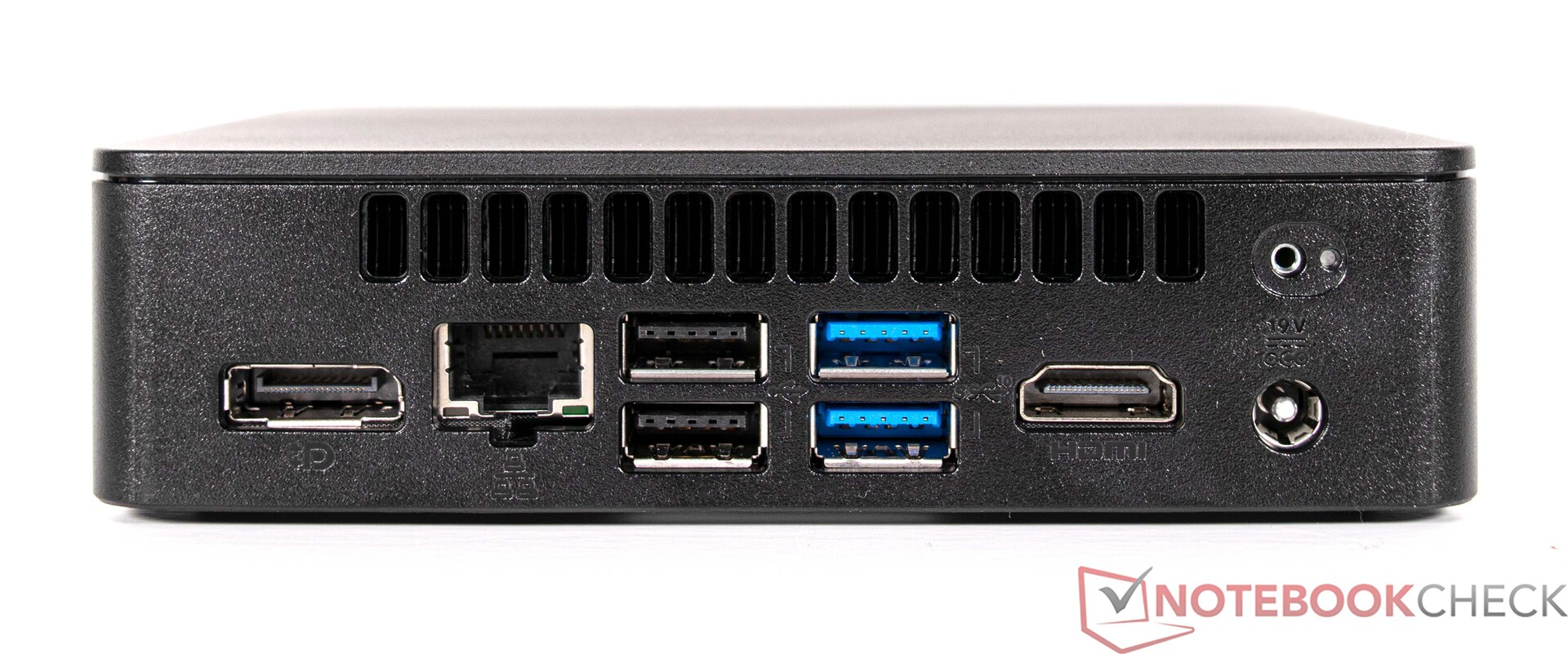

Voltar: DisplayPort, GBit LAN, 2x USB 2.0, 2x USB 3.2, HDMI, fonte de alimentação

Comunicação

O Kit Essencial Intel NUC11 apresenta a própria marca Intel do módulo WLAN, o Wireless AC 9462. Seu desempenho é bom em comparação com seus concorrentes - talvez até melhor em alguns momentos. Infelizmente, ainda medimos taxas de transmissão significativamente mais lentas do que a média para os mini PCs que testamos. Ambos os modelos do Kit Essencial Intel NUC 11 contam com o mesmo módulo WLAN, razão pela qual obtivemos resultados quase idênticos para cada um deles. Utilizamos o Asus ROG Rapture GT-AXE11000 como nosso roteador de teste neste teste.

Networking
iperf3 receive AXE11000
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	938 MBit/s +153%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	371 (186^min - 374^max) MBit/s
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (333^min - 376^max) MBit/s -1%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s -2%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s -4%
Average Intel Wireless AC 9462 (245 - 371, n=5)	335 MBit/s -10%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s -22%
iperf3 transmit AXE11000
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	864 MBit/s +141%
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (332^min - 393^max) MBit/s +2%
Average Intel Wireless AC 9462 (359 - 370, n=5)	366 MBit/s +2%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	359 (322^min - 389^max) MBit/s
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -25%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s -37%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s -49%

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø364 (186-374)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø366 (333-376)

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø359 (322-389)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø366 (332-393)

Acessórios

O mini PC vem com um adaptador de energia de 65 watts e uma placa de montagem para a montagem VESA.

Manutenção

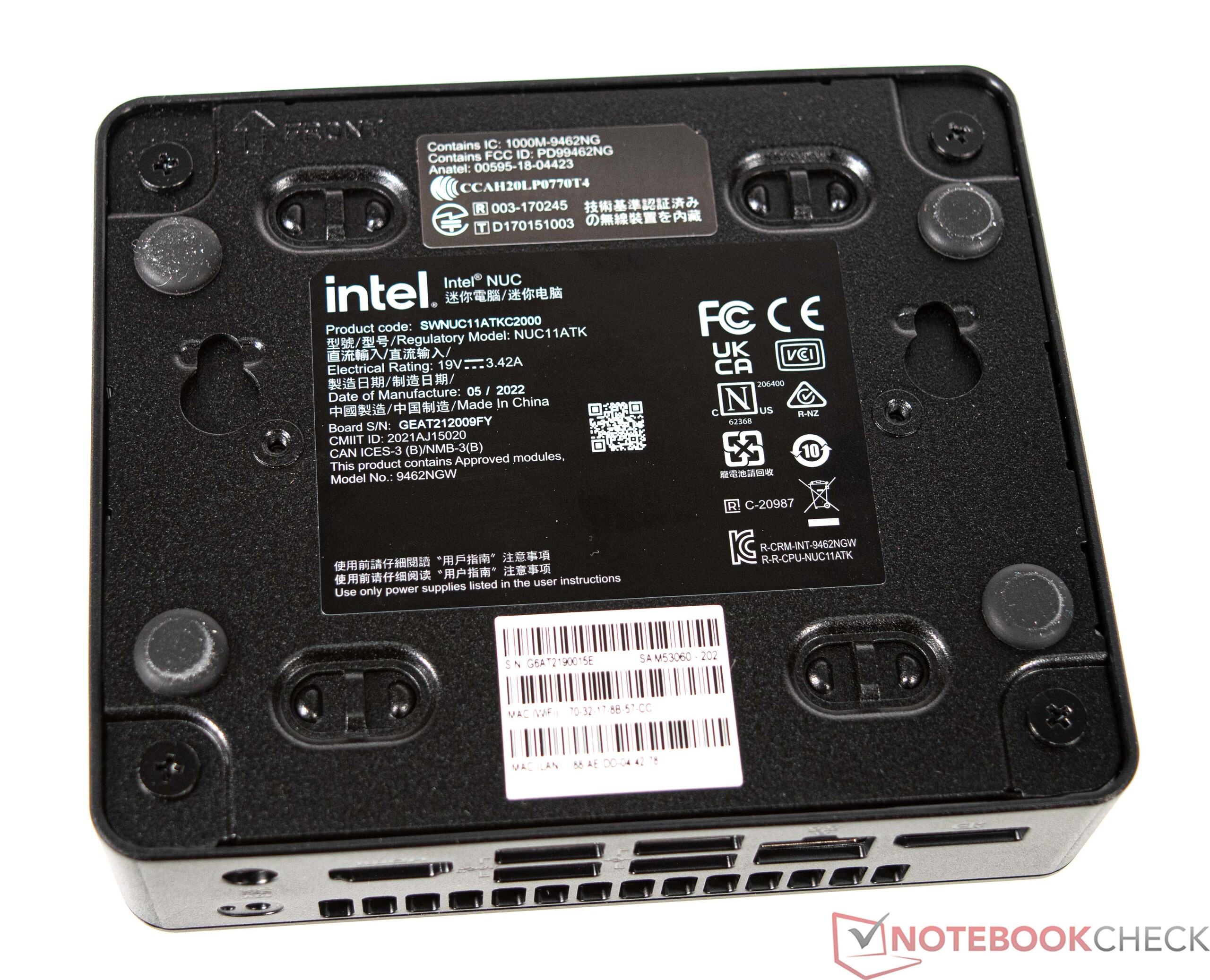

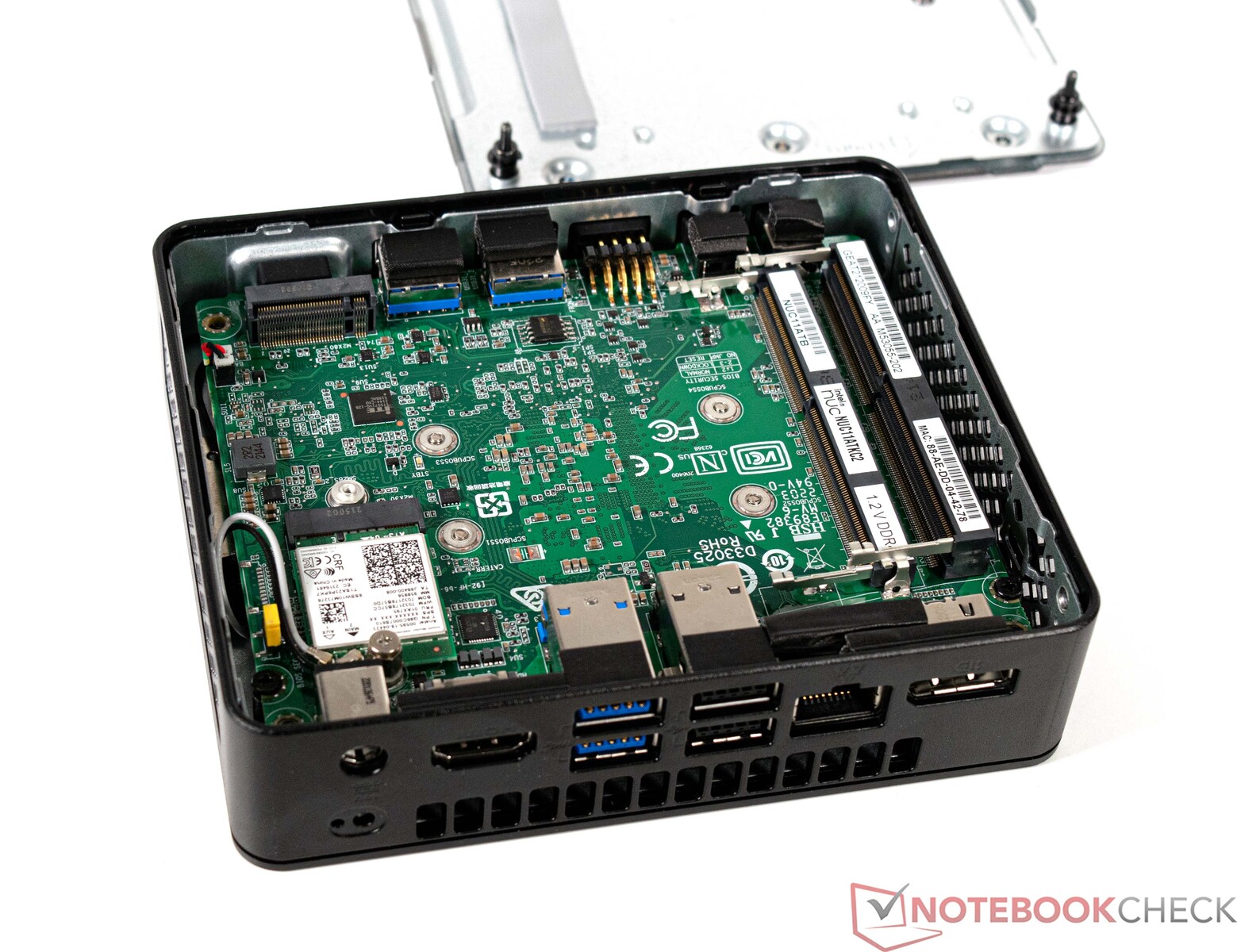

O fundo do Kit Essencial Intel NUC11 - Atlas Canyon pode ser aberto facilmente, já que a placa inferior só é fixada por quatro parafusos. No interior, os slots RAM e a porta M.2 são de fácil acesso. Se você quiser limpar o ventilador da CPU, você terá que desmontar ainda mais o dispositivo.

Desempenho - 4 núcleos tornam o uso diário consideravelmente mais suave

O Kit Essencial Intel NUC11 - Atlas Canyon tem algumas opções Jasper Lake - em nosso teste, estaremos dando uma olhada mais de perto no Intel Celeron N4505e oIntel Pentium Silver N6005. Devido ao Intel Celeron N4505 ter apenas 2 núcleos, este modelo atende rapidamente a seus limites. Para uso diário, o Intel Pentium Silver N6005 é definitivamente a escolha mais sensata - seus 4 núcleos proporcionam uma melhora notável no desempenho. Entretanto, para usos específicos com um sistema operacional menor, o Kit Essencial Intel NUC11 - Atlas Canyon com um Intel Celeron N4505 definitivamente ainda tem seu lugar. De acordo com suas especificações, o Linux também é suportado por este modelo.

Intel Pentium Silver N6005

Intel Celeron N4505

Condições de teste

Fizemos todos os testes de desempenho usando o perfil energético "equilibrado". Não alteramos o desempenho da CPU - em vez disso, deixamos em modo automático de acordo com as configurações da BIOS.

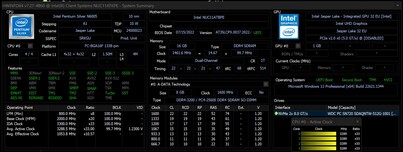

Processador

Os processadores da série Jasper Lake possuem 2 núcleos no Intel Celeron N4505e 4 núcleos no Intel Pentium Silver N6005. O SoC dual-core lutou bastante durante nosso teste, enquanto o modelo com 4 núcleos fez um trabalho consideravelmente melhor. Mesmo o desempenho do Intel Pentium Silver N6005 com um só núcleo foi melhor, embora o mesmo SoC tenha tido melhor desempenho no Notícias AC8.

Mesmo assim, é preciso considerar onde o dispositivo se destina a ser usado: Para sistemas menores e integrados com responsabilidades limitadas usando Linux como sistema operacional, o Kit Essencial Intel NUC11 - Atlas Canyon com um Intel Celeron N4505 é definitivamente uma opção válida e econômica. Se o sistema precisar rodar Windows, então recomendaríamos obter o Kit Essencial Intel NUC11 - Atlas Canyon com um Intel Pentium N6005.

Para mais comparações e benchmarks, por favor, dê uma olhada em nossoTabela comparativa de CPU.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	88.9 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	85.7 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	74.9 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	74 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	71.9 pt
AC6-M Mini-PC ^-2! Intel Celeron J4125, 2000 MHz	51.2 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	50.6 pt

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points +2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	121 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	104 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points -36%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	428 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	191 Points -55%

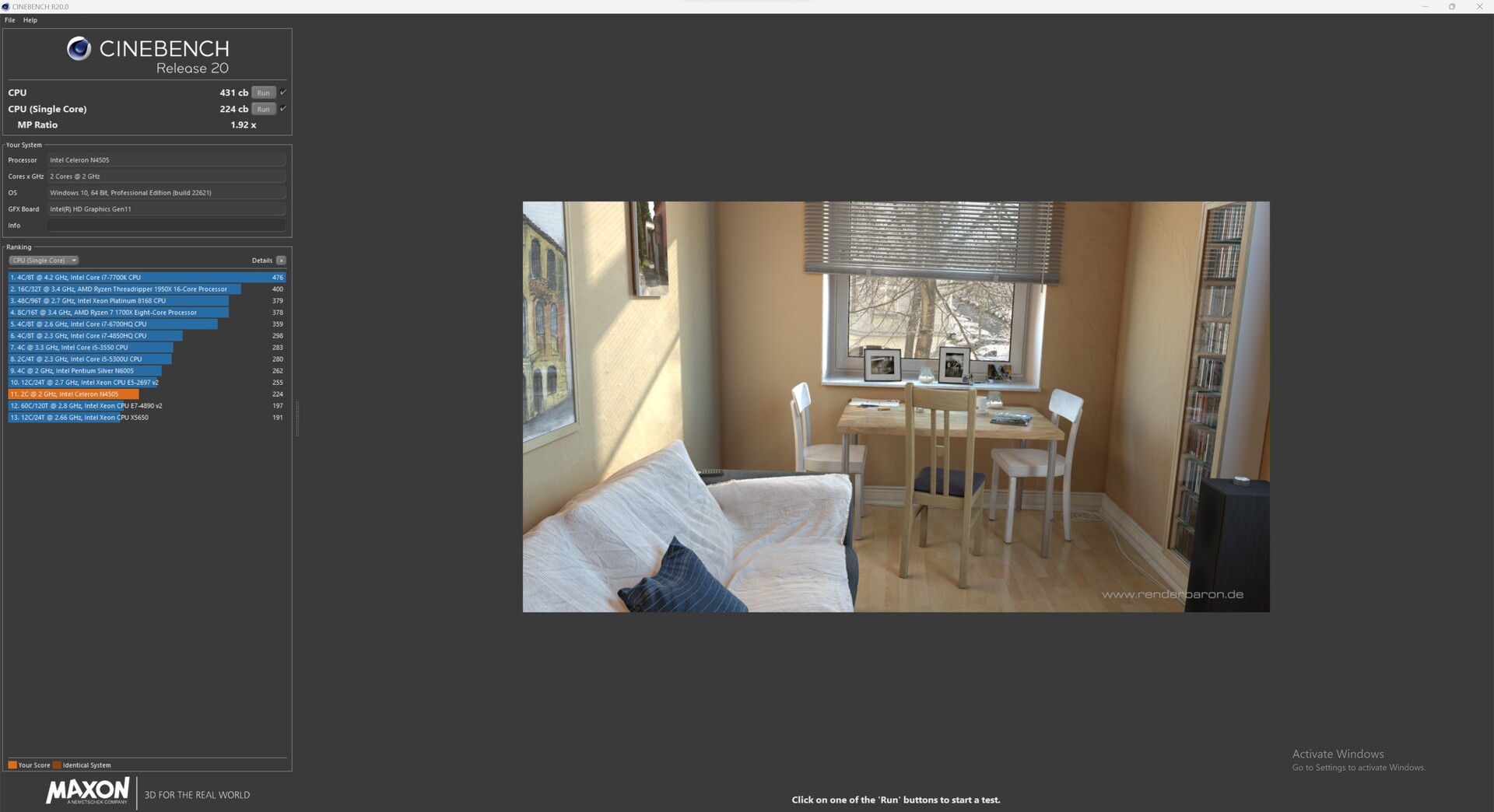

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	262 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -8%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	224 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points -35%
CPU (Multi Core)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	948 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points -24%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	431 Points -55%

Cinebench R23
Single Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points +1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	592 Points -15%
Multi Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2475 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points -26%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1114 Points -55%

Cinebench R11.5
CPU Single 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.48 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.27 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points -38%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5.56 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points -26%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2.46 Points -56%

Cinebench R10
Rendering Single CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points +6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6172 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points 0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5294 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points -40%
Rendering Multiple CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	20238 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points -19%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	10063 Points -50%

Blender - v2.79 BMW27 CPU
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2953 Seconds * -118%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * -14%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1354 Seconds *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * +15%

wPrime 2.10
32m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	35.481 s * -122%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * -24%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * -3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	16.004 s *
1024m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1120.441 s * -127%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * -25%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	493.256 s *

X264 HD Benchmark 4.0
Pass 1
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps +7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	135.5 (134.3^min - 136.3^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	72.3 (71.9^min - 72.4^max) fps -47%
Pass 2
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	28.75 (28.3^min - 29.5^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	13.8 (13.8^min - 13.8^max) fps -52%

WinRAR - Result
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s +20%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1824 KB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s -11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1000 KB/s -45%

TrueCrypt
AES Mean 100MB
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.9 GB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s -10%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.3 GB/s -55%
Twofish Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s +23%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s -8%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.192 GB/s -52%
Serpent Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s +11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s +5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.219 GB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s -17%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.101 GB/s -54%

Geekbench 5.5
Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2402 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points -38%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1225 Points -49%
Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	738 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	647 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points -38%

Geekbench 5.0
5.0 Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2455 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points -19%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points -40%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1205 Points -51%
5.0 Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +16%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points -6%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	645 Points -7%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points -35%

Geekbench 4.4
64 Bit Single-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points +8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3314 Points
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2942 Points -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points -42%
64 Bit Multi-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	9426 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points -42%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points -43%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5078 Points -46%

3DMark 11 - 1280x720 Performance Physics
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5024 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points -27%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2700 Points -46%

7-Zip 18.03
7z b 4
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	12851 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5871 MIPS -54%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3425 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2971 MIPS -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS -14%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS -31%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps +29%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.34 fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps -29%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.16 fps -50%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.224 sec * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * -12%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * -6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.073 sec *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * +4%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * -28%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	111.7 s *
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	105.1 s * +6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * +7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * +8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * +17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * +28%

WebXPRT 3 - Overall
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points +9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	142.3 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	113.3 Points -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points -39%

Mozilla Kraken 1.1 - Total
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1798 ms * -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1516 ms *
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * +18%

3DMark - 1920x1080 Fire Strike Physics
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6403 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points -33%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2979 Points -53%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	21.6 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19.3 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18.5 pt
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	15 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	10.5 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8.8 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6.2 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 51004, n=122, last 2 years)	11798 KRay/s +713%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1451 KRay/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1241 KRay/s -14%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	646 KRay/s -55%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -71%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 214250, n=122, last 2 years)	60105 Points +584%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8792 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7446 Points -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points -29%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -55%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	3857 Points -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -73%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 9399, n=122, last 2 years)	2657 MB/s +348%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	593 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s -13%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	513 MB/s -13%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -54%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	260 MB/s -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -72%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 184747, n=122, last 2 years)	76655 Points +192%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26238 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 Points -16%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points -24%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	11639 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -69%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -70%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 29064, n=122, last 2 years)	8194 Points +593%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1182 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1000 Points -15%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	519 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -65%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -66%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 113499, n=122, last 2 years)	31406 Points +573%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	4670 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3954 Points -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	2049 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -73%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 325960, n=122, last 2 years)	84062 MB/s +575%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19354 MB/s +55%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s +55%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	12455 MB/s
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	5504 MB/s -56%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 2039, n=122, last 2 years)	684 MB/s +208%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	222 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188 MB/s -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	98.7 MB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -66%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -73%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 26952, n=122, last 2 years)	6312 KRay/s +675%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	814 KRay/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -17%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s -32%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	350 KRay/s -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -74%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 50500, n=122, last 2 years)	27557 MPixel/s +135%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	11739 MPixel/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s -16%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	7994 MPixel/s -32%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7654 MPixel/s -35%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s -42%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -62%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -79%

Kit Essencial Intel NUC11 - Atlas Canyon vs. Cinebench R15 Multi Loop

Conseguimos nosso primeiro olhar sobre as capacidades de refrigeração dos dispositivos no teste de loop contínuo Cinebench R15. O desempenho de ambos os sistemas de teste permaneceu estável durante os 50 ciclos. Em comparação com oNotícias AC8nossa amostra de teste com o mesmo SoC produziu um resultado muito melhor graças a seu sistema de resfriamento ativo. Devido ao Intel Celeron N4505com o número de núcleos, o sistema simplesmente não conseguiu acompanhar seus concorrentes e acabou em último lugar com 193,9 pontos.

Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø414 (407.59-416.69)

Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel Celeron N4505: Ø193.9 (178.74-195.53)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Desempenho do sistema

Vimos resultados similares nos benchmarks de desempenho do sistema sintético. O Kit Essencial Intel NUC11 com umIntel Pentium Silver N6005foi capaz de competir com o NiPoGi GK3Plusque também tem um SoC quad-core - o Intel N95. Entretanto, o Intel N95 é um SoC muito mais novo, o que resultou em 10 a 25% de melhor desempenho. A amostra de teste com um Intel Celeron N4505até superou o desempenho do Notícias - AC6-Mque tem 4 núcleos. Nos testes de RAM, ambas as nossas amostras de teste foram capazes de ter um bom desempenho em comparação com seus concorrentes.

Performance Rating | PCMark 10

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	100 pt
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	88.7 pt
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	84.2 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	83.4 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	80.9 pt
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	72.6 pt
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	65.3 pt

PCMark 10
Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	2746 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	2067 Points -25%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points -34%
Essentials
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	6113 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points -4%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points -7%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points -11%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	4876 Points -20%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points -23%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points +22%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points +4%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	3719 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points -5%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	3396 Points -9%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points -21%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	100 pt
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	79.7 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	74.5 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	69.4 pt
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	66 pt

CrossMark
Responsiveness
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points +37%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points +3%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	482 Points
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	419 Points -13%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points -16%
Creativity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points +21%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	510 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points -14%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	388 Points -24%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points +22%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	591 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points -9%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	513 Points -13%
Overall
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points +24%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	539 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points -8%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points -12%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	442 Points -18%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 76462, n=122, last 2 years)	46953 MB/s +77%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26521 MB/s
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	25028 MB/s -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16422 MB/s -38%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	13833 MB/s -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6308 MB/s -76%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 83287, n=122, last 2 years)	47375 MB/s +146%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19297 MB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16615 MB/s -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	15613 MB/s -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s -20%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10204 MB/s -47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -64%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6576 MB/s -66%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 89318, n=122, last 2 years)	51193 MB/s +49%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	34452 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	29332 MB/s -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18612 MB/s -46%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10449 MB/s -70%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6866 MB/s -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -80%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -164%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	144 ns * -160%
Average of class Mini PC (44.9 - 184.8, n=122, last 2 years)	91.1 ns * -65%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	89.5 ns * -62%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	59.3 ns * -7%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	59.1 ns * -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	55.3 ns *

* ... smaller is better

Latência do DPC

Ambos os sistemas de teste lutaram com altas latências. Surpreendentemente, vimos resultados piores no dispositivo supostamente mais rápido. Por outro lado, ambos os dispositivos lutaram para reproduzir vídeos de alta resolução em 4K.

Intel NUC11ATKPE, N6005

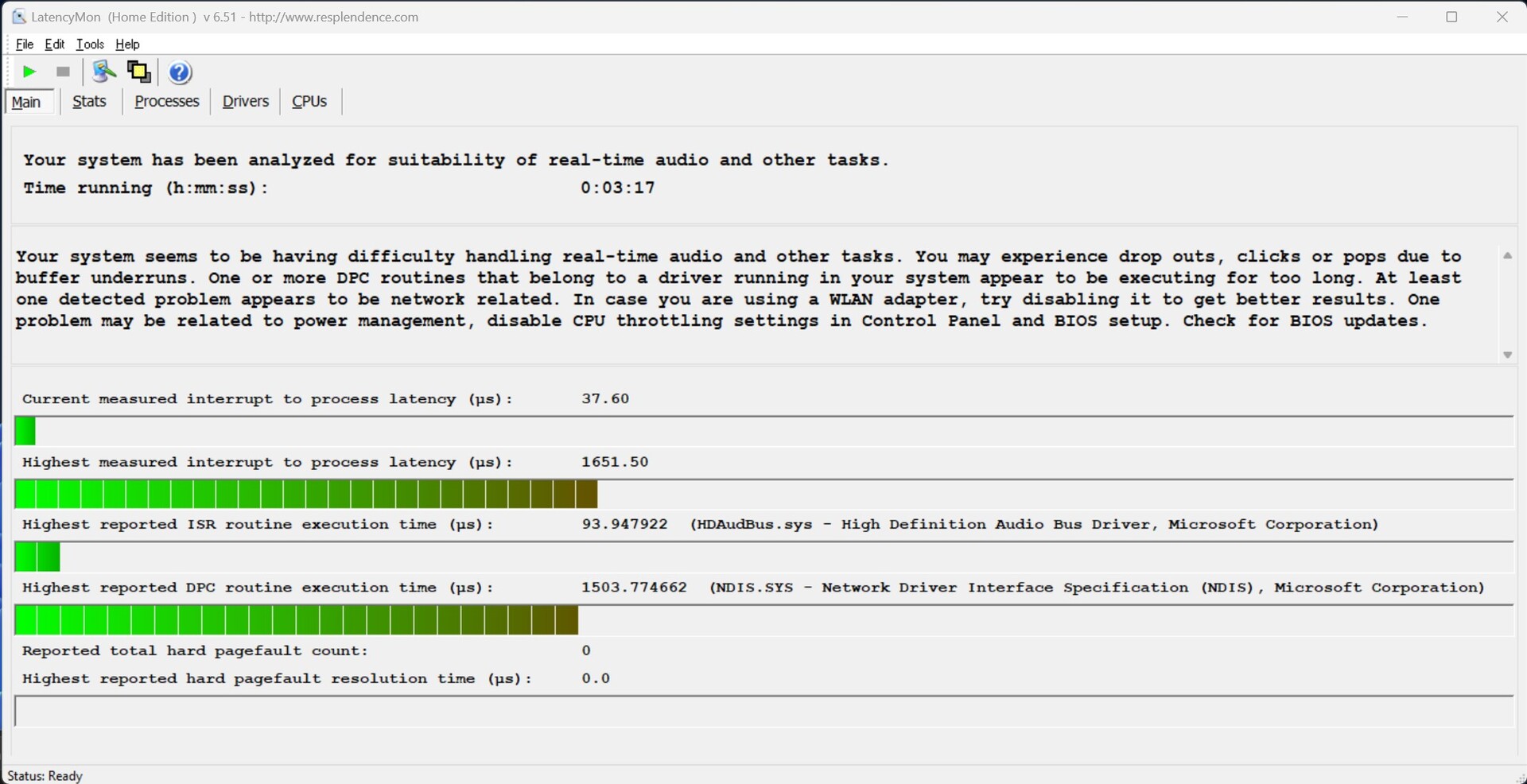

Máxima latência ao abrir várias abas do navegador e reproduzir vídeo 4K

Latência máxima após dez segundos de Prime95

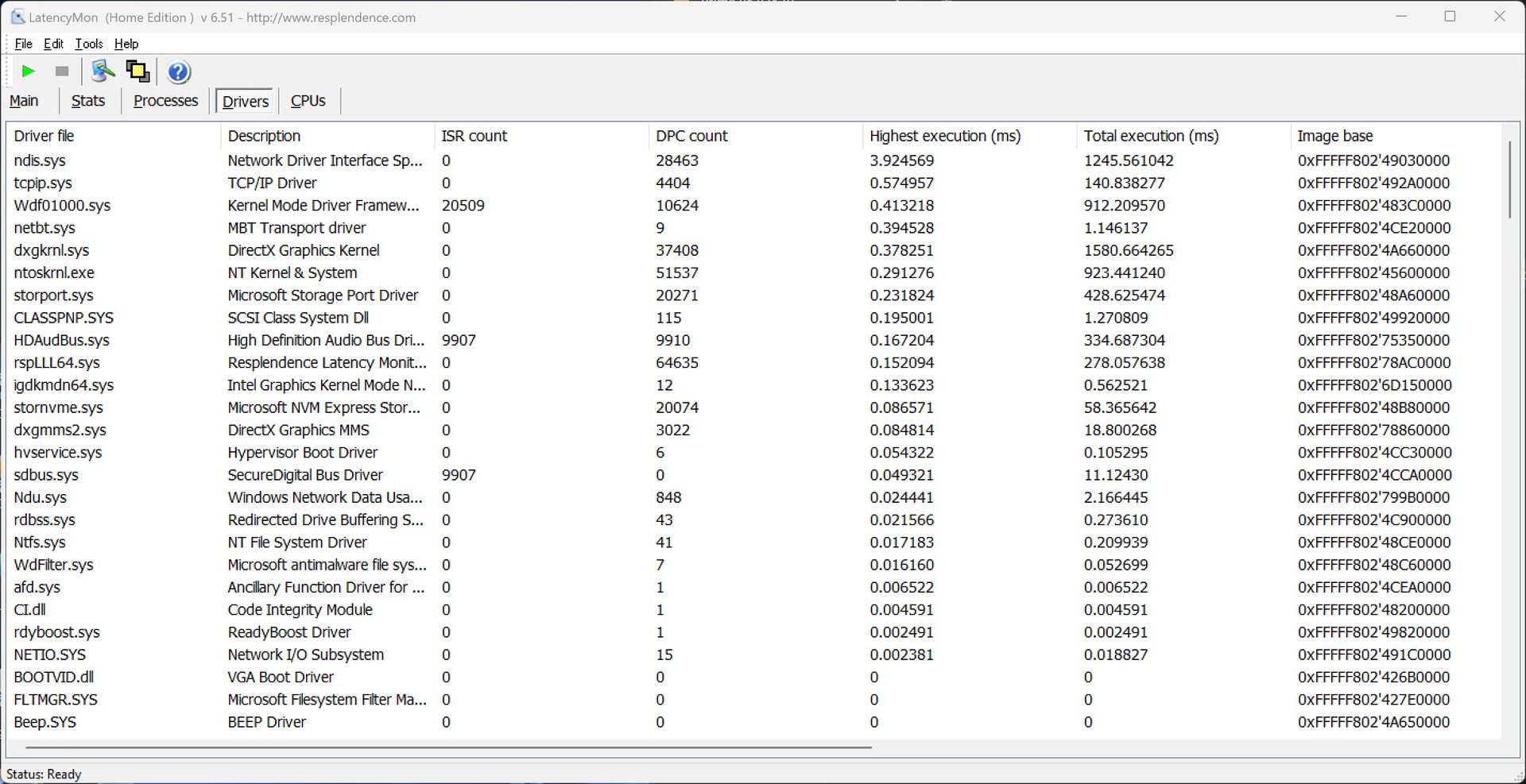

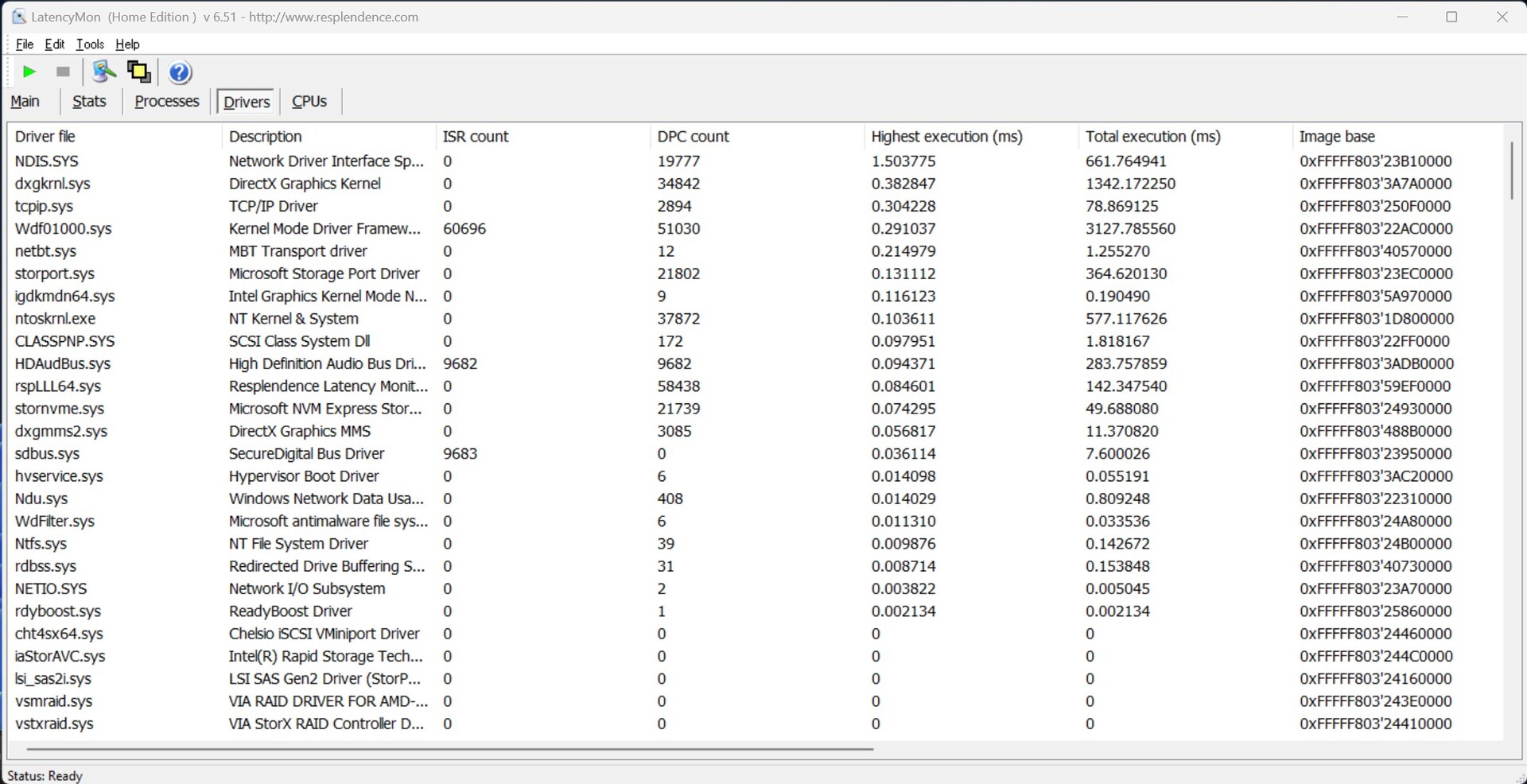

Motoristas classificados por maior duração de execução

Intel NUC11ATKC2, N4505

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	4075 μs * -4%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	3924 μs *
AC6-M Mini-PC UHD Graphics 600, Celeron J4125	3767 μs * +4%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	3463 μs * +12%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2635 μs * +33%
Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G	1503.7 μs * +62%
Geekom MiniAir 11 Special Edition UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	687.3 μs * +82%

* ... smaller is better

Dispositivos de armazenamento

Como mencionado em nossa introdução, o Kit Essencial Intel NUC11 - Atlas Canyon é um sistema de barebone. Para nosso teste, instalamos um SSD de 512 GB da Western Digital. O modelo kit-out forneceu taxas de transmissão rápidas e estáveis. A Intel usa a placa inferior para resfriar o dispositivo - ele já vem equipado com uma almofada de condução de calor. O Kit Essencial Intel NUC11 - Atlas Canyon só pode ser equipado com um SSD.

Para mais comparações e benchmarks, por favor, dê uma olhada em nosso tabela comparativa.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN720 SDAPNTW-512G

Sequential Read: 1061 MB/s

Sequential Write: 1012 MB/s

512K Read: 793.6 MB/s

512K Write: 819.4 MB/s

4K Read: 18.84 MB/s

4K Write: 75.66 MB/s

4K QD32 Read: 202.9 MB/s

4K QD32 Write: 113 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	94.5 pt
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	45.2 pt
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	38.7 pt
AC6-M Mini-PC	28.2 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.9 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	25 pt
Newsmay AC8 N6005 Lexar 128GB SSD	24.6 pt
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	14.1 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4357, n=122, last 2 years)	2272 MB/s +115%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1057 (1032.22^min - 1057.37^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1026 (988.51^min - 1025.76^max) MB/s -3%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s -52%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s -55%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s -55%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -57%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s -59%
seq write
Average of class Mini PC (222 - 5595, n=122, last 2 years)	2406 MB/s +147%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1022 (961.96^min - 1021.79^max) MB/s +5%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	976 (968.83^min - 975.8^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s -49%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s -50%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s -53%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s -56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s -58%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=122, last 2 years)	3647 MB/s +150%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1461 (1238.96^min - 1460.88^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1426 (1221.66^min - 1425.85^max) MB/s -2%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s -61%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s -62%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s -66%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s -69%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=122, last 2 years)	2703 MB/s +105%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1316 (1303.71^min - 1316.48^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1283 (1273.81^min - 1283.04^max) MB/s -3%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s -61%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s -61%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s -74%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=122, last 2 years)	54.9 MB/s +126%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s +40%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s +9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s +7%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	24.4 (23.94^min - 24.41^max) MB/s 0%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	24.3 (23.99^min - 24.31^max) MB/s
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s -43%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s -47%
4k q1 t1 write
Average of class Mini PC (30.4 - 435, n=122, last 2 years)	193.8 MB/s +366%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s +140%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +131%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s +78%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s +49%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	41.6 (39.05^min - 41.6^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	40 (39.1^min - 40.03^max) MB/s -4%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s -47%
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=122, last 2 years)	1312 MB/s +82%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	719 (712.63^min - 718.86^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	460 (454.97^min - 459.58^max) MB/s -36%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s -58%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -64%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s -74%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s -76%
4k q32 t16 write
Average of class Mini PC (30.2 - 4288, n=122, last 2 years)	1263 MB/s +150%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	506 (502.96^min - 505.69^max) MB/s
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s -31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s -37%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	316 (312.68^min - 316.32^max) MB/s -38%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s -43%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s -49%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s -67%

AS SSD
Score Total
Average of class Mini PC (181.5 - 10021, n=120, last 2 years)	4029 Points +96%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	2059 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1610 Points -22%
AC6-M Mini-PC	1091 Points -47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points -66%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points -71%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points -93%
Score Read
Average of class Mini PC (61 - 3741, n=120, last 2 years)	1507 Points +75%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	859 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	588 Points -32%
AC6-M Mini-PC	473 Points -45%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -73%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points -75%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points -84%
Score Write
Average of class Mini PC (88 - 4371, n=120, last 2 years)	1799 Points +134%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	770 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	728 Points -5%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points -49%
AC6-M Mini-PC	374 Points -51%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -52%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points -59%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points -73%
Seq Read
Average of class Mini PC (291 - 6620, n=120, last 2 years)	3135 MB/s +133%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1359 MB/s +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1348 MB/s
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s -62%
AC6-M Mini-PC	492 MB/s -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s -68%
Seq Write
Average of class Mini PC (240 - 5783, n=120, last 2 years)	2186 MB/s +94%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1139 MB/s +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1126 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s -57%
AC6-M Mini-PC	450 MB/s -60%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s -63%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s -66%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s -69%
4K Read
Average of class Mini PC (6.08 - 104.3, n=120, last 2 years)	58.1 MB/s +167%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s +63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s +26%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s +7%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	21.8 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	21.4 MB/s -2%
AC6-M Mini-PC	19.43 MB/s -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s -26%
4K Write
Average of class Mini PC (30.9 - 366, n=120, last 2 years)	174.8 MB/s +347%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s +119%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s +112%
AC6-M Mini-PC	51.4 MB/s +31%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	39.1 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	38.2 MB/s -2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s -3%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s -6%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=120, last 2 years)	1135 MB/s +61%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	703 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	431 MB/s -39%
AC6-M Mini-PC	404.1 MB/s -43%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s -66%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -78%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s -78%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s -92%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=120, last 2 years)	1406 MB/s +128%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	618 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	576 MB/s -7%
AC6-M Mini-PC	277.8 MB/s -55%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -61%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s -78%
Access Time Read
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * -65%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * -19%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	0.143 ms * -15%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * -12%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.124 ms *
Average of class Mini PC (0.022 - 0.489, n=120, last 2 years)	0.09934 ms * +20%
AC6-M Mini-PC	0.088 ms * +29%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +39%
Access Time Write
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * -244%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * -146%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * -124%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -115%
Average of class Mini PC (0.016 - 0.765, n=120, last 2 years)	0.1137 ms * -93%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	0.096 ms * -63%
AC6-M Mini-PC	0.071 ms * -20%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.059 ms *

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G: Ø1445 (1295.28-1490.45)

Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G: Ø1402 (1294.85-1449.38)

Desempenho da placa gráfica e dos jogos

O Kit Essencial Intel NUC11 - Atlas Canyon tem uma placa gráfica Intel UHD integrada da série Jasper Lake. O Intel Pentium Silver N6005o iGPU tem 32 UEs e o Intel Celeron N4505tem apenas 16 UE. A diferença de desempenho se torna muito óbvia olhando para o desempenho 3D sintético dos sistemas.

Em ambos os casos, o iGPU incorporado não é suficiente para jogos. Dando uma olhada na lista de jogos que testamos, você verá que eles quase não renderam nenhuma taxa de quadros jogáveis.

Outros benchmarks da Intel UHD (Lago Jasper) podem ser encontrados aqui.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	100 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	81.2 pt
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	70.9 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	50.1 pt
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	48.2 pt
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	47.7 pt
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	34.1 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1872 Points
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -22%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points -54%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	854 Points -54%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -55%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	602 Points -68%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	9405 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -15%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points -37%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points -45%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -47%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	4625 Points -51%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	3503 Points -63%
1920x1080 Fire Strike Graphics
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1351 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -20%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points -35%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points -51%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	653 Points -52%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -53%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	446 Points -67%

Intel NUC11ATKPE, N6005

3DMark 05 Standard		14499 pontos
3DMark 06 Standard Score		10473 pontos
3DMark Vantage P Result		7448 pontos
3DMark 11 Performance		2086 pontos
3DMark Ice Storm Standard Score		40203 pontos
3DMark Cloud Gate Standard Score		7589 pontos
3DMark Fire Strike Score		1260 pontos
3DMark Fire Strike Extreme Score		620 pontos
3DMark Time Spy Score		456 pontos
Ajuda

... comparado com

Intel NUC11ATKC2, N4505

3DMark 05 Standard		12573 pontos
3DMark 06 Standard Score		6419 pontos
3DMark Vantage P Result		3411 pontos
3DMark 11 Performance		971 pontos
3DMark Ice Storm Standard Score		23869 pontos
3DMark Cloud Gate Standard Score		3669 pontos
3DMark Fire Strike Score		635 pontos
3DMark Fire Strike Extreme Score		309 pontos
3DMark Time Spy Score		203 pontos
Ajuda

... comparado com

Performance Rating | X-Plane 11.11 | Dota 2 Reborn | Final Fantasy XV Benchmark

Performance Rating - Percent
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	93.7 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	90.6 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	67.2 pt
Minipc Union Ace Magician T8Pro ^-1! Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.1 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	52.6 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	52.6 pt
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	36 pt

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.4 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	22.5 fps -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.2 fps -35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	15.1 fps -35%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	13.2 fps -44%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	10.1 fps -57%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	6.36 fps -73%
1920x1080 med (fps_test=2)
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.9 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	14.7 fps -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	11.4 fps -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	9.18 fps -42%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	8.41 fps -47%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	4.84 fps -70%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	79.8 (67.5^min) fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	69.7 (57.1^min) fps -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	61.2 (50.1^min) fps -23%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.6 (47.7^min) fps -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	54 (46.5^min) fps -32%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	41.5 (35.8^min) fps -48%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	36.2 (29.6^min) fps -55%
1366x768 med (1/3)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	44.9 (33.7^min) fps +62%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	27.8 (20.4^min) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	26.9 (19.4^min) fps -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	22.8 (14.3^min) fps -18%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	22.4 (18^min) fps -19%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	22 (11.8^min) fps -21%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	17.2 (12.6^min) fps -38%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.3 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	12 fps -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	10.7 fps -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.13 fps -50%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.94 fps -51%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	6.92 fps -52%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	5.17 fps -64%
1920x1080 Standard Quality
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	6.71 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	5.63 fps -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	4.96 fps -26%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	3.28 fps -51%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	3.27 fps -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	3.19 fps -52%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	2.14 fps -68%

Intel NUC11ATKPE, N6005

	baixo	média	alto	ultra
GTA V (2015)	26.8	26.1	10.8
Dota 2 Reborn (2015)	79.8	27.8	19.5	18.3
Final Fantasy XV Benchmark (2018)	14.3	6.71	4.61
X-Plane 11.11 (2018)	23.4	15.9	14.6
Strange Brigade (2018)	32	12.1	10.2	13.3
Borderlands 3 (2019)	19.2	7.96	4.68
F1 2020 (2020)	30.8	14.7	10.5	6.41
F1 2021 (2021)	37.6	15.8	12.7
Tiny Tina's Wonderlands (2022)	5.43	6.63	4.25

Intel NUC11ATKC2, N4505

	baixo	média	alto	ultra
GTA V (2015)	25.1	25	5.59
Dota 2 Reborn (2015)	36.2	26.9	11.8	10.9
Final Fantasy XV Benchmark (2018)	6.94	3.19	2.25
X-Plane 11.11 (2018)	13.2	9.18	8.58
Strange Brigade (2018)	16.2	6.5	6.5

Emissões

Emissões sonoras

Ambos os dispositivos tiveram resultados semelhantes em termos de emissão de ruído. Sem nenhuma carga, ambos os nossos dispositivos de teste permaneceram bastante silenciosos. Embora, o ventilador esteja sempre em uso, para que possa ser ouvido silenciosamente em segundo plano. Sob carga, medimos 36,7 e 36,8 dB(A) respectivamente, o que é bastante ruidoso em comparação com seus concorrentes - se excluirmos o NiPoGi GK3Plus.

Intel NUC11ATKPE, N6005

Barulho

Ocioso		31.8 / 31.9 / 32 dB
Carga		32.5 / 36.8 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30.3 dB(A)

Intel NUC11ATKC2, N4505

Barulho

Ocioso		32.6 / 32.8 / 32.9 dB
Carga		33.3 / 36.7 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30.4 dB(A)

	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)
Noise		-2%	6%	7%	-2%
off / environment *	30.3	30.4 -0%	30.2 -0%	29.6 2%	30.4 -0%
Idle Minimum *	31.8	32.6 -3%	30.2 5%	29.6 7%	31 3%
Idle Average *	31.9	32.8 -3%	30.2 5%	29.6 7%	31.1 3%
Idle Maximum *	32	32.9 -3%	30.2 6%	29.6 7%	31.8 1%
Load Average *	32.5	33.3 -2%	30.5 6%	30 8%	33.3 -2%
Load Maximum *	36.8	36.7 -0%	30.9 16%	32.9 11%	42.5 -15%

* ... smaller is better

Temperaturas

Com relação à temperatura do caso, o Kit Essencial Intel NUC11 - Atlas Canyon não é nada fora do comum. O ar quente é efetivamente conduzido para fora da caixa sem causar qualquer acúmulo de calor.

Internamente, medimos temperaturas mais altas - mas a 77 °C, oIntel Pentium Silver N6005ainda está bem dentro da área verde. Com o Intel Celeron N4505medimos apenas 71 °C sob carga.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Kit Essencial Intel NUC11 - Atlas Canyon vs. Teste de estresse

Consumo de energia

Quando se trata de consumo de energia, ambos os dispositivos tiveram um bom desempenho. Embora houvesse diferenças no consumo de energia em relação aos diferentes limites de TPD. Na carga máxima com um consumo de 37,6 watts, o Kit Essencial Intel NUC com umIntel Pentium Silver N6005se destacou. Medimos 23,5 e 18,2 watts em carga média, o que é um resultado semelhante ao de seus concorrentes. Sem carga (cerca de 4,4-8 watts), ambos os dispositivos de teste foram realizados de forma semelhante e provaram ser bastante eficientes em termos energéticos.

Intel NUC11ATKPE, N6005

Consumo de energia

desligado	0.53 / 0.93 Watt
Ocioso	4.4 / 7.3 / 7.3 Watt
Carga	23.5 / 37.6 Watt


Key: min: , med: , max: Metrahit Energy

Intel NUC11ATKC2, N4505

Consumo de energia

desligado	0.5 / 0.9 Watt
Ocioso	5.2 / 8 / 8 Watt
Carga	18.2 / 26.5 Watt


Key: min: , med: , max: Metrahit Energy

	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Average Intel UHD Graphics (Jasper Lake 16 EU)	Average Intel UHD Graphics (Jasper Lake 32 EU)	Average of class Mini PC
Power Consumption		3%	-20%	18%	1%	10%	9%	-117%
Idle Minimum *	4.4	5.2 -18%	8.4 -91%	4.8 -9%	6.1 -39%	5.65 ?(2.5 - 8.4, n=8) -28%	4.83 ?(2.4 - 8.3, n=4) -10%	9.64 ?(1.9 - 45.7, n=118, last 2 years) -119%
Idle Average *	7.3	8 -10%	8.4 -15%	4.8 34%	6.9 5%	6.61 ?(4.6 - 8.4, n=7) 9%	7.13 ?(4.1 - 11, n=4) 2%	11.6 ?(1.9 - 47.5, n=117, last 2 years) -59%
Idle Maximum *	7.3	8 -10%	11.1 -52%	6.7 8%	8.9 -22%	7.54 ?(5.3 - 11.1, n=7) -3%	7.88 ?(4.7 - 11.3, n=4) -8%	15 ?(2.6 - 57.1, n=118, last 2 years) -105%
Load Average *	23.5	18.2 23%	16.5 30%	15.9 32%	20 15%	16.2 ?(12.3 - 18.3, n=6) 31%	17.5 ?(13.6 - 23.5, n=4) 26%	57.4 ?(11.3 - 170.6, n=118, last 2 years) -144%
Load Maximum *	37.6	26.5 30%	26.3 30%	28.4 24%	21.1 44%	23.1 ?(13.4 - 28.4, n=7) 39%	24.9 ?(12.1 - 37.6, n=4) 34%	97 ?(18.1 - 423, n=118, last 2 years) -158%

* ... smaller is better

Power consumption with external monitor

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Prime95 V2810 Stress (external Monitor): Ø27 (24.4-35.2)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Prime95 V2810 Stress (external Monitor): Ø19.7 (17.1-20.5)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Cinebench R15 Multi (external Monitor): Ø25.5 (22.8-28.5)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Cinebench R15 Multi (external Monitor): Ø17.6 (16.8-18)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø25 (22.5-28.8)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (15.3-19)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Idle 1min (external Monitor): Ø7.34 (7.09-7.67)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Idle 1min (external Monitor): Ø8.03 (7.87-8.35)

Intel NUC11ATKPE, N6005

Pro

+ caixa estável e compacta

+ fácil de abrir

+ muitas portas USB

+ baixo consumo de energia

Contra

- alta latência DPC

Veredicto - perfeito para trabalhos simples de escritório

Kit Essencial Intel NUC11 - revisão Atlas Canyon - fornecido pela Intel Alemanha

Demos uma olhada no Kit Essencial Intel NUC11 - Atlas Canyon, um mini PC com dois sistemas diferentes - que diferem bastante no desempenho. Ambos os dispositivos de teste compartilham os mesmos estojos e placas-mãe. O Intel Celeron N4505 é um SoC dual-core, que hoje em dia só tem usos realmente limitados na vida cotidiana. Vemos uma clara oportunidade de uso dentro de cenários muito específicos e com software adaptado. O Kit Essencial Intel NUC11 - Atlas com um Intel Pentium Silver N6005 tem definitivamente seu lugar no trabalho cotidiano do escritório. O SoC possui 4 núcleos e, portanto, proporciona um melhor desempenho.

O Kit Essencial Intel NUC11 - Atlas Canyon é perfeito para uso em cenários especializados. Para uso diário usando Windows como sistema operacional, você deve definitivamente ir para o processador com 4 núcleos.

Com relação à conectividade, foi feito um compromisso em deixar de fora portas modernas, como USB4 ou Thunderbolt. Mesmo assim, o número de portas é mais do que suficiente para os usos pretendidos pelos sistemas. Suas performances WLAN foram um tanto decepcionantes, mas no esquema maior das coisas, eles ainda se saíram melhor do que seus concorrentes. Estes pequenos sistemas provavelmente não terão que lidar com grandes quantidades de dados, de qualquer forma. Muito mais importante é o desempenho estável - algo que ambos os sistemas eram mais do que capazes de fornecer. O desempenho da WLAN e da CPU permaneceu estável o tempo todo - mesmo durante um período de tempo mais longo. O mesmo pode ser visto com o SSD, que forneceu um desempenho estável com carga contínua.

Do ponto de vista ótico, o Kit Essencial Intel NUC11 - Atlas Canyon é um mini PC bastante discreto. Mesmo assim, ele tem um acabamento de alta qualidade e não é de forma alguma produzido a baixo custo. Ele é feito bem e sem nenhuma falha, mesmo que a caixa plástica pareça um pouco barata à primeira vista. Atualmente, existem muitos concorrentes no campo dos mini PCs - mas não tantos em uma faixa de preço entre $150-250. Entretanto, você não pode esquecer de calcular o preço da RAM e SSD em seu orçamento, pois este é um sistema de barebone. Isto nos leva a determinar o NiPoGi GK3Plus e o Geekom MiniAir 11 como os maiores concorrentes deste mini PC.

Preços e disponibilidade

O Kit Essencial Intel NUC11 - Atlas Canyon com Intel Celeron N4505 pode ser adquirido na Amazônia por US$129.

A versão com o mais rápido Intel Pentium Silver N6005 pode ser comprada em Intel por 229 dólares.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Intel NUC11ATKPE, N6005 - 2023-03-16 03/16/2023 v7 ^(old)
Sebastian Bade

Acabamento

84 / 98 → 86%

Conectividade

55 / 81 → 68%

Peso

83%

Desempenho do jogos

51%

Desempenho da aplicação

74%

Ruído

84%

Médio

72%

71%

Mini PC - Médio equilibrado

Intel NUC11ATKC2, N4505 - 2023-03-16 03/16/2023 v7 ^(old)
Sebastian Bade

Acabamento

84 / 98 → 86%

Conectividade

55 / 81 → 68%

Peso

83%

Desempenho do jogos

29%

Desempenho da aplicação

67%

Ruído

83%

Médio

67%

63%

Mini PC - Médio equilibrado

Possíveis concorrentes em comparação

Kit Essencial Intel NUC11 - Atlas Canyon em detalhes

Caso

Comparação de tamanho

Conectividade

Comunicação

Acessórios

Manutenção

Desempenho - 4 núcleos tornam o uso diário consideravelmente mais suave

Intel Pentium Silver N6005

Intel Celeron N4505

Condições de teste

Processador

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Kit Essencial Intel NUC11 - Atlas Canyon vs. Cinebench R15 Multi Loop

Desempenho do sistema

Latência do DPC

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Dispositivos de armazenamento

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Desempenho da placa gráfica e dos jogos

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Emissões

Emissões sonoras

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Temperaturas

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Consumo de energia

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Power consumption with external monitor

Intel NUC11ATKPE, N6005

Pro

Contra

Veredicto - perfeito para trabalhos simples de escritório

Preços e disponibilidade

Transparency

More articles related to this device
