Análise do Newsmay AC8F-POE: Um mini PC com suporte a PoE e Intel N100 para ambientes profissionais

Name: Newsmay AC8F-POE
Brand: Newsmay

Não é para uso diário! O Newsmay AC8F-POE é um mini PC para ambientes profissionais. Com suporte a PoE, o computador pode ser alimentado diretamente pelo cabo de rede. Nesta análise, saiba mais sobre o Newsmay AC8F-POE e que tipo de desempenho pode ser esperado do Intel N100.

Sebastian Bade, 👁 Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 07/04/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Internet of Things (IoT) Linux / Unix Windows Business

A Newsmay é uma fabricante chinesa de sistemas especializada na produção de PCs especiais. Com o Newsmay AC8F-POE, estamos lidando com um mini PC para uso industrial que pode ser usado como firewall ou roteador móvel. O conceito sem ventoinha se reflete em sua aparência e é a razão pela qual, do ponto de vista visual, o Newsmay AC8F-POE se diferencia da maioria dos outros mini PCs. Com o processador Intel N100o Newsmay AC8F-POE foi equipado com um SoC já amplamente adotado que, por muito tempo, obteve bons resultados como um chip econômico e de alto desempenho em muitos testes. A RAM é de 16 GB e o armazenamento em massa é fornecido por um pequeno SSD de 128 GB.

No momento da análise, o dispositivo está sendo vendido por US$ 295 e, enquanto isso, pode ser encomendado na Amazon. Além das especificações de nossa análise, a Newsmay também oferece o AC8F-POE com dois outros processadores. Aqui o senhor pode escolher entre um Intel N95 ou um Intel N97. Para ilustrar o desempenho de outros minicomputadores, nesta análise, o Newsmay AC8F-POE terá que se comparar com dispositivos de desempenho semelhante. A lista dos concorrentes pode ser encontrada na tabela a seguir.

Test device courtesy of Newsmay

Download your licensed rating image as PNG / SVG

Newsmay AC8F-POE

Processador

Intel Processor N100 4 x 1 - 3.4 GHz, 25 W PL2 / Short Burst, 10 W PL1 / Sustained, Alder Lake-N

Placa gráfica

Intel UHD Graphics 24EUs (Alder Lake-N)

Memória

8 GB

, DDR4-2666, Single-Channel

placa mãe

Intel Alder Lake-N PCH

Disco rígido

AirDisk AFF 10-128G, 128 GB

, 96 GB livre

Placa de Som

Intel Alder Lake-N PCH - cAVS

Conexões

4 USB 2.0, 2 USB 3.0, 1 HDMI, 1 DisplayPort, 3x RJ45 i225-V LAN-Port, 1 PoE in ready, 1x RJ45 COM RS232, can update to RS485/RS422, internal Mainboard header: 1x USB2.0, 1x RS232

Funcionamento em rede

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s)

Tamanho

altura x largura x profundidade (em mm): 62 x 155 x 126.5

Características adicionais

36W Power Adapter, 12 Meses Garantia

peso

1.244 kg, Suprimento de energia: 143 g

Preço

295 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Bew.	Version	Datum	Model	PL2	PL1	Gewicht	Preis
61.3 %	v8	07/2024	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	25	10	1.2 kg	295 EUR
65.8 %	v8	06/2024	Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N)	18	9	367 g	219 EUR
77.4 %	v7 ^(old)	11/2023	Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N)	25	15	453 g	279 EUR
75.8 %	v7 ^(old)	03/2024	Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N)	25	25	450 g	249 EUR
73.5 %	v7 ^(old)	09/2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	15	15	214 g	250 EUR
73.2 %	v7 ^(old)	01/2024	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	25	6	828 g	299 EUR
71.1 %	v7 ^(old)	08/2023	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	35	15	392 g	179 EUR

Observação: Atualizamos nosso sistema de classificação, o que significa que os resultados da versão 8 não são comparáveis aos da versão 7. Informações adicionais podem ser encontradas aqui.

Caixa - Uma caixa de metal resistente serve como elemento de resfriamento

O conceito de resfriamento do Newsmay AC8F-POE é inicialmente responsável pela aparência do mini PC. Como o fabricante optou pelo resfriamento passivo, o gabinete também é usado para dissipar o calor. Já podemos revelar que, na prática, isso funciona maravilhosamente bem. O gabinete é totalmente de metal e pode ser desmontado com facilidade. Na parte superior da unidade e nas laterais, foram instaladas grandes aberturas de resfriamento para dissipar o calor em uma grande área. Uma desvantagem desse conceito é o peso, sendo que a amostra analisada pesa mais do que decentes 1,2 kg. O Newsmay também ocupa mais espaço do que os concorrentes. O ajuste e o acabamento são bons e tudo se encaixa harmoniosamente. O único pequeno ponto de crítica são as aletas de resfriamento com bordas um tanto afiadas.

Comparação de tamanho

Newsmay AC8F-POE Asus ExpertCenter PN42-BBN200MV Acemagic S1 BOSGAME N95 Minisforum Venus Series UN100D Geekom MiniAir 12 Blackview MP80 DIN A5 ❌

Recursos

O Newsmay AC8F-POE oferece uma boa seleção de portas que atendem ao uso pretendido. A primeira coisa que o senhor percebe são as várias portas LAN que podem servir de interface para várias redes. Por exemplo, a porta LAN 4 oferece a opção de fornecer energia ao dispositivo e, portanto, torna desnecessária a PSU. Poucos minicomputadores têm a opção PoE e isso dá ao Newsmay AC8F-POE um ponto de venda exclusivo. No entanto, não foi possível testar essa opção, pois não temos acesso a um switch com capacidade PoE. Além de várias portas USB - duas das quais possuem apenas a velocidade 2.0 - a parte frontal abriga uma porta HDMI e um conector DisplayPort para transferência de imagens. Da mesma forma, há um slot para cartão SIM, embora a especificação desse dispositivo não venha equipada com um módulo 4G ou 5G interno. As duas portas de antena Wi-Fi prometem mais do que entregam, pois um módulo Wi-Fi também não está instalado no Newsmay AC8F-POE. Sendo esse o caso, a próxima seção sobre comunicação está ausente desta análise. No entanto, o senhor pode equipar o dispositivo com um módulo Wi-Fi.

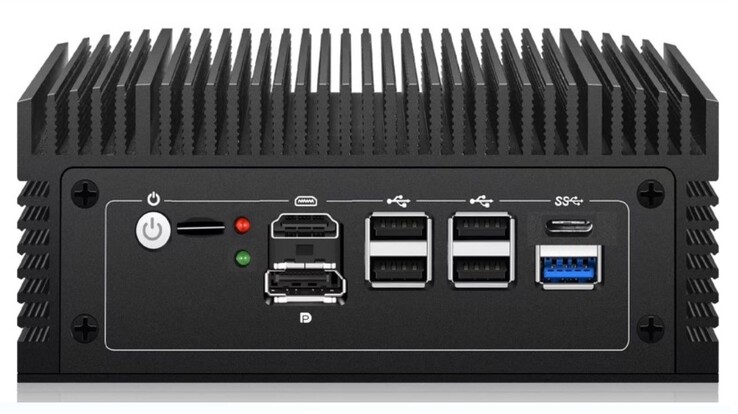

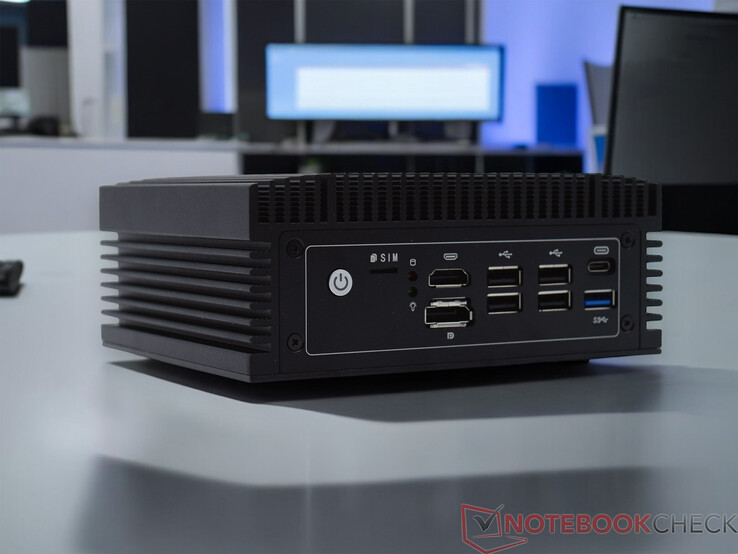

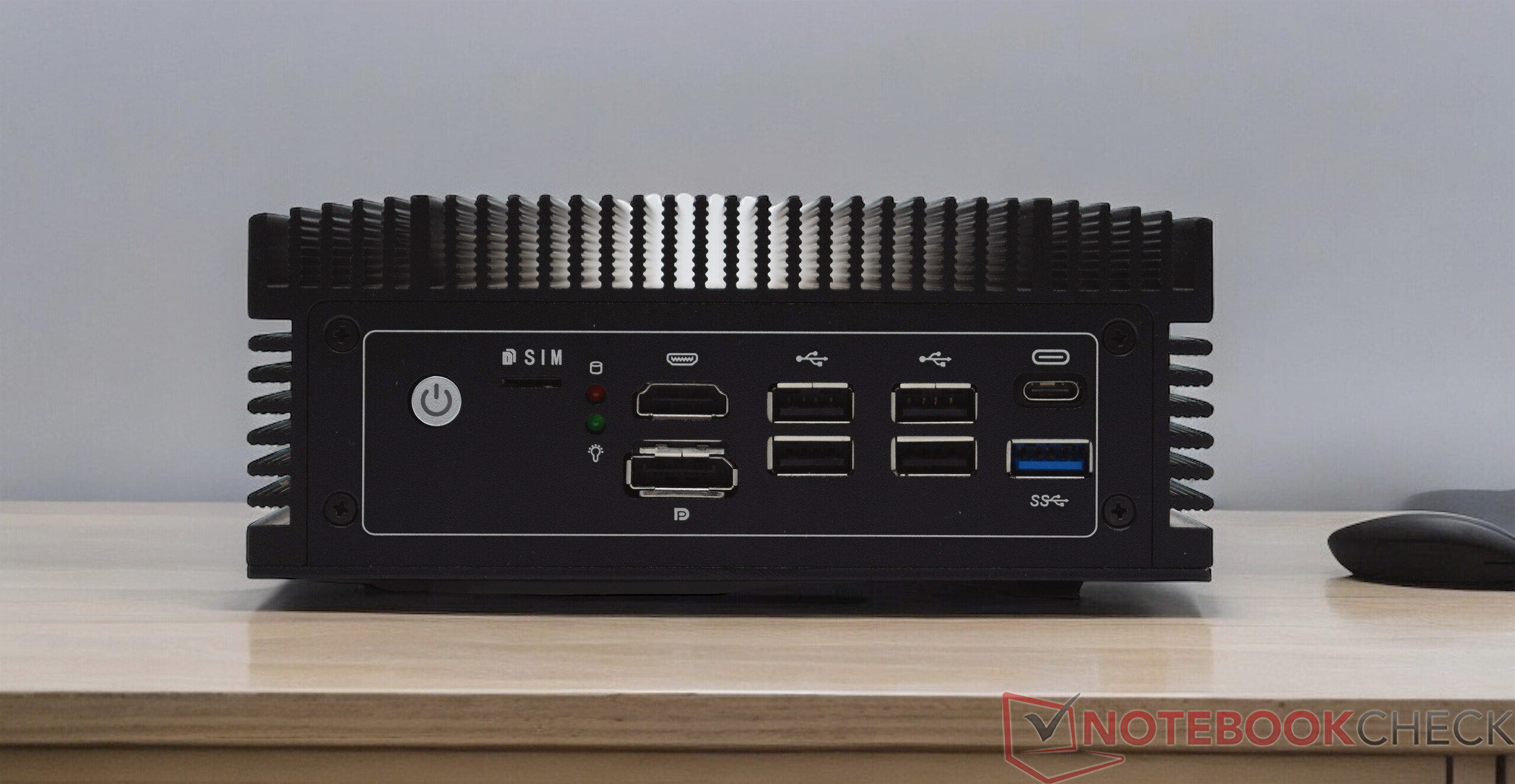

Frente: Ligar, slot para cartão SIM, DisplayPort, HDMI, 4x USB-A 2.0, USB 3.0 tipo A, USB 3.0 tipo C (fonte: Newsmay)

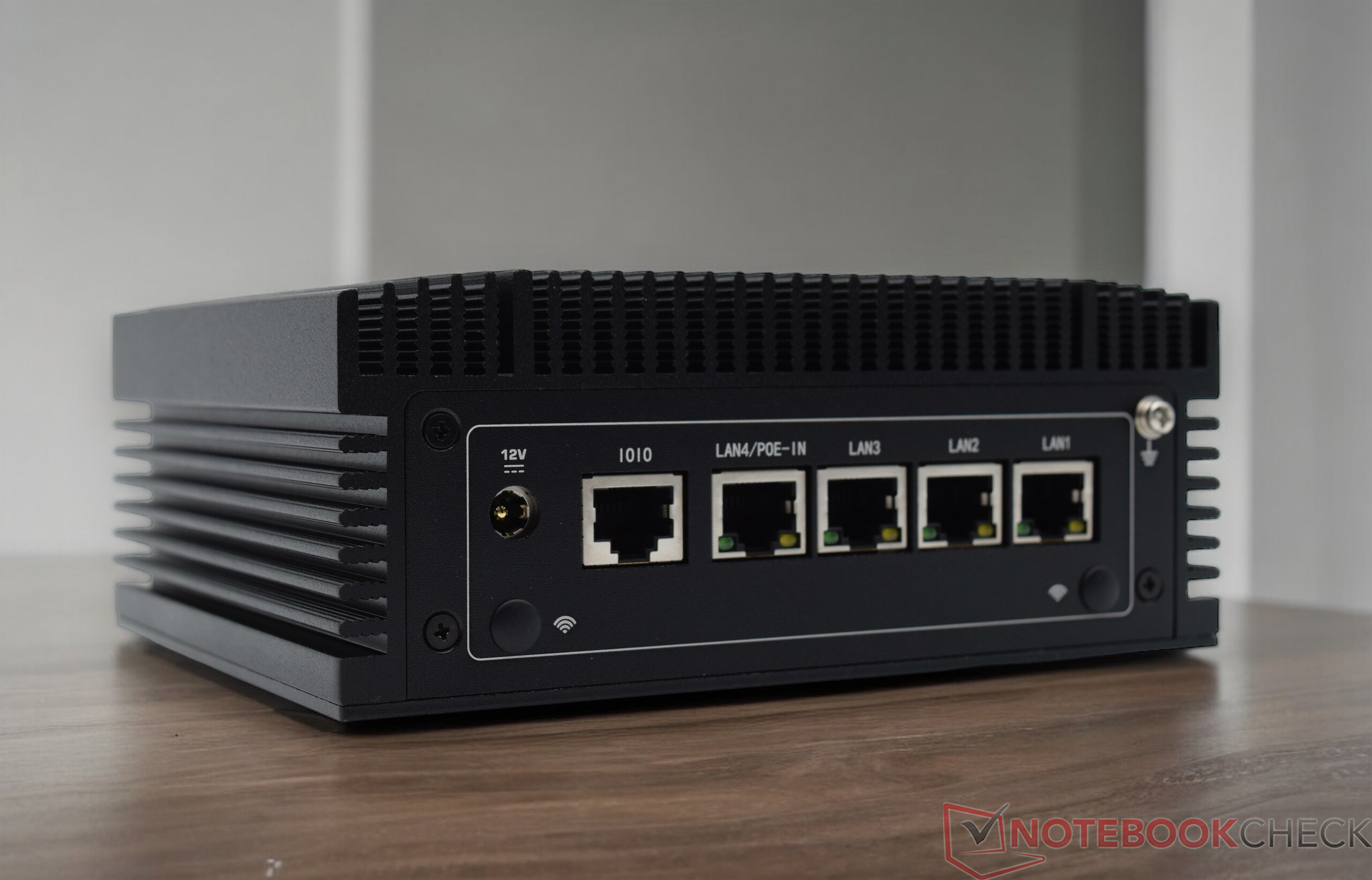

Traseira: 4 portas LAN, 1 suporte para entrada PoE, 1 porta RJ45 COM RS232, pode ser atualizada para RS485/RS422 (fonte: Newsmay)

Acessórios

O mini PC vem em uma embalagem simples e despretensiosa. Dentro da caixa, o senhor encontrará um cabo HDMI junto com a fonte de alimentação de 35 watts. O Newsmay AC8F-POE também pode ser conectado a um suporte VESA. Uma placa de montagem com material de montagem faz parte do pacote. Da mesma forma, dois cabos de antena Wi-Fi para fixação no gabinete também estão incluídos. No entanto, não há antenas Wi-Fi externas. Um cabo conector para o armazenamento em massa opcional de 2,5 polegadas já está instalado no dispositivo.

Manutenção

O Newsmay AC8F-POE é vendido com RAM e armazenamento em massa, o que significa que não é necessário fazer nenhuma atualização antes de usar o dispositivo pela primeira vez. No entanto, a caixa de metal resistente pode ser facilmente aberta na base da unidade. Apenas quatro parafusos precisam ser desparafusados para desmontar a placa de base. Felizmente, eles não são cobertos por pés de borracha, como acontece com outros fabricantes. No nosso caso, é possível instalar um dispositivo adicional de armazenamento de dados de 2,5 polegadas. Da mesma forma, há também um slot livre para um módulo Wi-Fi. O design passivo significa que não há necessidade de limpar uma ventoinha. A longo prazo, isso significa que não deve haver um acúmulo significativo de poeira no próprio sistema.

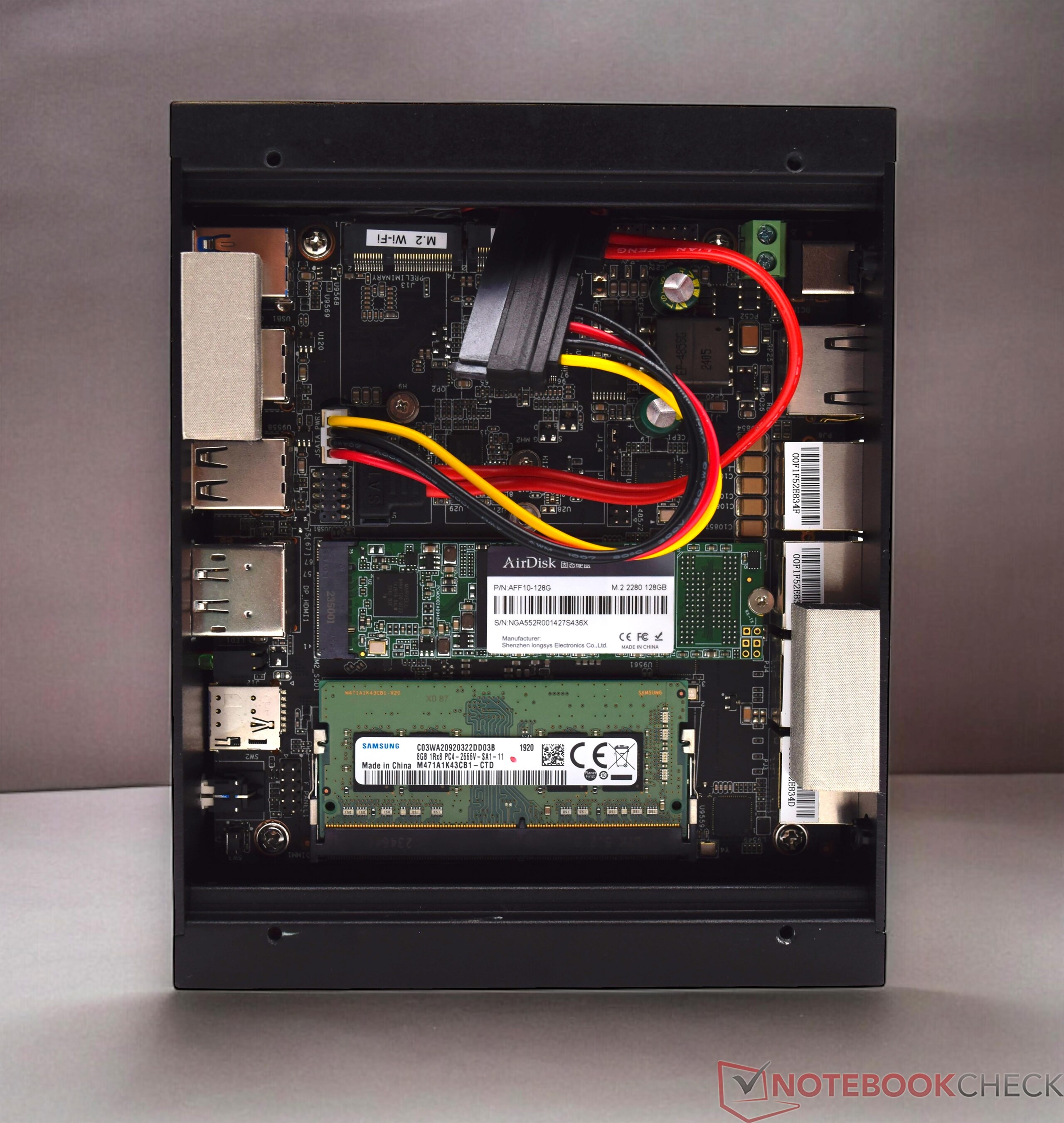

Newsmay AC8F-POE com a placa de base removida

Sustentabilidade

Externamente, a embalagem do Newsmay AC8F-POE parece neutra. Entretanto, a parte interna revela que foi usado muito plástico. Os cabos embalados individualmente são desnecessários e poluem o meio ambiente, portanto, há espaço para melhorias nessa área. O dispositivo em si dispensa o uso de plástico, e isso é bom. Entretanto, não temos dados adicionais sobre a pegada ambiental.

Desempenho - Um Intel N100 com resfriamento passivo e quatro núcleos

Enquanto isso, o Intel N100 é um SoC amplamente usado que tem quatro unidades de processamento nativas e pertence à série Alder Lake. O SoC foi lançado no início de 2023 e é encontrado principalmente em dispositivos econômicos. Devido ao seu baixo consumo de energia, o processador também é adequado para dispositivos com resfriamento passivo. O Newsmay AC8F-POE tem apenas 8 GB de RAM, o que é um pouco escasso quando usado em combinação com o sistema operacional Windows. No entanto, isso pode ser expandido posteriormente.

Condições de teste

Realizamos todos os testes de desempenho usando as configurações de energia "Highest Performance". Os diferentes planos de economia de energia só entraram em ação com as medições de consumo de energia e ruído. Detalhes adicionais sobre os critérios de teste estão resumidos aqui.

Processador

O Intel N100 é um processador quad-core com arquitetura Alder Lake. Idêntico ao N95 e N97 há apenas desempenhos marginais entre os três modelos. Esses são exatamente os três modelos que a Newsmay oferece no AC8F-POE. No entanto, as especificações mostram que o desempenho do processador é diferente quando se trata de consumo de energia. O Intel N100 encontrado em nosso sistema de análise possui um PL1 de 10 watts. Com o Intel N97, é de 12 watts, embora 15 watts sejam declarados para o Intel N95. Como resultado, os dois SoCs alternativos alcançam melhor desempenho de vários núcleos. Na comparação de desempenho, nosso dispositivo de análise está em penúltimo lugar. Somente o dispositivo com resfriamento passivo semelhante Asus PN42 com resfriamento passivo semelhante, é pior. No entanto, a diferença em relação aos outros concorrentes que têm resfriamento ativo é pequena e está apenas na faixa percentual de um dígito.

Outros benchmarks de processador podem ser encontrados aqui.

Performance Rating - Percent
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	36.8 pt
Geekom MiniAir 12 Intel Processor N100, 25, 15	36.2 pt
Blackview MP80 Intel Processor N95, 15, 15	36 pt
BOSGAME N95 Intel Processor N95, 35, 15	35.9 pt
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	34.9 pt
Newsmay AC8F-POE Intel Processor N100, 25, 10	33.7 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	31.8 pt

Cinebench R23
Multi Core
Geekom MiniAir 12 Intel Processor N100, 25, 15	2983 Points +53%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2913 Points +50%
BOSGAME N95 Intel Processor N95, 35, 15	2785 Points +43%
Blackview MP80 Intel Processor N95, 15, 15	2686 Points +38%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2203 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1946 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1406 Points -28%
Single Core
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	973 Points +15%
BOSGAME N95 Intel Processor N95, 35, 15	935 Points +11%
Geekom MiniAir 12 Intel Processor N100, 25, 15	929 Points +10%
Blackview MP80 Intel Processor N95, 15, 15	914 Points +8%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	907 Points +8%
Newsmay AC8F-POE Intel Processor N100, 25, 10	843 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	690 Points -18%

Cinebench R15
CPU Single 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	161 Points +17%
BOSGAME N95 Intel Processor N95, 35, 15	155 Points +12%
Geekom MiniAir 12 Intel Processor N100, 25, 15	152 Points +10%
Blackview MP80 Intel Processor N95, 15, 15	151 Points +9%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	146 Points +6%
Newsmay AC8F-POE Intel Processor N100, 25, 10	138 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	113 Points -18%
CPU Multi 64Bit
Geekom MiniAir 12 Intel Processor N100, 25, 15	479 Points +61%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	479 Points +61%
BOSGAME N95 Intel Processor N95, 35, 15	452 Points +52%
Blackview MP80 Intel Processor N95, 15, 15	434 Points +46%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	336 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	298 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	219 Points -27%

Cinebench R20
CPU (Single Core)
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	371 Points +14%
BOSGAME N95 Intel Processor N95, 35, 15	357 Points +10%
Geekom MiniAir 12 Intel Processor N100, 25, 15	353 Points +8%
Blackview MP80 Intel Processor N95, 15, 15	350 Points +7%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	346 Points +6%
Newsmay AC8F-POE Intel Processor N100, 25, 10	326 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	265 Points -19%
CPU (Multi Core)
Geekom MiniAir 12 Intel Processor N100, 25, 15	1139 Points +52%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1115 Points +49%
BOSGAME N95 Intel Processor N95, 35, 15	1067 Points +43%
Blackview MP80 Intel Processor N95, 15, 15	1029 Points +38%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	842 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	748 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	542 Points -28%

Cinebench R11.5
CPU Single 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1.94 Points +16%
BOSGAME N95 Intel Processor N95, 35, 15	1.86 Points +11%
Blackview MP80 Intel Processor N95, 15, 15	1.83 Points +10%
Geekom MiniAir 12 Intel Processor N100, 25, 15	1.83 Points +10%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1.76 Points +5%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1.67 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1.36 Points -19%
CPU Multi 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	5.97 Points +55%
BOSGAME N95 Intel Processor N95, 35, 15	5.62 Points +46%
Blackview MP80 Intel Processor N95, 15, 15	5.41 Points +41%
Geekom MiniAir 12 Intel Processor N100, 25, 15	5.18 Points +35%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	4.23 Points +10%
Newsmay AC8F-POE Intel Processor N100, 25, 10	3.84 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2.73 Points -29%

Cinebench R10
Rendering Single CPUs 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	8567 Points +18%
Geekom MiniAir 12 Intel Processor N100, 25, 15	8098 Points +12%
Blackview MP80 Intel Processor N95, 15, 15	8080 Points +11%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	7750 Points +7%
BOSGAME N95 Intel Processor N95, 35, 15	7574 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	7250 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	5971 Points -18%
Rendering Multiple CPUs 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	24158 Points +66%
Geekom MiniAir 12 Intel Processor N100, 25, 15	23912 Points +64%
BOSGAME N95 Intel Processor N95, 35, 15	22275 Points +53%
Blackview MP80 Intel Processor N95, 15, 15	20565 Points +41%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	16948 Points +17%
Newsmay AC8F-POE Intel Processor N100, 25, 10	14545 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	11030 Points -24%

Blender - v2.79 BMW27 CPU
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2150 Seconds * -41%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1522 Seconds *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1346 Seconds * +12%
Blackview MP80 Intel Processor N95, 15, 15	1124 Seconds * +26%
BOSGAME N95 Intel Processor N95, 35, 15	1103 Seconds * +28%
Geekom MiniAir 12 Intel Processor N100, 25, 15	1038 Seconds * +32%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1020 Seconds * +33%

wPrime 2.10
32m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	25.99 s * -52%
BOSGAME N95 Intel Processor N95, 35, 15	18.213 s * -7%
Blackview MP80 Intel Processor N95, 15, 15	17.521 s * -3%
Newsmay AC8F-POE Intel Processor N100, 25, 10	17.085 s *
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	16.819 s * +2%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	16.224 s * +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	15.908 s * +7%
1024m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	874.559 s * -35%
Newsmay AC8F-POE Intel Processor N100, 25, 10	645.884 s *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	588.291 s * +9%
BOSGAME N95 Intel Processor N95, 35, 15	568.939 s * +12%
Blackview MP80 Intel Processor N95, 15, 15	538.757 s * +17%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	522.766 s * +19%
Geekom MiniAir 12 Intel Processor N100, 25, 15	496.78 s * +23%

X264 HD Benchmark 4.0
Pass 1
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	174.8 (165.8^min - 175.5^max) fps +72%
Geekom MiniAir 12 Intel Processor N100, 25, 15	173 (172.8^min - 173.5^max) fps +70%
Blackview MP80 Intel Processor N95, 15, 15	163.3 (162.1^min - 163.7^max) fps +60%
BOSGAME N95 Intel Processor N95, 35, 15	162.4 (161.9^min - 162.4^max) fps +60%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	121.2 (121^min - 174.5^max) fps +19%
Newsmay AC8F-POE Intel Processor N100, 25, 10	101.8 (100.5^min - 169.3^max) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	79.95 (79^min - 109.2^max) fps -21%
Pass 2
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	34.85 (34.6^min - 35^max) fps +67%
Geekom MiniAir 12 Intel Processor N100, 25, 15	34.7 (34.7^min - 34.8^max) fps +66%
BOSGAME N95 Intel Processor N95, 35, 15	32.45 (32.4^min - 32.5^max) fps +56%
Blackview MP80 Intel Processor N95, 15, 15	32.4 (32.4^min - 32.4^max) fps +55%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	24.1 (24^min - 25.1^max) fps +16%
Newsmay AC8F-POE Intel Processor N100, 25, 10	20.85 (20.8^min - 21.1^max) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	16.3 (16.2^min - 16.4^max) fps -22%

WinRAR - Result
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2501 KB/s +12%
Geekom MiniAir 12 Intel Processor N100, 25, 15	2372 KB/s +7%
BOSGAME N95 Intel Processor N95, 35, 15	2362 KB/s +6%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2321 KB/s +4%
Blackview MP80 Intel Processor N95, 15, 15	2277 KB/s +2%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2226 KB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2115 KB/s -5%

TrueCrypt
AES Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	3.2 GB/s +10%
Geekom MiniAir 12 Intel Processor N100, 25, 15	2.9 GB/s 0%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2.9 GB/s 0%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2.9 GB/s 0%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2.9 GB/s
Blackview MP80 Intel Processor N95, 15, 15	2.8 GB/s -3%
BOSGAME N95 Intel Processor N95, 35, 15	2.7 GB/s -7%
Twofish Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	0.583 GB/s +10%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	0.537 GB/s +2%
Geekom MiniAir 12 Intel Processor N100, 25, 15	0.532 GB/s +1%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	0.532 GB/s +1%
Newsmay AC8F-POE Intel Processor N100, 25, 10	0.529 GB/s
Blackview MP80 Intel Processor N95, 15, 15	0.501 GB/s -5%
BOSGAME N95 Intel Processor N95, 35, 15	0.492 GB/s -7%
Serpent Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	0.287 GB/s +12%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	0.263 GB/s +2%
Geekom MiniAir 12 Intel Processor N100, 25, 15	0.261 GB/s +2%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	0.257 GB/s 0%
Newsmay AC8F-POE Intel Processor N100, 25, 10	0.257 GB/s
Blackview MP80 Intel Processor N95, 15, 15	0.244 GB/s -5%
BOSGAME N95 Intel Processor N95, 35, 15	0.239 GB/s -7%

Geekbench 5.5
Multi-Core
Geekom MiniAir 12 Intel Processor N100, 25, 15	2896 Points +24%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2829 Points +21%
Blackview MP80 Intel Processor N95, 15, 15	2793 Points +20%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2757 Points +18%
BOSGAME N95 Intel Processor N95, 35, 15	2616 Points +12%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2332 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1540 Points -34%
Single-Core
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1060 Points +9%
Blackview MP80 Intel Processor N95, 15, 15	1013 Points +4%
BOSGAME N95 Intel Processor N95, 35, 15	1007 Points +3%
Geekom MiniAir 12 Intel Processor N100, 25, 15	998 Points +2%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	996 Points +2%
Newsmay AC8F-POE Intel Processor N100, 25, 10	975 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	928 Points -5%

Geekbench 5.0
5.0 Multi-Core
Geekom MiniAir 12 Intel Processor N100, 25, 15	2862 Points +26%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2804 Points +23%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2738 Points +20%
Blackview MP80 Intel Processor N95, 15, 15	2737 Points +20%
BOSGAME N95 Intel Processor N95, 35, 15	2585 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2278 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1518 Points -33%
5.0 Single-Core
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1052 Points +9%
Blackview MP80 Intel Processor N95, 15, 15	1005 Points +4%
BOSGAME N95 Intel Processor N95, 35, 15	1000 Points +3%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	999 Points +3%
Geekom MiniAir 12 Intel Processor N100, 25, 15	993 Points +3%
Newsmay AC8F-POE Intel Processor N100, 25, 10	968 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	891 Points -8%

Geekbench 4.4
64 Bit Single-Core Score
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	4703 Points +10%
Blackview MP80 Intel Processor N95, 15, 15	4553 Points +6%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	4552 Points +6%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	4549 Points +6%
BOSGAME N95 Intel Processor N95, 35, 15	4495 Points +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	4467 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	4278 Points
64 Bit Multi-Core Score
Geekom MiniAir 12 Intel Processor N100, 25, 15	11264 Points +9%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	11250 Points +9%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	10893 Points +5%
Blackview MP80 Intel Processor N95, 15, 15	10798 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	10361 Points
BOSGAME N95 Intel Processor N95, 35, 15	10299 Points -1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	9989 Points -4%

3DMark 11 - 1280x720 Performance Physics
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	6118 Points +64%
Geekom MiniAir 12 Intel Processor N100, 25, 15	6062 Points +63%
Blackview MP80 Intel Processor N95, 15, 15	5806 Points +56%
BOSGAME N95 Intel Processor N95, 35, 15	5767 Points +55%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	4382 Points +18%
Newsmay AC8F-POE Intel Processor N100, 25, 10	3723 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2765 Points -26%

7-Zip 18.03
7z b 4
Geekom MiniAir 12 Intel Processor N100, 25, 15	13177 MIPS +51%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	13174 MIPS +51%
BOSGAME N95 Intel Processor N95, 35, 15	12224 MIPS +40%
Blackview MP80 Intel Processor N95, 15, 15	12177 MIPS +40%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	10350 MIPS +19%
Newsmay AC8F-POE Intel Processor N100, 25, 10	8725 MIPS
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	7146 MIPS -18%
7z b 4 -mmt1
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	4019 MIPS +12%
Blackview MP80 Intel Processor N95, 15, 15	3843 MIPS +7%
BOSGAME N95 Intel Processor N95, 35, 15	3803 MIPS +6%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	3780 MIPS +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	3635 MIPS +1%
Newsmay AC8F-POE Intel Processor N100, 25, 10	3583 MIPS
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	3230 MIPS -10%

HWBOT x265 Benchmark v2.2 - 4k Preset
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	3.49 fps +65%
Geekom MiniAir 12 Intel Processor N100, 25, 15	3.47 fps +64%
Blackview MP80 Intel Processor N95, 15, 15	3.29 fps +55%
BOSGAME N95 Intel Processor N95, 35, 15	3.25 fps +53%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2.51 fps +18%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2.12 fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1.52 fps -28%

R Benchmark 2.5 - Overall mean
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1.149 sec * -18%
Newsmay AC8F-POE Intel Processor N100, 25, 10	0.975 sec *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	0.889 sec * +9%
BOSGAME N95 Intel Processor N95, 35, 15	0.834 sec * +14%
Geekom MiniAir 12 Intel Processor N100, 25, 15	0.831 sec * +15%
Blackview MP80 Intel Processor N95, 15, 15	0.83 sec * +15%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	0.789 sec * +19%

LibreOffice - 20 Documents To PDF
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	120 s * -20%
Newsmay AC8F-POE Intel Processor N100, 25, 10	100.2 s *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	80.8 s * +19%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	75.7 s * +24%
BOSGAME N95 Intel Processor N95, 35, 15	74.6 s * +26%
Geekom MiniAir 12 Intel Processor N100, 25, 15	72.9 s * +27%
Blackview MP80 Intel Processor N95, 15, 15	68.3 s * +32%

WebXPRT 3 - Overall
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	191.4 Points +17%
Blackview MP80 Intel Processor N95, 15, 15	183.4 Points +12%
Geekom MiniAir 12 Intel Processor N100, 25, 15	181.4 Points +11%
BOSGAME N95 Intel Processor N95, 35, 15	179.4 Points +10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	171.3 Points +5%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	170.4 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	163.3 Points

Mozilla Kraken 1.1 - Total
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1460 ms * -35%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1083 ms *
BOSGAME N95 Intel Processor N95, 35, 15	1056 ms * +2%
Blackview MP80 Intel Processor N95, 15, 15	1026 ms * +5%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1024 ms * +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	1020 ms * +6%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	975 ms * +10%

3DMark
1920x1080 Fire Strike Physics
Geekom MiniAir 12 Intel Processor N100, 25, 15	6525 Points +37%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	6473 Points +36%
Blackview MP80 Intel Processor N95, 15, 15	6062 Points +27%
BOSGAME N95 Intel Processor N95, 35, 15	5952 Points +25%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	5256 Points +10%
Newsmay AC8F-POE Intel Processor N100, 25, 10	4775 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	4135 Points -13%
2560x1440 Time Spy CPU
Geekom MiniAir 12 Intel Processor N100, 25, 15	2500 Points +68%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2493 Points +67%
BOSGAME N95 Intel Processor N95, 35, 15	2386 Points +60%
Blackview MP80 Intel Processor N95, 15, 15	2378 Points +60%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1610 Points +8%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1489 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1251 Points -16%

Super Pi mod 1.5 XS 1M - 1M
Newsmay AC8F-POE Intel Processor N100, 25, 10	19.473 s *
Blackview MP80 Intel Processor N95, 15, 15	19.421 s * -0%
Geekom MiniAir 12 Intel Processor N100, 25, 15	19.359 s * +1%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	19.358 s * +1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	18.806 s * +3%
BOSGAME N95 Intel Processor N95, 35, 15	18.749 s * +4%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	18.404 s * +5%

Super Pi mod 1.5 XS 2M - 2M
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	42.733 s * -5%
Newsmay AC8F-POE Intel Processor N100, 25, 10	40.679 s *
Blackview MP80 Intel Processor N95, 15, 15	40.504 s * -0%
Geekom MiniAir 12 Intel Processor N100, 25, 15	40.352 s * +1%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	40.302 s * +1%
BOSGAME N95 Intel Processor N95, 35, 15	39.73 s * +2%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	38.325 s * +6%

Super Pi Mod 1.5 XS 32M - 32M
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1010.589 s * -17%
Newsmay AC8F-POE Intel Processor N100, 25, 10	863.891 s *
BOSGAME N95 Intel Processor N95, 35, 15	824.724 s * +5%
Blackview MP80 Intel Processor N95, 15, 15	823.666 s * +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	818.372 s * +5%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	816.966 s * +5%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	785.564 s * +9%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

4770

Cinebench R10 Shading 64Bit

8706 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

14545 Points

Cinebench R10 Rendering Single CPUs 64Bit

7250 Points

Cinebench R10 Shading 32Bit

8529

Cinebench R10 Rendering Multiple CPUs 32Bit

10048

Cinebench R11.5 CPU Multi 32Bit

3.53 Points

Cinebench R11.5 OpenGL 32Bit

33.05 fps

Cinebench R11.5 CPU Single 64Bit

1.67 Points

Cinebench R11.5 CPU Multi 64Bit

3.84 Points

Cinebench R11.5 OpenGL 64Bit

33.23 fps

Cinebench R11.5 CPU Single 32Bit

1.55 Points

Cinebench R15 CPU Single 64Bit

138 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

38.04 fps

Cinebench R15 CPU Multi 64Bit

298 Points

Ajuda

... comparado com

Performance Rating
Average of class Mini PC	100 pt
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	26.3 pt
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	22.1 pt
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	17.7 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	17.3 pt
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	10.3 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	10 pt
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9.5 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 51004, n=120, last 2 years)	11625 KRay/s +702%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	2204 KRay/s +52%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1646 KRay/s +14%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1449 KRay/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	1384 KRay/s -4%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -42%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -47%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	764 KRay/s -47%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 214250, n=120, last 2 years)	59574 Points +706%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	11550 Points +56%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8519 Points +15%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	7395 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	7292 Points -1%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4398 Points -41%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4144 Points -44%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -44%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 9399, n=120, last 2 years)	2623 MB/s +451%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	808 MB/s +70%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	570 MB/s +20%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	476 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	466 MB/s -2%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	308 MB/s -35%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -39%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -39%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 184747, n=120, last 2 years)	75988 Points +239%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	23345 Points +4%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22866 Points +2%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	22512 Points 0%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	22407 Points
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8704 Points -61%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -63%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8172 Points -64%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 29064, n=120, last 2 years)	8123 Points +697%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	1136 Points +11%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1114 Points +9%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1019 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	985 Points -3%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	432 Points -58%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -60%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -60%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 113499, n=120, last 2 years)	31182 Points +736%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	5834 Points +56%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4222 Points +13%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	3732 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	3648 Points -2%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2220 Points -41%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2092 Points -44%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -44%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 325960, n=120, last 2 years)	83460 MB/s +806%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22028 MB/s +139%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	18389 MB/s +100%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9214 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	8752 MB/s -5%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8439 MB/s -8%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -14%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7951 MB/s -14%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 2039, n=120, last 2 years)	675 MB/s +379%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	220 MB/s +56%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	161 MB/s +14%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	140.8 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	133.4 MB/s -5%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	82.5 MB/s -41%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -45%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	76.7 MB/s -46%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 26952, n=120, last 2 years)	6217 KRay/s +725%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	1190 KRay/s +58%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	893 KRay/s +18%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	754 KRay/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	705 KRay/s -6%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -38%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	433 KRay/s -43%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -43%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 50500, n=120, last 2 years)	26857 MPixel/s +175%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	14376 MPixel/s +47%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	14155 MPixel/s +45%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9750 MPixel/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	9467 MPixel/s -3%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -32%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6278 MPixel/s -36%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5296 MPixel/s -46%

Cinebench R15 Multi Continuous Test

Apesar de seu design sem ventoinha, o Newsmay AC8F-POE lidou maravilhosamente bem com o loop contínuo do Cinebench R15. No entanto, o senhor não precisa usar o turbo constantemente, o que significa que o desempenho do Intel N100 permanecerá praticamente estável. Com uma temperatura máxima de apenas 65 °C, em nenhum momento o SoC atinge valores críticos, o que resulta em um desempenho quase semelhante ao de alguns modelos com resfriamento ativo.

Métricas da CPU durante o loop do Cinebench R15

Newsmay AC8F-POE Intel Processor N100, Intel Processor N100: Ø295 (290.65-304.47)

Minisforum Venus Series UN100D Intel Processor N100, Intel Processor N100: Ø330 (323.31-347.87)

Geekom MiniAir 12 Intel Processor N100, Intel Processor N100: Ø472 (462.09-474.18)

Acemagic S1 Intel Processor N97, Intel Processor N97: Ø462 (454.89-465.38)

Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)

Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel Processor N200: Ø210 (198.23-215.98)

BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)

Desempenho do sistema

O desempenho do sistema é influenciado significativamente pelo desempenho da CPU e da RAM. A última fica um pouco aquém de 8 GB e isso às vezes é destacado em situações cotidianas. Portanto, o senhor não deve esperar que o Newsmay AC8F-POE seja capaz de lidar com muitas demandas simultâneas. Levando isso em conta, o sistema funciona bem. No entanto, nossa recomendação é que o senhor opte diretamente por um módulo de 16 GB de RAM para ter recursos suficientes na manga.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	3435 Points +23%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	3220 Points +16%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	3192 Points +15%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	3183 Points +14%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	3147 Points +13%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	2786 Points

PCMark 10 / Essentials
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	7482 Points +23%
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	7416 Points +22%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	7198 Points +19%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	7079 Points +17%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	7021 Points +16%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	6068 Points

PCMark 10 / Productivity
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	4993 Points +11%
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	4952 Points +11%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	4923 Points +10%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	4886 Points +9%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	4861 Points +9%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	4479 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	844 Points +20%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	791 Points +12%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	786 Points +11%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	773 Points +9%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	764 Points +8%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	706 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	614 Points -13%

CrossMark / Responsiveness
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	896 Points +47%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	835 Points +37%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	755 Points +24%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	730 Points +20%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	709 Points +17%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	608 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	577 Points -5%

CrossMark / Creativity
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	768 Points +14%
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	751 Points +12%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	739 Points +10%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	723 Points +8%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	714 Points +6%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	672 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	560 Points -17%

CrossMark / Productivity
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	930 Points +19%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	843 Points +8%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	837 Points +7%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	836 Points +7%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	810 Points +4%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	779 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	688 Points -12%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 76462, n=120, last 2 years)	46036 MB/s +147%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	31917 MB/s +71%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22018 MB/s +18%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18937 MB/s +2%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	18620 MB/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	12715 MB/s -32%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	10663 MB/s -43%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8458 MB/s -55%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 83287, n=120, last 2 years)	46450 MB/s +138%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	32913 MB/s +69%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	23505 MB/s +20%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19509 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18451 MB/s -5%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11626 MB/s -40%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11247 MB/s -42%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9027 MB/s -54%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 89318, n=120, last 2 years)	50227 MB/s +157%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	36423 MB/s +87%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	23127 MB/s +18%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	21626 MB/s +11%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19528 MB/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	14266 MB/s -27%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11728 MB/s -40%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8959 MB/s -54%

AIDA64 / Memory Latency
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	139.9 ns * -183%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	124.9 ns * -152%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	119.8 ns * -142%
Average of class Mini PC (44.9 - 184.8, n=120, last 2 years)	90.3 ns * -82%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	52.9 ns * -7%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	50.7 ns * -2%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	49.5 ns *
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	45 ns * +9%

* ... smaller is better

Latências de DPC

À primeira vista, as latências DPC registradas parecem aceitáveis. Em uma comparação, nosso dispositivo de análise tem um desempenho muito bom, mais uma vez garantindo uma colocação no meio da tabela. Ao navegar na Internet e reproduzir material de vídeo 4K, não medimos latências DC muito altas e elas só aumentaram durante o Prime95. Além disso, registramos alguns quadros pulados durante a reprodução do vídeo de teste em 4K.

Latência máxima ao abrir várias guias do navegador e reproduzir material de vídeo 4K

Latência máxima após dez segundos de Prime95

Drivers listados de acordo com o tempo de execução mais longo

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	5491 μs * -759%
Minisforum Venus Series UN100D UHD Graphics 24EUs (Alder Lake-N), N100, Gofatoo 256GB	2194.9 μs * -243%
BOSGAME N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kingston OM8SEP4256Q-A0	1165.5 μs * -82%
Blackview MP80 UHD Graphics 24EUs (Alder Lake-N), N95, Netac NS512GSSD330	817.1 μs * -28%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	639 μs *
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	449.2 μs * +30%
Geekom MiniAir 12 UHD Graphics 24EUs (Alder Lake-N), N100, Lexar NM620 512GB	409.9 μs * +36%

* ... smaller is better

Armazenamento em massa

A SSD instalada é uma SSD M.2 simples que funciona na velocidade SATA. Dessa forma, o modelo AirDisk oferece apenas baixas velocidades de transferência e é inferior a todos os outros modelos concorrentes listados aqui. Apesar disso, a SSD lida bem com o uso diário. Com apenas 128 GB, o modelo pré-instalado não oferece muito espaço de armazenamento. Subtrair a instalação do Windows pode deixá-lo com apenas 96 GB à sua disposição, mas o senhor ainda pode instalar um segundo dispositivo de armazenamento. O conector de cabo do armazenamento opcional de 2,5 polegadas já está instalado no dispositivo.

Outras comparações e benchmarks podem ser encontrados em nossa tabela de comparação.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

AirDisk AFF 10-128G

Sequential Read: 491.9 MB/s

Sequential Write: 357.9 MB/s

512K Read: 388.9 MB/s

512K Write: 337 MB/s

4K Read: 32.02 MB/s

4K Write: 71.43 MB/s

4K QD32 Read: 96.97 MB/s

4K QD32 Write: 171 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	94.4 pt
Geekom MiniAir 12 Lexar NM620 512GB	77.9 pt
Acemagic S1 Netac G938E	66.7 pt
Minisforum Venus Series UN100D Gofatoo 256GB	63.9 pt
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	49.1 pt
BOSGAME N95 Kingston OM8SEP4256Q-A0	41.5 pt
Blackview MP80 Netac NS512GSSD330	30.5 pt
Newsmay AC8F-POE AirDisk AFF 10-128G	18 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4357, n=120, last 2 years)	2214 MB/s +436%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1948 (1560.49^min - 1947.92^max) MB/s +372%
Geekom MiniAir 12 Lexar NM620 512GB	1781 (456.55^min - 1780.69^max) MB/s +331%
Acemagic S1 Netac G938E	1529 (1518.34^min - 1529.45^max) MB/s +270%
Minisforum Venus Series UN100D Gofatoo 256GB	1471 (1453.54^min - 1471.36^max) MB/s +256%
BOSGAME N95 Kingston OM8SEP4256Q-A0	762 (757.28^min - 762.31^max) MB/s +85%
Blackview MP80 Netac NS512GSSD330	542 (541.31^min - 542.36^max) MB/s +31%
Newsmay AC8F-POE AirDisk AFF 10-128G	413 (410.18^min - 412.9^max) MB/s
seq write
Average of class Mini PC (222 - 5595, n=120, last 2 years)	2341 MB/s +461%
Geekom MiniAir 12 Lexar NM620 512GB	2130 (210.13^min - 2130.43^max) MB/s +411%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1535 (1194.25^min - 1534.56^max) MB/s +268%
Minisforum Venus Series UN100D Gofatoo 256GB	1478 (20.55^min - 1478.09^max) MB/s +254%
Acemagic S1 Netac G938E	1392 (1353.52^min - 1392.3^max) MB/s +234%
BOSGAME N95 Kingston OM8SEP4256Q-A0	649 (644.49^min - 649.49^max) MB/s +56%
Blackview MP80 Netac NS512GSSD330	476 (138.2^min - 475.75^max) MB/s +14%
Newsmay AC8F-POE AirDisk AFF 10-128G	417 (409.15^min - 416.7^max) MB/s
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=120, last 2 years)	3562 MB/s +797%
Geekom MiniAir 12 Lexar NM620 512GB	3339 (2794.11^min - 3338.91^max) MB/s +741%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2058 (1971.74^min - 2057.94^max) MB/s +418%
Acemagic S1 Netac G938E	1788 (1591.28^min - 1787.61^max) MB/s +350%
Minisforum Venus Series UN100D Gofatoo 256GB	1771 (1628.33^min - 1771.46^max) MB/s +346%
BOSGAME N95 Kingston OM8SEP4256Q-A0	820 (687.12^min - 820.02^max) MB/s +107%
Blackview MP80 Netac NS512GSSD330	556 (424.25^min - 556.44^max) MB/s +40%
Newsmay AC8F-POE AirDisk AFF 10-128G	397 (395.52^min - 396.69^max) MB/s
seq q8 t1 write
Geekom MiniAir 12 Lexar NM620 512GB	3029 (212.44^min - 3028.52^max) MB/s +569%
Average of class Mini PC (228 - 6669, n=120, last 2 years)	2627 MB/s +480%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2086 (1404.04^min - 2086.06^max) MB/s +360%
Acemagic S1 Netac G938E	1710 (1487.72^min - 1710.37^max) MB/s +277%
Minisforum Venus Series UN100D Gofatoo 256GB	1690 (18.45^min - 1690.07^max) MB/s +273%
BOSGAME N95 Kingston OM8SEP4256Q-A0	684 (677.48^min - 683.67^max) MB/s +51%
Blackview MP80 Netac NS512GSSD330	489 (220.62^min - 488.78^max) MB/s +8%
Newsmay AC8F-POE AirDisk AFF 10-128G	453 (445.02^min - 453.26^max) MB/s
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=120, last 2 years)	53.9 MB/s +90%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	52.9 (39.99^min - 52.89^max) MB/s +86%
Acemagic S1 Netac G938E	48.9 (48.33^min - 48.93^max) MB/s +72%
Minisforum Venus Series UN100D Gofatoo 256GB	46.7 (46.12^min - 46.69^max) MB/s +64%
BOSGAME N95 Kingston OM8SEP4256Q-A0	45.9 (45.49^min - 45.92^max) MB/s +62%
Geekom MiniAir 12 Lexar NM620 512GB	43.1 (20.32^min - 43.07^max) MB/s +52%
Blackview MP80 Netac NS512GSSD330	32.5 (32.38^min - 32.5^max) MB/s +14%
Newsmay AC8F-POE AirDisk AFF 10-128G	28.4 (28.01^min - 28.38^max) MB/s
4k q1 t1 write
Average of class Mini PC (22 - 435, n=120, last 2 years)	190.4 MB/s +371%
Geekom MiniAir 12 Lexar NM620 512GB	136.8 (103.17^min - 136.84^max) MB/s +239%
Acemagic S1 Netac G938E	131.7 (130.58^min - 131.74^max) MB/s +226%
Minisforum Venus Series UN100D Gofatoo 256GB	129.9 (26.76^min - 129.87^max) MB/s +222%
BOSGAME N95 Kingston OM8SEP4256Q-A0	96.7 (95.09^min - 96.72^max) MB/s +139%
Blackview MP80 Netac NS512GSSD330	88.1 (66.88^min - 88.14^max) MB/s +118%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	74 (57.85^min - 73.96^max) MB/s +83%
Newsmay AC8F-POE AirDisk AFF 10-128G	40.4 (39.84^min - 40.4^max) MB/s
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=120, last 2 years)	1269 MB/s +687%
Minisforum Venus Series UN100D Gofatoo 256GB	823 (230.6^min - 823.13^max) MB/s +410%
Acemagic S1 Netac G938E	737 (736.82^min - 737.34^max) MB/s +357%
Geekom MiniAir 12 Lexar NM620 512GB	578 (567.96^min - 578.39^max) MB/s +258%
BOSGAME N95 Kingston OM8SEP4256Q-A0	440 (438.98^min - 440.28^max) MB/s +173%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	324 (210.77^min - 323.72^max) MB/s +101%
Blackview MP80 Netac NS512GSSD330	179.4 (173.35^min - 179.35^max) MB/s +11%
Newsmay AC8F-POE AirDisk AFF 10-128G	161.3 (160.59^min - 161.32^max) MB/s
4k q32 t16 write
Average of class Mini PC (30.2 - 4288, n=120, last 2 years)	1221 MB/s +640%
Acemagic S1 Netac G938E	830 (808.45^min - 829.56^max) MB/s +403%
Minisforum Venus Series UN100D Gofatoo 256GB	806 (13.77^min - 805.51^max) MB/s +388%
Geekom MiniAir 12 Lexar NM620 512GB	732 (50.3^min - 732.45^max) MB/s +344%
BOSGAME N95 Kingston OM8SEP4256Q-A0	411 (406.46^min - 410.69^max) MB/s +149%
Blackview MP80 Netac NS512GSSD330	276 (99.25^min - 275.55^max) MB/s +67%
Newsmay AC8F-POE AirDisk AFF 10-128G	165 (159.56^min - 165.01^max) MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	142.2 (93.56^min - 142.15^max) MB/s -14%

AS SSD
Score Total
Average of class Mini PC (151.3 - 10021, n=118, last 2 years)	3928 Points +614%
Geekom MiniAir 12 Lexar NM620 512GB	2938 Points +434%
Acemagic S1 Netac G938E	2656 Points +383%
Minisforum Venus Series UN100D Gofatoo 256GB	2373 Points +331%
BOSGAME N95 Kingston OM8SEP4256Q-A0	1423 Points +159%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1396 Points +154%
Blackview MP80 Netac NS512GSSD330	796 Points +45%
Newsmay AC8F-POE AirDisk AFF 10-128G	550 Points
Score Read
Average of class Mini PC (61 - 3741, n=118, last 2 years)	1471 Points +755%
Geekom MiniAir 12 Lexar NM620 512GB	1282 Points +645%
Acemagic S1 Netac G938E	1111 Points +546%
Minisforum Venus Series UN100D Gofatoo 256GB	1018 Points +492%
BOSGAME N95 Kingston OM8SEP4256Q-A0	522 Points +203%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	504 Points +193%
Blackview MP80 Netac NS512GSSD330	265 Points +54%
Newsmay AC8F-POE AirDisk AFF 10-128G	172 Points
Score Write
Average of class Mini PC (88 - 4371, n=118, last 2 years)	1756 Points +518%
Geekom MiniAir 12 Lexar NM620 512GB	1008 Points +255%
Acemagic S1 Netac G938E	978 Points +244%
Minisforum Venus Series UN100D Gofatoo 256GB	839 Points +195%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	631 Points +122%
BOSGAME N95 Kingston OM8SEP4256Q-A0	626 Points +120%
Blackview MP80 Netac NS512GSSD330	387 Points +36%
Newsmay AC8F-POE AirDisk AFF 10-128G	284 Points
Seq Read
Average of class Mini PC (291 - 6620, n=118, last 2 years)	3067 MB/s +535%
Geekom MiniAir 12 Lexar NM620 512GB	2934 MB/s +507%
Minisforum Venus Series UN100D Gofatoo 256GB	1600 MB/s +231%
Acemagic S1 Netac G938E	1556 MB/s +222%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1233 MB/s +155%
BOSGAME N95 Kingston OM8SEP4256Q-A0	700 MB/s +45%
Blackview MP80 Netac NS512GSSD330	526 MB/s +9%
Newsmay AC8F-POE AirDisk AFF 10-128G	483 MB/s
Seq Write
Geekom MiniAir 12 Lexar NM620 512GB	2449 MB/s +608%
Average of class Mini PC (240 - 5783, n=118, last 2 years)	2130 MB/s +516%
Acemagic S1 Netac G938E	1326 MB/s +283%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1125 MB/s +225%
Minisforum Venus Series UN100D Gofatoo 256GB	1124 MB/s +225%
BOSGAME N95 Kingston OM8SEP4256Q-A0	595 MB/s +72%
Blackview MP80 Netac NS512GSSD330	466 MB/s +35%
Newsmay AC8F-POE AirDisk AFF 10-128G	346 MB/s
4K Read
Geekom MiniAir 12 Lexar NM620 512GB	62.1 MB/s +110%
Minisforum Venus Series UN100D Gofatoo 256GB	59.9 MB/s +102%
Average of class Mini PC (6.08 - 104.3, n=118, last 2 years)	57.5 MB/s +94%
Acemagic S1 Netac G938E	44.6 MB/s +51%
BOSGAME N95 Kingston OM8SEP4256Q-A0	38.7 MB/s +31%
Blackview MP80 Netac NS512GSSD330	30.2 MB/s +2%
Newsmay AC8F-POE AirDisk AFF 10-128G	29.6 MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	28.1 MB/s -5%
4K Write
Average of class Mini PC (30.9 - 366, n=118, last 2 years)	172.2 MB/s +163%
Geekom MiniAir 12 Lexar NM620 512GB	122.1 MB/s +86%
Minisforum Venus Series UN100D Gofatoo 256GB	116.8 MB/s +78%
Acemagic S1 Netac G938E	110.7 MB/s +69%
BOSGAME N95 Kingston OM8SEP4256Q-A0	100.9 MB/s +54%
Blackview MP80 Netac NS512GSSD330	84.3 MB/s +29%
Newsmay AC8F-POE AirDisk AFF 10-128G	65.5 MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	40.8 MB/s -38%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=118, last 2 years)	1106 MB/s +1073%
Geekom MiniAir 12 Lexar NM620 512GB	927 MB/s +883%
Acemagic S1 Netac G938E	911 MB/s +866%
Minisforum Venus Series UN100D Gofatoo 256GB	798 MB/s +746%
BOSGAME N95 Kingston OM8SEP4256Q-A0	413 MB/s +338%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	353 MB/s +274%
Blackview MP80 Netac NS512GSSD330	181.8 MB/s +93%
Newsmay AC8F-POE AirDisk AFF 10-128G	94.3 MB/s
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=118, last 2 years)	1371 MB/s +646%
Acemagic S1 Netac G938E	735 MB/s +300%
Geekom MiniAir 12 Lexar NM620 512GB	641 MB/s +249%
Minisforum Venus Series UN100D Gofatoo 256GB	610 MB/s +232%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	478 MB/s +160%
BOSGAME N95 Kingston OM8SEP4256Q-A0	466 MB/s +153%
Blackview MP80 Netac NS512GSSD330	256 MB/s +39%
Newsmay AC8F-POE AirDisk AFF 10-128G	183.9 MB/s
Access Time Read
Newsmay AC8F-POE AirDisk AFF 10-128G	0.288 ms *
Average of class Mini PC (0.022 - 0.489, n=118, last 2 years)	0.1014 ms * +65%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.101 ms * +65%
Blackview MP80 Netac NS512GSSD330	0.077 ms * +73%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.073 ms * +75%
Minisforum Venus Series UN100D Gofatoo 256GB	0.071 ms * +75%
Acemagic S1 Netac G938E	0.055 ms * +81%
Geekom MiniAir 12 Lexar NM620 512GB	0.054 ms * +81%
Access Time Write
Newsmay AC8F-POE AirDisk AFF 10-128G	0.316 ms *
Blackview MP80 Netac NS512GSSD330	0.136 ms * +57%
Geekom MiniAir 12 Lexar NM620 512GB	0.125 ms * +60%
Minisforum Venus Series UN100D Gofatoo 256GB	0.12 ms * +62%
Average of class Mini PC (0.016 - 0.765, n=118, last 2 years)	0.116 ms * +63%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.109 ms * +66%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.074 ms * +77%
Acemagic S1 Netac G938E	0.034 ms * +89%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Newsmay AC8F-POE AirDisk AFF 10-128G; diskspd 2.0.17 f: Ø413 (409.97-413.15)

Minisforum Venus Series UN100D Gofatoo 256GB; diskspd 2.0.17 f: Ø1764 (1623.93-1770.42)

Geekom MiniAir 12 Lexar NM620 512GB; diskspd 2.0.17 f: Ø2163 (895.27-2580.55)

Acemagic S1 Netac G938E; diskspd 2.0.17 f: Ø1723 (916.09-1789.5)

Blackview MP80 Netac NS512GSSD330: Ø551 (425.51-553.5)

Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø1990 (1877.37-2058.56)

BOSGAME N95 Kingston OM8SEP4256Q-A0: Ø817 (676.33-820.44)

Placa de vídeo

O Intel N100 tem apenas uma iGPU simples que leva o nome de Intel UHD Graphics. A iGPU está equipada apenas com 24 EUs e oferece apenas desempenho 3D de baixo nível. Em comparação com a concorrência, o Newsmay AC8F-POE apresenta desempenho semelhante sem se destacar como excessivamente negativo ou positivo. Com seu Intel N97, somente o Acemagic S1 consegue uma vantagem significativa devido a seus limites de energia mais altos. No entanto, estamos a quilômetros de distância do desempenho utilizável em jogos.

Outros benchmarks do Intel UHD Graphics podem ser encontrados em aqui.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	100 pt
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	69.5 pt
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	69.1 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	68.6 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	67.4 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	67.4 pt
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	65.9 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2233 Points +53%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1494 Points +2%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1490 Points +2%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1489 Points +2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1488 Points +2%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1458 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1349 Points -7%

3DMark
2560x1440 Time Spy Graphics
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	473 Points +56%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	342 Points +13%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	321 Points +6%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	321 Points +6%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	321 Points +6%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	317 Points +4%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	304 Points
1920x1080 Fire Strike Graphics
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	1646 Points +47%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1217 Points +8%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1198 Points +7%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1172 Points +4%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1144 Points +2%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1124 Points 0%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1122 Points

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	9 fps +36%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.6 fps +15%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.5 fps +14%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.2 fps +9%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps +2%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.6 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.4 fps -18%
Extreme Preset DX11
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	9.3 fps +39%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.7 fps +15%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.7 fps +15%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.5 fps +12%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.8 fps +1%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.7 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.8 fps -13%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	5.7 fps +33%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps +23%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.2 fps +21%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.2 fps +21%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps +7%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.3 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -19%
1920x1080 Extreme HD Preset OpenGL AA:x8
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6 fps +28%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6 fps +28%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6 fps +28%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	5.8 fps +23%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.4 fps +15%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.7 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -26%

Unigine Superposition
1280x720 720p Low
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2646 Points +35%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2505 Points +28%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2376 Points +21%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2351 Points +20%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1958 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1924 Points -2%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1607 Points -18%
1920x1080 1080p High
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	688 Points +45%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	530 Points +11%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	527 Points +11%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	512 Points +8%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	476 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	469 Points -1%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	466 Points -2%
1920x1080 1080p Extreme
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	302 Points +44%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	226 Points +8%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	225 Points +7%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	218 Points +4%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	218 Points +4%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	210 Points

ComputeMark v2.1
1024x600 Normal, Score
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	911 Points +45%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	700 Points +11%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	684 Points +9%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	683 Points +8%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	670 Points +6%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	650 Points +3%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	630 Points
1024x600 Normal, Fluid 3DTex
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	155 Points +32%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	154 Points +32%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	133 Points +14%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	126 Points +8%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	117 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -1%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	87 Points -26%
1024x600 Normal, Fluid 2DTexArr
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	122 Points +28%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points +26%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	114 Points +20%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	106 Points +12%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	97 Points +2%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	95 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	83 Points -13%
1024x600 Normal, Mandel Vector
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	169 Points +41%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	143 Points +19%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points +5%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	125 Points +4%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	118 Points -2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	118 Points -2%
1024x600 Normal, Mandel Scalar
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	190 Points +88%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	144 Points +43%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points +9%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points +9%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	101 Points
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	99 Points -2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	99 Points -2%
1024x600 Normal, QJuliaRayTrace
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	311 Points +58%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	243 Points +23%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	203 Points +3%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	197 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	194 Points -2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	192 Points -3%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	189 Points -4%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	275 Samples/s +24%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	261 Samples/s +18%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	255 Samples/s +15%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	250 Samples/s +13%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	222 Samples/s
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	129 Samples/s -42%
Sala GPUs-only
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	753 Samples/s +45%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	551 Samples/s +6%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	518 Samples/s
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	508 Samples/s -2%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	473 Samples/s -9%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	369 Samples/s -29%

Affinity Photo 2 - Combined (Single / Multi GPU)
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1124 Points +6%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1119 Points +6%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1059 Points

3DMark 05 Standard		12765 pontos
3DMark 06 Standard Score		9253 pontos
3DMark Vantage P Result		5578 pontos
3DMark 11 Performance		1626 pontos
3DMark Ice Storm Standard Score		43011 pontos
3DMark Cloud Gate Standard Score		6053 pontos
3DMark Fire Strike Score		1055 pontos
3DMark Time Spy Score		345 pontos
Ajuda

... comparado com

Emissões - Silenciosas e sem problemas de temperatura

Emissões de ruído

Devido à ausência de componentes de resfriamento ativos, o Newsmay AC8F-POE sempre funciona silenciosamente. Com seu Série Venus UN100Da Minisforum mostra de forma impressionante que o resfriamento ativo nem sempre precisa ser barulhento.

Barulho

Ocioso		24.8 / 24.8 / 24.8 dB
Carga		24.9 / 25 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R (15 cm de distância) environment noise: 24.8 dB(A)

	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N)	Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N)	Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)
Noise		0%	-11%	-18%	-14%	-1%	-22%
off / environment *	24.8	24.4 2%	24.8 -0%	24.9 -0%	25.2 -2%	25 -1%	29.7 -20%
Idle Minimum *	24.8	24.4 2%	24.8 -0%	25.8 -4%	25.4 -2%	25 -1%	30.2 -22%
Idle Average *	24.8	24.5 1%	28.6 -15%	25.9 -4%	25.5 -3%	25 -1%	30.2 -22%
Idle Maximum *	24.8	24.5 1%	28.7 -16%	26 -5%	25.5 -3%	25 -1%	30.2 -22%
Load Average *	24.9	24.9 -0%	29 -16%	34.5 -39%	32.3 -30%	25 -0%	30.4 -22%
Load Maximum *	25	25.9 -4%	30.2 -21%	38.2 -53%	36.4 -46%	25 -0%	31.4 -26%

* ... smaller is better

Temperatura

Em nosso dispositivo de análise, as temperaturas do gabinete são, em geral, um pouco mais altas do que as da concorrência devido ao seu conceito de resfriamento. A distribuição de calor funciona excepcionalmente bem e não há nenhum ponto de acesso direto perceptível. Ele é visível nas imagens na área da superfície de contato com o processador. Com um pico de apenas 59 °C, o Intel N100 permanece comparativamente frio, especialmente quando o senhor considera que o limite térmico da Intel para esse SoC é de 105 °C. Durante um longo período de tempo, o fabricante conseguiu garantir um desempenho estável a 10 watts. Em um curto período, o SoC atingiu 21 watts, o que não está totalmente de acordo com o PL2 definido.

Com relação às temperaturas do gabinete, vale a pena observar que elas dependem muito da escolha do local para o dispositivo. Um local bem ventilado garantirá temperaturas de superfície comparativamente baixas. Registramos as temperaturas em uma sala com ar condicionado a uma temperatura ambiente de 20 a 21 °C.

Newsmay AC8F-POE funcionando em marcha lenta (acima)

Newsmay AC8F-POE funcionando em modo inativo (parte inferior)

Newsmay AC8F-POE durante o teste de estresse (acima)

Newsmay AC8F-POE durante o teste de estresse (parte inferior)

Carga Máxima

Inatividade


41.4 °C	41.7 °C	40.4 °C
41.8 °C	42 °C	40.2 °C
41.7 °C	42.2 °C	40.4 °C

Máximo: 42.2 °C
Médio: 41.3 °C


38.7 °C	38.9 °C	39.7 °C
39 °C	39 °C	39.6 °C
38.8 °C	39 °C	39.9 °C

Máximo: 39.9 °C
Médio: 39.2 °C

alimentação elétrica 38.1 °C | Temperatura do quarto 20.8 °C | Fluke t3000FC (calibrated)

(-) The average temperature for the upper side under maximal load is 41.3 °C / 106 F, compared to the average of 32 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 42.2 °C / 108 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.3 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32 °C / 90 F.

Gerenciamento de energia

O gerenciamento de energia do Newsmay AC8F-POE pode seguir dois caminhos. Uma maneira é usar a fonte de alimentação de 36 watts fornecida, embora, como alternativa, se a estrutura de rede estiver disponível, o PoE (802.3 bt/at) também possa ser usado. Na comparação, nosso dispositivo de análise usou um pouco mais de energia do que qualquer outro dispositivo, exceto o Acemagic S1, mas isso ainda é aceitável. O Newsmay não dá nenhum passo em falso significativo nessa área. A PSU fornecida fornece energia suficiente o tempo todo e, durante o período de testes, não encontramos nenhum problema relacionado à fonte de alimentação.

Consumo de energia

desligado	2.2 / 2.3 Watt
Ocioso	7.9 / 10.1 / 10.3 Watt
Carga	17.3 / 31.6 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N)	Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N)	Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Average Intel UHD Graphics 24EUs (Alder Lake-N)	Average of class Mini PC
Power Consumption		17%	12%	-36%	19%	22%	33%	10%	-101%
Idle Minimum *	7.9	5.8 27%	5.9 25%	9.8 -24%	4.9 38%	4.4 44%	3.5 56%	6.15 ?(2.48 - 9.8, n=12) 22%	9.48 ?(1.9 - 45.7, n=116, last 2 years) -20%
Idle Average *	10.1	6.4 37%	7 31%	12 -19%	7.1 30%	6 41%	3.6 64%	7.64 ?(3.6 - 12.1, n=12) 24%	11.4 ?(1.9 - 47.5, n=115, last 2 years) -13%
Idle Maximum *	10.3	10.1 2%	9.3 10%	13.5 -31%	7.3 29%	9.7 6%	6.2 40%	9.46 ?(4.89 - 13.9, n=12) 8%	14.8 ?(2.6 - 57.1, n=116, last 2 years) -44%
Load Average *	17.3	15.7 9%	18.9 -9%	27.6 -60%	20.6 -19%	14.6 16%	20.4 -18%	19.1 ?(12.9 - 27.6, n=12) -10%	56.6 ?(11.3 - 170.6, n=116, last 2 years) -227%
Load Maximum *	31.6	28.1 11%	30 5%	46.2 -46%	26.2 17%	30.2 4%	25 21%	30.3 ?(21.1 - 46.2, n=12) 4%	95.6 ?(18.1 - 315, n=116, last 2 years) -203%

* ... smaller is better

Power consumption with an external monitor

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø10.3 (10.2-10.4)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø6.9 (6.46-10.1)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø13.5 (13.1-15.6)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Idle 1min (external Monitor): Ø6.07 (5.03-9.79)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 1920x1080 The Witcher 3 ultra (external Monitor): Ø31.1 (30.4-36.1)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 Prime95 28.10 and Furmark 1.25: Ø17.3 (16.5-34)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 Prime95 28.10 and Furmark 1.25: Ø15.3 (14.5-27.6)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 1280x720 Prime95 28.10 and Furmark 1.25: Ø43.4 (41.2-46.2)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø14.3 (12.7-27.7)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); 3DMark06 Return To Proxycon: Ø17.3 (15.9-21)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); 3DMark06 Return To Proxycon: Ø15.7 (10.4-26.3)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 3DMark06 Return To Proxycon: Ø27.5 (20.2-31.7)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; 3DMark06 Return To Proxycon: Ø14.7 (12.8-22.4)

Power consumption with an external monitor

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø16.5 (15.9-31.6)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø15.6 (13.7-28.1)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø37.1 (32.3-37.9)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Prime95 V2810 Stress (external Monitor): Ø14.1 (12.1-30.2)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø16.9 (15.6-26)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø16.2 (13.8-23.4)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø28.4 (27.3-30.4)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Cinebench R15 Multi (external Monitor): Ø13.6 (11.7-28.8)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Single (external Monitor): Ø16.3 (13.6-20.6)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Single (external Monitor): Ø14.9 (12.7-21.8)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Single (external Monitor): Ø23.2 (22.3-29.4)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Cinebench R23 Single (external Monitor): Ø12.6 (10.9-28.5)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Multi (external Monitor): Ø16.3 (15.7-26)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Multi (external Monitor): Ø15.3 (13.8-23.8)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Multi (external Monitor): Ø28.5 (28-30.4)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Cinebench R23 Multi (external Monitor): Ø12.9 (11.7-29.3)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø17.1 (16.4-25.3)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø13.6 (12.9-16.5)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø27.3 (26.2-36.2)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø14.2 (12.3-24.7)

Pro

+ caixa muito estável

+ baixa necessidade de energia

+ alimentação de energia possível via PoE

+ operação silenciosa

+ muitas portas USB

+ desempenho estável da CPU

+ calor distribuído uniformemente pelo gabinete

Contra

- baixo desempenho gráfico

- sem WLAN

- apenas 8 GB de DDR4 a 2666 MT/s

Veredicto - Um mini PC especial para tarefas especiais

Avaliação do Newsmay AC8F-POE - fornecido pela Newsmay

O Newsmay AC8F-POE certamente não é um mini PC clássico para uso diário no escritório, embora o dispositivo venha equipado basicamente com componentes de hardware semelhantes aos de seus concorrentes. O Intel N100 é definitivamente uma boa escolha, mesmo que o SoC tenha estreado há mais de um ano. Em nossa análise, o SoC com resfriamento passivo oferece um desempenho sólido. A unidade de resfriamento lida excepcionalmente bem com o baixo consumo de energia e, termicamente, o Newsmay AC8F-POE nunca apresenta problemas. Em termos de portas, visualmente, fica claro que o Newsmay AC8F-POE é um mini PC projetado para casos de uso especiais. Muitas portas LAN 2,5G oferecem a possibilidade de gerenciar várias redes simultaneamente, o que significa que o dispositivo pode ser usado como um firewall. Em combinação com uma conexão de dados móveis, o computador também pode ser usado como um roteador móvel. No entanto, isso requer hardware adicional, pois não há um módulo 4G ou 5G integrado.

O Newsmay AC8F-POE oferece muitas possibilidades não cobertas por outros mini PCs. A capacidade de fornecer energia via LAN é uma das maiores vantagens em relação aos mini PCs alternativos.

Como o Newsmay AC8F-POE usa principalmente uma pequena distribuição Linux, o tamanho da RAM e do armazenamento em massa é colocado em perspectiva. Em comparação com o Windows, as versões do Linux especialmente adaptadas são um pouco mais fáceis para o hardware e exigem menos recursos. Os 8 GB de RAM e 128 GB de armazenamento no sistema que nos foi fornecido como base são simplesmente insuficientes. Felizmente, esses componentes-chave não são instalações fixas e podem ser trocados ou expandidos rapidamente.

O gabinete sólido, de aparência industrial, é bem trabalhado e também é um elemento de resfriamento passivo impressionante. Por esse motivo, a Newsmay poderia ter disponibilizado mais desempenho para o Intel N100. Com 15 watts de potência sustentada, o senhor obteria um pouco mais de desempenho sem ficar muito irritado com uma unidade de resfriamento significativamente mais barulhenta. O robusto elemento de resfriamento do Newsmay AC8F-POE certamente tem o suficiente em termos de reservas de desempenho.

Preço e disponibilidade

O Newsmay AC8F-POE está listado na Amazon. Se o senhor planeja importar o dispositivo para a UE, os impostos adicionais aumentarão consideravelmente o custo total do dispositivo.

Newsmay AC8F-POE - 2024-07-01 07/01/2024 v8
Sebastian Bade

Acabamento

87 / 98 → 89%

Conectividade

31 / 81 → 39%

Peso

72%

Desempenho do jogos

7 / 80 → 9%

Desempenho da aplicação

57 / 92 → 62%

AI Performance

36%

Temperatura

87%

Ruído

100%

Médio

47%

61%

Mini PC - Médio equilibrado

CO2 Emissions
No Data

Materials
50%

Packaging
25%

Power Use
63.6%

Repairability
50%

Software Updates
0%

Total Sustainability Score: 31.4%

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Editor of the original article: Andrew Dickson - Translator - 106 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 440213 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Análise do Newsmay AC8F-POE: Um mini PC com suporte a PoE e Intel N100 para ambientes profissionais

Sebastian Bade, 2024-07- 4 (Update: 2024-07- 4)

Cinebench R15 CPU Multi 64 Bit comparado com
Toshiba Satellite W30Dt-A-100 (min) A4-1200, Radeon HD 8180	33
...
Minisforum Venus Series UN100L N100, UHD Graphics 24EUs (Alder Lake-N)	296
Toshiba Portege Z30t-B1320W10 5600U, HD Graphics 5500	296
Acer Aspire E1-772G 54208G1TMnsk 4200M, GeForce 820M	298
Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	298
HP Envy 15-j011sg 4200M, GeForce GT 740M	298
MSI CX61-i572M 4200M, GeForce GT 720M	298
Lenovo IdeaPad Z510 4200M, GeForce GT 740M	299
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

3DMark 11 comparado com
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Lenovo ThinkPad 13-20J2S00G00 i7-7500U, HD Graphics 620	1619
Lenovo Ideapad 310-15IKB i5-7200U, HD Graphics 620	1621
Asus Zenbook UX330UA-FC059T 6500U, HD Graphics 520	1626
Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	1626
Samsung Serie 3 355E7C-S05DE A8-4500M, Radeon HD 7640G + HD 7670M Dual Graphics	1628
Samsung Serie 3 355E7C-S05DE A8-4500M, Radeon HD 7640G + HD 7670M Dual Graphics	1628
Fujitsu LifeBook U937 i5-7200U, HD Graphics 620	1628
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163
